REPAIR PARTS
GDS8 80% Furnace
GDS80453AXCA
GDS80453AXCB
GDS80703AXCA
GDS80703AXCB
GDS80904BXCA
GDS80904BXCB
GDS81155CXCA
GDS81155CXCB
This manual is to be used by qualified technicians only. |
This manual replaces RP-564 |
|
|
© 2009-2010 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 |
|
|
|
|
RP-564A |
www.goodmanmfg.com |
March 2010 |
Important Information |
|
Index |
|
Functional Parts List ................................................................................................... |
3 |
Illustration and Parts ................................................................................................... |
4 - 9 |
Views shown are for parts illustrations only, not servicing procedures.
Rev. A: Added CB revision models.
Text Codes:
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity |
Example (QTY 3) (If Quantity not shown, Quantity = 1) |
|
M - Model |
Example (M1) (If M Code not shown, then part is used on all Models) |
|
Expanded Model Nomenclature: |
||
|
|
|
Example |
|
|
M1 - Model#1 |
|
|
M2 - Model#2 |
|
|
M3 - Model#3 |
|
|
|
|
|
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.
For assistance within the U.S.A. contact:
Consumer Affairs Department Goodman Manufacturing Company, L.P. 7401 Security Way
Houston, Texas 77040 877-254-4729-Telephone 713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
International Division
Goodman ManufCompany,cturingL.P.Company, L.P.
7401 Security Way Houston, Texas 77040 713-861-2500-Telephone 713-863-2382-Facsimile
2 |
www.goodmanmfg.com |
RP-564A |
Functional Parts
Part
No: Description:
Expanded Model Nomenclature

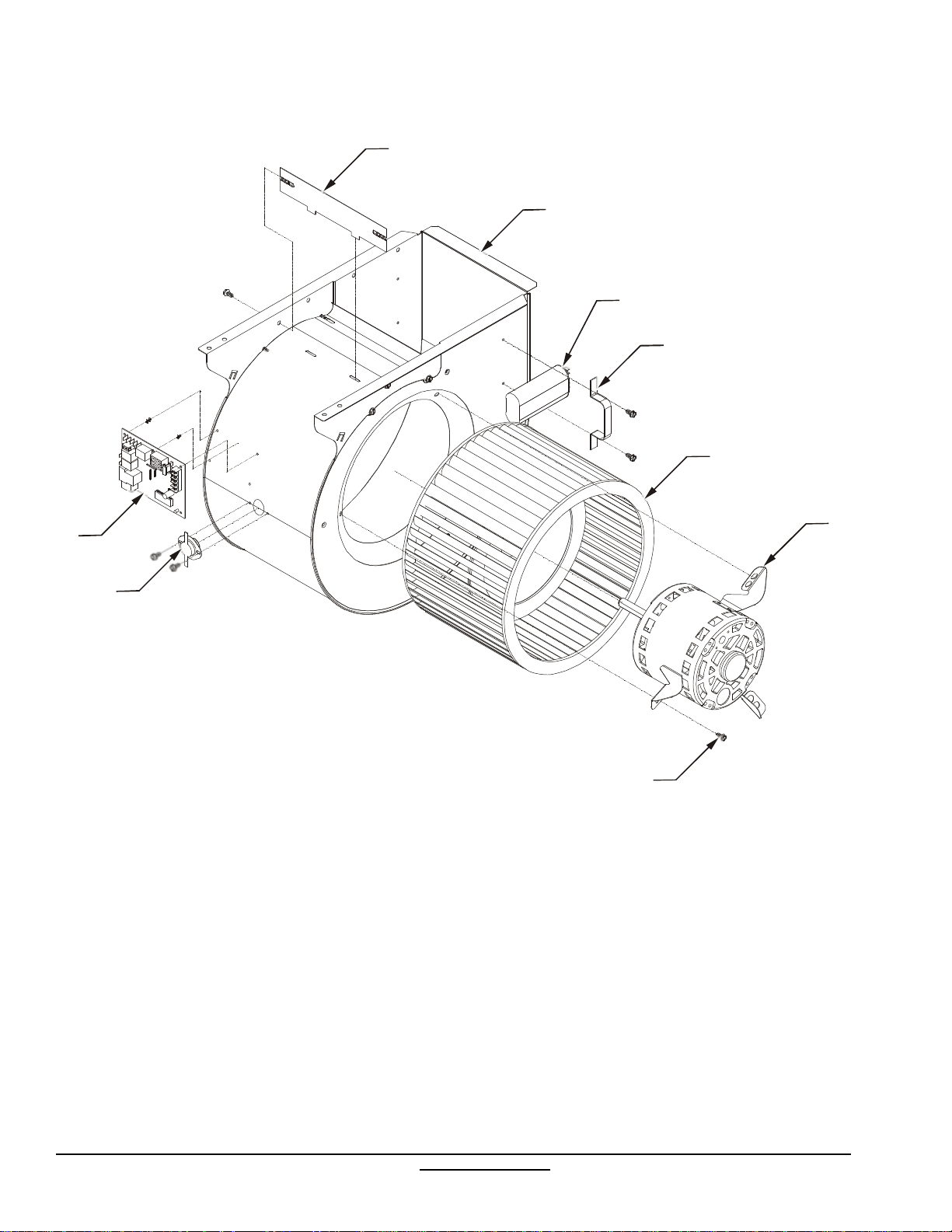

2539307S |
BLOWER HOUSING 10 X 10 (M7, M8) |
2539305S |
BLOWER HOUSING 10 X 6 (M1, M2, M3, M4) |
2539306S |
BLOWER HOUSING 10 X 8 (M5, M6) |
0131F00022 |
BLOWER MOTOR 1/2 HP, 4 SP, 6 PL (M5, M6) |
20046618S |
BLOWER MOTOR 3/4 HP (M7, M8) |
B1368047A |
BLOWER WHEEL 10 X 10 (M7, M8) |
B1368034S |
BLOWER WHEEL 10 X 6 (M1, M2, M3, M4) |
B1368016S |
BLOWER WHEEL 10 X 8 (M5, M6) |
CAP125000370RPS |
CAPACITOR 12.5/370V (M1, M2, M3, M4) |
CAP200000440RPS |
CAPACITOR 20/370V (M5, M6) |
CAP250000370RPS |
CAPACITOR 25/370V (M7, M8) |
0130F00010 |
FLAME SENSOR |
B1282628 |
GAS VALVE (36G) (M1, M3, M5, M7) |
0151M00013 |
GAS VALVE (HONEYWELL 1 STG) (M2, M4, |
|
M6, M8) |
PCBBF123S |
IGNITION BOARD, HSI INTEGRATED |
20165703S |
IGNITOR |
B1370818 |
INTERLOCK SWITCH |
10123529 |
MANUAL RESET LIMIT |
0131F00021 |
MOTOR, 1/3HP, 4SP, 6PL (M1, M2, M3, M4) |
10716003 |
ORIFICE (QTY AR) |
0130F00038 |
PRIMARY LIMIT - LT BLUE 120º |
0130F00036 |
PRIMARY LIMIT - PINK (M5, M6, M7, M8) |
0130F00035 |
PRIMARY LIMIT - PURPLE 220º (M1, M2, M3, |
|
M4) |
B1141605 |
TRANSFORMER 120V TO 24V, 40 VA |
0131M00002S |
VENT MOTOR |
SPECIAL PARTS
0161F00007 |
GOODMAN NAMEPLATE |
HI-115A |
HOMEOWNERS INSTRUCTIONS (M1, M3, |
|
M5, M7) |
HI-115B |
HOMEOWNERS INSTRUCTIONS (M2, M4, |
|
M6, M8) |
IO-669 |
INSTALL-HUMIDIFIER |
IO-359C |
INSTR, INSTL & OPER (M1, M3, M5, M7) |
IO-359D |
INSTR, INSTL & OPER (M2, M4, M6, M8) |
M1 - GDS80453AXCA
M2 - GDS80453AXCB
M3 - GDS80703AXCA
M4 - GDS80703AXCB
M5 - GDS80904BXCA
M6 - GDS80904BXCB
M7 - GDS81155CXCA
M8 - GDS81155CXCB
RP-564A |
www.goodmanmfg.com |
3 |
