General 90-030 User Manual

SETUP & OPERATION MANUAL

FEATURES

Sturdy welded steel frame & precision-balanced
wheels with replaceable tires.

Easy-to-assemble open-based steel stand.

Precision blade guide bearings included.

Miter gauge with auxiliary aluminum crosscut
fence included.

Quick-release blade tension for fast blade
changes.

Hinged doors and easily accessible blade
tension knob, for fast blade changes and
adjustments.

Large stable cast-iron table with slide-out steel
extension wing.

Includes goose-neck style worklight.

Smooth running durable 1/3 HP motor.

Convenient blade tracking window.

Safety lock-out switch with removable key to
prevent unauthorized use.

Multi-size dust port fits 4”, 3”, or 2” hose.

SPECIFICATIONS

• Wheel size
10” (254 mm)

• Wheel speed
1134 rpm

• Blade speed
2920 lin. fpm

• Maximum blade width
1/2” (12 mm)

• Minimum blade width
1/8” (3 mm)

• Blade length
67 1/2” (1712 mm)

• Table size
13 3/8” x 13 1/8” (340 x 335 mm)

• Table tilt
0° to 45° (right)

• Table height
42” (1067 mm)

• Maximum width of cut
9 5/8” (245 mm)

• Maximum depth of cut
4 1/16” (103 mm)

• Dust port
4”, 3” and 2” (102, 76 or 51mm)

• Base dimensions (l x w)
15 1/2” x 12 1/2” (395 x 310 mm)

• Motor
1/3 HP, 120 V, 3.3 A

• Weight
80 lbs (36 kg)

Version #1_Revision #1 - November 2014

© Copyright General International

10” WOOD CUTTING BANDSAW

MODEL

#

90-030

GENERAL® INTERNATIONAL

8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3

Telephone [phone] • Fax [phone] • www.general.ca

THANK YOU

for choosing this General® International model 90-030
10” Wood Cutting Bandsaw. This bandsaw has been carefully tested and inspected before
shipment and if properly used and maintained, will provide you with years of reliable service.
For your safety, as well as to ensure optimum performance and trouble-free operation, and to
get the most from your investment, please take the time to read this manual before assembling,
installing and operating the unit.

The manual’s purpose is to familiarize you with the safe operation, basic function, and
features of this bandsaw as well as the set-up, maintenance and identification of its parts and
components. This manual is not intended as a substitute for formal woodworking instruction,
nor to offer the user instruction in the craft of woodworking. If you are not sure about the safety
of performing a certain operation or procedure, do not proceed until you can confirm, from
knowledgeable and qualified sources, that it is safe to do so.

Once you’ve read through these instructions, keep this manual handy for future reference.

DISCLAIMER: The information and specifications

in this manual pertain to the unit as it was supplied
from the factory at the time of printing. Because we
are committed to making constant improvements,
General® International reserves the right to make
changes to components, parts or features of this unit
as deemed necessary, without prior notice and without
obligation to install any such changes on previously
delivered units. Reasonable care is taken at the factory
to ensure that the specifications and information in this
manual corresponds with that of the unit with which it

was supplied. However, special orders and “after factory”
modifications may render some or all information in
this manual inapplicable to your machine. Further,
as several generations of this model of wood cutting
Bandsaw and several versions of this manual may be
in circulation, if you own an earlier or later version of
this unit, this manual may not depict your unit exactly. If
you have any doubts or questions contact your retailer
or our support line with the model and serial number of
your unit for clarification.

GENERAL® INTERNATIONAL WARRANTY

All component parts of General® International and Excalibur by General International® products
are carefully inspected during all stages of production and each unit is thoroughly inspected upon
completion of assembly.

Limited Lifetime Warranty

Because of our commitment to quality and customer satisfaction, General® International agrees to
repair or replace any part or component which upon examination, proves to be defective in either
workmanship or material to the original purchaser for the life of the tool. However, the Limited Lifetime
Warranty does not cover any product used for professional or commercial production purposes nor
for industrial or educational applications. Such cases are covered by our Standard 2-year Limited
Warranty only. The Limited Lifetime Warranty is also subject to the “Conditions and Exceptions” as listed
below.

Standard 2-Year Limited Warranty

All products not covered by our lifetime warranty including products used in commercial, industrial
and educational applications are warranted for a period of 2 years (24 months) from the date of
purchase. General® International agrees to repair or replace any part or component which upon
examination, proves to be defective in either workmanship or material to the original purchaser during
this 2-year warranty period, subject to the “conditions and exceptions” as listed below.

To file a Claim

To file a claim under our Standard 2-year Limited Warranty or under our Limited Lifetime Warranty,
all defective parts, components or machinery must be returned freight or postage prepaid to
General® International, or to a nearby distributor, repair center or other location designated by
General® International. For further details call our service department at 1-888-949-1161 or your local
distributor for assistance when filing your claim.

Along with the return of the product being claimed for warranty, a copy of the original proof of purchase
and a “letter of claim” must be included (a warranty claim form can also be used and can be obtained,
upon request, from General® International or an authorized distributor) clearly stating the model and
serial number of the unit (if applicable) and including an explanation of the complaint or presumed
defect in material or workmanship.

CONDITIONS AND EXCEPTIONS:

This coverage is extended to the original purchaser only. Prior warranty registration is not required but
documented proof of purchase i.e. a copy of original sales invoice or receipt showing the date and
location of the purchase as well as the purchase price paid, must be provided at the time of claim.

Warranty does not include failures, breakage or defects deemed after inspection by
General® International to have been directly or indirectly caused by or resulting from; improper use,
or lack of or improper maintenance, misuse or abuse, negligence, accidents, damage in handling or
transport, or normal wear and tear of any generally considered consumable parts or components.

Repairs made without the written consent of General® International will void all warranty.

TABLE OF CONTENTS

Rules for safe operation ..................................................................................................... 5

Electrical requirements ...................................................................................................... 6

Grounding instructions ....................................................................................................................................... 6

Circuit capacity .................................................................................................................................................. 6

Extension cords ................................................................................................................................................... 6

Identification of main parts and components .................................................................. 7

Unpacking .......................................................................................................................... 8

Basic functions ................................................................................................................... 9

Cleaning............................................................................................................................. 9

Placement within the shop / Safety zone .......................................................................... 9

Assembly instructions ................................................................................................. 10-12

Assembling the stand ....................................................................................................................................... 10

Attaching the machine to stand ..................................................................................................................... 11

Installing the table and the 90° stop ......................................................................................................... 11-12

Installing the rip fence ...................................................................................................................................... 12

Basic adjustments & controls ..................................................................................... 13-18

Connecting to a power source .......................................................................................................................13

On/Off power switch .........................................................................................................................................13

Choosing and changing blades ............................................................................................................... 13-15

Adjusting the blade tension ............................................................................................................................ 15

Adjusting the blade tracking ...................................................................................................................... 15-16

Adjusting the upper blade guides ................................................................................................................. 17

Adjusting the lower blade guides ................................................................................................................... 17

Adjusting the upper thrust guide .................................................................................................................... 17

Adjusting the lower thrust guide ..................................................................................................................... 18

Adjusting the upper blade guard .................................................................................................................. 18

Operating Instructions ................................................................................................ 18-20

Checklist before starting .................................................................................................................................. 18

Connecting to a dust collector ....................................................................................................................... 19

Cutting curves ................................................................................................................................................... 19

Cutting circles .................................................................................................................................................... 19

Using the miter gauge ...................................................................................................................................... 20

Maintenance ............................................................................................................... 20-21

Cleaning ............................................................................................................................................................ 20

Wheel tires .......................................................................................................................................................... 20

Motor .................................................................................................................................................................. 20

Lubrication ......................................................................................................................................................... 20

Changing the belt and aligning the pulleys ................................................................................................. 21

Parts list & diagram .................................................................................................... 22-24

Contact information ........................................................................................................ 26

RULES FOR SAFE OPERATION

To help ensure safe operation, please take a moment to learn the machine’s applications and limitations,
as well as potential hazards. General
harmless for any injury that may result from the improper use of it’s equipment.

1. Do not operate the bandsaw when tired, distracted
or under the effects of drugs, alcohol or any medI­ cation that impairs reflexes or alertness.

2. The work area should be well lit, clean and free
of debris.

3. Keep children and visitors at a safe distance when
the bandsaw is in operation; do not permit them to
operate the bandsaw.

4. Childproof and tamper proof your shop and all
machinery with locks, master electrical switches and
switch keys, to prevent unauthorized or unsupervised
use.

5. STAY ALERT! Give your work your undivided attention.
Even a momentary distraction can lead to serious
injury.

6. Fine particulate dust is a carcinogen that can be
hazardous to health. Work in a well-ventilated area.
Wear face, eye, ear, respiratory and body
protection devices.

7. Do not wear loose clothing, gloves, bracelets,
necklaces or other jewelry while the bandsaw is in
operation.

8. Be sure that adjusting wrenches, tools, drinks and
other clutter are removed from the machine and/or
the table surface before operating.

9. Keep hands well away from the blade and all
moving parts. Use a brush, not hands, to clear away
chips and dust.

10. Adjust and position the blade guard as
close as possible to the workpiece.

11. Adjust blade tension and tracking before starting to
cut.

12. Blade teeth must point down toward the table.

13. Be sure that the blade has gained full operating
speed before starting to cut.

14. Always use a clean, properly sharpened blade.
Dirty or dull blades are unsafe and can lead to
accidents.

®

International disclaims any real or implied warranty and hold itself

15. Use suitable workpiece support if the workpiece
does not have a flat surface.

16. Do not work on long stock without adequate
support on the out feed end of the table.

17. Do not push or force stock into the blade. The band­ saw will perform better and more safely when work­ ing at the rate for which it was designed.

18. Avoid working from awkward or off balance posi­ tions. Do not overreach and keep both feet on floor.

19. Keep guards in place and in working order. If a
guard must be removed for maintenance or clean­ ing be sure it is properly re-attached before using
the saw again.

20. Never leave the machine unattended while it is run­ ning or with the power on.

21. Use of parts and accessories NOT recommended
by General
malfunction or risk of injury.

22. Never stand on machinery. Serious injury could re­ sult if the tool is tipped over or if the blade is
unintentionally contacted.

23. Always disconnect the saw from the power
source before servicing or changing accessories
such as blades, or before performing any mainte­ nance or cleaning, or if the machine will be left
unattended.

24. Make sure that the switch is in the “OFF” position
before plugging in the power cord.

25. Make sure the machine is properly grounded. If
equipped with a 3-prong plug it should be used with
a three-pole receptacle. Never remove the third
prong.

26. Do not use this bandsaw for other than
its intended use. If used for other purposes,
General® International disclaims any real or
implied warranty andholds itself harmless for any in
jury, which may resultfrom that use.

®

International may result in equipment

5

ELECTRICAL REQUIREMENTS

BEFORE CONNECTING THE MACHINE TO THE POWER SOURCE, VERIFY THAT THE VOLTAGE OF YOUR POWER SUP­PLY CORRESPONDS WITH THE VOLTAGE SPECIFIED ON THE MOTOR I.D. NAMEPLATE. A POWER SOURCE WITH
GREATER VOLTAGE THAN NEEDED CAN RESULT IN SERIOUS INJURY TO THE USER AS WELL AS DAMAGE TO THE
MACHINE. IF IN DOUBT, CONTACT A QUALIFIED ELECTRICIAN BEFORE CONNECTING TO THE POWER SOURCE.

THIS TOOL IS FOR INDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN WET OR DAMP LOCATIONS.

GROUNDING INSTRUCTIONS

In the event of an electrical malfunction or short circuit,
grounding reduces the risk of electric shock. The motor
of this machine is wired for 120 V single phase operation
and is equipped with a 3-conductor cord and a 3-prong
grounding plug A to fit a grounded type receptacle B.

Do not remove the 3rd prong (grounding pin) to make
it fit into an old 2-hole wall socket or extension cord. If
an adaptor plug is used C, it must be attached to the
metal screw of the receptacle.

Note: The use of an adaptor plug is illegal in some
areas. Check your local codes. If you have any doubts
or if the supplied plug does not correspond to your
electrical outlet, consult a qualified electrician before
proceeding.

A

B

C

CIRCUIT CAPACITY

Make sure that the wires in your circuit are capable of handling the amperage draw from your machine, as well
as any other machines that could be operating on the same circuit.

If you are unsure, consult a qualified electrician. If the circuit breaker trips or the fuse blows regularly, your machine
may be operating on a circuit that is close to its amperage draw capacity. However, if an unusual amperage
draw does not exist and a power failure still occurs, contact a qualified technician or our service department.

EXTENSION CORDS

If you find it necessary to use an extension cord with your machine, use only 3-wire extension cords that have
3-prong grounding plug and a matching 3-pole receptacle that accepts the tool’s plug. Repair or replace a dam­aged extension cord or plug immediately. Make sure the cord rating is suitable for the amperage listed on the
motor I.D. plate.

An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The accompanying
chart shows the correct size extension cord to be used based on cord length and motor I.D. plate amp rating. If in
doubt, use the next heavier gauge. The smaller the number, the heavier the gauge.

TABLE - MINIMUM GAUGE FOR CORD

EXTENSION CORD LENGTH

AMPERES 50 feet 100 feet 200 feet 300 feet

< 5

6 to 10

10 to 12

12 to 16

*NR = Not Recommended

18 16 16 14

18 16 14 12

16 16 14 12

14 12 *NR *NR

6

IDENTIFICATION OF MAIN PARTS AND COMPONENTS

F

G

H

D

C

E

I

J

K

B

L

M

A

A. STAND

B. RIP FENCE

C. ON/OFF SWITCH WITH REMOVABLE KEY

D. WORKLIGHT SWITCH

E. UPPER WHEEL DOOR

F. BLADE TENSION KNOB

G. UPPER DOOR LOCK KNOB

H. BLADE GUARD LOCK KNOB

I. WORKLIGHT

J. BLADE

K. MITER GAUGE

L. LOWER DOOR LOCK KNOB

M. LOWER WHEEL DOOR

7

UNPACKING

Carefully unpack and remove the unit and its components from the box and check for missing or damaged items
as per the list of contents below.

NOTE: PLEASE REPORT ANY DAMAGED OR MISSING ITEMS TO YOUR GENERAL® INTERNATIONAL DISTRIBUTOR IMMEDIATELY.

LIST OF CONTENTS QTY

A. WORK TABLE ............................................................................ 1

B. MITER GAUGE .......................................................................... 1

C. RIP FENCE ............................................................................... 1

D. LOCK KNOB ............................................................................. 4

E. FENCE RAIL .............................................................................. 1

F. SUPPORT LEG ........................................................................... 4

G. CROSS BRACE (LONG) ........................................................... 2

H. CROSS BRACE (SHORT) ........................................................... 2

I. STAND RUBBER FOOT............................................................... 4

J. PUSH STICK ............................................................................... 1

K. 10 & 13 MM WRENCH ............................................................. 1

L. 3 MM ALLEN KEY ..................................................................... 1

M. CARRIAGE BOLT ..................................................................... 16

N. HEXAGONAL BOLT (M6X12) ................................................... 4

O. LOCK WASHER ......................................................................... 4

P. HEX BOLT (M6X30) .................................................................. 1

Q. NUT .......................................................................................... 1

R. WASHER .................................................................................. 20

S. NUT ......................................................................................... 16

ADDITIONAL REQUIREMENTS FOR SET UP

A. 2 EXTRA PEOPLE FOR HELP WITH LIFTING
B. 14 MM WRENCH
C. 3 & 5 MM ALLEN KEYS
D. SQUARE

A

B

D

C

D

A

E

F

G

H

B

I

C

K

L

M

N

O

P

Q

R

S

J

8

BASIC FUNCTIONS

This 10” Wood Cutting Bandsaw is supplied with a 1/2” general purpose blade and is designed to accommodate
blade widths from 1/8” to 1/2”. Ideal blade length for this model 90-030 is 67 1/2” (1712 mm). Note: Generally

speaking, because the upper wheel height is somewhat adjustable (to allow for blade tensioning), a blade
length variation of plus or minus 1/4” from the “ideal blade length” can be accommodated.

Maximum inboard width of cut is 10”. For cutting thicker stock or for resawing, the maximum depth of cut (or max.
workpiece height) is 4 1/8”. An adjustable rip fence is supplied to serve as a straightedge to guide the workpiece
for longer rip cuts. The fence can easily be removed and set aside when not required, for example when making
curved cuts.

CLEANING

The protective coating on the saw table prevents rust
from forming during shipping and storage. Remove it
by rubbing with a rag dipped in kerosene, mineral spir­its or paint thinner. (Dispose of potentially flammable
solvent-soaked rags according to manufacturer’s safe­ty recommendations).

A putty knife, held flat to avoid scratching the surface,
may also be used to scrape off the coating followed by
clean-up with solvent. Avoid rubbing the saw’s painted
surfaces, as many solvent-based products will remove
paint.

To prevent rust, apply a light coating of paste wax or
use regular applications of any after-market surface
protectant or rust inhibitor.

TIP: WITH A SCREW DRIVER, PUSH A SOLVENT-SATURATED
RAG INTO THE T-SLOTS TO REMOVE THE GREASE.

PLACEMENT WITHIN THE SHOP / SAFETY ZONE

PLACEMENT WITHIN THE SHOP

This machine should be installed and operated only on
a solid, flat and stable floor that is able to support the
weight of the machine

Using the dimensions shown as a guideline, plan for
placement within your shop that will allow the operator
to work unencumbered and unobstructed by foot traf­fic (either passing shop visitors or other shop workers)
or other tools or machinery.

ESTABLISHING A SAFETY ZONE

For shops with frequent visitors or multiple operators,
it is advisable to establish a safety zone around shop
machinery. A clearly defined “no-go” zone on the floor
around each machine can help avoid accidents that
could cause injury to either the operator or the shop
visitor.

It is advisable to take a few moments to either paint
(using non-slip paint) or using tape, define on the floor
the limits or perimeter of each machines safety zone.

Take steps to ensure that all operators and shop visi­tors are aware that these areas are off limits whenever
a machine is running for everyone but the individual
operating the unit.

(80 lbs - 36 kg) and the operator.

60"

21 1/4"

18 1/8"

9

ASSEMBLY INSTRUCTIONS

BEFORE ASSEMBLING, MAKE SURE THAT THE SWITCH IS IN THE “OFF” POSITION AND THAT THE POWER CORD IS
UNPLUGGED. DO NOT PLUG IN OR TURN ON THE MACHINE UNTIL YOU HAVE COMPLETED THE ASSEMBLY AND
INSTALLATION STEPS DESCRIBED IN THIS SECTION OF THE MANUAL.

ASSEMBLING THE STAND

1. Attach two stand legs and a small cross brace us-

ing the carriage bolts, flat washers and nuts.

Note: Tighten the nuts by hand only.

3. Attach a third stand leg using the carriage bolts,

flat washers and nuts.

Note: Tighten the nuts by hand only.

2. Repeat with the two longer cross braces as shown.

Note: Tighten the nuts by hand only.

4. Repeat with the last leg. Secure the four cross

braces tightening the bolts, flat washers and the
nuts with a 13 mm wrench.

5. Slide a rubber foot on each leg. 6. Place the assembled stand upright on a flat surface.

10

BEFORE ASSEMBLING, MAKE SURE THAT THE SWITCH IS IN THE “OFF” POSITION AND THAT THE POWER CORD IS
UNPLUGGED. DO NOT PLUG IN OR TURN ON THE MACHINE UNTIL YOU HAVE COMPLETED THE ASSEMBLY AND
INSTALLATION STEPS DESCRIBED IN THIS SECTION OF THE MANUAL.

ATTACHING THE MACHINE TO STAND

THE BANDSAW IS HEAVY. DO NOT OVER-EXERT. THE HELP OF ASSISTANTS WILL BE NEEDED FOR THE FOLLOWING STEP.
DO NOT GRIP THE BANDSAW BY THE LOWER WHEEL COVER DOOR WHEN LIFTING. KEEP HANDS AWAY FROM BLADE
AT ALL TIMES.

A

1. Place the machine on the stand with the help of

two assistants.

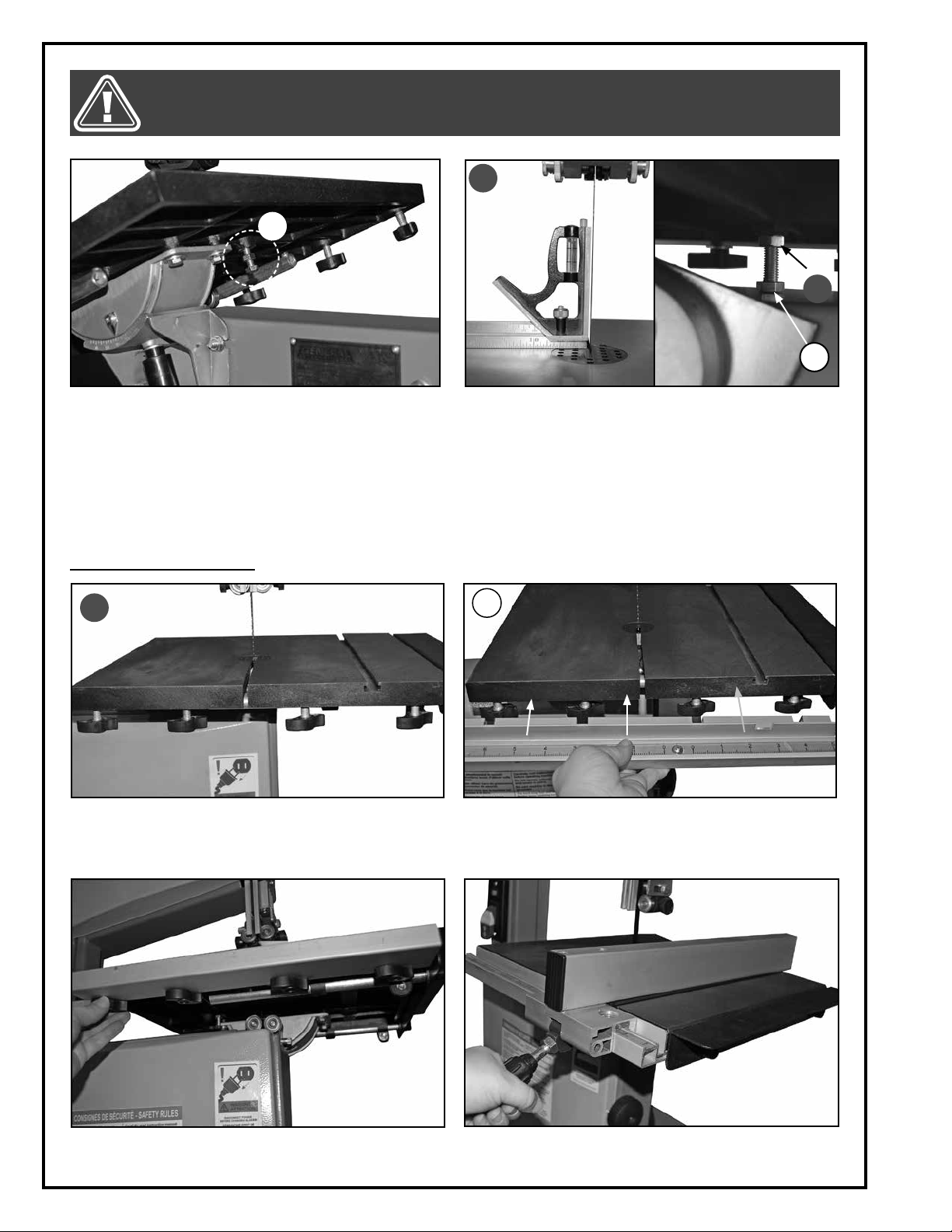

INSTALLING THE TABLE AND THE 90° STOP

1. Install the table on its base by guiding the blade

through the table slot as shown.

2. Secure the machine to the stand using carriage

bolts, flat washers, nuts, and a 13 mm wrench, and
tighten all the stand mounting nuts A.

2. Using a 10 mm wrench, secure the table to its base

by tightening the four supplied cap screws and four
flat washers,

A B

3. Loosen the table by turning the lock lever counter-

clockwise.

4. Pull on the lever A and press down on the table to

tilt it, in order to install the stop bolt.

11

BEFORE ASSEMBLING, MAKE SURE THAT THE SWITCH IS IN THE “OFF” POSITION AND THAT THE POWER CORD IS
UNPLUGGED. DO NOT PLUG IN OR TURN ON THE MACHINE UNTIL YOU HAVE COMPLETED THE ASSEMBLY AND
INSTALLATION STEPS DESCRIBED IN THIS SECTION OF THE MANUAL.

D

C

F

E

5. Screw the table stop bolt with jam nut in the mount-

ing hole C under the table, and then set the table
in the horizontal position by hand.

INSTALLING THE RIP FENCE

G

1. Loosely screw the four lock knobs in the mounting

holes in the underside of the table as shown.

6. Place a combination square on the table against
the blade D, and adjust the table until threre is no
space between the square and the blade. Tighten
the lock lever. Loosen the table bolt until its head
touches the machine E, and then tighten the jam
nut F.

H

2. Fit the rail onto the lock knobs as shown.

3. Secure the rail in place by tightening the lock

knobs.

12

4. Push down on the handle and place the fence on

the rail.

BASIC ADJUSTMENTS & CONTROLS

TO REDUCE THE RISK OF SHOCK OR FIRE DO NOT OPERATE THE UNIT WITH A DAMAGED POWER CORD OR PLUG. RE­PLACE DAMAGED CORD OR PLUG IMMEDIATELY. TO AVOID UNEXPECTED OR UNINTENTIONAL START-UP, MAKE SURE
THE POWER SWITCH IS IN THE OFF POSITION BEFORE CONNECTING TO A POWER SOURCE.

CONNECTING TO A POWER SOURCE

Once the assembly steps have been completed, plug
the power cord into an appropriate outlet.

Refer back to the section entitled “Electrical Require
ments” and make sure all requirements and grounding
instructions are followed. When operations have been
completed unplug the saw from the power source.

ON/OFF POWER SWITCH

The bandsaw is equipped with a work lamp fixed to
the frame, the switch is positioned above the ON / OFF
rocker switch A.

The bandsaw is equipped with a rocker type ON/OFF
switch that is equipped with a lock-out key.

To prevent unwanted or unauthorized start-up or usage
remove the lock-out key D and store it in a safe place.

To start the bandsaw, insert the lock-out key and pull up
on the switch B.

To stop the bandsaw, push down on the switch C. When
the saw comes to a complete stop, remove the lock-out
key D by gently pulling it outward.

-

A

SWITCH OFF

TO AVOID UNEXPECTED OR UNINTENTIONAL
START-UP, MAKE SURE THAT THE POWER SWITCH
IS IN THE OFF POSITION BEFORE CONNECTING
TO A POWER SOURCE.

B

POWER ON

C

POWER OFF LOCK-OUT KEY

D

(PREVENTS START-UP WHEN REMOVED)

CHOOSING AND CHANGING THE BLADE

There are a variety of different types of bandsaw blades on the
market to suit various cutting applications. The accompanying
“Blade Selection” chart provides a general reference tool; your
results may vary based on usage, experience and personal pref­erence. Ask your local tool dealer for suggestions for 67 1/2” band­saw blades in 1/8” to 1/2” widths, based on what is available in
your area.

Some general guidelines to consider when choosing bandsaw
blades:

Wider blades with coarse teeth are best suited to cutting straight
lines, re-sawing and for sweeping curves, but will not turn tight

OPERATION

CROSS CUTTING

MITERING

BEVELING

COMPOUND CUTTING

CIRCLE CUTTING See cutting circles

CURVE CUTTING

BLADE SELECTION

RECOMMENDED BLADE

1/4", 3/8", 1/2"

1/4", 3/8", 1/2"

1/4", 3/8", 1/2"

1/4", 3/8", 1/2"

1/8", 1/4"

corners. They will cut quickly and aggressively but do have a ten­dency to bind (get stuck in the cut) if turned to sharply. Narrower,
thinner blades with finer teeth will cut more slowly but can turn much tighter corners for cutting more intricate work.

13

Common causes of blade breakage:

• Poor blade guide alignment and adjustment.

• Forcing or twisting a wide blade around a short ra­dius.

• Feeding the workpiece too quickly.

• Dull teeth.

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

To change blades:

• Too much blade tension.

• Setting the blade guard too high above the work­piece.

• Lumpy or improperly finished braze or weld on the
blade.

• Continuous running blade when not cutting.

A

A

1. Loosen the blade guard lock knob as shown.

3. Loosen the four lock knobs, and remove the fence

rail.

B C

2. Lower the blade guard halfway by turning the knob
A clockwise.

4. Remove the insert from the table using a screw-

driver.

5. Open the upper door by turning the knob B clock-

wise.

14

6. Open the lower door by turning the knob C clock-

wise.

3 mm (1/8")

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

RIGHT SIDE VIEW

D

E

7. Release the blade tension by turning the tension le-

ver D to the right. Carefully remove the blade start­ing on the right as shown.

Note: Pull back the extension table in order to remove the
blade E.

ADJUSTING THE BLADE TENSION

A properly tensioned blade is critical to obtaining maximum performance from any bandsaw. A properly ten­sioned blade will last longer and be much less likely to break prematurely. If the blade tension is too loose you
will notice that the blade will have a tendency to drift or slip off-line when cutting and you will have more difficulty
controlling your cuts. A blade that is tensioned too tightly will break prematurely. This bandsaw is equipped with a
blade tension scale, which can be used as a reference for the ideal setting with various blade widths.

8. To install a blade, repeat the previous steps in re-

verse order, making sure that the blade is installed
with the teeth pointing forward and down as shown.

Note: With the blade installed proceed to the tensioning
and tracking instructions.

A

B

1. Turn the blade tension knob A clockwise, raising

the upper wheel to tighten the blade. Turn the knob
counter-clockwise to lower the upper wheel, loos­ening the blade.

Note: Changes in blade width and the type of material be­ing cut will have an effect on the blade tension.

ADJUSTING THE BLADE TRACKING

Blade tracking means centering the blade on the
wheels A. Ideally, the blade should stay relatively cen­tered on both the upper and lower wheels.

Due to natural variations in castings, blade thickness or
density and tire wear, absolute perfect centering align­ment is rarely attainable. A slight misalignment of the
blade on the wheels is inevitable and as long as it is
kept to a minimum (following the steps listed below) will
not hinder the performance of the saw.

Note: The tension indicator B at the rear of the upper wheel
housing indicates the proper tension for the various blade
widths. Set the tension indicator to correspond with the
width of the blade in use.

A

15

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

This misalignment is controlled and kept to a minimum
by adjusting the tilt angle of the upper wheel. When ad­justing blade tracking to center the blade on the wheels
and assuming that perfect centering is not attainable,
it is preferable to have the blade slightly off-center to­wards the front of the wheels rather than towards the
rear because the teeth on most bandsaw blades have
alternating hook (one inner, one outer) – therefore if the
blade is centered too far back on the wheel (or if the
blade tension is too tight), inner hooked teeth will dig
into the wheel tire and cause premature wear of the
tire. Nonetheless, to avoid having the blade come off of
the wheels on it’s own during operation, the front edge
of the blades teeth should never be any closer than
3 mm (1/8”) from the front edge of the wheel B.

To adjust the blade tracking:

1. Open the upper wheel cover door then rotate the
wheel slowly forward by hand C and check the po­sition of the blade on the wheel. The blade should
remain as centered as possible on the wheel as it
turns.

2. If the blade tracking must be adjusted, loosen the
wing nut D on the tracking adjustment knob E, then
turn the knob:

Clockwise if the blade moves toward the front of the

wheel. This tilts the top of the wheel to the back and
moves the blade toward the center.

Counterclockwise if the blade moves toward the

back edge. This tilts the top of the wheel to the front
and moves the blade toward the center.

Note: Turn the tracking knobs in 1/2 turn increments,

re-check and adjust again as needed.

3. With the tracking set, retighten the wing nut D.

C

3 mm (1/8")

Wheel

D

B

E

Note: The upper and lower wheels are factory set to allow
for easy and optimal blade tracking adjustments using the
primary blade tracking adjustment knob, which adjusts the
angle of tilt of the upper wheel.

In extremely rare cases, if acceptable blade tracking can­not be attained through the primary adjustment it may
eventually become necessary to make minor adjustments
to the angle of tilt of the lower wheel.

The four bolts F may be adjusted in or out to tilt the lower
wheel up/down or left/right as needed. Once the adjust­ment is finished, retighten the the jam nuts.

16

F

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

AJUSTING THE UPPER BLADE GUIDES

RIGHT SIDE VIEW

A A

1. Loosen the two knurled nuts A.

AJUSTING THE LOWER BLADE GUIDES

B

2. Adjust blade guides B to at least 1/32” behind the

teeth of the blade to avoid damage during cutting.
Retighten the two knurled nuts A.

1/32”

C

E

D

1/32”

1. With 3mm Allen key loosen the blade guide screw D.2. Adjust blade guides E to at least 1/32” behind the

teeth of the blade to avoid damage during cut­ting. Retighten screws D, then repeat on the second
guide.

AJUSTING THE UPPER THRUST BEARING

1. For the upper thrust bearing, loosen the bolt with a

10 mm wrench as shown.

A

1/64”

2. Then manually adjust the thrust bearing shaft A in

or out until the bearing is 1/64” behind the blade.
Retighten the bolt.

17

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFOR­MING ANY MAINTENANCE OR ADJUSTMENTS.

ADJUSTING THE LOWER THRUST BEARING

B

A

B

1/64"

1. To adjust the lower thrust bearing (under the table),
loosen bolt A with a 10 mm wrench.

ADJUSTING THE UPPER BLADE GUARD

The upper blade guard should be adjusted based on
the height of the workpiece. To reduce the risk of injury,
a minimum amount of blade should be exposed.

1. Loosen lock knob C and turn knob D to raise or low-

er the guard, and set it 1/8” - 1/4” above the work­piece.

2. Re-tighten the lock knob C, before turning on the

saw.

4. Then manually adjust the thrust bearing shaft B in

or out until the bearing is 1/64” behind the blade.
Retighten the bolt A.

C

D

OPERATING INSTRUCTIONS

CHECKLIST BEFORE STARTING

VERIFY ALL CHECK POINTS BEFORE STARTING. FAILURE TO COMPLY CAN RESULT IN SERIOUS INJURIES.

1. Make sure you and any assistants are wearing safe and appropriate workshop attire.

2. To reduce the risk of damage to the machine, as well as potential for personal injury, after initial set-up as well

as before each use, make sure that everything is securely installed and that all fasteners and moving parts on
this machine are locked in place before starting the machine.

3. Make sure to have on safety glasses as well as hearing or/and respiratory protection at all times when using the

machine.

4. Use only recommended parts and accessories. The use of parts or accessories NOT recommended by

GENERAL® INTERNATIONAL may result in a risk of injury or damage to the machine.

5.

Be sure that adjusting wrenches, tools, drinks and other clutter are removed from the machine and/or the
table surface before operating.

18

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

CONNECTING TO A DUST COLLECTOR

A multi-size dust port fits 4”, 3”, or 2” hose is provided to
accommodate connection to a dust collector (not in
cluded).

Be sure to use appropriate sized hose and fittings (not
included).

Check that all connections are sealed tightly to help
minimize airborne dust. If you do not already own a dust
collection system consider contacting your General®
International distributor for information on our com
plete line of dust collection systems and accessories or
visit our Web Site at www.general.ca.

CUTTING CURVES

• When cutting curves, carefully turn the workpiece so the blade follows without twisting. If the curve is so sharp
that you repeatedly back up and cut new kerf, use a narrower blade, or a blade with more set (teeth further
apart). When a blade has more set, the workpiece turns easier but the cut is rougher.

• When changing a cut, do not withdraw the workpiece from the blade. The blade may get drawn off the
wheels.

• To change a cut, turn the workpiece and cut your way out through the waste material area.

• When cutting long curves, make relief cuts as you go along.

-

-

CUTTING CIRCLES

• Adjust the blade guard assembly to 1/8” above
the workpiece.

• Use both hands while feeding the work into the
blade. Hold the workpiece firmly against the ta­ble. Use gentle pressure. Do not force the work. Al­low the blade to cut.

• The smallest diameter circle that can be cut is de­termined by the width of the blade. For example,
a 1/4” wide blade will cut a minimum diameter of
approximately 1-1/2”.

1/2"D

1/8"

1"D

3/16"

1 1/2"D

1/4"

Min. circle diameter

2"D

3/8"

Blade width

19

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

USING THE MITER GAUGE

A

1. Insert the miter gauge into the “T” slot of the table as

shown.

2. To adjust the fence face, loosen the lock knobs A.

Retighten the knobs to secure the fence in place.

B

3. Loosen handle B, and adjust the fence angle as per

the angle indicator scale, then retighten the handle.

MAINTENANCE

CLEANING

Keep your band saw clean. Sawdust will accumulate under the table, base and in the wheel housings. This could
cause difficulty tilting the table. Frequently blow out or vacuum up the sawdust. Do not allow dirt, pitch or gum to
build up on the table, the guard, or blade guides. Clean as needed with gum and pitch remover.

Note: Do not immerse the bearings in the gum and pitch remover. Put a thin coat of paste wax on the table so that the
wood slides easily while cutting.

WHEEL TIRES

Pitch and sawdust that build up on the tires should be removed with a stiff brush or scraped off with a piece of
wood.

Note: To avoid damaging the tires do not use a sharp knife or any kind of solvent. When the tires become worn they should
be replaced. When replacing the tires, stretch them around the wheels but do not glue then on.

MOTOR

Frequently blow or vacuum out any sawdust from the motor. Follow lubrication instruction on the motor label.

LUBRICATION

All of the bearings are sealed and permanently lubricated. They require no further lubrication.

20

MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM­ING ANY MAINTENANCE OR ADJUSTMENTS.

CHANGING THE BELT AND ALIGNING THE PULLEYS

AA

1. Open the lower wheel cover, and then release bla-
de tension A.

D E

BB C

2. Remove the retention ring B. Remove the wheel C

and the belt.

F

H

G

3. Install the new belt on the pulleys D and re-intall the
wheel D.

5. Make sure the two pulleys are aligned by placing a

straight edge in the front groove of both pulleys and
behind the blade wheel.

7. Adjust the blade tension, tracking, and the upper and lower guides and the thrust bearings before operating
the bandsaw.

4. After placing the belt on the drive pulley F, place the
other end of the belt on the second pulley G. Then
turn the wheel by hand until the belt seats itself in
place H. Re-install the retention ring.

6. To re-adjust the alignment, loosen the set screw with

a 3 mm Allen key to move the pulley on the shaft.
Adjust the pulley in or out on the shaft to align the
two pulleys. When aligned, retighten the set screw.

21

DIAGRAM

90-030

33

73

72

71

70

66

65

69

67

4

7

5

6

68

64

62

63

110

109

125

53

1

126

108

24

124

59

56

32

90

89

122

61

55

51

555352

15

31

60

52

54

50

51

30

29

88

87

43

42

41

40

39

36

38

37

28

27

33

85

86

77

41

84

76

123

39

124

48

47

45

75

41

123

46

35

74

77

76

40

44

79

78

77

80

81

82

83

39

124

3

2

62

9

13

28

105

11

12

10

57

56

101

104

117

118

8

10

58

58

59

102

39

32

103

107

106

52

9

10

10

26

14

15

16

17

18

97

60

98

96

100

95

94

119

116

52

58

58

57

55

21

25

20

19

23

22

52

93

92

39

91

99

120

22

111

112

113

114

113

115

33

121

PARTS LIST

90-030

IMPORTANT: When ordering replacement parts, always give the model number, serial number of the
machine and part number. Also a brief description of each item and quantity desired.

PART# DESCRIPTION SPECIFICATIONS QTY

1 HEX BOLT M6 X 16 2
2 RING 2
3 NUT M6 2
4 LOWER DOOR 1
5 SPRING 2
6 RIVET 4 X 8 4
7 UPPER DOOR 1
8 BLADE 1712 X 10 X 0.35 - 6 TPI 1
9 RETENSION RING 10 2
10 BEARING 6000 4
11 SCREW M5 X 10 3
12 LOCK WASHER 5 3
13 LOWER WHEEL 1
14 PULLEY 1
15 TIRE 2
16 BOLT M20 1
17 SHAFT 1
18 BELT 1
19 SPACER BUSHING 1
20 BRUSH 1
21 CARRIAGE BOLT M8 X 70 1
22 SWITCH PLATE 1
23 SCREW M4 X 12 2
24 WORKLIGHT SWITCH 1
25 MAIN SWITCH 1
26 UPPER WHEEL 1
27 SHAFT SLEEVE 1
28 HEX BOLT M6 X 6 5
29 ECCENTRIC BLOCK 1
30 TENSION MOUNT BLOCK 1
31 HEX BOLT M6 X 12 5
32 NUT M6 1
33 SCREW M4 X 6 10
35 POWER CORD AND PLUG 1
36 WORKLIGHT ASSEMBLY 1
37 LOCK KNOB 1
38 SPRING 1
39 WASHER 8 2
40 NUT 2
41 BLADE TENSION KNOB 3
42 SHAFT 1
43 GEAR 1
44 UPPER BLADE GUARD 1
45 RACK 1
46 COVER PLATE 1
47 SELF-TAPPING SCREW ST3.5 X 9.5 2
48 SELF-TAPPING SCREW ST2.2 X 6.5 1
50 GUIDE BOLT 2
51 SELF-TAPPING SCREW ST4.2 X 13 2
52 BOLT M6 X 12 2

PART# DESCRIPTION SPECIFICATIONS QTY

53 BIG WASHER 6 1
54 GUIDE BEARING SEAT 1
55 KNOB 3
56 BEARING SHAFT 4
57 UPPER GUIDE ASSEMBLY 2
58 BEARING 627 6
59 BEARING SHAFT 2
60 WASHER 6 4
61 GUIDE PLATE 1
62 FLANGE NUT M6 8
63 BRACKET 1
64 SPACER 1
65 SPRING 1
66 TENSION SCALE POINTER 1
67 NUT 1
68 RETENTION RING 6 2
69 UPPER WHEEL SHAFT SEAT 1
70 UPPER WHEEL SHAFT 1
71 NUT M10 1
72 SHAFT 1
73 TENSION SCALE 1
74 END CAP 1
75 TRANSFORMER 1
76 KNOB COVER 1
77 NUT M10 16
78 ADJUSTMENT SHAFT 1
79 RING 1
80 NUT M14 X 1.5 1
81 TENSION LEVER SEAT 1
82 TENSION LEVER ARM 1
83 TENSION LEVER HANDLE M10 1
84 BOLT M8 X 45 1
85 THUMB NUT 1
86 BLADE TRACKING WINDOW 1
87 WASHER 4 2
88 SCREW M4 X 5 2
89 MOTOR 1
90 MOTOR PULLEY 1
91 BOLT M8 X 16 8
92 MOTOR COVER 1
93 LOCK WASHER 6 4
94 SCREW M5 X 12 3
95 DUST PORT 1
96 NUT M5 3
97 KNOB 2
98 HEX BOLT M6 X 25 2
99 TABLE INSERT 1
100 TABLE 1
101 FENCE RAIL 1
102 LOCK KNOB 4

23

PARTS LIST

90-030

IMPORTANT: When ordering replacement parts, always give the model number, serial number of the
machine and part number. Also a brief description of each item and quantity desired.

PART# DESCRIPTION SPECIFICATIONS QTY

103 NUT M6 X 35 1
104 CARRIAGE BOLT M6 X 25 1
105 SLIDING BLOCK 1
106 TRUNION 1
107 SPROCKET WASHER 6 4
108 SUPPORT BRACKET 1
109 KNOB 1
110 CARRIAGE BOLT M6 X 16 4
111 BOLT M10 X 16 2
112 LOCK WASHER 10 2
113 WASHER 10 4
114 EXTENSION TABLE 1

NOTES

PART# DESCRIPTION SPECIFICATIONS QTY

115 EXTENSION TABLE RAILS 2
116 SLIDE CARRIAGE 2
117 SCREW M5 X 10 4
118 NUT 1
119 FOOT PAD 4
120 LEG 4
121 CROSS BRACE (SHORT) 2
122 CROSS BRACE (LONG) 2
123 CARRIAGE BOLT M8 X 16 16
124 NUT M8 16
125 MITER GAUGE ASS’Y 1
126 FENCE 1

24

NOTES

8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3

Tel.: [phone]

Fax: [phone] - Parts & Service / [phone] - Order Desk

[e-mail]

www.general.ca

Follow us:
