2014 SUPER DUTY Owner’s Manual
DUTY2014SUPER
fordowner.com |
ford.ca |
Manual Owner’s
EC3J 19A321 AA | November 2013 | Third Printing | Owner’s Manual | Super Duty | Litho in U.S.A.
The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.
© Ford Motor Company 2013
All rights reserved.
Part Number: 20131018212854
Table of Contents
Introduction |
|
About This Manual........................................... |
7 |
Symbols Glossary............................................. |
7 |
Data Recording.................................................. |
9 |
California Proposition 65.............................. |
11 |
Perchlorate......................................................... |
11 |
Ford Credit.......................................................... |
11 |
Replacement Parts |
|
Recommendation....................................... |
12 |
Special Notices................................................ |
12 |
Mobile Communications |
|
Equipment..................................................... |
13 |
Export Unique Options.................................. |
13 |
Child Safety |
|
General Information....................................... |
15 |
Installing Child Seats..................................... |
16 |
Booster Seats.................................................. |
24 |
Child Seat Positioning.................................. |
26 |
Child Safety Locks.......................................... |
27 |
Safety Belts |
|
Principle of Operation.................................. |
28 |
Fastening the Safety Belts.......................... |
29 |

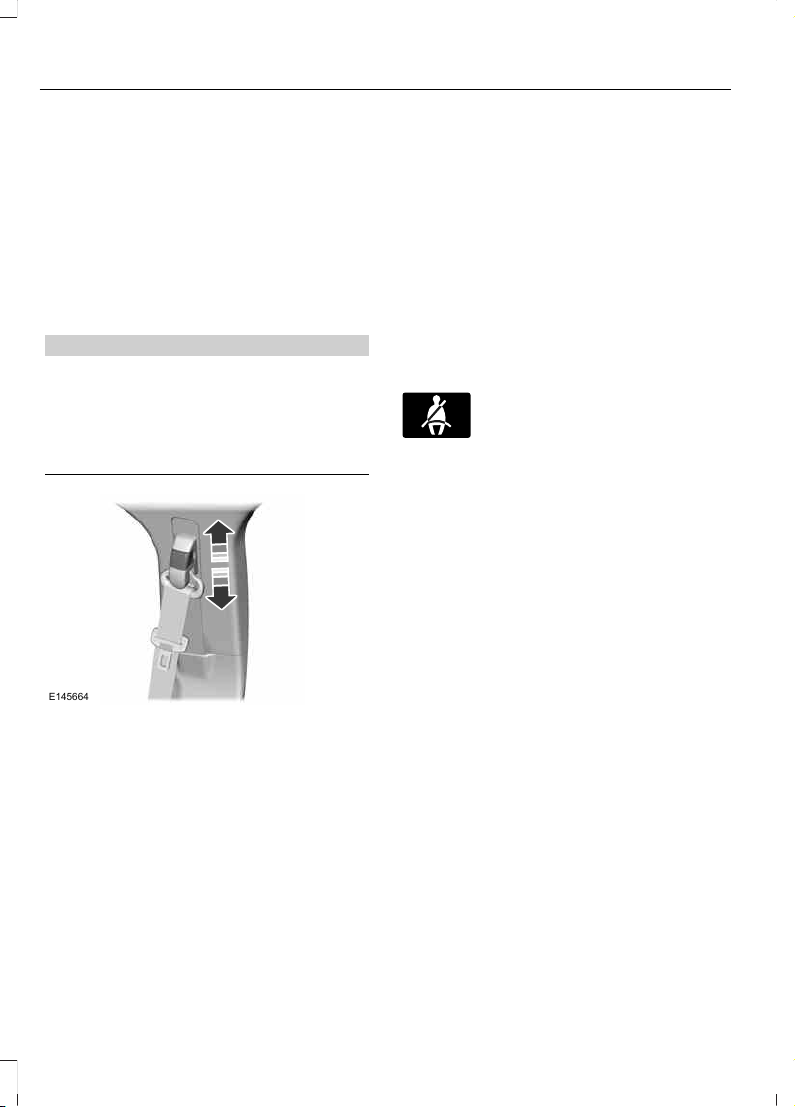

Safety Belt Height Adjustment................. |
32 |
Safety Belt Warning Lamp and Indicator |
|
Chime.............................................................. |
32 |
Safety Belt Minder......................................... |
33 |
Child Restraint and Safety Belt |
|
Maintenance................................................ |
35 |
Supplementary Restraints |
|
System |
|
Principle of Operation.................................. |
36 |

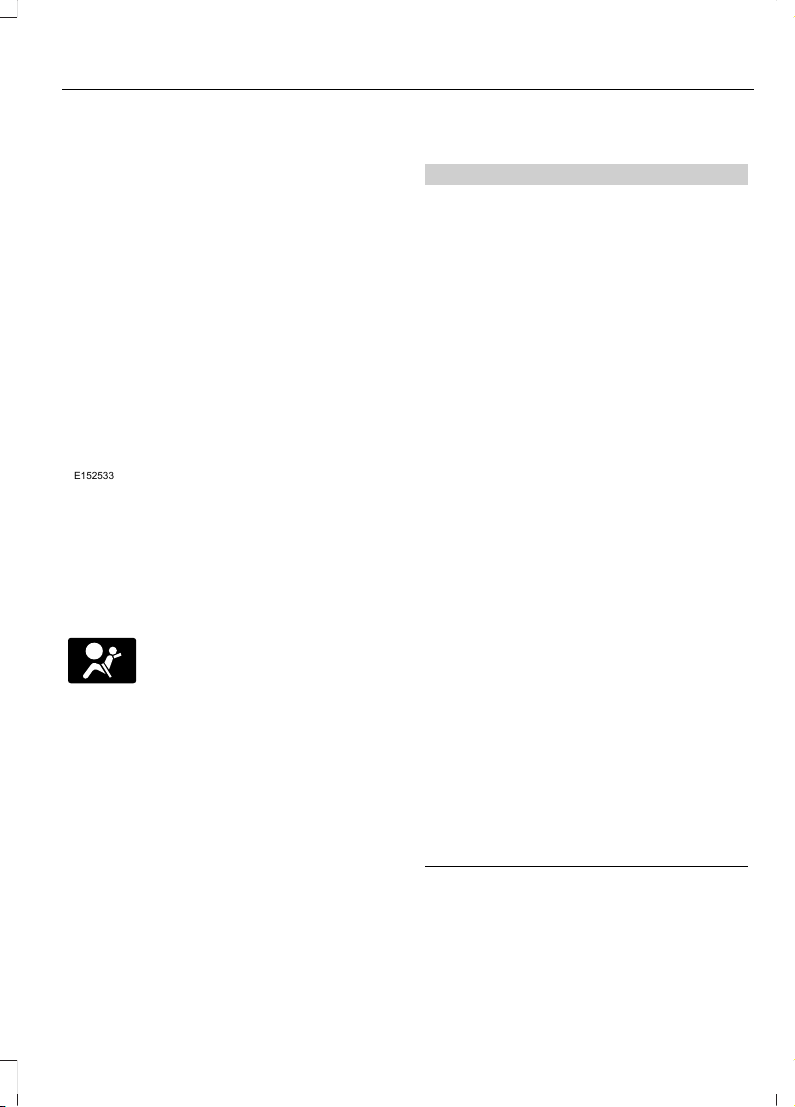

Driver and Passenger Airbags.................... |
37 |
Side Airbags..................................................... |
42 |
Safety Canopy™............................................ |
43 |
Crash Sensors and Airbag Indicator....... |
44 |
Airbag Disposal............................................... |
45 |
Keys and Remote Controls |
|
General Information on Radio |
|
Frequencies................................................. |
46 |
Remote Control.............................................. |
46 |
Replacing a Lost Key or Remote |
|
Control........................................................... |
49 |
MyKey™ |
|
Principle of Operation.................................. |
50 |
Creating a MyKey........................................... |
50 |
Clearing All MyKeys....................................... |
52 |
Checking MyKey System Status............... |
52 |
Using MyKey With Remote Start |
|
Systems......................................................... |
52 |
MyKey Troubleshooting............................... |
53 |
Locks |
|
Locking and Unlocking................................. |
54 |
Keyless Entry.................................................... |
55 |
Security |
|
Passive Anti-Theft System........................ |
58 |
Anti-Theft Alarm............................................ |
59 |
Steering Wheel |
|
Adjusting the Steering Wheel................... |
60 |

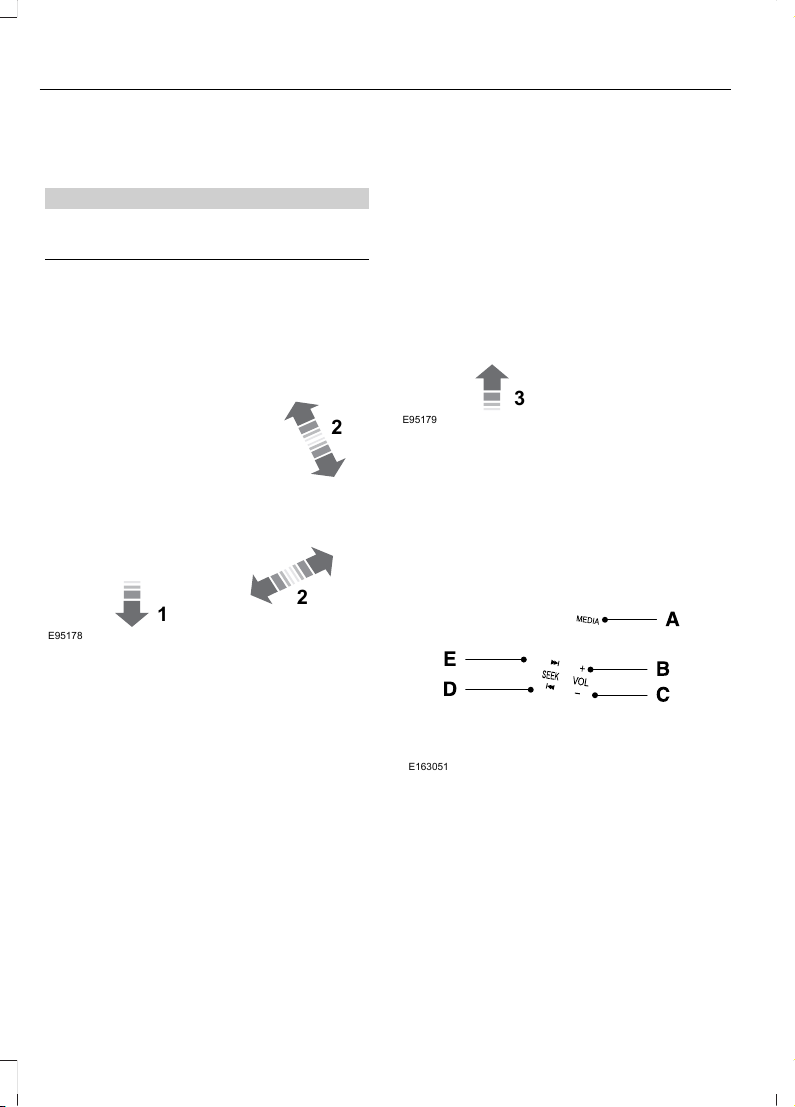

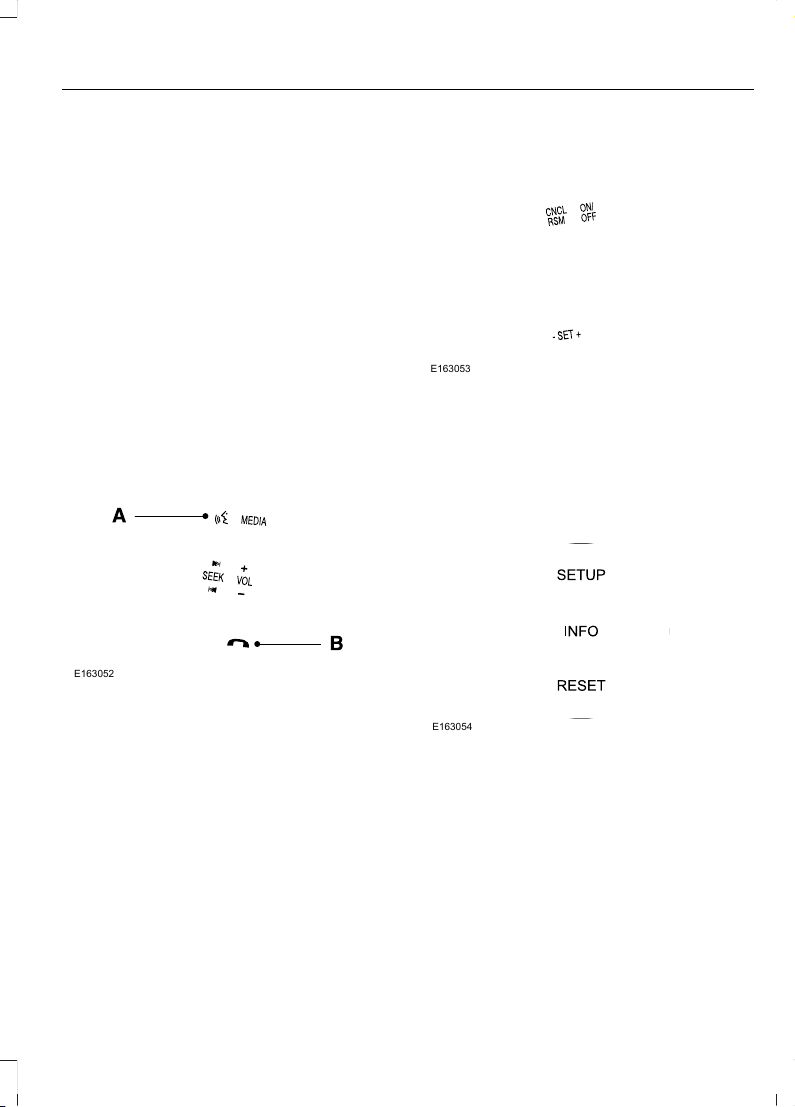

Audio Control.................................................. |
60 |
Voice Control.................................................... |
61 |
Cruise Control................................................... |
61 |
Information Display Control........................ |
61 |
Heated Steering Wheel................................ |
62 |
Pedals |
|
Adjusting the Pedals..................................... |
63 |
Wipers and Washers |
|
Windshield Wipers........................................ |
64 |
Windshield Washers..................................... |
64 |
1
Super Duty (TFA)
Table of Contents
Lighting |
|
Lighting Control.............................................. |
65 |
Autolamps........................................................ |
65 |
Instrument Lighting Dimmer..................... |
66 |
Daytime Running Lamps............................ |
66 |
Front Fog Lamps............................................ |
67 |
Direction Indicators........................................ |
67 |
Interior Lamps................................................. |
67 |
Windows and Mirrors |
|

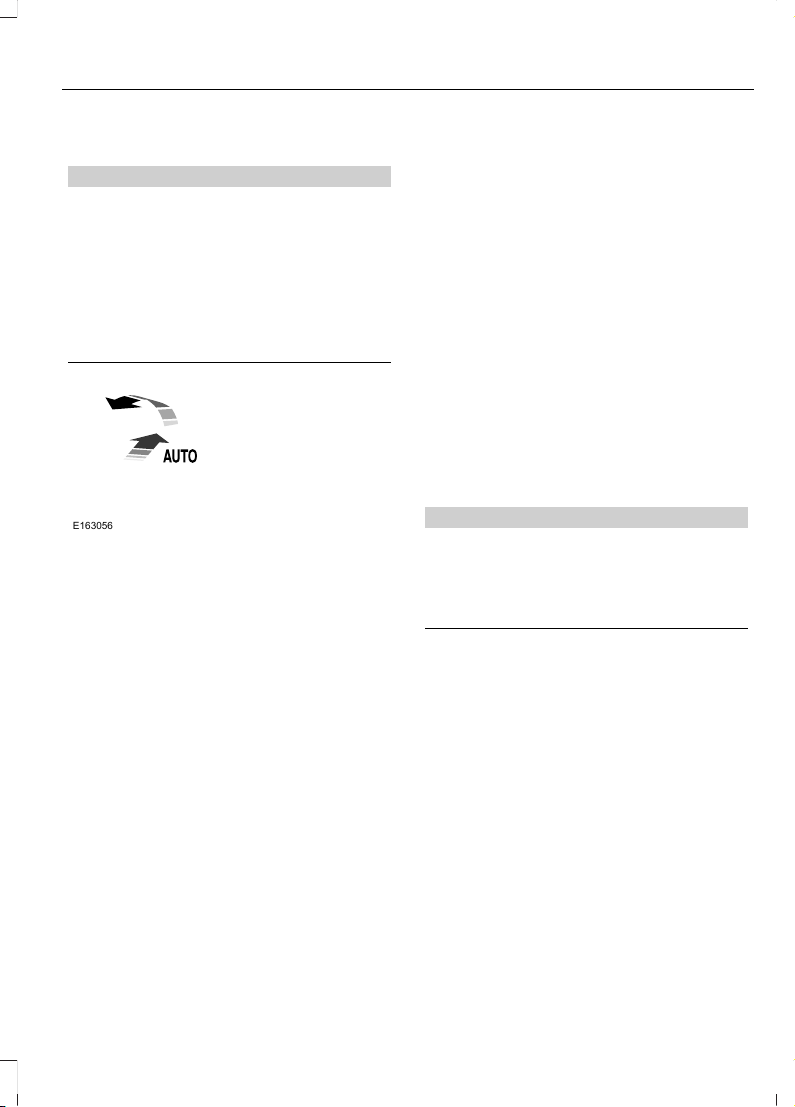

Power Windows............................................. |
69 |
Global Opening............................................... |
70 |
Exterior Mirrors................................................ |
70 |
Interior Mirror.................................................... |
72 |
Sun Visors.......................................................... |
73 |

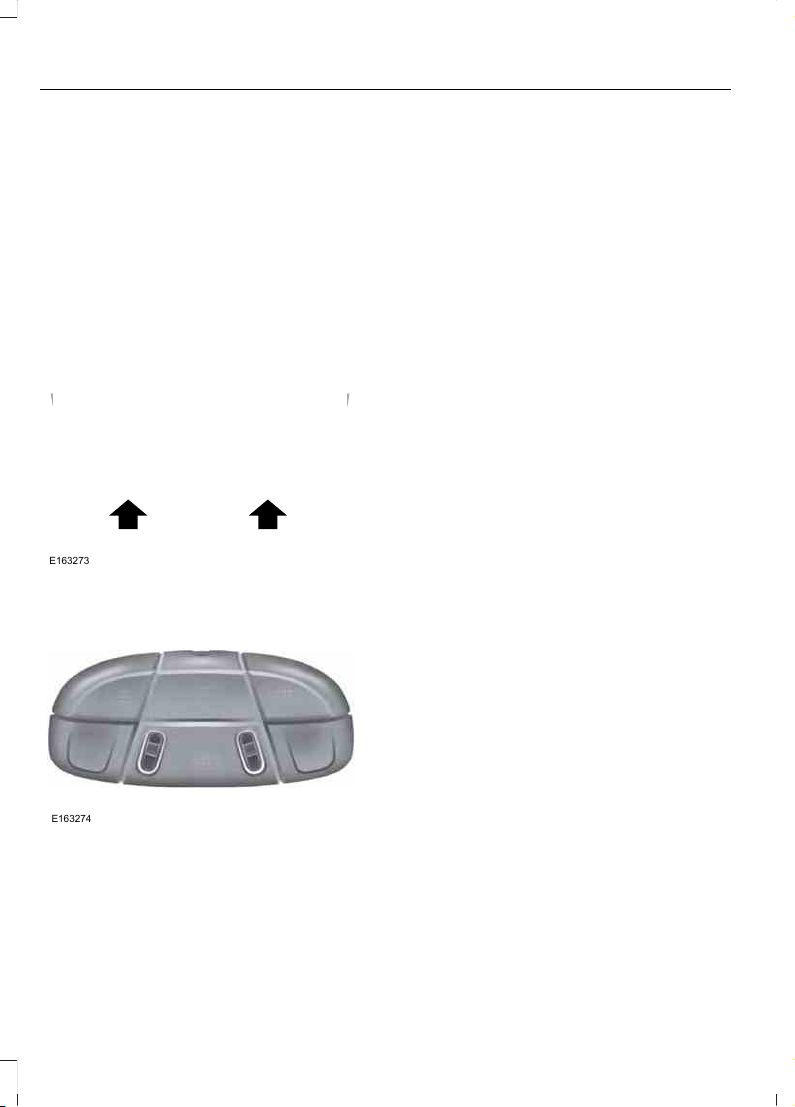

Moonroof........................................................... |
73 |

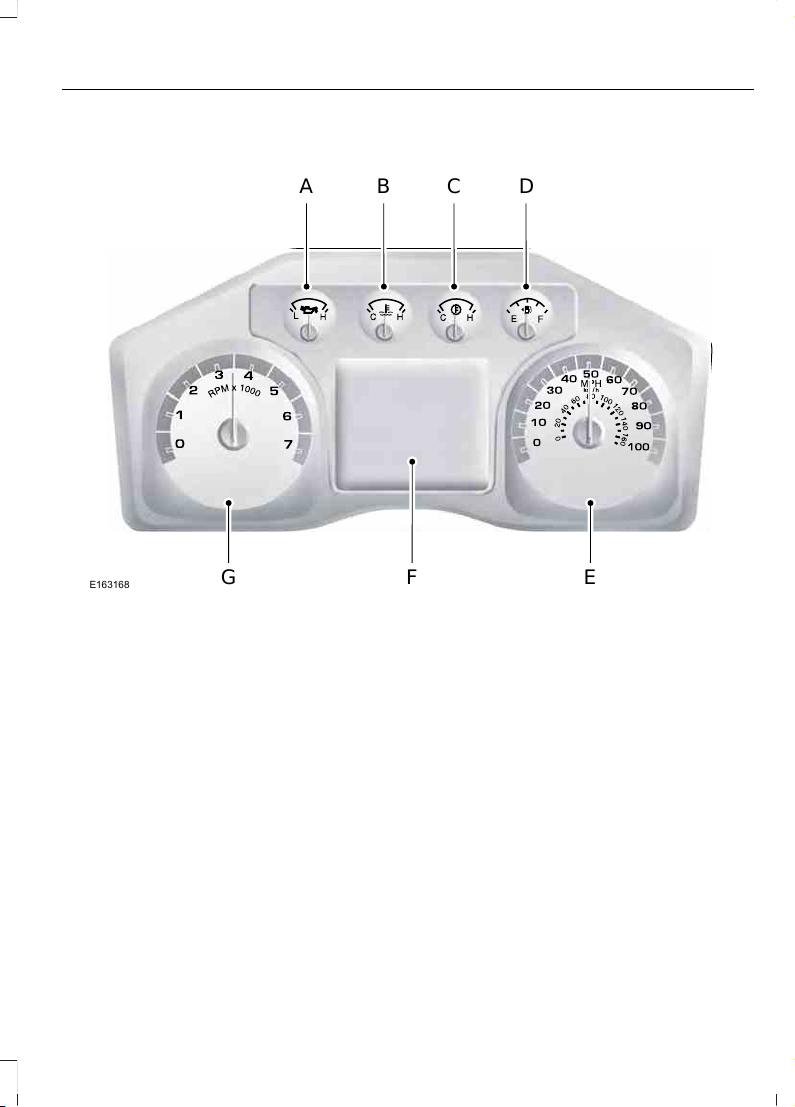

Instrument Cluster |
|
Gauges................................................................ |
75 |

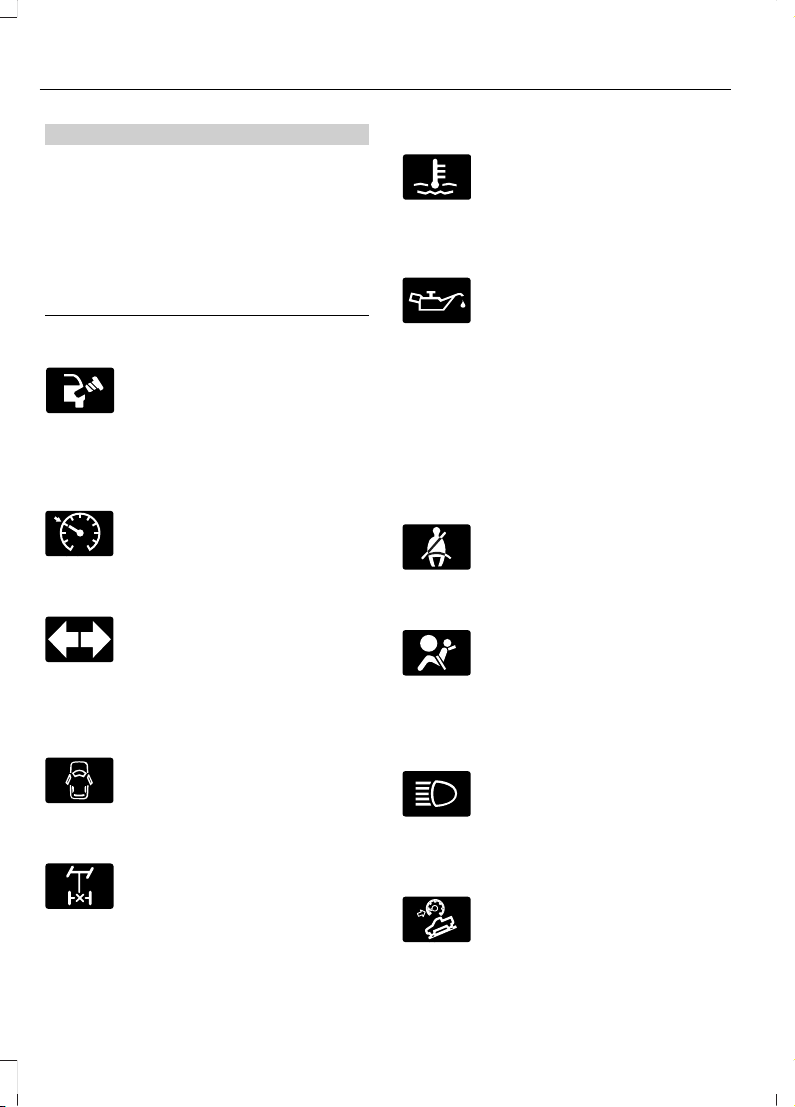

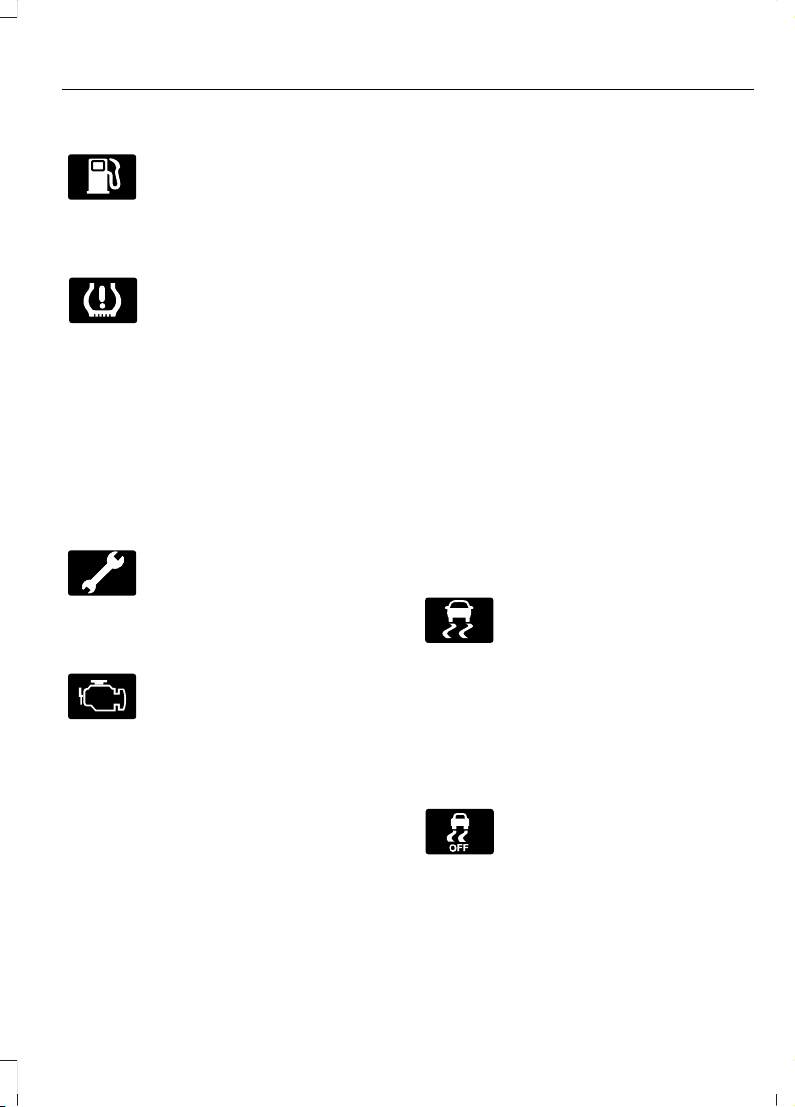

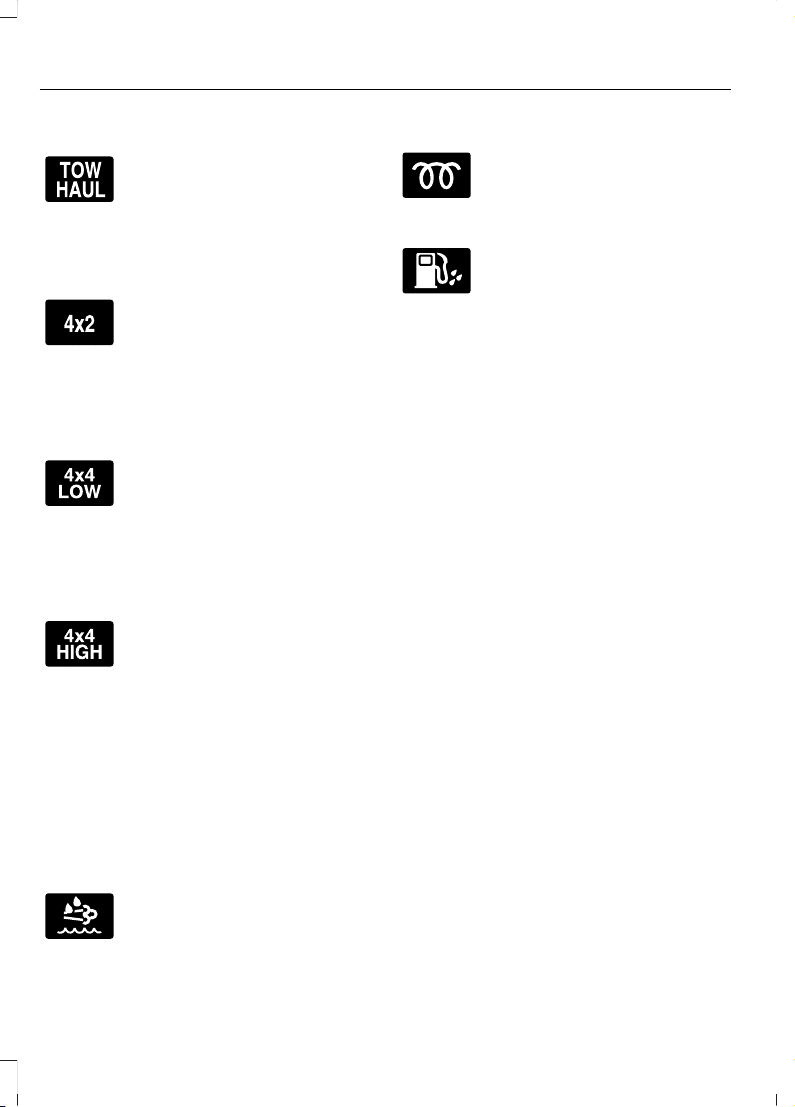

Warning Lamps and Indicators.................. |
77 |
Audible Warnings and Indicators............ |
80 |
Information Displays |
|

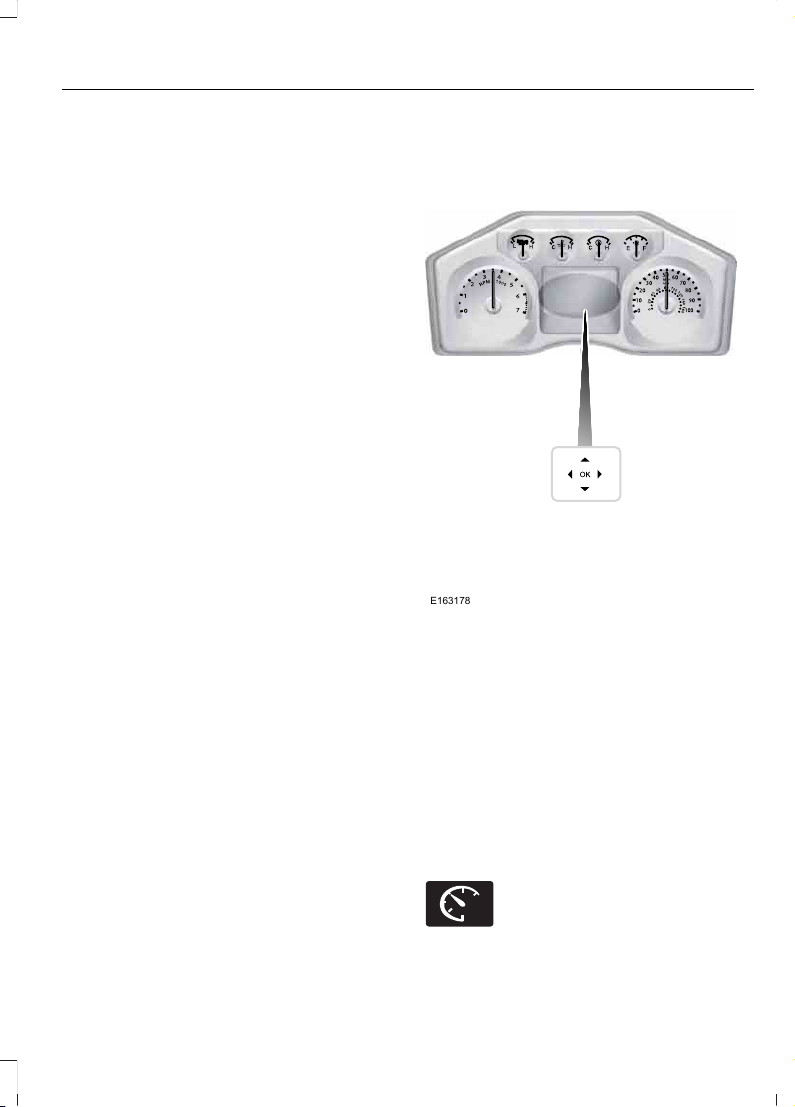

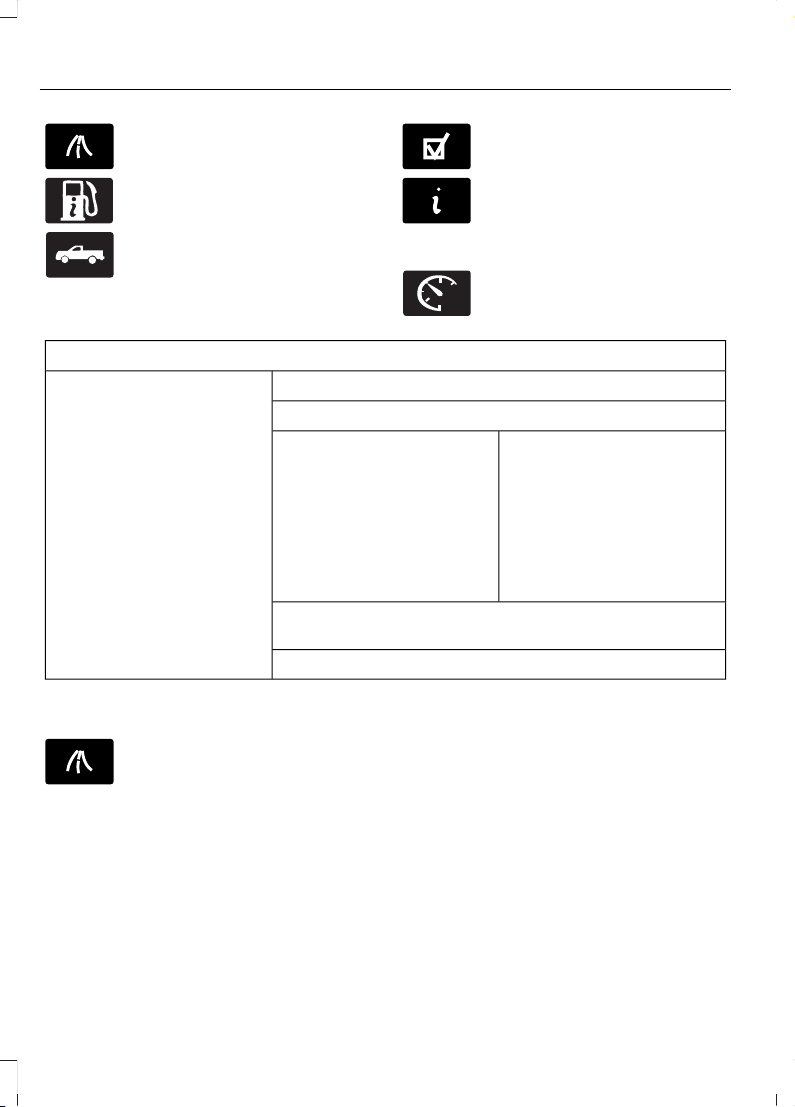

General Information....................................... |
81 |
Information Messages.................................. |
92 |
Climate Control |
|
Manual Climate Control............................ |
103 |
Automatic Climate Control...................... |
104 |
Hints on Controlling the Interior |
|
Climate......................................................... |
105 |
Heated Windows and Mirrors.................. |
106 |
Remote Start................................................. |
106 |
Seats |
|
Sitting in the Correct Position................. |
108 |
Head Restraints............................................ |
108 |
Manual Seats.................................................. |
110 |
Power Seats...................................................... |
111 |
2
Memory Function............................................ |
111 |
Rear Seats........................................................ |
112 |
Heated Seats................................................... |
115 |
Ventilated Seats............................................ |
116 |
Front Seat Armrest........................................ |
117 |
Rear Seat Armrest......................................... |
118 |
Universal Garage Door |
|
Opener |
|
Universal Garage Door Opener................ |
119 |
Auxiliary Power Points |
|
Auxiliary Power Points................................. |
127 |
Storage Compartments |
|
Center Console.............................................. |
129 |
Overhead Console........................................ |
129 |
Starting and Stopping the |
|
Engine |
|
General Information.................................... |
130 |
Ignition Switch............................................... |
130 |
Starting a Gasoline Engine......................... |
131 |
Engine Block Heater..................................... |
132 |
Fuel and Refueling |
|
Safety Precautions....................................... |
134 |
Fuel Quality..................................................... |
135 |
Running Out of Fuel.................................... |
136 |
Refueling.......................................................... |
136 |
Fuel Consumption........................................ |
138 |
Emission Control System.......................... |
139 |
Transmission |
|
Automatic Transmission............................ |
142 |
Power Take-Off............................................. |
148 |
Four-Wheel Drive |
|
Using Four-Wheel Drive............................. |
149 |
Super Duty (TFA)
Table of Contents
Rear Axle |
|
Limited Slip Differential............................. |
158 |
Electronic Locking Differential................ |
158 |
Brakes |
|
General Information.................................... |
160 |
Hints on Driving With Anti-Lock |
|
Brakes........................................................... |
160 |
Parking Brake.................................................. |
161 |
Hill Start Assist............................................... |
161 |
Traction Control |
|
Principle of Operation................................. |
163 |
Using Traction Control................................ |
163 |
Stability Control |
|
Principle of Operation................................. |
165 |
Using Stability Control............................... |
165 |
Terrain Response |
|
Principle of Operation................................ |
168 |
Using Hill Descent Control........................ |
168 |
Parking Aids |
|
Parking Aid...................................................... |
170 |
Rear View Camera......................................... |
171 |
Cruise Control |
|
Principle of Operation................................. |
174 |
Using Cruise Control.................................... |
174 |
Driving Aids |
|
Steering............................................................. |
175 |
Load Carrying |
|
Load Limit........................................................ |
176 |
Tailgate............................................................. |
183 |
Towing |
|
Towing a Trailer.............................................. |
187 |
Trailer Sway Control.................................... |
188 |
Recommended Towing Weights............ |
188 |
Essential Towing Checks........................... |
189 |
Towing Points................................................ |
196 |
Transporting the Vehicle............................ |
197 |
Towing the Vehicle on Four Wheels...... |
198 |
Driving Hints |
|
Breaking-In.................................................... |
200 |
Economical Driving.................................... |
200 |
Driving Through Water................................ |
201 |
Floor Mats....................................................... |
201 |
Snowplowing................................................ |
202 |
Roadside Emergencies |
|
Roadside Assistance................................. |
204 |
Hazard Warning Flashers......................... |
205 |
Fuel Shutoff.................................................. |
205 |
Jump-Starting the Vehicle....................... |
205 |
Post-Crash Alert System.......................... |
207 |
Customer Assistance |
|
Getting the Services You Need.............. |
208 |
In California (U.S. Only)............................ |
209 |
The Better Business Bureau (BBB) Auto |
|
Line Program (U.S. Only)...................... |
210 |
Utilizing the Mediation/Arbitration |
|
Program (Canada Only)........................ |
210 |
Getting Assistance Outside the U.S. and |
|
Canada.......................................................... |
211 |
Ordering Additional Owner's |
|
Literature...................................................... |
212 |
Reporting Safety Defects (U.S. |
|
Only).............................................................. |
212 |
Reporting Safety Defects (Canada |
|
Only).............................................................. |
213 |
Fuses |
|
Changing a Fuse............................................ |
214 |
3
Super Duty (TFA)
Table of Contents
Fuse Specification Chart............................ |
215 |
Maintenance |
|
General Information.................................... |
223 |
Opening and Closing the Hood.............. |
223 |
Under Hood Overview - 6.2L................... |
224 |
Under Hood Overview - 6.8L................... |
225 |
Engine Oil Dipstick...................................... |
226 |
Engine Oil Check.......................................... |
226 |
Engine Coolant Check................................ |
227 |
Automatic Transmission Fluid |
|
Check............................................................. |
231 |
Transfer Case Fluid Check........................ |
234 |
Brake Fluid Check........................................ |
234 |
Power Steering Fluid Check..................... |
234 |
Washer Fluid Check.................................... |
235 |
Fuel Filter........................................................ |
235 |
Changing the 12V Battery......................... |
235 |
Checking the Wiper Blades...................... |
237 |
Changing the Wiper Blades...................... |
237 |
Adjusting the Headlamps......................... |
238 |
Removing a Headlamp.............................. |
239 |
Changing a Bulb............................................ |
241 |
Bulb Specification Chart........................... |
243 |
Changing the Engine Air Filter................ |
245 |
Vehicle Care |
|
General Information.................................... |
247 |
Cleaning Products....................................... |
247 |
Cleaning the Exterior.................................. |
247 |
Waxing............................................................. |
248 |
Cleaning the Engine................................... |
248 |
Cleaning the Exhaust................................. |
249 |
Cleaning the Windows and Wiper |
|
Blades.......................................................... |
249 |
Cleaning the Interior................................... |
250 |
Cleaning the Instrument Panel and |
|
Instrument Cluster Lens....................... |
250 |
Cleaning Leather Seats.............................. |
251 |
Repairing Minor Paint Damage................ |
251 |
4
Cleaning the Alloy Wheels........................ |
251 |
Vehicle Storage............................................. |
252 |
Wheels and Tires |
|
General Information................................... |
254 |
Tire Care.......................................................... |
256 |
Using Snow Chains...................................... |
273 |
Tire Pressure Monitoring System........... |
273 |
Changing a Road Wheel............................ |
279 |
Technical Specifications.......................... |
290 |
Capacities and Specific- |
|
ations |
|
Engine Specifications................................ |
292 |
Motorcraft Parts........................................... |
293 |
Vehicle Identification Number................ |
294 |
Vehicle Certification Label....................... |
294 |
Transmission Code Designation............ |
295 |
Technical Specifications.......................... |
296 |
Audio System |
|
General Information.................................... |
301 |
Audio unit - Vehicles With: AM/FM...... |
302 |
Audio unit - Vehicles With: AM/FM/CD/ |
|
SYNC............................................................ |
303 |
Audio unit - Vehicles With: Sony AM/FM/ |
|
CD................................................................. |
305 |
Digital Radio.................................................. |
306 |
Satellite Radio.............................................. |
309 |
Audio Input Jack............................................. |
311 |
USB Port........................................................... |
312 |
Media Hub....................................................... |
312 |
SYNC™ |
|
General Information.................................... |
313 |
Using Voice Recognition............................ |
315 |
Using SYNC™ With Your Phone............. |
317 |
SYNC™ Applications and Services...... |
328 |
Using SYNC™ With Your Media |
|
Player........................................................... |
335 |
Super Duty (TFA)
Table of Contents
SYNC™ Troubleshooting......................... |
343 |
MyFord Touch™ |
|
General Information................................... |
349 |
Settings........................................................... |
356 |
Entertainment.............................................. |
366 |
Phone............................................................... |
383 |
Information.................................................... |
389 |
Climate............................................................ |
398 |
Navigation..................................................... |
400 |
Accessories |
|
Accessories................................................... |
409 |
Auxiliary Switches........................................ |
410 |
Appendices |
|
End User License Agreement................... |
412 |
Ford Extended Service Plan |
|
(ESP) |
|
Ford Extended Service Plan (ESP)....... |
427 |
Scheduled Maintenance |
|
General Maintenance Information....... |
430 |
Normal Scheduled Maintenance.......... |
433 |
Special Operating Conditions Scheduled |
|
Maintenance............................................. |
434 |
Scheduled Maintenance Record........... |
438 |
5
Super Duty (TFA)
6
Super Duty (TFA)
Introduction
ABOUT THIS MANUAL
Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.
WARNING
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that
you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.
Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to your vehicle.
Note: Some of the illustrations in this manual may be used for different models, so may appear different to you on your vehicle. However, the essential information in the illustrations is always correct.
Note: Always use and operate your vehicle in line with all applicable laws and regulations.
Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle.
7
Note: Either Ford Motor Company or an authorized Ford dealer may have originally sold this incomplete vehicle to a vehicle modifier who upfitted it. As a result, some of the options and features on this vehicle may differ from what we describe in this manual.
This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.
E154903
A Right-hand side
BLeft-hand side
Protecting the Environment
You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.
SYMBOLS GLOSSARY
These are some of the symbols you may see on your vehicle.
Safety alert
See Owner's Manual
Super Duty (TFA)
Introduction
Air conditioning system
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Brake fluid - non petroleum based
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
E71340
Do not open when hot
8
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten safety belt
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windshield
Interior luggage compartment release
Super Duty (TFA)
Introduction
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
Panic alarm
Parking aid
E139213
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag
Shield the eyes
Stability control
Windshield wash and wipe
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See SYNC™ (page 313).
9
Super Duty (TFA)
Introduction
Event Data Recording
This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to recorddatarelatedtovehicledynamics and safety systems for a short period of time, typically 30 seconds or less.
The event data recorder in this vehicle is designed to record such data as:
Note: Event data recorder data is recorded by your vehicle only if a non-trivialcrashsituationoccurs;nodata is recorded by the event data recorder under normal driving conditions and no personal data or information (e.g.,name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an event data
•Howvarioussystemsinyourvehicle recorder,specialequipmentisrequired,
were operating;
•Whether or not the driver and passenger safety belts were buckled/fastened;
•How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and
•How fast the vehicle was traveling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understandingofthecircumstancesin which crashes and injuries occur.
and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that havesuchspecialequipment,canread the information if they have access to the vehicle or the event data recorder. Ford Motor Company and Ford of Canada do not access event data recorderinformationwithoutobtaining consent,unlesspursuanttocourtorder or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
10
Super Duty (TFA)
Introduction
Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON),911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to providethe most appropriateemergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See SYNC™(page 313).
Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendorsitusestoprovideyouwiththis information do not store your vehicle travel information. For more information,seeTraffic,Directionsand Information, Terms and Conditions.
See SYNC™ (page 313).
11
CALIFORNIAPROPOSITION65
WARNING
Some constituents of engine exhaust, certain vehicle components, certain fluids contained in vehicles
and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
PERCHLORATE
Certain components in your vehicle such as airbag modules, safety belt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. For more information visit:
Web Address
www.dtsc.ca.gov/hazardouswaste/ perchlorate
FORD CREDIT
(U.S. Only)
Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.
For your convenience we offer a number of ways to contact us, as well as help manage your account.
Phone: 1-800-727-7000
For more information regarding Ford Credit, as well as access Account Manager, please go to www.fordcredit.com.
Super Duty (TFA)
Introduction
REPLACEMENT PARTS
RECOMMENDATION
Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.
Scheduled Maintenance and
Mechanical Repairs
One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.
Collision Repairs
We hope that you never experience a collision,but accidents do happen.Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.
12
Warranty on Replacement Parts
Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, refer to the terms and conditions of the Ford Warranty.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Manual that is provided to you along with your Owner’s Manual.
Special Instructions
For your added safety, your vehicle is fitted with sophisticated electronic controls.
WARNINGS
Failure to follow the specific warnings and instructions could result in personal injury. See
Supplementary Restraints System
(page 36).
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active
passenger airbag.
Using your Vehicle with a
Snowplow
More information and guidelines for using your vehicle with a snowplow in this Owner'sManual.SeeSnowplowing(page 202).
Super Duty (TFA)
Introduction
Using your Vehicle as an
Ambulance
If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at http://www.fleet.ford.com/truckbbas/ and then by selecting Contact Us or by phone at 1–877–840–4338.
Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the emissions warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.
If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain Diesel engine equipped vehicles.
Using your Vehicle as a Stationary Power Source
Information and guidelines for operating a vehicle equipped with an aftermarket power take-off system can be found in this Owner's Manual. See Power Take-Off (page 148).
MOBILE COMMUNICATIONS EQUIPMENT
Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.
WARNING
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that
you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.
EXPORT UNIQUE OPTIONS
For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that
13
Super Duty (TFA)
Introduction
are unique to your vehicle. This Owner’s Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s
Manual for all other required information and warnings.
14
Super Duty (TFA)
Child Safety
GENERAL INFORMATION
See the following sections for directions on how to properly use safety restraints for children.
WARNINGS
Always make sure your child is secured properly in a device that is appropriate for their height, age and
weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.
All children are shaped differently. The recommendations for safety restraints are based on probable
child height, age and weight thresholds from National Highway Traffic Safety Administration and other safety organizations, or are the minimum
WARNINGS
requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or go to http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1-800-333-0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.
15
Super Duty (TFA)
Child Safety
Recommendations for Safety Restraints for Children
Child |
Child size, height, weight, or age |
Recommended restraint |
|
|
type |
Infants or |
Children weighing 40 lb (18 kg) or less |
Use a child safety seat |
toddlers |
(generally age four or younger). |
(sometimes called an |
|
|
infant carrier, convertible |
|
|
seat, or toddler seat). |
Small children |
Children who have outgrown or no longer |
Use a belt-positioning |
|
properly fit in a child safety seat (gener- |
booster seat. |
|
ally children who are less than 4 ft. 9 in. |
|
|
(1.45 m) tall, are greater than age four |
|
|
and less than age 12, and between 40 lb |
|
|
(18 kg) and 80 lb (36 kg) and upward to |
|
|
100 lb (45 kg) if recommended by your |
|
|
child restraint manufacturer). |
|
Larger children |
Children who have outgrown or no longer |
Use a vehicle safety belt |
|
properly fit in a belt-positioning booster |
having the lap belt snug |
|
seat (generally children who are at least |
and low across the hips, |
|
4 ft. 9 in. (1.45 m) tall or greater than 80 |
shoulder belt centered |
|
lb (36 kg) or 100 lb (45 kg) if recom- |
across the shoulder and |
|
mended by child restraint manufacturer). |
chest, and seat back |
|
|
upright. |
•You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.
•Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.
•When possible, always properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.
INSTALLING CHILD SEATS
Child Seats
E142594
16
Super Duty (TFA)
Child Safety
Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).
Using Lap and Shoulder Belts
WARNINGS
Airbags can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag.
If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.
Airbags can kill or injure a child in a child seat. Children 12 and under should be properly restrained in the
rear seat whenever possible.
Depending on where you secure a child restraint, and depending on the child restraint design, you may block
access to certain safety belt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.
When installing a child safety seat with combination lap and shoulder belts:
•Use the correct safety belt buckle for that seating position.
•Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.
•Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.
17
•Place the vehicle seat upon which the child seat will be installed in the upright position.
•This vehicle does not require the use of a locking clip.
Perform the following steps when installing the child seat with combination lap and shoulder belts:
Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.
E142528
1.Position the child safety seat in a seat with a combination lap and shoulder belt.
E142529
2.Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.
Super Duty (TFA)
Child Safety
E142530
3.While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer's instructions. Be sure the belt webbing is not twisted.
E142875
5.To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.
6.Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.
7.Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.
E142531
4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.
E142533
8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra
18
Super Duty (TFA)
Child Safety
weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will help to remove remaining slack from the belt.
9.Attach the tether strap (if the child seat is equipped).
E142534
10.Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place.
To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.
Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Certified Passenger Seat Technician.
19
Using Cinch Tongue Lap and
Shoulder Belts (All Front Center,
Super Cab and Crew Cab Rear
Center Positions)
WARNINGS
Airbags can kill or injure a child in a child seat. If you must use a forward-facing child seat in the front
seat, move seat all the way back.
Rear facing child seats should never be placed in front of an active airbag.
Always use both lap and shoulder safety belt in the Regular Cab center seating position if applicable.
The belt webbing below the tongue is the lap portion of the combination lap and shoulder belt, and the belt webbing above the tongue is the shoulder belt portion of the combination lap and shoulder belt.
E142528
1.Position the child safety seat in the front center seat.
Super Duty (TFA)
Child Safety
E162708
2. Slide the tongue up the webbing.
E142530
3.While holding both shoulder and lap portions next to the tongue, route the tongue and webbing through the child seat according to the child seat manufacturer's instructions. Be sure that the belt webbing is not twisted.
E142531
4.Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.
E142533
5.While pushing down with your knee on the child seat pull up on the shoulder belt portion to tighten the lap belt portion of the combination lap and shoulder belt.
6.Allow the safety belt to retract and remove any slack in the belt to securely tighten the child safety seat in the vehicle.
7.Attach the tether strap (if the child seat is equipped).
E142534
20
Super Duty (TFA)
Child Safety
8.Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.
9.Check from time to time to be sure that there is no slack in the lap and shoulder belt. The shoulder belt must be snug to keep the lap belt tight during a crash.
Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Child Passenger Safety Technician.
Using Lower Anchors and Tethers for CHildren (LATCH)
The LATCH system is composed of three vehicle anchor points: two lower anchors located where the vehicle seatback and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position. Your vehicle is not equipped with the lower anchor points in the seat bight. For this vehicle, use the vehicle safety belt and upper tether to secure a child seat.
Using Tether Straps
Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.
The passenger seats of your vehicle may be equipped with built-in tether strap anchors located behind the seats as described below.
The tether anchors in your vehicle may be straps on the seat back or an anchor bracket mounted to the body shell on the back panel.
The SuperCab rear seat has three straps behind the top of the seatback that function as both routing loops for the tether straps and anchor loops.
The tether strap anchors in your vehicle are in the following positions (shown from top view):
E162709
21
Super Duty (TFA)
Child Safety
F-Series Regular Cab
E162710
F-Series SuperCab
E162711
F-Series Crew Cab
Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.
Once the child safety seat has been installed using the safety belt, you can attach the top tether strap.
Tether Strap Attachment
1.Route the child safety seat tether strap over the back of the seat.
22
Note: For vehicles with adjustable head restraints, route the tether strap under the head restraint and between the head restraint posts, otherwise route the tether strap over the top of the seat back. If the top of the safety seat hits the head restraint, raise the head restraint to let the child seat fit further rearward.
2.Locate the correct anchor for the selected seating position.
3.You may need to pull the seatback forward to access the tether anchors. Make sure the seat is locked in the upright position before installing the child seat.
Super Duty (TFA)
Child Safety
E162712
4.Remove the tether cover.
5.Clip the tether strap to the anchor as shown.
E162713
Front seats (Regular Cab) and Rear seats (Crew Cab)
If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash.
6. Tighten the child safety seat tether strap according to the manufacturer's instructions.
If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.
If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.
23
Tether Strap Attachment (Rear
SuperCab Only)
There are three loops of webbing just above the back of the rear seat (along the bottom edge of the rear window) in the SuperCab. Use these loops as both routing loops and anchor loops for up to three child safety seat tether straps.
You can secure these straps below the back of the seat with rubber bands. To access, reach below the back of the seat and pull the tether loop out of the rubber band securing it.
Many tether straps cannot be tightened if the tether strap is hooked to the loop directly behind the child seat. To provide a tight tether strap:
E162714
1.Route the tether strap through the loop directly behind the child seat.
E162715
Super Duty (TFA)
Child Safety
2.Attach the strap hook onto the loop behind an adjacent seating position.
E162716
3.Install the child safety seat tightly using the vehicle belts. Follow the instructions in this chapter.
4.Tighten the tether strap according to the child seat manufacturer's instructions.
You can use a single loop to route and anchor more than one child seat. For example, use the center loop as a routing loop for a child safety seat in the center rear seat and as an anchoring loop for child seats installed in the outboard rear seats.
80 pounds (36 kilograms) and upward to
100 pounds (45 kilograms) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms).
Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:
E142595
•Can the child sit all the way back against their vehicle seat back with knees bent comfortably at the edge of the seat cushion?
BOOSTER SEATS
WARNING
Never place, or allow a child to place, the shoulder belt under a child's arm or behind the back because it
reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.
Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four
(4) and less than age twelve (12), and between 40 pounds (18 kilograms) and
•Can the child sit without slouching?
•Does the lap belt rest low across the hips?
•Is the shoulder belt centered on the shoulder and chest?
•Can the child stay seated like this for the whole trip?
Always use booster seats in conjunction with your vehicle lap and shoulder belt.
24
Super Duty (TFA)
Child Safety
Types of Booster Seats
E68924
•Backless booster seats
If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child's head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap and shoulder belts, or consider using a high back booster seat.
E70710
•High back booster seats
If, with a backless booster seat, you cannot find a seating position that adequately supports your child's head, a high back booster seat would be a better choice.
Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.
E142596
25
Super Duty (TFA)
Child Safety
E142597
If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions.
CHILD SEAT POSITIONING
WARNINGS
Airbags can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag.
If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.
Always carefully follow the instructions and warnings provided by the manufacturer of any child
restraint to determine if the restraint device is appropriate for your child's size, height, weight, or age. Follow the child restraint manufacturer's instructions and warnings provided for installation and use in conjunction with the instructions and
26
WARNINGS
warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child's height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.
Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot
protect the child from injury in a crash, which may result in serious injury or death.
Never use pillows, books, or towels to boost a child. They can slide around and increase the likelihood
of injury or death in a crash.
Always restrain an unoccupied child seat or booster seat. These objects may become projectiles in a crash or
sudden stop, which may increase the risk of serious injury.
Never place, or allow a child to place, the shoulder belt under a child's arm or behind the back because it
reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.
To avoid risk of injury, do not leave children or pets unattended in your vehicle.
Super Duty (TFA)
Child Safety
Restraint Combined Type child and
seat weight
Use any attachment method as indicated below by X
LATCH |
LATCH |
Safety belt |
Safety belt |
Safety belt |
(lower |
(lower |
and top |
and LATCH |
only |
anchors |
anchors |
tether |
(lower |
|
and top |
only) |
anchor |
anchors |
|
tether |
|
|
and top |
|
anchor) |
|
|
tether |
|
|
|
|
anchor) |
|
Rear facing |
Up to 65 lb |
X |
child seat |
(29 kg) |
|
Rear facing |
Over 65 lb |
X |
child seat |
(29 kg) |
|
Forward |
Up to 65 lb |
X |
facing |
(29 kg) |
|
child seat |
|
|
Forward |
Over 65 lb |
X |
facing |
(29 kg) |
|
child seat |
|
|
Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See Head Restraints (page 108).
CHILD SAFETY LOCKS
When these locks are set, the rear doors cannot be opened from the inside.
The childproof locks are located on the rear edge of each rear door. You must set the lock separately for each door.
Move the lock control up or down to engage or disengage the childproof lock.
E162719
27
Super Duty (TFA)
