Ford F 150 1 2010 Owner's Manual

Page 1

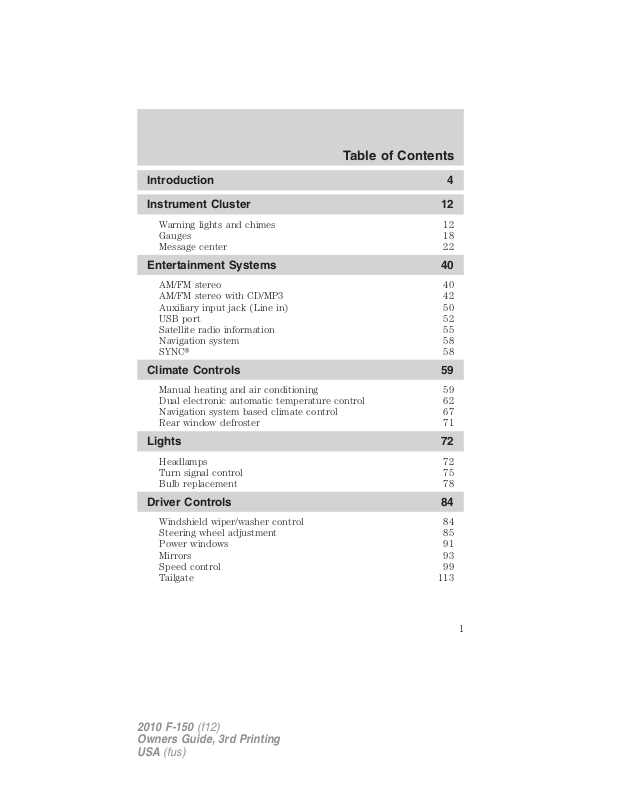

Table of Contents

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12 Gauges 18 Message center 22
Entertainment Systems 40
AM/FM stereo 40 AM/FM stereo with CD/MP3 42 Auxiliary input jack (Line in) 50 USB port 52 Satellite radio information 55 Navigation system 58 SYNC威 58
Climate Controls 59

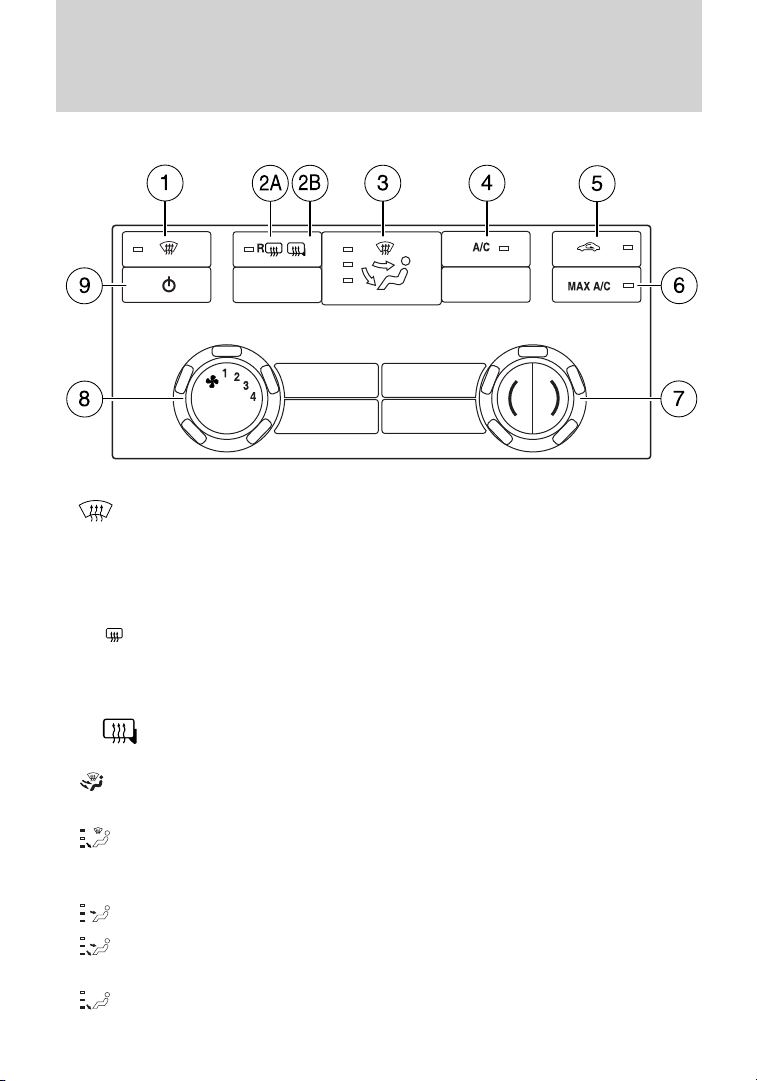

Manual heating and air conditioning 59 Dual electronic automatic temperature control 62 Navigation system based climate control 67 Rear window defroster 71
Lights 72

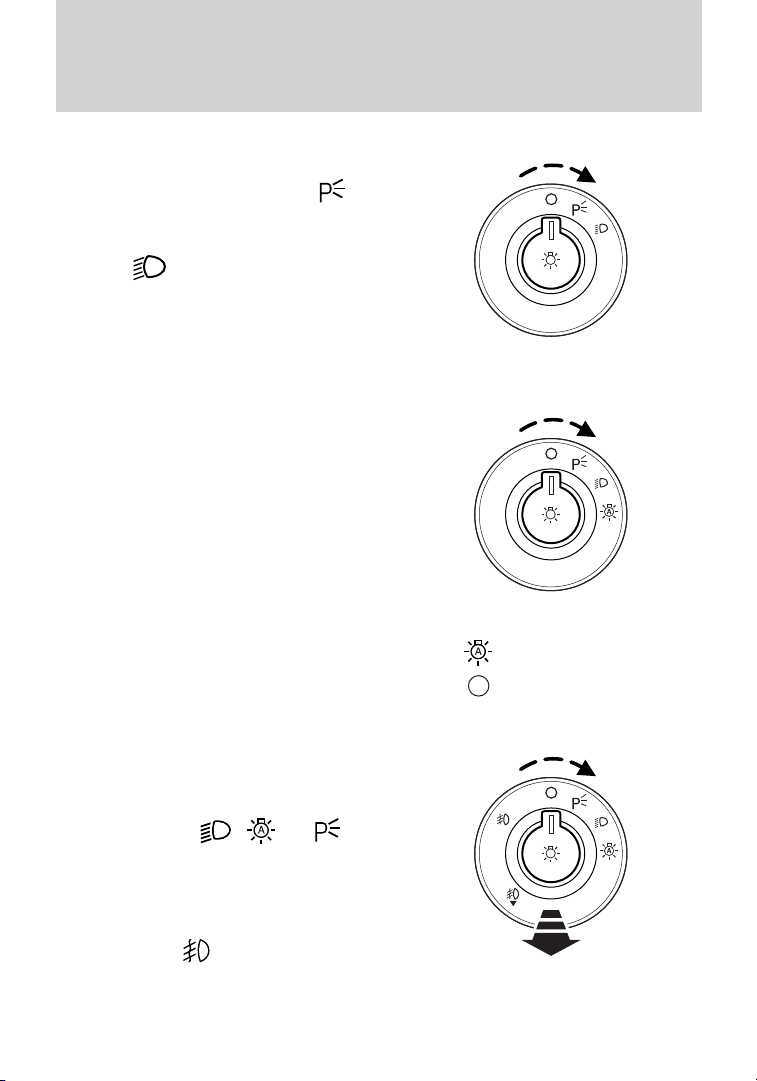

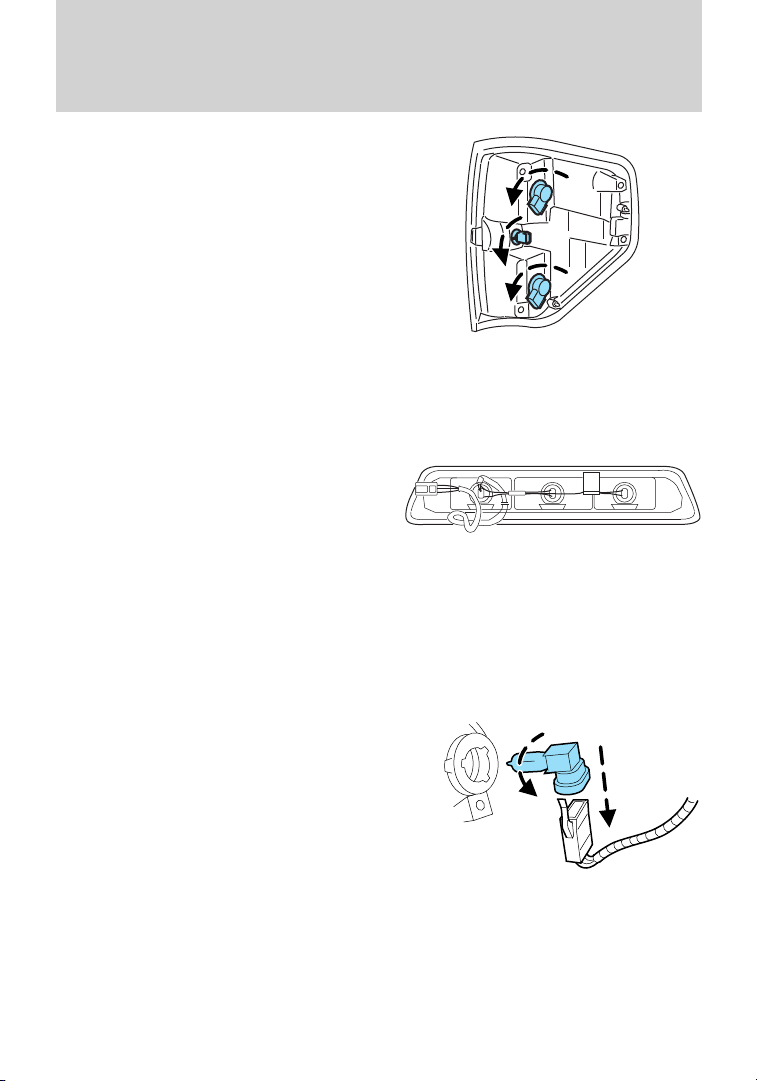

Headlamps 72 Turn signal control 75 Bulb replacement 78
Driver Controls 84
Windshield wiper/washer control 84 Steering wheel adjustment 85 Power windows 91 Mirrors 93 Speed control 99 Tailgate 113
1
Page 2
Table of Contents
Locks and Security 126
Keys 126 Locks 132 Anti-theft system 144
Seating and Safety Restraints 147
Seating 147 Safety restraints 166 Airbags 185 Child restraints 199
Tires, Wheels and Loading 223
Tire information 225 Tire inflation 228 Tire Pressure Monitoring System (TPMS) 241 Vehicle loading 249 Trailer towing 256 Trailer brake controller-integrated 263 Recreational towing 269
Driving 271
Starting 271 Brakes 277 AdvanceTrac威 279 Transmission operation 291 Reverse sensing system 297 Rear-view camera system 299 Snowplowing 315
Roadside Emergencies 319
Getting roadside assistance 319 Hazard flasher control 320 Fuel pump shut-off 321 Fuses and relays 321 Changing tires 330 Wheel lug nut torque 337 Jump starting 338 Wrecker towing 344
2
Page 3
Table of Contents
Customer Assistance 346
Reporting safety defects (U.S. only) 352 Reporting safety defects (Canada only) 352
Cleaning 353
Maintenance and Specifications 363
Engine compartment 365 Engine oil 368 Battery 370 Engine coolant 372 Fuel information 378 Air filter(s) 396 Part numbers 399 Maintenance product specifications and capacities 400 Engine data 405
Accessories 408
Ford Extended Service Plan 410
Index 413
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2010 Ford Motor Company
3
Page 4

Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the following website:
• In the United States: www.ford.com
• In Canada: www.ford.ca
• In Mexico: www.ford.com.mx
• In Australia: www.ford.com.au
Additional owner information is given in separate publications.
This vehicle’s Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.
Remember to pass on this vehicle’s Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
4
Page 5
Introduction

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.
Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
SPECIAL NOTICES New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.
5
Page 6
Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.
WARNING: Please read the section Airbag Supplemental
Restraint System (SRS) in the Seating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could result in personal injury.
WARNING: Front seat mounted rear-facing child or infant seats
should NEVER be placed in front of an active passenger airbag.

Using your vehicle with a snowplow

For more information and guidelines for using your vehicle with a snowplow, refer to the Driving chapter.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.
Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

NOTICE TO OWNERS ABOUT HIGH PERFORMANCE TIRES

Note: Your vehicle is equipped with high performance tires. When first driving the vehicle after it has been parked for a period of time, you may experience a temporary ride disturbance. This is a characteristic of the tires and should be no reason for concern. The condition should correct itself within 5-15 miles (8-25 km) of driving. If the disturbance persists, have the tires serviced by an authorized dealer.
6
Page 7
Introduction

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger seatbelts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
• How fast the vehicle was travelling; and
• Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see
7
Page 8
Introduction
limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information.
Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only) the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches your request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.
8
Page 9
Introduction

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required
information and warnings.
9
Page 10
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
Fasten Safety Belt Airbag - Front
Airbag - Side
Child Seat Tether Anchor
Anti-Lock Brake System Parking Brake System
Brake Fluid ­Non-Petroleum Based
Stability Control System Speed Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
See Owner’s Guide
Child Seat Lower Anchor
Brake System
Parking Aid System
Fuel Pump Reset Windshield Wash/Wipe
Windshield Defrost/Demist
10
Rear Window Defrost/Demist
Page 11
Vehicle Symbol Glossary
Introduction
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
Service Engine Soon Engine Air Filter
MAX
MIN
Passenger Compartment Air Filter
Check Fuel Cap
Jack
Low Tire Pressure Warning
11
Page 12

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster
Platinum instrument cluster
12
Page 13
Instrument Cluster
Harley-Davidson™ instrument cluster
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.
Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center. These lights function the same as the other warning lights.
Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for
13
Page 14
Instrument Cluster
I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.
Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
Electronic throttle control (RTT) (if equipped): Displays
when the engine has defaulted to a “limp-home” operation. Report the fault to a dealer at the earliest opportunity.
The message center will also display ENGINE FAILSAFE MODE. Refer to Message center in this chapter.
Check 4X4 (RTT) (if equipped):
Displays with the message CHECK 4X4 when a four-wheel drive fault is present.
Refer to Message center in this chapter. Brake system warning light: To
confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position.
If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.
14
BRAKE
P!
Page 15
Instrument Cluster
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.
Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound if there is a malfunction in the indicator light.
Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.
Charging system (RTT):
Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.
Engine oil pressure (RTT):
Displays when the oil pressure falls below the normal range. Refer to
Engine oil in the Maintenance and Specifications chapter.
ABS
15
Page 16
Instrument Cluster
Door ajar (RTT): Displays when the ignition is in the on position and any door is open.
Engine coolant temperature (RTT): Illuminates when the engine
coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
Low tire pressure warning:
Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.
Overdrive off (if equipped):
Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur.
Transmission Tow/Haul Feature (six speed transmission only):
Displays when the Tow/Haul feature has been activated. Refer to the Driving chapter for transmission function and operation. If the light flashes steadily, have the system serviced immediately, damage to the transmission could occur.
O/D
OFF
16
Page 17
Instrument Cluster
AdvanceTrac威/traction control (RTT) (if equipped): Displays
when the AdvanceTrac威/traction control is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.
4X2 (RTT) (if equipped):
Displays momentarily when two-wheel drive high is selected. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer.
Four-wheel drive low (RTT) (if equipped): Displays when
four-wheel drive low is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer.
Four-wheel drive high (RTT) (if equipped): Displays when
four-wheel drive high is engaged. If the light fails to display when the ignition is turned on, or remains on, have the system serviced immediately by your authorized dealer.
All-wheel drive (RTT) (if equipped): Displays when using the
AWD system.
4x2
4x4
LOW
4x4
HIGH
AWD
Electronic locking differential (RTT) (if equipped): Displays
when using the electronic locking differential.
Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.
17
Page 18
Instrument Cluster
Anti-theft system: Flashes when the SecuriLock威 Passive Anti-theft System has been activated.
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

GAUGES

Standard instrument cluster
18
Page 19
Platinum instrument cluster
Harley-Davidson™ instrument cluster
Instrument Cluster
19
Page 20
Instrument Cluster
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant
temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
Odometer: Registers the total miles (kilometers) of the vehicle.
Refer to Message center in the this chapter on how to switch the display from Metric to English.
Trip odometer: Registers the miles (kilometers) of individual journeys.
• With standard message center Press the SELECT/RESET stem
once to switch from the odometer to the trip odometer. Press the stem again to select Trip A and Trip B features. To reset the trip, press and hold the stem until it resets.
• With optional message center: see TRIP A/B under Message center in this chapter.
20
Page 21
Instrument Cluster
Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Engine oil pressure gauge:
Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by your authorized dealer.
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.
The arrow next to the fuel pump icon indicates which side of the vehicle the fuel filler inlet is located.
For more information, refer to Filling the tank in the Maintenance and Specifications chapter.
Transmission fluid temperature gauge: If the gauge is in the: Normal area (normal) - the
transmission fluid is within the normal operating temperature (between “H” and “C”).
21
Page 22
Instrument Cluster
Yellow area (warning) — the transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off-road use). Refer to Special
Operating Conditions in the scheduled maintenance information for instructions. Operating the transmission for extended
periods of time with the gauge in the yellow area may cause internal transmission damage.
Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range.
Red area (over temperature) — the transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.
If the gauge is operating in the Yellow or Red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your authorized dealer.

STANDARD MESSAGE CENTER (IF EQUIPPED)

Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime.
The message center display is located in the instrument cluster.

Selectable features (information menu)

Press and release the SELECT/RESET stem, located in the speedometer, to cycle through the following features:
TRIP A/B
Registers the distance of individual journeys. Press and release INFO button until the A or B trip appears in the display (this represents the trip mode). Press and hold the SELECT/RESET stem to reset.
Refer to UNITS later in this section to switch the display from Metric to English.
22
Page 23
Instrument Cluster
MYKEY MILES (km) (if equipped and if programmed)
For more information, refer to MyKey™ in the Locks and Security chapter.
MILES (km) TO E
This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.
LOW FUEL LEVEL will display when you have approximately 50 miles (80 km), to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty.
Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected.
AVG MPG (L/100km)
Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.
If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:
• Your vehicle was not perfectly level during fill-up
• Differences in the automatic shut-off points on the fuel pumps at
service stations
• Variations in top-off procedure from one fill-up to another
• Rounding of the displayed values to the nearest 0.1 gallon (liter)
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference. It is important to press the SELECT/RESET stem (press and hold for
two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.
For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.
23
Page 24
Instrument Cluster
HOLD RESET FOR SETUP MENU
Press and hold the SELECT/RESET stem when this message is displayed to get into the SETUP menu. The following setup items are available:
OIL LIFE
This displays the remaining oil life. An oil change is required whenever indicated by the message center and
according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or 12 months) perform the following:
1. Press and release the SELECT/RESET stem to display “OIL LIFE XXX% HOLD RESET = NEW”.
2. Press and hold the SELECT/RESET stem for two seconds and release to reset the oil life to 100%.
Note: To change oil life 100% miles value from 7,500 miles (12,000 km) or 12 months to another value, proceed to Step 3.
3. Once “OIL LIFE SET TO XXX%” is displayed, release and press the SELECT/RESET stem to change the Oil Life Start Value. Each release and press will reduce the value by 10%.
UNITS
Displays the current units English or Metric. Press the SELECT/RESET stem to change from English to Metric.
AUTOLAMP (SEC)
This feature keeps your headlights on for up to three minutes after the ignition is switched off.
Press the SELECT/RESET stem to select the new autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.
AUTOLOCK
This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.
Press the SELECT/RESET stem to turn autolock on or off.
AUTOUNLOCK
This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.
24
Page 25
Instrument Cluster
Press the SELECT/RESET stem to turn autounlock on or off.
EASY ENTRY (if equipped)
This feature automatically moves the driver’s seat backwards for easy exit/entry from the vehicle.
Press the SELECT/RESET stem to turn the easy entry/exit seat on or off.
REAR PARK AID (if equipped)
This reverse sensing system feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.
Press the SELECT/RESET stem to turn the rear park aid on or off.
TRAILER SWAY (if equipped)
This feature uses the electronic stability control to mitigate trailer sway, Press the SELECT/RESET stem to turn trailer sway on or off.
CREATE MYKEY / MYKEY SETUP CLEAR MYKEY (if equipped)
MyKey™ allows you to program a restricted driving mode on one standard key supplied with the vehicle or any programmed spare key. To create MyKey, refer to MyKey™ in the Locks and Security chapter.
LANGUAGE = ENGLISH / SPANISH / FRENCH Note: When returning to the setup menu and a non-English language
has been selected, HOLD RESET FOR ENGLISH will be displayed to change back to English. Press and hold the SELECT/RESET stem to change back to English.
Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French.
Waiting four seconds or pressing the SELECT/RESET stem cycles the message center through each of the language choices.
Press and hold the SELECT/RESET stem for two seconds to set the language choice.
HOLD RESET FOR SYSTEM CHECK
Press and hold the SELECT/RESET stem when this message is displayed to start the system check:
The message center will cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for two seconds.
25
Page 26
Instrument Cluster
Note: Some systems show a message only if a condition is present.
1. XXX% OIL LIFE
2. DOOR STATUS
3. BRAKE SYSTEM
4. XX MILES TO E FUEL LEVEL XXX
5. TBC GAIN = XX.X NO TRAILER (if equipped and no trailer connected)
6. TBC GAIN = XX.X OUTPUT = ////// (if equipped and trailer connected)
7. MYKEY DISTANCE (if equipped and if programmed)
8. MYKEY PROGRAMMED (if equipped)
9. ADMIN KEYS PROGRAMMED (if equipped)
System warnings
System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds.
The message center will display the last selected feature if there are no more warning messages.
Types of messages and warnings:
• Some messages will appear briefly to inform you of something you may need to take action on or be informed of.
• Some messages will appear once and then again when the vehicle is restarted.
• Some messages will reappear after clearing or being reset if a problem or condition is still present and needs your attention.
• Some messages can be acknowledged and reset by pressing the SELECT/RESET stem. This allows you to use the full message center functionality by clearing the message.
If the message will not reset or clear when pressing the SELECT/RESET stem, you must address the problem in order to clear the message.
DRIVER DOOR AJAR — Displayed when the driver door is not completely closed.
PASSENGER DOOR AJAR — Displayed when the passenger door is not completely closed.
26
Page 27
Instrument Cluster
REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed.
REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed.
XXX MILES TO E FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition.
CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible.
TIRE PRESSURE SENSOR FAULT — sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues
to come on, contact your authorized dealer as soon as possible. LOW TIRE PRESSURE — Displayed when one or more tires on your
vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter.
CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter.
CHECK 4X4 (if equipped) —Displayed when a 4X4 system fault is present. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system (TPMS) is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.
TRAILER BRAKE MODULE FAULT (if equipped) — Displayed and accompanied by a single chime, in response to faults sensed by the TBC. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information.
OIL CHANGE REQUIRED— Displayed when an oil change is required.
Displayed when a tire pressure
27
Page 28
Instrument Cluster
XX%ENGINE OIL CHANGE SOON—Displayed when an oil change will soon be required and shows the percentage of oil life left.
WIRING FAULT ON TRAILER (if equipped) — Displayed if there are certain faults in the vehicle wiring and trailer wiring/brake system. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information.
CHECK REAR PARK AID (if equipped) — Displayed when the transmission is in R (Reverse). Refer to Reverse sensing system in the Driving chapter.
PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible.
CHECK BRAKE SYSTEM — Displayed when a fault has been detected by the ABS module.
TRAILER SWAY REDUCE SPEED (if equipped) — Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information.
4X4 SHIFT IN PROGRESS — Displayed on 4x4 vehicles only when 4x4 low, 4x4 high or 4x4 auto is selected. For further information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4 LOW is selected and the vehicle is stopped. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
SHIFT DELAYED PULL FORWARD (if equipped) — May display when shifting to or from 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
28
Page 29
Instrument Cluster
TRAIN LEFT FRONT TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAIN RIGHT FRONT TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAIN RIGHT REAR TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAIN LEFT REAR TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TIRES NOT TRAINED – REPEAT (if equipped) — Displayed when an error occurs while training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAINING COMPLETE (if equipped) — Displayed when training of the TPMS system is complete. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
MYKEY ACTIVE DRIVE SAFELY (if equipped) — Displayed at startup when MyKey™ is in use. Refer to MyKey™ in the Locks and Security chapter for more information.
KEY COULD NOT PROGRAM (if equipped) — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey™ in the Locks and Security chapter for more information.
VEHICLE SPEED 80 MPH MAX (if equipped) — Displayed when a MyKey™ is in use and the Admin has enabled the MyKey speed limit and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.
SPEED LIMITED TO 80 MPH (if equipped) — Displayed when starting the vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to MyKey™ in the Locks and Security chapter for more information.
CHECK SPEED DRIVE SAFELY (if equipped) — Displayed when a MyKey™ is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey™ in the Locks and Security chapter for more information.
VEHICLE NEAR TOP SPEED (if equipped) — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle
29
Page 30
Instrument Cluster
speed is approaching 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.
TOP SPEED MYKEY SETTING (if equipped) — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.
BUCKLE UP TO UNMUTE AUDIO (if equipped) — Displayed when a MyKey™ is in use and Belt-Minder威 is activated. Refer to MyKey™ in the Locks and Security chapter for more information.
ADVTRAC ON MYKEY SETTING (if equipped) — Displayed when a MyKey™ is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey™ in the Locks and Security chapter for more information.
SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible.

OPTIONAL MESSAGE CENTER (IF EQUIPPED)

Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime.
The message center display is located in the instrument cluster.

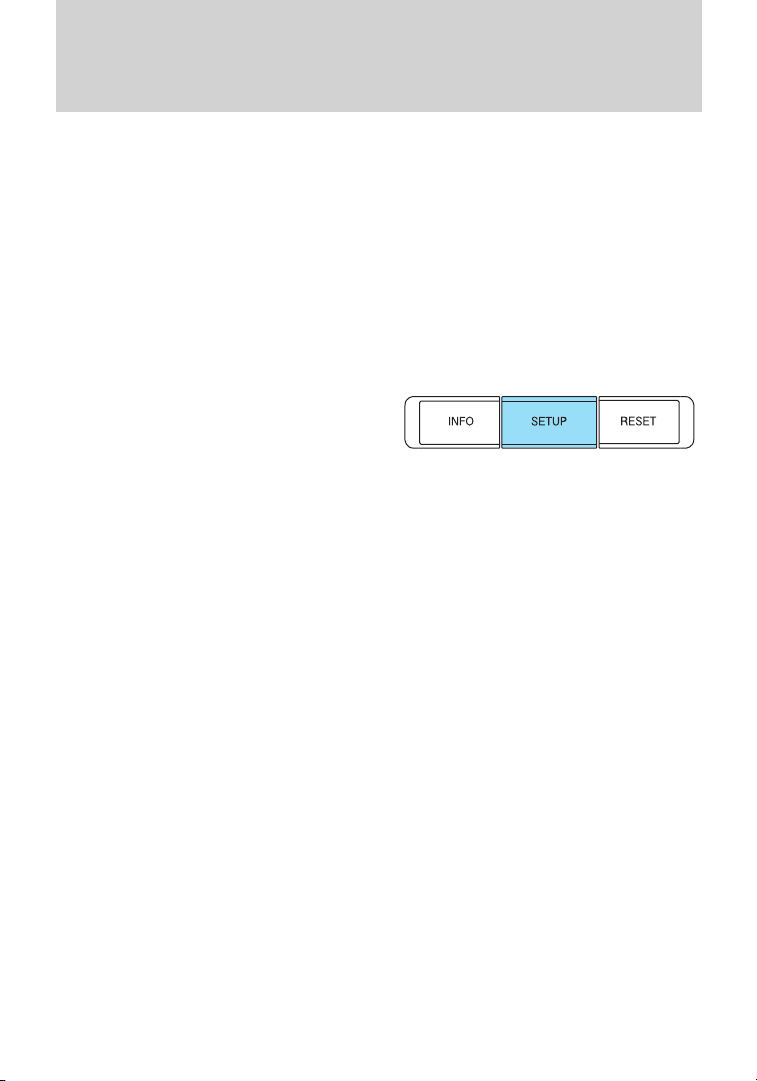

Info (information menu)

Press the INFO button repeatedly to cycle through the following features:
TRIP A/B
Registers the distance of individual journeys. Press and release INFO button until the A or B trip appears in the display (this represents the trip mode). Press and hold the RESET button to reset.
Refer to UNITS later in this section to switch the display from metric to English.
MYKEY MILES (km) (if programmed)
For more information, refer to MyKey™ in the Locks and Security chapter.
30
Page 31
Instrument Cluster
MILES (km) TO E
This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.
LOW FUEL LEVEL will display when you have approximately 50 miles (80 km), to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty.
Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected.
AVG MPG (L/100km)
Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.
If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:
• Your vehicle was not perfectly level during fill-up
• Differences in the automatic shut-off points on the fuel pumps at
service stations
• Variations in top-off procedure from one fill-up to another
• Rounding of the displayed values to the nearest 0.1 gallon (liter)
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.
For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.
MPG (L/km)
This displays instantaneous fuel economy as a bar graph ranging from ↓ poor economy to ↑ excellent economy.
31
Page 32
Instrument Cluster
Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows ↓, one or no bars illuminated. Instantaneous fuel economy cannot be reset.
TIMER
Timer displays the trip elapsed drive time. To operate, do the following:
1. Press and release RESET in order to start the timer.
2. Press and release RESET to pause the timer.
3. Press and hold RESET until the timer resets.
System check and vehicle feature customization
Press the SETUP button repeatedly to cycle the message center through the following features:
RESET FOR SYSTEM CHECK
When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed.
Note: Some systems show a message only if a condition is present.
1. XXX% OIL LIFE
2. DOOR STATUS
3. BRAKE SYSTEM
4. XX MILES TO E FUEL LEVEL XXX
5. TBC GAIN = XX.X
NO TRAILER (if equipped and no trailer connected)
6. TBC GAIN = XX.X
OUTPUT = ////// (if equipped and trailer connected)
7. MYKEY DISTANCE (if programmed)
8. MYKEY(S) PROGRAMMED
9. ADMIN KEYS PROGRAMMED
OIL LIFE
This displays the remaining oil life. An oil change is required whenever indicated by the message center and
according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS.
32
Page 33
Instrument Cluster
To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or 12 months) perform the following:
1. Press and release the SETUP button to display “OIL LIFE XXX%
HOLD RESET = NEW”.
2. Press and hold the RESET button for two seconds and release to reset
the oil life to 100%. Note: To change oil life 100% miles value from 7,500 miles (12,000 km)
or 12 months to another value, proceed to Step 3.
3. Once “OIL LIFE SET TO XXX%” is displayed, release and press the
RESET button to change the Oil Life Start Value. Each release and press will reduce the value by 10%.
Note: Oil life start value of 100% equals 7,500 miles (12,000 km) or 12 months. For example, setting oil life start value to 60% sets the oil life start value to 4,500 miles (7,200 km) and 219 days.
UNITS
Displays the current units in English or Metric. Press the RESET button to change from English to Metric.
AUTOLAMP (SEC)
This feature keeps your headlights on for up to three minutes after the ignition is switched off.
Press the RESET button to select the new autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.
AUTOLOCK
This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.
Press the RESET button to turn autolock on or off.
AUTOUNLOCK
This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.
Press the RESET button to turn autounlock on or off.

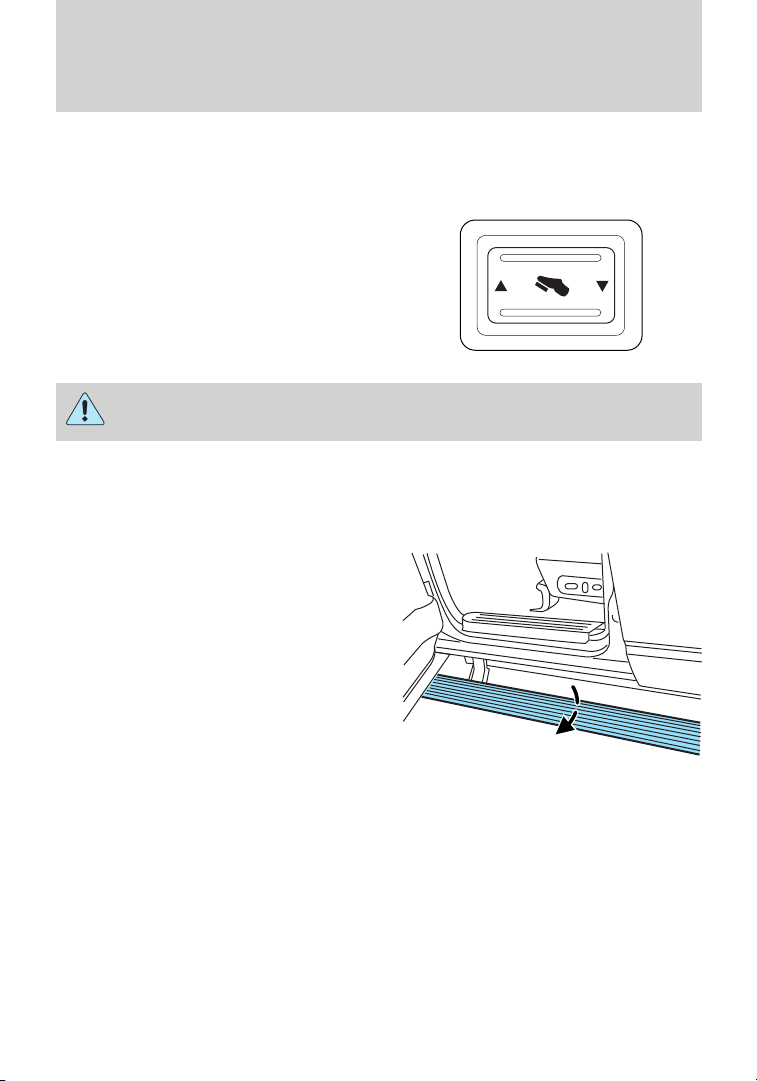

RUNNING BOARDS (if equipped)
This feature automatically deploys the side running boards for easy entry/exit from the vehicle or for cleaning.
1. To disable/enable the power running board feature with the vehicle in
P (Park), select this function from the SETUP button for the current display mode.
33
Page 34
Instrument Cluster
2. Press the RESET button to select the running boards setting as
follows:
• AUTO: the running boards will automatically deploy when a door is
opened and automatically retract when the door is closed,
• OUT: the running boards will remain deployed regardless of the doors
being open/closed. This setting can be used when washing the vehicle, or accessing the roof rack. The running boards will stow and enter AUTO mode when the vehicle speed exceeds 5 mph (8 km/h),
• OFF: the running boards will remain IN regardless of the doors being
open/closed.
EASY ENTRY
This feature automatically moves the driver’s seat backwards for easy exit/entry from the vehicle.
Press the RESET button to turn the easy entry/exit seat on or off.
REAR PARK AID (if equipped)
This feature sounds a tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.
Press the RESET button to turn the rear park aid on or off.
TRAILER SWAY (if equipped)
This feature uses the electronic stability control to mitigate trailer sway, Press the RESET button to turn trailer sway on or off.
CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY
For more information refer to MyKey™ in the Locks and Security chapter.
LANGUAGE = ENGLISH / SPANISH / FRENCH
Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French.
Waiting four seconds or pressing the RESET button cycles the message center through each of the language choices.
Press the RESET button to set the language choice.
System warnings
System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds.
34
Page 35
Instrument Cluster
The message center will display the last selected feature if there are no more warning messages.
Types of messages and warnings:
• Some messages will appear briefly to inform you of something you may need to take action on or be informed of.
• Some messages will appear once and then again when the vehicle is restarted.
• Some messages will reappear after clearing or being reset if a problem or condition is still present and needs your attention.
• Some messages can be acknowledged and reset by pressing RESET. This allows you to use the full message center functionality by clearing the message.
DRIVER DOOR AJAR — Displayed when the driver door is not completely closed.
PASSENGER DOOR AJAR — Displayed when the passenger door is not completely closed.
REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed.
REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed.
FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition.
PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible.
CHECK BRAKE SYSTEM — Displayed when a fault has been detected by the ABS module.
CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible.
CHECK REAR PARK AID (if equipped) — Displayed when the transmission is in R (Reverse). Refer to Reverse sensing system in the Driving chapter.
35
Page 36
Instrument Cluster
TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as possible.
LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter.
CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter.
SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible.
CHECK 4X4 (if equipped) — Displayed when a 4X4 system fault is present. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system (TPMS) is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.
OIL CHANGE REQUIRED — Displayed when an oil change is required.
XX%ENGINE OIL CHANGE SOON—Displayed when an oil change will soon be required and shows the percentage of oil life left.
TRAILER BRAKE MODULE FAULT (if equipped)— Displayed and accompanied by a single chime, in response to faults sensed by the TBC. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information.
WIRING FAULT ON TRAILER (if equipped) — Displayed if there are certain faults in the vehicle wiring and trailer wiring/brake system. Refer to Trailer towing in the Tires, Wheels and Loading chapter for more information.
TRAILER SWAY REDUCE SPEED (if equipped) — Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information.
36
Page 37
Instrument Cluster
4X4 SHIFT IN PROGRESS — Displayed when the 4X4 system is making a shift. For further information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4 LOW is selected and the vehicle is stopped. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
SHIFT DELAYED PULL FORWARD (if equipped) — May display when shifting to or from 4X4 LOW. For more information, refer to Four-wheel drive (4WD) operation in the Driving chapter.
TRAIN LEFT FRONT TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAIN RIGHT FRONT TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAIN RIGHT REAR TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAIN LEFT REAR TIRE (if equipped) — Displayed when training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TIRES NOT TRAINED – REPEAT (if equipped) — Displayed when an error occurs while training the TPMS system. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
TRAINING COMPLETE (if equipped) — Displayed when training of the TPMS system is complete. Refer to TPMS reset procedure in the Tires, Wheels and Loading chapter for more information.
37
Page 38
Instrument Cluster
MYKEY ACTIVE DRIVE SAFELY — Displayed at startup when MyKey™ is in use. Refer to MyKey™ in the Locks and Security chapter for more information.
KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey™ in the Locks and Security chapter for more information.
VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey™ is in use and the Admin has enabled the MyKey speed limit and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.
SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to MyKey™ in the Locks and Security chapter for more information.
CHECK SPEED DRIVE SAFELY — Displayed when a MyKey™ is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey™ in the Locks and Security chapter for more information.
VEHICLE NEAR TOP SPEED — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.
TOP SPEED MYKEY SETTING — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.
BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey™ is in use and Belt-Minder威 is activated. Refer to MyKey™ in the Locks and Security chapter for more information.
ADVTRAC ON MYKEY SETTING — Displayed when a MyKey™ is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey™ in the Locks and Security chapter for more information.
TO STOP ALARM START VEHICLE — Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires. See Perimeter alarm system in the Locks and security chapter.
SECURITY SYSTEM FAULT — Displayed when the security system has detected a fault. See your authorized dealer for service.
38
Page 39
Instrument Cluster
INTKEY COULD NOT PROGRAM — Displayed when an attempt is made to program a fifth integrated key to the remote keyless entry system. For more information on integrated key, refer to the Locks and Security chapter.
KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey™ in the Locks and Security chapter for more information.
SLOW VEHICLE TO XX MPH FOR ELD (if equipped) — Displayed when the vehicle speed requirement for the electronic locking differential mode has not been met.
CHECK LOCKING DIFFERENTIAL (if equipped) — Displayed when an electronic locking differential (ELD) system fault is present. For more information, refer to Electronic locking differential (ELD) in the Driving chapter.
HILL DESCENT CONTROL FAULT (if equipped) — Displayed when a hill descent system fault is present.
HILL CNTRL OFF SYSTEM COOLING (if equipped) — Displayed when a hill descent system fault is present.
FOR OFF ROAD SLOW TO 5 MPH (if equipped) — Displayed when the vehicle speed requirement for off-road mode entry has not been met.
OFF ROAD MODE ENABLED (if equipped) — Displayed when off-road mode becomes active.
EXITING OFF ROAD MODE (if equipped) — Displayed when off-road mode becomes inactive.
HILL DESCENT CONTROL ACTIVE (if equipped) — Displayed when hill descent control mode becomes active.
HILL DESCENT CONTROL OFF (if equipped) — Displayed when hill descent control mode becomes inactive.
FOR HILL CNTRL 20 MPH OR LESS (if equipped) — Displayed when the vehicle speed requirement for hill control mode entry has not been met.
DRIVER RESUME CONTROL (if equipped) — Displayed when the hill control and off-road mode require the driver to resume control.
FOR HILL CNTRL SELECT GEAR (if equipped) — Displayed when the driver is requested to select a transmission gear to enable operation of the hill mode and off-road mode.
COAST DOWN MODE (if equipped) — Displayed when vehicle enters coast down mode.
39
Page 40

Entertainment Systems

AUDIO SYSTEMS

Note: If your volume is muted and MYKEY VOLUME LIMITED is displayed, refer to MyKey™ in the Locks and Security chapter for more information.

AM/FM stereo system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.
Accessory delay: Your vehicle is equipped with accessory delay which allows you to operate the radio and other electrical accessories for up to ten minutes after the ignition has been turned off or until either front door is opened.
40
Page 41
Entertainment Systems

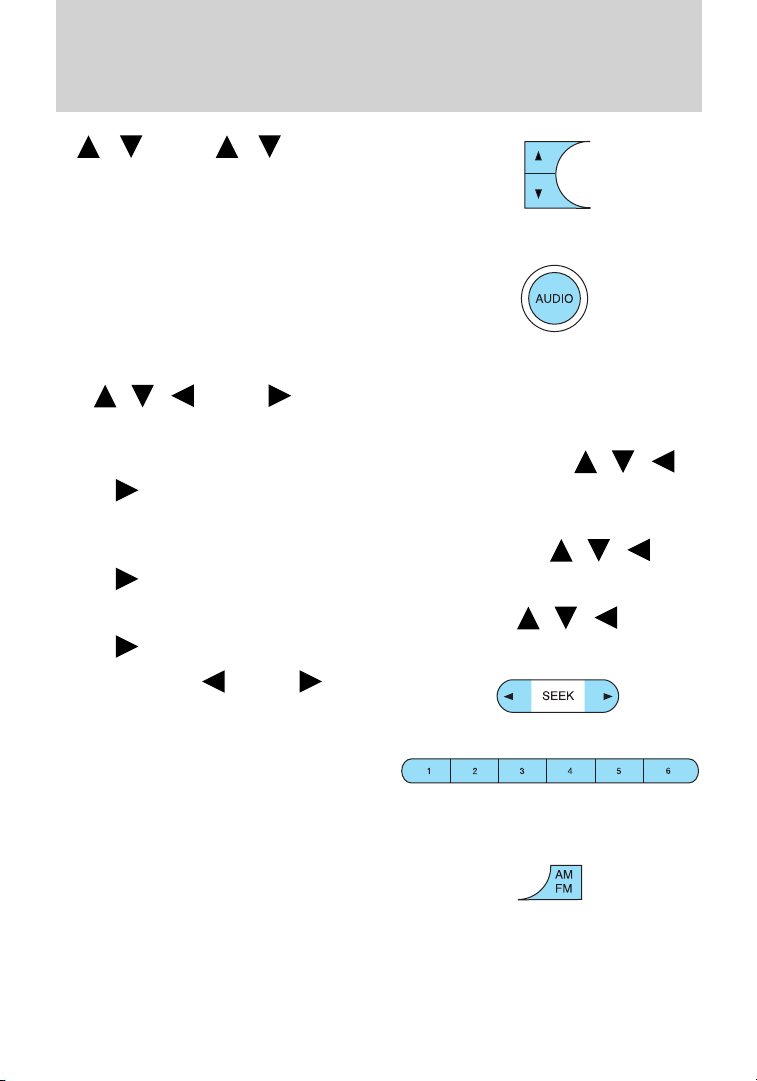

1. / : Press / to manually go up or down the radio
frequency. Press and hold for a fast advance through radio frequencies. Also use in AUDIO mode to gain access to various settings.
2. AUDIO: Press AUDIO repeatedly to gain access to the following settings:
BAL (Balance): Press AUDIO to reach the balance setting. Use right (R) speakers.
/ / SEEK to adjust the audio between the left (L) and
FAD (Fade): Press AUDIO to reach the fade feature. Use SEEK to adjust the audio between the front (F) and back (B)
speakers.
TREB (Treble): Press to adjust the treble setting. Use SEEK to adjust.
BASS (Bass): Press to adjust the bass setting. Use SEEK to adjust.
3. SEEK: Press access the previous/next strong
station.

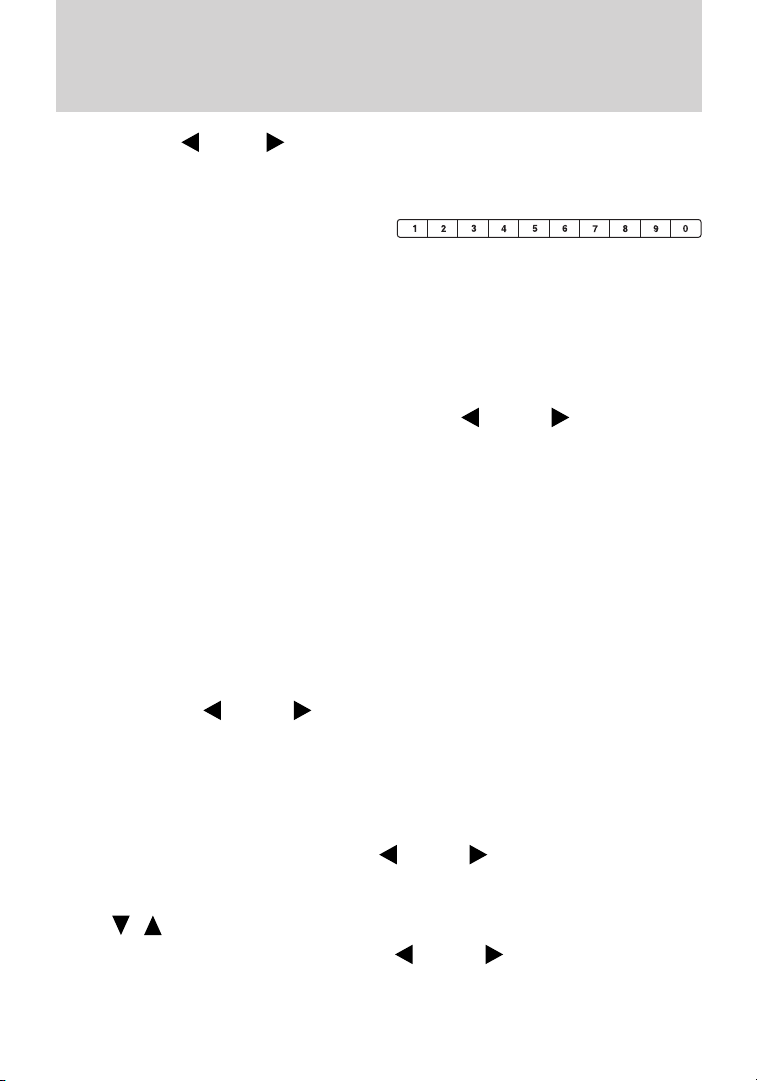

4. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You can save up to 18 stations, six in AM, six in FM1 and FM2.
5. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.
SEEK to
/ /
/ /
/ /
41
Page 42
Entertainment Systems
6. ON/OFF/Volume: Press VOL-PUSH to turn ON/OFF. Turn VOL-PUSH to increase/decrease volume.
7. CLK (Clock): Press CLK to toggle between displaying the radio frequency and the clock setting.
Setting the clock: Press and hold CLK until the hours begin to flash. Press manually increase/decrease the hours. Press CLK again to set the minutes using manually increase/decrease the minutes. Allow 10 seconds to pass to
confirm that the time has been set.

AM/FM in-dash CD/MP3 satellite compatible sound system

/ / SEEK to
/ / SEEK to
42
1
LOAD
• DIRECT
SCAN
3
2
TEXT
CAT/FOLD
VOL
4
AM/FM
SIRIUS
5
SEEK
6
CD
AUX
7
SOUND
MENU
8
TUNE
OK
9
CLOCK #
0
Page 43
Entertainment Systems
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.
Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to ten minutes after the ignition is turned off or until either front door is opened.
Note: Your vehicle is equipped with a unique audio system. If your display shows six small circles in the display, your audio system is a CD6 system (six disc changer). If not, your system is a single CD system.

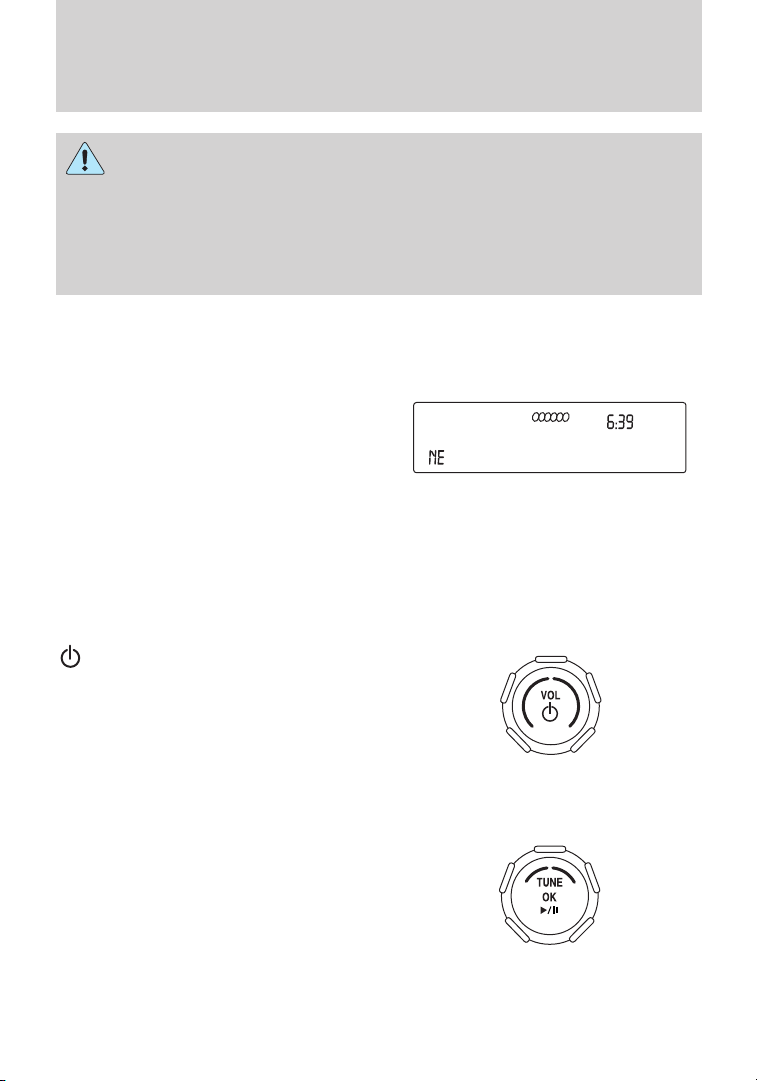

Setting the clock
To set the time, press CLOCK. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes and press OK. The clock will then begin from that time.
AM/FM Radio
/ VOL (Power/Volume): Press to turn the radio on/off. Turn the knob to increase/decrease volume.
If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a nominal listening level when the ignition switch is turned back on.
AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go
up/down the frequency band in individual increments.
DIRECT: Press DIRECT and then manually enter the desired radio station (i.e. 93.9) using the memory preset numbers (0–9).
43
Page 44
Entertainment Systems
SEEK: Press SEEK to access the previous/next strong radio station.

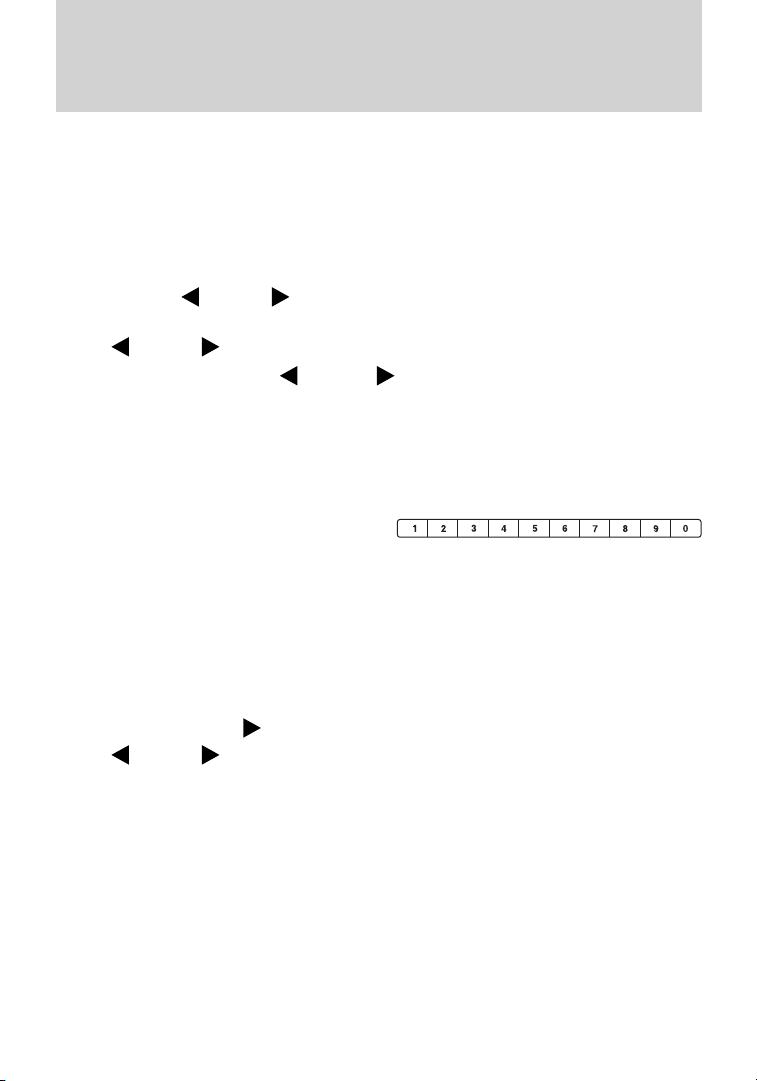

SCAN: Press for a brief sampling of all strong radio stations. 0–9 (MEMORY PRESETS): When
tuned to any station, press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2.
Saving presets automatically: Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.
To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use AUTO PRESET to ON, and either wait five seconds for the search to
initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1 will begin playing.
If there are fewer than 10 strong stations, the system will store the last one in the remaining presets.
RDBS Radio
Available only in FM mode. This feature allows you to search RDBS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.
To activate: Press MENU repeatedly until RDBS (ON/OFF) appears in the display. Use off, you will not be able to search for RDBS equipped stations or view
the station name or type. CAT/FOLD (Category/Folder): This feature allows you to select from
various music categories. To change RDBS categories: Press MENU repeatedly until RDBS
ON/OFF appears in the display. Use between ON/OFF. Press CAT. PRESS UP OR DOWN TO CHANGE RDBS
CATEGORY will appear in the display. Press
category appears in the display, press station playing that selection or press SCAN for a brief sampling of all
stations playing that category of music. 44
SEEK to toggle RDBS ON/OFF. When RDBS is
SEEK to toggle RDBS
to scroll through all possible categories. When the desired
SEEK to find the next
SEEK to toggle
Page 45
Entertainment Systems

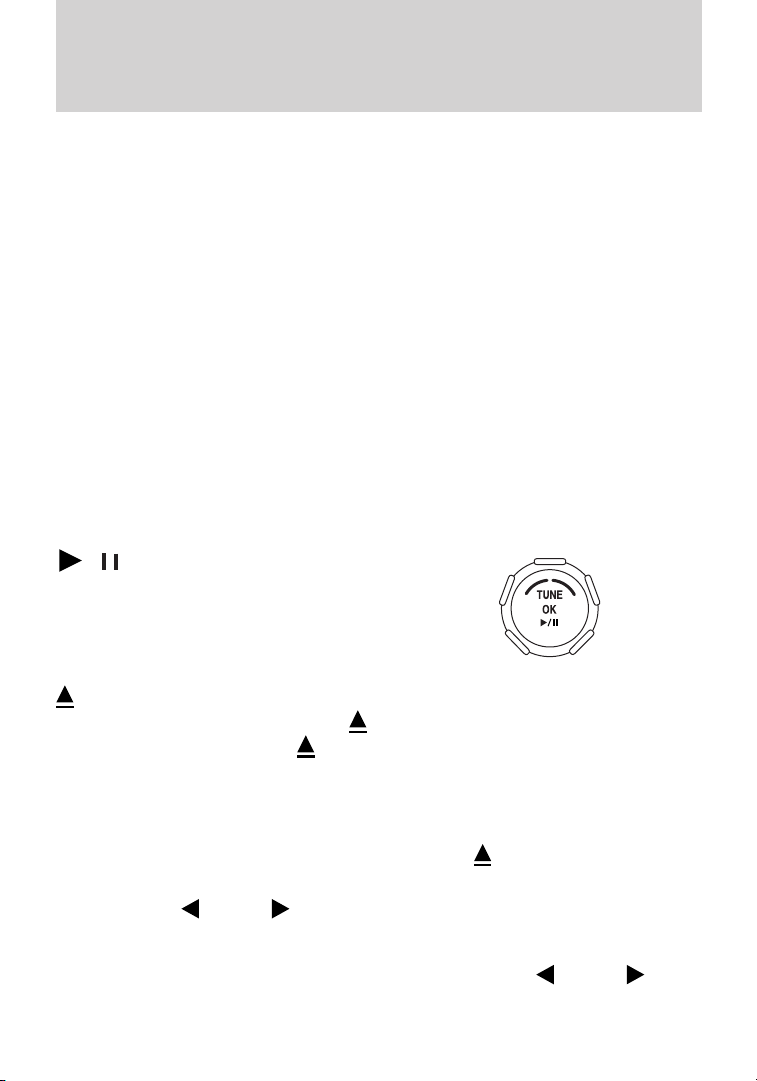

CD/MP3 Player
CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.
LOAD: For a single CD system– This control is not operational. To load a CD,
simply insert the disc, label side up, into the CD slot. For a CD6 system– Press LOAD. When the display reads SELECT SLOT, choose the desired slot number using memory presets 1–6. When the display reads LOAD CD #, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play.
To auto load up to six discs– Press and hold LOAD until the display reads AUTOLOAD #. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in preset #1 will begin to play.
Press the number preset buttons (1–6) to choose the disc you want to play.
/ Play/Pause: Press to play/pause a track when playing a
CD.
(Eject):
For a single CD system– press to eject the CD. For a CD6 system– press
the corresponding memory preset number. The display will read EJECTING #. When the system has ejected the CD, the display will read REMOVE CD #. Remove the CD. If you do not remove the CD, the system will reload the disc. To auto eject all loaded discs– Press and hold all discs and prompt you when to remove them.
SEEK: Press
CAT (Category) / FOLD (Folder):
In MP3 mode only– Press CAT/FOLD and then press access the previous/next folder.
SEEK to access the previous/next track.
and select the desired CD slot by pressing
. The system will eject
SEEK to
45
Page 46
Entertainment Systems
SCAN: Press for a brief sampling of all tracks on the current disc or
MP3 folder.
DIRECT:
In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track.
In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific track in the folder selected.
TEXT:
In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available.
In TEXT MODE: Sometimes the display requires additional text to be displayed. When the
press
COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use When COMPRESSION is ON, the system will bring the soft and loud CD
passages together for a more consistent listening level. SHUFFLE: Press MENU repeatedly until SHUFFLE ON/OFF appears in
the display. Use engage shuffle mode right away, press
play. Otherwise, random play will begin when the current track is finished playing. The system will only shuffle the disc currently playing.
Satellite Radio (if equipped)
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes.
TUNE: Turn to go to the next / previous available SIRIUS satellite station.
SEEK to view the additional display text.
indicator is active, press TEXT and then
SEEK to toggle between ON/OFF.
SEEK to toggle between ON/OFF. If you wish to
SEEK to begin random
46
Page 47
Entertainment Systems
DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station.
SEEK: Press specific category is selected, (Jazz, Rock, News, etc.), press
category. Press and hold previous/next channels.
SCAN: Press SCAN for a brief sampling of all available SIRIUS satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS satellite channels within the selected category.
MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns.
TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA).
In TEXT MODE: Sometimes the display requires additional text to be displayed. When the
press
CAT (Category) / FOLD (Folder): Press to toggle between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display.
Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category.
SEEK to seek to the previous/next channel in the selected
SEEK to view the additional display text.
SEEK to seek to the previous/next channel. If a
SEEK to fast seek through the
indicator is active, press TEXT and then
47
Page 48
Entertainment Systems
SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu.
Press
to cycle through the following options:
• CATEGORY- Press OK to enter category mode. Press
through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press that specific category of channels only (i.e. ROCK). You may also
select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.
• SONG SEEK MENU- Press OK to enter song seek menu.
Press a. SAVE THIS SONG: Press OK to save the currently playing song’s
title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the
saved titles and press the song title appears in the display that you would like to replace,
press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s
memory. Press song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press RETURN or CANCEL.
c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For
48
to scroll through the following options:
to cycle through the saved titles. When
to cycle through the saved songs. When the
SEEK to search for
to select either
to scroll
Page 49
Entertainment Systems
example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other optionistoturnthemoff.
• CHANNEL LOCKOUT MENU- Press OK to enter the Channel
Lockout menu. Press the options:
a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN number (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: you must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN number to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu.
Sound Adjustments
Press SOUND repeatedly to cycle through the following features:
BASS: Press
SEEK to adjust the level of bass.
to scroll through the following
TREBLE: Press
BALANCE: Press
(L) and right (R) speakers.
FADE: Press and front (F) speakers.
SPEED COMPENSATED VOLUME: With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.
SEEK to adjust the level of treble.
SEEK to adjust the audio between the left
SEEK to adjust the audio between the back (B)
49
Page 50
Entertainment Systems
The default setting is off. Use
Increasing the level from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.
Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.
Extra Features
AUX: Press repeatedly to cycle through LINE IN (auxiliary audio mode), and SYNC威 (if equipped).
For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter.
If your vehicle is equipped with SYNC威, please refer to supplemental information on SYNC威.

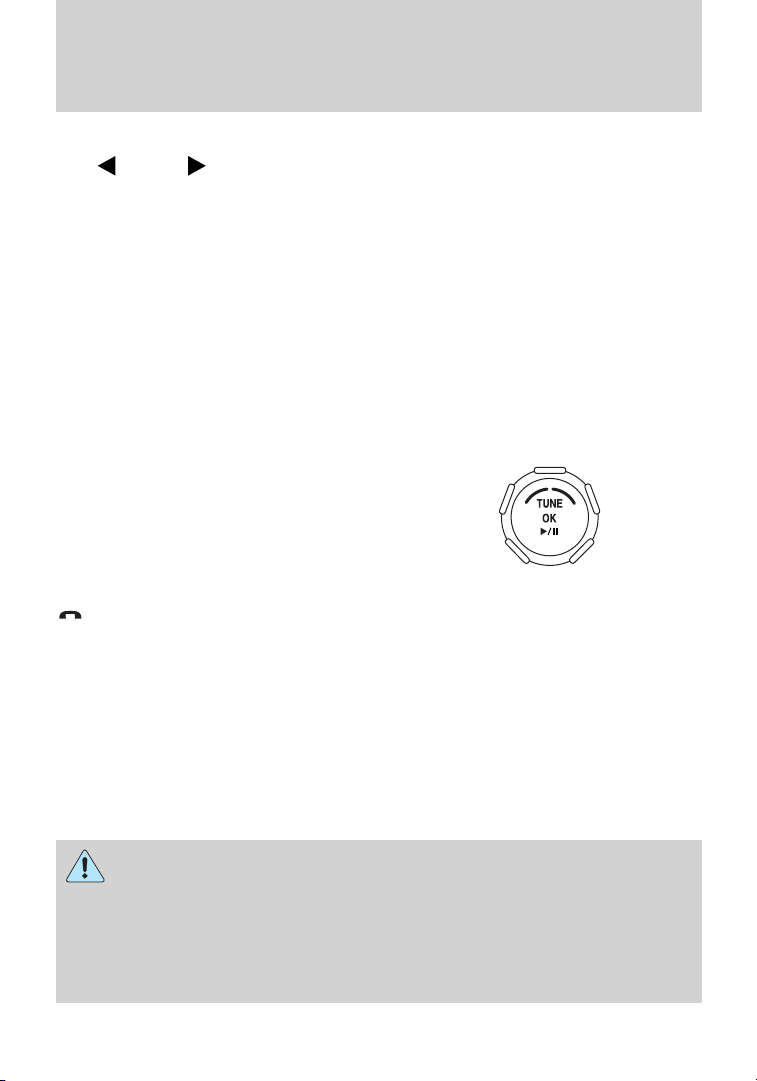

OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to supplemental information on
SYNC威.
SYNC PHONE features. For further information, please refer to supplemental information on SYNC威. If your vehicle is not equipped with SYNC威, the display may read NO PHONE.

Audio system–Navigation system based (if equipped)

If your vehicle is equipped with the navigation system, it will have an integrated navigation/audio system. See the Navigation system supplement for operating instructions on using this audio system.

Auxiliary input jack (Line in — if equipped)

SEEK to adjust between SPEED OFF and levels 1–7:
(Phone): If your vehicle is equipped with SYNC威, press to access
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.
50
Page 51
Entertainment Systems

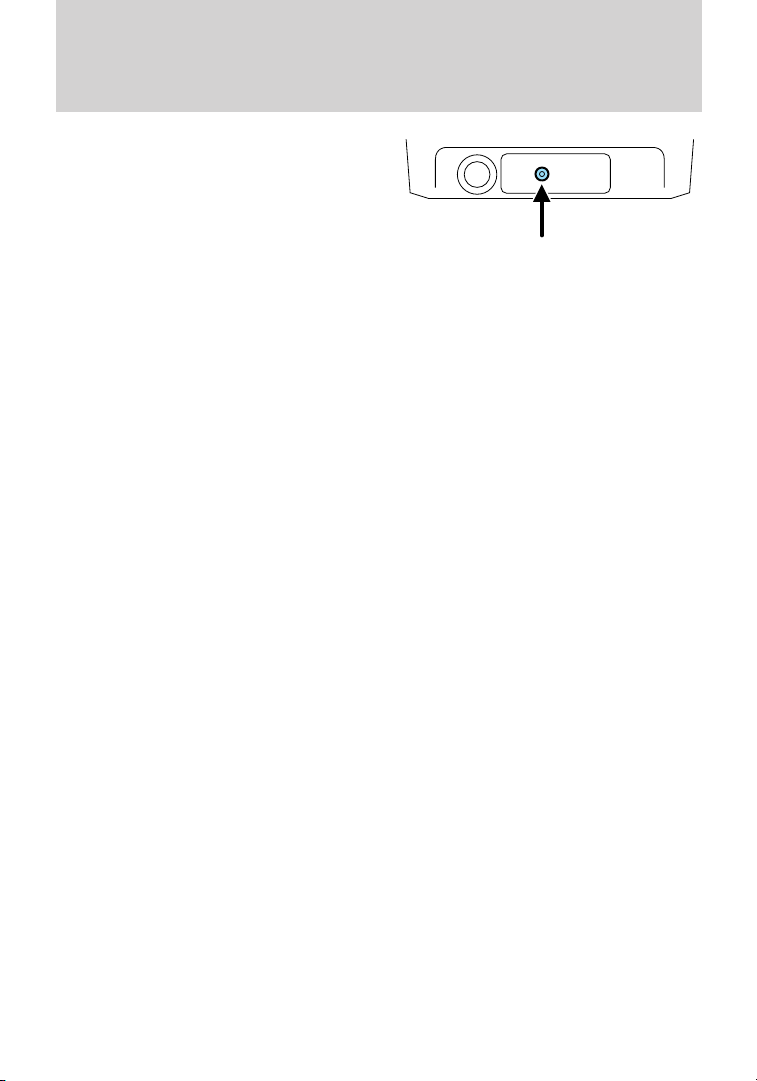

The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary
input jack section in the Audio features chapter of your Navigation system supplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low.
7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.
51
Page 52
Entertainment Systems
2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

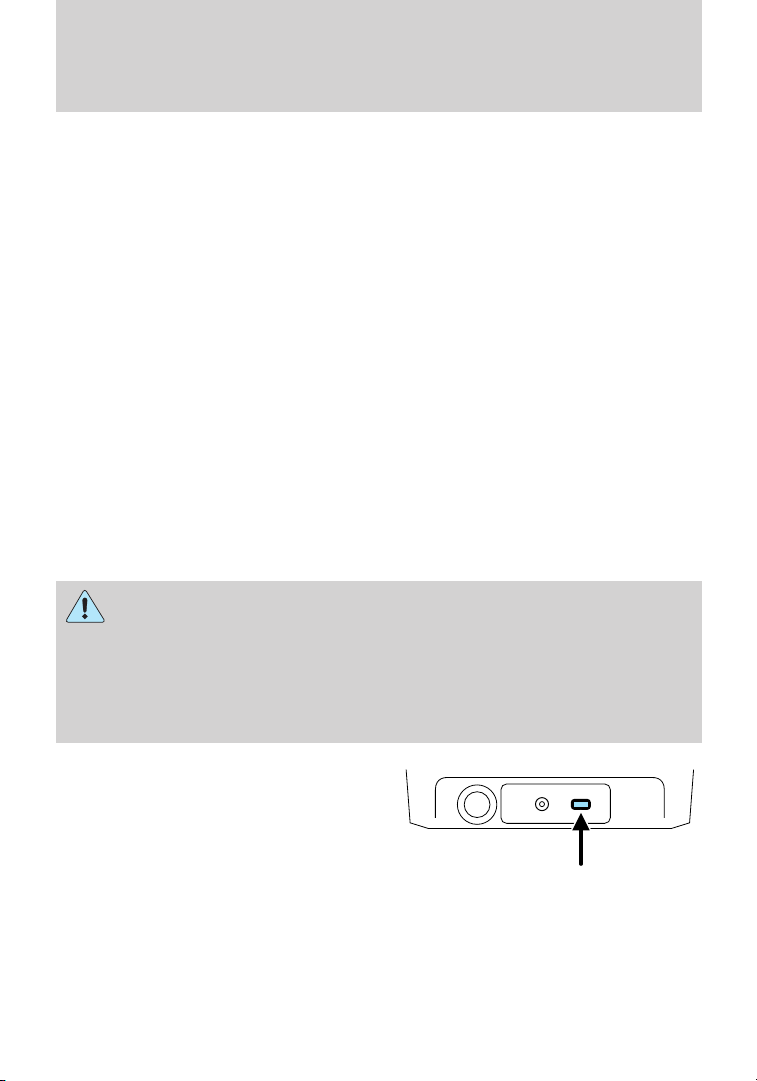

Your vehicle may be equipped with a USB port located on the instrument panel. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC威 supplement or Navigation System supplement.
52
Page 53
Entertainment Systems

GENERAL AUDIO INFORMATION

Radio frequencies:
AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.
• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.
• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

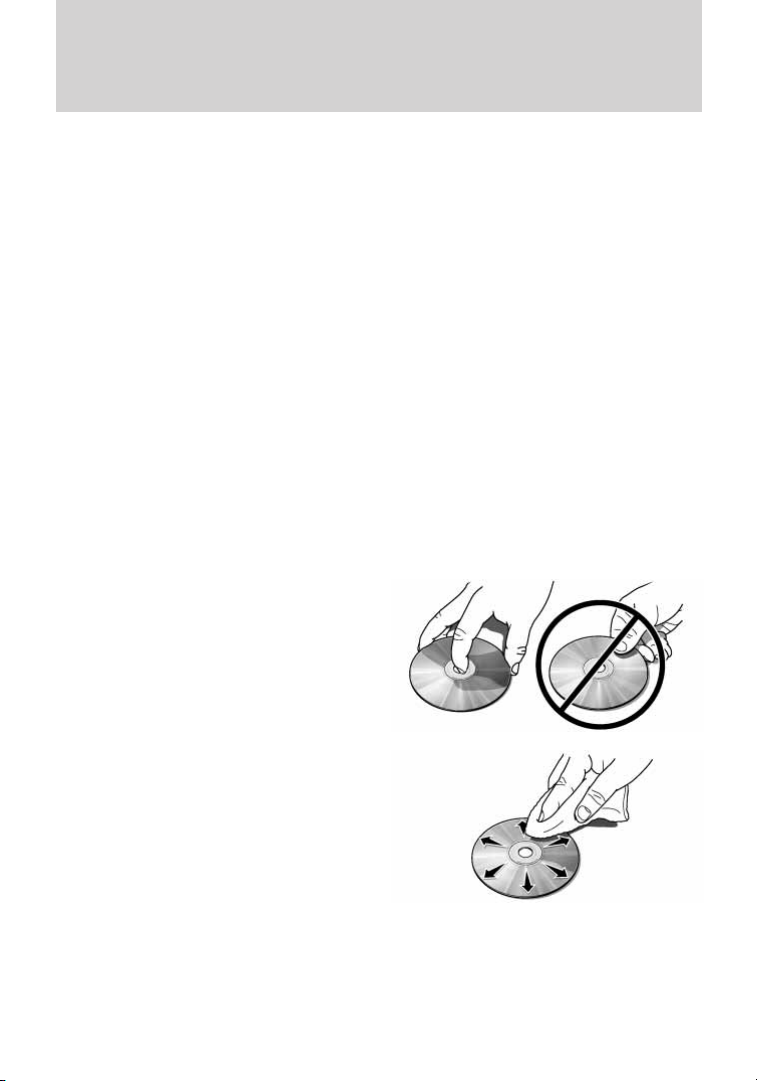

CD/CD player care
Do:
• Handle discs by their edges only. (Never touch the playing surface).
• Inspect discs before playing.
• Clean only with an approved CD
cleaner.
• Wipe discs from the center out.
Don’t:
• Expose discs to direct sunlight or heat sources for extended periods of time.
• Clean using a circular motion.
53
Page 54
Entertainment Systems

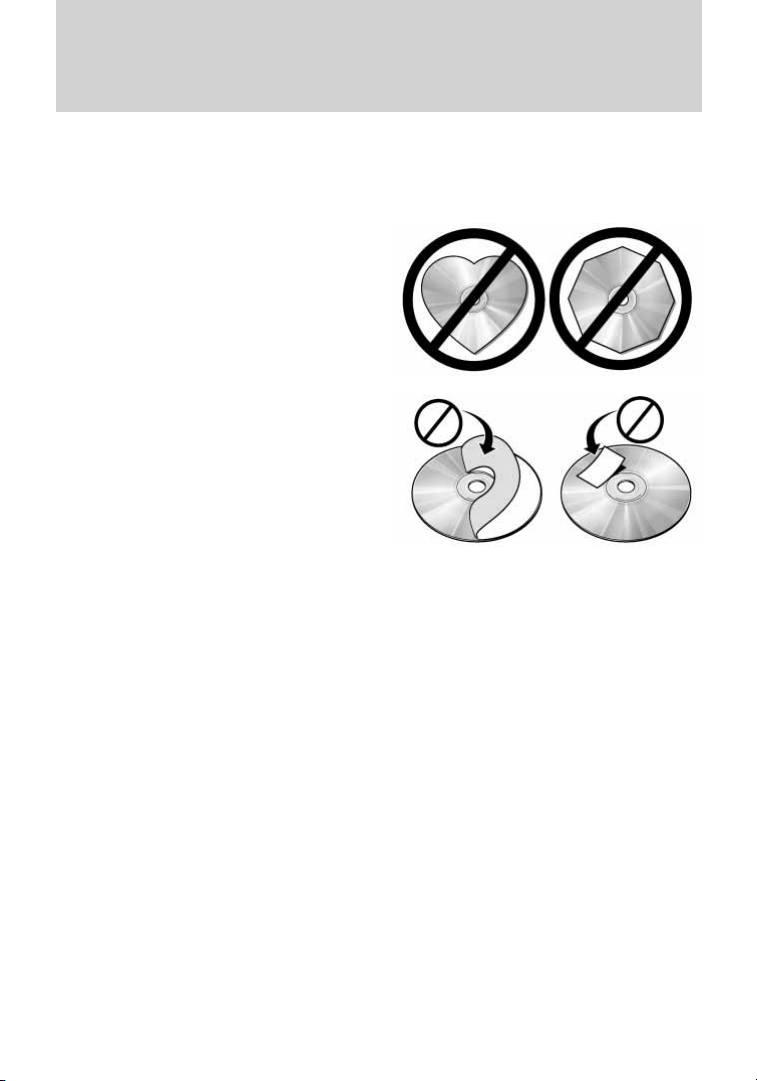

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.
Do not use any irregular shaped CDs or discs with a scratch protection film attached.
CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.
Audio system warranty and service
Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure as follows:
• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.
• MP3 track mode allows the CD to play all tracks in all folders.
• MP3 folder mode limits the playable tracks to the current folder.
• Creating discs with only one level of folders will help with navigation
through the disc files.
54
Page 55
Entertainment Systems

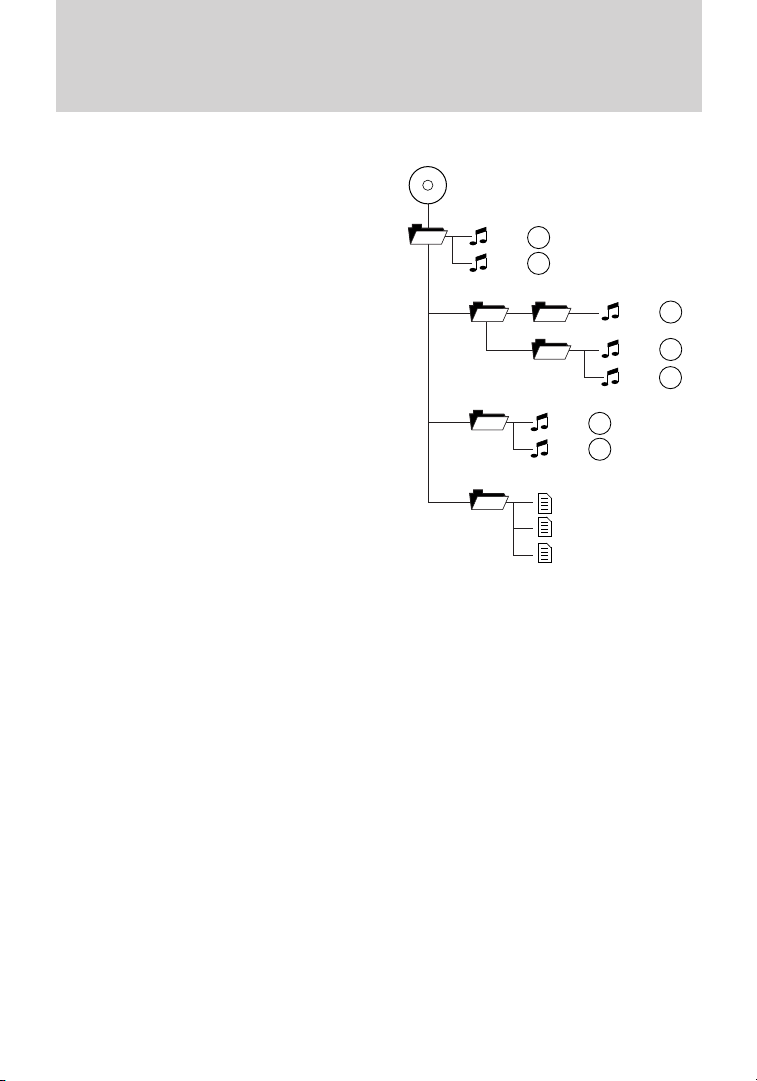

Sample MP3 structure
If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.
In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

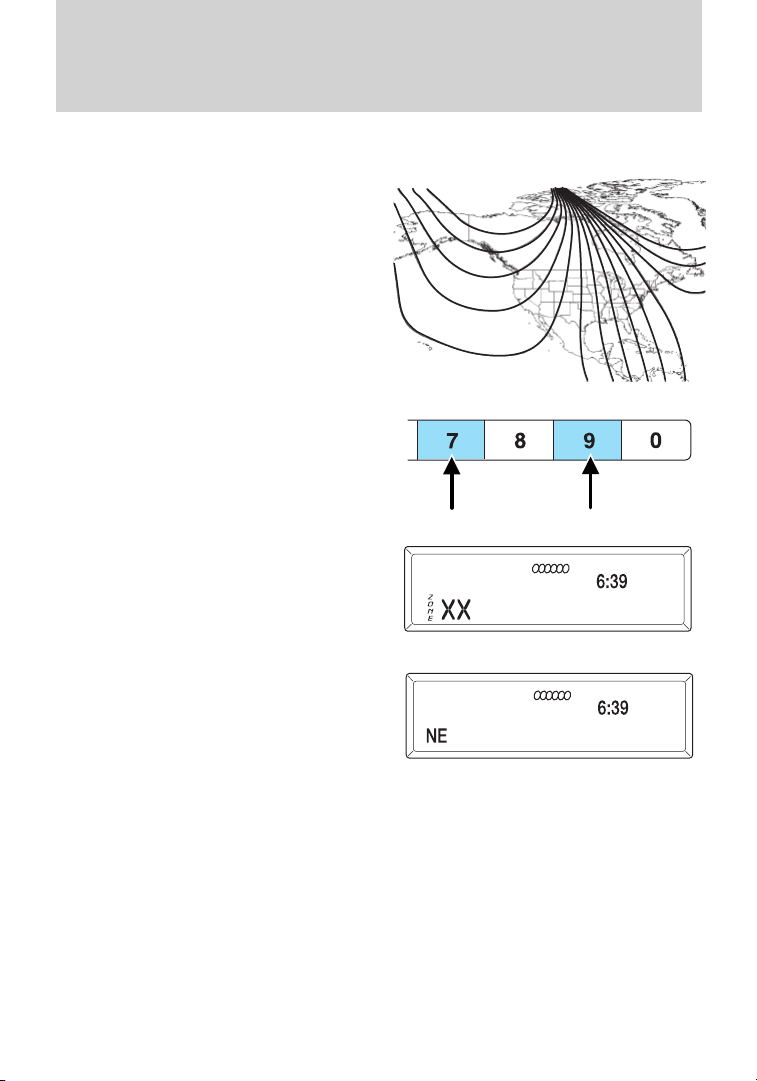

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS威 broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS威 satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS威 at 1–888–539–7474.
Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:
• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.
.mp3
.mp3
11
2
2
3
.mp3
.mp3
.doc
.ppt
.xls
3
.mp3
4
.mp3
5
.mp3
64
7
55
Page 56
Entertainment Systems
• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.
• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.
SIRIUS威 satellite radio service: SIRIUS威 satellite radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS威 service. Vehicles that are equipped with a factory installed SIRIUS威 satellite radio system include hardware and a limited subscription term, which begins on the date of sale or lease of the vehicle.
For information on extended subscription terms, the online media player and other SIRIUS威 features, please contact SIRIUS威 at 1–888–539–7474.
Note: SIRIUS威 reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Satellite radio electronic serial number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS威. While in satellite radio mode, you can view this number on the radio display by pressing the AUX and preset 1 controls simultaneously.
56
Page 57
Entertainment Systems
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.
SAT FAULT Internal module or
system failure
present.
INVALID CHNL Channel no longer
available.
UNSUBSCRIBED Subscription not
available for this
channel.
NO TEXT Artist information not
available.
NO TEXT Song title information
not available.
No action required.
This message should
disappear shortly.
If this message does
not clear within a short
period of time, or with
an ignition key cycle,
your receiver may have
a fault. See your
authorized dealer for
service.
This previously
available channel is no
longer available. Tune to another channel. If
the channel was one of
your presets, you may
choose another channel
for that preset button.
Contact SIRIUS威 at
1–888–539–7474 to
subscribe to the
channel or tune to
another channel.
Artist information not
available at this time on
this channel. The system is working
properly.
Song title information
not available at this
time on this channel.
The system is working
properly.
57
Page 58
Entertainment Systems
Radio Display Condition Action Required
NO TEXT Category information
NO SIGNAL Loss of signal from
UPDATING Update of channel
CALL SIRIUS威 1–888–539–7474

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a navigation system. Refer to the Navigation System supplement for further information.
not available.
the SIRIUS威 satellite
or SIRIUS威 tower to the vehicle antenna.
programming in
progress.
Satellite service has
been deactivated by
SIRIUS威 satellite
radio.
Category information
not available at this
time on this channel.
The system is working
properly.
You are in a location
that is blocking the
SIRIUS威 signal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
No action required. The process may take up to
three minutes.
Call SIRIUS威 at
1–888–539–7474 to
re-activate or resolve
subscription issues.
SYNC姞 (IF EQUIPPED)
Your vehicle may be equipped with SYNC威, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC威 supplement or to the SYNC威 section in the Navigation System supplement (if equipped).
58
Page 59

SINGLE ZONE CLIMATE CONTROL

Climate Controls

1.
Defrost: Distributes outside air through the windshield defroster
vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.
R
2. A.
Rear defroster (if equipped): Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.
2. B.
Heated mirrors (if equipped): Press to activate/deactivate.
This feature will remove ice and snow from the side view mirrors.
3.
Multifunction control: Press repeatedly to toggle through the
settings to choose:
•
: Distributes air through the windshield defroster vents, de-mister vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.
•
: Distributes air through the instrument panel vents.
• : Distributes air through the instrument panel vents, floor vents, rear seat floor vents and de-mister vents.
•
: Distributes air through the floor vents and rear seat floor vents.
59
Page 60
Climate Controls
4. A/C: Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost).
5.
the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except
turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air
distribution selection is either
6. MAX A/C: Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.
7. Temperature control: Controls the temperature of the airflow in the
vehicle.
8.
the vehicle.
9.
When the system is off, outside air is prevented from entering the vehicle.
Recirculated air: Press to activate/deactivate air recirculation in
(defrost). When the ignition switch is
Fan speed adjustment: Controls the volume of air circulated in
Power: Press to activate/deactivate the climate control system.
(defrost) and
(panel) or (panel/floor).

Operating tips

• To reduce fog build-up on the windshield during humid weather, select speed can also be increased to improve clearing.
• To reduce humidity build-up inside the vehicle: do not drive with the system off or with recirculated air engaged.
• Do not put objects under the front seats that will interfere with the airflow to the back seats.
• Remove any snow, ice or leaves from the air intake area at the base of the windshield.
• To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”
60
(defrost) or (floor/defrost). Temperature and/or fan
Page 61
Climate Controls
If you are driving during extreme high ambient temperatures and idling for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, adjust the blower fan speed to the lowest setting and put the vehicle’s transmission into the P (Park) position to continue to receive cool air from your A/C system.
For maximum cooling performance (MAX A/C):
MAX A/C mode:
• Move the temperature control to the coolest setting.
• Set the fan to the highest speed initially, then adjust to maintain
comfort.
(Panel) and (panel/floor) modes:
• Move the temperature control to the coolest setting.
• Select A/C and
to provide colder airflow.
• Set the fan to the highest speed initially, then adjust to maintain comfort.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
(panel/floor).
(recirculated air). Use recirculated air with A/C
61
Page 62
Climate Controls

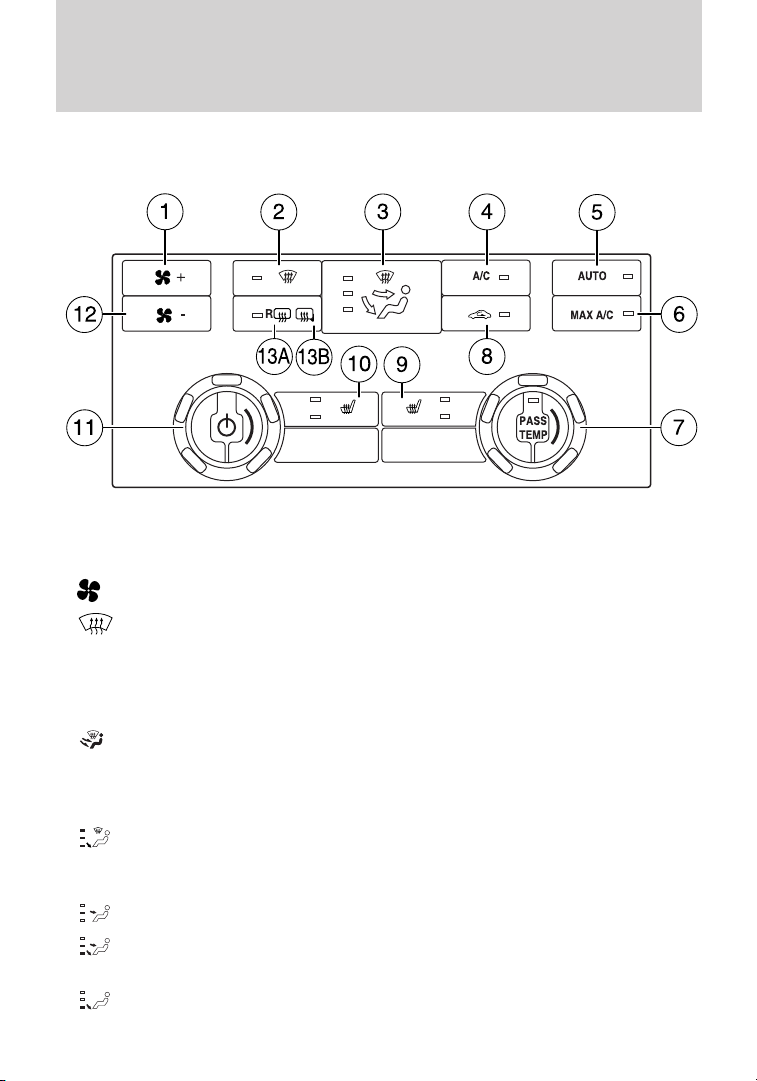

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED SEATS (IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.
+ Fan speed control: Press to increase the fan speed.
1.
2.
vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.
3.
airflow is directed. To return to full automatic control, press AUTO. When choosing to control airflow manually, press repeatedly to toggle through the settings to choose:
•
•
•
•
62
Defrost: Distributes outside air through the windshield defroster
Manual override control: Allows you to manually select where
: Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.
: Distributes air through the instrument panel vents.
: Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
: Distributes air through the floor vents and rear seat floor vents.
Page 63
Climate Controls
4. A/C: Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost).
5. AUTO: Press to engage automatic temperature control. Select the
desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
6. MAX A/C: Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.
7. PASS TEMP: Press to activate separate passenger temperature
control and turn the dial to increase/decrease the airflow temperature for the passenger in the front of the vehicle.
8.
the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except
turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air
distribution selection is either
9.
heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.
10.
seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.
11.
climate control system. When the system is off, outside air is prevented from entering the vehicle. Turn to increase/decrease the air temperature on the driver side of the vehicle. The control also adjusts the passenger side temperature when PASS TEMP is disengaged. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the upper left corner of the display.
Recirculated air: Press to activate/deactivate air recirculation in
(defrost). When the ignition switch is
Passenger heated seat control: Press to control the passenger
Driver heated seat control: Press to control the driver heated
Power/Driver temperature: Press to activate/deactivate the
(defrost) and
(panel) or (panel/floor).
63
Page 64
Climate Controls
12. – Front fan speed control: Press to decrease the fan speed.
R
13. A.
the rear window defroster. Refer to Rear window defroster later in this chapter for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.
13. B.
This feature will remove ice and snow from the side view mirrors.

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED AND COOLED SEATS (IF EQUIPPED)

Rear defroster (if equipped): Press to activate/deactivate
Heated mirrors (if equipped): Press to activate/deactivate.
Temperature conversion: To switch between Fahrenheit and Celsius,
refer to Message center in the Instrument Cluster chapter.
+ Fan speed control: Press to increase the fan speed.
1.
2.
Defrost: Distributes outside air through the windshield defroster vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.
3.
Manual override control: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO. When choosing to control airflow manually, press repeatedly to toggle through the settings to choose:
64
Page 65
Climate Controls
• : Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.
•
•
•
4. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C, (floor/defrost).
5. AUTO: Press to engage automatic temperature control. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
6. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.
7. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air
distribution selection is either
: Distributes air through the instrument panel vents.
: Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
: Distributes air through the floor vents and rear seat floor vents.
(defrost) and
Recirculated air: Press to activate/deactivate air recirculation in
(defrost). When the ignition switch is
(panel) or (panel/floor).
Passenger heated seat: Press to control the passenger heated
8. seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
65
Page 66
Climate Controls
9. PASS TEMP: Press to engage/disengage separate passenger side temperature control. Turn to increase/decrease the air temperature on the passenger side of the vehicle. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The passenger side temperature setting will appear in the upper right corner of the display.
10. seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
11. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
12. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
13. climate control system. When the system is off, outside air is prevented from entering the vehicle. Turn to increase/decrease the air temperature on the driver side of the vehicle. The control also adjusts the passenger side temperature when PASS TEMP is disengaged. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the upper left corner of the display.
14.
15. A. the rear window defroster. Refer to Rear window defroster later in this chapter for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.
15. B. This feature will remove ice and snow from the side view mirrors.
Passenger cooled seat: Press to control the passenger cooled
Driver heated seat: Press to control the driver heated seat.
Driver cooled seat: Press to control the driver cooled seat.
Power/Driver temperature: Press to activate/deactivate the
– Fan speed control: Press to decrease the fan speed.
R
Rear defroster (if equipped): Press to activate/deactivate
Heated mirrors (if equipped): Press to activate/deactivate.
66
Page 67
Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED AND COOLED SEATS (NAVIGATION BASED–IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.
1. CLIMATE: Press to control the climate control system through the touch display screen. See Touchscreen functions later in this section.
R
Rear defroster (if equipped): Press to activate/deactivate the
2. rear window defroster. Refer to Rear window defroster later in this
chapter for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.
Heated mirrors (if equipped): Press to activate/deactivate.
This feature will remove ice and snow from the side view mirrors.
3. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C, (floor/defrost).
(defrost) and
67
Page 68
Climate Controls
4. Passenger temperature: Press to activate separate passenger temperature control to increase/decrease the air temperature on the passenger side of the vehicle.
5.
Passenger heated seat (if equipped): Press to control the passenger heated seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
6. passenger cooled seat. Refer to Heated and cooled seats in the Seating
and Safety Restraints chapter for more information.
7. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle when used with A/C and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except
8. –
9. AUTO: Press to engage full automatic operation. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
10. Driver temperature: Press to increase/decrease the air temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged.
11. cooled seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
12. heated seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
13. When the system is off, outside air is prevented from entering the vehicle. The climate status in the touchscreen will also be turned off.
14. defroster vents and de-mister vents. Can be used to clear the windshield
68
Passenger cooled seat (if equipped): Press to control the
Recirculated air: Press to activate/deactivate air recirculation in
(defrost).
Recirculation may turn off automatically in all airflow selections except MAX A/C.
+ Fan speed control: Press to decrease/increase the fan speed.
Driver cooled seat (if equipped): Press to control the driver
Driver heated seat (if equipped): Press to control the driver
Power: Press to activate/deactivate the climate control system.
Defrost: Distributes outside air through the windshield
Page 69
Climate Controls
of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

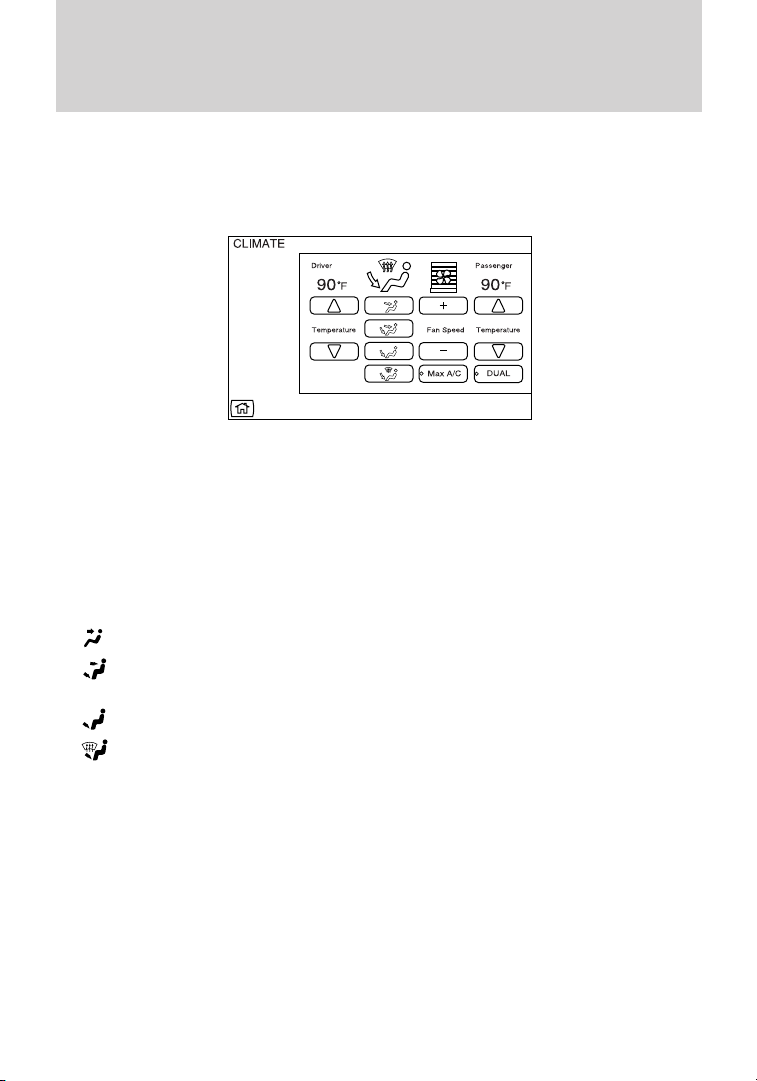

TOUCHSCREEN FUNCTIONS

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.
Temperature: Press the up and down arrows on the left side of the screen to increase/decrease the airflow temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged. Press the up and down arrows on the right side of the screen to increase/decrease the airflow temperature for the passenger side of the vehicle.
•
: Distributes air through the instrument panel vents.
•
•
•
Fan Speed: Press to decrease/increase the fan speed. Dual: Press to activate/deactivate separate driver and passenger
temperature controls. Max A/C: Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press MAX A/C again for normal operation.
: Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
: Distributes air through the floor vents, rear seat floor vents.
: Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.
To return to full automatic control, press AUTO on the main bezel.
69
Page 70
Climate Controls

VOICE COMMANDS IN CLIMATE MODE

Please refer to the Voice commands in climate mode section of the Navigation supplement for more information on using voice commands
with the climate control system.

Operating tips

• To reduce fog build-up on the windshield during humid weather,
select increased to improve clearing.
• To reduce humidity build-up inside the vehicle: do not drive with the
system off or with
• Do not put objects under the front seats that will interfere with the
airflow to the back seats.
• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
• To improve the A/C cool down, drive with the windows slightly open
for 2-3 minutes after start up or until the vehicle has been “aired out.”
• If you are driving during extreme high ambient temperatures and
idling for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C mode, adjust the blower fan speed to the lowest setting and put the vehicle’s transmission in P (Park) to continue to receive cool air from your A/C system.
For maximum cooling performance MAX A/C in AUTO:
1. Press AUTO control.
2. Set to desired temperature.
For maximum cooling performance MAX A/C in manual override control
1. Choose
2. Set the temperature to 60°F (16°C).
3. Set the fan to the highest blower setting.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting. 70
(defrost). Temperature and/or fan speed can also be
(recirculated air) engaged.
(panel), A/C, and MAX A/C controls.
.
Page 71
Climate Controls
5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

REAR WINDOW DEFROSTER (IF EQUIPPED)

R
The rear defroster control is located on the climate control panel and works to defrost your rear window from fog and thin ice. If equipped, it also operates the heated mirror to remove snow and thin ice from the side mirrors.
Ensure that the ignition on. Press to turn the defroster on/off. The indicator light will illuminate when activated. For vehicles with a sliding rear window– the defroster will be disabled when the window is opened.
Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.
71
Page 72

Lights

HEADLAMP CONTROL

Rotate the headlamp control clockwise to the first position to turn on the parking lamps.
Rotate clockwise to the second position headlamps.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to off. Using the message center, you can select a delay from 0–180 seconds.
• To turn autolamps on, rotate the control to
to also turn on the
.
• To turn autolamps off, rotate the control to

Fog lamp control (if equipped)

The headlamp control also operates the fog lamps. The fog lamps can be turned on only when the headlamp
controlisinthe position and the high beams are not
turned on. Pull headlamp control towards you
to turn fog lamps on. The fog lamp indicator light
72
, or
will illuminate.
.
Page 73

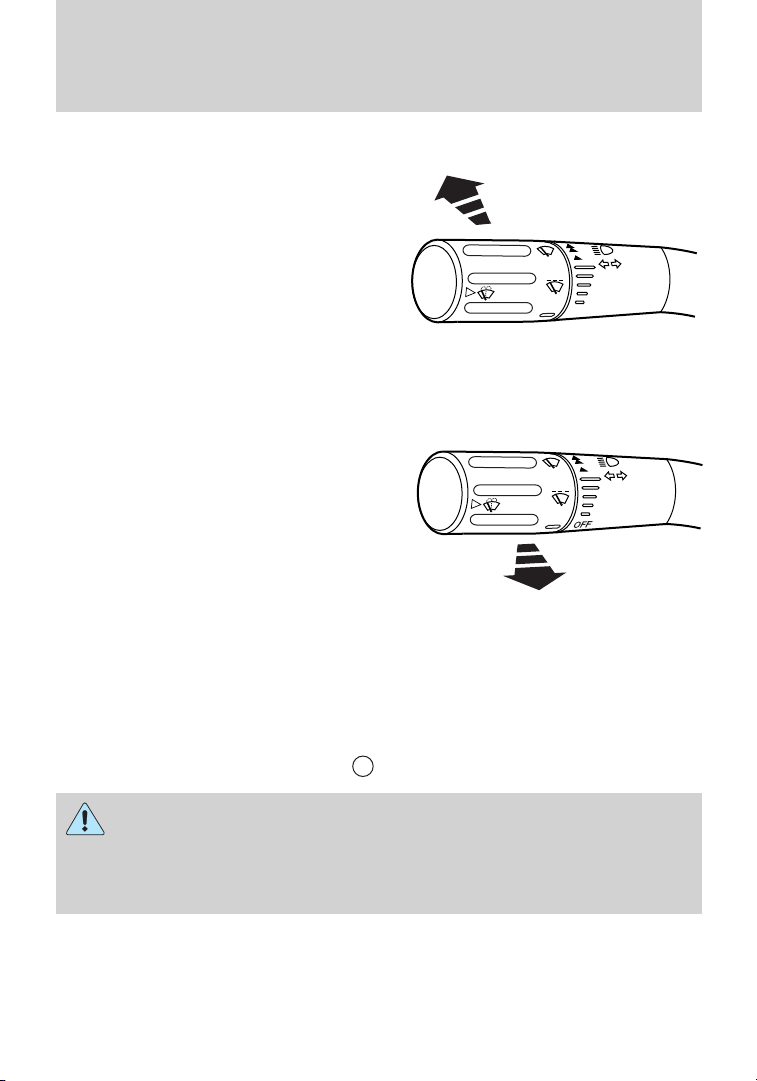

High beams

Push the lever toward the instrument panel to activate. Pull the lever toward you to deactivate.

Flash-to-pass

Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.
In order for the DRLs to function:
• the ignition must be in the on position and
• the headlamp control is in the
, parking lamp or autolamp position.
F
F
O
Lights
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
73
Page 74
Lights

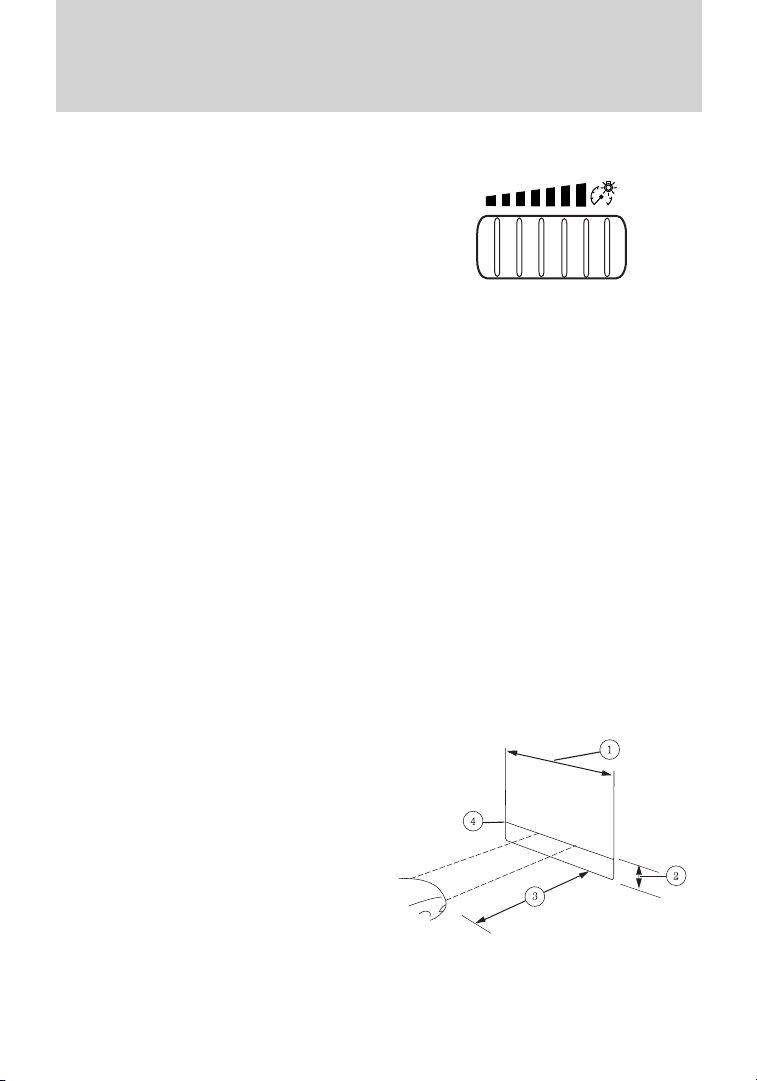

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel when exterior lights are on.
• Rotate the thumbwheel from left to right to brighten the instrument panel.
• Rotate the thumbwheel from right to left to dim the instrument panel.
• Rotate fully to the right (past detent) to turn on interior lamps.
• Rotate to the left position (past detent) to turn off the interior lamps
and to disable the illuminated entry feature. When the control is in the far left position, it acts as a dome lamp defeat/override.
Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
• (1) 8 feet (2.4 meters)
• (2) Center height of lamp to
ground
• (3) 25 feet (7.6 meters)
• (4) Horizontal reference line
2. Measure the height from the
center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).
74
Page 75

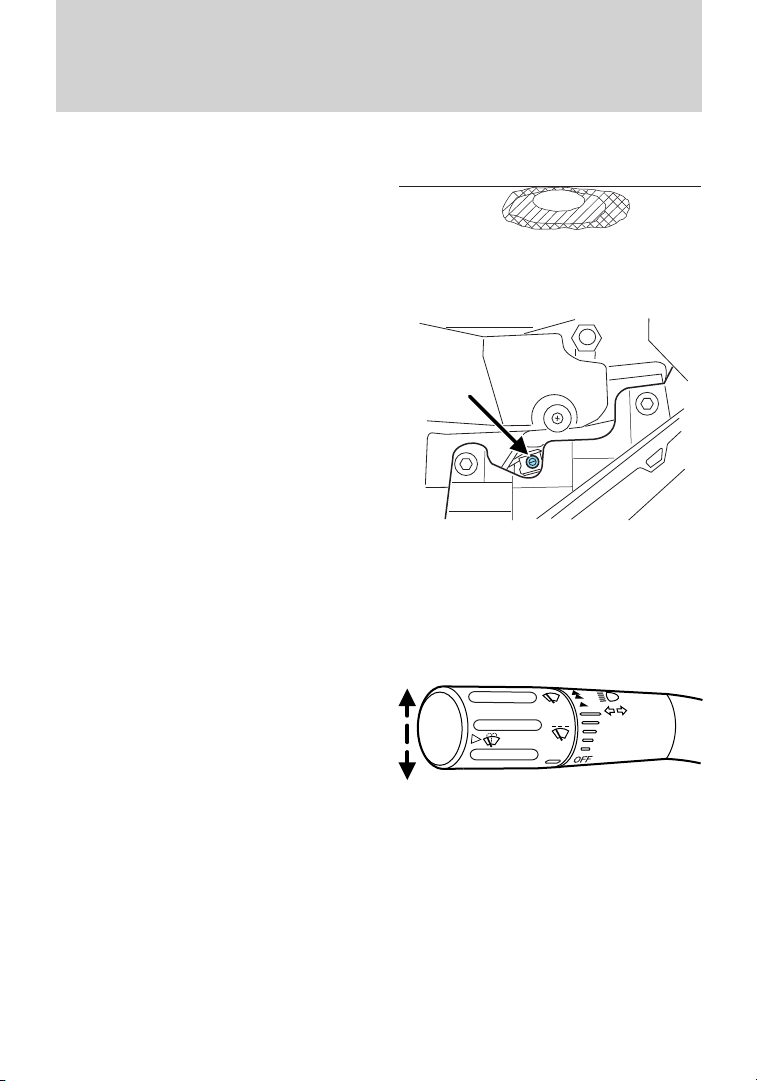

Lights
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood. Cover one of the headlamps so no light hits the wall.
4. On the wall or screen you will
observe a light pattern with a distinct horizontal edge towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted so the edge is at the same height as the horizontal reference line.
5. Locate the vertical adjuster on
each headlamp, then use a P2 Philips screwdriver to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern up to the horizontal line.
6. HORIZONTAL AIM IS NOT
REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.
7. Repeat Steps 3–5 for the other headlamp.
8. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.
• Push up to activate the right turn signal.
Push and hold up or down to the first detent to signal a lane change.
75
Page 76
Lights

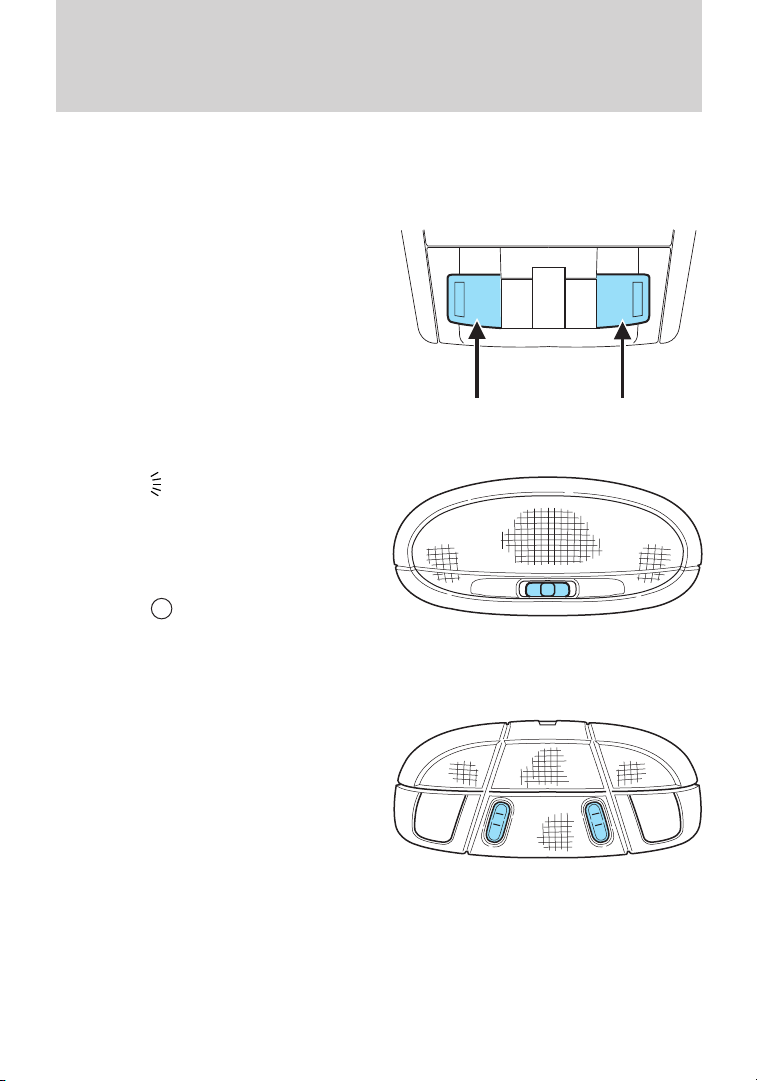

INTERIOR LAMPS

Front row map lamps (if equipped)

To turn on the map lamps, press the outer edge of the clear lens. The front row map lamp lights when:
• any door is opened.
• the instrument panel dimmer
switch is rotated until the courtesy lamps come on.
• the remote entry controls are pressed and the ignition is off.

Rear dome lamp (if equipped)

• ON or stay on.
• DOOR or middle position: The dome light will only come on if a door is opened.
• OFF or come on at all.
The rear dome lamp can be turned on or off by sliding the control.
: The dome light will
D
: The lamp will not
Rear dome/courtesy lamps (if equipped)
The dome lamp lights when:
• any door is opened.
• the instrument panel dimmer
switch is rotated up until the courtesy lamps come on.
• any of the remote entry controls are pressed and the ignition is off.
The reading portion, the two outer lights, can only be turned on and off at the lamp.
76
Page 77
Lights

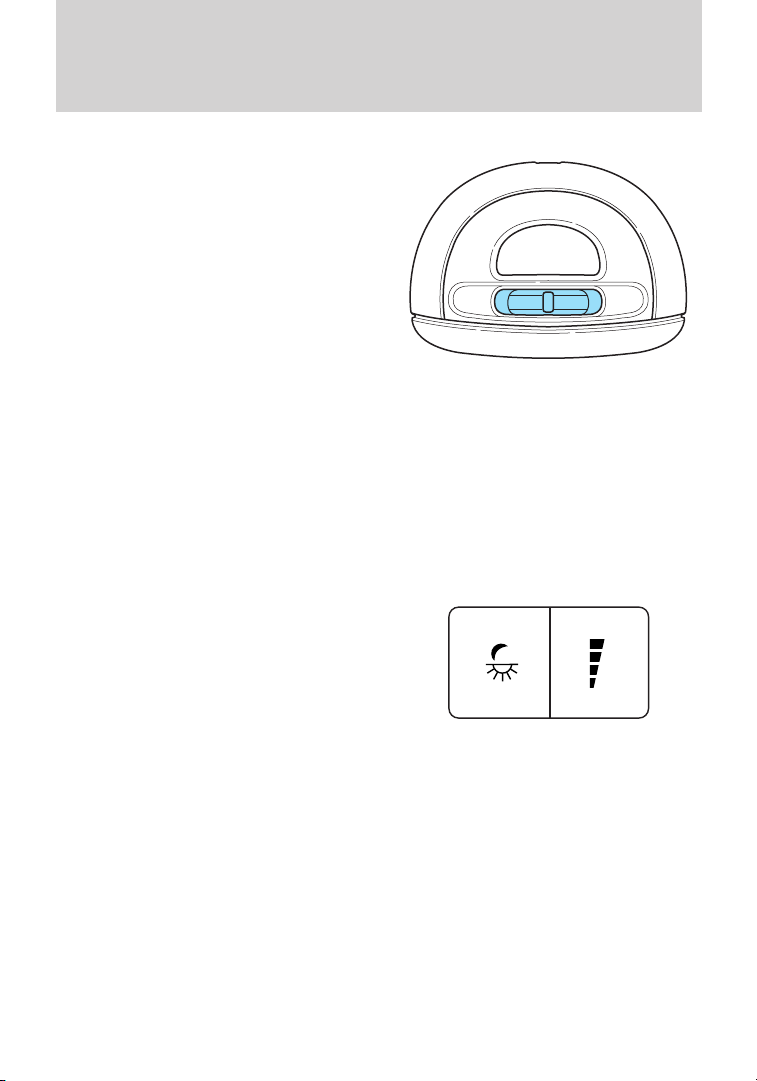

Rear courtesy/reading/cargo lamps (if equipped)
The rear lamps can be turned on when the panel dimmer control is rotated until the lamps come on or when any door is opened.
The lamps can be turned on or off by sliding the control.
• When the control is in the middle position, the lamp will come on when a door is opened or the unlock button is pressed on the remote keyless entry.
• If the control is moved to the left position, the lamp will stay on.
• If the control is moved to the right position, the lamp will not come on
at all.

Ambient lighting (if equipped)

Illuminates footwells and cupholders with a choice of several colors. The ambient lighting control is located on the floor console. To activate, press and release the left side of the control to cycle through the color choices plus the off state. Press the right side of the control to adjust color intensity.
The lights come on whenever the ignition is in either the on or accessory position and the headlamps or parking lamps are on.
Note: The ambient lights will stay on until the ignition is placed in the off position and either of the front doors are opened or the accessory delay timer expires.
77
Page 78
Lights

BULB REPLACEMENT

Lamp assembly condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.
Examples of acceptable condensation are:
• Presence of thin mist (no streaks, drip marks or droplets)
• Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water leak) are:
• Water puddle inside the lamp
• Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to a dealer for service if any of the above conditions of unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.
78
Page 79
Lights

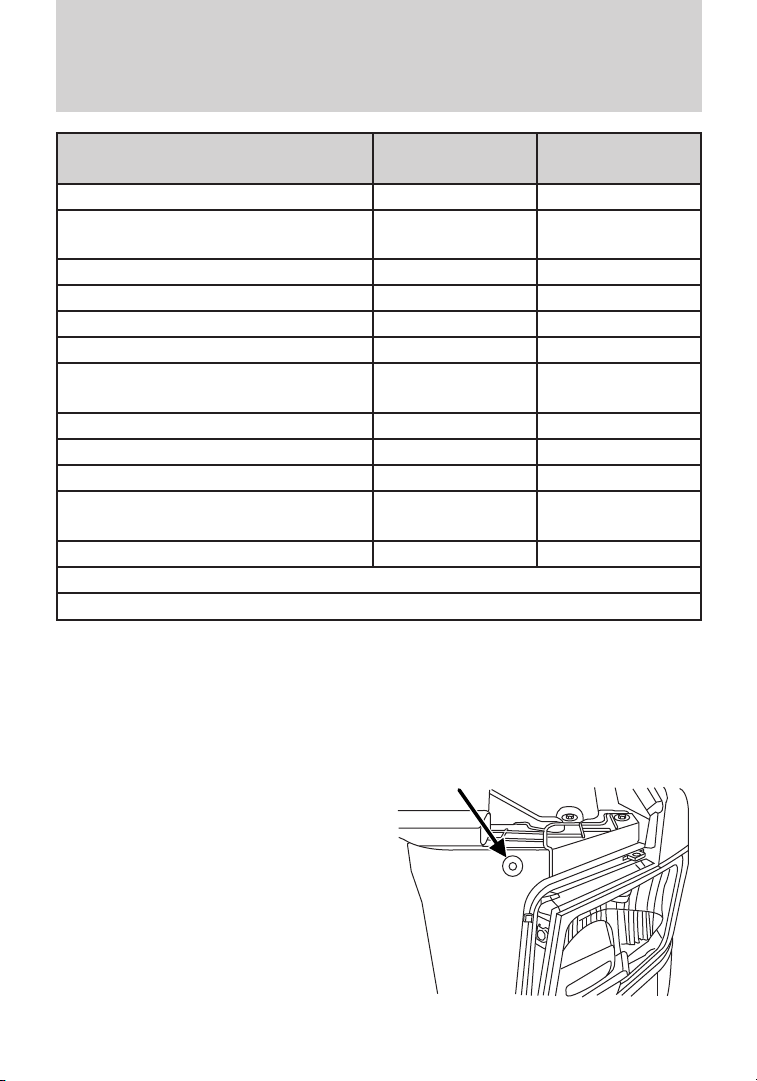

Function Number of
bulbs
Headlamps 2 H13/9008 Front park/turn lamps 2 3157NA (natural
Front sidemarker 2 168 Fog lamps 2 9140 Backup lamp (styleside) 2 921 Backup lamp (Harley) 2 921 Rear stop/turn/sidemarker/tail
lamp (styleside) High-mount brakelamp 1 912 Cargo lamp 2 912 License plate lamp 2 194 Exterior mounted mirror turn
signal indicator (if equipped) Puddle lamp (if equipped) 2 See your dealer All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer

Replacing exterior bulbs

Check the operation of all the bulbs frequently.
Replacing headlamp bulbs
1. Make sure that the headlamp control is in the off position and open
the hood.
2. Remove the pushpin that holds
the air deflector/protective cover from the upper inboard corner of the lamp.
4 3057K
2 See your dealer
Trade number
amber)
79
Page 80
Lights

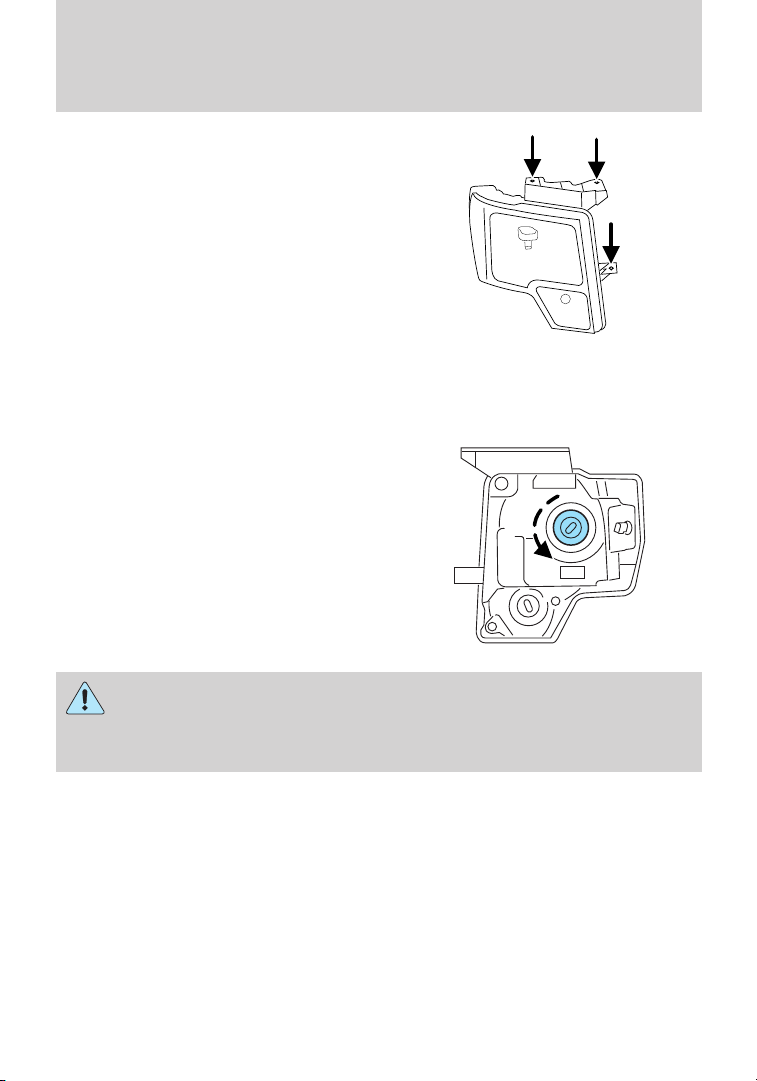

3. Loosen the three retaining bolts
(two at top of lamp, one at lower inboard corner).
4. Once the three retaining bolts have been removed, slide the headlamp
assembly forward, disconnecting the two snap attachments at the fender.
5. Disconnect the electrical connector from the bulb by pulling rearward.
6. Remove the bulb and socket by
turning it counterclockwise, then pull it straight out.
WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Install the new bulb in reverse order.
Replacing front parking lamp/turn signal/sidemarker bulbs
1. Make sure that the headlamp control is in the off position and open the hood.
80
Page 81

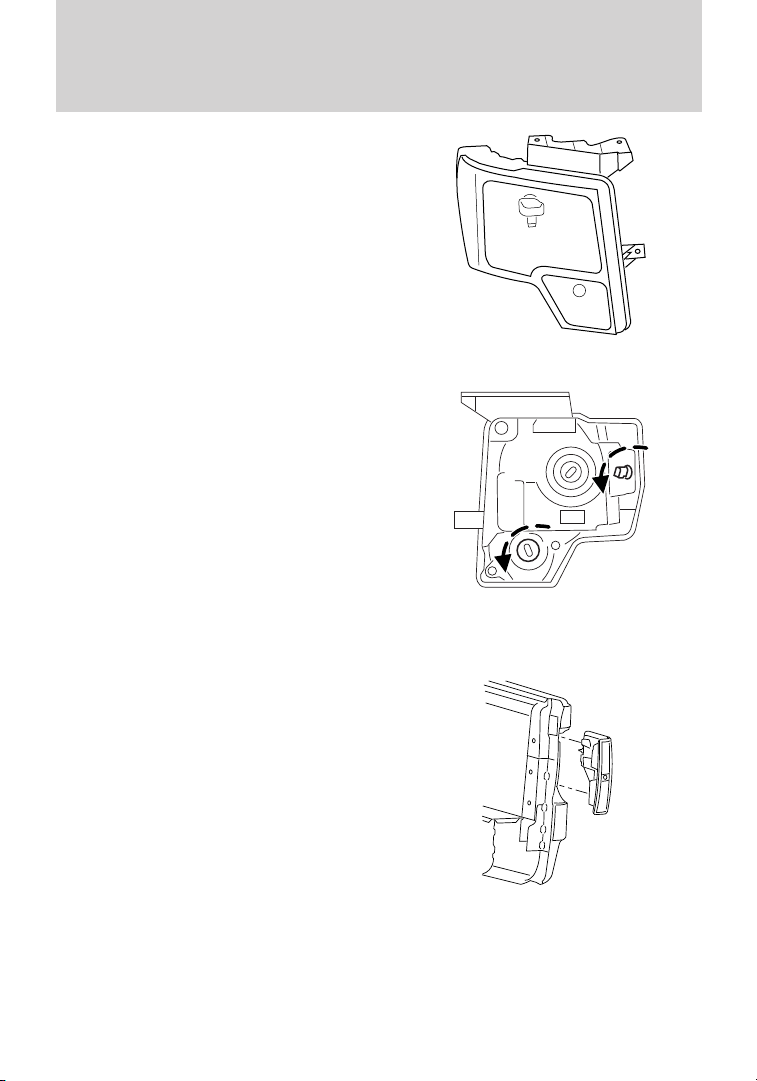

2. Remove the pushpin that holds the air deflector/protective cover from the upper inboard corner of the lamp.
3. Loosen the three retaining bolts (two at top of lamp, one at lower inboard corner).
4. Once the three retaining bolts have been removed, slide the headlamp assembly forward, disconnecting the two snap attachments at the fender.
5. Remove the bulb and socket by turning it counterclockwise, then pull it straight out.
6. Pull the bulb straight out of the socket.
Install the new bulb(s) in reverse order.
Replacing tail/brake/turn signal/backup lamp bulbs
1. Make sure the headlamp control is in the off position.
2. Open the tailgate to expose the lamp assembly and remove the two bolts from the tail lamp assembly.
Lights
81
Page 82
Lights
3. Carefully pull the lamp assembly straight rearward from the tailgate pillar to disengage two hidden snap-in retainers. (Flare side tail lamps are not equipped with snap-in retainers.)
4. Remove bulb socket from the lamp assembly by turning it counterclockwise.
5. Pull bulb straight out of socket and press in the new bulb.
Install the new bulb(s) in reverse order.
Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is in the off position.
1. Remove the two screws and move the lamp assembly away from the vehicle to expose the bulb sockets.
2. Remove the bulb socket by rotating counterclockwise and pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb.
Install the new bulbs in reverse order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamp control is in the off position.
2. Remove the bulb socket from the fog lamp by turning counterclockwise.
3. Disconnect the electrical connector from the fog lamp bulb.
Install the new bulb in reverse order.
Replacing exterior mounted mirror turn signal indicator lamp bulbs
For bulb replacement, see your authorized dealer.
82
Page 83

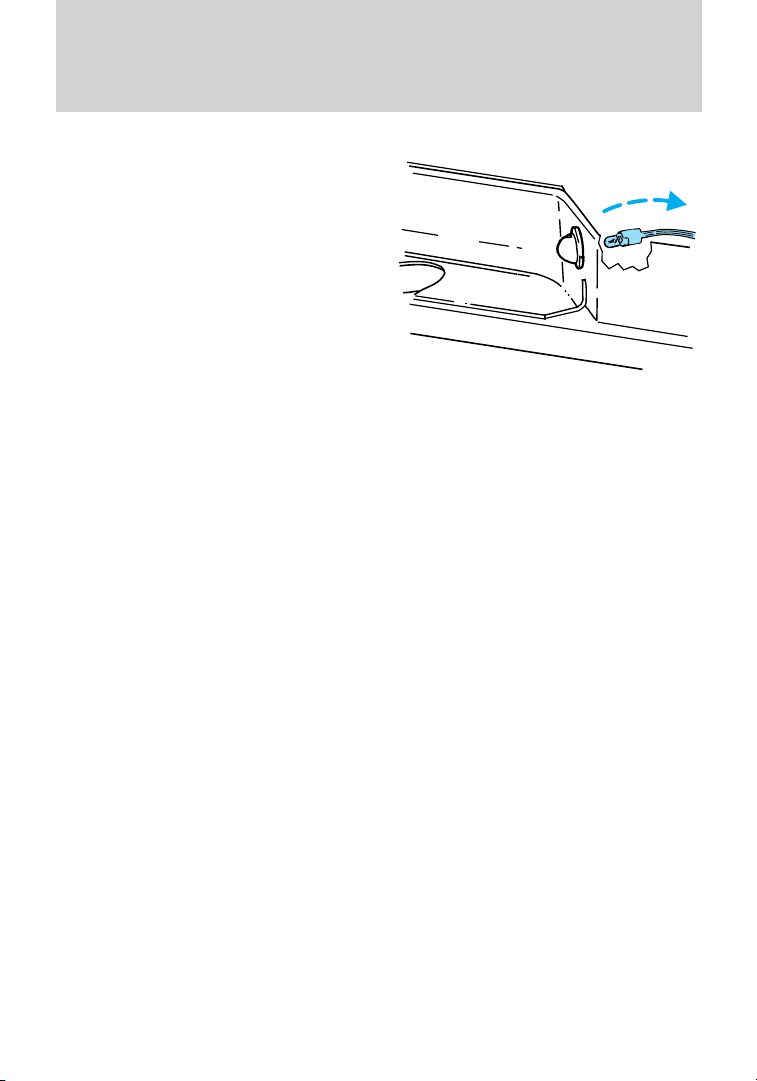

Lights
Replacing license plate lamp bulbs
The license plate bulbs are located behind the rear bumper. To change the license plate lamp bulbs:
1. Reach behind the rear bumper to locate the bulb.
2. Twist the bulb socket counterclockwise and carefully pull to remove it from the lamp assembly.
3. Pull out the old bulb from the socket and push in the new bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise.
83
Page 84

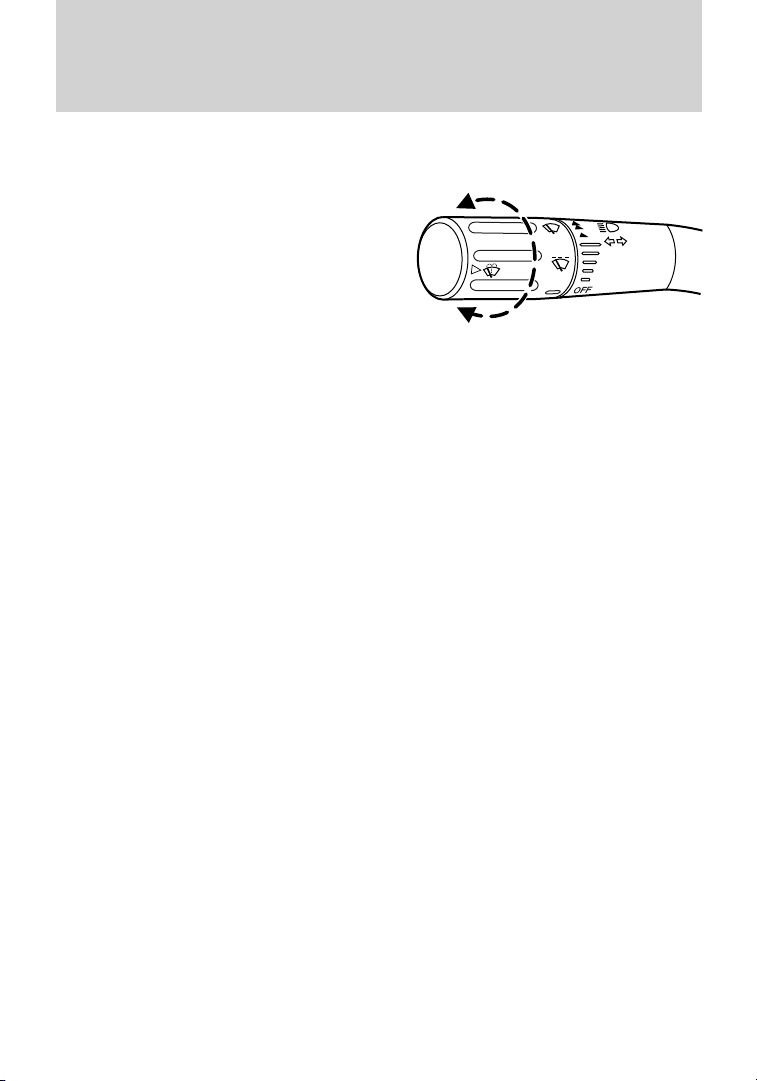

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.
Rain sensing wipers (if equipped): The rain sensing wipers will automatically activate when moisture is present on the windshield and the multi-function switch is set to one of five auto/interval moisture sensitivity settings. Rotate the end of the control toward the windshield to increase the sensitivity. The speed of the rain sensitive wipers will vary based on the amount of moisture detected on the windshield and the auto/interval setting. There are no interval (intermittent wipe) settings on vehicles with rain sensing wipers. The wipers will continue to wipe as long as the presence of moisture is detected on the windshield. More or less wiping may occur depending on humidity, mist or light rain, or road spray.
Keep the outside of the windshield clean, especially the area around the rear view mirror where the sensor is located or rain sensor performance may be affected.
Note: During winter driving conditions with ice, snow or a salty road mist, inconsistent or unexpected wiping or smearing may occur. In these conditions, you can lower the sensitivity to reduce the amount of smearing or override the feature by selecting low- or high-speed wiping or turning the wiper system off.
Note: The rain sensing wiper feature must be turned off before entering a car wash.
84
Page 85

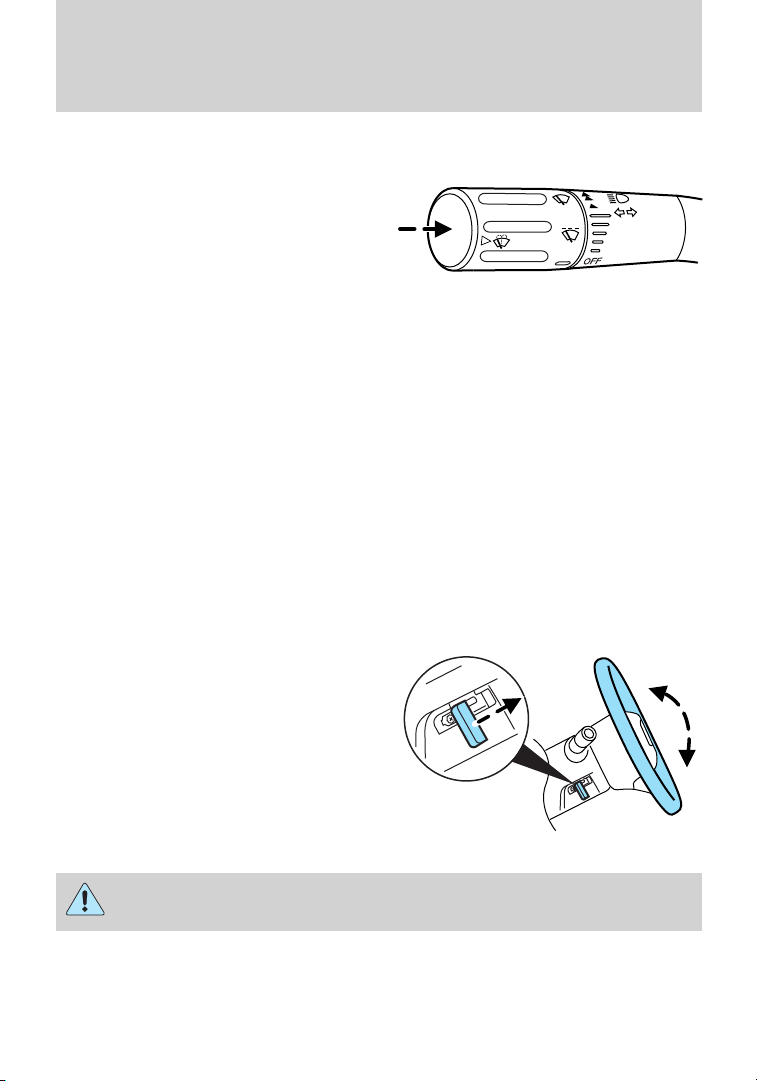

Driver Controls
Windshield washer: Press the end of the stalk:
• briefly: causes a single swipe of the wipers without washer fluid.
• a quick press and hold: the wipers will swipe three times with washer fluid.
• a long press and hold: the wipers and washer fluid will be activated for up to ten seconds.
Courtesy wipe feature: One extra wipe will occur a few seconds after washing the front window to clear any excess washer fluid remaining on the windshield.
Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

TILT STEERING WHEEL (IF EQUIPPED)

1. Pull and hold the steering wheel
release control toward you.
2. Move the steering up or down
until you find the desired location.
3. Release the steering wheel
release control. This will lock the steering wheel in position.
WARNING: Never adjust the steering column when the vehicle is moving.
85
Page 86
Driver Controls

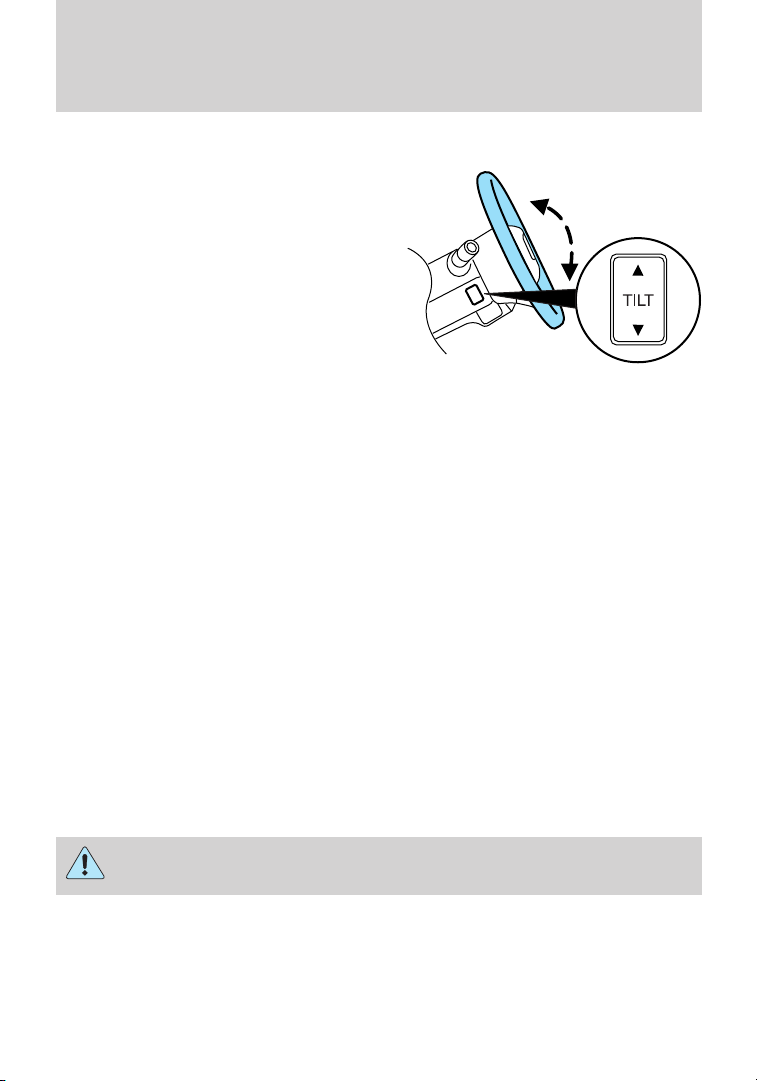

POWER TILT STEERING (IF EQUIPPED)

The steering column can be adjusted manually by moving the two-way rocker adjustment control located below the turn signal/wiper control stalk. Hold the control to adjust.
The tilt function is adjusted by depressing the control up or down.
Easy entry/exit feature
When you remove the key from the ignition, the column will move to the full up position if this feature is activated through the message center. Refer to Message center in the Instrument Cluster chapter. When the key is inserted into the ignition, the column will return to the previous setting.
Note: The easy entry/exit feature will prevent the steering wheel from returning to the memory position until the key is inserted into the ignition.
Memory feature
The steering column positions are saved when doing a memory set function and can be recalled along with the vehicle personality features when a memory position is selected through the remote entry transmitter, keyless entry keypad or memory switch on the side of the driver’s seat (if equipped with memory feature). Refer to Seating in the Seating and Safety Restraints chapter.
If the steering column adjustment control is pressed during memory recall it will cancel the automatic operation and the column will respond to manual adjustment of the control.
86
WARNING: Never adjust the steering column when the vehicle is moving.
Page 87
Driver Controls
On vehicles with memory feature, to prevent damage to the steering column, the steering column is designed to set a stopping position just short of the end of the column position. If the steering column encounters an object while moving up or down, a new stopping position will be set. To reset the steering column to its normal stopping position:
• After encountering the new stopping position, press the steering column control again to override.
• Continue pressing the control until it reaches the end of the column position.
• A new soft stop will be automatically set. The next time the steering column is tilted it will stop just short of the end of the column position.

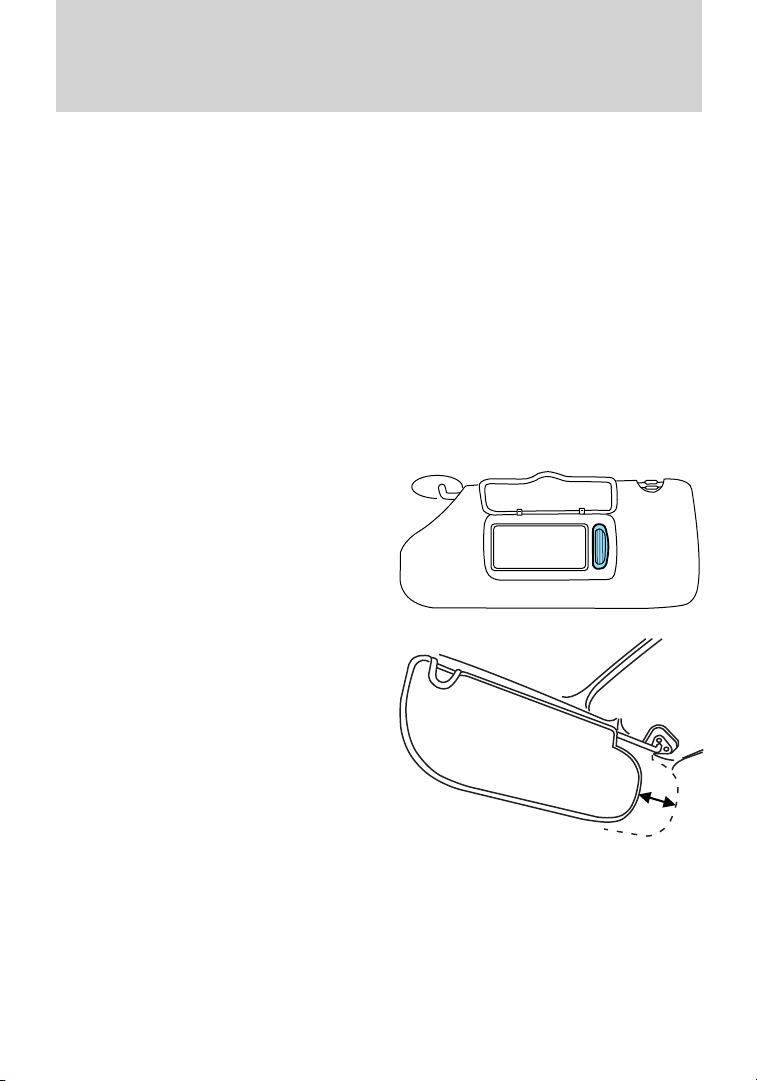

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp.
Slide-on-rod feature
The visor will slide back and forth on the rod for increased sunlight coverage. Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.
Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.
87
Page 88
Driver Controls

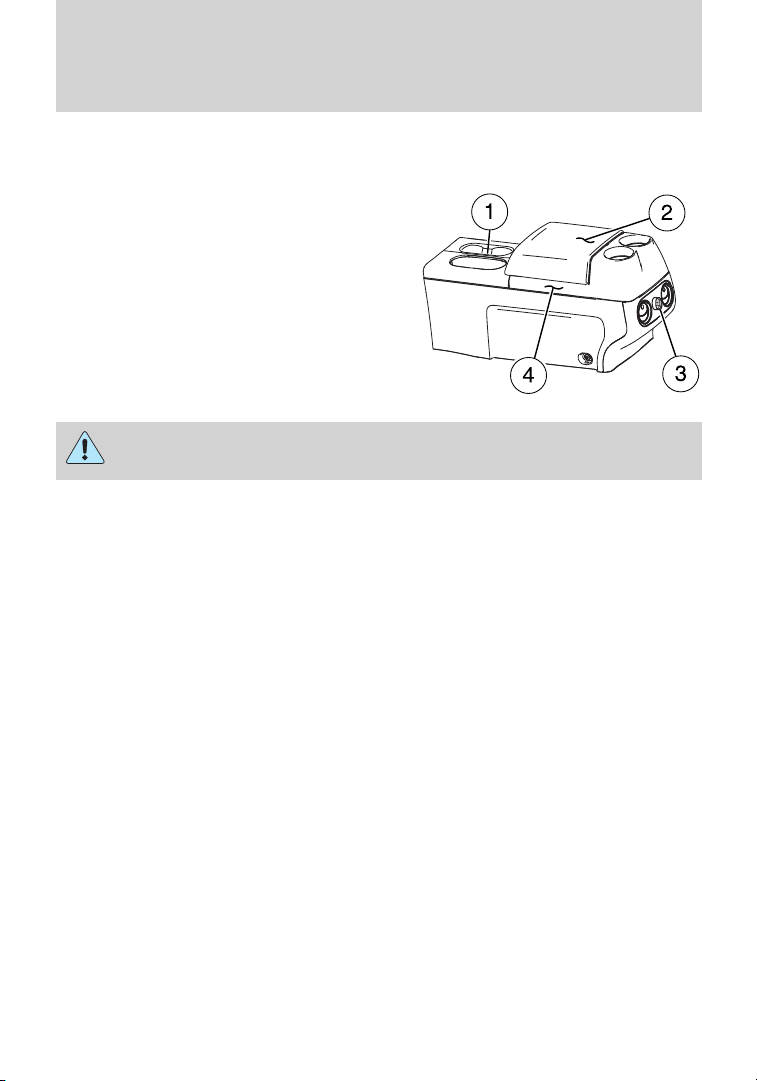

CENTER CONSOLE (IF EQUIPPED)

The center console offers several useful storage features. These include:
1. Cupholders
2. Tissue holder in lid
3. Power point
4. Large utility compartment has
coin holder slots and a cardholder located inside on the passenger side and a pen holder on the lid.
WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision.

ELECTRONIC COMPASS (IF EQUIPPED)

The compass heading is displayed in the Center Integrated Display (CID).
The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.
Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.
88
Page 89

Compass zone adjustment

1. Determine which magnetic zone
you are in for your geographic location by referring to the zone map.
2. Turn ignition to the on position.
3. Press and hold the 7 and 9 radio
preset buttons together for approximately five seconds until ZONE XX appears in the CID.
4. Press and release the 7 and 9
radio preset buttons together, repeatedly until ZONE XX changes to the correct zone (1–15) in the CID.
5. The direction will display after
the buttons are released. The zone is now updated.
Driver Controls
123
4
5
6 7 8 9 1011
15
14 13
12

Compass calibration adjustment

Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.
1. Start the vehicle.
89
Page 90
Driver Controls

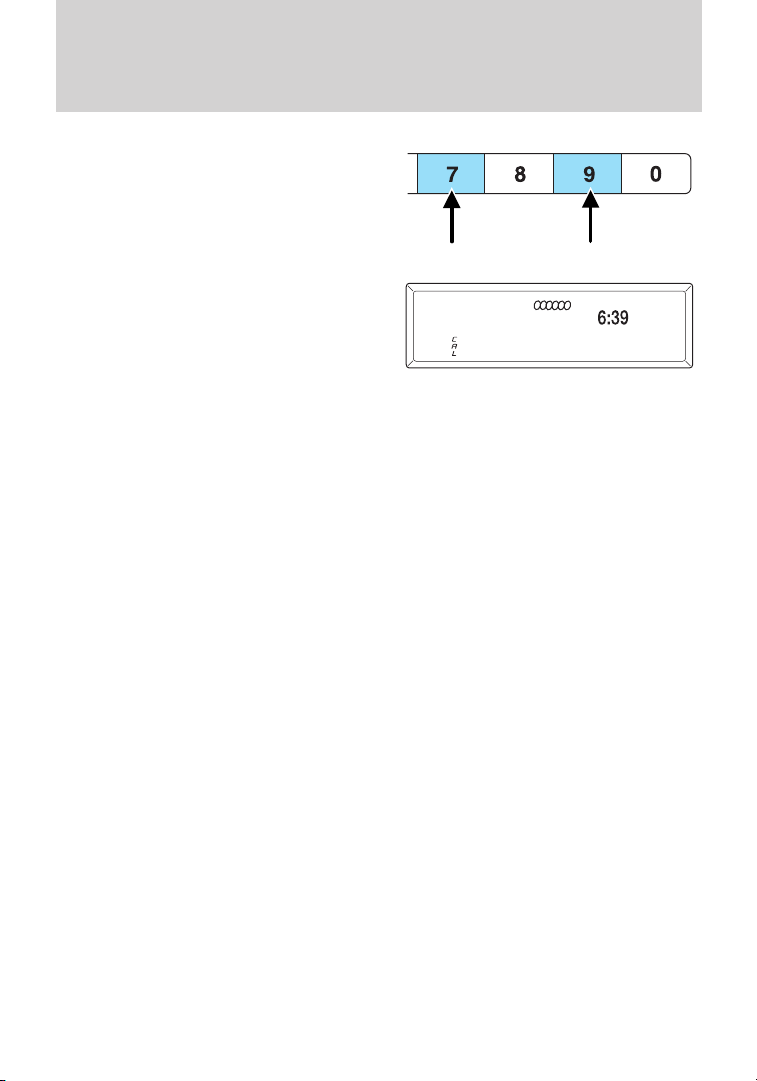

2. To calibrate, press and hold the 7
and 9 radio preset buttons together for approximately 10 seconds until CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h]) until the CAL display changes to the direction value (N, S, E, W, etc.). It may take up to five circles to complete calibration.
4. The compass is now calibrated.

AUXILIARY POWER POINT (12V DC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
• On the instrument panel
• Inside the center console storage area (if equipped)
• On the rear of the center console (if equipped) accessible from the
rear seat
Always keep the power point caps closed when not being used. Do not use the power point for operating the cigarette lighter element (if
equipped). To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:
• do not use the power point longer than necessary when the engine is not running,
90
Page 91

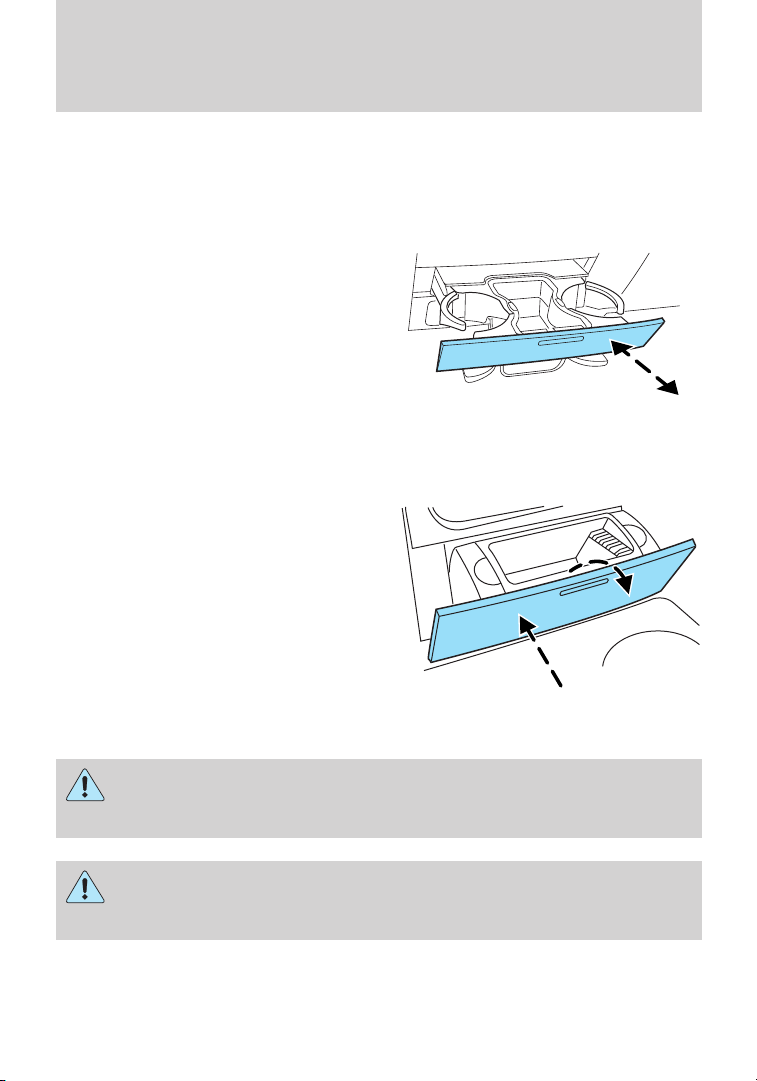

Driver Controls
• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Cupholder/Ashtray (if equipped)

The cupholder/ashtray is located on the instrument panel.
To open cupholder/ashtray, push in on the door and release. The door will spring out 1/4+ inches. Then pull cupholder/ashtray assembly out the remaining distance to utilize. To close, push assembly in completely and release.
Ashtray (if equipped)
The ashtray is located on the instrument panel.
To open ashtray, push in on the door and release. The ashtray assembly will tip out. To close, push assembly in completely and release.
Up-level ashtray shown; base similar.

POWER WINDOWS (IF EQUIPPED)

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may
seriously injure themselves.
WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
91
Page 92

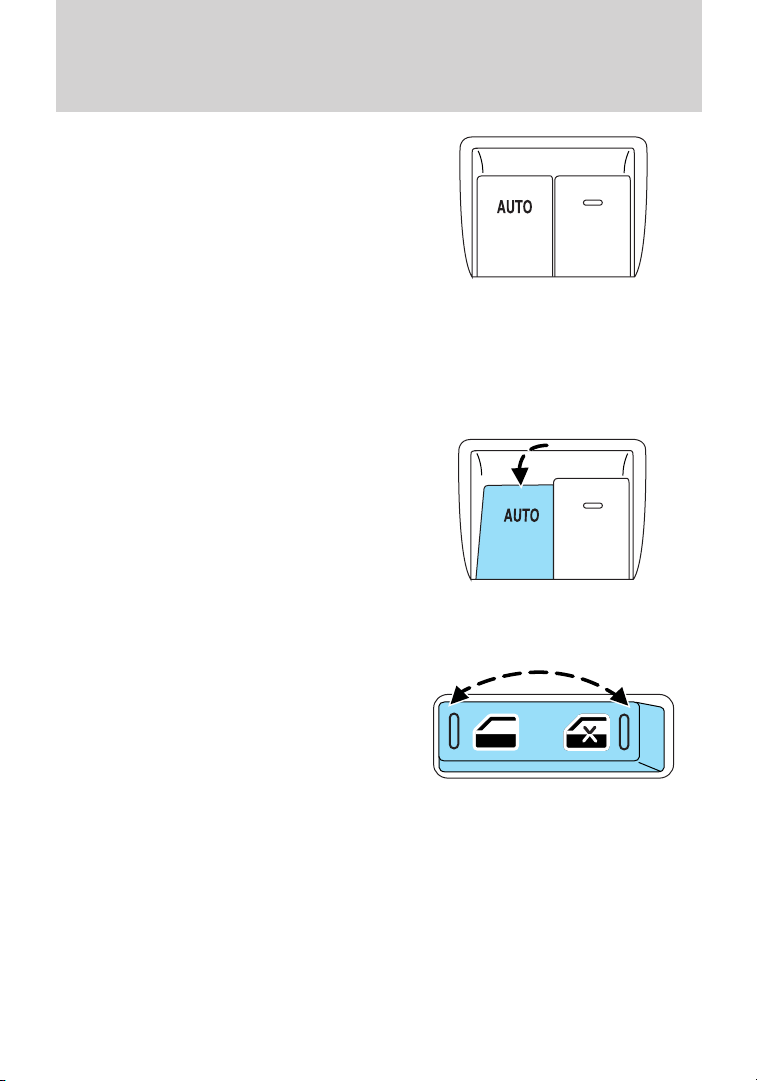

Driver Controls
Press and pull the window switches to open and close windows.
• Press down (to the first detent) and hold the switch to open.
• Pull up (to the first detent) and hold the switch to close.
Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately 2–3 in. (5–8 cm).

One-touch down

Allows the driver’s window to open fully without holding the control down. Press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

Window lock

The window lock feature allows only the driver to operate the power windows.
To lock out all the window controls (except for the driver’s) press the right side of the control. Press the left side to restore the window controls.
Note: The rear window switches will not illuminate when the window control is in the locked position.
92
Page 93

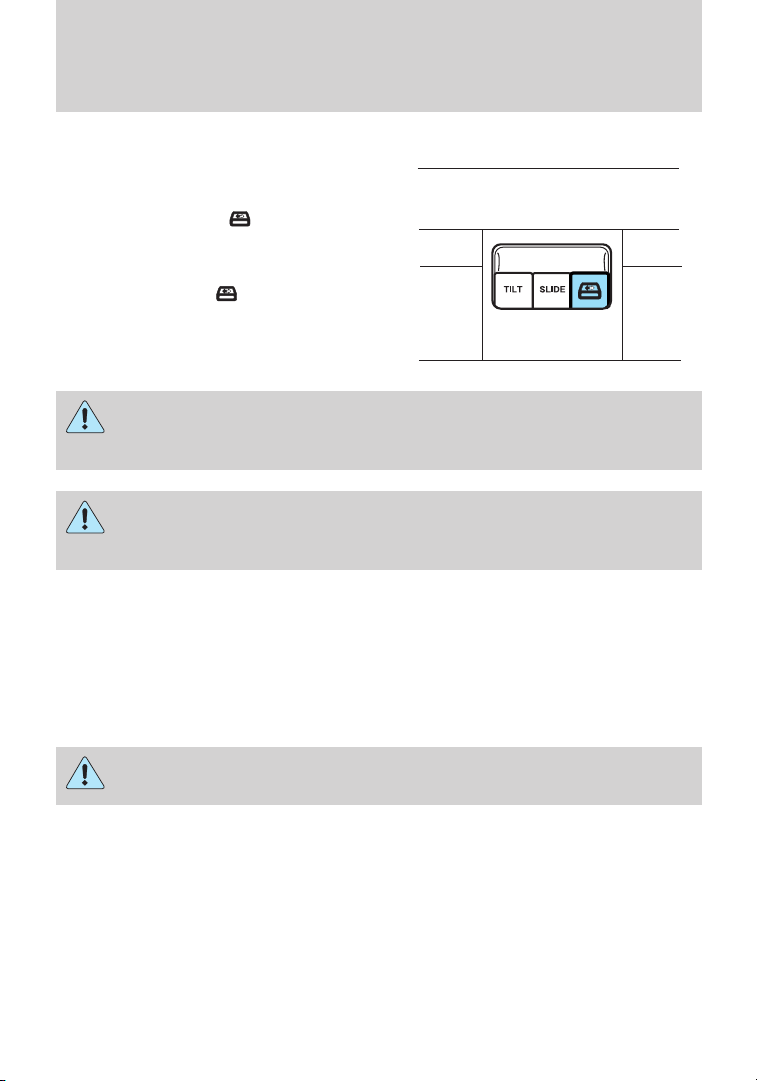

Driver Controls

Power sliding back window (if equipped)

The control is located on the overhead console.
Press and hold the open the window all the way to the full open position.
Pull and hold the close the window.
WARNING: When operating the power sliding back window you must ensure all rear seat occupants and/or cargo are not in the
proximity of the back window.
WARNING: Do not leave children unattended in the vehicle and do not let children play with the power sliding back window.
They may seriously injure themselves.

Accessory delay (if equipped)

With accessory delay, the window switches may be used for up to 10 minutes after the ignition switch is turned to the off position or until any door is opened.

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror up or down and from side to side.
WARNING: Do not adjust the mirror while the vehicle is in motion.
control to
control to

Automatic dimming interior rear view mirror (if equipped)

Your vehicle may be equipped with an interior rear view mirror that has an auto-dimming function (optional on the driver’s side exterior mirror). The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the interior mirror. When the interior mirror detects bright light from behind the vehicle, the interior rear view mirror and the driver’s side exterior mirror (if equipped) will automatically adjust (darken) to minimize glare.
93
Page 94

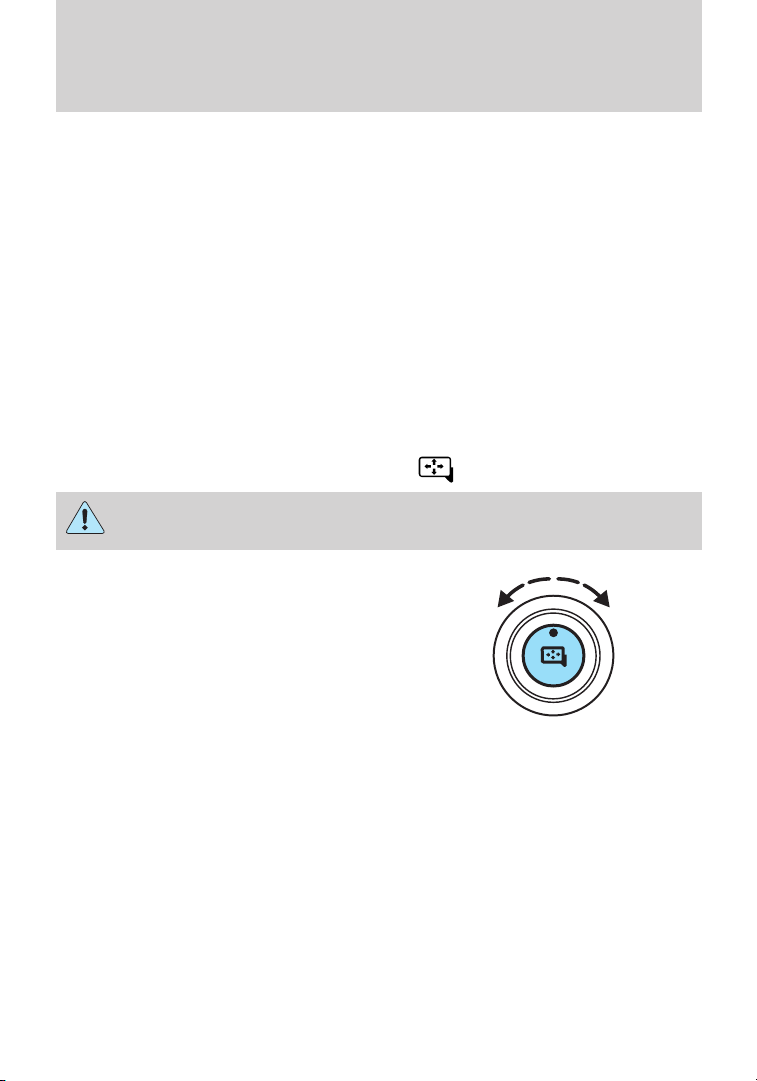

Driver Controls
The mirrors will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.
Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.
Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.
Note: If equipped with a rearview camera system, a video image will
display in the mirror or the Navigation system display (if equipped) when the vehicle is put in R (Reverse). As you shift into any other gear from R (Reverse), the image will remain for a few seconds and then turn off. Refer to Rearview camera system in the Driving chapter.

EXTERIOR MIRRORS

Power side view mirrors (if equipped)

WARNING: Do not adjust the mirror while the vehicle is in motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory feature (if equipped)
The power side view mirror positions are saved when doing a memory set function and can be recalled along with the vehicle personality features when a memory position is selected through the remote entry transmitter, keyless entry keypad or memory switch on the driver’s seat. Refer to Memory seats and mirrors in the Seating and Safety Restraints chapter.
Automatic dimming feature (if equipped)
The driver’s side view mirror has an auto-dimming function. For more information, refer to Automatic dimming interior rear view mirror in this chapter.
94
Page 95

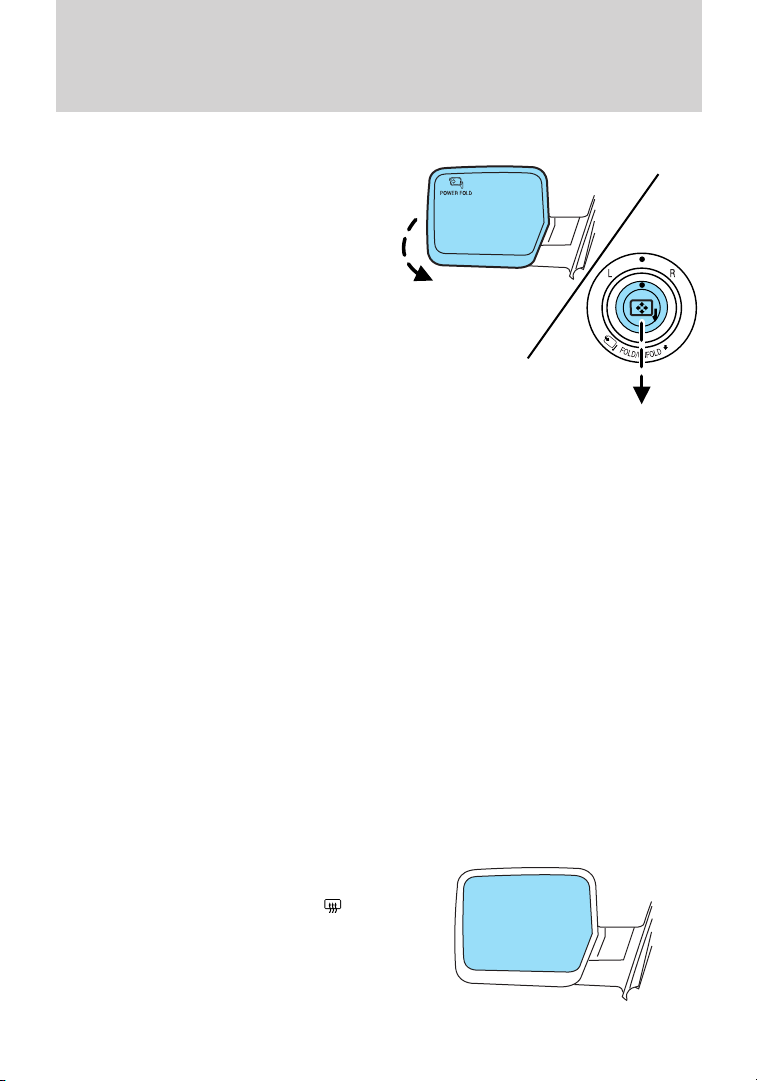

Driver Controls

Fold-away mirrors

Fold the side mirrors in carefully before driving through a narrow space, like an automatic car wash.
Powerfold mirrors (if equipped)
With powerfold mirrors, you can fold the side mirrors using the power mirror switch.
1. Rotate the switch to the
center/neutral position.
2. Momentarily pull the switch
rearward to auto fold in.
3. Momentarily pull the switch rearward again to fold back to design
position.
The powerfold mirrors may be moved inward/outward manually. However, if a mirror is moved manually, it will need to be reset. A mirror which has not been reset may appear to be loose. To reset: with the switch in the center position, momentarily pull the switch rearward to fold the mirrors in. An audible ⬙click⬙ will be heard indicating re-synchronization. If the click is not heard, use the switch to fold the mirrors out, then in, until the click is heard. After that, the mirrors will operate normally until they are again moved manually.
Note: 10 or more switch activations within one minute, or repeated folding/unfolding of the mirrors while holding the switch rearward during full travel, may cause the system to disable the fold/unfold function to protect motors from overheating. Should this occur, wait approximately three minutes with the vehicle running and up to 10 minutes with the vehicle off, for the system to reset and for function to return to normal.

Heated outside mirrors (if equipped)

Heated mirrors remove ice, mist and fog. To activate the heated mirrors, press the rear defrost button
R
located on the climate control panel. Refer to Rear window defroster in
the Climate Controls chapter for more information.
95
Page 96
Driver Controls
On vehicles not equipped with rear defrost, press the heated mirror control located on the climate control panel. For more information refer to the Climate Controls chapter.
Note: If your vehicle is equipped with the Auto dimming feature, the mirror glass is thicker and will take longer to defrost.
Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

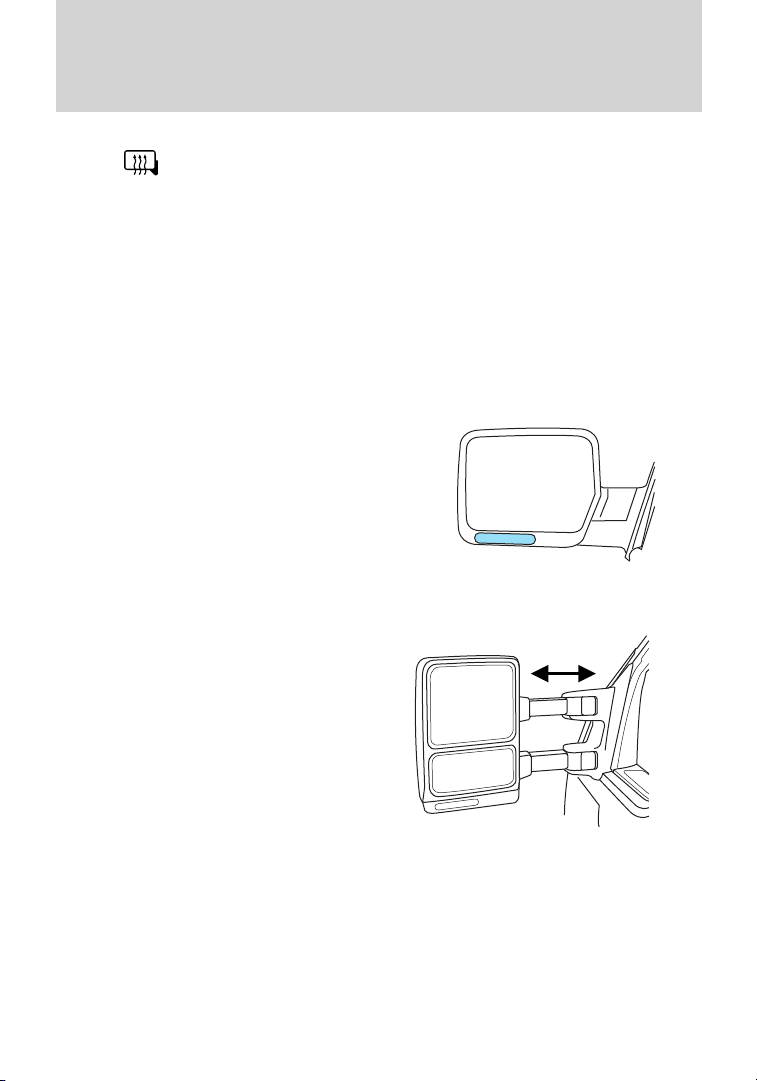

Exterior mounted mirror turn signal indicator (if equipped)

When the vehicle turn signal is activated, the lower portion of the mirror housing will blink.
This feature provides an indicator to the driver that the vehicle turn signal is working properly.

Telescoping trailer tow mirrors (if equipped)

The telescoping feature allows the mirror to extend approximately
3.5 inches (90 mm). This feature is
especially useful to the driver when towing a trailer. Pull the mirrors inward carefully when driving through a narrow space.
96
Page 97
Driver Controls

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.
Press and hold the rocker control to adjust accelerator and brake pedal.
• Press the right side of the control to adjust the pedals toward you.
• Press the left side of the control to adjust the pedals away from you.
WARNING: Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving.

POWER DEPLOYABLE RUNNING BOARDS (IF EQUIPPED)

Deployable running boards (DRB) automatically move when the doors are opened to assist entering and exiting the vehicle.
Automatic power deploy:
• The running boards will extend down and out when the doors are opened.
Automatic power stow:
• The running boards will return to the stowed position when the doors are closed. There will be a two second delay before the running boards move in to the stowed position.
Manual power deploy:
To manually operate the running boards, refer to Message center in the Instrument Cluster chapter.
• This feature can manually set the running boards in the deployed (OUT) position for access to the roof.
• When running boards are manually set in the deployed position, the boards will return to the stowed position and enter automatic mode when the vehicle speed exceeds 5 mph (8 km/h).
97
Page 98
Driver Controls
Enable/disable:
To enable/disable the power running board feature, refer to Message center in the Instrument Cluster chapter.
• When this feature is disabled (OFF), the running boards will move to the stowed position regardless of the position of the doors.
• When this feature is enabled (AUTO), the running boards will move back to the correct positions based off of the door positions.
Bounce-back:
• If an object is in the way of the moving running board, the running board will automatically bounce back in the reverse direction and move to the end of travel.
Note: The running boards may operate slower in cooler temperatures. In adverse conditions, debris such as mud, dirt, and salt may become trapped in the running board mechanism, possibly leading to unwanted noise. If this occurs, manually set the running boards to the deployed position and flush the system (in particular the front and rear hinge arms) with a high-pressure car wash wand.
Note: Do not use the running boards, front and rear hinge assemblies, running board motors, or the running board under body mounts to lift the vehicle when jacking. Please utilize proper jacking points. Refer to Changing the tires in the Roadside Emergencies chapter.
WARNING: In extreme climates, excessive ice buildup may
occur, causing the running boards not to deploy. Be sure that the running boards have deployed, and have finished moving before attempting to step on them. Note: The running boards will resume normal function once the blockage is cleared.
WARNING: Turn off the running boards before jacking or
placing any object under the vehicle. Never place your hand between the extended running board and the vehicle. A moving running board may cause injury.
98
Page 99
Driver Controls

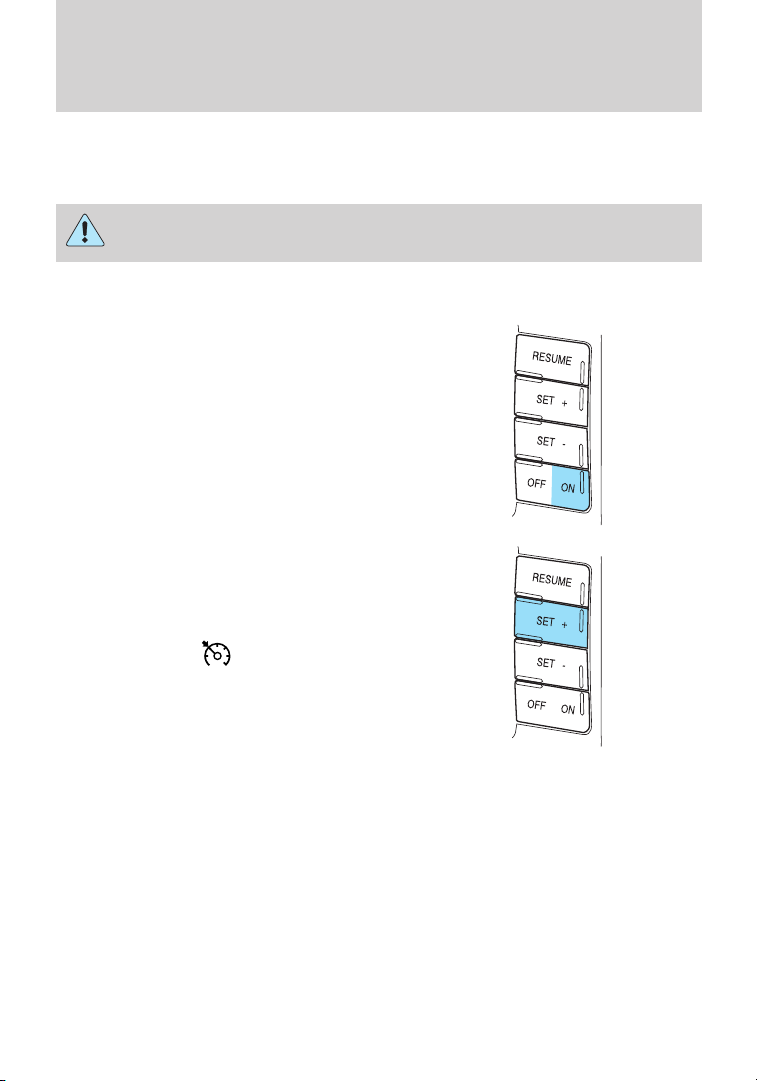

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.
WARNING: Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.
1. Press the ON control and release it.
2. Accelerate to the desired speed.
3. Press the SET + or SET - control and release it.
4. Take your foot off the accelerator pedal.
5. The indicator instrument cluster will turn on.
light on the
Note:
• Vehicle speed may vary momentarily when driving up and down a steep hill.
• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.
• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage the speed control:
• Depress the brake pedal.
99
Page 100
Driver Controls
Disengaging the speed control will not erase previous set speed.

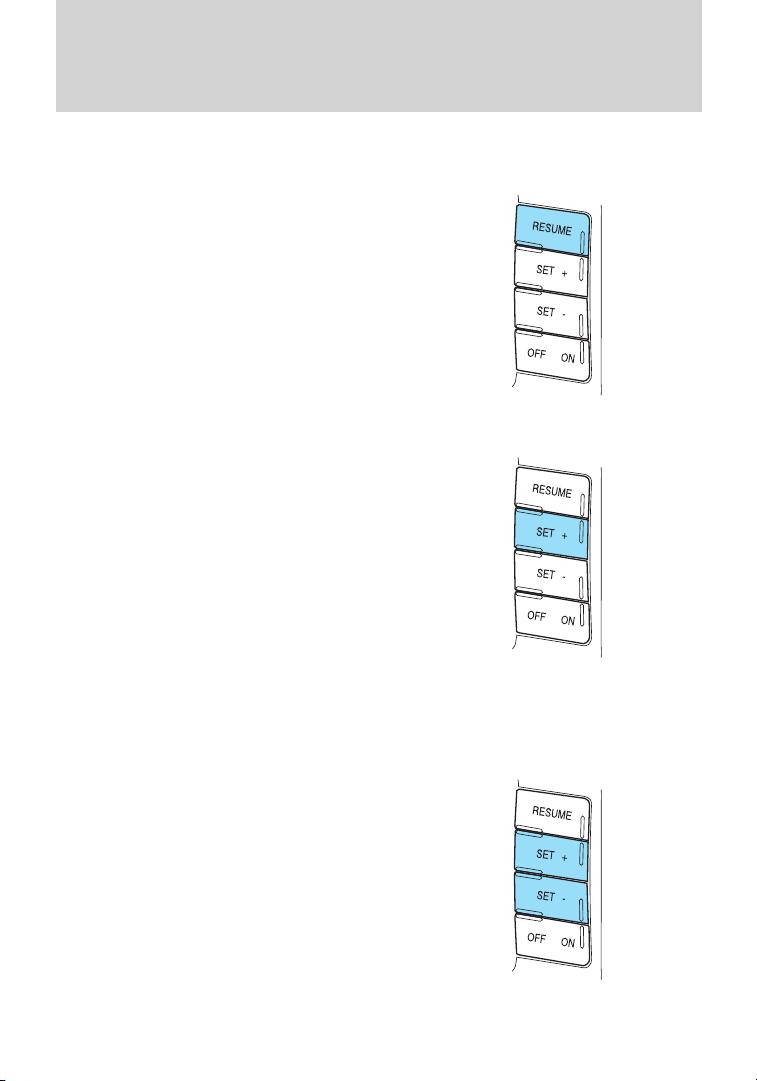

Resuming a set speed
Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed.
Increasing speed while using speed control
There are two ways to set a higher speed:
• Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).
• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.
Reducing speed while using speed control
There are two ways to reduce a set speed:
• Press and hold the SET - control until you get to the desired speed, then release the control. You can also use the SET ­control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h).
100
Loading...
