g
User Manual
Temperature Calibrators – K0551
Series DryTC / LiquidTC
Please keep this operating manual for future reference.
If the device is resold, please provide the operating manual along with it.
|
|
|
|
DryTC / LiquidTC |
Table of contents |
page |
|||
0 |
About this operating manual ....................................................................................... |
3 |
||
1 |
|
Description of the device ............................................................................................. |
4 |
|
1.1 |
|
Intended use ............................................................................................................ |
5 |
|
1.2 |
|
Exclusion of liability .................................................................................................. |
6 |
|
2 |
|
Safety Instructions...................................................................................................... |
6 |
|
2.1 |
|
Safety instructions for the application of calibration liquids ........................................ |
8 |
|
3 |
|
Construction............................................................................................................... |
9 |
|
3.1 |
|
Front of the controller ............................................................................................. |
10 |
|
3.2 |
|
Data interface ........................................................................................................ |
11 |
|
3.3 |
|
Transmission protocol............................................................................................. |
11 |
|
4 |
Using Test Specimen Fixtures .................................................................................... |
12 |
||
4.1 |
|
Metal block calibrator ............................................................................................. |
12 |
|
4.2 |
|
Infrared calibrator .................................................................................................. |
12 |
|
4.3 |
|
Micro calibration bath ............................................................................................. |
13 |
|
5 |
|
Commissioning ......................................................................................................... |
17 |
|
5.1 |
|
Start-up procedure ................................................................................................. |
17 |
|
5.2 |
|
Switching on the calibrator / micro calibration bath ................................................. |
18 |
|
5.3 |
|

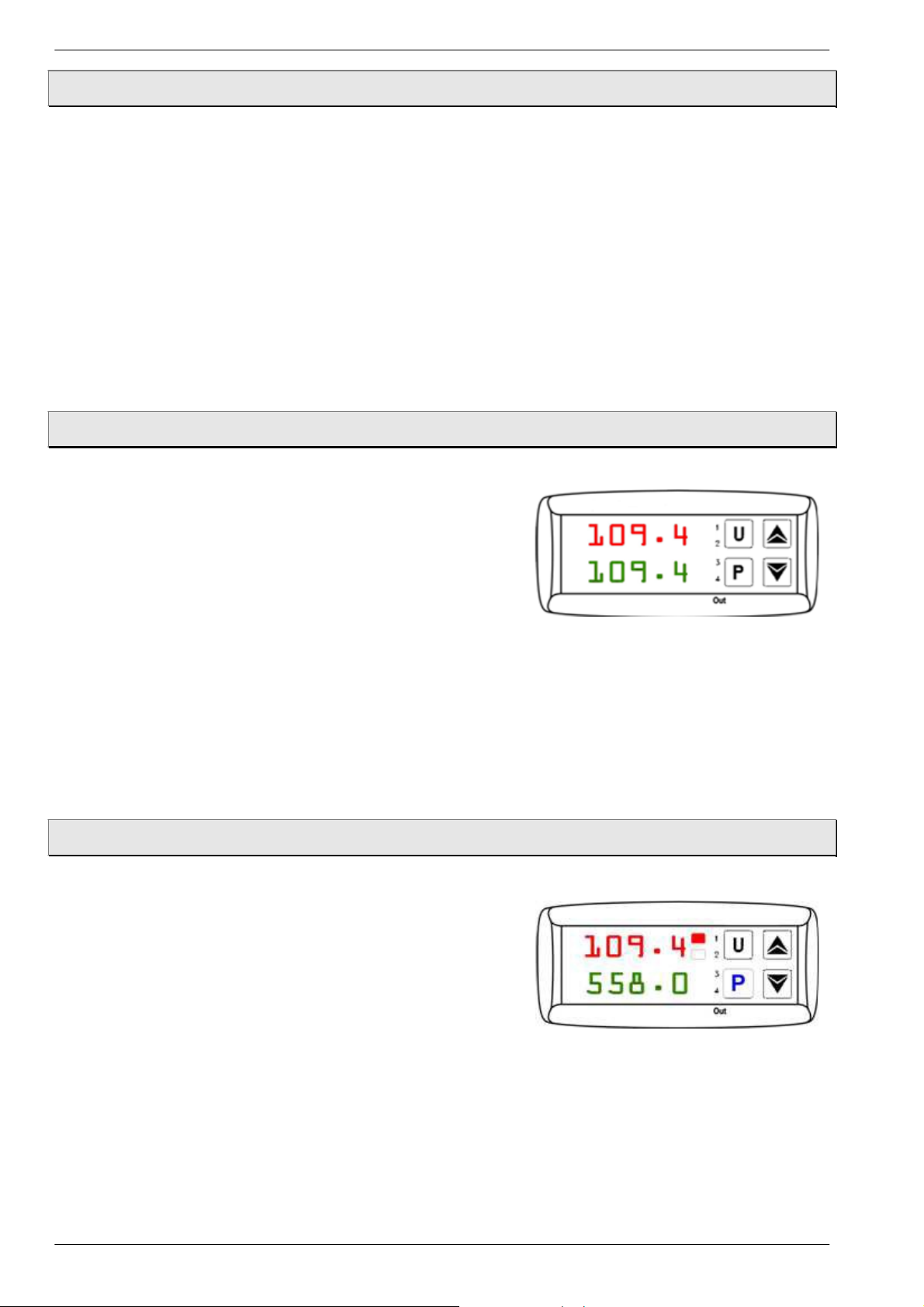

Reference and set temperature display ................................................................... |
18 |
|
5.4 |
|
Stabilizing the reference temperature ...................................................................... |
18 |
|
6 |
|
Testing temperature sensors ..................................................................................... |
19 |
|
7 |
|
Operating the Calibrator / Micro Calibration Bath ....................................................... |
20 |
|
7.1 |
|
Calibrating (calibration mode).................................................................................. |
20 |
|
7.2 |
|

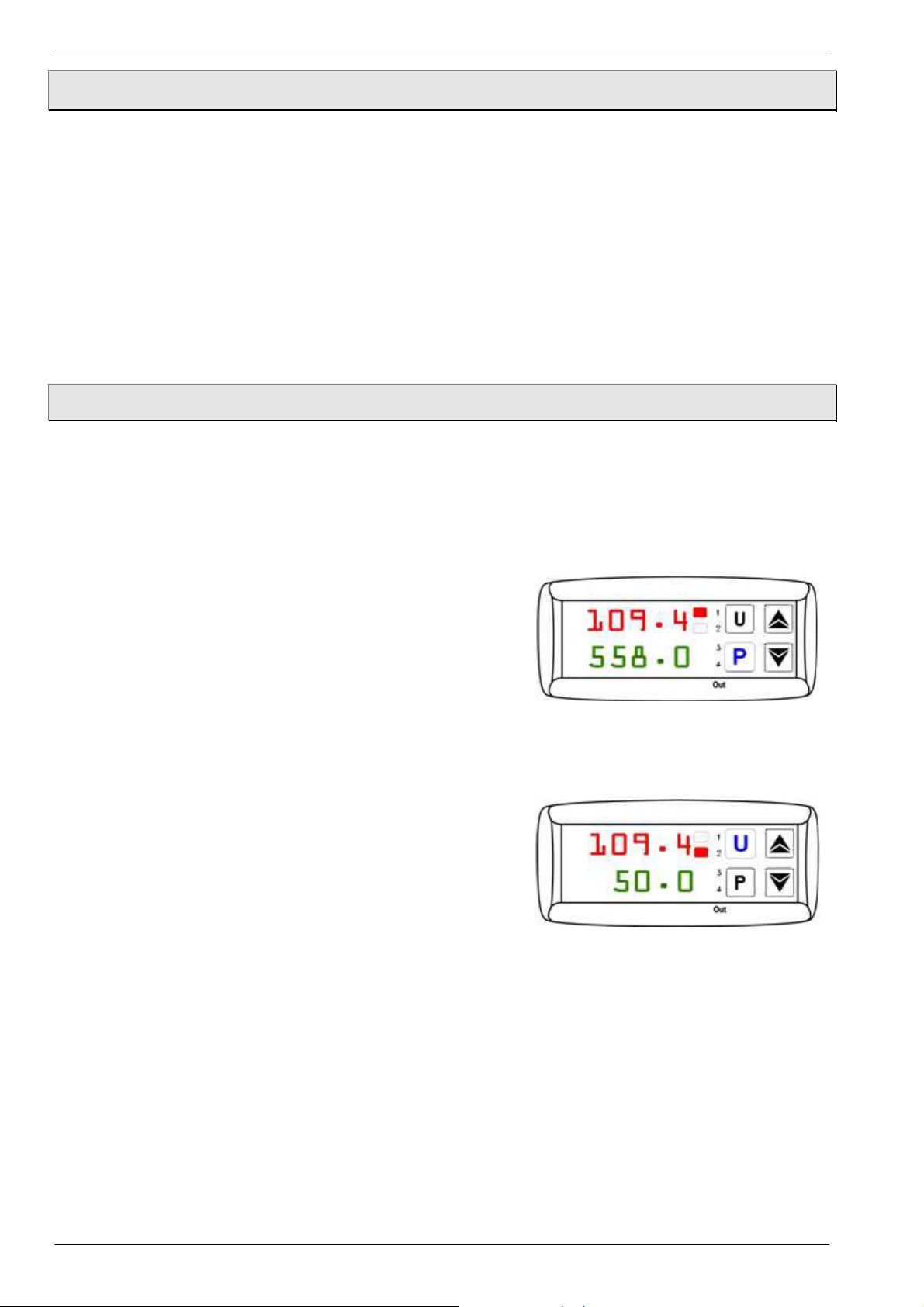

Setting a temporary set temperature (set point mode).............................................. |
21 |
|
7.3 |
|
Main menu ............................................................................................................. |
22 |
|
8 |
Cooling Down of the Metal Block / Liquid Bath............................................................ |
33 |
||
9 |
|
Cleaning and Maintenance........................................................................................ |
33 |
|
9.1 |
|
Maintenance .......................................................................................................... |
33 |
|
9.2 |
|
Cleaning................................................................................................................. |
34 |
|
10 |
|
Problems .................................................................................................................. |
35 |
|
11 |
|
Warranty and Repairs............................................................................................... |
36 |
|
12 |
|
Recalibrating ............................................................................................................ |
36 |
|
13 |
|
Decommissioning and Disposal ................................................................................. |
36 |
|
14 |
|
Technical data .......................................................................................................... |
37 |
|
14.1 |
Shared characteristics ............................................................................................ |
37 |
||
14.2 |
Characteristics DryTC series.................................................................................... |
38 |
||
14.3 |
Characteristics series LiquidTC ................................................................................ |
39 |
||
- 2 - |
K0551 Issue 1 |
DryTC / Liquid TC About this operating manual
0 About this operating manual
The operating manual is aimed at specialists and semi-skilled personnel.
Before each step, read through the relevant advice carefully and keep to the specified order.
Thoroughly read and understand the information in the section “Safety instructions”.
If you have any problems or questions, please contact your supplier or contact us directly at:
g
GE Measurement & Control Solutions
Fir Tree Lane, Groby Leicester
LE6 0FH
UK
Hazard signs and other symbols used:
CAUTION! Electric current!
This sign indicates dangers which could arise from handling of electric current.
WARNING! / CAUTION! Risk of injury!
This sign indicates dangers that cause personal injuries that can lead to health defects or cause considerable damage to property.
CAUTION! High temperature!
This sign indicates dangers resulting from high temperature that can lead to health defects or considerable damage to property.
CAUTION! Material damage!
This sign indicates actions which could lead to possible damage to material or environmental
damage.
ADHERE TO OPERATING MANUAL!
NO DOMESTIC WASTE!
The device must not be disposed of together with domestic waste.
NOTICE!
This symbol indicates important notices, tips or information.
Pay attention to and comply with information that is marked with this symbol.
Follow the specified instructions and steps. Adhere to the given order.
Check the specified points or notices.
Reference to another section, document or source.
•Item.
Copyright notice:
The reproduction, distribution and utilization of this operating manual as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.
K0551 Issue 1 |
- 3 - |
Description of the device |
DryTC / Liquid TC |
1 Description of the device
The temperature calibrators in the DryTC / LiquidTC series are used for checking temperature sensors on site or in the lab.
The calibrator / micro calibration bath is a portable unit for service, industry and laboratory tasks. The GE temperature calibrators / micro calibration baths are intended to calibrate thermometers, temperature switches/thermostats, resistance thermometers and thermal elements.
Versions:
The series DryTC / LiquidTC include the following calibrator/micro calibration bath types:
Metal block calibrators |
Micro calibration bath |
||
|
|
|
|
DryTC 165 |
(c+h) |
LiquidTC 165 |
(c+h) |
DryTC 650 |
(h) |
LiquidTC 255 |
(h) |
|
|
|
|
c+h: cooling and heating h: heating |
|
|
|
|
|
|
|
|
Metal block calibrator |
|
Micro calibration baths |
DryTC 165 |
DryTC 650 |
LiquidTC 165 |
LiquidTC 255 |
Type plate:
You find the type plate on the rear of the device.
It includes the type designation, the serial number and the key electric specifications ( example).
g Dry TC 165 |
g Dry TC 650 |
gLiquid TC 165 |
gLiquid TC 255 |
TEMPERATURE CALIBRATOR |
TEMPERATURE CALIBRATOR |
TEMPERATURE CALIBRATOR |
TEMPERATURE CALIBRATOR |
RANGE: -35 TO 165°C |
RANGE: TO 650°C |
RANGE: -35 TO 165°C |
RANGE: TO 255°C |
GE DRUCK, LE6 0FH, UK |
GE DRUCK, LE6 0FH, UK |
GE DRUCK, LE6 0FH, UK |
GE DRUCK, LE6 0FH, UK |
110/230VAC 50/60Hz 400VA |
110/230VAC 50/60Hz 1000VA |
110/230VAC 50/60Hz 400VA |
110/230VAC 50/60Hz 1000VA |
T6.3AH 250V |
T10AH 250V |
T6.3AH 250V |
T10AH 250V |
DATE OF MANUFACTURE: 0813 |
DATE OF MANUFACTURE: 0813 |
DATE OF MANUFACTURE: 0813 |
DATE OF MANUFACTURE: 0813 |
SERIAL NUMBER: 1308123 |
SERIAL NUMBER: 1308123 |
SERIAL NUMBER: 1308123 |
SERIAL NUMBER: 1308123 |
Barcode serial number |
Barcode serial number |
Barcode serial number |
Barcode serial number |
- 4 - |
K0551 Issue 1 |
DryTC / Liquid TC Description of the device
Scope of delivery and accessories:
Before installing the device, check the delivered items and ordered accessories: Temperature calibrator and accessories (included items):
Metal block calibrator: |
Micro calibration bath: |
Metal block calibrator as ordered |
Calibration bath as ordered |
Mains connection cable |
Mains connection cable |
Adapter sleeve |
Seal cover |
Sleeve remover / Changing tool |
Work cover with five silicone stoppers |
Test certificate |
Sensor cage |
Operating manual |
Magnetic stirrer |
Protective packaging and transport protection |
Magnetic lifter |
|
Bilge pump |
|
Bottle with silicone oil |
|
Test certificate |
|
Operating manual |
|
Protective packaging and transport protection |
|
|
Save the packaging
Temperature calibrators are delivered in special protective packaging.
Save the packaging for returning the instrument safely to the manufacturer for recalibration or repair.
1.1 Intended use
The calibrators of the series DryTC / LiquidTC are only allowed to use for the test and calibration of temperature sensors.
The operational safety of the supplied instruments is only guaranteed if they are operated according to their intended use. Specified limit values ( § 14 "Technical data") should never be exceeded.
CAUTION! Risk of severe burns!
Prior to transport or contact with the metal block / liquid bath ensure that it has cooled down sufficiently, otherwise there is a risk of severe burns caused by the metal block / liquid bath and the test specimen.
CAUTION! Material damage!
The opening in the metal block of the calibrator is only intended to be used with adapter sleeves or insert sleeves.
Using heat transfer media (oil, thermal paste or other media) can lead to incorrect measurements and damage to the calibrator.
Never fill the calibrator opening with a heat transfer medium.
Only micro calibration baths are suitable for use with heat transfer medium.
It is the users responsibility to select the instrument which is suitable for your specific application, to connect it correctly, to carry out tests and to maintain all the components
K0551 Issue 1 |
- 5 - |
Safety Instructions |
DryTC / Liquid TC |
1.2 Exclusion of liability
We accept no liability for any damage or malfunctions resulting from incorrect installation, inappropriate use of the device or failure to follow the instructions in this operating manual.
2 Safety Instructions
Before you install the DryTC / LiquidTC, read through this operating manual carefully. If the instructions contained within it are not followed, in particular the safety guidelines, this could result in danger for people, the environment, and the device and the system it is connected
to.
The temperature calibrator / micro calibration bath is a state-of-the-art device. This relates to the accuracy, functioning and the safe operation of the calibrator / micro calibration bath. However, professional and safety conscious conduct of the operator is required to ensure safe operation
GE provides support for the use of its products either personally or via relevant literature. The customer verifies that our product is fit for purpose based on our technical information. The customer performs customerand application-specific tests to ensure that the product is suitable for the intended use. With this verification all hazards and risks are transferred to our customers; our warranty is not valid.
Environmental conditions:
The product is for indoor use only.
Operating altitude: Up to 2000 metres.
Mains supply: Transient overvoltages up to the levels of Overvoltage Category II. Pollution degree: 2
Qualified personnel:
The personnel who are charged for the installation, operation and maintenance of the DryTC / LiquidTC must hold a relevant qualification. This can be based on training or relevant tuition. The personnel must be aware of this operating manual and have access to it at all times.
- 6 - |
K0551 Issue 1 |
DryTC / Liquid TC |
Safety Instructions |
General safety instructions:
Always observe the following safety instructions in this operating manual.
In all work, the existing national regulations for accident prevention and safety in the workplace must be complied with. Any internal regulations of the operator must also be complied with, even if these are not mentioned in this manual.
Only use the DryTC / LiquidTC if it is in perfect condition. Damaged or faulty devices must be checked without delay and, if necessary, replaced.
Degree of protection according to EN 60529:
Ensure that the ambient conditions at the site of use does not exceed (comply with) the requirements for the stated protection rating (§ 14 "Technical data").
Correct and safe operation of the calibrator / micro calibration bath demands correct transport, storage, installation and assembly, as well as proper use and careful operation and maintenance.
The calibrator / micro calibration bath should only be used for its intended purpose. Furthermore, hazardous media should not be used and all technical specifications have to be observed.
If faults cannot be cleared, immediately shut down the calibrator / micro calibration bath and ensure that it cannot be started up accidentally.
Prior to replacing the safety fuse, always de-energize the calibrator / micro calibration bath completely by disconnecting the mains cable from the mains outlet.
Ensure that the complete operating instructions are always available in excellent condition at the calibrator / micro calibration bath installation site.
Thermal fuse:
For protection purposes, the calibrator / micro calibration bath is equipped with an autonomous thermal fuse, which interrupts the power supply to the heater if the temperature exceeds a certain value inside the housing. Once the metal bock / liquid bath has cooled down, the calibrator / micro calibration bath has to be returned to GE for inspection.
The calibrator / micro calibration bath has been designed as a measurement and control instrument. If the calibrator / micro calibration bath is used for purposes not expressly specified in these operating instructions, additional safety measures have to be taken.
The calibrator / micro calibration bath should NOT be used in explosive atmospheres without appropriate protection (flammable or explosive atmospheres).
If malfunctioning of the calibrator / micro calibration bath can result in personal injuries or damage to property, the system has to be protected with additional electromechanical protective equipment.
Do not remove or obliterate nameplates or other markings on the device, as otherwise the warranty is rendered null and void.
Ventilation ports:
Located both underneath and on top, should not be blocked or restricted.
Disconnecting device:
Do not position the equipment so that it is difficult to operate the disconnecting device.
K0551 issue 1 |
- 7 - |
Safety Instructions |
DryTC / Liquid TC |
Device protection:
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired
Replacing detachable mains supply cords:
It is not allowed to replace detachable mains supply cords by inadequately rated cords.
IEC mains connector:
The IEC mains connector of the power supply cord is to be treated as the disconnect device, as the front panel switch is not rated as a disconnect device.
Special safety instructions:
(Further) Warnings that are specifically relevant to individual operating procedures or activities can be found at the beginning of the relevant sections of this operating manual.
2.1 Safety instructions for the application of calibration liquids
Calibration liquid water:
Only use distilled water, otherwise excessive limescale and soiling will build up in the calibrator tank.
Calibration liquid silicone oil:
Only use distilled water, otherwise excessive limescale and soiling will build up in the calibrator tank.
Always read the safety data sheet supplied with the silicone oil before using it.
Always ensure adequate ventilation when working with silicone oil, since hazardous substances can be released.
Prevent silicone oil from coming into contact with your eyes.
Since silicone oil is hygroscopic, always use the transport cover to close the calibration bath after use.
IMPORTANT NOTICE!
The transport cover is equipped with a safety valve, which is activated once the pressure reaches approx. 2.5 bar. This can result in hot steam being released.
Always unscrew the transport cover before putting the micro calibration bath into service, in order to avoid excessive pressure.
Wait until the micro calibration bath has cooled down before screwing on the transport cover.
- 8 - |
K0551 Issue 1 |
DryTC / Liquid TC |
Construction |
3 Construction
The calibrator / micro calibration bath consists of a robust, black and red steel housing with an integrated carrying handle.
Components:
Tank
Block
Handle
Controller
Service socket
Thumb wheel for strirring speed
Switch ON / OFF with fuse and power supply connection
The rear part of the housing contains a metal block/liquid bath with a hole, accessible from the top, for the test specimen fixture.
The heating or cooling elements and the temperature sensor for determining the reference temperature are integrated in the metal block / liquid bath.
The metal block / liquid bath is heat insulated.
The front part of the housing contains the complete electronic unit for controlling the reference temperature.
Solid state relays (SSR) are used to control the heating and cooling elements.
A controller with a two-line, four-digit 7-segment LED display for the reference and target temperatures is located on the front panel.
The reference temperature can be set precisely with 0.1 °C (32.18 °F) resolution using the P and or buttons.
The micro calibration bath also has a thumb wheel for controlling the stirring speed.
A power supply switch is located on the front of the housing. This is also where the IEC plug with fuse for the mains supply can be found.
The 5-pole socket is provided for service purposes and is used as a data interface to the PC.
K0551 issue 1 |
- 9 - |
Construction DryTC / Liquid TC
3.1 Front of the controller
Overview and function of the control elements of the controller: 9 8 7
1
2
3 |
4 |
5 |
1 - Upper display (red)
-Displays the current reference temperature.
-Displays the individual modes, menu items and parameters.
2 - Lower display (green)
-Displays the set temperature.
-Displays certain parameters in the individual modes and menu items.
3 - LED SET
-When flashing, it signals access to the individual menu items and parameters.
4 - P key
-Accessing the default set temperature.
-Accessing menu items and parameters.
-Confirming inputs.
5 - key
-Reducing the setting values.
-Selecting individual menu items.
-Returning to the previous menu level.
-Increasing the setting values.
-Selecting individual menu items.
-Returning to the previous menu level.
7 - U key
Retrieving the saved set temperatures (only for the S version).
8 - LED OUT 1
Signals the status of the output for the temperature control:
If the LED OUT 1 lights up, the calibrator / micro calibration bath is heating.
If the LED OUT 1 does not light up, the calibrator / micro calibration bath is not heating.
9a - LED OUT 2
a) Heating instrument
Signals the status of the output for the fan control: If the LED OUT 2 lights up, the fan is running
at high speed.
If the LED OUT 2 does not light up, the fan is running at low speed.
9b - LED OUT 2
b) Heating and cooling instrument Signals the status of the output for the temperature control:
If the LED OUT 1 lights up, the calibrator / micro calibration bath is cooling.
If the LED OUT 1 does not light up, the calibrator
/micro calibration bath is not cooling.
- 10 |
K0551 Issue 1 |
DryTC / Liquid TC |
Construction |
3.2 Data interface
The DryTC / LiquidTC series is equipped with a serial communication interface. It is possible to connect a PC via an optional USB converter via this interface.
The utilized software protocol is a MODBUS-RTU protocol, which is used in numerous marketavailable monitoring programs.
The 5-pole socket is provided for connection of USB converter.
The PC connection enables the programming of the calibrator’s parameters. The minimum requirements for operation with a USB converter are:
•IBM compatible PC,
•an installed Windows operating system 98SE, ME, 2000, XP, 7 or 8 (Home or Professional), a free USB port (USB 1.1 or USB 2.0).
PLEASE NOTE:
If you access the programming via the keypad while communication via a serial interface is running, the message "buSy" appears on the display.
3.3 Transmission protocol
Is supplied as an additional document on request.
K0551 issue 1 |
- 11 |
Using Test Specimen Fixtures |
DryTC / Liquid TC |
4 Using Test Specimen Fixtures
The temperature calibrators in the DryTC / LiquidTC series can be used with various test device fixtures, depending on the model.
Configuration as a metal block calibrator, infrared calibrator or micro calibration bath is easily performed with minimal effort.
4.1 Metal block calibrator
Insertion sleeves with one or more boreholes are used for the calibration of straight temperature sensors.
In order to achieve the best possible accuracy, the utilization of exactly fitting sleeves is necessary.
The diameter of the test specimen has to be determined precisely. The bore in the sleeve results from the addition of +0.5 mm.
Before use:
Using the sleeve changing tool, fit the appropriate insertion sleeve in the block of the calibrator.
After use:
Remove the sleeves after use with the aid of the sleeve remover, and remember to clean the sleeve and the block.
This prevents the sleeves becoming jammed in the heating block.
Sleeves and sleeve remover
4.2 Infrared calibrator
A special infrared insertion sleeve is used for contactless infrared thermometers to enable fast, easy calibration.
The hollow and specially constructed insertion sleeve is fitted with two additional boreholes - for precise monitoring of the temperature - in the rim (1 x 3.5 mm und 1 x 4.5 mm).
Before use:
The insertion sleeve is inserted into the block with the aid
of the sleeve remover. |
|
After use: |
|
Remove the sleeves after use with the aid of the sleeve |
|
remover, and remember to clean the sleeve and the block. |
|
This prevents the sleeves becoming jammed in the heating |
Sleeve for Infrared |
block |
|
- 12 |
K0551 Issue 1 |
Loading...
