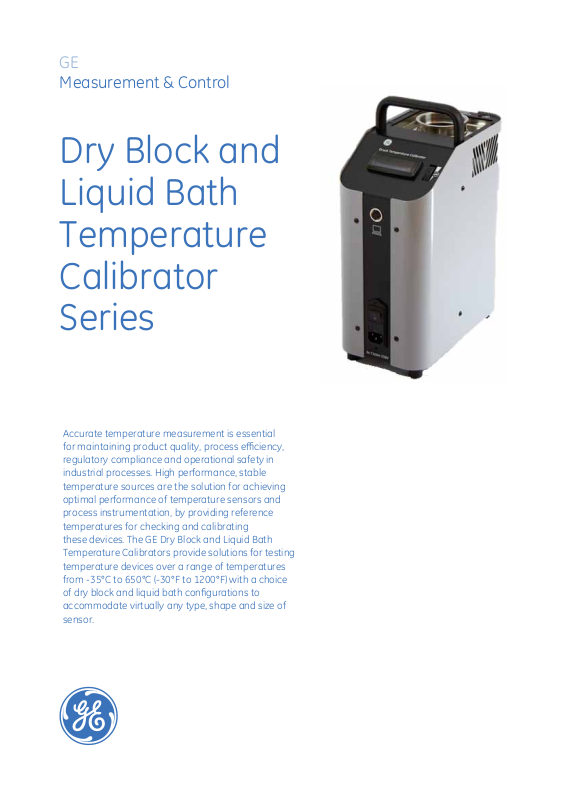

Page 1
GE
Measurement & Control
Dry Block and
Liquid Bath
Temperature
Calibrator
Series
Accurate temperature measurement is essential
for maintaining product quality, process eciency,
regulatory compliance and operational safety in
industrial processes. High performance, stable
temperature sources are the solution for achieving
optimal performance of temperature sensors and
process instrumentation, by providing reference
temperatures for checking and calibrating
these devices. The GE Dry Block and Liquid Bath
Temperature Calibrators provide solutions for testing
temperature devices over a range of temperatures
from -35°C to 650°C (-30°F to 1200°F) with a choice
of dry block and liquid bath congurations to
accommodate virtually any type, shape and size of
sensor.
Page 2
The design philosophy is one of simplication, that is,
simplifying the complex arts and skills of temperature
calibration to provide instrument technicians with a highly
accurate, yet simple to use temperature reference.
• Calibrated to EA-10/13 (European Co-operation for
Accreditation Guidelines on the Calibration of Dry Block
Calibrators) ensuring high accuracy without the necessity
of a reference probe!
• Quick and easy touch screen setting and set point
memory recall
• Dry block and liquid bath congurations with multi use
options for switching between dry, liquid and infra-red
well inserts
• Accommodates anything from unique probe sizes to
irregular shapes and provides a massive 60mm x 170mm
capacity for simultaneously testing multiple sensors
DryTC 165 and DryTC 650
These dry block calibrators incorporate the latest metal
block and electronic control technology and oer a choice
of precision bored well inserts to accommodate a wide
range of test devices. Two models are available:
• DryTC 165 generates temperatures from Room
Temperature (RT) to 165°C
• DryTC 650 generates temperatures from ambient to
650°C.
Both models provide high accuracy, excellent set point
stability and rapid heating and cooling times.
medium. For transportation a leak-proof sealing cover is
also provided as standard. Optionally the temperature
calibrators can be congured with additional capabilities
including interchangeable liquid baths, a black body
source and dry block interchangeable inserts. Two models
are available:
• LiquidTC 165 generates temperatures from Room
Temperature (RT) to 165°C
• LiquidTC 255 generates temperatures from ambient to
255°C
• Temperature range from Room Temperature (RT to
255°C)
• Accuracy from ±0.2°C
• Stability 0.05°C
• Large bath for irregular and multiple devices
• Multi-purpose – liquid bath, black body source, dry block
• Interchangeable bath – simplies uid changes
• Light weight and robust for eld use
• Leak-proof bath cover for transportation
High capacity portable liquid bath
Standard factory conguration provides a
60 mm x 170 mm liquid bath with automatic liquid
agitation.
Interchangeable liquid bath inserts
Allows the calibration media to be simply and quickly
changed to suit dierent temperature ranges, while
retaining the automatic liquid agitation.
• Temperature range from Room Temperature (RT to 650°C)
• Accuracy from ±0.2°C
• Stability 0.05°C
• Rapid heating and cooling
• Light weight and robust for eld use
• Choice of interchangeable well inserts
• Easy to set-up and use
Dry well insertion sleeves
Dry block calibrators greatly simplify the test and
calibration of process sensor heads, probes, switches and
thermometers, but optimum performance relies on a good
t of the device in the well insert. To facilitate this, a range
of insertion sleeves are available with hole diameters to suit
the most common probes and devices.
LiquidTC 165 and LiquidTC 255
These multi-purpose calibrators combine the portability of
dry block calibrators with the exibility of liquid immersion
baths to enable the testing and calibration of virtually
any shape and size of devices. The calibrators can be re-
congured by the user to function as a liquid bath, as an
infrared black body source and as a dry block calibrator
with interchangeable inserts. The latest heating and
electronic control technology, combined with continuous
liquid agitation of the uid bath, provide high accuracy and
stability throughout the large homogeneous measuring
zone. The calibrators are factory congured as liquid baths
and are provided with a bath cover to hold up to 5 devices
while reducing heat loss from the surface of the liquid
Infra-red black body source
A specially constructed insertion sleeve provides an
emissivity of 1 (black body).
Dry well insertion sleeves
For the convenience of a dry block calibrator a range of
insertion sleeves are available with hole diameters to suit
most common probes and devices.
Dry block and liquid bath
general features
Controller OFF – disables automatic temperature control
at the last set point temperature to allow the calibrator
settings to be changed part way through a test.
Manual control – allows the power output of the
calibrator to be adjusted to control the rate at which the
calibrator reaches the set-point temperature.
Set-point memory – allows up to four set-point
temperatures to be stored in memory. The test sequence
can then be activated with a single key press.
Test prole – this function denes a temperature prole
with a heating rate to the rst set-point value, a test
duration or soak time at set-point one followed by a
cooling rate to a second set-point.
PC communications -An optional USB cable is available
for connection to a PC.
Page 3
Specications
LiquidTC 165 LiquidTC 255 DryTC 165 DryTC 650
Temperature Ranges
Room Temperature (RT) to 155°C
(-30° to 310°F option) with TCL 10 oil
25° to 165°C (-77° to 330 °F option)
Heat well
supplied
with optional TCL 50 oil
Dia 60 mm/depth 170 mm (150 mm working depth) Dia. 28 mm/depth 150 mm
Measuring Zone
Stability
Accuracy
Standard Liquid Bath -LI 0.2°C 0.2°C
Dry block option - DB 0.3°C 0.4°C
Infrared black body option - IR 0.5°C 0.5°C
Black body emissivity 0.9994

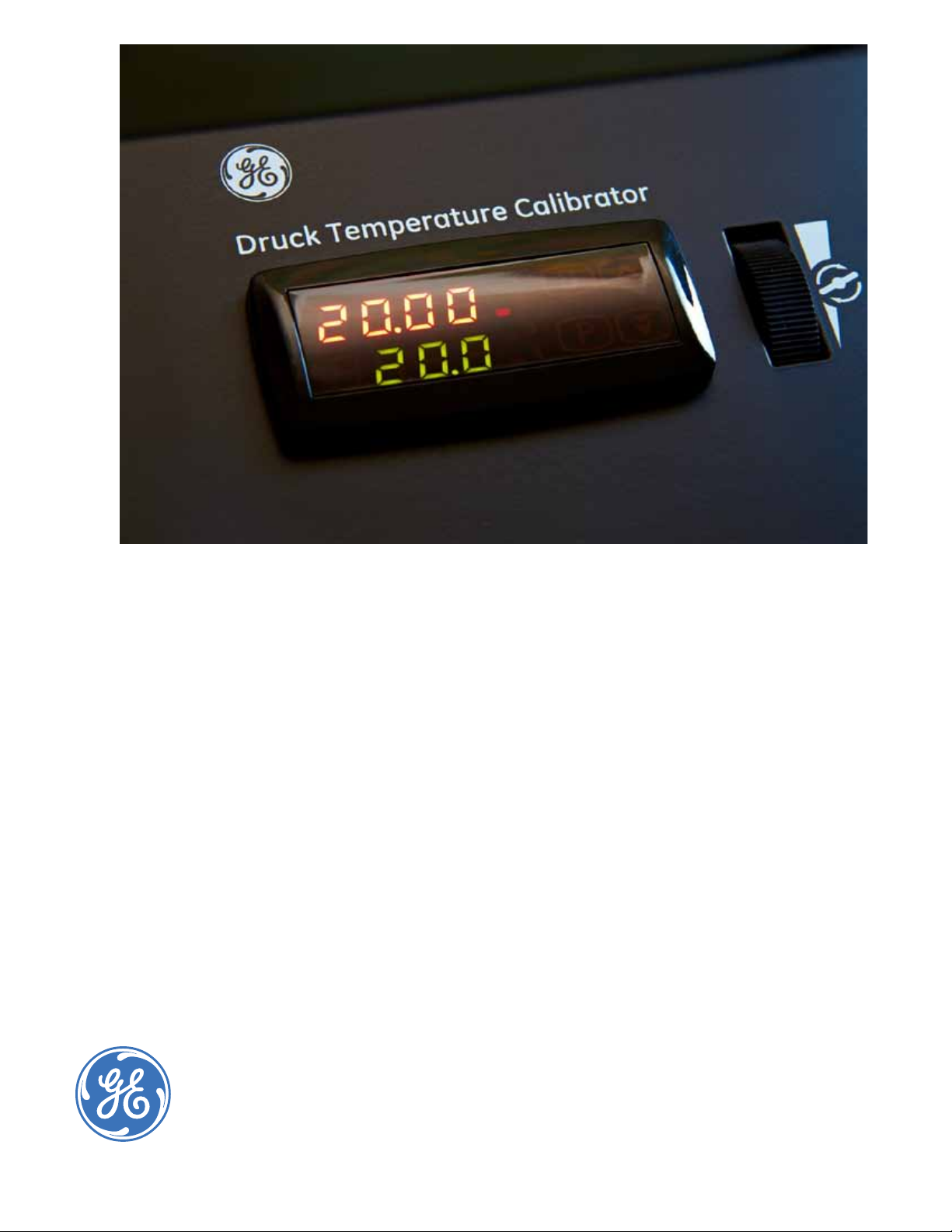

Display
Display range -50°C to 165°C 0 to 255°C -50°C to 165°C 0 to 650°C
Measurement resolution 0.01° from -9.99 to 99.99 otherwise 0.1°C
Setting resolution 0.1°C
Standard Features
Controller o, manual control, operating service hours, set-point memory, rate control °C /min, test proleIR
Power requirements
Supply voltage 100 to 240 VAC 50/60 Hz
Power consumption 400 VA nominal 1000 VA nominal 400 VA nominal 400 VA nominal
Dimensions
Width 210 mm 150 mm 210 mm 150 mm
Height 380 + 50 mm 330 + 68 mm 380 + 50 mm 330 + 68 mm
Depth 300 mm 270 mm 300 mm 270 mm
Weight
13 Kg 7.5 Kg 12.5 Kg 7.5 Kg
Environmental
Ambient temperature 10°C to 50°C (50°F to 122°F)
Ambient humidity To 80% rh (non-condensing)
Storage temperature From -10°C to 60°C (14°F to 140°F)
Recommended operating
environment
Compliance EN6326 (EMC), EN61010 Oelectrical safety), EU directive (RoHS, REACH, WEEE)
Specications valid at 18 °C to 28 °C (65 °F to 82 °F) ambient temperature. Minimum and maximum temperatures may not be achieved over

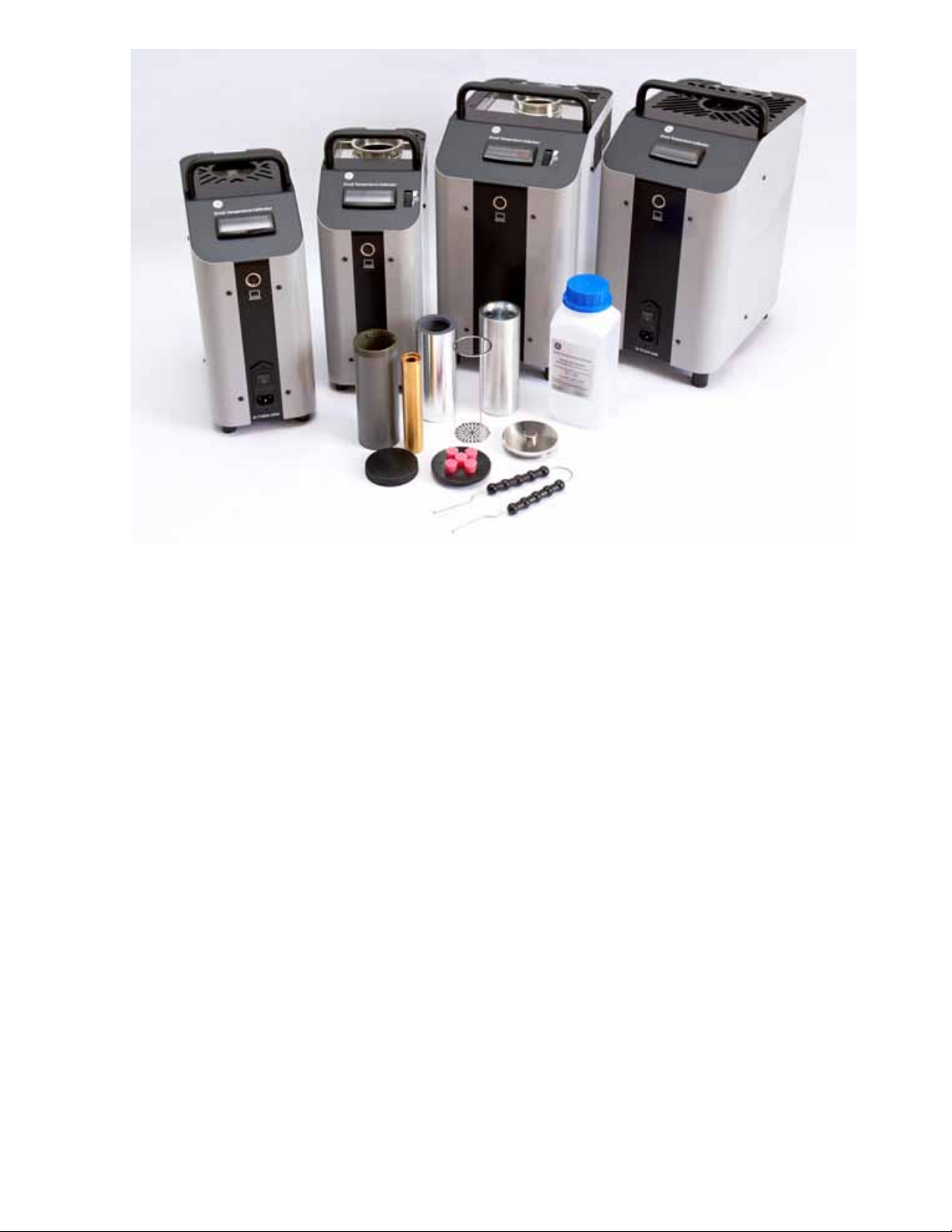

Standard Accessories
Ambient to 255°C
(Ambient to 490 °F option)
0 to 40 mm from the bottom of the insert
0.05 °C
the full ambient temperature range.
Indoor use. Not for use in potentially explosive atmospheres.
-35 to 165 °C
(-30 to 330 °F option)
0.2°C 0.4°C
Ambient to 650 °C
(Ambient to 1200 °F option)
1 lt TCL10 silicone oil 1 lt TCL50 silicone oil,
Magnetic stirrer, magnetic lifter, sensor basket, sealing cap, suction pump,
sensor lid with 5 silicone plugs, calibration certicate, user manual and mains
cable
DB option includes one interchangeable liquid bath insert and one dry well
insert (1 x 2 mm/3 x 3.5 mm/2 x 4.5 mm/ 1 x 6 mm).
IR option includes one interchangeable liquid bath insert and one black body
insert.
Note: If DB and IR options are ordered, only one interchangeable liquid bath
insert is provided.
Well insert (1 x 3.5 mm/1 x 6.5 mm/1 x 13.5 mm), insert
remove tool, calibration certicate, user manual and mains
cable
Page 4
Page 5
Ordering Information
DryTC 165 and DryTC 650 Product Code
DRYTC 165 Dry block temperature calibrator -35 °C to 165°C
DRYTC 650 Dry block temperature calibrator ambient to 650°C
Temperature Unit
0 °C working temperature unit
1 °F working temperature unit
Power Lead
A EU plug
C Australia / New Zealand plug
D UK plug
G South Africa / India plug
J Japan plug
K USA plug
R China plug
Example:
DRYTC 165 -1- D
LiquidTC 165 and LiquidTC 650 Product Code
LIQUID TC165 Liquid bath temperature calibrator -35 °C to 165°C
LIQUID TC255 Liquid bath temperature calibrator ambient to 255°C
Temperature Unit
0 °C working temperature unit
1 °F working temperature unit
Calibration Function
0 Standard liquid bath conguration
1 Combination liquid bath (LI) and infrared (IR) functions
2 Combination liquid bath (LI) and dry block (DB) functions
3 Combination liquid bath (LI), infrared (IR) and dry block (DB) functions
Power Lead
A EU plug
C Australia / New Zealand plug
D UK plug
G South Africa / India plug
J Japan plug
K USA plug
R China plug
Example:
LIQUIDTC 165 -0 -2 -K
Accessories
(Please order the following part numbers as separate line items:)
TCUSB USB output including a cable to connect to a PC
TCCASE1 Aluminium transit case
TCL10 Dow Corning 200 /CS10 silicone oil -35°C to +155°C
TCL50 Dow Corning 200 /CS50 silicone oil +25°C to +270°C
TCSTAND Probe support stand
TCBATH Interchangeable liquid bath for use with LiquidTC165 and LiquidTC255 with LI conguration
TCDKD DKD accredited Calibration. Not applicable to IR option of LiquidTC165 and LiquidTC255
Page 6
Adaptor inserts
Single bore adaptor insert for DryTC 165 and 650
GE Part number
Type DRY
Length mm 150
Diameter mm 28
Bore size mm
1.5 015 MS
2.0 020 MS
2.5 025 MS
3.0 030 MS
3.5 035 MS
4.0 040 MS
4.5 045 MS
5.0 050 MS
5.5 055 MS
6.0 060 MS
6.5 065 MS
7.0 070 MS
7.5 075 MS
8.0 080 MS
8.5 085 MS
9.0 090 MS
9.5 095 MS
10.0 100 MS
10.5 105 MS
11.0 110 MS
11.5 115 MS
12.0 120 MS
12.5 125 MS
13.0 130 MS
13.5 135 MS
14.0 140 MS
14.5 145 MS
15.0 150 MS
15.5 155 MS
16.0 160 MS
16.5 165 MS
17.0 170 MS
17.5 175 MS
18.0 180 MS
18.5 185 MS
19.0 190 MS
19.5 195 MS
20.0 200 MS
20.5 205 MS
21.0 210 MS
21.5 215 MS
22.0 220 MS
22.5 225 MS
23.0 230 MS
23.5 235 MS
24.0 240 MS
24.5 245 MS
25.0 250 MS
25.5 255 MS
Multi bore adaptor insert for DryTC 165 and 650
GE Part number
Type DRY
Length mm 150
Diameter mm 28
Number of bores
0 B 00 MS
1 B 01 MS
2 B 02 MS
3 B 03 MS
4 B 04 MS
5 B 05 MS
6 B 06 MS
7 B 07 MS
8 B 08 MS
9 B 09 MS
10 B 10 MS
11 B 11 MS
12 B 12 MS
13 B 13 MS
14 B 14 MS
15 B 15 MS
16 B 16 MS
17 B 17 MS
18 B 18 MS
19 B 19 MS
Please specify the bore sizes required from 1.5mm to 25.5 mm
in increments of 0.5 mm.
Example ordering codes:
Use Dry 150 28 050MS to order an insert with a
single 5 mm bore.
Use Dry 150 28 B02MS, 10 mm and 12 mm to
order an insert with two bores of 10 mm and 12
mm.
Page 7
Single bore adaptor insert for LiquidTC 165 and 255
GE Part number
Type LIQ
Length mm 163
Diameter mm 60
Bore size mm
1.5 015 AL
2.0 020 AL
2.5 025 AL
3.0 030 AL
3.5 035 AL
4.0 040 AL
4.5 045 AL
5.0 050 AL
5.5 055 AL
6.0 060 AL
6.5 065 AL
7.0 070 AL
7.5 075 AL
8.0 080 AL
8.5 085 AL
9.0 090 AL
9.5 095 AL
10.0 100 AL
10.5 105 AL
11.0 110 AL
11.5 115 AL
12.0 120 AL
12.5 125 AL
13.0 130 AL
13.5 135 AL
14.0 140 AL
14.5 145 AL
15.0 150 AL
15.5 155 AL
16.0 160 AL
16.5 165 AL
17.0 170 AL
17.5 175 AL
18.0 180 AL
18.5 185 AL
19.0 190 AL
19.5 195 AL
20.0 200 AL
20.5 205 AL
21.0 210 AL
21.5 215 AL
22.0 220 AL
22.5 225 AL
23.0 230 AL
23.5 235 AL
24.0 240 AL
24.5 245 AL
25.0 250 AL
25.5 255 AL
Multi bore adaptor insert for LiquidTC 165 and 255
GE Part number
Type LIQ
Length mm 163
Diameter mm 60
Number of bores
0 B 00 AL
1 B 01 AL
2 B 02 AL
3 B 03 AL
4 B 04 AL
5 B 05 AL
6 B 06 AL
7 B 07 AL
8 B 08 AL
9 B 09 AL
10 B 10 AL
11 B 11 AL
12 B 12 AL
13 B 13 AL
14 B 14 AL
15 B 15 AL
16 B 16 AL
17 B 17 AL
18 B 18 AL
19 B 19 AL
Please specify the bore sizes required from 1.5mm to 25.5 mm
in increments of 0.5 mm.
Example ordering codes:
Use LIQ 163 60 035AL to order an insert with a
single 3.5 mm bore.
Use LIQ 163 60 B03AL 7.5 mm, 9 mm and 12.5
mm to order an insert with three bores of 7.5
mm, 9 mm and 12.5 mm.
Page 8
www.ge-mcs.com
920-650A
© 2015 General Electric Company. All Rights Reserved. Specications are subject to change without notice. GE is a registered trademark of General Electric Company. Other company or product
names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not aliated with GE.
Loading...
