D-Link DP-601M User Guide

DP-601M

NWay Internet Server

with 56k Modem

User’s Guide

Rev. 02 (July, 1999)

6DP601MH..02

Printed In Taiwan

RECYCLABLE

Wichtige Sicherheitshinweise

1. Bitte lesen Sie sich diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den spätern Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig-

oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung.

4. Um eine Beschädigung des Gerätes zu vermeiden sollten Sie nur Zubehörteile verwenden,

die vom Hersteller zugelassen sind.

5. Das Gerät is vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sichern Stand zu achten. Ein Kippen oder Fallen

könnte Verletzungen hervorrufen. Verwenden Sie nur sichere Standorte und beachten Sie
die Aufstellhinweise des Herstellers.

7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor Überhitzung schützt.

Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Die Netzanschlußsteckdose muß aus Gründen der elektrischen Sicherheit einen

Schutzleiterkontakt haben.

10. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollete auch

nichts auf der Leitung abgestellt werden.

11. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.

12. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz

trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

13. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät

gelangen. Dies könnte einen Brand bzw. Elektrischen Schlag auslösen.

14. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur

von authorisiertem Servicepersonal geöffnet werden.

15. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer

qualifizierten Servicestelle zu überprüfen:
a– Netzkabel oder Netzstecker sint beschädigt.
b– Flüssigkeit ist in das Gerät eingedrungen.
c– Das Gerät war Feuchtigkeit ausgesetzt.
d– Wenn das Gerät nicht der Bedienungsanleitung ensprechend funktioniert oder Sie mit

Hilfe dieser Anleitung keine Verbesserung erzielen.

e– Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f– Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

16. Bei Reparaturen dürfen nur Orginalersatzteile bzw. den Orginalteilen entsprechende Teile

verwendet werden. Der Einsatz von ungeeigneten Ersatzteilen kann eine weitere
Beschädigung hervorrufen.

17. Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren

Servicepartner. Somit stellen Sie die Betriebssicherheit des Gerätes sicher.

18.Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden, Für einen

Nennstrom bis 6A und einem Gerätegewicht grßer 3kg ist eine Leitung nicht leichter als
H05VV-F, 3G, 0.75mm2 einzusetzen.

Trademarks

Copyright 1999 D-Link Corporation.
Contents subject to change without prior notice.
D-Link is a registered trademark of D-Link Corporation/D-Link Sys­tems, Inc.

All other trademarks belong to their respective proprietors.

Copyright Statement

No part of this publication may be reproduced in any form or by any
means or used to make any derivative such as translation, transfor­mation, or adaptation without permission from D-Link
Corporation/D-Link Systems Inc., as stipulated by the United States
Copyright Act of 1976.

FCC Warning

This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commer­cial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance
with this user’s guide, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product
may cause radio interference in which case the user may be required
to take adequate measures.

VCCI A Warning

Limited Warranty

Hardware:

D-Link warrants each of its hardware products to be free from defects in workmanship and
materials under normal use and service for a period commencing on the date of purchase from
D-Link or its Authorized Reseller and extending for the length of time stipulated by the Author­ized Reseller or D-Link Branch Office nearest to the place of purchase.

This Warranty applies on the condition that the product Registration Card is filled out and
returned to a D-Link office within ninety (90) days of purchase. A list of D-Link offices is pro­vided at the back of this manual, together with a copy of the Registration Card.

If the product proves defective within the applicable warranty period, D-Link will provide re­pair or replacement of the product. D-Link shall have the sole discretion whether to repair or
replace, and replacement product may be new or reconditioned. Replacement product shall be
of equivalent or better specifications, relative to the defective product, but need not be identi­cal. Any product or part repaired by D-Link pursuant to this warranty shall have a warranty
period of not less than 90 days, from date of such repair, irrespective of any earlier expiration
of original warranty period. When D-Link provides replacement, then the defective product
becomes the property of D-Link.

Warranty service may be obtained by contacting a D-Link office within the applicable warranty
period, and requesting a Return Material Authorization (RMA) number. If a Registration Card
for the product in question has not been returned to D-Link, then a proof of purchase (such as a
copy of the dated purchase invoice) must be provided. If Purchaser's circumstances require
special handling of warranty correction, then at the time of requesting RMA number, Purchaser
may also propose special procedure as may be suitable to the case.

After an RMA number is issued, the defective product must be packaged securely in the original
or other suitable shipping package to ensure that it will not be damaged in transit, and the
RMA number must be prominently marked on the outside of the package. The package must be
mailed or otherwise shipped to D-Link with all costs of mailing/shipping/insurance prepaid.
D-Link shall never be responsible for any software, firmware, information, or memory data of
Purchaser contained in, stored on, or integrated with any product returned to D-Link pursuant
to this warranty.

Any package returned to D-Link without an RMA number will be rejected and shipped back to
Purchaser at Purchaser's expense, and D-Link reserves the right in such a case to levy a reason­able handling charge in addition mailing or shipping costs.

Software:

Warranty service for software products may be obtained by contacting a D-Link office within
the applicable warranty period. A list of D-Link offices is provided at the back of this manual,

together with a copy of the Registration Card. If a Registration Card for the product in ques­tion has not been returned to a D-Link office, then a proof of purchase (such as a copy of the
dated purchase invoice) must be provided when requesting warranty service. The term "pur­chase" in this software warranty refers to the purchase transaction and resulting license to use
such software.

D-Link warrants that its software products will perform in substantial conformance with the
applicable product documentation provided by D-Link with such software product, for a period of
ninety (90) days from the date of purchase from D-Link or its Authorized Reseller. D-Link war­rants the magnetic media, on which D-Link provides its software product, against failure during
the same warranty period. This warranty applies to purchased software, and to replacement
software provided by D-Link pursuant to this warranty, but shall not apply to any update or
replacement which may be provided for download via the Internet, or to any update which may
otherwise be provided free of charge.

D-Link's sole obligation under this software warranty shall be to replace any defective software
product with product which substantially conforms to D-Link's applicable product documenta­tion. Purchaser assumes responsibility for the selection of appropriate application and
system/platform software and associated reference materials. D-Link makes no warranty that
its software products will work in combination with any hardware, or any application or sys­tem/platform software product provided by any third party, excepting only such products as are
expressly represented, in D-Link's applicable product documentation as being compatible.
D-Link's obligation under this warranty shall be a reasonable effort to provide compatibility,
but D-Link shall have no obligation to provide compatibility when there is fault in the third­party hardware or software. D-Link makes no warranty that operation of its software products
will be uninterrupted or absolutely error-free, and no warranty that all defects in the software
product, within or without the scope of D-Link's applicable product documentation, will be cor­rected.

D-Link Offices for Registration and Warranty Service

The product's Registration Card, provided at the back of this manual, must be sent to a D-Link
office. To obtain an RMA number for warranty service as to a hardware product, or to obtain
warranty service as to a software product, contact the D-Link office nearest you. An address/
telephone/fax/e-mail/Web site list of D-Link offices is provided in the back of this manual.

LIMITATION OF WARRANTIES

IF THE D-LINK PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE
REMEDY SHALL BE, AT D-LINK'S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR
OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. D-LINK NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE
OF D-LINK'S PRODUCTS.
D-LINK SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION
DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY
THE CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR
TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF
THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD.

LIMITATION OF LIABILITY

IN NO EVENT WILL D-LINK BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOSS OF
PROFITS, COST OF COVER OR OTHER INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES
ARISING OUT THE INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE OR
INTERRUPTION OF A D- LINK PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY.
THIS LIMITATION WILL APPLY EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
IF YOU PURCHASED A D-LINK PRODUCT IN THE UNITED STATES, SOME STATES DO NOT ALLOW
THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

Internet Server User’s Guide

TABLE OF CONTENTS

ABOUT THIS GUIDE............................................................................................XIII

QUICK INSTALLATION......................................................................................XV

INTRODUCTION ......................................................................................................1

PRODUCT DESCRIPTION.........................................................................................1

PRODUCT FEATURES ..............................................................................................1

INTERNET SERVER TECHNOLOGY........................................................................2

INSTALLATION .......................................................................................................5

UNPACKING..............................................................................................................5

DESKTOP / SHELF INSTALLATION .......................................................................6

WALL INSTALLATION............................................................................................6

PORT DESCRIPTIONS...............................................................................................8

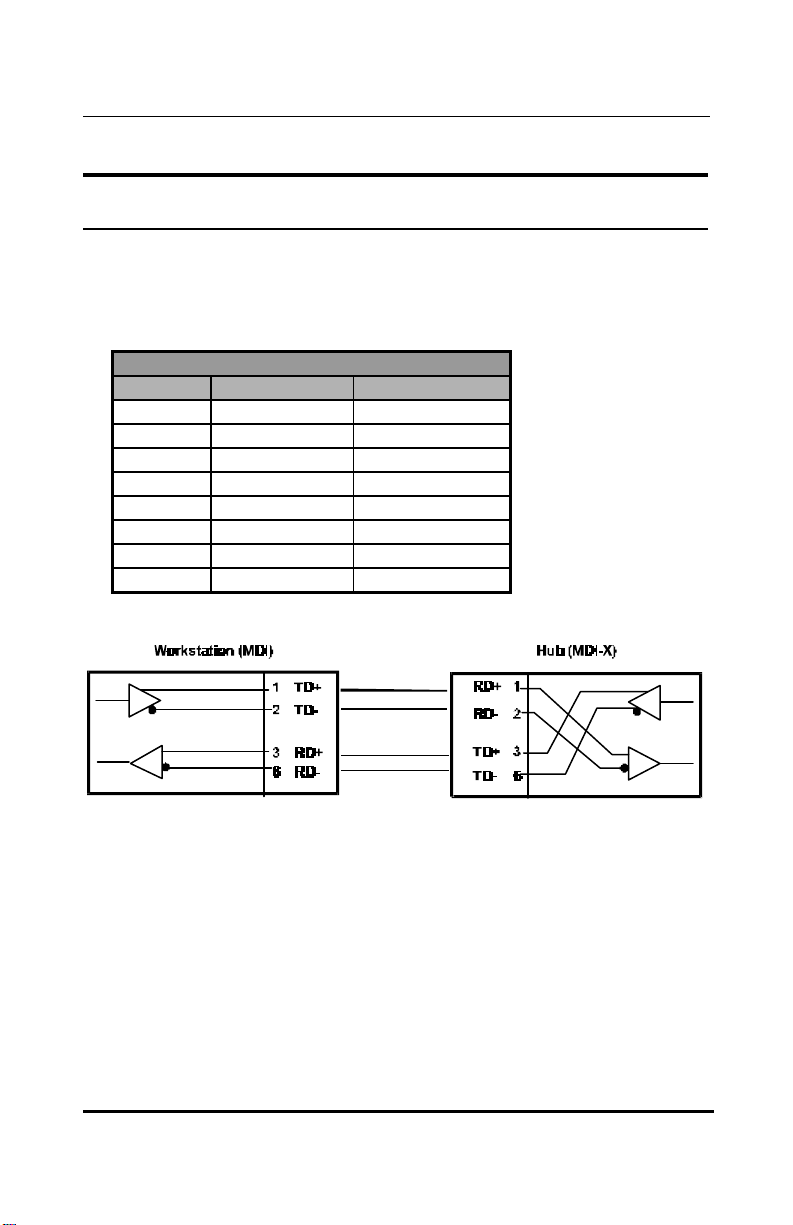

RJ-45 – LAN Port................................................................................................8

COM (Serial) Port..............................................................................................8

RJ-11 Phone Jack...............................................................................................8

LED DESCRIPTIONS.................................................................................................9

Pw/Tx....................................................................................................................9

Link/Rx.................................................................................................................9

COM Tx / COM Rx............................................................................................10

Normal LED Flash Pattern.............................................................................10

CONNECTING TO THE LOCAL NETWORK .........................................................10

Cables.................................................................................................................10

Connections.......................................................................................................11

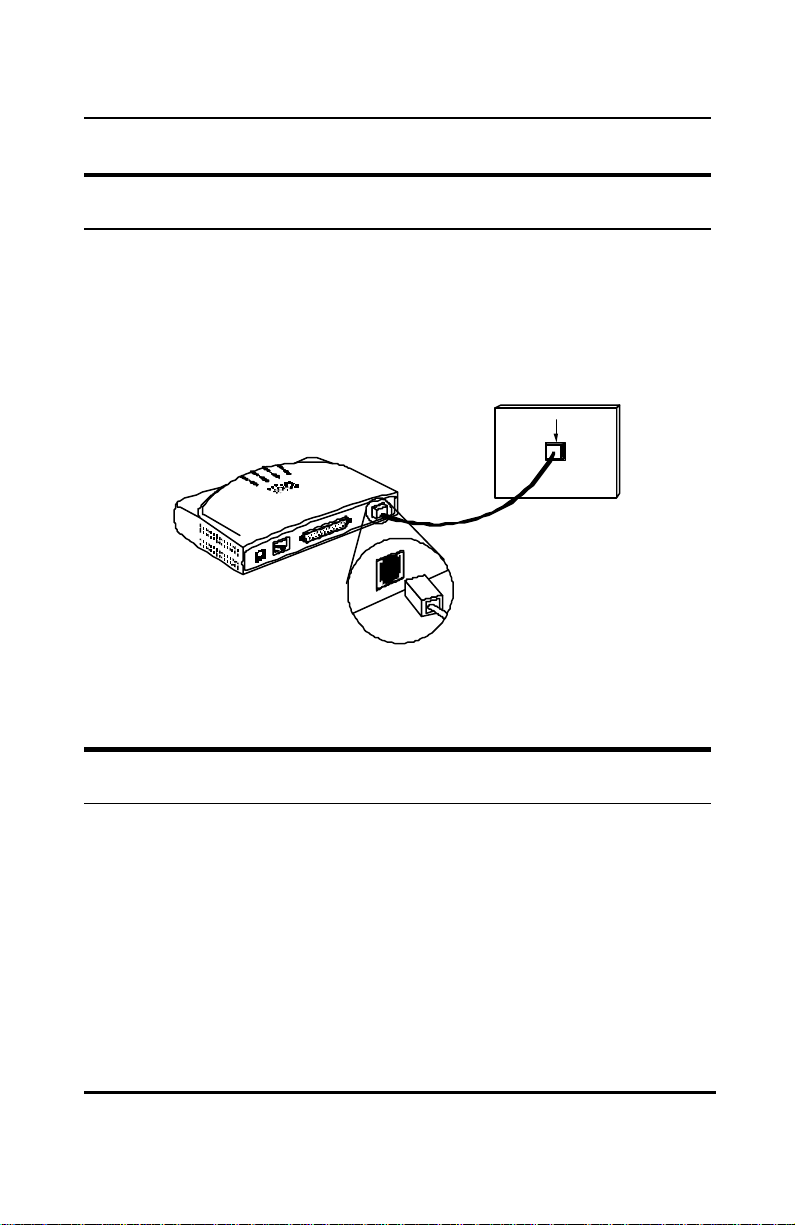

CONNECTING TO THE INTERNET .......................................................................12

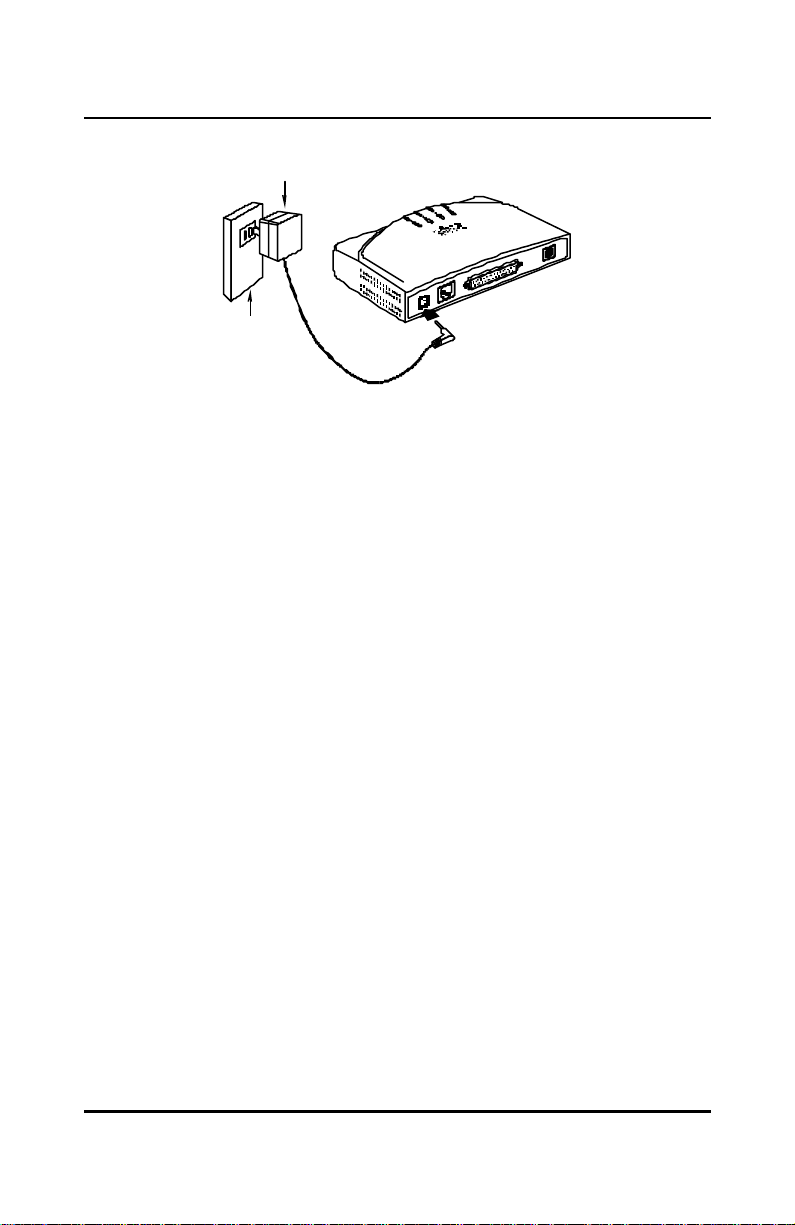

CONNECTING POWER ...........................................................................................12

SYSTEM SETUP ......................................................................................................15

SETTING IP ADDRESSES.......................................................................................16

ix

Internet Server User’s Guide

Using the Default Address...............................................................................16

Using Your Own Address Settings.................................................................18

USING TELNET TO CONFIGURE THE SERVER...................................................19

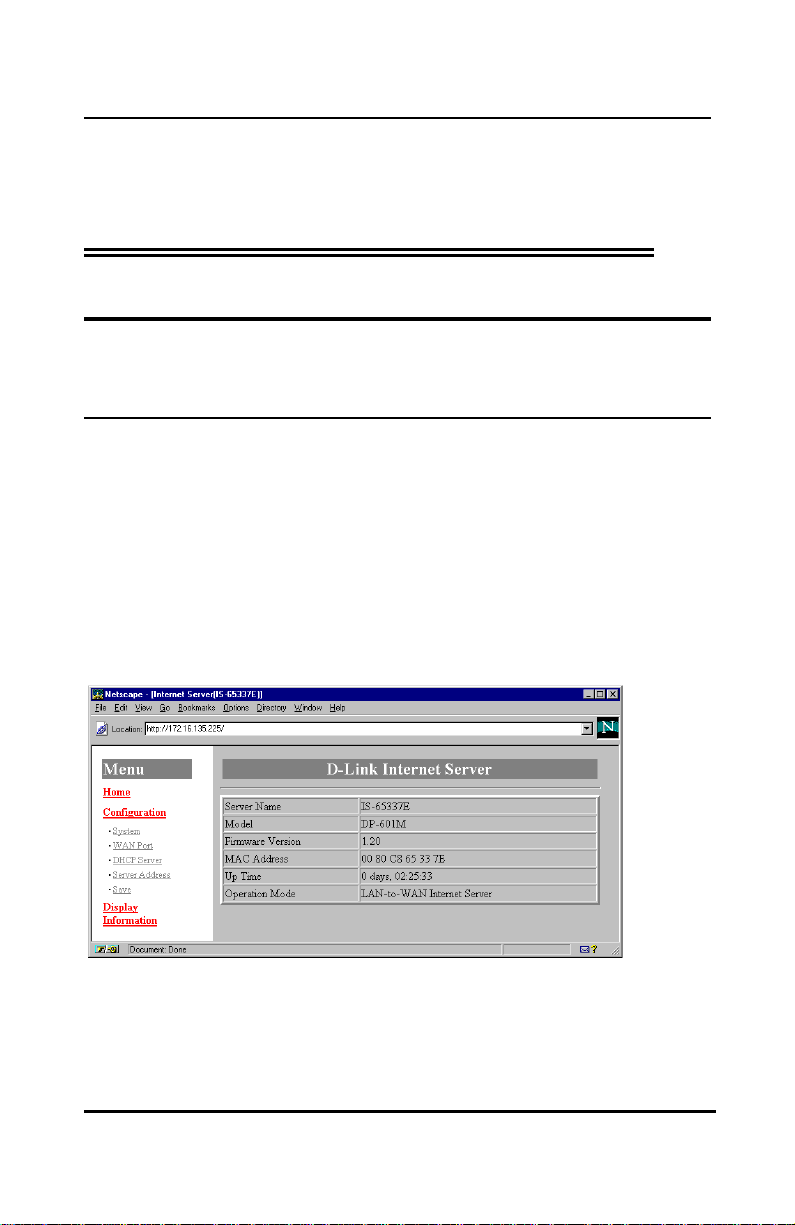

USING A BROWSER TO CONFIGURE THE SERVER.............................................20

MINIMUM CONFIGURATION................................................................................21

DNS IP Address.................................................................................................21

ISP Account -> Phone Number......................................................................22

ISP Account -> User ID...................................................................................23

ISP Account -> Password ...............................................................................24

Login Script.......................................................................................................24

OPERATION ............................................................................................................26

CONFIGURATION SETTINGS ............................................................................29

NAVIGATION CONTROLS......................................................................................29

SYSTEM CONFIGURATION...................................................................................30

Server Name.......................................................................................................30

Local LAN -> IP Address.................................................................................30

Local LAN -> Subnet Mask ............................................................................31

DNS IP Address.................................................................................................31

Maximum Idle Time ..........................................................................................32

Operation Mode................................................................................................32

Change Password.............................................................................................33

WAN PORT CONFIGURATION.............................................................................33

Line Type............................................................................................................33

Baud Rate...........................................................................................................34

ISP Account -> Phone Number......................................................................34

ISP Account -> User ID...................................................................................34

ISP Account -> Password ...............................................................................35

ISP Account -> IP Address.............................................................................35

Modem AT Commands.....................................................................................35

Login Script.......................................................................................................36

DHCP SERVER CONFIGURATION........................................................................37

Enable.................................................................................................................38

IP Address Range -> Start..............................................................................38

IP Address Range -> End................................................................................39

IP Lease Time.....................................................................................................39

IP Reserve Table...............................................................................................39

x

Internet Server User’s Guide

SERVER ADDRESS CONFIGURATION...................................................................40

ADVANCED CONTROL CONFIGURATION..........................................................41

Manager Server IP Address............................................................................41

Log and Filter...................................................................................................42

Dial-up Schedule..............................................................................................42

Routing Table....................................................................................................43

Filter NetBIOS over TCP/IP...........................................................................44

DISPLAY INFORMATION.......................................................................................45

Displaying Information...................................................................................45

TOOLS......................................................................................................................46

SAVE CONFIGURATION.........................................................................................47

TROUBLESHOOTING...........................................................................................49

SYSTEM POST........................................................................................................49

DEVICE INSTALLATION PROBLEMS...................................................................50

WAN.....................................................................................................................50

LAN......................................................................................................................51

STATION CONFIGURATION PROBLEMS.............................................................51

OPERATING PROBLEMS........................................................................................51

SPECIFICATIONS ..................................................................................................53

G ENERAL.................................................................................................................53

ENVIRONMENTAL AND PHYSICAL......................................................................54

AT COMMANDS.....................................................................................................55

BASIC AT COMMAND SET...................................................................................55

EXTENDED AT& COMMAND SET......................................................................59

PORT PINOUTS......................................................................................................61

SERIAL PORTS........................................................................................................61

RJ-45 PORT .............................................................................................................62

GLOSSARY..............................................................................................................63

1

xi

Internet Server User’s Guide

ABOUT THIS GUIDE

This guide explains how to install and use the DP-601M NWay port
internet server

Audience

This manual assumes basic familiarity with LANs, the internet, and
ISPs. It has, however, been designed for basic-level users

Overview of the User’s Guide

♦ Quick Installation.
♦ Chapter 1- Introduction. Provides information about the DP-

601M and internet server technology.

♦ Chapter 2 - Installation. Helps you unpack, understand and

install the DP-601M.

♦ Chapter 3 - System Setup. Explains how to set necessary op-

tions on the internet server.

♦ Chapter 4 - Configuration Settings. Explains all available set-

tings on the internet server and what options exist for
configuration and use.

♦ Appendix A - Troubleshooting. Provides direction and assis-

tance for locating the source of problems and solving them.

About This Guide xiii

Internet Server User’s Guide

♦ Appendix B - Specifications. Lists the device’s specifications.
♦ Appendix C - AT Commands. Lists the basic and extended AT

command sets.

♦ Appendix D - Port Pinouts. Provides pinout data for the de-

vice’s ports.

♦ Appendix E - Glossary. Provides the meaning for some net-

working terms used in this manual.

About This Guidexiv

Internet Server User’s Guide

QUICK INSTALLATION

This section takes you through a step-by-step minimum installation
and setup procedure for the internet server. Please refer to the main
text of this manual for detailed information about the setup and op­eration of this device.

Getting Started

Step 1: Unpack the device. Make certain no components have

been lost or damaged. A packing list is provided on page 5.

Step 2: Choose an installation site on a flat, level surface or wall.

Make sure it is placed near the telephone wall jack you plan
to use for internet connections and/or near the network line
you plan to use for a LAN connection. Note that the internet
server can be hung on a wall using the wall mounting
equipment included with the product.

Making Connections

Step 3: Connect the Internet server to your LAN using a Category

3, 4 or 5, twisted-pair cable and the device’s RJ-45 LAN
port. This connection should be made to an Ethernet or Fast
Ethernet switch or hub.

Step 4: Connect the Internet server to the telephone wall jack by

plugging a normal telephone cable into the RJ-11 jack on the
rear of the internet server.

Step 5: Plug the power adapter into the device and into an outlet.

Quick Installation xv

Internet Server User’s Guide

Configuration

Step 6: Before you can use your Internet server, IP addresses on

your LAN’s PCs must be set so that they are compatible
with the Internet server’s settings. The Internet server
comes with the default local IP address: 192.168.100.1 and
the default subnet mask setting: 255.255.255.0. Assuming
that you leave these settings unchanged and assign fixed IP
addresses to machines on your LAN that will access the
Internet through the Internet server, you must give those
machines IP addresses in the range of 192.168.100.xxx,
where xxx is a number from 2 to 255. (If you want to use a
different IP address range, see “Setting IP Addresses” on
page 16.) You can, alternatively, set the machines on your
LAN to obtain their IP addresses automatically using DHCP
to get IP addresses from the Internet server. Whether the
machines use fixed IP addresses or DHCP, they must all use
the same subnet mask setting as the Internet server, and
the Internet server’s local (LAN) IP address must be set as
each machine’s default gateway.

Step 7: The internet server can be configured and operated via

Telnet or a web browser once PC IP addresses have been
properly set. (Note that some device settings can be manipu­lated using the IS Admin program included with the device.)
Start your Telnet or browser software and enter the IP ad­dress of the internet server (either the default IP listed above
or the new address you assigned using IS Admin). This
should bring up the internet server start menu. See the next
series of steps for information about settings that must be set
for the device to work properly.

Quick Installationxvi

Internet Server User’s Guide

Mandatory Settings for Internet Access

Step 8: ISP Account -> Phone Number, when you signed-up for

an account with your ISP (internet service provider), you
should have been given an access phone number that your
Internet server’s built-in modem will dial. Look under the
“WAN Port Settings” menu for this item and enter the
phone number provided by your ISP.

Step 9: ISP Account -> User ID, your ISP should also have as-

signed a User ID (aka, a username) that you will use for
logging-in. Also under “WAN Port Settings,” enter this user
ID exactly as it was provided to you.

Step 10: ISP Account -> Password, finally, to complete the ISP

login process, the internet server must provide the password
associated with the user ID assigned by your ISP. Enter it.

You have now completed the basic steps necessary to install, config­ure, and begin using the internet server. Note that, with respect to
steps 8–10, it may be necessary for you to use a “Login Script” in­stead. If you enter the information required in those three settings
correctly and still have trouble logging-in, see the “Login Script”
section on page 24 to create a login script.

Quick Installation xvii

Internet Server User’s Guide

1

INTRODUCTION

This chapter introduces the DP-601M internet server, as well as
some of the technology that is utilized.

Product Description

The DP-601M internet server is designed to give multiple, networked
PCs access to the internet through a single account. It controls your
Local Area Network (LAN) by automatically assigning IP addresses
to all computers connected to it and routing traffic to and from local
computers and the internet.

Product Features

The list below highlights the features and specifications of the DP­601M internet server.

♦ Compatible with the IEEE 802.3 10BASE-T Ethernet and

802.3u 100BASE-TX Fast Ethernet industry standards for
interoperability with other Ethernet/Fast Ethernet network
devices.

Introduction 1

Internet Server User’s Guide

♦ Internet protocol support for: PPP, PAP/CHAP, NAT, TCP/IP,

DHCP, ARP, ICMP, FTP, Telnet, and HTTP.

♦ Support for device configuration via Telnet, web browser, or IS

Admin program (included).

♦ NWay UTP port for LAN connection.
♦ Ethernet connections support Category 3 or better twisted-pair

cables.

♦ Fast Ethernet connections support both shielded twisted-pair

and Category 5 unshielded twisted-pair cables.

♦ Built-in 56k modem.
♦ Internet Features include: Dial-On-Demand, NAT internet ac-

cess, DHCP server, and virtual server.

♦ Flash memory for easy firmware upgrades.

Internet Server Technology

The concept behind internet servers is to provide internet access for
multiple users through a single internet account. Without an inter­net server, each end node (i.e., PC or workstation) on a LAN must
have it’s own public domain (global) IP address.

Single Global

PC

(single

end user)

2 Introduction

IP Address

176.220.22.1

Internet Server User’s Guide

Using an internet server allows a single global IP address to be
shared by multiple end nodes simultaneously.

In this implementation, it is only necessary to pay for a single
internet account even though many people will be able to use it.

Non-Internet Implementations

An internet server can also be used to expand a LAN by creating a
localized IP “sub-group”. In this LAN-to-LAN configuration, the
internet server links the two IP subgroups (as shown below). This
implementation is useful when the LAN has run out of IP addresses.
The internet server uses a single IP address from the first (global)
LAN to establish a second (local) LAN, in much the same way it al­lows many users to connect to the internet through a single IP
address. PC’s on the second LAN (called a local LAN since the IP

Introduction 3

Internet Server User’s Guide

addresses of computers on this LAN are managed by the internet
server) can still access the internet by setting their Gateway address
to the IP address of the local LAN port of the Internet server. Please
note that the WAN ports on the DP-601M are disabled when it is
operating in LAN-to-LAN mode.

4 Introduction

Internet Server User’s Guide

2

INSTALLATION

This chapter provides information on the unpacking and initial in­stallation of your internet server.

Unpacking

Open the shipping carton of your internet server and carefully un­pack the contents. The carton should contain the following items:

♦ One internet server device
♦ One AC power adapter, suitable for your areas electrical

power connections

♦ One 3.5” diskette with IS Admin software
♦ IS Admin User’s Guide
♦ One 3.5” diskette with IS Manager Server software
♦ IS Manager Server User’s Guide
♦ One 3.5” diskette with IS Mail Server software
♦ IS Mail Server User’s Guide
♦ Wall mount hardware
♦ This User’s Guide

Installation 5

Internet Server User’s Guide

Inspect the device and all accompanying items. If any item is dam­aged or missing, report the problem immediately to your dealer.

Desktop / Shelf Installation

The unit has rubber feet attached to the bottom to cushion it. Allow
enough ventilation space between the device and the objects around
it. Choose a sturdy, level surface in a ventilated area that is dust
free and away from heat vents, warm air exhaust from other devices
and direct sunlight. Avoid proximity to large electric motors or other
electromagnetic equipment.

Observe the following guidelines when choosing an installation loca­tion:

• Air temperature should range from 32° to 122° F (0° to 50° C).

• Humidity should be less than 90%, non-condensing.

• Site should not exceed the electromagnetic field standards for

IEC 801-3, Level 2 (3V/M) field strength.

For a detailed list of the product’s technical specifications, refer to
Appendix B, Specifications.

Wall Installation

The DP-601M comes complete with a wall mount kit. This kit in­cludes two screws and two plastic anchors. For a proper placement
on the wall, follow these steps:

♦ Select a site that is free of obstructions from other equipment

or devices. Consider the following points for site selection:

6 Installation

Internet Server User’s Guide

◊ The internet server should be placed high enough where

LED indicators can be observed and cable and power con­nections can be made.

◊ Moreover, decide whether you would like it to point with

the front panel facing either up or down.

♦ Drill two holes into the wall with the same distance as the

screw support holes located on the bottom of the internet
server. Do not drill these holes too deep.

♦ Insert the nylon anchors into the holes in the wall and imbed

them with gentle taps of a hammer.

♦ Screw in the screws provided with the wall mount kit into the

plastic anchors. Do not insert the screws with excessive
torque. The screw’s head and with a small portion of the
screw’s body should be sticking out.

♦ Gently, place the internet server onto the wall with the front

panel facing up or down by sliding the screws into the provided
slots on the underside of the unit.

Installing the Internet Server on a Wall

Installation 7

Internet Server User’s Guide

Port Descriptions

DP-601M Rear Panel

RJ-45 – LAN Port

The Internet server has a single NWay LAN port. This port is 10­Mbps and 100-Mbps capable (auto-detecting, auto-configuring) and
designed for use in an Ethernet or Fast Ethernet LAN via a network
hub. The port has an RJ-45 jack with an MDI-X pinout.

COM (Serial) Port

The COM (serial communications) port can be used to connect the
internet server directly to a computer or data terminal, which allows
the Internet server to be used as an ordinary modem. This port is an
RS-232 port with a standard 25-socket D-shell connector.

Note: The COM port functions only when the Inter-

net server is disconnected from the LAN. Its
sole purpose is to allow the Internet server to
be used as an ordinary 56k modem.

RJ-11 Phone Jack

The Internet server’s phone jack is used to connect the Internet
server’s built-in modem to a telephone line. It is a standard RJ-11
modular phone jack.

8 Installation

Internet Server User’s Guide

LED Descriptions

The internet server has a small LED array for indicating current
port and transmission status. The power/transmit (Pw/Tx) and con­nect/receive (Link/Rx) LEDs only relate to activity on the LAN port.
All other LED indicators display information about their related
ports as labeled.

DP-601M Front Panel

Pw/Tx

The Pw/Tx (power/transmission) LED lights when power is supplied
to the device and flashes when the LAN port transmits data.

Link/Rx

The Link/Rx (link/receive) indicator will light up when a good con­nection is made at the LAN port with an operating and compatible
Ethernet or Fast Ethernet device. This indicator flashes when the
LAN port receives data from the network.

Installation 9
