User Manual
Full HD PoE Day/Night Network Camera
DCS-2210L/UPA
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 October 21, 2014 Version A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2014 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
D-Link DCS-2210L/UPA User Manual
2
Table of Contents
Product Overview .............................................................. 4
Package Contents ................................................................. 4
System Requirements ......................................................... 5
Introduction ............................................................................ 6
Features .................................................................................... 7
Hardware Overview ............................................................. 8
Front View ............................................................................ 8
Rear View .............................................................................9
Side View ............................................................................10
Installation ....................................................................... 11
Zero Conguration Setup ................................................11
Camera Setup Wizard ........................................................14
Windows Users ....................................................................14
Mac Users...............................................................................15
Manual Hardware Installation ........................................17
Mount the Camera .............................................................18
mydlink ...........................................................................................19
Conguration ................................................................... 20
Using the Conguration Interface ................................20
Live Video ..............................................................................21
Setup .......................................................................................23
Setup Wizard ....................................................................23

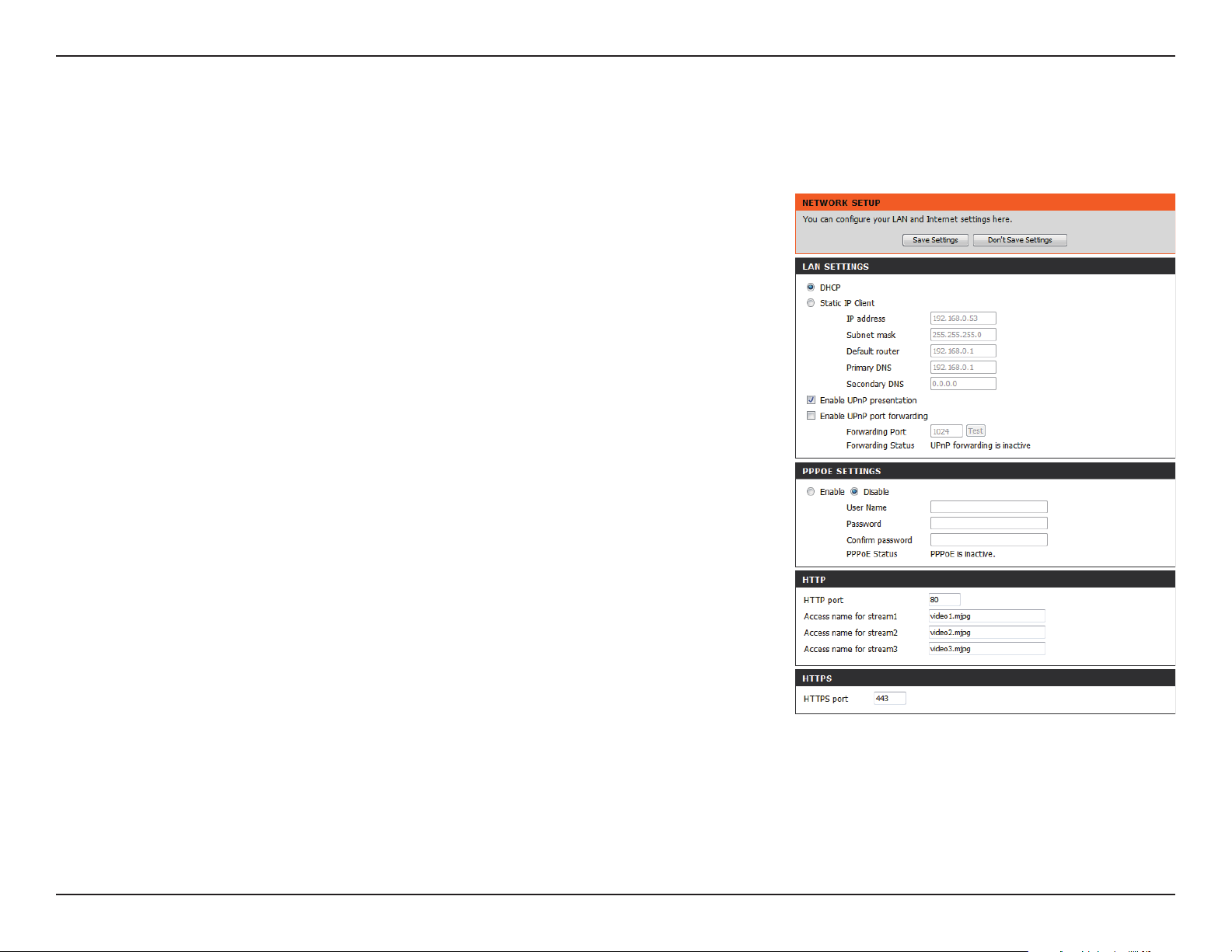

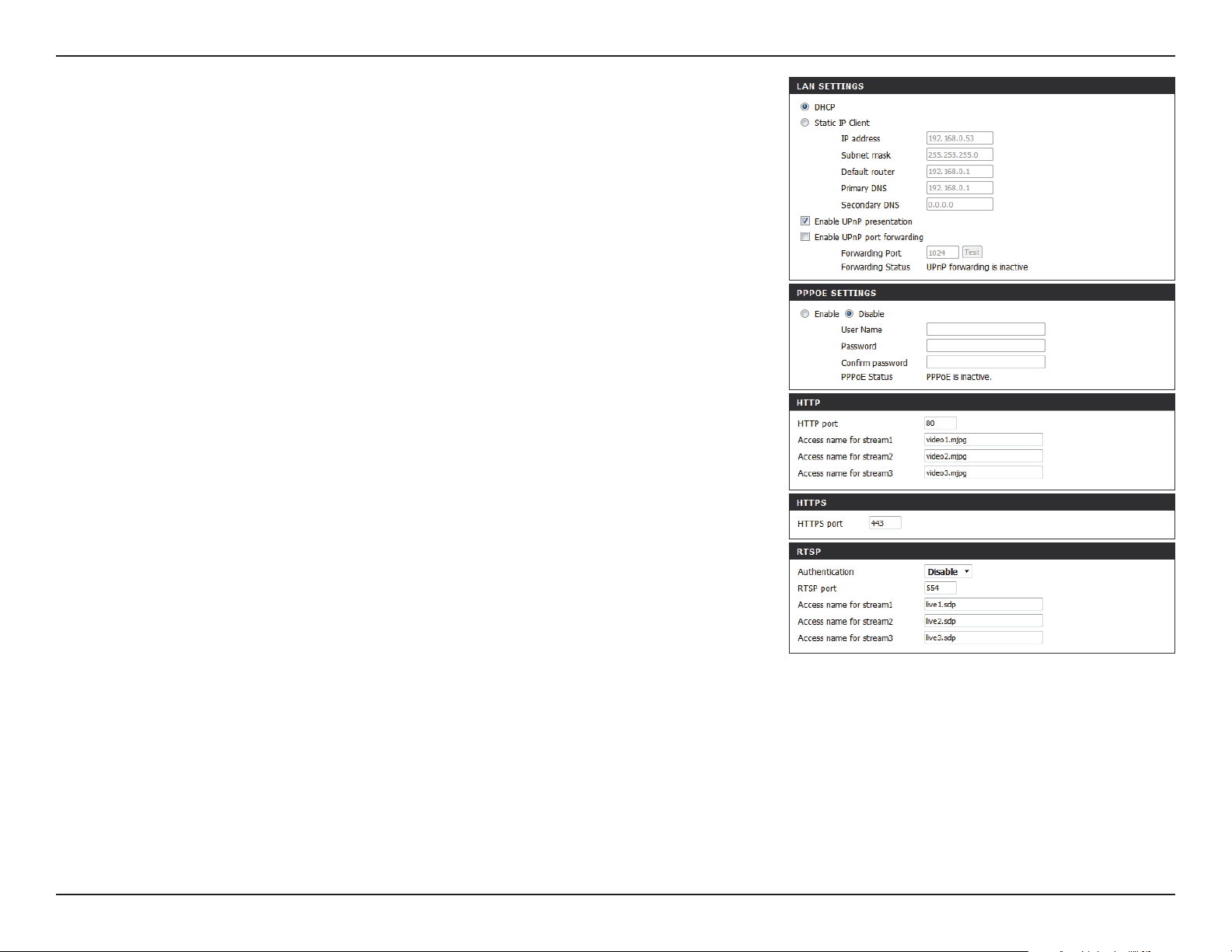

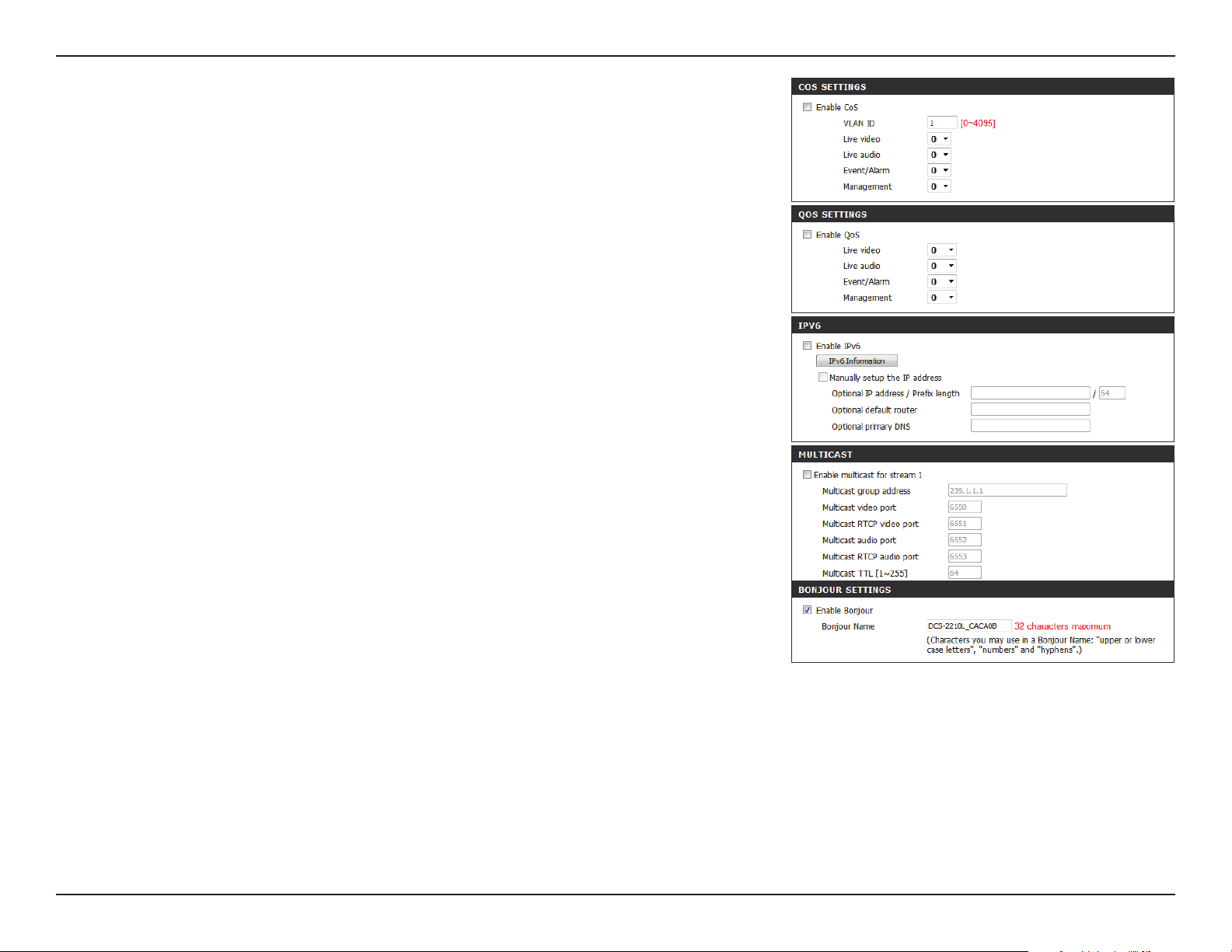

Network Setup .................................................................29
Dynamic DNS ...................................................................32
Image Setup .....................................................................33
Audio and Video ..............................................................35
Preset ...................................................................................37
Motion Detection ...........................................................39
Time and Date ..................................................................40

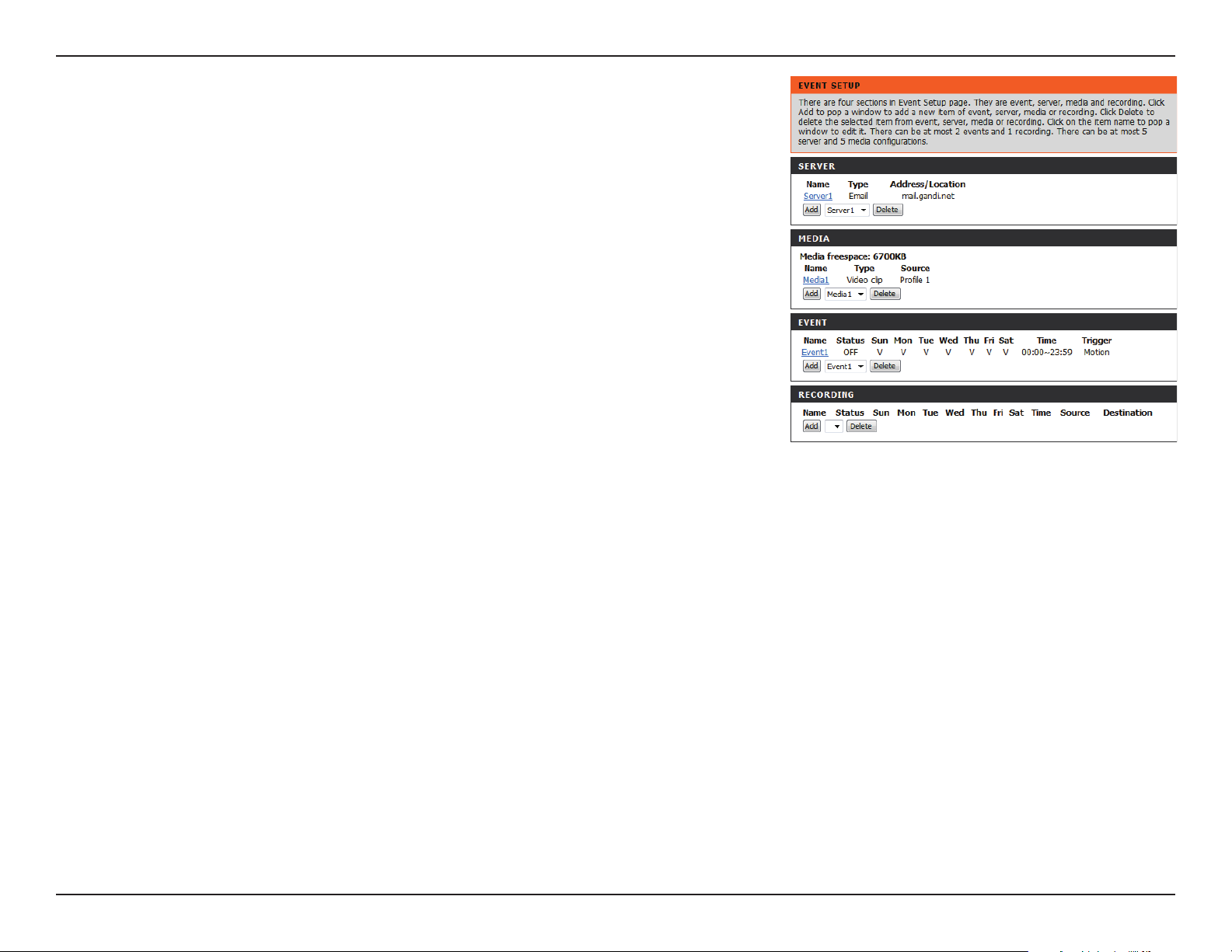

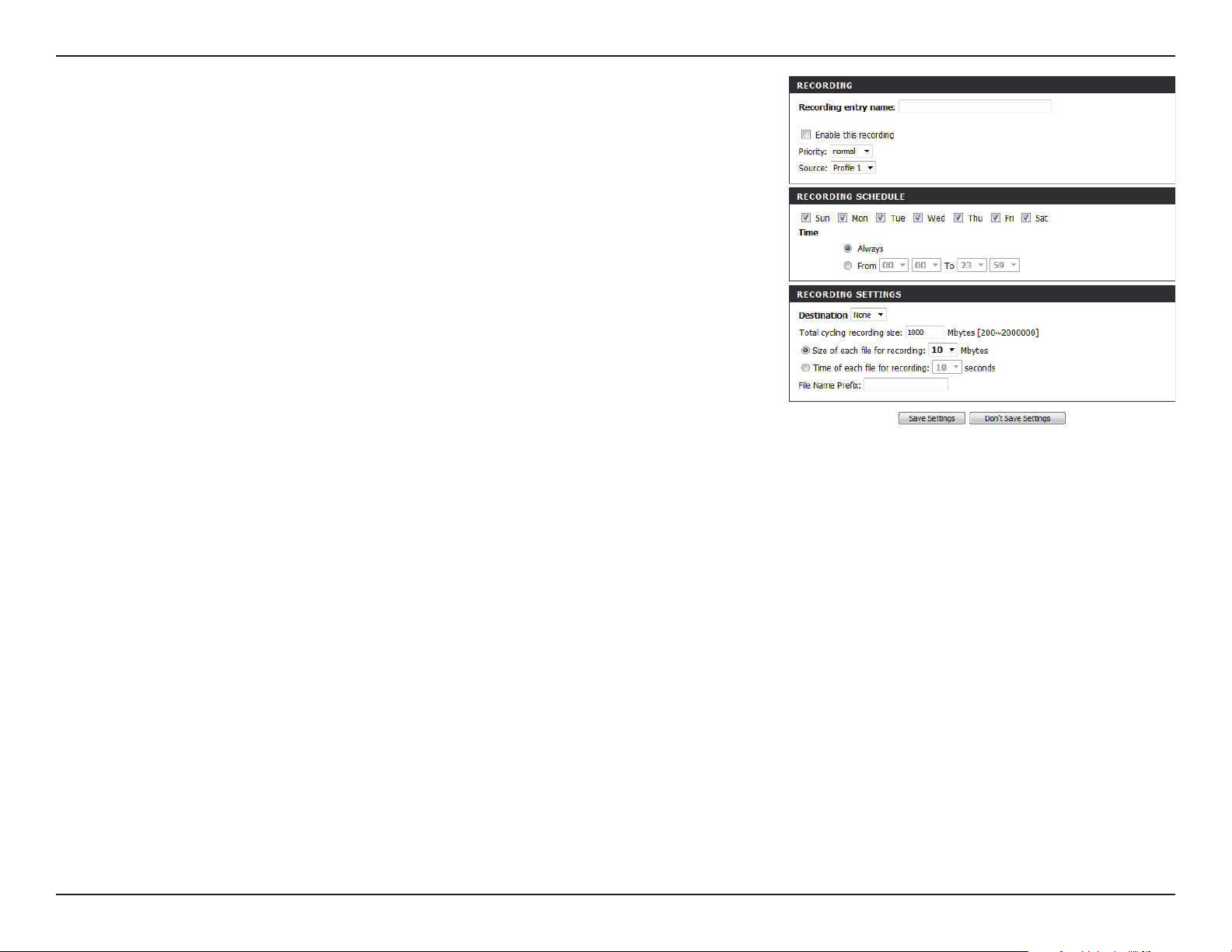

Event Setup .......................................................................41

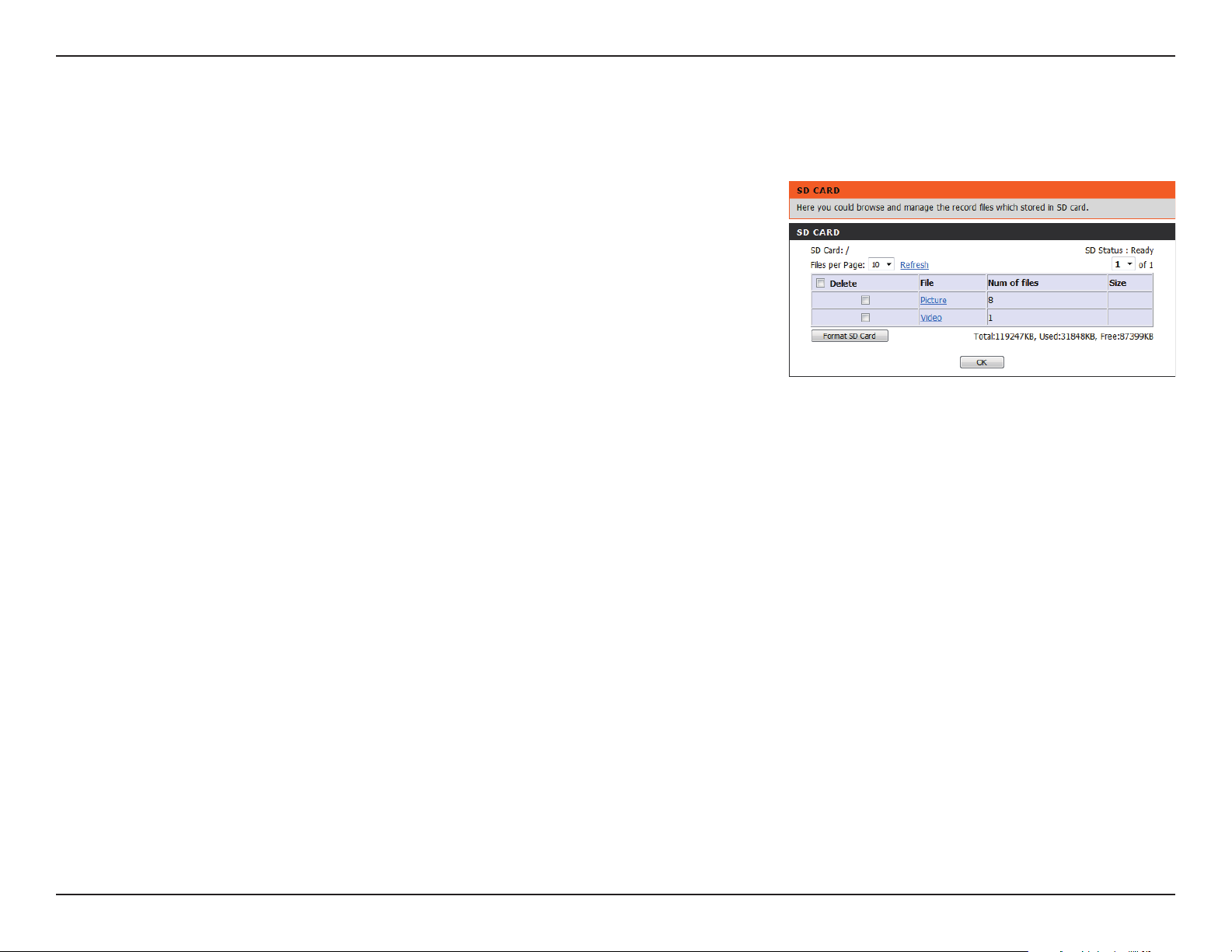

SD Card ...............................................................................50
Advanced .........................................................................51
Digital Input/Output ......................................................51
ICR and IR ...........................................................................52
HTTPS .................................................................................. 53
Access List ..........................................................................54

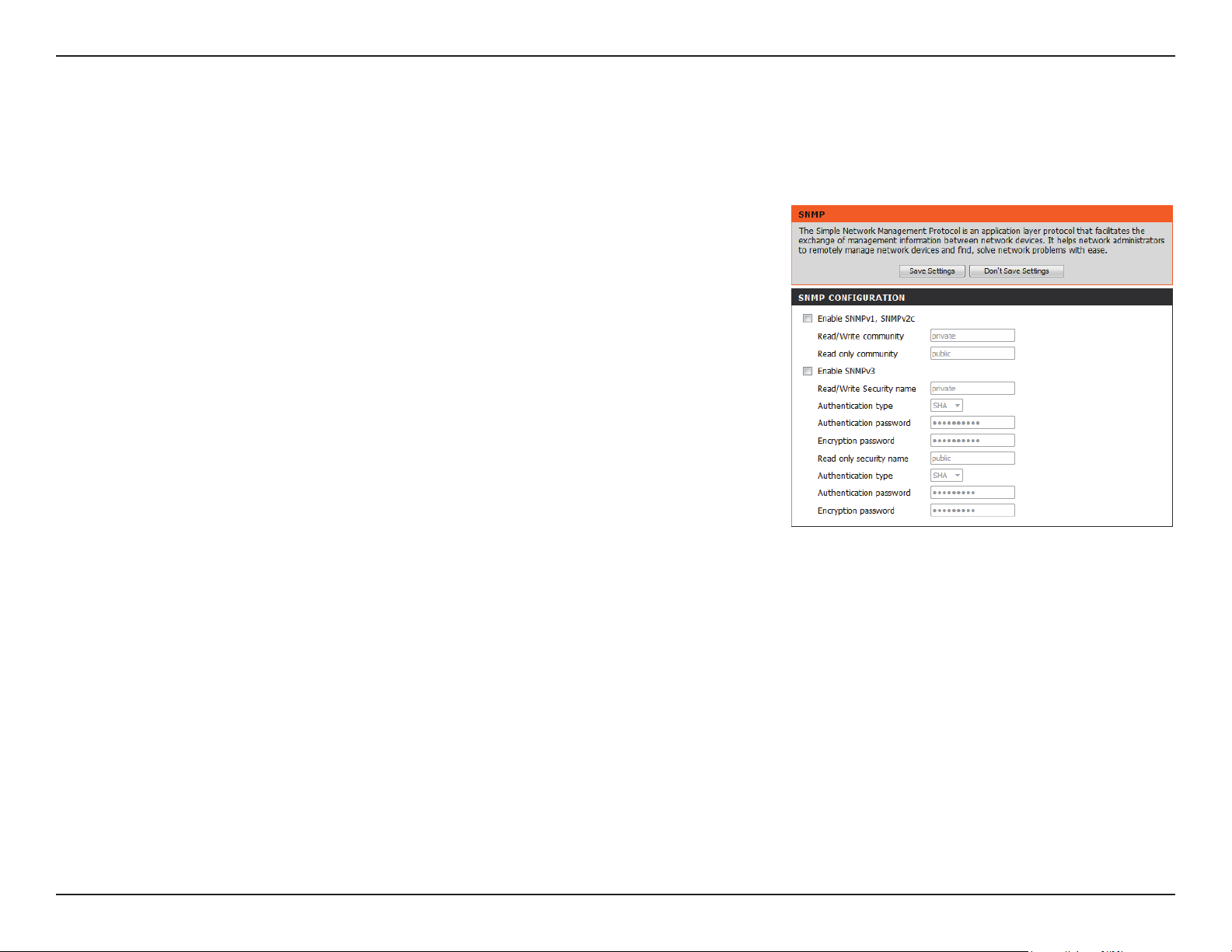

SNMP ...................................................................................55
Maintenance ....................................................................56
Admin..................................................................................56
System ................................................................................57
Firmware Upgrade ..........................................................58
Status ................................................................................ 59
Device Info ........................................................................59
Logs .....................................................................................60
Help......................................................................................61

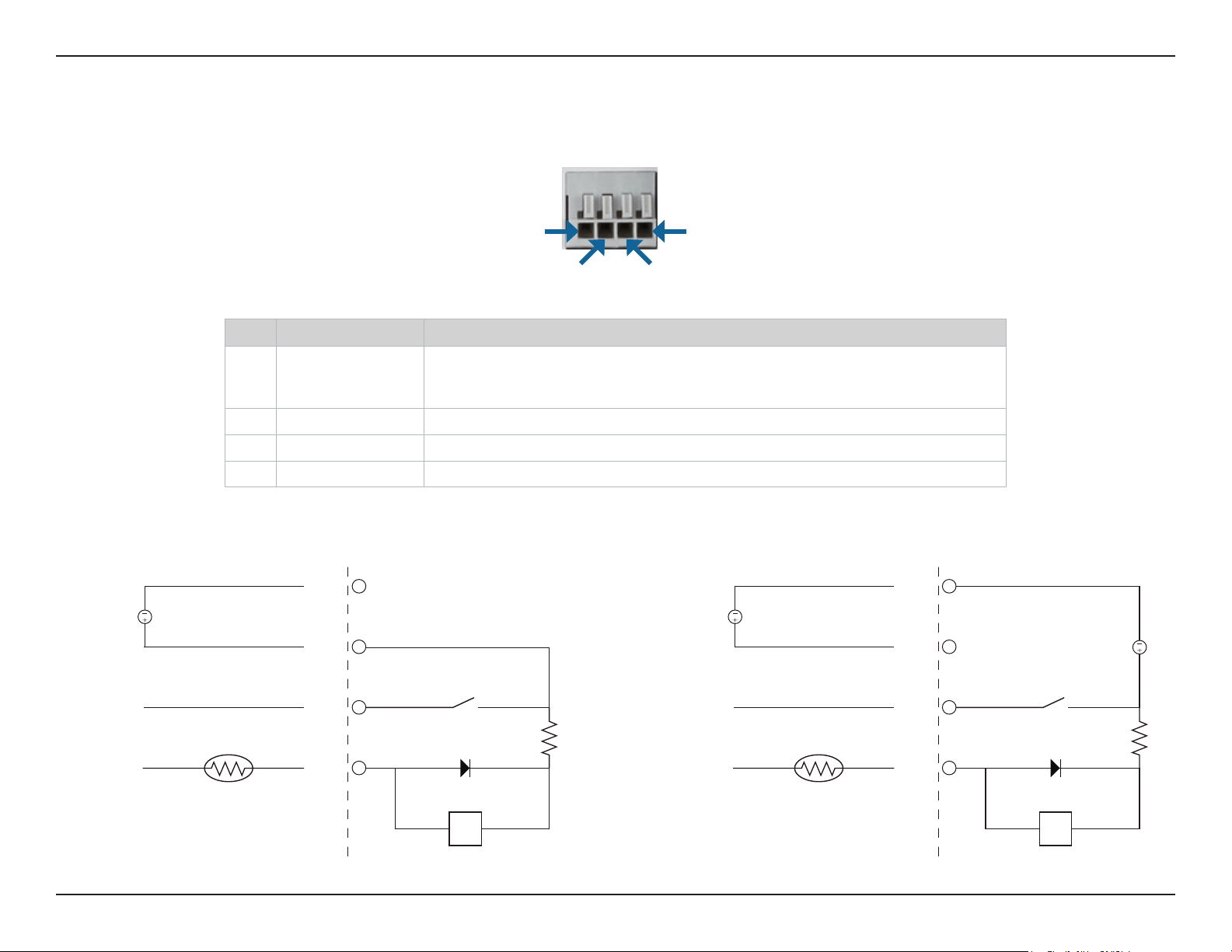

DI/DO Specications .......................................................62
Technical Specications .................................................. 63
Safety Statements ...........................................................66
D-Link DCS-2210L/UPA User Manual
3
Section 1: Product Overview
DCS-2210L Full HD PoE Day/Night Network Camera
CAT5 Ethernet cable
Quick Installation Guide
Product Overview

Package Contents

If any of the above items are missing, please contact your reseller.
D-Link DCS-2210L/UPA User Manual
4
Section 1: Product Overview
Hardware Requirements

System Requirements

• A microSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• An Ethernet-based cable or DSL modem
Network Requirements
Web-based Conguration
Utility Requirements
• 10/100 Ethernet
Broadband Internet connection
Computer with the following:
• Windows OS X 10.6 or higher
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7.0 or higher
• Firefox 12 or higher
• Safari 6.0 or higher (with Java installed and enabled)
• Chrome 20 or higher
Windows® Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version.
®
XP/Vista/7/8, Linux-based, or Mac with
D-Link DCS-2210L/UPA User Manual
5
Section 1: Product Overview

Introduction

Congratulations on your purchase of the DCS-2210L Full HD PoE Day/Night Network Camera. The DCS-2210L is a versatile surveillance solution for your small oce or home. The full HD 1920 x 1080 resolution 2 megapixel progressive scan CMOS sensor lets you capture details like never before – especially important for face recognition. A built-in IR-cut lter and IR LED makes sure you don't miss an event no matter how bright or dark your surroundings are. To make things convenient, support for Power over Ethernet (PoE) means you won't have to worry about available power outlets when setting up your camera on location.
Unlike a standard webcam, the DCS-2210L is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. The DCS-2210L can be accessed remotely, and controlled from any PC over your local network or through the Internet via a web browser. It also comes with the D-Link D-ViewCam™ software bundle that allows you to manage multiple network cameras using remote monitoring, scheduling, recording, motion detection, and notications for a complete and cost-eective home security solution.
D-Link DCS-2210L/UPA User Manual
6
Section 1: Product Overview

Features

Full HD Resolution
The DCS-2210L Full HD PoE Day/Night Network Camera is equipped with a 2 megapixel progressive scan CMOS sensor that provides full HD 1920x1080 resolution, the video stream captures a larger scene and provides more details than an analog CCTV camera – so you can identify criminals more easily in critical surveillance applications.
Power over Ethernet for Convenience
The DCS-2210L supports 802.3af Power over Ethernet (PoE), which lets you power your camera with any Ethernet cable. This feature lets you set up your camera easily without worrying about available power outlets at your location.
IR LED for Day and Night Functionality
The built-in IR-cut lter and IR LED enable night time viewing or recording in dark environments at ranges up to 16 feet (5 meters).
DI/DO for Connecting External Devices
Rounding out the exibility of the DCS-2210L, you can connect an alarm or trigger to its DI/DO port for integration into a surveillance solution.
Remote Monitoring Utility
The D-ViewCam™ application adds enhanced features and functionality for the DCS-2210L and allows administrators to congure and access the DCS-2210L from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 32 cameras on one screen, and taking snapshots.
Built-in Mic and Speaker
Covering all the visual components, the DCS-2210L also has a built-in microphone and speaker, so you can transmit two-way audio easily.
mydlink Support
Embrace the power of the cloud by adding your DCS-2210L to the list of devices manageable via the free mydlink web portal.
Web Conguration
Using a standard web browser, administrators can congure and manage the DCS-2210L directly from its own web page via Intranet or Internet. This means you can access your DCS-2210L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the DCS-2210L can provide the ideal solution for delivering live video images over the Intranet and Internet for remote monitoring. The DCS-2210L allows remote access using a web browser for live image viewing, and allows the administrator to manage and control the DCS-2210L anytime, anywhere in the world.
D-Link DCS-2210L/UPA User Manual
7
Section 1: Product Overview

Hardware Overview

Front View

4
1
5
2
6
1 Status LED
2 Infrared LED
3 PIR Sensor
4 Camera Lens Records video of the surrounding area
5
6 Microphone Records audio from the surrounding area
D-Link DCS-2210L/UPA User Manual
Light Sensor
3
Indicates the camera's current status
Used to illuminate the camera's eld of view at night
Passive Infrared sensor for motion detection
The light sensor helps switch the camera between day and night modes. Night mode activates the IR LED and toggles the IR-Cut-Removable lter.
8
Section 1: Product Overview

Rear View

1
2
3
1 Ethernet Port
2 Speaker Audio output
RJ45 connector for Ethernet
4
5
6
3 Reset Button
4 Power Connector
5 DI/DO Connector
6 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
D-Link DCS-2210L/UPA User Manual
Press and hold this button for 10 seconds to reset the camera
Connects to the DC 5 V power adapter (not included in package)
I/O connectors for external devices
9
Section 1: Product Overview

Side View

1
1 microSD Card Slot
D-Link DCS-2210L/UPA User Manual
Insert a microSD card for Local storage for storing recorded image and video
10
Section 2: Installation
Zero Conguration Setup
If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-2210L and automatically add the camera to your mydlink account. You can now remotely access your camera from the mydlink.com website to manage and monitor your DCS-2210L.
Connect the Ethernet Cable
If using a Power over Ethernet (PoE) connection: Connect the included Ethernet cable to the Ethernet port located on the back of the DCS-2210L and connect it to your router.
Attach the External Power Supply (optional)
Attach the external power supply to the DC Power receptor located on the rear panel of the DCS-2210L and connect it to your wall outlet or power strip.
D-Link DCS-2210L/UPA User Manual
11
Section 2: Installation
Check Your mydlink Account
From any computer, open a web browser, go to http://www.mydlink.com and log into your account. Once mydlink detects your camera, a New Device Found! notice will appear in the bottom-left corner. Click on the device name to continue.
A summary and conrmation notication will appear with the automatically congured details. Make a note of the details and click OK to add the camera to your account.
D-Link DCS-2210L/UPA User Manual
12
Section 2: Installation
Zero Conguration is now complete and your camera has been added to your mydlink account. You can now view your camera on the mydlink Live View tab.
Your camera is now set up, and you can skip to mydlink on page 19 to learn more about the mydlink features of this camera, or to Conguration on page 20 for advanced conguration of your camera.
D-Link DCS-2210L/UPA User Manual
13
Section 2: Installation

Camera Setup Wizard

Windows Users

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click on the autorun.exe le.
D-Link DCS-2210L/UPA User Manual
14
Section 2: Installation

Mac Users

Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and double-click on the SetupWizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
D-Link DCS-2210L/UPA User Manual
15
Section 2: Installation
Conrm your camera login details and IP address details and click Done.
Your DCS-2210L camera is now set up. Log on to your mydlink account and explore the exciting benets available to you.
Your camera is now set up, and you can skip to mydlink on page 19 to learn more about the mydlink features of this camera, or go to Conguration on page 20 for advanced conguration of your camera.
D-Link DCS-2210L/UPA User Manual
16
Section 2: Installation

Manual Hardware Installation

If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
If using a Power over Ethernet (PoE) connection: Connect the included Ethernet cable to the Ethernet port located on the back of the DCS-2210L and connect it to your router.
Attach the External Power Supply (optional)
Attach the external power supply to the DC Power receptor located on the rear panel of the DCS-2210L and connect it to your wall outlet or power strip.
D-Link DCS-2210L/UPA User Manual
17
Section 2: Installation
We suggest that you congure the camera before mounting.

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.
1. Place the mounting base where you want to position the camera and use a pencil to mark the holes.
2. Depending on the material of the wall or ceiling, use proper tools to drill two holes or screws where you marked. If the wall is made out of concrete, drill the holes rst, insert the plastic anchors and then the screws.
The space between the camera and the screwheads should be 3mm.
3. Place the mounting base over the screw that is mounted on the wall. Make sure to t the screw-heads over the big holes and slide it downward to lock rmly. Lightly pull the base forward to make sure that it is locked.
4. Place the base cover on the base and screw the camera stem clockwise into the mounting base.
1
2
3
4
5. Adjust the angle of the camera as desired, then tighten the collar on the camera stem to lock it in place.
D-Link DCS-2210L/UPA User Manual
5
18
Section 3: mydlink

mydlink

After registering your DCS-2210L camera with a mydlink account in the Camera Installation Wizard. You will be able to remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
D-Link DCS-2210L/UPA User Manual
19
Section 4: Conguration
Conguration
Using the Conguration Interface
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in web conguration utility is designed to allow you to easily access and congure your DCS-2210L. At the end of the wizard, enter the IP address of your camera into a web browser, such as Mozilla Firefox. To log in, use the username admin and the password you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.
D-Link DCS-2210L/UPA User Manual
20
Section 4: Conguration

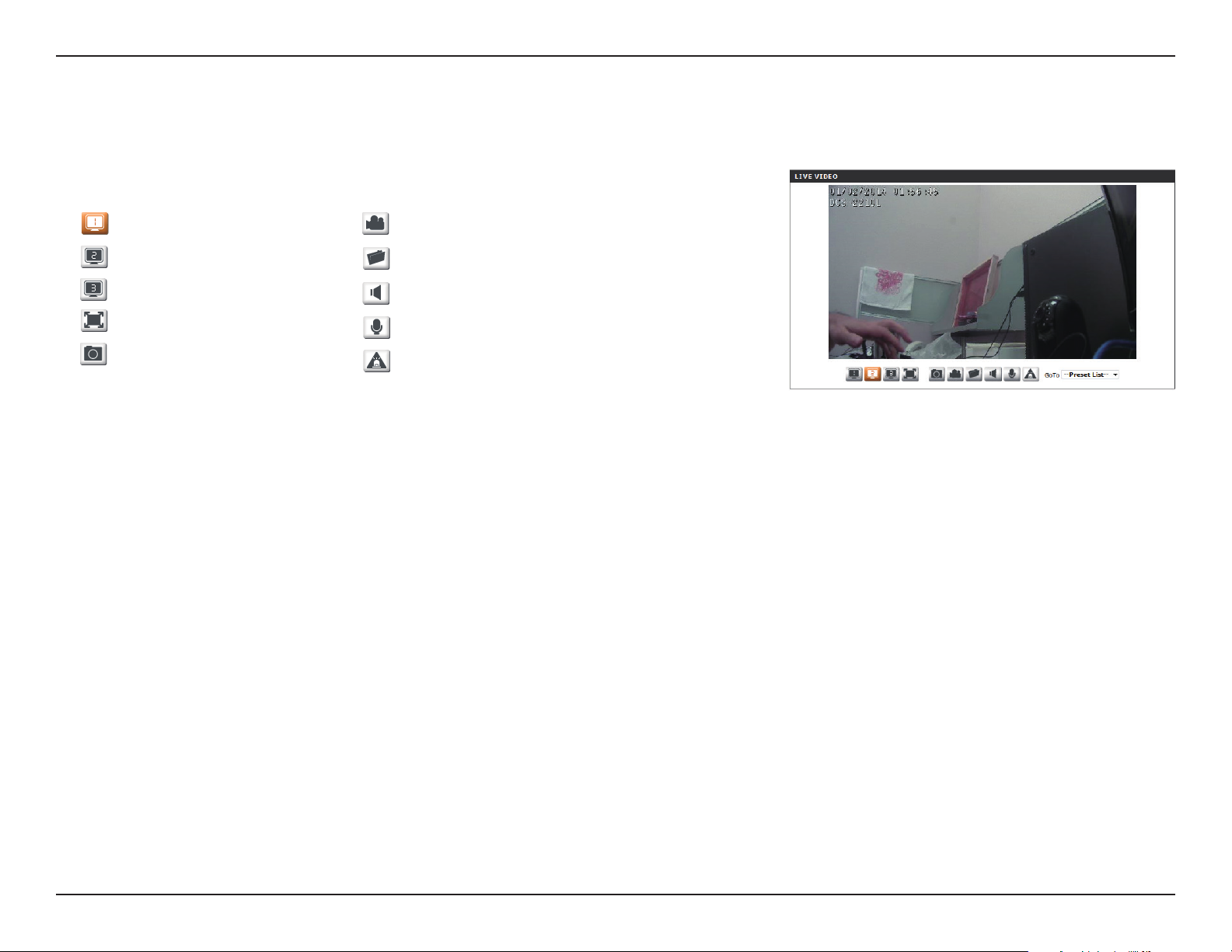

Live Video

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
SD Status:
IO Status:
Digital Input Indicator
Motion Trigger Indicator
Recording Indicator
Control Pad
Auto Pan Starts the automatic panning function. The ROI will pan from
Stop Stops automatic panning.
This option displays the status of the SD card. If no SD card has been inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has been connected.
This indicator will change color when a digital input signal is detected.
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be enabled.
When a recording is in progress, this indicator will change color.
This control pad can be used to electronically pan, tilt, and zoom (ePTZ) within the camera's predened view area, if one has been dened.
back and forth within the FOV.
Preset Path Starts the camera's motion along the predened path.
ePTZ Speed:
D-Link DCS-2210L/UPA User Manual
You may select a value between 0 and 64. 0 is the slowest and 64 is the fastest.
21
Section 4: Conguration
Global View:
Language:
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Go To:
(Preset List)
This window indicates the total eld of view (FOV) of the camera. The red box indicates the visible region of interest (ROI).
You may select the interface language using this menu.
If any presets have been dened, selecting a preset from this list will display it.
Record a Video Clip
Set a Storage Folder
Listen/Stop Audio In (from microphone)
Start/Stop Audio Out (to speaker)
Start/Stop Digital Output
D-Link DCS-2210L/UPA User Manual
22
Section 4: Conguration

Setup

Setup Wizard

To congure your DCS-2210L, click Internet Connection Setup Wizard. Alternatively, you may click Manual Internet Connection Setup to manually congure your DCS-2210L and skip to Network Setup on page 29.
To quickly congure your DCS-2210L’s motion detection settings, click Motion Detection
Setup Wizard. If you want to enter your settings without running the wizard, click Manual Motion Detection Setup and skip to Motion Detection on page 39.
D-Link DCS-2210L/UPA User Manual
23
Section 4: Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link Camera and connect the camera to the Internet. Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.
D-Link DCS-2210L/UPA User Manual
24
Section 4: Conguration
Select Static IP if your Internet Service Provider has provided you with connection settings, or if you wish to set a static address within your home network. Enter the correct conguration information and click Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your User Name and Password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to update your IP address automatically, Select Enable DDNS and enter your host information. Click Next to continue.
Enter a name for your camera and click Next to continue.
D-Link DCS-2210L/UPA User Manual
25
Section 4: Conguration
Congure the correct time to ensure that all events will be triggered as scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your settings, including the camera's IP address. Please write down all of this information as you will need it in order to access your camera.
Click Apply to save your settings.
D-Link DCS-2210L/UPA User Manual
26
Section 4: Conguration
Motion Detection Setup Wizard
This wizard will guide you through a step-by-step process to congure your camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the detection sensitivity, and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video clip when motion is detected.
Please see the Motion Detection section on Motion Detection on page 39 for information about how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule. Specify the day and hours. You may also choose to always record whenever motion is detected.
D-Link DCS-2210L/UPA User Manual
27
Section 4: Conguration
Step 3
This step allows you to specify how you will receive event notications from your camera. You may choose not to receive notications, or to receive notications via e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and restarts.
D-Link DCS-2210L/UPA User Manual
28
Section 4: Conguration

Network Setup

Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After making any changes, click the Save Settings button to save your changes.
LAN Settings:
DHCP:
Static IP Address:
IP Address:
Subnet Mask:
Default Gateway:
This section lets you congure settings for your local area network.
Select this connection if you have a DHCP server running on your network and would like your camera to obtain an IP address automatically.
If you choose DHCP, you do not need to ll out the IP address settings.
You may obtain a static or xed IP address and other network information from your network administrator for your camera. A static IP address may simplify access to your camera in the future.
Enter the xed IP address in this eld.
This number is used to determine if the destination is in the same subnet. The default value is 255.255.255.0.
The gateway used to forward frames to destinations in a dierent subnet. Invalid gateway settings may cause the failure of transmissions to a dierent subnet.
Primary DNS:
Secondary DNS:
D-Link DCS-2210L/UPA User Manual
The primary domain name server translates names to IP addresses.
The secondary DNS acts as a backup to the primary DNS.
29
Section 4: Conguration
Enable UPnP Presentation:
Enable UPnP Port Forwarding:
Enable PPPoE:
User Name / Password:
HTTP Port:
Access Name for Stream 1~3:
HTTPS Port:
Enabling this setting allows your camera to be congured as a UPnP device on your network.
Enabling this setting allows the camera to add port forwarding entries into the router automatically on a UPnP capable network.
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE account. Re-enter your password in the Conrm Password eld. You may obtain this information from your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the number of the stream.
You may use a PC with a secure browser to connect to the HTTPS port of the camera. The default port number is 443.
RTSP Port:
D-Link DCS-2210L/UPA User Manual
The port number that you use for RTSP streaming to mobile devices, such as mobile phones or PDAs. The default port number is 554. You may specify the address of a particular stream. For instance, live1.sdp can be accessed at rtsp://x.x.x.x/video1.sdp where the x.x.x.x represents the IP address of your camera.
30
Section 4: Conguration
Enable CoS:
Enable QoS:
Enable IPV6:
Enable Multicast for stream:
Enable Bonjour:
Enabling the Class of Service setting implements a best-eort policy without making any bandwidth reservations.
Enabling QoS allows you to specify a trac priority policy to ensure a consistent Quality of Service during busy periods. If the DCS-2210L is connected to a router that itself implements QoS, the router's settings will override the QoS settings of the camera.
Enable the IPv6 setting to use the IPv6 protocol. Enabling the option allows you to manually set up the address, specify an optional IP address, specify an optional router and an optional primary DNS.
The DCS-2210L allows you to multicast each of the available streams via group address and specify the TTL value for each stream. Enter the port and TTL settings you wish to use if you do not want to use the defaults.
Enable Bonjour to broadcast to network devices (such as iPhones) using this protocol. You can enter a custom Bonjour Name for the router in the text box for identication.
D-Link DCS-2210L/UPA User Manual
31
Section 4: Conguration

Dynamic DNS

DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied. A user name and password are required when using the DDNS service. After making any changes, click the Save Settings button to save your changes.
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Select this checkbox to enable the DDNS function.
Select your Dynamic DNS provider from the pull down menu or enter the server address manually.
Enter the host name of the DDNS server.
Enter the user name or e-mail used to connect to your DDNS account.
Enter the password used to connect to your DDNS server account.
Enter the DNS timeout values you wish to use.
Indicates the connection status, which is automatically determined by the system.
D-Link DCS-2210L/UPA User Manual
32
Section 4: Conguration

Image Setup

In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy Mask:
Anti Flicker:
Mirror:
Flip:
The Privacy Mask setting allows you to specify up to 3 rectangular areas on the camera's image to be blocked/ excluded from recordings and snapshots.
You may click and drag the mouse cursor over the camera image to draw a mask area. Right clicking on the camera image brings up the following menu options:
Disable All: Disables all mask areas Enable All: Enables all mask areas Reset All: Clears all mask areas.
Click Save for the mask to take eect.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on, you may want to consider turning Mirror on as well.
Power Line:
White Balance:
D-Link DCS-2210L/UPA User Manual
Select the frequency used by your power lines to avoid interference or distortion.
Use the drop-down box to change white balance settings to help balance colors for dierent environments. You can choose from Auto, Outdoor, Indoor, Fluorescent, and Push Hold.
33
Section 4: Conguration
Exposure Mode:
Denoise:
Brightness:
Contrast:
Saturation:
Sharpness:
Changes the exposure mode. Use the drop-down box to set the camera for Indoor, Outdoor, or Night environments, or to Moving to capture moving objects. The Low Noise option will focus on creating a high­quality picture without noise. You can also create 3 dierent custom exposure modes. The Max Gain setting will allow you to control the maximum amount of gain to apply to brighten the picture.
This setting controls the amount of noise reduction that will be applied to the picture.
Adjust this setting to compensate for backlit subjects.
Adjust this setting to alter the color intensity/strength.
This setting controls the amount of coloration, from grayscale to fully saturated.
Specify a value from 0 to 8 to specify how much sharpening to apply to the image.
Reset Default:
D-Link DCS-2210L/UPA User Manual
Click this button to reset the image to factory default settings.
34
Section 4: Conguration

Audio and Video

You may congure up to 2 video proles with dierent settings for your camera. Hence, you may set up dierent proles for your computer and mobile display. In addition, you may also congure the two-way audio settings for your camera. After making any changes, click the Save Settings button to save your changes.
Aspect ratio:
Mode:
Frame size / View window area:
Maximum frame rate:
Set the aspect ratio of the video to 4:3 standard or 16:9 widescreen.
Set the video codec to be used to MJPEG or H.264. JPEG can be selected for image mode.
Frame size determines the total capture resolution, and View window area determines the Live Video viewing window size. If the Frame size is larger than the Live Video size, you can use the ePTZ controls to look around.
16:9 1920x1080, 1280x720, 800x450, 640x360,
480x270, 320x176
4:3 1920x1080, 1280x720, 800x450, 640x360,
480x270, 320x176
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.
A higher frame rate provides smoother motion for videos, and requires more bandwidth. Lower frame rates will result in stuttering motion, and requires less bandwidth.
D-Link DCS-2210L/UPA User Manual
35
Section 4: Conguration
Video Quality:
Constant bit rate:
Fixed quality:
Audio in o:
Audio in gain level:
Audio out o:
This limits the maximum frame rate, which can be combined with the "Fixed quality" option to optimize the bandwidth utilization and video quality. If xed bandwidth utilization is desired regardless of the video quality, choose "Constant bit rate" and select the desired bandwidth.
The bps will aect the bit rate of the video recorded by the camera. Higher bit rates result in higher video quality.
Select the image quality level for the camera to try to maintain. High quality levels will result in increased bit rates.
Selecting this checkbox will mute incoming audio.
This setting controls the amount of gain applied to incoming audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
Audio out volume level:
D-Link DCS-2210L/UPA User Manual
This setting controls the amount of gain applied to outgoing audio to increase its volume.
36
Section 4: Conguration

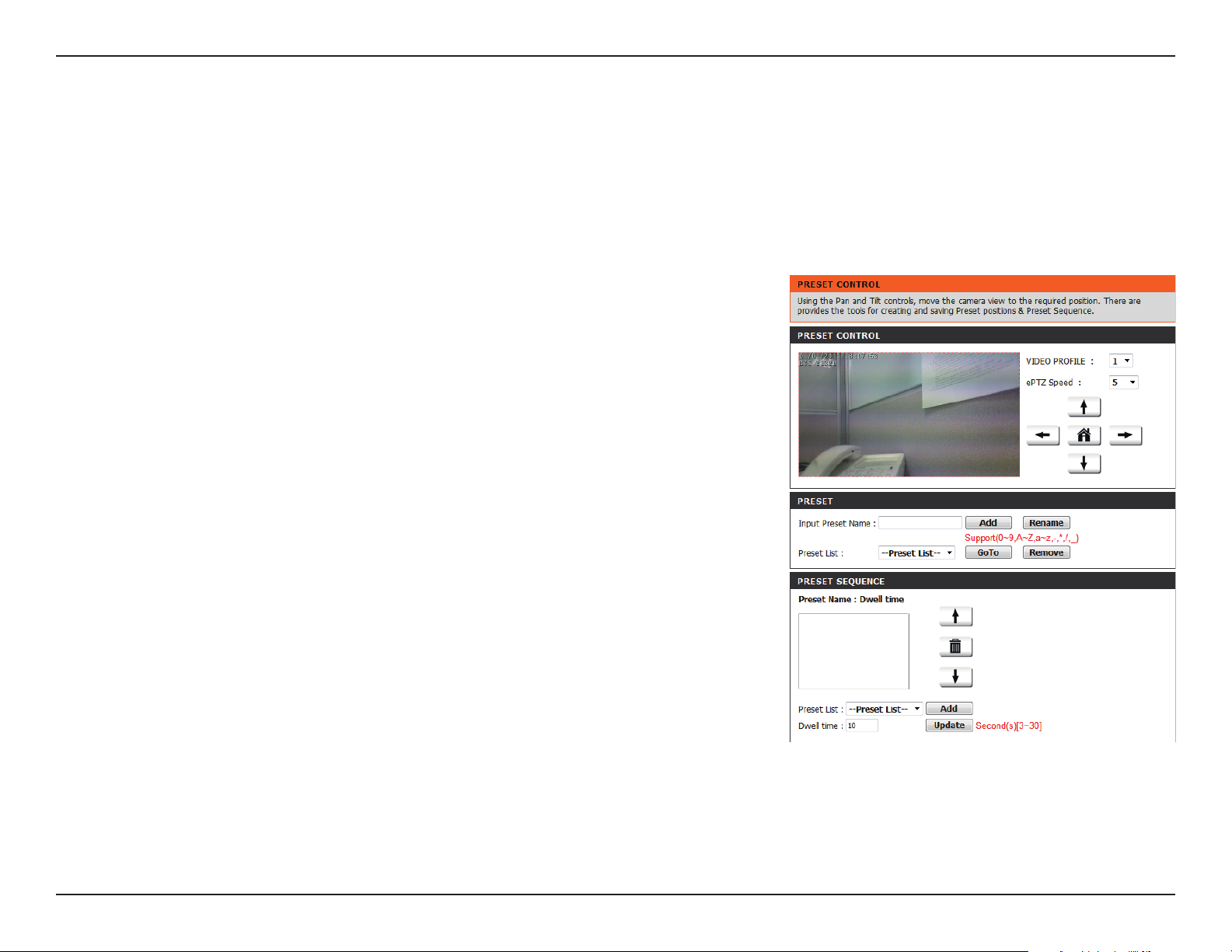

Preset

This screen allows you to set preset points for the ePTZ function of the camera, which allows you to look around the camera's viewable area by using a zoomed view. Presets allow you to quickly go to and view a specic part of the area your camera is covering, and you can create preset sequences, which will automatically change the camera's view between the dierent presets according to a dened order and timing you can set.
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.
Video Prole:
ePTZ Speed:
Arrow Buttons and Home Button:
Input Preset Name:
Preset List:
This selects which video prole to use.
You may select a value between 1 and 10. 0 is the slowest and 10 is the fastest.
Use these buttons to move to a specic part of the viewing area, which you can then set as a preset. Click the Home button to return to the center of the viewing area.
Enter the name of the preset you want to create, then click the Add button to make a new preset. If an existing preset has been selected from the Preset List, you can change its name by typing in a new name, then clicking the Rename button.
Click this drop-down box to see a list of all the presets that have been created. You can select one, then click the GoTo button to change the displayed camera view to the preset. Clicking the Remove button will delete the currently selected preset.
Preset Sequence:
D-Link DCS-2210L/UPA User Manual
This section allows you to create a preset sequence, which automatically moves the camera's view between a set of preset views.
37
Section 4: Conguration
Preset List: To add a preset to the sequence, select it from the drop-
down box at the bottom of this window, set the Dwell time to determine how long the camera view will stay at
that preset, then click the Add button. The preset name will appear in the list, followed by the dwell time to view that preset for.
You can rearrange your presets in the sequence by selecting a preset in the sequence, then clicking the arrow buttons to move it higher or lower in the current sequence.
Clicking the trash can button will remove the currently selected preset from the sequence.
If you want to change the dwell time for a preset, select it from the list, enter a new dwell time, then click the Update button.
D-Link DCS-2210L/UPA User Manual
38
Section 4: Conguration

Motion Detection

Enabling Video Motion will allow your camera to use the motion detection feature. You may draw a nite motion area that will be used for monitoring. After making any changes, click the Save Settings button to save your changes.
Enable Video Motion:
Enable PIR:
Sensitivity:
Percentage:
Draw Motion Area:
Erase Motion Area:
Select this box to enable the motion detection feature of your camera.
Select this box to enable Passive Infrared detection.
Species the measurable dierence between two sequential images that would indicate motion. Please enter a value between 0 and 100.
Species the amount of motion in the window being monitored that is required to initiate an alert. If this is set to 100%, motion is detected within the whole window will trigger a snapshot.
Draw the motion detection area by dragging your mouse in the window (indicated by the red square).
To erase a motion detection area, simply click on the red square that you wish to remove.
Right clicking on the camera image brings up the following menu options:
D-Link DCS-2210L/UPA User Manual
Select All: Draws a motion detection area over the entire screen. Clear All: Clears any motion detection areas that have been drawn. Restore: Restores the previously specied motion detection areas.
39
Section 4: Conguration

Time and Date

This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera. After making any changes, click the Save Settings button to save your changes.
Time Zone:
Enable Daylight Saving:
Auto Daylight Saving:
Set Date and Time Manually:
Oset:
Synchronize with NTP Server:
NTP Server:
Set the Date and Time Manually:
Select your time zone from the drop-down menu.
Select this to enable Daylight Saving Time.
Select this option to allow your camera to congure the Daylight Saving settings automatically.
Selecting this option allows you to congure the Daylight Saving date and time manually.
Sets the amount of time to be added or removed when Daylight Saving is enabled.
Enable this feature to obtain time automatically from an NTP server.
Network Time Protocol (NTP) synchronizes the DCS-2210L with an Internet time server. Choose the one that is closest to your location.
This option allows you to set the time and date manually.
Copy Your Computer's Time
Settings:
D-Link DCS-2210L/UPA User Manual
This will synchronize the time information from your PC.
40
Section 4: Conguration

Event Setup

In a typical application, when motion is detected, the DCS-2210L sends images to a FTP server or via e-mail as notications. As shown in the illustration below, an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is triggered, a specied action will be performed. You can congure the DCS-2210L to send snapshots or videos to your e-mail address or FTP site.
Event
Action
Condition
ex. Motion Detection, Periodically, Digital Input, System Reboot
Media
(what to send)
ex. Snapshot, Video Clips
To start plotting an event, it is suggested to congure server and media columns rst so that the DCS-2210L will know what action shall be performed when a trigger is activated.
Server
(where to send)
ex. E-mail, FTP
D-Link DCS-2210L/UPA User Manual
41
Section 4: Conguration
The Event Setup page includes 4 dierent sections:
• Server
• Media
• Event
• Recording
1. To add a new item - "event, server or media," click Add. A screen will appear and allow you
to update the elds accordingly.
2. To delete the selected item from the pull-down menu of event, server or media, click Delete.
3. Click on the item name to pop up a window for modifying.
D-Link DCS-2210L/UPA User Manual
42
Section 4: Conguration
Add Server
You can congure up to 5 servers to save snapshots and/or video to. After making any changes, click the Save Settings button to save your changes. You can click Test to test your congurations.
Server Name:
E-mail:
FTP:
Network Storage:
SD Card:
Enter the unique name of your server.
Enter the conguration for the target e-mail server account.
Enter the conguration for the target FTP server account.
Specify a network storage device. Only one network storage device is supported.
Use the camera's onboard SD card storage.
D-Link DCS-2210L/UPA User Manual
43
Section 4: Conguration
Add Media
There are three types of media, Snapshot, Video Clip, and System Log. After making any changes, click the Save Settings button to save your changes.
Media Name:
Snapshot:
Source:
Send pre-event image(s) [0~4]:
Send post-event image(s) [0~7]:
File name prex:
Add date and time sux to le
name:
Enter a unique name for media type you want to create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source. Refer to Audio and Video on Audio and Video on page 35 for more information on video proles.
Set the number of pre-event images to take. Pre-event images are images taken before the main event snapshot is taken.
Set the number of post-event images to take. Post-event images are images taken after the main event snapshot is taken. You can set up to 7 post-event images to be taken.
The prex name will be added on the le name.
Check it to add timing information as le name sux.
D-Link DCS-2210L/UPA User Manual
44
Section 4: Conguration
Video clip:
Source:
Pre-event recording:
Maximum duration:
Maximum le size:
File name prex:
System log:
Select this option to set the media type to video clips.
Set the video prole to use as the media source. Refer to Audio and Video on page 35 for more information on video proles.
This sets how many seconds to record before the main event video clip starts. You can record up to 4 seconds of pre-event video.
Set the maximum length of video to record for your video clips.
Set the maximum le size to record for your video clips.
This is the prex that will be added to the lename of saved video clips.
Select this option to set the media type to system logs. This will save the event to the camera system log, but will not record any snapshots or video.
D-Link DCS-2210L/UPA User Manual
45
Section 4: Conguration

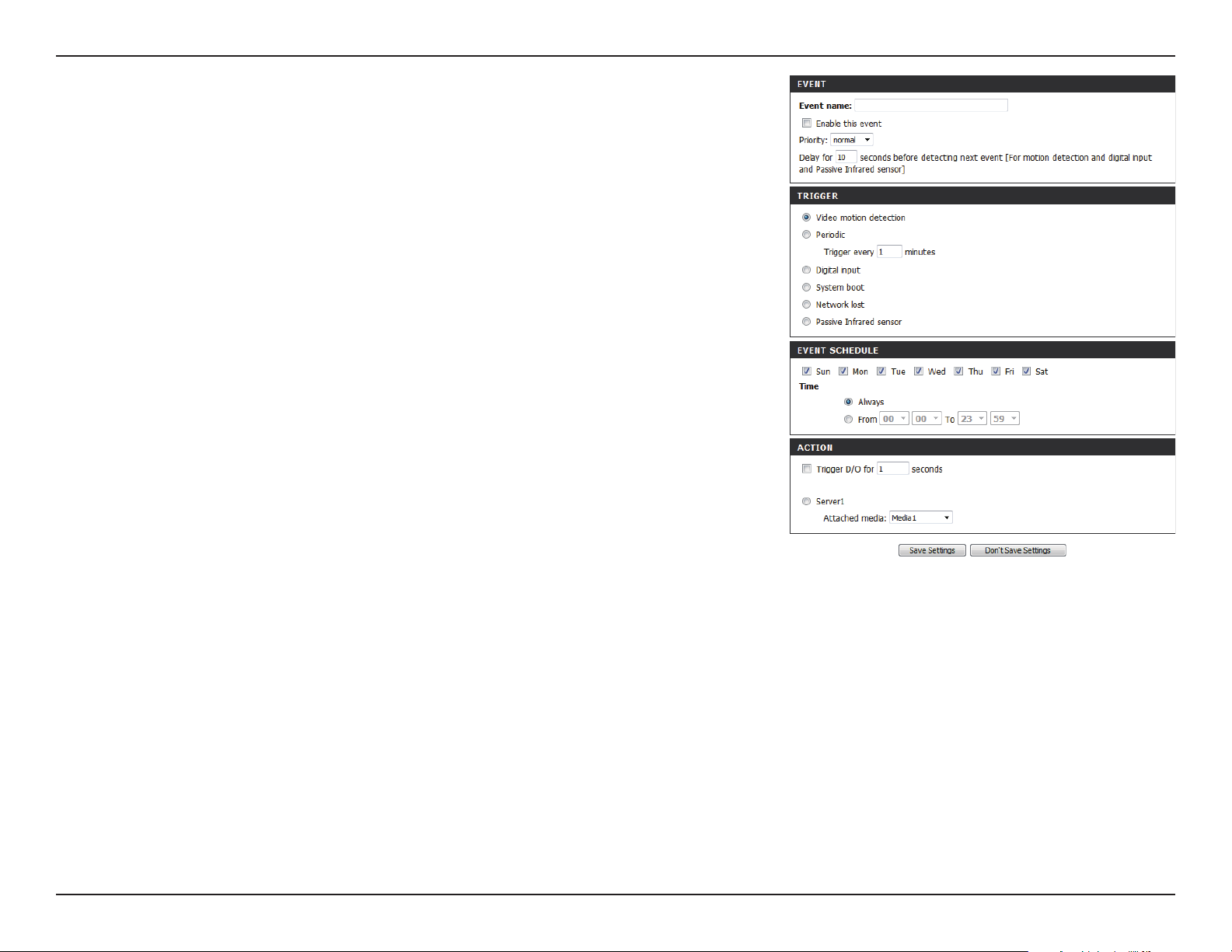

Add Event
Create and schedule up to 3 events with their own settings here. After making any changes, click the Save Settings button to save your changes.
Event name:
Enable this event:
Priority:
Delay:
Video Motion Detection:
Periodic:
Digital input:
System Boot:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher priority will be executed rst.
Select the delay time before checking the next event. It is being used for events of motion detection, digital input, and PIR triggers.
Motion is detected during live video monitoring. Select the window that needs to be monitored.
The event is triggered in specied intervals. The trigger interval unit is in minutes.
The external trigger input to the camera.
Triggers an event when the system boots up.
Network Lost:
Passive Infrared Sensor:
Time:
D-Link DCS-2210L/UPA User Manual
Triggers an event when the network connection is lost.
Triggers an event when the PIR sensor is activated by moving infrared objects even in dark environment. Select Always or enter the time interval.
Select the days and times when events will be detected.
46
Section 4: Conguration
Trigger D/O:
Server:
Select to trigger the digital output for a specic number of seconds when an event occurs.
Specify the location where the event information should be saved to.
D-Link DCS-2210L/UPA User Manual
47
Section 4: Conguration
Add Recording
Here you can congure and schedule the recording settings. After making any changes, click the Save Settings button to save your changes.
Recording entry name:
Enable this recording:
Priority:
Source:
Recording schedule:
Recording settings:
Destination:
Total cycling recording size:
The unique name of the entry.
Select this to enable the recording function.
Set the priority for this entry. The entry with a higher priority value will be executed rst.
The source of the stream.
Schedule the recording entry via days and times.
Conguring the setting for the recording.
Select the folder where the recording le will be stored.
Please input a HDD volume between 200 MB and 2 TB for recording space. The recording data will replace the oldest record when the total recording size exceeds this value. For example, if each recording le is 6MB, and the total cyclical recording size is 600MB, then the camera will record 100 les in the specied location (folder) and then will delete the oldest le and create a new le for cyclical recording.
D-Link DCS-2210L/UPA User Manual
Please note that if the free HDD space is not enough, the recording will stop. Before you set up this option please make sure your HDD has enough space, and it is better to not save other les in the same folder as recording les.
48
Section 4: Conguration
Size of each le for recording:
Time of each le for recording:
File Name Prex:
If this is selected, les will be separated based on the le size you specify.
If this is selected, les will be separated based on the maximum length you specify.
The prex name will be added on the le name of the recording le(s).
D-Link DCS-2210L/UPA User Manual
49
Section 4: Conguration

SD Card

Here you may browse and manage the recorded les which are stored on the SD card.
Format SD Card:
View Recorded Picture:
Playback Recorded Video:
Refresh:
Click this icon to automatically format the SD card and create "picture" & "video" folders.
If the picture les are stored on the SD card, click on the picture folder and choose the picture le you would like to view.
If video les are stored on the SD card, click on the video folder and choose the video le you would like to view.
Reloads the le and folder information from the SD card.
D-Link DCS-2210L/UPA User Manual
50
Section 4: Conguration

Advanced

Digital Input/Output

This screen allows you to control the behavior of digital input and digital output devices. The I/O connector provides the physical interface for digital output (DO) and digital input (DI) that is used for connecting a variety of external alarm devices such as IR sensors and alarm relays. The digital input is used for connecting external alarm devices and once triggered images will be taken and e-mailed. After making any changes, click the Save Settings button to save your changes.
Select D/I or D/O Mode: The camera will send a signal when an event is triggered,
depending upon the type of device connected to the DI circuit.
N.C. stands for Normally Closed. This means that the normal state of the circuit is closed. Therefore events are triggered when the device status changes to "Open."
D-Link DCS-2210L/UPA User Manual
N.O. stands for Normally Open. This means that the normal state of the circuit is open. Therefore events are triggered when the device status changes to "Closed."
51
Section 4: Conguration

ICR and IR

Here you can congure the ICR and IR settings. An IR(Infrared) Cut-Removable(ICR) lter can be disengaged for increased sensitivity in low light environments.
Automatic:
Day Mode:
Night Mode:
Schedule Mode:
IR Light Control:
O:
On:
The Day/Night mode is set automatically. Generally, the camera uses Day mode and switches to Night mode when needed. Select the desired sensitivity level from the drop-down menu.
Day mode enables the IR Cut Filter.
Night mode disables the IR Cut Filter.
Set up the Day/Night mode using a schedule. The camera will enter Day mode at the starting time and return to Night mode at the ending time.
The camera can enable or disable the IR (infrared) light according to your preferences. This setting lets you adjust IR strength depending on your specic application.
The IR light will always be o.
The IR light will always be on.
Sync:
Schedule:
D-Link DCS-2210L/UPA User Manual
The IR light will turn on when the ICR sensor is on.
The IR light will turn on or o according to the schedule that you specify below.
52
Section 4: Conguration

HTTPS

This page allows you to install and activate an SSL certicate for secure HTTPS access to your camera. After making any changes, click the Save Settings button to save your changes.
Enable HTTPS Secure Connection:
Create Certicate Method:
Certicate Information:
Note:
Enable the HTTPS service.
Choose the way the certicate should be created. Three options are available:
 Create a self-signed certicate automatically  Create a self-signed certicate manually  Create a certicate request and install
Displays the status and details of the certicate. Click on CSR Property and Certicate Property to view details of the certicates.
The certicate cannot be removed while the HTTPS is still enabled. To remove the certicate, you must rst uncheck Enable HTTPS secure connection.
D-Link DCS-2210L/UPA User Manual
53
Section 4: Conguration

Access List

Here you can set access permissions for users to view your DCS-2210L.
Allow list:
Start IP address:
End IP address:
Delete allow list:
Deny list:
Delete deny list:
The list of IP addresses that have the right to access the camera.
The starting IP Address of the devices (such as a computer) that have permission to access the video of the camera.
Note: A total of seven lists can be congured for both columns.
The ending IP Address of the devices (such as a computer) that have permission to access the video of the camera. Click Add to save the changes made.
Remove the customized setting from the Allow List.
The list of IP addresses that have no access rights to the camera.
Remove the customized setting from the Delete List.
For example:
When the range of the Allowed List is set from 1.1.1.0 to 192.255.255.255 and the range of the Denied List is set from 1.1.1.0 to 170.255.255.255. Only users with IPs located between 171.0.0.0 and 192.255.255.255 can access the DCS-2210L.
Alowed
List
Denied
List
D-Link DCS-2210L/UPA User Manual
54
Section 4: Conguration

SNMP

The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and nd, solve network problems with ease.
Enable SNMPv1, SNMPv2c:
Read/Write Community:
Read Only Community:
Enable SNMPv3:
Read/Write and Read Only
Security Names:
Authentication Type:
Authentication/Encryption
Password:
Select this to enable SNMPv1 and 2.
Enter a name for the read community of your SNMP server.
Enter a name for the write community of your SNMP server.
Select this to enable SNMPv3. You will need to ask your network administrator for the SNMP authentication information and input them into the elds below.
Enter custom names for your read/write and read only SNMP accounts in the text boxes.
Select the authentication protocol used for SNMP exchanges between this user and the local SNMP engine. SHA and MD5 protocols are supported.
Enter the authentication and encryption passwords for your read/write and read only SNMP accounts in these boxes.
D-Link DCS-2210L/UPA User Manual
55
Section 4: Conguration

Maintenance

Admin

You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera. You may also use this section to create a unique name and congure the OSD settings for your camera.
Admin Password Setting:
Add User Account:
User Name:
Password:
User List:
IP Camera Name:
Enable OSD:
Label:
Set a new password for the administrator’s account. Retype it and click Save for it to take eect.
Add new user account. Click Add to save the account.
The user name for the new account.
The password for the new account.
All the existing user accounts will be displayed here. You may delete accounts included in the list, but you may want to reserve at least one as a guest account.
Create a unique name for your camera that will be added to the le name prex when creating a snapshot or a video clip.
Select this option to enable the On-Screen Display feature for your camera.
Enter a label for the camera, which will be shown on the OSD when it is enabled.
Show Time:
LED:
D-Link DCS-2210L/UPA User Manual
Select this option to enable the time-stamp display on the video screen. Click Save when you are done.
You may specify whether or not to illuminate the status LED on the camera. Click Save when you are done.
56
Section 4: Conguration

System

In this section, you may backup, restore and reset the camera conguration, or reboot the camera.
Save To Local Hard Drive:
Load From Local Hard Drive:
Restore to Factory Defaults:
Reboot Device:
Enable Schedule Reboot:
You may save your current camera conguration as a le on your computer.
Locate a pre-saved conguration by clicking Browse and then restore the pre-dened settings to your camera by clicking Load Conguration.
You may reset your camera and restore the factory settings by clicking Restore Factory Defaults.
This will restart your camera.
Check to enable this feature and select the days and times your DCS-2210L will automatically reboot. Click Save for it to take eect.
D-Link DCS-2210L/UPA User Manual
57
Section 4: Conguration

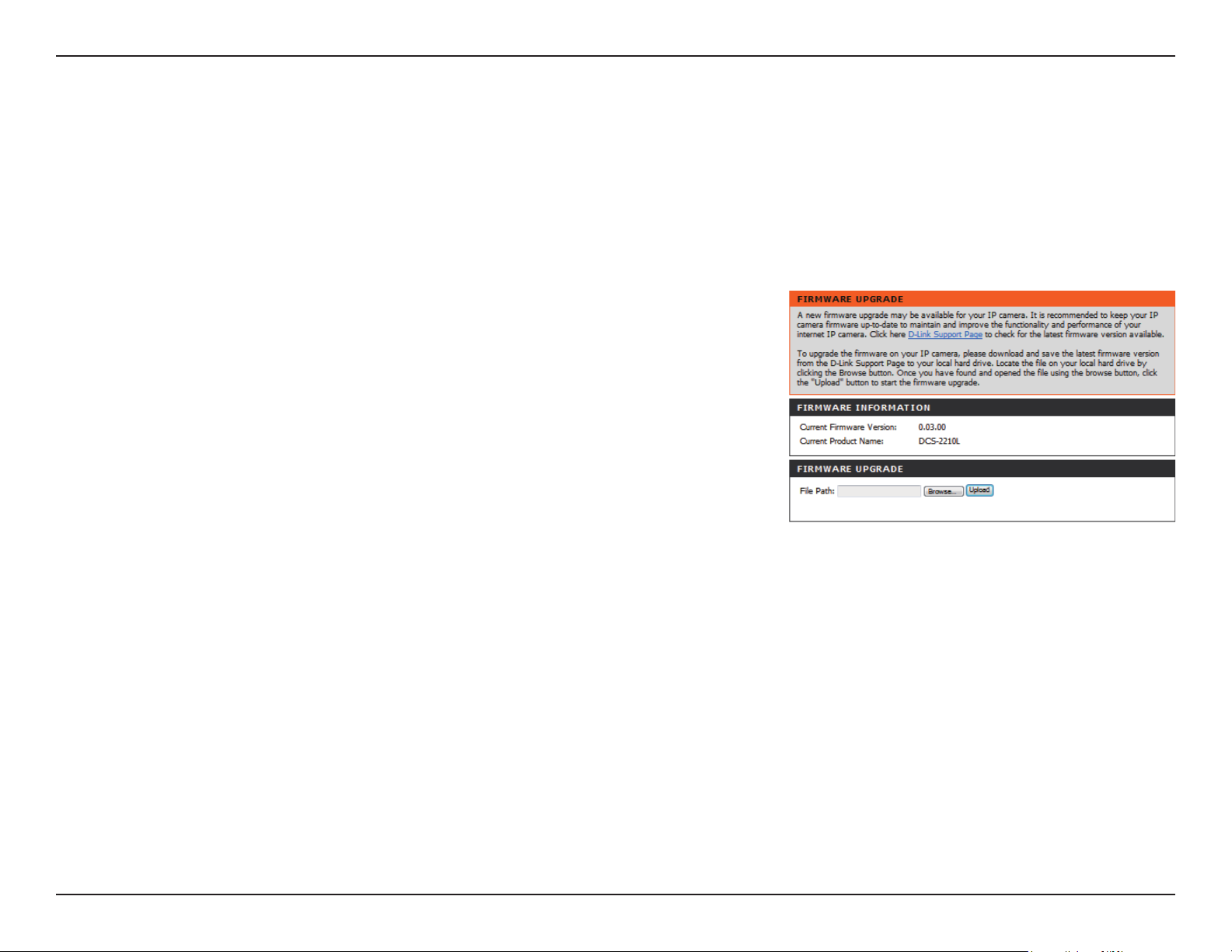

Firmware Upgrade

The camera's current rmware version will be displayed on this screen. You may visit the D-Link Support Website to check for the latest available rmware version.
To upgrade the rmware on your DCS-2210L, please download and save the latest rmware version from the D-Link Support Page to your local hard drive. Locate the le on your local hard drive by clicking the Browse button. Select the le and click the Upload button to start upgrading the rmware.
Current Firmware Version:
Current Product Name:
File Path:
Upload:
Displays the detected rmware version.
Displays the camera model name.
Locate the le (upgraded rmware) on your hard drive by clicking Browse.
Uploads the new rmware to your camera.
D-Link DCS-2210L/UPA User Manual
58
Section 4: Conguration

Status

Device Info

This page displays detailed information about your device and network connection.
D-Link DCS-2210L/UPA User Manual
59
Section 4: Conguration

Logs

This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete the saved log information.
D-Link DCS-2210L/UPA User Manual
60
Section 4: Conguration
This page provides helpful information regarding camera operation.

Help

D-Link DCS-2210L/UPA User Manual
61
Appendix A: DI/DO Specications
DI/DO Specications
Pin 1 Pin 4
Pin 3Pin 2
DC Power 5V
N.C / N.O
PIN FUNCTION
NOTE
1 Digital Out (DO) Uses an open-drain NFET transistor with the source connected to GND in camera. If used
with an external relay, a diode must be connected in parallel with the load for protection against voltage transients. Max loading is 100 mA.
2 Digital In (DI) A switch from DI to DC 5 V, activated by setting NO. or NC.
3 DC5V OUTPUT DC 5 V Output / Max. 100 mA
4 GND GND
Internal 5V Power External 3~12V Power
100 mA
DND
5V
DI
DO
Reed switch
Diode
DC Power 5V
N.C / N.O
R
100 mA
DND
5V
DI
DO
DC Power 3V~12V
Reed switch
R
Diode
D-Link DCS-2210L/UPA User Manual
ALARM
ALARM
62
Appendix B: Technical Specications
Technical Specications
Camera Camera Hardware
Prole
Image Features Congurable image size, quality, frame rate, and bit rate
Video Compression Simultaneous H.264/MJPEG format compression
Video Resolution 16:9 - Up to 30 fps at 1920 x 1080, 1280 x 720, 800 x 450, 640 x
Audio Support G.711, AAC
External Device Interface
Network Network Protocols
Security
1/2.7” 2 Megapixel CMOS sensor 5 meter IR illumination distance Minimum illumination: 0 lux with IR LED on Built-in Infrared-Cut Removable (ICR) Filter module Built-in PIR sensor (5 meter) Built-in microphone and speaker 10x digital zoom
Time stamp and text overlays Congurable motion detection windows
H.264 multicast streaming
360, 480 x 270
10/100 BASE-T Fast Ethernet port
802.3af PoE
IPv6 / IPv4 TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client Bonjour
Administrator and user group protection Password authentication
Focal length: 2.8 mm Aperture: F1.8 Angle of view:
(H) 103° (V) 55° (D) 118°
Congurable privacy mask zones Congurable shutter speed, brightness, saturation, contrast,
and sharpness
JPEG for still images
4:3 - Up to 30 fps at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 600 x 480, 320 x 240
DI/DO port microSD/SDHC card slot
HTTP / HTTPS Samba client PPPoE UPnP port forwarding RTP / RTSP/ RTCP IP ltering QoS CoS Multicast IGMP ONVIF compliant
HTTP and RTSP digest encryption
D-Link DCS-2210L/UPA User Manual
63
Appendix B: Technical Specications
System Management
General Weight
System Requirements for Web Interface
Event Management Motion detection, Periodic, Digital Input, System Boot, Network
Remote Management
Mobile Support mydlink mobile app for iOS and Android mobile devices
D-ViewCam™ System Requirements
D-ViewCam™ Software Functions
Power
Power Consumption
Temperature
Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista
(32/64-bit)/XP, Mac OS X 10.5 or above
Lost, PIR
Event notication and saving/uploading of snapshots/video
clips via e-mail, FTP, network storage, or SD card
Take snapshots/video clips and save to local hard drive or NAS
via web browser
Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista
(32/64-bit)/XP
Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen
80 g
PoE 802.3af
Max. 3.5 W
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F)
Browser: Internet Explorer 7, Firefox 12, Safari 7 or above
Supports multiple SMTP and FTP servers Multiple event notications Multiple recording methods for easy backup
Conguration interface accessible via web browser
Protocol: Standard TCP/IP
Supports all management functions provided in web interface Scheduled motion triggered, or manual recording options
Power adaptor (not included in package) 5 V DC, 1.2 A, 50/60 Hz
Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing
Certications
CE CE LVD
D-Link DCS-2210L/UPA User Manual
FCC C-Tick
64
Appendix B: Technical Specications
Dimensions
D-Link DCS-2210L/UPA User Manual
65
Appendix C: Safety Statements

Safety Statements

CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
D-Link DCS-2210L/UPA User Manual
66
Appendix C: Safety Statements
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory to match the intended destination. The rmware setting is not accessible by the end user. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link oce.
Industry Canada Notice:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
D-Link DCS-2210L/UPA User Manual
67
Loading...
