D-Link DCS-2132L User Manual
Version 2.00 | 27/11/2013
User Manual
HD Wireless N Cube Network Camera
DCS-2132L
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 May 25, 2012 DCS-2132L Revision A1 with rmware version 1.00
1.1 June 6, 2013 DCS-2132L Revision A1 with rmware version 1.10
2.0 December 4, 2013 DCS-2132L Revision B1 with rmware version 2.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2013 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
2D-Link DCS-2132L User Manual
Table of Contents
Product Overview .........................................................................4
Package Contents .................................................................4
Introduction ............................................................................ 5
System Requirements ......................................................... 5
Features .................................................................................... 6
Hardware Overview .............................................................7
Front ...................................................................................... 7
Rear ........................................................................................ 8
Sides ......................................................................................9
Installation ....................................................................................10
Wireless Installation Considerations ............................10
Zero Conguration Setup ................................................11
Camera Installation Wizard .............................................15
Windows Users ....................................................................15
Mac Users...............................................................................16
Manual Hardware Installation ........................................18
WPS - Push Button Setup .................................................19
Wireless Setup ..................................................................34
Dynamic DNS ...................................................................35
Image Setup .....................................................................36

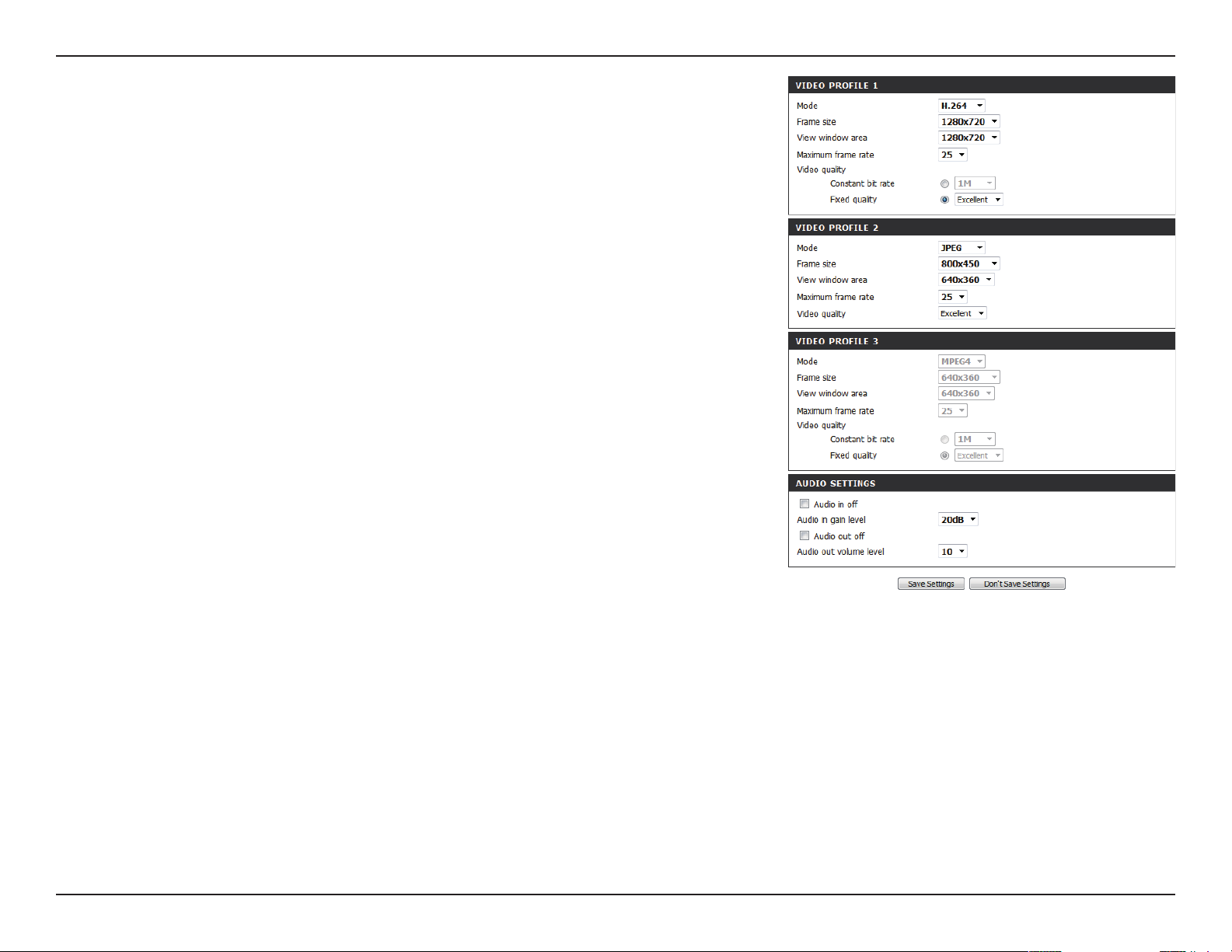

Audio and Video ..............................................................38

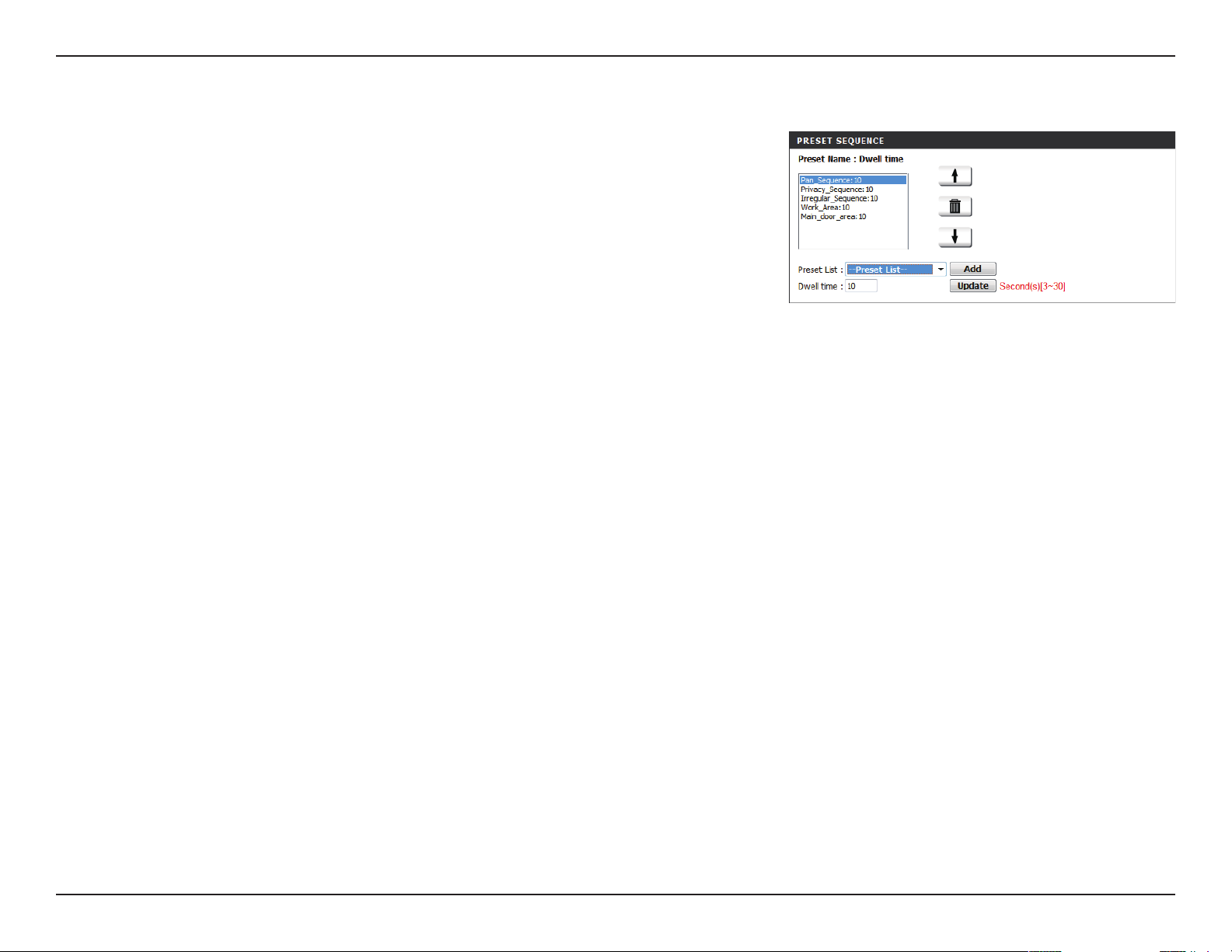

Preset ...................................................................................40
Motion Detection ...........................................................42

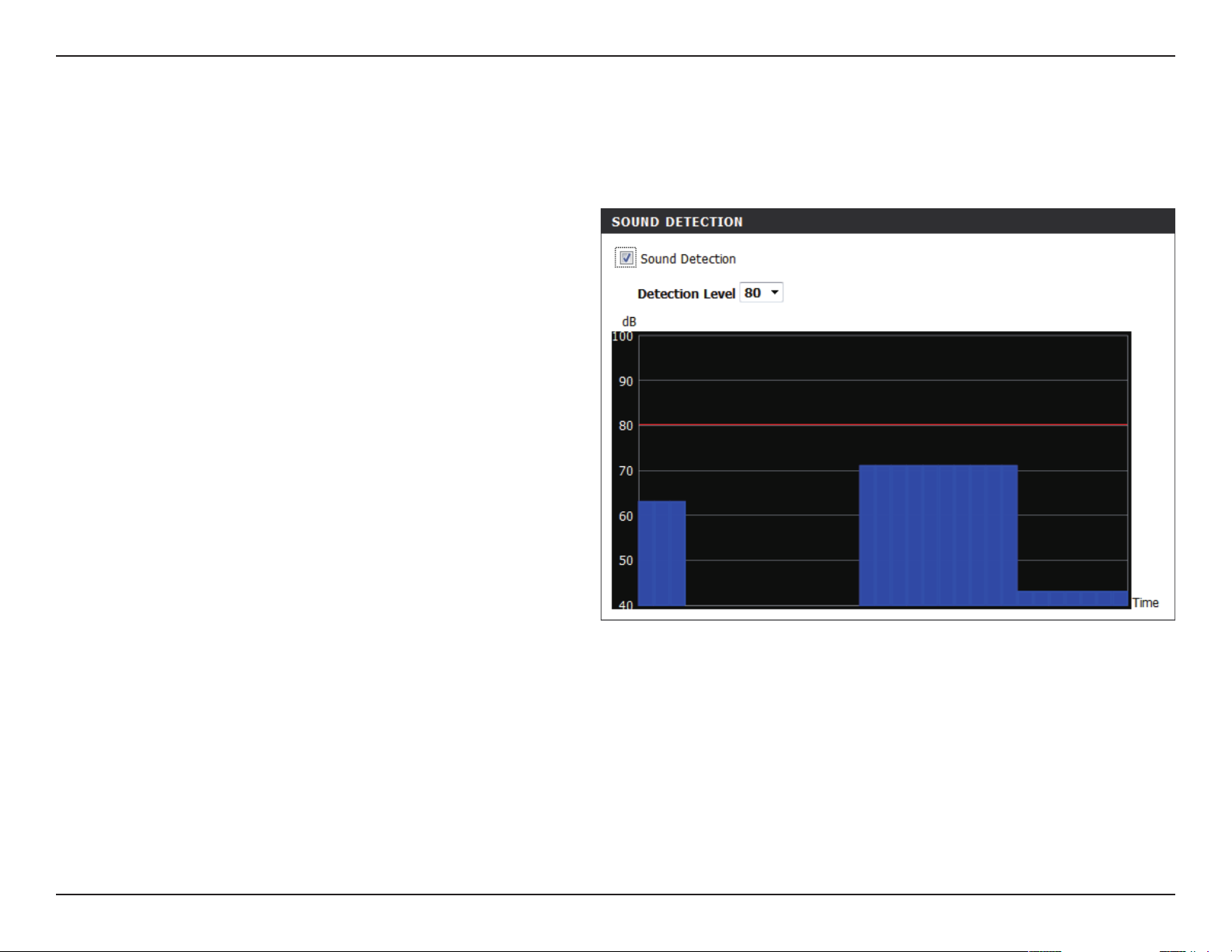

Sound Detection .............................................................43

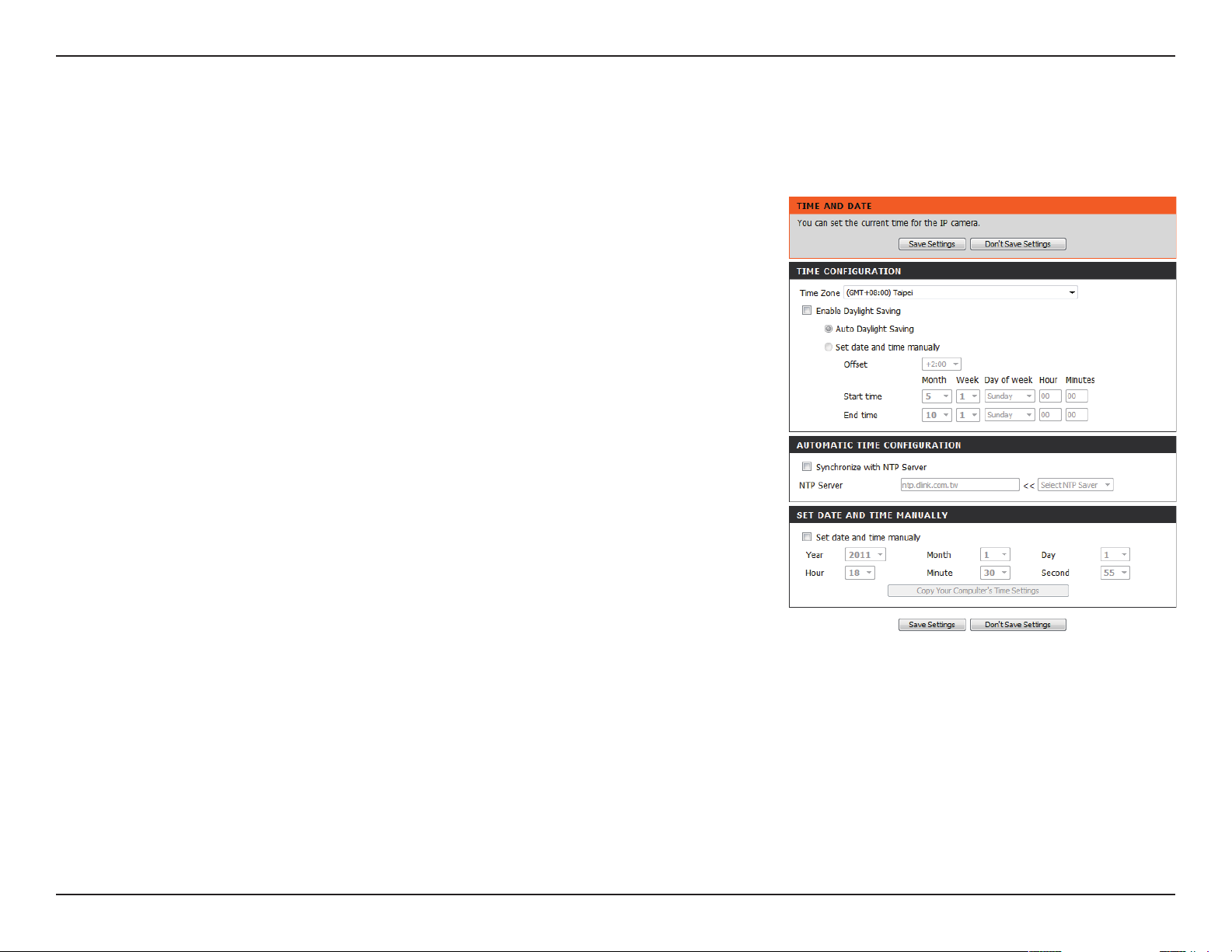

Time and Date ..................................................................44

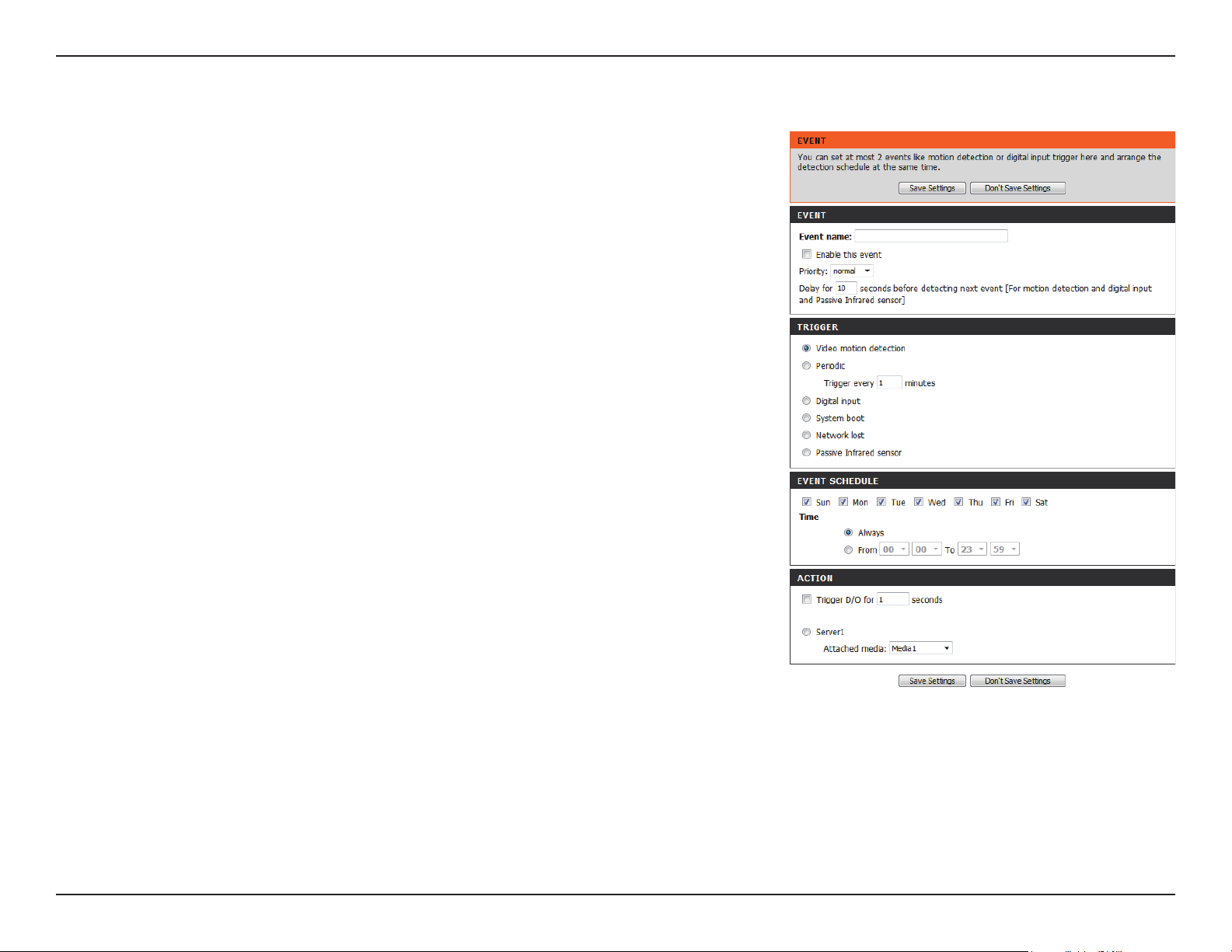

Event Setup .......................................................................45
SD Card ...............................................................................54
Advanced ...............................................................................55

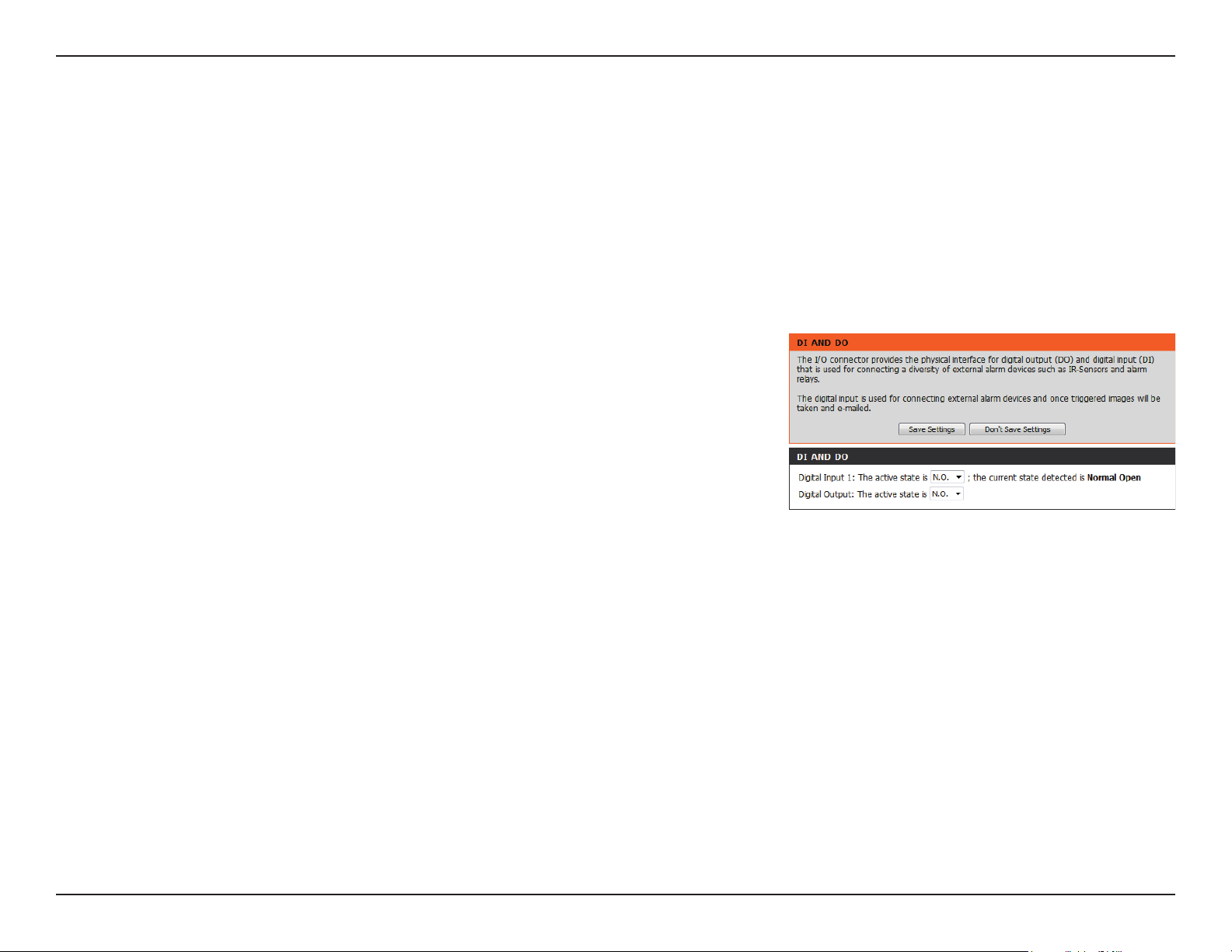

Digital Input/Output ......................................................55
ICR and IR ...........................................................................56
HTTPS ..................................................................................57
Access List ..........................................................................58
Maintenance .........................................................................59

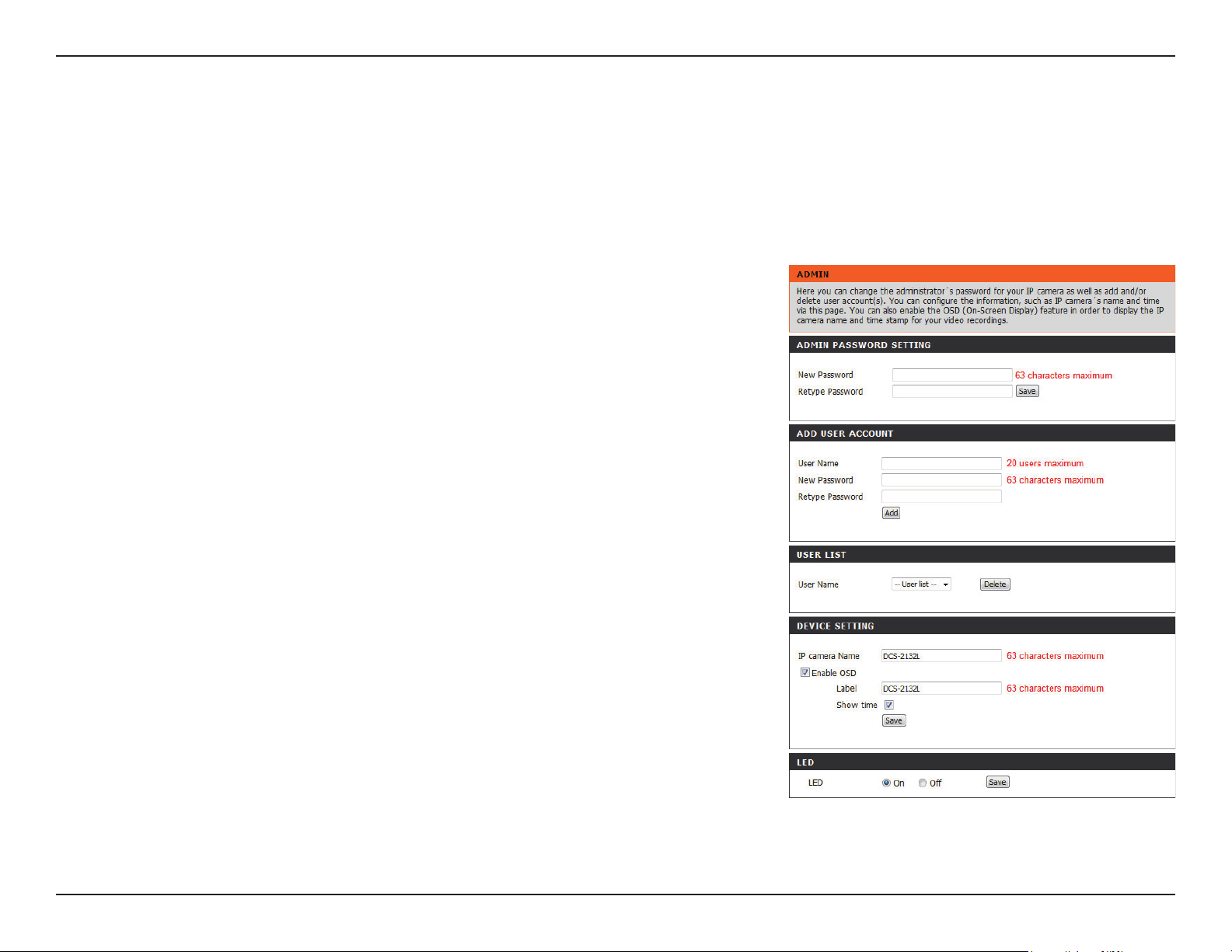

Device Management .....................................................59
Mount the Camera .............................................................20
mydlink ...........................................................................................21
Conguration ...............................................................................22
Using the Conguration Interface ................................22
Live Video ..............................................................................23
Setup .......................................................................................25

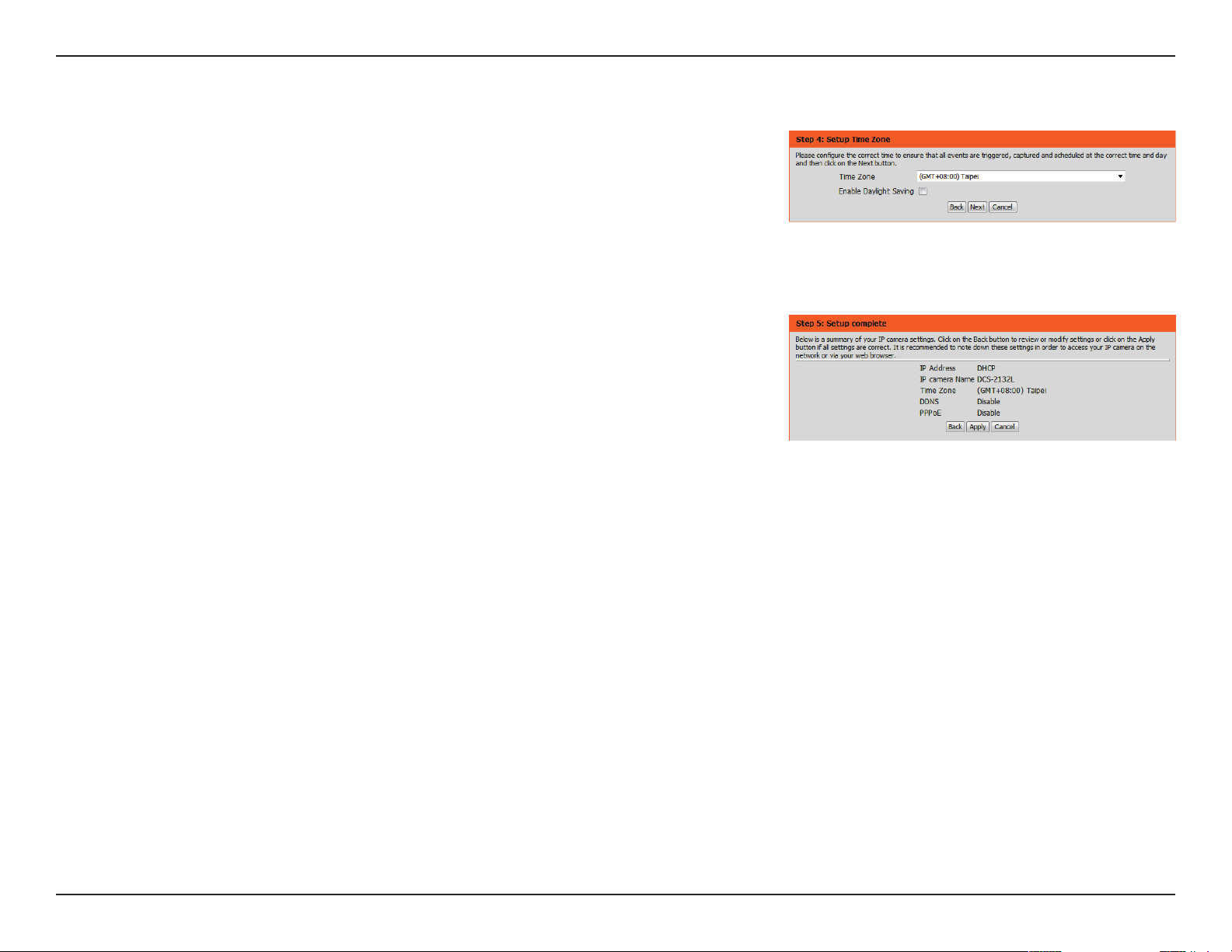

Setup Wizard ....................................................................25
Network Setup .................................................................31
System ................................................................................60
Firmware Upgrade ..........................................................61
Status ......................................................................................62
Device Info ........................................................................62
Logs .....................................................................................63
Help......................................................................................64
DI/DO Specications .................................................................65
Technical Specications ...........................................................66
Safety Statements ......................................................................69
3D-Link DCS-2132L User Manual
Section 1: Product Overview
DCS-2132L HD Wireless N Cube Network Camera
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Product Overview
Package Contents
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
4D-Link DCS-2132L User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-2132L HD Wireless N Cube Network Camera. The DCS-2132L is a versatile and
unique solution for your small oce or home. Unlike a standard webcam, the DCS-2132L is a complete system with a built-in
CPU and web server that transmits high quality video images for security and surveillance. The DCS-2132L can be accessed
remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web browser. The simple
installation and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet or 802.11n/g wireless
network. The DCS-2132L also comes with remote monitoring and motion detection features for a complete and cost-eective
home security solution.
System Requirements
• Computer with Microsoft Windows® 7/8/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network or 802.11n wireless network
• A MicroSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
5D-Link DCS-2132L User Manual
Section 1: Product Overview
Features
Simple to Use
The DCS-2132L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-2132L supports both ActiveX mode
for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-2132L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-2132L oers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-2132L easy to integrate into your existing
network environment. The DCS-2132L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired
environments, and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows you to view and connect to
any available wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-2132L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
IR LED for Day and night functionality
The built-in infrared LEDs enables night time viewing of up to 16 feet (5 meters).
6D-Link DCS-2132L User Manual
Section 1: Product Overview
Hardware Overview
Front
1
2
3
5
6
7
8
4
1 Status LED
2 WPS Status LED Indicates the WPS connection status of the camera
3 Infrared LED
4 PIR Sensor
5 Camera Lens Records video of the surrounding area
6 Microphone Records audio from the surrounding area
7
8
ICR Sensor
Speaker
Indicates the camera's current status
Used to illuminate the camera's eld of view at night
Passive Infrared sensor for motion detection
The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly
Audio output
7D-Link DCS-2132L User Manual
Section 1: Product Overview
3
1
Rear
4
5
6
2
1 Ethernet Port
2 WPS Button
3 Reset Button
4 Power Connector
5 DI/DO Connector
6 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
RJ45 connector for Ethernet
Press this button, then press the WPS button for 5 seconds on your router to set up
a wireless connection automatically
Press and hold this button for 10 seconds to reset the camera
Connects to the included DC 5 V power adapter
I/O connectors for external devices
8D-Link DCS-2132L User Manual
Section 1: Product Overview
Sides
1
1 Micro SD Card Slot
Insert a MicroSD card for Local storage for storing recorded image and video
9D-Link DCS-2132L User Manual
Section 2: Installation
Installation
Wireless Installation Considerations
This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network. However, the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.
10D-Link DCS-2132L User Manual
Section 2: Installation
Zero Conguration Setup
If you have a D-Link Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically congures
your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to set up your
camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink enabled cloud router and Zero Conguration will automatically congure your
DCS-2132L and automatically add the camera to your mydlink account. You can now remotely access your camera from the
mydlink.com website to manage and monitor your DCS-2132L.
Connect the Ethernet Cable
If using an Ethernet connection: Connect the included Ethernet cable to the
Ethernet port located on the back of the DCS-2132L and connect it to your router.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2132L and connect it to your wall outlet or power strip.
11D-Link DCS-2132L User Manual
Section 2: Installation
Optional: WPS Wireless Connection
Alternatively, if your router supports WPS, you can use the WPS button on the
camera to easily create a secure wireless connection to your network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The blue WPS
status LED above the button will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you
may need to log in to the web interface and click on an on-screen button to
activate the WPS feature. If you are not sure where the WPS button is on your
router, please refer to your router’s User Manual.
WPS Button
The DCS-2132L will automatically create a wireless connection to your router.
While connecting, the status LED will ash. When the connection process is
complete, the status LED will turn solid.
Note: If your router does not support WPS, you can still use the wired connection
method on the previous page. After Zero Conguration setup is complete, your
router's wireless settings will be automatically transferred to the camera.
12D-Link DCS-2132L User Manual
Section 2: Installation
Check Your mydlink Account
From any computer, open a web browser, go to http://www.mydlink.com and log
into your account. Once mydlink detects your camera, a New Device Found!
notice will appear in the bottom-left corner. Click on the device name to continue.
A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click OK to add the camera to
your account.
13D-Link DCS-2132L User Manual
Section 2: Installation
Zero Conguration is now complete and your camera has been added to your
mydlink account. You can now view your camera on the mydlink Live View tab.
If you wish to connect your camera to your router wirelessly, you can simply
disconnect the Ethernet cable and move the camera to its intended location; your
router's wireless settings have been automatically transferred to the camera, and
no further conguration is required.
Your camera is now set up, and you can skip to "mydlink" on page 21 to learn more
about the mydlink features of this camera, or to "Conguration" on page 22 for
advanced conguration of your camera.
14D-Link DCS-2132L User Manual
Section 2: Installation
Camera Installation Wizard
Windows Users
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the installation
process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click
on the autorun.exe le.
15D-Link DCS-2132L User Manual
Section 2: Installation
Mac Users
Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and
double-click on the SetupWizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process from
connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: mydlink portal requires JavaTM to function correctly.
For more guidelines, please refer to mydlink FAQ pages at https://eu.mydlink.com/faq/mydlink
16D-Link DCS-2132L User Manual
Section 2: Installation
Conrm your camera login details and IP address details and click Done.
Your DCS-2132L camera is now set up. Log on to your mydlink account and
explore the exciting benets available to you.
Your camera is now set up, and you can skip to "mydlink" on page 21 to learn more
about the mydlink features of this camera, or to "Conguration" on page 22 for
advanced conguration of your camera.
17D-Link DCS-2132L User Manual
Section 2: Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on
the panel at the rear of the DCS-2132L and attach it to the network.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2132L and connect it to your wall outlet or power strip.
18D-Link DCS-2132L User Manual
Section 2: Installation
WPS - Push Button Setup
If your router supports WPS, you can use the WPS button on the camera to easily create a secure wireless connection to your
network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The blue WPS
status LED above the button will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you
may need to log in to the web interface and click on an on-screen button to
activate the WPS feature. If you are not sure where the WPS button is on your
router, please refer to your router’s User Manual.
WPS Button
The DCS-2132L will automatically create a wireless connection to your router.
While connecting, the status LED will ash. When the connection process is
complete, the status LED will turn solid.
19D-Link DCS-2132L User Manual
Section 2: Installation
We suggest that you congure the camera before mounting.
Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
1. Place the mounting base where you want to position the camera and use a pencil
to mark the holes.
2. Depending on the material of the wall or ceiling, use proper tools to drill two
holes or screws where you marked. If the wall is made out of concrete, drill the
holes rst, insert the plastic anchors and then the screws.
The space between the camera and the screwheads should be 3mm.
3. Place the mounting base over the screw that is mounted on the wall. Make sure
to t the screw-heads over the big holes and slide it downward to lock rmly.
Lightly pull the base forward to make sure that it is locked.
4. Place the base cover on the base and screw the camera stem clockwise into the
mounting base.
1
2
3
4
5. Adjust the angle of the camera as desired, then tighten the collar on the camera
stem to lock it in place.
5
20D-Link DCS-2132L User Manual
Section 3: mydlink
mydlink
After registering your DCS-2132L camera with a mydlink account in the Camera Installation Wizard. You will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
21D-Link DCS-2132L User Manual
Loading...
