RazorTM Vac

Carpet + Hard Floor Steerable Upright

My Model is: _________

USER MANUAL

961152045 / R0 12/16 ©2016 All rights reserved

Français - page 17 Español - página 33

REPLACEMENT PARTS

• PRE-MOTOR FILTER F112

• EXHAUST FILTER F111

HI. WELCOME.

Congrats on purchasing your new RazorTM Vac - Carpet + Hard Floor Steerable Upright Vacuum. Inside, you’ll find everything you want to know from the tools to how to.

So what are you waiting for? LET’S GO.™

PRODUCT

REGISTRATION

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone.

Hint: Attach your sales receipt to this Owner’s manual. Verification of date of purchase may be required for warranty service of your Dirt Devil® product.

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

Find GENUINE Replacement Parts at www.dirtdevil.com

This product uses the following parts:

PRE-MOTOR FILTER				F112
EXHAUST FILTER				F111

2

TABLE OF

CONTENTS

Quick Start Assembly		6

Tools						7
How to				8-13
Troubleshooting					14

Limited Warranty		15

3

WARNING

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED

COMMERCIALLY WARRANTY IS VOID.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

•Fully assemble before operating.

•Operate cleaner only at voltage specified on data plate on bottom of cleaner.

•Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.

•Do not use outdoors or on wet surfaces.

•Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close attention is necessary when used by or near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.

•Use only as described in this manual. Use only manufacturer’s recommended attachments.

•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center for inspection prior to continuing use.

•Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.

•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

•Do not handle plug or appliance with wet hands.

•Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

•Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. Brush roll continues to rotate when in upright position.

•Turn off all controls before unplugging.

•Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor.

Do not place cleaner on stairs or furniture, as it may result in injury or damage.

•Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

•Unplug before connecting Turbo Tool.

•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

•Do not use without filters and/or dirt cup in place.

•WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER USING.

4

CAUTION: TO REDUCE THE RISK OF DAMAGE:

•Avoid picking up hard, sharp objects with this product, as they may cause damage.

•Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.

•Do not use sharp objects to clean out hose as they can cause damage.

•With brush roll on, do not allow cleaner to sit in one location for an extended period of time, as damage to floor can result.

•Brush roll continues to turn while product is turned on and the handle is in the upright position. To avoid damage to carpet, rugs, and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs or carpeted stairs during tool use.

SAVE THESE INSTRUCTIONS

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

NOTICE

A THERMAL PROTECTOR HAS BEEN DESIGNED INTO YOUR CLEANER TO PROTECT IT FROM OVERHEATING. WHEN THE THERMAL PROTECTOR ACTIVATES THE CLEANER WILL STOP RUNNING.

If this happens proceed as follows:

1.Turn cleaner OFF and unplug it from the electrical outlet.

2.Empty dirt cup.

3.Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic filter, rinsable filter, and HEPA filter. Clear obstructions if present.

4.When cleaner is unplugged and motor cools for 30 minutes, the thermal protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

5

START QUICK

INSERT CLEANING WAND INTO TOP OF VAC. SECURE YOUR HOSE HERE AND HERE.

YOUR DIRT DEVIL RAZORTM VAC IS

READY TO CLEAN!

NOW, WRAP THE CORD AROUND CORD HOOKS.

NEED HELP?

Go to dirtdevil.com/support or contact our Customer Service Department at [phone]

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

Pick up the conversation on...

Facebook.com/DirtDevil

Twitter@DirtDevil

6

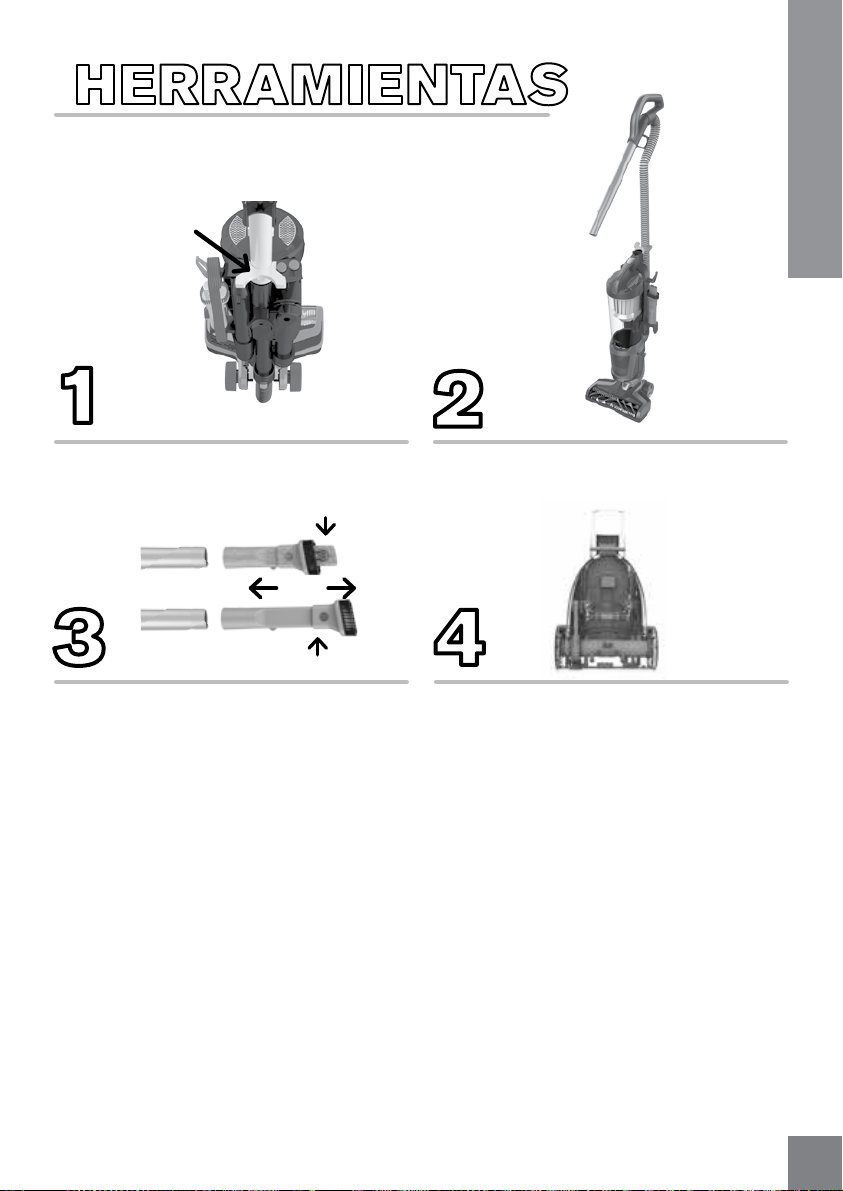

ON-DEMAND CLEANING WAND

WAND RELEASE

PRESS THE WAND RELEASE BUTTON. A

*

OR

A

CAUTION

Not to be used for grooming a pet.

WARNING

Unplug vacuum before connecting hose, wand or tools.

PULL WAND UP & OUT.

*

PUSH THE TOOLS ON THE WAND*	TURBO TOOL®: FOR
FOR CONVENIENT CLEANING.	UPHOLSTERED FURNITURE,
WHEN YOU’RE DONE, TWIST &	DRAPERIES, MATTRESSES
PULL TO TAKE THEM OFF.	AND STAIRS.
2-IN-1 COMBO TOOL:
USE THE CREVICE TOOL FOR
TIGHT SPACES,CORNERS AND
ALONG STAIR EDGES AND
BASEBOARDS. TRY THE DUSTING
BRUSH FOR FURNITURE, TABLE
TOPS, LAMPS, BLINDS AND
MORE.PRESS THE LOCK BUTTON
(A) DOWN AND SLIDE TO SWITCH
BETWEEN MODES.	*Accessories not included on all models.

TOOLS

7

TO HOW

ABOVE FLOOR CLEANING

REMOVE ON-DEMAND	ATTACH EXTENSION WAND
CLEANING WAND FOR	AND 2-IN-1 TOOL FOR
CONVENIENT ABOVE	IMPROVED CLEANING.*
FLOOR CLEANING.

CAUTION

Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage. When using tools, always ensure handle is in upright position.

*Accessories not included on all models.

8

WARNING

To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

EMPTY THE DIRT CUP

A

MAX

FILL

LINE

OK

DUMP THE DIRT WHEN IT'S FULL. PUSH THE RELEASE BUTTON (A) THEN PULL OUT THE DIRT CUP.

B

NOW DITCH THE DIRT BY PUSHING THE LOWER BUTTON (B). GIVE IT A WIPE TO REMOVE DUST.

PLACE BACK IN BOTTOM FIRST. PUSH THE TOP OF THE CUP AGAINST THE BACK PANEL AND IT'LL CLICK INTO PLACE.

This would be a good point to check the condition of your filter. Dirty? Check out page 11 for cleaning steps.

97

TO HOW

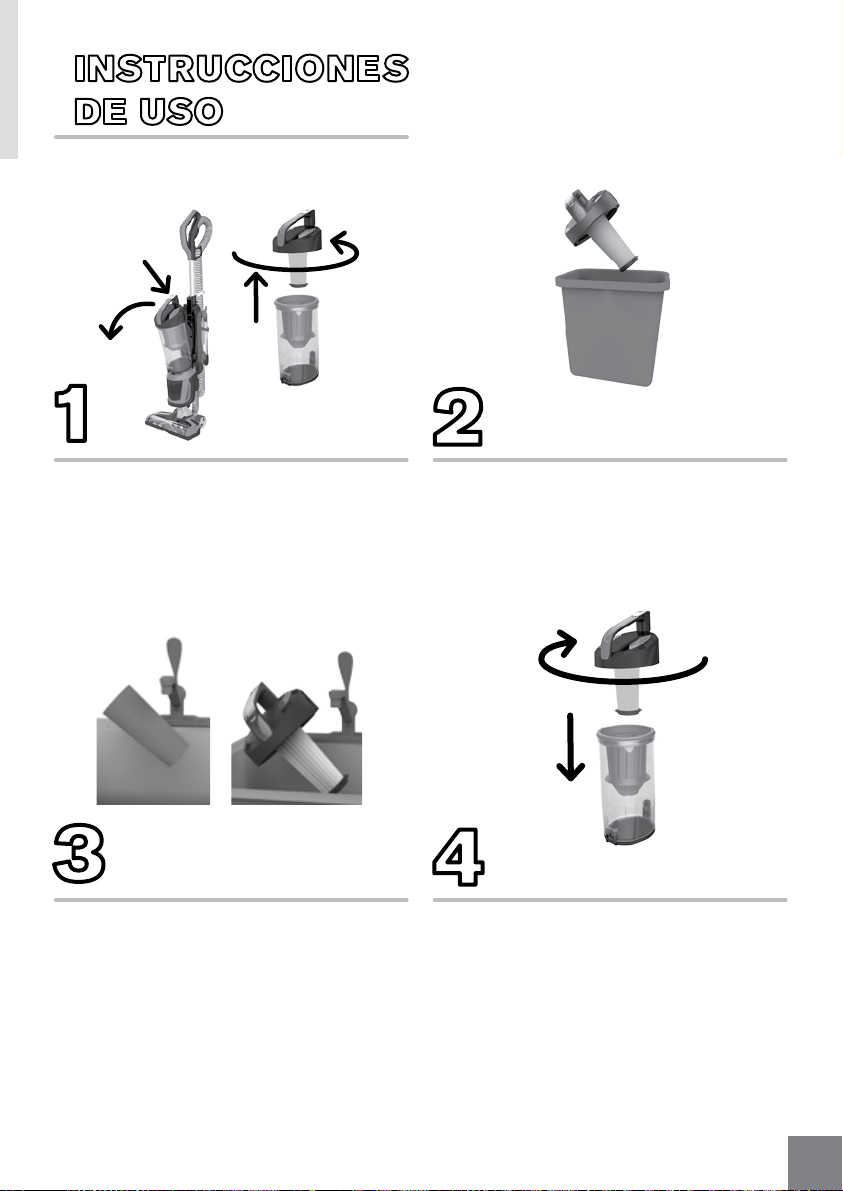

CLEAN THE RINSABLE FILTER

A

REMOVE THE DIRT CUP. TWIST THE HANDLE TO REMOVE THE TOP FROM THE DIRT CUP.

GENTLY REMOVE THE FILTER FROM THE THE HANDLE.

TWIST THE HANDLE TO REMOVE THE TOP FROM THE DIRT CUP. GENTLY REMOVE THE FILTER FROM THE THE HANDLE.

ALL PIECES ARE RINSABLE.	SLIDE THE FILTER BACK INTO
	THE HANDLE, PLACE THE
	HANDLE BACK ON THE DIRT
	CUP AND TWIST TO CLOSE.
	REPLACE THE DIRT CUP INTO
	THE VACUUM.
	For replacement filter F112 visit dirtdevil.com or call us at [phone].

10

WARNING

To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

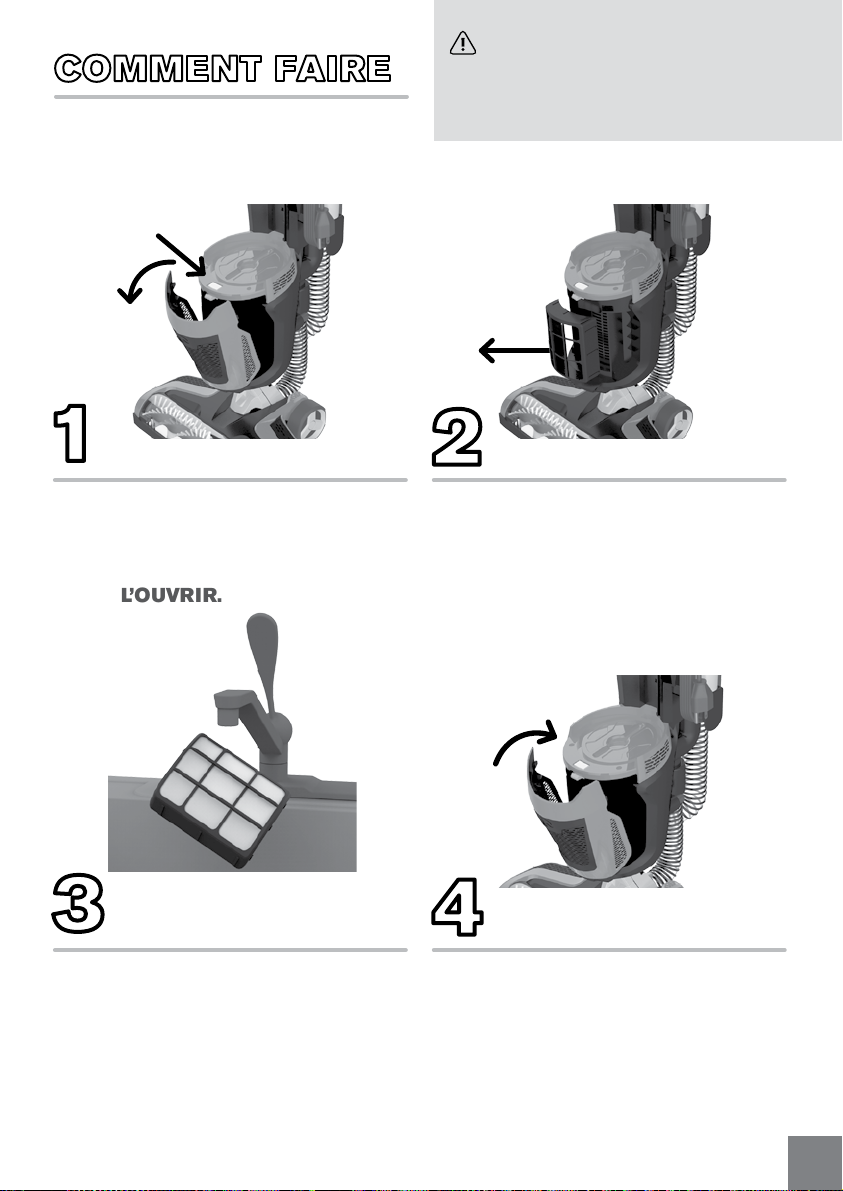

CLEAN THE EXHAUST FILTER

PUSH THE TAB ON THE FRONT OF THE COVER TO PIVOT OUT.

PULL OUT THE FILTER.RINSE DIRT FROM BOTH SIDES, AND LET AIR DRY FOR 24 HOURS BEFORE REINSTALLING OR UNTIL DRY.

ALL PIECES ARE RINSABLE.	PUT THE DRY FILTER BACK. NOW
	LINE UP THE FILTER COVER WITH
	THE BOTTOM TABS FIRST AND
	THEN SNAP BACK INTO PLACE.

For replacement filter F111 visit dirtdevil.com or call us at [phone].

117

TO HOW

WARNING

To reduce the risk of personal injury – Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

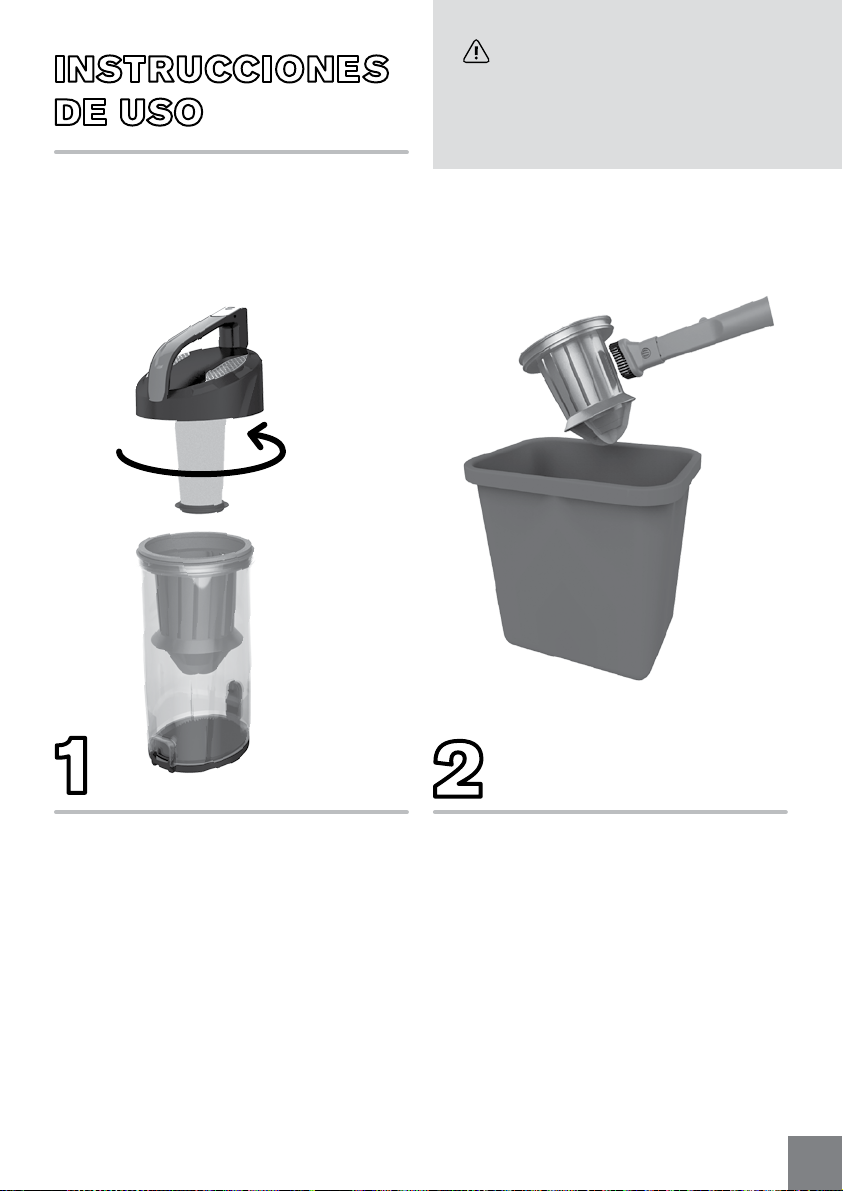

CLEAN THE CYCLONIC

ASSEMBLY

TWIST COUNTER-CLOCKWISE	USE THE DUSTING TOOL
TO OPEN THE DIRT CUP.	TO CLEAN THE CYCLONIC
	ASSEMBLY.*

*Accessories not included with all models.

12

CAUTION

To reduce the risk of injury from moving parts - Unplug before servicing.

CLEAN THE BRUSH ROLL

TURN YOUR VACUUM OVER.	REMOVE AND CLEAN THE
PRESS THE BRUSH ROLL	BRUSH ROLL.
RELEASE TABS WHERE CIRCLED.

137

TROUBLESHOOTING

Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

	WARNING			To reduce the risk of personal injury - Unplug before cleaning or servicing.
	PROBLEM	POSSIBLE CAUSE			POSSIBLE SOLUTION
	Vacuum	1. Power cord not firmly			1.	Plug unit in firmly.
	won’t run		plugged into outlet.
		2.	No voltage in wall plug.		2.	Check fuse or breaker in home.
		3.	Blown fuse or tripped		3.	Replace fuse/reset breaker in home.
			breaker.
		4.	Thermal Protector activated.		4.	Unplug and allow vacuum to cool for 30min.
						(This willl reset the thermal protector)
	Dust escaping	1. Dirt cup full.			1.	Empty dirt cup.
	from vacuum
		2.	Dirt cup not installed		2.	Review Dirt Cup removal & replacement.
			correctly.
		3.	Hose not installed correctly.		3.	Review Hose installation.
	Smoky/burning	1. Brush roll is clogged.			1.	Clear/remove debris from brush roll.
	smell detected
	Vacuum tools	1. Hose clogged			1.	Remove hose and tools; remove obstruction.
	won’t pick-up
		2.	Dirt cup full		2.	Empty dirt cup.
		3.	One or both filters are		3.	Remove both filters and clean.
			clogged.
		4.	Release handle/wand to		4.	Pull handle up and out of unit.
			actuate internal valve.
		5.	Vacuum not picking		5.	Brush roll could be turned off or the belt
			up debris.			could be broken.

NOTE: Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, take it to a service center prior to continuing use.

714

LIMITED

WARRANTY

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner’s Manual, your Dirt Devil® product is warranted against original defects in material and workmanship. During the Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to a Dirt Devil® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Dirt Devil® online at www.DirtDevil.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Dirt Devil® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), brush roll, belt, bags, filters, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Royal Appliance Mfg. Co. (“Royal”, “we”), owner’s acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Royal products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY ROYAL. ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL ROYAL BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

WARRANTY

15
