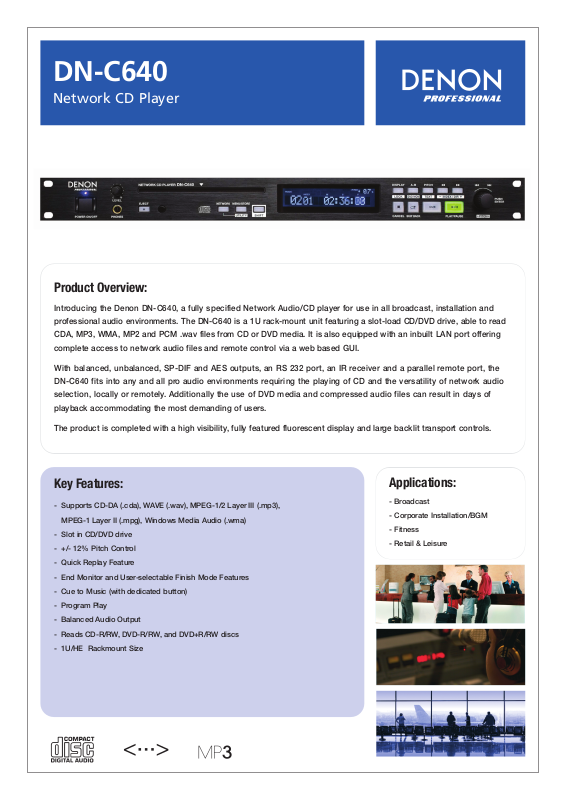

Denon DN-C640 User Manual

DN-C640

Network CD Player

Product Overview:

Introducing the Denon DN-C640, a fully specified Network Audio/CD player for use in all broadcast, installation and

professional audio environments. The DN-C640 is a 1U rack-mount unit featuring a slot-load CD/DVD drive, able to read

CDA, MP3, WMA, MP2 and PCM .wav files from CD or DVD media. It is also equipped with an inbuilt LAN port offering

complete access to network audio files and remote control via a web based GUI.

With balanced, unbalanced, SP-DIF and AES outputs, an RS 232 port, an IR receiver and a parallel remote port, the

DN-C640 fits into any and all pro audio environments requiring the playing of CD and the versatility of network audio

selection, locally or remotely. Additionally the use of DVD media and compressed audio files can result in days of

playback accommodating the most demanding of users.

The product is completed with a high visibility, fully featured fluorescent display and large backlit transport controls.

Key Features:

- Supports CD-DA (.cda), WAVE (.wav), MPEG-1/2 Layer III (.mp3),

MPEG-1 Layer II (.mpg), W

- Slot in CD/DVD drive

- +/- 12% Pitch Control

- Quick Replay Featur

- End Monitor and User

- Cue to Music (with dedicated button)

ogram Play

- Pr

- Balanced Audio Output

- Reads CD-R/RW, DVD-R/RW, and DVD+R/RW discs

- 1U/HE Rackmount Size

indows Media Audio (.wma)

e

-selectable Finish Mode Featur

es

Applications:

oadcast

- Br

- Corporate Installation/BGM

- Fitness

- Retail & Leisur

e

DN-C640

Network CD Player

Further information:

Plays Back Digital Audio Existing on Other Network Devices

Not only can the DN-C640 decode a host of compressed and uncompressed digital audio files from CD or DVD data discs, but it now

gives the end-user the unique ability to stream any of those files from a server or computer, as long as it is accessible via the network.

Now, any corporate environment that records and stores their meetings on a network HDD or computer can simply navigate to that

folder location from the front panel of the unit or by using the on-board web browser, select a specific file, and play it into their

system. Any application from background music, to meeting recording playback, to small radio stations not utilising some sort of

enterprise software to manage their station will benefit greatly from this unique feature.

Controllability for Every Application

The new Denon Professional DN-C640 comes with a host of control options, suitable for every application and every installation.

25-pin Contact Closure (GPIO)

Denon CD players have been used for years in the broadcast market and the DN-C640 is no exception. A 25-pin GPIO port allows for

easy integration and full-featured usability in every broadcast studio or station installation.

9-pin RS-232C Control

The DN-C640 easily integrates into any new or existing installation using third-party serial control systems like Crestron® or AMX®.

IR Control with included IR Remote Control

Like most CD players, the DN-C640 is controllable by it’s included IR commander. Perfect for small installations not using serial

control solutions or Health and Fitness centers, the IR control allows every feature from playback to the +/-12% pitch control to be

activated/adjusted.

Internal WEB GUI for Control from any Web-enabled Computer

It is becoming standard in our industry that any network device be controllable via a web-enabled computer. Because the machine

has its own web server on-board, this means that any computer on the same network can call up and play audio files, build program

playlists, and have full transport control functionality over the DN-C640.

Product Images:

Useful Links:

www.dm-pro.eu/dnc640

www.dm-pro.eu/dnc640
