Denon DN-C635 User Manual

CD/MP3 PLAYER

DN-C635

OPERATING INSTRUCTIONS

FOR ENGLISH READERS PAGE 06 ~ PAGE 17

PARA LECTORES DE ESPAÑOL PAGINA 18 ~ PAGINA 29

INSTRUCCIONES DE OPERACION

SAFETY INSTRUCTIONS

1. Read Instructions – All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. A product and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

20. Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the

product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to its normal

operation, e) If the product has been dropped or damaged in any way,

and f) When the product exhibits a distinct change in

performance – this indicates a need for service.

22. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

IMPORTANT TO SAFETY

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

1. Handle the power supply cord carefully

Do not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used. When removing from wall outlet, be sure to remove by holding the plug attachment and not by pulling the cord.

2. Do not open the rear cover

In order to prevent electric shock, do not open the top cover. If problems occur, contact your DENON DEALER.

3. Do not place anything inside

Do not place metal objects or spill liquid inside the system. Electric shock or malfunction may result.

Please, record and retain the Model name and serial number of your set shown on the rating label. Model No. DN-C635 Serial No.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

NOTE:

This CD/MP3 PLAYER uses the semiconductor laser. To allow you to enjoy music at a stable operation, it is recommended to use this in a room of 5°C (41°F) ~ 35°C (95°F).

LABELS (for U.S.A. model only)

CERTIFICATION

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR REFOR-MANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTERODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOND.

• FOR CANADA MODEL ONLY

• POUR LES MODELE CANADIENS

UNIQUEMENT

ATTENZIONE: QUESTO APPARECCHIO E’ DOTATO DI DISPOSITIVO OTTICO CON RAGGIO LASER. L’USO IMPROPRIO DELL’APPARECCHIO PUO’ CAUSARE PERICOLOSE ESPOSIZIONI A RADIAZIONI!

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ENGLISH ESPANÑOL

FRONT PANEL / FRONTPLATTE / PANNEAU AVANT / RANNELLO ANTERIORE / PANEL FRONTAL /VOORPANEEL / FRONT PANELEN

DISPLAY / DISPLAY / AFFICHAGE / DISPLAY / VISUALIZADOR / DISPLAY / DISPLAYEN

we@1 r@3

@5@4

!7 !8 !6

t!9!4@0

!5!2!1!38

q ww iu

q w e r

i yu w t

REAR PANEL / RÜCKWAND / PANNEAU ARRIERE / IL PANNELLO POSTERIORE / PANEL TRASERO / ACHTERPANEEL / BAKSIDA

DIMENSIONS / ABMESSUNGEN / DIMENSIONS / DIMENSIONI / DIMENSIÓNES / AFMETINGEN / YTTERMÅTT

7 x 10 hole Loch 7 x 10 Trou de 7 x 10 Foro 7 x 10 Orificio de 7 x 10 Opening 7 x 10 Hål 7 x 10

482 (19”)

465 (18-5/16”)

88 (3-15/32”)

76.2

(3”)

(5/64”)

250

(9-27/32”)

(3-35/64”)

Unit: mm Gerät: mm Unité: mm Unità: mm Unidad: mm Eenheid: mm Enhet: mm

NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA

• Avoid high temperatures. Allow for sufficient heat dispersion when installed on a rack.

• Vermeiden Sie hohe Temperaturen. Beachten Sie, daß eine ausreichend Luftzirkulation gewährleistet wird, wenn das Gerät auf ein Regal gestellt wird.

• Eviter des températures élevées Tenir compte d’une dispersion de chaleur suffisante lors de l’installation sur une étagère.

• Evitate di esporre l’unità a temperature alte. Assicuratevi che ci sia un’adeguata dispersione del calore quando installate l’unità in un mobile per componenti audio.

• Evite altas temperaturas Permite la suficiente dispersión del calor cuando está instalado en la consola.

• Vermijd hoge temperaturen. Zorg voor een degelijk hitteafvoer indien het apparaat op een rek wordt geplaatst.

• Undvik höga temperaturer. Se till att det finns möjlighet till god värmeavledning vid montering i ett rack.

• Keep the set free from moisture, water, and dust.

• Halten Sie das Gerät von Feuchtigkeit, Wasser und Staub fern.

• Protéger l’appareil contre l’humidité, l’eau et lapoussière.

• Tenete l’unità lontana dall’umidità, dall’acqua e dalla polvere.

• Mantenga el equipo libre de humedad, agua y polvo.

• Laat geen vochtigheid, water of stof in het apparaat binnendringen.

• Utsätt inte apparaten för fukt, vatten och damm.

• Do not let foreign objects in the set.

• Keine fremden Gegenstände in das Gerät kommen lassen.

• Ne pas laisser des objets étrangers dans l’appareil.

• E’ importante che nessun oggetto è inserito all’interno dell’unità.

• No deje objetos extraños dentro del equipo.

• Laat geen vreemde voorwerpen in dit apparaat vallen.

• Se till att främmande föremål inte tränger in i apparaten.

• Handle the power cord carefully. Hold the plug when unplugging the cord.

• Gehen Sie vorsichtig mit dem Netzkabel um. Halten Sie das Kabel am Stecker, wenn Sie den Stecker herausziehen.

• Manipuler le cordon d’alimentation avec précaution. Tenir la prise lors du débranchement du cordon.

• Manneggiate il filo di alimentazione con cura. Agite per la spina quando scollegate il cavo dalla presa.

• Maneje el cordón de energía con cuidado. Sostenga el enchufe cuando desconecte el cordón de energía.

• Hanteer het netsnoer voorzichtig. Houd het snoer bij de stekker vast wanneer deze moet worden aan- of losgekoppeld.

• Hantera nätkabeln varsamt. Håll i kabeln när den kopplas från el-uttaget.

• Unplug the power cord when not using the set for long periods of time.

• Wenn das Gerät eine längere Zeit nicht verwendet werden soll, trennen Sie das Netzkabel vom Netzstecker.

• Débrancher le cordon d’alimentation lorsque l’appareil n’est pas utilisé pendant de longues périodes.

• Disinnestate il filo di alimentazione quando avete l’intenzione di non usare il filo di alimentazione per un lungo periodo di tempo.

• Desconecte el cordón de energía cuando no utilice el equipo por mucho tiempo.

• Neem altijd het netsnoer uit het stopkontakt wanneer het apparaat gedurende een lange periode niet wordt gebruikt.

• Koppla ur nätkabeln om apparaten inte kommer att användas i lång tid.

• Do not let insecticides, benzene, and thinner come in contact with the set.

• Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder Verdünnungsmitteln in Berührung kommen.

• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l’appareil.

• Assicuratevvi che l’unità non venga in contatto con insetticidi, benzolo o solventi.

• No permita el contacto de insecticidas, gasolina y diluyentes con el equipo.

• Laat geen insektenverdelgende middelen, benzine of verfverdunner met dit apparaat in kontakt komen.

• Se till att inte insektsmedel på spraybruk, bensen och thinner kommer i kontakt med apparatens hölje.

• Never disassemble or modify the set in any way.

• Versuchen Sie niemals das Gerät auseinander zu nehmen oder auf jegliche Art zu verändern.

• Ne jamais démonter ou modifier l’appareil d’une manière ou d’une autre.

• Non smontate mai, nè modificate l’unità in nessun modo.

• Nunca desarme o modifique el equipo de ninguna manera.

• Nooit dit apparaat demonteren of op andere wijze modifiëren.

• Ta inte isär apparaten och försök inte bygga om den.

• Do not obstruct the ventilation holes.

• Die Belüftungsöffnungen dürfen nicht verdeckt werden.

• Ne pas obstruer les trous d’aération.

• Non coprite i fori di ventilazione.

• No obstruya los orificios de ventilación.

• De ventilatieopeningen mogen niet worden beblokkeerd.

• Täpp inte till ventilationsöppningarna.

* (For sets with ventilation holes)

• DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards: EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3. Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC Directive.

• ÜBEREINSTIMMUNGSERKLÄRUNG

Wir erklären unter unserer Verantwortung, daß dieses Produkt, auf das sich diese Erklärung bezieht, den folgenden Standards entspricht: EN60065, EN55013, EN55020, EN61000-3-2 und EN61000-3-3. Entspricht den Verordnungen der Direktive 73/23/EEC, 89/336/EEC und 93/68/EEC.

• DECLARATION DE CONFORMITE

Nous déclarons sous notre seule responsabilité que l’appareil, auquel se réfère cette déclaration, est conforme aux standards suivants: EN60065, EN55013, EN55020, EN61000-3-2 et EN61000-3-3. D’après les dispositions de la Directive 73/23/EEC, 89/336/EEC et 93/68/EEC.

• DICHIARAZIONE DI CONFORMITÀ

Dichiariamo con piena responsabilità che questo prodotto, al quale la nostra dichiarazione si riferisce, è conforme alle seguenti normative: EN60065, EN55013, EN55020, EN61000-3-2 e EN610003-3. In conformità con le condizioni delle direttive 73/23/EEC, 89/336/EEC e 93/68/EEC. QUESTO PRODOTTO E’ CONFORME AL D.M. 28/08/95 N. 548

• DECLARACIÓN DE CONFORMIDAD

Declaramos bajo nuestra exclusiva responsabilidad que este producto al que hace referencia esta declaración, está conforme con los siguientes estándares: EN60065, EN55013, EN55020, EN61000-3-2 y EN610003-3. Siguiendo las provisiones de las Directivas 73/23/EEC, 89/336/EEC y 93/68/EEC.

• EENVORMIGHEIDSVERKLARING

Wij verklaren uitsluitend op onze verantwoordelijkheid dat dit produkt, waarop deze verklaring betrekking heeft, in overeenstemming is met de volgende normen: EN60065, EN55013, EN55020, EN61000-3-2 en EN61000-3-3. Volgens de bepalingen van de Richtlijnen 73/23/EEC, 89/336/EEC en 93/68/EEC.

• ÖVERENSSTÄMMELSESINTYG

Härmed intygas helt på eget ansvar att denna produkt, vilken detta intyg avser, uppfyller följande standarder: EN60065, EN55013, EN55020, EN61000-3-2 och EN61000-3-3. Enligt stadgarna i direktiv 73/23/EEC, 89/336/EEC och 93/68/EEC.

CAUTION

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• No naked flame sources, such as lighted candles, should be placed on the apparatus.

• Please be care the environmental aspects of battery disposal.

• The apparatus shall not be exposed to dripping or splashing for use.

• No objects filled with liquids, such as vases, shall be placed on the apparatus.

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

ADVARSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLING.

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄMTTÖMÄLLE LASERSÄTEILYLLE.

VARNING– OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA

BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.

CLASS 1

LASER

PRODUCT

• Use compact discs that include the mark. CD’s with special shapes (heart-shaped CD’s, octagonal

CD’s etc.) cannot be played on this set. Attempting to do so may damage the set. Do not use such CD’s.

• Benutzen Sie Compact Discs, die das Zeichen tragen. Speziell geformte CD’s (herzförmige CDs, achteckige CDs, usw.) können auf dieser Anlage nicht abgespielt werden. Der Versuch derartige CDs abzuspielen kann die Anlage beschädigen. Verzichten Sie auf die Benutzung solcher CDs.

• Utiliser des disques compacts portant le logo . Des CD avec des formes spéciales (CD en forme de

coeur, des CD octogonaux, etc.) ne peuvent pas être lus sur cet appareil. Le fait de l’essayer, risque d’endommager le lecteur. Ne pas utiliser de tels CD.

• Usare compact disc che includono il marchio . I CD con forme particolari (CD a forma di cuore, CD

ottogonali ecc.) non possono essere riprodotti su questo apparecchio. L’apparecchio si potrebbe danneggiare se si cerca di farlo. Non utilizzare questi CD.

• Use discos compactos con la marca . En este equipo no es posible reproducir CDs con formas

especiales (CDs con forma de corazón, CDs octagonales, etc.). Si intenta hacerlo, el equipo podrá resultar dañado. No use este tipo de CDs.

• Gebruik compact discs voorzien van het logo . CD’s met speciale vormen (bijv. CD’s in de vorm van een

hart, achthoekige CD’s, enz.) kunnen met dit toestel niet worden afgespeeld. Wanneer u dit toch probeert, zal u het toestel beschadigen. Speel dergelijke CD’s dus niet af.

• Använd CD-skivor med -märket. Specialformade CD-skivor (hjärtformade, åttkantiga, m m)

går inte att spela på den här apparaten. Utrustningen kan skadas om du försöker göra detta. Använd inte CD-skivor av denna typ.

Residue Rückstand Résidu Residuo Residuos Oneffenheid Plastrester

• The disc may not play normally if there is residue along the edges of the center hole.

• When using new discs in particular, use a pen, etc., to remove the residue.

• Die Disk kann nicht normal abgespielt werden, wenn sich ein Rückstand entlang der Mittellochenden befindet.

• Insbesondere, wenn Sie neue Disks benutzen, dann entfernen Sie mit einem Stift, etc. den Rückstand.

• Le disque peut ne pas être lu normalements s’il y a un résidu le long des bord du trou central.

• Lors de l’utilisation de nouveaux disques en particulier, utiliser un stylo à bille, etc., pour enlever le résidu.

• Il disco può non essere riprodotot in modo normale se ci sono dei residui lungo I bordi del foro centrale.

• Usate una penna, ecc., per rimuovere I residui, specialmente quando usate dischi nuovi.

• El disco no puede ser reproducido normalmente debido a la terminación deficiente de los bordes del agujero central.

• Para quitar estos residuos de material, especialmente cuando vaya a re-producir discos nuevos, utilice un bolígrafo, o algo similar.

• Het is mogelijk dat de disc niet normaal wordt weergegeven als de randen van het middengat van de schijf oneffenheden vertonen.

• Verwijder vooral bij gebruik van nieuwe discs de oneffenheden met een pen of iets dergelijks.

• Det kan uppstå fel vid CD-avspelningen om det finns plastrester kvar i mitthålet.

• Tänk på att bort dessa med en penna, e d, särskilt om CD-skivan är ny.

• This unit can display text information on the display when playing CD text discs which contain text information in English category. The CD text disc includes the mark shown at the right.

NOTE:

• This unit can provide a text display of the following

types of characters. Other types of characters will result in “ ” being displayed.

• Alphabet

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Numbers

0123456789

• Symbols

• Bei der Wiedergabe von CD-Textdiscs, die Funktionstasten in englischer Kategorie enthalten, kann dieses Gerät auf dem Display Funktionstasten anzeigen. Die CD-Textdiscs sind mit dem rechts dargestellten Logo versehen.

HINWEIS:

• Dieses Gerät kann aus den nachfolgend aufgeführten

Zeichenarten bestehende Texte anzeigen. Bei anderen Zeichenarten wird “ ” angezeigt.

• Alphabet

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Zahlen

0123456789

• Symbole

• Cet appareil peut afficher les textes d'information lors de la lecture de CD qui comportent ces textes, dans la catégorie anglaise. Les CD avec texte se repèrent à la marque indiquée à droite.

REMARQUE:

• Cet appareil permet l’affichage de textes composés

avec les types de caractère suivants. Tous les autres types de caractère seront affichés ainsi “ ”.

• Alphabétiques

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Chiffres

0123456789

• Symboles

• Quest’unità può visualizzare dei testi sul display durante la riproduzione di CD che contengono dei testi in inglese. Il disco CD con testi include il marchio mostrato qui a destra.

NOTA:

• Quest’unità è in grado di fornire una visualizzazione dei

testi usando i seguenti tipi di caratteri. Altri tipi di caratteri causeranno la visualizzazione dell’indicazione “ ”.

• Alfabeto

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Numeri

0123456789

• Simboli

SPACE

• Esta unidad puede mostrar información de texto en la pantalla cuando se reproducen discos CD de Texto que contengan información de texto en la categoría de Inglés. Los discos CD de Texto incluyen la marca indicada a la derecha.

NOTA:

• Esta unidad puede mostrar visualizaciones de texto de

los siguientes tipos de caracteres.Otros tipos de caracteres harán que se visualice “ ”.

• Alfabeto

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Números

0123456789

• Símbolos

• Dit toestel kan tekstinformatie op het display tonen bij

het weergeven van CD-Text discs met tekstinformatie in de categorie Engels. Een CD-Text disc is voorzien van het logo rechts.

OPMERKING:

• Dit toestel kan de volgende tekens als tekst

weergeven. Voor andere types van tekens verschijnt

“ ” op het display.

• Alfabet

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Getallen

0123456789

• Symbolen

• Denna apparat kan visa text på displayen när du spelar

CD-textskivor innehållande information på engelska. CD text-skivor bär märket som anges på höger sida.

OBSERVERA:

• Apparaten kan visa text med följande teckentyper. För

övriga tecken kommer “ ” att visas.

• Alfabetiska

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

• Siffror

0123456789

• Symboler

SPACE

Disc

ENGLISH

CAUTION:

• Whenever the power operation switch is in the OFF state, the apparatus is still connected on AC line voltage.

• The DN-C635 will work normally when the player unit is mounted with the front panel within 10 degrees of the vertical plane. If the unit is tilted excessively, discs may not load or unload properly.

DN-C635

Max. 10°

PART NAMES AND FUNCTIONS

(Refer to page 3.)

(1) Front panel

Power operation switch (POWER)

• The power turns on when the button is switched from the off position (

£) to the on

position (

¢).

• The power turns off when the button is switched from the on position (

¢) to the off

position (

£).

Disc holder

• The disc placed on this holder. Pressing the disc holder OPEN/CLOSE (

5) button e will

open and close the holder. When loading the CD, place it securely in the disc holder.

Disc holder open/close button (

5 OPEN/CLOSE)

• Press to load or eject the disc. Each press will open or close the disc holder w.

Remote control sensor (REMOTE SENSOR)

• About the wireless remote control unit : Please contact local dealer or distributor.

Display

• Refer to page 8 for details.

PLAY button (1)

• Use this to start playback.

STOP button (2)

• Press this button to stop playback.

PAUSE button (3)

• Use this pause playback.

CUE button

• When pressed during playback, the pickup returns to the position at which playback last started and the pause mode is set.

• When pressed during manual search, the pause mode is set at that position.

• When pressed while the disc holder is open, the disc holder closes and the pause mode is set.

Select knob (8 ,9)

• Turn the knob clockwise by one click to move one track forward, counterclockwise by one click to move one track backward.

• When the knob turned while pressing it in, one click corresponds to 10 tracks.

• In the preset mode, use this knob to set and enter preset settings.

!1 !2

Search button (6 , 7)

• These buttons are used to accurately change the positions where playback will start.

PLAY MODE button

• Press this button to switch the play mode.

END MON button

• Press this button in the standby mode to monitor the end of the track. (End Monitor)

✽ In the MP3 play mode, the time of monitor may

not be correctly.

PITCH button

• Press this button to switch to the play speed set with the Pitch Slider. The PITCH LED flashes.

• When the button is pressed again, the fixed pitch mode is set and the PITCH LED lights.

• Press the button again to cancel the pitch play mode and return to normal speed.

– TABLE OF CONTENTS –

Features..............................................................6

Part names and functions..............................6~8

Connections........................................................8

Opening and closing the disc holder

and loading a disc ...............................................9

Normal CD playback...........................................9

Advanced CD playback...............................10, 11

Playing MP3 files .......................................11~13

The compact disc.............................................13

Power on playback...........................................13

⁄0

Expanded function......................................13, 14

⁄1

Before switching off the power.......................14

⁄2

Preset functions and operations................14~16

⁄3

Troubleshooting................................................16

⁄4

Specifications ...................................................17

2 ACCESSORIES

Check that the following parts are included in addition to the main unit:

q Operating instructions......................................1

w Connection Cords ............................................1

FEATURES

2 99-track programming play 2 ±12 % Variable pitch playback 2 CD-R/RW playback 2 CD TEXT 2 MP3 playback 2 19 inch Rack Mountable (Height 2 U) 2 Track Search Select knob (Easy track selection) 2 Play mode and Finish mode

(1) Play mode

q Continuous: Play a whole disc. w Single: Play a track.

(2) Finish mode (Stop, Next, Recue)

q Stop: Stop after finishing to play a track. w Next: Standby at the beginning of next

track after finishing to play track.

e Recue: After finishing to play a track,

standby at the beginning of the track.

2 Auto Cue

After a disc is loaded, it is automatically cued to the point where audio starts. Cueing takes place at the point where audio starts rather than where the track starts. The level at which sound is first detected can be set between –36 to –48 dB (3 steps).

2 End Monitor

Pressing the END MON button during standby instantly previews the end of the track, thus assuring perfect “end point”. The point at which monitoring starts can be set within a range of 5 to 35 seconds (7 steps) prior to the track’s end. ✽ In the MP3 play mode, the time of monitor may

not be correctly.

2 End of Message (EOM)

At the end of the track, the time display flashes, providing a visual warning to the operator that the track will end shortly. The point at which the flashing beings can be set within a range of 0 to 60 seconds (7 steps) prior to the end of the track.

2 FL Display 2 Display of Playback Locations

A bar graph display indicates playback points on the track being played. Elapsed time and Remaining time displays are switched using the TIME button.

2 External control Terminals

Parallel Remote (D-sub 25 pin) Serial Remote (D-sub 9 pin)

2 Cascade playback 2 Power on playback

2 INTRODUCTION

Thank you very much for purchasing the DENON component CD / MP3 player. DENON proudly presents this advanced CD / MP3 player to audiophiles and music lovers as a further proof of DENON’s non-compromising pursuit of the ultimate in sound quality. The high quality performance and easy operation are certain to provide you with many hours of outstanding listening pleasure.

ENGLISH

Pitch Slider

• Use this slider to adjust the play speed. Slide up to decrease the play speed, down to increase the play speed.

PROG. PLAY ON/OFF button

• When this button is pressed while the PROG indicator is lit, the program play mode is set.

• The button will not function during the A-B play mode.

• The PROG. PLAY ON/OFF LED lights during the program play standby and play modes.

• When the button is pressed during the program play standby or play mode, the program play mode is cleared.

PROGRAM IN button

• Press this button to set the program input mode.

• The button will not function during the play mode.

• The PROG indicator flashes when in the program input mode.

• The PROG indicator lights when a program is set.

REPEAT button

• Press this to perform repeat playback.

TIME button

• The time display switches each time this button is pressed. (“REMAIN”,

“ELAPSED”)

TITLE button

• When the button is pressed, the text information (Disc title, track title, disc artist or track artits) is displayed.

• When the button is pressed while in the stop mode with a disc containing an MP3 ID3-Tag loaded, the file name is displayed. When pressed during playback, the display switches as shown below.

(2) Rear panel

BALANCED OUT connectors

• These are active balanced outputs using XLR type connections. The CD’s playback signals are output from these connectors.

• Pin layout : 1. Common / 2. Hot / 3. Cold

• Applicable connector :

Cannon XLR-3-31 or equivalent.

LEVEL L/R controls

• Use these controls to adjust the level of the audio signals from the BALANCED OUT connectors.

UNBALANCED OUT jacks

• These are unbalanced outputs using RCA type jacks.

DIGITAL OUT jack

• This is a coaxial output using an RCA type jack.

• Signal format : SPDIF or IEC-958 Type

Serial control port

• This is serial remote connector.

• Applicable connector : 9-pin D-sub (male)

• Baud rate : 9600 bps

• Pin layout

File name of currently playing track

Elapsed time of currently playing track

Title name

Artist name

Album name

FOLDER button

• When disc containing MP3 format files is loaded, in the stop mode press this button then the folder select mode is possible.

A-B (A-B repeat) button

• Use this to play a set section repeatedly.

• When the button is pressed once during playback, that position is set as the A point and the “A-B” indicator flashes on the display.

• When the button is pressed again, that position is set as the B point, the “A-B” indicator stops flashing (remaining lit), and the A-B section begins playing repeatedly.

• When the button is pressed again, A-B repeat is canceled and the mode returns to the normal play mode.

Headphones jack

• For private listening, you can connect your headphones to this jack.

PHONES LEVEL control

• Use this adjust the output level of the headphones.

NOTE :

• Do not short-circuit the hot or cold pin with the common pin.

Pin No.

Signal Name

6NC

GND

I / O

_ _

7NC

TxD O

8NC

RxD I

9NC

_ _

5 S. GROUND

RS-232C

Pin No.

Signal Name

6NC

GND

I / O

_ _

7 TxD

TxD (RETURN) O

8 RxD (RETURN)

RxD I

9NC

_ _

5 S. GROUND

RS-422A

Parallel remote control port

• This is a parallel remote connector.

• Applicable connector : 25-pin D-sub (male)

• Connecting signal layout

Pin No.

Signal Name

PLAY tally

I / O

PAUSE tally

PLAY command

CUE tally

PAUSE command

INDEX 2/INDEX 3 tally

CUE command

TRACK (+) command

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

TTL (Iol = 20mA)

HCMOS (Ii = 3mA)

Tally common

Reserved

TRACK (–) command

Reserved

SEARCH (Fwd) command

Reserved

SEARCH (Rev) command

FADER START command

HCMOS (Ii = 3mA)

Tally power supply

Command common

_ _

EOM tally

_ _

Reserved

_ _

Reserved

+3.3V, 20mA (Ii = 10mA)

TTL (Iol = 20mA)

ENGLISH

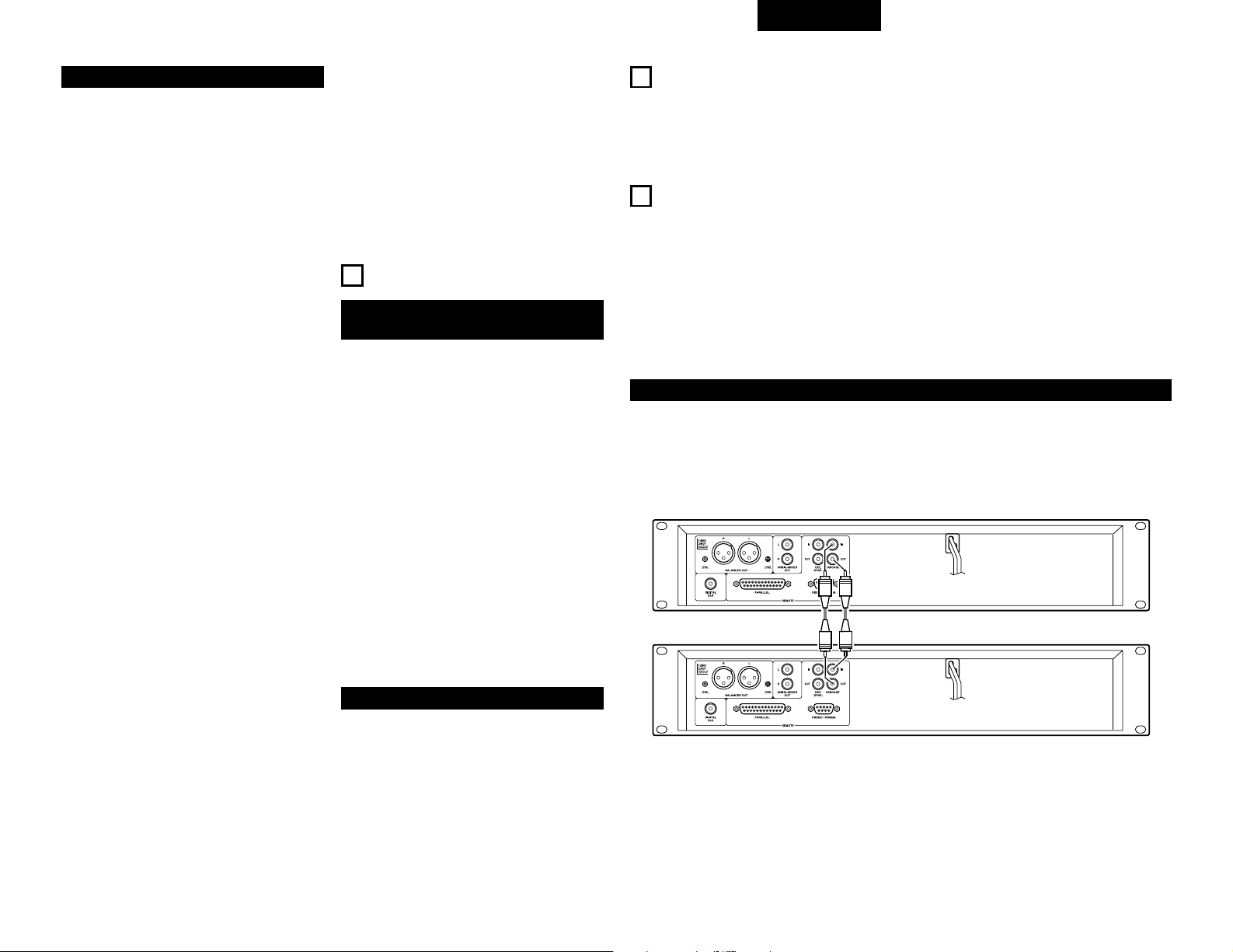

CONNECTIONS

Leave your entire system (including the DN-C635) turned off until all connections between the DN-C635 and other components have been completed.

2 Connection precautions

• Before proceeding with connections or disconnections of cables and power cords, be sure to turn all system components off.

• Ensure that all cables are connected properly to the L (left) and R (right) jacks.

• Insert plugs fully into the terminals.

• Connect the CD output jacks to the amplifier CD or AUX input jacks.

PLAYPAUSECUE

INDEX2/INDEX3EOM

FADER SWITCHTRACK(+)TRACK(-)

123456789

141516

242223

The rating of REMOTE connector pin 22 (TALLY POWER SUPPLY) is 3.3 V, 80 mA maximum. Avoid currents in excess of the rating.

2 Remote control connections

2 Installation precautions

• If the DN-C635 is placed near an amplifier, tuner or other components, noise (induced hum) or beat interference may result (especially during AM or FM reception). If this occurs, separate the DN-C635 from other components or reorient its position.

NOTE:

• Use this unit in a horizontal orientation. When the unit is used with the front panel facing upward (and the unit us in a vertical orientation) or when the front panel is on an incline, the unit will not operate properly.

(3) Display

CD transport indicator

Mode display portion

FILE :This lights when the file name of

MP3 is displayed.

FOLDER :This lights in the folder selection

mode.

TITLE :This lights when the title in the MP3

ID3-Tag or CD Text is displayed.

MP3 :This lights when a disc containing

MP3 format file is loaded.

PROG :This lights in the program mode. REPEAT, 1 : This lights in the repeat mode. CASCADE :This lights in the cascade mode.

(Preset function)

ALBUM :This lights when the album name in

the MP3 ID3-Tag is displayed.

ARTIST :This lights when the artist name in

the MP3 ID3-Tag is displayed.

CD pitch display

Playing position display

• This indicates the current position within the track’s totalplaying time.

• In the MP3 play mode, it may be unable to display correctly.

External synchronized control jacks (EXT. SYNC.)

• Connect these for synchronized recording.

Cascade control jacks (CASCADE)

• Connect these for continuous operation on multiple units.

• When the cascade mode is set to “ON”, the start signal is output from this output jack once operation is finished. (Preset function)

20 tracks music calender

• In the single track play mode, only the specified track lights.

• In the continuous play mode, everything from the specified track to the last track lights.

• Track numbers are displayed up to track 20. Track 21 and on are not displayed.

• MP3 is not displayed.

Multiple display

• This displays Track No. of CD, playing time of CD, various operational information, text message, etc.

Time mode indicator

ELAPSED: This lights when the elapsed time is

displayed.

REMAIN : This lights when the remaining time is

displayed.

Infrared remote control indicator

Play mode indicators

• “SINGLE” lights when in the single track play mode.

• “CONT.” lights when in the continuous play mode.

NOTE:

The tally output pin has open collector IC specifications (Imax. 20 mA, Vmax. 3.3 V), but the maximum supply current is 80 mA, so use with a total load current of 80 mA or less.

ENGLISH

✽. This operation only works while the power is on.

1. Press the power operation switch q to turn on the power.

2. Press the OPEN/CLOSE button e.

OPENING AND CLOSING THE DISC HOLDER AND LOADING A DISC

Opening and closing the disc holder

• Make sure the disc holder is completely open.

• Hold the disc by the edges and place it on the disc tray. (Do not touch the signal surface, i.e., the glossy side.)

• When using 12 cm. diameter discs, make sure the outer edge matches the tray guide circumference and when using CD signals (8 cm. diameter) match the outer edge with the inner tray guide circumference.

• Press the OPEN/CLOSE button e to close the disc holder w.

• When the disc holder is open and a disc is loaded, you may also press the PLAY (

1) button y to close

the disc holder. (If the PLAY (

1) button is pressed,

playback will start immediately upon the disc contents having been read.)

How to load a disc

CAUTIONS:

• If you finger should get caught in the disc holder when it closes, press the OPEN/CLOSE button.

• Do not place any foreign objects on the disc tray, and do not place more than one disc on the tray at a time. Otherwise malfunction may occur.

• Do not push in the disc tray manually when the power is off as this may cause malfunction and damage the CD player.

• This player can play CD-R/RW discs, but only if they are finalized. Note however that depending on the recording quality, the player may not be able to play some finalized CD-R/RW discs.

2 Messages

Messages may appear on the display while using the DN-C635. The meanings of these messages are explained below.

Message Meaning

No Disc

No disc inserted, disc unreadable or disc inserted upside down.

TOC Error

The disc information has not been read properly.

Invalid CD

The disc is a CD-ROM that does not contain MP3 files.

Tray Error

The disc holder could not be opened or closed properly.

NORMAL CD PLAYBACK

1. Press the power operation switch q to turn on the power.

2. Load the disc you want to play.

3. Make the presettings according to the usage purpose. (See page 14.)

• Select the play finish mode. (Preset functions)

Finish stop :

The stop mode (the servo functions turn off) is set when playback finishes.

Finish next :

The standby mode is set at the beginning of the next track when playback is finished. ✽ After the final track is played, the standby

mode is set at the beginning of the first track.

Finish recue :

When playback is finished, the standby mode is set at the position at which playback was started.

• To standby at the point where the sound begins.

(Preset functions) Set the “C Det” level. When a track is selected, the position at which the sound begins is found when a track is cued and the standby mode is set at that point.

• Press the PLAY MODE button !3 to select the

play mode. SINGLE : (single track play mode) The stop mode is set after the specified track is played. CONT. : (continuous play mode) The stop mode is set after the last track is played.

4. Press the PLAY (

1) button y.

(1) Starting playback

Playback can be temporarily halted and then continued from the same point in the track.

1. Press the PAUSE (

3) button i during playback.

2. To continue playback, press the PLAY(1) button y.

(2) Pausing playback at any point

(Pause)

Sleep mode (Preset functions)

• The sleep mode is set if no operation is performed for set-up time in the standby, pause or manual search mode. When in the sleep mode, if the PLAY button is pressed, playback will be started from the beginning of the track in which the sleep mode was set. If the CUE button is pressed, it will standby for the beginning of the track in which the sleep mode was set.

1. Press the STOP (

2) button u.

(4) Stopping playback

When the CUE button r is pressed during the play mode, the pickup returns to the position at which playback started and the pause mode is set.

(3) Returning to the position at which

playback started

(Back Cue)

Press the

1 button

Play internal Play internal

Press the

3 button

Press the CUE button

Press the 1 button

Back cue operation

Position on the

disc
