Craftsman 358.795580 User Manual [en, es]

Instruction Manual

CRRFTSMHN

32CC/1.9 cu.in. 2-Cycle

GASOLINE WEEDWACKER®

Model No.

358.795580

Safety

Assembly

Operation

Maintenance

Parts List

Español

A

9

For Occasional Use Only

WARNING:

Read and follow all Safety Rules and Operating Instructions before first use of this product.

For answers to your questions about this product:

Call 7 am-7 pm, Mon.-Sat., or 10 am-7 pm. Sun.

1-800-235-5878

Sears, Roebuck and Co., Hoffman Estates, !L 60179 U.S.A.

53016358S 10/21/02

TABLE OF CONTENTS

Warranty Statement	2	Storage	11
Safety Rules	2	Troubleshooting Tabie	12
Assembly	4	Emissions Statement	12
Operation	5	Parts List	14
Maintenance	8	Spanish	16
Service & Adjustments	9	Parts and Ordering	Back Cover

WARRANTY STATEMENT

FULL ONE YEAR WARRANTY ON CRAFTSMAN® GAS POWERED WEEDWACKER® LINE TRIMMER.

For one year from the date of purchase, when this Craftsman Gas Powered Weedwacker Line Trimmer is maintained, iubricated, and tuned up according to the operating and maintenance instructions in this manuai, Sears wili repair, free of charge, any defect in materials or workmanship.

This warranty exciudes nyion line, spark plug, and air filter, which are expendable parts and become worn during normai use.

if this Weedwacker line trimmer is used for commercial purposes, this warranty ap­ plies for only 90 days from the date of purchase. If this Weedwacker line trimmer is used for rental purposes, this warranty applies for oniy 30 days from the date of pur­ chase.

This warranty applies only while this product is in use in the United States.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE WEEDWACKER LINE TRIMMER TO THE NEAREST SEARS STORE OR SERVICE CENTER IN THE UNITED STATES.

This warranty gives you specific iegal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179

SAFETY RULES

rWARNING; When using gar­ dening appliances, basic safety pre­ cautions must always be followed to reduce the risk of fire and serious injury. Read and foilow all instructions.

This power unit can be dangerous! Op­ erator is responsible for following instructions and warnings on unit and in manual. Read entire instruction manual before using unit! Be thoroughly familiar with the controls and the proper use of the unit. Restrict the use of this unit to persons who have read, understand, and wiil foilow the instructions and warnings on the unit and in the manual. Never allow children to operate this unit.

INSTRUCTION	SAFETY INFORMATION
MANUAL	ON THE UNIT

ik DANGER: Never use blades or flailing devices. This unit is designed

for iine trimmer use only. Use of any other accessories or attachments will increase the risk of injury.

A WARNING: Trimmer iine throws objects violentiy. You and others can be blinded/injured. Wear eye and leg protection. Keep body parts clear of ro­ tating line.

Eye Protection

Boots

Keep children, bystanders, and animals 50 feet (15 meters) away. Stop unit im­ mediately if approached.

!f situations occur wtiicti are not cov­ ered in this manual, use care and good judgment. If you need assis­ tance, contact your Sears Service Center or call 1-800-235-5878.

OPERATOR SAFETY

•Dress properly. Always wear safety glasses or similar eye protection when operating, or performing main­ tenance, on your unit (safety glasses are available). Eye protec­ tion should be marked Z87.

•Always wear face or dust mask if op­ eration is dusty.

•Always wear heavy, long pants, long sleeves, boots, and gloves. Wearing safety leg guards is recommended.

•Always wear foot protection. Do not go barefoot or wear sandals. Stay clear of spinning line.

•Secure hair above shoulder length. Secure or remove loose clothing or clothing with loosely hanging ties, straps, tassels, etc. They can be caught in moving parts.

•Being fully covered also helps pro­ tect you from debris and pieces of toxic plants thrown by spinning line.

•Stay Alert. Do not operate this unit

when you are tired, iii, upset or un­ der the influence of alcohol, drugs, or medication. Watch what you are doing: use common sense.

•Wear hearing protection.

•Never start or run inside a closed room or building. Breathing exhaust fumes can kill.

•Keep handles free of oil and fuel.

UNIT / MAINTENANCE SAFETY

•Disconnect the spark plug before performing maintenance except car­ buretor adjustments.

•Look for and replace damaged or loose parts before each use. Look for and repair fuel leaks before use. Keep in good working condition.

•Replace trimmer head parts that are chipped, cracked, broken, or dam­ aged in any other way before using the unit.

•Maintain unit according to recom­ mended procedures. Keep cutting iine at proper iength.

•Use only Craftsman® replacement line. Never use wire, rope, string, etc.

•Instail required shield properly before using the unit. Use only specified trimmer head; make sure it is properly installed and securely fastened.

•Make sure unit is assembled cor­ rectly as shown in this manual.

•Make carburetor adjustments with lower end supported to prevent line from contacting any object.

•Keep others away when making car­ buretor adjustments.

•Use only recommended Craftsman accessories and replacement parts.

•Have al! maintenance and service not explained in this manual per­ formed by a Sears Service Center.

FUEL SAFETY

•Mix and pour fuel outdoors.

•Keep away from sparks or flames.

•Use a container approved for fuel.

•Do not smoke or allow smoking near fuel or the unit.

•Avoid spilling fuel or oil. Wipe up all fuel spills.

•Move at least 10 feet (3 meters) away from fueling site before start­ ing engine.

•Stop engine and allow to cool before removing fuel cap.

•Always store gasoline in a container approved for flammable liquids.

CUTTING SAFETY

^WARNING: inspect the area be­ fore each use. Remove objects (rocks, broken glass, nails, wire, etc.) which can be thrown by or become entangled in iine. Hard objects can damage the trimmer head and be thrown causing serious injury.

•Use only for trimming, scalping, mow­ ing and sweeping. Do not use for edg­ ing, pruning or hedge trimming.

•Keep firm footing and balance. Do not overreach.

•Keep ail parts of your body away from muffler and spinning line. Keep engine below waist level. A hot muffler can cause serious burns.

•Cut from your left to your right. Cutting on right side of the shield wil! throw de­ bris away from the operator.

•Use only in daylight or good artificial light.

•Use only for jobs explained in this manual.

TRANSPORTING AND STORAGE

•Allow engine to cooi before storing or transporting in vehicle.

•Empty the fuel tank before storing or

transporting the unit. Use up fuel left in the carburetor by starting the engine and ietting it run until it stops.

• Store unit and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.

•store unit so line limiter blade cannot accidentally cause injury. The unit can be hung by the tube.

•Store unit out of reach of children.

SAFETY NOTICE: Exposure to vibra­ tions through prolonged use of gaso­ line powered hand tools could cause blood vessel or nerve damage In the fingers, hands, and joints of people prone to circulation disorders or ab­ normal swellings. Prolonged use in cold weather has been linked to blood vessel damage in otherwise healthy people. If symptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek medical attention. An anti­ vibration system does not guarantee the avoidance of these problems. Us­ ers who operate power tools on a con­ tinual and regular basis must monitor

closely their physical condition and the condition of this tool.

SPECIAL NOTICE: This unit is

equipped with a temperature limiting muffler and spark arresting screen which meets the requirements of Cali­ fornia Codes 4442 and 4443. All U.S. forest land and the states of California, Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that many internal combustion en­ gines be equipped with a spark arrest­ ing screen. If you operate in a locale where such regulations exist, you are legally responsible for maintaining the operating condition of these parts. Failure to do so is a violation of the law. For normal homeowner use, the muffler and spark arresting screen will not require any service. After 50 hours of use, we recommend that your muffler be serviced or replaced by a Sears Service Center.

ASSEMBLY

CARTON CONTENTS

Check carton contents against the fol­ lowing list.

Model 358.795580

•Trimmer

•Shield

•Wing Nut (screwed onto shield)

•Container of line

•Container of oil

Examine parts for damage. Do not use damaged parts.

NOTE: If you need assistance or find parts missing or damaged, call 1-800-235-5878.

It is normal for the fuel filter to rattle in the empty fuel tank.

Finding fuel or oil residue on muffler is normal due to carburetor adjustments and testing done by the manufacturer.

ASSEMBLY

WARNING: If received as­ sembled, repeat all steps to ensure your unit is properly assembled and all fasteners are secure.

ADJUSTING THE HANDLE

WARNING: When adjusting the handle, be sure it remains between the trigger and the safety decal.

1.Loosen wing nut on handle.

2.Rotate the handle on the tube to an upright position; retighten wing nut.

ATTACHING SHIELD

A WARN IN G: The sh ield must be properly installed. The shield provides partial protection from the risk of thrown objects to the operator and others and is equipped with a line limiter blade which cuts excess line to the proper length. The line limiter blade (on under­ side of shield) is sharp and can cut you.

For proper orientation of shield, see KNOW YOUR TRIMMER illustration in OP­ ERATION section.

1.Remove wing nut from shield.

2.Insert bracket Into slot as shown.

3.Pivot shield until bolt passes through hole in bracket.

4.Securely tighten wing nut onto bolt.

OPERATION

KNOW YOUR TRIMMER

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location

of the various controls and adjustments. Save this manual for future reference.

Trimmer

Head

Line Limiter

Blade

ON/STOP SWITCH

The ON/STOP switch is used to stop the engine. To stop the engine, push and release the engine ON/STOP switch.

PRIMER BULB

The PRIMER BULB removes air from the carburetor and fuel lines and fills them with fuel. This allows you to start the engine with fewer pulls on the starter rope. Activate the primer bulb by pressing it and allowing it to return to its original form.

Assist Handle

Muffler

CHOKE

The CHOKE helps to supply fuel to the engine to aid in cold starting. Activate the choke by moving the choke lever to the FULL CHOKE position. After the en­ gine attempts to start, move the choke lever to the HALF CHOKE position. Once engine has started, move the choke le­ ver to the OFF CHOKE position.

BEFORE STARTING ENGINE

A WARNING; Be sure to read

the fuel information in the safety rules before you begin. If you do not under­ stand the safety rules, do not attempt to fuel your unit. Call 1-800-235-5878.

FUELING ENGINE

WARNING: Remove fuel cap slowly when refueling.

This engine is certified to operate on unleaded gasoline. Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air-cooled en­ gine oil. We recommend Craftsman brand synthetic oil. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is ob­ tained by mixing 3.2 ounces of oil with 1 gallon of unleaded gasoline. Included with this trimmer is a 3.2 ounce contain­ er of oil. Pour the entire contents of this

container into 1 gallon of gasoline to achieve the proper fuel mixture. DO NOT USE automotive oil or boat oil.

These oils will cause engine damage. When mixing fuel, follow instructions printed on container.

Once oil is added to gasoline, shake container momentarily to assure that the fuel Is thoroughly mixed. Always read and follow the safety rules relat­ ing to fuel before fueling your unit.

IMPORTANT

Experience indicates that alcohol blended fuels {called gasohol or using ethanol or methanol) can attract mois­ ture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel sys­ tem of an engine while in storage.

To avoid engine problems, empty the fuel system before storage for 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season.

Never use engine or carburetor clean­ er products in the fuel tank or perma­ nent damage may occur.

See the STORAGE section for addition­ al information.

HOW TO STOP YOUR UNIT

•To stop the engine, push and re­ lease the engine ON/STOP switch. The switch will automatically return to the ON position. Wait 5 seconds before attempting to restart unit to allow switch to reset.

•If engine does not stop, move choke lever to FULL CHOKE position.

ON/STOP

Switch

Throttle Trigger

HOW TO START YOUR UNIT

^WARNING; The trimmer head will turn while starting the engine.

Avoid any contact with the muffler. A hot muffler can cause serious burns.

STARTING A COLD ENGINE (or a warm engine after running out of fuel)

' d f /''’'I

U; Starting Position

Starter Handle

Choke

Lever

Primer Bulb

Muffler

1.Set unit on a flat surface.

2.Slowly press the primer bulb 6 times.

3.Move choke lever to FULL CHOKE by aligning lever with position shown on decal (see illustration below).

Choke position decal

Squeeze the throttle trigger fully and hold through all remaining steps.

Pull starter rope handle sharply until engine sounds as if it is trying to start, but do not pull rope more than 6 times.

As soon as engine sounds as if it is trying to start, move choke lever to HALF CHOKE by aligning lever with position shown on decal (see following illustration).

Choke position deca!

Pull starter rope sharply until engine runs, but no more than 6 pulls. If the engine doesn’t start after 6 pulls (at the HALF CHOKE position), move the choke lever to the FULL CHOKE position and press the primer bulb 6 times. Squeeze and hold the throttle trigger and pull the starter rope 2 more times. Move the choke lever

to the HALF CHOKE position and pul! the starter rope until the engine

runs, but no more than 6 pulls. If the engine doesn't start, repeat proce­ dure 2 additional times.

NOTE: If engine still doesn't start, it is probably flooded. Proceed to STARTING A FLOODED ENGINE. Once the engine starts, allow it to run 10 seconds, then move the choke lever to OFF CHOKE by aligning lever with position shown on decal (see illustration below). Allow the unit to run for 30 more seconds at OFF CHOKE before re­ leasing the throttle trigger. NOTE: If engine dies with the choke lever in the OFF CHOKE position, move the choke lever to the HALF CHOKE position and pull the rope until engine runs, but no more than 6 pulls.

Choke position deca!

STARTING A WARM ENGINE

1.Move the choke lever to the HALF CHOKE position.

2.Squeeze and hold the throttle trig­ ger. Keep throttle trigger fully squeezed until the engine runs smoothly.

3.Pull starter rope sharply until engine runs, but no more than 5 pulls.

4.Allow/ engine to run 15 seconds, then move the choke lever to the OFF CHOKE position.

NOTE: If engine has not started, pull starter rope 5 more pulls. If engine still does not run, it is probably flooded.

STARTING A FLOODED ENGINE

Flooded engines can be started by placing the choke lever In the OFF CHOKE position; then, pull the rope to clear the engine of excess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded.

If the unit still doesn’t start, refer to TROUBLESHOOTING TABLE or call 1-800-235-5878.

OPERATING POSITION

ill^ WARNING: Always wear eye protection. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury.

When operating unit, stand as shown and check for the following:

•Wear eye protection and heavy clothing.

•Hold trigger handle with right hand and assist handle with left hand.

•Keep unit below waist level.

•Cut only from your left to your right to ensure debris is thrown away from you. Without bending over, keep line near and parallel to the ground and not crowded into material being cut.

Do not run the engine at a higher speed than necessary. The cutting line will cut efficiently when the engine is run at less than full throttle. At lower speeds, there is less engine noise and vibration.

Always release the throttle trigger and allow the engine to return to idle speed when not cutting.

To stop engine;

•Release the throttle trigger.

•Push and release the engine ON/ STOP switch.

CUTTING METHODS

 WARNING: Use minimum speed and do not crowd the line when cutting around hard objects (rock, gravel, fence posts, etc.), which can damage the trimmer head, become entangled in the line, or be thrown causing a serious hazard.

•The tip of the line does the cutting. You will achieve the best perform­ ance and minimum line wear by not crowding the line into the cutting area. The right and wrong ways are shown below.

Tip of line does the Line crowded into cutting ,, work area ,

Right

Wrong

The line will easily remove grass and weeds from around walls, fences, trees and flower beds, but it also can cut the tender bark of trees or shrubs and scar fences.

For trimming or scalping, use less than full throttle to increase line life and decrease head wear, especially:

•During light duty cutting.

•Near objects around which the line can wrap such as small posts, trees or fence wire.

•For mowing or sweeping, use full throttle for a good clean job.

TRIMMING - Hold the bottom of the trimmer head about 3 in. (8 cm) above the ground and at an angle. Allow only the tip of the line to make contact. Do not force trimmer line into work area.

SCALPING - The scalping technique removes unwanted vegetation down to the ground. Hold the bottom of the trimmer head about 3 in. (8 cm) above the ground and at an angle. Allow the tip of the line to strike the ground around trees, posts, monuments, etc. This technique increases line wear.

MOWING - Your trimmer is idea! for mowing in places conventional lawn mowers cannot reach. In the mowing position, keep the line parallel to the ground. Avoid pressing the head into the ground as this can scalp the ground and damage the tool.

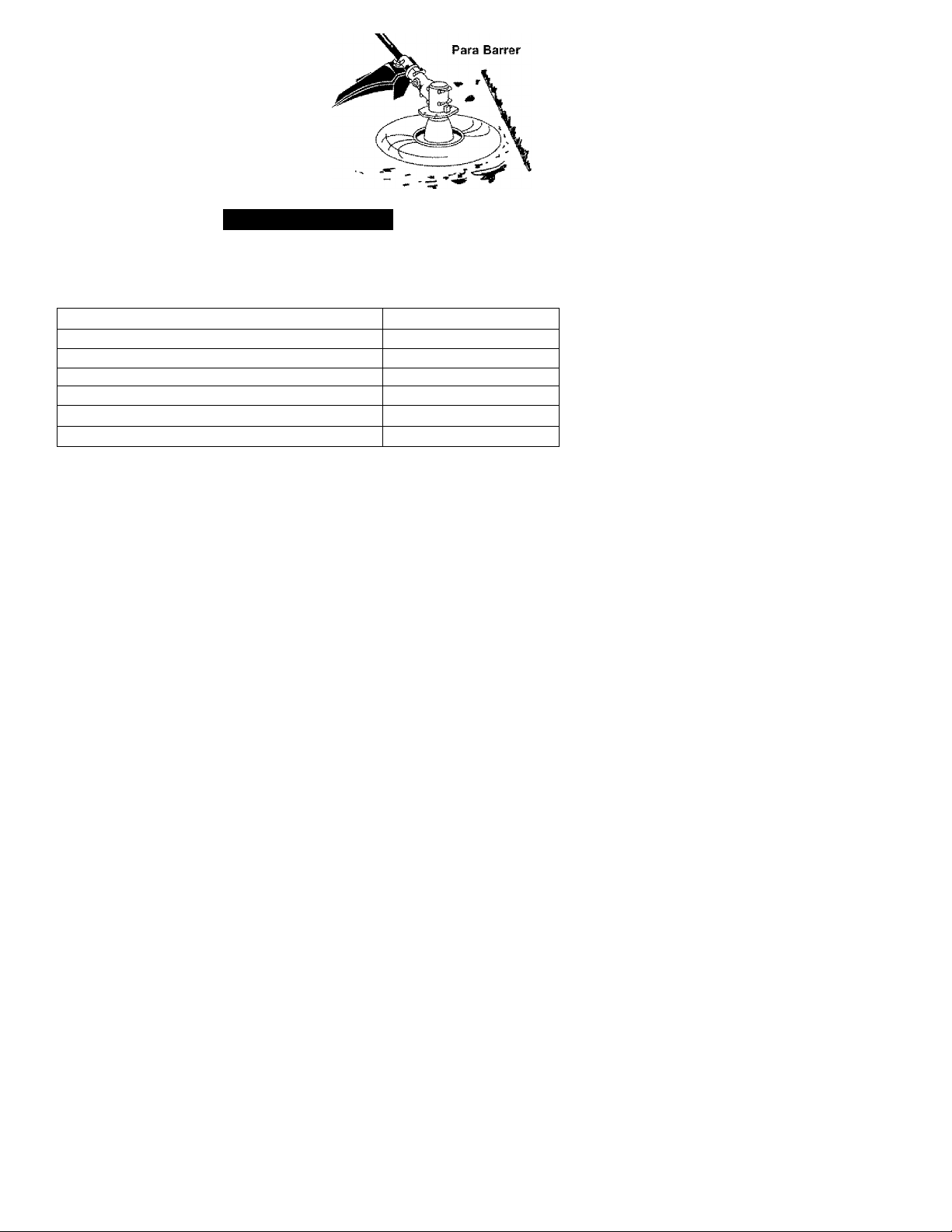

SWEEPING - The fanning action of the rotating line can be used to blow away loose debris from an area. Keep the line parallel to and above the area surface and swing the tool from side to side.

MAINTENANCE

MAINTENANCE SCHEDULE

4l9k WARNING: Disconnect the spark plug before performing maintenance except for carburetor adjustments.

CARE & MAINTENANCE TASK	WHEN TO PERFORM
Check for loose fasteners and parts	Before each use
Check for damaged or worn parts	Before each use
Inspect and clean unit and decals	After each use
Clean air filter	Every 5 hours of operation
Inspect muffler and spark arresting screen	Every 50 hours of operation
Replace spark plug	Yearly

GENERAL RECOMMENDATIONS

The warranty on this unit does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty,

the operator must maintain unit as instructed in this manual. Various ad­ justments will need to be made peri­ odically to properly maintain your unit.

CHECK FOR LOOSE

FASTENERS AND PARTS

•Spark Plug Boot

•Air Filter

•Housing Screws

•Assist Handle Screw

•Debris Shield

CHECK FOR DAMAGED OR WORN PARTS

Contact Sears Service Center for re­ placement of damaged or worn parts.

•ON/STOP Switch - Ensure ON/STOP switch functions properly by pushing and releasing the switch. Make sure engine stops. Wait 5 seconds be­ fore attempting to restart unit to al­ low switch to reset. Restart engine and continue

•Fuel Tank - Discontinue use of unit if fuel tank shows signs of damage or leaks.

•Debris Shield - Discontinue use of unit if debris shield is damaged.

INSPECT AND CLEAN UNIT AND DE­ CALS

•After each use, inspect complete unit for loose or damaged parts. Clean the unit and decals using a damp cloth with a mild detergent.

•Wipe off unit with a clean dry cloth.

CLEAN AIR FILTER

A dirty air filter decreases engine per­ formance and increases fuel consump­ tion and harmful emissions. Always clean after every 5 hours of operation.

1.Clean the cover and the area around it to keep dirt from falling into the carburetor chamber when the cover is removed.

2.Remove parts by pressing button to release air filter cover.

NOTE: To avoid creating a fire hazard or producing harmful evaporative emissions, do not clean filter in gaso­ line or other flammable solvent.

3.Wash the filter in soap and water.

4.Allow filter to dry.

5.Add a few drops of oil to the filter; squeeze the filter to distribute oil.

6.Replace parts.

REPLACE SPARK PLUG

Replace the spark plug each year to ensure the engine starts easier and runs better. Set spark plug gap at

0. 025.in. Ignition timing is fixed and nonadjustable.

1.Twist, then puli off spark plug boot.

2.Remove spark plug from cylinder and discard.

3.Replace with Champion RCJ-6Y spark plug and tighten securely with a 3/4 inch socket wrench.

4.Reinstall the spark plug boot.

SERVICE AND ADJUSTMENTS

LINE REPLACEMENT

•Always use Craftsman replacement line.

Choose the line size best suited for the job at hand. Red line is designed for cutting grass and small weeds. The black colored line is designed for cutting larger weeds and light brush.

NOTE: Before inserting new line into the holes in the cutting head, identify the proper holes. Follow directions as shown on the line glide plate.

1.Remove the old line and line glide plate from the cutting head.

2.Clean entire surface of cutting head.

3.Reinstall line glide plate (see il­ lustration). Align arrow with:

©when using medium (red) or large (black) line

when using lines with diameter @ smaller than medium (red) line

(optional)

Line alide .

plate I Arrow

T — 1

/

Cutting head

NOTE: Line glide plate must be rein­ stalled in cutting head before inserting new line.
