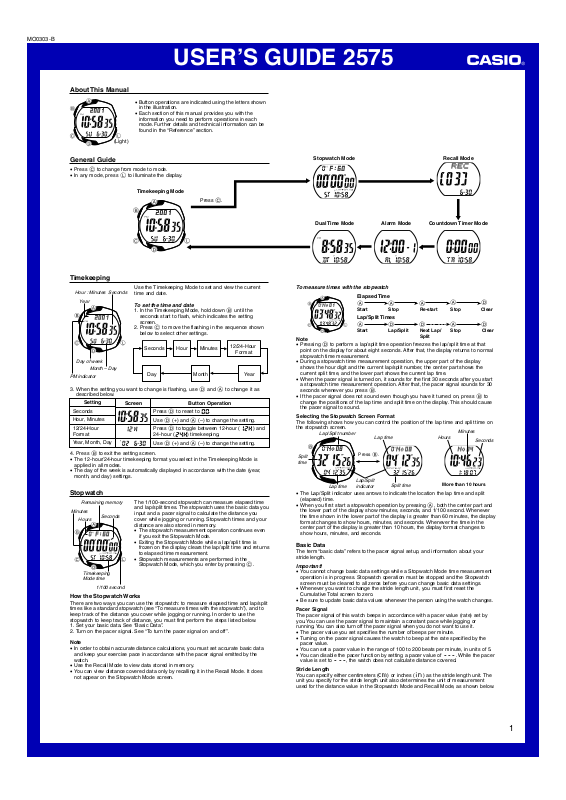

MO0303-B
USER’S GUIDE 2575
• Button operations are indicated using the letters shown in the illustration.
• Each section of this manual provides you with the information you need to perform operations in each mode. Further details and technical information can be found in the “Reference” section.
(Light)
•Press Cto change from mode to mode.
•In any mode, press L to illuminate the display.
Timekeeping Mode
Press C.
▲
Use the Timekeeping Mode to set and view the current
Hour : Minutes Seconds time and date.
Year
To set the time and date
1.In the Timekeeping Mode, hold down B until the seconds start to flash, which indicates the setting screen.
2.Press C to move the flashing in the sequence shown below to select other settings.
Seconds Hour Minutes 12/24-Hour
Format
Day of week |
|
|
|
|
|
|
Month – Day |
|
Day |
|
Month |
|
Year |
PM indicator |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3.When the setting you want to change is flashing, use Dand Ato change it as described below.
Setting |
Screen |
Button Operation |
Seconds |
|
Press D to reset to 00. |
Hour, Minutes |
|
Use D (+) and A(–) to change the setting. |
12/24-Hour |
|
Press Dto toggle between 12-hour (12H) and |
Format |
|
24-hour (24H) timekeeping. |
Year, Month, Day |
|
Use D (+) and A(–) to change the setting. |
|
|
|
4. Press Bto exit the setting screen.
•The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is applied in all modes.
•The day of the week is automatically displayed in accordance with the date (year, month, and day) settings.
Remaining memory
Minutes
Seconds
Hours
Timekeeping
Mode time
1/100 second
The 1/100-second stopwatch can measure elapsed time and lap/split times. The stopwatch uses the basic data you input and a pacer signal to calculate the distance you cover while jogging or running. Stopwatch times and your distance are also stored in memory.
•The stopwatch measurement operation continues even if you exit the Stopwatch Mode.
•Exiting the Stopwatch Mode while a lap/split time is frozen on the display clears the lap/split time and returns to elapsed time measurement.
•Stopwatch measurements are performed in the Stopwatch Mode, which you enter by pressing C.
How the Stopwatch Works
There are two ways you can use the stopwatch: to measure elapsed time and lap/split times like a standard stopwatch (see “To measure times with the stopwatch”), and to keep track of the distance you cover while jogging or running. In order to use the stopwatch to keep track of distance, you must first perform the steps listed below.
1.Set your basic data. See “Basic Data”.
2.Turn on the pacer signal. See “To turn the pacer signal on and off”.
Note
•In order to obtain accurate distance calculations, you must set accurate basic data and keep your exercise pace in accordance with the pacer signal emitted by the watch.
•Use the Recall Mode to view data stored in memory.
•You can view distance covered data only by recalling it in the Recall Mode. It does not appear on the Stopwatch Mode screen.
Stopwatch Mode Recall Mode
▲ |
▲ |
Dual Time Mode |
Alarm Mode |
|
▲ |
|
Countdown Timer Mode |
||||
▲ |
|
▲ |
|
|
To measure times with the stopwatch |
|
|
|
|
Elapsed Time |
|
|
|
|
A |
A |
A |
A |
D |
Start |
Stop |
Re-start |
Stop |
Clear |
Lap/Split Times |
|
|
|
|
A |
D |
D |
A |
D |
Start |
Lap/Split |
Next Lap/ |
Stop |
Clear |
Note |
|
Split |
|
|
|
|
|
|
•Pressing Dto perform a lap/split time operation freezes the lap/split time at that point on the display for about eight seconds. After that, the display returns to normal stopwatch time measurement.
•During a stopwatch time measurement operation, the upper part of the display shows the hour digit and the current lap/split number, the center part shows the current split time, and the lower part shows the current lap time.
•When the pacer signal is turned on, it sounds for the first 30 seconds after you start
a stopwatch time measurement operation. After that, the pacer signal sounds for 30 seconds whenever you press B.
•If the pacer signal does not sound even though you have it turned on, press Bto change the positions of the lap time and split time on the display. This should cause the pacer signal to sound.
Selecting the Stopwatch Screen Format
The following shows how you can control the position of the lap time and split time on
the stopwatch screen.
Minutes
Lap/Split number
|
Lap time |
Hours |
|
|
|
|
Seconds |
Split |
Press B. |
|
|
|
|
|
|
time |
|
|
|
Lap time |
Lap/Split |
Split time |
More than 10 hours |
indicator |
•The Lap/Split indicator uses arrows to indicate the location the lap time and split (elapsed) time.
•When you first start a stopwatch operation by pressing A, both the center part and the lower part of the display show minutes, seconds, and 1/100 second. Whenever the time shown in the lower part of the display is greater than 60 minutes, the display format changes to show hours, minutes, and seconds. Whenever the time in the center part of the display is greater than 10 hours, the display format changes to show hours, minutes, and seconds.
Basic Data
The term “basic data” refers to the pacer signal setup, and information about your stride length.
Important!
•You cannot change basic data settings while a Stopwatch Mode time measurement operation is in progress. Stopwatch operation must be stopped and the Stopwatch screen must be cleared to all zeros before you can change basic data settings.
•Whenever you want to change the stride length unit, you must first reset the Cumulative Total screen to zero.
•Be sure to update basic data values whenever the person using the watch changes.
Pacer Signal
The pacer signal of this watch beeps in accordance with a pacer value (rate) set by you. You can use the pacer signal to maintain a constant pace while jogging or running. You can also turn off the pacer signal when you do not want to use it.
•The pacer value you set specifies the number of beeps per minute.
•Turning on the pacer signal causes the watch to beep at the rate specified by the pacer value.
•You can set a pacer value in the range of 100 to 200 beats per minute, in units of 5.
•You can disable the pacer function by setting a pacer value of xxx. While the pacer value is set to xxx, the watch does not calculate distance covered.
Stride Length
You can specify either centimeters (XM) or inches (Yn) as the stride length unit. The unit you specify for the stride length unit also determines the unit of measurement used for the distance value in the Stopwatch Mode and Recall Mode, as shown below.
1
USER’S GUIDE 2575
Stride Length Unit |
Setting Range |
Setting Increment |
Distance Unit |
|
|
|
|
Centimeters (XM) |
40 to 190 cm |
5 cm |
Kilometers (km) |
|
|
|
|
Inches (Yn) |
16 to 76 in |
2 in |
Miles (mi) |
|
|
|
|
•The following examples illustrate how you can calculate values for this setting.
239 steps required to run around a 300-meter track.
300 (meters) ÷ 239 (steps) = 1.255 (approximately 125 cm)
239 steps required to run around a 330-yard track.
330 (yards) ÷ 239 (steps) × 36 = 49.70 (approximately 50 inches)
To configure your basic data
1. While the Stopwatch Mode screen shows all zeros (0 H00'00''00), hold down Buntil the pacer value
appears flashing on the display. This indicates the
setting screen.
2. Press Cto move the flashing in the sequence shown below to select other settings.
|
|
Pacer value |
|
|
|
|
Pacer signal |
|
|
|
|
Stride length unit |
|
|
|
Stride length |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
3.When the setting you want to change is flashing, use Dand Ato change it as described below.
Setting |
Screen |
Button Operations |
|
|
|
Pacer value |
|
Use D(+) and A(–) to change the setting. |
|
|
• Selecting xxx disables the pacer signal. |
|
|
|
Pacer signal |
|
Press Dto toggle the pacer signal on (ON) |
|
|
and off (OFF). |
|
|
|
Stride length |
|
Use D(+) and A(–) to change the setting. |
|
|
|
Stride length unit |
|
Press Dto toggle between centimeters (XM) |
|
|
and inches (Yn). |
|
|
|
•When the pacer signal is turned on, the pacer signal sounds in accordance with the pacer value while the pacer signal or pacer value setting screen is on the display.
4.Press B to exit the setting screen.
•If you find that the stride length unit won’t change reset the cumulative total to all zeros.
To turn the pacer signal on and off
1. While the Stopwatch Mode screen shows all zeros (0 H00'00''00), hold down Buntil the pacer value
appears flashing on the display. This indicates the setting screen.
2. Press Conce to display the pacer signal setting screen.
3. Press Dto toggle the pacer signal on (ON) and off (OFF).
•A pacer signal on indicator () appears when this setting it turned on.
4.Press Bto exit the setting screen.
|
Distance covered Use the Recall Mode to recall and delete records stored |
|||||
|
|
|
by the Stopwatch Mode. |
|
|
|
|
|
|
• Stopwatch records are stored in “logs” that are created |
|||
|
|
|
automatically by the watch. See “Memory Management” |
|||
|
|
|
for more information. |
|
|
|
|
|
|
• The title screen of the newest log appears first whenever |
|||
|
|
|
you enter the Recall Mode. |
|
|
|
|
|
|
• Log numbers are automatically assigned in sequence, |
|||
|
|
|
starting from 01. |
|
|
|
Log number |
Creation date |
• All of the operations in this section are performed in the |
||||
(Month – Day) |
Recall Mode, which you enter by pressing C. |
|||||
|
|
|
|
|
|
|
|
Log Title Screen |
To recall stopwatch records |
|
|
||
|
|
|
In the Recall Mode, use Bto scroll through the log title |
|||
|
|
|
screens, starting from the newest one, as shown below. |
|||
|
|
|
When the title screen of the log you want is displayed, use |
|||
|
|
|
Dand Ato cycle through the records contained in the log. |
|||
Cumulative Total Screen |
|
|
|
|
||
|
|
|
|
Stopwatch Record |
Best Lap Time |
|
|
|
|
|
Screen |
|
Screen |
▲ |
|
Log Title Screen |
Lap/Split number |
|
BEST indicator |
|
|
|
|
|
|
|
|
|
|
▲ |
|
Split time |
|
|
|
|
|
Press A. |
|
|
|
|
|
Press B. |
|
▲ |
▲ |
|
|
|
|
|
|
||
|
|
|
|
▲ |
|
▲ |
|
|
▲ |
|
Press D. |
|
▲ |
|
|
▲ |
|
|
||
|
|
|
Lap time |
|
||
|
|
|
|
|
||
|
|
|
|
|
|
• The cumulative total screen shows the total distance since the last cumulative total distance reset.
• The locations of the lap time and split time (middle or bottom of the display) in the Stopwatch Record screen are determined by the display format you last selected in the Stopwatch Mode.
• The BEST indicator identifies the record that contains the best lap time in the log.
• If a best lap time record is deleted automatically when the log becomes full, the BEST indicator will not be transferred to the record with the next best lap time. See “Memory Management” for more information about automatic deletion of records.
• The unit of measurement used for the distance calculation depends on the unit you select for your stride length as shown in the table below. See “To configure your basic data” for more information.
Selected Stride Unit |
Distance Unit |
|
|
XM (centimeters) |
km (kilometers) |
|
|
Yn (inches) |
mi (miles) |
To delete a log
1.In the Recall Mode, display the title screen of the log you want to delete.
•See “To reset the cumulative total screen” below for information about what happens when you select the cumulative total screen here.
2.Hold down Aand D until the watch beeps and CLR stops flashing on the display.
•This deletes the log and all the records inside it. Deleting a log does not change the cumulative total distance value.
To reset the cumulative total screen
1.In the Recall Mode, display the cumulative total screen.
2.Hold down A and Duntil the watch beeps and CLR stops flashing on the display.
•This resets the cumulative total distance to zero, without deleting any logs or records. A new cumulative total will start with the next stopwatch operation you perform.
Minutes
Hours
Seconds
Timekeeping Mode time
You can set the countdown timer within a range of one minute to 100 hours. An alarm sounds when the countdown reaches zero.
•You can also select auto-repeat, which automatically restarts the countdown from the original value you set whenever zero is reached.
•Countdown timer functions are available in the Countdown Timer Mode, which you can enter using C.
To set the countdown start time
1.While the countdown start time is on the display in the Countdown Timer Mode, hold down Buntil the hour setting of the countdown start time starts to flash, which indicates the setting screen.
•If the countdown start time is not displayed, use the procedure under “To use the countdown timer” to diplay it.
2.Press Cto move the flashing between the hour and minute settings.
3.Use D(+) and A(–) to change the flashing item.
•To set the starting value of the countdown time to 100 hours, set 0:00.
4.Press Bto exit the setting screen.
To use the countdown timer
Press A while in the Countdown Timer Mode to start the countdown timer.
•When the end of the countdown is reached and auto-repeat is turned off, the alarm sounds for 10 seconds or until you stop it by pressing any button. The countdown time is automatically reset to its starting value when the alarm sounds.
•Press Awhile a countdown operation is in progress to pause it. Press A again to resume the countdown.
•To completely stop a countdown operation, first pause it (by pressing A), and then press D. This returns the countdown time to its starting value.
To turn auto-repeat on and off
While the countdown start time is displayed on the Countdown Timer Mode screen, hold down D for about two seconds to toggle auto-repeat on ( displayed) and
off ( not displayed).
• When auto-repeat is turned on, the alarm sounds and countdown starts again whenever the countdown reaches zero. You can stop the countdown by pressing A, and manually reset to the countdown start time by pressing D.
• Auto-repeat timing repeats up to seven times.
Alarm number
Alarm time (Hour : Minutes)
Timekeeping Mode time
To set an alarm time
You can set five independent Daily Alarms. When an alarm is turned on, the alarm tone sounds when the alarm time is reached. One of the alarms can be configured as a snooze alarm or a one-time alarm, while the other four are one-time alarms.
You can also turn on an Hourly Time Signal that causes the watch to beep twice every hour on the hour.
•There are five alarm screens numbered 1 through 5. The hourly time signal screen is indicated by :00.
•All of the operations in this section are performed in the Alarm Mode, which you enter by pressing C.
1.In the Alarm Mode, use Dto scroll through the alarm screens until the one whose time you want to set is displayed.
x1 |
|
|
x2 |
|
|
x3 |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
:00 x5 x4
•You can configure Alarm 1 as a snooze alarm or a one-time alarm. Alarms 2 through 5 can be used as one-time alarms only.
•The snooze alarm repeats every five minutes.
2.After you select an alarm, hold down Buntil the hour setting of the alarm time starts to flash. This indicates the setting screen.
3.Press Cto move the flashing between the hour and minute settings.
4.While a setting is flashing, use D (+) and A(–) to change it.
•When setting the alarm time using the 12-hour format, take care to set the time correctly as a.m. (no indicator) or p.m. (PM indicator).
5.Press Bto exit the setting screen.
Alarm Operation
The alarm sounds at the preset time for about 10 seconds. In the case of the snooze alarm, the alarm operation is performed a total of seven times, every five minutes, until you turn the alarm off or change it to a one-time alarm.
2
