Page 1
FatExtractor E-500
Operation Manual
11593950 | B en
Page 2
Imprint
Product Identification:
Operation Manual (Original) FatExtractor E-500
11593950
Publication date: 08.2020
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience, especially with respect to structure, illustrations and technical details.
This manual is copyrighted. Information from it may neither be reproduced, distributed, or used for competitive purposes, nor made available to third parties. The manufacture of any component with the aid of
this manual without prior written agreement is also prohibited.
Page 3
BÜCHI Labortechnik AG Table of contents
Table of contents
1 About this document........................................................................................................... 7
1.1 Warning notices in this document........................................................................................................ 7
1.2 Symbols............................................................................................................................................... 7
1.2.1 Warning symbols .....................................................................................................................7
1.2.2 Mark-ups and symbols.............................................................................................................8
1.3 Trademarks.......................................................................................................................................... 8
2 Safety....................................................................................................................................9
2.1 Proper use ........................................................................................................................................... 9
2.2 Use other than intended ...................................................................................................................... 9
2.3 Staff qualification ................................................................................................................................. 9

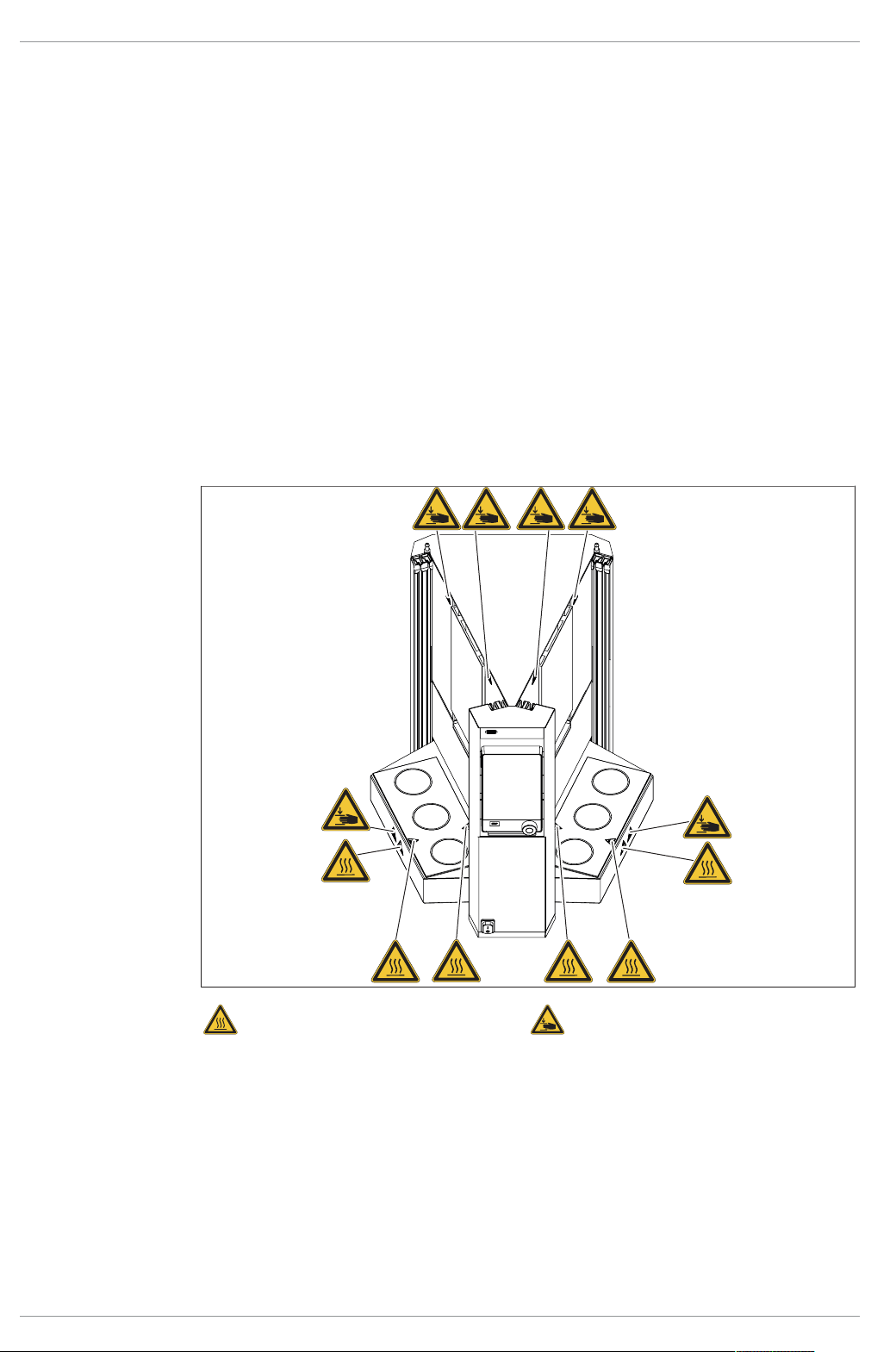

2.4 Location of warning signs on the product .......................................................................................... 10
2.5 Protection devices ............................................................................................................................. 11
2.6 Residual risks .................................................................................................................................... 11
2.6.1 Hot surfaces...........................................................................................................................11
2.6.2 Empty beakers on heating plates...........................................................................................11
2.6.3 Mechanical damages .............................................................................................................11
2.6.4 Glass breakage......................................................................................................................12
2.6.5 Glass damages during extraction process.............................................................................12
2.6.6 Overfilled extraction beakers .................................................................................................12
2.6.7 Spilled hazardous materials...................................................................................................12
2.6.8 Solvent leakages during extraction process ..........................................................................12
2.6.9 Incorrect function of the Analyte Protection Sensors.............................................................13
2.6.10 Traces of dark extracts or residuals of extract foam..............................................................13
2.7 Personal protective equipment .......................................................................................................... 13
2.8 Modifications...................................................................................................................................... 13
3 Product description...........................................................................................................14
3.1 Description of function ....................................................................................................................... 14
3.1.1 Soxhlet Extraction..................................................................................................................14
3.1.2 Hot Extraction ........................................................................................................................15
3.1.3 Economic Continuous Extraction...........................................................................................15
3.1.4 Description of the Analyte Protection Sensor (option) ........................................................... 15
3.2 Configuration ..................................................................................................................................... 16

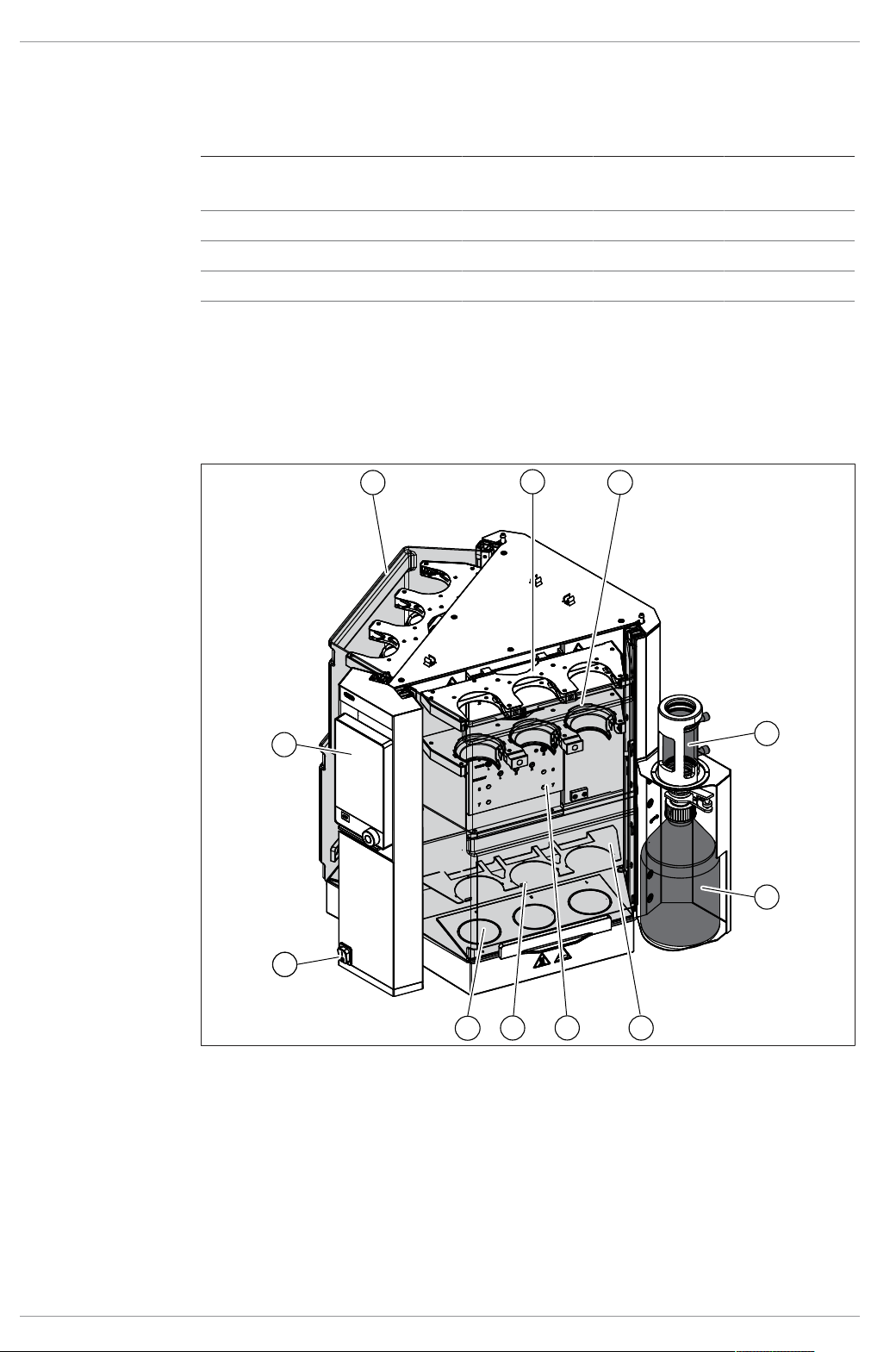

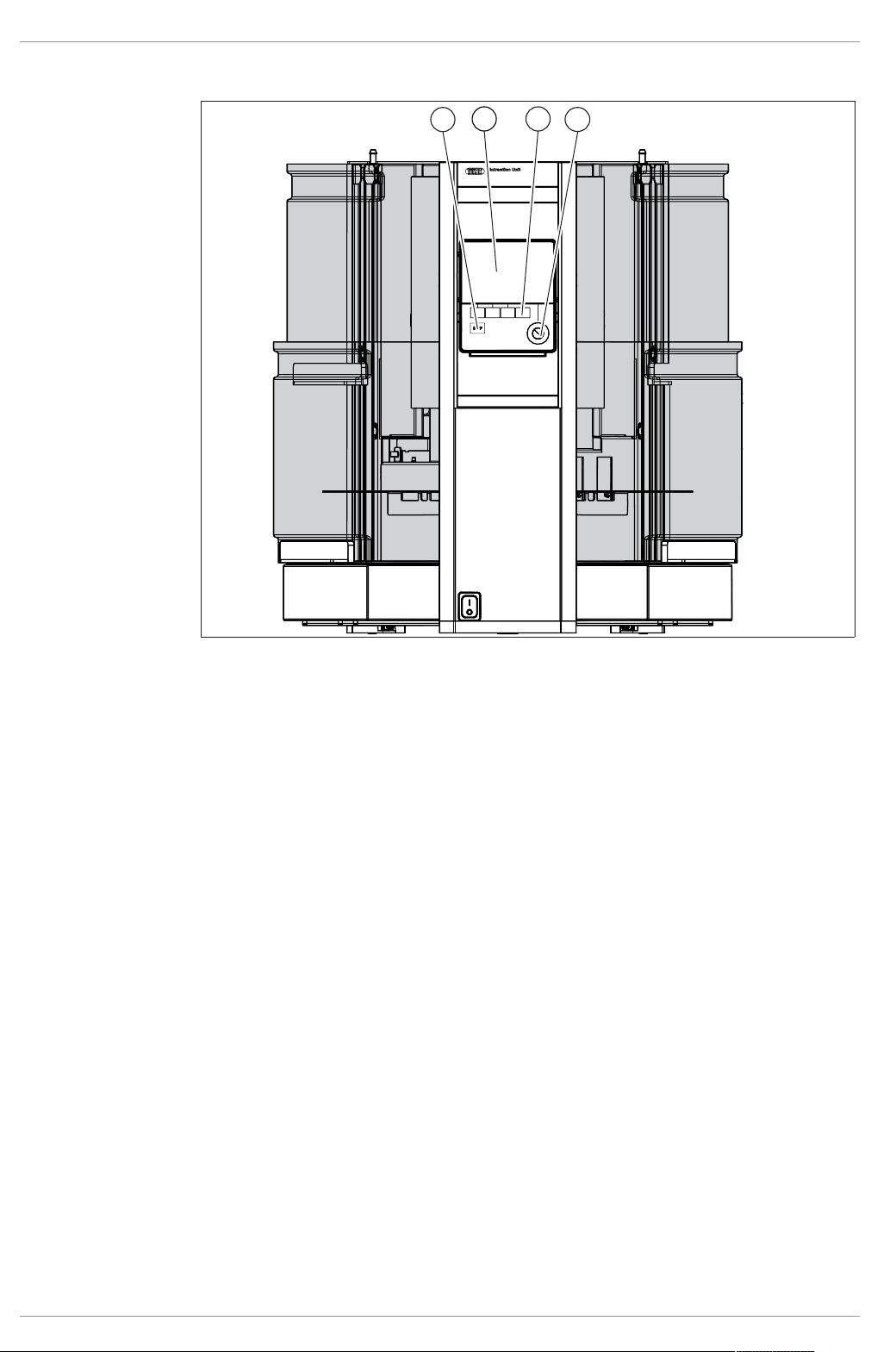

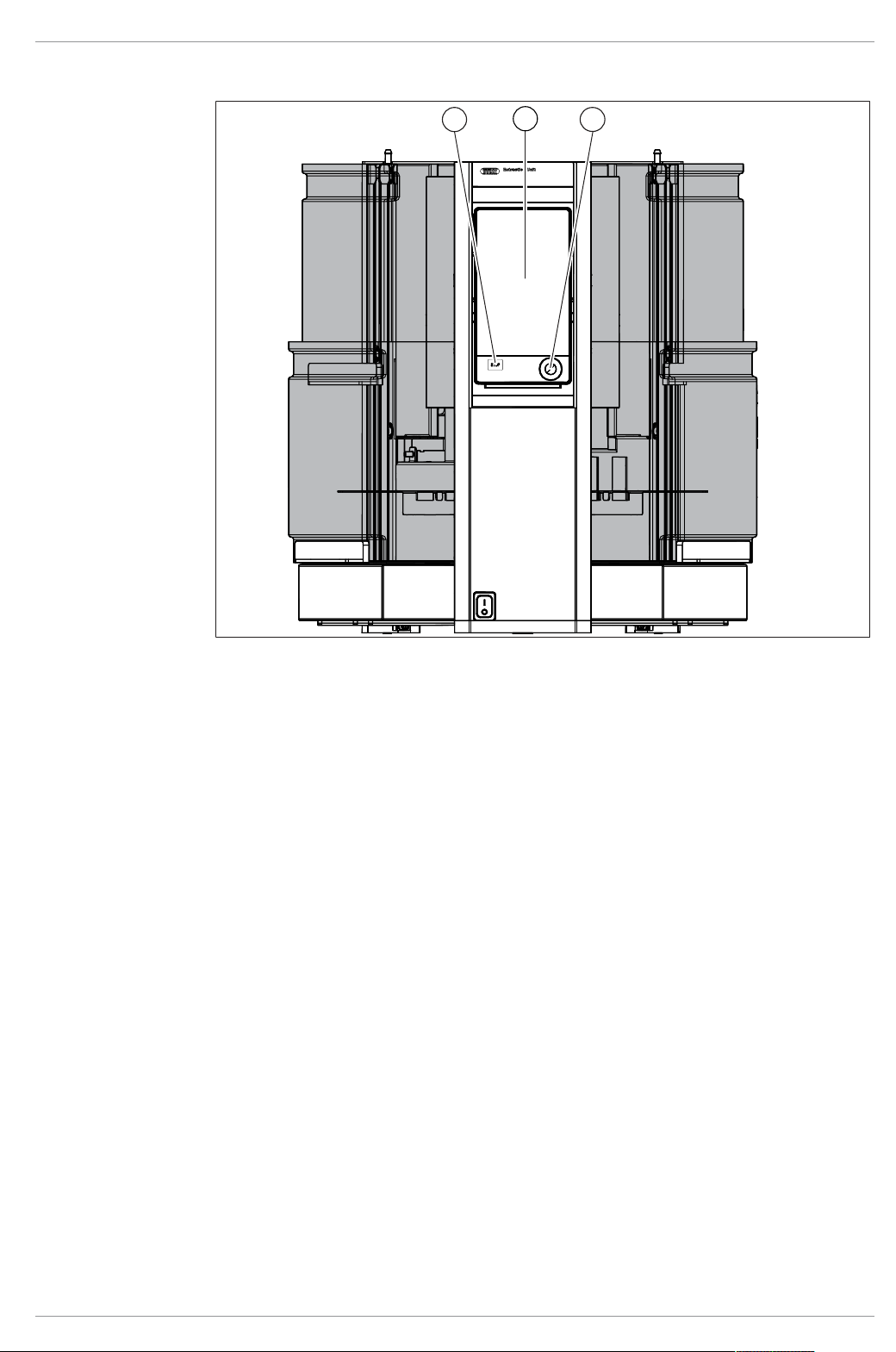

3.2.1 Front view ..............................................................................................................................16
3.2.2 Rear view ...............................................................................................................................17
3.2.3 Upper connections on the rear side.......................................................................................17
3.2.4 Lower connections on the rear side.......................................................................................18
3.2.5 Installation board....................................................................................................................19
3.2.6 Interface.................................................................................................................................20
3.2.7 Pro Interface ..........................................................................................................................21

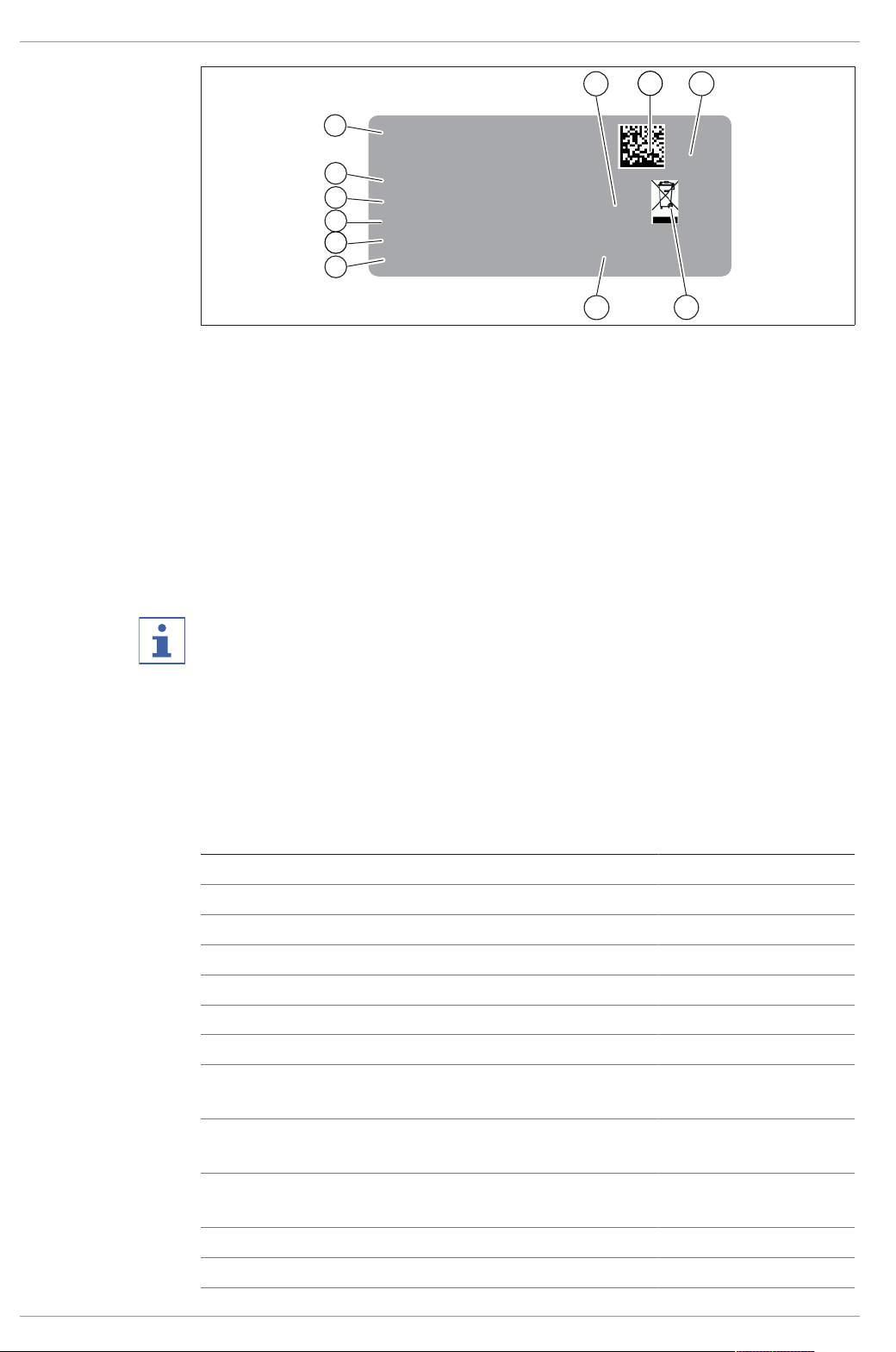

3.3 Type plate.......................................................................................................................................... 21
3.4 Scope of delivery ............................................................................................................................... 22
3.5 Technical data ................................................................................................................................... 22
3.5.1 FatExtractor E-500.................................................................................................................22
3.5.2 Ambient conditions.................................................................................................................23
3.5.3 Materials ................................................................................................................................24
4 Transport and storage ......................................................................................................25
4.1 Transport ........................................................................................................................................... 25
4.2 Storage .............................................................................................................................................. 25
4.3 Lifting the instrument ......................................................................................................................... 25
Operation Manual FatExtractor E-500 iii
Page 4
Table of contents BÜCHI Labortechnik AG
5 Installation..........................................................................................................................27
5.1 Before installation .............................................................................................................................. 27
5.2 Installation site................................................................................................................................... 27
5.3 Establishing electrical connections.................................................................................................... 27
5.4 Securing against earthquakes ........................................................................................................... 28
5.5 Connecting the coolant hose ............................................................................................................. 28
5.6 Connecting the solvent tubes to the condenser tank bottle............................................................... 29
5.7 Connecting the coolant tubes to the condenser tank bottle............................................................... 30
5.8 Preparing the tank bottle.................................................................................................................... 30
5.9 Preparing the instrument for Soxhlet Extraction ................................................................................ 31
5.9.1 Installations for Soxhlet Extraction.........................................................................................31
5.9.2 Preparing the extraction glass chamber Soxhlet ...................................................................31
5.9.3 Installing the extraction glass chamber Soxhlet.....................................................................32
5.10 Preparing the instrument for Hot Extraction....................................................................................... 33
5.10.1 Installations for Hot Extraction ............................................................................................... 33
5.11 Preparing the instrument for Economic Continuous Extraction ......................................................... 34
5.11.1 Installations for Economic Continuous Extraction..................................................................34
5.11.2 Preparing the extraction glass chamber for an Economic Continuous Extraction ................. 34
5.11.3 Installing the extraction glass chamber Economic Continuous Extraction.............................34

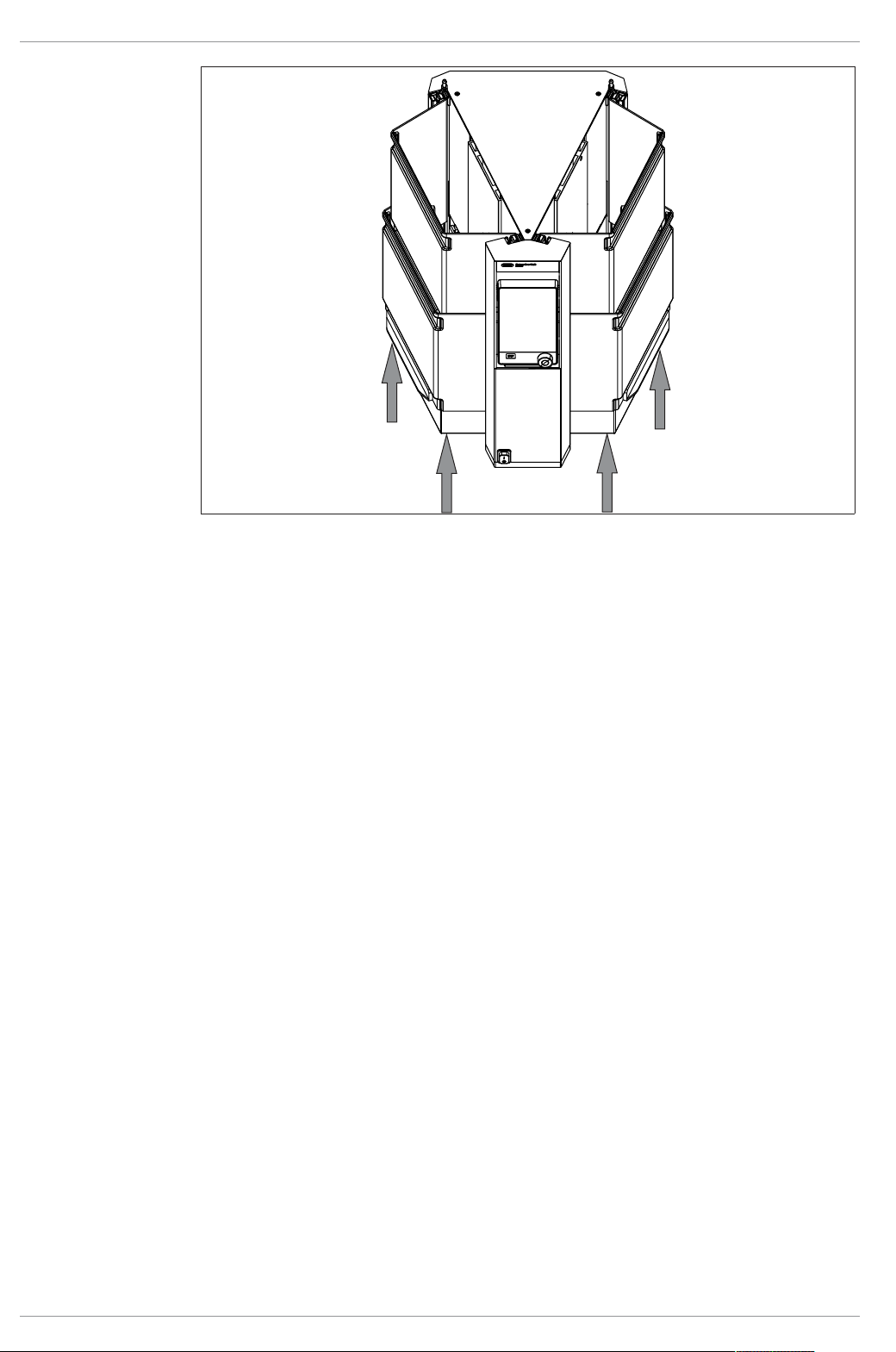

5.12 Installing the protection shields.......................................................................................................... 35
5.12.1 Installing two protection shields (Soxhlet only) ...................................................................... 35
5.12.2 Installing one protection shield (Hot and Economic Continuous Extraction only)..................36
5.13 Preparing the condenser ................................................................................................................... 36
5.14 Selecting a configuration ................................................................................................................... 39
5.15 Disassembling the condenser circuit ................................................................................................. 39
5.16 Mobile connection.............................................................................................................................. 40
5.16.1 Requirements for local network settings................................................................................40
5.16.2 Preparing the instrument for app using..................................................................................40
6 Operating the interface .....................................................................................................42

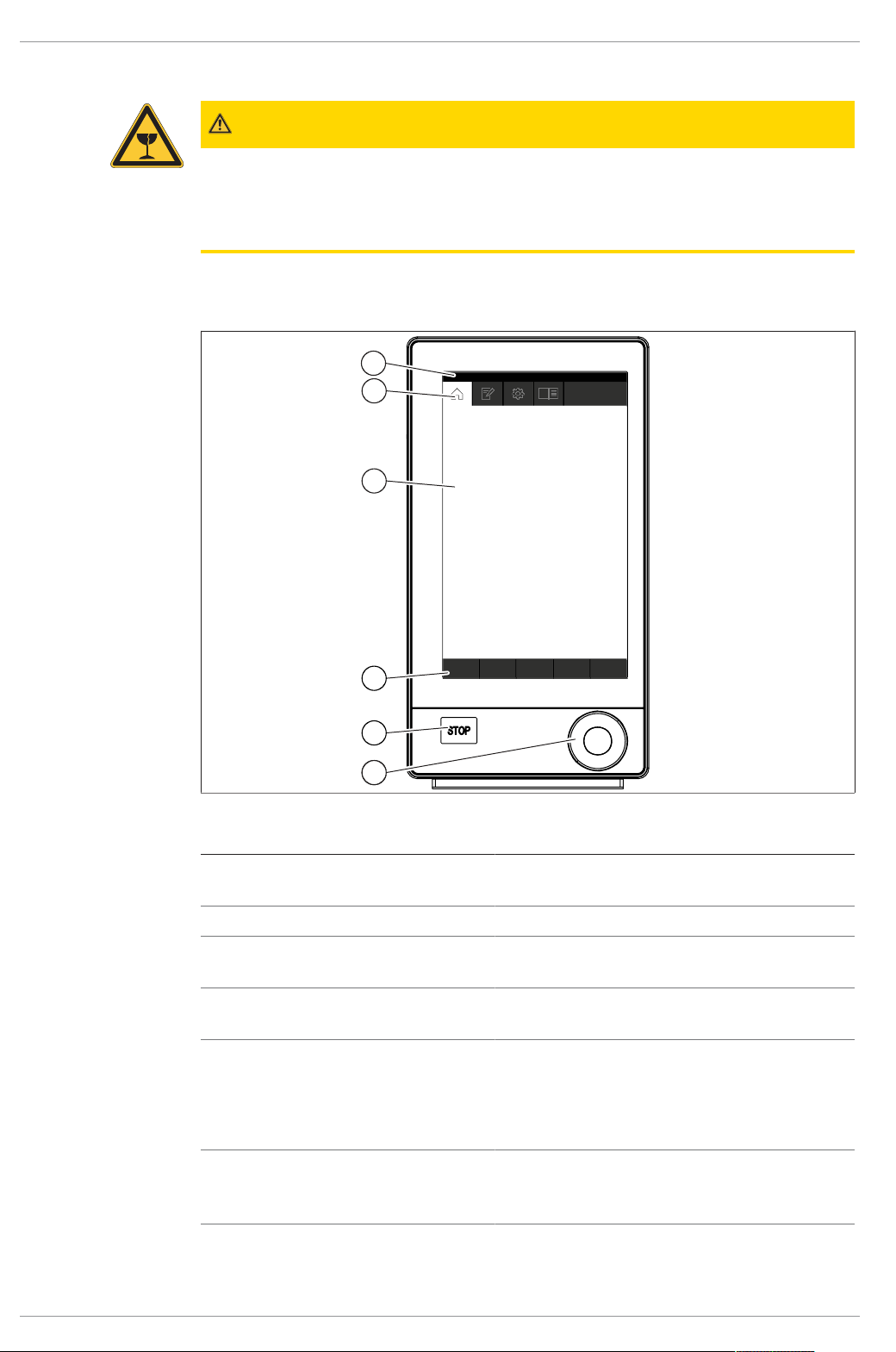

6.1 Layout of the interface ....................................................................................................................... 42
6.2 Function bar....................................................................................................................................... 42
6.3 Menu bar............................................................................................................................................ 43
6.3.1 Home menu ...........................................................................................................................44
6.3.2 Method menu.........................................................................................................................44
6.3.3 Configuration menu................................................................................................................44
6.3.4 Solvent menu.........................................................................................................................47
6.4 Status bar .......................................................................................................................................... 47
7 Operating the interface pro ..............................................................................................48
7.1 Layout of the interface ....................................................................................................................... 48
7.2 Function bar....................................................................................................................................... 49
7.3 Menu bar............................................................................................................................................ 49
7.3.1 Home menu ...........................................................................................................................50
7.3.2 Method menu.........................................................................................................................50
7.3.3 Configuration menu................................................................................................................51
7.3.4 Solvent menu.........................................................................................................................53
7.4 Status bar .......................................................................................................................................... 53
iv Operation Manual FatExtractor E-500
Page 5
BÜCHI Labortechnik AG Table of contents
8 Editing a method ...............................................................................................................54
8.1 Creating a new method...................................................................................................................... 54
8.2 Changing the name of a method ....................................................................................................... 54
8.3 Setting the solvent of a method ......................................................................................................... 54
8.4 Setting the extraction time of a method ............................................................................................. 55
8.5 Setting the extraction cycles of a method (Soxhlet Extraction only).................................................. 55
8.6 Setting the extraction heating level of a method................................................................................ 56
8.7 Setting the Soxhlet valve open time of a method (Soxhlet only) ....................................................... 56
8.8 Setting the rinse time of a method (Soxhlet and Hot Extraction only) ............................................... 57
8.9 Setting the rinse heating level of a method (Soxhlet and Hot Extraction only).................................. 57
8.10 Setting the number of drains for a method (Hot Extraction only)....................................................... 58
8.11 Setting SmartDrying (Soxhlet and Economic Continuous Extraction only)........................................ 58
8.12 Setting the drying time of a method................................................................................................... 59
8.13 Setting the drying heating level of a method...................................................................................... 59
9 Performing an extraction ..................................................................................................61
9.1 Task during performing an extraction ................................................................................................ 61
9.1.1 Adding solvent through the condenser ..................................................................................61
9.2 Putting the glass sample tube with frit in the extraction glass chamber ............................................ 62
9.3 Performing a Soxhlet Extraction ........................................................................................................ 63
9.3.1 Adjusting the optical sensor on the extraction glass chamber Soxhlet..................................63
9.3.2 Preparing the instrument for a Soxhlet Extraction .................................................................63
9.3.3 Selecting a method ................................................................................................................ 63
9.3.4 Selecting the extraction positions ..........................................................................................64
9.3.5 Starting a Soxhlet Extraction..................................................................................................64
9.3.6 Ending a Soxhlet Extraction...................................................................................................65
9.3.7 Shutting down the instrument ................................................................................................65
9.4 Performing a Hot Extraction............................................................................................................... 66
9.4.1 Preparing the instrument for a Hot Extraction........................................................................66
9.4.2 Selecting a method ................................................................................................................ 66
9.4.3 Selecting the extraction positions ..........................................................................................66
9.4.4 Starting a Hot Extraction........................................................................................................67
9.4.5 Ending a Hot Extraction ......................................................................................................... 67
9.4.6 Shutting down the instrument ................................................................................................68
9.5 Performing an Economic Continuous Extraction ............................................................................... 68
9.5.1 Preparing the instrument for an Economic Continuous Extraction ........................................68
9.5.2 Selecting a method ................................................................................................................ 68
9.5.3 Selecting the extraction positions ..........................................................................................68
9.5.4 Starting an Economic Continuous Extraction.........................................................................69
9.5.5 Ending an Economic Continuous Extraction..........................................................................70
9.5.6 Shutting down the instrument ................................................................................................70
9.6 Exporting extraction parameters........................................................................................................ 70
9.6.1 Exporting extraction parameters without cloud connection....................................................70
9.6.2 Exporting extraction parameters with cloud connection.........................................................71
10 Editing a solvent................................................................................................................72
10.1 Creating a new solvent ...................................................................................................................... 72
10.2 Changing the name of a solvent (own created solvents only) ........................................................... 72
Operation Manual FatExtractor E-500 v
Page 6
Table of contents BÜCHI Labortechnik AG
11 Cleaning and servicing .....................................................................................................73
11.1 Regular maintenance work................................................................................................................ 73

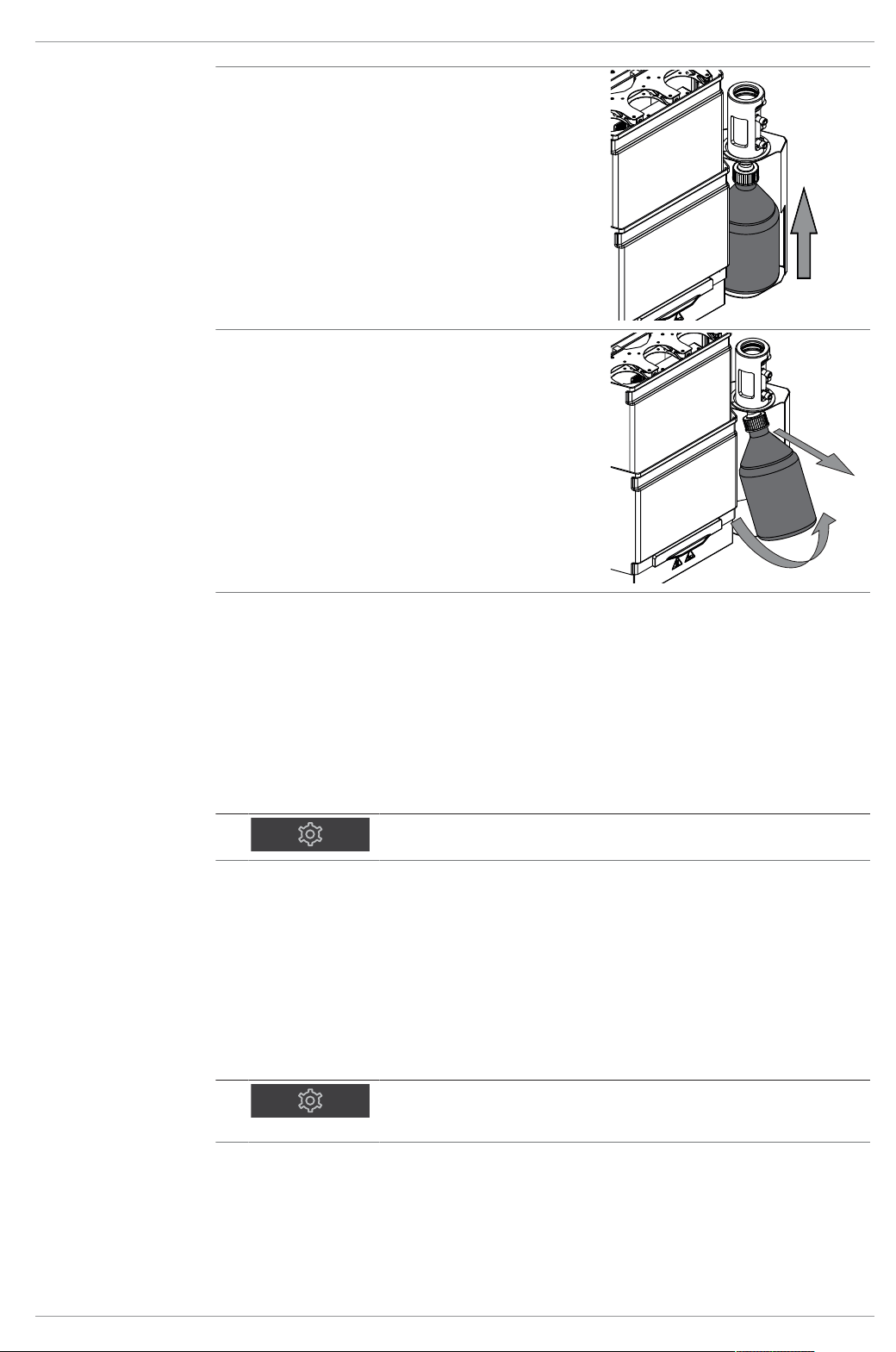

11.2 Removing the tank bottle................................................................................................................... 74
11.3 Draining solvent from the instrument................................................................................................. 75
11.3.1 Switch on the pump ...............................................................................................................75
11.3.2 Open the tank valves ............................................................................................................. 75
11.3.3 Switch of the pump ................................................................................................................76
11.4 Draining solvent from Extraction glass chamber (Soxhlet only) ........................................................ 76
12 Help with faults ..................................................................................................................77
12.1 Troubleshooting................................................................................................................................. 77
12.2 Draining solvent from Extraction glass chamber (Soxhlet only) ........................................................ 79
13 Taking out of service and disposal.................................................................................. 80
13.1 Taking out of service.......................................................................................................................... 80
13.2 Disposal............................................................................................................................................. 80
13.3 Returning the instrument ................................................................................................................... 80
14 Appendix ............................................................................................................................81
14.1 Schematics ........................................................................................................................................ 81
14.1.1 Condenser circuit ...................................................................................................................81
14.1.2 Solvent collector schematic ...................................................................................................82

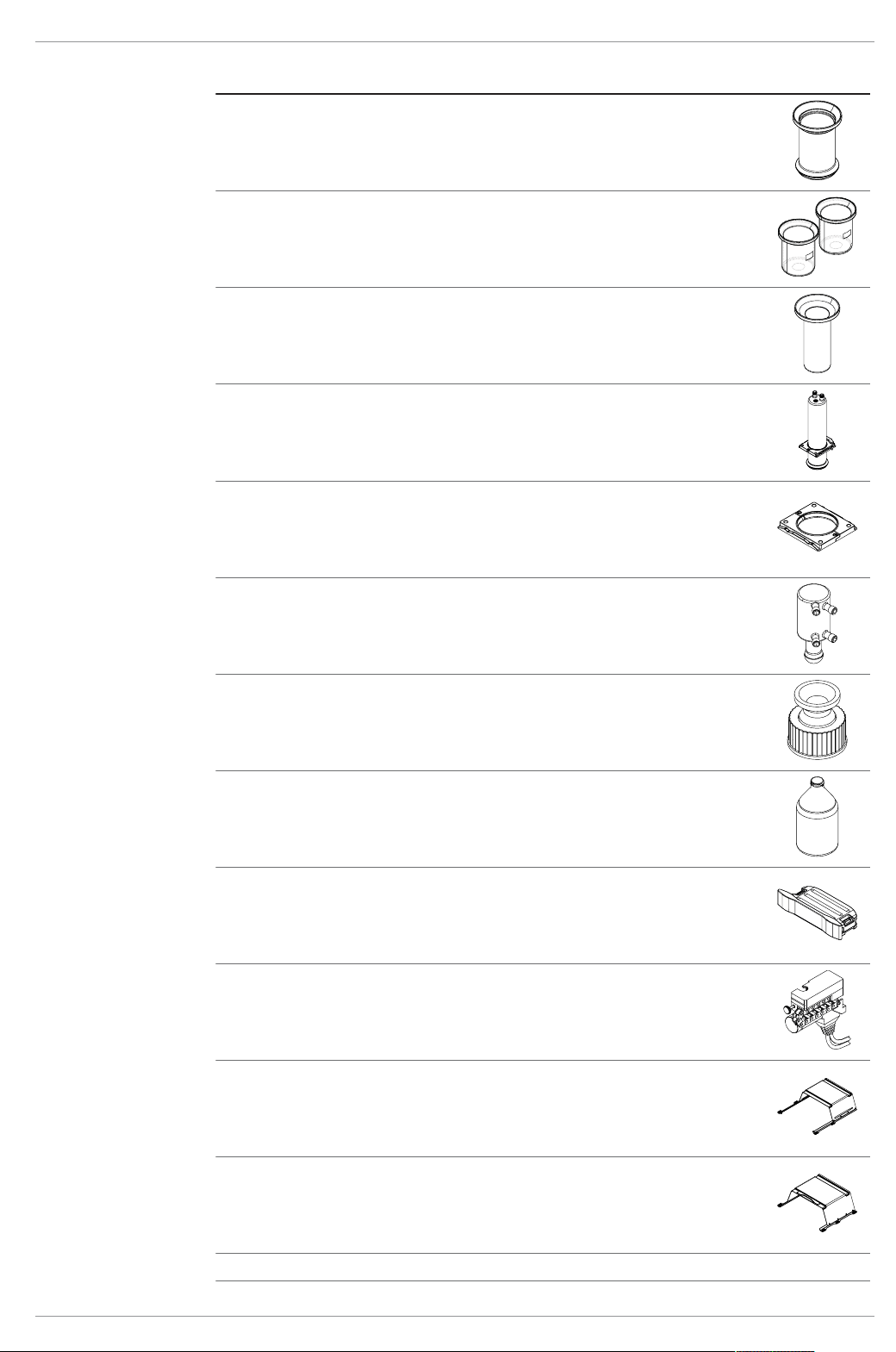

14.2 Spare parts and accessories ............................................................................................................. 82
14.2.1 Spare parts ............................................................................................................................82
14.2.2 Conversion and upgrade kits ................................................................................................. 84
14.2.3 Accessories............................................................................................................................85
14.2.4 Consumables .........................................................................................................................86
14.2.5 Holder for extraction thimbles ................................................................................................ 86
14.2.6 Glass sample tubes and extraction thimbles .........................................................................86
14.2.7 Documentation.......................................................................................................................87
vi Operation Manual FatExtractor E-500
Page 7
BÜCHI Labortechnik AG About this document | 1
1 About this document
This operation manual is applicable for all variants of the instrument.
Read this operation manual before operating the instrument and follow the instructions to ensure safe and trouble-free operation.
Keep this operation manual for later use and pass it on to any subsequent user or
owner.
BÜCHI Labortechnik AG accepts no liability for damage, faults and malfunctions resulting from not following this operation manual.
If you have any questions after reading this operation manual:
u Contact BÜCHI Labortechnik AG Customer Service.
https://www.buchi.com/contact
1.1 Warning notices in this document
Warning notices warn you of dangers that can occur when handling the device. There
are four danger levels, each identifiable by the signal word used.
Signal word Meaning
DANGER Indicates a danger with a high level of risk which could result in
death or serious injury if not prevented.
WARNING Indicates a danger with a medium level of risk which could result in
CAUTION Indicates a danger with a low level of risk which could result in mi-
NOTICE Indicates a danger that could result in damage to property.
1.2 Symbols
The following symbols are displayed in this operation manual or on the device:
1.2.1 Warning symbols
Symbol Meaning
death or serious injury if not prevented.
nor or medium-severity injury if not prevented.
General warning
Hot surface
Breakable items
Hand injuries
Flammable substances
Operation Manual FatExtractor E-500 7/88
Page 8
1 | About this document BÜCHI Labortechnik AG
1.2.2 Mark-ups and symbols
NOTE
This symbol draws attention to useful and important information.
R This character draws attention to a requirement that must be met before the in-
structions below are carried out.
u This character indicates an instruction that must be carried out by the user.
ð This character indicates the result of a correctly carried out instruction.
Mark-up Explanation
Win dow Software Windows are marked-up like this.
Tab Tabs are marked-up like this.
Dia log Dialogs are marked-up like this.
[Button] Buttons are marked-up like this.
[Field names] Field names are marked-up like this.
[Menu / Menu item] Menus or menu items are marked-up like this.
Status Status is marked-up like this.
Signal Signals are marked-up like this.
1.3 Trademarks
Product names and registered or unregistered trademarks that are used in this document are used only for identification and remain the property of the owner in each
case.
8/88 Operation Manual FatExtractor E-500
Page 9
BÜCHI Labortechnik AG Safety | 2
2 Safety
2.1 Proper use
The FatExtractor E-500 is designed for the extraction (solid-liquid extraction) of samples with known solvents and the reduction or drying of the extract.
The FatExtractor E-500 can be used in laboratories for the following tasks:
Soxhlet Extraction
Hot Extraction
Economic Continuous Extraction
The FatExtractor E-500 can be used with following solvents:
Chloroform
Diethyl ether
Hexane
Petroleum ether
Other solvents only with the prior written approval of BÜCHI Labortechnik AG.
2.2 Use other than intended
Use of any kind other than that described in Chapter2.1 "Proper use", page9 and
any application that does not comply with the technical specifications constitutes use
other than that intended.
In particular, the following applications are not permissible:
Use of the instrument in areas which require explosion-safe apparatus.
Processing samples which could be caused to explode or ignite by impact, friction,
heat or sparks (e.g. explosives).
Use of the instrument with samples that react with solvent.
Use of the instrument with solvents containing peroxides.
Use of the instrument with other than original BUCHI glassware.
Use of the instrument in overpressure situations.
Use of solvent with ignition point less than 160°C.
Use of solvents without the prior written approval of BUCHI Labortechnik AG.
2.3 Staff qualification
Unqualified persons are unable to identify risks and are therefore exposed to greater
dangers.
The device may only be operated by suitably qualified laboratory staff.
These operating instructions are aimed at the following target groups:
Users
Users are persons that meet the following criteria:
They have been instructed in the use of the device.
They are familiar with the contents of these operating instructions and the applica-
ble safety regulations and apply them.
They are able on the basis of their training or professional experience to assess
the risks associated with the use of the device.
Operation Manual FatExtractor E-500 9/88
Page 10
2 | Safety BÜCHI Labortechnik AG
Operator
The operator (generally the laboratory manager) is responsible for the following aspects:
The device must be correctly installed, commissioned, operated and serviced.
Only suitably qualified staff may be assigned the task of performing the operations
described in these operating instructions.
The staff must comply with the local applicable requirements and regulations for
safe and hazard-conscious working practices.
Safety-related incidents that occur while using the device should be reported to the
manufacturer (quality@buchi.com).
BUCHI service technicians
Service technicians authorized by BUCHI have attended special training courses and
are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair
measures.
2.4 Location of warning signs on the product
Hot surfaces Hand injuries
10/88 Operation Manual FatExtractor E-500
Page 11
BÜCHI Labortechnik AG Safety | 2
1
2

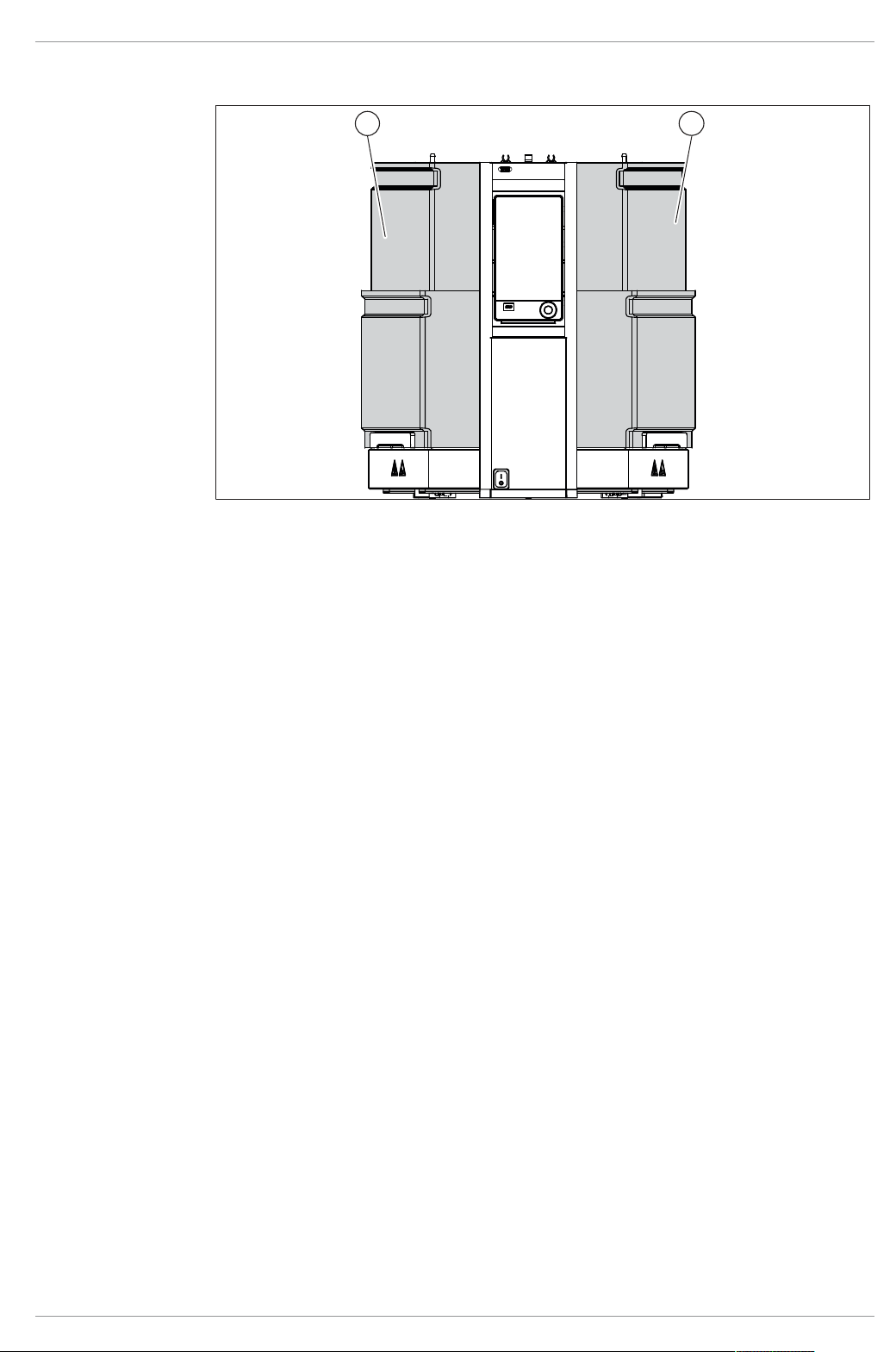

2.5 Protection devices
Fig.1: Protection devices
1 Protection shield 2 Protection shield
2.6 Residual risks
The device has been developed and manufactured using the latest technological advances. Nevertheless, risks to persons, property or the environment can arise if the
device is used incorrectly.
Appropriate warnings in this manual serve to alert the user to these residual dangers.
2.6.1 Hot surfaces
The surfaces of the device can become very hot. If touched they can cause skin
burns.
u Do not touch hot surfaces or else wear suitable protective gloves.
2.6.2 Empty beakers on heating plates
Empty beakers on active heating plates lead to very hot surfaces and can damage
the instrument and the beakers.
u Remove empty beakers from the instrument.
u Deactivate heating positions not used.
u Use optimized extraction parameters, drying parameters and solvent amounts
(e.g. from BUCHIs technical and application notes).
2.6.3 Mechanical damages
If a device is damaged, sharp edges, moving parts or exposed electrical wires can
cause injuries.
u Check device regularly for visible damage.
u Make sure that the locking mechanism of the protection shield is working properly.
u If faults occur:
Switch off the device immediately.
Unplug the power cord.
Inform the operator.
Cool the device before taking any further action.
Operation Manual FatExtractor E-500 11/88
Page 12
2 | Safety BÜCHI Labortechnik AG
u Do not continue to use devices that are damaged.
2.6.4 Glass breakage
Broken glass can cause severe cuts.
Not visible cracks on glassware can lead to breakage.
u Wear protective gloves when handling broken glassware.
u Handle the glass components carefully and do not drop them.
u Always place the glassware in a suitable holder when they are not in use.
u Prevent any mechanical impact.
u Prevent thermal shocks on glassware (e.g. do not put hot glassware on cold sur-
face).
u Always visually inspect glass components for damage every time they are used.
u Do not continue to use glass components that are damaged.
u Do not use beakers which have been heated empty on a heating plate for more
than 20 minutes.
2.6.5 Glass damages during extraction process
Glass damages during the extraction process can cause instrument damages caused
by solvents, coolant and fire.
u If fault occurs:
Switch off the device immediately.
Unplug the power cord.
Inform the operator.
Let the temperature of the instrument decrease under observation until it is the
same as the ambient.
2.6.6 Overfilled extraction beakers
Overfilled extraction beakers can cause spills and lead to instrument damage or fire.
u Do not fill more than 175 mL in the extraction beakers.
u Do not fill more than 320 mL in the extraction beakers LSV.
u Do not fill more than 100 mL in the extraction beakers HE.
2.6.7 Spilled hazardous materials
It is the responsibility of the operator to ensure the safety of users and the selection of
correct decontamination agents.
u Make sure that the personal protective equipment meets the requirements of the
safety data sheets for the chemicals used.
u Make sure that the decontamination agent meets the requirements of the safety
data sheets for the chemicals used.
u Make sure that the decontamination agent is compatible with the materials used.
See Chapter3.5 "Technical data", page22
u If you have any further questions, contact BUCHI Customer Service.
2.6.8 Solvent leakages during extraction process
Solvent leaking systems can cause dangerous solvent vapors that lead to instrument
damage or fire.
u Check proper installation of the sealings and condition of sealings before each
use.
u Change seals if necessary.
u Check all the connections of solvent tubes after installation.
u Observe the instrument after the start of the extraction until the solvent con-
denses.
12/88 Operation Manual FatExtractor E-500
Page 13
BÜCHI Labortechnik AG Safety | 2
u If fault occurs:
Switch off the device immediately.
Unplug the power cord.
Inform the operator.
Let the temperature of the instrument decrease under observation until it is the
same as the ambient.
2.6.9 Incorrect function of the Analyte Protection Sensors
u Do not cover or modify the analyte protection sensors.
u Only use clean beakers for extraction.
u Keep the reflector foils clean.
2.6.10 Traces of dark extracts or residuals of extract foam
Traces of dark extracts or residuals of extract foam on the beaker walls can lead to
the incorrect functioning of the analyte protection sensor.
2.7 Personal protective equipment
Depending on the application, hazards due to heat and/or corrosive chemicals may
arise.
u Always wear appropriate personal protective equipment such as safety goggles,
protective clothing and gloves.
u Make sure that the personal protective equipment meets the requirements of the
safety data sheets for all chemicals used.
2.8 Modifications
Unauthorized modifications may impair safety and lead to accidents.
u Use only genuine BUCHI accessories, spare parts and consumables.
u Technical modifications to the device or accessories should only be carried out
with the prior written approval of BÜCHI Labortechnik AG and only by authorized
BUCHI technicians.
BUCHI accepts no liability whatsoever for damage arising as a result of unauthorized
modifications.
Operation Manual FatExtractor E-500 13/88
Page 14
3 | Product description BÜCHI Labortechnik AG
3 Product description
3.1 Description of function
The FatExtractor E-500 is designed to carry out the following solid-liquid extraction
methods:
Soxhlet Extraction (see Chapter3.1.1 "Soxhlet Extraction", page14)
Hot Extraction (see Chapter3.1.2 "Hot Extraction", page15)
Economic Continuous Extraction (see Chapter3.1.3 "Economic Continuous Extrac-
tion", page15)

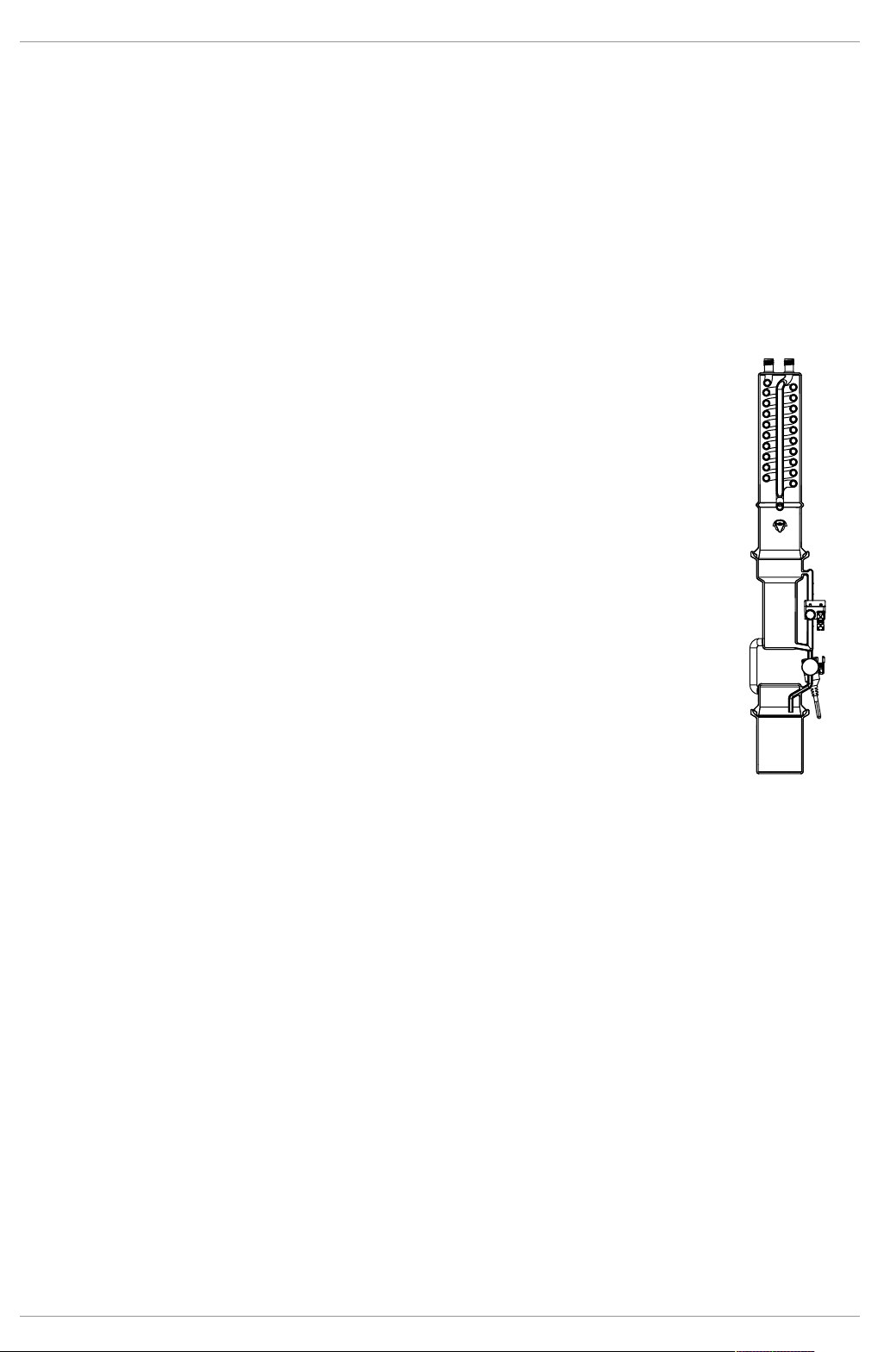

3.1.1 Soxhlet Extraction
Step 1: Extraction
The sample is located in the extraction chamber.
The beaker contains the solvent.
The solvent is heated, vapor rises up to the condenser, con-
denses and drops into the extraction chamber with the sample.
The magnetic valve is closed, the solvent is collected up to the
optical sensor and extracts the analyte.
When the optical sensor is reached, the magnetic valve opens
and the solvent containing the analyte flows back into the beaker.
Step 2: Rinsing
The solvent is heated, vapor rises up to the condenser, con-
denses and drops into the extraction chamber with the sample.
The magnetic valve is open, the solvent flows back into beaker,
the solvent is not collected.
Step 3: Drying
The solvent is heated, vapor rises up to the condenser, con-
denses and flows into tank.
The analyte remains in the beaker.
14/88 Operation Manual FatExtractor E-500
Page 15
BÜCHI Labortechnik AG Product description | 3

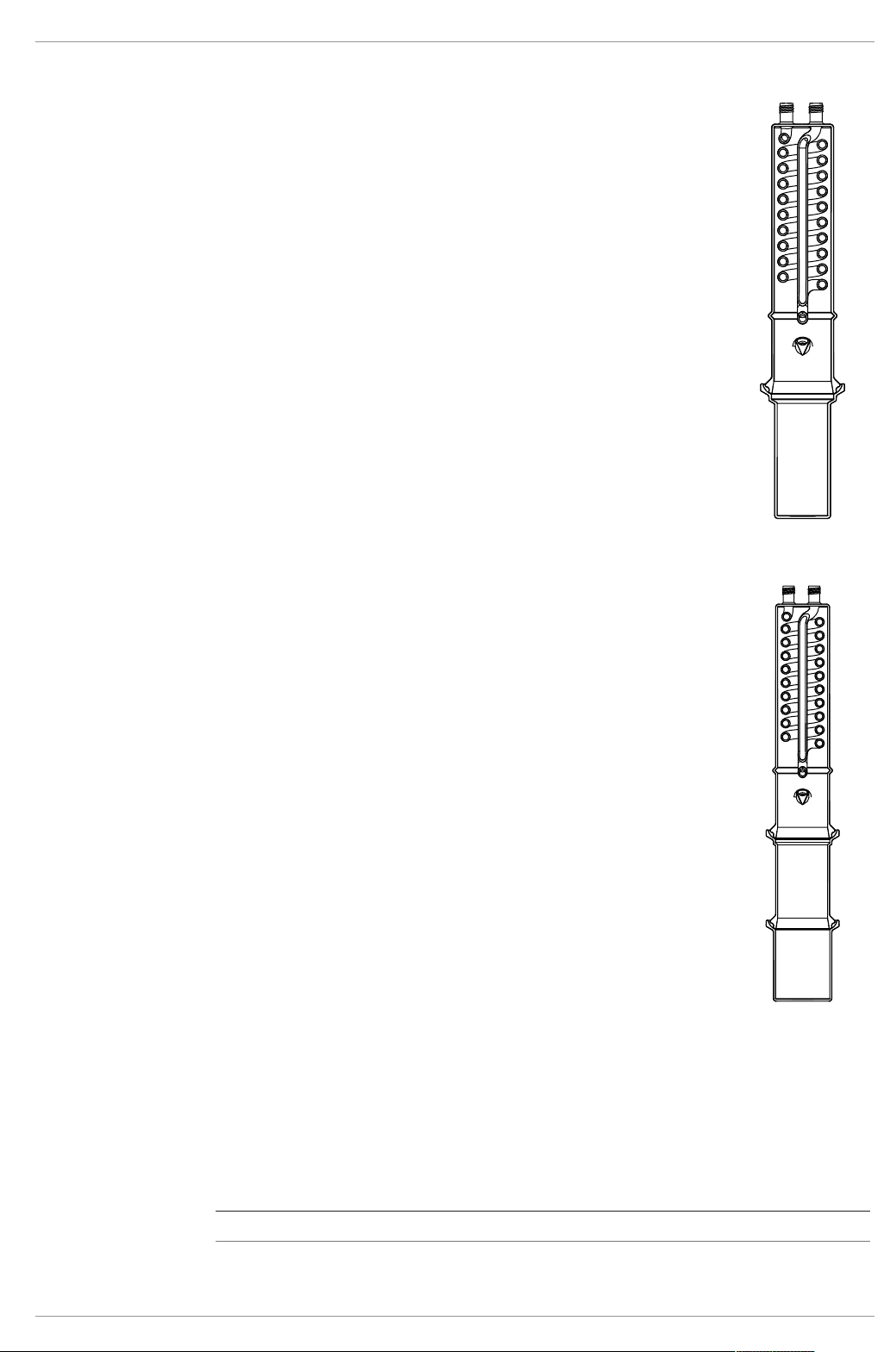

3.1.2 Hot Extraction
Step 1: Extraction
The sample is located in the beaker.
The beaker contains the solvent.
The solvent is heated, vapor rises up to the condenser, con-
denses and drops into the beaker with the sample.
Step 2: Rinsing
The solvent in the beaker is heated up and evaporated.
The vapor rises up to the condenser.
The condensed solvent flows into the beaker with the sample.
The tank bottle valve opens periodically and condensed solvent
flows in the tank bottle.
The solvent level decreases.
Step 3: Drying
The solvent is heated, vapor rises up to the condenser, con-
denses and flows into tank.
The analyte remains in the beaker.
3.1.3 Economic Continuous Extraction
Step 1: Extraction
The sample is located in the extraction chamber.
The beaker contains the solvent.
The solvent is heated, vapor rises up around the sample to the
condenser, condenses and drops back into extraction chamber
through the sample into the beaker.
Step 2: Drying
The solvent is heated, vapor rises up around the sample to the
condenser, condenses and flows into tank.
The analyte remains in the beaker.
3.1.4 Description of the Analyte Protection Sensor (option)
The Analyte Protection Sensor protects the analyte from overheating.
The Analyte Protection Sensor triggers under the following situations:
Soxhlet
Extraction
Hot
Extraction
Economic
Continuous
Extraction
Presence of beaker X X X
Operation Manual FatExtractor E-500 15/88
Page 16
3 | Product description BÜCHI Labortechnik AG
4
5
11
10
1
2
3
6
7
8
9
Presence of solvent
(Level check)
Extraction step X X X
Rinse step X - X
Dry step X* - X*
* with SmartDrying. See Chapter8.11 "Setting SmartDrying (Soxhlet and Economic
Continuous Extraction only)", page58
3.2 Configuration
3.2.1 Front view
Soxhlet
Extraction
Hot
Extraction
X X X
Economic
Continuous
Extraction
Fig.2: Front view
1 Protection shield 2 Condenser rack
3 Chamber rack 4 Condenser solvent tank
5 Solvent tank 6 Beaker rack
7 Installation board 8 Analyte Protection sensor
(Option)
9 Heating plate 10 On/Off master switch
11 Pro interface
16/88 Operation Manual FatExtractor E-500
Page 17
BÜCHI Labortechnik AG Product description | 3
1
2
1
2 3
4

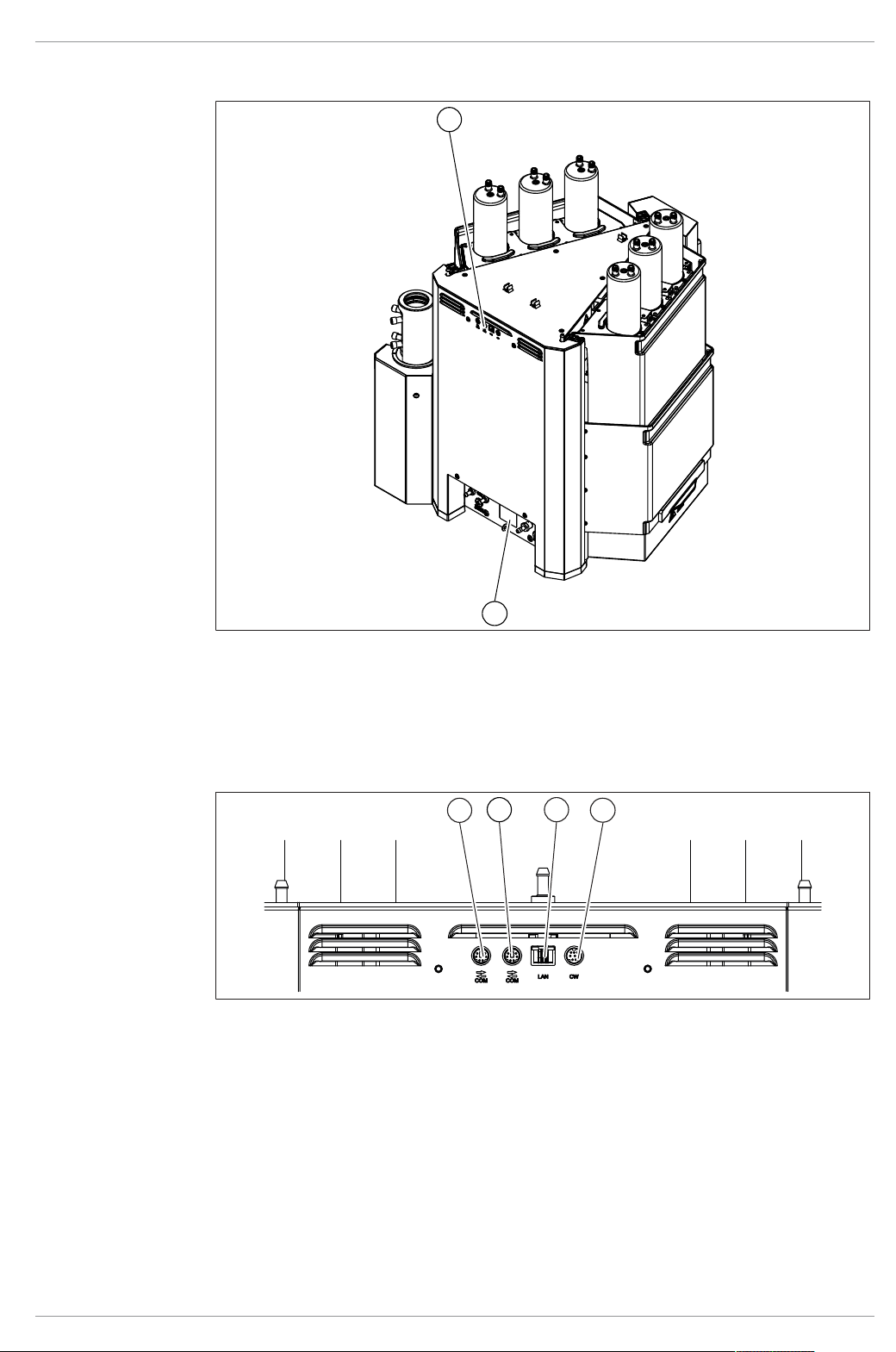

3.2.2 Rear view
Fig.3: Rear view
1 Upper connections
See Chapter3.2.3 "Upper connections on the rear side", page17
3.2.3 Upper connections on the rear side
Fig.4: Connections on the top
1 Standard BUCHI communication port
(COM)
3 LAN port 4 Port for the cooling water valve
2 Lower connections
See Chapter3.2.4 "Lower connections on the rear side", page18
2 Standard BUCHI communication port
(COM)
Operation Manual FatExtractor E-500 17/88
Page 18
3 | Product description BÜCHI Labortechnik AG
1
2
4
5
7
3
6
8
9
10
11
12

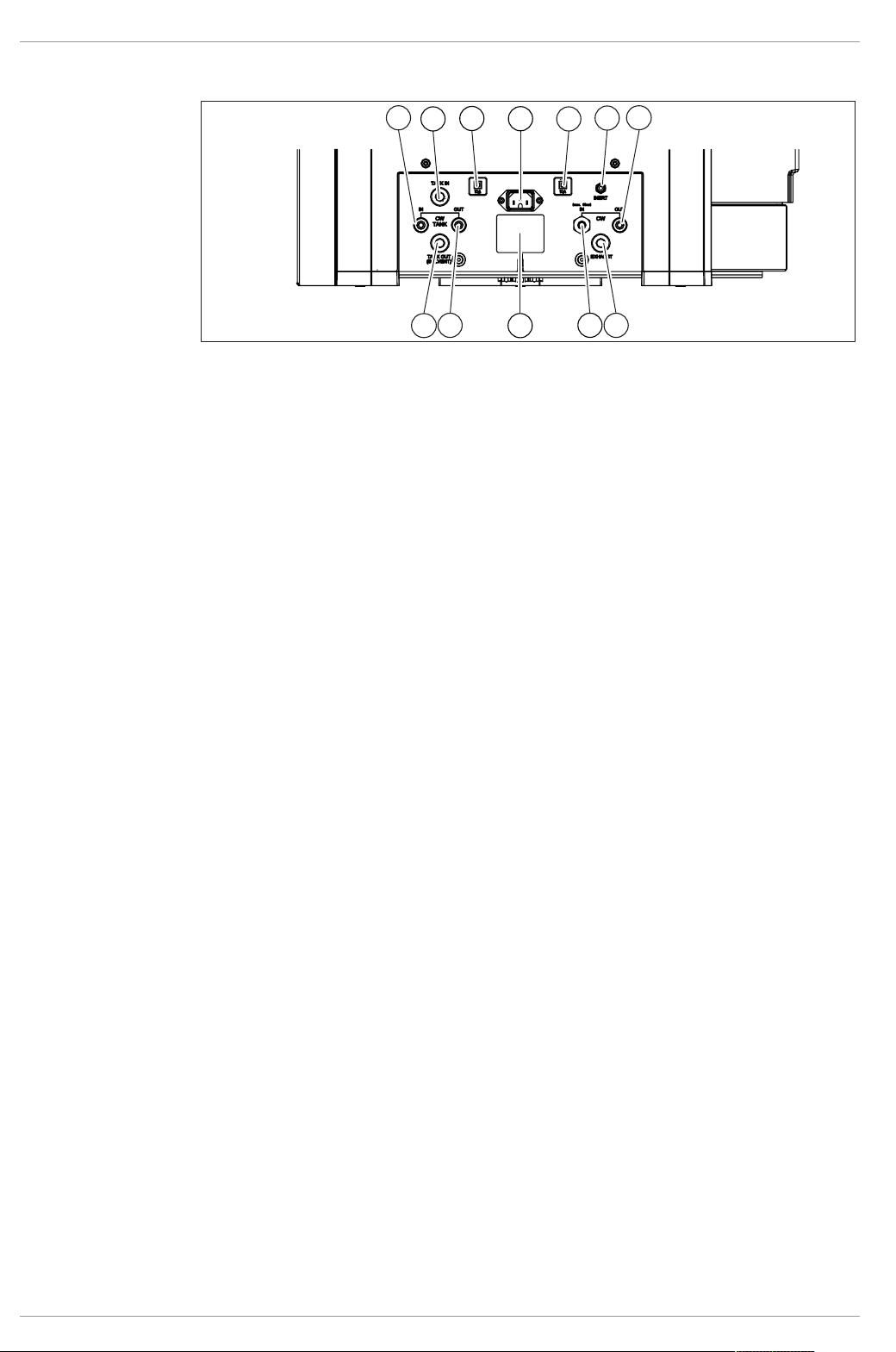

3.2.4 Lower connections on the rear side
Fig.5: Connections on the buttom
1 Coolant water solvent tank in
(marked IN)
2 Solvent in
(marked TANK IN)
3 Fuse 4 Power supply connection
5 Fuse 6 Inert gas connection (option)
(marked INERT)
7 Coolant water out
(marked OUT)
9 Coolant water in
8 Exhaust
(marked EXHAUST)
10 Type plate
(marked IN)
11 Coolant water solvent tank out
(marked OUT)
12 Solvent out
(marked TANK OUT (SOLVENT))
18/88 Operation Manual FatExtractor E-500
Page 19
BÜCHI Labortechnik AG Product description | 3
4
5
6
7
13
12
11
10
1
2
3
8
9

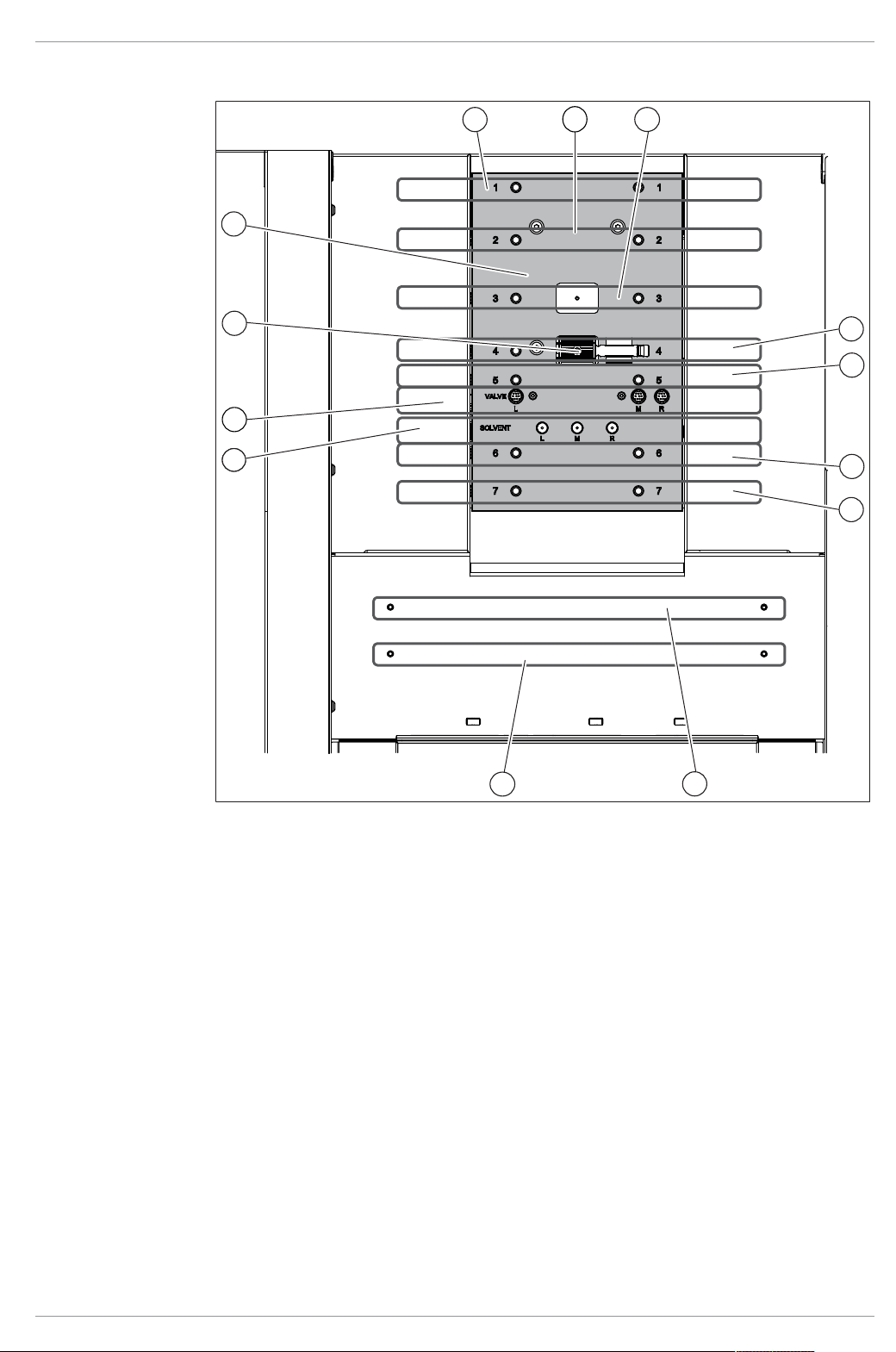

3.2.5 Installation board
Fig.6: Installation board
1 For UniversalExtractor E-800 2 Condenser rack Soxhlet Extraction
3 For UniversalExtractor E-800 4 Chamber rack Soxhlet Extraction
5 Condenser rack Economic Continu-
6 Condenser rack Hot Extraction
ous Extraction
7 Chamber rack Economic Continuous
8 Beaker rack Hot Extraction
Extraction
9 Beaker rack Soxhlet Extraction / Eco-
nomic Continuous Extraction
11 Sensor plugs 12 Attachment clip for tube
10 Solvent collector tube
13 Lift
Operation Manual FatExtractor E-500 19/88
Page 20
3 | Product description BÜCHI Labortechnik AG
1
2 3
4

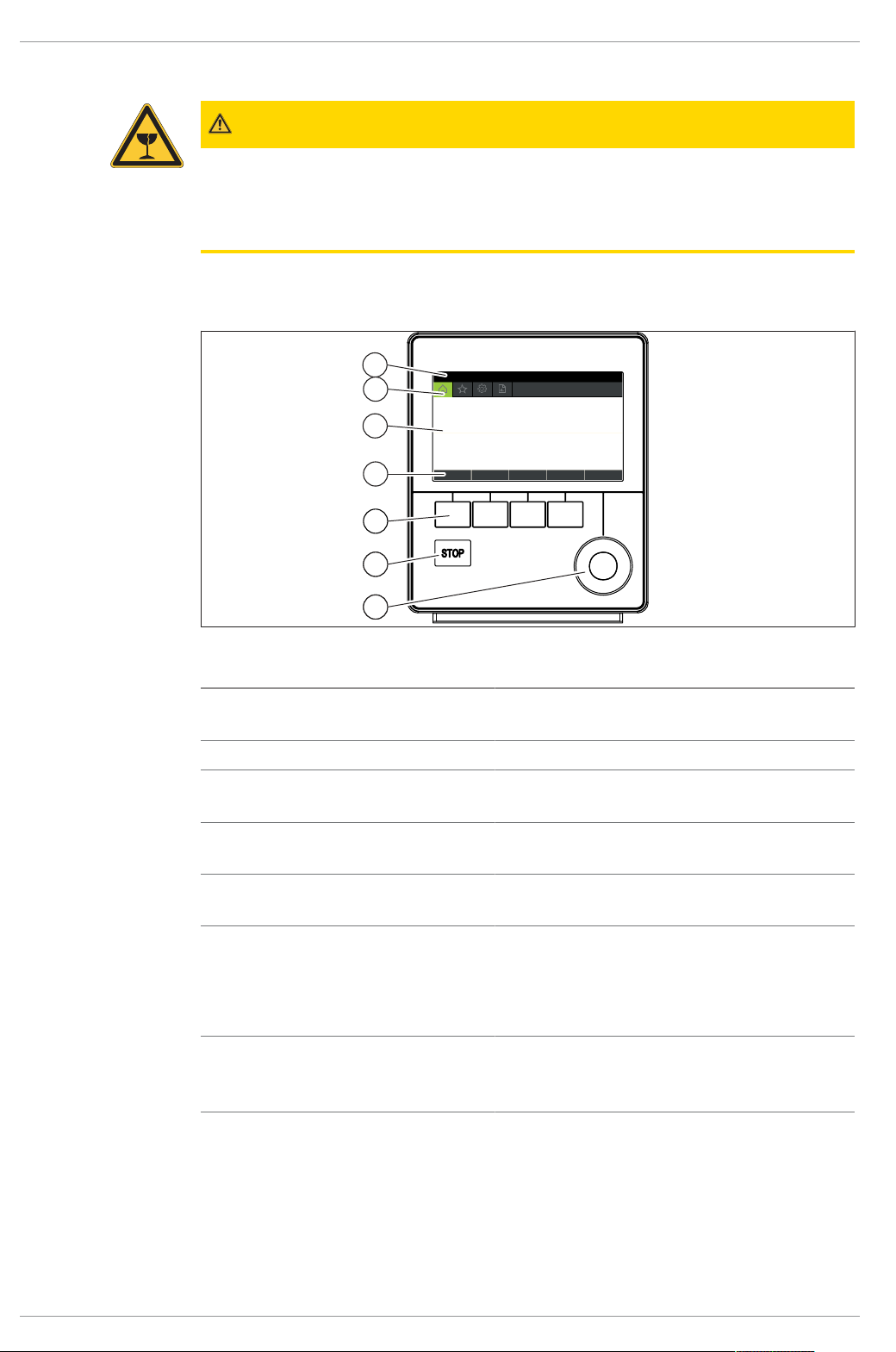

3.2.6 Interface
Fig.7: Interface
1 Stop button 2 Screen
3 Function buttons 4 Navigation control
20/88 Operation Manual FatExtractor E-500
Page 21
BÜCHI Labortechnik AG Product description | 3
1
2
3
3.2.7 Pro Interface
Fig.8: Interface Pro
1 Stop button 2 Touch-screen display
3 Navigation control
3.3 Type plate
The type plate identifies the instrument. The type plate is located at the rear of the instrument.
Operation Manual FatExtractor E-500 21/88
Page 22
3 | Product description BÜCHI Labortechnik AG
Buchi Labortechnik AG
9230 Flawil / Switzerland
Type: xxx
SN: 10xxxxxxxx
Volt: xxx-xxx VAC
Freq.: xx Hz
Power: xxxxW
Built 20xx
6
7
8
11
9
10
3
2
1
5
4
Fig.9: Type plate
1 Symbol for "electronics recycling" 2 Initial product code
3 Approvals 4 Symbol for "Do not dispose of as
household waste"
5 Year of manufacture 6 Power consumption maximum
7 Frequency 8 Input voltage range
9 Serial number 10 Instrument name
11 Company name and address
3.4 Scope of delivery
NOTE
The scope of delivery depends of the configuration of the purchase order.
Accessories are delivered as per the purchase order, order confirmation, and delivery note.
3.5 Technical data
3.5.1 FatExtractor E-500
Specification E-500
Power consumption 1300 W
Connection voltage 100 - 240 ± 10 % VAC
Fuse 10 A
Frequency 50 / 60 Hz
Overvoltage category II
Pollution degree 2
Protection Class 1
Dimensions (W x D x H)
(with glassware Soxhlet Extraction)
Dimensions (W x D x H)
( with glassware Hot Extraction)
Dimensions (W x D x H)
(with glassware Economic Continuous Extraction)
Minimum clearance (W x D) 200 mm
Minimum clearance (H) 500 mm
638 x 595 x 742 mm
638 x 595 x 613 mm
638 x 595 x 622 mm
22/88 Operation Manual FatExtractor E-500
Page 23
BÜCHI Labortechnik AG Product description | 3
Specification E-500
Weight
41.8 kg
(without glassware)
Weight
49.6 kg
(with glassware Soxhlet Extraction)
Total heating power
600 W
(rated)
Total heating power
1200 W
(maximum)
Hose connection 6 / 9 mm
Allowed water pressure
6 bar
( nominal value)
Allowed water pressure
8 bar
(maximum)
Inlet cooling medium temperature ≥ 20 °C
(temperature cooling
medium below boiling
point solvent)
Number of extraction positions 6
Solvent tank volume 2 L
Max. working volumes
120 mL
(Extraction glass chamber Soxhlet)
Max. working volumes
(Extraction glass chamber Soxhlet LSV)
Max. working volumes
(Glass sample tube with frit)
Max. working volumes
(Glass sample tube with frit LSV)
Max. working volumes
(Beaker)
Max. working volumes
(Beaker HE)
Language DE, EN, IT, ES, FR, JA,
Method storage
(Interface)
Method storage
(Pro interface)
3.5.2 Ambient conditions
For indoor use only.
195 mL
65 mL
120 mL
175 mL
100 mL
CN, PL, RU
20 methods
40 methods
Max. altitude above sea level 2000 m
Ambient temperature 5‒40 °C
Operation Manual FatExtractor E-500 23/88
Page 24
3 | Product description BÜCHI Labortechnik AG
Maximum relative humidity 80% for temperatures up to 31 °C
decreasing linearly to 50 % relative humidity at 40 °C
Storage temperature max. 45 °C
3.5.3 Materials
Component Materials of construction
Housing Steel 1.4301/304 with powder coating
Exhaust Aluminium
PE-UHMW 1000
Protection shield PMMA GS
Glass ware Borosilikat 3.3
Sealings glassware FKM
Solvent tank Borosilikat 3.3
Solvent tank valve PTFE / FFKM
Tubing FEP
24/88 Operation Manual FatExtractor E-500
Page 25
BÜCHI Labortechnik AG Transport and storage | 4
4 Transport and storage
4.1 Transport
NOTICE
Risk of breakage due to incorrect transportation
Make sure that the instrument is fully dismantled.
Pack every instrument components properly to prevent breakage. Use the original
packaging whenever possible.
Avoid sharp movements during transit.
u After transporting, check the instrument and all glass components for damage.
u Damage that has occurred in transit should be reported to the carrier.
u Keep packaging for future transportation.
4.2 Storage
u Make sure that the ambient conditions are complied with (see Chapter3.5 "Tech-
nical data", page22).
u Wherever possible, store the device in its original packaging.
u After storage, check the device, all glass components, seals and tubing for dam-
age and replace if necessary.
4.3 Lifting the instrument
WARNING
Danger due to incorrect transportation
The possible consequences are crushing injuries, cuts and breakages.
u The instrument should be transported by two persons at the same time.
u Lift the instrument at the points indicated.
NOTICE
Dragging the instrument can damage the feet of the instrument.
u Lift the instrument when positioning or re-locating.
Operation Manual FatExtractor E-500 25/88
Page 26
4 | Transport and storage BÜCHI Labortechnik AG

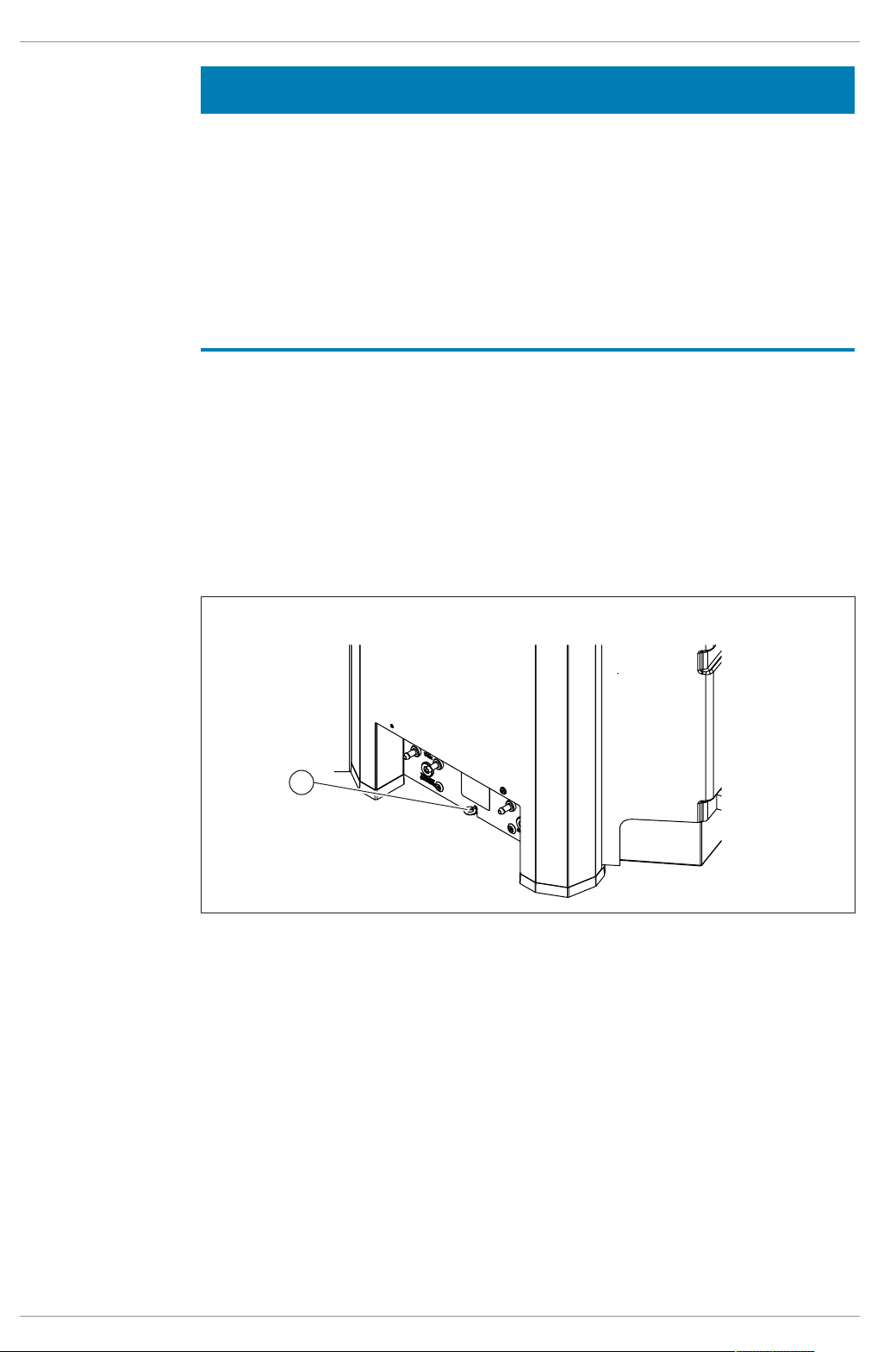

Fig.10: Lifting the instrument
u Lift the instrument – this requires two persons each lifting at the points indicated
on the left and right side of the instrument.
26/88 Operation Manual FatExtractor E-500
Page 27
BÜCHI Labortechnik AG Installation | 5
5 Installation
5.1 Before installation
NOTICE
Instrument damage due to switching it on too early.
Switching on the instrument too early after transportation can cause damage.
u Climatize the instrument after transportation.
5.2 Installation site
The installation site must meet the following requirements:
Firm, level surface
Make sure that the installation site meets the requirements of the safety data
sheets for all solvents and samples used.
Inside a fume hood or minimum 500 mm space requirement above the instrument.
Make sure that no instruments generating heat or corrosive vapors are in the same
fume hood (e.g. HydrolEx H-506).
Take into account the maximum product dimensions and weight. See Chapter3.5
"Technical data", page22
Do not expose the instrument to any external thermal loads, such as direct solar
radiation or other ignition source.
Do not place any flammable devices or substances close to the instrument, as they
could ignite due to the heat from the heating plates.
Make sure that cables / tubes can be routed safely.
NOTE
Make sure that the power supply can be disconnected at any time in an emergency.
5.3 Establishing electrical connections
NOTE
Observe the regulatory provisions when connecting the instrument to power supply.
4 Use external main switches (e.g., emergency off) in accordance with the stan-
dards IEC 60947-1 and IEC 60947-3.
4 Use additional electrical safety features (e.g., residual-current circuit breakers) to
comply with local laws and regulations.
The power supply must fulfill the following conditions:
1. Provide the mains voltage and frequency specified on the type plate of the instrument.
2. Be designed for the load imposed by the instruments connected.
3. Be equipped with suitable fuses and electrical safety features.
4. Be equipped with a proper grounding.
Operation Manual FatExtractor E-500 27/88
Page 28
5 | Installation BÜCHI Labortechnik AG
1
NOTICE
Risk of property damage and diminished performance due to use of unsuitable power cables.
The power supply cables supplied with the product by BUCHI precisely match the requirements of the device. If other power cables that do not meet those requirements
are used, the device may be damaged and/or its performance diminished.
u Use only the power supply cables supplied with the product or ordered separately
from BUCHI.
u If using any other power supply cables, make sure that they match the specifica-
tions on the type plate.
u Make sure that all connected devices are grounded.
u Make sure that the power plug is freely accessible at all times.
u Insert the power cable into the connection labeled Power IN on the back of the in-
strument.
u Insert the power plug into the power socket.
5.4 Securing against earthquakes
The instrument has an earthquake fixing point to protect the device against falling.
Fig.11: Securing against earthquakes
1 Lashing mount
u Tie the lashing mount to a fixed point using strong cord or a wire.
5.5 Connecting the coolant hose
There are two possibilities for coolant supply:
Cooling water valve Order no. 031356
BUCHI Recirculating Chiller F-305 or F-308
28/88 Operation Manual FatExtractor E-500
Page 29
BÜCHI Labortechnik AG Installation | 5
Precondition:
R The coolant connection complies with the
specified parameters. See Chapter3.5 "Technical data", page22
R Make sure that the instrument is not con-
nected to the power supply.

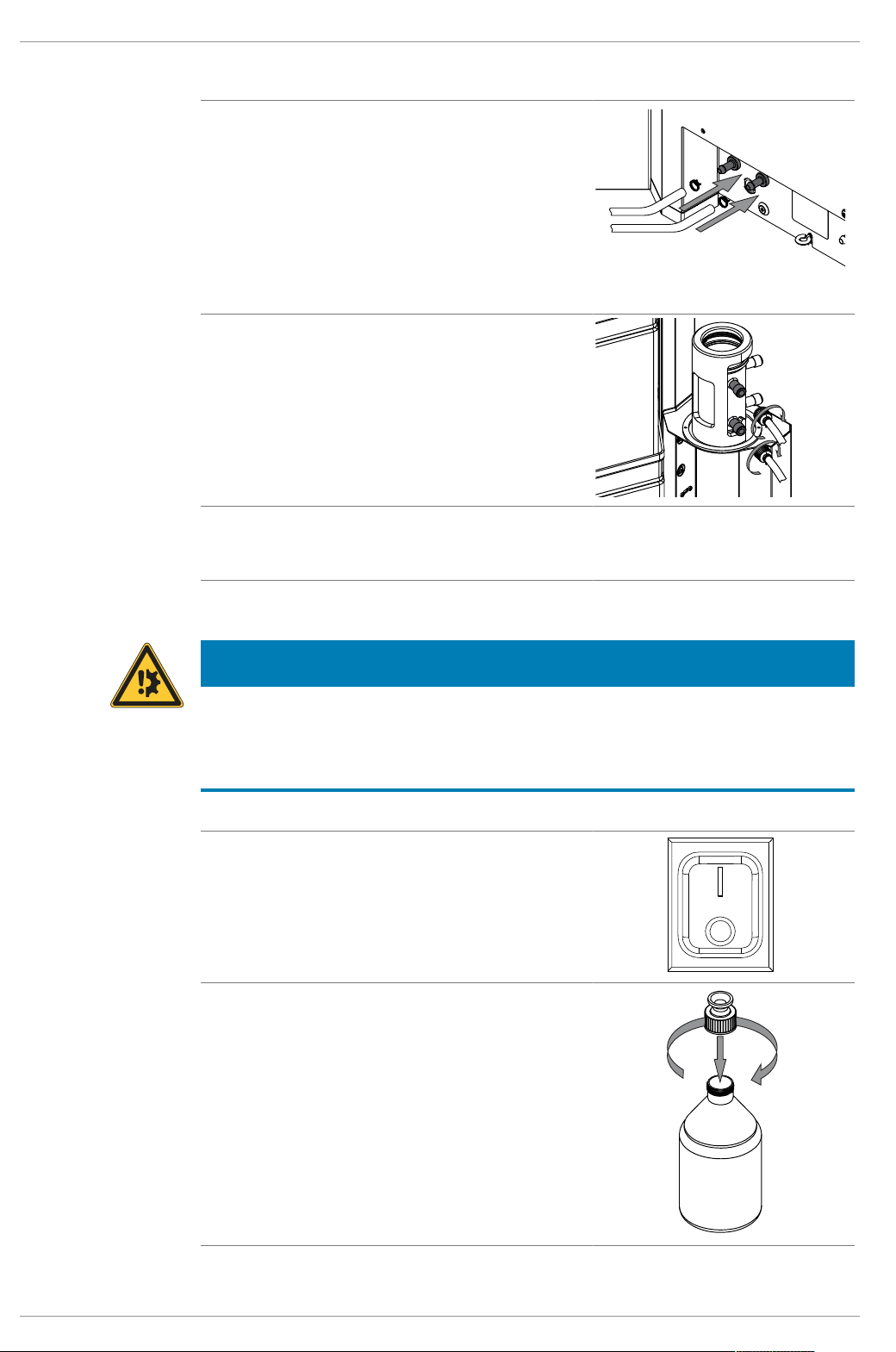

u Install the inlet tube onto the connection
marked CW IN.
u Attach the inlet tube in place with a hose clip.
u Install the drain tube onto the connection
marked CW OUT.
u Attach the drain tube in place with a hose clip.
5.6 Connecting the solvent tubes to the condenser tank bottle
Precondition:
R Make sure that the instrument is not con-
nected to the power supply.
u Attach the inlet tube onto the connection
marked TANK IN.
u Attach the drain tube onto the connection
marked TANK OUT (SOLVENT).
u Attach a solvent connection nut with seals to
the connection marked OUT.
u Attach a solvent connection nut with seals to
the connection marked IN (SOLVENT) .
u Attach the inlet tube onto the connection
marked OUT .
u Attach the drain tube onto the connection
marked IN (SOLVENT) .
u Make sure that the solvent collector circuit is
complete. See Chapter14.1 "Schematics",
page81
Operation Manual FatExtractor E-500 29/88
Page 30
5 | Installation BÜCHI Labortechnik AG
5.7 Connecting the coolant tubes to the condenser tank bottle
Precondition:
R Make sure that the instrument is not con-
nected to the power supply.
u Install the inlet tube onto the connection
marked CW TANK OUT.
u Attach the inlet tube in place with a hose clip.
u Install the drain tube onto the connection
marked CW TANK IN.
u Attach the drain tube in place with a hose clip.
u Attach the inlet tube onto the connection
marked CW IN .
u Attach the drain tube onto the connection
marked CW OUT.
u Make sure that the solvent collector circuit is
complete. See Chapter14.1 "Schematics",
page81
5.8 Preparing the tank bottle
NOTICE
Risk of broken parts by using tools
Using tools for preparing the instrument can break parts.
u Tighten all parts with your hands.
u Switch the On/Off master switch to Off.
u Put the bottle cap on the bottle.
30/88 Operation Manual FatExtractor E-500
Page 31
BÜCHI Labortechnik AG Installation | 5

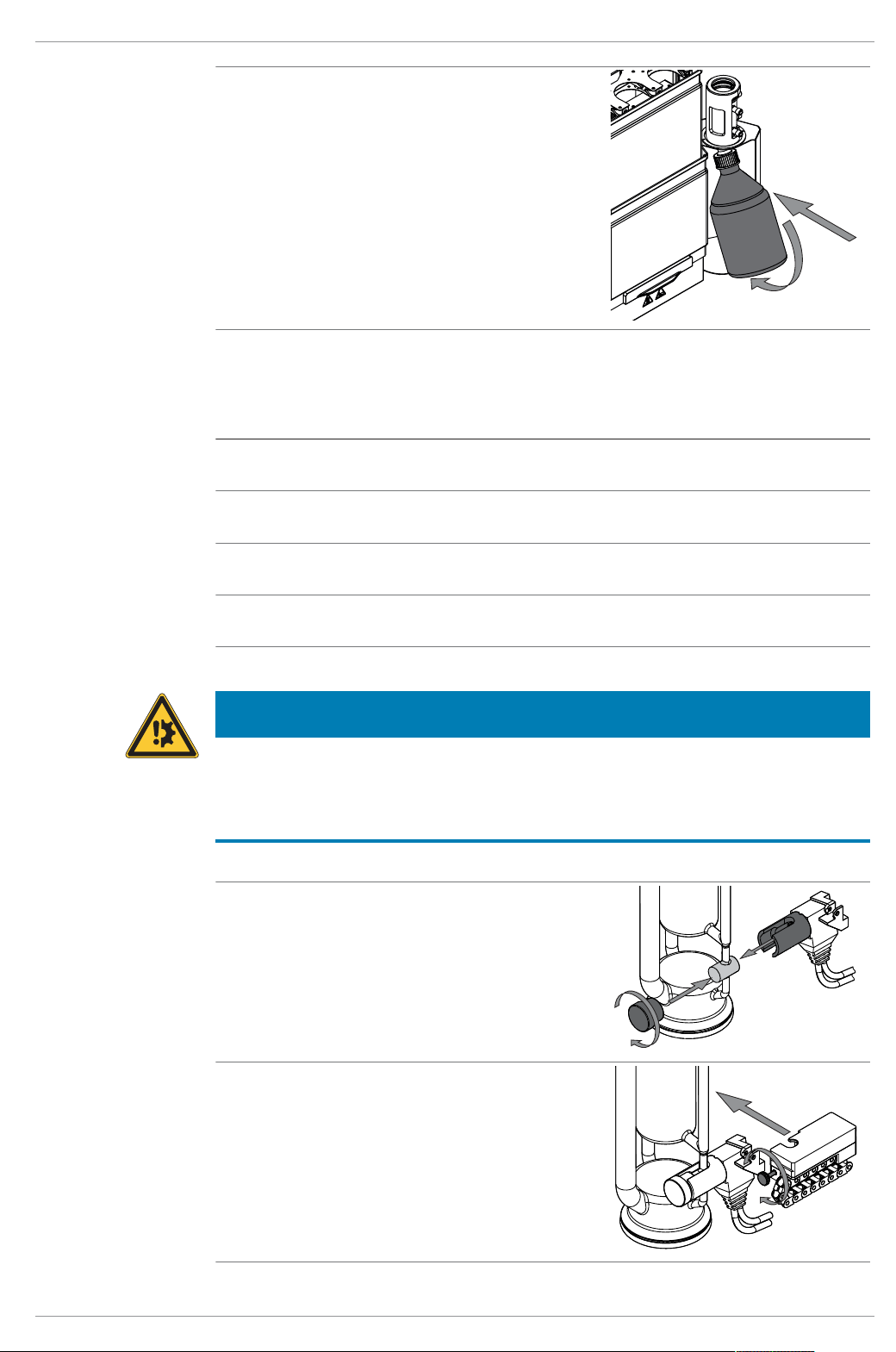

u Put the tank bottle in the instrument.
5.9 Preparing the instrument for Soxhlet Extraction
5.9.1 Installations for Soxhlet Extraction
u Prepare the condenser. See Chapter5.13 "Preparing the condenser",
page36
u Prepare the extraction glass chamber Soxhlet. See Chapter5.9.3 "In-
stalling the extraction glass chamber Soxhlet", page32
u Install the protection shields. See Chapter5.12.1 "Installing two protec-
tion shields (Soxhlet only)", page35
u Select the Soxhlet method on the interface. See Chapter5.14 "Selecting
a configuration", page39
5.9.2 Preparing the extraction glass chamber Soxhlet
NOTICE
Risk of broken parts by using tools
Using tools for preparing the instrument can break parts.
u Tighten all parts with your hands.

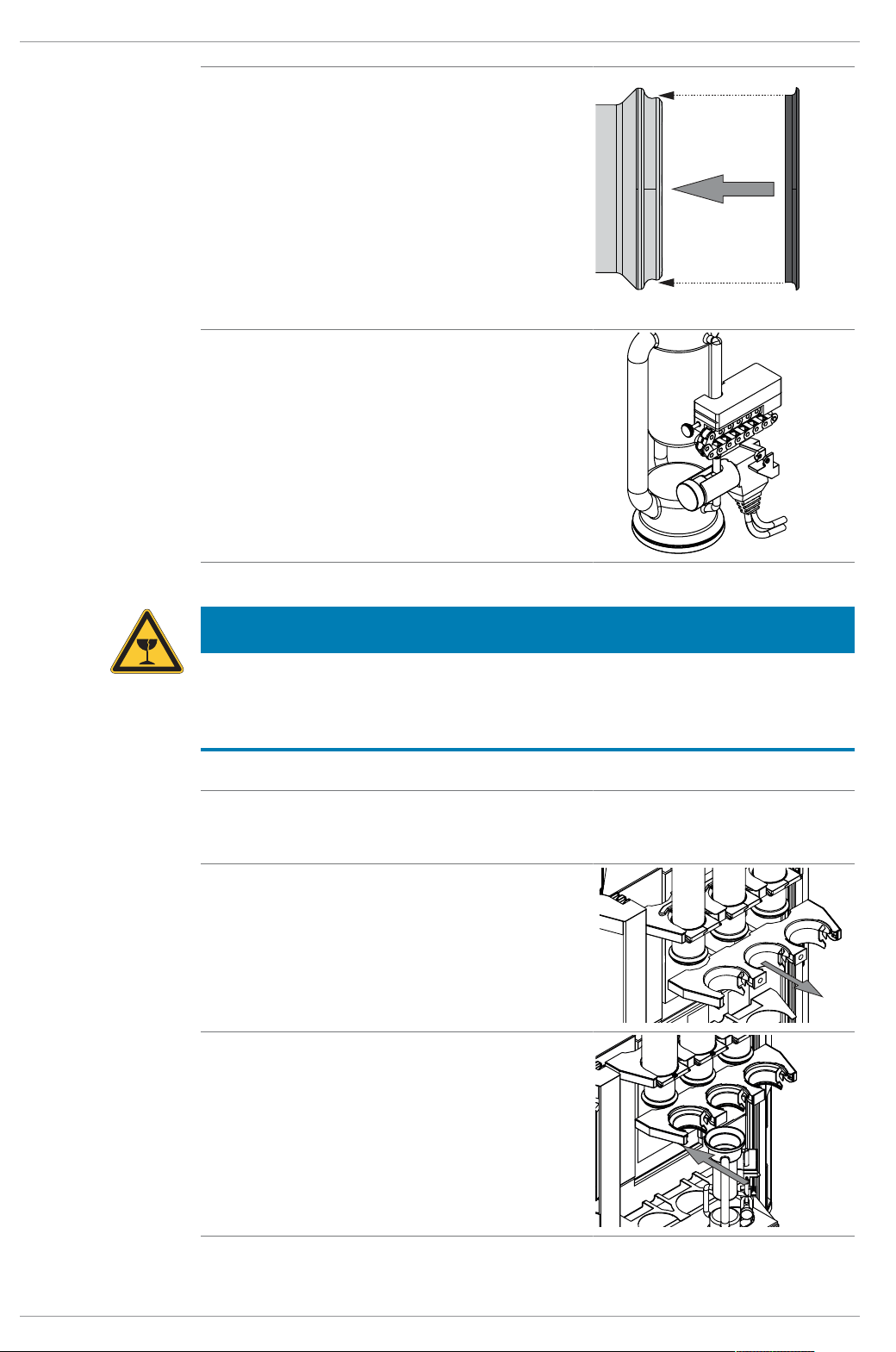

u Attach the valve to the extraction glass cham-
ber at the point indicated.
NOTICE!Make sure that the sensor is not bent
during carrying out this action step
u Attach the sensor to the extraction glass
chamber.
Operation Manual FatExtractor E-500 31/88
Page 32
5 | Installation BÜCHI Labortechnik AG
u Attach the sealing to the extraction glass
chamber.
The extraction glass chamber is prepared.
5.9.3 Installing the extraction glass chamber Soxhlet
NOTICE
An incorrect assembled extraction glass chamber can cause glass
breakage.
u Install the extraction glass chamber according to following instructions.
u Prepare the extraction glass chamber Soxhlet.
See Chapter5.9.2 "Preparing the extraction
glass chamber Soxhlet", page31
u Pull the chamber rack.
Precondition:
R Start with the extraction glass chamber on the
left side.
R Make sure that the BUCHI Logo points to the
front.
u Put the extraction glass chamber in the cham-
ber rack.
32/88 Operation Manual FatExtractor E-500
Page 33
BÜCHI Labortechnik AG Installation | 5

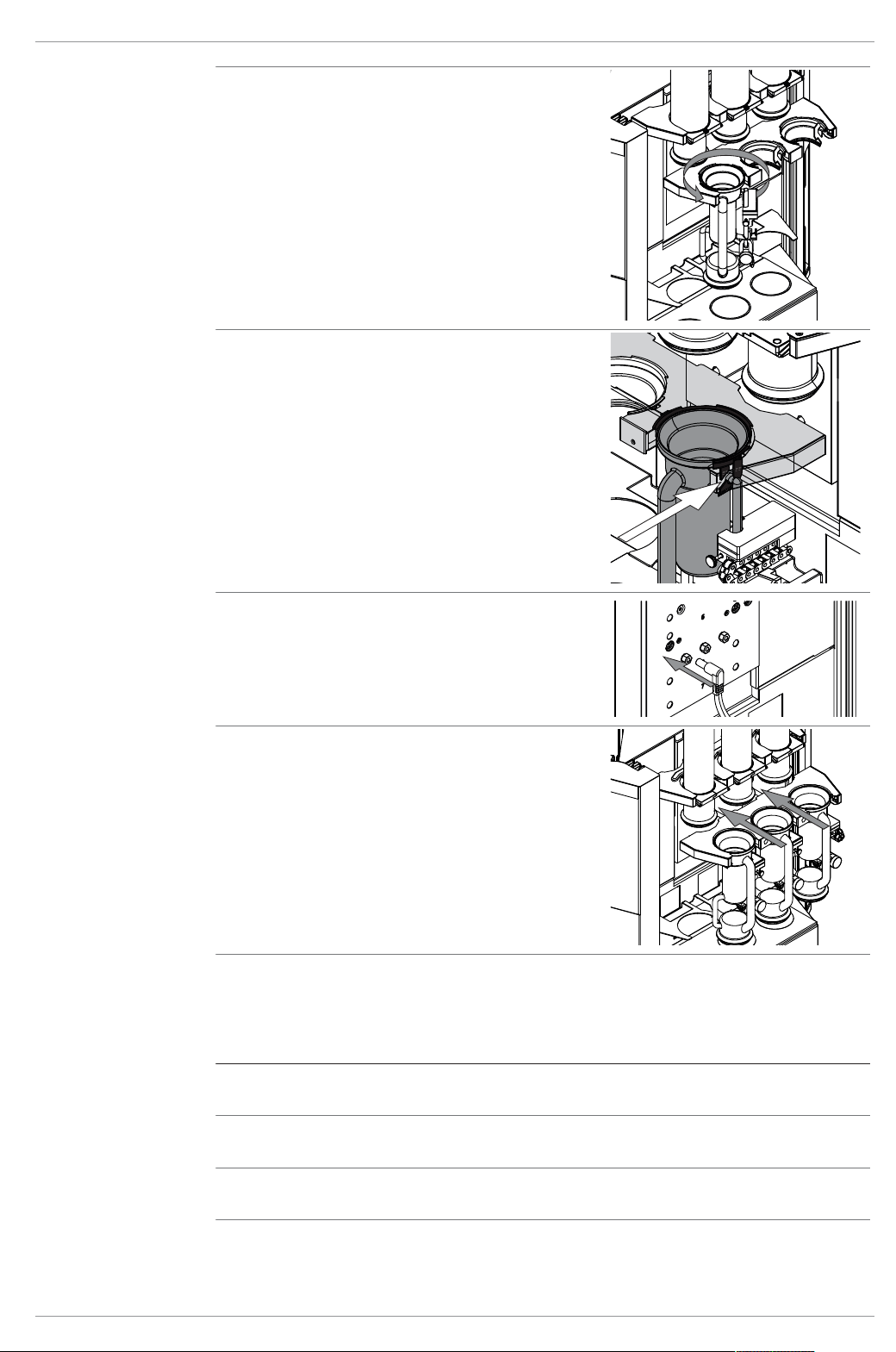

u Turn the extraction glass chamber 45° coun-
terclockwise.
u Make sure that the extraction glass chamber
locks at the hook.
u Connect the valve with the sensor plug on the
installation board.
u Push the chamber rack in the instrument.
5.10 Preparing the instrument for Hot Extraction
5.10.1 Installations for Hot Extraction
u Prepare the condenser. See Chapter5.13 "Preparing the condenser",
page36
u Install the protection shields. See Chapter5.12.2 "Installing one protec-
tion shield (Hot and Economic Continuous Extraction only)", page36
u Select the Hot Extraction method on the interface. See Chapter5.14
"Selecting a configuration", page39
Operation Manual FatExtractor E-500 33/88
Page 34
5 | Installation BÜCHI Labortechnik AG

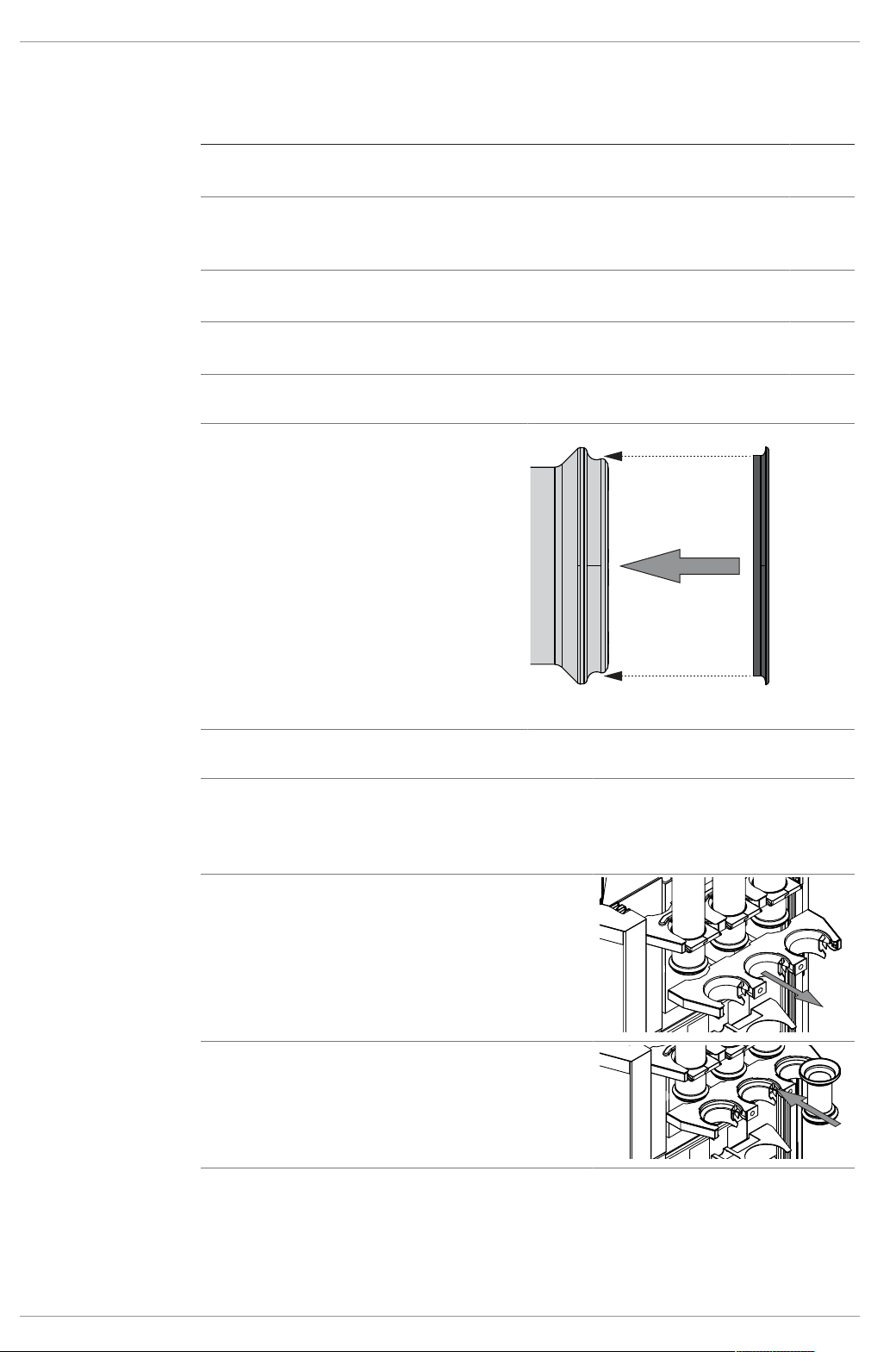

5.11 Preparing the instrument for Economic Continuous Extraction
5.11.1 Installations for Economic Continuous Extraction
u Prepare the condenser. See Chapter5.13 "Preparing the condenser",
page36
u Prepare the Economic Continuous Extraction chamber. See Chap-
ter5.11.3 "Installing the extraction glass chamber Economic Continuous
Extraction", page34
u Install the protection shields. See Chapter5.12.2 "Installing one protec-
tion shield (Hot and Economic Continuous Extraction only)", page36
u Select the Economic Continuous Extraction method on the interface.
See Chapter5.14 "Selecting a configuration", page39
5.11.2 Preparing the extraction glass chamber for an Economic Continuous Extraction
u Attach the sealing to the extraction
glass chamber.
5.11.3 Installing the extraction glass chamber Economic Continuous Extraction
u Prepare the extraction glass chamber. See
Chapter5.11.2 "Preparing the extraction glass
chamber for an Economic Continuous Extraction", page34
u Pull the chamber rack.
u Put the extraction glass chamber in the instru-
ment.
34/88 Operation Manual FatExtractor E-500
Page 35
BÜCHI Labortechnik AG Installation | 5
u Push the chamber rack in the instrument.

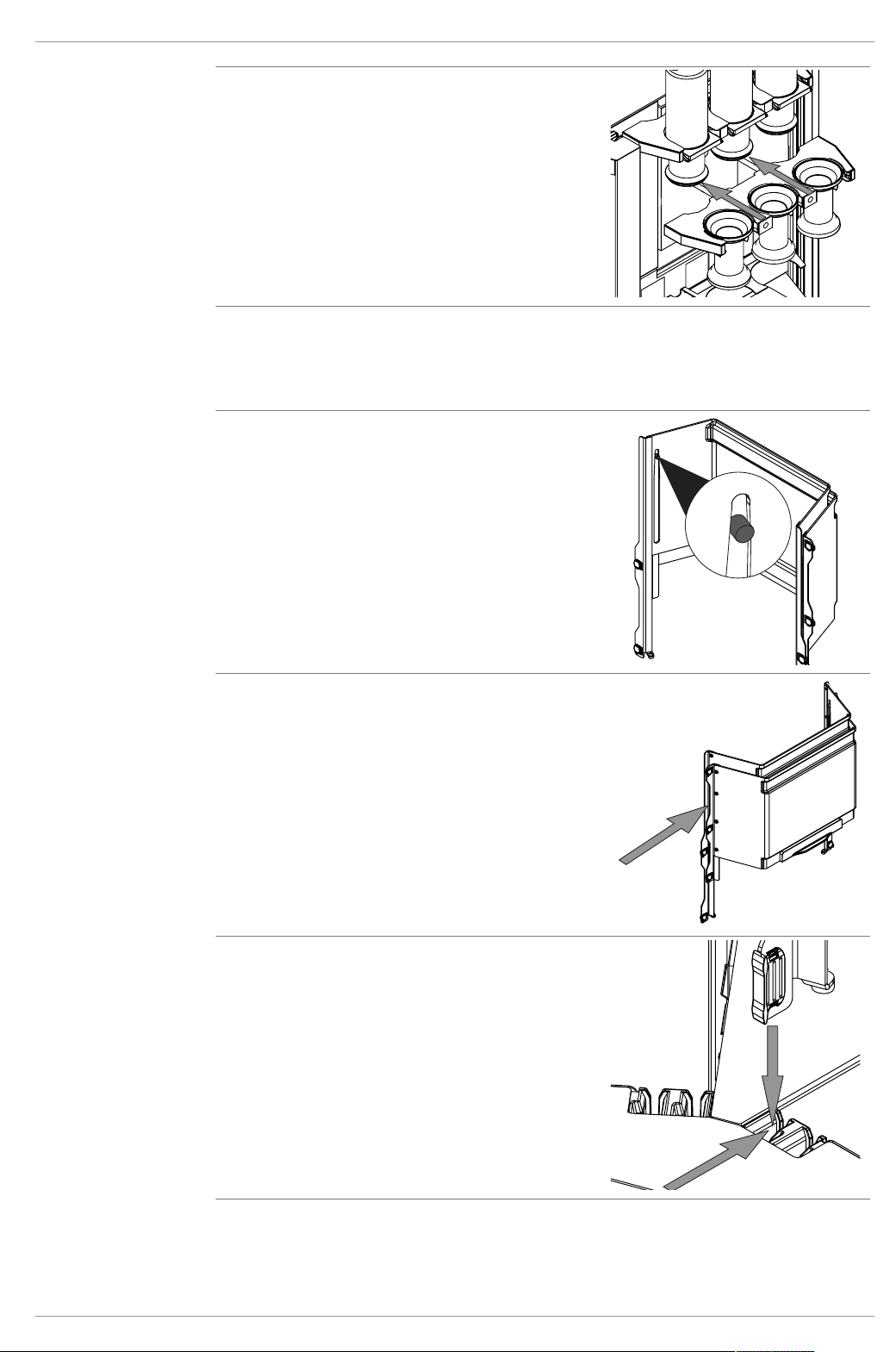

5.12 Installing the protection shields
5.12.1 Installing two protection shields (Soxhlet only)
u Make sure, that both protections shields fit to-
gether.
u Hold both protection shields on both sides at
the point indicated.
u Put the rear protection shield on both sides
into the rear slot at the same time.
Operation Manual FatExtractor E-500 35/88
Page 36
5 | Installation BÜCHI Labortechnik AG

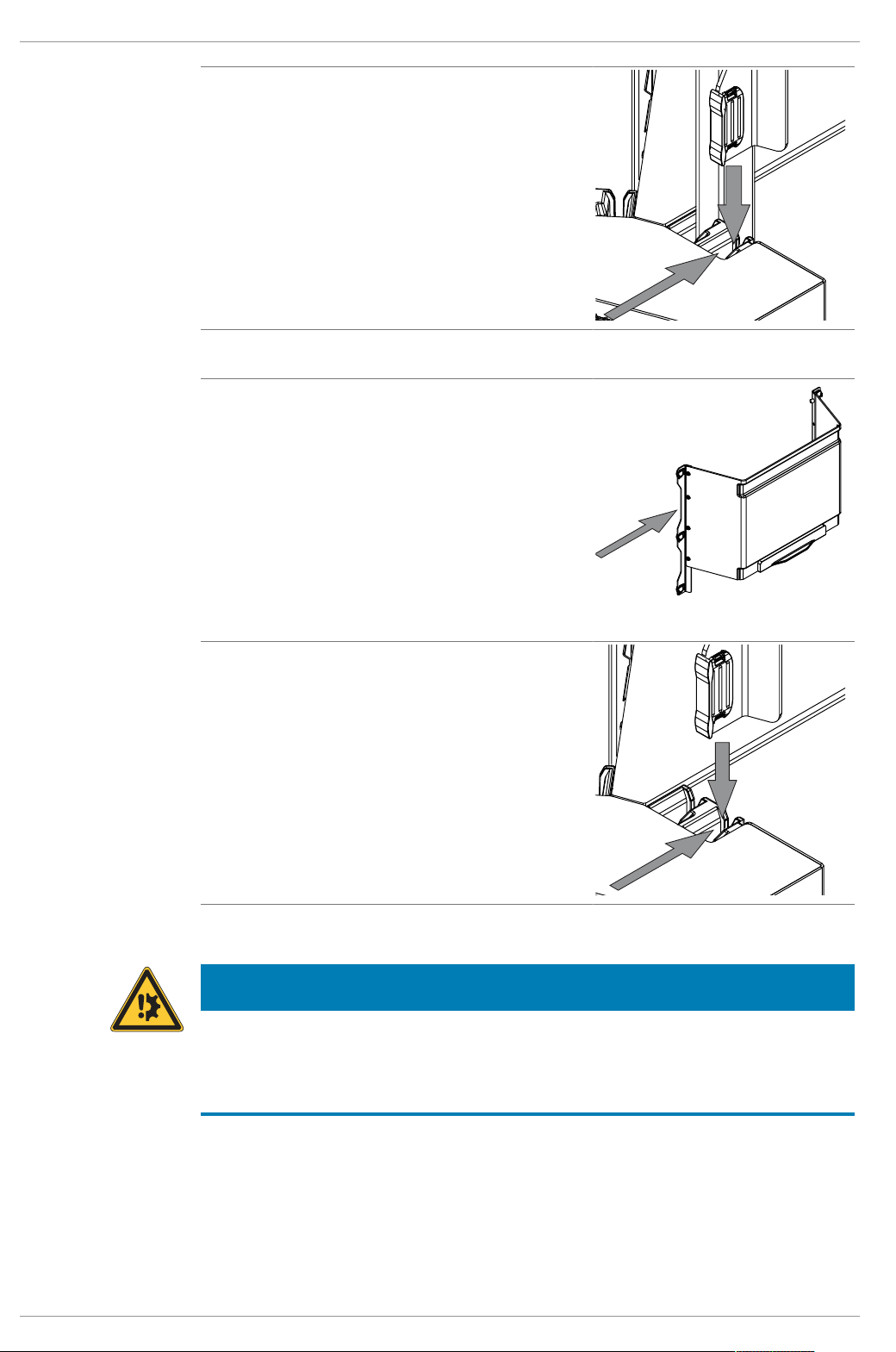

u Put the front protection shield on both sides
into the front slot at the same time.
5.12.2 Installing one protection shield (Hot and Economic Continuous Extraction only)
u Hold the protection shield on both sides at the
point indicated.
NOTICE!An incorrectly installed protection
shield causes an error message on the interface.
u Put the protection shield on both sides into the
front slot at the same time.

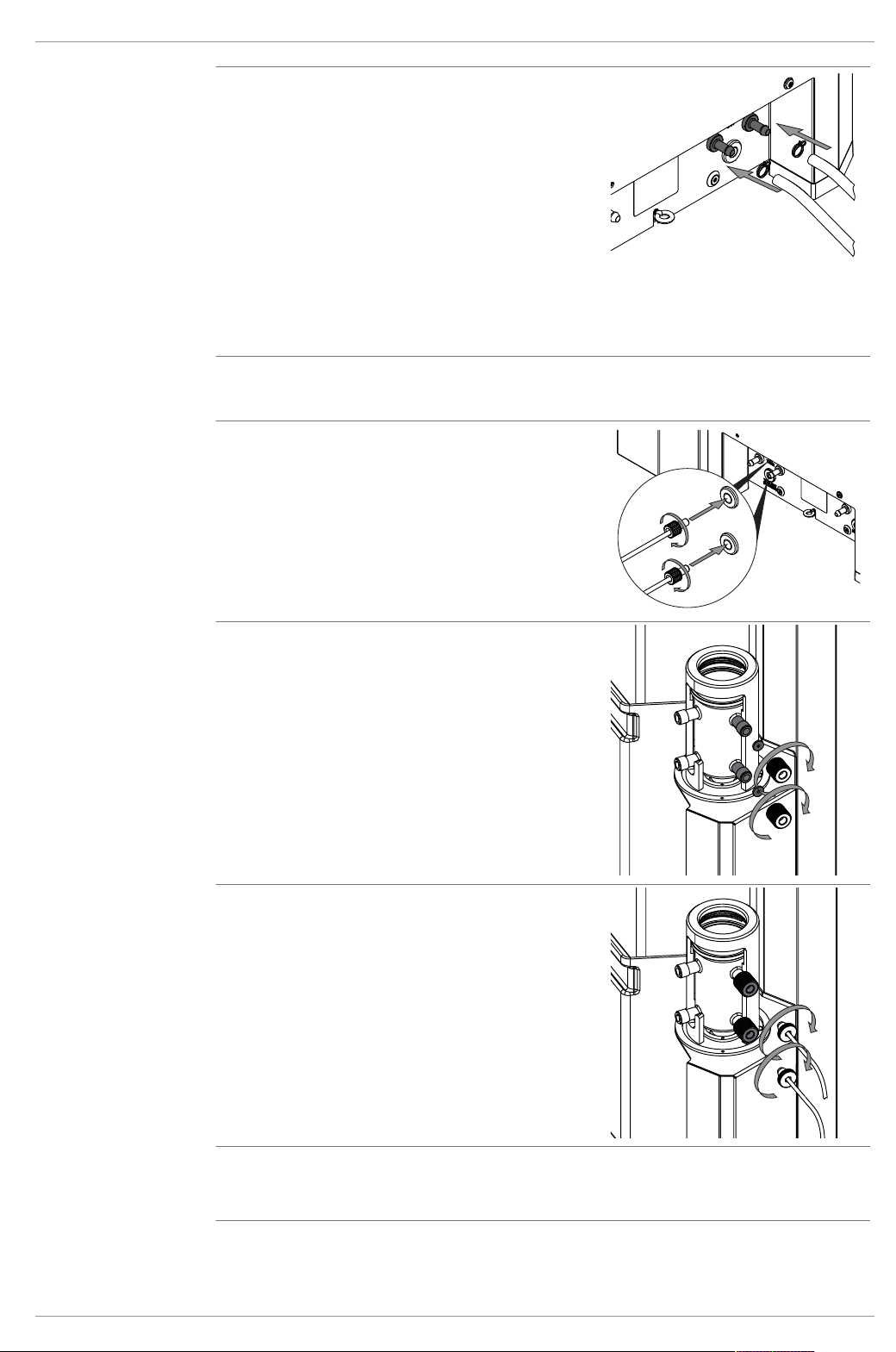

5.13 Preparing the condenser
NOTICE
Risk of broken parts by using tools
Using tools for preparing the instrument can break parts.
u Tighten all parts with your hands.
36/88 Operation Manual FatExtractor E-500
Page 37
BÜCHI Labortechnik AG Installation | 5

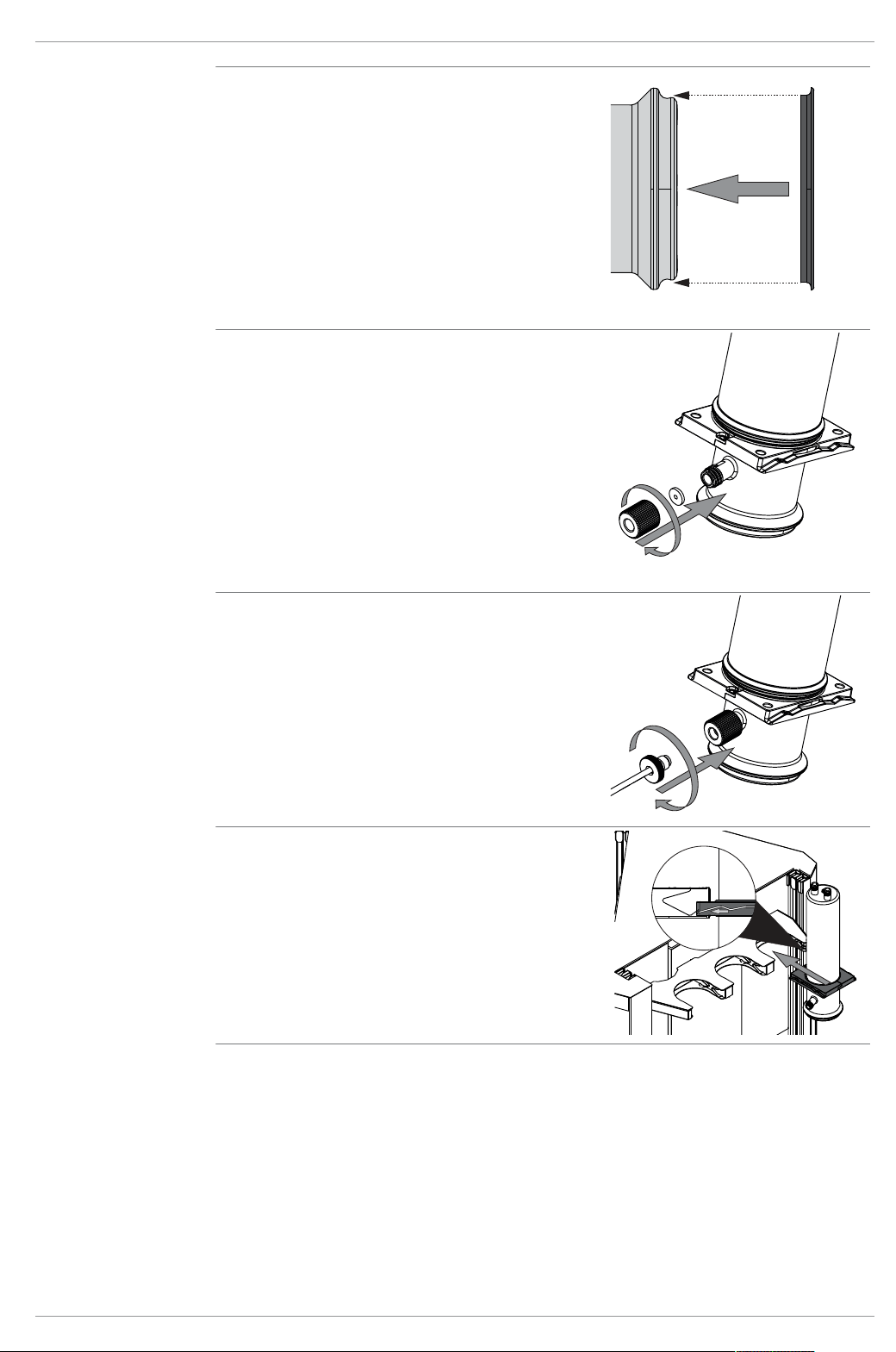

u Put the sealing on the bottom of the con-
denser.
u Attach the solvent connection nut with the seal
to the condenser.
u Connect the solvent collector tube.
NOTICE!Do not use force to carry out this action step.
u Put the condenser in the condenser rack.
Operation Manual FatExtractor E-500 37/88
Page 38
5 | Installation BÜCHI Labortechnik AG

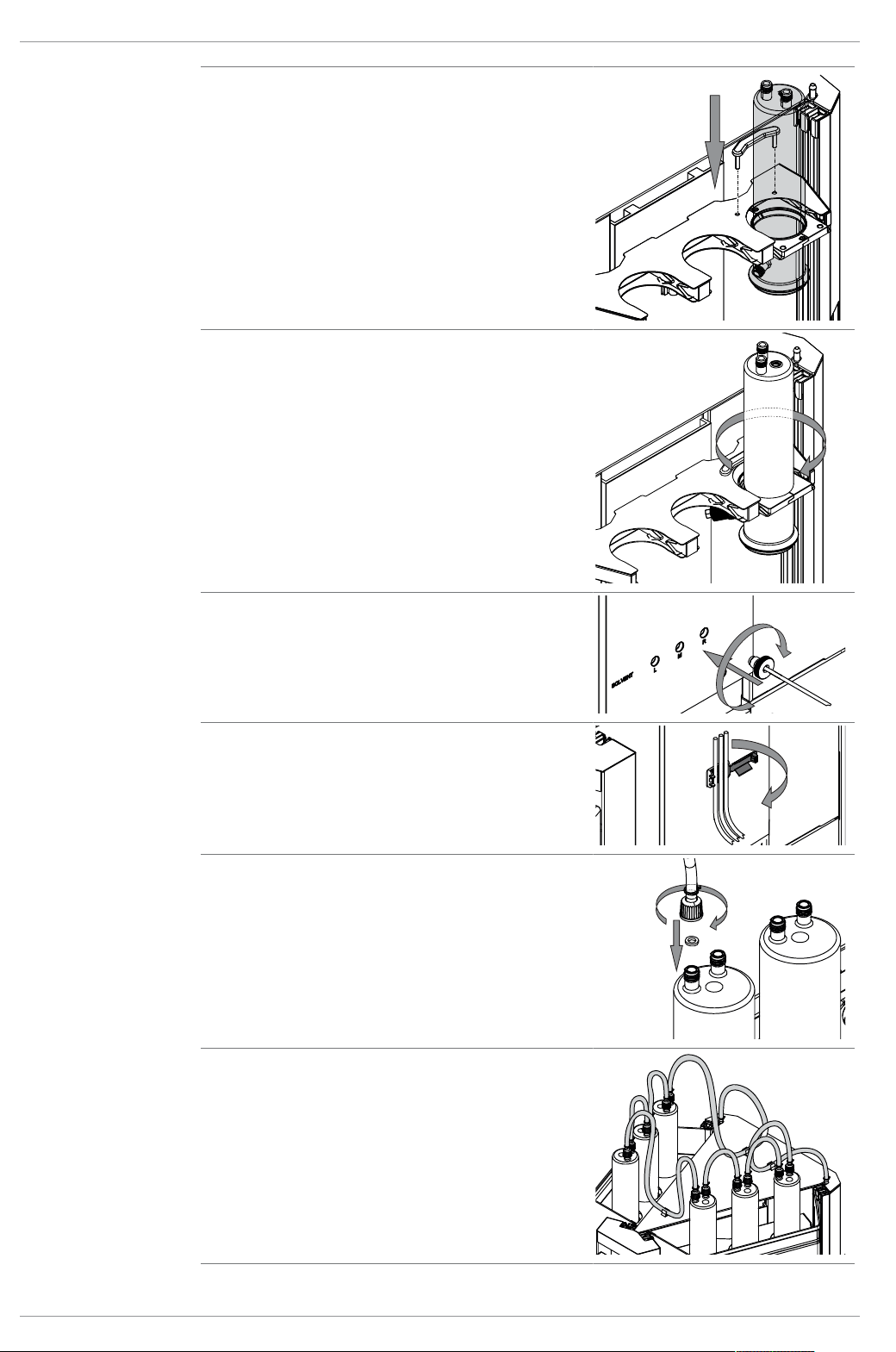

u Secure the condenser with the flange lock.
u Turn the condenser.
u Connect the solvent collector tube to the in-
stallation board
u Attach the tubes with the attachment clip to
the installation board.
u Connect the condensers.
u Establish a condenser circuit.
38/88 Operation Manual FatExtractor E-500
Page 39
BÜCHI Labortechnik AG Installation | 5

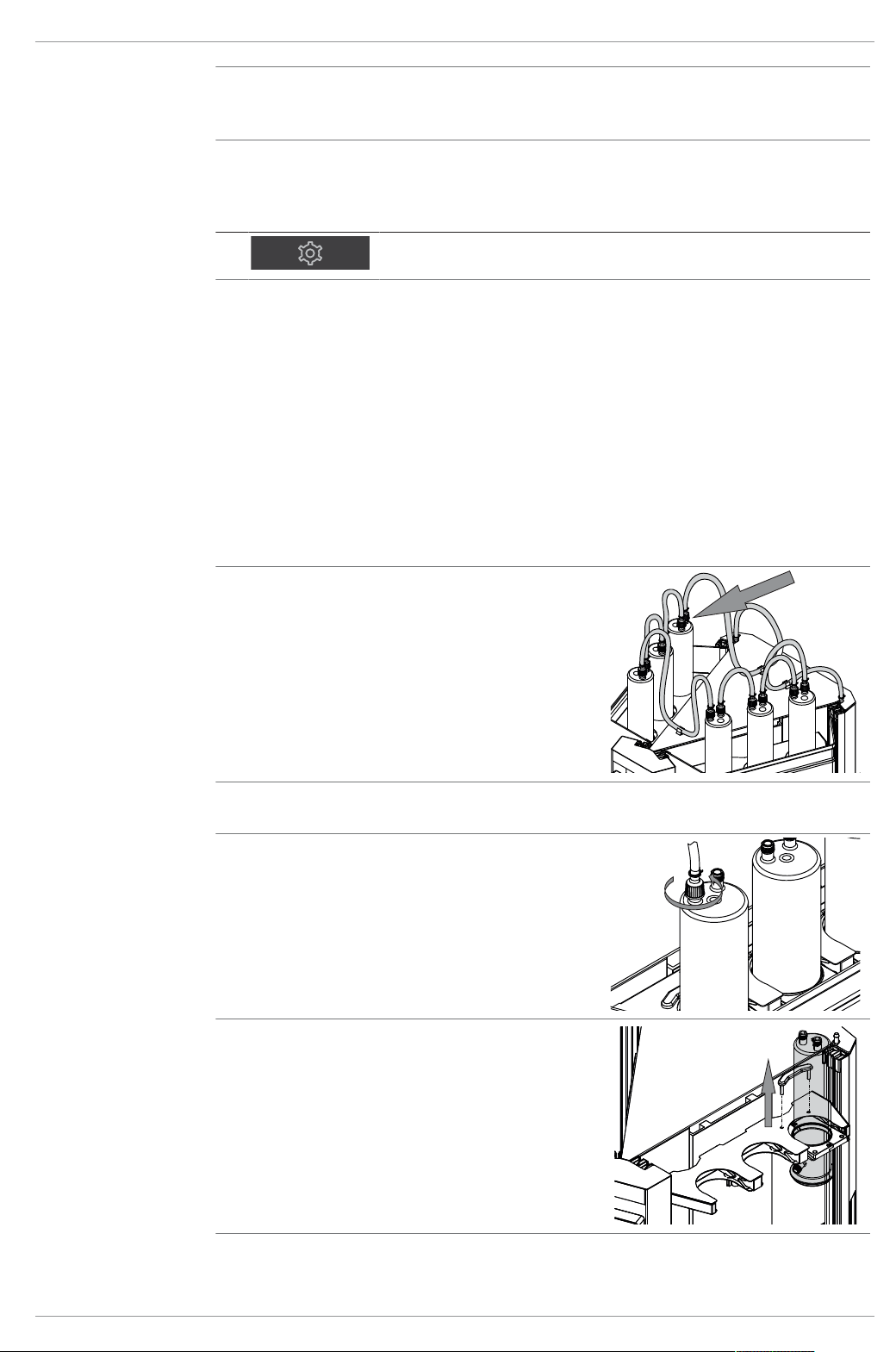

u Make sure that the condenser circuit is com-
plete. See Chapter14.1 "Schematics",
page81
5.14 Selecting a configuration
Navigation path
➔ ➔ [Settings]
Precondition:
R Switch the On/Off master switch to On.
u Navigate to the [Settings] submenu via the navigation path.
u Tap the action [Select configuration].
ð The display shows a dialog with the selectable configurations.
u Tap the configuration according to the installed glass setup.
ð The configuration is selected.
ð The dialog box closes.
5.15 Disassembling the condenser circuit
u Disconnect the indicated condenser connec-
tion.
u Make sure, that there is no coolant in the con-
denser circuit.
u Disconnect the other condenser connections.
u Remove the flange lock.
Operation Manual FatExtractor E-500 39/88
Page 40
5 | Installation BÜCHI Labortechnik AG

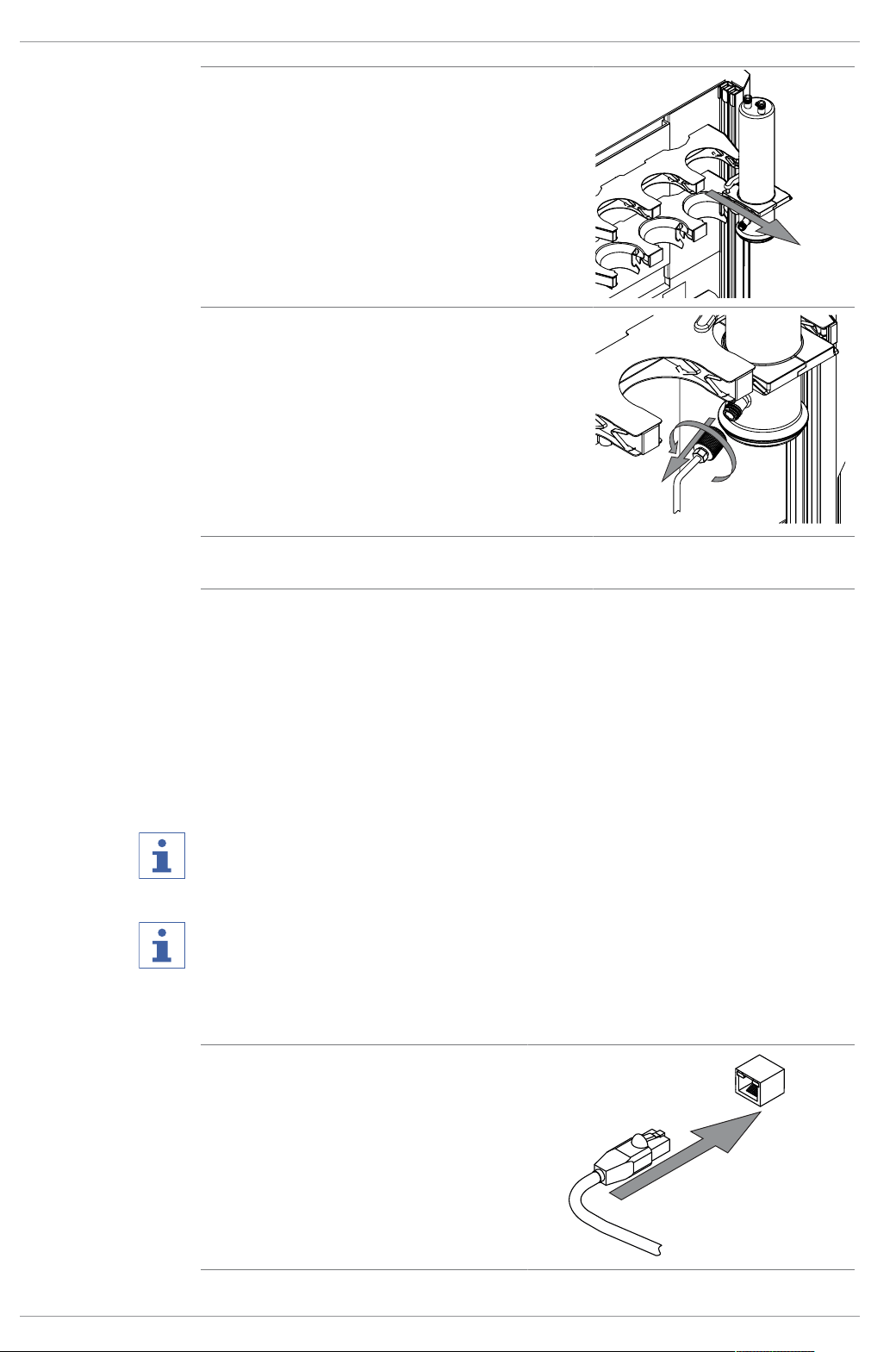

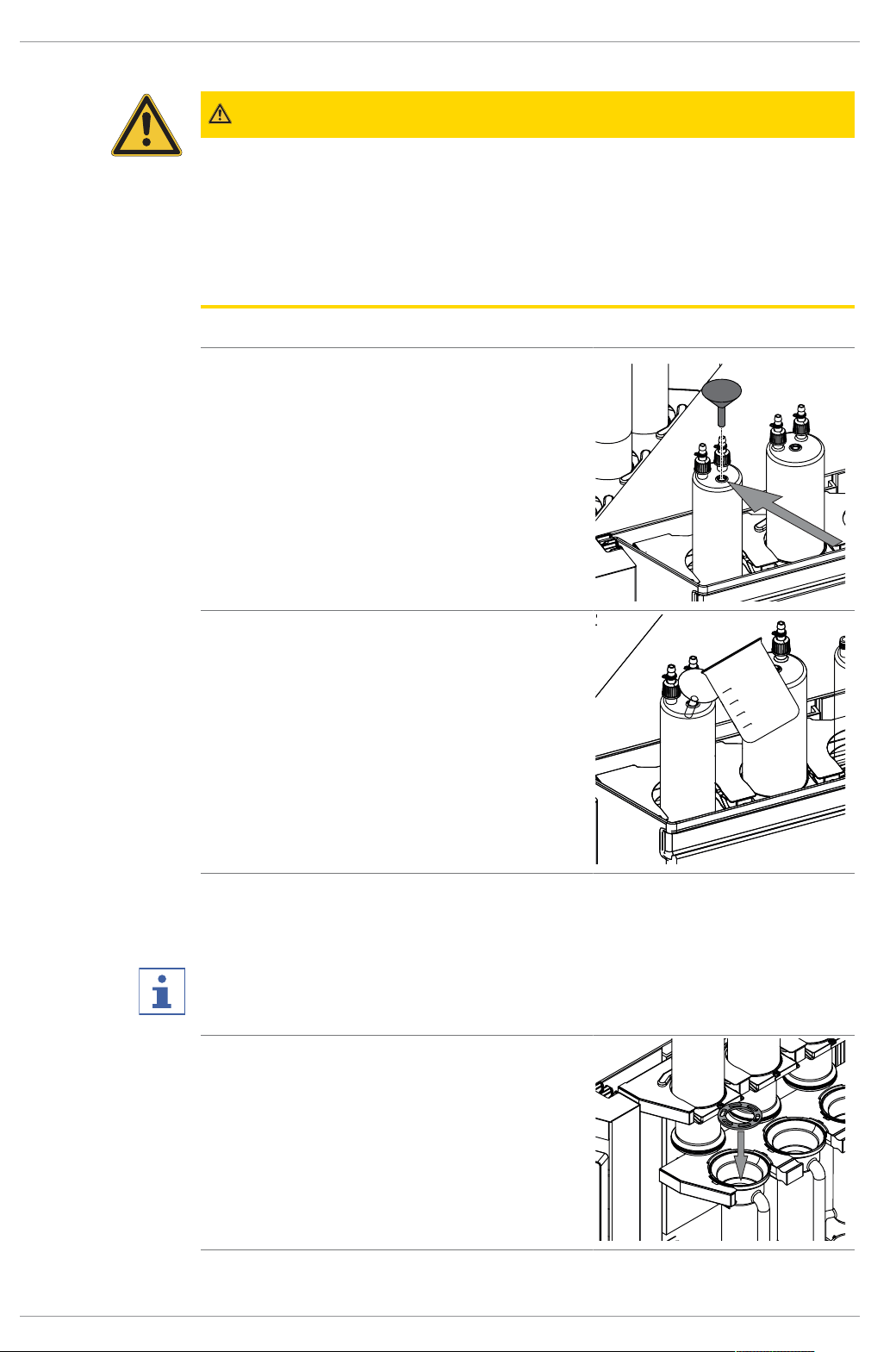

u Pull the condenser out of the condenser rack.
u Disconnect the solvent collector tube.
u Disconnect the solvent collector tube from the
installation board.
5.16 Mobile connection
5.16.1 Requirements for local network settings
u The following port has to be enabled in the firewall settings on the internet gate-
way:
TCP (HTTPS) traffics through remote port 443
u In order to use the BUCHI Cloud a DNS server must be configured on the instru-
ment.
NOTE
If there is no DNS server available enter the IP address for the BUCHI Cloud connection manually.
NOTE
If there is no DHCP server available enter the IP address, gateway subnet mask and
DNS server manually.
5.16.2 Preparing the instrument for app using
NOTICE!Do not unplug the LAN cable
while the device is connected to the
BUCHI Cloud Services
u Connect the instrument with the LAN
network.
40/88 Operation Manual FatExtractor E-500
Page 41
BÜCHI Labortechnik AG Installation | 5
Navigation path
➔ ➔ [Settings] ➔ [Network]
u Navigate to the action [Network].
u Enable the function [DHCP].
ð The instrument is prepared.
Operation Manual FatExtractor E-500 41/88
Page 42
6 | Operating the interface BÜCHI Labortechnik AG
1
2
4
5
7
6
3
6 Operating the interface
CAUTION
Risk of injury from glass splinters
Sharp objects can damage the display.
u Keep sharp objects away from the display.
6.1 Layout of the interface

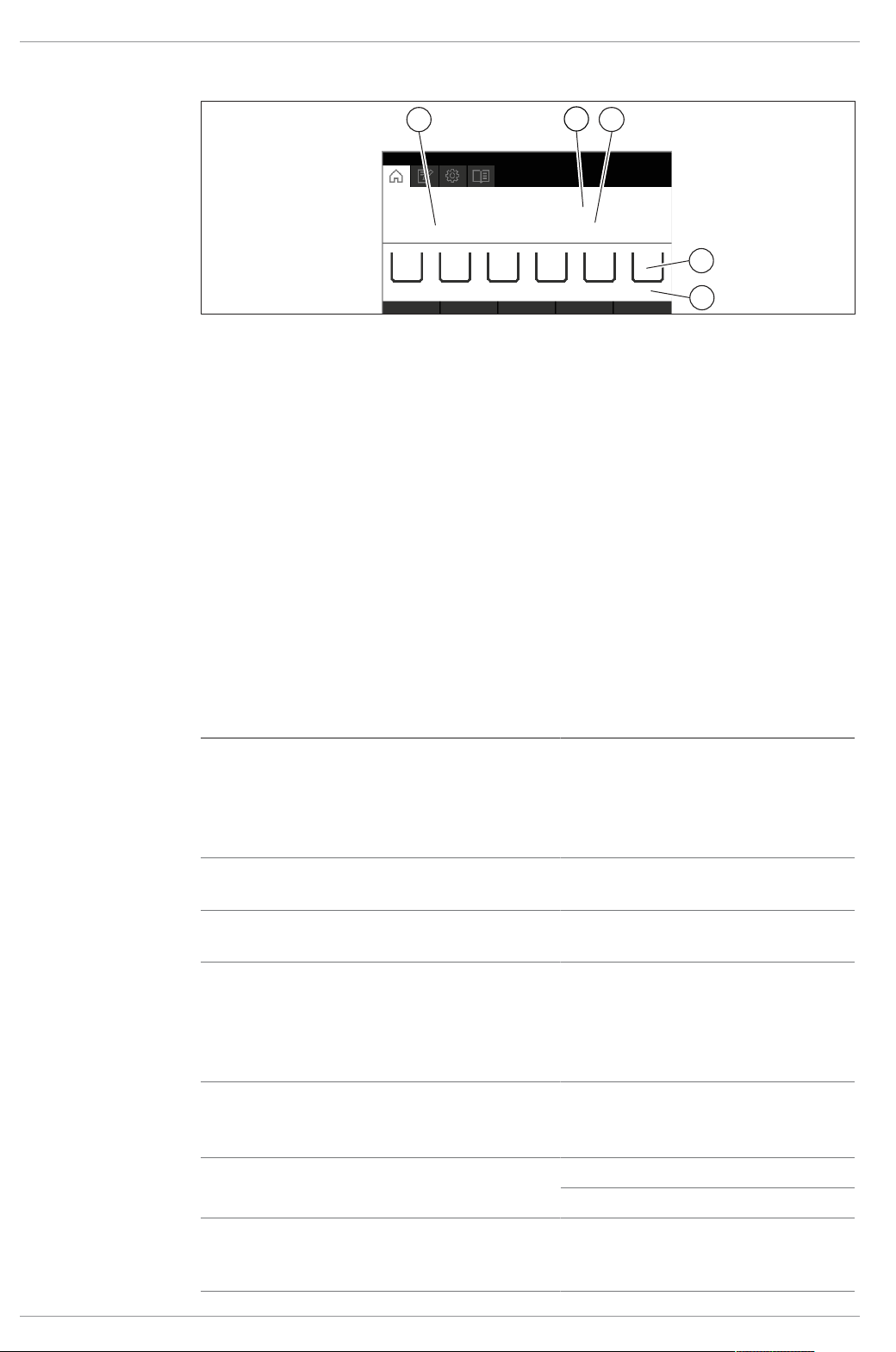

Fig.12: Interface
No. Description Function
1 Status bar Shows the actually used solvent and extrac-
tion method.
2 Menu bar Shows symbols representing the menus.
3 Content area Shows current settings, submenus or actions
depending on current operation.
4 Function bar Shows functions that can be performed ac-
cording to the current operation.
5 Function buttons Pressing a function button performs the as-
signed function on the function bar.
6 Stop button The extraction stops.
The valves close.
The heaters switch off.
The coolant keeps running 15 min.
7 Navigation control Used for navigating the user interface.
Pressing the control performs the assigned
function on the function bar.
6.2 Function bar
The function bar shows available functions according to the current operation.
The functions on the function bar are executed by tapping the relevant function buttons.
42/88 Operation Manual FatExtractor E-500
Page 43
BÜCHI Labortechnik AG Operating the interface | 6
O K
S AV E
M E N U
S TAR T
STOP
E S C
D O W N
U P
C O P Y
SKIP
VIEW
ABORT
Symbol Description Meaning
[Back] The display reverts to the previous
view.
[Confirm] Confirms an entry.
[Save] Saves the setting.
[Menu] Allows selection of a menu from the
menu bar using the navigation control.
[Start] Starts the extraction process.
[Stop] Aborts extraction on all extraction
positions.
[Escape] Cancels the actual entry.
[Down] The lift moves down.
6.3 Menu bar
The menus are represented by symbols on the menu bar. Navigation through the
menus is by input controls.
The following menus are available:
Menu symbol Meaning Submenu/Actions
[Up] The lift moves up.
[Copy] Copies the selected method.
[Skip] Skips the actual extraction step.
[View] Shows the parameters of the run-
ning extraction.
[Abort] Aborts extraction on the selected ex-
traction position.
[Home] menu Process control param-
eters
[Method] menu Editing and saving ex-
traction methods
[Configuration] menu Change settings
Service menu
System information
[Solvent] menu Solvent library
Editing and saving sol-
vents
Operation Manual FatExtractor E-500 43/88
Page 44
6 | Operating the interface BÜCHI Labortechnik AG
4
5
1
2
3
6.3.1 Home menu
Fig.13: Interface
1 Time remaining 2 Method
3 Status 4 Extraction positions
5 Extraction cycles
(Soxhlet Extraction only)
6.3.2 Method menu
The [Method] menu allows saving methods. See Chapter8 "Editing a method",
page54
6.3.3 Configuration menu
On the [Configuration] menu, you can enter a variety of settings and retrieve information.
Submenu Settings
The submenu [Settings] contains system settings for the instrument.
Action Option Explanation
[Language] Choice of display lan-
[Beeper] Off/On Setting for audible signal in re-
[Display brightness] Enter setting Display brightness level in %: 0 -
[Configuration] Choice of extraction
guage on the interface
method
The following languages are available:
English/German/French/Italian/
Spanish/Japanese/Chinese/Russian/
Polish
sponse to input controls.
100
The following configurations are
available:
SOX (Soxhlet Extraction) / HE (Hot
Extraction) / ECE (Economic Continuous Extraction)
[Max. Cycle time]
(Soxhlet Extraction
Enter value Maximum cycle time in minutes: 0 -
240
only)
[Analyte protection
(option)]
[Mobile connection
QR code]
View Threshold for empty-no beaker
Threshold for full-empty beaker
View The control unit shows a QR code
for connecting the Extraction Reports app with the instrument.
44/88 Operation Manual FatExtractor E-500
Page 45
BÜCHI Labortechnik AG Operating the interface | 6
Action Option Explanation
[Mobile connection
password]
[Network] Enter value The following parameters can be
View The control panel shows a password
for entry in the Extraction Reports
app.
edited:
Device name/DHCP/MAC address/
System IP address/Subnet mask/
Gateway
[Delete app connection]
[Demo Mode] On/Off Simulate an extraction.
Submenu Service
Confirmation question Resets external connections to the
instrument.
WARNING
Incorrect use of the actor settings.
Incorrect use of the actors settings can cause instrument damages and injuries.
u Carry out the actor setting as described.
Action Option Explanation
[Sensors] View All sensor signals can be observed:
Flow senors
Level sensors
Analyte protection (option)
Protection shield
Valves
Lift current
Line voltage
Line frequency
Operation Manual FatExtractor E-500 45/88
Page 46
6 | Operating the interface BÜCHI Labortechnik AG
Action Option Explanation
[Actors] Change settings The following settings can be
changed:
Valves:
Soxhlet valves See Chapter11.4
"Draining solvent from Extraction
glass chamber (Soxhlet only)",
page76
Tank valves See Chapter11.3
"Draining solvent from the instrument", page75
Cooling water valve On/Off
Heater On/Off
Pump On/Off
Lift current
u Tap up or down.
ð Display shows the actual
current consumption.
Beeper On/Off
Chiller On/Off (option)
Submenu System information
The submenu [System information] contains details of the connected devices and information on network connection diagnosis.
Action Option Explanation
[Extraction unit] View The following information on the Ex-
traction Unit is available:
Serial number
Firmware version
Operating hours
Board temperature
Code
[Interface] View The following information on the in-
terface is available:
Serial number
Firmware version
Operating hours
Board temperature
Code
30 V Operating voltage
5 V Operating voltage
Submenu History QR code
Shows the history list of the data export QR codes to export data. SeeChapter9.6
"Exporting extraction parameters", page70
46/88 Operation Manual FatExtractor E-500
Page 47
BÜCHI Labortechnik AG Operating the interface | 6
Submenu Data use
Action Option Explanation
[Number of extractions]
View Shows the number of extractions
performed with the instrument.
[Time of extraction] View Shows the time the instrument per-
formed extractions.
6.3.4 Solvent menu
The solvent menu contains the available solvents for the extraction methods.
The solvent menu allows editing individual solvents. See Chapter10 "Editing a solvent", page72
6.4 Status bar
The status bar shows actual information about the instrument (e.g. extraction method,
LAN connection, etc.).
Operation Manual FatExtractor E-500 47/88
Page 48
7 | Operating the interface pro BÜCHI Labortechnik AG
1
2
5
6
3
4
7 Operating the interface pro
CAUTION
Risk of injury from glass splinters
Sharp objects can damage the display.
u Keep sharp objects away from the display.
7.1 Layout of the interface
Fig.14: Interface Pro
No. Description Function
1 Status bar Shows the currently used solvent and extrac-
tion method.
2 Menu bar Shows symbols representing the menus.
3 Content area Shows current settings, submenus or actions
depending on the current operation.
4 Function bar Shows functions that can be performed ac-
5 Stop button The extraction stops.
6 Navigation control Used for navigating the user interface. Press-
cording to the current operation.
The valves close.
The heaters switch off.
The coolant keeps running 15 min.
ing the control performs the assigned function on the function bar.
48/88 Operation Manual FatExtractor E-500
Page 49
BÜCHI Labortechnik AG Operating the interface pro | 7
O K
S AV E
M E N U
S TAR T
STOP
QR Code
U P
D O W N
E S C
C O P Y
7.2 Function bar
The function bar shows available functions according to the current operation.
The functions on the function bar are executed by tapping the relevant function buttons.
Symbol Description Meaning
[Back] The display reverts to the previous
view.
[Confirm] Confirms an entry.
[Save] Saves the setting.
[Menu] Allows selection of a menu from the
menu bar using the navigation control.
[Start] Starts the extraction process.
[Stop] Aborts extraction on all extraction
positions.
7.3 Menu bar
The menus are represented by symbols on the menu bar. Navigation through the
menus is by input controls.
The following menus are available:
Menu symbol Meaning Submenu/Actions
[QR Code] The display shows a QR Code which
contains the data of all extraction parameters.
[Up] The lift moves up.
[Down] The lift moves down.
[Escape] Cancels the actual entry.
[Copy] Copies the selected method.
[Home] menu Process control param-
eters
[Method] menu Editing and saving ex-
traction methods
[Configuration] menu Change settings
Service menu
System information
Operation Manual FatExtractor E-500 49/88
Page 50
7 | Operating the interface pro BÜCHI Labortechnik AG
4
6
7
8
9
5
1
2
3
Menu symbol Meaning Submenu/Actions
[Solvent] menu Solvent library
Editing and saving sol-
vents
7.3.1 Home menu

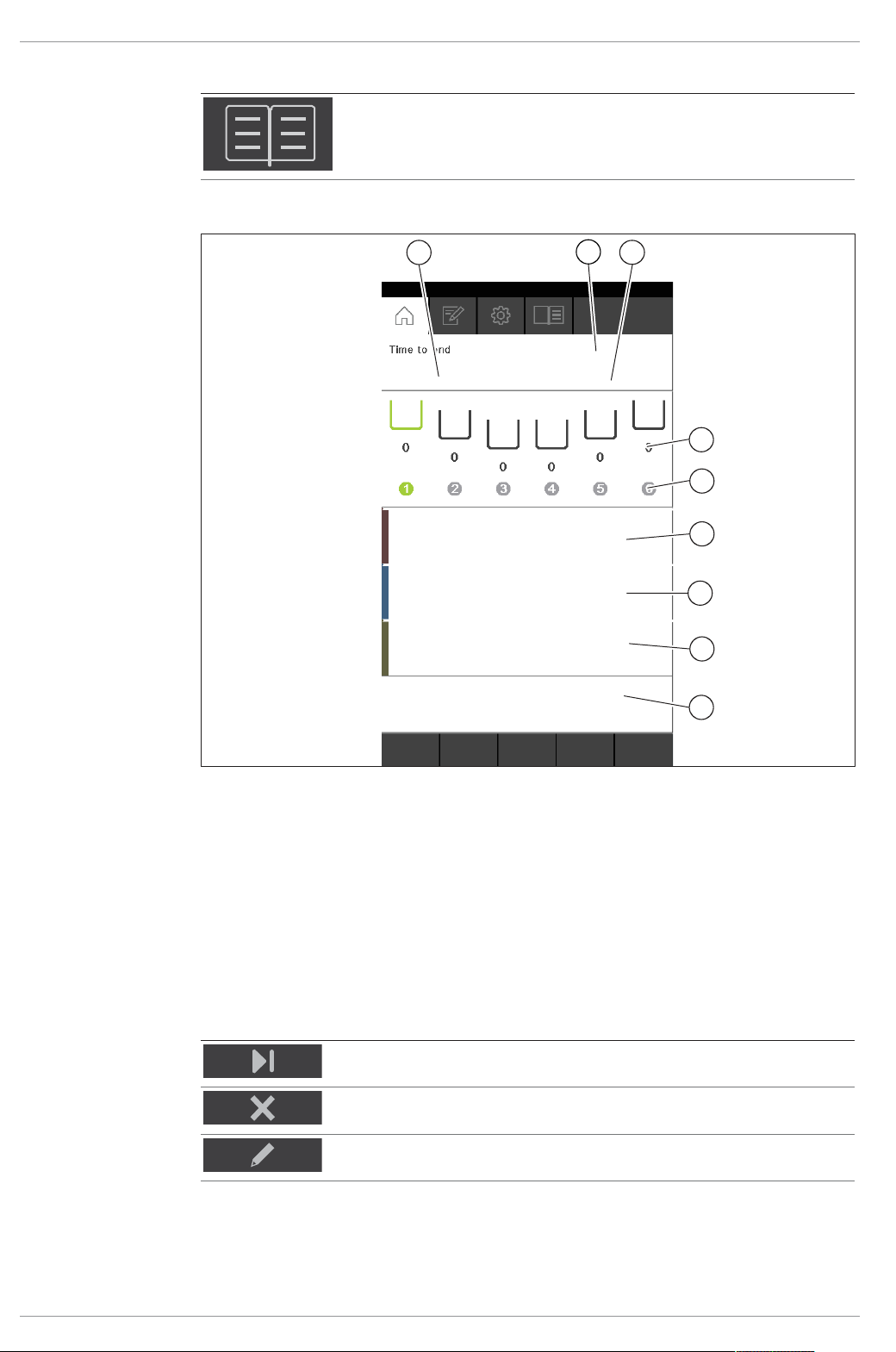

Fig.15: Home menu
1 Time remaining 2 Method
3 Status 4 Extraction cycles
5 Extraction position 6 Extraction time and heating level
7 Rinse time and heating level 8 Drying time and heating level
9 Control buttons
On the home menu the following control buttons are available:
Button Meaning
7.3.2 Method menu
The [Method] menu allows saving methods. See Chapter8 "Editing a method",
page54
(Soxhlet Extraction only)
Skips the actual step.
Aborts extraction on the selected extraction position.
Editing the running method.
50/88 Operation Manual FatExtractor E-500
Page 51
BÜCHI Labortechnik AG Operating the interface pro | 7
7.3.3 Configuration menu
On the [Configuration] menu, you can enter a variety of settings and retrieve information.
Submenu Settings
The submenu [Settings] contains system settings for the instrument.
Action Option Explanation
[Language] Choice of display lan-
guage on the interface
The following languages are available:
English/German/French/Italian/
Spanish/Japanese/Chinese/Russian/
Polish
[Date] Date input Enter in sequence: Day, month,
year. Apply the settings by pressing
[OK].
[Time] Time input Enter in sequence: Minutes, hours.
Apply the settings by pressing [OK].
[Beeper] Off/On Setting for audible signal in re-
sponse to input controls.
[Display brightness] Enter setting Display brightness level in %: 0 -
100
[Configuration] Choice of extraction
method
The following configurations are
available:
SOX (Soxhlet Extraction) / HE (Hot
Extraction) / ECE (Economic Continuous Extraction)
[Max. Cycle time]
(Soxhlet Extraction
Enter value Maximum cycle time in minutes: 0 -
240
only)
[Analyte protection
(option)]
[Mobile connection
QR code]
View Threshold for empty-no beaker
Threshold for full-empty beaker
View The control unit shows a QR code
for connecting the Extraction Reports app with the instrument.
[Mobile connection
password]
View The control panel shows a password
for entry in the Extraction Reports
app.
[Network] Enter value The following parameters can be
edited:
Device name/DHCP/MAC address/
System IP address/Subnet mask/
Gateway
[Delete app connection]
Confirmation question Resets external connections to the
instrument.
[Demo Mode] On/Off Simulate an extraction.
Operation Manual FatExtractor E-500 51/88
Page 52
7 | Operating the interface pro BÜCHI Labortechnik AG
Submenu Service
WARNING
Incorrect use of the actor settings.
Incorrect use of the actors settings can cause instrument damages and injuries.
u Carry out the actor setting as described.
Action Option Explanation
[Sensors] View All sensor signals can be observed:
Flow senors
Level sensors
Analyte protection (option)
Protection shield
Valves
Lift current
Line voltage
Line frequency
[Actors] Change settings The following settings can be
changed:
Valves:
Soxhlet valves See Chapter11.4
"Draining solvent from Extraction
glass chamber (Soxhlet only)",
page76
Tank valves See Chapter11.3
"Draining solvent from the instrument", page75
Cooling water valve On/Off
Heater On/Off
Pump On/Off
Lift current
u Tap up or down.
ð Display shows the actual
current consumption.
Beeper On/Off
Chiller On/Off (option)
Submenu System Information
The submenu [System information] contains details of the connected devices and information on network connection diagnosis.
52/88 Operation Manual FatExtractor E-500
Page 53
BÜCHI Labortechnik AG Operating the interface pro | 7
Action Option Explanation
[Extraction unit] View The following information on the Ex-
traction Unit is available:
Serial number
Firmware version
Operating hours
Board temperature
Code
[Interface] View The following information on the in-
terface is available:
Serial Number
Firmware version
Operating Hours
Board temperature
Code
Operation voltage 30 V
Operation voltage 5V
Submenu History QR code
Shows the history list of the data export QR codes to export data. SeeChapter9.6
"Exporting extraction parameters", page70
Submenu Data use
Action Option Explanation
[Number of extractions]
[Time of extraction] View Shows the time the instrument per-
7.3.4 Solvent menu
The solvent menu contains the available solvents for the extraction methods.
The solvent menu allows editing individual solvents. See Chapter10 "Editing a solvent", page72
7.4 Status bar
The status bar shows actual information about the instrument (e.g. extraction method,
LAN connection, etc.).
View Shows the number of extractions
performed with the instrument.
formed extractions.
Operation Manual FatExtractor E-500 53/88
Page 54
8 | Editing a method BÜCHI Labortechnik AG
8 Editing a method
This chapter describes how to edit a method.
NOTE
Depending on the extraction method you edit, the display shows the available parameters for this extraction method.
8.1 Creating a new method
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Select the submenu [Define method] with the navigation control.
ð The display highlights the selection in green.
u Tap the function [OK] on the function bar.
ð The new method is created.
ð The display shows the view M eth od.
u Tap the function [Save] on the function bar.
ð The method is saved.
8.2 Changing the name of a method
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Method name] with the navigation control.
ð The display shows a dialog with an alphanumeric input box.
u Enter a name for the method.
u Tap the function [Save] on the function bar.
ð The new name is saved.
ð The dialog box closes.
8.3 Setting the solvent of a method
The following solvents are selectable:
Chloroform
Diethyl ether
Hexane
Petroleum ether
Own created
The control sets the heating level for the selected solvent automatically.
54/88 Operation Manual FatExtractor E-500
Page 55
BÜCHI Labortechnik AG Editing a method | 8
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Solvent] with the navigation control.
ð The display shows a dialog with the selectable solvents.
u Select the solvent you wish to use with the navigation control.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The solvent is saved.
ð The dialog box closes.
8.4 Setting the extraction time of a method
Enter the duration of the extraction step in minutes.
at least 0 minutes
maximum 5940 minutes / 99 hours
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Extraction time] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The value is saved.
ð The dialog box closes.
8.5 Setting the extraction cycles of a method (Soxhlet Extraction only)
The extraction time and the number of extraction cycles are interdependent.
If the number of extraction cycles is set to zero, the extraction will finish after the
selected time.
If the extraction time is set to zero, the extraction will finish after the number of ex-
traction cycles is reached.
If the extraction time and a number of extraction cycles is set, the extraction will fin-
ish once both settings are fulfilled.
The number of extraction cycles is selectable from 0 to 5940.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
Operation Manual FatExtractor E-500 55/88
Page 56
8 | Editing a method BÜCHI Labortechnik AG
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Extraction cycle] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The number of extraction cycles is saved.
8.6 Setting the extraction heating level of a method
The default setting for the heating level setting is depending on the selected solvent.
Change the heating level to compensate ambient conditions.
WARNING
Setting the heating level too high
The consequences are device damage, serious injuries or death.
u Use the pre-set heating levels.
u Adjust the heating level to compensate the ambient conditions.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Extraction heating level] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The heating level is saved.

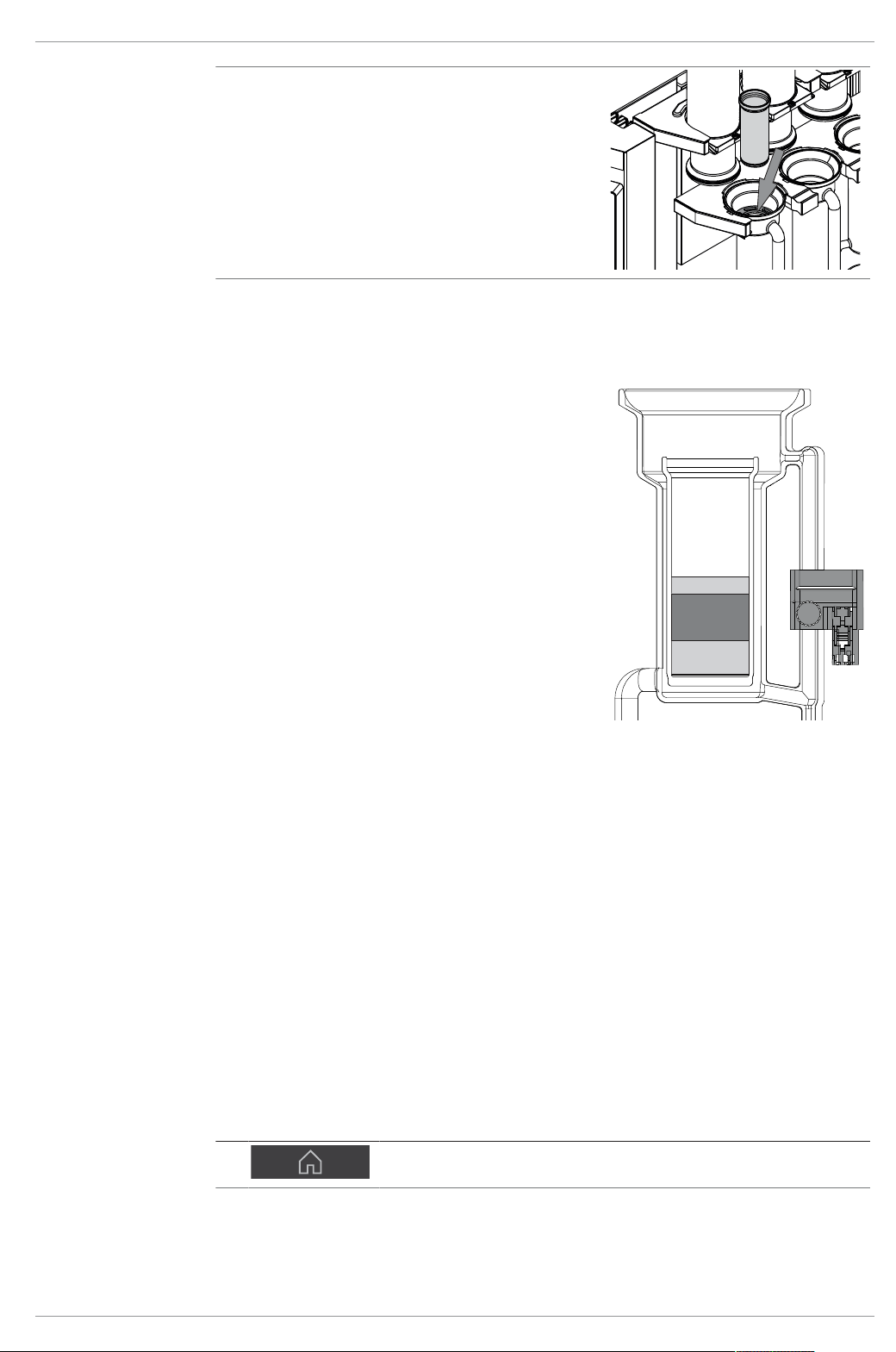

8.7 Setting the Soxhlet valve open time of a method (Soxhlet only)
The Soxhlet valve open time depends on the position of the level sensor and the
sample structure.
Set the Soxhlet valve opening time so that the Extraction glass chamber Soxhlet is
completely emptied.
The following open times are available:
Open time Level sensor posi-
tion
[short] bottom The sample structure is easily releasing
Explanation
the solvent.
Hydrolysed sample in the glass sample
tubes are extracted.
56/88 Operation Manual FatExtractor E-500
Page 57
BÜCHI Labortechnik AG Editing a method | 8
Open time Level sensor posi-
Explanation
tion
[mid] middle The sample structure is easily releasing
the solvent.
[long] top The sample structure is easily releasing
the solvent.
bottom The sample structure is slowly releasing
the solvent.
[max] top The Soxhlet LSV chamber is used.
The sample structure is slowly releasing
the solvent.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Sox valve open time] with the navigation control.
ð The display shows a dialog with the selectable values.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The Soxhlet valve open time is saved.
8.8 Setting the rinse time of a method (Soxhlet and Hot Extraction
only)
Enter the duration of the extraction step in minutes.
at least 0 minutes
maximum 5940 minutes / 99 hours
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Rinse time] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The time is saved.
8.9 Setting the rinse heating level of a method (Soxhlet and Hot
Extraction only)
The default setting for the rinse heating level is depending on the selected solvent.
Change the rinse heating level to compensate ambient conditions.
Operation Manual FatExtractor E-500 57/88
Page 58
8 | Editing a method BÜCHI Labortechnik AG
WARNING
Setting the heating level too high
The consequences are device damage, serious injuries or death.
u Use the pre-set heating levels.
u Adjust the heating level to compensate the ambient conditions.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Rinse heating level] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The heating level is saved.
8.10 Setting the number of drains for a method (Hot Extraction only)
During each drain 3 - 4 mL of solvent is drained into the solvent tank.
The level in the beaker is lowered to finally rinse the sample without touching the extract.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [No. of drains] with the navigation control.
ð The display shows a dialog with the selectable values.
u Select the value you wish to use with the navigation control.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The value is saved.
ð The dialog box closes.
8.11 Setting SmartDrying (Soxhlet and Economic Continuous
Extraction only)
Smart-Drying automatically sets the parameters for the drying step.
58/88 Operation Manual FatExtractor E-500
Page 59
BÜCHI Labortechnik AG Editing a method | 8
The following parameters are set automatically:
Rinse heating level (without analyte protection only)
Drying time
Drying heating level
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Tap the action [SmartDrying].
ð The function is enabled.
8.12 Setting the drying time of a method
NOTICE
Risk of beaker damage or deterioration of the analyte due to incorrect
settings of the drying step.
Incorrect drying step settings can damage the analyte and the beaker.
u Changing the default settings is at your own risk.
The duration of the drying time of a method depends on the solvent volume.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Drying time] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The time is saved.
8.13 Setting the drying heating level of a method
The default setting for the drying heating level is depending on the selected solvent.
Change the drying heating level to compensate fluctuations in ambient conditions.
Operation Manual FatExtractor E-500 59/88
Page 60
8 | Editing a method BÜCHI Labortechnik AG
WARNING
Setting the heating level too high
The consequences are device damage, serious injuries or death.
u Use the pre-set heating levels.
u Adjust the heating level to compensate the ambient conditions.
Navigation path
➔
u Navigate to the [Method] menu via the navigation path.
u Tap the name of the method that you wish to edit.
ð The display shows the view M eth od.
u Tap the function [Edit] on the function bar.
u Select the action [Drying heating level] with the navigation control.
u Turn the navigation control until the required value.
u Tap the function [OK] on the function bar.
u Tap the function [Save] on the function bar.
ð The heating level is saved.
60/88 Operation Manual FatExtractor E-500
Page 61
BÜCHI Labortechnik AG Performing an extraction | 9
9 Performing an extraction
9.1 Task during performing an extraction
9.1.1 Adding solvent through the condenser
There are two possibilities to add solvent throught the condenser:
1. with a dispenser see Chapter "Adding solvent through the condenser with a dispenser", page61
2. with a funnel Chapter "Adding solvent through the condenser with a funnel",
page62

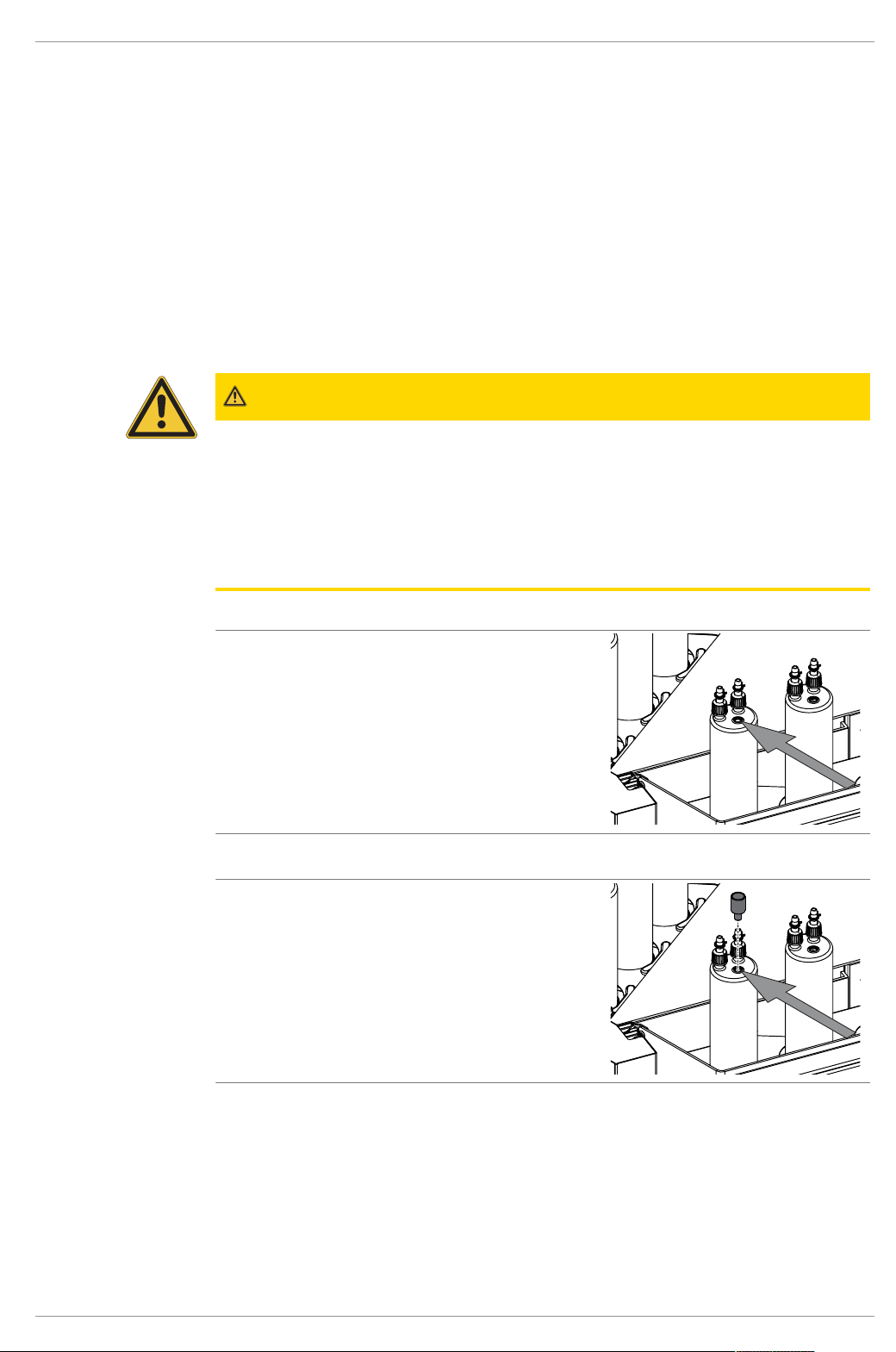

Adding solvent through the condenser with a dispenser
CAUTION
Not correctly installed condenser
A not correctly installed condenser can cause skin burns or a building fire
u A beaker is placed under the position.
u An extraction glass chamber is installed at the position (Soxhlet and Economic
Continuous Extraction only).
u The lift is in the lower position.
u Insert the nozzle of the dispenser into the con-
denser.
u Add solvent with a dispenser.
Use the support solvent supply (option)
u Put a support solvent supply on the con-
denser.
u Insert the nozzle of the dispenser into the sup-
port solvent supply.
u Add solvent with a dispenser.
Operation Manual FatExtractor E-500 61/88
Page 62
9 | Performing an extraction BÜCHI Labortechnik AG
Adding solvent through the condenser with a funnel
CAUTION
Not correctly installed condenser
A not correctly installed condenser can cause skin burns or a building fire
u A beaker is placed under the position.
u An extraction glass chamber is installed at the position (Soxhlet and Economic
Continuous Extraction only).
u The lift is in the lower position.
u Put a funnel on the condenser.
u Add solvent through the funnel.
9.2 Putting the glass sample tube with frit in the extraction glass
chamber
NOTE
Instead of glass sample tube with frit it is possible to insert a thimble.
u Put the holder for the glass sample tube with
frit into the extraction chamber.
62/88 Operation Manual FatExtractor E-500
Page 63
BÜCHI Labortechnik AG Performing an extraction | 9
Sand
Celite®
+ sample
Sand
u Put the glass sample tube with frit into the
holder in the extraction chamber.
9.3 Performing a Soxhlet Extraction
9.3.1 Adjusting the optical sensor on the extraction glass chamber Soxhlet
u Adjusting the optical sensor on the extraction
glass chamber Soxhlet.
White line to the center of the upper sand layer.
9.3.2 Preparing the instrument for a Soxhlet Extraction
Precondition:
R All commissioning operations have been completed. See Chapter5 "Installation",
page27
R Make sure that the configuration Soxhlet Extraction is selected. See Chapter5.14
"Selecting a configuration", page39
R Make sure that there are no extraction beakers in the instrument.
R Make sure that no defective sealings or glass parts are used.
R Make sure that the tank bottle is empty and installed. See Chapter5.8 "Preparing
the tank bottle", page30
u Switch the On/Off master switch to On.
ð The instrument is starting up.
9.3.3 Selecting a method
Navigation path
➔
u Navigate to the [Home] menu via the navigation path.
u Tap the method.
ð The display shows a dialog with the selectable methods.
Operation Manual FatExtractor E-500 63/88
Page 64
9 | Performing an extraction BÜCHI Labortechnik AG
u Select the method you wish to use.
u Tap the function [OK] on the function bar.
ð The method is selected.
9.3.4 Selecting the extraction positions
The extraction positions can show the following status:
Status Meaning
The extraction position is activated.
The extraction position will be heated.
The extraction position is not activated.
The extraction position will not be heated.
The extraction for this extraction position is aborted.
The extraction position is not heated anymore.
Navigation path
➔
u Navigate to the [Home] menu via the navigation path.
u Select the extraction position with the navigation control.
u Tap the function [OK] on the function bar.
ð The status of the extraction position is changed.
9.3.5 Starting a Soxhlet Extraction
NOTE
Boiling retardation
4 The beakers contain an integrated boiling surface.
ðNo boiling aids are needed.
NOTE
As an alternative fill the solvent at the beginning of an extraction through the condenser. See Chapter9.1.1 "Adding solvent through the condenser", page61
Navigation path
➔
Precondition:
R The instrument has been prepared.
R A method is selected.
R The sample is prepared (in the glass sample tube or in the thimble).
u Switch on the connected chiller or open the water tap.
u Pull the chamber rack out of the instrument.
u Place the prepared glass sample tube or thimble with the corresponding holder in
the extraction chamber.
u Set the optical sensor to the correct position. See Chapter9.3.1 "Adjusting the op-
tical sensor on the extraction glass chamber Soxhlet", page63
u Push the chamber rack back in the instrument.
u Fill the beaker with organic solvent.
u Put the beaker on the corresponding position on the heating plate.
u Close the protection shield.
64/88 Operation Manual FatExtractor E-500
Page 65
BÜCHI Labortechnik AG Performing an extraction | 9
u Navigate to the [Home] menu via the navigation path.
u Tap the function [Down] on the function bar.
ð The lift moves down.
u Wait until the lift is in the lower position.
u Make sure that all components of the glass setup are aligned.
Testing procedure:
Move each condenser a small distance forward and backward.
u Tap the function [Start] on the function bar.
ð The display shows the [Home] menu with a black background.
ð The instrument is starting the selected method.
u Wait until the solvent boils and condenses.
u Make sure that there are no leaks.
9.3.6 Ending a Soxhlet Extraction
WARNING
Risk of dangerous vapors, hot parts and hot glassware.
A hot instrument can cause building fire, skin burns or death.
u Wait 15 min before opening the lift.
u Do not touch hot parts or surfaces.
u Use pliers to remove the glassware.
Navigation path
➔
Precondition:
R The [Start] menu is showing the status Finished.
R The instrument temperature is less than 150 °C.
u Tap the function [Up] on the function bar.
ð The lift moves up.
u Open the protection shield.
u Remove the beaker for further processing.
u Remove the glass sample tube or thimble from the extraction glass chamber.
u Switch off the connected chiller or close the water tap.
u Empty the solvent tank. See Chapter11.2 "Removing the tank bottle", page74
9.3.7 Shutting down the instrument
Navigation path
➔
Precondition:
R The extraction process has ended.
u Switch the On/Off master switch to Off.
Operation Manual FatExtractor E-500 65/88
Page 66
9 | Performing an extraction BÜCHI Labortechnik AG
9.4 Performing a Hot Extraction
9.4.1 Preparing the instrument for a Hot Extraction
Precondition:
R All commissioning operations have been completed. See Chapter5 "Installation",
page27
R Make sure that the configuration Hot Extraction is selected.
R Make sure that there are no extraction beakers in the instrument.
R Make sure that no defective sealings or glass parts are used.
R Make sure that the tank bottle is empty and installed. See Chapter5.8 "Preparing
the tank bottle", page30
u Switch the On/Off master switch to On.
ð The instrument is starting up.
9.4.2 Selecting a method
Navigation path
➔
u Navigate to the [Home] menu via the navigation path.
u Tap the method.
ð The display shows a dialog with the selectable methods.
u Select the method you wish to use.
u Tap the function [OK] on the function bar.
ð The method is selected.
9.4.3 Selecting the extraction positions
The extraction positions can show the following status:
Status Meaning
The extraction position is activated.
The extraction position will be heated.
The extraction position is not activated.
The extraction position will not be heated.
The extraction for this extraction position is aborted.
The extraction position is not heated anymore.
Navigation path
➔
u Navigate to the [Home] menu via the navigation path.
u Select the extraction position with the navigation control.
u Tap the function [OK] on the function bar.
ð The status of the extraction position is changed.
66/88 Operation Manual FatExtractor E-500
Page 67
BÜCHI Labortechnik AG Performing an extraction | 9
9.4.4 Starting a Hot Extraction
NOTE
Boiling retardation
4 The beakers contain an integrated boiling surface.
ðNo boiling aids are needed.
Navigation path
➔
Precondition:
R The instrument has been prepared.
R A method is selected.
R The sample is prepared (in the glass sample tube or in the thimbles).
u Switch on the connected chiller or open the water tap.
u Place the prepared glass sample tube or thimble with the corresponding holder in
the beaker.
u Put the beaker on the corresponding position on the heating plate.
u Close the protection shield.
u Navigate to the [Home] menu via the navigation path.
u Tap the function [Down] on the function bar.
ð The lift moves down.
u Wait until the lift is in the lower position.
u Make sure that all components of the glass setup are aligned.
Testing procedure:
Move each condenser a small distance forward and backward.
u Fill the solvent via the condenser. See Chapter "Adding solvent through the con-
denser with a funnel", page62
u Tap the function [Start] on the function bar.
ð The display shows the [Home] menu with a black background.
ð The instrument is starting the selected method.
u Wait until the solvent boils and condenses.
u Make sure that there are no leaks.
9.4.5 Ending a Hot Extraction
WARNING
Risk of dangerous vapors, hot parts and hot glassware.
A hot instrument can cause building fire, skin burns or death.
u Wait 15 min before opening the lift.
u Do not touch hot parts or surfaces.
u Use pliers to remove the glassware.
Navigation path
➔
Operation Manual FatExtractor E-500 67/88
Page 68
9 | Performing an extraction BÜCHI Labortechnik AG
Precondition:
R The [Start] menu is showing the status Finished.
R The instrument temperature is less than 150 °C.
u Tap the function [Up] on the function bar.
ð The lift moves up.
u Open the protection shield.
u Remove the beaker for further processing.
u Switch off the connected chiller or close the water tap.
u Empty the solvent tank. See Chapter11.2 "Removing the tank bottle", page74
9.4.6 Shutting down the instrument
Navigation path
➔
Precondition:
R The extraction process has ended.
u Switch the On/Off master switch to Off.
9.5 Performing an Economic Continuous Extraction
9.5.1 Preparing the instrument for an Economic Continuous Extraction
Precondition:
R All commissioning operations have been completed. See Chapter5 "Installation",
page27
R Make sure that the configuration Economic Continuous Extraction is selected.
R Make sure that there are no extraction beakers in the instrument.
R Make sure that the tank bottle is empty and installed. See Chapter5.8 "Preparing
the tank bottle", page30
R Make sure that no defective sealings or glass parts are used.
u Switch the On/Off master switch to On.
ð The instrument is starting up.
9.5.2 Selecting a method
Navigation path
➔
u Navigate to the [Home] menu via the navigation path.
u Tap the method.
ð The display shows a dialog with the selectable methods.
u Select the method you wish to use.
u Tap the function [OK] on the function bar.
ð The method is selected.
9.5.3 Selecting the extraction positions
The extraction positions can show the following status:
68/88 Operation Manual FatExtractor E-500
Page 69
BÜCHI Labortechnik AG Performing an extraction | 9
Status Meaning
The extraction position is activated.
The extraction position will be heated.
The extraction position is not activated.
The extraction position will not be heated.
The extraction for this extraction position is aborted.
The extraction position is not heated anymore.
Navigation path
➔
u Navigate to the [Home] menu via the navigation path.
u Select the extraction position with the navigation control.
u Tap the function [OK] on the function bar.
ð The status of the extraction position is changed.
9.5.4 Starting an Economic Continuous Extraction
NOTE
Boiling retardation
4 The beakers contain an integrated boiling surface.
ðNo boiling aids are needed.
NOTE
As an alternative fill the solvent at the beginning of an extraction through the condenser. See Chapter9.1.1 "Adding solvent through the condenser", page61
Navigation path
➔
Precondition:
R The instrument has been prepared.
R A method is selected.
R The sample is prepared (in the glass sample tube or in the thimbles).
u Switch on the connected chiller or open the water tap.
u Place the prepared glass sample tube or thimble with the corresponding holder in
the extraction chamber.
u Fill the beaker with organic solvent.
u Put the beaker on the corresponding position on the heating plate.
u Close the protection shield.
u Navigate to the [Home] menu via the navigation path.
u Tap the function [Down] on the function bar.
ð The lift moves down.
u Wait until the lift is in the lower position.
u Make sure that all components of the glass setup are aligned.
Testing procedure:
Move each condenser a small distance forward and backward.
Operation Manual FatExtractor E-500 69/88
Page 70
9 | Performing an extraction BÜCHI Labortechnik AG
u Tap the function [Start] on the function bar.
ð The display shows the [Home] menu with a black background.
ð The instrument is starting the selected method.
u Wait until the solvent boils and condenses.
u Make sure that there are no leaks.
9.5.5 Ending an Economic Continuous Extraction
WARNING
Risk of dangerous vapors, hot parts and hot glassware.
A hot instrument can cause building fire, skin burns or death.
u Wait 15 min before opening the lift.
u Do not touch hot parts or surfaces.
u Use pliers to remove the glassware.
Navigation path
➔
Precondition:
R The [Home] menu is showing the status Finished.
R The instrument temperature is less than 150 °C.
u Tap the function [Up] on the function bar.
ð The lift moves up.
u Open the protection shield.
u Remove the beaker for further processing.
u Remove the glass sample tube or thimble from the extraction glass chamber.
u Switch off the connected chiller or close the water tap.
u Empty the solvent tank. See Chapter11.2 "Removing the tank bottle", page74
9.5.6 Shutting down the instrument
Navigation path
➔
Precondition:
R The extraction process has ended.
u Switch the On/Off master switch to Off.
9.6 Exporting extraction parameters
NOTE
The number of saved QR Codes is limited.
4 When the internal memory is full, the older QR Codes will be overwritten.
9.6.1 Exporting extraction parameters without cloud connection
Precondition:
R The App is installed on a mobile device.
70/88 Operation Manual FatExtractor E-500
Page 71
BÜCHI Labortechnik AG Performing an extraction | 9
R An extraction is finished.
u Tap the button [QR Code] on the function bar.
ð The display shows a QR code.
u Scan the QR code on the display with the camera function of the App.
9.6.2 Exporting extraction parameters with cloud connection
Precondition:
R The App is installed on a mobile device.
R An extraction is finished.
R The instrument is connected via LAN cable. See Chapter5.16 "Mobile connec-
tion", page40
u The extraction parameters are automatically transferred to the App.
Operation Manual FatExtractor E-500 71/88
Page 72
10 | Editing a solvent BÜCHI Labortechnik AG
10 Editing a solvent
The solvent menu contains the predefined solvents for the extraction procedures.
Additional solvents can be added by following the instructions in Chapter2 "Safety",
page9.
10.1 Creating a new solvent
Navigation path
➔
u Navigate to the [Solvent] menu via the navigation path.
u Tap the submenu [Create own].
ð The new solvent is created.
10.2 Changing the name of a solvent (own created solvents only)
Navigation path
➔
u Navigate to the [Solvent] menu via the navigation path.
u Tap the name of the solvent you wish to edit.
ð The display highlights the selection in green.
u Tap the function [OK] on the function bar.
ð The display shows the view S olv ent.
u Tap the action [Name].
ð The display shows a dialog with an alphanumeric input box.
u Enter a name for the solvent.
u Tap the function [Save] on the function bar.
ð The new name is saved.
ð The dialog box closes.
72/88 Operation Manual FatExtractor E-500
Page 73
BÜCHI Labortechnik AG Cleaning and servicing | 11
11 Cleaning and servicing
NOTE
Users may only carry out the servicing and cleaning operations described in this section.
Any servicing and repair work which involves opening up the casing may only be carried out by BUCHI service technicians.
u Use only genuine BUCHI consumables and spare parts in order to ensure correct
operation of the device and preserve the warranty.
11.1 Regular maintenance work
CAUTION
Hot surfaces.
Skin burns from hot surfaces.
u Let the instrument cool down sufficiently before carrying out any maintenance
work.
NOTE
It is the responsibility of the operators to select the correct cleaning agents and materials.
4 Do not use abrasive cleaning material.
4 Make sure that the cleaning agent meets the requirements of the safety data
sheets for the chemicals used.
4 Make sure that the cleaning agent is compatible with the materials used. See
Chapter3.5 "Technical data", page22
4 If you have any further questions, please contact BUCHI Customer Service.
Component Action Frequency
Extraction glass
chamber Soxhlet
(only)
Solvent tank u Empty the solvent tank. See Chap-
Glass parts u Check all glass parts for defects.
Sealings NOTICE!Do not clean in dishwasher.
Empty the Extraction glass chamber
Soxhlet. See Chapter11.4 "Draining solvent from Extraction glass chamber
(Soxhlet only)", page76
ter11.2 "Removing the tank bottle",
page74
u If defective, replace defect glass parts
u Check all sealings for scratches and
other defects.
u If defective or damaged, replace the
sealing.
If needed, after every extraction
After every extraction
Before every extraction
Daily
Magnetic valve u Check all magnetic valves for leaks.
u If leaking, change the membrane with
anchor. See Changing the membrane
with anchor
Operation Manual FatExtractor E-500 73/88
Daily
Page 74
11 | Cleaning and servicing BÜCHI Labortechnik AG
Component Action Frequency
Heating plate u Wipe down the heating plate with a
Weekly
damp cloth.
u If heavily soiled, use ethanol or a mild
detergent.
u If cracked or broken, contact BUCHI
customer service
Hoses and hose
connections
u Check the hoses and hose connec-
tions for defects (cracks, brittle areas).
u If defective, replace defect hoses.
Housing u Wipe down the housing with a damp
cloth.
u If heavily soiled, use ethanol or a mild
detergent.
Warning symbols u Check that the warning symbols on
the instrument are legible.
u If they are dirty, clean them.
Protection shields NOTICE!Do not use Acetone
u Wipe down the protection shields with
a damp cloth.
u Make sure that they click into place. If
not, replace the gliding elements. See
Replacing the gliding elements
u If defective or damaged, replace
them.
Reflector foil for analyte protection
NOTICE!Do not use any other detergent
u Switch the On/Off master switch to
Off.
u Make sure that there are no extrac-
tion beakers in the instrument.
u Check the reflector foil for dirt.
u If dirty, wipe down the reflector foil
with a damp cloth.
u Switch the On/Off master switch to
On.
Weekly
Weekly
Weekly
Weekly
Weekly
Interface u Wipe down the display with a damp
Monthly
cloth.
11.2 Removing the tank bottle
u Switch the On/Off master switch to Off.
74/88 Operation Manual FatExtractor E-500
Page 75
BÜCHI Labortechnik AG Cleaning and servicing | 11
u Push the solvent tank up.
u Tilt the solvent tank at 20° and remove it.
11.3 Draining solvent from the instrument
1. Switch on the pump. See Chapter11.3.1 "Switch on the pump", page75
2. Open the tank valves. See Chapter11.3.2 "Open the tank valves", page75
3. Switch of the valves. See Chapter11.3.3 "Switch of the pump", page76
11.3.1 Switch on the pump
Navigation path
➔ ➔ [Service] ➔ [Actors]
Precondition:
R A tank bottle is installed. See Chapter5.8 "Preparing the tank bottle", page30
u Navigate to [Actors] via the navigation path.
ð The display shows the view A cto rs.
u Enable the action [Pump].
11.3.2 Open the tank valves
Navigation path
➔ ➔ [Service] ➔ [Actors] ➔
[Valves]
u Navigate to [Valves] via the navigation path.
ð The display shows the view V alv es.
u Select the position of the tank valve you wish to open.
u Open the tank valve.
u Wait until all solvent is in the tank bottle.
Operation Manual FatExtractor E-500 75/88
Page 76
11 | Cleaning and servicing BÜCHI Labortechnik AG
u Close the tank valve.
11.3.3 Switch of the pump
Navigation path
➔ ➔ [Service] ➔ [Actors]
u Navigate to [Actors] via the navigation path.
ð The display shows the view A cto rs.
u Disable the action [Pump].
11.4 Draining solvent from Extraction glass chamber (Soxhlet only)
Navigation path
➔ ➔ [Service] ➔ [Actors] ➔
[Valves]
Precondition:
R Solvent remains in the extraction glass chamber.
R The lift is in the lower position.
R The instrument has ambient temperature.
R A beaker is placed under the extraction glass chamber Soxhlet position.
u Navigate to [Valves] via the navigation path.
ð The display shows the view V alv es.
u Select the position of the Soxhlet valve you wish to open.
u Open the Soxhlet valve.
u Wait until the extraction glass chamber is empty.
u Close Soxhlet valve.
76/88 Operation Manual FatExtractor E-500
Page 77
BÜCHI Labortechnik AG Help with faults | 12
12 Help with faults
12.1 Troubleshooting
Problem Possible cause Action
Flange lock is not
inserted completely
The condenser is not in the
right position.
u Move the condenser flange
a little bit until the lock falls
into the holes.
Instrument does
not work
Method cannot be
started
Method stops Cooling water flow is too low u Check the cooling water
Instrument is not connected to
the power supply.
Solvent tank is full u Empty the solvent tank.
Protection shield is open u Close the protection shield.
Cooling water sensor is defective (may be the coolant is
contaminated with algae, lime,
etc.)
Protection shield lifted u Close the protection shield.
Tank bottle full u Empty the tank bottle. See
u Make sure that the power
supply is connected and
switched on.
connection and all hoses
for bends and remove
them, if necessary.
u Contact BUCHI Costumer
Service.
Chapter11.2 "Removing
the tank bottle", page74
Operation Manual FatExtractor E-500 77/88
Page 78
12 | Help with faults BÜCHI Labortechnik AG
Problem Possible cause Action
Loss of solvent Seals wrong, deformed or
u Exchange the seals.
damaged
Incorrect positioning of the
beaker/ glassware and seals
u Move each condenser a
small distance forward and
backward.
u Check that the sealings
are correctly installed.
u Contact BUCHI Costumer
Service.
Not sufficient cooling u Make sure that the cooling
fits the requirements. See
Chapter3.5 "Technical
data", page22
Incorrect installed solvent collector circuit
u Make sure that the solvent
collector circuit is correctly
installed. See Chapter5.7
"Connecting the coolant
tubes to the condenser
tank bottle", page30 and
Chapter5.6 "Connecting
the solvent tubes to the
condenser tank bottle",
page29
Incorrect installed extraction
glass chamber
u Make sure that the extrac-
tion glass chamber is correctly installed. See Chapter5.9.2 "Preparing the extraction glass chamber
Soxhlet", page31
Boiling retardation Incorrect positioning of the
beaker
Too long waiting time between
preparation of the instrument
and start
Boiling surface of the beaker
is dirty
Boiling surface of the beaker
is worn
u Make sure that the beakers
are correctly installed in
the beaker brackets and
on the heating plate.
u Start the instrument quickly
after solvent was added
u Clean the beaker
u Replace the beaker
78/88 Operation Manual FatExtractor E-500
Page 79
BÜCHI Labortechnik AG Help with faults | 12
Problem Possible cause Action
No boiling Incorrect positioning of the
beaker
u Make sure that the beakers
are correctly installed in
the beaker brackets and
on the heating plate
Beaker position is not active u Activate the beaker posi-
tion
Heater power is set too low u Adapt the heating power to
the ambient conditions
(temperature, level above
sea).
u Choose correct solvent
Elution of Celite® Too much organic solvent for
extraction
u Stick to the standard appli-
cation parameters
Sand/Celite® layers mixed up u Clean the extraction cham-
bers
12.2 Draining solvent from Extraction glass chamber (Soxhlet only)
Navigation path
➔ ➔ [Service] ➔ [Actors] ➔
[Valves]
Precondition:
R Solvent remains in the extraction glass chamber.
R The lift is in the lower position.
R The instrument has ambient temperature.
R A beaker is placed under the extraction glass chamber Soxhlet position.
u Navigate to [Valves] via the navigation path.
ð The display shows the view V alv es.
u Select the position of the Soxhlet valve you wish to open.
u Open the Soxhlet valve.
u Wait until the extraction glass chamber is empty.
u Close Soxhlet valve.
Operation Manual FatExtractor E-500 79/88
Page 80
13 | Taking out of service and disposal BÜCHI Labortechnik AG
13 Taking out of service and disposal
13.1 Taking out of service
u Remove all solvents and coolants.
u Clean the instrument.
u Switch off the instrument and disconnect it from the mains power supply.
u Remove all tubing and communication cables from the device.
13.2 Disposal
The operator is responsible for proper disposal of the instrument.
u When disposing of equipment observe the local regulations and statutory require-
ments regarding waste disposal.
u When disposing, observe the disposal regulations of the materials used. Materials
used see Chapter3.5 "Technical data", page22
13.3 Returning the instrument
Before returning the instrument, contact the BÜCHI Labortechnik AG Service Department.
https://www.buchi.com/contact
80/88 Operation Manual FatExtractor E-500
Page 81
BÜCHI Labortechnik AG Appendix | 14
Condenser
Condenser
Condenser
Condenser
Condenser
Condenser
Connection
CW IN
Connection
CW OUT
Flow meter
(inside instrument)
Connection
CW Tank OUT
Connection
CW Tank IN
Condenser
solvent tank
CW IN
Condenser
solvent tank
CW OUT
Water in
Water out
14 Appendix
14.1 Schematics
14.1.1 Condenser circuit

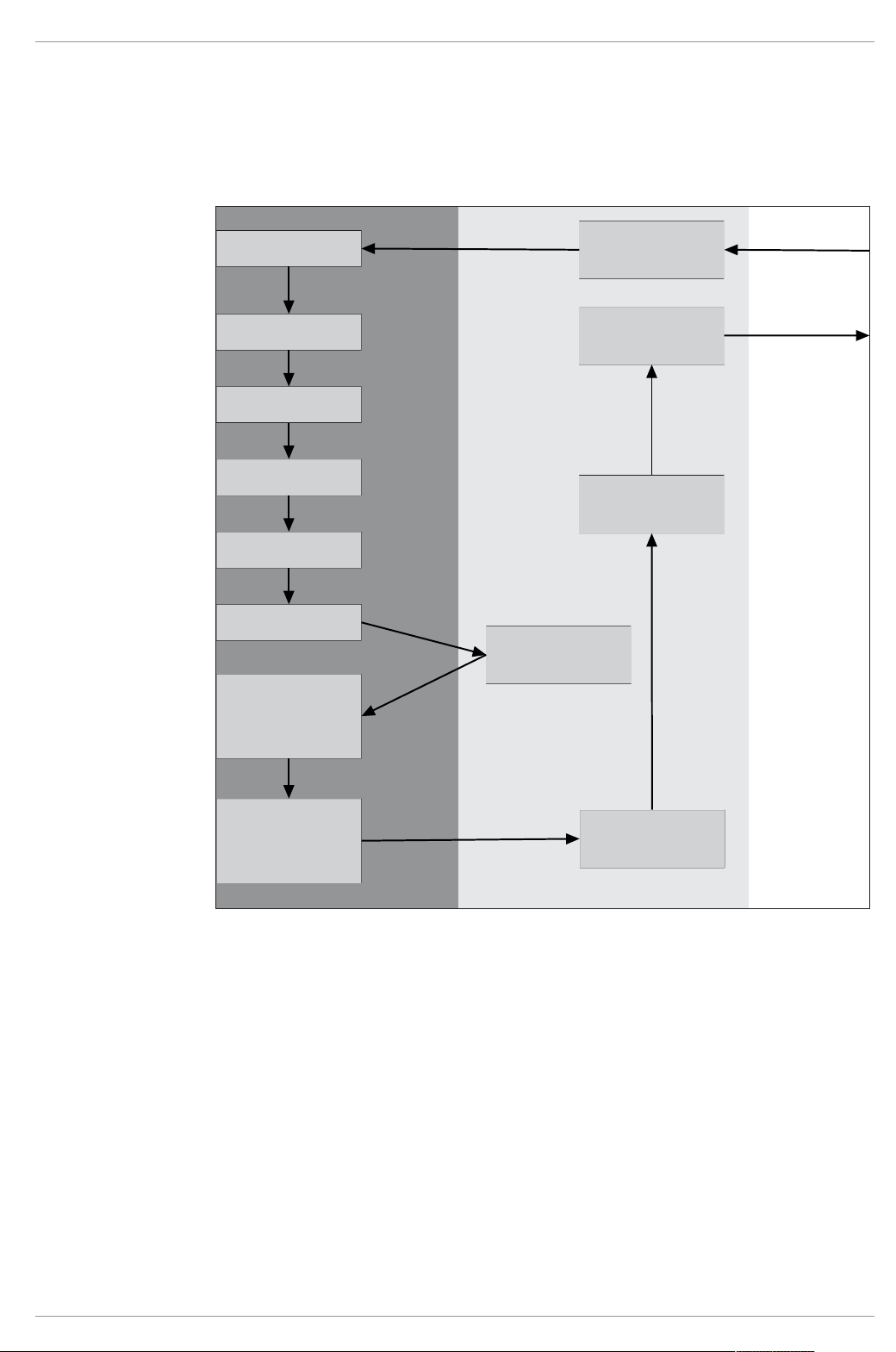

Fig.16: Condenser circuit
Operation Manual FatExtractor E-500 81/88
Page 82
14 | Appendix BÜCHI Labortechnik AG
Solvent collector
Solvent collector
Solvent collector
Solvent collector
Solvent collector
Solvent collector
Exhaust
Tank pump
Connection
Tank OUT solvent
Connection
Tank IN
Condenser
solvent tank
IN (solvent)
Condenser
solvent tank
OUT
14.1.2 Solvent collector schematic

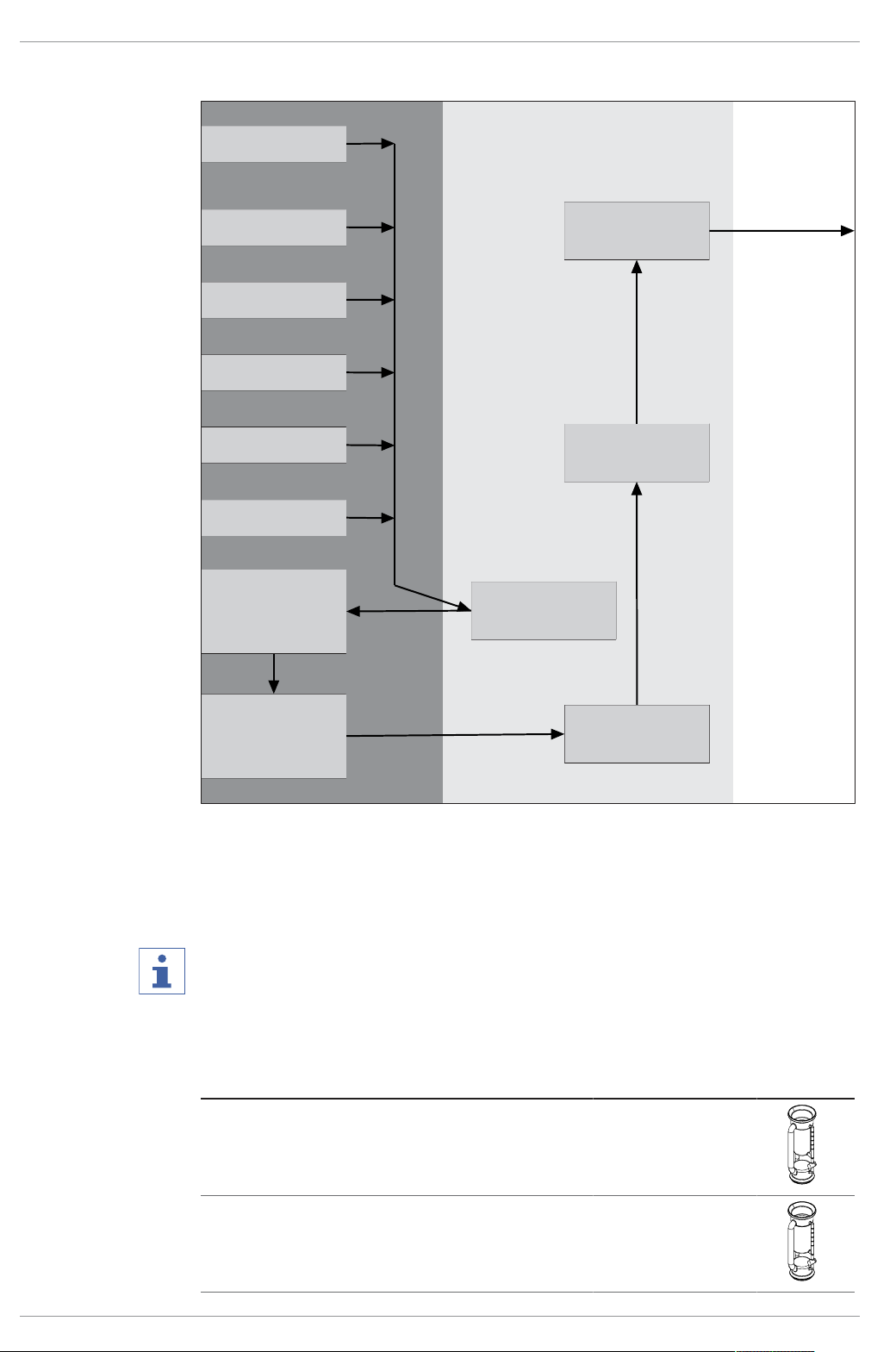

Fig.17: Solvent circuit
14.2 Spare parts and accessories
Use only genuine BUCHI consumables and spare parts in order to ensure correct,
safe and reliable operation of the system.
NOTE
Any modifications of spare parts or assemblies are only allowed with the prior written
permission of BUCHI.
14.2.1 Spare parts
Extraction glass chamber Soxhlet 11062496
Extraction glass chamber Soxhlet LSV 11062497
Order no. Image
82/88 Operation Manual FatExtractor E-500
Page 83
BÜCHI Labortechnik AG Appendix | 14
Order no. Image
Extraction glass chamber ECE 11062499
Set of beakers, 2 pcs. 11067474
Set of beakers HE (2pcs) 11067475
Condenser E-500 cpl. 11067063
Condenser flange E-500 11067817
Condenser tank bottle 11065966
Tank adapter, PTFE 11064590
Tank bottle 2 L, GL 45 11065983
Set of gliding elements including magnets, 10
11067827
pcs.
Soxhlet assembly cpl.
One part constiting of magnetic valve and level sensor
for extraction glass chamber Soxhlet
11067065
Protection shield top, cpl. 11067832
Protection shield bottom, cpl. 11067831
Set of seals E-500, FKM, 6 pcs. 11069012
Operation Manual FatExtractor E-500 83/88
Page 84
14 | Appendix BÜCHI Labortechnik AG
Order no. Image
Membrane with anchor for magnetic valve unit 037534
Set of beaker brackets, 3 pcs. 11067828
Set of beaker brackets HE, 3 pcs. 11067829
Reflectorfoil analyte protection, 6 pcs. 11068522
Knurled nut and sealing disks, 2 pcs. Connection
11068520
of the draining tubes to the condensers
Set of flange locks, 6 pcs. 11067833
Silicone hose D6/9 L=3 m 048355
Set of draining tubes SOX, FEP
The draining tubes connect the receiving funnel in the
condensers with the tank valve to drain solvent into the
tank.
Set of draining tubes HE, FEP
The draining tubes connect the receiving funnel in the
condensers with the tank valve to drain solvent into the
tank.
11067478
11067480
Set of draining tubes ECE, FEP 11067479
14.2.2 Conversion and upgrade kits
The FatExtractor E-500 can be converted into another configuration with an easy
change of glass assembly. Choose the needed conversion kit according to the matrix.
Conversion kit from Soxhlet / ECE to HE
incl.: 6 beakers HE (3 x 11067475) , beaker brackets HE (2 x 11067829), set
of draining tubes for HE (11067480), beaker carrier cover for HE
Conversion kit from Soxhlet / Universal to ECE
Includes 6 Extraction glass chamber ECE (11062499), set of draining tubes
for ECE (11067479)
Conversion kit from HE to Soxhlet
Includes 6 Extraction glass chamber Soxhlet (11062496), 6 beaker (3 x
11067474), 6 beaker brackets (2 x 11067828), 6 Soxhlet assemblies cpl.
(11067065) and a chamber rack (11067077), set of draining tubes for Soxhlet (11067478), two safety shields top, cpl. (2 x 11067832)
Conversion kit from HE to ECE
Includes 6 Extraction glass chamber ECE (11062499), 6 beaker (3 x
11067474), 6 beaker brackets (2 x 11067828), set of draining tubes for ECE
(11067479) and a chamber rack (11067077)
Conversion kit from ECE to Soxhlet
Includes 6 Extraction glass chamber Soxhlet (11062496), 6 Soxhlet assemblies cpl. (11067065) and set of draining tubes for Soxhlet (11067478), two
safety shields top, cpl. (2 x 11067832)
Conversion kit HE to Soxhlet LSV
Includes 6 Extraction glass chamber Soxhlet LSV (11062497), 6 beaker (3 x
11067474), 6 beaker brackets (2 x 11067828), 6 Soxhlet assemblies cpl.
(11067065) and a chamber rack (11067077), set of draining tubes for Soxhlet (11067478), two safety shields top, cpl. (2 x 11067832)
Order no.
11068487
11068488
11068489
11068491
11068492
11068490
84/88 Operation Manual FatExtractor E-500
Page 85
BÜCHI Labortechnik AG Appendix | 14
Order no.
Conversion kit ECE to Soxhlet LSV
Includes 6 Extraction glass chamber Soxhlet LSV (11062497), 6 Soxhlet assemblies cpl. (11067065) and a set of draining tubes for Soxhlet (11067478),
two safety shields top, cpl. (2 x 11067832)
Upgrade kit Analyte protection
For later upgrade of a FatExtractor E-500 with analyte protection sensor
Upgrade kit Interface Pro
For later upgrade of a FatExtractor E-500 with a Pro interface (7 " touch
screen)
11068493
11068524
11068525

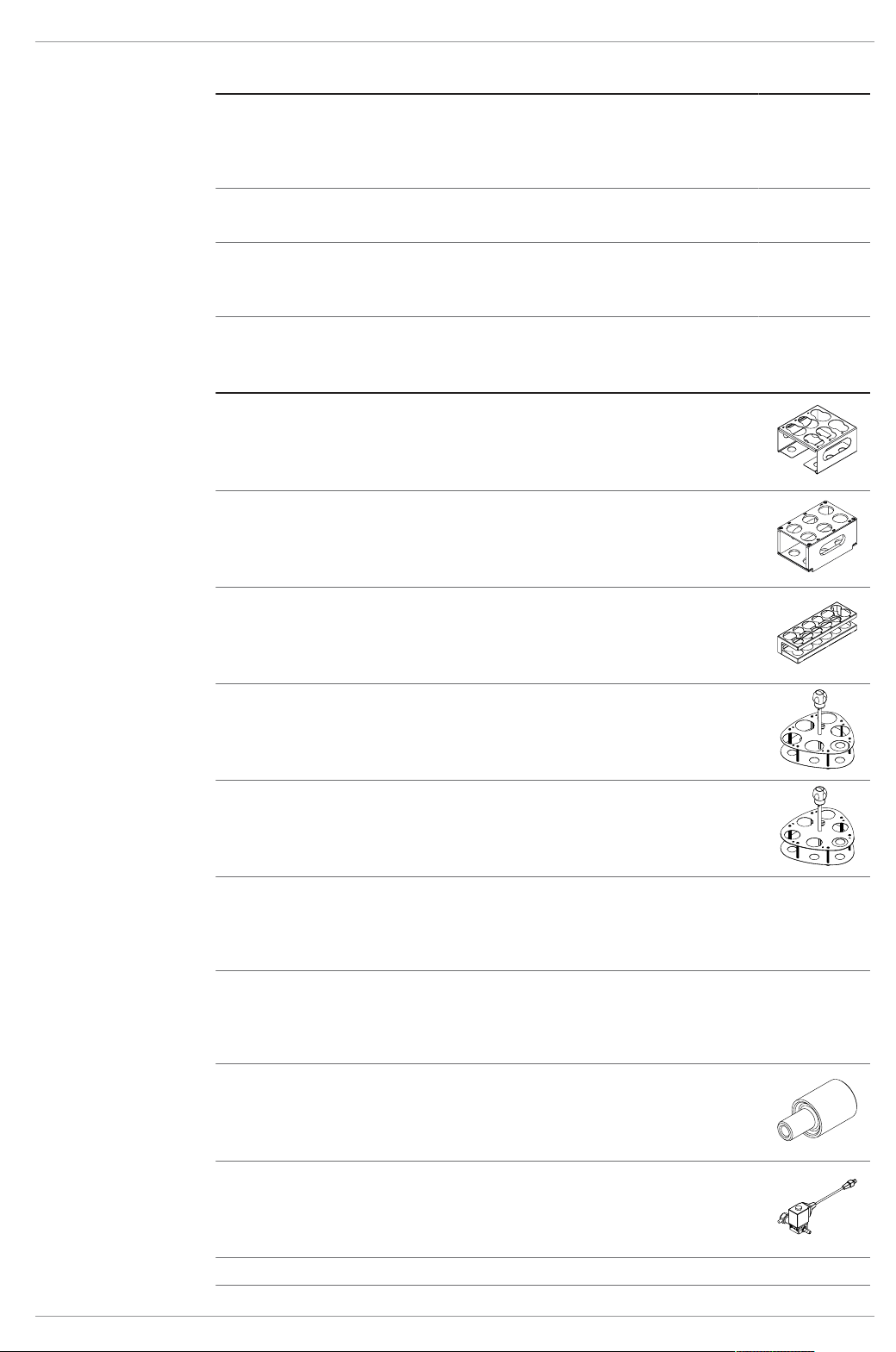

14.2.3 Accessories
Order no. Image
Holder for glass sample tubes, stainless steel 11067219
Holder for glass sample tubes, PTFE 11067220
Holder for extraction thimbles (diameter 25 - 43
mm)
Extraction beaker carrier
Allows to carry 6 beakers (11067474)
Extraction beaker HE carrier
Allows to carry 6 beakers HE (11067475)
Set condenser insulations E-500, 6 pcs.
The insulation of the condensers prevent condensing
water and is recommended in high humidity environment
Set insulation cooling water hoses
The insulation of the water hoses prevent condensing
water and is recommended in high humidity environment.
Support solvent supply
Allows to fix the tubes of solvent dispensers to the condensers for convenient solvent addition.
11068443
11067042
11067493
11069078
11069079
11068306
Cooling water valve. 24VAC
Valve opens cooling water feed during distillation.
Meant to be used with a vacuum controller/interface.
031356
Extension cable for the cooling water valve, 2 m 11069477
Operation Manual FatExtractor E-500 85/88
Page 86
14 | Appendix BÜCHI Labortechnik AG
Order no. Image

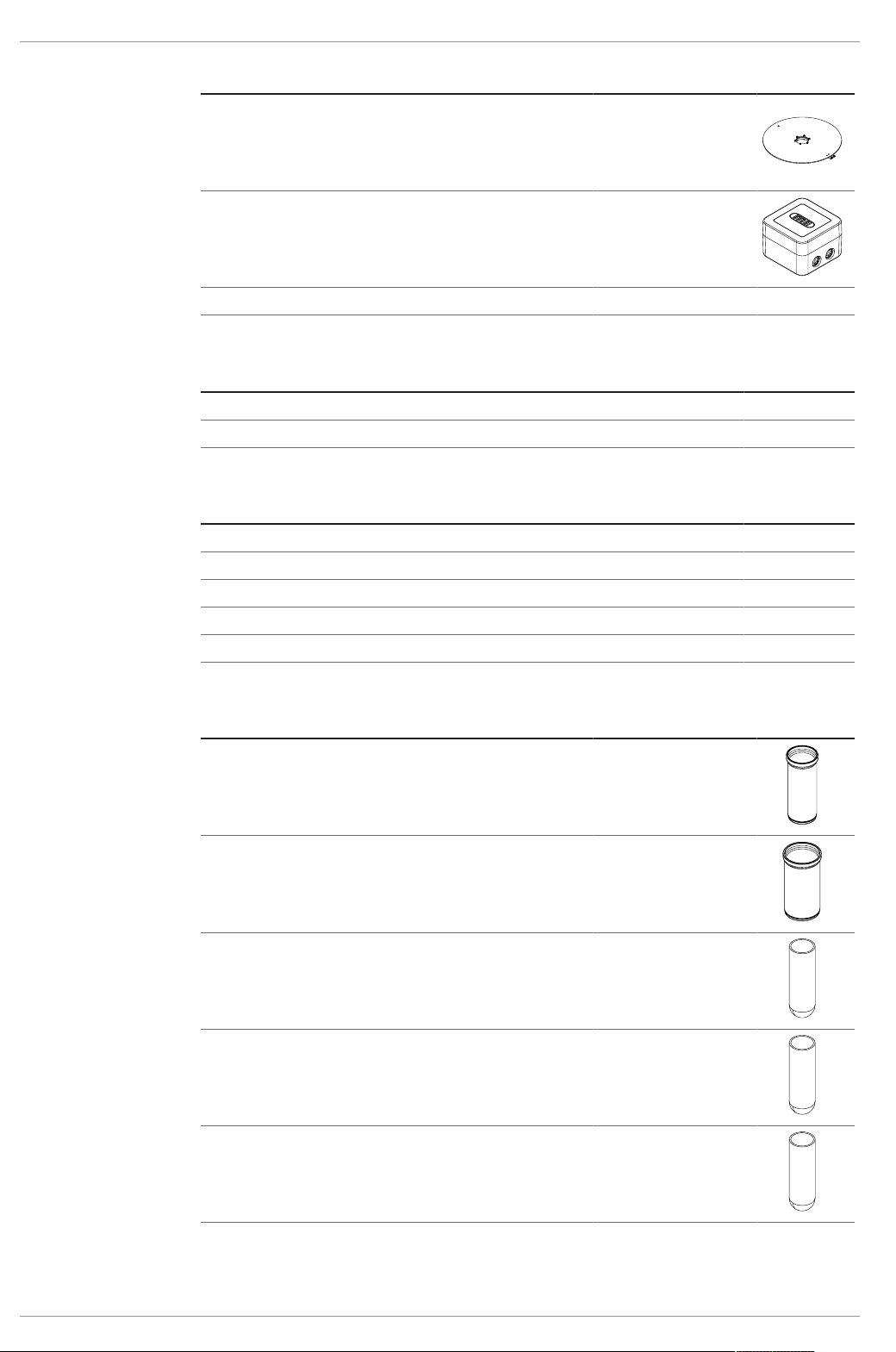

Turning disk
Allows for turning the instrument for easier access.
11067985
StatusLight cpl., incl. communication cable
Indicates the status of the instrument (instrument is
ready to use, has an error or is in operation).
Funnel 11067473
14.2.4 Consumables
Quartz sand 0.3 - 0.9 mm, 2.5 kg 037689
Celite® 545, 1 kg 11068920
14.2.5 Holder for extraction thimbles
Set of holders for glass sample tubes with frit, PTFE, 3 pcs. 11067485
Set of holders for LSV glass sample tubes, PTFE, 3 pcs. 11067486
Holders for thimbles d25, PTFE, 3 pcs. 11067488
Holders for thimbles d33, PTFE, 3 pcs. 11067490
Holders for thimbles d43, PTFE, 3 pcs. 11067491
14.2.6 Glass sample tubes and extraction thimbles
11068959
Order no.
Order no.
Order no. Image
Glass sample tubes with frit, 6 pcs. 11067497
Glass sample tubes LSV with frit, 6 pcs. 11067814
Extraction thimbles 25 x 100 mm, 25 pcs. 018105
Extraction thimbles 33 x 94 mm, 25 pcs. 11058983
Extraction thimbles, Set. 25 pcs, 43 x 118 mm,
018106
cellulose
For Soxhlet extraction unit.
86/88 Operation Manual FatExtractor E-500
Page 87
BÜCHI Labortechnik AG Appendix | 14
14.2.7 Documentation
Order no.
IQ/OQ for FatExtractor E-500
Installation/Operation qualification for the FatExtractor E-500 incl. binder with
documents IQ/OQ, inspection and basic tag (English)
Repeating OQ for FatExtractor E-500
Repeating operation qualification for FatExtractor E-500, incl. document, inspection and basic tag (English)
11068557
11068559
Operation Manual FatExtractor E-500 87/88
Page 88
BUCHI Affiliates:
Europe
Quality in your hands
Switzerland/Austria
BÜCHI Labortechnik AG
CH – 9230 Flawil
T +41 71 394 63 63
F +41 71 394 64 64
buchi@buchi.com
www.buchi.com
Italy
BUCHI Italia s.r.l.
IT – 20010 Cornaredo (MI)
T +39 02 824 50 11
F +39 02 575 12 855
italia@buchi.com
www.buchi.com/it-it
America
Brazil
BUCHI Brasil Ltda.
BR – Valinhos SP 13271-200
T +55 19 3849 1201
F +55 19 3849 2907
brasil@buchi.com
www.buchi.com/br-pt
Benelux
BÜCHI Labortechnik GmbH
Branch Office Benelux
NL – 3342 GT Hendrik-Ido-Ambacht
T +31 78 684 94 29
F +31 78 684 94 30
benelux@buchi.com
www.buchi.com/bx-en
Russia
BUCHI Russia/CIS
Russia 127287 Moscow
T +7 495 36 36 495
russia@buchi.com
www.buchi.com/ru-ru
USA/Canada
BUCHI Corporation
US – New Castle, DE 19720
T +1 877 692 8244 (Toll Free)
T +1 302 652 300 0
F +1 302 652 8777
us-sales@buchi.com
www.buchi.com/us-en
