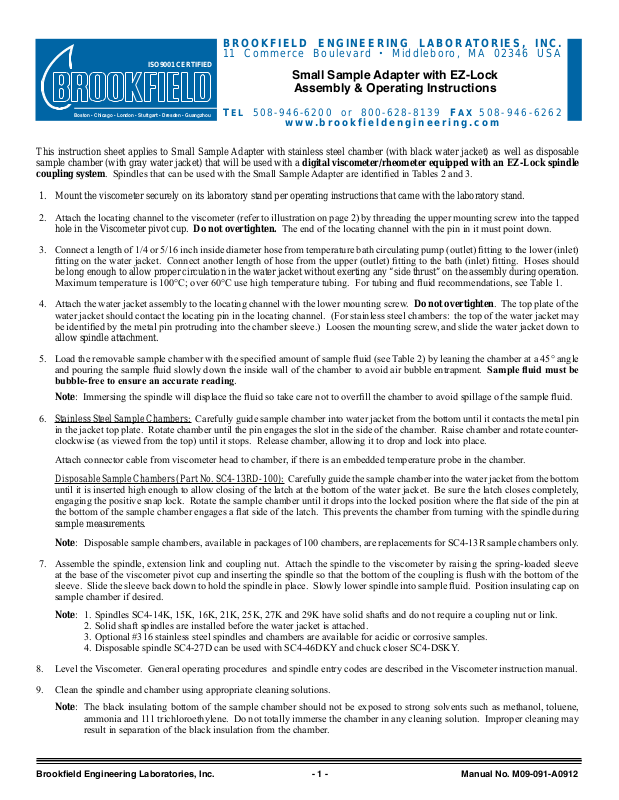

Small Sample Adapter with EZ-Lock
Assembly & Operating Instructions
Boston • Chicago • London • Stuttgart • Dresden • Guangzhou
TEL 508-946-6200 or 800-628-8139 FAX 508-946-6262
www.brookfieldengineering.com
This instruction sheet applies to Small Sample Adapter with stainless steel chamber (with black water jacket) as well as disposable
sample chamber (with gray water jacket) that will be used with a digital viscometer/rheometer equipped with an EZ-Lock spindle
coupling system. Spindles that can be used with the Small Sample Adapter are identied in Tables 2 and 3.
1. Mount the viscometer securely on its laboratory stand per operating instructions that came with the laboratory stand.
2. Attach the locating channel to the viscometer (refer to illustration on page 2) by threading the upper mounting screw into the tapped
hole in the Viscometer pivot cup. Do not overtighten. The end of the locating channel with the pin in it must point down.
3. Connect a length of 1/4 or 5/16 inch inside diameter hose from temperature bath circulating pump (outlet) tting to the lower (inlet)
tting on the water jacket. Connect another length of hose from the upper (outlet) tting to the bath (inlet) tting. Hoses should
be long enough to allow proper circulation in the water jacket without exerting any “side thrust” on the assembly during operation.
Maximum temperature is 100°C; over 60°C use high temperature tubing. For tubing and uid recommendations, see Table 1.
4. Attach the water jacket assembly to the locating channel with the lower mounting screw. Do not overtighten. The top plate of the
water jacket should contact the locating pin in the locating channel. (For stainless steel chambers: the top of the water jacket may
be identied by the metal pin protruding into the chamber sleeve.) Loosen the mounting screw, and slide the water jacket down to
allow spindle attachment.
5. Load the removable sample chamber with the specied amount of sample uid (see Table 2) by leaning the chamber at a 45° angle
and pouring the sample uid slowly down the inside wall of the chamber to avoid air bubble entrapment. Sample uid must be
bubble-free to ensure an accurate reading.
Note: Immersing the spindle will displace the uid so take care not to overll the chamber to avoid spillage of the sample uid.
6. Stainless Steel Sample Chambers: Carefully guide sample chamber into water jacket from the bottom until it contacts the metal pin
in the jacket top plate. Rotate chamber until the pin engages the slot in the side of the chamber. Raise chamber and rotate counterclockwise (as viewed from the top) until it stops. Release chamber, allowing it to drop and lock into place.
Attach connector cable from viscometer head to chamber, if there is an embedded temperature probe in the chamber.
Disposable Sample Chambers (Part No. SC4-13RD-100): Carefully guide the sample chamber into the water jacket from the bottom
until it is inserted high enough to allow closing of the latch at the bottom of the water jacket. Be sure the latch closes completely,
engaging the positive snap lock. Rotate the sample chamber until it drops into the locked position where the at side of the pin at
the bottom of the sample chamber engages a at side of the latch. This prevents the chamber from turning with the spindle during
sample measurements.
Note: Disposable sample chambers, available in packages of 100 chambers, are replacements for SC4-13R sample chambers only.
7. Assemble the spindle, extension link and coupling nut. Attach the spindle to the viscometer by raising the spring-loaded sleeve
at the base of the viscometer pivot cup and inserting the spindle so that the bottom of the coupling is ush with the bottom of the
sleeve. Slide the sleeve back down to hold the spindle in place. Slowly lower spindle into sample uid. Position insulating cap on
sample chamber if desired.
Note: 1. Spindles SC4-14K, 15K, 16K, 21K, 25K, 27K and 29K have solid shafts and do not require a coupling nut or link.
2. Solid shaft spindles are installed before the water jacket is attached.
3. Optional #316 stainless steel spindles and chambers are available for acidic or corrosive samples.
4. Disposable spindle SC4-27D can be used with SC4-46DKY and chuck closer SC4-DSKY.
8. Level the Viscometer. General operating procedures and spindle entry codes are described in the Viscometer instruction manual.
9. Clean the spindle and chamber using appropriate cleaning solutions.
Note: The black insulating bottom of the sample chamber should not be exposed to strong solvents such as methanol, toluene,
ammonia and 111 trichloroethylene. Do not totally immerse the chamber in any cleaning solution. Improper cleaning may
result in separation of the black insulation from the chamber.
Brookeld Engineering Laboratories, Inc. - 1 - Manual No. M09-091-A0912
Page 2
Small Sample Adapter
for use with EZ-Lock Instruments
(shown with DV-II+Pro Viscometer - similar assembly on
Dial, DV-E, DV-I Prime and DVIII+/DV-III Ultra Viscometers/Rheometers)
SSA with EZ-Lock and Disposable Parts
Pivot Cup
SC4-DSKY
Chuck &
Closer
Assembly
Pivot Cup
S-23K
Spindle Coupling
Adapter Assembly
SXV-9
Extension Link
SC4-53
Insulating Cap
SC4-**
Cylindrical Spindle
Top Plate
Pin
Locating
Pin
SC4-53D
Disposable
Insulating
Cap
SC4-27D
Disposable
Spindle
Top Plate
SC4-45YD
Disposable
Water Jacket
Assembly
SC4-13RD
Disposable
Sample
Chamber
HT-99
Locating Channel
Mounting Screws (2)
Locating
Pin
HT-99
Locating
Channel
Mounting
Screws (2)
SC4-46DKY
Disposable
Locating
Channel
Bracket
SC4-45Y
Water Jacket
Assembly
SC4-**R
Sample
Chamber
Outlet Fitting †
Inlet Fitting †
Inlet and Outlet Fittings are bonded in
†
place. Do not wrench them or the water
jacket will become damaged.
SC4-46KY
Locating Channel
Bracket
Removable Sample Chamber with embedded RTD
Temperature Probe and Connector Cable
(Part No. SC4-**RPY)
Brookeld Engineering Laboratories, Inc. - 2 - Manual No. M09-091-A0912
Page 3
(Table 1)
Fluid Recommended Recommended Note
TemperatureFluid Tubing
-10ϒC to 15ϒC 50/50 Ethylene Fluran
Glycol/Water
15ϒC to 65ϒCWater Gum Rubber (amber)
65ϒC to 100ϒC Silicone Oil
R
Fluran is a registered trademark of Norton Co.
1
Use only laboratory grade ethylene glycol. Do not use automobile anti-freeze which
contains materials that can damage the equipment.
2
Fluran tubing (5/16" ID) and clamps are offered in a kit, Part No. ULA-54A.
3
Do not use high viscosity oil - 50 centipoise is recommended.
Small Sample Adapter Viscosity Ranges cP(mPa•s)
1
3
R, 2
Do Not Use Gum
(black) Rubber Tubing With
Part No. ULA-45B This Fluid
or Fluran
R
(black)
Part No. HT-TUBING
Fluran
R
Do Not Use Gum
(black) Rubber Tubing With
Part No. ULA-45B This Fluid
(Table 2)
): .22N
-1
Spindle: SC4-21
Shear Rate: (sec
20-500K
25-500K
50-170K
50-170K
50-100K
40-1M
50-1M
100-300K
100-300K
100-200K
160-4M
200-4M
400-1.3M
400-1.3M
400-800K
Sample Chamber:* SC4-13R(P)
Shear Rate (sec
Sample Volume: 7.1mL
): .93N
-1
Spindle: SC4-27(D)
Sample Chamber:* SC4-13R(P)
Sample Volume: 10.4mL
Shear Rate (sec
): .34N
-1
Spindle: SC4-15
Sample Chamber:* SC4-7R(P)
Sample Volume: 3.8mL
Shear Rate (sec
): .48N
-1
Spindle: SC4-28
Sample Chamber:* SC4-13R(P)
Sample Volume: 11.0mL
Shear Rate (sec
Not applicable for historical reasons. However, it is possible
to use the above spindles with any of these instruments.
Digital Viscometers/Rheometers will automatically calculate
viscosity. Please contact Brookfield or an authorized dealer
if you require information on viscosity range.
100-2.5M
125-2.5M
250-830K
250-830K
250-500K
200-5M
250-5M
500-1.7M
500-1.7M
500-1M
800-20M
1K-20M
2K-6.7M
2K-6.7M
2K-4M
200-5M
250-5M
500-1.7M
500-1.7M
500-1M
400-10M
500-10M
1K-3.3M
1K-3.3M
1K-2M
1.6K-40M
2K-40M
4K-13.3M
4K-13.3M
4K-8M
200-5M
250-5M
500-1.7M
500-1.7M
500-1M
400-10M
500-10M
1K-3.3M
1K-3.3M
1K-2M
1.6K-40M
2K-40M
4K-13.3M
4K-13.3M
4K-8M
400-10M
500-10M
1K-3.3M
1K-3.3M
800-20M
2K-6.7M
2K-6.7M
3.2K-80M
8K-26.7M
8K-26.7M
): .28N
-1
Sample Chamber:* SC4-13R(P)
Spindle: SC4-29
Sample Volume: 13.5mL
1K-2M
1K-20M
2K-4M
4K-80M
8K-16M
): .25N
-1
Spindle: SC4-14
Shear Rate (sec
500-12.5M
625-12.5M
1.25K-4.2M
1.25K-4.2M
1.25K-2.5M
1K-25M
1.25K-25M
2.5K-8.3M
2.5K-8.3M
2.5K-5M
4K-100M
5K-100M
10K-33.3M
10K-33.3M
10K-20M
MODEL
LVDV-IIIU
LVDV-II+P
LVDV-IP
LVDVE
LVT
Spindle: SC4-18
Sample Chamber:* SC4-13R(P)
Sample Volume: 6.7mL
1.2-30K
1.5-30K
3-10K
3-10K
5-10K
Shear Rate (sec
): 1.32N
-1
Spindle: SC4-31
Sample Chamber:* SC4-13R(P)
Sample Volume: 9.0mL
12-300K
15-300K
30-100K
30-100K
50-100K
-1
Spindle: SC4-34
Shear Rate (sec
24-600K
30-600K
60-200K
60-200K
100-200K
): .34N
Sample Chamber:* SC4-13R(P)
Shear Rate (sec
Sample Volume: 9.4mL
): .28N
-1
Sample Chamber:* SC4-8R(P)
Shear Rate (sec
Sample Volume: 4.2mL
Spindle: SC4-16
48-1.2M
60-1.2M
120-400K
120-400K
200-400K
): .29N
-1
Spindle: SC4-25
Sample Chamber:* SC4-13R(P)
Sample Volume: 16.1mL
192-4.8M
240-4.8M
800-1.6M
800-1.6M
800-1.6M
RVDV-IIIU
RVDV-II+P
RVDV-IP
RVDVE
RVT
HADV-IIIU
HADV-II+P
HADV-IP
HADVE
HAT
Not applicable for historical reasons.
However, it is possible to use the above
spindles with any of these instruments.
Digital Viscometers/Rheometers will
automatically calculate viscosity. Please
contact Brookfield or an authorized dealer if
you require information on viscosity range.
HBDV-IIIU
HBDV-II+P
HBDV-IP
HBDVE
HBT
M = 1 million K = 1 thousand N = RPM e.g. Spindle SC4-18 1.32 x 10 (rpm) = 13.2 sec-1 cP = Centipoise mPa•s = Millipascal•seconds
N/A = Not applicable for historical reasons. However, it is possible to use any spindle/chamber combination with any torque range. Digital viscometers/rheometers will automatically calculate viscosity.
* Examples
SC4-13R Sample Chamber SC4-13RP Sample Chamber with RTD temperature probe
SC4-13RPY Sample Chamber with RTD temperature probe and cable to viscometer/rheometer SC4-13RD-100 Disposable Sample Chamber available in packages of 100
SC4-27 Stainless Steel Spindle SC4-27D Disposable Spindle
** Disposable chamber available in 13R size and requires SC4-45YD water jacket Note: Hastelloy C available for some spindles/chambers - call for details
Sample Chamber:* SC4-6R(P)
Shear Rate (sec
Sample Volume: 2.1mL
): .40N
-1
Brookeld Engineering Laboratories, Inc. - 3 - Manual No. M09-091-A0912
Page 4
(Table 3)
DIN* Spindle Ranges for Small Sample Adapter
VISCOSITY RANGE (cP)
MODEL
Minimum - Maximum Minimum - Maximum
LVT 5.7 10,000 18.9 37,898
LVDV-I+ 3.5 10,000 11.3 37,898
LVDV-II+ 1.7 10,000 5.7 50,000
LVDV-III 1.4 10,000 4.5 50,000
RVT 36.5 10,000 121.0 50,000
RVDV-I+ 37.5 10,000 121.0 50,000
RVDV-II+ 18.7 10,000 60.5 50,000
RVDV-III 15.0 10,000 48.3 50,000
HAT 75.0 10,000 242.0 50,000
HADV-I+ 75.0 10,000 242.0 50,000
HADV-II+ 37.5 10,000 121.0 50,000
HADV-III 29.2 10,000 97.0 50,000
Spindle 82 Spindle 83
HBT 300 10,000 967.2 50,000
HBDV-I+ 300 10,000 967.2 50,000
HBDV-II+ 150 10,000 483.6 50,000
HBDV-III 120 10,000 387 50,000
SMC value 3.75 12.13
SRC value 1.29 1.29
Spindle Entry Code 82 83
Sample Volume (mL) 5.5 1.5
*DIN spindles conform to DIN 53019.
The 82 spindle (SC4-DIN-82) works in an SC4-13R or SC4-13RP chamber.
The 83 spindle (SC4-DIN-83) works in an SC4-7R or SC4-7RP chamber.
Brookeld Engineering Laboratories, Inc. - 4 - Manual No. M09-091-A0912
