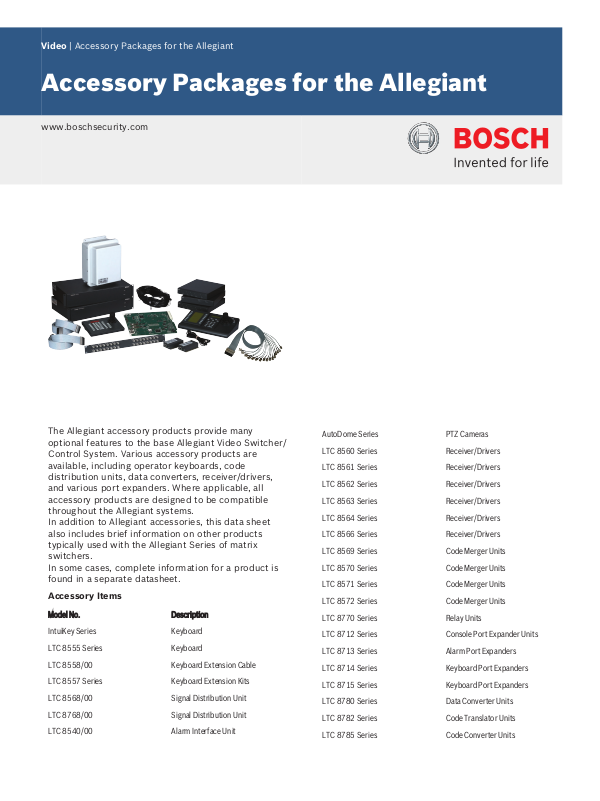

LTC-8809-00
Video | Accessory Packages for the Allegiant
Accessory Packages for the Allegiant
www.boschsecurity.com
The Allegiant accessory products provide many
optional features to the base Allegiant Video Switcher/
Control System. Various accessory products are
available, including operator keyboards, code
distribution units, data converters, receiver/drivers,
and various port expanders. Where applicable, all
accessory products are designed to be compatible
throughout the Allegiant systems.
In addition to Allegiant accessories, this data sheet
also includes brief information on other products
typically used with the Allegiant Series of matrix
switchers.
In some cases, complete information for a product is
found in a separate datasheet.
Accessory Items
Model No. Description
IntuiKey Series Keyboard
LTC 8555 Series Keyboard
LTC 8558/00 Keyboard Extension Cable
LTC 8557 Series Keyboard Extension Kits
LTC 8568/00 Signal Distribution Unit
LTC 8768/00 Signal Distribution Unit
LTC 8540/00 Alarm Interface Unit
AutoDome Series PTZ Cameras
LTC 8560 Series Receiver/Drivers
LTC 8561 Series Receiver/Drivers
LTC 8562 Series Receiver/Drivers
LTC 8563 Series Receiver/Drivers
LTC 8564 Series Receiver/Drivers
LTC 8566 Series Receiver/Drivers
LTC 8569 Series Code Merger Units
LTC 8570 Series Code Merger Units
LTC 8571 Series Code Merger Units
LTC 8572 Series Code Merger Units
LTC 8770 Series Relay Units
LTC 8712 Series Console Port Expander Units
LTC 8713 Series Alarm Port Expanders
LTC 8714 Series Keyboard Port Expanders
LTC 8715 Series Keyboard Port Expanders
LTC 8780 Series Data Converter Units
LTC 8782 Series Code Translator Units
LTC 8785 Series Code Converter Units
2 | Accessory Packages for the Allegiant
LTC 8786 Series Code Converter Units
LTC 8016/90 Bilinx Data Interface Unit
LTC 8808/00 Video Interconnect Panel/Cables
LTC 8807/00 Video Interconnect Panel
LTC 8809 Series Ribbon Cables
LTC 8506/00 Cable, PC-to-Console Port
LTC 8508/01 Ribbon to BNC Interface Cable
Certifications and approvals
Electromagnetic
Compatibility
(EMC)
Product Safety Complies with CE regulations, UL, CSA, EN and
Complies with FCC Part 15, ICES-003 and CE
regulations
IEC Standards
Technical specifications
General Specifications
Environmental
Note: Specifications for electronic hardware products are noted below
unless otherwise specified in applicable accessory section.
Temperature
Operating 4°C to 50°C (40°F to 122°F)
Humidity 0% to 95% relative, non-condensing
Shock 50 g, 11 ms, ½ sine
Altitude 3000 m (10,000 ft)
IntuiKey Keyboard
The IntuiKey KBD-Universal is a full function keyboard
used for control and programming of the Allegiant
Series matrix switchers. Backlit LCD screens provide
multi-language display of softkey menus and status
information. Integral variable speed joystick and zoom
lens controls are standard for operating fixed or
variable speed pan/tilt/zoom equipped cameras. In
addition to the Allegiant Series, the KBD- Universal
model IntuiKey can be used to simultaneously control
Divar Series DVRs, and System4 Series multiplexers.
The optional PC-based IntuiKey Script Application
software package can be used to define softkeys that
are used to activate Allegiant system Command
Scripts.
The optional KBD-RACK rack-mounting kit is designed
to provide vertical, horizontal, or 45 degree inclined
mounting into standard EIA 48 cm (19 in.) rack.
Refer to the IntuiKey Series data sheet for complete
specifications.
LTC 8555 Series Keyboards
The LTC 8555 Series are compact, full function
keyboards for use with Allegiant Series matrix
switchers. LED readouts display real time system
status information. Includes variable speed joystick
and zoom lens controls for operating fixed or variable
speed pan/tilt/zoom equipped cameras. The
keyboards are available in the following configurations:
Model Number Top Bezel Graphics Communication Protocol
LTC 8555/00 English RS-485
LTC 8555/01 Icons RS-485
LTC 8555/02 English RS-232
LTC 8555/03 Icons RS-232
Electrical
Operating Voltage 12 VAC (supplied by main Allegiant CPU bay
Signal 2 wire RS-485, 9600 baud (LTC 8555/00
Connectors One (1), 6-contact connector for data/power
or optional Keyboard Extension Kit)
and LTC 8555/01 models) 3 wire RS-232,
9600 baud (LTC 8555/02 and
LTC 8555/03 models)
Mechanical
Construction/
Finish
Dimensions
(W x D x H)
Weight 0.55 kg (1.22 lb)
High impact plastic case with charcoal color
220 x 51 x 155 mm (8.67 x 2.00 x 6.11 in.)
LTC 8558/00 Keyboard Extension Cable
Six-conductor extension cable carries data/power for
remote IntuiKey Series or LTC 8555 Series keyboards
up to 30 m (100 ft) away from main Allegiant CPU bay.
LTC 8557 Series Keyboard Extension Kits
Interface kit used to remote IntuiKey Series or
LTC 8555 Series keyboards up to 1.5 km (5000 ft)
away from main CPU bay. Customer supplied 0.5 mm
(24 AWG) shielded-twisted pair (Belden 9841 or
equivalent) required between main CPU bay site and
keyboard site. Kit provides two junction boxes,
interface cable, and appropriate keyboard power
supply.
Electrical
Model No. Rated Voltage1Voltage Range Power
LTC 8557/60 120 VAC,
50/60 Hz
LTC 8557/50 230 VAC,
50/60 Hz
1. Input voltage of included power supply.
Indicators Junction box mounted power LED
Connectors One (1), 4-position screw terminal block. One (1),
6-contact keyboard cable connector.
108 to 132 10 W
198 to 264 15 W
2
| Accessory Packages for the Allegiant
3
Mechanical
Construction/
Finish
Dimensions
(W x D x H)
Weight 170 g (6 oz.)
Surface mountable, flat black painted metal
enclosure
121 x 70 x 35 mm (4.75 x 2.75 x 1.375 in.)
LTC 8568/00 Signal Distribution Unit
Main site Bi-Phase control code distribution and line
driver unit for communicating to AutoDome Series
cameras, receiver/drivers, switcher/ followers, and
Allegiant satellite systems. The unit provides 32
separate outputs for driving up to 256 remote devices.
Either “star” or “daisy chain” wiring configurations
may be used. Two meter (6 ft) interface cable for
data/power between unit and main Allegiant CPU bay
supplied. Not applicable to the LTC 8100, LTC 8200,
and the LTC 8300 Series systems.
Electrical
Operating Voltage 12 VAC (supplied by main CPU bay)
Power 3 W
Indicators
• Power LED
• Code LED
Connectors
Input One (1), 9-pin Sub D connector for data/power
Outputs Sixteen, 6-contact removable screw terminal
blocks for code output. Maximum transmission
distance is 1.5 km (5000 ft) using 1 mm
(18 AWG) shielded-twisted pair (Belden 8760 or
equivalent).
2
Mechanical
Construction/
Finish
Dimensions
(W x D x H)
Weight 1.8 kg (4 lb)
Charcoal colored metal enclosure
445 x 318 x 89 mm (17.5 x 12.5 x 3.5 in.)
Integral mounting flanges for EIA 48 cm (19 in.)
rack
LTC 8768/00 Signal Distribution Unit
Same features and specifications as the LTC 8568/00
except that it contains twice the number of output
connectors which provide 64 separate outputs for
driving up to 512 remote devices. Not applicable to
the LTC 8100, LTC 8200, and the LTC 8300 Series
systems.
LTC 8540/00 Alarm Interface Unit
Unit accepts up to 64 contact closures or logic level
inputs from remote sensing devices such as door
contacts, PIRs, etc. and then reports the “alarm”
information to the main Allegiant CPU bay. Alarm
inputs may be configured in groups of 32 to accept
either normally open or normally closed contacts. Unit
also contains eight relay outputs that activate
automatically upon alarm conditions. A two meter
(6 ft) interface cable for data/power between unit and
main CPU bay is supplied. Not applicable to the
LTC 8100, LTC 8200, and the LTC 8300 Series
systems.
Electrical
Operating Voltage 12 VAC or 12 VDC
Power 8 W
Indicators
Power LED
Alarm LED; audible tone
Connectors
Alarm Inputs Sixty-four (64); twenty 6-contact removable
Alarm Outputs Eight (8) relay outputs (100 VDC, 0.5 A, 10 W);
Data/Power One 9-pin Sub D connector
(12 VAC is supplied by main CPU bay)
screw terminal blocks
four (4), 6-contact removable screw terminal
block.
Mechanical
Construction/
Finish
Dimensions
(W x D x H)
Weight 1.8 kg (4 lb)
Charcoal colored metal enclosure
445 x 318 x 89 mm (17.5 x 12.5 x 3.5 in.)
Integral mounting flanges for EIA 48 cm (19 in.)
rack
AutoDome and AutoDome Easy IISeries
The AutoDome® and the AutoDome Easy II Series of
cameras integrates high-speed panning and tilting,
360-degree continuous rotation, pre-positions, etc. in
a small, easy-to-install lightweight package. These PTZ
models are available with various mounting and
configuration options for use in both internal and
external environments.
Refer to the AutoDome and the AutoDome Easy II
Series datasheets for complete specifications.
LTC 8560, LTC 8561, LTC 8562, LTC 8563, LTC 8564,
and LTC 8566 Series Receiver/Drivers
These series of on-site receiver/drivers are designed to
receive Bi-Phase control code and convert this data
into signals for controlling conventional pan/tilt, zoom
lenses, and auxiliary functions. Supplied in an
environmentally rated enclosure, these series of
receiver/drivers are available in both basic and fullfeatured models. Refer to the chart below for specific
model selection based on desired operating voltages
and features:
