KLX 100

Bendix/King

Handheld GPS/COMM

H

GPS COMM

KLX 100

ABC1DEF2GHI

JKL4MNO5PQR

STU7VWX8YZ_

PAGE

D

3

SAVE

6

S
O

NRST

9

CRSR HELP

S

- +

0

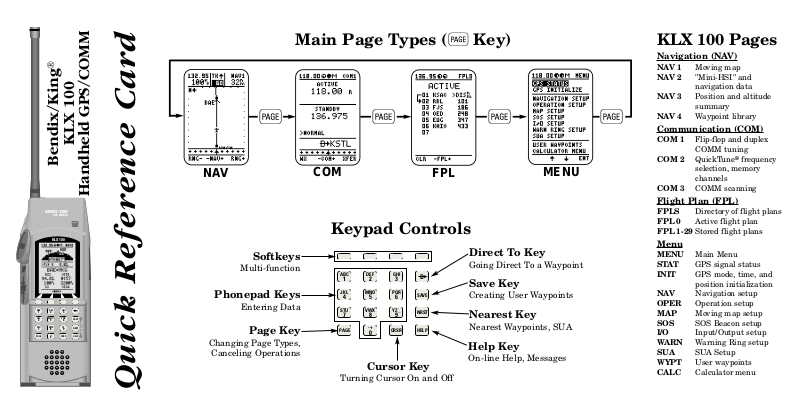

Quick Reference Card

P P P P

NAV

Softkeys

Multi-function

Phonepad Keys

Entering Data

Page Key

Changing Page Types,

Canceling Operations

Main Page Types (

COM

FPL

Keypad Controls

ABC

DEF

2

- +

0

GHI

CRSR HELP

1

JKL4MNO5PQR

STU7VWX8YZ_

PAGE

Cursor Key

Turning Cursor On and Off

D

3

SAVE

6

NRST

9

Key)

P

Direct To Key

Going Direct To a Waypoint

Save Key

Creating User Waypoints

Nearest Key

Nearest Waypoints, SUA

Help Key

On-line Help, Messages

MENU

KLX 100 Pages

Navigation (NAV)

NAV 1 Moving map
NAV 2 "Mini-HSI" and

navigation data

NAV 3 Position and altitude

summary

NAV 4 Waypoint library

Communication (COM)

COM 1 Flip-flop and duplex

COMM tuning

COM 2 QuickTune

selection, memory
channels

COM 3 COMM scanning

Flight Plan (FPL)

FPLS Directory of flight plans
FPL 0 Active flight plan
FPL 1-29 Stored flight plans

Menu

MENU Main Menu
STAT GPS signal status
INIT GPS mode, time, and

position initialization

NAV Navigation setup
OPER Operation setup
MAP Moving map setup
SOS SOS Beacon setup
I/O Input/Output setup
WARN Warning Ring setup
SUA SUA Setup
WYPT User waypoints
CALC Calculator menu

®

frequency

To initialize the
present position:

1. Select the Main Menu,
then GPS Initialize page.
Make sure the GPS mode

is NORMAL. Use the d
softkey to change the
MODE if necessary.

2. Use the , softkey to move
the cursor to the WPT
field.

3. Use the phonepad keys
and softkeys to enter the
identifier for a nearby way­point.

4. Press the e softkey.

A

AlliedSignal
Commercial Avionics Systems

400 North Rogers Road
Olathe, Kansas 66062-1294
TELEX 669916 KINGRAD
FAX [phone]
TELEPHONE [phone]

© 1996 AlliedSignal Inc.

9/96 006-18009-0001 4K
Printed in USA

To initialize the time
and date:

1. Select the Main Menu,
then the GPS Initialize
page.

2. If the time zone is incor­rect, use the , softkey to

move the cursor to the
time zone field and press

the d softkey until the
correct time zone is shown.

3. Move the cursor to the
TIME field, enter the
numbers for the correct
time (in 12-hour or 24-hour

time) and press the e
softkey.

4. Move the cursor to the
DATE field and enter the
numbers for the correct
day of the month.

5. Use the - and + soft­keys until the correct

month is shown. Press e.

6. If necessary, enter the cor­rect numbers for the year

and press e.

To go Direct To a
waypoint:

1. Press the D key. The

Direct To (DIR) page will
be displayed with a way­point page.

2. Enter the desired waypoint
identifier using the phone­pad keys along with the
softkeys. Verify that the
desired waypoint is dis­played.

3. Press the e softkey to
confirm. This initiates the
Direct To—your D-bar will
be centered, and you’re on
your way!

Alternatively, display the
desired waypoint on the NAV
4 page, or move the cursor
over a desired waypoint iden­tifier field on any page, and

press the D key followed by
the e softkey to initiate the

Direct To.

To cancel a Direct To:

1. Press the D key to display

the Direct To (DIR) page.

2. Press the c softkey to

clear the Direct To way­point field.

3. Press the e softkey to

confirm you want to cancel
Direct To operation.

If there are waypoints in the
Active Flight Plan (FPL 0),
the KLX 100 will navigate
along the nearest leg. If there
are no waypoints in FPL 0,
KLX 100 navigation will flag.

To enter a frequency
on the Title Bar:

1. If necessary, press the C

key to turn off the cursor.

2. Press the 1 key for a

COMM freq. or press the
8 key for a weather freq.

(Americas DB). Nearest
WX channel is filled in.

3. Use the phonepad number
keys to complete the entry.

To view the nearest
airport(s):

1. Press the N key, then
select APT and press e.

The five nearest airports
will be displayed. Use the

, and . softkeys to
select the other nearest
airports.

2. Press the i softkey to see
the Waypoint page for the
selected nearest airport, or

press the D key if you
wish to go Direct To the
selected nearest airport.

To use help:

1. If you are on a page with
which you are not familiar,

press the H key to see 1-3
pages of help about that
particular page .

2. After you read each page of
help, press the p softkey

to look at the next page.

3. If you wish to see addition­al help topics, press the j

softkey for the help index.
