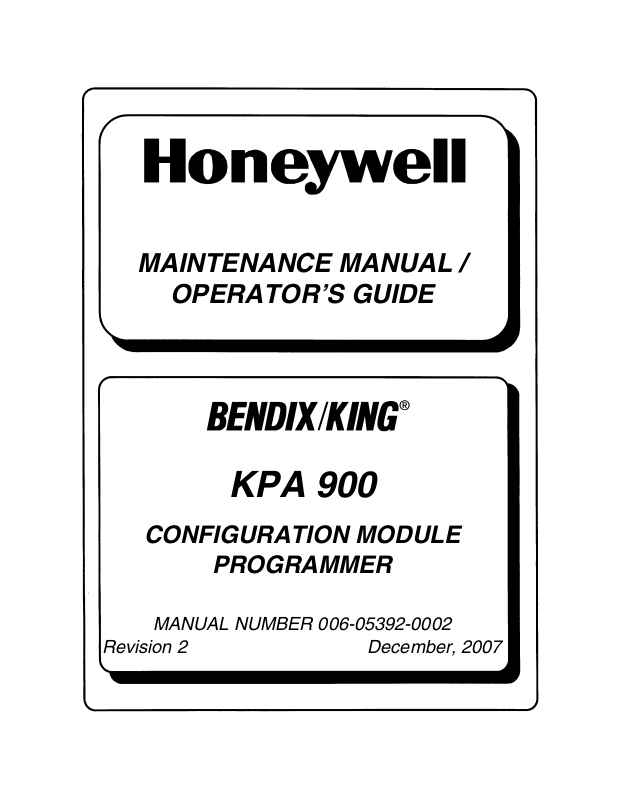

MAINTENANCE MANUAL / OPERATOR’S GUIDE
KPA 900
CONFIGURATION MODULE
PROGRAMMER
MANUAL NUMBER 006-05392-0002
Revision 2 |
December, 2007 |
This document contains technical data and is subject to U.S. export regulations. These commodities, technology, or software were exported from the United States in accordance with the export administration regulations. Diversion contrary to U.S. law is prohibited.
Honeywell - Confidential
THIS DOCUMENT AND ALL INFORMATION AND EXPRESSION CONTAINED HEREIN ARE THE PROPERTY OF HONEYWELL INTERNATIONAL INC., ARE PROVIDED IN CONFIDENCE, AND MAY BE USED BY PERSONS REQUIRED BY FEDERAL AVIATION REGULATION PART 21.50 TO COMPLY WITH ANY OF THE TERMS OF THESE INSTRUCTIONS. EXCEPT AS SET FORTH ABOVE, NO PERSON MAY, IN WHOLE OR IN PART, USE, DUPLICATE OR DISCLOSE THIS INFORMATION FOR ANY PURPOSE WITHOUT THE PRIOR WRITTEN PERMISSION OF HONEYWELL INTERNATIONAL INC.
BENDIX/KING® |
KPA 900 |
Honeywell Materials License Agreement
The documents and information contained herein ("the Materials") are the proprietary data of Honeywell International Inc. and Honeywell Intellectual Properties Inc (collectively "Honeywell"). These Materials are provided for the exclusive use of Honeywell Service Centers; Honeywell-authorized repair facilities; operators of Honeywell aerospace products subject to an applicable product support agreement, their wholly owned-subsidiaries or a formally designated third party service provider; and direct recipients of Materials from Honeywell's Aerospace Technical Publication Distribution. The terms and conditions of this License Agreement govern your use of these Materials, except to the extent that any terms and conditions of another applicable agreement with Honeywell regarding the operation, maintenance, or repair of Honeywell aerospace products conflict with the terms and conditions of this License Agreement, in which case the terms and conditions of the other agreement will govern. However, this License Agreement will govern in the event of a conflict between its terms and conditions and those of a purchase order or acknowledgement.
1. License Grant – If you are a party to an applicable product support agreement, a Honeywell Service Center agreement, or an authorized repair facility agreement, Honeywell hereby grants you a limited, non-exclusive license to use these Materials to operate, maintain, or repair Honeywell aerospace products only in accordance with that agreement.
If you are a direct recipient of these Materials from Honeywell's Aerospace Technical Publication Distribution and are not a party to an agreement related to the operation, maintenance or repair of Honeywell aerospace products, Honeywell hereby grants you a limited, non-exclusive license to use these Materials to maintain or repair the subject Honeywell aerospace products only at the facility to which these Materials have been shipped ("the Licensed Facility"). Transfer of the Materials to another facility owned by you is permitted only if the original Licensed Facility retains no copies of the Materials and you provide prior written notice to Honeywell.
2.Rights In Materials – Honeywell retains all rights in these Materials and in any copies thereof that are not expressly granted to you, including all rights in patents, copyrights, trademarks, and trade secrets. No license to use any Honeywell trademarks or patents is granted under this License Agreement.
3.Confidentiality – You acknowledge that these Materials contain information that is confidential and proprietary to Honeywell. You agree to take all reasonable efforts to maintain the confidentiality of these Materials.
4.Assignment And Transfer – This License Agreement may be assigned to a formally designated service designee or transferred to a subsequent owner or operator of an aircraft containing the subject Honeywell aerospace products. However, the recipient of any such assignment or transfer must assume all of your obligations under this License Agreement. No assignment or transfer shall relieve any party of any obligation that such party then has hereunder.
5.Copies of Materials – Unless you have the express written permission of Honeywell, you may not make or permit making of copies of the Materials. Notwithstanding the foregoing, you may make copies of only portions of the Material for your internal use. You agree to return the Materials and any copies thereof to Honeywell upon the request of Honeywell.
6.Term – This License Agreement is effective until terminated as set forth herein. This License Agreement will terminate immediately, without notice from Honeywell, if you fail to comply with any provision of this License Agreement or will terminate simultaneously with the termination or expiration of your applicable product support agreement, authorized repair facility agreement, or your formal designation as a third party service provider. Upon termination of this License Agreement, you will return these Materials to Honeywell without retaining any copies and will have one of your authorized officers certify that all Materials have been returned with no copies retained.
7.Remedies – Honeywell reserves the right to pursue all available remedies and damages resulting from a breach of this License Agreement.
Revision 2
|
Page MLA-1 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
8.Limitation of Liability – Honeywell does not make any representation regarding the use or sufficiency of the Materials. THERE ARE NO OTHER WARRANTIES, WHETHER WRITTEN OR ORAL, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, (i) WARRANTIES ARISING FROM COURSE OF PERFORMANCE , DEALING, USAGE, OR TRADE, WHICH ARE HEREBY EXPRESSLY DISCLAIMED, OR (ii) WARRANTIES AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF THIRD PARTIES, EVEN IF HONEYWELL HAS BEEN ADVISED OF ANY SUCH INFRINGEMENT. IN NO EVENT WILL HONEYWELL BE LIABLE FOR ANY INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, SPECIAL DAMAGES, INDIRECT DAMAGES, LOSS OF PROFITS, LOSS OF REVENUES, OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THESE LIMITATIONS AND EXCLUSIONS WILL APPLY REGARDLESS OF WHETHER LIABILITY ARISES FROM BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE), BY OPERATION OF LAW, OR OTHERWISE.
9.Controlling Law – This License shall be governed and construed in accordance with the laws of the State of New York without regard to the conflicts of laws provisions thereof. This license sets forth the entire agreement between you and Honeywell and may only be modified by a writing duly executed by the duly authorized representatives of the parties.
Copyright - Notice
Copyright 1994, 2007 Honeywell International Inc. All rights reserved.
Honeywell and Bendix/King are registered trademarks of Honeywell International Inc. All other marks are owned by their respective companies.
Revision 2
|
Page MLA-2 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
|
|
KPA 900 |
|
|
REVISION HIGHLIGHTS |
|
|
|
|
|
Part Number |
Rev |
Date |
Description |
|
|
|
|
|
|
|
|
006-05392-0001 |
1 |
July/2003 |
Full Reprint |
|
|
|
|
006-05392-0002 |
2 |
Dec/2007 |
Full Reprint |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Revision 2
©Honeywell International Inc. Do not print without express permission of Honeywell.
Page RH-1
Dec/2007
BENDIX/KING® |
|
|
|
KPA 900 |
|
|
REVISION HIGHLIGHTS |
|
|
|
|
|
|
|
Part Number |
Rev |
Date |
|
Description |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Revision 2
©Honeywell International Inc. Do not print without express permission of Honeywell.
Page RH-2
Dec/2007
BENDIX/KING® |
KPA 900 |
TABLE OF CONTENTS
SECTION 1
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2 What's New in Version 2.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3 System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.4 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4.1 Minimum PC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4.2 Known Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4.2.1 Parallel Port Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4.2.2 Compatible Port Not Found . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.4.2.3 Failed Read or Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.4.2.4 Incorrectly Reported Good Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
SECTION 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.1 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2 Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2.1 KPA 900 Software Impact to PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2.2 Automatic Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.2.2.1 Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.2.2.2 Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.2.2.3 View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2.2.4 Uninstall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2.2.5 Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2.3 Manual Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.3 First Time Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Revision 2
|
Page TOC-1 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
TABLE OF CONTENTS
SECTION 3
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2 KPA 900 Display versus CM 2000 Contents . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.3 KPA 900 Main Screen Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.3.1 Form Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 3.3.2 Activity Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 3.3.3 Unit Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 3.3.4 File Comment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.3.5 Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.3.5.1 File Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.3.5.2 Unit Type Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3.3.5.3 Tools Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3.4 Unit Specific Configuration Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 3.4.1 Unit Type → ART 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 3.4.1.1 Displaying ART 2000 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 3.4.1.2 Changing ART 2000 Parameters in the KPA 900 . . . . . . . . . . . . . . . . . . . . . 3-6 3.4.2 Unit Type → ART 2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 3.4.2.1 Displaying ART 2100 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 3.4.2.2 Changing ART 2100 Parameters in the KPA 900 . . . . . . . . . . . . . . . . . . . . . 3-8 3.4.3 Unit Type → KRA 405B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.4.3.1 KRA 405B Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
3.4.3.2 Changing KRA 405B Parameters in the KPA 900 . . . . . . . . . . . . . . . . . . . . . 3-9 3.5 CM 2000 Input/Output Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 3.5.1 Tools → Write to CM 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 3.5.2 Tools → Read from CM 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 3.6 Miscellaneous Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 3.6.1 File → Load Configuration File Menu Option . . . . . . . . . . . . . . . . . . . . . . . . 3-11 3.6.2 File → Save Configuration Data as Menu Option . . . . . . . . . . . . . . . . . . . . 3-11
3.6.2.1 Look In Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
3.6.2.2 Up One Level Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Revision 2
|
Page TOC-2 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
TABLE OF CONTENTS
3.6.2.3 Create New Directory Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
3.6.2.4 File Name Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
3.6.2.5 Cancel Command Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
3.6.2.6 OK Command Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
3.6.3 File → Save Menu Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
3.6.4 File → Save Log File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
3.6.5 File → Add Edit Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
3.6.5.1 File Comments Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
3.6.5.2 Text Entry Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
3.6.5.3 Clear Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.5.4 Finished Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.5.5 New Line Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.5.6 Save Line Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.5.7 Select Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.5.8 Edit Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.5.9 Insert Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3.6.6 Tools → Test → Validate CM 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
3.6.7 Tools → Test → Factory Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
3.6.8 Tools → View Edit ART Stab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
3.6.8.1 Analog Gains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
3.6.8.2 Analog Offsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
3.6.8.3 Analog Nulls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
3.6.8.4 Digital Offsets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 3.6.8.5 Save Command Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 3.6.8.6 Cancel Command Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 3.6.8.7 Close Command Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 3.7 Typical Operation of the KPA 900 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 3.7.1 New Installation of an ART 2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 3.7.2 Changing the Trip Point #1 of an Existing KRA 405B Installation . . . . . . . . 3-21 3.7.3 Programming a New CM 2000 for an OEM . . . . . . . . . . . . . . . . . . . . . . . . . 3-22 3.7.4 Troubleshooting a CM Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Revision 2
|
Page TOC-3 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
TABLE OF CONTENTS
SECTION 4
UNIT PARAMETER DEFINITIONS 4-1
4.1 ART 2000 and ART 2100 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.1 Gyro Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.2 Analog Gyro Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.3 Analog Gyro Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.4 Mechanical Scan Limit (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.5 Connector Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.6 Altitude Source (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.7 Desired Antenna Sweep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.1.8 Wx Gain (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.1.9 Map Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.1.10 EFIS Strut Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.1.11 ARL (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.1.12 Auto Step Scan (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.1.13 Sector Scan (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.1.14 Auto Tilt (ART 2100 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.1.15 Target Alert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.2 KRA 405B Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.2.1 Zero Foot Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.2.2 Trip Point #1, Trip Point #2, and Trip Point #3 . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Revision 2
|
Page TOC-4 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
LIST OF FIGURES
Figure 2-1 – KPA 900 Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Figure 2-2 – KPA 900 Installation Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Figure 3-1 – KPA 900 Main Screen Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Figure 3-2 – KPA 900 Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Figure 3-3 – KPA 900 Main Form with ART 2000 Unit Type Selected . . . . . . . . . . . . 3-6 Figure 3-4 – KPA 900 Main Form with ART 2100 Unit Type Selected . . . . . . . . . . . . 3-7 Figure 3-5 – KPA 900 Main Form with KRA 405B Unit Type Selected . . . . . . . . . . . . 3-9 Figure 3-6 – KPA 900 KRA 405B Parameter Change Form . . . . . . . . . . . . . . . . . . . . 3-9 Figure 3-7 – File Load and File Save As Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 Figure 3-8 – Continue with Save Message Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Figure 3-9 – KPA 900 Main Form with Comment Editor Selected. . . . . . . . . . . . . . . 3-15 Figure 3-10 – Validate CM 2000 Form, Initial Screen . . . . . . . . . . . . . . . . . . . . . . . . 3-17 Figure 3-11 – Validate CM 2000 Form, Configuration Screen. . . . . . . . . . . . . . . . . . 3-17 Figure 3-12 – Validate CM 2000 Form, Conclusion Screen . . . . . . . . . . . . . . . . . . . 3-17 Figure 3-13 – Factory Test Form, Initial Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18 Figure 3-14 – Factory Test Form, Test in Progress Screen. . . . . . . . . . . . . . . . . . . . 3-19 Figure 3-15 – ART Stab Calibration Form with Default Values Shown . . . . . . . . . . . 3-20
Revision 2
|
Page LOF-1 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
LIST OF FIGURES
This Page Intentionally Left Blank
Revision 2
|
Page LOF-2 |
©Honeywell International Inc. Do not print without express permission of Honeywell. |
Dec/2007 |
BENDIX/KING® |
KPA 900 |
SECTION 1
GENERAL INFORMATION
1.1 INTRODUCTION
This manual describes the operation of the Honeywell KPA 900 Configuration Module
Programmer software version 2.0. This version differs substantially from previous versions. The Operator's Guide, 006-05392-0000 and 006-05392-0001, describes the operation with software versions 1.0, 1.1, and 1.2.
1.2WHAT'S NEW IN VERSION 2.0
The list that follows describes the new features of the version 2.0 software:
•Compatibility with Windows NT and NT derivatives
•Standard Windows controls
•Ability to change Unit Types without exiting program
•Ability to view and edit ART 2000/2100 Stabilization Calibration
•Ability to thoroughly test CM 2000
•Ability to create log file of all user activity during programming session
•Removes support for EFIS, TCAS, and RMS units.
1.3 SYSTEM DESCRIPTION
The KPA 900 Configuration Module Programmer consists of a KPA 900 hardware programmer and controlling software, which operates on an IBM-compatible personal computer. The programmer is designed to program the CM 2000 configuration module for the ART 2000/2100 weather radar systems and the KRA 405B Radar Altimeter. Previous versions of the KPA 900 supported configuration modules from additional systems that version 2.0 does not support.
The KPA 900 software has selectable configuration options for each particular system.
These options may be stored in the Configuration Module and/or stored as a file to disk. User-generated comments may be added to these files. A record of user actions and the status of the operation are captured during the programming operation. This record may be saved as an electronic file. Configuration Management for the programmed modules is accomplished by appropriate archival of these files.
Revision 2
©Honeywell International Inc. Do not print without express permission of Honeywell.
Page 1-1
Dec/2007
BENDIX/KING® |
KPA 900 |
1.4 SYSTEM REQUIREMENTS
1.4.1 MINIMUM PC REQUIREMENTS
The list that follows describes the minimum requirements for the PC:
•Pentium I Processor
•90 MHz Clock Speed
•64 Mb RAM
•Hard drive with 500 kB free space
•Windows 95
•CD ROM Drive
•Parallel port with the following:
–25-pin connector
–SPP type or ECP, PS2, Fast Centronics, or EPP types with SPP compatible mode.
NOTE: The KPA 900 is designed to operate with personal computers that have operating systems of Windows 95 up to Windows XP. The KPA 900 has not been tested with the Windows Vista operating system. The hardware requirements for the
KPA 900 are minimal compared to the operating system. If the system performance is acceptable without the KPA 900, the KPA 900 will not overload the system memory or fail to communicate with the CM 2000 because of slow clock speed. If the system performance suffers from lack of memory and frequently has to cache to the hard drive, the KPA 900 may also experience performance problems.
1.4.2 KNOWN LIMITATIONS
1.4.2.1 PARALLEL PORT REQUIREMENT
Version 2.0 of the KPA 900 software is an upgrade to achieve Windows compatibility. The
PC industry is moving away from the use of parallel ports and moving toward the use of
USB ports. The KPA 900 is not compatible with the USB port. It has not been tested with a USB port to parallel port adapter, and Honeywell does not expect that it will work with one. In order to be USB compliant, the programmer hardware (and to some degree, the software) will need major redesign, which will cause an additional cost for the product.
When the demand is great enough, Honeywell will respond with an upgrade.
Revision 2
©Honeywell International Inc. Do not print without express permission of Honeywell.
Page 1-2
Dec/2007
