Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

•Will help you use your appliance in a fast and safe way.

•Read the manual before installing and operating your product.

•Follow the instructions, especially those for safety.

•Keep the manual in an easily accessible place as you may need it later.

•Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical Recycling and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

CONTENTS

1 Your refrigerator

2 Important Safety Warnings4

Intended use......................................	4
For products with a water dispenser;. 6
Child safety........................................	6
HCA Warning.....................................	6
Things to be done for energy saving...	7
3 Installation	8
Points to be considered when re-
transporting your refrigerator..............	8
Before operating your refrigerator.......	8
Electric connection.............................	8
Disposing of the packaging................	9
Disposing of your old refrigerator........	9
Placing and Installation.......................	9
Adjusting the feet.............................	10
Replacing the interior light bulb .......	10
Reversing the doors.........................	11
Reversing the doors.........................	12

5 Using your refrigerator 14

Thermostat setting button................	14
Defrost.............................................	14
Crisper humidity control sliders.........	15
Using the rotary crisper (in some
models)............................................	16
6 Maintenance and
cleaning	17
Protection of plastic surfaces ..........	17
7 Recommended solutions
for the problems	18

4 Preparation

2EN

1 Your refrigerator

		5		11
		5
		5
		B		12
		B		11
		5		11
		6
		7
		8
		*9		13
		10
A-	Freezer compartment		6.	Defrost water collection
B-	Fridge compartment			channel - Drain tube
	1.	Ice cube tray	7.	Crisper humidity controls
	1.	Ice cube tray	8.	Crisper cover
	2.	Freezer shelf	9.	Salad crisper
	3.	Interior light	10.	Adjustable front feet
	4.	Thermostat knob	11.	Door shelf
	5.	Fridge compartment shelves	12.	Egg tray
* OPTIONAL			13.	Bottle shelf
* OPTIONAL

CFigures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

3EN

2	Important Safety Warnings
Please review the following information.		and canned liquid beverages in the
		freezer compartment. Otherwise,
Failure to observe this information may
		these may burst.
cause injuries or material damage.
		• Do not touch frozen food by hand;
Otherwise, all warranty and reliability
		they may stick to your hand.
commitments will become invalid.
		• Unplug your refrigerator before
The usage life of the unit you
		cleaning or defrosting.
purchased is 10 years. This is the
		• Vapor and vaporized cleaning
period for keeping the spare parts
		materials should never be used in
required for the unit to operate as
		cleaning and defrosting processes of
described.
		your refrigerator. In such cases, the

Intended use		vapor may get in contact with the
		electrical parts and cause short circuit
This product is intended to be used
		or electric shock.
– indoors and in closed areas such as
		• Never use the parts on your
homes;
		refrigerator such as the door as a
– in closed working environments such
		means of support or step.
as stores and offices;
		• Do not use electrical devices inside
– in closed accommodation areas such
as farm houses, hotels, pensions.		the refrigerator.
		• Do not damage the parts, where
• This product should not be used
		the refrigerant is circulating, with
outdoors.
		drilling or cutting tools. The refrigerant

General safety		that might blow out when the gas
		channels of the evaporator, pipe
• When you want to dispose/scrap		extensions or surface coatings are
the product, we recommend you to		punctured causes skin irritations and
consult the authorized service in order		eye injuries.
to learn the required information and		• Do not cover or block the ventilation
authorized bodies.		holes on your refrigerator with any
• Consult your authorized service for		material.
all your questions and problems		• Electrical devices must be repaired
related to the refrigerator. Do not		by only authorised persons. Repairs
intervene or let someone intervene to		performed by incompetent persons
the refrigerator without notifying the		create a risk for the user.
authorised services.		• In case of any failure or during
• For products with a freezer		a maintenance or repair work,
compartment; Do not eat cone ice		disconnect your refrigerator’s mains
cream and ice cubes immediately		supply by either turning off the
after you take them out of the freezer		relevant fuse or unplugging your
compartment! (This may cause		appliance.
frostbite in your mouth.)		• Do not pull by the cable when pulling
• For products with a freezer		off the plug.
compartment; Do not put bottled

4EN

•Place the beverage with higher proofs tightly closed and vertically.

•Never store spray cans containing flammable and explosive substances in the refrigerator.

•Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

•This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

•Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

•Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

•Contact authorized service when there is a power cable damage to avoid danger.

•Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

•This refrigerator is intended for only storing food items. It must not be used for any other purpose.

•Label of technical specifications is located on the left wall inside the refrigerator.

•Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

•If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

•For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

•This operation manual should be handed in to the new owner of the product when it is given to others.

•Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

•Do not plug the refrigerator if the wall outlet is loose.

•Water should not be sprayed directly on inner or outer parts of the product for safety purposes.

•Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

•Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

•Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.

Never place objects on top of the

5EN

refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

•As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

•If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

•The plug's tip should be regularly cleaned; otherwise, it may cause fire.

•The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.

•Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

•When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

•When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

• Use only potable water.

Child safety

•If the door has a lock, the key should be kept away from reach of children.

•Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

6EN

Things to be done for energy saving

•Do not leave the doors of your refrigerator open for a long time.

•Do not put hot food or drinks in your refrigerator.

•Do not overload your refrigerator so that the air circulation inside of it is not prevented.

•Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

•Pay attention to keep your food in closed containers.

•For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined

by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer

according to the shapes and size of food to be frozen.

•Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

7EN

3 Installation

BPlease remember that the manufacturer shall not be held liable if the information given in the instruction

manual is not observed.

Points to be considered when re-transporting your refrigerator

1.Your refrigerator must be emptied and cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3.Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget…

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local

authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1.Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2.Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

3.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4.Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.

5.You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid

condensation

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

•The connection must be in compliance with national regulations.

•The power cable plug must be easily accessible after installation.

•The specified voltage must be equal to your mains voltage.

•Extension cables and multiway plugs must not be used for connection.

8EN

BA damaged power cable must be replaced by a qualified electrician.

BProduct must not be operated before it is repaired! There is danger of

electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by

classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

•You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

AIf the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1.Install your refrigerator to a place that allows ease of use.

2.Keep your refrigerator away from heat sources, humid places and direct sunlight.

3.There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4.Place your refrigerator on an even floor surface to prevent jolts.

5.Do not keep your refrigerator in ambient temperatures under 10°C.

9EN

Adjusting the feet

If your refrigerator is unbalanced;

You can balance your refrigerator by turning the front legs as shown in the illustration below. The corner where the leg exists is lowered when you turn it in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

If the bulb works, replace the light cover by inserting the rear lug and pushing up to locate the front two lugs.

4- If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap (SES) bulb.

5- Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be obtained from a good local electrical or DIY store.

Replacing the interior light bulb

Should the light fail to work, proceed as follows.

1- Switch off at the socket outlet and pull out the mains plug.

You may find it useful to remove shelves for easy access.

2- Use a flat tipped screwdriver to remove the light diffuser cover.

3- First check that the bulb hasn’t worked loose by ensuring it is screwed securely in the holder. Replace the plug and switch on.

10 EN

Reversing the doors

Proceed in numerical order.

7 6

45°

8 9

18 17 180°

16 15

4 5

19 22

12 13

11 EN

Reversing the doors

Proceed in numerical order.

7 6

45°

8 9

18 17 180°

16 15

4 5

19 22

12 13

12 EN

4 Preparation

CYour refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

CThe ambient temperature of the room where you install your

refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.

CPlease make sure that the interior of your refrigerator is cleaned thoroughly.

CIf two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.

CWhen you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

-The door should not be opened frequently.

-It must be operated empty without any food in it.

-Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

COriginal packaging and foam materials should be kept for future transportations or moving.

13 EN

5 Using your refrigerator

Thermostat setting button

The interior temperature of your refrigerator changes for the following reasons;

•Seasonal temperatures,

•Frequent opening of the door and leaving the door open for long periods,

•Food put into the refrigerator without cooling down to the room temperature,

•The location of the refrigerator in the room (e.g. exposing to sunlight).

•You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees.

•If the ambient temperature is higher than 32°C, turn the thermostat button to maximum position.

•If the ambient temperature is lower than 25°C, turn the thermostat button to minimum position.

Defrost

Fridge compartment performs fullautomatic defrosting. Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

•Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

•Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food.

•Frost formation in the freezer compartment must be defrosted every 6 months. It is recommended to defrost the ice when the deep freezer compartment is not filled too much or is empty.

•To do this, wrap the frozen food

by paper and keep them in the coolest place possible or in another refrigerator if available.

14 EN

•Stop your refrigerator by means of the temperature setting button or unplug the power cord from the outlet. You can place a container filled with hot water into the freezer compartment or leave the door of the freezer compartment open in order to hasten the defrosting.

•Remove the water that accumulates

in the lower container of the freezer compartment with an absorbent cloth or sponge.

•Dry the freezer compartment completely and return the temperature setting button to its previous position.

•Operate your refrigerator for 2 hours while it is empty and its doors are closed before replacing your food into the deep freezer.

Stopping your product

If your thermostat is equipped with “0” position:

-Your product will stop operating when you turn the thermostat button to “0” (zero) position. Your product will not start unless to you turn the thermostat button to position “1” or one of the other positions again.

If your thermostat is equipped with “min” position:

-Unplug your product to stop it.

Crisper humidity control sliders

Using the crisper humidity control sliders

Crisper of your refrigerator is designed specially to keep your vegetables fresh without loosing their humidity. Cold air circulates basically around the crisper and the amount of the cold air passing through the crisper is controlled by the sliders on the front side of the crisper cover.

You can adjust the humidity control sliders to a suitable position according to the humidity and cooling condition of your food in the crisper.

If you want your food in the crisper to cool more, open the holes of the humidity control sliders and if you want them to cool less and keep their humidity for a longer time, close the holes.

15 EN

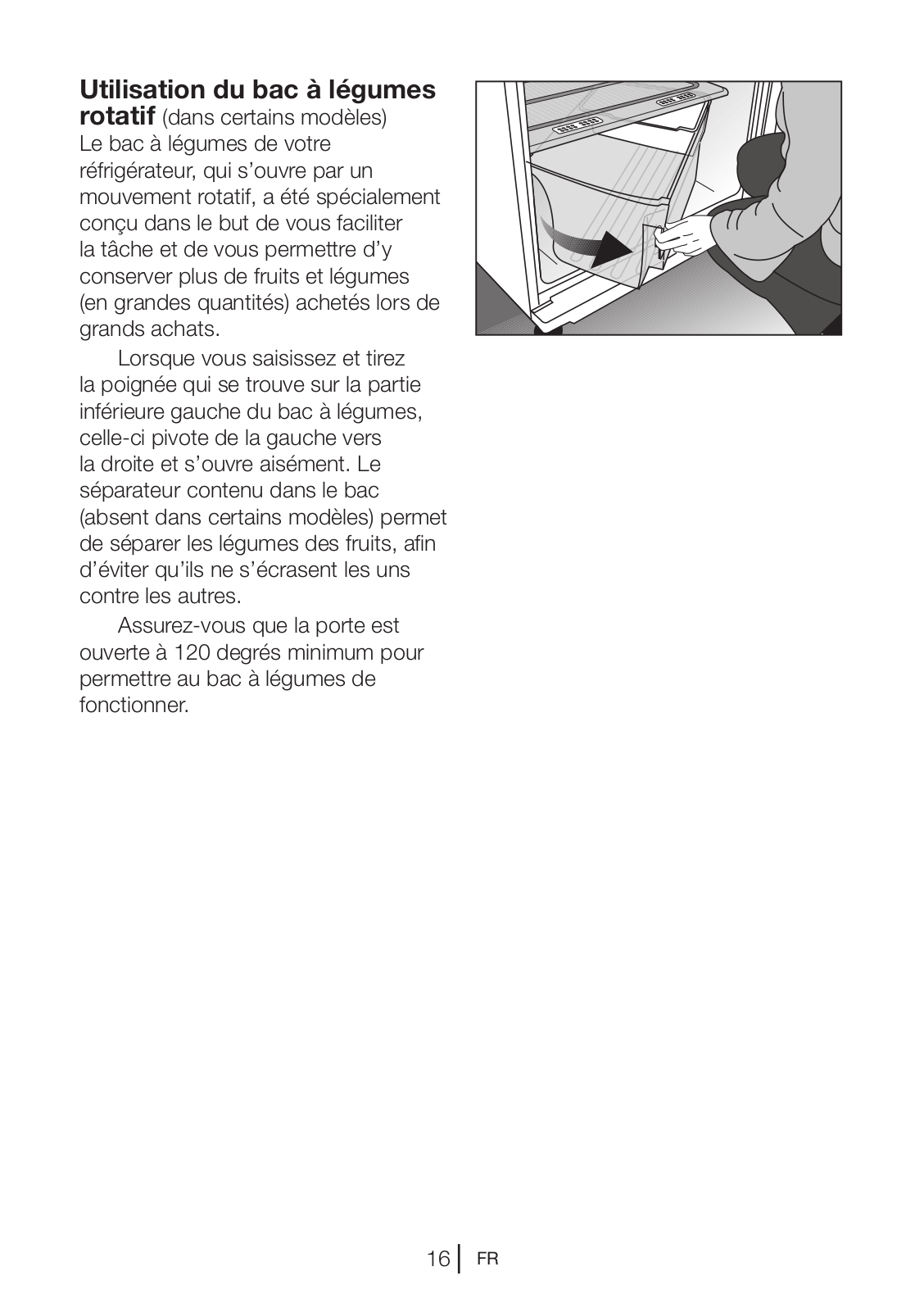

Using the rotary crisper (in some models)

The crisper of your refrigerator which opens with a rotating movement is designed specially to provide ease of usage and allow you to store more vegetables and fruits (large volume) you buy during large shopping.

When you grab and pull the handle on the lower left hand side of the crisper, it will rotate from left to right and open easily. The separator in the crisper will allow you to separate the vegetables and fruits according to their types and prevent them from crushing.

16 EN

6 Maintenance and cleaning

A Never use gasoline, benzene or similar substances for cleaning purposes.

B We recommend that you unplug the appliance before cleaning.

B Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

CUse lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

CUse a damp cloth wrung out in a solution of one teaspoon of

bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

B Make sure that no water enters the lamp housing and other electrical items.

B If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

CCheck door seals regularly to ensure they are clean and free from food particles.

A To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

CDo not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

17 EN

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

•Is the refrigerator properly plugged in? Insert the plug to the wall socket.

•Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

•Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

•Decreasing the time the door left open or using it less frequently.

•Covering the food stored in open containers with a suitable material.

•Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

•Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

•The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.

•Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.

•Are the temperature adjustments correctly made?

•Power might be cut off.

The fridge is running frequently or for a long time.

18 EN

+ 43 hidden pages
