Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.
1 Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.
1.1 General safety
•The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
•Children of less than 3 years should be kept away unless continously supervised.
•Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
•Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
•Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!
Dryer / User Manual |
3 / 60 EN |
|
|
Important instructions for safety and environment
1.1.1 Electrical safety
A Electrical safety instructions should be followed while electrical connection is made during the installation.
•Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
•The voltage and allowed fuse protection is stated on the type label plate.
•The voltage specified on the type label must be equal to your mains voltage.
•Unplug the dryer when it is not in use.
•Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
•Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
•Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
•Power cable plug must be easily accessible after installation.
B Damaged mains cable should be changed notifying the Authorized Service.
B If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!
4 / 60 EN |
Dryer / User Manual |
|
|
Important instructions for safety and environment
1.1.2 Product safety
Points to be taken into consideration for fire hazard:
Below specified laundry or items must not be dried in the dryer considering fire hazard.
•Unwashed laundry items
•Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.
For this reason especially the items containing the above specified
stains must be washed very well, to do this
use adequate detergent and choose a high washing temperature.
Below specified laundry or items must not be dried in the dryer due to the fire hazard:
•Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.
•Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.
Never stop your dryer before
the programme completes. If you must do this, remove all laundry
quickly and lay them out to dissipate the heat.
Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.
Dryer / User Manual |
5 / 60 EN |
|
|
Important instructions for safety and environment
•You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.
A Underweardried that contains metal reinforcements should not be
in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
C Use softeners and similar products in accordance with the instructions of their manufacturers.
C Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.
•Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others’ lives in danger.
•There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
•Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
•Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
•Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
•The lint must not be allowed to accumulate around the tumble dryer
6 / 60 EN |
Dryer / User Manual |
|
|
Important instructions for safety and environment
1.2 Mounting over a washing machine
•A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
•Total weight of the washing machine and the dryer -with full loadwhen they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!
Washing machine cannot be placed on the dryer. Pay attention A tomachine.the above warnings during the installation on your washing
Installation Table for Washing Machine and Dryer
Dryer Depth |
|
|
Washing Machine Depth |
|
|
||
|
|
|
|
|
|
|
|
|
62cm |
60 cm |
54 cm |
50 cm |
49 cm |
45 cm |
40 cm |
54 cm |
Can be |
Can be |
Can be |
Can be |
Can be |
Can be |
Cannot be |
installed |
installed |
installed |
installed |
installed |
installed |
installed |
|
|
|
|
|
|
|
|
|
60 cm |
Can be |
Can be |
Can be |
Can be |
Can be |
Cannot be |
Cannot be |
installed |
installed |
installed |
installed |
installed |
installed |
installed |
|
|
|
|
|
|
|
|
|
Dryer / User Manual |
7 / 60 EN |
|
|
Important instructions for safety and environment
1.3 Intended use
•Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
•Use the dryer only for drying laundry that are marked accordingly.
•The manufacturer waives any responsibility arisen from incorrect usage or transportation.
•The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.
1.4 Child safety
•Packaging materials are dangerous for the children. Keep packaging materials away from children.
•Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.
C Child-proof lock is on the control panel. (See Child lock)
•Keep loading door closed even when the dryer is not in use.
8 / 60 EN |
Dryer / User Manual |
|
|
Important instructions for safety and environment
1.5 Compliance with the WEEE regulation and disposing of the waste product
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and
materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the
recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.
1.6 Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
Please visit the following website to get more information on the product. http://www.beko.com
Dryer / User Manual |
9 / 60 EN |
|
|
Important instructions for safety and environment
1.7 Technical Specifications
EN
Height (Min. / Max.) |
84,6 cm / 86,6 cm* |
Width |
59,5 cm |
Depth |
60,9 cm |
Capacity (max.) |
8 kg** |
Net weight (plastic front door usage) |
49 kg |
Net weight (glass front door usage) |
51 kg |
Voltage |
|
Rated power input |
See type label*** |
Model code |
|
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.
**Dry laundry weight before washing.
***Type label is located behind the loading door.
C Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
C Figures in this manual are schematic and may not match the product exactly.
Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in
C laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.
10 / 60 EN |
Dryer / User Manual |
|
|
2 Your Dryer
2.1 Package Contents
1 |
2 |
3 |
4 |
5 |
1.Water drain hose *
2.Filter drawer spare sponge*
3.User Manual
4.Drying basket*
5.Drying basket user manual*
*It can be supplied with your machine depending on its model.
Dryer / User Manual |
11 / 60 EN |
|
|
3 Installation
Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual.(See 3.3 Connecting to the drain and 3.5 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.
C Preparation of the dryer's location as well as the electrical and waste
water installations is under customer's responsibility.
A Prior to installation, visually check if the dryer has any defects on it. If the drier is damaged, do not have it installed. Damaged products cause risks for your safety.
A Let your dryer wait for 12 hours before starting to use it.
3.1 Appropriate installation location
Install the dryer on a stable and level surface. Dryer is heavy. Do not move it by yourself.
•Operate your dryer in a well ventilated, dust-free environment.
•The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.
•Do not cover the ventilation grills of the dryer.
•There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
•Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
•Place the dryer at least 1 cm away from the edges of other furniture.
•Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.
•The rear surface of the tumble dryer shall be placed against a wall.
B Do not place the dryer on the power cable.
3.2 Removing the transportation safety assembly
A Remove the transportation safety assembly before using the dryer for the first time.
•Open the loading door.
•There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
•Pull the nylon towards yourself and remove the transportation safety assembly.
A Check that no part of the transportation safety assembly remains inside the drum.
3.3 Connecting to the drain
In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.
You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.
Connecting the water drain hose
1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.
3Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.
4Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.
12 / 60 EN |
Dryer / User Manual |
|
|
Installation |
|
1 |
2 |
3 |
4 |
A Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
C Water drain hose should be attached to a height of maximum 80 cm.
C Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.
3.4 Adjusting the feet
•In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.
•Turn the feet to left or right until the dryer stands level and firmly.
3.5 Electrical connection
For specific instructions for electrical connection required during installation (see 1.1.1 Electrical Safety)
3.6 Transportation of the dryer
Unplug the dryer before transporting it.
Drain all water that has remained in the dryer.
If direct water drain connection is made, then remove the hose connections.
We recommend carrying the dryer in A upright position. If it is not possible to
carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from
the front.

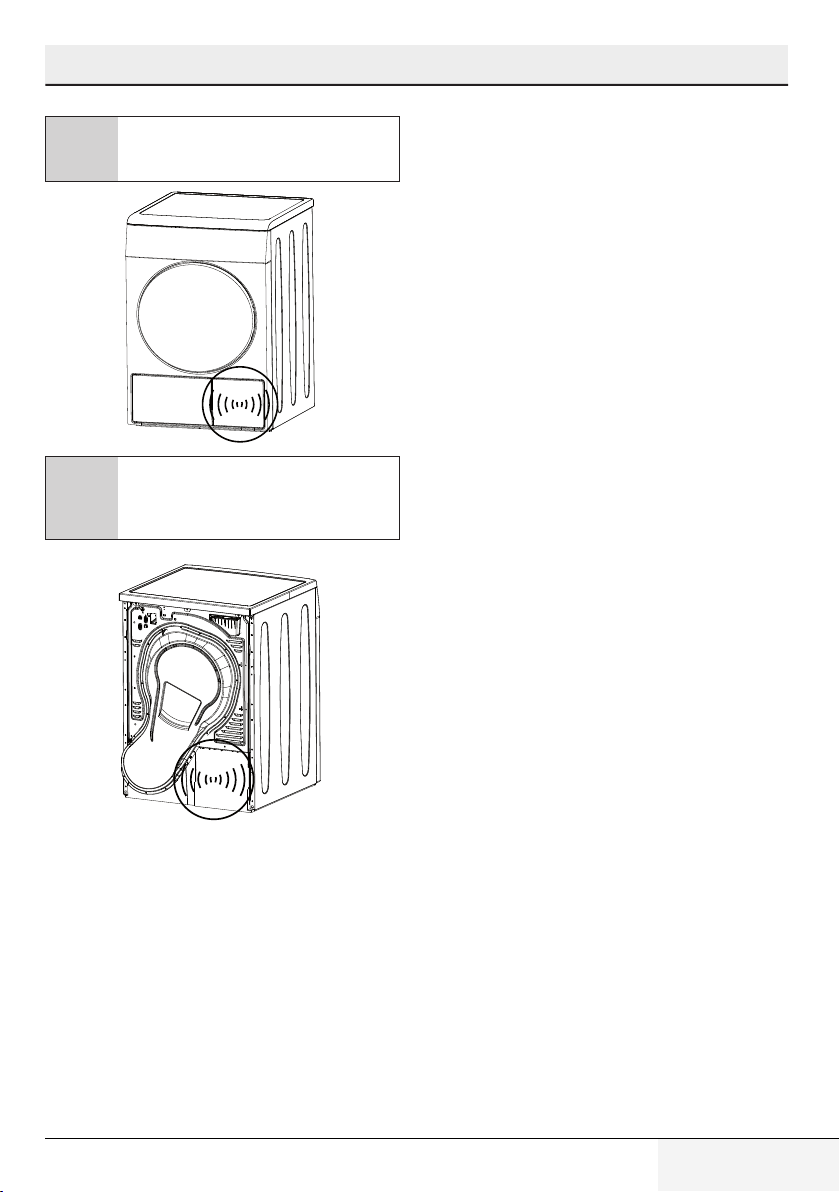

3.7 Warnings about sounds
C It is normal to hear a metallic noise from the compressor sometimes during operation.
C Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.
C Never unscrew the adjustable feet from their housings.
Dryer / User Manual |
13 / 60 EN |
|
|
4 Preparation
4.1 Laundry suitable for drying in the dryer
Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.
LAUNDRY DRYING SYMBOLS
Drying |
Suitable for |
No Iron |
Sensitive / |
Do not dry |
Do not dry |
Do not dry- |
|
Symbols |
|||||||
dryer |
|||||||
|
|
Delicate dry |
with dryer |
|
clean |
||
|
|
|
|
Drying |
<![if ! IE]> <![endif]>At hightemperature |
|
<![if ! IE]> <![endif]>At lowtemperature |
<![if ! IE]> <![endif]>Without heating |
|
|
<![if ! IE]> <![endif]>Hang wet to dry |
<![if ! IE]> <![endif]>Lay in shadow to dry |
|
Settings |
|
|
|
|
|||||
| <![if ! IE]> <![endif]>temperatureAt any |
<![if ! IE]> <![endif]>At medium temperature |
<![if ! IE]> <![endif]>Hang to dry |
<![if ! IE]> <![endif]>Lay to dry |
<![if ! IE]> <![endif]>Drycleanable- |
|||||
Iron - |
|
|
|
|
|
|
|
|
|
Dry or Steam |
|
Iron at high |
Iron at medium |
|
Iron at low |
|
<![if ! IE]> <![endif]>Do not iron |
<![if ! IE]> <![endif]>Iron without steam |
|
|
temperature |
temperature |
|
|
|||||
|
|
temperature |
|
||||||
IRON |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
Maximum temperature |
|
200 0C |
150 0C |
|
110 0C |
|
|||
|
|
|
|
|
|||||
4.2 Laundry not suitable for drying in the dryer
C Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.
4.3 Preparing laundry for drying
•Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
•Dry garments having metal accessories such as zippers, inside out.
•Fasten the zippers, hooks and buckles and button sheets.
4.4 Things to be done for energy saving
Following information will help you use the dryer in an ecological and energy-efficient manner.
•Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
•Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.
•Follow the instructions in the user manual for programme selection.
•Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.
•Do not add wet laundry while the dryer is in operation
•Clean the lint filter before or after each drying cycle. (See 6. Maintenance and cleaning)
14 / 60 EN |
Dryer / User Manual |
|
|
Preparation
•Clean the filter drawer regularly either when the Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles. (See 6. Maintenance and cleaning)
•Ventilate the room, where the dryer is located, well during drying.
4.5 Correct load capacity
Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.
C It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.
Following weights are given as examples.
Laundry |
Approximate weights |
|
(g)* |
||
|
||
|
|
|
Cotton quit covers (double) |
1500 |
|
Cotton quit covers (single) |
1000 |
|
Bed sheets (double) |
500 |
|
|
|
|
Bed sheets (single) |
350 |
|
|
|
|
Large tablecloths |
700 |
|
|
|
|
Small tablecloths |
250 |
|
|
|
|
Tea napkins |
100 |
|
Bath towels |
700 |
|
Hand towels |
350 |
|
Blouses |
150 |
|
Cotton shirts |
300 |
|
Shirts |
200 |
|
Cotton dresses |
500 |
|
Dresses |
350 |
|
Jeans |
700 |
|
Handkerchiefs (10 pieces) |
100 |
|
T-Shirts |
125 |
*Dry laundry weight before washing.
Dryer / User Manual |
15 / 60 EN |
|
|
5 Operating the product
5.1 Control panel
1 |
2 |
3 |
|
|
|
6 |
5 |
4 |
1.Program selection knob
2.Remaining duration indicator
3.On/Off button
4.Start/pause button
5.End duration button
6.Sound warning button
5.2 Screen symbols
Cottons |
Synthetics |
Xpress |
Timer |
Freshen Up Audible |
Iron dry |
Extra |
Cupboard Cupboard |
|||
|
|
|
programs |
|
warning |
|
|
dry |
dry |
dry plus |
|
|
|
|
|
cancellation |
|
|
|
|
|
Filter |
Jeans |
Shirt |
Buzzer |
On/Off |
Start |
Tank |
Child-proof |
Daily |
Dryness |
|
cleaning |
|
|
|
|
pause |
full |
|
lock |
|
Level |
|
|
|
|
|
cancel |
|
|
|
|
|
BabyProtect Sport |
Spin |
Mix |
Timer |
Wool |
Drying |
|
Drying |
Delicates |
End/anti- |
|
|
|
|
|
Delay |
Refresh |
Rack |
|
|
|
creasing |
16 / 60 EN |
Dryer / User Manual |
|
|
Operating the product
5.3 Preparing the machine
1.Plug in the machine
2.Place laundry inside the machine.
3.Press the On/Off button.
4.When your machine turns on for the first time, it turns on with the declaration (cotton cabinet dryness) program.
C Pressing the On/Off button doesn‘t mean the program starts.
Press the Start / Pause button to start the program.
5.4 Program selection
1.Determine the appropriate program from the chart below containing the drying levels.
2.Select the program you desire using the Program Selection knob.
Only cotton laundry is dried in normal temperature.
Extra Dry Thick and multi-layered laundry (towels, sheets, jeans etc.) are dried
so that they can be placed into wardrobe without ironing.
Normal laundry (tablecloths,
Cupboard dry underwear etc.) are dried so that they can be placed into wardrobe
without ironing.
|
|
|
|
|
|
|
|
Normal laundry (Ex: tablecloths, |
|
|
|
|
underwear) are again dried so |
|
|
Cupboard |
|
that they can be placed into the |
|
|
|
wardrobe but more so than the |
||
|
dry + |
|
wardrobe dryness option. |
|
|
|
|
|
|
|
Iron Dry |
|
Normal laundry (shirts, dresses |
|
|
|
etc) are dried ready for ironing. |
||
|
|
|
|
|
|
|
|
|
|
|
C |
For detailed program information see. |
|
|
|
„Program selection and consumption |
|
||
|
|
table“.. |
|
|
|
|
|
|
|
5.5 Main programs
The main programs are given below based on fabric type.
•Cotton
Dry durable laundry with this program. It dries in normal temperature. Recommended for use with your cotton laundry (sheets, bed covers, towels, bathrobes etc.)
•Synthetic
Dry laundry that is not very durable with this program. Recommended for use with your synthetic laundry.
5.6 Extra programs
The following extra programs are available in the
machine for special conditions.
C
C
•Jeans
Use to dry jeans that are wringed with high rpm in washing machine.
•Sport
Use to dry laundry made from synthetic, cotton or mixed fabrics.
•Xpress
You can use this program to dry cotton laundry that you had wringed in high rpm in your washing machine. It dries 1 kg of your Cotton laundry (3 shirts / 3 T-shirts) in 45 minutes.
•Daily
Program for daily drying of cotton and synthetic laundry and lasts 90 minutes.
•Shirt
Dries shirts more delicately and thus causes less wrinkles for easy ironing.
•Babyprotect
Program used for baby clothing with can be dried approval on the label.
Dryer / User Manual |
17 / 60 EN |
|
|
Operating the product
C Very little dampness might remain on the shirts after the program. It is
recommended that you do not leave the shirts in the drying machine.
•Delicates
You can dry your delicates suitable for drying or laundry that is recommended to hand wash (silk blouses, thin
underwear etc.) in low temperature.
C
•Freshen Up
It only performs ventilation for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothing that has remained closed for a long duration and remove their odor.
•Timed programs
You can select the 30 mins and 45 mins time programs to achieve the desired final drying level with low
temperature.
C
18 / 60 EN |
Dryer / User Manual |
|
|
Loading...
