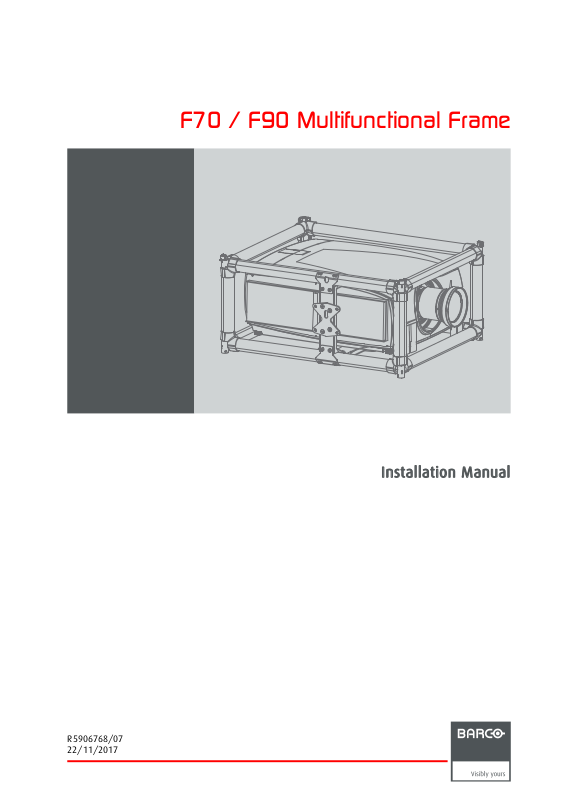

Barco F70, F90 Installation Manual

F70 / F90 Multifunctional F rame

R5906768/07
22/11/2017

Installation Manual

Barco NV
President Kennedypark 35, 8500 Kortrijk, Belgium
Phone: [phone]
Fax: [phone]
Support: www.barco.com/en/support
Visit us at the web: www.barco.com

Printed in Belgium

Changes

Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war­ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.

The latest edition of Barco manuals can be downloaded from the Barco web site w

h

ttps://www.barco.com/en/signin.

ww.barco.com or from the secured Barco web site

Copyright ©

All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of Barco.

Disposal Information

Waste Electrical and Electronic Equipment

This symbol on the product indicates that, under the European Directive 2012/19/EU governing waste from electrical and electronic
equipment, this product must not be disposed of with other municipal waste. Please dispose of your waste equipment by handing it over to
a designated collection point for the recycling of waste electrical and electronic equipment. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly
to promote the sustainable reuse of material resources.

For more information about recycling of this product, please contact your local city office or your municipal waste disposal service.

For details, please visit the Barco website at: h

ttp://www.barco.com/en/AboutBarco/weee

Guarantee and Compensation

Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser
must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco
must be informed immediately in writing of any complaints.

The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning,
at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement
at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a
reduction in the purchase price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component
of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of Barco.

If the purchaser or a third party carries out
in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in
the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are system failures
which are attributed to programs or spec
maintenance are not subject to the guarantee provided by Barco either.

The environmental conditions as well as the servicing and maintenance regulations specified in this manual must be complied with by the
customer.

modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly,

ial electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as well as normal

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufacturers.

1. F70 / F90-series multifunctional frame

1. F70 / F90-SERIES MULTIFUNCTIONAL FRAME

Purpose of the F70 / F90-series multifunctional frame

The F70 / F90-series multifunctional frame is exclusively designed for the Barco F70 and F90 projectors and can thus not be used
on any other equipment.

Overview

• Safety

• Introduction

• Before assembling the frame

• Assembling the frame

• Installing the projector onto the multifunctional frame

• Installing the additional filter (F90 only)

• Stacking multiple projectors using the multifunctional frame

• Suspending the projector from a truss

• Skewing the projector

• Tilting the projector

• Rotating the projector

• Dimensions

1.1 Safety

About this chapter

Read this chapter attentively. It contains important information to prevent damage to the rigging frame. Ensure that you understand
and follow all safety instructions mentioned in this chapter before installing the rigging frame. After this chapter, additional “warnings”
and “cautions” are given depending on the installation procedure. Read and follow these “warnings” and “cautions” as well.

Installation personnel

This assembly of the frame and installation of the projector must be performed by authorized and qualified technical personnel only.

Single assembly only

You can only assemble the rigging frame one single time. While you can remove and install other projectors into the frame and it is
allowed to replace safety cables, it is not allowed to disassemble the rigging frame itself.

Expiry date provided adhesive

Make sure to check the expiry date of the adhesive, provided with the rigging frame. Make sure the adhesive (high strength thread­locker) is not expired.

If expired, makes sure to get new adhesive of similar or higher strength than the one provided in the kit.

Safety Data Sheets for Hazardous Chemicals

For safe handling information on chemical products, consult the Safety Data Sheet (SDS). SDSs are available upon request via
[e-mail].

Securing all screws and stacking pins

Make sure that the thread of the screws and the stackin

g pins are provided with the necessary amount of adhesive.

CAUTION: Make sure that all the screws are sufficiently tightened. Respect the torque required to tighten all

screws.

Forgetting or neglecting to do this may result in an unsafe rigging frame.

CAUTION: When the safety cables have undergone a heavy shock, invisible da mag e may have occurred to

the safety cables. In this case the safety cables mus t be replaced.

Maximum stacking and hanging

The projectors can be stacked on top of each other on a flat surface, or suspended from a truss using the multifunctional frame.

R5906768 F70 / F90 MULTIFUNCTIONAL FRAME 22/11/2017

1

1. F70 / F90-series multifunctional frame

Keep the following in mind:

• It is allowed to stack maximum three projectors.

• It is allowed to suspend maximum two projectors.

Transportation of the frame

Never transport the multifunctional frame in portrait position with a projector mounted. Failure to do so can cause damage the
multifunctional frame. Refer to image 1-1 for a bad and good example of transportation.

Image 1-1
Transportation method of the frame

This limitation only counts for transportation of a rigging frame with projector mounted. You can still install
the projector in portrait position while in the rigging frame.

1.2 Introduction

Functionality

An F70 / F90 projector mounted in the multifunctional frame makes the projector more rugged and handy.

The multifunctional frame makes it possible to stack multiple projectors. This can be useful for a dual projection 3D system. In the
multifunctional frame, the projector can be rotated around x, y and z axis in order to obtain a seamless adjustment.

Furthermore, the multifunctional frame can be used to suspend the projector from a truss. This can be done either in a upright or
upside down position.

Content of the kit

Parts to assemble rigging frame Pieces

Bottom frame (contains projector supporting structure) 1

Top frame 1

Vertical profile

Top stacking pin 4

Bottom stacking pin 4

Stacking screw 8

Set screw M6 x 6 (to secure stacking screw)

Orientation rod + nut M3 x 50

High strength threadlocker 1

Side bracket

(used as installation tooling) 3

4

8

1

2 R5906768 F70 / F90 MULTIFUNCTIONAL FRAME 22/11/2017

1. F70 / F90-series multifunctional frame

Parts to assemble rigging frame

Hex screw with socket head M8 x 20 11

Plain washer M8 4

Locking pins 4

Parts to mount F90 projector

Hex screw with socket head M6 x 25 4

Spring washer M6

Plain washer M6 4

Hex screw with button head M8 x 20 1

Spring washer M8

Plain washer M8 1

Parts to mount F70 projector

Low head socket cap screw M8 x 25 4

Plain washer M8 4

Necessary tools

• Torque Wrench with high 17 mm hex socket

• Torque Wrench with long 5mmAllensocket

• Allenwrench6mm

• Allenwrench5mm

• Allenwrench3mm

Pieces

4

1

The high 17 mm hex socket is n ot a common type of socket. Make sure you h ave this at your disposal before
assembling the frame.

Parts identification

2

3

4

1

8

7

6

5

9

10

Image 1-2
1 Multifunctional frame (front side)
2 Stacking pin
3 Locking pin
4 Orientation rod + nut
5 Rotate adjustment knob
6 Projector supporting structure
7 Safety cable

R5906768 F70 / F90 MULTIFUNCTIONAL FRAME 22/11/2017 3
