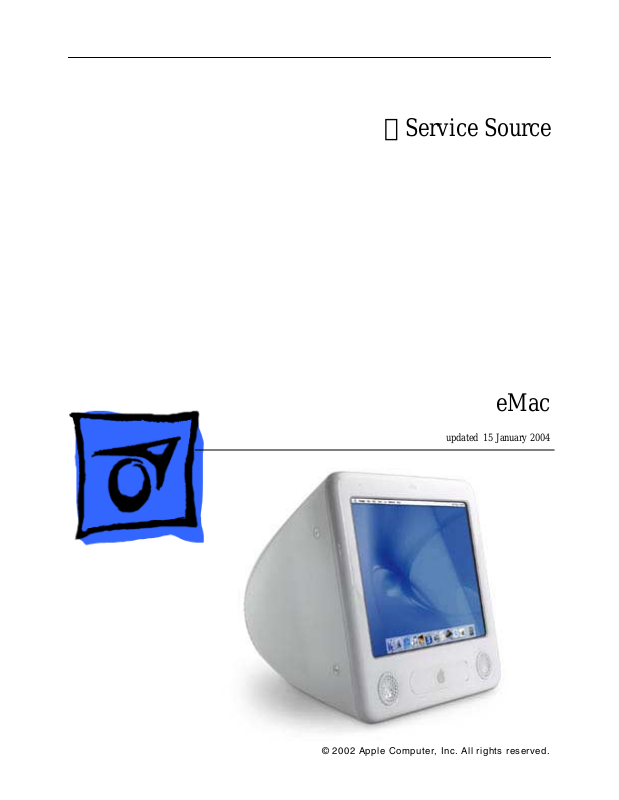

Apple eMac 2004 original Service Manual

Service Source

eMac

© 2002 Apple Computer, Inc. All rights reserved.
updated 15 January 2004
eMac -
1
Service Source

Take Apart

eMac
© 2002 Apple Computer, Inc. All rights reserved.

Tools

The following tools are recommended for the take apart procedures.
• 2.5 mm hex (for rear housing)
• phillips #2 screwdriver
• jeweler’s screwdriver set
• needlenose pliers
• ESD wriststrap and mat
• CRT discharge tool
Note:
Do not use a power driver on the rear housing screws.
Tools
eMac Take Apart -
1

CRT Neck/Display/Analog Assembly Handling Information

Handling

Important:
when working with the display/analog assembly.
Do NOT lift, handle, bump, or manipulate the CRT neck/neck board (see red arrows below) on the Display/Analog assembly. Modules damaged by mishandling are NOT covered by Apple Warranty. Apple Authorized Service Providers can be liable for broken CRT necks due to improper handling.
Caution
handling the assembly. Lift the assembly from the metal chassis; never lift the assembly from the neck. I
It is imperative that proper handling and packaging guidelines be followed
: The metal chassis has sharp edges, you may want to wear gloves when
2
eMac Take Apart

Packing a Defective Display/Analog Assembly

The packing procedure is included with the replacement display/analog assembly. Incorrect packaging can result in damaged eMac displays. Please read and follow the directions enclosed in the shipping box of the new display prior to packaging the defective assembly. AASPs can be liable for broken CRT necks due to improper packing and handling.
CRT Neck/Display/Analog Assembly Handling Infor-

User Access Door

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

User Access Door

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
eMac Take Apart -
3

Procedure

1. Remove the screw on the user access door
2. Gently remove the access door.
4
eMac Take Apart
User Access Door

Feet

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

Feet

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
eMac Take Apart -
5

Procedure

1. Remove the two screws. Set the plastic feet aside.
6
eMac Take Apart
Feet

Rear Housing

Tools

• 2.5 mm hex.

Part Location

Rear Housing

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the feet.
eMac Take Apart -
7

Procedure

1. Remove three screws located below the user access door (these three screws are longer that the rest of the rear housing screws).
2. Remove the six remaining rear housing screws.
8
eMac Take Apart
Rear Housing
3. Gently lift the rear housing up about 2 inches. the power button (on the inside of the housing) can become permanently damaged or the machine may not power on.
Warning:
If you lift the housing too fast,
4. Carefully disconnect the power cable from the power button located inside the rear housing. Lift the rear housing off the computer.
Rear Housing
eMac Take Apart -
9

Power Button

Tools

• needlenose pliers
Note:
Follow this take-apart procedure only if you are replacing a defective power
button.

Part Location

10
eMac Take Apart

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the feet.
• Remove the rear housing.
Power Button

Procedure

1. Disconnect the power cable from the power button located inside the rear housing. Lift the rear housing off the computer.
2.
Note:
Continue with this procedure only if you are replacing a defective power button. With a needlenose pliers, push the power button through the retaining ring. The power button will pop off rear housing and the retaining ring may get stuck on the pliers.
Power Button
eMac Take Apart -
11
3. Save the retaining ring (shown below)
4.
Replacement Note:
power button. Position the power button into the hole on the rear housing (as shown below). rear housing.
Note:
The picture below is looking at the power button from the inside of the
Obtain a new power button and peel the sticky backing off the
12
eMac Take Apart
5. Place the retaining ring over the power button connector and press down firmly.
Power Button

CRT Discharge

Warning:
injury, always review the Service Foundations: CRT Displays course for safety information. It can be found at: http://service.info.apple.com/service_training/training.html. Click on Desktop Certification Courses and select the Service Foundations: CRT Displays link.
Warning:
an ongoing ground connection.
This product contains high voltage and a high-vacuum picture tube. To prevent
Never use a grounding wriststrap until after discharging the CRT and setting up
Safety Guidelines:
Whenever the rear housing of the computer is removed and before replacing a module, you must
1. Discharge the CRT (shown below) and remove the anode cap.
CRT Discharge
2. Establish an ongoing ground by using a cable with alligator clips at both ends. Connect one end to the anode aperture, and connect the other end to the metal CRT frame (as shown below).
3. With the CRT discharged and the ongoing ground in place wear a grounding wriststrap to prevent equipment damage from static electricity.
eMac Take Apart -
13

Speakers

Tools

This procedure requires the following tools:
• Jeweler’s #1 screwdriver (for removing metal plate on speaker assembly)

Part Location

14
eMac Take Apart

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
Speakers

Procedure

1.
Note:
The speaker assembly is not screwed down. Gently pull the speaker assembly
in the direction of the arrow.
2. Disconnect the speaker cable on the left side. Lift the speaker assembly out of the computer.
Speakers
eMac Take Apart -
15
Fan

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

16
eMac Take Apart

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
Fan

Procedure

1. With the fan facing you, disconnect the two circled screws and disconnect the fan cable.
2. On the right side of the fan, remove two screws (one of which is the ground screw), and disconnect the fan power cable
.
Fan
eMac Take Apart -
17
3. To locate the last fan screw, turn the computer so the anode socket is facing you. You’ll see two screws. Remove the top screw.
4. To remove the fan, turn the computer so the fan is facing you. Grab onto the fan near the AC plug and the bottom right corner of the fan. Gently pull the fan toward you and away from the chassis. Be very careful of the CRT neck.
18
eMac Take Apart
Fan

Faraday Cage

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Faraday Cage

Preliminary Steps

• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
eMac Take Apart -
19

Procedure

1. Remove the five screws. cage so it doesn’t get caught when you remove the Faraday cage.
Important:
Push the power button cable inside the Faraday
2. Gently pry the Faraday cage away from the chassis in the direction of the arrows.
20
eMac Take Apart
Faraday Cage

Digital Module Assembly

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
Digital Module Assembly
eMac Take Apart -
21
• Remove the fan.
• Remove the Faraday cage.
• Remove the AirPort Card if installed.
22
eMac Take Apart
Digital Module Assembly

Procedure

1. With the digital module facing you, remove the four screws on the left side of the digital module.
2. Next, remove the three screws on the right side.
Digital Module Assembly
eMac Take Apart -
23
3. On the top right side of the digital module, remove one screw.
4. On the top left side of the digital module, remove one screw.
24
eMac Take Apart
Digital Module Assembly
5. Remove one screw on the I/O panel and disconnect the video cable located above the screw. Squeeze the tabs to disconnect the video cable.
6.
Note:
Remove the AirPort card if it’s installed. Grab onto the digital module at the tabs circled below. Pull in the direction of arrow. The digital module is connected to blind­mate connectors. It’s a tight fit, so pull hard.
Digital Module Assembly
eMac Take Apart -
25

IVAD Cable

Important:
from the bottom of the display or the raster is jumpy, otherwise leave the cable alone. Refer to Knowledge Base article 95168 for more information.
Take Apart Note: Replace the IVAD cable if the eMac raster shifts upward

Tools

This procedure requires the following tools:
• 2.5 mm hex tool
• Phillips #2 screwdriver
• Hot-melt glue gun (recommended)
• Nylon probe tool (922-5065)

Part Location

26
eMac Take Apart

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
IVAD Cable
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the AirPort Card if installed.
• Remove the digital module assembly.
IVAD Cable
eMac Take Apart - 27

Procedure

1. Discharge the CRT. Warning: This product contains high voltage and a high-vacuum
picture tube. To prevent injury, review the Service Foundations course: “CRT Displays” for safety information.
2. Remove the screw (circled below) and then remove the metal cable cover.
3. Remove the remaining two screws on the IVAD assembly.
28 eMac Take Apart
IVAD Cable
4. With the nylon probe tool or needlenose pliers, remove the glue from the connector.
Note: If you find it difficult removing the glue use a heat gun to
soften the glue a bit and then remove it. Disconnect the cable after removing the glue.
5. Locate the other end of the IVAD cable.
IVAD Cable
eMac Take Apart - 29
6. With the nylon probe tool or needlenose pliers, remove the glue from the
cable connector.
Note: If you find it difficult removing the glue use a heat gun
to soften the glue a bit and then remove it.
7. Clip the cable tie. Disconnect the IVAD cable from the board.
30 eMac Take Apart
IVAD Cable

IVAD Cable Replacement Procedure

1. Install the replacement IVAD cable.
2. Replace the cable tie (shown on the previous page).
3. Place hot glue on each end of the IVAD connector.
4. Reassemble the computer and test the system.
IVAD Cable
eMac Take Apart - 31

AirPort Card Guide

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
32 eMac Take Apart
AirPort Card Guide
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.

Procedure

1. Remove the two screws connecting the guide to the chassis.
AirPort Card Guide
eMac Take Apart - 33
2. Lift the AirPort card guide in the direction of the arrow to unhook the metal tabs (circled) on the chassis. Disconnect the antenna from the AirPort card guide Note: Tape the antenna to the bottom of the unit while in for service.
34 eMac Take Apart
AirPort Card Guide
LED

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

LED

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
eMac Take Apart - 35
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.

Procedure

1. Remove one screw and disconnect the LED cable. Important: The connector is very fragile, remove it gently. Lift the LED board off the LED reflector.
36 eMac Take Apart
LED
2. Note: The LED consists of two parts; the LED board and the LED reflector (black plastic piece shown below). Remove the LED reflector from the bezel.
LED
eMac Take Apart - 37

Front Bezel

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Preliminary Steps
Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
38 eMac Take Apart
Front Bezel
• Remove the Faraday cage.
• Remove the digital module assembly.
Front Bezel
eMac Take Apart - 39

Procedure

1. Remove the eight bezel screws. There are three on each side and two at the top of the bezel.
2. Important: DO NOT remove the two larger screws shown below, or the two screws shown in the next photo. DO NOT remove these larger screws. If they are removed, the CRT will be out of alignment and the entire display/analog assembly will need to be replaced.
40 eMac Take Apart
Front Bezel
3. Do Not remove these CRT screws either.
4. Disconnect the microphone cable.
Front Bezel
5. Carefully lift the display/analog assembly off the bezel.
eMac Take Apart - 41

Antenna Board

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver
• Needlenose pliers

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
42 eMac Take Apart
Antenna Board
• Remove the front bezel.
• Remove the digital module assembly.

Procedure

1. Remove one screw and pinch the standoff with a needlenose pliers to release the antenna board from the divider panel.
Antenna Board
eMac Take Apart - 43
2. Carefully position the computer on it’s base. Facing the CRT, locate the metal antenna bracket at the top of the CRT. Remove the screw attached to the bracket.
3. Carefully pry the antenna cable from the two clips on the side of the CRT.
44 eMac Take Apart
Antenna Board

Microphone

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Microphone
Preliminary Steps
Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
eMac Take Apart - 45
• Remove the Faraday cage.
• Remove the digital module assembly.
• Remove the front bezel.

Procedure

1. Remove the microphone cable from the bezel. Replacement Note: When replacing the microphone into the bezel, the metal faces down, the dimple faces up.
46 eMac Take Apart
Microphone

Down Converter

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Down Converter
Preliminary Steps
Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
eMac Take Apart - 47

Procedure

1. With the down converter still attached to the digital module, remove the screw shown below.
2. Looking at the digital module from the back, remove the second screw.
48 eMac Take Apart
Down Converter
3. Disconnect the down converter from the logic board by holding the board at the top and the bottom and gently rock the board in the direction of the arrow.
Down Converter
eMac Take Apart - 49

Door Assembly

Tools

This procedure requires the following tools:
• Phillips #2

Part Location

Preliminary Steps
Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
50 eMac Take Apart
Door Assembly
• Remove the Faraday cage.
• Remove the digital module assembly.

Procedure

1. Remove the two screws connecting the door to the front bezel.
2. Remove the door from the front bezel. Replacement Note: Transfer the serial number label on the inside of the door to the replacement door.
Door Assembly
eMac Take Apart - 51

Hard Drive

Tools

This procedure requires the following tools:
• Phillips #2
• Jeweler’s #1 screwdriver

Part Location

Preliminary Steps
Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
52 eMac Take Apart
Hard Drive
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.

Procedure

1. Remove the three screws along the back of the hard drive.
Hard Drive
eMac Take Apart - 53
2. WIth a screwdriver or plastic tool, pry the hard drive out of the hard drive carrier to access the power and data cables.
54 eMac Take Apart
Hard Drive
3. Disconnect the hard drive power cable and the hard drive data cable. Remove the drive from the carrier. Notice there may be up to three thermal pads on the hard drive; two on the top and one along the side of the drive. You may discard the thermal pads on the top of the drive. If the pad along the side of the drive appears damaged, replace it.
Hard Drive
eMac Take Apart - 55
4. Turn the hard drive over. WIth a jeweler’s screwdriver, remove the two screws on the black plastic cover and the two screws on the metal bracket. Note: These two pieces need to be removed when returning the hard drive to Apple service.
56 eMac Take Apart
Hard Drive

Hard Drive Carrier

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

Preliminary Steps
Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
Hard Drive Carrier
eMac Take Apart - 57
• Remove the Faraday cage.
• Remove the digital module assembly.
• Remove the hard drive.

Procedure

1. Remove the seven carrier screws. Peel back the EMI tape on the on both sides of the carrier.
2. Lift the carrier off the logic board.
58 eMac Take Apart
Hard Drive Carrier

Logic Board Heatsink

Tools

This procedure requires the following tools:
• Screwdriver to pry the heatsink clip

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.
Logic Board Heatsink
eMac Take Apart - 59
• Remove the hard drive.
• Remove the hard drive carrier.

Procedure

1. With a screwdriver, pry the heatsink clip out of the hole on the logic board.
2. Lift the heatsink off the logic board. Replacement Note: Whenever the heatsink is removed, the bottom side of the heatsink and the top of the microprocessor must be cleaned and thermal paste must be applied to the microprocessor. If the mating surfaces are not cleaned and thermal paste is not applied, the CPU may overheat and become damaged. Refer to the next topic, “Thermal Paste Application”.
60 eMac Take Apart
Logic Board Heatsink
Thermal Paste Application
The microprocessor uses a heatsink/thermal pipe to transfer heat away. Whenever the heatsink is removed, the bottom side of the heatsink and the top of the microprocessor must be cleaned and thermal paste must be applied. If the mating surfaces are not cleaned and thermal paste is not applied, the CPU may overheat and become damaged.
Tools
This procedure requires the following tools:
• Plastic stylus or nylon probe tool (922-5065) to remove the old thermal paste
• Thermal paste (922-4757), each tube contains 4-5 applications
Procedure
1. Thoroughly clean the thermal film from the heatsink surface with a plastic stylus or the nylon probe tool. Do not use an abrasive material or liquid cleaner. Important: Be extremely careful not to bend the heatpipes on the heatsink.
Logic Board Heatsink
eMac Take Apart - 61
2. Carefully clean the surface of the microprocessor with a plastic stylus or nylon probe tool (922-5065) to remove the old thermal paste.
3.
Squeeze a drop of thermal paste onto the middle of the microprocessor as shown.
62 eMac Take Apart
Logic Board Heatsink
4. Spread the paste evenly over the processor. Important: On this product, it is critical
to spread the paste over the processor , or the chip could overheat.
5. Reinstall the heatsink and heatsink clip.
Logic Board Heatsink
eMac Take Apart - 63

Logic Board

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
64 eMac Take Apart
Logic Board
• Remove the digital module assembly.
• Remove the hard drive.
• Remove the down converter.
• Remove the hard drive carrier.
• Remove the logic board heatsink.

Procedure

1. Carefully position the assembly on the optical drive door. Disconnect the optical data cable and the optical power cable.
Logic Board
eMac Take Apart - 65
2. Turn the assembly so the logic board is facing up. Remove the four screws on the logic board. Note: The screw in the bottom left corner is different from the other three screws. It is self-tapping with no collar.
3. Lift the logic board off the optical assembly. Before returning the board to Apple, remove the following items:
• I/O panel
• RJ-11 connector (if present)
• Modem board
• SDRAM
• Warning: The microprocessor uses a heatsink/thermal pipe to transfer heat away.
Whenever the heatsink is removed, the bottom side of the heatsink and the top of the microprocessor must be cleaned and thermal paste must be applied to the microprocessor. If the mating surfaces are not cleaned and thermal paste is not applied, the CPU may overheat and become damaged. Refer to “Thermal Paste Application” in this chapter.
66 eMac Take Apart
Logic Board

Memory

Tools

• No tools are required for this procedure

Part Location

Note: Memory can be accessed through the user access door on the back of the
computer.

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Unplug all cables except the power cord, from the computer.
• Remove the user access door.
Memory
eMac Take Apart - 67

Procedure

1. Touch a metal surface inside the computer. Then unplug the computer. Important: Always do this before you touch any parts, or remove/install any components inside the computer. To avoid generating static electricity, do not walk around until you have finished removing or installing the memory and closed the computer.
68 eMac Take Apart
Memory
2. Locate the memory module.
3. Push the ejectors on the memory slot outward and down (#1) so they are in the open position. Remove the memory module (#2). Replacement Note: The memory is designed to fit into the slot only one way. Be sure to align the notches on the module with the small notches inside the slot.
Memory
eMac Take Apart - 69

Battery

Tools

• No tools are required for this procedure

Part Location

Note: The battery can be accessed through the user access door on the back of the computer.

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Unplug all cables except the power cord, from the computer.
• Remove the user access door.
70 eMac Take Apart
Battery

Procedure

1. Touch a metal surface inside the computer. Then unplug the computer. Important: Always do this before you touch any parts, or remove/install any components inside the computer. To avoid generating static electricity, do not walk around until you have finished removing or installing the battery and closed the computer.
2. WIth a screwdriver or anti-static tool, carefully pry the battery out of the battery holder.
Battery
eMac Take Apart - 71

I/O Panel

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.
72 eMac Take Apart
I/O Panel

Procedure

1. Remove the two I/O panel screws.
2. Remove the I/O panel off the logic board.
I/O Panel
eMac Take Apart - 73

Modem

Tools

This procedure requires the following tools:
• Phillips #1 or jeweler’s screwdriver

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.
74 eMac Take Apart
Modem

Procedure

1. Remove the two modem screws.
2. Disconnect the RJ-11 cable from the modem. Remove the modem.
Modem
eMac Take Apart - 75

RJ-11 cable

Tools

No tools are required for this procedure

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
76 eMac Take Apart
RJ-11 cable
• Remove the digital module assembly.
• Remove the I/O panel

Procedure

1. Disconnect the RJ-11 cable from the modem.
2. With an anti-static tool, push and then pull the RJ-11 port off the logic board.
RJ-11 cable
eMac Take Apart - 77

Optical Drive

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.
• Remove the hard drive.
• Remove the heatsink.
• Remove the logic board.
78 eMac Take Apart
Optical Drive

Procedure

1. Remove two screws on the right side of the optical carrier.
2. Remove two screws on the left side of the optical carrier.
Optical Drive
eMac Take Apart - 79
3. Flip the optical carrier over and disconnect the optical power cable and the optical data cable.
4. Remove the cotter pin (#1) from the carrier. Next, lift the heatshield by the metal fence (#2), and lastly remove the heatshield in the direction of the arrow (#3) to detach it from the carrier.
80 eMac Take Apart
Optical Drive
5. Slide the optical drive out of the carrier by pushing it from the back end where the EMI cap is located. Note: The EMI cap is not attached to the carrier or the optical drive.
Optical Drive
eMac Take Apart - 81

Display/Analog Assembly

Tools

This procedure requires the following tools:
• No tools are required
Warning: This product contains high voltage and a high-vacuum picture tube. To prevent injury, always review CRT Safety on Service Source online. This link can be found under the list of topics under the iMac icon. Remember, never use a grounding wriststrap until after discharging the CRT and setting up an ongoing ground connection.
Note: The eMac display/analog assembly requires no voltage calibration or geometry adjustment. Should the display require adjustment (focus, color, or brightness) use the “Displays” pane under System Preferences if using Mac OS X. If using Mac OS 9, use the Monitor Control Panel to make adjustments. If you can not make satisfactory corrections with these tools, replace the display/analog assembly.

Part Location

82 eMac Take Apart
Display/Analog Assembly

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
• Remove the fan.
• Remove the Faraday cage.
• Remove the digital module assembly.
• Remove the AirPort card guide.
• Remove the front bezel
• Remove the antenna.
If you remove everything listed in the preliminary steps above, you are left with the display/ analog module. There is nothing more to remove from this module.
Note: The display/analog assembly contains a non-switching power supply which is preset at a 220V configuration.The voltage selection needs to be manually set by the way of a voltage jumper. This means if you are operating the computer in a 110V environment, you will have to install the voltage jumper. Refer to the Troubleshooting chapter, “Digital/ Analog”
Replacement Note: If you are returning a defective display/analog module, it is imperative that proper packaging guidelines be followed. The packing procedure is included with the replacement assembly. Incorrect packaging can result in damaged eMac displays. Please read and follow the directions enclosed in the shipping box of the new display prior to packaging the defective module.
Failure to package the defective module according to the instructions may result in liability for the cost of the damaged display.
Display/Analog Assembly
eMac Take Apart - 83

LHR Coil

Tools

This procedure requires the following tools:
• Phillips #2 screwdriver

Part Location

Note: This part is used in Europe for line conditioning. If your computer does not have the LHR, skip this procedure.

Preliminary Steps

Before you begin, do the following:
• Place the computer face down on an ESD mat.
• Remove the user access door.
• Remove the feet.
• Remove the rear housing.
• Discharge the CRT.
84 eMac Take Apart
LHR Coil

Procedure

1. Remove the screw located at the bottom of the LHR module.
2. Disconnect the LHR connector located next to the fuse and to the right of the fan.
LHR Coil
eMac Take Apart - 85
3. Disengage the tabs on the LHR. Note: The tabs (circled below) clip into the divider panel. Remove the LHR from the divider panel.
86 eMac Take Apart
LHR Coil
LHR Coil
eMac Take Apart - 87
Service Source

Troubleshooting

eMac
© 2002 Apple Computer, Inc. All rights reserved.

General Information

What’s New

1. Important: The display/analog assembly contains a non-switching power supply preset at a 220V configuration. If you are replacing the display/analog assembly (service module), the voltage selection needs to be manually set (on the module) by way of a voltage jumper. This means if you are operating the computer in a 110V environment, you will have to install the voltage jumper. Refer to “Display/Analog Voltage Setting and LHR Module Instructions” included with the replacement display/analog assembly (service module) and also discussed later in this chapter. Note: The LHR coil (line conditioning module) is used in some international countries. Refer to the Take Apart chapter, LHR topic, for take-apart information.
2. Important: If you are returning a defective display/analog assembly, it is imperative that proper packaging guidelines be followed. The packing procedure is included with the replacement assembly. Incorrect packaging can result in damaged eMac displays. Please read and follow the directions enclosed in the shipping box of the new display prior to packaging the defective module.Failure to package the defective module according to the instructions may result in liability for the cost of the damaged display.
3. Important: Do NOT lift, handle, bump, or manipulate the CRT neck/neck board on the Display/Analog assembly. Modules damaged by mishandling are NOT covered by Apple Warranty. Apple Authorized Service Providers can be liable for broken CRT necks due to improper handling. Refer to “CRT Neck/ Display/Analog Assembly Handling Information” topic in this chapter for more information.
4. The eMac display/analog assembly requires no voltage calibration or geometry adjustment. Should the display appear to require adjustment (focus, color, or brightness) use the “Displays” pane under System Preferences if using Mac OS X. If using Mac OS 9, use the Monitor Control Panel. If you can not make satisfactory corrections with these tools, replace the display/analog assembly.
5. Important: The microprocessor uses a heatsink/thermal pipe to transfer heat away. Whenever the heatsink is removed, the bottom side of the heatsink and the top of the microprocessor must be cleaned and thermal paste must be applied to the microprocessor. If the mating surfaces are not cleaned and thermal paste is not applied, the CPU may overheat and become damaged. Refer to “Thermal Paste Application” in this chapter.
6. The hard drive may have up to three thermal pads; two on the top and one along the side of the drive. The two pads on top may be discarded if you are replacing the drive; however, if the pad along the side of the drive appears damaged, replace it.
7. The eMac has an optional stand. Refer to the Upgrades chapter or the CIP procedures for instructions on how to install the stand.
General Information
eMac Troubleshooting - 1
8. The computer has a Power PC G4 microprocessor, running at a clock speed of 700 MHz.
9. The computer comes with 128 MB of SDRAM installed. Two DIMM slots support up to 1 GB using 128 MB, 256 MB, or 512 MB DIMMs. The SDRAM modules are PC-100, 168-pin DIMMs.
10. The computer comes with either tray-loading CD-ROM or DVD-ROM/CD-RW (combo drive).
11. The 56K fax modem is only available on the DVD-ROM/CD-RW (combo drive) model.
12. The eMac uses a different A/C power cord; power cords from older iMac models may not fit into the A/ C socket.
2 - eMac Troubleshooting
General Information

Logic Board, Top

Slots
SDRAM
PMU Reset Button Battery Hard Drive Connector
General Information
VGA Output Port
Ethernet Port
Internal Modem Port
(Not Shown)
FireWire Ports
USB Ports
Sound Input
Port
Sound Output
Port
eMac Troubleshooting - 3

Logic Board, Bottom

Video Processor
Blind Mate Connector
G4 Microprocessor
4 - eMac Troubleshooting
AirPort Slot
Blind Mate Connector
General Information

I/O Ports

General Information
eMac Troubleshooting - 5

The PMU Chip

The PMU (Power Management Unit) is a micro controller chip that controls all power functions for the computer. The PMU is a computer within a computer. It has memory, software, firmware, I/O, two crystals, and a CPU. Its function is to:
Tell the computer to turn on, turn off, sleep, wake, idle, etc.
Manage system resets from various commands.
Maintain parameter RAM (PRAM).
Manage the real-time clock.
Important: The PMU is very sensitive and touching the circuitry on the logic board can cause the
PMU to crash. If the PMU crashes, the battery life goes from about five years to about two days if the PMU is not reset. Refer to the next topic, Resetting the PMU on the Logic Board for the procedure.
Many system problems can be resolved by resetting the PMU chip. The PMU reset button is located behind the user access door, refer to the graphic below.
Location of the PMU Reset Button
6 - eMac Troubleshooting
General Information

Resetting the PMU on the Logic Board

Resetting the PMU (Power Management Unit) on the logic board can resolve many system problems. Whenever you have a unit that fails to power up, you should follow this procedure before replacing any modules.
1. Save open documents and quit all open applications.
2. Turn the computer off by choosing Shut Down from the Special menu (if using Mac OS 9), or choose Shut Down from the Apple menu if using OS X.
3. Remove the user access door.
General Information
eMac Troubleshooting - 7
4 Unplug all cables, except the power cord, from the computer.
5 Touch a metal surface inside the computer. Then unplug the power cord.This helps protect the
computer from damage caused by electrostatic discharge. Important: To avoid electrostatic discharge, always ground yourself by touching metal before you touch any parts or install components inside the computer. To avoid generating static electricity, do not walk around the room until you have nished the procedure and closed the computer.
8 - eMac Troubleshooting
General Information
6 Press the PMU reset button (shown below) once and then proceed to step 7. Do NOT press the
PMU reset button a second time because it could crash the PMU chip.
7 WAIT ten seconds before connecting the power cord and powering the computer on. If the
computer powers on, go to the next step. If the computer does not power on, there is something else wrong with the computer, refer to the symptom/cure, No Power in this chapter.
8 Run MacTest Pro (for Mac OS 9 booting systems) or Apple Service Diagnostics (for Mac OS X
booting systems) and return the computer to the customer.
Note: This entire procedure resets the computers PRAM. Be sure to reset the computers time,
date and other system parameter settings before returning the computer to the customer.
General Information
eMac Troubleshooting - 9
Loading...
