Apple A1267 User Manual

Apple LED Cinema Display



Apple Inc.

copied, in whole or in part, without the written consent of Apple.

The Apple logo is a trademark of Apple Inc., registered in the U.S. and other countries. Use of the “keyboard” Apple logo (Option-Shift-K) for commercial purposes without the prior written consent of Apple may constitute trademark infringement and unfair competition in violation of federal and state laws.

Every effort has been made to ensure that the information in this manual is accurate. Apple is not responsible for printing or clerical errors.

Apple 1 Infinite Loop Cupertino, CA 95014-2084 408-996-1010 www.apple.com

Apple, the Apple logo, Apple Cinema Display, iChat, iMovie, iPod, iSight, Mac, MacBook, MagSafe, and Photo Booth are trademarks of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc. Apple Store is a service mark of Apple Inc., registered in

the U.S. and other countries. The Bluetooth

trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Apple is under license.

word mark and logos are registered

ENERGY STAR is a U.S. registered trademark. Other company and product names mentioned herein

may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Apple assumes no responsibility with regard to the performance or use of these products.

Contents

7 Getting Started 8

Setting Up Your Display

Using Your Display

Care and Safety

Ergonomics

Troubleshooting Your Display

Learning More, Service, and Support

Specifications

22 24 28 29

31 32 33

Пቯྣභ౸

඲ᄊྣභ౸

ѮႃᄲП೨

ഈࡱݟՓဲ

ྣභ౸ޅᇒᇲٰ

ݙځ࿲ཱc۽རߦለ՝

࢑෮ޡݎ

49 50 52 56 57 59 60

63 64 66 70 71 73 74 75

77 Regulatory Compliance Information 78 Apple and the Environment

Getting Started

Your Apple LED Cinema Display is designed to work seamlessly with the MacBook family of computers that have a Mini DisplayPort connector. It features a 24-inch LED-backlit widescreen display, a MagSafe connector to charge your MacBook computer, a built-in iSight camera, a speaker system, and a microphone.

The instructions on the following pages help you set up and use your new display, including:

Connecting the display to your computer

Using the camera, microphone, speakers, and USB ports

Adjusting your display’s settings

Important:

page 14) carefully before you first use your display.

For information about the specific computers and graphics cards that are compatible with your display, go to www.apple.com/displays.

Read all the installation instructions (and the safety information starting on

English

Setting Up Your Display

Follow these steps to set up your Apple LED Cinema Display:

Remove the protective film from the display and cables.

Insert the power cord into the display, and then insert the AC plug into a grounded power outlet.

Connect the Mini DisplayPort cable to your computer, as shown below.

Apple LED Cinema Display

Mac portable

Power outlet

MagSafe USB

Connect the USB cable to your computer to use the display’s built-in iSight camera,

Mini DisplayPort

speakers, microphone, and USB ports.

Plug the MagSafe connector into the MagSafe power port on your computer to charge the battery and provide power to your computer.

Press the power button on your computer to start it up. The display turns on automatically when you start up your computer.

English

Setting Up Your Computer with the Lid Closed

You can close the lid of your computer and use just your Apple LED Cinema Display. Follow the setup instructions on the previous page and make sure the MagSafe connector from the display is plugged into the MagSafe power port on your computer.

To use your Apple LED Cinema Display with your computer’s display closed:

Connect an external USB keyboard and mouse to the USB port on your display or use the Bluetooth® Setup Assistant to set up a wireless keyboard and mouse.

Make sure your computer is turned on.

Close the display on your computer to put it to sleep.

Wait a few seconds, and then press any key on the external keyboard or move the mouse to wake your computer.

English

Using Your Display

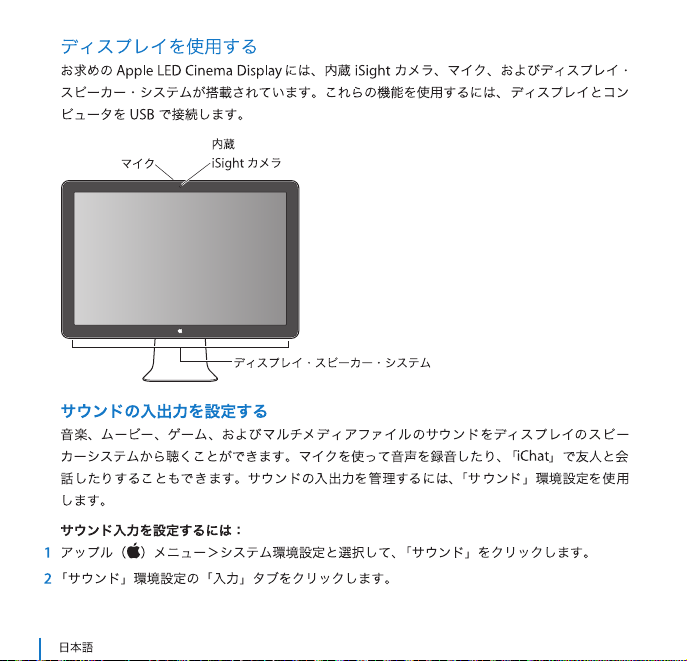

Your Apple LED Cinema Display has a built-in iSight camera, microphone, and display speaker system. The USB connection between the display and your computer enables these features.

Built-in

Microphone

Setting Up Sound Input and Output

You can listen to music, movies, games, and multimedia files through the speaker system on your display. You can use the microphone to record sounds, or talk with friends using iChat. Use Sound preferences to manage sound input and output.

To set up sound input:

Choose Apple (

Click the Input tab in Sound preferences.

Choose Display Audio to input sound through your display’s microphone.

English

iSight camera

Display speaker system

) > System Preferences, and then click Sound.

To set up sound output:

Click the Output tab.

Choose Display Audio to hear sound through your display’s speaker system.

These sound settings are used whenever your computer is connected to your display. They remain in effect until you change them.

Using the Built-in iSight

You can use the built-in iSight camera and microphone to capture still images, video, and audio with applications such as iChat, iMovie, and Photo Booth.

To set up the camera and microphone with iChat:

Click the iChat icon in the Dock to open the iChat application.

Choose iChat > Preferences, and then click Audio/Video.

Choose Display iSight from the Camera pop-up menu.

Choose Display Audio from the Microphone pop-up menu.

Setting Up Your Apple LED Cinema Display as an Additional Display

When you leave your computer’s display open, you can mirror the same image on both displays or use the displays as an extension of your desktop. Use Displays preferences to set up video mirroring or extended desktop.

To set video mirroring or extended desktop:

Choose Apple (

Click Arrangement and follow the onscreen instructions.

) > System Preferences, and then click Displays.

English

Adjusting the Color and Brightness

You can use your Apple Keyboard to increase

()

or decrease your display. You can also use System Preferences to adjust the resolution, brightness, and color settings.

To adjust the resolution, the number of colors, or the brightness of your display:

Choose Apple (

Click the Display tab.

Choose a resolution or color setting, or drag the Brightness slider to adjust the

) > System Preferences, and then click Displays.

brightness.

To change the display profile or calibrate your display:

Click the Color tab in Displays preferences.

Choose a display profile, or click Calibrate to open the Display Calibrator Assistant.

For more information about calibrating your display, choose Help > Mac Help in the menu bar, and search for “calibrate.”

English

()

the brightness of

Using the USB Ports and Security Slot

Your display has three powered USB ports on the back. Use these ports to connect a mouse, keyboard, iPhone, iPod, or other USB peripheral. Make sure the display’s USB cable is connected to your computer.

USB ports

Security slot

To secure your display, use the security slot to attach a locking cable.

Using a VESA Mounting Solution with Your Display

You can attach your display to an alternative mounting solution, using the VESA Mount Adapter kit available from the Apple Online Store at www.apple.com/store. Use the kit to attach your display to any available VESA-compatible mounting solution. Simply follow the instructions included with the kit.

English

Care and Safety

Before you lift or reposition your display, you may need to disconnect the cables and power cord. Use correct lifting techniques when positioning the display. When lifting or carrying the display, hold it by the edges. Don’t lift the display by the stand or the cord.

To clean the screen on your display:

Disconnect the power cord.

Use the cloth that came with your display or another soft, dry cloth to wipe dust from the screen.

WARNING:

Don’t clean the screen with a cleaner containing alcohol or acetone. Use a cleaner intended for use with a screen or display. Never spray cleaner directly on the screen. It may drip inside the display and cause damage.

Follow these safety guidelines for using your display:

The only way to completely disconnect power is to unplug the power cord. Be sure to pull the plug, not the cord.

Disconnect power immediately if the power cord is frayed or damaged, if you spill something on the display, or if the display falls or is damaged in some other way.

WARNING:

Use only the power cord that came with your display. The power cord has a three-wire grounding plug (a plug that has a third grounding pin) that fits only a grounded AC outlet. If you are unable to insert the plug into an outlet because the outlet is not grounded, contact a licensed electrician to replace the outlet with a properly grounded outlet.

English

WARNING:

Your display is a high-voltage component and should not be opened for any reason, even when it’s unplugged. If your display needs service, see “Learning More, Service, and Support” on page 18.

Ergonomics

Here are some guidelines for adjusting your display to reduce glare and to accommodate your physical size and shape.

Arrange the display so that the top of the screen is slightly below your eye level when you’re sitting at the keyboard. The best distance from your eyes to the screen is up to you, although most people tend to prefer 18 to 28 inches (45 to 70 cm).

English

Position the display by tilting it up or down to minimize glare and reflections from overhead lights and nearby windows.

Shoulders

relaxed

Forearms and

hands in a

straight line

Forearms level

or tilted slightly

Lower back

supported

Thighs tilted

slightly

18–28 in. (45–70 cm)

Top of the screen at or slightly below eye level (You may need to adjust the height of your display by raising or lowering your work surface)

Screen positioned to avoid reflected glare

Clearance under work surface

Feet flat on the floor or on a footrest

For more information about health, safety, and maintenance, go to the Apple ergonomic website at www.apple.com/about/ergonomics.

English

Troubleshooting Your Display

Before performing any of these steps, make sure your computer is turned on, the display is plugged into an outlet, all the cables are connected properly to your computer and display, and your computer is not in sleep mode.

If the screen doesn’t have an image:

Check the cables and connectors again to make sure they are connected properly to your computer and the display.

Make sure your computer is turned on and is not in sleep mode. If your computer’s display is closed, use the external keyboard or mouse to wake the computer from sleep.

Reset the PRAM by restarting your computer while holding down the Command (x Option, P, and R keys until you hear the startup sound a second time.

If the screen is dim:

Make sure the display brightness controls are set properly. Choose Apple ( System Preferences and click Displays. Drag the Brightness slider to adjust the brightness.

If the colors on the display are too saturated or not correct, you may need to calibrate your display. Open Displays preferences, click Color, click Calibrate, and follow the instructions.

If your portable computer isn’t charging:

Make sure the MagSafe connector from your display is seated properly in the MagSafe power port on your computer.

) >

English

If the built-in iSight camera, microphone, speakers, or USB ports on the display aren’t working:

Make sure the USB cable from the display is firmly plugged into the USB port on your computer. The display’s camera, microphone, speakers, and USB ports work only when this cable is attached to your computer.

More Troubleshooting Information

You can find more troubleshooting information on the Displays support website at: www.apple.com/support/displays

Learning More, Service, and Support

You can find more information about your display on the Apple website and in Mac Help.

To learn about Do this

Using your display

Displays service, support, discussions, troubleshooting, and software downloads

The latest information about displays

Registering your display

English

Choose Help > Mac Help in the menu bar, and search for “displays.”

Go to: www.apple.com/support/displays

Go to: www.apple.com/displays

Go to: www.apple.com/register

Specifications

Model number:

Resolution:

Ports:

Three USB 2.0 ports on the back

Camera and microphone:

Speakers:

Dimensions:

Weight:

Height:

Width:

Depth (with stand):

Viewable:

Operating environment:

Operating temperature:

Relative humidity:

Altitude:

A1267

1920 x 1200 @ 60 Hz

Built-in 2.1 speakers with 12 W output

20.92 lb. (9.49 kg)

18.84 inches (478.38 mm)

22.57 inches (573.22 mm)

7.76 inches (197.10 mm)

24 inches (609.60 mm) diagonal

20% to 80% (noncondensing)

0 to 10,000 feet (0 to 3048 meters)

Built-in iSight camera with microphone

50° to 95° F (10° to 35° C)

English
