Zalman ZM-500LX, ZM-600LX User Manual

Users Manual

ZM500/600-LX

Two Forward Switching

Power Supply

※ To ensure safe and easy installation, please read the following precaution.s

www.ZALMAN.com

Ver.130426

1. Warnings and Safety Precautions

Warning

Caution

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to
external causes, including but not limited to, improper use, problems
with electrical power, accident, neglect, alteration, repair, improper
installation, or improper testing.

Neglecting the following may cause serious injury or death.

▶ Opening the cover of the product while the power cord is plugged into an outlet
may cause electrocution or critical damage to the product.

▶ Handling the power cord with wet hands may cause electrocution.
▶ Inserting 󰘰ngers or metallic objects into the cooling fan may cause injury or

electrocution.

Neglecting the following may cause minor injuries, degrade product
conditions or cause malfunction.

▶ Operating the product in an extremely cold or hot environment can degrade
product performance and lifespan.

▶ Exposure to liquids may cause malfunction.

▶ Operation in a humid or non-ventilated environment may reduce product lifespan.

▶ Plugging the main power connector P1 into the motherboard while the product is
connected to the AC power source may cause damage to the motherboard.

▶ Make sure that the connectors are connected to their designated locations, and
that the connectors are not oriented in the wrong direction when connecting the
DC output connectors.

▶ Please use gloves to prevent injuries during installation.

▶ Product designs and speci󰘰cations may be revised without prior noti󰘰cation to
improve quality and performance.

2. Components

Power Supply

AC Power Cord

Four Screw

User’s Manual

Five Cable Ties

11

3. Speci󰘰cations

1)ZM500-LX Electrical & Physical Speci󰘰cations

AC Input Range

AC Input Current

PFC Type Active PFC +12V 0.1A 37A 40A 444W

Power Factor Correction Max 99% -12V 0.0A 0.3A 3.6W

Inrush Current Limit

(@ Cold Start at 25℃)

E󰘲ciency Max 84% @230VAC, Typical load Operation 0 ~ +40℃

DC Output Voltage

Regulation

DC Output Ripple

& Noise

Voltage 200~240VAC ±10%

Frequency 50Hz ~ 60㎐ ±3 I

Voltage 200~240VAC +3.3V 0.1A 18A

Current 5A +5V 0.2A 15A

115VAC - +5VSB 0.0A 2.0A 2.5A 10W

230VAC Max 100A Ambient Temperature

Vout Regulation Range

+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity

+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH

+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH

-12VDC ±10% -10.8 ~ -13.0V Dimensions 140(L)*150(W)*86(H)mm

+5VSB ±5% +4.75 ~ +5.25V Weight 1.9kg

Vout Standard Range

+3.3VDC 50mV Over-Voltage Protection (OVP)

+5VDC 50mV Under Voltage Protection (UVP)

+12VDC 120mV Over-Current Protection (OCP)

-12VDC 120mV Short- Cicuit Protection (SCP)

+5VSB 50mV Over-Power Protection (OPP)

At

Full

Load

At

Full

Load

2) ZM500-LX Cable Speci󰘰cations

Output Load Rating

Vout

minImaxIpeak

Storage -20 ~ +70℃

Protection Funtions

PCI Express2
Power Connector

PCI Express1
Power Connector

Mainboard
Power Connector

CPU Power Connector

ODD/HDD Power Connector

ODD/HDD Power Connector

ODD/HDD Power Connector

ODD/HDD Power Connector

FDD Power Connector

S-ATA Power
Connector

S-ATA Power
Connector

Combined

120W

Power

500W

22

3. Speci󰘰cations

3) ZM600-LX Electrical & Physical Speci󰘰cations

AC Input Range

AC Input Current

PFC Type Active PFC +12V 0.1A 45A 48A 540W

Power Factor Correction Max 99% -12V 0.0A 0.3A 3.6W

Inrush Current Limit

(@ Cold Start at 25℃)

E󰘲ciency Max 84% @230VAC, Typical load Operation 0 ~ +40℃

DC Output Voltage

Regulation

DC Output Ripple

& Noise

Voltage 200~240VAC ±10%

Frequency 50Hz ~ 60㎐ ±3 I

Voltage 200~240VAC

Current 6A +5V 0.2A 16A

115VAC - +5VSB 0.0A 2.0A 2.5A 10W

230VAC Max 120A Ambient Temperature

Vout Regulation Range

+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity

+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH

+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH

-12VDC ±10% -10.8 ~ -13.0V Dimensions 140(L)*150(W)*86(H)mm

+5VSB ±5% +4.75 ~ +5.25V Weight 1.95kg

Vout Standard Range

+3.3VDC 50mV Over-Voltage Protection (OVP)

+5VDC 50mV Under Voltage Protection (UVP)

+12VDC 120mV Over-Current Protection (OCP)

-12VDC 120mV Short- Cicuit Protection (SCP)

+5VSB 50mV Over-Power Protection (OPP)

At

Full

Load

At

Full

Load

4) ZM600-LX Cable Speci󰘰cations

Output Load Rating

Vout

minImaxIpeak

+3.3V 0.1A 24A

Storage -20 ~ +70℃

Protection Funtions

PCI Express2
Power Connector

PCI Express1
Power Connector

Mainboard Power
Connector

CPU Power Connector

ODD/HDD PowerConnector

ODD/HDD Power Connector

ODD/HDD Power Connector

ODD/HDD Power Connector

ODD/HDD Power Connector

FDD Power Connector

S-ATA Power
Connector

S-ATA Power
Connector

Combined

130W

Power

600W

33

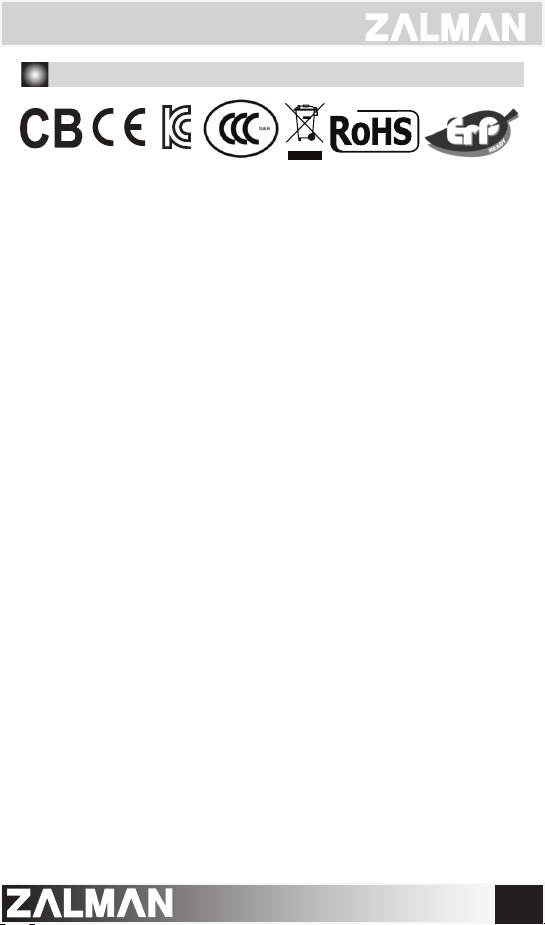

4. Certi󰘰cations

44
