YASKAWA MP2300, MP2200, MP2310, MP2300S, MP2400 User Manual

1

YASKAWA Electric Corporation

MP/INVERTER/SERVO
Ethernet Driver

1 System Configuration....................................................................................................... 3

2 External Device Selection .............................................................................................. 12

3 Communication Settings ................................................................................................ 13

4 Setup Items....................................................................................................................80

5 Supported Devices.........................................................................................................86

6 Device Code and Address Code.................................................................................. 104

7 Error Messages............................................................................................................ 105

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

2

Introduction

This manual describes how to connect the Display and the External Device (target PLC).

In this manual, the connection procedure will be described in the sections identified below:

1

System Configuration
This section lists the types of External
Devices and SIO that you can connect.

"1 System Configuration" (page 3)

2

External Device Selection
Select a model (series) of the External
Device and its connection method.

"2 External Device Selection" (page 12)

3

Communication Settings
This section shows setting examples for
communicating between the Display and
the External Device.

"3 Communication Settings" (page 13)

4

Setup Items
This section describes communication
setup items on the Display. Set the
Display’s communication settings in GP
Pro-EX or in offline mode.

"4 Setup Items" (page 80)

Operation

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

3

1 System Configuration

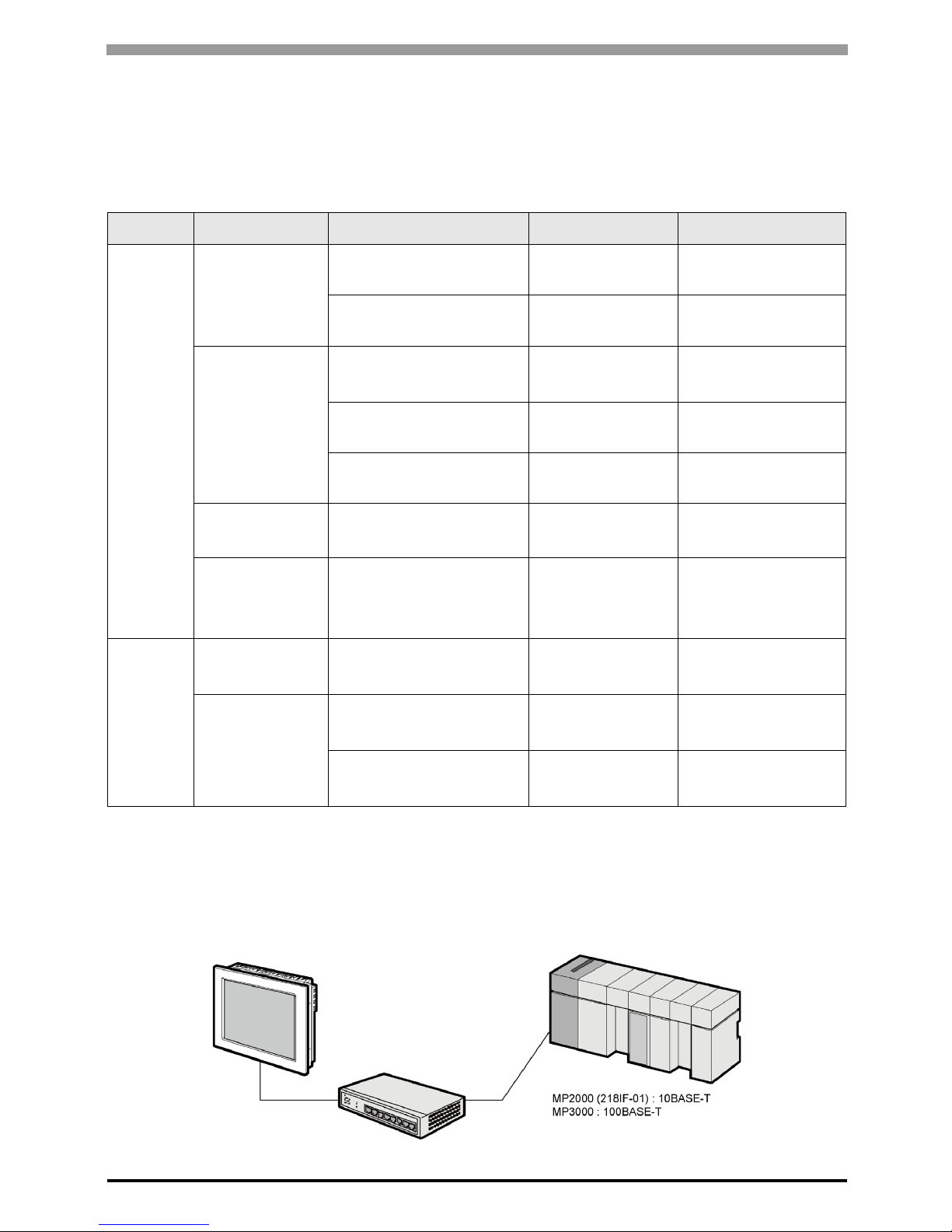

The system configuration in the case when the External Device and the Display are connected is shown.

1.1 MP Series

 Connection Configuration

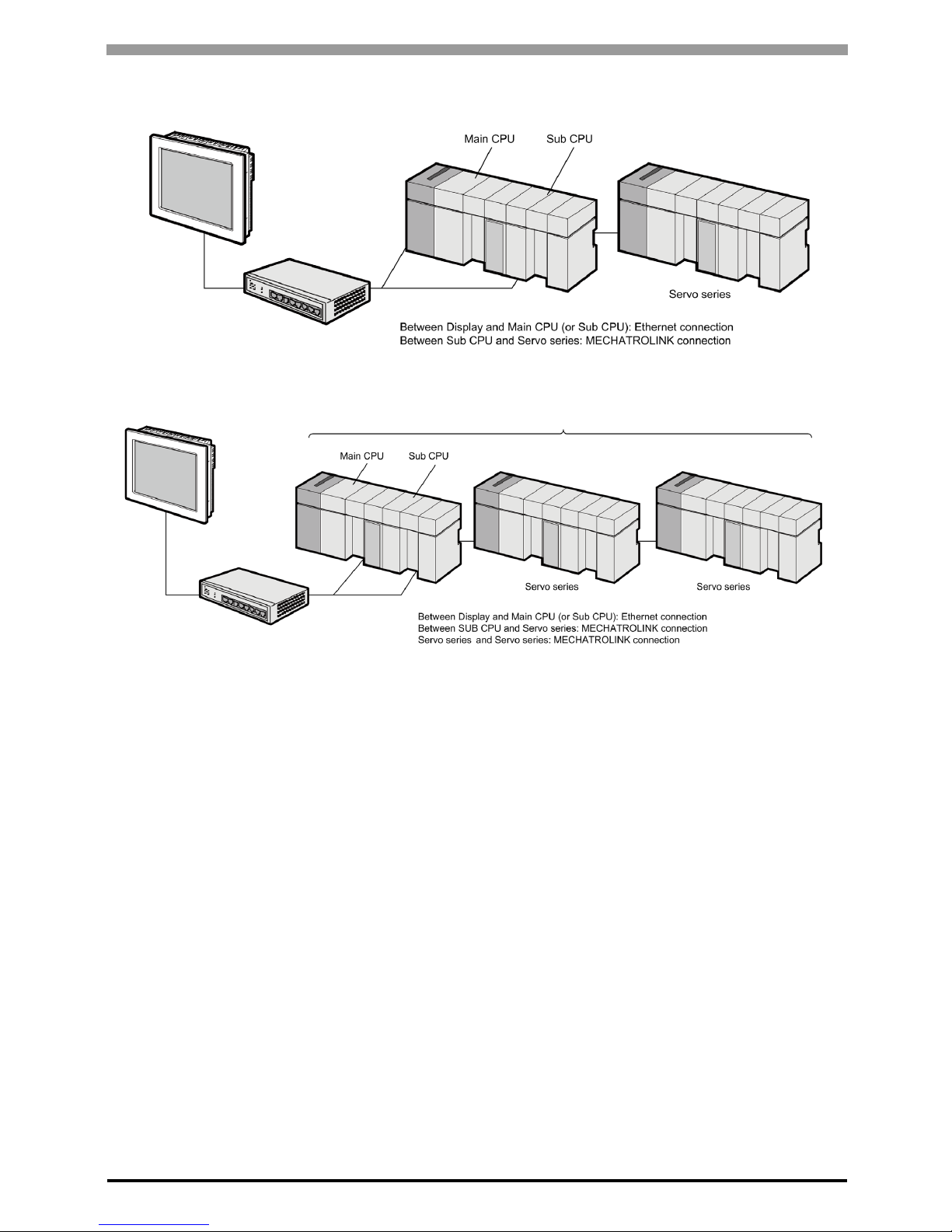

• 1:1 Connection

Series CPU Link I/F SIO Type Setting Example

MP2000

MP2300
MP2200

Ethernet port on 218IF-01 Ethernet (UDP)

"3.1 Setting Example 1"
(page 13)

Ethernet port on 218IF-02 Ethernet (UDP)

"3.4 Setting Example 4"
(page 22)

MP2310
MP2300S

Ethernet Connector on

CPU unit

Ethernet (UDP)

"3.2 Setting Example 2"
(page 16)

Ethernet port on 218IF-01 Ethernet (UDP)

"3.3 Setting Example 3"
(page 19)

Ethernet port on 218IF-02 Ethernet (UDP)

"3.4 Setting Example 4"
(page 22)

MP2400

Ethernet Connector on
CPU unit

Ethernet (UDP)

"3.2 Setting Example 2"
(page 16)

MPU-01

*1

*1 The firmware version of the MPU-01 to be supported is Ver. 2.86 or later.

Ethernet port on Main CPU

*2

or

Ethernet port on 218IF-01

*2 Please refer to the MPU-01 Manual for the supported list of Main CPUs.

Ethernet (UDP)

"3.12 Setting Example
12" (page 43)

MP3000

CPU-201

Ethernet Connector on

CPU unit

Ethernet (UDP)

"3.9 Setting Example 9"
(page 37)

CPU-201(SUB)

*3

*3 The firmware version of the CPU-201 to be supported is Ver. 1.06 or later.

Ethernet Connector on Main

CPU (CPU201)

Ethernet (UDP)

"3.15 Setting Example
15" (page 51)

Ethernet Connector on

CPU201(SUB)

Ethernet (UDP)

"3.9 Setting Example 9"
(page 37)

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

4

• 1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

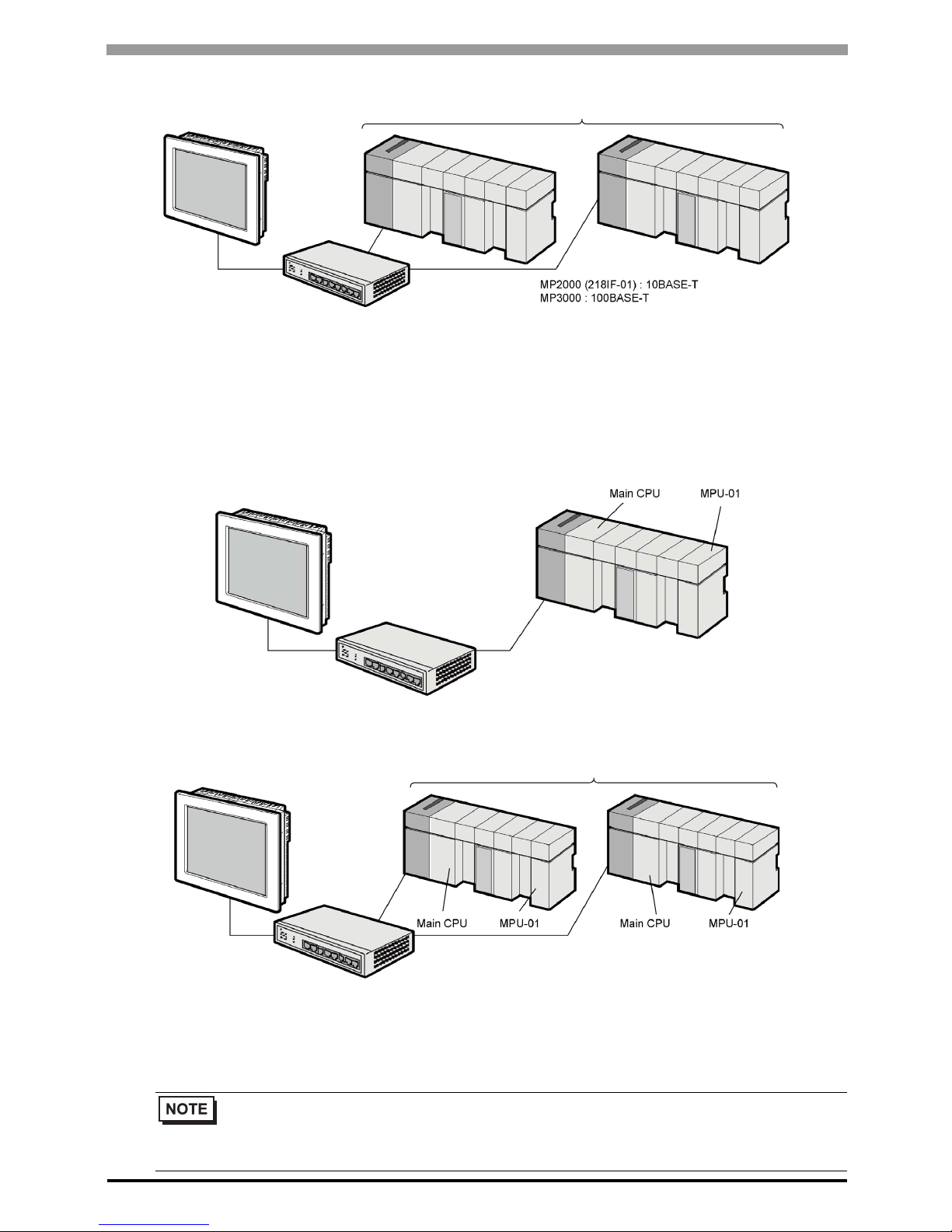

•MPU-01

1:1 Connection

1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

• When connecting to the MPU-01 via the main CPU, do not make communications from two or

more devices (e.g. Display and Ladder software) at the same time. If so, the MPU-01 may make no

response.

Maximum number: 64 *1

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

5

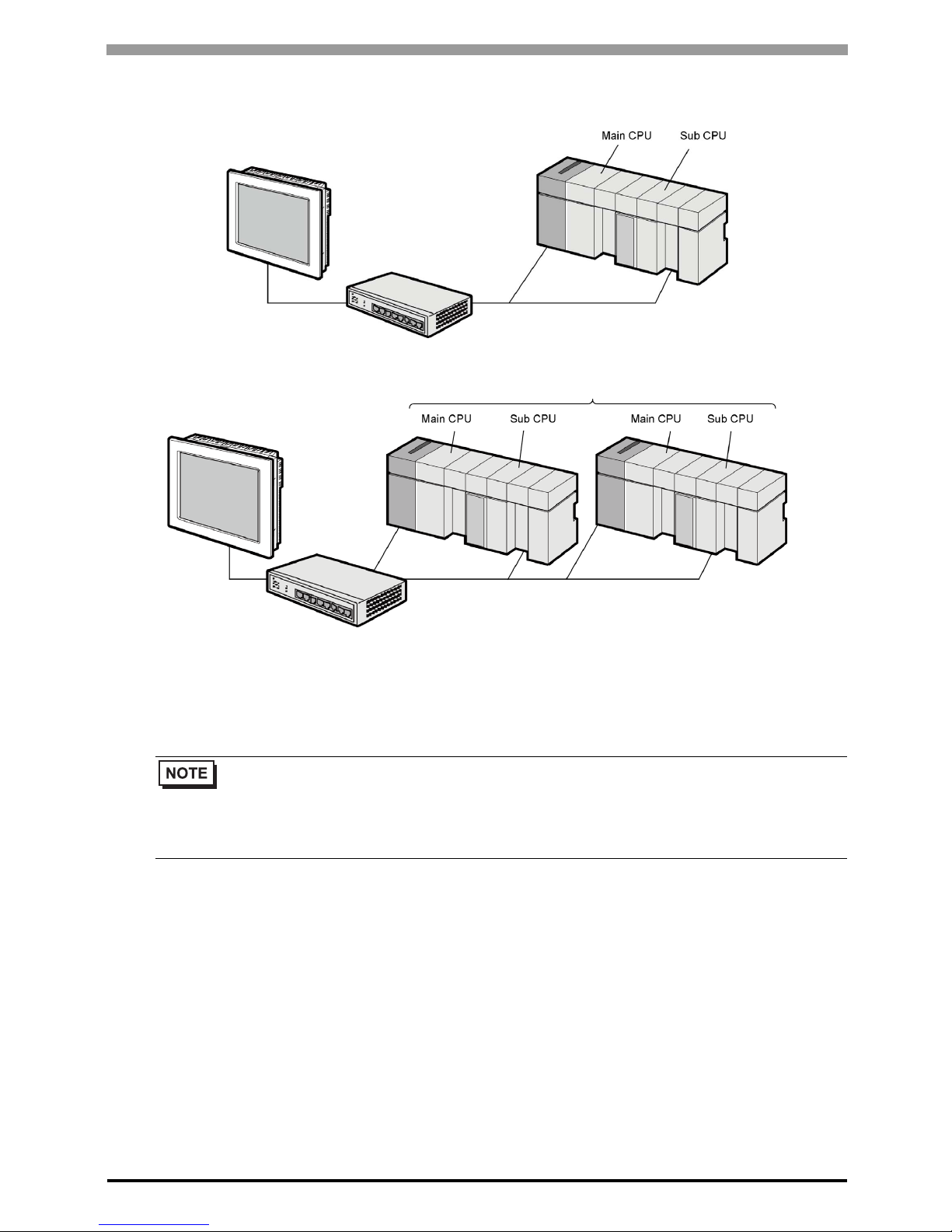

• Sub CPU

1:1 Connection

1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

• A Sub CPU can be communicated via a Main CPU or in direct connection.

• When connecting to the Sub CPU via the main CPU, do not make communications from two or

more devices (e.g. Display and Ladder software) at the same time. If so, the Sub CPU may make no

response.

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

6

1.2 Inverter Series

 Connection Configuration

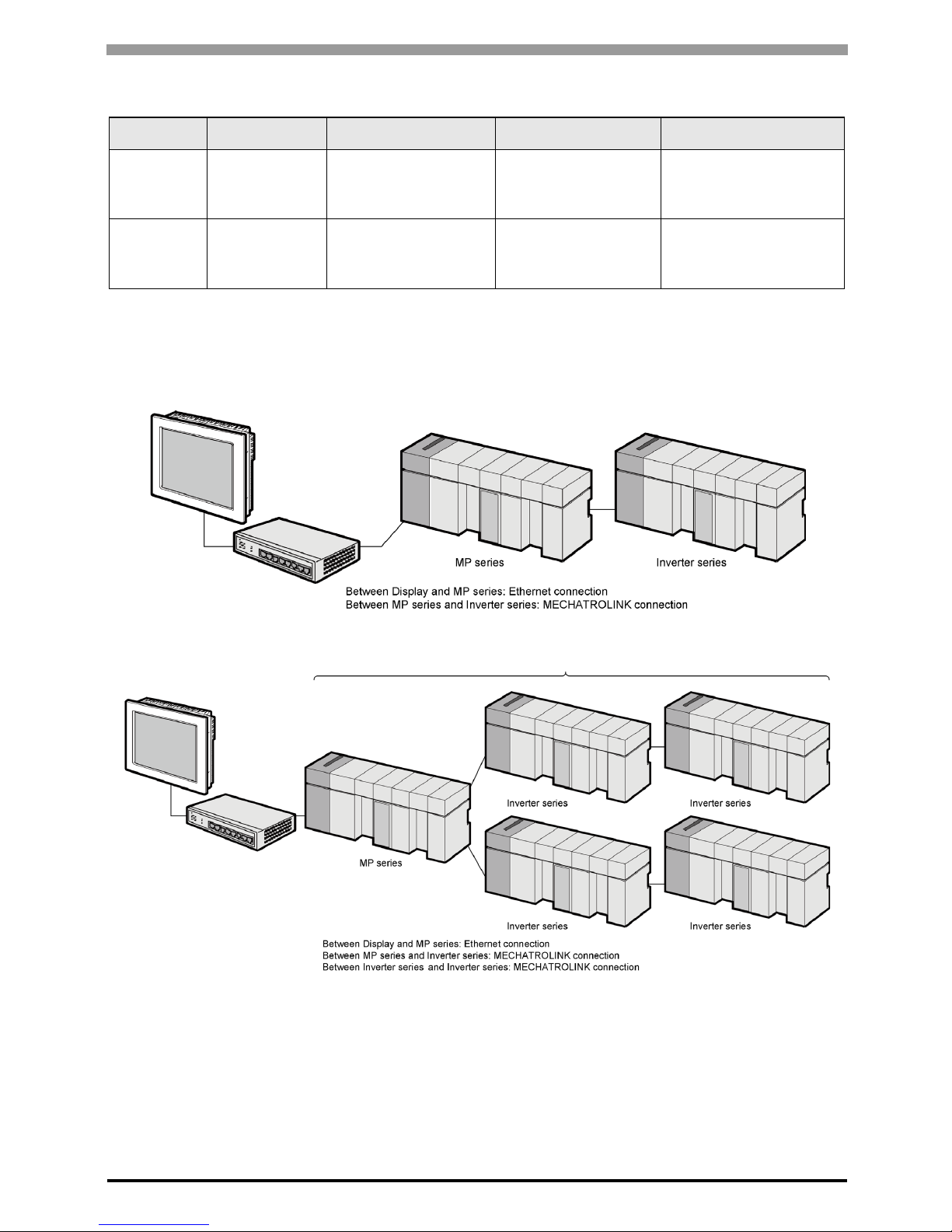

• 1:1 Connection

• 1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

Series CPU

*1

*1 The  symbol in the inverter model name represents the maximum applicable motor capacity and other

specifications.

Link I/F Communication Setting Example

V1000

CIMR-VA
A

V1000 Option
MECHATROLINK-II
(SI-T3/V)

Ethernet (UDP) and

MECHATROLINK-II

"3.10 Setting Example 10"

(page 39)

A1000

CIMR-A
A

A1000
MECHATROLINK-II
(SI-T3)

Ethernet (UDP) and

MECHATROLINK-II

"3.11 Setting Example 11"

(page 41)

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

7

1.3 Servo

Series CPU Link I/F SIO Type Setting Example

-V Series
Rotary Motors
(M-II)

SGDV-

11


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-II

"3.5 Setting Example 5"
(page 25)

-V Series
Linear Motors
(M-II)

SGDV-

15


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-II

"3.6 Setting Example 6"
(page 28)

-V Series
Rotary Motors
(M-III)

SGDV-

21


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-III

"3.7 Setting Example 7"
(page 31)

MECHATROLINK 
Communications Connectors

on MPU-01

Ethernet (UDP) and

MECHATROLINK-III

"3.13 Setting Example
13" (page 45)

MECHATROLINK 
Communications Connectors

on Sub CPU

Ethernet (UDP) and

MECHATROLINK-III

"3.16 Setting Example
16" (page 53)

-V Series
Linear Motors
(M-III)

SGDV-

25


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-III

"3.8 Setting Example 8"
(page 34)

MECHATROLINK 
Communications Connectors

on MPU-01

Ethernet (UDP) and

MECHATROLINK-III

"3.14 Setting Example
14" (page 48)

MECHATROLINK 
Communications Connectors

on Sub CPU

Ethernet (UDP) and

MECHATROLINK-III

"3.17 Setting Example
17" (page 56)

-7 Series
Single-axis
SERVOPACKs
(M-II)

SGD7S-

10


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-II

"3.18 Setting Example
18" (page 59)

-7 Series
Single-axis
SERVOPACKs
(M-III)

SGD7S-

20


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-III

"3.19 Setting Example
19" (page 62)

MECHATROLINK 
Communications Connectors

on MPU-01

Ethernet (UDP) and

MECHATROLINK-III

"3.20 Setting Example
20" (page 65)

MECHATROLINK 
Communications Connectors

on Sub CPU

Ethernet (UDP) and

MECHATROLINK-III

"3.21 Setting Example
21" (page 68)

-7 Series
2-axis SERVO­PACKs
(M-III)

SGD7W-

20


MECHATROLINK
Communications Connectors 
(CN6A/CN6B)

Ethernet (UDP) and

MECHATROLINK-III

"3.22 Setting Example
22" (page 71)

MECHATROLINK 
Communications Connectors

on MPU-01

Ethernet (UDP) and

MECHATROLINK-III

"3.23 Setting Example
23" (page 74)

MECHATROLINK 
Communications Connectors

on Sub CPU

Ethernet (UDP) and

MECHATROLINK-III

"3.24 Setting Example
24" (page 77)

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

8

 Connection Configuration

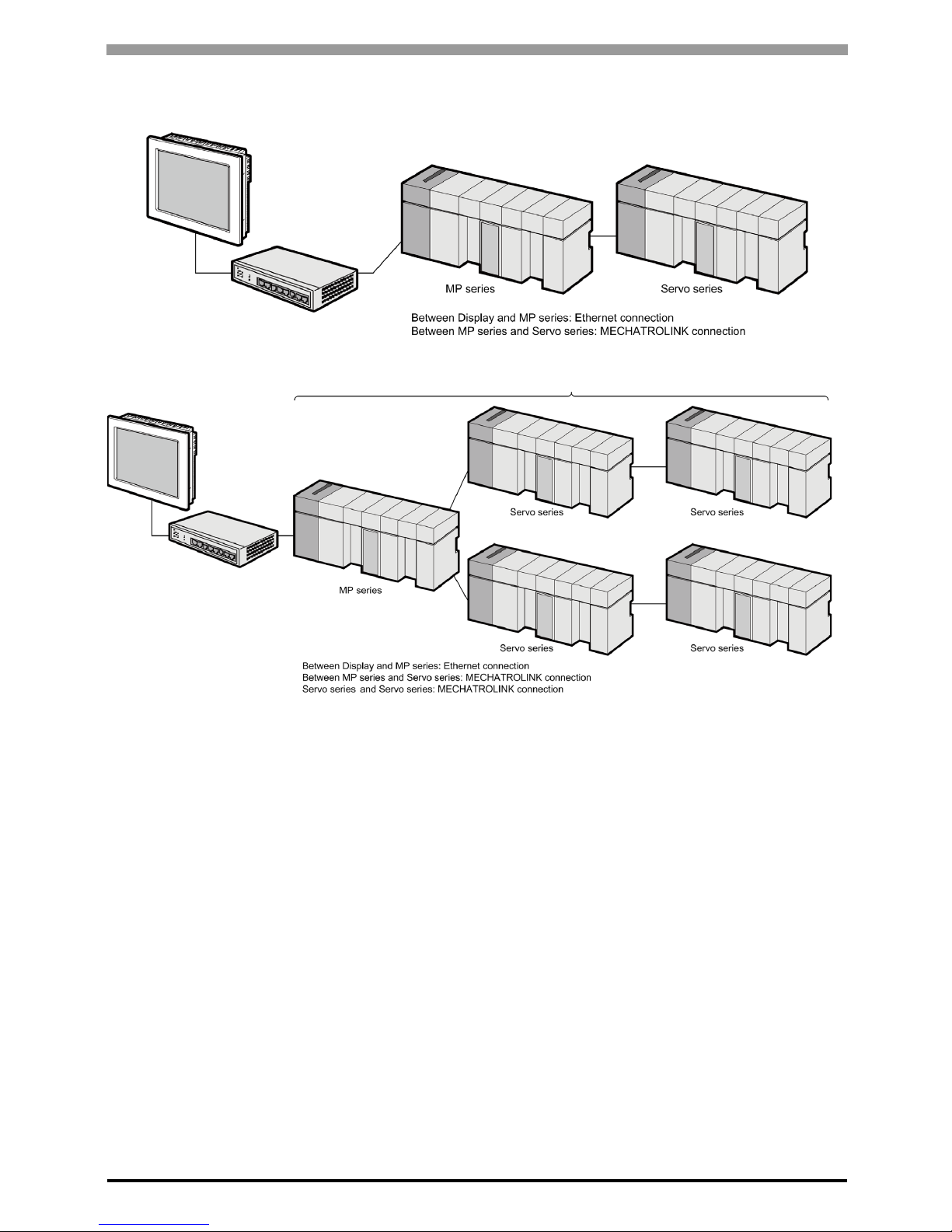

• 1:1 Connection

• 1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

9

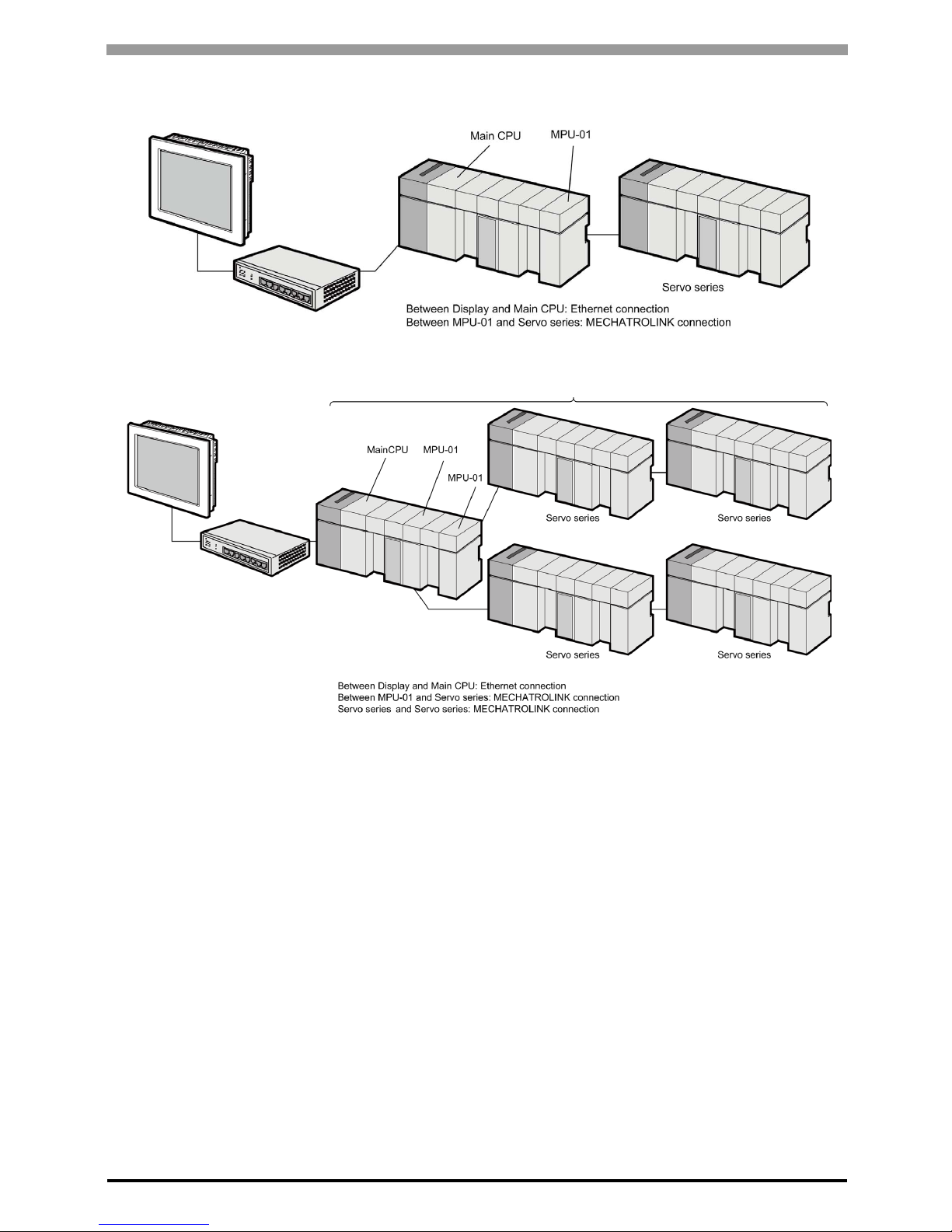

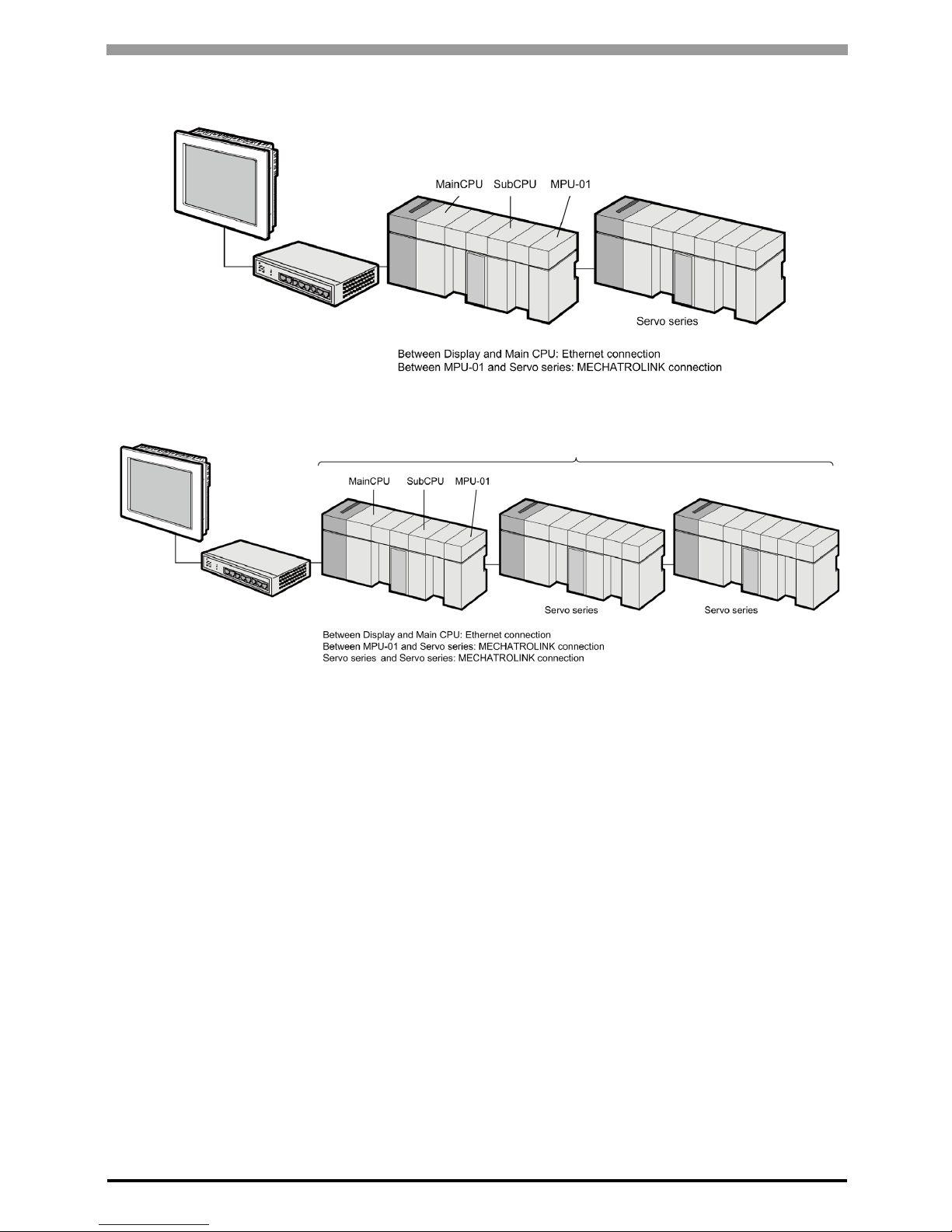

• Connection via MPU-01

1:1 Connection

1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

10

• Connection via Sub CPU

1:1 Connection

1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

11

• Connection via Sub CPU and MPU-01

1:1 Connection

1:n Connection

*1 When 33 or more External Devices are connected, it is necessary to check [Increase allowable number of

Devices/PLCs].

"4.1 Setup Items in GP-Pro EX" (page 80)

Maximum number: 64 *1

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

12

2 External Device Selection

Select the External Device to be connected to the Display.

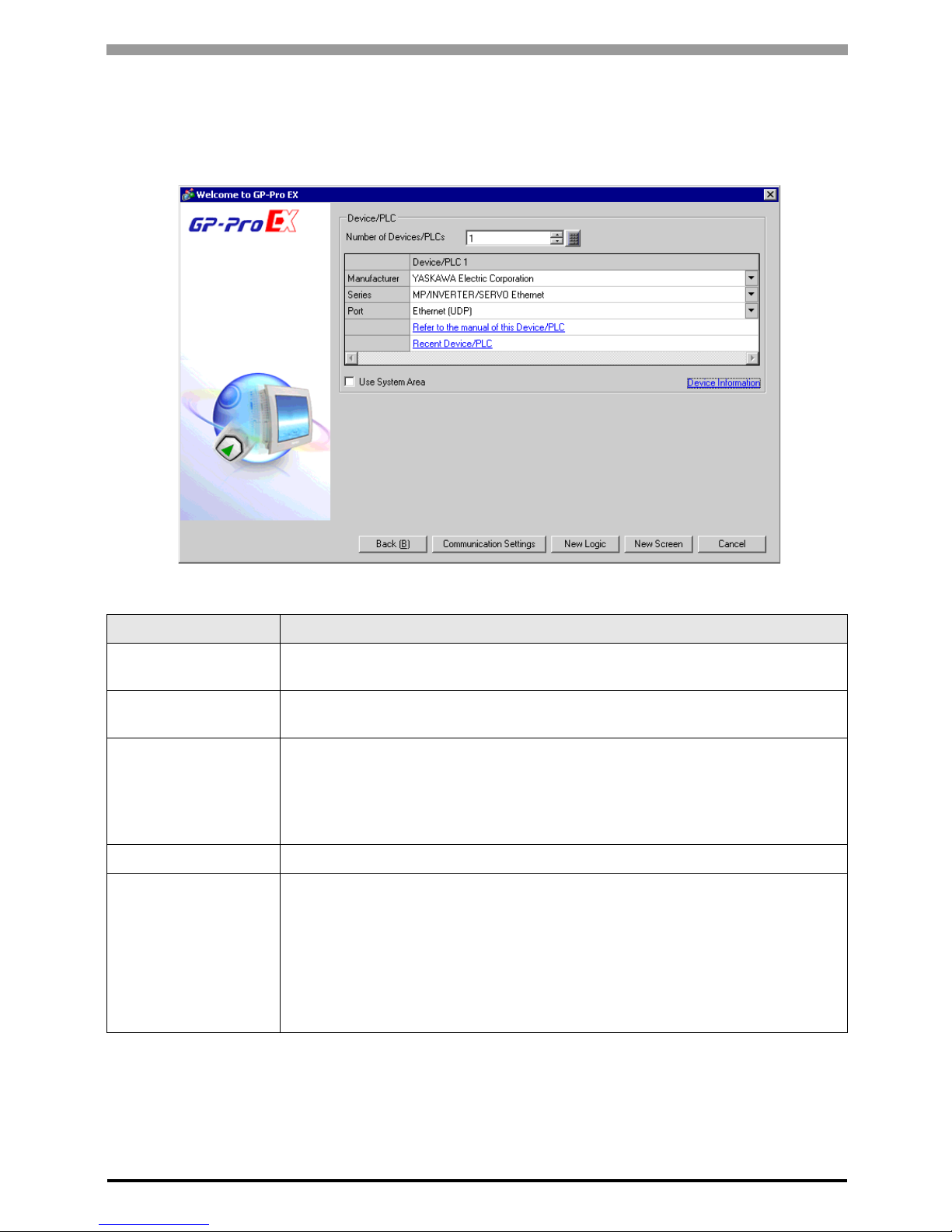

Setup Items Setup Description

Number of Devices/
PLCs

Use an integer from 1 to 4 to enter the number of Devices/PLCs to connect to the display.

Manufacturer

Select the manufacturer of the External Device to be connected. Select "YASKAWA
Electric Corporation".

Series

Select a model (series) of the External Device to be connected and connection method.
Select "MP/INVERTER/SERVO Ethernet".
Check the External Device which can be connected in "MP/INVERTER/SERVO Ethernet"
in system configuration.

"1 System Configuration" (page 3)

Port Select the Display port to be connected to the External Device.

Use System Area

Check this option to synchronize the system data area of the Display and the device
(memory) of the External Device. When synchronized, you can use the External Device’s
ladder program to switch the display or display the window on the Display.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

This feature can also be set in GP-Pro EX or in the Display's offline mode.

Cf. GP-Pro EX Reference Manual "System Settings [Display Unit] - [System

Area] Settings Guide"

Cf. Maintenance/Troubleshooting Guide "Main Unit - System Area Settings"

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

13

3 Communication Settings

Examples of communication settings of the Display and the External Device, recommended by Pro-face, are

shown.

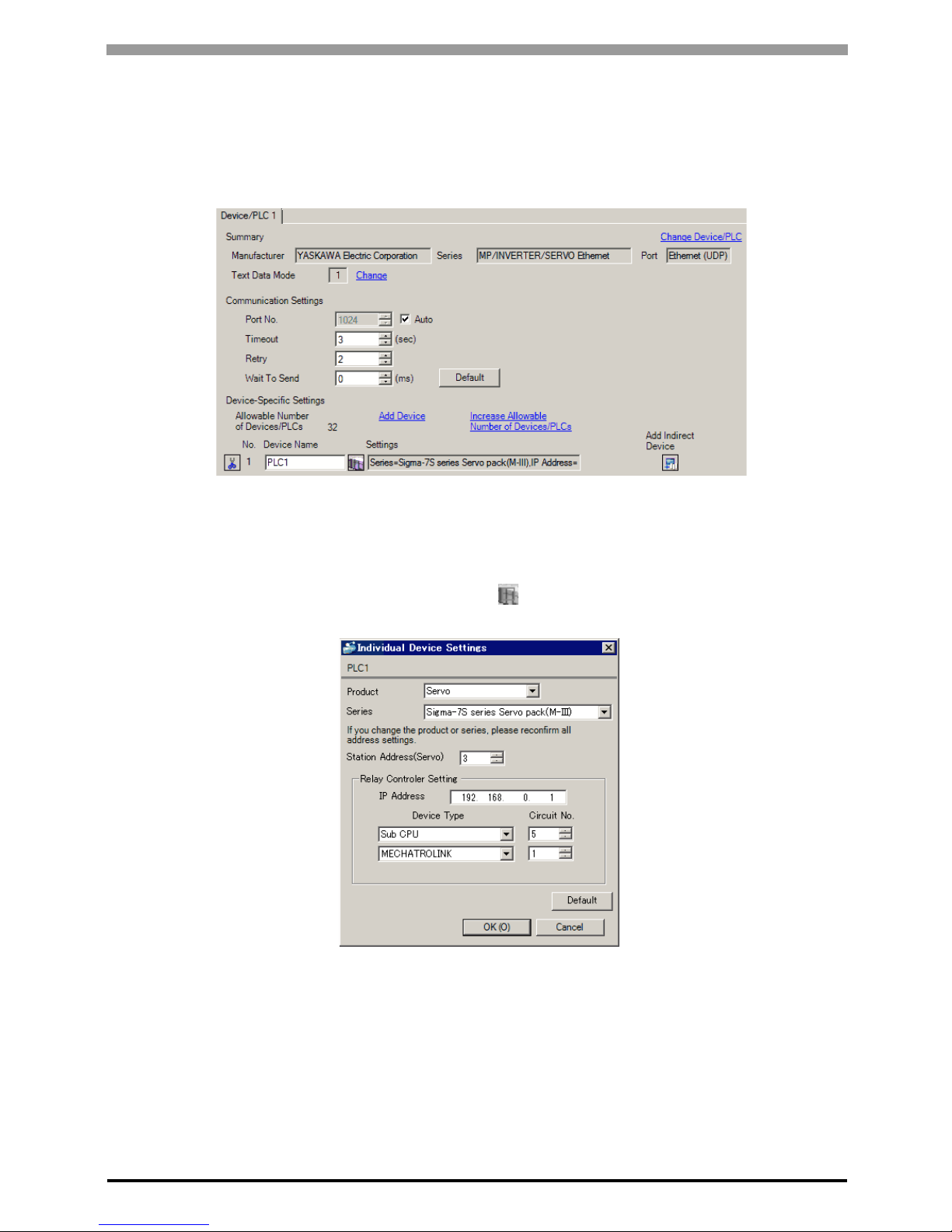

3.1 Setting Example 1

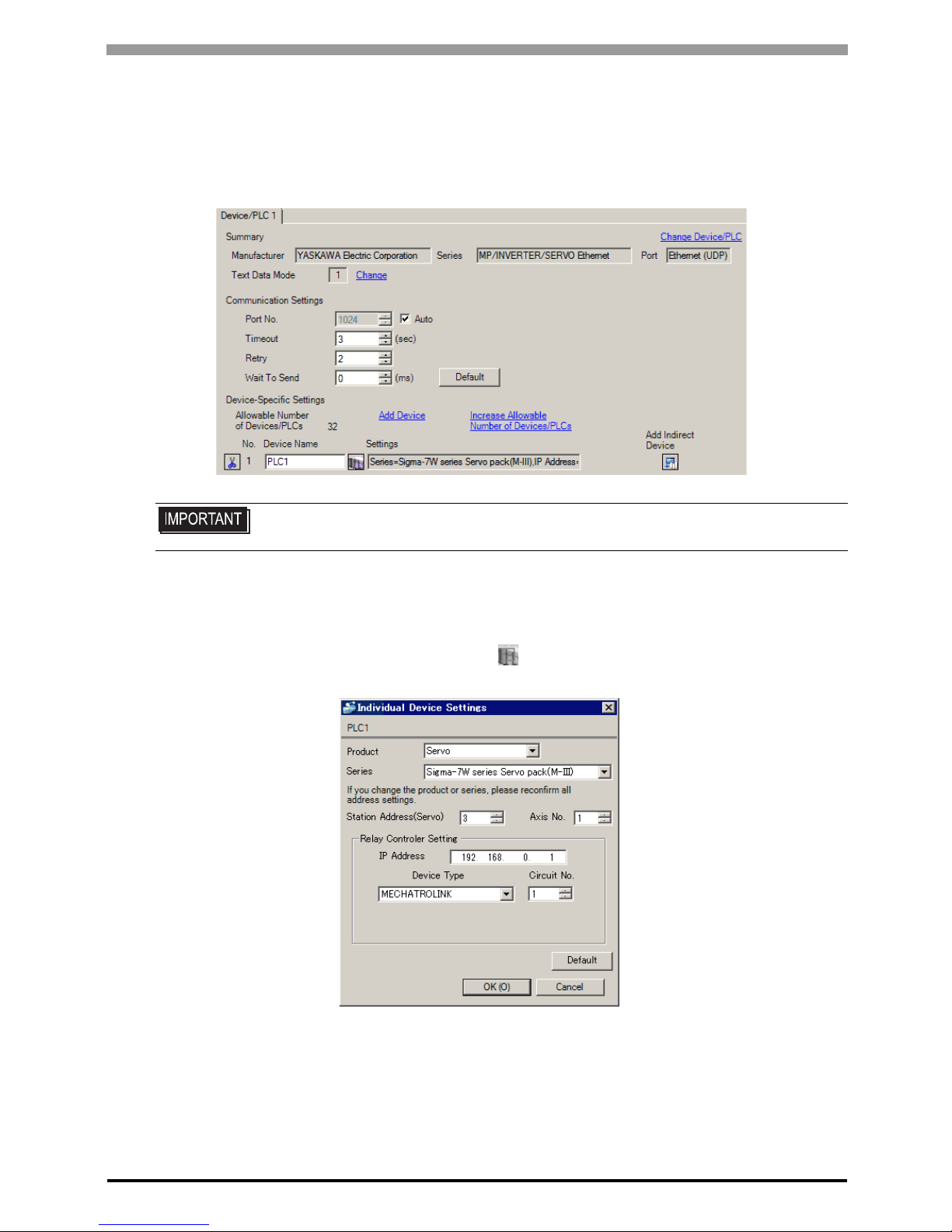

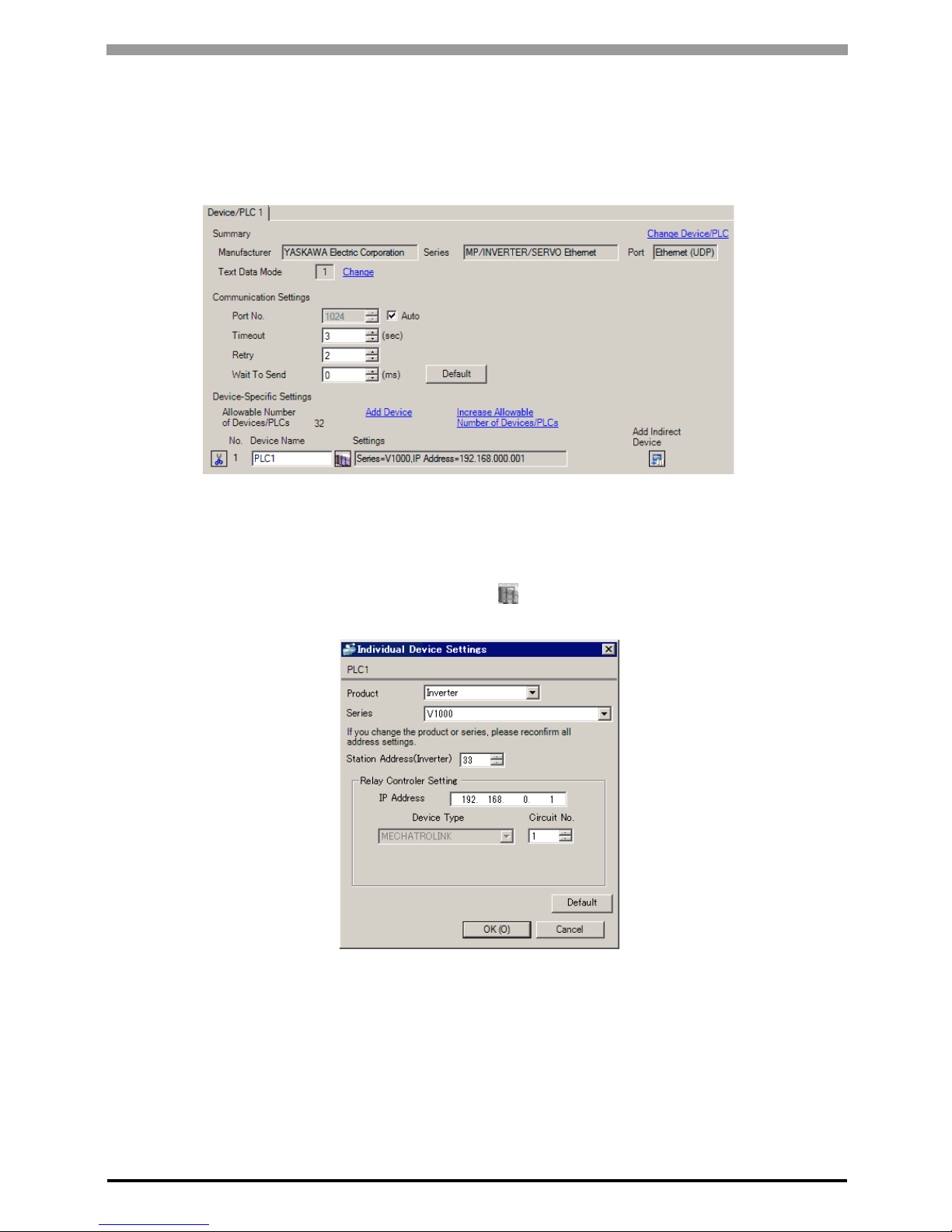

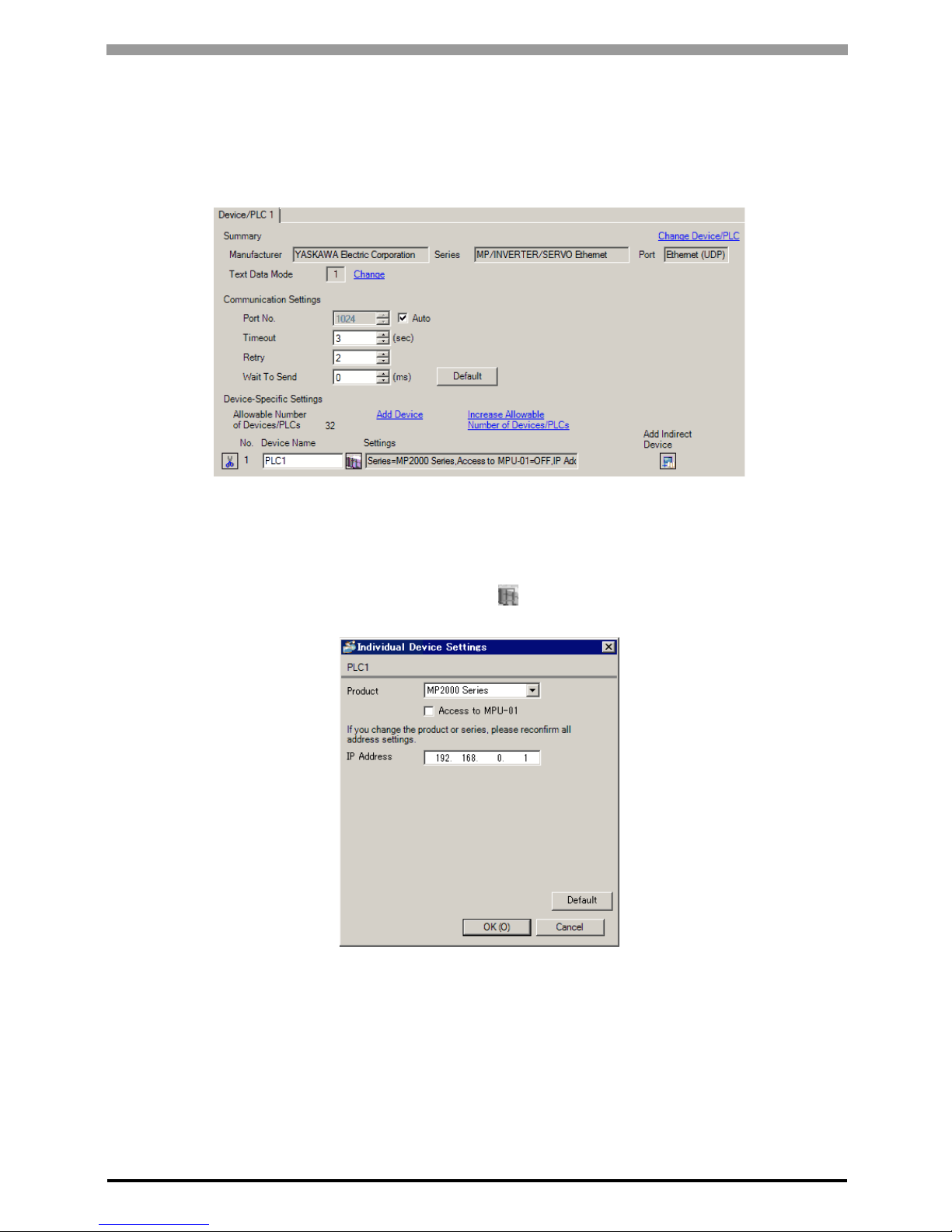

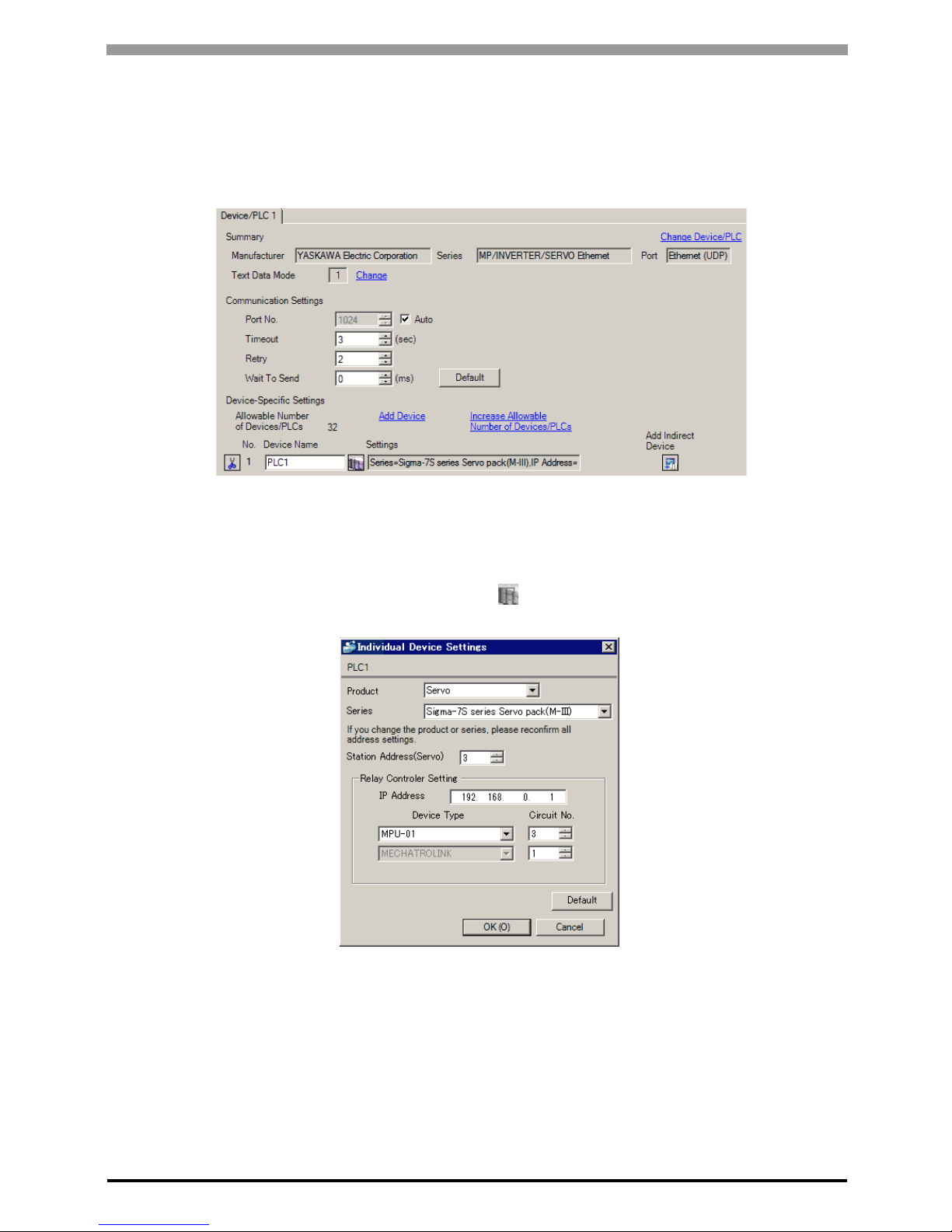

 Settings of GP-Pro EX

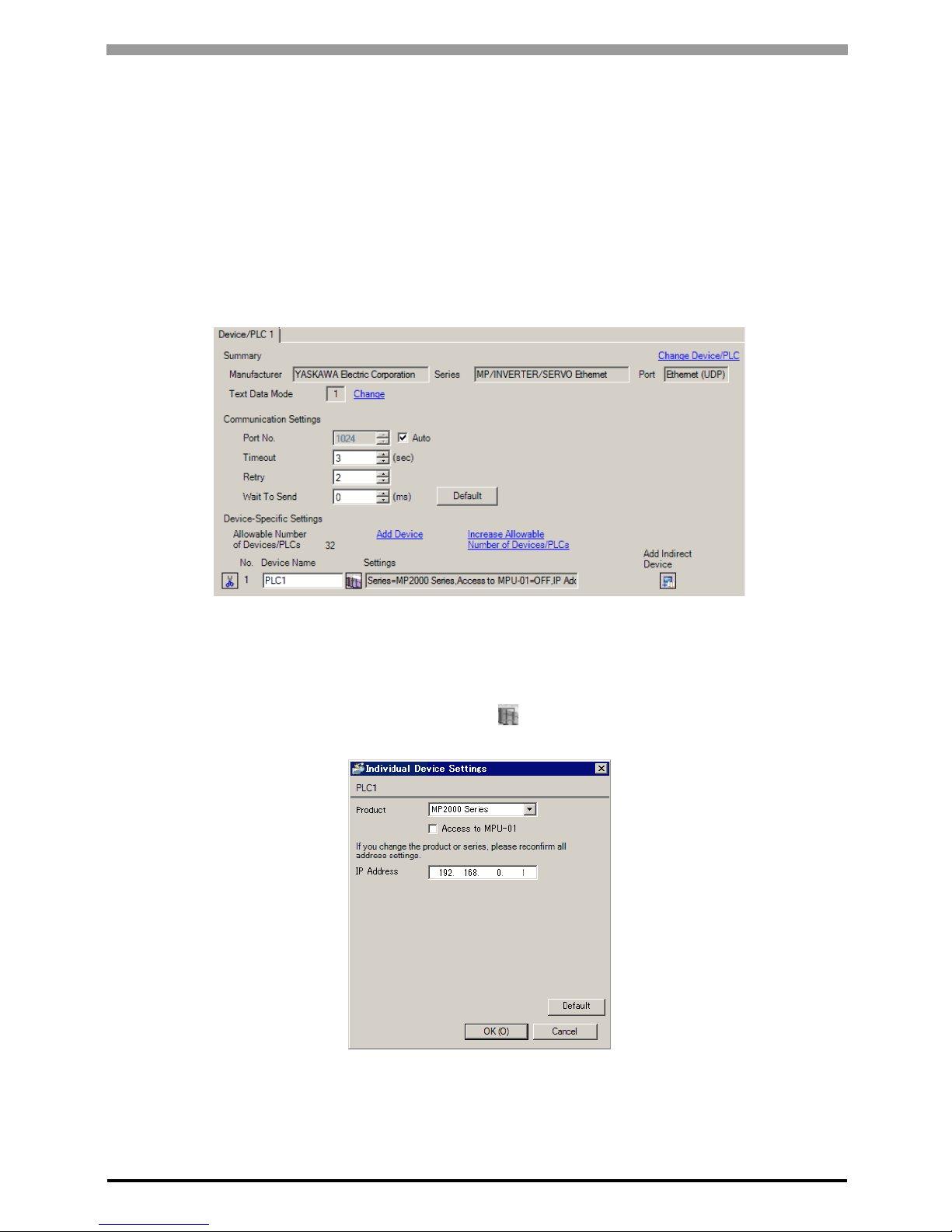

 Communication Settings

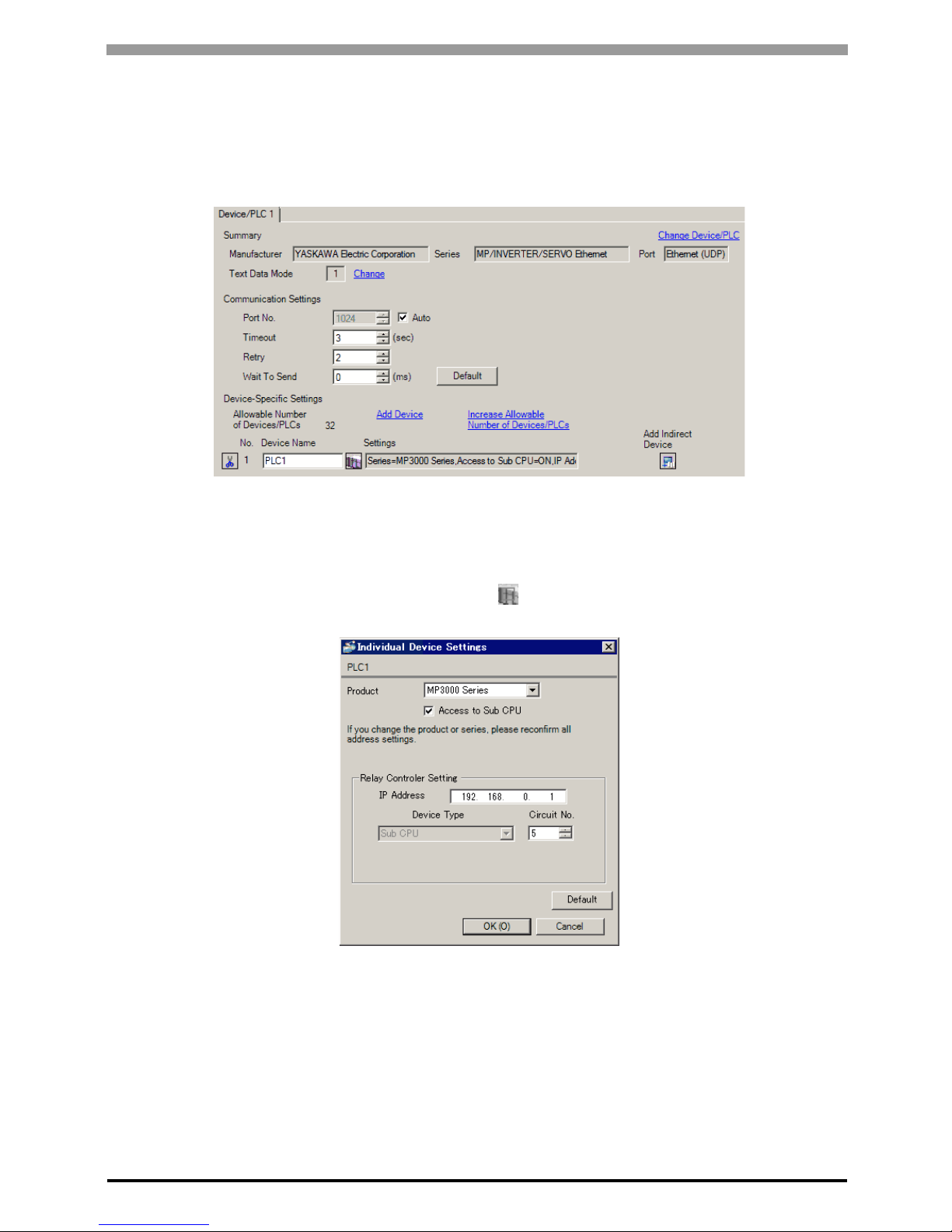

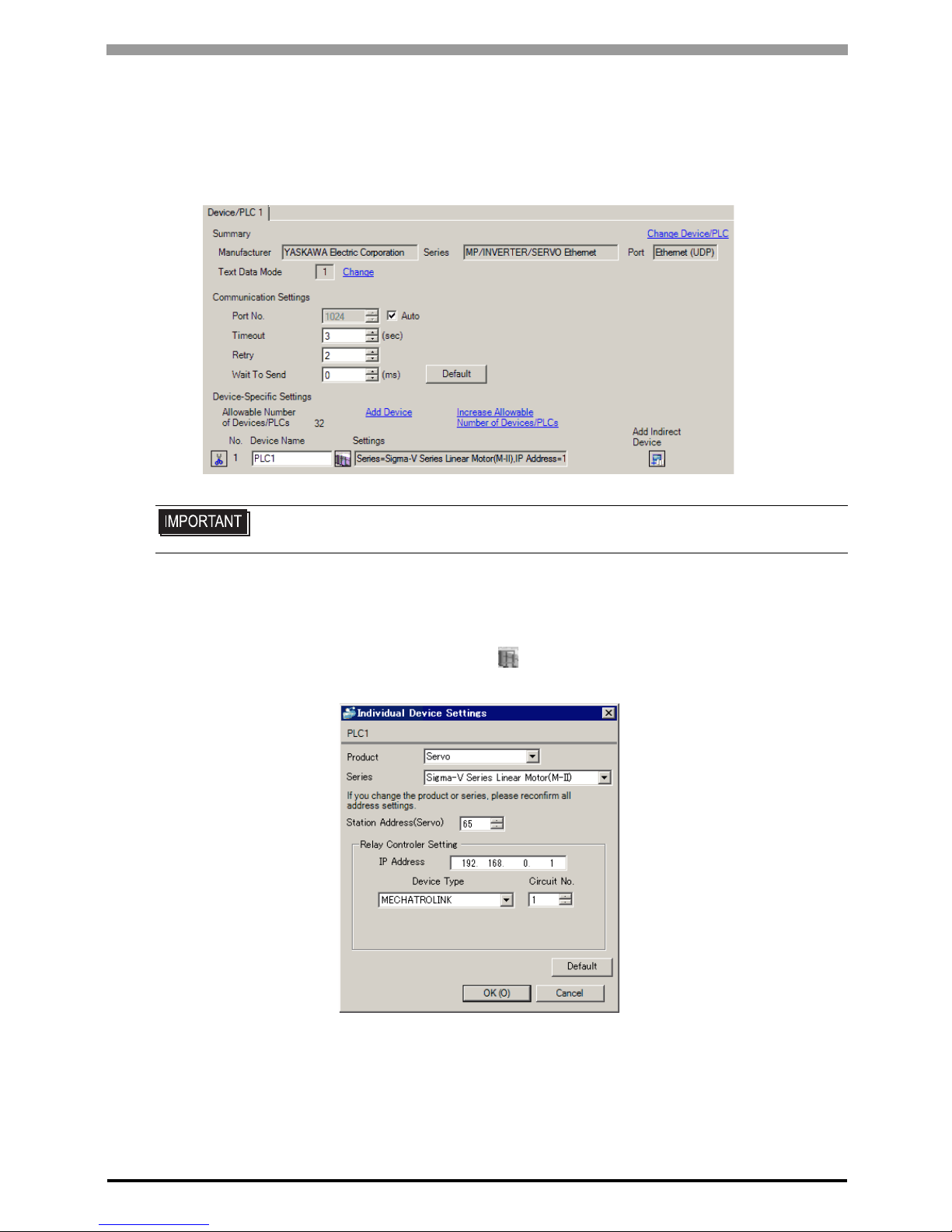

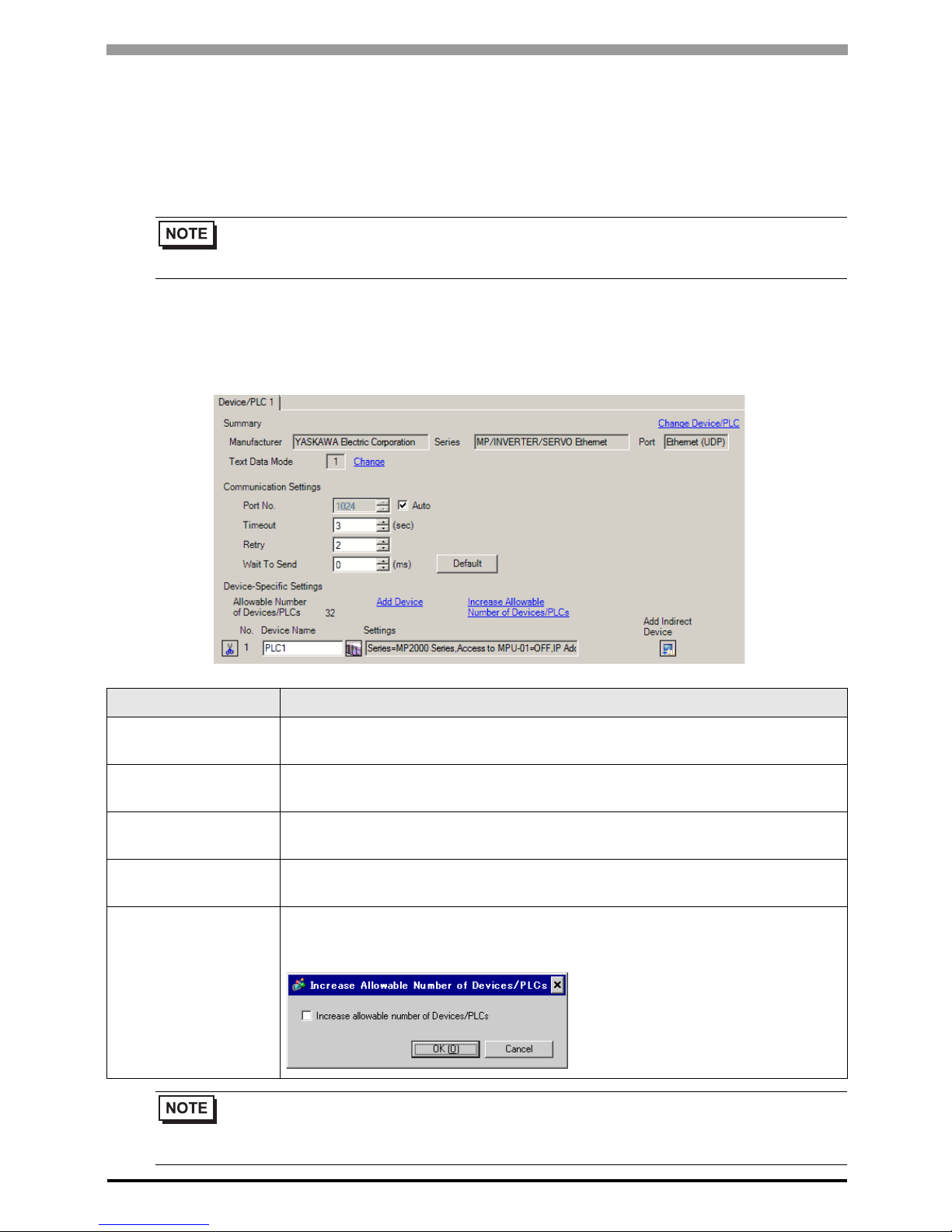

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

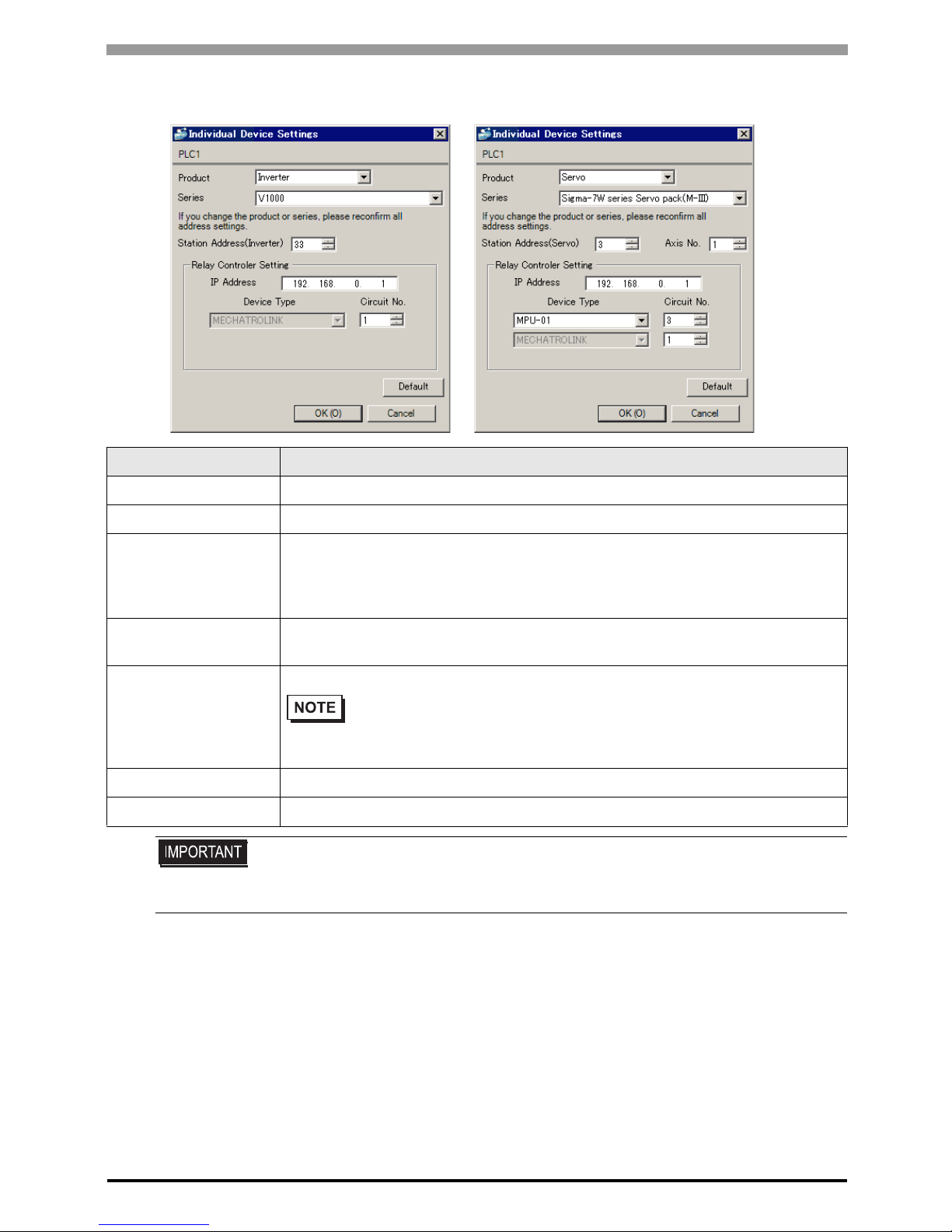

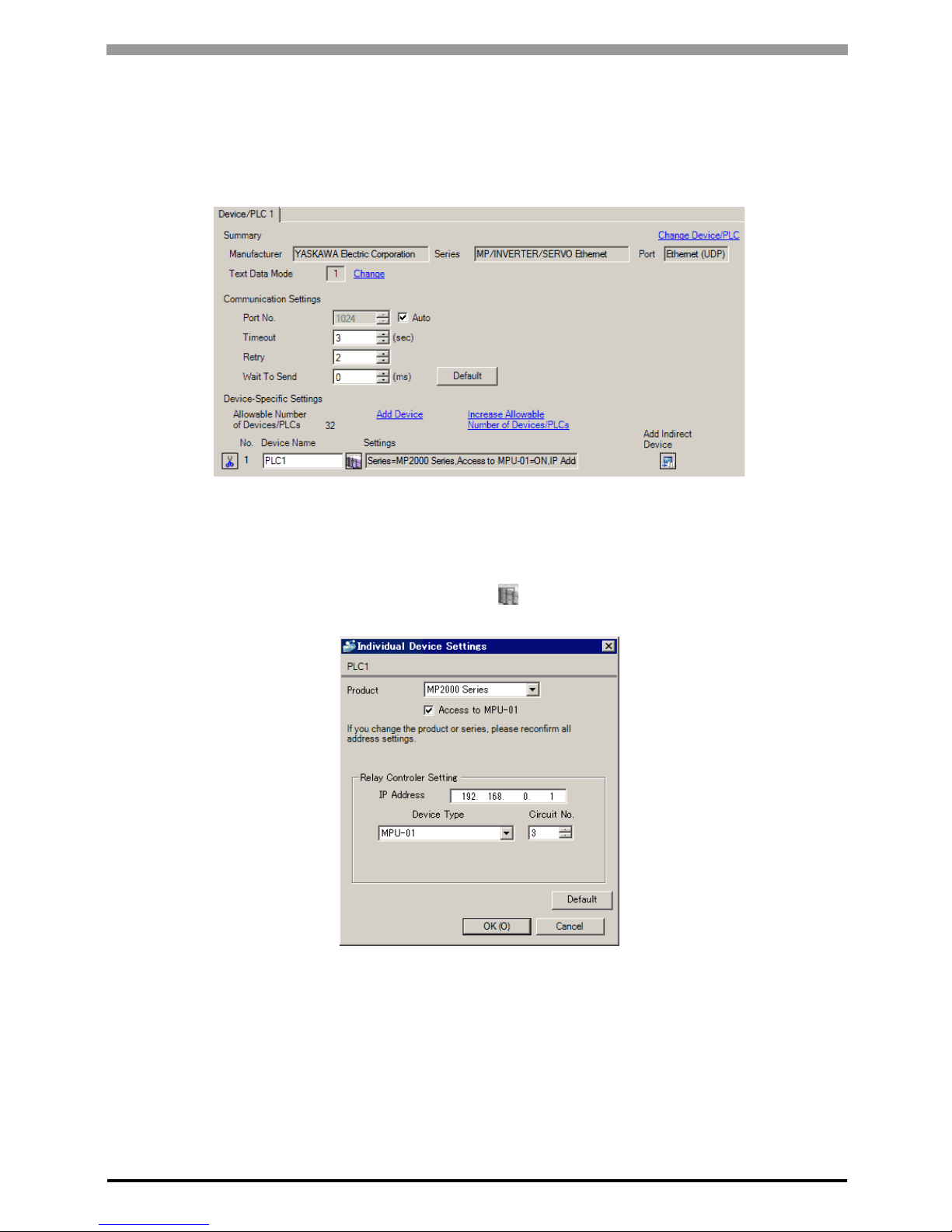

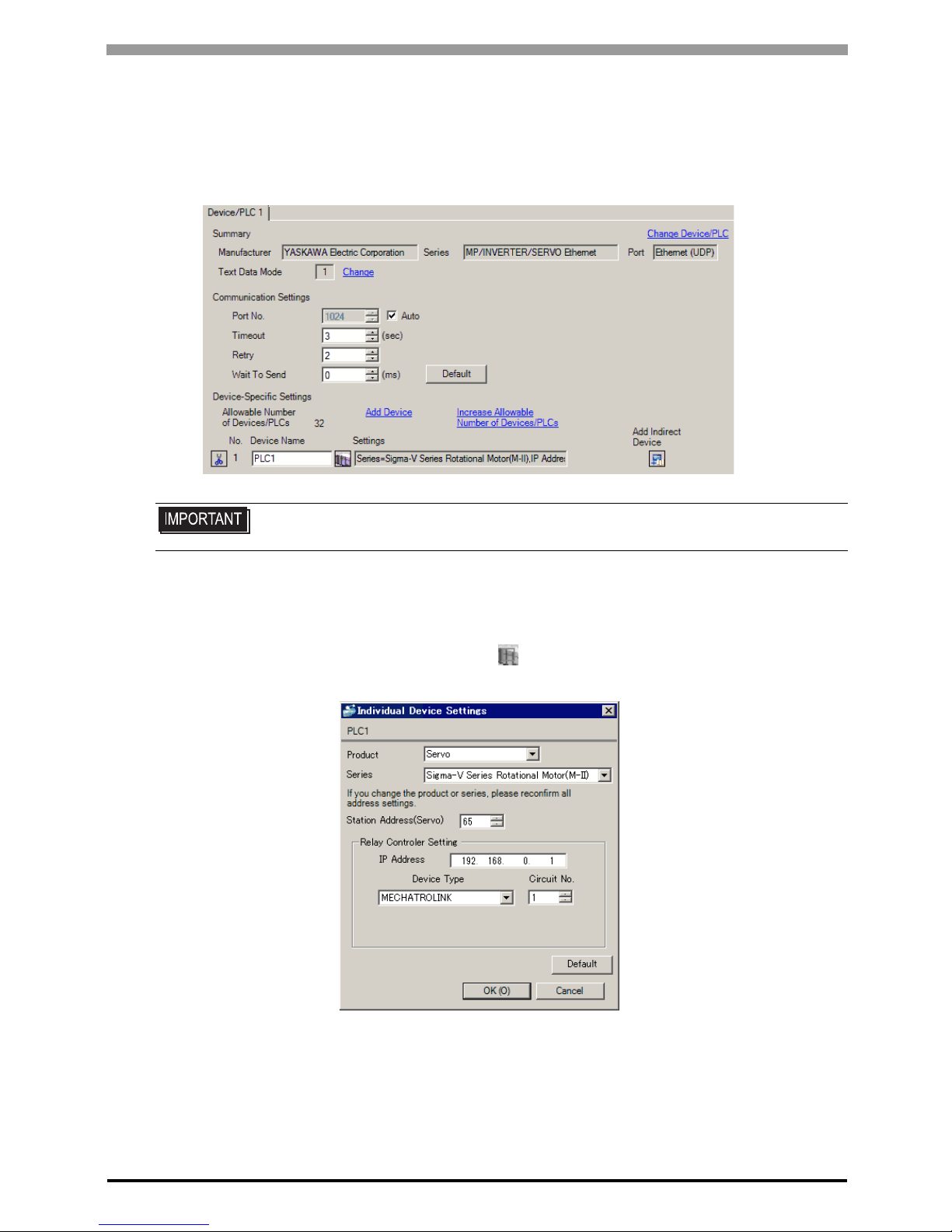

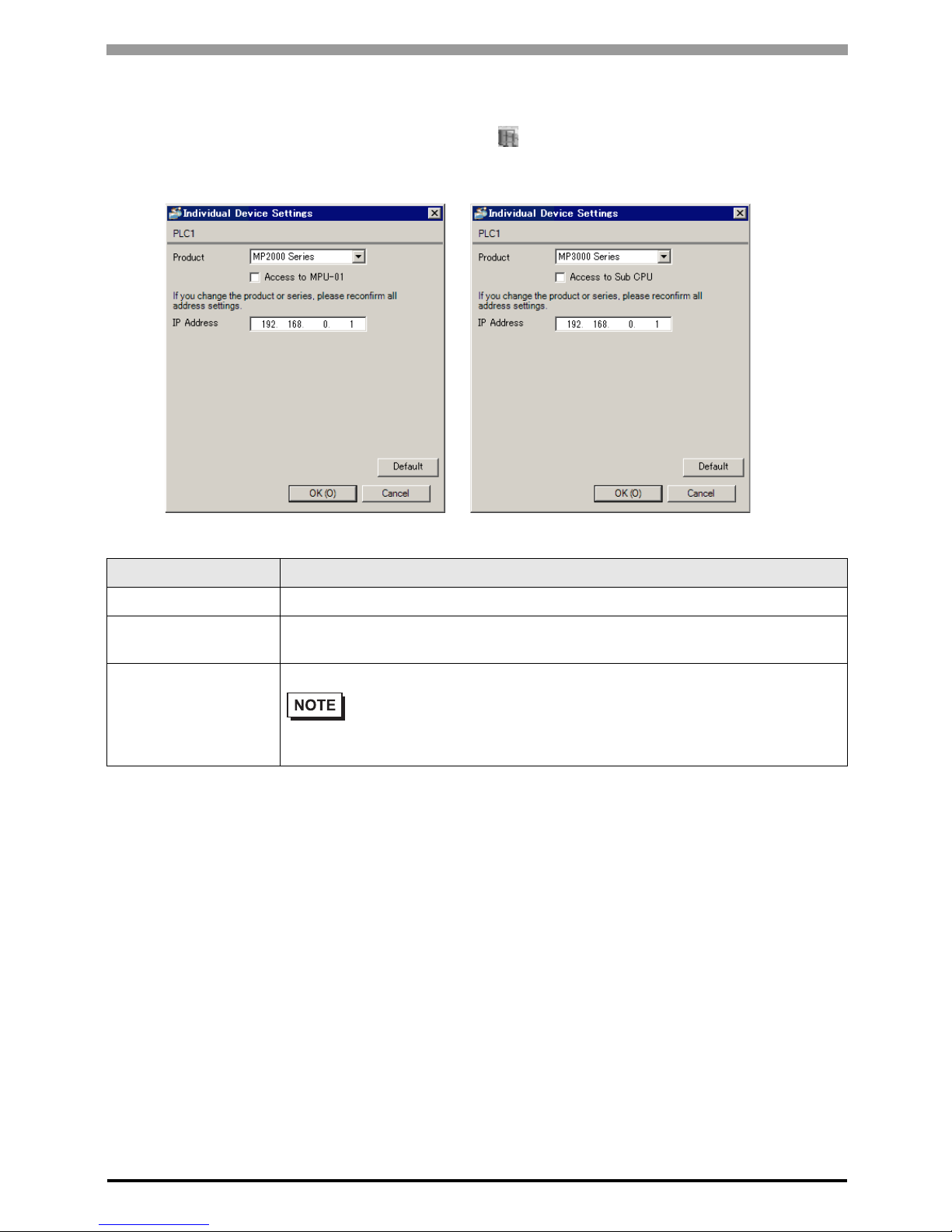

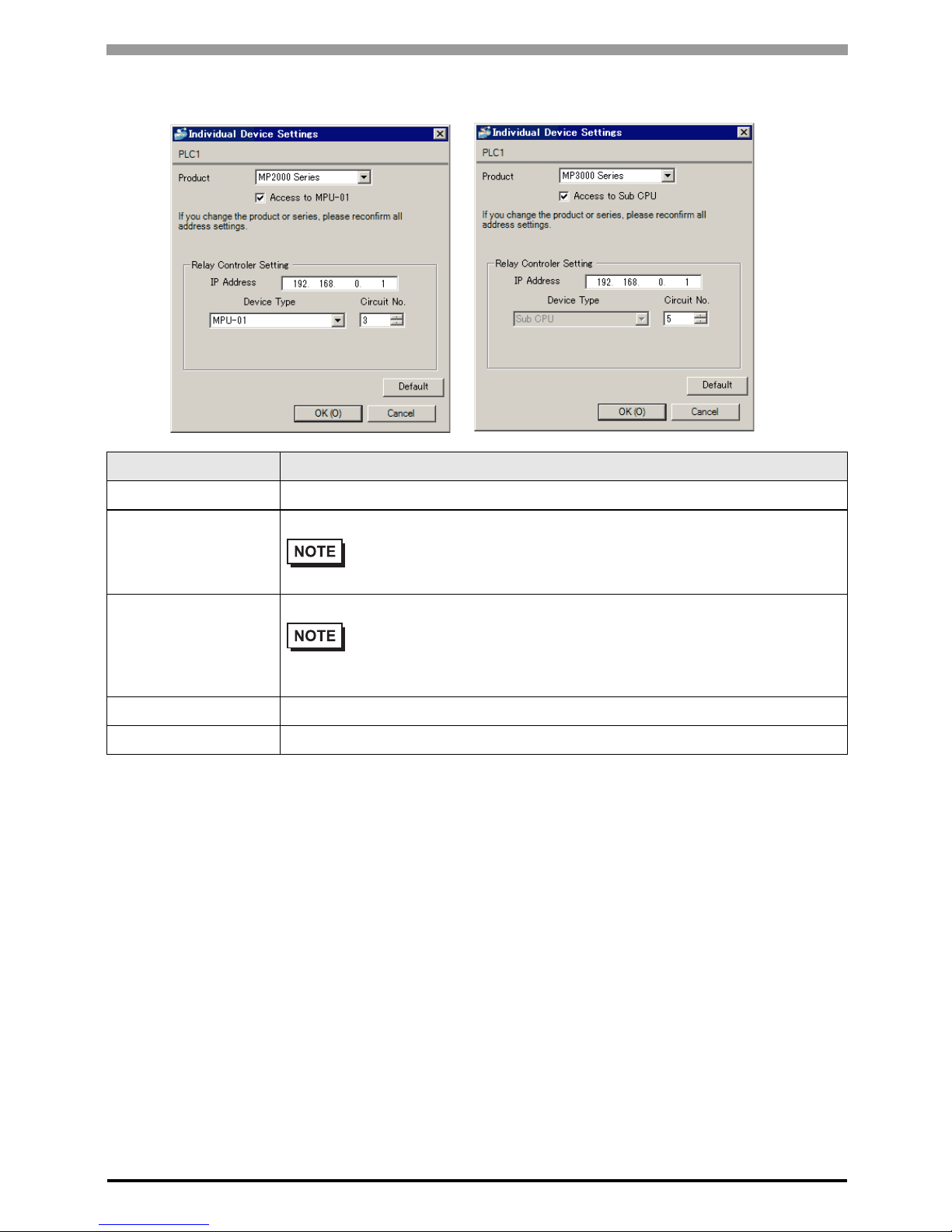

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

14

 Settings of External Device

Use the ladder software (MPE720) to set up communication settings for the communication module 218IF-01.

For details on communication settings, please refer to the manual of the External Device.

The setup procedure differs depending on the version of your ladder software.

 Ladder Software Setting (for MPE720 Ver.5)

1 Start the ladder software, and in the root folder make the order and PLC folders.
2 Right-click the generated External Device, and from the shortcut menu select Logon.

3 From the PLC folder, double-click the [Definition folder]’s [Module Configuration] to display the [Engineering

Manager].

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Double-click "No.1" and set up serial communication.

Serial communication is used to transfer communication settings to the PLC.

7 Save the settings and exit [Engineering Manager].
8 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
9 Transfer the settings to the communication module.

10 While online, logon to the External Device. Write the transferred data to FLASH memory.

11 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

• In the shortcut menu, please confirm there is no check mark beside the [Online] command

before logging on.

• For methods on logging on, refer to the User's Manual of the External Device.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank. 
Communication is not possible when a connection parameter is set.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

15

 Ladder Software Setting (for MPE720 Ver.6)

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Double-click "No.1" and set up serial communication.

Serial communication is used to transfer communication settings to the PLC.

7 Save the settings and exit [Engineering Manager].
8 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
9 Write the settings to the communication module.

10 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank.
Communication is not possible when a connection parameter is set.

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

16

3.2 Setting Example 2

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

17

 Settings of External Device

Use the ladder software (MPE720) to set up communication settings for the communication module CPU unit.

For details on communication settings, please refer to the manual of the External Device.

The setup procedure differs depending on the version of your ladder software.

 Ladder Software Setting (for MPE720 Ver.5)

1 Start the ladder software, and in the root folder make the order and PLC folders.
2 Right-click the generated External Device, and from the shortcut menu select Logon.

3 From the PLC folder, double-click the [Definition folder]’s [Module Configuration] to display the [Engineering

Manager].

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Save the settings and exit [Engineering Manager].
7 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
8 Transfer the settings to the communication module.
9 While online, logon to the External Device. Write the transferred data to FLASH memory.

10 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

• In the shortcut menu, please confirm there is no check mark beside the [Online] command

before logging on.

• For methods on logging on, refer to the User's Manual of the External Device.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank. 
Communication is not possible when a connection parameter is set.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

18

 Ladder Software Setting (for MPE720 Ver.6)

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Save the settings and exit [Engineering Manager].
7 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
8 Write the settings to the communication module.

9 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank.
Communication is not possible when a connection parameter is set.

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

19

3.3 Setting Example 3

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

20

 Settings of External Device

Use the ladder software (MPE720) to set up communication settings for the communication module 218IF-01.

For details on communication settings, please refer to the manual of the External Device.

The setup procedure differs depending on the version of your ladder software.

 Ladder Software Setting (for MPE720 Ver.5)

1 Start the ladder software, and in the root folder make the order and PLC folders.
2 Right-click the generated External Device, and from the shortcut menu select Logon.

3 From the PLC folder, double-click the [Definition folder]’s [Module Configuration] to display the [Engineering

Manager].

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Save the settings and exit [Engineering Manager].
7 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
8 Transfer the settings to the communication module.
9 While online, logon to the External Device. Write the transferred data to FLASH memory.

10 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

• In the shortcut menu, please confirm there is no check mark beside the [Online] command

before logging on.

• For methods on logging on, refer to the User's Manual of the External Device.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank. 
Communication is not possible when a connection parameter is set.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

21

 Ladder Software Setting (for MPE720 Ver.6)

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Save the settings and exit [Engineering Manager].
7 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
8 Write the settings to the communication module.

9 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank.
Communication is not possible when a connection parameter is set.

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

22

3.4 Setting Example 4

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

23

 Settings of External Device

Use the ladder software (MPE720) to set up communication settings for the communication module 218IF-01.

For details on communication settings, please refer to the manual of the External Device.

The setup procedure differs depending on the version of your ladder software.

 Ladder Software Setting (for MPE720 Ver.5)

1 Start the ladder software, and in the root folder make the order and PLC folders.
2 Right-click the generated External Device, and from the shortcut menu select Logon.

3 From the PLC folder, double-click the [Definition folder]’s [Module Configuration] to display the [Engineering

Manager].

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Save the settings and exit [Engineering Manager].
7 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
8 Transfer the settings to the communication module.
9 While online, logon to the External Device. Write the transferred data to FLASH memory.

10 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

• In the shortcut menu, please confirm there is no check mark beside the [Online] command

before logging on.

• For methods on logging on, refer to the User's Manual of the External Device.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank. 
Communication is not possible when a connection parameter is set.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

24

 Ladder Software Setting (for MPE720 Ver.6)

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Engineering Manager]’s [Controller], use the pull-down menu to select the rack classification and

communication module.

Set the number associated with the slot number used by the communication module.

When you select the communication module, its setting information is displayed in the [Engineering Manager]’s

[Module details].

5 In the in [Module details], double-click the No. field’s numeric portion.

Double-click the number associated with the slot number connected to the Ethernet unit.

6 Save the settings and exit [Engineering Manager].
7 After turning ON the communication module’s "INIT" DIP Switch, turn ON the power supply.
8 Write the settings to the communication module.

9 Turn OFF the External Device’s power supply, turn OFF the "INIT" DIP Switch, and turn the External Device’s

power back ON.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

Transmission parameter This Station IP address PLC IP address

• Please make the connection parameter blank.
Communication is not possible when a connection parameter is set.

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

25

3.5 Setting Example 5

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -V Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

26

 Settings of External Device

Set communication settings for both MP and -V Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then set [ST#]’s [01] field as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to the MP Series.

Setup Items Setup Description

TYPE Select the type of -V Series you are using.

• [ST#] is defined based on the -V Series station address. 

When the station address is 41H, define "ST#01".

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

27

 -V Series Setting

Set up communication settings with the DIP Switch (SW2) and the rotary switch (SW1). For example, when the

SW2-3 is OFF and SW1 is 1, the station address is 41H.

For details on communication settings, please refer to the manual for the External Device.

• DIP Switch (SW2) Setting

• Rotary Switch (SW1) Setting

Set the station address in combination with the DIP Switch (SW2), number 3.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

DIP Switch Settings Setup Description

1 ON Communication speed: 10Mbps (MECHATROLINK-II)

2 Optional

Data transfer size.
ON: 32-byte data transfer
OFF: 17-byte data transfer

3 OFF

Define the station address in combination with the rotary switch (SW1).
ON: Tenth’s position of station address is 0x5
OFF: Tenth’s position of station address is 0x4

4 OFF Always OFF

Rotary Switch Settings Setup Description

SW1 1 Ones place of the station address

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

28

3.6 Setting Example 6

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -V Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

29

 Settings of External Device

Set communication settings for both MP and -V Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then set [ST#]’s [01] field as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to the MP Series.

Setup Items Setup Description

TYPE Select the type of -V Series you are using.

• [ST#] is defined based on the -V Series station address. 

When the station address is 41H, define "ST#01".

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

30

 -V Series Setting

Set up communication settings with the DIP Switch (SW2) and the rotary switch (SW1). For example, when the

SW2-3 is OFF and SW1 is 1, the station address is 41H.

For details on communication settings, please refer to the manual for the External Device.

• DIP Switch (SW2) Setting

• Rotary Switch (SW1) Setting

Set the station address in combination with the DIP Switch (SW2), number 3.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

DIP Switch Settings Setup Description

1 ON Communication speed: 10Mbps (MECHATROLINK-II)

2 Optional

Data transfer size.
ON: 32-byte data transfer
OFF: 17-byte data transfer

3 OFF

Define the station address in combination with the rotary switch (SW1).
ON: Tenth’s position of station address is 0x5
OFF: Tenth’s position of station address is 0x4

4 OFF Always OFF

Rotary Switch Settings Setup Description

SW1 1 Ones place of the station address

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

31

3.7 Setting Example 7

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -V Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

32

 Settings of External Device

Set communication settings for both MP and -V Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then [ST#]’s [01] as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to MP Series.

Setup Items Setup Description

ADR 03H

ExADR 00

VENDOR Yaskawa Electric co.

DEVICE -V Series type

• [PROFILE], [BYTE] and [SCAN] are defined automatically.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

33

 -V Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

34

3.8 Setting Example 8

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -V Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

35

 Settings of External Device

Set communication settings for both MP and -V Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then [ST#]’s [01] as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to MP Series.

Setup Items Setup Description

ADR 03H

ExADR 00

VENDOR Yaskawa Electric co.

DEVICE -V Series type

• [PROFILE], [BYTE] and [SCAN] are defined automatically.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

36

 -V Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

37

3.9 Setting Example 9

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set the Display's IP address in its offline mode.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

38

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 Click [Module Configuration] to start [MC-Configurator].
4 Double-click [218IFD] on the CPU you want to use.
5 Click the [Transmission Parameters] tab.
6 In the [Transmission Parameters], set the [IP Address] and [Subnet Mask].

7 Write the settings to the External Device.
8 Turn ON the External Device again.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

39

3.10 Setting Example 10

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set the Display's IP address in offline mode.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

40

 Settings of External Device

For details on communication settings, please refer to the manual of the External Device.

 Setup Procedure

1 Press UP to display the Parameter Setting Mode screen. Press ENTER to change to Set Up Mode.
2 Press UP to display setup items. Press ENTER key to change to setup screen.
3 Press UP or RESET to select the setup value. Press ENTER to set up a description.

 Setup Description

Setup Items Setup value Description

b1-02

*1

*1 Set b1-01 to 3 when you set the frequency via MECHATROLINK.

3 Run Command Selection (Option Card)

F6-20 21 MECHATROLINK station address

F6-22 0 MECHATROLINK link rate (10Mbps)

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

41

3.11 Setting Example 11

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set the Display's IP address in offline mode.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

42

 Settings of External Device

For details on communication settings, please refer to the manual of the External Device.

 Setup Procedure

1 Press UP to display the Parameter Setting Mode screen. Press ENTER to change to Set Up Mode.
2 Press UP to display setup items. Press ENTER key to change to setup screen.
3 Press UP or RESET to select the setup value. Press ENTER to set up a description.

 Setup Description

Setup Items Setup value Description

b1-02

*1

*1 Set b1-01 to 3 when you set the frequency via MECHATROLINK.

3 Run Command Selection (Option Card)

F6-20 21 MECHATROLINK station address

F6-22 0 MECHATROLINK link rate (10Mbps)

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

43

3.12 Setting Example 12

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

44

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the module number corresponding to the option slot which attaches MPU-01 in the [MC-

Configurator]

8 Select [MPU-01] in the [Module] dialog box, and click [OK].
9 Set "3" to the circuit number of MPU-01 that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

45

3.13 Setting Example 13

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

46

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) MPU-01 settings

(3) -Vseries settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the module number corresponding to the option slot which attaches MPU-01 in the [MC-

Configurator]

8 Select [MPU-01] in the [Module] dialog box, and click [OK].
9 Set "3" to the circuit number of MPU-01 that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 MPU-01 Settings

1 Start the ladder software.
2 Make a project file. Select "MPU-01" from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of [MPU-01] module, and double-click [01 UNDEFINED].
5 Select the using -V series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added V-series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

47

8 Write the settings to the MPU-01 series.

 -V Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

48

3.14 Setting Example 14

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

49

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) MPU-01 settings

(3) -Vseries settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the module number corresponding to the option slot which attaches MPU-01 in the [MC-

Configurator]

8 Select [MPU-01] in the [Module] dialog box, and click [OK].
9 Set "3" to the circuit number of MPU-01 that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 MPU-01 Settings

1 Start the ladder software.
2 Make a project file. Select "MPU-01" from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of [MPU-01] module, and double-click [01 UNDEFINED].
5 Select the using -V series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added V-series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

50

8 Write the settings to the MPU-01 series.

 -V Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

51

3.15 Setting Example 15

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

52

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the number of module which attaches a sub CPU in [MC-Configurator].
8 Select a sub CPU to be used in the [Module] dialog box, and click [OK].
9 Set "5" to the circuit number of Sub CPU that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

53

3.16 Setting Example 16

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

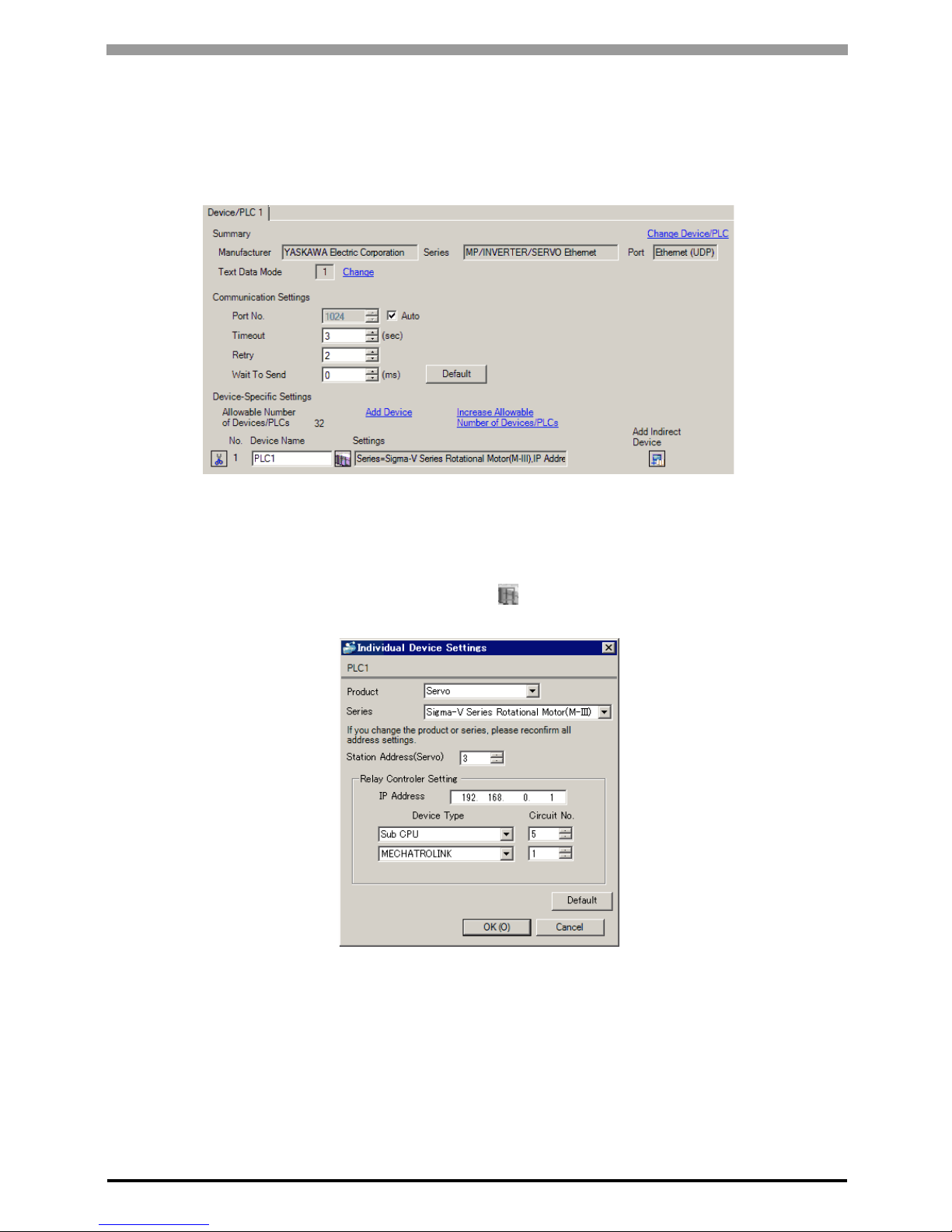

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

54

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) Sub CPU settings

(3) -Vseries settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the number of module which attaches a sub CPU in [MC-Configurator].
8 Select a sub CPU to be used in the [Module] dialog box, and click [OK].
9 Set "5" to the circuit number of Sub CPU that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 Sub CPU Settings

1 Start the ladder software.
2 Make a project file. Select a Sub CPU to be used from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of Sub CPU, and double-click [01 UNDEFINED].
5 Select the using -V series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added V-series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

55

8 Write the settings to the Sub CPU.

 -V Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

56

3.17 Setting Example 17

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

57

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) Sub CPU settings

(3) -Vseries settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the number of module which attaches a sub CPU in [MC-Configurator].
8 Select a sub CPU to be used in the [Module] dialog box, and click [OK].
9 Set "5" to the circuit number of Sub CPU that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 Sub CPU Settings

1 Start the ladder software.
2 Make a project file. Select a sub CPU to be used from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of Sub CPU, and double-click [01 UNDEFINED].
5 Select the using -V series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added V-series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

58

8 Write the settings to the Sub CPU.

 -V Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

59

3.18 Setting Example 18

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -7 Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

60

 Settings of External Device

Set communication settings for both MP and -7 Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then set [ST#]’s [01] field as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to the MP Series.

Setup Items Setup Description

TYPE Select the type of -7 Series you are using.

• [ST#] is defined based on the -7 Series station address. 

When the station address is 41H, define "ST#01".

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box. 
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

61

 -7 Series Setting

Set up communication settings with the DIP Switch (SW2) and the rotary switch (SW1). For example, when the

SW2-3 is OFF and SW1 is 1, the station address is 41H.

For details on communication settings, please refer to the manual for the External Device.

• DIP Switch (SW2) Setting

• Rotary Switch (SW1) Setting

Set the station address in combination with the DIP Switch (SW2), number 3.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

DIP Switch Settings Setup Description

1 ON Communication speed: 10Mbps (MECHATROLINK-II)

2 Optional

Data transfer size.
ON: 32-byte data transfer
OFF: 17-byte data transfer

3 OFF

Define the station address in combination with the rotary switch (SW1).
ON: Tenth’s position of station address is 0x5
OFF: Tenth’s position of station address is 0x4

4 OFF Always OFF

Rotary Switch Settings Setup Description

SW1 1 Ones place of the station address

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

62

3.19 Setting Example 19

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -7 Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

63

 Settings of External Device

Set communication settings for both MP and -7 Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then [ST#]’s [01] as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to MP Series.

Setup Items Setup Description

ADR 03H

ExADR 00

VENDOR Yaskawa Electric co.

DEVICE -7 Series type

• [PROFILE], [BYTE] and [SCAN] are defined automatically.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

64

 -7 Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

65

3.20 Setting Example 20

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

66

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) MPU-01 settings

(3) -7 series settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the module number corresponding to the option slot which attaches MPU-01 in the [MC-

Configurator]

8 Select [MPU-01] in the [Module] dialog box, and click [OK].
9 Set "3" to the circuit number of MPU-01 that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 MPU-01 Settings

1 Start the ladder software.
2 Make a project file. Select "MPU-01" from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of [MPU-01] module, and double-click [01 UNDEFINED].
5 Select the using -7 series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added -7 series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

67

8 Write the settings to the MPU-01 series.

 -7 Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

68

3.21 Setting Example 21

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

69

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) Sub CPU settings

(3) -7 series settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the number of module which attaches a sub CPU in [MC-Configurator].
8 Select a sub CPU to be used in the [Module] dialog box, and click [OK].
9 Set "5" to the circuit number of Sub CPU that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 Sub CPU Settings

1 Start the ladder software.
2 Make a project file. Select a Sub CPU to be used from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of Sub CPU, and double-click [01 UNDEFINED].
5 Select the using -7 series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added -7 series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

70

8 Write the settings to the Sub CPU.

 -7 Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

71

3.22 Setting Example 22

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

• To connect -7 Series using a 1:n connection, [Wait To Send] must be 100ms or
more.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

72

 Settings of External Device

Set communication settings for both MP and -7 Series.

 MP Series Setting

Use the ladder software (MPE720) to set up communication settings.

For details on communication settings, please refer to the manual of the External Device.

1 Start the ladder software.
2 Make a project file.
3 From the tree view, double-click [Module Configuration].

[Engineering Manager] starts.

4 In the [Create new file] dialog box, click [OK].
5 In the [Engineering Manager]’s [Controller], use the pull-down menu to select MECHATROLINK connection

module.

Select the number associated with the slot number used by the module.

When you select the MECHATROLINK connection module, its setting information is displayed in the

[Engineering Manger]’s [Module details].

6 In the [module Details]’s [Circuit Number] field, enter "01".

Set up the same value as the Display’s circuit number.

7 In [Details], double-click [MECHATROLINK].
8 Click the [Link Assignments] tab, and then [ST#]’s [01] as follows.

9 In the [Engineering Manager]’s [Controller], select CPU.

10 In the [Module details], double-click the communication module’s No. field.

11 Set [Transmission Parameters] as follows.

12 From the [File] menu select [Save] to save your settings, and exit [Engineering Manager].
13 Write the settings to MP Series.

Setup Items Setup Description

ADR 03H

ExADR 00

VENDOR Yaskawa Electric co.

DEVICE -7 Series type

• [PROFILE], [BYTE] and [SCAN] are defined automatically.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

73

 -7 Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

74

3.23 Setting Example 23

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

75

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) MPU-01 settings

(3) -7 series settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the module number corresponding to the option slot which attaches MPU-01 in the [MC-

Configurator]

8 Select [MPU-01] in the [Module] dialog box, and click [OK].
9 Set "3" to the circuit number of MPU-01 that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 MPU-01 Settings

1 Start the ladder software.
2 Make a project file. Select "MPU-01" from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of [MPU-01] module, and double-click [01 UNDEFINED].
5 Select the using -7 series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added -7 series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

76

8 Write the settings to the MPU-01 series.

 -7 Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

77

3.24 Setting Example 24

 Settings of GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• Set IP address on the External Device address in the [Individual Device Settings] dialog box.

• You need to set IP address on the Display in the offline mode of the Display.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

78

 Settings of External Device

Use the ladder software (MP720 Ver.7) to set up communication settings. Set the next contents.

(1) Main CPU settings

(2) Sub CPU settings

(3) -7 series settings

For details on communication settings, please refer to the manual of the External Device.

 Main CPU Settings

1 Start the ladder software.
2 Make a project file. Select the main CPU models from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Double-click [218IFD] on the CPU to use.
5 Click [Parameters] tab.
6 Set "IP Address" and "Subnet Mask" of "Transmission Parameters".

7 Double-click the number of module which attaches a sub CPU in [MC-Configurator].
8 Select a sub CPU to be used in the [Module] dialog box, and click [OK].
9 Set "5" to the circuit number of Sub CPU that displayed in the [MC-Configurator].

Set up the same value as the Display’s circuit number.

10 Write the settings to the External Device.

 Sub CPU Settings

1 Start the ladder software.
2 Make a project file. Select a Sub CPU to be used from [Model].
3 From the tree view, double-click [Module Configuration].

[MC-Configurator] starts.

4 Expand [SVC] of Sub CPU, and double-click [01 UNDEFINED].
5 Select the using -7 series of [Slave] dialog box, and click [OK].
6 Set "1" to the circuit number of [SVC].
7 Set "3" to the station address of the added -7 series.

Setup Items Setup Description

IP Address 192.168.0.1

Subnet Mask 255.255.255.0

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

79

8 Write the settings to the Sub CPU.

 -7 Series Setting

Set up communication settings with rotary switches (S1 and S2).

For details on communication settings, please refer to the manual of the External Device.

 Notes

• Check with a network administrator about IP address. Do not set the duplicate IP address.

• To write the settings, select the [Save to flash after transferring to the controller] check
box.
If the data is transferred without selecting the check box, the transferred data is
deleted when restarting the External Device.

Rotary Switch Settings Setup Description

S1 (x16) 0

Station address

S2 (x1) 3

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

80

4 Setup Items

Set up the Display’s communication settings in GP Pro-EX or in the Display’s offline mode.

The setting of each parameter must match that of the External Device.

"3 Communication Settings" (page 13)

4.1 Setup Items in GP-Pro EX

 Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

• Set the Display’s IP address in offline mode.

Cf. Maintenance/Troubleshooting Guide "Ethernet Settings"

Setup Items Setup Description

Port No.

Enter a port number of the External Device, using 1024 to 65535. Check into [Auto], and a
port number is set automatically.

Timeout

Use an integer from 1 to 127 to enter the time (s) for which Display waits for the response
from External Device.

Retry

In case of no response from the External Device, use an integer from 0 to 255 to enter how
many times the Display retransmits the command.

Wait To Send

Use an integer from 0 to 255 to enter standby time (ms) for the Display from receiving
packets to transmitting next commands.

Increase Allowable
Number of Devices/
PLCs

When clicked, the [Increase Allowable Number of Devices/PLCs] dialog box is displayed.
When you check [Increase allowable number of Devices/PLCs], the settings for
[Allowable Number of Devices/PLCs] can be extended to "64".

• Refer to the GP-Pro EX Reference Manual for Indirect Device.

Cf. GP-Pro EX Reference Manual "Changing the Device/PLC at Runtime (Indirect

Device)"

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

81

 Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the External Device and click [Settings] . To connect multiple External Devices, from

[Device-Specific Settings] in the [Device/PLC] window, click [Add Device] to add another External Device.

Setup Items Setup Description

Product Select the product name of the External Device.

Access to MPU-01 /
Access to Sub CPU

Uncheck the check box when communicating with MP2000 series / MP3000 series.

IP Address

Set IP address of the External Device.

• Check with a network administrator about IP address. Do not set the duplicate IP
address.

MP2000 Series MP3000 Series

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

82

Setup Items Setup Description

Product Select the product name of the External Device.

Access to MPU-01 /
Access to Sub CPU

Check the check box when using MPU-01 and Sub CPU.

Uncheck the check box when using an Ethernet port on the Sub CPU.

IP Address

Set IP address of the relay device (MP Series).

• Check with a network administrator about IP address. Do not set the duplicate IP
address.

Device Type Select a device type to be used for relay.

Circuit No. Enter the circuit number, from 1 to 16.

MPU-01 Sub CPU

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

83

Setup Items Setup Description

Product Select the product name of the External Device.

Series Select the series of the External Device.

Station Address

Inverter Series: Enter the station number, from 1 to 255.
Servo Series: Enter the station number as follows.
MECHATROLINK-II: "65 to 79" and "80 to 95"
MECHATROLINK-III: "3 to 239"

Axis No.

Enter the Axis number, from 1 to 2.
Available with -7W series only.

IP Address

Set IP address of the relay device (MP Series).

• Check with a network administrator about IP address. Do not set the duplicate IP
address.

Device Type Select a device type to be used for relay.

Circuit No. Enter the circuit number, from 1 to 16.

• When communicating with the Servo Series, the first three octets in the subnet mask

should be set to 255.

e.g.: 255.255.255.0

Inverter Series Servo Series

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

84

4.2 Setup Items in Offline Mode

 Communication Settings

To display the setting screen, touch [Device/PLC Settings] from [Peripheral Settings] in offline mode. Touch the

External Device you want to set from the displayed list.

• Please refer to Maintenance/Troubleshooting Guide for more information on how to enter

offline mode or about operation.

Cf. Maintenance/Troubleshooting Guide "Offline Mode"

• The number of the setup items to be displayed for 1 page in the offline mode depends on the

Display in use. Please refer to the Reference manual for details.

Setup Items Setup Description

Port No.

Enter a port number of the Display.
Select either of "Fixed" "Auto". Enter a port number of the Display with "1024-65535",
when select "Fixed". Assign automatically without affecting the input value, when select
"Auto".

Timeout

Use an integer from 1 to 127 to enter the time (s) for which Display waits for the response
from External Device.

Retry

In case of no response from the External Device, use an integer from 0 to 255 to enter how
many times the Display retransmits the command.

Wait To Send

Use an integer from 0 to 255 to enter standby time (ms) for the Display from receiving
packets to transmitting next commands.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

85

 Device Setting

To display the setting screen, touch [Device/PLC Settings] from [Peripheral Settings] in offline mode. Touch the

External Device you want to set from the displayed list, and touch [Device].

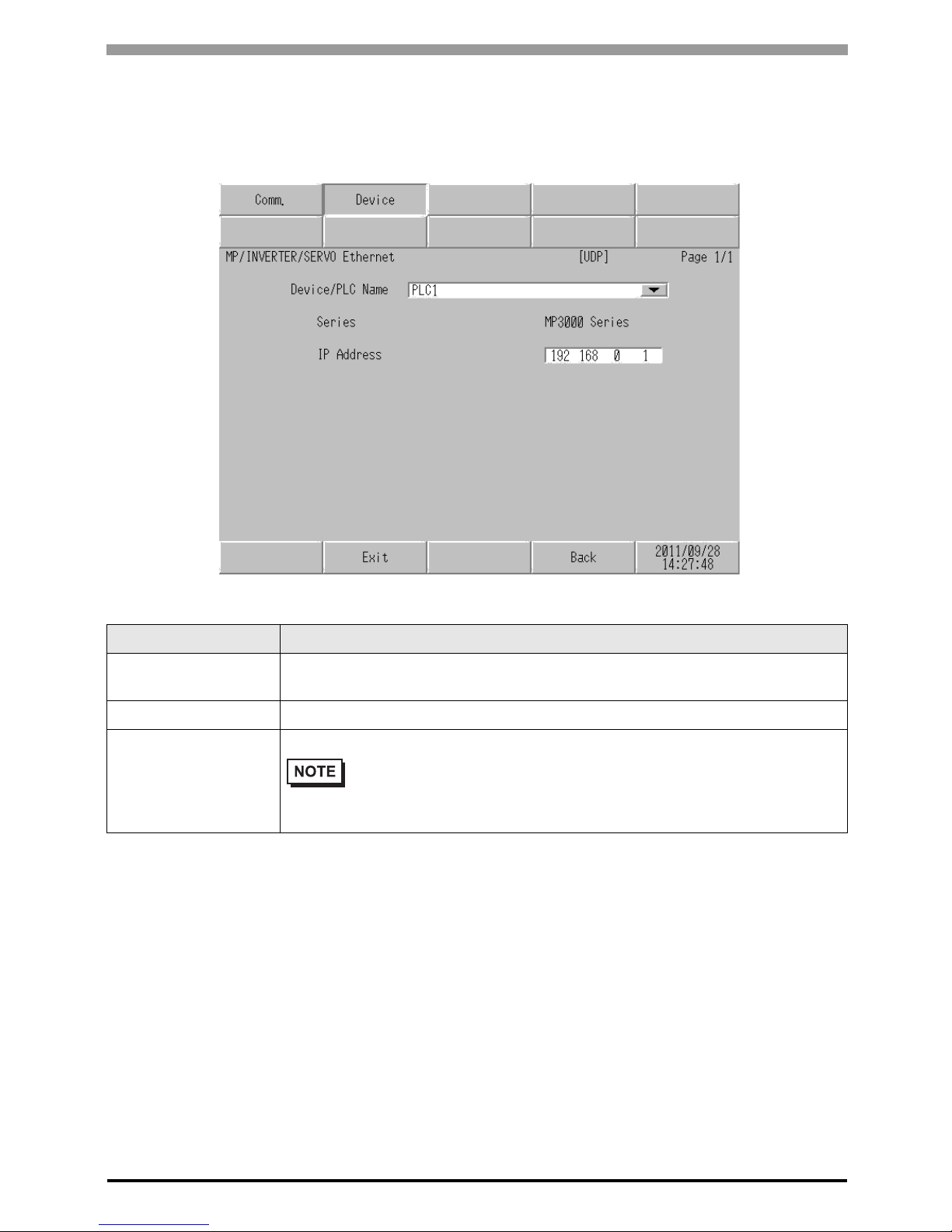

Setup Items Setup Description

Device/PLC Name

Select the External Device for device setting. Device name is a title of the External Device
set with GP-Pro EX. (Initial value [PLC1])

Series Display the series of the External Device.

IP Address

Set IP addresses used by the External Device or relay device (MP Series).

• Check with a network administrator about IP address. Do not set the duplicate IP
address.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

86

5 Supported Devices

Range of supported device address is shown in the table below. Please note that the actually supported range of

the devices varies depending on the External Device to be used. Please check the actual range in the manual of

your External Device.

5.1 MP2000 Series / MPU-01

This address can be specified as system data area.

5.2 MP3000 Series / Sub CPU

This address can be specified as system data area.

Device Bit Address Word Address

32

bits

Notes

System registers SB000000 - SB08191F SW00000 - SW08191

Input registers IB00000 - IBFFFFF IW0000 - IWFFFF

*1

*1 As for Input and Output registers, device 0x9000-0xFFFF cannot be written.

Output registers OB00000 - OBFFFFF OW0000 - OWFFFF

*1

Data registers MB000000 - MB65534F MW00000 - MW65534

• Please refer to the GP-Pro EX Reference Manual for system data area.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

• Please refer to the precautions on manual notation for icons in the table.

"Manual Symbols and Terminology"

Device Bit Address Word Address

32

bits

Notes

System registers SB000000 - SB65534F SW00000 - SW65534

Input registers IB000000 - IB27FFFF IW00000 - IW27FFF

*1

*1 As for Input and Output registers, device 0x9000-0xFFFF cannot be written.

Output registers OB000000 - OB27FFFF OW00000 - OW27FFF

*1

Data registers

MB00000000 -

MB1048575F

MW0000000 -

MW1048575

G registers

GB000000000 -

GB02097151F

GW00000000 -

GW02097151

• Please refer to the GP-Pro EX Reference Manual for system data area.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

• Please refer to the precautions on manual notation for icons in the table.

"Manual Symbols and Terminology"

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

87

5.3 Inverter Series

This address can be specified as system data area.

Device Bit Address Word Address

32

bits

Notes

Bit registers

*1

*1 In the Inverter, bit registers and registers use the same device. Bit registers are used only for bit

addresses.
The access method when specifying bits varies depending on the device.

Bit registers.................................BR0000.0 - BR195C.F

Registers .....................................

BR0000.0 - BR195C.F - -

*2

*2 The available register numbers and available read/write operations differ depending on the

External Device model. For further information, refer to the instruction manual for your External
Device.

Registers

*1

- 0000~195C

*2

• You can only set the Read Area Size for the system area in the External Device. Please refer

to the GP-Pro EX Reference Manual for Read Area Size.

• Please refer to the GP-Pro EX Reference Manual for system data area.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

• Please refer to the precautions on manual notation for icons in the table.

"Manual Symbols and Terminology"

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

88

5.4 -V Series

This address can be specified as system data area.

Device Bit Address Word Address

32

bits

Notes

Normal Parameters Area 0000.0 - 0FFF.F 0000 - 0FFF

*1 *2

*1 When you write to the bit address, the Display reads the entire word, sets the defined bit, then returns the

new word value to the External Device. If the ladder program writes data to this word address during the bit
write process, the resulting data may be incorrect.

*2 The following addresses are 32 bit parameters. Please use two words when reading or writing.

Temporary Parameters Area 1000.0 - 1FFF.F 1000 - 1FFF

*1 *2

Monitor Area E000.0 - EFFF.F E000 - EFFF

*1 *2

• You can only set the Read Area Size for the system area available to use in the External

Device. Please refer to the GP-Pro EX Reference Manual for Read Area Size.

• Please refer to the GP-Pro EX Reference Manual for system data area.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

• Please refer to the precautions on manual notation for icons in the table.

"Manual Symbols and Terminology"

• Normal Parameters Area
020AH / 020EH / 0210H / 0212H / 0282H / 051BH / 0520H / 0522H / 0524H / 0526H / 0531H /
0804H / 0806H / 0808H / 0814H / 0819H / 0820H / 0822H / 0834H / 0836H / 0838H / 083AH /
083CH / 083EH / 0840H / 0890H / 0892H / 0894H / 0896H / 0898H / 089AH / 089CH / 089EH /
08A0H / 08A2H / 08A4H / 08A6H / 08A8H / 08AAH / 08ACH / 08AEH / 08B0H / 08B2H / 08B4H /
08B6H / 08B8H / 08BAH / 08BCH / 08BEH / 0A02H / 0A04H / 0A06H / 0A08H / 0A0AH / 0A0CH /
0A0EH / 0A10H / 0A12H / 0A14H / 0A16H / 0A18H / 0A42H / 0A44H / 0A46H / 0A48H / 0A4AH /
0A4CH / 0A4EH / 0A50H / 0A52H / 0A82H / 0A84H / 0A86H / 0A88H / 0A8AH / 0A8CH / 0A8EH /
0A90H / 0A92H / 0AC2H / 0AC4H / 0AC6H / 0AC8H / 0ACAH / 0ACCH / 0ACEH / 0B02H / 0B04H /
0B06H / 0B08H / 0B0AH / 0B0CH / 0B0EH / 0B10H / 0B12H / 0B14H / 0B16H / 0B18H / 0B1AH /
0B1CH / 0B1EH / 0B20H / 0B22H / 0B24H / 0B26H /

• Temporary Parameters Area
120AH / 120EH / 1210H / 1212H / 1282H / 151BH / 1520H / 1522H / 1524H / 1526H / 1531H /
1804H / 1806H / 1808H / 1814H / 1819H / 1820H / 1822H / 1834H / 1836H / 1838H / 183AH /
183CH / 183EH / 1840H / 1890H / 1892H / 1894H / 1896H / 1898H / 189AH / 189CH / 189EH /
18A0H / 18A2H / 18A4H / 18A6H / 18A8H / 18AAH / 18ACH / 18AEH / 18B0H / 18B2H / 18B4H /
18B6H / 18B8H / 18BAH / 18BCH / 18BEH / 1A02H / 1A04H / 1A06H / 1A08H / 1A0AH / 1A0CH /
1A0EH / 1A10H / 1A12H / 1A14H / 1A16H / 1A18H / 1A42H / 1A44H / 1A46H / 1A48H / 1A4AH /
1A4CH / 1A4EH / 1A50H / 1A52H / 1A82H / 1A84H / 1A86H / 1A88H / 1A8AH / 1A8CH / 1A8EH /
1A90H / 1A92H / 1AC2H / 1AC4H / 1AC6H / 1AC8H / 1ACAH / 1ACCH / 1ACEH / 1B02H / 1B04H /
1B06H / 1B08H / 1B0AH / 1B0CH / 1B0EH / 1B10H / 1B12H / 1B14H / 1B16H / 1B18H / 1B1AH /
1B1CH / 1B1EH / 1B20H / 1B22H / 1B24H / 1B26H /

• Monitor Area
E003H / E009H / E00EH / E010H / E012H / E016H / E01BH / E084H / E52AH / E52CH / E52EH /
E530H / E532H / E534H / E536H / E538H / E53AH / E53CH / E601H / E603H / E605H / E707H

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

89

 Normal Parameters Area

This area is used to map the External Device’s user constant parameters. The register number is defined by adding

the Pn number and the offset value. The normal parameters area offset value is 0000H.

For details on the Pn number and register mapping, please refer to the manual of the External Device.

 Temporary Parameters Area

This area is used to map the External Device’s user constant parameters. The register number is defined by adding

the Pn number and the offset value. The temporary parameters area offset value is 1000H.

For details on the Pn number and register mapping, please refer to the manual of the External Device.

Since writing to Temporary Parameters Area is run in volatile memory (such as RAM), values are cleared when

the External Device is turned OFF.

If there is an operation, such as servo tuning, that requires an extreme number of write operations to memory,

running the operation in the Temporary Parameters Area generates the following advantages.

• You can increase the life of non-volatile memory.

• You can reduce processing time.

Operation Description

Read

Reads volatile memory such as RAM for values. Unable to read values from non-volatile
memory such as EEPROM.

Write Writes values to volatile memory such as RAM, and non-volatile memory such as EEPROM.

• You cannot run consecutive reads from, or consecutive writes to, different register groups.
Example: When consecutively reading from or writing to 07FFH to 0800H, the message "Data
Consistency Error (33H)" or "Access Denied Error (31H)" is displayed.

• If you specify a nonexistent register number, the message "Access Denied Error (31H)," is

displayed.

Operation Description

Read Reads volatile memory such as RAM for values.

Write Writes values to volatile memory such as RAM.

• You cannot run consecutive reads from, or consecutive writes to, different register groups.
Example: When consecutively reading from or writing to 17FFH to 1800H, the message "Data
Consistency Error (33H)" or "Access Denied Error (31H)" is displayed.

• If you specify a nonexistent register number, the message "Access Denied Error (31H)," is

displayed.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

90

 Monitor Area

This area is used to reference internal information (such as operating condition, alarm status, and various status

flags) on the External Device. By referring to the value of a register number, you can check the status of the

External Device. While the External Device is running, register values change constantly.

Register

No.

Name Unit

No. of

Registers

Sign Remarks

E000H Motor Rotational/Translational Speed

Rotary: min

-1

1 S Un000

Linear: mm/s

E001H Reference Speed

Rotary: min

-1

1 S Un001

Linear: mm/s

E002H Internal Torque/Thrust Force Reference % 1 S Un002

E003H

Rotational Angle 1 
(Number of Pulses from the Origin)

Pulse 2 U Un003

E005H

Rotational Angle 2 
(Angle from the Origin)

deg 1 U Un004

E006H Input Signal Monitor - 1 - Un005

E007H Output Signal Monitor - 1 - Un006

E008H Input Reference Pulse Speed

Rotary: min

-1

1 S Un007

Linear: mm/s

E009H Position Error Counter Reference unit 2 S Un008

E00BH Accumulated Load Rate %(10s cycle) 1 U Un009

E00CH Regenerative Load Rate %(10s cycle) 1 U Un00A

E00DH Dynamic Break Consumption Power %(10s cycle) 1 U Un00B

E00EH Input Reference Pulse Counter (32bit) Pulse 2 S Un00C

E010H Feedback Pulse Counter (32bit) Pulse 2 S Un00D

E012H

Fully-closed Feedback Pulse Counter
(32bit)

Pulse 2 S Un00E

E016H Total Operation Time 100ms 2 U Un012

E018H Upper Limit of Maximum Motor Speed mm/s 1 U

Un010 
(Available only in
linear motor)

E019H

Upper Limit of Divided Pulse Output
Setting

Pulse/Pitch 1 U

Un010
(Available only in
linear motor)

E01AH Magnetic Pole Sensor Information - 1 - Un011

E01BH Feedback Pulse Counter Reference unit 2 S Un013

E01DH Effective Gain Set Number - 1 U Un014

E01EH Safety I/O Signal Monitor - 1 - Un015

E084H Linear Scale Pitch pm 2 U Un084

E086H Linear Scale Pitch Scaling Exponent Power of Ten 1 S Un085

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

91

E500H Alarm History Alarm Code No. = 0 Code 1 U Fn000-0

E501H Alarm History Alarm Code No. = 1 Code 1 U Fn000-1

E502H Alarm History Alarm Code No. = 2 Code 1 U Fn000-2

E503H Alarm History Alarm Code No. = 3 Code 1 U Fn000-3

E504H Alarm History Alarm Code No. = 4 Code 1 U Fn000-4

E505H Alarm History Alarm Code No. = 5 Code 1 U Fn000-5

E506H Alarm History Alarm Code No. = 6 Code 1 U Fn000-6

E507H Alarm History Alarm Code No. = 7 Code 1 U Fn000-7

E508H Alarm History Alarm Code No. = 8 Code 1 U Fn000-8

E509H Alarm History Alarm Code No. = 9 Code 1 U Fn000-9

E50AH Current Alarm Information Code 1 U

E51BH Servo Running Status - 1 U

E51CH Control Mode Status - 1 U

E52AH Alarm History Time Stamp No. = 0 100ms 2 U

E52CH Alarm History Time Stamp No. = 1 100ms 2 U

E52EH Alarm History Time Stamp No. = 2 100ms 2 U

E530H Alarm History Time Stamp No. = 3 100ms 2 U

E532H Alarm History Time Stamp No. = 4 100ms 2 U

E534H Alarm History Time Stamp No. = 5 100ms 2 U

E536H Alarm History Time Stamp No. = 6 100ms 2 U

E538H Alarm History Time Stamp No. = 7 100ms 2 U

E53AH Alarm History Time Stamp No. = 8 100ms 2 U

E53CH Alarm History Time Stamp No. = 9 100ms 2 U

Register

No.

Name Unit

No. of

Registers

Sign Remarks

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

92

• Input Signal Monitor (E006H)

MECHATROLINK Interface Type

• Output Signal Monitor (E007H)

MECHATROLINK Interface Type

Bit Status Signal Logic Un No.

0 SI0(CN1-13)

0 = Lo (Close)
1 = Hi (Open)

Un005

1 SI1(CN1-7)

0 = Lo (Close)
1 = Hi (Open)

2 SI2(CN1-8)

0 = Lo (Close)
1 = Hi (Open)

3 SI3(CN1-9)

0 = Lo (Close)
1 = Hi (Open)

4 SI4(CN1-10)

0 = Lo (Close)
1 = Hi (Open)

5 SI5(CN1-11)

0 = Lo (Close)
1 = Hi (Open)

6 SI6(CN1-12)

0 = Lo (Close)
1 = Hi (Open)

7 Reserved

Bit Status Signal Logic Un No.

0 ALM(CN1-3,4)

0 = Lo (Close)
1 = Hi (Open)

Un006

1 SO1(CN1-1,2)

0 = Lo (Close)
1 = Hi (Open)

2 SO2(CN1-23,24)

0 = Lo (Close)
1 = Hi (Open)

3 SO3(CN1-25,26)

0 = Lo (Close)
1 = Hi (Open)

4 Reserved

5 Reserved

6 Reserved

7 Reserved

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

93

• Safety I/O Signal Monitor (E01EH)

• Servo Running Status (E51BH)

• Control Mode Status (E51CH)

Bit Status Signal Logic Un No.

0 /HWBB1(CN8-3,4)

0 = Lo (Close)
1 = Hi (Open)

Un015

1 /HWBB2(CN8-5,6)

0 = Lo (Close)
1 = Hi (Open)

2 to 7 Reserved

• /HWBB1 and /HWBB2 are valid only when the safety option card is not connected. When the

safety option card is connected, they become indefinite.

Reading Description

0000H Reserved (Initial State)

0001H Alarm Occurred (A.***)

0002H Hardwired Base Blocked (HWBB)

0003H Forward / Reverse Run Prohibited (PTNT)

0004H Forward Run Prohibited (P-OT)

0005H Reverse Run Prohibited (N-OT)

0006H Base Blocked (BB)

0007H Base Enabled (RUN)

0008H Magnetic Pole Detecting (PDET)

Reading Description

0000H Speed Control Mode

0001H Position Control Mode

0002H Torque Control Mode

• JOG Drive Mode, Origin Search Mode, and Internally Set Speed Control Mode become Speed

control mode.

• Programmed JOG Drive Mode, Advanced Auto-Tuning Mode, and Easy FFT Mode become

Position Control Mode.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

94

5.5 -7 Series

This address can be specified as system data area.

Device Bit Address Word Address

32

bits

Notes

Normal Parameters Area 0000.0 - 0FFF.F 0000 - 0FFF

*1 *2 *3

*1 When you write to the bit address, the Display reads the entire word, sets the defined bit, then returns the

new word value to the External Device. If the ladder program writes data to this word address during the bit
write process, the resulting data may be incorrect.

*2 You cannot run block read or block write with the following addresses.

07FFH - 0800H
17FFH - 1800H

*3 The following addresses are 32 bit parameters. Please use two words when reading or writing.

Temporary Parameters Area 1000.0 - 1FFF.F 1000 - 1FFF

*1 *2 *3

Monitor Area E000.0 - EFFF.F E000 - EFFF

*1 *3

• You can only set the Read Area Size for the system area available to use in the External

Device. Please refer to the GP-Pro EX Reference Manual for Read Area Size.

• Please refer to the GP-Pro EX Reference Manual for system data area.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

• Please refer to the precautions on manual notation for icons in the table.

"Manual Symbols and Terminology"

Normal Parameters Area

020AH / 020EH / 0210H / 0212H / 0231H / 0282H / 051BH / 0520H / 0522H / 0524H / 0526H /
0531H / 0804H / 0806H / 0808H / 0814H / 0819H / 0820H / 0822H / 0834H / 0836H / 0838H /
083AH / 083CH / 083EH / 0840H / 0842H / 0844H / 0890H / 08A8H / 0A02H / 0A04H / 0A06H /
0A08H / 0A0AH / 0A0CH / 0A0EH / 0A10H / 0A12H / 0A14H / 0A16H / 0A18H / 0A42H / 0A44H /
0A46H / 0A48H / 0A4AH / 0A4CH / 0A4EH / 0A50H / 0A52H / 0A82H / 0A84H / 0A86H / 0A88H /
0A8AH / 0A8CH / 0A8EH / 0A90H / 0A92H / 0AC2H / 0AC4H / 0AC6H / 0AC8H / 0ACAH / 0ACCH /
0ACEH / 0B02H / 0B04H / 0B06H / 0B08H / 0B0AH / 0B0CH / 0B0EH / 0B10H / 0B12H / 0B14H /
0B16H / 0B18H / 0B1AH / 0B1CH / 0B1EH / 0B20H / 0B22H / 0B24H / 0B26H/

Temporary Parameters Area

120AH / 120EH / 1210H / 1212H / 1282H / 151BH / 1520H / 1522H / 1524H / 1526H / 1531H /
1804H / 1806H / 1808H / 1814H / 1819H / 1820H / 1822H / 1834H / 1836H / 1838H / 183AH /
183CH / 183EH / 1840H / 1890H / 1892H / 1894H / 1896H / 1898H / 189AH / 189CH / 189EH /
18A0H / 18A2H / 18A4H / 18A6H / 18A8H / 18AAH / 18ACH / 18AEH / 18B0H / 18B2H / 18B4H /
18B6H / 18B8H / 18BAH / 18BCH / 18BEH / 1A02H / 1A04H / 1A06H / 1A08H / 1A0AH / 1A0CH /
1A0EH / 1A10H / 1A12H / 1A14H / 1A16H / 1A18H / 1A42H / 1A44H / 1A46H / 1A48H / 1A4AH /
1A4CH / 1A4EH / 1A50H / 1A52H / 1A82H / 1A84H / 1A86H / 1A88H / 1A8AH / 1A8CH / 1A8EH /
1A90H / 1A92H / 1AC2H / 1AC4H / 1AC6H / 1AC8H / 1ACAH / 1ACCH / 1ACEH / 1B02H / 1B04H /
1B06H / 1B08H / 1B0AH / 1B0CH / 1B0EH / 1B10H / 1B12H / 1B14H / 1B16H / 1B18H / 1B1AH /
1B1CH / 1B1EH / 1B20H / 1B22H / 1B24H / 1B26H /

Monitor Area

E003H / E009H / E00EH / E010H / E012H / E016H / E01BH / E030H / E032H / E035H / E037H /
E084H / E52AH / E52CH / E52EH / E530H / E532H / E534H / E536H / E538H / E53AH / E53CH /
E548H / E54AH / E54CH / E54EH / E550H / E552H / E554H / E556H / EC00H / EC02H / EC04H /
EC06H / EC08H / EC0AH / EC0CH / EC0EH / EC10H / EC12H / EC14H / EC16H

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

95

 Normal Parameters Area

This area is used to map the External Device’s user constant parameters. The register number is defined by adding

the Pn number and the offset value. The normal parameters area offset value is 0000H.

For details on the Pn number and register mapping, please refer to the manual of the External Device.

 Temporary Parameters Area

This area is used to map the External Device’s user constant parameters. The register number is defined by adding

the Pn number and the offset value. The temporary parameters area offset value is 1000H.

For details on the Pn number and register mapping, please refer to the manual of the External Device.

Since writing to Temporary Parameters Area is run in volatile memory (such as RAM), values are cleared when

the External Device is turned OFF.

If there is an operation, such as servo tuning, that requires an extreme number of write operations to memory,

running the operation in the Temporary Parameters Area generates the following advantages.

• You can increase the life of non-volatile memory.

• You can reduce processing time.

Operation Description

Read

Reads volatile memory such as RAM for values. Unable to read values from non-volatile
memory such as EEPROM.

Write Writes values to volatile memory such as RAM, and non-volatile memory such as EEPROM.

• You cannot run consecutive reads from, or consecutive writes to, different register groups.
Example: When consecutively reading from or writing to 07FFH to 0800H, the message "Data
Consistency Error (33H)" or "Access Denied Error (31H)" is displayed.

• If you specify a nonexistent register number, the message "Access Denied Error (31H)," is

displayed.

Operation Description

Read Reads volatile memory such as RAM for values.

Write Writes values to volatile memory such as RAM.

• You cannot run consecutive reads from, or consecutive writes to, different register groups.
Example: When consecutively reading from or writing to 17FFH to 1800H, the message "Data
Consistency Error (33H)" or "Access Denied Error (31H)" is displayed.

• If you specify a nonexistent register number, the message "Access Denied Error (31H)," is

displayed.

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

96

 Monitor Area

This area is used to reference internal information (such as operating condition, alarm status, and various status

flags) on the External Device. By referring to the value of a register number, you can check the status of the

External Device. While the External Device is running, register values change constantly.

Register

No.

Name Unit

No. of

Registers

Sign Remarks

E000H Motor Rotational/Translational Speed

Rotary: min

-1

1S

Un000
Average 64 ms

Linear: mm/s

E001H Reference Speed

Rotary: min

-1

1 S Un001

Linear: mm/s

E002H Internal Torque/Thrust Force Reference % 1 S Un002

E003H

Rotational Angle 1 
(Number of Pulses from the Origin)

Pulse 2 U Un003

E005H

Rotational Angle 2 
(Angle from the Origin)

deg 1 U Un004

E006H Input Signal Monitor - 1 - Un005

E007H Output Signal Monitor - 1 - Un006

E008H Input Reference Pulse Speed

Rotary: min

-1

1S

Un007
Average 64 ms

Linear: mm/s

E009H Position Error Counter Reference unit 2 S Un008

E00BH Accumulated Load Rate %(10s cycle) 1 U Un009

E00CH Regenerative Load Rate %(10s cycle) 1 U Un00A

E00DH Dynamic Break Consumption Power %(10s cycle) 1 U Un00B

E00EH Input Reference Pulse Counter (32bit) Pulse 2 S Un00C

E010H Feedback Pulse Counter (32bit) Pulse 2 S Un00D

E012H

Fully-closed Feedback Pulse Counter
(32bit)

Pulse 2 S Un00E

E016H Total Operation Time 100ms 2 U Un012

E018H Upper Limit of Maximum Motor Speed mm/s 1 U

Un010 
(Available only in
linear motor)

E019H

Upper Limit of Divided Pulse Output
Setting

Pulse/Pitch 1 U

Un010
(Available only in
linear motor)

E01AH Magnetic Pole Sensor Information - 1 - Un011

E01BH Feedback Pulse Counter Reference unit 2 S Un013

E01DH Effective Gain Set Number - 1 U Un014

E01EH Safety I/O Signal Monitor - 1 - Un015

E02CH Installation Environment monitor % 1 S Un025

E02DH

Servomotor Installation Environment
Monitor

% 1 S Un026

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

97

E02EH Main Circuit DC Voltage V 1 S Un023

E030H Backlash Compensation Amount Reference unit 2 S Un030

E032H

Backlash Compensation Setting Upper
Limit

Reference unit 2 U Un031

E034H Power Consumption [W] 1 S Un032

E035H Consumed Power [Wh] 2 S Un033

E037H

Cumulative Power Consumption (integral
part)

[Wh] 2 S Un034

E039H

Cumulative Power Consumption (decimal
part)

[0.001Wh] 1 S

E050H Built-in Fan Remaining Life Ratio 0.01% 1 U Un027

E051H Capacitor Remaining Life Ratio 0.01% 1 U Un028

E052H

Surge Prevention Circuit Remaining Life
Ratio

0.01% 1 U Un029

E053H

Dynamic Brake Circuit Remaining Life
Ratio

0.01% 1 U Un02A

E084H Linear Scale Pitch pm 2 U Un084

E086H Linear Scale Pitch Scaling Exponent Power of Ten 1 S Un085

E500H Alarm History Alarm Code No. = 0 Code 1 U Fn000-0

E501H Alarm History Alarm Code No. = 1 Code 1 U Fn000-1

E502H Alarm History Alarm Code No. = 2 Code 1 U Fn000-2

E503H Alarm History Alarm Code No. = 3 Code 1 U Fn000-3

E504H Alarm History Alarm Code No. = 4 Code 1 U Fn000-4

E505H Alarm History Alarm Code No. = 5 Code 1 U Fn000-5

E506H Alarm History Alarm Code No. = 6 Code 1 U Fn000-6

E507H Alarm History Alarm Code No. = 7 Code 1 U Fn000-7

E508H Alarm History Alarm Code No. = 8 Code 1 U Fn000-8

E509H Alarm History Alarm Code No. = 9 Code 1 U Fn000-9

E50AH Current Alarm Information Code 1 U

E51BH Servo Running Status - 1 U

E51CH Control Mode Status - 1 U

E52AH Alarm History Time Stamp No. = 0 100ms 2 U

E52CH Alarm History Time Stamp No. = 1 100ms 2 U

E52EH Alarm History Time Stamp No. = 2 100ms 2 U

E530H Alarm History Time Stamp No. = 3 100ms 2 U

E532H Alarm History Time Stamp No. = 4 100ms 2 U

E534H Alarm History Time Stamp No. = 5 100ms 2 U

Register

No.

Name Unit

No. of

Registers

Sign Remarks

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

98

E536H Alarm History Time Stamp No. = 6 100ms 2 U

E538H Alarm History Time Stamp No. = 7 100ms 2 U

E53AH Alarm History Time Stamp No. = 8 100ms 2 U

E53CH Alarm History Time Stamp No. = 9 100ms 2 U

E53EH Alarm History Counter 0 - 1 U

E53FH Alarm History Counter 1 - 1 U

E540H Alarm History Counter 2 - 1 U

E541H Alarm History Counter 3 - 1 U

E542H Alarm History Counter 4 - 1 U

E543H Alarm History Counter 5 - 1 U

E544H Alarm History Counter 6 - 1 U

E545H Alarm History Counter 7 - 1 U

E546H Alarm History Counter 8 - 1 U

E547H Alarm History Counter 9 - 1 U

E548H Alarm Trace Data Address 0 - 2 U

E54AH Alarm Trace Data Address 1 - 2 U

E54CH Alarm Trace Data Address 2 - 2 U

E54EH Alarm Trace Data Address 3 - 2 U

E550H Alarm Trace Data Address 4 - 2 U

E552H Alarm Trace Data Address 5 - 2 U

E554H Alarm Trace Data Address 6 - 2 U

E556H Alarm Trace Data Address 7 - 2 U

EC00H Feedback position (APOS) Reference unit 2 S

EC02H Current FFE(CPOS) Reference unit 2 S

EC04H Position deviation (PERR) Reference unit 2 S

EC06H

Target position in the reference coordinate
system (TPOS)

Reference unit 2 S

EC08H

Feedback latch position in the machine
coordinate system １ (LPOS1)

Reference unit 2 S

EC0AH

Feedback latch position in the machine
coordinate system2(LPOS2)

Reference unit 2 S

EC0CH

Feedback latch position in the machine
coordinate system3(LPOS3)

Reference unit 2 S

EC0EH Target Speed (TSPD)

Speed Reference

unit

2S

EC10H Feedback Speed (FSPD)

Speed Reference

unit

2S

Register

No.

Name Unit

No. of

Registers

Sign Remarks

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

99

• Input Signal Monitor (E006H)

-7S

EC12H Reference Speed (CSPD)

Speed Reference

unit

2S

EC14H Torque Limit(TRQ_LIM)

Torque Reference

unit

2U

EC16H Speed Limit(SPD_LIM)

Speed Reference

unit

2U

EC18H M-III Current Communications Phase - 1 U M-III only

EC19H

M-III Current Operating Command Code
(RCMD)

-1U

M-III only
(hexadecimal)

EC1AH

M-III Current Operating Subcommand
Code (SUB_RCMD)

-1U

M-III only
(hexadecimal)

Bit Status Signal Logic Un No.

0 SI0

0 = Lo (Close)
1 = Hi (Open)

Un005

1 SI1

0 = Lo (Close)
1 = Hi (Open)

2 SI2

0 = Lo (Close)
1 = Hi (Open)

3 SI3

0 = Lo (Close)
1 = Hi (Open)

4 SI4

0 = Lo (Close)
1 = Hi (Open)

5 SI5

0 = Lo (Close)
1 = Hi (Open)

6 SI6

0 = Lo (Close)
1 = Hi (Open)

8 to 15 Reserved

Register

No.

Name Unit

No. of

Registers

Sign Remarks

MP/INVERTER/SERVO Ethernet Driver

GP-Pro EX Device/PLC Connection Manual

100

-7W

• Output Signal Monitor (E007H)

-7S

Bit Status Signal Logic Un No.

0 SI0

0 = Lo (Close)
1 = Hi (Open)

Un005

1 SI1

0 = Lo (Close)
1 = Hi (Open)

2 SI2

0 = Lo (Close)
1 = Hi (Open)

3 SI3

0 = Lo (Close)
1 = Hi (Open)

4 SI4

0 = Lo (Close)
1 = Hi (Open)

5 SI5

0 = Lo (Close)
1 = Hi (Open)

6 SI6

0 = Lo (Close)
1 = Hi (Open)

7 SI7

0 = Lo (Close)
1 = Hi (Open)

8 SI8

0 = Lo (Close)
1 = Hi (Open)

9 SI9

0 = Lo (Close)
1 = Hi (Open)

10 SI10

0 = Lo (Close)
1 = Hi (Open)

11 SI11

0 = Lo (Close)
1 = Hi (Open)

12 to 15 Reserved

Bit Status Signal Logic Un No.

0 ALM

0 = Lo (Close)
1 = Hi (Open)

Un006

1 SO1

0 = Lo (Close)
1 = Hi (Open)

2 SO2

0 = Lo (Close)
1 = Hi (Open)

3 SO3

0 = Lo (Close)
1 = Hi (Open)

7 to 15 Reserved
