Xylem Lab 870 User Manual

Download

Operating manual

Lab 870

ba75555e04 11/2009

Laboratory pH meter

with automatic sensor recognition

Lab 870

Accuracy when going to

press

Warranty We guarantee the instrument described for 3 years from the date of

The use of advanced technology and the high quality standard of our instruments are the result of continuous development. This may result in differences between this operating manual and your instrument. Also, we cannot guarantee that there are absolutely no errors in this manual. Therefore, we are sure you will understand that we cannot accept any legal claims resulting from the data, figures or descriptions.

purchase. The instrument warranty covers manufacturing faults that are discovered within the warranty period. The warranty does not cover components that are replaced during maintenance work, e. g. batteries.

The warranty claim extends to restoring the instrument to readiness for use but not, however, to any further claim for damages. Improper handling or unauthorized opening of the instrument invalidates any warranty claim.

To ascertain the warranty liability, return the instrument and proof of purchase together with the date of purchase freight paid or prepaid.

CE conformity

Radio data transmission

SI Analytics GmbH hereby declares that the Lab 870 meter is in compliance with the essential requirements and the other relevant provisions of Directive 1999/5/EC. The EC declaration of conformity can be requested from SI Analytics GmbH.

Reprinting - even in the form of excerpts - is only allowed with the explicit written authorization of SI Analytics GmbH. Printed in Germany.

ba75555e04 11/2009

Lab 870

KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY DÉCLARATION DE CONFORMITÉ

Wir erklären in alleiniger

Verantwortung, dass das

Produkt

pH-Meter

Lab 870

auf das sich diese Erklärung

bezieht, übereinstimmt mit

den Angaben im Kapitel

We declare under our sole

responsibility that the

product

pH meter

Lab 870

to which this declaration

relates is in conformity with

the specifications in the

chapter

Nous déclarons sous notre seule responsabilité que le

produit

pH-mètre

Lab 870

auquel se réfère cette

déclaration est conforme aux

indications du chapitre

30. Oktober, October 30, 30 octobre 2005 AGQSF 0000-A102-01/091030

SI Analytics GmbH

Hattenbergstr. 10

D-55122 Mainz

Deutschland, Germany, Allemagne

Technische Daten

pH-Meter

Lab 870

30. Oktober 2009

ba75555e04 11/2009

Lab 870

ba75555e04 11/2009

Lab 870 Contents

Lab 870 - Contents

1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.1 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.2 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3 Socket field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.4 Automatic sensor recognition . . . . . . . . . . . . . . . . . . . . . 11

2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.1 Authorized use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . 14

3 Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.1 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2 Initial commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.1 Switching on the meter . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.2 General operating principles . . . . . . . . . . . . . . . . . . . . . . 22

4.2.1 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . 22

4.2.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.3 Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.3.1 Measuring the pH value . . . . . . . . . . . . . . . . . . . 24

4.3.2 Measuring the ORP . . . . . . . . . . . . . . . . . . . . . . 25

4.4 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.4.1 Calibration interval (Int.C) . . . . . . . . . . . . . . . . . 31

4.4.2 Automatic calibration (AutoCal) . . . . . . . . . . . . . 32

4.4.3 Downloading calibration data . . . . . . . . . . . . . . . 35

4.5 Transmitting data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.5.1 Options for data transmission . . . . . . . . . . . . . . 38

4.5.2 Automatically downloading measurement

datasets at intervals . . . . . . . . . . . . . . . . . . . . . . 39

4.5.3 Downloading calibration data . . . . . . . . . . . . . . . 39

4.5.4 RS232 interface . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.5.5 USB interface (device) . . . . . . . . . . . . . . . . . . . . 40

4.5.6 Operation with MultiLab pilot . . . . . . . . . . . . . . . 40

4.6 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.6.1 System settings . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.6.2 Measurement settings . . . . . . . . . . . . . . . . . . . . 44

4.6.3 Interval for automatic data transmission . . . . . . 48

4.7 Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

4.7.1 Resetting calibration values . . . . . . . . . . . . . . . . 49

ba75555e04 11/2009

Contents Lab 870

4.7.2 Resetting all meter settings . . . . . . . . . . . . . . . . 50

5 Maintenance, cleaning, disposal . . . . . . . . . . . . . . . . . 51

5.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5.1.1 Replacing the batteries. . . . . . . . . . . . . . . . . . . . 51

5.2 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.3 Packing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

6 What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

7.1 General data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

7.2 Measuring ranges, resolution, accuracy . . . . . . . . . . . . . 59

8 Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

ba75555e04 11/2009

Lab 870 Overview

1Overview

The compact Lab 870 precision pH meter enables you to perform pH measurements rapidly and reliably. The Lab 870 provides the maximum degree of operating comfort, reliability and measuring certainty for all applications. The proven calibration procedures and special stability control function (SC) support your work with the pH meter.

1 Keypad

2 Display

3 Socket field

Note

The meter is also available as part of individual Sets of equipment. You will find information on this and other accessories in the SI Analytics GmbH laboratory catalog or via the Internet.

Note

If you need further information or application notes, you can obtain the following material from SI Analytics GmbH:

z Application reports

z pH primers

z Safety datasheets.

ba75555e04 11/2009

Overview Lab 870

MODE SC

CAL

MODE

CAL

1.1 Keypad

In this operating manual, keys are indicated by brackets <..> . The key symbol (e.g. <OK>) indicates a keystroke in this operating manual.

<On/Off>: <On/Off

<MODE>: <MODE

<CAL>: <CAL

<SC>: <SC

<▲>: Increment values, scroll

<▼>: Decrement values, scroll

_>:

Switch meter on / off Reset calibration values

Select measured parameter Open setting menu for calibration and measurement

Call up calibration procedure Display calibration data

Activate / deactivate stability control Set interval for data transmission

<OK>:

_>:

<OK

Confirm entries Open setting menu for system settings

ba75555e04 11/2009

Lab 870 Overview

°F

U pH

LoBat

Auto

Store

CalError

Time

Day.Month

Year

Baud

No.

Ident

mV/pH

RCL

SET

BUFFER

AutoCal

Status display indicator

CalClock (calibration interval and sensor evaluation)

ID sensor symbol

Measured value display

Temperature display and further function indicators

1.2 Display

Function display

indicators

[SET] During calibration: number of the buffer set

[BUFFER] During calibration: number of the buffer

[AutoCal] Calibration with automatic buffer recognition

[CalError] An error occurred during calibration

[LoBat] With battery operation: batteries almost empty

[SC] Stability control is active

[TP] Temperature measurement active

ba75555e04 11/2009

Overview Lab 870

1.3 Socket field

Connectors:

1 pH electrode

2 Reference electrode

3 Temperature sensor

4 USB interface

5 Power pack

6 RS 232 interface

CAUTION

Only connect sensors to the meter that cannot return any voltages or currents that are not allowed (> SELV and > current circuit with current limiting). Almost all sensors - in particular SI Analytics GmbH sensors fulfill these conditions.

ba75555e04 11/2009

Lab 870 Overview

DIN

BNC

1.4 Automatic sensor recognition

The automatic sensor recognition function enables

z operation of a sensor with different meters without recalibration

z operation of different sensors with a meter without recalibration

z to assign measurement data to a sensor

– measurement datasets are always downloaded to the interface

along with the sensor type and sensor series number

z to assign calibration data to a sensor

– calibration data is always downloaded to the interface along with

the sensor type and sensor series number

To be able to use the automatic sensor recognition function, you need a meter that supports the automatic sensor recognition (e.g. Lab 870) and a sensor (ID sensor) that is suitable for sensor recognition.

In ID sensors, sensor data is stored that clearly identifies the sensor. The sensor data is automatically transmitted to the meter by radio and used for sensor identification there.

Note

You can also operate non-ID sensors with the Lab 870 meter. In this case, however, you will not be able to use the advantages of the sensor recognition function.

ba75555e04 11/2009

Overview Lab 870

ID sensor symbol

ID sensors SI Analytics GmbH ID sensors support the automatic sensor

recognition. "ID" is added to the designation of these sensors, e.g. electrode BlueLine 14 pH ID.

Note

Information on available ID sensors is given on the Internet or directly by SI Analytics.

ID sensors connected to the Lab 870 meter are identified by the ID sensor symbol on the display of the meter.

Sensor data from

ID sensors

ID sensors transmit the following sensor data

z Sensor type

z Sensor series number

z Calibration data

– Calibration date

– Calibration characteristics

– Calibration interval

The calibration data is updated in the ID sensor after each calibration procedure. The ID sensor symbol flashes while this is being done.

Note

The sensor must not be disconnected while the ID sensor symbol is flashing, as otherwise the calibration data will not be completely transmitted. The sensor will then have no valid calibration.

Note

If non-ID sensors are used, the calibration data is read out by the meter and stored in the meter.

ba75555e04 11/2009

Lab 870 Safety

2 Safety

This operating manual contains basic instructions that you must follow during the commissioning, operation and maintenance of the meter. Consequently, all responsible personnel must read this operating manual before working with the meter. The operating manual must always be available within the vicinity of the instrument.

Target group The meter was developed for work in the laboratory.

Thus, we assume that, as a result of their professional training and experience, the operators will know the necessary safety precautions to take when handling chemicals.

Safety instructions Safety instructions in this operating manual are indicated by the

warning symbol (triangle) in the left column. The signal word (e.g. "Caution") indicates the level of danger:

Further notes

WARNING

indicates instructions that must be followed precisely in order to avoid possibly great dangers to personnel.

CAUTION

indicates instructions that must be followed precisely in order to avoid the possibility of slight injuries or damage to the instrument or the environment.

Note

indicates notes that draw your attention to special features.

Note

indicates cross-references to other documents, e.g. operating manuals.

ba75555e04 11/2009

Safety Lab 870

2.1 Authorized use

This meter is authorized exclusively for pH and ORP measurements in the laboratory. The technical specifications as given in chapter 7 T

ECHNICAL DATA

(page 57) must be observed. Only the operation and running of the meter according to the instructions given in this operating manual is authorized. Any other use is considered unauthorized.

2.2 General safety instructions

This instrument is constructed and tested in compliance with the IEC 1010 safety regulations for electronic measuring instruments. It left the factory in a safe and secure technical condition.

Function and

operational safety

The smooth functioning and operational safety of the meter can only be guaranteed if the generally applicable safety measures and the specific safety instructions in this operating manual are followed during operation.

The smooth functioning and operational safety of the meter can only be guaranteed under the environmental conditions that are specified in chapter 7 T

ECHNICAL DATA (page 57).

If the instrument was transported from a cold environment to a warm environment, the formation of condensate can lead to the faulty functioning of the instrument. In this event, wait until the temperature of the instrument reaches room temperature before putting the instrument back into operation.

CAUTION

The meter is only allowed to be opened by personnel authorized by SI Analytics GmbH.

ba75555e04 11/2009

Lab 870 Safety

Safe operation If safe operation is no longer possible, the instrument must be taken out

of service and secured against inadvertent operation! Safe operation is no longer possible if the meter:

z has been damaged in transport

z has been stored under adverse conditions for a lengthy period of

time

z is visibly damaged

z no longer operates as described in this manual.

If you are in any doubt, please contact the supplier of the instrument.

Obligations of the

purchaser

The purchaser of this meter must ensure that the following laws and guidelines are observed when using dangerous substances:

z EEC directives for protective labor legislation

z National protective labor legislation

z Safety regulations

z Safety datasheets of the chemical manufacturers.

ba75555e04 11/2009

Safety Lab 870

ba75555e04 11/2009

Lab 870 Commissioning

3 Commissioning

3.1 Scope of delivery

z Lab 870 laboratory meter

z Power pack

z 4 batteries 1.5 V Mignon type AA

z USB cable with A plug and B plug

z Transparent cover

z Operating manual

z CD-ROM with USB driver

3.2 Initial commissioning

Insert batteries

Perform the following activities:

z Insert batteries

z Switch on the meter

z Set the date and time

z Connect the power pack (for line power operation only).

1 Open the battery compartment (1) on the underside of the

meter.

2 Place four batteries (type Mignon AA) in the battery

compartment.

3 Close the battery compartment (1).

The date (day) flashes in the display.

4 Set the date and time according to page 42.

ba75555e04 11/2009

Commissioning Lab 870

CAUTION

Make sure that the poles of the batteries are the right way round. The

± signs on the batteries must correspond to the ± signs in the

battery compartment. Only use leakproof alkaline manganese batteries.

Switching on the meter

Setting the date and

time

Connecting the power

pack

1 Switch on the meter with <On/Off>.

A display test is briefly displayed.

2 See page 42.

You can either operate the measuring instrument with batteries or with the plug-in power supply. The plug-in power supply supplies the measuring instrument with low voltage (12 VDC). This saves the batteries.

CAUTION

The line voltage at the operating site must lie within the input voltage range of the original power pack (see page 57).

CAUTION

Use original power packs only (see page 57).

3 Insert the plug into the socket of the pH meter.

4 Connect the original power pack to an easily accessible power

outlet.

ba75555e04 11/2009

Lab 870 Commissioning

Note

You can carry out measurements without the power pack.

ba75555e04 11/2009

Commissioning Lab 870

ba75555e04 11/2009

Lab 870 Operation

4 Operation

4.1 Switching on the meter

1 Place the meter on a flat surface and protect it from intense

light and heat.

2 Press the <On/Off>

A display test is briefly displayed. Subsequently, the meter switches to the measuring mode (measured value display).

Note

The meter has an energy saving feature to avoid unnecessary battery depletion during battery operation. The energy saving feature switches off the meter if no key was pressed during the specified interval (setting the switch-off interval, see page 42). The energy saving feature is not active:

z if the meter is supplied via the power pack or the USB interface

z if a PC is connected (with communication cable to RS232 interface)

z if the printer cable is connected (for external printers).

key.

ba75555e04 11/2009

Operation Lab 870

4.2 General operating principles

This section contains basic information on the operation of the Lab 870.

4.2.1 Operating modes

The instrument has the following operating modes:

z Measurement

The display indicates the measurement data in the measured value display

z Calibration

The display guides you thru a calibration procedure with calibration information

z Transmitting data

The meter transmits measuring data and calibration records to a serial interface automatically or manually.

z Configuration

The system menu or a sensor menu with submenus, settings and functions is displayed

4.2.2 Operation

Keys The meter is operated via keys. The keys can have different functions

with long or short keystrokes.

Functions Generally, with a short keystroke a function is carried out. A long

keystroke opens a setting menu.

In a setting menu, settings are selected with the <▲><▼> keys. A setting is confirmed with <OK>. With confirming, the setting is finished and the next setting is displayed.

Representation In this operating manual, keys are indicated by brackets <..> .

The key symbol (e.g. <OK>) generally indicates a short keystroke (under 2 sec) in this operating manual. A long keystroke (approx. 2 sec) is indicated by the underscore behind the key symbol (e.g.

<OK

_>).

ba75555e04 11/2009

Lab 870 Operation

4.3 Measuring

Preparatory activities Perform the following preparatory activities when you want to measure:

1 Connect an electrode to the meter.

2 Adjust the temperature of the buffer solutions or test solutions,

or measure the current temperature, if you measure without a temperature sensor.

3 Calibrate or check the meter with the electrode.

4 Select the measured parameter with <MODE>.

Note

Incorrect calibration of pH electrodes leads to incorrect measured values. Calibrate regularly before measuring.

CAUTION

When connecting an earthed PC/printer, measurements cannot be performed in earthed media as incorrect values would result. The RS232 and USB interfaces are not galvanically isolated.

Temperature sensor You can measure with or without a temperature sensor. If a

temperature sensor is connected, it is indicated on the display by TP.

Note

The pH meter automatically recognizes the type of the temperature sensor used. Therefore, you can connect electrodes with an NTC30 or Pt1000.

The temperature measurement is absolutely essential for a reproducible pH measurement. If the measurement is made without a temperature sensor, proceed as follows:

1 Measure the current temperature using a thermometer.

2 Set the temperature value with <▲><▼>.

Note

When calibrating without temperature sensor, also set the current temperature of each buffer solution manually (see <▲><▼>).

ba75555e04 11/2009

Operation Lab 870

4.3.1 Measuring the pH value

1 Perform the preparatory activities according to page 23.

2 Immerse the pH electrode in the test sample.

3 Using <MODE>, scroll as necessary until the measured

parameter pH is displayed.

Stability control SC

(drift control)

The stability control function (drift control) checks the stability of the measurement signal. The stability has a considerable effect on the reproducibility of the measured value.

For identical measurement conditions, the following criteria apply:

Drift within 15 sec < 0.02 pH units.

1 If necessary, call up the measured variable pH with <MODE>.

2With <SC>, activate the stability control function.

The SC function display indicator appears. The current measured value is frozen (hold function).

3 Start measurement with stability control with <OK>.

SC flashes until a stable measured value is reached. This measured value is downloaded to the interface.

4 If necessary, start the next measurement with stability control

with <OK>.

5 To terminate the stability control function: Press the <MODE>

or <SC>

key.

Note

The current measurement with stability control can be terminated at any time (accepting the current value) by pressing <OK>.

ba75555e04 11/2009

Lab 870 Operation

4.3.2 Measuring the ORP

The meter can, in conjunction with an ORP electrode, measure the ORP (mV) of a solution.

1 Perform the preparatory activities according to page 23.

2 Immerse the ORP electrode in the test sample.

3 If necessary, call up the measured parameter U with <MODE>.

4 Wait for a stable measured value.

Note

ORP electrodes are not calibrated. However, you can check ORP electrodes using a test solution.

ba75555e04 11/2009

Operation Lab 870

4.4 Calibration

Why calibrate? pH electrodes age. This changes the zero point (asymmetry) and slope

of the pH electrode. As a result, an inexact measured value is displayed. Calibration determines the current values of the zero point and slope of the electrode and stores them. Thus, you should calibrate at regular intervals. For non-ID sensors, the calibration data is stored in the meter. For ID sensors, the calibration data is stored in the sensor.

When do you have to

calibrate?

Buffer sets for

calibration

z After connecting another electrode

z If the CalClock has expired and flashes

You can use the buffer sets quoted in the table for an automatic calibration. The pH values are valid for the specified temperature values. The temperature dependence of the pH values is taken into account during calibration.

No. Buffer set* pH values at

1 SI Analytics GmbH DIN buffers

according to DIN 19266/NBS

1.679

4.006

25 °C

6.865

9.180

12.454

2 SI Analytics GmbH Technical

buffers according to DIN 19267

2.000

4.010

25 °C

7.000

10.011

3 Merck1* 4.000

20°C

7.000

9.000

4 Merck2 * 1.000

6.000

8.000

13.000

5 Merck3 * 4.660

6.880

9.220

6 DIN 19267 * 1.090

4.650

6.790

9.230

ba75555e04 11/2009

20°C

25 °C

Lab 870 Operation

No. Buffer set* pH values at

7 Mettler Toledo USA * 1.679

4.003

7.002

10.013

8 Mettler Toledo TEC * 1.995

4.005

7.002

9.208

9 Fisher * 2.007

4.002

7.004

10.002

10 Fluka BS * 4.006

6.984

8.957

11 Radiometer * 1.678

4.005

7.000

9.180

12 Baker * 4.006

6.991

10.008

25 °C

13 Metrohm * 3.996

25 °C

7.003

8.999

14 Beckman * 4.005

25 °C

7.005

10.013

15 Hamilton Duracal * 4.005

25 °C

7.002

10.013

16 Precisa * 3.996

25 °C

7.003

8.999

* Brand names or trade names are trademarks of their respective

owners protected by law (see page 65).

ba75555e04 11/2009

Operation Lab 870

Note

The buffer set is selected in the menu for measurement settings (see page 44). A list of the stored buffer sets can be downloaded to the interface (Set 1 ... 16) with <CAL measurement settings.

Calibration points Calibration can be performed using one, two or three buffer solutions in

any order (single-point, two-point or three-point calibration). The meter determines the following values and calculates the calibration line as follows:

_> while selecting the buffer set in the menu for

Determined values

1-point ASY z Zero point = ASY

2-point ASY

SLO

3-point ASY

SLO

Note

You can display the slope in the units, mV/pH or %. You can display the zero point in the units, mV or pH.

AutoCal is adapted to the permanently programmed buffer solutions as a fully

automatic single-, two- or three-point calibration. The buffer solutions are automatically recognized by the meter.

Displayed calibration data

z Slope = Nernst slope

(-59.2 mV/pH at 25 °C)

z Zero point = ASY

z Slope = SLO

z Zero point = ASY

z Slope = SLO

The calibration line is calculated by linear regression.

Stability control The calibration procedure automatically activates the stability control

function. The current measurement with stability control can be terminated at any time (accepting the current value) by pressing <OK>.

Calibration record When finishing a calibration, the new calibration values are first

displayed as an informative message and stored. For ID sensors, the calibration data is stored in the sensor (see page 11)

ba75555e04 11/2009

Lab 870 Operation

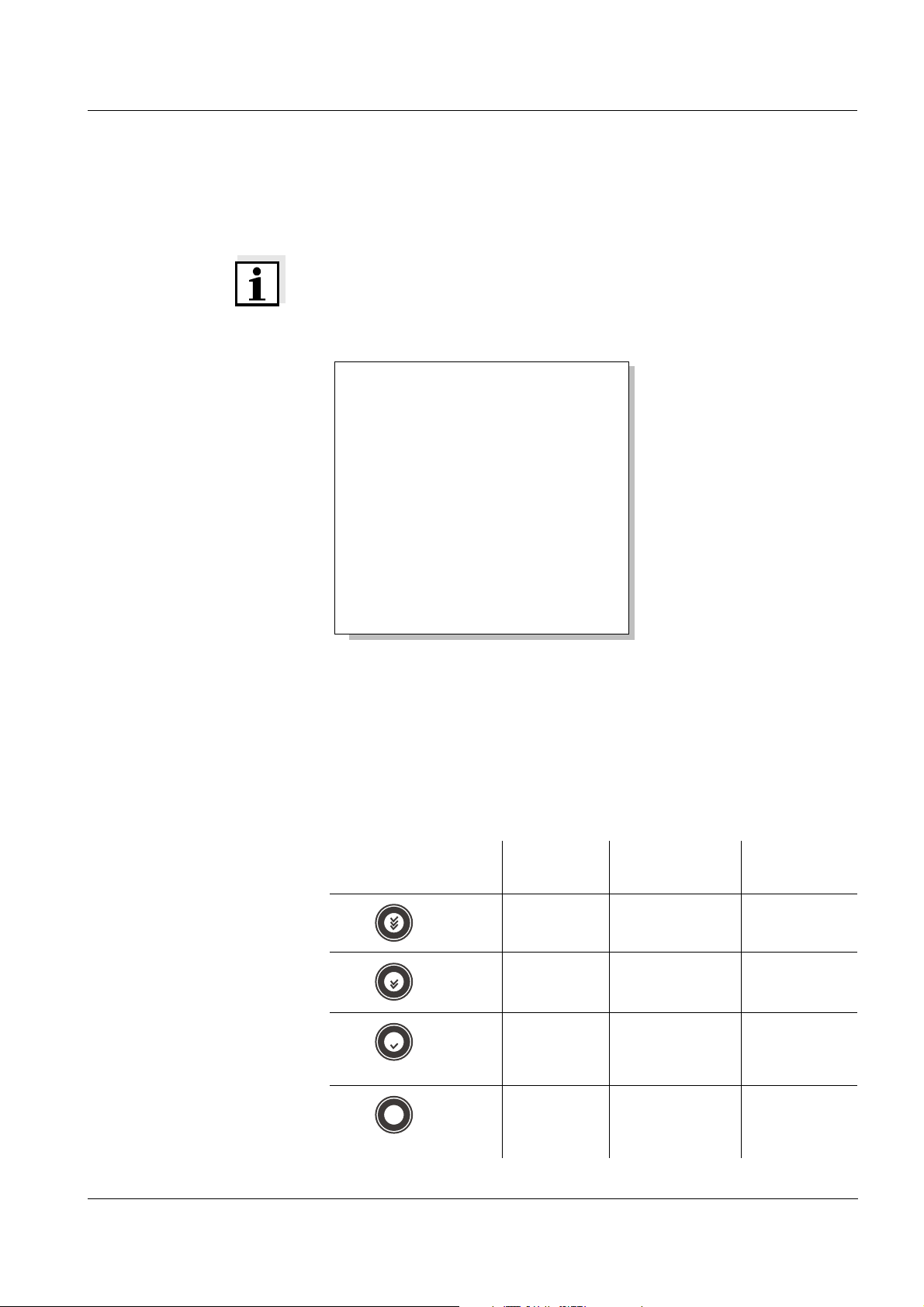

16.09.2005 08:53:54 Lab 870 02320025

Calibration pH Cal time: 16.09.2005 08:22:14 Cal interval: 14 d AutoCal Buffer 1 2.000 Buffer 2 4.010 Buffer 3 7.000 Buffer 4 10.011 b1 -177.0 mV 25.0 °C b2 177.0 mV 25.0 °C b3 0.0 mV 25.0 °C Slope : -58.99 mV/pH Asymmetry : 0.4 mV Sensor : +++

Displaying the

calibration data

You can display the data of the last calibration (see page 35). Subsequently, you can transmit the displayed calibration data to the interface, e. g. to a printer or PC, with the <CAL

_> key.

Note

The calibration record is automatically transmitted to the interface after calibrating.

Sample record:

Calibration evaluation After calibrating, the meter automatically evaluates the calibration. The

ba75555e04 11/2009

If an ID sensor is used, the calibration record additionally names the sensor type and sensor series number (see page 11).

zero point and slope are evaluated separately. The worse evaluation of both is taken into account. The evaluation appears on the display as the CalClock and in the calibration record.

CalClock Calibra-

tion record

Zero point [mV]

Slope [mV/pH]

+++ -15 ... +15 -60.5 ... -58

++ -20 ... +20 -58 ... -57

+ -25 ... +25 -61 ... -60.5

-57 ... -56

- -30 ... +30 -62 ... -61 or

-56 ... -50

Operation Lab 870

Preparatory activities

CalClock Calibra-

tion record

Zero point [mV]

Slope [mV/pH]

Clean the electrode according to the sensor operating manual

CalError CalError

< -30 or > 30

... -62 or ... -50

Eliminate the error according to page 53

1 Switch on the meter with <On/Off>.

2 Connect a pH electrode to the meter.

3 Keep the buffer solutions ready.

4 Adjust the temperature of the solutions and measure the

current temperature if the measurement is made without temperature sensor.

5 Set the buffer set to be used for calibration as necessary.

ba75555e04 11/2009

Lab 870 Operation

Time

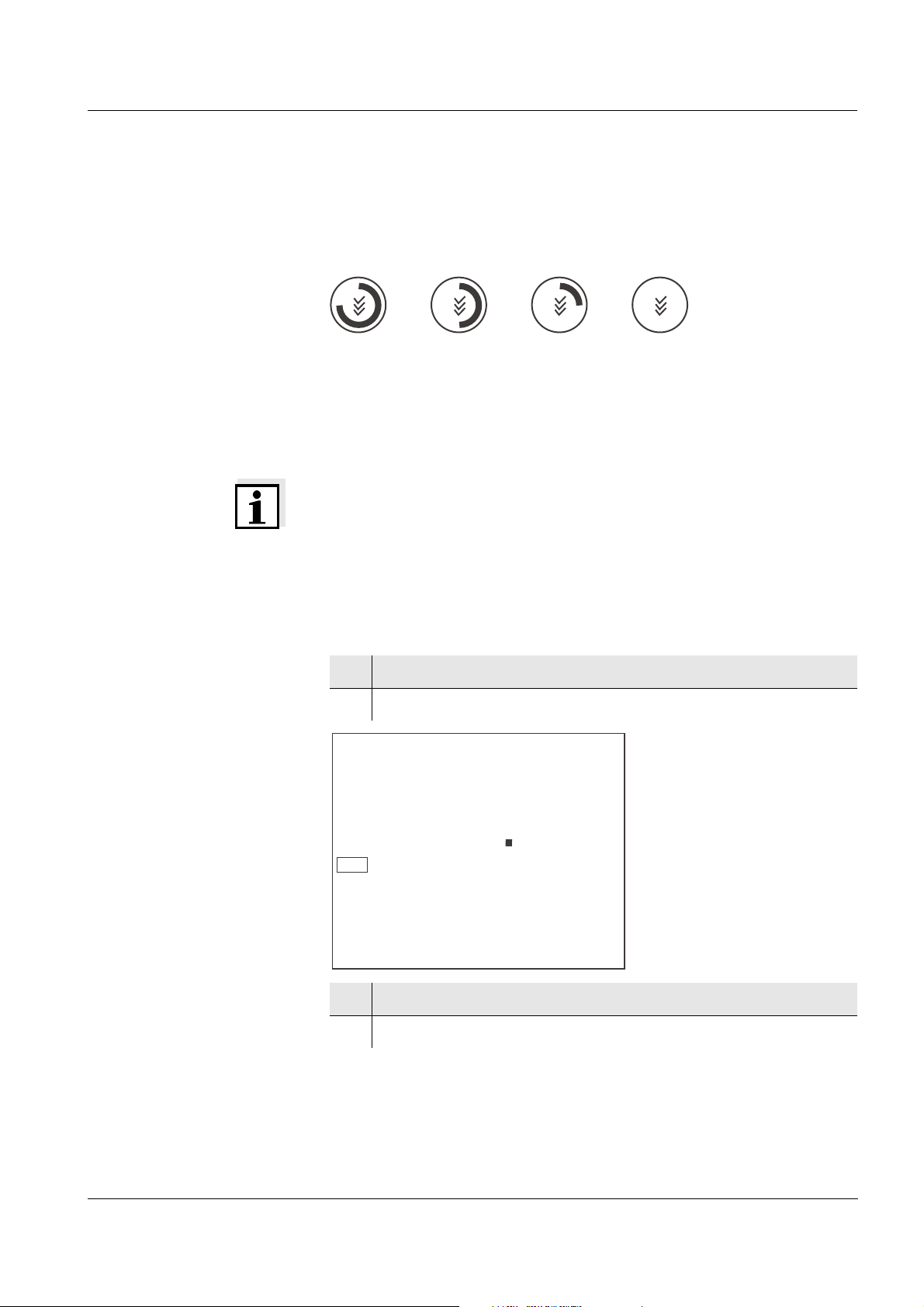

4.4.1 Calibration interval (Int.C)

The calibration interval and calibration evaluation are indicated on the display as the CalClock.

CalClock

The remaining time of the calibration interval is indicated by the segmented ring around the calibration evaluation. This segmented ring reminds you to calibrate regularly.

After the specified calibration interval (Int.C) has expired, the outer ring of the CalClock flashes. It is still possible to measure.

Note

To ensure the high measuring accuracy of the meter, calibrate after the calibration interval has expired.

Setting the calibration

interval

The calibration interval (Int.C) is set to 7 days (d7) in the factory. You can change the interval (1 ... 999 days):

1 Open the menu for measurement settings with <MODE_>.

2 Confirm all settings with <OK> until Int.C is displayed.

3 Set the calibration interval with <▲><▼>.

4 Confirm the setting with <OK>.

ba75555e04 11/2009

Operation Lab 870

AutoCal

SET

BUFFER

4.4.2 Automatic calibration (AutoCal)

For this procedure, use one, two or three buffer solutions of the selected buffer set in any order.

Note

The steps 2, 6 and 10 are not necessary if you use a temperature sensor.

1 Start the calibration with <CAL>.

The number of the specified buffer set is displayed (SET 1 ...

16). For ID sensors, the number of the buffer set used last is displayed. The first buffer (BUFFER 1) of the buffer set (SET_x) is requested.

2 If necessary, set the temperature of the buffer solution with

<▲><▼>.

3 Immerse the pH electrode in the first buffer solution.

4 Start the measurement with <OK>.

ba75555e04 11/2009

Lab 870 Operation

AutoCal

SET

BUFFER

AutoCal

SET

Buffer

DIN

Note

Here you can cancel the calibration procedure with <MODE>. This corresponds to a single-point calibration. The value of the zero point (Asy) is displayed for 10 seconds, then the value of the slope (Slo) is displayed for 10 seconds. After this the meter switches to the measuring mode.

Continue with two-point

calibration

5 Thoroughly rinse the electrode with distilled water.

6 If necessary, set the temperature of the second buffer solution

with <▲><▼>.

7 Immerse the pH electrode in the second buffer solution.

8 Start the measurement with <OK>.

ba75555e04 11/2009

Operation Lab 870

% mV

AutoCal

Note

Here you can cancel the calibration procedure with <MODE>. This corresponds to a two-point calibration. The value of the zero point (Asy) is displayed for 10 seconds, then the value of the slope (Slo) is displayed for 10 seconds. After this the meter switches to the measuring mode.

The ID sensor symbol flashes while the calibration data is being stored in the sensor. The sensor must not be disconnected while the ID sensor symbol is flashing, as otherwise the calibration data will not be completely transmitted. The sensor will then have no valid calibration.

Continue with three-

point calibration

9 Thoroughly rinse the electrode with distilled water.

10 If necessary, set the temperature of the third buffer solution

with <▲><▼>.

11 Immerse the pH electrode in the third buffer solution.

12 Press the <OK>

The SC display indicator flashes. Depending on the setting, the display shows the nominal pH value for the recognized buffer or the electrode voltage (mV). As soon as a stable value is recognized, the value of the zero point (ASY) is displayed for 10 seconds, then the value of the slope (SLO) is displayed for 10 seconds. After this the meter switches to the measuring mode. The ID sensor symbol flashes while the calibration data is being stored in the sensor.

key.

Note

The sensor must not be disconnected while the ID sensor symbol is flashing, as otherwise the calibration data will not be completely transmitted. The sensor will then have no valid calibration.

ba75555e04 11/2009

Lab 870 Operation

Day.Month

AutoCal

Note

While the zero point (ASY) is being displayed, you can change the unit of the zero point with

While the slope (SLO) is being displayed, you can change the unit of the slope with The % display refers to the Nernst slope of 59.2 mV/pH at 25° C (100 x determined slope/Nernst slope).

The unit of zero point and slope can be permanently changed in the measurement settings (see page 44).

4.4.3 Downloading calibration data

You can download calibration data:

z to the display

– via the memory menu

<▲><▼> .

Download to display via

memory menu

– via the calibration menu

z to the interface (see page 38)

1 Open the memory menu with <RCL>.

2 If necessary, scroll with <RCL> until CAL diSP is displayed.

3 Press <OK> to display the calibration data.

The following data is displayed consecutively for 10 seconds each: date, zero point, slope.

ba75555e04 11/2009

While the calibration data is being displayed, you can:

z press <OK> to display further calibration data

(date, zero point, slope)

Operation Lab 870

Download to display via

calibration menu

z press

<▲><▼>

z press

<▲><▼>

to switch over the unit of the zero point (Asy) (while the zero point is being displayed)

to switch over the unit of the slope (Slo) (while the slope is being displayed)

1 Press <CAL_> to display the calibration data.

The following data is displayed consecutively for 10 seconds each: date, zero point, slope.

While the calibration data is being displayed, you can:

z press <OK> to display further calibration data

(date, zero point, slope)

z press

<▲><▼>

z press

<▲><▼>

to switch over the unit of the zero point (Asy) (while the zero point is being displayed)

to switch over the unit of the slope (Slo) (while the slope is being displayed)

ba75555e04 11/2009

Lab 870 Operation

4.5 Transmitting data

The meter has two interfaces:

z RS232 interface (serial port)

z USB interface (device)

Via both interfaces, you can transmit data to a PC and update the meter software.

The meter is supplied with power via the USB interface.

The RS232 interface enables to transmit data to an external printer.

Note

The relevant interface cable has to be connected if you want to download data to an interface (USB or RS232). It is not possible to download data to both interfaces (USB and RS232) at the same time. After connecting a meter to the USB socket the RS232 interface is inactive. The RS232 interface is active if no meter is connected to the USB interface.

CAUTION

The interfaces are not galvanically separated. When connecting an earthed PC/printer, measurements cannot be performed in earthed media as incorrect values would result.

ba75555e04 11/2009

Operation Lab 870

4.5.1 Options for data transmission

Via the USB interface you can transmit data to a PC. Via the RS 232 interface, you can transmit data to a PC or an external printer.

The following table shows which data are transmitted to the interface in which way:

Data Control Operation / description

Current measured values

Calibration records Manual z Without display indication

Manual z With <OK>.

Automatic, at intervals

Automatic z After each measurement

Automatic z On completion of a

z With <SC

can set the transmission interval (Int.2) (page 39).

with stability control.

(see page 39).

z During the display

indication with <CAL (see page 35).

calibration procedure.

_>. Then you

ba75555e04 11/2009

Lab 870 Operation

4.5.2 Automatically downloading measurement datasets at intervals

In order to automatically download to the interface measured values at certain time intervals, set the download interval (Int.2).

Setting the download

interval

The default setting for the download interval (Int 2) is OFF. To switch the function on, set an interval (5 s, 10 s, 20 s, 30 s, 1 min, 2 min, 5 min, 10 min, 20 min, 30 min, 60 min):

1 Press <SC_> to open the setting of the Int.2 interval.

2 If necessary, set an interval with <▲><▼>.

3 Close the setting with <OK>.

The download to the interface takes place at the specified interval.

4.5.3 Downloading calibration data

1 Open the memory menu with <RCL>.

2 If necessary, scroll with <RCL> until CAL Prt is displayed.

3 Press <OK> to download the calibration data to the interface.

4.5.4 RS232 interface

1 Connect the interface to the PC or printer via the cable Z390

(PC) or Z393 (ext. printer).

2 If necessary, disconnect a connected USB cable from the

meter.

3 Set up the following transmission data at the PC/printer:

– Baud rate: selectable from 1200, 2400, 4800, 9600,

– Handshake: RTS/CTS + Xon/Xoff

– PC only:

– Parity: none

– Data bits: 8

– Stop bits: 2

ba75555e04 11/2009

Operation Lab 870

RS 232

1 * 2 RxD 3 TxD 4 * 5 SGnd 6 CTS

* not used

Socket assignment

(RS232)

4.5.5 USB interface (device)

Connect the interface to the PC via the supplied Z875 USB cable. The data output automatically switches to USB. The RS232 interface is deactivated.

Installation of the USB

driver on the PC

System requirements of the PC for installation of the USB driver:

z PC with Pentium processor or higher with at least one free USB

connection and CD-ROM drive

z Windows 2000, XP, Vista.

1 Insert the supplied installation CD in the CD drive of your PC.

2 Install the USB driver on the PC.

Follow the Windows installation instructions as necessary.

The meter is listed as a virtual COM interface among the connections in the Windows instrument manager.

4.5.6 Operation with MultiLab pilot

With the aid of the MultiLab pilot software, you can record and evaluate measuring data with a PC. The data is transmitted after the meter is connected to the RS232 serial interface or USB interface of a PC.

Note

More detailed information can be found in the MultiLab pilot software operating manual.

ba75555e04 11/2009

Lab 870 Operation

4.6 Settings

You can adapt the meter to your individual requirements. The settings are done in the following menus:

z System settings (<OK

– Baud rate (Baud)

– Switch-off interval (t.Off)

– Date (Day.Month)

– Date (Year)

–Time (Time)

z Settings for calibration and measurement (<MODE

– Number of the buffer set for pH calibration (Set 1 ... 16)

– Display of the buffer during calibration

(pH nominal value or measured voltage value in mV)

– Unit of the value for the slope (mV/pH or %)

– Unit of the value for the zero point (mV, pH)

– Resolution (Hi, Lo)

– Temperature unit (°C / °F)

– Calibration interval (Int.C [0 ... 999])

z Setting for data download (<SC

– Data download interval (Int.2)

_>)

ba75555e04 11/2009

Note

You can exit the setting menu at any time by pressing <MODE>. Settings already modified and confirmed with <OK> are stored.

Operation Lab 870

Baud

Time

4.6.1 System settings

The default setting is printed in bold.

Baud rate (Baud) 1200, 2400, 4800, 9600

Switch-off interval (t.Off) 10, 20, 30, 40, 50 min,

1, 2, 3, 4, 5, 10, 15, 20, 24 h

Date (Day.Month)Any

Date (Year) Any

Time (Time)Any

1 Open the menu for system settings with <OK_>.

The first system setting is displayed.

Baud rate (Baud)

Switch-off interval

(t.OFF)

2 Set the required baud rate with <▲><▼> .

3 Confirm with <OK>.

t.OFF, the setting of the switch-off interval is displayed.

ba75555e04 11/2009

Lab 870 Operation

Day.Month

4 Set the switch-off interval with <▲><▼>.

5 Confirm with <OK>.

Day.Month, the setting of the date is displayed. The day display flashes.

Date and time

6 Set the date of the current day with <▲><▼> .

7 Confirm with <OK>.

The month display flashes.

8 Set the current month with <▲><▼> .

9 Confirm with <OK>.

Year, the setting of the year is displayed.

10 Set the year with <▲><▼> .

11 Confirm with <OK>.

The setting of the time is displayed. The hour display flashes.

12 Set the current hour with <▲><▼> .

13 Confirm with <OK>.

The minute display flashes.

14 Set the current minute with <▲><▼> .

15 Confirm with <OK>.

The system settings are completed. The meter switches to the measuring mode.

ba75555e04 11/2009

Operation Lab 870

AutoCal

SET

4.6.2 Measurement settings

These settings apply to calibration and measurement (the default setting is printed in bold).

Number of the buffer set for pH calibration (SET)

Display during calibration (BUFFER) pH (buffer nominal value),

Unit of the value for the slope (SLO) %, mV/pH

1 ... 16

U (electrode voltage)

Buffer set for pH

calibration

(SET)

Unit of the value for the zero point (ASY)

Resolution (rES) HI (0.001), Lo (0.01)

Temperature unit (UnIt) °C, °F

Calibration interval (Int.C) 0 ... 7 ... 999 d

1 Open the menu for measurement settings with <MODE_>.

Set 1 ... 16, the specified buffer set is displayed.

pH, mV

2 Using <▲><▼>, select a buffer set Set 1 ... 16.

3 Confirm with <OK>.

bUFF, the setting of the display during calibration is displayed.

ba75555e04 11/2009

Lab 870 Operation

AutoCal

mV/pH

Display during

calibration

(bUFF)

4 Using <▲><▼>, select the display during calibration pH or U.

5 Confirm with <OK>.

SLO, the unit of the value for the slope (mV/pH or %) is displayed.

Unit of the value for the

slope (SLO)

6 Using <▲><▼>, select the unit for the slope.

7 Confirm with <OK>.

ASY, the unit of the value for the zero point (mV or pH) is displayed.

ba75555e04 11/2009

Operation Lab 870

Unit of the value for the

zero point (ASY)

8 Using <▲><▼>, select the unit for the zero point.

9 Confirm with <OK>.

rES, the setting of the resolution is displayed.

Resolution

(rES)

10 Using <▲><▼>, toggle between Hi (0.001)and Lo (0.01).

11 Confirm with <OK>.

Unit, the setting of the unit of the temperature value is displayed.

ba75555e04 11/2009

Lab 870 Operation

AutoCal

Time

Temperature unit (Unit)

12 Using <▲><▼>, toggle between °C and °F.

13 Confirm with <OK>.

Int.C, the setting of the calibration interval is displayed.

Calibration

interval

(Int.C)

14 Set the interval with <▲><▼>.

15 Confirm with <OK>.

The measurement settings are completed. The meter switches to the measuring mode.

ba75555e04 11/2009

Operation Lab 870

4.6.3 Interval for automatic data transmission

The interval for automatic data transmission serves to transmit the current measurement dataset to the interface at the specified interval.

Data transmission

interval

Data transmission interval (Int.2)

1 Press <SC_> to open the setting for the transmission interval.

Int.2, the setting of the transmission interval is displayed.

2 Press <▲><▼> to select an interval.

OFF, 5 s, 10 s, 20 s, 30 s, 1 min, 2 min, 5 min, 10 min, 20 min, 30 min, 60 min

3 Confirm with <OK>.

The setting of the interval for the data transmission to the interface is completed. The meter switches to the measuring mode.

ba75555e04 11/2009

Lab 870 Operation

4.7 Reset

4.7.1 Resetting calibration values

This function resets the calibration values to the default condition. All other meter settings are retained.

Calibration values in the

default condition

Resetting calibration

values

Zero point pH 7.000 (0 mV)

Slope 100 % (-59.2 mV/pH)

Note

The measuring system is not calibrated after a reset. Before measuring recalibrate the meter.

1 Press <On/Off_> to open the menu for the reset of the

calibration data. Init.C is displayed.

ba75555e04 11/2009

2 Press <▲><▼> to display no or YES.

YES: Reset the calibration values. no: Retain the calibration values.

3 Confirm with <OK>.

The menu is finished. The meter switches to the measuring mode.

Operation Lab 870

4.7.2 Resetting all meter settings

This function resets to the default condition all meter settings including the calibration values. The corresponding values are given on the following pages:

Calibration values page 49

System settings page 42

Measurement settings page 44

Resetting the meter

settings

1 Switch on the meter with <On/Off>.

The display test appears briefly on the display.

2 During the display test, press <MODE> to open the menu for

the reset of the meter settings. Init is displayed.

3 Press <▲><▼> to display no or YES.

YES: Reset the meter settings. no: Retain the meter settings.

4 Confirm with <OK>.

The menu is finished. The meter switches to the measuring mode.

Note

The measuring system is not calibrated after a reset. Before measuring recalibrate the meter.

ba75555e04 11/2009

Lab 870 Maintenance, cleaning, disposal

5 Maintenance, cleaning, disposal

5.1 Maintenance

The only maintenance activity required is replacing the batteries.

Note

For maintenance of the electrodes refer to the relevant operating manuals.

5.1.1 Replacing the batteries

1 Open the battery compartment (1) on the underside of the

meter.

2 Remove the four batteries from the battery compartment.

3 Place four new batteries (type Mignon AA) in the battery

compartment.

4 Close the battery compartment (1).

The date (day) flashes in the display.

5 Set the date and time according to page 42.

ba75555e04 11/2009

CAUTION

Make sure that the poles of the batteries are the right way round. The

± signs on the batteries must correspond to the ± signs in the

battery compartment. Only use leakproof alkaline manganese batteries.

Maintenance, cleaning, disposal Lab 870

5.2 Cleaning

Occasionally wipe the outside of the meter with a damp, lint-free cloth. Disinfect the housing with isopropanol as required.

CAUTION

The housing is made of synthetic material (ABS). Thus, avoid contact with acetone or similar detergents that contain solvents. Remove any splashes immediately.

5.3 Packing

This meter is sent out in a protective transport packing. We recommend: Keep the packing material. The original packing protects the instrument against damage during transport.

5.4 Disposal

Batteries This note refers to the battery regulation that applies in the Federal

Republic of Germany. We would ask end-consumers in other countries to follow their local statutory provisions.

Note

This instrument contains batteries. Batteries that have been removed must only be disposed of at the recycling facility set up for this purpose or via the retail outlet. It is illegal to dispose of them in household refuse.

ba75555e04 11/2009

Lab 870 What to do if...

6 What to do if...

Error message

Err1

Error message

Err2

Cause Remedy

pH electrode:

– Measured value outside the

measuring range

– Air bubble in front of the

junction

– Air in the junction – Extract air or moisten

– Cable broken – Replace the electrode

– Gel electrolyte dried out – Replace the electrode

Cause Remedy

– No electrode connected – Connect the electrode

– Setting time during calibration

too long

– Use a suitable electrode

– Remove air bubble

junction

– Adjust temperature if

necessary

– Recalibrate

Error message

Err4

Error message

CalError

Cause Remedy

– Temperature not stable during

calibration.

Cause Remedy

pH electrode:

– The values determined for zero

point and slope of the electrode are outside the allowed limits.

– Junction contaminated – Clean junction

– Electrode broken – Replace the electrode

Buffer solutions:

– Adjust temperature if

necessary

– Recalibrate

ba75555e04 11/2009

What to do if... Lab 870

Cause Remedy

– Incorrect buffer solutions – Change calibration

procedure

– Buffer solutions too old – Use only once.

Note the shelf life

– Buffer solutions depleted – Change solutions

No stable measured

Cause Remedy

value

pH electrode:

– Junction contaminated – Clean junction

– Membrane contaminated – Clean membrane

CalClock flashes

Test sample:

– pH value not stable – Measure with air excluded if

necessary

– Temperature not stable – Adjust temperature if

necessary

Electrode + test sample:

– Conductivity too low – Use a suitable electrode

– Temperature too high

– Organic liquids

Cause Remedy

– Calibration interval expired – Recalibrate the measuring

system

Display,

LoBat

Cause Remedy

– Batteries almost empty – Replace the batteries (see

page 51)

ba75555e04 11/2009

Lab 870 What to do if...

Display

Obviously incorrect

measured values

Instrument does not

react to keystroke

Cause Remedy

– Time-out of the interface – Check that the instrument is

connected

Cause Remedy

pH electrode:

– pH electrode unsuitable – Use a suitable electrode

– Temperature difference

between buffer and test sample

– Adjust temperature of buffer

or sample solutions

too high

– Measurement procedure not

– Follow special procedure

suitable

Cause Remedy

– Operating condition undefined

or EMC load unallowed

– Processor reset:

Press and hold the <SC> key and switch the meter on

You want to know which

software

version is in the

instrument

Cause Remedy

– E. g., a question by the service

department

– Switch on the meter.

During the display test, display the software version with <OK>.

ba75555e04 11/2009

What to do if... Lab 870

ba75555e04 11/2009

Lab 870 Technical data

Stand October 30, 2009Translation of the legally binding German version

7 Technical data

7.1 General data

Dimensions approx. 240 x 190 x 80 mm

Weight approx. 1.0 kg (without power pack, without stand)

Mechanical structure Type of protection IP 43

Electrical safety Protective class III Test certificates cETLus

Ambient

conditions

Power

supply

Serial

interface

Storage - 25 °C ... + 65 °C

Operation 0 °C ... + 55 °C

Climatic class 2

Batteries 4 x 1.5 V alkali-manganese batteries, Type

Operational life Approx. 500 operating hours

Power pack (charging device)

Automatic switch-over when a cable Z 875, Z 391 is connected.

Baud rate adjustable:

Type RS232, bidirectional

Data bits 8

FRIWO FW7555M/09, 15.1432.500-00 Friwo Part. No. 1883259 Input: 100 ... 240 V ~ / 50 ... 60 Hz / 400 mA Output: 9 V = / 1.5 A Connection max. overvoltage category II Primary plugs contained in the scope of delivery: Euro, US, UK and Australian.

1200, 2400, 4800, 9600 Baud

USB interface Automatic switch-over when a USB cable is connected.

ba75555e04 11/2009

Stop bits 2

Parity None

Handshake RTS/CTS+Xon/Xoff

Type USB 1.1 (device)

Cable length max. 3 m

Technical data Lab 870

FCC Class A Equipment Statement

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Stand October 30, 2009Translation of the legally binding German version

Guidelines

and norms used

EMC EC guideline 2004/108/EC

EN 61326-1 Class B FCC Class A

Instrument safety EC guideline 2006/95/EC

EN 61010-1 ANSI/UL 61010-1 CAN/CSA-C22.2 No. 61010-1

Radio data transmission

EC guideline 1999/5/EC EN 300 330-2 EN 50364 EN 60950-1

Climatic class VDI/VDE 3540

IP protection EN 60529

ba75555e04 11/2009

Lab 870 Technical data

Stand October 30, 2009Translation of the legally binding German version

7.2 Measuring ranges, resolution, accuracy

Measuring ranges,

resolution

Variable Measuring range Resolution

pH - 2.000 ... + 19.999

- 2.00 ... + 19.99

U [mV] - 999.9 ... + 999.9

- 2000 ... + 2000

0.001

0.01

0.1 1

T [°C] - 5.0 ... + 120.0 0.1

T [°F] + 23.0 ... + 248.0 0.1

Manual

temperature input

Variable Range Increment

[°C] - 25 ... + 125 1

manual

[°F] - 13 ... + 257 1

manual

Accuracy (± 1 digit) Variable Accuracy Temperature of the test

sample

pH / range *

- 2.000 ... + 19.999 ± 0.005 + 15 °C ... + 35 °C

- 2.00 ... + 19.99 ± 0.01 + 15 °C ... + 35 °C

U [mV] / range

- 999.9 ... + 999.9 ± 0.3 + 15 °C ... + 35 °C

- 2000 ... + 2000 ± 1 + 15 °C ... + 35 °C

T [°C] / temperature sensor

NTC 30 ± 0.1

PT 1000 ± 0.3

* when measuring in a range of ± 2 pH around a calibration point

Note

The accuracy values specified here apply exclusively to the meter. The accuracy of the electrodes and buffer solutions has to be taken into account additionally.

ba75555e04 11/2009

Technical data Lab 870

Stand October 30, 2009Translation of the legally binding German version

ba75555e04 11/2009

Lab 870 Lists

8Lists

This chapter provides additional information and orientation aids.

Abbreviations The list of abbreviations explains abbreviations that appear on the

display or when dealing with the instrument.

Specialist terms The glossary briefly explains the meaning of the specialist terms.

However, terms that should already be familiar to the target group are not described here.

Trademarks used The list comprises the trademarks used in the present document and

their owners.

Index The index will help you to find the topics that you are looking for.

ba75555e04 11/2009

Lists Lab 870

Abbreviations

°C Temperature unit °Celsius

°F Temperature unit, °Fahrenheit

ASY Zero point (asymmetry)

AutoCal Automatic calibration using a selected buffer set

Cal Calibration

CalError Error message (see W

HAT TO DO IF...)

Err1 Overflow

Display range exceeded

Err2, Err4 Error message (see W

HAT TO DO IF...)

InI Initialization

Resets individual basic functions to the status they had on delivery

LoBat Low Battery (batteries almost empty)

mV Voltage unit

mV/pH Unit of the electrode slope

pH pH value

S Slope value

SC Stability control (drift control)

SELV Safety Extra Low Voltage

SEr Serial interface

Download of the data memory to the RS 232

SLO Slope (slope on calibration)

TP Temperature Probe

Temperature measurement active

ba75555e04 11/2009

Lab 870 Lists

Glossary

Asymmetry see zero point

Resolution Smallest difference between two measured values that can be

displayed by a meter.

AutoRange Name of the automatic selection of the measuring range.

Junction The junction is a porous body in the housing wall of reference

electrodes or electrolyte bridges. It arranges the electrical contact between two solutions and makes the electrolyte exchange more difficult. The expression, junction, is also used for ground or junctionless transitions.

Adjusting To manipulate a measuring system so that the relevant value (e. g. the

displayed value) differs as little as possible from the correct value or a value that is regarded as correct, or that the difference remains within the tolerance.

Calibration Comparing the value from a measuring system (e. g. the displayed

value) to the correct value or a value that is regarded as correct. Often, this expression is also used when the measuring system is adjusted at the same time (see adjusting).

Electromotive force of

an electrode

The electromotive force (voltage) U of the electrode is the measurable electromotive force of an electrode in a solution. It equals the sum of all the galvanic voltages of the electrode. Its dependency on the pH results in the electrode function which is characterized by the parameters, slope and zero point.

Measured variable The measured parameter is the physical dimension determined by

measuring, e. g. pH, conductivity or DO concentration.

Test sample Designation of the test sample ready to be measured. Normally, a test

sample is made by processing the original sample. The test sample and original sample are identical if the test sample was not processed.

Measured value The measured value is the special value of a measured parameter to

be determined. It is given as a combination of the numerical value and unit (e. g. 3 m; 0.5 s; 5.2 A; 373.15 K).

Molality Molality is the quantity (in Mol) of a dissolved substance in 1000 g

solvent.

Zero point The zero point of a pH electrode is the pH value at which the

pH value The pH is a measure of the acidic or basic effect of an aqueous

ba75555e04 11/2009

electromotive force of the pH electrode at a specified temperature is zero. Normally, this is at 25 °C.

solution. It corresponds to the negative decadic logarithm of the molal hydrogen ions activity divided by the unit of the molality. The practical pH value is the value of a pH measurement.

Lists Lab 870

Potentiometry Name of a measuring technique. The signal (depending on the

measured parameter) of the electrode is the electrical potential. The electrical current remains constant.

ORP voltage The ORP is caused by oxidizing or reducing substances dissolved in

water if these substances become effective on an electrode surface (e. g. a gold or platinum surface).

Reset Restoring the original condition of all settings of a measuring system.

Stability control Function to control the measured value stability.

Standard solution The standard solution is a solution where the measured value is

known by definition. It is used to calibrate a measuring system.

Slope The slope of a linear calibration function.

ba75555e04 11/2009

Lab 870 Lists

Trademarks used

Trademark Owner of the trademark

Merck Merck KGaA

Mettler Toledo Mettler Toledo

Fisher Fisher Scientific Company

Fluka Fluka AG

Radiometer Radiometer

Baker Mallinckrodt Baker, Inc.

Metrohm Metrohm AG

Beckman Beckman Instruments, Inc.

Hamilton Hamilton Company Corporation

Precisa Precisa Instruments AG

Windows Microsoft Corporation

ba75555e04 11/2009

Lists Lab 870

ba75555e04 11/2009

Lab 870 Lists

Index

Authorized use . . . . . . . . . . . . . . . . . . . . . . 14

AutoCal . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Battery compartment . . . . . . . . . . . . . . 17, 51

Baud rate setting . . . . . . . . . . . . . . . . . . . . 42

CalClock . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . 26

Calibration evaluation pH . . . . . . . . . . . . . . 29

Calibration interval . . . . . . . . . . . . . . . . . . . 31

Calibration points pH . . . . . . . . . . . . . . . . . 28

Connect the plug-in power supply unit . . . . 18

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Drift control . . . . . . . . . . . . . . . . . . . . . . . . . 24

Energy saving feature . . . . . . . . . . . . . . . . 21

Error message . . . . . . . . . . . . . . . . . . . . . . 53

Firmware update . . . . . . . . . . . . . . . . . . . . 69

Initial commissioning . . . . . . . . . . . . . . . . . 17

Interval Calibration . . . . . . . . . . . . . . . . . . . 31

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operational safety . . . . . . . . . . . . . . . . . . . 14

ORP electrode . . . . . . . . . . . . . . . . . . . . . . 25

ORP voltage . . . . . . . . . . . . . . . . . . . . . . . 25

pH buffer sets . . . . . . . . . . . . . . . . . . . . . . 26

Precautions . . . . . . . . . . . . . . . . . . . . . . . . 13

Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

all meter settings . . . . . . . . . . . . . . . . . 50

Calibration values . . . . . . . . . . . . . . . . 49

Resolution setting . . . . . . . . . . . . . 44, 45, 46

RS232 interface . . . . . . . . . . . . . . . . . . . . . 40

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Scope of delivery . . . . . . . . . . . . . . . . . . . . 17

Setting the date . . . . . . . . . . . . . . . . . . 18, 43

Setting the time . . . . . . . . . . . . . . . . . . 18, 43

Single-point calibration . . . . . . . . . . . . . . . 33

Slope pH . . . . . . . . . . . . . . . . . . . . . . . 26, 34

Socket field . . . . . . . . . . . . . . . . . . . . . . . . 10

Stability control . . . . . . . . . . . . . . . . . . . . . 24

Temperature sensor . . . . . . . . . . . . . . . . . 23

Three-point calibration . . . . . . . . . . . . . . . . 28

Two-point calibration . . . . . . . . . . . . . . . . . 34

Zero point of the pH electrode . . . . . . . 26, 34

LoBat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Measurement accuracy . . . . . . . . . . . . . . . 31

MultiLab pilot . . . . . . . . . . . . . . . . . . . . . . . 40

Operation location . . . . . . . . . . . . . . . . . . . 21

ba75555e04 11/2009

Lists Lab 870

ba75555e04 11/2009

Lab 870

Appendix: Firmware update

General information With the Update_Labxxx_MxxxP program and a PC you can update

the firmware of the Lab 870 to the newest version.

z a free USB interface (virtual COM port) on your PC

z the driver for the USB interface

(installation see page 40)

z the Z875 USB cable (included in the scope of delivery of the

Lab 870).

For the update via the RS232 interface, the following is required:

z a free RS232 interface on your PC

z the RS232 cable, Z390.

Program installation With the installation program,

"Install_Update_Labxxx_MxxxP_Vx_yy_English.exe", install the firmware update program on your PC.

Program start Start the "Update_Labxxx_MxxxP" program from the Windows start

menu.

You can change the language via the language menu.

Firmware update Proceed as follows:

1 Connect the Lab 870 to a USB interface (virtual COM port) of

the PC with the aid of the USB interface cable Z875. or Connect the Lab 870 to a serial interface (COM port) of the PC with the aid of the interface cable Z390.

2 Make sure the Lab 870 is switched on.

3 To start the update process click the OK button.

The program automatically recognizes the used interface.

4 To go on, follow the instructions of the program.

During the programming process, a corresponding message and a progress bar (in %) appear. The programming process takes approx. two minutes. A terminatory message is displayed after a successful programming process. The firmware update is now completed.

ba75555e04 11/2009

5 Disconnect the meter from the PC.

The instrument is ready for operation.

Lab 870

After switching the meter off and on you can check whether the meter has taken over the new software version (see page 55).

ba75555e04 11/2009

SI Analytics GmbH Postfach 2443 D-55014 Mainz Hattenbergstr. 10 D-55122 Mainz

Telefon +49 (0) 61 31/66 5111 Telefax +49 (0) 61 31/66 5001 Email: support@

si-analytics.com

Internet: www.si-analytics.com

Xylem Lab 870 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1Overview

1.1 Keypad

1.2 Display

1.3 Socket field

1.4 Automatic sensor recognition

2 Safety

2.1 Authorized use

2.2 General safety instructions

3 Commissioning

3.1 Scope of delivery

3.2 Initial commissioning

4 Operation

4.1 Switching on the meter

4.2 General operating principles

4.2.1 Operating modes

4.2.2 Operation

4.3 Measuring

4.3.1 Measuring the pH value

4.3.2 Measuring the ORP

4.4 Calibration

4.4.1 Calibration interval (Int.C)

4.4.2 Automatic calibration (AutoCal)

4.4.3 Downloading calibration data

4.5 Transmitting data

4.5.1 Options for data transmission

4.5.2 Automatically downloading measurement datasets at intervals

4.5.3 Downloading calibration data

4.5.4 RS232 interface

4.5.5 USB interface (device)

4.5.6 Operation with MultiLab pilot

4.6 Settings

4.6.1 System settings

4.6.2 Measurement settings

4.6.3 Interval for automatic data transmission

4.7 Reset

4.7.1 Resetting calibration values

4.7.2 Resetting all meter settings

5 Maintenance, cleaning, disposal

5.1 Maintenance

5.1.1 Replacing the batteries

5.2 Cleaning

5.3 Packing

5.4 Disposal

6 What to do if...

7 Technical data

7.1 General data

7.2 Measuring ranges, resolution, accuracy

8Lists

Appendix: Firmware update
