Xylem FM500 User Manual

Hybrid Ultrasonic Flowmeter
Installation and Operating Manual
Page 2
Table of Contents
Safety precautions.... .................................................4
1 Product overview ..............................................5
1.1 Operating principles . . . . . ...... ....... ....... ....... .......5
1.2 Transit Time operation . . ...................................5
1.3 Doppler operation . . . . . . ....... ....... ....... ..............6
1.5 Pipe requirements. . . . . . ...................................7
1.5 Straight pipe length requirements ............................7
1.7 Standard model features and options. . . . . .....................8
1.8 Wiring compartment. . . . ...................................9
2 Quick Start Guide .... ....... ....... ............................10
3 Flowmeter SPU installation .. ....... ....... .....................16
3.1 Unpacking . . . . . ....... ....... ....... ....... ..............16
3.2 Select a mounting location . . . . . . ............................16
3.3 Wall mounting . . . . .... ....... ............................16
3.4 Panel mounting. . . . .... ....... ....... ....... ....... .......17
3.5 Pipe mounting. . ..................... ....... ....... .......17
3.6 Select a measurement method . . . . . . . . . . ....... ....... .......18
3.7 Electrical connections . . . ....... ....... ....... ....... .......18
3.8 Cable gland liquid tight connections . . . . . . ...... ....... .......19
4 Overview of Flowmeter Operation.... ............................20
4.1 Power on and self test . . . . . . . . . . . . . .........................21
4.2
4.3 Startup state . . . . . . .... ....... ....... ....... ..............22
4.4 Setup (configuration) mode. . . . . . ............................22
4.5 Transducer positioning state . . . . .............. ....... .......23
4.6 Zero calibration state . . . . . . . . . . ....... .....................24
4.7 Run mode . . . . . . . . .... ....... ............................25
4.8 Fault and warning codes ...................................25
5 Setup mode ............................................. .......27
5.1 Menu Navigation. . . . . . . ....... ....... ....... ..............27
5.2 Global configurations . . . . . . . . . . . . . . . . . .....................28
5.3 Manage configuration sets . . . . . . ....... ....... ..............30
5.4 Configuration edit menu. . . . .... ....... ....... ....... .......31
6 Transducer installation ...... ....... ....... ....... ....... .......40
6.1 Transducer piping system location . . . . . . . . . . .... ....... .......40
6.2 Transducer mounting mode for Doppler measurement . . . . . . . . . . . . 40
6.3 Transducer mounting mode for Transit Time measurement. . . . . . . . 40
6.4 Transducer separation distance . . . . . .................. .......41
6.5 Pipe surface preparation. . . . . . . . . . . . . . . .....................42
6.6 Doppler method transducer installation . . . . . . . . . . . . . . . . . . . . . . . 42
6.7 Transit Time transducer installation - V and W mount mode .......43
Description of operating states and controls . . . . . . . . . . . . . . . . ....21
5.1.1 Setup root menu . . . .... ............................27
5.1.2 Escaping from setup . . . . ....... .....................27
5.2.1 Communication settings . . . . . . . . . . . . . . . . . . ...........28
5.2.2 Master password ....... ....... ....... ....... .......29
5.2.3 Setting the date and time ............................29
5.2.4 Saving changes . . . . . . . . . . . ........... ....... .......29
5.3.1 Activate a configuration set . . . . . . . . .... ....... .......30
5.3.2 Open a saved configuration set . . . ...... ....... .......30
5.3.3 Create a new configuration set . . . . . . . . . ....... .......30
5.3.4 Delete a saved configuration set. . . . . . . . . . . . . . . . . . . . . . . 30
5.4.1 Editing data items. . . . . . . . . .........................31
5.4.1.1 . Editing numerical values . . . . . . . . . . . . . . .......31
5.4.1.2 . Entering passwords using the soft buttons .......32
5.4.1.3 . Units of measure ....... ....... ....... .......32
5.4.2 Transducer setup . . . . . . ....... ....... ..............33
5.4.3 Metering setup . . . . . . . . ............................34
5.4.4 Process control setup. . . . . . . . . . . . . . . . . . . . . . . . .
5.5.5 Reset working set to factory values . . . . . . . ...... .......39
5.4.6 Set password (for a single configuration set) . . . . . . .......39
5.4.7 Saving changes . ..................... ....... .......39
5.4.8 Escape without saving . . ....... ....... ....... .......39
.......37
Ultrasonic Flowmeter
6.8 Transit Time transducer installation - Z mount mode ...... .......44
6.9 Transducer acoustic mounting gaskets . . . .....................46
6.10 Transducer pipe mounting clamps ....... ....... ..............47
7 Run mode .................................................48
7.1 Primary and secondary display areas . . . . ....... ....... .......48
7.1.1 Flow rate measurement . . . . .........................49
7.1.2 Total flow measurement ....... ....... ....... .......50
7.2 Measurement status areas . . . . . . ....... ....... ....... .......50
7.2.1 Configuration and mode . ............. ....... .......50
7.2.2 Goodness of measurement . ..... ....... ....... .......50
7.2.3 Sound speed display .... ....... ....... ....... .......51
7.2.4 Measuring the fluid sound speed . ....... ....... .......51
7.3 Process control status areas . . . . . ....... ....... ....... .......52
7.4 Soft buttons . . . . ....... ....... ....... ....... ....... .......52
7.5 Output signals . ....... ....... ....... ....... ..............52
7.5.1 Analog signal output. . . . . . . . . . . .....................52
7.5.2 Digital pulse output . . . . ....... ....... ....... .......53
7.6 Data logging . . . ..........................................53
7.6.1 Periodic logging. ....... ....... ....... ....... .......53
7.6.2 Logging rate setpoints . . . . . . . . . ....... ..............53
7.6.3 Logging totalizer setpoints . . .... ....... ....... .......53
7.6.4 Local log data storage (SD flash memory card) . . . . .......54
7.6.4.1 . Inserting and removing the memory card . .......54
7.6.4.2 . Format of data on the memory card . . . . . . .......54
7.6.4.3 . Rotation and purging of log files. . ....... .......54
7.6.4.4 . Power loss . . . . . . . . .... .....................55
7.6.5 Remote access to log data ....... ....... ....... .......55
8 Process control....... ....... ....... ....... ....... ..............56
8.1 Process controlsScreen . . . . ..... ............................56

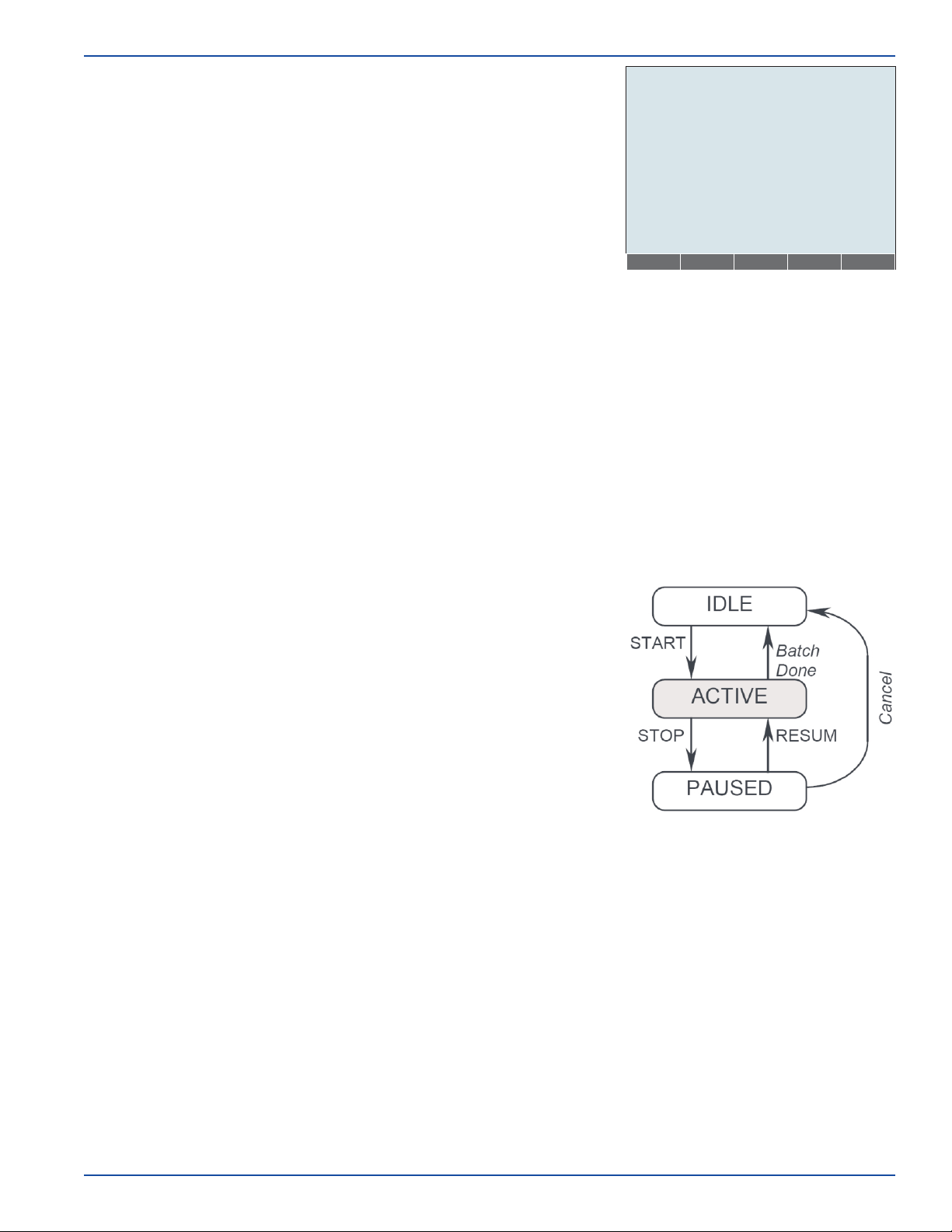

8.2 Batch dispensing ....... ....... ....... .....................57
8.2.1 Manual batch start type . ....... ....... ....... .......57
8.2.2 Auto batch start type . . . ....... ....... ....... .......58
8.2.3 Batch clear . . . . . . . .... ....... .....................59
8.2.4 Batch edit . . . . . ...................................59
8.3 Flow rate alarms ....... ....... ....... ....... ....... .......60
8.3.1 Basic operation . ....... ....... ....... ....... .......60
8.3.2 Clearing alarms .............. ....... ....... .......61
8.3.3 Editing alarms . . . ..... ....... ....... ....... .......61
8.3.4 More on clearing alarm conditions ....... ....... .......62
9 Sonic-Pro User PC Software .............................. .......63
9.1 Software installation. . . . ....... ....... ....... ..............63
9.2 Making connections. . . . . ...................................63
9.2.1 Ethernet Connection . . . . ............................63
9.2.2 Serial and USB connections . . . . . . . ..... ....... .......64
9.3 Retrieving log data . . . . . ....... ....... ....... ....... .......64
10 Indexes..................... ....... ....... ....... ....... .......66
10.1 Complete flowmeter model number system ....... ....... .......66
10.2 Additional transducers model number system. . . . . . .............66
10.3 Specifications . . ................................... .......67
10.4 Pipe dimensional data . . ....... ....... ....... ....... .......68
10.5 Sound speed data

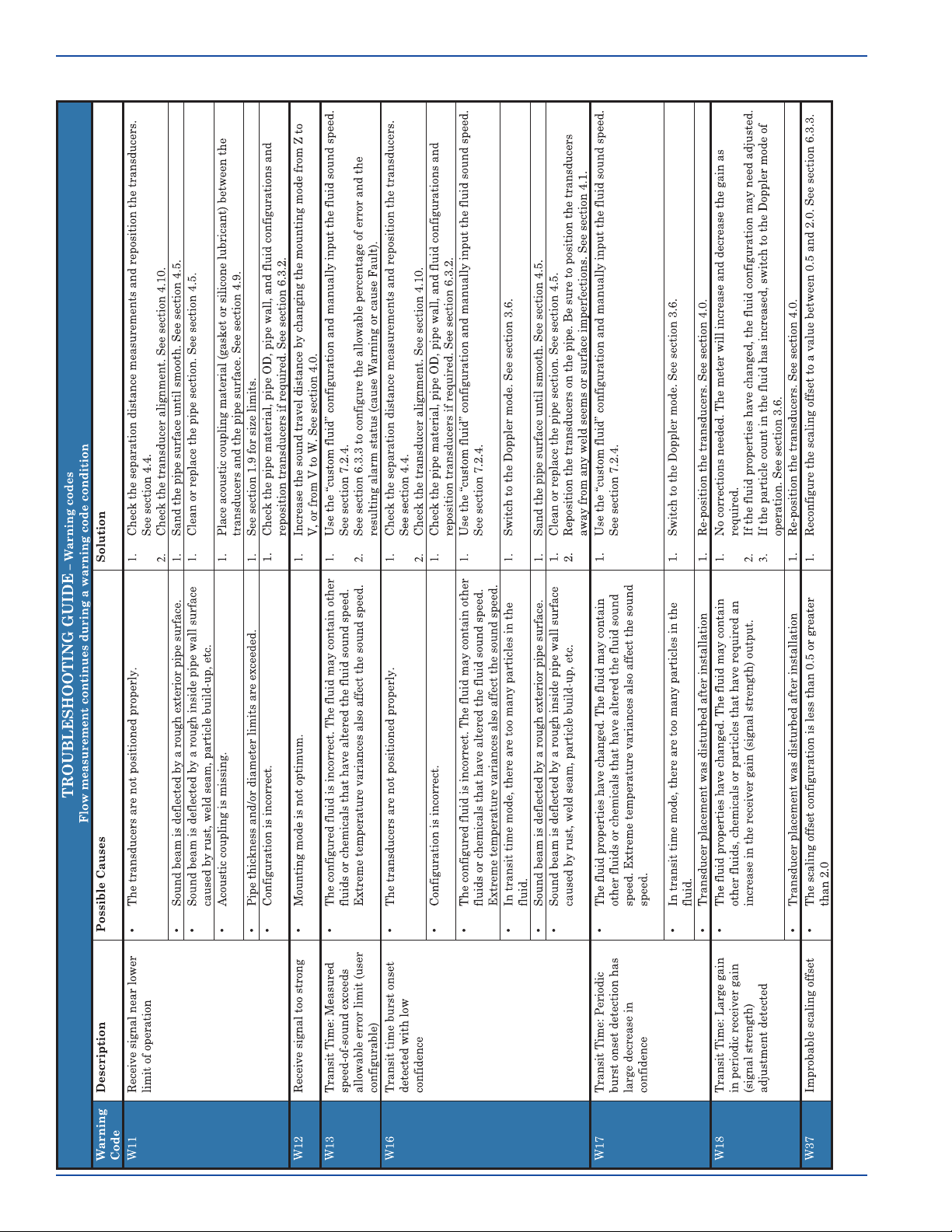

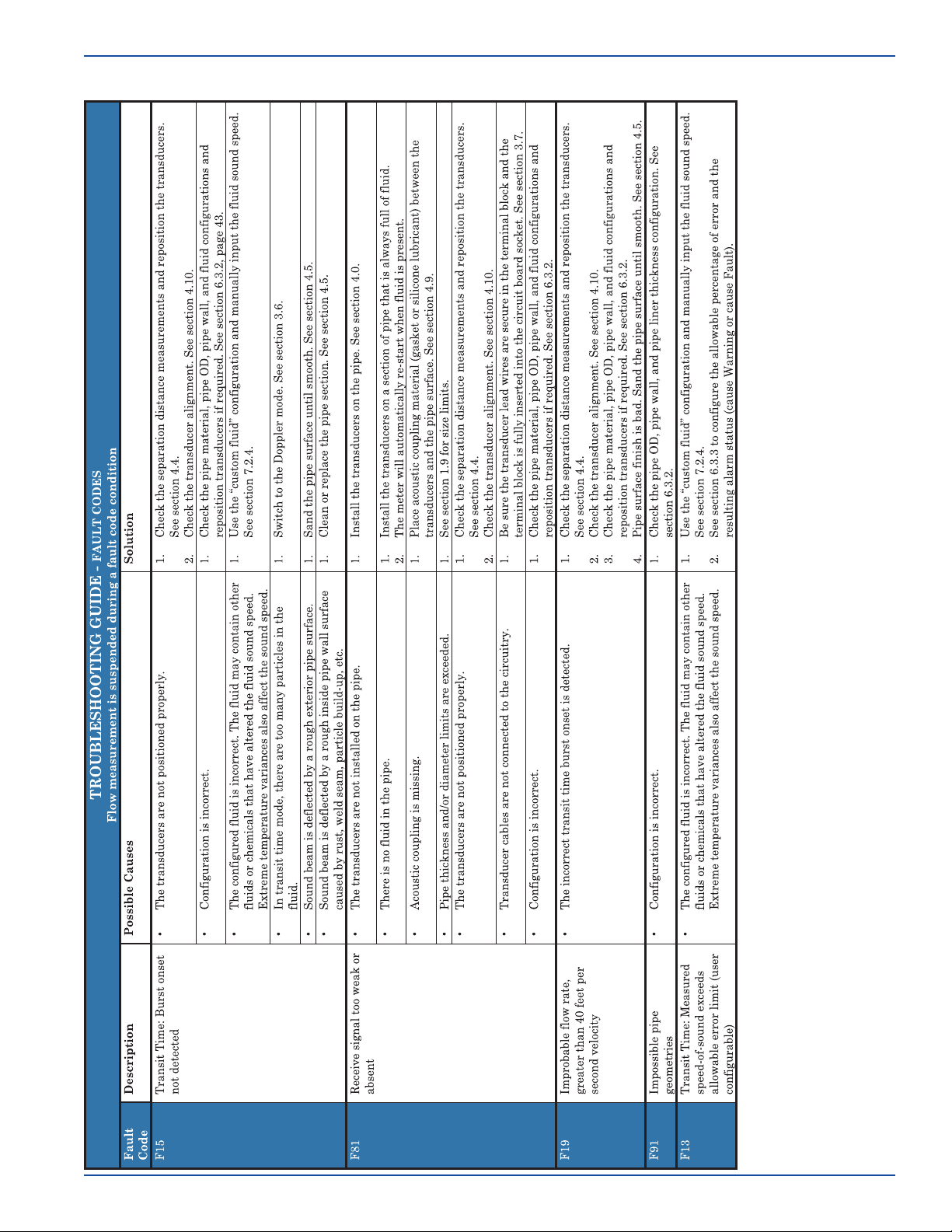

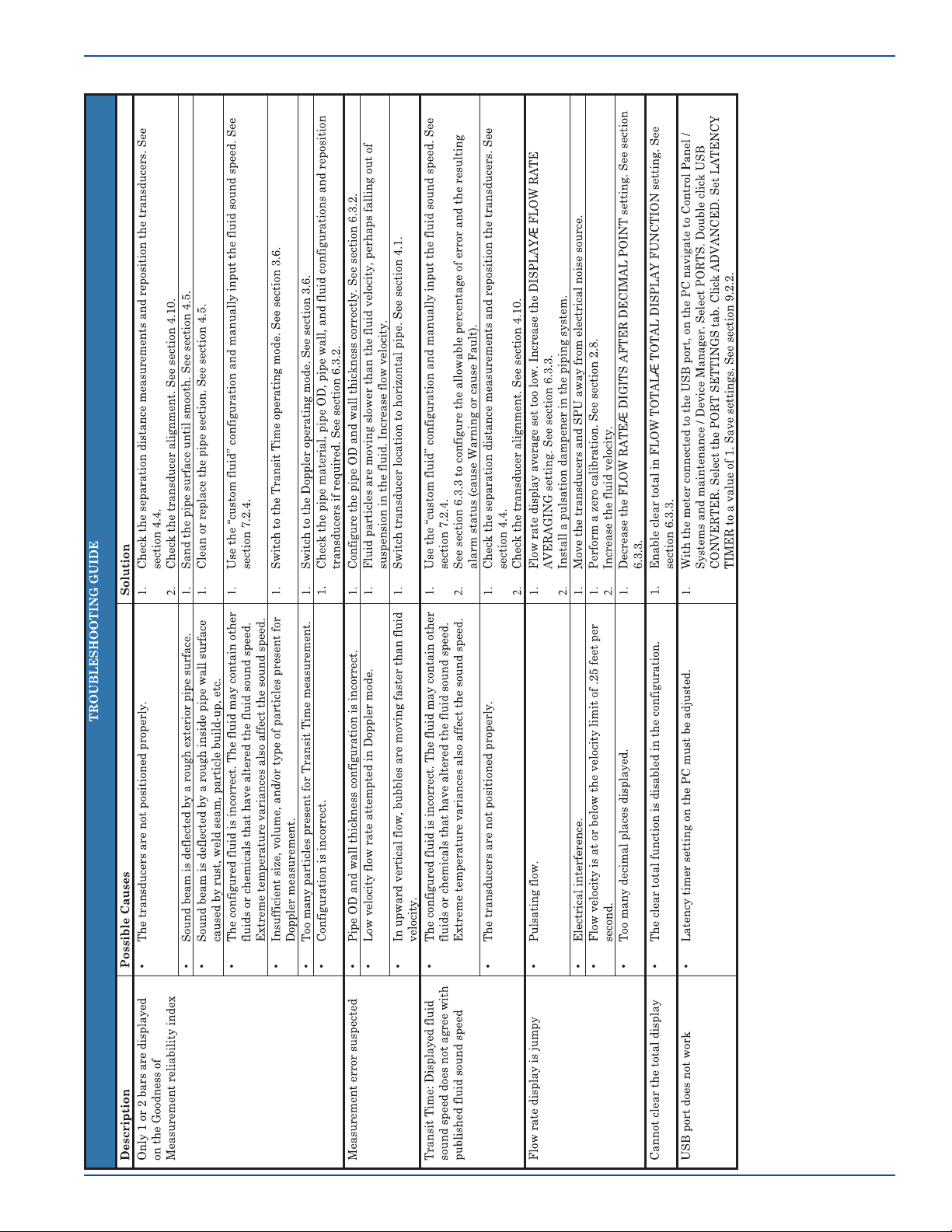

10.6 Troubleshooting guide . . . ...... ....... ....... ....... .......71
.........................................70
Page 3
Ultrasonic Flowmeter
Page 4
Safety Precautions
Thank you for purchasing the ultrasonic flowmeter.
This instruction manual provides important information regarding the safe installation, operation and maintenance of the flowmeter. Please read it carefully before attempting to install or operate the meter. A copy of this manual should be kept by the operator. Extra copies of this manual are available from your supplier or directly from the manufacturer.
The following important symbols are used throughout this manual and on labeling affixed to the flowmeter:
CAUTION
risk of electric shock
CAUTION
!
!
risk of danger
CAUTION
risk of danger
This symbol identifies a risk of electric shock where the possibility of injury or death is present.
This symbol identifies a risk of injury or death is present.
In all cases, when this s the documentation needs to be consulted to find out the nature of the
!
QUESTIONS REGARDING THE SAFE USE OF THIS PRODUCT, THE LINUX OPERATING SYSTEM SOURCE CODE AND OTHER TECHNICAL ASSISTANCE MAY BE DIRECTED TO THE PLACE OF PURCHASE.
potential HAZARD and any actions which have to be taken.
If the equipment is used in a manner not specified by this instruction manual, the protection provided by the equipment may be impaired.
ymbol is used on labeling affixed to the flowmeter,
Ultrasonic Flowmeter
LABELING
1.1 Operating Principles
1.2 Transit Time Operation
Page 5
1.0 Product Overview
The Hybrid Ultrasonic Flow Meter can measure fluid flow in virtually any fluid in which sound waves can travel. The meter is considered “hybrid” because it can measure fluid flow using either the Doppler or Transit Time methods. The system includes a set of ultrasonic sound Transducers and a Signal Processing Unit (SPU). The transducers are clamped to the outside of the pipe wall and include no moving parts. The SPU controls and processes the transducer signals into useful flow measurement data. This method of flow measurement is safe, non-intrusive and very easy to service.
The Transit Time measuring method requires relatively “clean” fluid to enable the sound waves to complete their circuit. The meter may be operated in the Transit-Time mode when the fluid contains particles. To allow for changes in the fluid’s particle count, the Sonic-Pro monitors the signal gain and employs an Automatic Gain Control (AGC) algorithm that automatically adjusts the gain to maintain the optimum power level.
The speed at which sound travels in the fluid must be known. The factory will configure the meter for a known fluid during the initial configuration. The model 3 includes a 5­button user interface that can be used to configure the meter. Many common fluids are listed in the software and can be selected directly from the menu. Provided the speed of sound in the fluid is known, custom “unknown” fluids can be input manually by the user. A list of various fluids and their sound speeds are provided in the index of this user manual.
0% to 10% (0 to 100,000 ppm) of
TRANSIT TIME MEASUREMENT PRINCIPLE
When operated in the Transit Time measurement method, a short ultrasonic signal burst passes first in one direction and then in the other between two transducers separated along the length of the pipe. When traveling in the same direction as fluid flow, the burst is carried along by the fluid and arrives earlier as a result. When traveling against fluid flow, the burst is held back by the fluid and arrives later. The SPU (
measures this difference in time-of-flight in the two directions. From this, the
Unit) actual time-of-flights, the distance traveled in the fluid and the angle of the ultrasonic signal path, it calculates the fluid velocity.
As well as the V mounting method shown, the transducers could be on opposite sides of the pipe with no reflections in the path (Z mount).
Signal Processing
Ultrasonic Flowmeter
Page 6
1.3 Doppler Operation
The Doppler measurement method requires that particles be present in the flow stream to “reflect” the sound waves. The particles must be of sufficient size, volume and type to reflect the sound waves. For example; although orange juice may contain pulp that is of sufficient size and volume, the properties of the pulp do not allow the sound waves to reflect. Therefore, the meter will not operate in the Doppler mode with orange juice containing pulp.
The meter may be operated in the Doppler mode when the fluid contains (200 to 150,000 ppm) of sound reflection properties.
particles that are at least 50 micron in size and have sufficient
0.02% to 15%
DOPPLER MEASUREMENT PRINCIPLE
When operated in the signal passes from a transmitting transducer into a pipe carrying a moving fluid. The signal is reflected by particles in the fluid and is picked up by a receiving transducer on the opposite side of the pipe.
When using the Doppler method, the transducers are installed directly opposite each other along the pipe axis, one each side of the pipe, either with or against the flow of fluid. The ultrasonic signal is subject to a Doppler shift when it is reflected from the particles moving at (nominally) the same velocity as the fluid. Therefore, the frequency at the receiving transducer will be slightly different from the transmitted frequency. SPU (
Signal Processing Unit) measures this difference in frequency and calculates the
fluid velocity.
Note that the meter is actually measuring the velocity of the particles and not the actual fluid. For this reason, measurement error will occur if the particles do not move at the same velocity as the fluid, such as when the particles are heavier than the fluid or when the fluid is moving at such a low velocity that the particles drop out of suspension. Large “gulps” of air or particles will temporarily disrupt the flow measurement resulting in error.
Doppler measurement method, a continuous-wave ultrasonic
The
Ultrasonic Flowmeter
Page 7
1.4 Fluid Requirements
1.5 Pipe Requirements
Doppler Operation
!
Must conduct sound
!
Must contain sound reflecting particles such
!
Must conduct sound
!
Must be relatively clean fluid
Transit Time Operation
as air bubbles, sand, etc.
Transit Time measurement requires relatively Doppler measurement requires 15% (200 to 150,000 ppm)
0.02% to
particles be
present in the flow stream to “reflect” the
“clean” fluid. Fluids containing from
10% (0 to 100,000 ppm) of particles
acceptable. sound waves.
Note: Do not attempt to measure very low flow velocities in the Doppler mode, the particles can fall out of suspension resulting in error or failure.
Pipe Material
Brass (Naval)
Copper
FRP (fiberglass Reinforced Plastic)
Iron (cast)
Iron (ductile)
Nylon
Polyethylene (HDPE)
Polyethylene (LDPE)
Polypropylene
PVC / CPVC
304 Stainless Steel
304L Stainless Steel
316 Stainless Steel
Steel (1% carbon hard)
Steel (carbon)
Titanium
Doppler Mode Pipe Size Range
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
Pipe Size Ranges and Maximum Wall Thickness
Transit Time Mode Pipe Size Range
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
1-1/2“ to 100” (40mm to 2500mm)
1-1/2“ to 100” (40mm to 2500mm)
1-1/2“ to 100” (40mm to 2500mm)
1-1/2“ to 100” (40mm to 2500mm)
1-1/2“ to 100” (40mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
Max Pipe Wall
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
2.00” (50mm)
2.00” (50mm)
1.00” (25mm)
.500” (13mm)
2.00” (50mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
0% to
are
1.6 Straight Pipe Length Requirements
Note: The outside surface of the pipe must be clean and smooth. Insulation, coatings, rust and other surface imperfections should be removed before installing the transducers. The inside surface of the pipe must be smooth to properly reflect the sound wave.
Type of Disturbance
Flange
Reducer
o
90 Elbow
o
Two 90 Elbows - 1 Direction
o
Two 90 Elbows - 2 Directions
Gate valve
Pump
Note: The sound wave beam is only affected by fluid that actually passes through the beam and therefore, the meter will not measure with high accuracy if the fluid velocity is not consistent across the entire pipe diameter. Flow disturbances such as pumps, elbows, tees, and valves in the flow stream can cause swirl patterns and vortices that will affect the measurement. Install the transducers on a straight run of pipe as far as possible from any disturbances. The distance required for high accuracy will depend on the type of disturbance.
Upstream from Transducers
5 x Nominal Pipe Size
7 x Nominal Pipe Size 5 x Nominal Pipe Size
10 x Nominal Pipe Size 5 x Nominal Pipe Size
15 x Nominal Pipe Size 5 x Nominal Pipe Size
20 x Nominal Pipe Size 5 x Nominal Pipe Size
25 x Nominal Pipe Size 5 x Nominal Pipe Size
25 x Nominal Pipe Size 5 x Nominal Pipe Size
Straight Lengths of Pipe Required
Downstream from Transducers
5 x Nominal Pipe Size
Ultrasonic Flowmeter
Page 8
1.7 Standard Model Features and Options
STANDARD MODEL FEATURES
! Data logging to a standard SD Card. ! 4-20 mA output signal ! 0-1000 Hz digital frequency output signal ! LED status indicator lights
DISPLAY AND USER ACCESS MODEL DISTINCTIONS
Model 3 includes a full featured display with a 5
button touch pad. The start-up process and the zero calibration can be performed by pressing the proper buttons on the touch pad.
Note that the start-up process, the zero calibration, and all other functions can also be performed by the optional remote PC software application.
Model 2 includes a basic display with a 2 button touch pad. The start-up process and the zero calibration can be performed by removing the front cover plate and pressing the setup button located on the circuit board.
Note that the and all other functions can also be performed by the optional remote PC software application.
Model 1 has no display or touch pad. The start-up process and the zero calibration can be performed by removing the front cover plate and pressing the setup button located on the circuit board.
Note that the start-up process, the zero calibration, and all other functions can also be performed by the optional remote PC software application.
OPTIONAL COMMUNICATIONS PACKAGE WITH CUSTOM PC SOFTWARE
Any model can be equipped with a connector panel and custom PC software. When software, any model can perform the functions described in this manual including program editing and data logging downloads directly into the PC.
start-up process, the zero calibration,
Communications Package that includes circuitry,
connected to a computer running the
Model 3
Ultrasonic Flowmeter
OPTIONAL PROCESS CONTROL RELAY BOARD
Any model can be equipped with a Process Control Relay Package that includes three independently programmable 10 amp relays. However, relay programming requires the Model 3 programming features or the Communications Software package to function. Models 1 and 2 cannot access the relay functions unless connected to the communications Software.
Page 9
1.8 Wiring Compartment
WIRING COMPARTMENT
The wiring access door on the front of the flowmeter enclosure only must be removed to access the wiring terminal blocks, motherboard controls (a setup button and the measurement mode switch) and to view the status LEDs.
The meter is factory set for transit time operation.
There are no user serviceable items inside the rear enclosure.
FRONT COVER PLATE REMOVED
DOPPLER / TRANSIT TIME
MODE SELECT SWITCH
(factory set for transit time mode)
INDICATOR LIGHTS
GRN
RS485
INDICATOR
LIGHTS
SD CARD DATA LOG (REMOVE)
TRANSDUCER
INPUTS
Tx 1 Tx 2
BLK (-)
GRN
GRN
RED (+)
RED (+)
RS232
USB
COMMUNICATIONS
CONNECTOR PANEL
BLK (-)
RED (+)
BLK (-)
ETHERNET
WIRING COMPARTMENT LAYOUT
SETUP BUTTON
TD
MODE SWITCH
COM
COM
COM
NC NO
NC NO
NC NO
R1
R2
R3
PROCESS CONTROL RELAYS
(THREE EACH) 10A 250V AC
SETUP BUTTON (white)
FUSE
FUSE
1A 250V (5x20mm)
slow blow
SIGNAL
OUTPUTS
mA
NEG (-)
POS (+)
littlefuse 239001.XP
POWER INPUT
Hz
DC
DC (-)
GRN
110~240Vac 50/60Hz-40W
DC (+)
NEG (-)
POS (+)
WARNING
INPUT POWER LIMITS
AC INPUT
DC INPUT
15~30 Vdc-40W
CAUTION
risk of electric shock
AC
GRN
AC LINE
AC NTRL
INPUT POWER (green)
FAULT CONDITION (red)
INDICATOR LIGHTS
METER STATUS (yellow)
Ultrasonic Flowmeter
Page 10
NO
NO
Down flows
must have
back pressure
Pipe must be full
Air could be trapped
!
2.0 Quick Start Guide
1
Select doppler or transit time mode
Note that the meter is factory set for Transit-Time operation.
See section 3.6 for more information
2
Select the transducer mounting location
The flowmeter’s sound wave beam only measures fluid that actually passes through the beam, therefore, the fluid velocity must be consistent across the entire pipe diameter to ensure high accuracy. Flow disturbances such as pumps, elbows, tees, and valves in the flow stream can cause swirl patterns and vortices that will affect the measurement. Install the transducers on a straight run of pipe as far as possible from any disturbances. The distance required for accuracy will depend on the type of disturbance.
FRONT COVER PLATE REMOVED
Type of Disturbance
Flange
Reducer
o
90 Elbow
o
Two 90 Elbows - 1 Direction
o
Two 90 Elbows - 2 Directions
Gate valve
Pump
Upstream from Transducers
5 x Nominal Pipe Size
7 x Nominal Pipe Size 5 x Nominal Pipe Size
10 x Nominal Pipe Size 5 x Nominal Pipe Size
15 x Nominal Pipe Size 5 x Nominal Pipe Size
20 x Nominal Pipe Size 5 x Nominal Pipe Size
25 x Nominal Pipe Size 5 x Nominal Pipe Size
25 x Nominal Pipe Size 5 x Nominal Pipe Size
MINIMUM STRAIGHT PIPE LENGTHS
OK
Flow Direction
10 x D

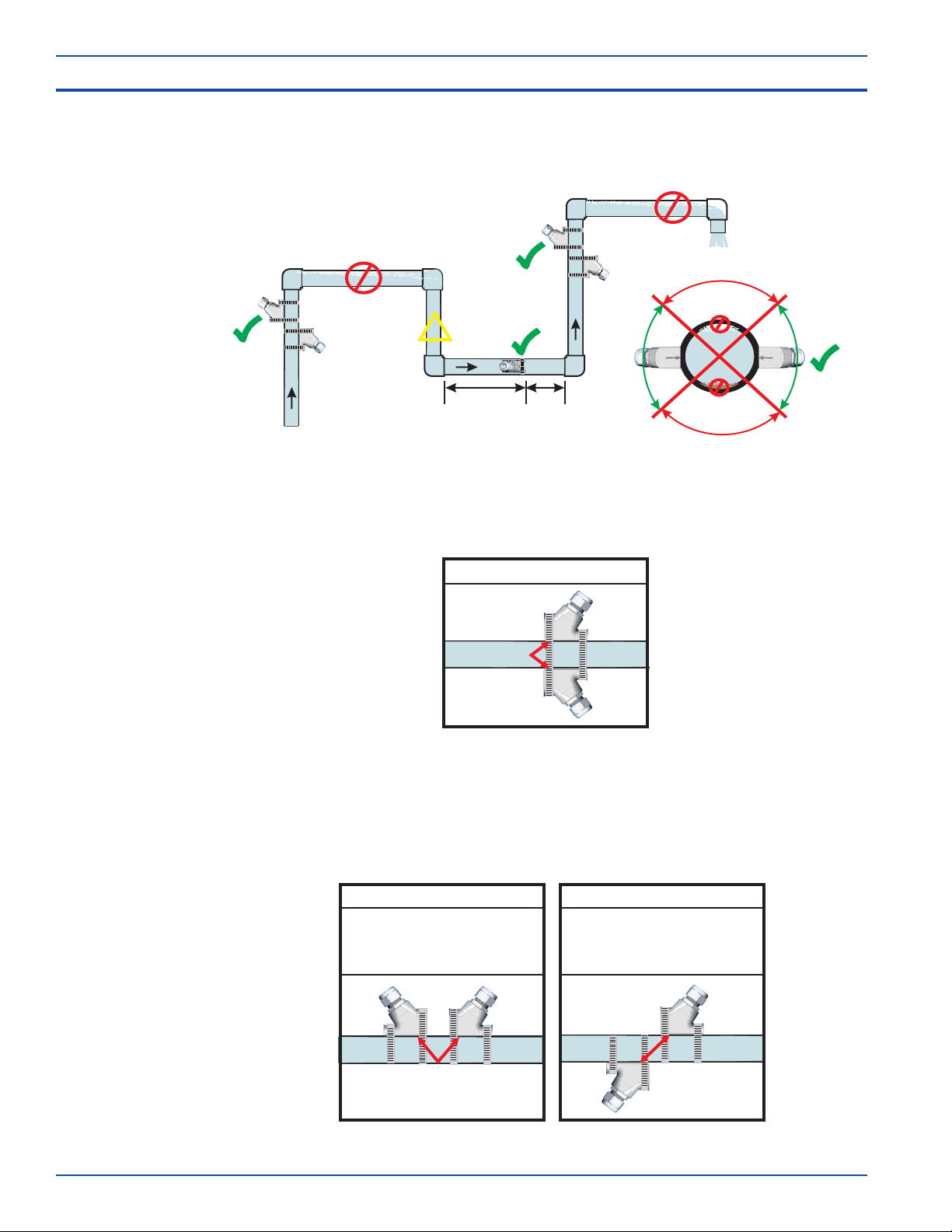

PIPE SYSTEM CONSIDERATIONS
MODE SELECT SWITCH
TRANSDUCER
INPUTS
Tx 1
BLK (-)
GRN
RED (+)
RS232
COMMUNICATIONS
CONNECTOR PANEL
USB
Tx 2
GRN
RED (+)
BLK (-)
BLK (-)
RED (+)
RS485
GRN
ETHERNET
INDICATOR
LIGHTS
SD CARD DATA LOG (REMOVE)
TD
MODE SWITCH
COM
NC NO
COM
NC NO
COM
NC NO
PROCESS CONTROL RELAYS
(THREE EACH) 10A 250V AC
SIGNAL
OUTPUTS
mA
NEG (-)
POS (+)
R1
R2
R3
SETUP BUTTON
WIRING COMPARTMENT LAYOUT
Straight Lengths of Pipe Required
Downstream from Transducers
5 x Nominal Pipe Size
OK
OK
5 x D
Hz
GRN
NEG (-)
POS (+)
FUSE
1A 250V (5 x 20)
POWER INPUT
DC
AC
DC (-)
DC (+)
GRN
WARNI NG
INPUT POWER
LIMITS
AC INPUT
110VAC - 240VAC
50/60 Hz
DC INPUT
15 to 30 VDC
CAUTION
risk of electric shock
AC LINE
AC NTRL
See section 6.1 for more information
Ultrasonic Flowmeter
3
NO
NO
Air bubbles may be present
Sediment may be present
Determine the transducer mounting mode
When operated in the Doppler mode, the transducers are always mounted directly opposite each other, 180 degrees around the pipe.
When operated in the Transit-Time mode, the front faces of the transducers must face each other and be positioned the correct distance apart. In V-mode, the transducers are on the same side of the pipe. In Z­mode, the transducers are on the opposite side of the pipe, 180 degrees apart.
When factory configured, the appropriate Transit- Time mounting mode is pre-configured and printed on the serial label.
See section 6.2 for more information
All pipe types and sizes
Flow
or
Flow
“V” Mount Mode
Typically smaller pipe
sizes from 2” to 6”
Separation
Distance
Flow
or
Flow
TRANSIT TIME
DOPPLER
Typically larger pipe
sizes from 4” to 100”
Separation
Distance
“Z” Mount Mode
Flow
or
Page 11
Flow
4
Determine the 1st transducer location
The mounting surface must be clean, smooth and free of surface imperfections. Remove all insulation material, loose paint, etc. Clean the pipe thoroughly. Use sandpaper if necessary to remove surface imperfections. Be sure to locate the transducers on the side of horizontal runs of pipe. Do not mount the transducers over weld seams. Place a mark where the first transducer will be located.
See section 6.5 for more information
O
45
OK
O
45
TRANSDUCER MOUNTING LOCATION
Horizontal
Ultrasonic Flowmeter
Page 12
5

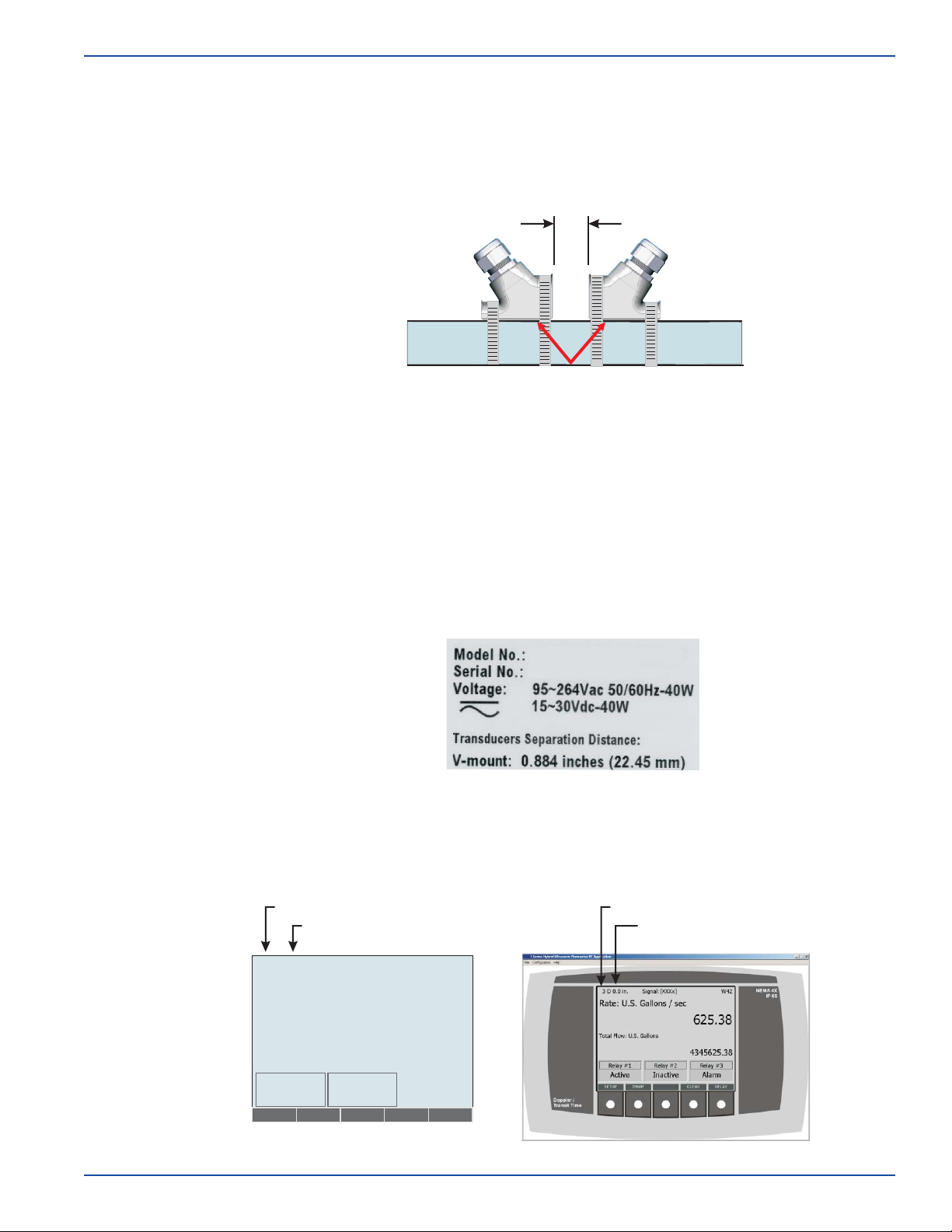

Determine the 2nd transducer location
When operated in the Doppler mode, the transducers are always mounted directly opposite each other, 180 degrees around the pipe.
When operated in the Transit-Time mode, the factory configured separation distance and mounting mode is printed on the serial label. The currently active separation distance is also displayed on the run mode screen, the fault indicator screen, and when activating a new configuration.
If the meter has not been factory configured, or if a new configuration is required, the pipe outside diameter, pipe wall thickness, pipe material, fluid type and transducer mounting mode data must be input before proceeding.
All pipe types and sizes
DOPPLER
SERIAL LABEL
1 T 0.88 in.
FAULT
Attempting Correction...
[ £]
£££
“V” Mount Mode
Typically smaller pipe
sizes from 2” to 6”
Separation
Distance
F81
81
“Z” Mount Mode
Typically larger pipe
sizes from 4” to 100”
Separation
Distance
TRANSIT TIME
Separation Distance
1 T 0.88 in. [¢¢¢£]
U.S. Gallons / min
625.38
U.S. Gallons
4345625.38
SETUP SWAP CLEAR
RUN MODE SCREEN
Firmware Version, A01.00.00
Transducer Positioning …
Position the transducers
at a separation distance of:
0.884416 inches (”V” Mount)
Information Screen
1490
Once activated, the new separation distance will be displayed.
See section 6.6 for more information
FAULT INDICATOR SCREEN
Press DONE when this is complete
DONE
NEW CONFIGURATION
ACTIVATION SCREEN
6
Configure the meter if it has not been factory configured
Apply power to the meter. note that only the most basic configuration requirements are shown here.
1 T 0.88 in. [¢¢¢£] 1490
U.S. Gallons / min
U.S. Gallons
625.38
Manage Configuration Sets
Global Configuration
Setup Root Menu
4345625.38
SETUP SWAP CLEAR
1. Press Setup.
ENTER Ç ESC
2. Highlight Manage Configuration Sets and
press enter.
È
È
Manage Configuration Sets
Ê
ENTER Ç ESCÈ
4. Highlight the Configuration set to be edited and press enter.
Setup Root Menu
Manage Configuration Sets
ÊActivate a Configuration Set
Open a Saved Configuration Set
Create a New Configuration Set Delete a Saved Configuration Set
ENTER Ç ESC
3. Highlight Open a saved Configuration set and press enter.
Setup Root Menu
Open a Saved Configuration Set
Ê
Configuration Set #1
See section 5.0 for more information
Ultrasonic Flowmeter
6
Configure the meter (continued)
Configuration Set #1
Transducer Setup
Metering Setup Process Control Setup Reset Working Set to Fact. Defaults Set Password... Save Save As ... Save and Activate
Configuration Set #1
Transducer Setup
ÊTransducer
Measurement Units
Ê
Transducer
Ê
Pipe Liner Fluid
Page 13
Configuration Set #1
Transducer Setup
ÊTransducer
Ê
Model Number
Mount Method
Ê
Cable Length (Feet)
Configuration Set #1
Transducer Setup ÊTransducer
Mount Method
Ê
V
W Z
N
ENTER Ç
È
ESC
5. Highlight Transducer Setup and press enter.
Configuration Set #1
Transducer Setup
ÊTransducer
Ê
Model Number
Mount Method
Ê
Cable Length (Feet)
ENTER Ç ESC
È
9. Press escape.
Configuration Set #1
Transducer Setup ÊPipe
Outside Diameter
Wall Thickness
Pipe Material
Speed of Sound in Custom Material
ENTER Ç ESC
È
13. Highlight Wall Thickness and press
enter.
Configuration Set #1
Transducer Setup
ÊPipe
Ê
Outside Diameter
Wall Thickness
Pipe Material
Speed of Sound in Custom Material
ENTER Ç ESC
È
17. Press escape.
Configuration Set #1
Transducer Setup
Fluid
Ê
Fluid type
Ê
Speed of Sound in Fluid Type
ENTER Ç ESC
È
21. Press escape twice.
ENTER Ç ESC
È
6. Highlight Transducer and press enter.
Configuration Set #1
Transducer Setup
Measurement Units
Ê
Transducer
Pipe
Liner Fluid
ENTER Ç ESC
È
10. Highlight Pipe and press enter.
Configuration Set #1
Transducer Setup ÊPipe
Wall Thickness
Ê
0.218
Ê
ENTER Ç ESC
È
14. Input the actual wall thickness and press enter.
Configuration Set #1
Transducer Setup
Measurement Units
Ê
Transducer Pipe
Liner
Fluid
ENTER Ç ESC
È
18. Highlight Fluid and press enter.
Configuration Set #1
Transducer Setup Metering Setup
Process Control Setup Reset Working Set to Fact. Defaults Set Password... Save Save As ...
Save and Activate
ENTER Ç
22. Highlight Save and Activate and press enter.
È
ENTER Ç ESC
7. Highlight Mount Method and press enter.
Configuration Set #1
Transducer Setup ÊPipe
Outside Diameter
Ê
Wall Thickness Pipe Material
Speed of Sound in Custom Material
ENTER Ç ESC
11. Highlight Outside Diameter and press
enter.
Configuration Set #1
Transducer Setup
ÊPipe
Ê
Outside Diameter
Wall Thickness
Pipe Material
Speed of Sound in Custom Material
ENTER Ç ESC
15. Highlight Pipe Material and press
enter.
Configuration Set #1
Transducer Setup
Fluid
Ê
Fluid type
Ê
Speed of Sound in Fluid Type
ENTER Ç ESC
19. Highlight Fluid Type and press enter.
Information Screen
Firmware Version, A01.00.00
Transducer Positioning …
Position the transducers
at a separation distance of:
0.884416 inches (”V” Mount)
Press DONE when this is complete
ESC
DONE
23. Position the Transducers on the pipe and press Done.
È
È
È
È
ENTER Ç ESC
8. Highlight a Mount Method and press enter.
Configuration Set #1
Transducer Setup ÊPipe
Outside Diameter
Ê
2.625
Ê
ENTER Ç ESC
12. Input the actual outside diameter and press enter.
Configuration Set #3
Transducer Setup
ÊPipe
ÊPipe Material
Ê
PVC/CPVC
Ê
PVDF Stainless Steel 302/303 Stainless Steel 304 Stainless Steel 304L Stainless Steel 316
ENTER Ç ESCÈ
È È
16. Highlight the actual Pipe Material and press enter.
Configuration Set #1
Transducer Setup
Fluid
Ê
Fluid type
Ê
Water (Waste, Distilled)
Ê
Custom 1, 1, 1, Trichloroethane
1-Propanal Acetone (Dimethyl ketone, 2-Propanone) Alcohol (Ethyl alcohol, Ethanol)
ENTER Ç ESC
È È
È
20. Highlight the actual Fluid Type and press enter.
È
È
Ultrasonic Flowmeter
Page 14
Manage Configuration Sets
Create a New Configuration Set
Ê
Delete a Saved Configuration Set
Ê
Activate a Configuration Set
Ê
Open a Saved Configuration Set
Ê
Configuration Set #1
Ê
Configuration Set #2
Ê
Configuration Set #3
Ê
Configuration Set #4
Ê
Configuration Set #5
Ê
Global Configuration
Communications Settings
Ê
Master Password
Ê
Date and Time
Ê
Save Changes
Ê
Ê
Transducer Setup
Measurement Units
Ê
English (U.S. units)
Ê
Metric (SI units)
Ê
Transducer
Ê
Ê
Model Number
Mount Method
Ê
Cable Length (Feet)
Ê
Pipe
Ê
Ê
Outside Diameter
Ê
Wall Thickness Pipe Material
Ê
Speed of Sound in Custom material
Ê
Liner
Ê
Ê
Liner Wall Thickness Speed of Sound in Liner material
Ê
Ê
Fluid
Fluid Type
Ê
Speed of Sound in Custom Fluid
Ê
Ê
Metering Setup
Flow Rate
Ê
Ê
Volume Units Custom Unit Volume per U.S. Gallon
Ê Ê
Time Units Digits After Decimal Point
Ê
Totalizer
Ê
Volume Units
Ê
Custom Unit Volume per U.S. Gallon
Ê
Digits After Decimal Point
Ê Ê
Total Display Function
Display
Ê
Ê
Display Language
Ê
Flow Rate Averaging Display Update
Ê
Low Flow Cutoff
Ê
High Flow Cutoff
Ê
Scaling Offset
Ê
Signal Output
Ê
Ê
Analog Output
Ê
Pulse Output
Data Logging
Ê
Log Interval
Ê Ê
Log Rate Setpoint
Ê
Log Totalizer Setpoint
Setup Root Menu
Ê
Process Control Setup
Ê
Relay Channel #1
Assign Relay
Ê
Ê
Monitor Flow Rate
Ê
Monitor Flow Total
Ê
Disabled
Flow Rate Alarm Settings
Ê
High Trigger
Ê
High Release
Ê
Low Trigger
Ê Ê
Low Release Alarm Delay Time
Ê
Batch Dispense Settings
Ê
Default Batch Amount
Ê
Batch Start Mode
Ê
Relay Timer
Ê
Relay Channel #2
Ê
Relay Channel #3
Ê
Assign Relay
Ê
Ê
Monitor Flow Rate
Ê
Monitor Flow Total
Ê
Disabled
Flow Rate Alarm Settings
Ê
High Trigger
Ê
High Release
Ê
Low Trigger
Ê Ê
Low Release Alarm Delay Time
Ê
Batch Dispense Settings
Ê
Default Batch Amount
Ê
Batch Start Mode
Ê
Relay Timer
Ê
Assign Relay
Ê
Ê
Monitor Flow Rate
Ê
Monitor Flow Total
Ê
Disabled
Flow Rate Alarm Settings
Ê
High Trigger
Ê
High Release
Ê
Low Trigger
Ê Ê
Low Release Alarm Delay Time
Ê
Batch Dispense Settings
Ê
Default Batch Amount
Ê
Batch Start Mode
Ê
Relay Timer
Ê
Manual Batch Start
Ê
Auto (Proportional)
Ê
Manual Batch Start
Ê
Auto (Proportional)
Ê
Manual Batch Start
Ê
Auto (Proportional)
Ê
Ultrasonic Flowmeter
Page 15
7
Install the transducers
An acoustic coupling material must be placed between the transducer and the pipe surface at the point where the sound waves enter the pipe.
Draw a centerline on the pipe parallel to the pipe center. Place the first transducer onto the pipe. Locate the front arrow exactly over the first separation distance mark (A). Place the transducer straight and parallel to the centerline.
Secure the first transducer to the pipe using the pipe clamps. The arrows on the front and rear of the transducers must point toward the centerline.
TRANSDUCER
CENTERLINE
CENTERLINE
DOW 111 Silicone Grease
or
BLUE GASKET - Permenant
installations. Recommended
for metal pipes.
or
WHITE GASKET -
Temporary installations.
ACOUSTIC COUPLING MATERIAL INSTALLATION
B
FRONT VIEW
ARROW ON CENTERLINE
A
REAR VIEW
ARROW ON CENTERLINE
CENTERLINE
TRANSDUCER
BOTTOM VIEW
CENTERLINE
Locate the second transducer separation mark (B). Place the second transducer so that the front arrow is located exactly over the mark (B). Place the transducer straight and parallel to the centerline. Be sure that both transducers are facing each other and parallel to the pipe centerline.
Check that the separation distance is correct. Tighten the clamps equally.
See section 6.9 for more information
8
Restart the meter
Press the SETUP button. The meter will enter the SETUP ROOT MENU. Creation and modification of the five available Configuration Sets and the Global Configuration settings can be made from this menu. If no changes are to be made, press will re-start.
ESC. The meter
1 T 0.88 in.
U.S. Gallons / min
[¢¢¢£] 1490
625.38
U.S. Gallons
4345625.38
SETUP SWAP CLEAR
B
A
AB
Separation
Distance
ACOUSTIC COUPLING
MOUNTING CLAMPS
Manage Configuration Sets
Global Configuration
ENTER Ç
Setup Root Menu
ESCÈ
Ultrasonic Flowmeter
Page 16
3.0 Flowmeter SPU Installation
3.1 Unpacking
3.2 Select a Mounting Location
The Flowmeter is shipped in a carrying case. Inside the carrying case you will find the following items:
!
Flowmeter SPU (Signal Processing Unit)
!
Transducer Set
!
Enclosure Mounting Hardware
2 mounting plates 4 mounting plate screws (10-32 x .50”) 4 panel mount screws (8-32 x 3.00”) 2 wall mounting screws (#10 x 1.00”) 1 panel mounting gasket 1 pipe mounting clamp (maximum pipe diameter 10”)
Transducer Mounting Kit
!
6 blue gaskets (single use) 2 white gaskets (multi use) 4 transducer mounting clamps
!
Paper Instruction Manual (English)
Instruction Manual (English, Spanish, German, French)
CD
!
Note that additional clamps can be purchased and connected for larger pipe diameters.
The flowmeter was designed to be installed and operated by qualified personnel only. Do not attempt to install or operate the meter if you are unsure. Seek qualified assistance.
Please note that warranty coverage does not include damage due to misuse or improper installation.
Select a mounting location for the SPU t power supply. The standard transducer cable length is 10 feet and must not be cut or modified. Note that the flowmeter can accurately measure flow from either direction.
(maximum pipe diameter 10”)
hat is within reach of the transducer cables and
!
3.3 Wall Mounting
CAUTION
risk of danger
The SPU Although the meter where the unit can be easily monitored is recommended. Special ventilation is not required.
1) The SPU must be installed on a
solid, secure surface such as a solid
wall, panel, wall studs, etc. DO NOT install the meter on drywall with anchor bolts.
2) Measure and mark the distance between the keyhole slot centers as shown.
3) Drill two 5/32” diameter pilot holes. Install the enclosed #10 x 1.00” screws into the wall. Leave the screw heads away from the panel surface approximately 1/4”.
4) Hang the SPU enclosure on the screws.
Do not position the equipment so that it is difficult to disconnect the power supply cord.
can be mounted on a wall, on a horizontal or vertical run of pipe or in panel.
is designed to withstand outdoor conditions. A cool, dry location,
4.68 (119mm)
Ultrasonic Flowmeter
3.4 Panel Mounting
1) The SPU can be panel mounted.
Measure and cut an opening in the panel as shown.
2) Remove the two mounting plates from
the rear of the enclosure.
3) Install the gasket onto the rear of the
front panel of the SPU enclosure.
Page 17
7.90” (200mm)
10.40”
(264mm)
3.5 Pipe Mounting
4) Place the enclosure into the panel.
5) Re-install the two mounting plates as
shown.
6) Thread the four 8-32 x 3.00” machine
screws through each of the two outer tapped holes in the mounting plates. Tighten the screws to secure the enclosure to the panel.
1) The SPU can be mounted on horizontal
or vertical pipe. The pipe must be secure and of sufficient strength to support the weight of the SPU.
2) Install the two mounting plates onto the
rear of the enclosure. For horizontal pipe mounting, install the mounting plates on the top and bottom plate cut­outs. For vertical pipe mounting, install the mounting plates on the side plate cut-outs.
Mounting Plates
Gasket
8-32 x 3.00” Panel Screws
Panel
3) Thread the long mounting clamp
through the square cut-outs in the mounting plates as shown.
4) Wrap the clamp around the pipe and
tighten loosely. Be sure the pipe is seated in the pipe groove, then tighten securely.
Ultrasonic Flowmeter
Page 18
3.6 Select the Measurement Method
3.7 Electrical Connections
Open the front cover of the SPU. Position the Doppler/Transit-Time switch to the preferred operating mode (factory setting is transit time).
Operate the meter in the Transit Time mode (best accuracy) if the fluid contains little or no particles (up to 10% maximum).
Operate the meter in the Doppler mode if the fluid to be measured contains
more than 10% particles.
Doppler/Transti-Time Switch
The transducer connections are pre-wired at the factory. If a main AC input power cord selection was made when ordering, the power cord and main AC power input connection is factory wired. When powering the meter by DC, a power cable for this purpose should be installed in one of the cable gland liquid-tight connectors. See section 3.8 below. The meter will automatically adjust for any main power input that is within the power requirements range of 110 to 240 volts AC or 15 to 30 volts DC. See the diagram below for wiring of output signals, communications signals and process control relays.
CAUTION
risk of electric shock
CAUTION
risk of electric shock
The transducer cable length is fixed. Do not attempt to modify the length of the cables. Various cable lengths are available from the factory. Contact the factory if you need assistance. Shielded cable is recommended for signal output connections.
RS232
All high voltage connections in the front wiring compartment are considered “finger safe”. However,
disconnect electricity to the meter and use care when connecting high voltage wires to the plug-in type terminal blocks.
There are no user serviceable items inside the rear meter enclosure. If it becomes necessary to open the back cover, be sure to disconnect the main power supply before opening the back cover of the enclosure.
FUSE
1A 250V (5x20mm)
slow blow
littlefuse 239001.XP
POWER INPUT
DC
AC
DC (-)
DC (+)
NEG (-)
POS (+)
WARNING
INPUT POWER LIMITS
110~240Vac 50/60Hz-40W
15~30 Vdc-40W
GRN
AC INPUT
DC INPUT
CAUTION
risk of electric shock
TRANSDUCER
INPUTS
Tx 1 Tx 2
BLK (-)
BLK (-)
GRN
GRN
RED (+)
COMMUNICATIONS
CONNECTOR PANEL
RED (+)
USB
RED (+)
BLK (-)
GRN
ETHERNET
RS485
INDICATOR
LIGHTS
SD CARD DATA LOG (REMOVE)
SETUP BUTTON
TD
MODE SWITCH
COM
NC NO
COM
NC NO
COM
NC NO
R1
R2
R3
PROCESS CONTROL RELAYS
(THREE EACH) 10A 250V AC
SIGNAL
OUTPUTS
mA
GRN
NEG (-)
POS (+)
Hz
AC LINE
AC NTRL
Ultrasonic Flowmeter
WIRING CONNECTIONS
Power Input Terminal Block
Page 19
Flow Meter
12 345
Positive
(+)
15 to 30 VDC
40 WATTS MAX
Flow Meter
Current output (4-20 mA)
Maximum load 1000 ohms
Signal Output Terminal Block
1
Current
input
4-20mA receiver
Negative
(-)
Line
intput
110 to 240 VAC 50/60Hz
40 WATTS MAX
Neutral
POWER INPUT CONNECTIONS
Frequency output (0-1000 Hz)
Open Collector output, 50% duty cycle
2
Current
output
34 5
Ground
Digital Pulse Receiver
Frequency
SIGNAL OUTPUT CONNECTIONS
input
input
Flow Meter
(Open Collector output
50% duty cycle)
5k
5-30 VDC
3.8 Cable Gland Liquid-Tight Connections
The SPU wiring compartment is equipped with: six large liquid-tight cable gland connectors, two small
liquid-tight cable gland connectors, and
a communications cable liquid-tight cable gland grommet and plug.
To ensure that the SPU enclosure remains water-tight, the following cable glands should be used:
The six large liquid-tight connectors can be used with any cable diameter from .200 to .394 inches (5.1 to 10.0 mm). They are provided for: 1 each for the power input cable 2 each for the transducer cables 3 each for the process control relay connection cables
The two small liquid-tight connectors can be used with any cable diameter from .118 to .255 inches (3.0 to 6.5 mm). They are provided for: 1 each for the 4-20 mA output signal cable 1 each for the pulse output signal cable
The communications cable grommet can be used with any cable diameter from .190 to .205 inches. It is provided for any one of the following cable types: USB cable Ethernet Cable RS-232 serial cable RS-485 serial cable
The blank grommet plug should be used when the not required.
communications cable grommet is
Ultrasonic Flowmeter
Page 20
4.0 Overview of Flowmeter Operation
4.1 Power On and Self-Test
4.2 Description of Operating States and Controls
On application of power, the power LED (green) on the motherboard comes on and the flowmeter performs self-test functions. The approximate duration of self-test is 10 seconds. The flowmeter indicates that it is in the Self-Test State as follows:
Model 1: the red and all four yellew LED indicator lights flash at 1 Hz.
INDICATOR LIGHTS IN
SELF-TEST STATE
Model 2: as for Model 1, plus the LCD shows the firmware version number and the text “Self-Test ...”.
Firmware Version, B01.00.00
Self-test …
Information Screen
Model 3: as for Model 2.
LCD DISPLAY
Below is a diagram of the flowmeter’s major operating states. The condition of the motherboard LEDs is pictured under the name of each state. Transitions are annotated with their causes, which may be user actions via the motherboard controls and timeouts (uppercase text), user actions using a display optionally fitted to the flowmeter, (italic text) or automatic transitions when a step is complete (in parentheses).
In the Self-Test state, the flowmeter checks the operation of internal circuitry, such as communication between the processor and its peripheral functions, Verify that all LEDs and the LCD display, if fitted, are working properly. Do not press any buttons during self-test.
Ultrasonic Flowmeter
If an error condition is detected during self-test, the flowmeter enters the Faulted State. Failure of the LEDs, LCD display, and the display touch-pad are not internally detectable.
If self-test completes without error, the flowmeter enters the Startup State. Note that
completion of self-test does not guarantee that the flowmeter is properly configured and able to make accurate measurements.
Power ON
(pass)
SELF-TEST
(fail)
FAULTED STATE
(complete)
ZERO CALIBRATION
(fail)
HOLD SETUP
FOR
3 SECONDS
TAP SETUP BUTTON or
“DONE” button
press
TRANSDUCER POSITIONING
STARTUP STATE
TAP SETUP BUTTON or
TIME OUT (5 minutes) or
press “ESC” button
SETUP MODE
TAP SETUP BUTTON or
Activate a
configuration
TAP SETUP
BUTTON
(fail)
TAP SETUP BUTTON or
FLIP DOPPLER / TT
MODE SWITCH
RUN MODE
(fail)
7 SECOND
TIME OUT
SONIC-PRO OPERATING STATES
Page 21
4.3 Startup State
When power is applied, the flowmeter enters the Startup state. In the Startup State, the flowmeter waits for up to 7 seconds for the Setup button to be pressed at which time the Setup mode is entered and changes to the configuration can be made. If the setup button is not pressed, the flowmeter will enter the Run Mode and attempt to start flow measurement. If the transducers are not installed on the pipe, a fault will occur. The location of the Setup button is as follows:
Model 1: a push-button switch on the controller motherboard.
Model 2: as for Model 1.
Model 3: as for Model 2, plus a SETUP soft
button appears on the display.
TRANSDUCER
INPUTS
Tx 1 Tx 2
BLK (-)
GRN
RED (+)
RS232
USB
COMMUNICATIONS
CONNECTOR PANEL
RED (+)
SETUP BUTTON (white)
INDICATOR
LIGHTS
SD CARD DATA LOG (REMOVE)
BLK (-)
GRN
RED (+)
BLK (-)
RS485
GRN
ETHERNET
COM
COM
COM
SETUP BUTTON
TD
MODE SWITCH
NC
R1
NO
NC
R2
NO
NC
R3
NO
PROCESS CONTROL RELAYS
(THREE EACH) 10A 250V AC
SIGNAL
OUTPUTS
mA
NEG (-)
POS (+)
GRN
Hz
NEG (-)
POS (+)
FUSE
1A 250V (5 x 20)
POWER INPUT
DC
AC
DC (-)
DC (+)
GRN
WARN ING
INPUT POWER
LIMITS
AC INPUT
96VAC - 264VAC
50/60 Hz
DC INPUT
15 to 30 VDC
CAUTION
risk of electric shock
AC LINE
CIRCUIT BOARD LAYOUT
The flowmeter indicates that it is in the Startup State as follows:
Model 1: the Fault (red) LED is OFF and all yellow LEDs are at first ON and then turn OFF one by one, starting at LED1, at intervals of 1.5 seconds, so as to count down the 7 second pause.
AC NTRL
Model 2: as for Model 1, plus the display screen indicates:
Startup ... Tap Setup to enter Setup Mode Hold Setup for Zero Calibration Configuration set # (Searching for SD Card)
Below this, a “progress bar” counts off the 7 second delay.
Model 3: as for Model 2, plus the SETUP soft button is available.
MODEL 1
Information Screen
Firmware Version, A01.00.00
Startup …
Tap Setup to enter Setup
Hold Setup for Zero Calibration
Configuration Set #1 (Searching for SD Card)
[££££¢¢¢]
MODEL 2
Information Screen
Firmware Version, A01.00.00
Startup …
Tap Setup to enter Setup
Hold Setup for Zero Calibration
Configuration Set #1 (Searching for SD Card)
[££££¢¢¢]
SETUP
MODEL 3
Ultrasonic Flowmeter
Page 22
4.4 Setup (Configuration) Mode
From the Setup mode, a zero calibration can be performed or, if equipped with either the full function display (Model 3) or the optional Communications software, the Setup Root Menu system can be entered and the meter can be configured. be performed in the Setup Root Menu are fully described in section 5.0.
The Setup Mode can be entered in two ways:
1) Tap the SETUP button on the motherboard, the display touch-pad, or on the user PC Communications Software.
2) Flip the Doppler/Transit Time switch.
Note: the meter must be in the Startup State or in the Run Mode to enter the Setup Mode.
The flowmeter indicates that it is in the Setup Mode as follows:
Model 1: two outer yellow LEDs flash at 1
Hz.
Model 2: as for Model 1, plus the display screen indicates:
Setup Mode...
Firmware Version, A01.00.00
Setup …
The operations that can
SETUP MODE
Information Screen
MODEL 2
Setup Root Menu
Model 3: as for Model 2, plus the Setup Root Menu appears.
The flowmeter will remain in the Setup Mode until one of the following actions occur:
1) A Configuration Set is activated from the Setup Root Menu.
Either t required for this action.
2) The user “escapes” from this state. The user can escape to the Startup state by: a) Hold the SETUP button on the motherboard for three seconds. b) Tap the SETUP button on the motherboard once (resulting in entering the
c) Press the ESC button on the
Note that if the user escapes, the currently active configuration set will re-activate.
3) Five minutes passes without user action.
he full function display (Model 3) or the optional Communications software is
Transducer Positioning state) and tap again (resulting in entering the Startup state).
full function display (Model 3) or on the optional
Communications software.
Manage Configuration Sets
Global Configuration
ENTER Ç
MODEL 3
È
ESC
Ultrasonic Flowmeter
Page 23
4.5 Transducer Positioning State
In the Transducer Positioning State, the flowmeter waits for the transducers to be correctly positioned on the pipe.
When operated in the Transit Time measurement mode, the separation distance of the transducers is computed by the flowmeter from the information in the Transducer Setup branch of the Configuration Menu. The correct separation distance is dependent on the pipe OD, pipe wall thickness, pipe type and chosen mounting mode. If the Doppler measurement mode is selected (by the motherboard switch), the separation of the transducers (along the pipe axis) is always zero.
When factory configured, the separation distance and mounting mode is printed on the serial label. The separation distance will also be displayed on the LCD display or on the optional communications PC software, in either inches or millimeters depending on the Measurement Units chosen in Transducer Setup. If the meter has not been factory configured, or if a new configuration is required, the pipe OD, pipe wall thickness, pipe type, fluid type and chosen mounting mode configuration data must be input before proceeding. See section 5.3 for instructions on how to create or modify a configuration.
If the flowmeter has neither an LCD display nor a connected user PC Software application, then the Configuration information cannot be changed by the user so the separation of the transducers will not change from the factory setting.
The flowmeter indicates that it is in the Transducer Positioning State as follows:
Model 1: two center yellow LEDs flash at 1 Hz.
TRANSDUCER
POSITIONING STATE
Model 2: as for Model 1, plus the screen presents instructions to the user as shown.
Model 3: as for Model 2.
You must acknowledge that the transducers are correctly positioned by either pressing the SETUP button on the motherboard or the DONE soft button on the display, if fitted. The flowmeter will then return to the Startup state, see section 4.3 above, from which you can again enter Setup Mode or perform Zero Calibration or, by allowing the 7 second timeout to elapse, let the flowmeter enter Run Mode and begin flow measurement.
Firmware Version, A01.00.00
Transducer Positioning …
Position the transducers
at a separation distance of:
2.489416 inches (”W” Mount)
Press DONE when this is complete
DONE
Information Screen
Ultrasonic Flowmeter
Page 24
4.6 Zero Calibration State
If the Transit Time measurement mode is selected, a zero calibration should be performed if possible. calibration. It is not necessary to perform zero calibration if Doppler measurement mode is selected, however it is harmless and will have no effect on the measurement.
In the Zero Calibration State, the flowmeter measures and records the apparent rate of fluid flow to offset measurements in Run Mode and compensate for any zero flow error. This information is associated and stored with the active Configuration Set and survives power loss and restarts. If a new Configuration Set is made activate, it will have its own zero calibration information. Therefore, the calibration must be performed after the configuration is created and saved. Although the zero calibration is not required, positive or negative zero offset reading error may result if the calibration is not performed.
The approximate duration of zero calibration is 15 to 20 seconds. movement of fluid in the pipe. Do not perform zero calibration if it is not possible to establish zero fluid flow in the pipe. If there is flow during zero calibration, then flow measurement in Run Mode will be inaccurate. The only means provided to cancel zero calibration or to undo its effect is to perform another zero calibration.
Zero calibration must be started while in the Startup State by holding down the SETUP button for at least 3 seconds. The Startup State may be entered by power cycling the flowmeter or upon exit from the Setup Mode or Transducer Positioning state. With either the Model S3 display or the optional Communications Board and a connected Host PC, the Setup Mode can be activated directly from the Run Mode by pressing the SETUP button and then the pressing the ESC button.
There must be no movement of fluid in the pipe during the
There must be no
On completion of zero calibration, the flowmeter returns to the Startup State and will again wait for up to 7 seconds for the Setup button to be pressed.
The flowmeter indicates that it is in the Zero Calibration State as follows:
Model 1: one yellow LED flashes at 1 Hz
INDICATOR LIGHTS DURING
ZERO FLOW CALIBRATION
Model 2: as for Model 1, plus the display screen indicates:
Zero Calibration ... Below this, a “progress bar” counts off the 15 to 20 second delay.
Firmware Version, B01.00.00
Zero Calibration …
Information Screen
££££¢¢¢
£££
[
Model 3: as for Model 2.
¢¢¢
]
MODEL 2 and MODEL 3
Ultrasonic Flowmeter
Page 25
4.7 Run Mode
In the Run Mode, the flowmeter performs flow measurement, updates the 4 to 20 mA and pulse signal outputs, displays and logs data and performs process control actions according to the active configuration.
The flowmeter indicates that it is in the Run Mode as follows:
Model 1: Yellow LEDs indicate the present “Goodness of Measurement”.
one light = poor quality four lights = best quality
Model 2: as for Model 1, plus the Run Mode screen appears, including an
indication of “Goodness of Measurement” on the top line and the calculated speed of sound in the fluid if in Transit Time measurement mode.
Model 3: as for Model 2 (see section 1.7 for some minor differences between Model 2 and 3 displays).
The flowmeter remains in the Run Mode until it is powered down, the user takes an action to go to Setup Mode or, exceptionally, an error occurs and the flowmeter goes to the Faulted State. The user can command the flowmeter to Setup Mode by pressing the motherboard setup button or changing the position of the measurement mode switch between Transit Time and Doppler. If the Model 3 Display or the Communications PC Software is connected, the user can additionally press the SETUP soft button.
INDICATOR LIGHTS DISPLAYING
GOODNESS OF MEASUREMENT
1 T 2.46 in.
[¢¢¢£]
U.S. Gallons / min
625.38
U.S. Gallons
4345625.38
Relay #1
Active
SETUP SWAP
MODEL 2 and MODEL 3
Relay #2
off
Alarm
CLEAR
Relay #3
RELAY
1480
4.8 Fault and Warning Error Codes
For a complete description of Run Mode operation, see section 7 below.
The flowmeter enters the Faulted or Warning State if:
1) The flowmeter self-test fails.
2) A configuration error is detected on exit from Setup Mode.
3) An error condition occurs during flow measurement in Run Mode or Zero
Calibration.
Faults and Warnings will be identified by two-digit error codes.
! A Fault will cause the meter to discontinue flow measurement. Note that the 4-20mA
analog output signal and 0-1000 Hz pulse output signal sets to the minimum values (fail safe low), and all relays will respond as if in a zero flow condition.
! A Warning will not interrupt flow measurement, output signals, or relay functions.
The fault LED will flash at a rate of 2 pulses per second (ON for 250 ms and OFF for 250 ms) to count out the first digit of the error code, will then stay OFF for 1.25 second, will then flash again to count out the second digit and then stay OFF for 5 seconds. The code will repeat. are available. The errors that can occur and their assigned codes are listed below.
Example: 8 flashes >>> 1.25 second pause >>> 1 flash >>> 5 second pause = Fault 81
at a rate of 2 pulses per second
The digit 0 will not be used, so that 81 codes
Ultrasonic Flowmeter
Page 26
4.8 Fault and Warning Error Codes (cont.)
The flowmeter indicates that it is in the Faulted State as follows:
Model 1: The Fault LED (red) flashes to
identify the error (note that this LED is on the motherboard and the wiring access door must be opened to see it) . All yellow LEDs are off.
INDICATOR LIGHTS IN
SELF-TEST STATE
1 T 2.46 in.
[ £]
£££
F15
FAULT
Model 2: as for Model 1, plus the error code appears in the upper right hand corner of the Run Mode display screen.
Model 3: as for Model 2.
The Faulted state will attempt to self correct, however, if the error is due to a configuration problem such as impossible pipe geometries, the configuration error must be corrected before the fault condition will clear. Repositioning the transducers may be required before the fault can correct itself. A fault that is caused by an empty pipe condition, excessive air or particles in the fluid, or other such flow stream disturbances will self correct when the flow stream returns to an acceptable condition.
15
Attempting Correction.....
MODEL 2 and MODEL 3
The Fault and Warning codes and their respective numbers are listed below. See the troubleshooting guide in the index of this manual for more information about correcting for errors.
Fault Codes
F15 Transit Time: Burst onset not detected F13 Transit Time: Measured sound speed exceeded the configured allowable limit F19 Improbable flow rate over 40 feet per second (12 meters per second) F81 Receive signal too weak or absent during burst accusation F91 Impossible pipe geometries
Warning Codes
W11 Receive signal near lower limit of operation W12 Receive signal too strong W13 Transit Time: Measured sound speed exceeded the configured allowable limit W16 Transit Time: Burst onset not detected W17 Transit Time: Periodic burst onset detection has large decrease in confidence W18 Transit Time: Large gain in periodic receiver gain adjustment detected W37 Improbable scaling offset (e.g. less than 0.5 or greater than 2.0)
The user can configure a fluid sound speed limit value. This feature can be used to monitor the fluid and alert the user to changes in fluid density. Should the measured sound speed be greater then the acceptable percentage of error, error code 13 will be recorded. Error code 13 can be configured to result in either a fault condition or a warning condition. The default setting is recorded as a fault. See section 5.4.3 for more information on this feature.
Ultrasonic Flowmeter
Page 27
Metering Setup
5.0 Setup (Configuration) Mode
The Setup (configuration) Mode screens are available on the Model 3 only. However, if the communications option is included, can access the setup mode by using the PC Software Application.
any of the models 1, 2 or 3
5.1 Menu Navigation
The function of the soft buttons for menu navigation is as follows:
ENTER
Perform an appropriate action on
the highlighted item:
! Select the item. ! If an editable value, edit the value. ! If the item has options, show the
options.
! If the item is a selectable option, choose
it and move one place back up the menu tree.
Ç
Move the highlight up in the list of menu items or options.
È
Move the highlight down in the list of menu items or options.
ESC
Move one place back up the menu tree, abandoning any change at the current position. If this soft button is pressed at the top level of a menu, leave the menu entirely, abandoning all unsaved changes.
The function of the soft buttons and their labels will change when editing values, such as numbers and passwords, and this is described in the following sections.
New Configuration Set
ÊFlow Rate
ÊVolume Units
ENTER Ç
ÊÇOunces Ç
U.S. Barrels Liquid
U.S. Barrels Oil
Pounds Kilograms
ÈAs Many Characters As Will Fit È
È
ESC
5.1.1 Setup Root Menu
5.1.2 Escaping From Setup
If the flowmeter enters Setup Mode and no input of any sort is received for a period of 5 minutes, then it will return to the Startup State, from which the user can re-enter the Setup Mode, if desired.
The Setup Root Menu is shown at right. From this screen, the user can Manage
Configuration Sets and edit certain Global Configuration items.
The flowmeter stores up to five sets of configuration item values, called “Configuration Sets”, which are numbered from 1 to 5.
If the ESC soft button is pressed repeatedly to go back up in a menu until the top level is reached and is then pressed one time more, the flowmeter “escapes” from the Setup Mode directly to the Startup State and from there to the Run Mode, as described in section 4.4 above. The Configuration Set used is the same as was previously selected. If no changes were made to this Set, for example if a different Configuration Set was changed, the flowmeter will operate exactly as before. However, if the active Set has been opened, edited and saved, then the changes will take effect without the re-calculation of internal parameters and therefore the flowmeter may not operate correctly.
Manage Configuration Sets
Global Configuration
ENTER Ç
Setup Root Menu
È
ESC
Ultrasonic Flowmeter
Page 28
5.2 Global Configuration
Setup Root Menu
Manage Configuration Sets
Global Configuration
Global Configuration
ÊCommunications Settings
Master Password Date and Time
Save Changes
Setup Root Menu
5.2.1 Communication Settings
ENTER Ç
È
ESC
ENTER Ç
È
ESC
Under the Global Configuration menu item, you can change communications settings, enter and/or change the Master Password, set the date and time, and saving the changes.
The Global Configuration settings apply to the flowmeter as a whole and are not associated with numbered Configuration Sets. Changes take effect when you highlight Save Changes and press the ENTER soft button. The Setup Root Menu then re­appears. This may disrupt communication, depending on what changes have been made. Any changes are lost if the flowmeter loses power before the changes are saved or the user presses the ESC soft button until the Setup Root Menu returns to the top level and then one more press.
The following sub-sections explain further what happens when you highlight a choice and acts on it by pressing the ENTER soft button.
Selecting the Communications Settings menu allows you to:
! Set the RS-232 bit rate ! Set the RS-485 bit rate and slave node
address
! Set the Ethernet IP address, subnet
mask, default router and UDP port number of the flowmeter
Global Configuration
Communications Settings
Ê
Ê
RS-232 RS-485
Ethernet
Setup Root Menu
RS-232 and RS-485 will always use 8 data bits, 1 stop bit, no parity and no flow control. These settings are not configurable.
Selecting the Ethernet menu allows you to:
! Set the Ethernet IP address (the
default IP Address is 192.100.100.23)
! Set the subnet mask ! Set the default router ! Set UDP (Universal Data Port) port
number of the flowmeter (typically set at 26000)
ENTER Ç
Global Configuration
Communications Settings
Ê
Ê
Ethernet
ENTER Ç
Setup Root Menu
IP Address
Subnet Mask Default Router UDP Port Number
Ç
È
È
ESC
ESC
Ultrasonic Flowmeter
Page 29
5.2.2 Master Password
On selecting this action, you are prompted to supply a Master Password. The master password is “empty” when shipped from the factory. The first time user may enter any master password. Once entered, this master password can be used to enter
ANY configuration, as if no other passwords are present.
Once a Master Password has been entered, upon selecting this action, you will
prompted to supply the Master
be Password.
If this is done incorrectly, the
Global Configuration
ÊMaster Password
Ê
12345
Setup Root Menu
flowmeter returns to the Setup Root Menu. If it is done correctly, you are given the choices of changing the Master Password or returning to the Setup Root Menu. If you elect to change the Master Password, you must enter it twice. You will
receive confirmation of the change or, if the
ENTER
Ç
Ç
Ç
ESC
two entries were not the same, the password will not change and, in either case you are returned to the Setup Root Menu. Whether the Master Password is changed or not, on return to the Setup Root Menu, you will not need to enter passwords for the duration of the current Setup Mode session.
Wherever a password is required, the Master Password will be accepted. Therefore, knowing the Master Password lets you do anything. In particular, you can overwrite “forgotten” passwords. Knowing just the password of a single Configuration Set lets you edit, activate or delete only that set.
5.2.3 Setting the Date and Time
5.2.4 Saving Changes
On selecting this action, you are able to change date and time settings. Each digit can be set in the same way as for numerical data, see section 6.3.1.1 below.
Global Configuration
ÊDate and Time
Ê
2008/01/01 00:18:03
Setup Root Menu
The flowmeter uses date and time information to time stamp log entries, see section 7.6 below. There is no explicit means to set the time zone or daylight savings time. The clock must be manually set forwards or backwards as appropriate.
ENTER
Ç
Ç
Ç
ESC
The meter includes a coin cell battery to maintain the date and time settings in the event of a power failure (Type CR1632, 3V
16mm 126mAh). The battery should last for years of operation. The battery is located on the main circuit board. Contact the factory if the battery must be replaced.
Save changes before escaping from the Global Configuration menu. If the ESC soft button is pressed repeatedly to go back up in a menu until the top level is reached and is then pressed one time more without saving the changes, the flowmeter “escapes” from
Global Configuration
ÊCommunications Settings
Master Password Date and Time
Save Changes
Setup Root Menu
the Setup Mode directly to the Startup State and from there to the Run Mode.
ENTER Ç
Ultrasonic Flowmeter
È
ESC
Page 30
5.3 Manage Configuration Sets
Under the Manage Configuration Sets menu item, the user is offered actions to manage these Sets in much the same way as files on a computer.
Activate a Configuration Set allows the user to apply a Configuration Set to the flowmeter, which will then enter Run Mode and operate according to the configuration information in that Set plus the setting of the motherboard measurement mode switch.
Open a Saved Configuration Set allows the user to inspect and edit a Configuration Set, reset it to the Factory Configuration, save changes to it, save it to a different Set, etc. Create a New Configuration Set begins a fresh Configuration Set, starting from the pre-set Factory Configuration.
Delete a Saved Configuration Set removes a Configuration Set from the flowmeter.
Similar to operating on files in a computer, the editing of a Configuration Set takes place in a temporary location called the “Working” Set. This must be saved by the user, either back to where it came from or to a different numbered Set, otherwise it will be lost if the flowmeter loses power or the user escapes from Setup Mode.
Manage Configuration Sets
ÊActivate a Configuration Set
Open a Saved Configuration Set
Create a New Configuration Set
Delete a Saved Configuration Set
ENTER Ç
Setup Root Menu
È
ESC
5.3.1 Activate a Configuration Set
5.3.2 Open a Configuration Set
5.3.3 Create a New Configuration Set
5.3.4 Delete a Configuration Set
On selecting this action, a list of the pre-saved Configuration Sets will be shown. The user can select a Configuration Set using the and soft buttons and press the ENTER soft button to activate that Set. The flowmeter then exits the Setup
Mode to the Transducer Positioning State and eventually the Startup State
and then to the Run Mode where it will perform flow measurement using the configuration data of that Set.
The Setup Root Menu will return to the screen without the activation of a Configuration Set if the user fails to supply a password (if required), or presses the ESC soft button twice.
This action is similar to Activate a Saved Configuration Set in that the user is able to select and open a valid Configuration Set. On pressing the ENTER soft button and supplying a password if necessary, the selected Configuration Set will be loaded into the Working Set and the Configuration Edit Menu will appear. From this screen, the user can navigate to and edit configuration items.
On selecting this action, the pre-set Factory Configuration data will be loaded into the
Working Set and the Configuration Edit Menu will appear. The banner will read New Configuration Set. From this screen, you can navigate to and edit configuration
items and save the configuration to a numbered Set.
Deleting a Configuration Set starts out the same as Activate a Saved Configuration Set. On pressing the ENTER soft button and supplying a password if necessary, the Configuration Set number and data will be deleted. Note that new configuration data can now be saved to that numbered set). If all Configuration Sets are deleted, the flowmeter will operate according to the Factory Configuration.
ENTER
Ç
Manage Configuration Sets
Activate a Configuration Set
Ê
Ê
Configuration Set #1
Configuration Set #3
Configuration Set #4
ENTER Ç
È
Setup Root Menu
È
ESC
Ultrasonic Flowmeter
5.4 Configuration Edit Menu
Page 31
The Configuration Edit Menu appears if a new Configuration Set is created or if an existing Configuration Set is successfully opened. The banner on the top line identifies the configuration as New Configuration Set or Configuration Set #1, etc. Note that any changes made are held in a temporary “working” Configuration Set and are not stored to a numbered Set until the user explicitly selects this operation.
5.4.1 Editing Data Items
From here, the user can:
! Inspect and Edit the Working
Configuration Set
! Reset everything to the Factory
Configuration
! Create, change or delete the
Configuration Set Password
! Save the Working Configuration Set
to a numbered Configuration Set
Transducer Setup
Metering Setup
Process Control Setup Reset Working Set to Fact. Defaults Set Password...
Save Save As ... Save and Activate
Configuration Set #3
! Activate the Set after saving it to a
numbered Configuration Set
! Abandon edits and return to the Setup
ENTER Ç
È
ESC
Root Menu
The Working Configuration set cannot be directly activated. It must first be saved (to a numbered Set). Actions do not appear in the menu if they are inappropriate (for example, Save and Save and Activate do not appear for a new Set until it is saved to a Numbered Set).
There are two possible ways to change editable data in the flowmeter. From the user PC software, decimal digits can be typed directly. From the flowmeter, the user is limited to the five soft buttons. Data is not available for editing in Model 1 and Models 2 without the user PC Software application.
5.4.1.1 Editing Numerical Values
If you press the ENTER soft button when the highlight is on a leaf item that has a editable value (rather than a list of choices), you can then edit the value, one digit at a time. The current value is displayed to an appropriate precision and the leftmost digit is highlighted (see example below).
Using the soft button, the value of
Ç
the highlighted digit can be increased by one for each press. Upon reaching 9, it wraps to
0. Using the and soft
È
È
Buttons, the highlight can be moved to the left or right one digit at a time. The highlight skips non-editable positions, such
Metering Setup
Ê
Signal Output
Ê
New Configuration Set
Pulse Output
Flow Rate at High Point
Ê
Ê
75000.00
as the decimal point. If the highlight is moved beyond the leftmost digit, a new digit will appear with the value 0. If this digit is not changed before the highlight is moved
ENTER
Ç
Ç
È
ESC
back to the right, it will be removed. A similar procedure can be used to add zeros to the right of the number, but only if the number is a real number (contains a decimal point).
When the ENTER soft button is pressed, the currently displayed value becomes the new value of the item being edited and the menu system moves one place back, appearing as it did before the edit began. If the ESC soft button is pressed, then the menu system also moves one place back but the value of the item is not changed and remains as it was before the edit.
Ultrasonic Flowmeter
Page 32
5.4.1.2 Entering Passwords using the Soft Buttons
All passwords must contain 5 digits. Each of the five soft buttons represent 2 digits. The numbers 5, 6, 7, 8 and 9 are interchangeable with 0, 1, 2, 3 and 4 (respectively), so only five choices are needed to enter any digit from 0 thru 9. Entering the number 00000 (55555) effectively cancels the password
Manage Configuration Sets
Open a Saved Configuration Set
Ê
Configuration Set #1
Ê
Configuration Set #2
Configuration Set #3
Configuration Set #4 Configuration Set #5
Setup Root Menu
input or deletes an existing the password.
If you are prompted to supply a password and fail to do so within 30 seconds, the
Enter Password
0 / 5
[
]
££¢¢¢
1 / 6 2 / 7 3 / 8 4 / 9
flowmeter reacts as if an incorrect password was entered.
When setting or changing a password, the password must be entered a second time to avoid entry errors. If the two entries to not match, the password will not be changed. To remove password protection, you can take the normal action to set a password and then delete it by e . You are
ntering the number 00000 (55555) effectively deleting the password then no longer prompted to enter the password but are instead immediately given access to the protected data.
5.4.1.3 Units of Measure
Many data items must be entered with reference to a specific unit of measure.
In the below), you are flow ( and one relating to total flow ( . Thus, rate of flow units can be configured for GPM and total
Metering Setup branch of the Configuration Edit Menu (see section 5.4.3
able to specify three different units of measure; two relating to rate of
Flow Rate Volume Units & Flow Rate Time Units)
Flow Total Volume Units)
flow units can be configured for U.S. Barrels Liquid. Note that total units do not include
time as a variable.
When entering data in the , any value associated with rate of flow must be entered in the units of measure that is currently configured at the time the data entry takes place.
Metering Setup and the Process Control Setup screens
rate of flow
Any value associated with the total flow must be entered in the total flow units of measure configured at the time the data entry takes place. This requirement does not apply to values in the Transducer Setup branch, (such as pipe sizes) which are governed by a separate selection of units of measure (see section 5.4.2 below). When entering data by making a selection from a list, it is not necessary to be aware of the units of measure in force.
For example, if in Flow Rate Volume Units you chose U.S. Gallons and in Flow Rate Time Units you chose Hours, then Log Rate Setpoints must be entered in U.S. Gallons per Hour. Similarly, if in Flow Total Volume Units you chose U.S. Barrels Liquid, Log Total Setpoints must be entered in U.S. barrels liquid.
If the configured units of measure are changed, all editable data item displays will automatically change to the new units, but they will represent the same actual quantities. This happens because the flowmeter converts and stores these data values in SI units.
Ultrasonic Flowmeter
5.4.2 Transducer Setup
Page 33
The Transducer Setup branch of the Configuration Edit Menu allows you to
establish the fundamental parameters of the flow meter, including the ultrasonic transducers, the pipe to which they are mounted, the liner inside the pipe, if any, and the fluid flowing in the pipe.
Transducer Setup
Ê
Measurement Units Transducer Pipe Liner
Fluid
Configuration Set #3
Using information entered here, the flowmeter calculates many “engineering” parameters that are critical to accurate
ENTER Ç
È
ESC
measurement. This is done when a Configuration Set is “activated”, but not when a user exits Setup Mode by “escaping” (for example, after the five minute timeout). Note that changes in this area of configuration followed by an escape from Setup Mode may cause the flowmeter to display incorrect flow information.
Under the Transducer Setup branch, the following actions are available:
Measurement Units allows you to specify whether dimensions will be entered in inches and the speed of sound in feet-per­second (English) or dimensions will be entered in millimeters and the speed of sound in meters-per-second (Metric). This choice and all entered numbers must be consistent when a Set is activated. If, for example, the pipe diameter is entered as
2.00 when English units are selected but the choice is then changed to Metric, it is necessary to go back and enter 50.8 as the pipe diameter or the flowmeter will attempt to configure itself for a pipe which is only 2 millimeters across (and will fault).
Transducer --> Model Number allows you to specify the model number of the transducer pair used. You should not change this setting unless you use a different transducer pair from that originally supplied. The transducer model number (A00 through A20) is printed on the transducer housing.
Transducer Setup ÊMeasurement Units
ENTER Ç
Transducer Setup ÊTransducer
New Configuration Set
English (U.S. units)Ê
Metric (SI units)
New Configuration Set
Model NumberÊ
Mount Method
È
ESC
Transducer --> Mount Method allows you to
specify the transducer mount method used
ENTER Ç
È
ESC
when the meter is set for Transit Time measurement mode. The options are “Z” mount (transducers on opposite sides of the pipe, no reflections of the sound wave on the pipe
“N” mount (transducers on opposite sides of the pipe, two reflections of the sound
wall), wave on the pipe wall), reflection from the far wall), reflections from the far wall).
“V” mount (transducers on the same side of the pipe, one
“W” mount (transducers on the same side of the pipe, two
See section 6.0.
Pipe Outside Diameter allows you to specify the outside diameter of the pipe.
Pipe --> Wall Thickness allows you to specify the thickness of the pipe wall. From this
and the outside diameter, the flowmeter calculates the inside diameter and hence the cross-sectional area of the pipe. This is critical to converting the measured velocity of the fluid to a volumetric flow.
Ultrasonic Flowmeter
Page 34
5.4.2 Transducer Setup (continued)
Pipe --> Pipe material allows you to select from a list the material from which the pipe is made. This tells the flowmeter the speed­of-sound in the pipe wall. The user can also select Custom Pipe Material in the list and use the Pipe --> Speed of Sound in Custom Material to enter the speed-of-sound directly. This alternative should be used if the correct pipe material is not in the list offered.
Liner --> Wall Thickness allows you to
Transducer Setup
ÊPipe
ÊPipe Material
ENTER Ç
Configuration Set #3
Ê
PVC/CPVC
PVDF Stainless Steel 302/303 Stainless Steel 304 Stainless Steel 304L
È ÈStainless Steel 316
È
ESC
specify the thickness of any liner inside the pipe. If there is no liner in the pipe, it should be set to zero.
Liner --> Speed of Sound allows you to specify the speed-of-sound in the liner material. If there is no liner in the pipe, it is not necessary to set this as it will be ignored.
Fluid --> Fluid Type allows you to select the type of fluid in the pipe from a list. This tells the flowmeter the speed-of-sound in the fluid. The user can also select Custom Fluid Type in the list and use the Fluid --> Speed of Sound in Custom Fluid to enter the speed-of-sound directly. This alternative should be used if the correct fluid or fluid/temperature combination is not in the list offered.
5.4.3 Metering Setup
The Metering Setup branch of the Configuration Edit Menu allows you to
select how the flowmeter will display, record and otherwise process flow measurements, including the units of measure, averaging, frequency of update, scaling at signal outputs and logging.
Metering Setup
Flow Rate
Ê
Totalizer Display
Signal Output Data Logging SOS Alarm
Configuration Set #3
Changes in this area of configuration affect only the way in which the flowmeter presents flow information on the display, at
ENTER Ç
È
output signals and in logging. This will not cause the flowmeter to make incorrect flow measurements.
Under the Metering Setup branch, the following actions are available:
Flow Rate --> Volume Units allows you to specify the units of measure in which flow rates are displayed and written to log entries. can also select Custom Volume
You
Units in the list and use the Flow Rate --> Custom Volume Unit per U.S. Gallon to
enter the equivalent of one U.S. Gallon in that unit. This alternative should be used if the desired unit of measure is not in the list offered.
Flow Rate --> Time Units allows to
you
Metering Setup
ÊFlow Rate
ÊVolume Units
ENTER Ç
Configuration Set #3
U.S. Gallons
Ê
Ounces U.S. Barrels Liquid
U.S. Barrels Oil
Cubic Feet Acre Feet
È
select the time part of the units of measure for flow rates. The options available are seconds, minutes, hours and days.
ESC
ESC
Ultrasonic Flowmeter
Flow Rate --> Digits After Decimal Point allows to specify how many digits appear
you
after the decimal point when flow rate is displayed on the Run Mode screen.
Page 35
5.4.3 Metering Setup (continued)
Flow Total --> Volume Units allows to specify the units of measure in which flow totals are displayed and written to log entries. This is independent of the units of measure for flow rates, so that the flow rate units of measure mey be different than the flow total units. As for Flow Rate, a custom
you
Metering Setup
Ê
Totalizer
Ê
Configuration Set #3
Volume Units
Digits After Decimal Point
Total Display Function
unit of measure can be specified.
Flow Total --> Digits After Decimal Point allows to specify how many digits
you
appear after the decimal point when flow
ENTER Ç
È
ESC
total is displayed on the Run Mode screen.
Flow Total --> Total Display Function allows to enable or disable the clearing of the
you recorded total flow using the CLEAR soft button on the display in Run Mode and also the clearing of batch counts and totals on Process Control Screens.
Display --> Display Language allows to select the natural language of display text. The choices offered are English, Spanish, German and French.
Display --> Flow Rate Averaging allows to select the time interval over which flow rate measurements are averaged before presentation to the display, signal outputs,
you
you
Metering Setup
Display
Ê
Ê
Configuration Set #3
Display Language
Flow Rate Averaging
Display Update Low Flow Cutoff High Flow Cutoff
Scaling Offset
process control, logging, etc. The choices offered are 0.25, 0.50, 1.00, 2.50, 5.00 and
10.00 seconds. Longer values result in
ENTER Ç
È
ESC
higher accuracy and a more stable display but a slower response to changes in flow rate. The Flow total value is not affected by flow rate averaging setting.
Display --> Display Update allows to select the time interval between the
you presentation of new flow information to the display, signal outputs, process control, logging, etc. The choices offered are 0.25, 0.50, 1.00, 2.50 and 5.00 seconds. Both flow rate and flow total are affected.
Display --> Low Flow Cutoff allows to specify a flow rate below which the actual
you measured value is replaced by zero. When factory configured, a flow rate equal to approximately .25 feet per second is set.
Display --> High Flow Cutoff allows to specify a high rate above which the actual measured value is replaced by the cutoff value.
you
When factory configured, a flow rate
equal to approximately 30 feet per second is set.
Display --> Scaling Offset allows to specify a scaling factor, which would generally be close to one, by which measured flow is multiplied. If required, this value can be used
you
to quickly adjust for errors in the flow rate reading after a field calibration has been performed.
Ultrasonic Flowmeter
Page 36
5.4.3 Metering Setup (continued)
Signal Output --> Analog Output allows you to specify the mapping of flow rate to the current value at the 4 to 20 mA analog output signal. The mapping is specified by two points on a straight line.
Signal Output --> Pulse Output allows you to specify the mapping of flow rate to the frequency of pulses at the digital output signal. The mapping is specified by two points on a straight line.
Data Logging --> Log Interval allows you to specify a regular periodic interval in seconds, at which flow rate and flow total will be recorded in a log entry. The factory default setting is 180 seconds. (see section
7.6 below for more on data logging).
Data Logging --> Log Rate Setpoint allows you to specify upper and lower flow rates which, when crossed, will result in log entries being generated.
Metering Setup
Ê
Signal Output
Ê
ENTER Ç
Metering Setup
ÊData Logging
Ê
ENTER Ç
Configuration Set #3
Analog Output
Pulse Output
Configuration Set #3
Log Interval
Ê
180
Ç
È
È
ESC
ESC
Data Logging --> Log Total Setpoint allows
you to specify five total flow values at which log entries will be generated.
SOS Alarm --> Percent Error Window allows you to define the percentage of fluid sound speed change that is acceptable before an error alarm is triggered. The default value is 10%. See the index at the back of this manual for fluid sound speed data.
SOS Alarm --> Error Type allows you to define the type of error that will result when the measured fluid sound speed has exceeded the limit window. When Warning is selected, the meter will log and display a warning and flow measurement will continue. When Fault is selected, the meter will log and display a fault condition, flow measurement will cease, and the meter will enter the faulted state. See section 4.8 for information on faults and warnings.
Metering Setup
ÊSOS Alarm
Ê
ENTER Ç
Metering Setup
ÊSOS Alarm
Ê
Configuration Set #3
Percent Error Window
Error Type
Configuration Set #3
Percent Error Window
ÊÊ
10
ENTER Ç
Metering Setup
ÊSOS Alarm
Ê
Configuration Set #3
Error Type
ÊÊ
Fault
Warning
È
È
ESC
ESC
Ultrasonic Flowmeter
ENTER Ç
È
ESC
5.4.4 Process Control Setup
The Process Control Setup branch of the Configuration Edit Menu allows to
you assign each of the three Relay Channels to monitor either the flow rate, flow total, error codes, or be disabled and also to establish appropriate process control settings.
For a detailed description of the flowmeter
Process Control Setup
Ê
Relay Channel #2
Ê
Configuration Set #3
Assign Relay
Ê
Monitor Flow Rate Monitor Flow Total
Monitor Error Codes
Disabled
Process Control functions and the precise effect of each setting briefly presented here, see section 8 below.
ENTER Ç
È
Under the Process Control Setup branch, sub-branches appear for each of the three Relay Channels.
Under the sub-branch for each Relay Channel, the following actions are available:
Page 37
ESC
Assign Relay allows to assign the
you channel to monitor flow rate, flow total, error codes or to be disabled.
Flow Rate Alarm Settings --> High Trigger allows to enter a flow rate at and above
you which the channel will generate an alarm condition.
Flow Rate Alarm Settings --> High Release
you
gives the option of entering a flow rate at which an alarm condition generated by reaching the high trigger value will automatically clear.
Flow Rate Alarm Settings --> Low Trigger
allows to enter a flow rate at and below
you which the channel will generate an alarm condition.
Flow Rate Alarm Settings --> Low Release gives the option of entering a flow rate
you at which an alarm condition generated by reaching the low trigger value will automatically clear.
Process Control Setup
Relay Channel #2
Ê
Ê
ENTER Ç
Process Control Setup
Ê
Relay Channel #2
Ê
ENTER Ç
Configuration Set #3
Assign Relay
Ê
Flow Rate Alarm Settings
Batch Dispensing Settings
Error Trigger Settings
Configuration Set #3
Flow rate Alarm Settings
Ê
High Trigger
High Release
Low Trigger Low Release Alarm Delay Time
È
È
ESC
ESC
Flow Rate Alarm Settings --> Alarm Delay Time gives the option of entering a delay
you after the detection of an alarm condition during which the relay is prevented from energizing, giving the operator a chance to correct the condition.
Ultrasonic Flowmeter
Page 38
5.4.4 Process Control Setup (continued)
Batch Dispensing Settings --> Default Batch Amount allows you to set a default
batch volume for the relay channel. On the Process Control run screen for this
Process Control Setup
Ê
Relay Channel #2
Ê
channel, the user is able to change the batch volume. Values edited on that screen are not saved in the Configuration Set and the default will be restored if the flowmeter restarts.
Batch Dispensing Settings --> Batch Start
ENTER Ç
Mode allows you to select the batch start
mode to be manual (the relay is manually energized by pressing the front panel soft button, remains energized until the batch
amount has passed through the flowmeter and then de-energizes) or automatic (every time the batch amount is observed to pass through the flowmeter, the relay energizes for a configured time and then de-energizes).
Batch Dispensing Settings --> Relay Timer allows you to specify the time for which the relay energizes for each batch in automatic batch start mode.
Error Trigger Settings --> Type of Trigger allows you to specify the type or error that will trigger an alarm and energize the relay. Faults and warnings are described in section 4.8.
Process Control Setup
Relay Channel #2
Ê
Ê
Configuration Set #3
Batch Dispensing Settings
Ê
Default Batch Amount
Batch Start Mode
Relay Timer
Configuration Set #3
Error Trigger Settings
Ê
Type of Trigger
Fault
Ê
Warning
Fault or Warning
È
ESC
ENTER Ç
È
ESC
Ultrasonic Flowmeter
5.4.5 Reset Working Set to Factory Values
5.4.6 Set Password (for a single configuration set)
you
If select Reset Working Set to Factory Values from the Configuration Edit Menu, then all configuration items that are editable are set to values established by the
Factory Configuration. The prompt Are you sure? (You will lose all information in the Working Configuration Set) appears and
soft buttons are assigned to YES and NO. If the Configuration Edit Menu was reached by opening a saved configuration set, the additional information (Configura­tion Set # 3 will not be affected) will be
displayed, as appropriate. If the user presses the YES soft button, the Working Set will be reset, otherwise it will not. In either case, the Configuration Edit Menu re-appears.
you
If select Set Password from the Configuration Edit Menu, then a password can be set or cleared for the Working Configuration Set. The prompt Enter five-digit password, appears. Once five soft buttons have been pressed, will be asked to repeat the password to guard against entry errors. To escape from setting a password, it is sufficient to deliberately enter two different sequences.
When this is completed, the Configuration Edit Menu returns. If have created a new configuration and attempt to save the Working Set to a previously numbered Configuration Set, then will be prompted for the password of that Set, if one exists, before it is overwritten. If opened an existing Set, then must have supplied the password at that time and no further security measures are taken.
you
you you
Reset Working Set to Factory Values
Are you Sure?
(You Will Lose All Information In the Working Configuration Set)
(Configuration Set #3 will not be affected)
you
Configuration Set #3
YES NO
you
Page 39
5.4.7 Saving Changes
you
If select Save from the Configuration Edit Menu, the Working Set is saved to the currently opened numbered Set. If created a new configuration and has not previously saved it to a numbered Set, this selection is not available. You must use Save As …, see below.
If select Save As … are offered the
you you five numbered Configuration Sets as choices as shown at right. Y should use the and soft buttons, to select the desired Set and press the ENTER soft button to save the Working Set to that Set. The Configuration Edit Menu returns. The ESC soft button returns to the Configuration Edit Menu without saving the Working Set.
If select Save and Activate, what happens is as for Save above, but after the
Working Set is saved it is activated and the flowmeter exits the Setup Mode towards Run Mode.
When attempt to save the Working Set to a numbered Set that is not the one originally opened for editing, then if the destination Set has a password, will be required to supply it before the Set is overwritten.
È
you
you
ou
you
Ç
Save As...
Ê
Configuration Set #1 Configuration Set #2
Configuration Set #3
Configuration Set #4 Configuration Set #5
ENTER Ç
New Configuration Set
you
È
ESC
5.4.8 Escape Without Saving
If the ESC soft button is pressed repeatedly until all Configuration Edit Menu branches are closed and is then pressed one further time, the flowmeter takes the “escape” path out of Setup Mode directly to Startup. Any changes made that have not been saved are lost.
Ultrasonic Flowmeter
Page 40
NO
NO
Air bubble
Sediment
NO
NO
Down flows
must have
back pressure
Pipe must be full
Air could be trapped
!
6.0 Transducer Installation
6.1 Transducer Piping System Location
6.2 Transducer Mounting Mode for Doppler Measurement
Select a pipe location that provides a minimum straight length of pipe of at least 10 times the pipe’s nominal pipe size and mark a point that is at least 5 times the pipe diameter downstream from the nearest pipe fitting. See section 1.6 for the minimum straight pipe length requirements.
OK
Flow Direction
If the fluid to be measured contains particles, the meter should be operated using the Doppler measurement method. For Doppler operation, the transducers will be mounted directly opposite each other as shown below.
10 x D
TRANSDUCER MOUNTING LOCATION
All pipe types and sizes
OK
OK
5 x D
OK
6.3 Transducer Mounting Mode for Transit Time Measurement
Ultrasonic Flowmeter
DOPPLER MOUNTING MODE
If the fluid contains little or no particles (up to 10% maximum), operate the meter using the Transit Time method to obtain the best accuracy. Select “V” mounting mode when possible. The “V” mounting mode allows the greatest sound travel distance while permitting good signal strength. Basic pipe material and size general guidelines are shown below.
“V” Mount Mode
Typically smaller pipe sizes
from 2” to 6” diameter.
TRANSIT TIME MOUNTING MODES
“Z” Mount Mode
Typically larger pipe sizes
from 4” to 100” diameter.
Page 41
6.4 Transducer Separation Distance
When the meter is operated in the Doppler measurement method, the transducers are ALWAYS mounted directly opposite each other. The separation is therefore zero.
When the meter is operated in the Transit-Time measurement method, the front faces of the transducers must be positioned the correct distance apart.
Separation
Distance
A
The correct separation distance is dependent on the pipe size, pipe type and chosen mounting mode. When factory configured, the separation distance and mounting mode is printed on the serial label. If the meter has not been factory configured, or if a new configuration is required, the configuration data must be input before proceeding. See section 5 for instructions on how to create or modify a configuration.
pipe size, pipe type and mounting mode
B
For meters so equipped, the separation distance (as calculated based on the currently active configuration set) is also shown on the LCD display and on the Remote Communications PC Software display screen.
Currently Active Configuration set
Separation Distance
5 T 2.32 in. [¢¢¢£]
U.S. Gallons / min
1480
625.38
U.S. Gallons
Currently Active Configuration set
Separation Distance
4345625.38
Relay #2Relay #1
offActive
SETUP SWAP RELAYCLEAR
LCD Display Screen
Communications PC Software Screen
Ultrasonic Flowmeter
Page 42
NO
NO
Air bubbles may be present
Sediment may be present
6.5 Pipe Surface Preparation
The pipe mounting surface must be clean, smooth and free of any surface imperfections. Remove all insulation material, loose paint, coatings, etc. Clean the pipe surface thoroughly. Use sandpaper if necessary to remove surface imperfections. Do not mount the transducers over weld seams.
Place a mark on the pipe where the first transducer will be located. Be sure to locate the transducers on the side of horizontal runs of pipe.
O
45
OK
Horizontal
O
45
6.6 Doppler Method Transducer Installation
Doppler Mode:
If the fluid to be measured contains particles, the meter should be operated using the Doppler measurement method. For Doppler operation, the transducers will be mounted directly opposite each other as shown below.
When the meter is operated in the Doppler mode, marking the second transducer location is not necessary. Simply install both transducer directly opposite from each other.
Ultrasonic Flowmeter
DOPPLER MOUNTING MODE
Page 43
6.7 Transit Time Transducer Installation V Mount Mode
Transit Time V mounting method:
If the fluid contains little or no particles (up to 10% maximum), operate the meter using the Transit Time method to obtain the best accuracy.
When the meter is operated in the Transit Time method, marking the second transducer location is required.
The V Mount mode requires careful separation distance measurements. Inaccurate placement of the transducers may result in insufficient signal strength and poor measurement accuracy.
Draw a straight centerline, parallel to the center line of the pipe, from the first transducer location mark (A) through to the second transducer location (B). Place a mark on the centerline at the correct transducer separation distance.
Mark First Transducer Location (A)
Centerline
Mark Second Transducer Location (B)
Measure Separation Distance
TRANSIT TIME V-MOUNT MODE
V-MOUNT MODE
Ultrasonic Flowmeter
Page 44
6.8 Transit Time Transducer Installation Z Mount Mode
Transit Time Z-mount method:
The Z-mount configuration requires that the second transducer be located directly opposite the V-mount location (point B). The Z-Mount method requires careful separation distance measurements. Inaccurate placement may result in insufficient signal strength and poor accuracy.
Mark FIRST Transducer Location (A)
Mark V Mount Transducer Location (B)
Mark Z Mount Transducer Location ( )
AB
Centerline
Measure Separation Distance
TRANSIT TIME Z-MOUNT MODE
Draw a straight centerline, parallel to the center line of the pipe, from the first transducer location mark (A) through to the second transducer location (B). Place a mark on the centerline at the correct transducer separation distance.
C
C
To locate the opposite mounting point, gift wrapping paper, butcher paper or similar paper that is long enough to wrap completely around the pipe, is required. The paper used must have squared edges.
1) Measure the pipe circumference by wrapping the length of paper around the pipe.
2) Align the overlapping side edges of the paper with each other.
3) Mark the paper at the point where the top edges overlap. The distance from the top edge to the overlap mark will be the pipe circumference.
A
B
A
B
ALIGN SIDE EDGES
Ultrasonic Flowmeter
Page 45
4) Fold the paper so that the top edge and the marked circumference point touch.
5) Unfold and place a mark on the folded edge. This mark will be exactly one half of the circumference. This mark is the location for the second transducer.
TOP EDGE
ONE HALF CIRCUMFERENCE FOLD
C
ONE HALF CIRCUMFERENCE
CIRCUMFERENCE
FULL CIRCUMFERENCE
6) Once again, wrap the paper around the pipe starting with the top edge corner positioned at the second transducer location (separation distance point B).
7) Align the side edges of the paper.
8) Place a mark on the pipe at the one half circumference mark.
A
B
TOP EDGE CORNER
A
B
C
ALIGN SIDE EDGES
ONE HALF CIRCUMFERENCE FOLD
Ultrasonic Flowmeter
Page 46
6.9 Transducer Acoustic Mounting Gaskets
An acoustic coupling material must be placed between the transducer and the pipe surface at the point where the sound waves enter the pipe.. Without this material, the ultrasonic sound waves will not penetrate into the pipe. The meter package includes three different gasket materials for this purpose.
The blue gasket should be used for permanent installations. This gasket will be damaged be repeated installations.
The white gasket should be used for non-permenant installations such as in portable applications. This gasket will withstand multiple installations.
Dow Corning Silicone Seal #111 may be used in place of the gaskets if desired.
TRANSDUCER
BLUE
GASKET
TRANSDUCER BOTTOM VIEW
BLUE GASKET PLACED
ON TRANSDUCER
BLUE GASKET INSTALLATION
1) Peel off the thin paper backing from the blue gasket and place the gasket on the transducer completely covering the waveguide.
2) Remove the thick plastic backing from the gasket before positioning the transducer on the pipe.
TRANSDUCER
WHITE
GASKET
TRANSDUCER
BOTTOM VIEW
WHITE GASKET PLACED
ON TRANSDUCER
WHITE GASKET INSTALLATION
The white gasket does not include backing tape. Position the gasket on the transducer completely covering the entire bottom surface of the transducer.
Ultrasonic Flowmeter
Page 47
6.10 Transducer Mounting Clamps
The meter is provided with five pipe clamps, four to be used for transducer mounting and a fifth for mounting the SPU. inches. Additional clamps can be purchased from the factory.
Carefully place the first transducer onto the pipe transducer is located exactly over the first separation distance mark (A) transducer is placed straight and parallel to the pipe centerline.
Secure the first transducer to the pipe using the enclosed pipe clamps. The arrows on the front and rear of the transducers must point toward the pipe centerline mark.
The clamps can be chained together if required for larger pipe diameters.
CENTERLINE CENTERLINE
CENTERLINE
A single clamp can be used on a pipe diameter of up to 10
so that the front arrow on the
. Be sure the
A
B
CENTERLINE
FRONT VIEW
ARROW ON CENTERLINE
Locate the second transducer separation mark (B). onto the pipe so that the front arrow on the transducer is located exactly over the mark (B). Be sure the transducer is placed straight and parallel to the pipe centerline. that both transducers are facing each other and parallel to the pipe centerline.
A
Check that the separation distance is correct. Tighten the clamps equally.
B
REAR VIEW
ARROW ON CENTERLINE
Carefully place the second transducer
Be sure
AB
Separation
Distance
BLUE
GASKET
MOUNTING CLAMPS
Ultrasonic Flowmeter
Page 48
7.1 Primary and Secondary Display Areas
1480
RELAY
7.0 Run Mode
This section describes the flowmeter operation in the Run Mode. A mock-up of the Run Mode screen is shown at right. This is how it appears for Model 2 and 3 Displays or if it is viewed from the User PC Software application . For Model 2, the only difference is that the SETUP and RELAY soft buttons are absent (blank) on the flowmeter display (but they are still present at the PC).
In the Run Mode, the flowmeter measures the velocity of fluid movement in the pipe and from this, and the user-specified dimensions of the pipe, determines the volumetric flow rate and accumulates the total volume of fluid flow. The flowmeter is not sensitive to the direction of fluid movement and flow in either direction is treated as positive for both flow rate display and accumulation of the total volume of fluid that has passed (totalization). Should fluid flow first in one direction and then return in the other direction, the flowmeter will register a total of twice the amount of fluid, even though the net actual flow is zero.
Two display areas are provided to show the current flow rate and the total accumulated flow. Both areas can display ten digits and the decimal point.
You may configure the number of digits that appear after the decimal point in each display area (see section 5.4.3 above). Digits remaining (from the maximum of ten) are available for digits to the left of the decimal point. Leading zeros are not shown. If it is not possible to display the value as configured, for example if only five digits are available to the left of the decimal point and the value reaches 100,000, then the display automatically switches to engineering notation. Seven significant digits are displayed followed by “E” a two digit exponent value. Example: 2.09E12
1 T 2.46 in.
U.S. Gallons / min
U.S. Gallons
4345625.38
Relay #1
Active
SETUP SWAP
[¢¢¢£]
625.38
Relay #2
off
Alarm
CLEAR
Relay #3
Above the primary and secondary display areas are the primary and secondary display labels. These show whether the area is displaying flow rate or total accumulated flow and the units of measure (which are configured by the user in Setup Mode, see section 5.4.3 above).
Pressing the SWAP soft button exchanges the flow rate and total accumulated flow readings between the primary and secondary display areas. The labels are also exchanged. This soft button is present on Model 2 and Model 3 displays.
Pressing and holding the units. If the Measurement Units set in Transducer Setup above (section 5.4.2) are in English U.S units, the velocity will be displayed as feet per second. If the Units of Measure are set as Metric SI units, the velocity will display in meters per second. Pressing and holding the SWAP soft button a again changes the flow rate display back to the units of measure as specified in section 6.3.3. This soft button is present on Model 2 and Model 3 displays.
Pressing the CLEAR soft button zeros the total accumulated flow reading, in whichever display area it is showing. The previous total is lost and flow now accumulates in a new total. This soft button is present on . This feature can be disabled by configuration, in which case the CLEAR soft button will not appear.
SWAP soft button exchanges the flow rate display to velocity
Model 2 and Model 3 displays
Ultrasonic Flowmeter
Page 49
7.1.1 Flow Rate Measurement
The rate of fluid flow in the pipe is measured by the flowmeter many times per second. To improve accuracy and the stability of the display, these measurements are averaged over a configurable time and new values are presented to the display at a configurable rate.
The averaging algorithm used is the Simple Moving Average (SMA), which is “the un­weighted mean of the previous n data points”. Rather than selecting n, you can configure Flow Rate Averaging to be performed over some number of seconds. All measurements taken during that period are averaged to form each displayed flow reading. The averaging time can be configured by selecting a value of 0.25, 0.5, 1, 2.5, 5 or 10 seconds from the list
The time period at which the flowmeter display updates is configurable in Setup Mode to 0.25, 0.5, 1, 2.5 or 5 seconds. Each time the display is updated, the SMA of the flow measurements is computed and written to the display as described above. Setting the display update period to be much greater than the averaging time may not make sense. For example, averaging over one second and updating the display every five seconds will mean that 80% of the measurements taken will never contribute to a displayed flow value. The flowmeter does not prohibit or warn against such inconsistent settings.
The units of measure for flow rate can be configured in Setup Mode. The units in which both volume and time are expressed can be selected from appropriate options. A custom unit of measure for volume can be selected by specifying the size of one U.S. Gallon in that unit.
.
You you
may wish to suppress the display of very small flow values. The can configure a Low Flow Cutoff value so that if the flowmeter would display a value smaller than this, it displays zero instead. By symmetry, the user can configure a High Flow Cutoff value. If the flowmeter would display a value larger than this, it displays the cutoff value instead. Note that these values are entered in the Setup Mode as numbers and must be given in the units of measure configured for flow rate display. If at some later time change the units of measure, the cutoff values will upon inspection appear to have changed, but will represent the same flow rate, just in different units of measure.
Should observe that the flowmeter’s readings are consistently in error by a measurable amount, it is possible to correct this situation by configuring a Scaling Offset. The Factory Default for this is 1.00. The flowmeter will accept values from 0.00 to 9.99. Every measurement taken by the flowmeter is multiplied by this number before further processing. Flow rate and flow total will therefore be affected. The Scaling Offset is part of a Configuration Set, so it does not apply to the flowmeter as a whole and should be set as required in each numbered Set.
If flow measurement is restarted (by passing through the Startup State, for whatever reason), then all prior measurements previously stored for the purpose of averaging are discarded. A new average is computed using only new flow measurements and they begin to arrive after the restart. The display area in which the flow rate appears is blanked (made empty) until the first measurement is made and the first average is computed.
you
you
Ultrasonic Flowmeter
Page 50
7.1.2 Total Flow Measurement
7.2 Measurement Status Areas
7.2.1 Configuration and Mode
As well as averaging measurements to display flow rate, the flowmeter totals all measurements divided by the measurement period to compute a totalized flow. This is written to the display at the same configured intervals as for flow readings.
The units of measure for total flow can be configured independently of flow rate.
Pressing the CLEAR soft button zeros the total accumulated flow if this option has been enabled by the configuration.
Should the flowmeter experience a power loss or be restarted by entry into Setup Mode, it will preserve a recent value of the total flow and restore this when next entering Run Mode. In Run Mode, the Total Flow will be saved to non-volatile memory every ten seconds. Any fluid that flows while the flowmeter is not in Run Mode is not included in the total.
The top line of the Run Mode screen shows the status of the measurement process. On the far left is shown the active Configuration Number, active Measurement Mode and the Transducer Separation Distance. In the center is shown the Goodness of Measurement index. On the right is shown the Speed of Sound in the fluid (if in transit time mode).
The field on the top left displays the active Configuration Set , the measurement method in effect (T for Transit Time or D for Doppler) and the transducer separation distance. The display shown to the right indicates:
! Configuration Set #1 ! Transit Time measure method ! 2.46 inches separation distance.
The measurement method can be changed by the two-position switch on the controller motherboard (the wiring access door must be removed to get at this switch) whereupon the flowmeter will automatically enter Setup Mode.
1 T 2.46 in.
1 T 2.46 in.
U.S. Gallons / min
U.S. Gallons
4345625.38
Relay #1
Active
SETUP SWAP
[¢¢¢£]
1480
625.38
Relay #2
off
Alarm
CLEAR
Relay #3
RELAY
7.2.2 Goodness of Measurement
Ultrasonic Flowmeter
In Transit Time mode, the transducer separation distance shown is the distance used in Transducer Positioning, see section 2.8 above. In Doppler mode, this display value will always be zero. In both modes, the units of measure will be for the distance selected in the Transducer Setup menu, see section 5.4.2 above. If English (U.S. units) is selected, then the units displayed will be in. for inches. If Metric (SI units) is selected, then the units displayed will be mm for millimeters.
The field in the top center of the display status line displays the “Goodness of Measurement” which indicates the reliability of ultrasonic flow measurement under the present working conditions. This is computed by the algorithms that determine fluid velocity. The average of all samples computed during each display update interval is taken and then displayed as a reliability index of 0 to 4 bars. Zero bars indicate an unreliable measurement and four bars indicate high reliability.
The same goodness of measurement indication appears on the four amber LEDs on the controller motherboard, which can be viewed if the wiring access door is removed.
If flow measurement is restarted (by passing through the Startup State), then prior goodness of measurement information is discarded and the display will show zero until new information is computed.
[¢¢¢£]
Page 51
7.2.3 Sound Speed Display
7.2.4 Measuring the Fluid Sound Speed
The field on the top right displays either a speed of sound measurement value (if in Transit Time mode) or a zero (if in Doppler mode).
When operated in the transit time mode, the flowmeter periodically calculates the speed that sound is traveling through the fluid and displays the resulting value in meters per second. This value is useful for determining the reliability of the measurement and also for configuring the meter for unknown Custom Fluids. are available for selection in the meter and their sound speed is shown the end of this manual. Should the displayed value not match, one or more of the following conditions may exist:
! The transducers are not positioned correctly ! The pipe material
Transducer Setup configuration menu The pipe wall thickness is other than specified in the Transducer Setup
!
configuration menu
! The fluid type does not match the Fluid Type specified in the Transducer Setup
configuration menu
! The fluid’s temperature is different than the temperature of the index values
See section 7.2.4 below for information on Fluids.
The following outlines how to use the flowmeter to determine the speed of sound in a fluid. For the flowmeter to function, the precise speed of sound does not need to be known in advance. However, to place the transducers in the optimal location, knowing the speed of sound in the fluid is important. The following outlines a procedure that you can follow in determining the fluid speed of sound.
The displayed value should closely match the fluid’s sound speed.
type does not match the Pipe Material Type specified in the
configuring the meter for unknown Custom
A list of the Fluid Types that
in the index at
! This test can be performed with or without flow. It is recommended that the test be
performed with zero flow.
! The pipe outer diameter and wall thickness should be known precisely. It is
recommended to use a small section of pipe so that the exact dimensions can be measured.
! The speed of sound calculation is also affected by transducer placement. Any error in
the spacing of the transducers will translate to an error in the calculated speed of sound.
1) Enter all the appropriate information for pipe material and dimensions.
2) Select “custom” as the fluid type and enter a custom speed of sound for the fluid in meters/second. Use a best first guess – if it's a water based fluid, start with something close to the speed of sound for water. If it's an oil based fluid, use something close to the speed of sound for oil. See the index for sample fluid sound speeds.
3) Save and activate your configuration. Place the transducers at the spacing specified by the meter. Press DONE. The meter will now calculate and display a speed of sound in the upper right hand corner. If the displayed speed of sound matches that which was entered, then that value should be used. If the displayed speed of sound is different, or a fault occurs, change the fluid speed of sound to the displayed value or try a new estimate and repeat step 3.
When estimating the sound speed, use a systematic approach by increasing or decreasing your estimate by a fixed value, such as 100 meters per second.
During the run mode, the displayed speed of sound should closely match the entered speed of sound (provided proper transducer placement and no change in temperature or properties of the fluid such as density).
Ultrasonic Flowmeter
Page 52
7.3 Process Control Status Areas
7.4 Soft Buttons
If the flowmeter is fitted with the Process Control Board, three Process Control Status Areas appear on the display under the secondary display area and above the soft button
labels. The Model 2, Model 3 and the User PC Software display is the same. Each area is labeled with the relay number to which it refers and shows the status of that relay channel. If a relay channel is disabled in configuration, the corresponding status area will be blank.
For channels configured to monitor flow total, the Process Control Status Area shows IDLE, ACTIVE or PAUSE, corresponding to the state of the channel. ACTIVE is displayed in white-on-black. For detailed information on the operation of relay channels monitoring total, see section 8.2 below.
For channels configured to monitor flow rate, the Process Control Status Area shows ALARM or CLEAR. ALARM is displayed in white-on-black and corresponds to the channel states ALARMING, ALARMED and CLEARING (that is, when the flow rate is outside the set limits or an alarm condition has been latched, whether the relay itself is energized or not). CLEAR is displayed in normal black-on-white and corresponds to the CLEAR state of the channel, when the flow is within the limits and no alarm is latched. For more information about channel states, see section 8.3 below.
In addition to the SWAP and CLEAR soft buttons, discussed above, two other soft buttons will be present under certain circumstances. Buttons that are not present appear blank.
The SETUP soft button will be present on Model 3 and also at a User PC Software connection if fitted. Pressing the SETUP soft button causes the flowmeter to enter Setup Mode and the Setup Mode Screen replaces the Run Mode Screen, see section 6 above for details. Operation of the flowmeter is immediately disrupted as flow measurement does not take place in Setup Mode.
7.5 Output Signals
7.5.1 Analog Signal Output
The RELAY soft button will also be present if the conditions above for the SETUP soft button are met and the Process Control board is fitted but not if all relay channels are disabled in configuration. Pressing the RELAY soft button causes the Process Control Screen to replace the Run Mode Screen, see section 8.1 below for details. The flowmeter at first continues to operate normally, although the user can no longer see the information displayed on the Run Mode Screen, but some actions that the user can take on the Process Control Screen will disrupt measurement.
The flowmeter provides two output signals that represent the flow rate. An analog output represents the flow rate as a current amplitude. A digital pulse output represents the flow rate as a pulse frequency. These signals will have their values (current and frequency) changed to the same values and at the same period as the flow display. In other words, they are affected in the same way by the configured averaging time, display update period and cutoffs.
The analog signal output has a current range of 4 to 20 mA. The correspondence of current to flow rate can be configured by specifying two (flow rate, current) points. Low and high flow rates, which must not be the same, are specified and the currents corresponding to each are given. Other flow rates are mapped to currents using a straight line through the points specified. The current for the high flow rate may be smaller than the current for the low flow rate, in which case the current will decrease with increasing flow rate. Flow rates mapping to currents outside the available range will cause the signal to saturate at the closest limit.
Ultrasonic Flowmeter
Page 53
7.5.2 Digital Pulse Output
7.6 Data Logging
The digital pulse output has a frequency range of 0 to 1000 Hz. The correspondence of pulse frequency to flow rate can be configured by specifying two (flow rate, frequency) points. Low and high flow rates, which must not be the same, are specified and the frequencies corresponding to each are given. Other flow rates are mapped to pulse frequencies using a straight line through the points specified. The frequency for the high flow rate may be smaller than the frequency for the low flow rate, in which case the frequency will decrease with increasing flow rate. Flow rates mapping to frequencies outside the available range will cause the signal to saturate at the closest limit.
The flowmeter is able to log flow data internally to a memory buffer and to a removable SD Card. If the Communication Board is fitted and connected to a PC running the flowmeter software application, the internal buffer data will automatically download to the user’s PC hard drive. The generation of a log entry can be triggered periodically, by the flow rate passing configurable setpoints and by the total flow passing configurable setpoints. All log entries are identical and do not indicate which of the forgoing mechanisms caused their generation. All log entries look like this:
2006/12/15 13:10:43 Rate: 2396.25 Total: 4345625.38 Code:
The date is ordered year/month/day. The time is military or European time, so no a.m./p.m. field is needed. The flow rate and total flow are recorded as they would appear on the display, u Up to two error codes will be recorded if present.
nits of measure are not included.
7.6.1 Periodic Logging
7.6.2 Logging Rate Setpoints
The internal memory buffer can hold approximately 10,000 log entries. The 32 Mbyte SD card (included) will accommodate about 500,000 entries. At one entry per minute, it will fill up in a little less than a year. If the SD Card is not present, data logging still takes place but only buffered entries can be retrieved by a User PC Software application, see section 7.6.5 below.
The interval between periodic log entries can be configured from 1 to 999999 seconds. If this number is set to zero, periodic logging will not occur. Log entries can only be generated when flow information is produced for display.
Maximum and Minimum Flow Rate Setpoints can be configured in Setup Mode so that the flowmeter records the time at which the flow rate crosses these values. A log entry is generated when the flow rate crosses the Maximum Flow Rate Setpoint value while increasing. A log entry is also generated when the flow rate crosses the Minimum Flow Rate Setpoint value while decreasing. These log entries are not distinguished from other entries and consist, as always, of the timestamp, the flow rate immediately after the setpoint was crossed and also the total flow at that time.
When a log entry has been generated due to the crossing of a Log Rate Setpoint, as described here, no further log entries are generated due to the crossing of the same Log Rate Setpoint for a period of one minute. The intent is to suppress “flicker”, i.e. many log entries due to the flow rate hovering around the setpoint and crossing it repeatedly.
7.6.3 Logging Totalizer Setpoints
Log Rate Setpoints must be specified in the units of measure configured for flow rate.
Five Flow Total Setpoint values can be configured in Setup Mode so that the flowmeter records the time at which the total flow crosses each of these values. When this occurs, a single log entry is generated. It is not distinguished from other entries and consists, as always, of the timestamp, flow rate and the actual total flow value that exceeded the setpoint. Flow Total Setpoint values do not have to be in ascending order. They must be specified in the units of measure configured for flow total.
Ultrasonic Flowmeter
Page 54
7.6.4 Local Log Data Storage (SD Data Card Storage)
7.6.4.1 Inserting and Removing the Memory Card
Log entries will be written to the flowmeter’s Flash memory card if one is installed. The flowmeter supports Secure Digital (SD) and MultiMediaCard (MMC) flash memory cards of most common brands and capacities. If a correctly formatted card is not installed appropriately (see below), log entries will not be written but in all other respects the flowmeter will operate normally. The flowmeter is shipped with a 32MB card installed.
To insert or remove a memory card, it is necessary to open the wiring access door of the flowmeter. The card slot is on the bottom of the main PCB, and therefore hard to see, but its position is marked on the top silkscreen. To insert a card, hold it with the label side away from, slide the end with the gold contacts under the PCB into the slot and push gently until it clicks into place. To remove a card, push it inwards until it clicks again and then release the pressure. A spring will push it out slightly. From this position, slide the card fully out.
The first time a memory card is installed, the meter must be power cycled while the card is in place. After the initial installation, the memory card should only be inserted or removed when the flowmeter is in the Setup Mode or if the meter is powered off. Before inserting or removing the card, use any of the methods described in section 4 above to enter Setup Mode. Flow measurement will be disrupted. After inserting or removing the card, the flowmeter can be returned to Startup and then to Run Mode, see section 4.3 above for details. If a card is inserted when the flowmeter is not in Setup Mode or powered off, no harm will be done but log entries will not be written to it. To remedy this situation, enter and then leave Setup Mode. If the card is removed when the flowmeter is not in Setup Mode, data on the card may be corrupt. After retrieving undamaged log files, the card should be reformatted. Additionally, the flowmeter should be power-cycled.
7.6.4.2 Format of Data on the Memory Card
7.6.4.3 Rotation and Purging of Log Files
SD/MMC cards for use in the flowmeter should be formatted according to the FAT32 standard. Files can then be written to and read from the card by any computer that understands this file system (when fitted with the appropriate adapter) including PCs running Windows or Linux .
Log entries are stored in files with names of the format lognnnnn.txt, where nnnnn is a decimal number from 00000 to 99999. Each log entry is written to a separate line in the file and is terminated with the newline character. Some older Windows-based text editors may not recognize newline as a line break (without a carriage return following it), but most modern software is compatible with this format. Log files are placed in the sub directory logs of the root directory of the memory card. Any files on the memory card that are not in the logs sub-directory or do not have names in the above format will be ignored by the flowmeter. Although they will reduce the space available for log files, they will not be deleted. Any files in the logs sub-directory with names that do look like log file names are at risk of being deleted to free up space on the card.
The log file currently in use is closed and a new one is opened in these situations:
! The flowmeter enters Setup Mode and then subsequently passes to Run Mode ! The log file reaches a size of approximately 1 MB (about 16,000 entries)
The five-digit number in the names of log files progresses by one each time this happens, so it is trivial to reconstruct the sequence of log entries over different files. In this sequence, 00000 follows 99999.
TM
TM
Ultrasonic Flowmeter
If the memory card has less than 1 MB of free space when a new file is opened, the oldest log files are deleted until this much free space exists. Thus, if log files are not moved off of the card before it fills up, new entries are preserved at the expense of old entries.
Page 55
7.6.4.3 Rotation and Purging of Log Files (continued)
7.6.4.4 Power Loss
The five-digit numbers of the next log file and the oldest log file on the card are held in a file in the logs sub-directory with the name logindex.txt. If this file does not exist, the flowmeter will create it and start both numbers at 00001. Thus, the first log file will be log00001.txt and as further files (log00002.txt etc.) are created and filled the flowmeter will remember that log00001.txt is the oldest. If the space on the card is reduced below 1 MB, then log00001.txt will be deleted. The next file to be deleted to make space will be log00002.txt and so on.
When reading a card that has been removed from a flowmeter, care should be taken when deleting files before re-inserting it into the same or a different flowmeter. It is safe to delete all files on the card, in which case new log files will start with log00001.txt as described above. It is also safe to delete any or all log files if the file logindex.txt is left on the card. If the flowmeter tries to delete a file that does not exist, it will simply keep increasing the five-digit number in the filename until it finds enough files to delete that free up the space it is looking for. However, if the logindex.txt file is deleted
but log files are left on the card, the flowmeter may overwrite them if and when it counts up again to their numbers.
In the event of a power loss, the flowmeter will not be able to properly close the open log file and it may as a result be corrupt. When power is restored and the flowmeter resumes operation, it will open a new log file with the next sequential number. Should the power loss have occurred when the flowmeter was updating file system management information on the memory card, it may not be able to mount the card when power resumes. In this case, no further log entries will be written to the card. As a result, care should be taken that the flowmeter is placed in Setup Mode before disconnecting it from a power source.
7.6.5 Remote Access to Log Data
A user PC that is running the Software and that is connected via the Communications Board will automatically acquire and store log entries from the flowmeter.
The flowmeter records in a buffer the most recently generated 10,000 log entries. If the buffer fills, entries are replaced in a first-in, first-out manner. At ten second intervals, the PC will request that the flowmeter send to it the latest 100 available entries, also in a first-in, first-out manner, until all entries are downloaded. The entries sent are removed from the flowmeter buffer and transferred to a file folder that t Application will create and place on the C: drive. Since all meters must have a unique IP Address to connect to the user PC Software, the Software will automatically use the IP Address as the name of this file folder.
Simply by making this request every ten seconds, the PC obtains a complete record of the data being logged in the flowmeter. There is no configuration item to turn on or off remote logging or to set up what is logged differently from internal logging to the SD card. The flowmeter is passive other than buffering and supplying on request its recent log entries. The user PC can do whatever it sees fit with the log entries, including, but not limited to, displaying them graphically, saving them to disk, comparing them to information from other flowmeters, etc. Remote logging is not influenced by the presence
or absence of the SD Card.
To facilitate faster downloading, a button on the user PC software application may be pressed to immediately begin downloading all available logs in the buffer.
he Software
Ultrasonic Flowmeter
Page 56
8.0 Process Control
Process Control functions are configured from the Setup Mode as described in section
5.4.4 above. In addition, you can interact with Process Control functions in Run Mode using Process Control Screens for each of the three relay channels. On these screens, you can inspect alarm status, clear alarms, dispense fluid batches, etc. Use of the Setup
Mode has been discussed above. This section covers the use of the Process Control Screens.
To access Process Control Screens from the Run Mode Screen, press the RELAY soft button. This button does not appear (the soft button label is blank) if the Process Control option is not fitted to the flowmeter. None of the functions discussed in this section are available without the Process Control option. Additionally, either the Model 3 display option or the Communications Board and a connected User PC Software Application are necessary to perform the operations described. You must have at least one of these if they have a Process Control Board, otherwise it will be useless.
8.1 Process Control Screen
In Run Mode, Process Control functions are accessible in from the Process Control Screens. Pressing the RELAY soft button moves in a circular fashion from relay to relay
and then back to the Run Mode Screen. Only those relay channels are visited that are configured to monitor Rate or Total in the active configuration. Relay channels that are disabled are skipped. If all relays are disabled, the RELAY soft button does not appear on the Run Mode Screen. This soft button is in the same location on the Run Mode
Screen and the Process Control Screens.
The Process Control Screen displays:
the selected relay number and whether the relay channel is monitoring Rate or
!
Total if monitoring Rate, the current Flow Rate as it would appear on the Run Mode
!
screen either the alarm trigger, release and delay time settings, if it is monitoring Flow
!
Rate or the batch settings, count and totals, if it is monitoring Flow Total
!
the state of the relay channel (described below)
!
For relay channels monitoring Flow Rate, a CLEAR soft button allows you to de-activate a relay that has been energized due to the rate reaching the trigger settings (see section
8.3.2 below for details).
For relay channels monitoring Flow Total, a START soft button allows you to start the dispensing of a batch (see section 8.2.1 below for details). Also for channels configured for Flow Total, and soft buttons allow you to select certain of the settings and status values. According to which is selected, a CLEAR or EDIT soft button appears.
Ç
È
Ultrasonic Flowmeter
Pressing the CLEAR soft button zeros the selected total. Pressing the EDIT soft button allows the Batch Amount to be changed. (See section 8.2 below for details and restrictions.) When the Process Control Screens are displayed, the flowmeter continues to operate normally in Run Mode. Flow is measured and totalized and all logging, monitoring and output signal functions continue uninterrupted. The SETUP soft button is not available. To leave Run Mode, first return to the Run Mode Screen using the RELAY soft button.
8.2 Batch Dispensing
When a process control relay channel is configured to monitor Flow Total, it can be used to dispense fluid in batches. A Process Control Screen for a channel configured in this way is shown at right. The RELAY soft button is used to visit each channel in turn and go back to the Run Mode screen. The START soft button is used to initiate a batch. The left-most three soft button may be used to change the Batch Amount or clear the batch counter and the volume totals.
2 T 3.25 in. [ ¢¢¢£] 1480
Relay #3 Monitor: TOTAL
Batch Amount: Current Batch #: Total this Batch:
Total all Batches:
Batch Start:
Relay Timer:
Status: ACTIVE
EDIT
Ç È RELAY
5000 32 3296 156824526 AUTO 3
START
Page 57
8.2.1
8.2.1 Manual Batch
Manual Batch Start
Start Type
If the Batch Start type is configured as MANUAL, then operation is as follows:
! Press the START soft button to begin the dispensing of a batch. ! The START soft button is replaced by the STOP soft button. ! The Total this Batch: value clears to zero. ! The Current Batch #: value increases by one. ! The relay is energized and the display changes accordingly. ! As the flowmeter measures and totals up fluid flow, the Total this Batch: and Total
all Batches: values advance.
! When the Total this Batch: value reaches the Batch Amount: value, the relay is de-
energized and the display changes accordingly.
! The STOP soft button disappears and the START soft button returns.
A batch can be interrupted and resumed as follows:
! Press the STOP soft button. The relay
is de-energized and the RESUM (resume) soft button appears in place of this soft button.
! Although the display changes to show
that the relay is de-energized, it alternates between black-on white and white-on-black to indicate that a batch has been interrupted.
! The flowmeter is still measuring flow,
although the intent is clearly for the flow to stop, and the operation of all status displays continues.
! Press the RESUM soft button. The
relay is energized again, the STOP soft button reappears and everything is as it was before the interruption.
Ultrasonic Flowmeter
Page 58
A batch can be canceled (aborted) as follows:
! Interrupt the batch as described above. ! While the batch is stopped (the relay is de-energized), use the or
soft buttons to navigate to and highlight the Total this Batch: status line. The CLEAR soft button replaces the RESUM soft button.
Ç
È
! Press the CLEAR soft button. ! The value of Total this Batch: is cleared to zero. ! All lines are de-selected and the START soft button returns. ! When the START soft button is next pressed, will dispense and the
Current Batch #: value increases by one. The cancelled batch is not re-dispensed. The flow measured before it was cancelled is not backed out of Total all Batches:.
Because flow information is only computed by the flowmeter at the configured display update interval, the volume dispensed in a batch will typically overshoot the configured Batch Amount. The relay is de-energized when the measured total equals or exceeds the batch volume. The degree of overshoot depends on the batch size, the flow rate and the update interval. You should not configure long update intervals when dispensing small batches from a high flow rate, as in this situation the overshoot could be a significant fraction of the batch size.
the next batch
8.2.2 Auto Batch Start Type
If the Batch Start type is configured as AUTO, then operation is as follows:
Immediately upon entering Run Mode, the flowmeter accumulates the volume of fluid flowing in two totalizers associated with the specific Relay Channel. If the relay channel is brought onto the display (using the RELAY soft button), the totals are displayed to the right of the labels Total this Batch: and Total all Batches: and the values will be seen to advance. However, the channel will operate in the manner described
here whether it is on the display or not.
! The relay channel Status: is indicated
as ACTIVE.
! When the Total this Batch: value
reaches the Batch Amount: value, the Current Batch #: value increases by one, the Total this Batch: value clears to zero and the relay is energized. Flow is expected to continue (in this mode, flow is not controlled by the relay), so Total this Batch: immediately starts increasing again and Total all Batches: continues to increase without a break.
! After the relay has been energized for
the number of seconds shown in the Relay Timer: field, it de-energizes (again, this is not expected to influence
the fluid flow).
2 T 3.25 in. [ ¢¢¢£] 1480
Relay #1 Monitor: TOTAL
Batch Amount: Current Batch #: Total this Batch:
Total all Batches:
Batch Start:
Relay Timer: 3
Status: ACTIVE
EDIT Ç È RELAY
5000 32 3296
156824526
AUTO
STOP
Ultrasonic Flowmeter
This continues indefinitely (unless the STOP soft button is pressed). Each time the Total this Batch: totalizer reaches Batch Amount:, it is cleared, Current Batch #: advances and
the relay is energized for the time Relay Timer:.
In this mode of Process Control, the flowmeter is partitioning the flow in the pipe into batches of a defined amount. Within each batch, it displays the total flow so far for that batch. It counts the batches. At the end of each batch, the relay energizes for a defined time period and then de-energizes. An example of what the energized relay might do is to switch power to a pump or open a valve that results in some other fluid being injected into the measured fluid stream.
Page 59
Ensure that the flow rate, batch amount and relay timer are set up so that the relay will de-energize before the end of each batch. Should the relay still be energized when the end of a batch is detected, then the time at which the relay will de-energize will be extended to the Relay Timer time from the new batch ending. If this repeats, the relay could remain continuously energized.
If the STOP soft button is pressed:
! The relay channel Status: is indicated
as PAUSED.
! If the relay is energized, it will
immediately de-energize.
! The RESUM (resume) soft button
appears, replacing the STOP soft button.
! The flowmeter will no longer advance
Total this Batch: nor energize the relay and increment Current Batch #: as batches of fluid pass by in the pipe.
! Total all Batches: continues to advance
if there is flow in the pipe.
If the RESUM soft button is pressed:
8.2.3 Batch Clear
8.2.4 Batch Edit
! The relay channel Status: returns to ACTIVE. ! The RESUM soft button is replaced by the STOP soft button. ! The Total this Batch: value clears to zero. ! The Current Batch #: value increases by one, indicating a new batch in progress. ! Operation is as before STOP was pressed (Total this Batch: advances and, at the
end of each batch, clears, energizing the relay for a specified time and advancing Current Batch #:).
To start counting batches from zero again or clear the value of Total all Batches:, use the
and and CLEAR soft buttons.
Ç
The Current Batch #, Total this Batch and Total all Batches values can be cleared. To do this, press the and soft buttons until the desired value is highlighted. The CLEAR soft button then appears in the left-most position. Pressing this soft button zeros the value.
The clearing of counts and totals can be blocked by configuring the Total Display Function to Clear Total Disabled. If this is done, the CLEAR soft button does not appear. Note that this configuration item is in the Metering Setup branch, but even so affects Process Control functions.
If the relay channel is configured for Batch Start type MANUAL, the Batch Amount: value can be changed. To do this, press the and soft buttons until the present value is highlighted. The EDIT soft button then appears in the left-most position. Pressing this soft button allows the value to be edited.
È
Ç
È
Ç
È
It is not possible to change the Batch Start: type or the Relay Timer: value. It is also not possible to change the Batch Amount: value if the Batch Start type is AUTO.
Ultrasonic Flowmeter
Page 60
8.3 Flow Rate Alarms
8.3.1 Basic operation
When a process control relay channel is configured to monitor Flow Rate, it can be used to indicate that the rate of fluid flow has reached or passed configured trigger values. A Process Control Screen for a channel configured in this way is shown at right. The RELAY soft button is used to visit each relay channel in turn and go back to the Run Mode screen. The CLEAR soft button can be used to clear an alarm condition while the problem causing the alarm is being rectified.
Operation of Flow Rate Alarms will be described with reference to the state diagram below.
The relay channel starts in the CLEAR state. It will remain in this state so long as the displayed flow rate remains both less than the High Trigger value and greater than the Low Trigger value. Note that the displayed flow rate is subject to the configured averaging, high and low flow cutoff and any scaling offset value.
If the flow rate rises to or above the High
Trigger value or falls to or below the Low Trigger value, then the relay channel
changes to the ALARMING state (arrow a in the diagram at right). If the Alarm Delay Time has not been configured or it has been configured to zero, the relay channel immediately changes to the ALARMED state (arrow b). Otherwise, it remains in the ALARMING state while the Alarm Delay Time is counted down. In this state, the relay is not energized. The status displays as Status: ALARMING in alternating black-on white and white-on-black and the CLEAR soft button is present. If the CLEAR soft button is pressed, counting down the Alarm Delay Time restarts. This state gives an operator time to correct the condition causing the alarm or for the condition to correct itself if it is transient.
Ultrasonic Flowmeter
When the Alarm Delay Time expires in the ALARMING state (which may be immediate, see above) the relay channel changes to the ALARMED state (arrow b). The relay is energized. The status displays as Status: ALARMED in white-on-black. The CLEAR soft button is present. If the CLEAR soft button is pressed in the ALARMED state and a non-zero Alarm Delay Time is configured, the relay channel changes to the
CLEARING state (arrow c). The relay is now de-energized. The status displays as Status: CLEARING in white-on-black and the CLEAR soft button is not present. The
purpose of this state is similar to the ALARMING state, but it is available after the alarm has occurred if the operator did not act early enough. The flowmeter counts down the Alarm Delay Time. If this time expires and the condition causing the alarm has not been removed (arrow e, see below), the relay channel returns to the ALARMED state (arrow d). If the CLEAR soft button is pressed in the ALARMED state but Alarm
Delay Time is zero or has not been configured, then nothing will happen unless a Release value has not been configured and the flow rate has returned to normal (more
on this below). In this case, the relay channel changes to the CLEAR state (arrow e).
In the ALARMING, ALARMED and CLEARING states, the relay channel may change to the CLEAR state (arrow e) without user action if a Release value has been configured for the Trigger value that has been passed to cause the alarm and the flow changes to be equal to or inside that release value. For example, if the alarm occurred because the flow rose above the High Trigger value and a High Release value has
Page 61
been configured, then at any time the flow falls to or below that value the alarm is automatically cleared and the relay channel returns to the CLEAR state. (This is what the operator is going to be striving for in the ALARMING and CLEARING states.) If a Release value has not been configured for the Trigger value that caused the alarm, then the relay channel will only follow arrow e back to the CLEAR state if the flow falls back inside the Trigger value and the operator presses the CLEAR soft button (as first stated above). A Release value that is identical to its corresponding Trigger value has the same effect as if it were not configured (it prevents automatic recovery from that direction).
The Alarm Delay Time cannot be configured to a value greater than 3600 (one hour). If the Alarm Delay Time is configured to zero, it is effectively disabled and displays as
NONE.
Any Trigger or Release value that is set to zero is effectively disabled and displays as NONE. This includes the Low Trigger, so if the user wishes to alarm on zero flow, he
must set the Low Trigger to a very small, but non-zero, flow value. Disabling a Trigger value causes the corresponding release value to be also disabled. If a Release value is disabled, or set to the same value as the corresponding Trigger, then the flowmeter will not automatically release an alarm caused by that trigger (the CLEAR soft button must be pressed to release the alarm).
8.3.2 Clearing Alarms
The CLEAR soft button appears on the screen in the ALARMING state and also in the ALARMED state if an Alarm Delay Time has been set or if no Release value has been
set for the Trigger that caused the alarm.
If the CLEAR soft button in the ALARMING state, the countdown of the Alarm Delay Time will re-start, providing extra time to correct the problem.
If the CLEAR soft button is pressed when in the
Delay Time has been set, then the relay will de-activate, the Status: display will read CLEARING in white-on-black and the CLEAR soft button will disappear. The intent is
that the operator now goes and fixes whatever caused the flow to go out of bounds. If the flow falls within the Release limits before the alarm delay time expires, then the Status: display will read CLEAR and the relay will remain de-activated. If the number of seconds set in the Alarm Delay Time: pressed and the flow rate is still outside of the Release limits, then the relay re­activates, the Status: display will read ALARMED and everything will be as it was before the soft button was pressed.
If the CLEAR soft button is pressed when in the Delay Time has been set and no Release value has been set for the Trigger that caused the alarm, then what happens depends on whether the flow has fallen back inside the Trigger value. If it has, the alarm will be cleared. If it hasn’t then nothing will happen.
is pressed when
ALARMED state and when an Alarm
field passes after the CLEAR soft button is
ALARMED state and when no Alarm
8.3.3 Editing Alarms
None of the settings of a relay channel configured to monitor Flow Rate can be changed from the Process Control screen. The , and EDIT soft buttons do not appear.
Ç
È
Ultrasonic Flowmeter
Page 62
8.3.4 More on Alarm Conditions
This section contains additional explanation of the conditions under which an alarm condition is cleared.
The flowmeter will clear an alarm condition automatically if and only if a Release value has been set for the Trigger value that caused the alarm. For example, if the alarm was caused by the flow rate falling below the Low Trigger, then the alarm will be automatically cleared if a Low Release has been set. Whether or not a High Release is set in this case is of no consequence. If a Release value has not been set, the alarm is said to be “latched”. A latched alarm can only be cleared if the user presses the CLEAR soft button and the flow rate has fallen back inside the Trigger values.
The effect of setting an Alarm Delay Time is to add states in which an alarm condition exists but the relay is temporarily not energized. During these states, the alarm condition may clear and the relay will then remain de-energized. These states end when the Alarm Delay Time elapses and if at that time the alarm condition has not cleared then the relay will energize.
The four combinations of a set Release value (for the alarming Trigger value) and an Alarm Delay Time are as follows:
?No Release value, no Alarm Delay Time - the alarm is latched and can only be
cleared by the user pressing the CLEAR soft button when the flow rate has fallen inside the Trigger value.
! Release value, but no Alarm Delay Time - alarm clears automatically as soon as
the flow rate falls inside the Trigger value (the CLEAR soft button serves no purpose).
! No Release value, an Alarm Delay Time is set - the alarm is latched (will never
clear automatically) and must be cleared by the user pressing the CLEAR soft button, however, as well as clearing on the press if the flow is inside the Trigger value, it will also clear if the flow falls inside the Trigger value while the Alarm Delay Time is being counted down (the channel is in the CLEARING state).
! Release value and an Alarm Delay Time - the alarm clears whenever the flow
rate falls inside the Trigger value and the purpose of the CLEAR soft button is only to temporarily de-energize the relay.
Ultrasonic Flowmeter
Page 63
9.0 User PC Software
This section describes the Sonic-Pro User PC Software application.
Any flowmeter model can be equipped with a Communications Package that includes circuitry, connector panel and custom User PC Software. When connected to a computer running the software, any model can perform the Model 3 functions described in this
manual including program editing and data logging downloads directly into the PC.
The Software user interface mimics the 5­button touch pad so learning to use the software application is simple. Simply clicking on the buttons is the same as pressing the buttons on the SPU touch pad. Pressing and holding shift while clicking on a button simulates pressing and holding a button on the touch pad.
9.1 Software Installation
9.2 Making connections
9.2.1 Ethernet Connection
The Software installation files are located on the CD that was shipped in the flowmeter. Open the CD and double click SETUP. Follow the instructions to install the Sonic-Pro software onto your PC.
When opening the software, a connection type must be selected. Chose ETHERNET, RS-232 or USB.
If connecting via ETHERNET, select a meter from the pull-down menu and press DONE to activate the selected meter. If the display does not activate of if some of the data is not displayed, disconnect the meter by clicking on OPERATION in the upper left corner pull down menu and click DISCONNECT. Re-select the meter and press DONE.
To ADD a new meter to the pull-down menu, press ADD, input a name for the new
meter, input the meter IP ADDRESS and IP PORT number (usually 26000). Press SAVE EDITS. The IP ADDRESS must match the IP address configured in the meter SPU. See section 5.2.1 of this manual. If the meter is installed on a network, the IP address must be an address that is available to the network. Contact your IT department for assistance with network configurations. The new meter can now be selected and activated.
An unlimited number of meters may be added to the pull-down menu but only one meter at a time may be selected.
Ultrasonic Flowmeter
Page 64
9.2.2 Serial & USB Connection
9.3 Retrieving Log Data
If connecting via RS-232, you must select a SERIAL COM PORT number.
If connecting via USB, you must select also select a COM PORT number. This is because the USB connection utilizes a USB/SERIAL conversion method.
First connect the USB cable to the SPU. Once connected, the new COM PORT number should automatically appear in the pull-down menu and can now be selected. (It
will most likely be the largest number port shown.)
NOTE: On some computers, an adjustment will be need to be made to the “latency timer” setting on the USB COM port to enable proper communications. Go to Control Panel /
Systems and maintenance / Device Manager. Select PORTS. Double click USB CONVERTER. Select the PORT SETTINGS tab. Click ADVANCED. Set LATENCY TIMER to a value of 1. Save the settings.
When the software is connected to the SPU and activated, ALL log data that is stored in the SPU buffer is automatically downloaded to a folder and placed
on the computer’s C: drive. Log data is stored in a .TXT file.
named “Ultrasonic Flowmeter”
The SPU can store approximately 10,000 logs. New logs will replace old logs on a first in ­first out protocol.
Each individual log file consists of Date, Time, Flow Rate value, and Flow Total value.
2008/07/15 07:18:27 Rate: 3.241483 Total: 147.137275 Code:
Note that log files stored on the SD memory card are not affected by the SPU buffer.
Ultrasonic Flowmeter
User Notes
Page 65
Ultrasonic Flowmeter
Page 66
10.0 Indexes
10.1 Complete Flowmeter Model Number System
Contact your local distributor for available model numbers
10.2 Additional Transducers Model Number System
Ultrasonic Flowmeter
Contact your local distributor for available model numbers
10.3 Specifications
General Operation_______________________
Measuring Principle
Hybrid. User-selectable Doppler or Transit Time operating modes.
Fluid Types
Virtually any acoustically conductive fluid. Transit time mode operation from 0% to 10% (0 to 100,000 ppm) particulate. Doppler mode operation from 0.02% to 15% (200 to 150,000 ppm) of 50 micron particulate.
Fluid Velocity Range
0.25 to 30 feet per second (0 to 9 meters per second)
Nominal Pipe Sizes
Doppler mode: 1.0 inch - 100 inch (63mm to 2500mm) Transit time mode: 1.5 inch - 100 inch (63mm to 2500mm)
Pipe Materials
Most metal and plastic pipes
Pipe Liner Materials
Most plastic and concrete liners
Pipe Material
Brass (Naval)
Copper
FRP (fiberglass Reinforced Plastic)
Iron (cast)
Iron (ductile)
Nylon
Polyethylene (HDPE)
Polyethylene (LDPE)
Polypropylene
PVC / CPVC
304 Stainless Steel
304L Stainless Steel
316 Stainless Steel
Steel (1% carbon hard)
Steel (carbon)
Titanium
Note: Consult the factory for an updated list of pipe materials.
Pipe Size Ranges
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
1“ to 100” (25mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
2“ to 100” (63mm to 2500mm)
Accuracy
Flow Rate
Averaging Time
5.0 Seconds
(default setting)
1.0 Seconds
0.5 Seconds
Flow Rate
Averaging Time
5.0 Seconds
(default setting)
1.0 Seconds
0.5 Seconds
Transit Time Accuracy at at Nominal Pipe Sizes
+/-1% of rate > 1 ft/sec +/-0.01 ft/sec < 1 ft/sec
+/-1% of rate > 5 ft/sec +/-0.05 ft/sec < 5 ft/sec
+/-2% of rate > 12 ft/sec +/-0.25 ft/sec < 12 ft/sec
Doppler Accuracy at Nominal Pipe Sizes
3/4” to 100” nominal pipe size
+/-2% of rate > 12 ft/sec +/-0.25 ft/sec < 12 ft/sec
+/-2% of rate > 12 ft/sec +/-0.25 ft/sec < 12 ft/sec
+/-2% of rate > 12 ft/sec +/-0.25 ft/sec < 12 ft/sec
Shipping Specifications
Carton Dimensions: 21” x 17” x 9-1/2” Carton Weight: 24 lbs. (10.9 Kg.)
Max Pipe Wall
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
2.00” (50mm)
2.00” (50mm)
1.00” (25mm)
.500” (13mm)
2.00” (50mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
.500” (13mm)
Page 67
SPU (Signal Processing Unit)_____________
Enclosure
NEMA 4X (IP66), Powder coated aluminum, SS clamps and hardware. Dimensions: 11.00H x 8.60W x 5.00D inches (279H x 218W x 127D mm) Weight 9.5 lb. (4.3 Kg.)
Mounting
Wall, pipe (vertical or horizontal) or panel mounting. Hardware included. Panel opening: 10.63H x 8.10W inches ( 270H x 206W mm) Panel Depth. Rear: 2.78 inches (71 mm), Front : 2.18 inches (55 mm)
Power Requirements
110-240 VAC 50/60Hz or 15-30 VDC; 40 watts maximum
Operating Temperature
OOOO OOOO
14 F to 140 F (-10 C to 60 C) Storage: -40 F to 158 F (-40 C to 70 C)
Display
320 x 240 pixel QVGA backlit LCD, UV resistant. Simultaneous Rate and Total: 10 digit maximum + exponent to E+32 Decimal location configurable to 10 places.
Display Languages
English, Spanish, French or German selectable.
Keypad
Five-button positive action tactile switch keypad.
Security
Programmable master password and individual configuration passwords.
Display Volume Units
Independently configurable Rate and Total display units in: U.S. Gallons, ounces, barrels (US liquid), barrels (US oil), cubic feet, acre feet, Imperial (British) gallons, liter, cubic meter, or user defined “custom” units. Rate display in feet or meters per second.
Display Time Units
Seconds, minutes, hours, days.
Display/Output Update Time
Selectable: 0.25, 0.50, 1.0 (default), 2.5, 5.0 seconds.
Flow Rate Display Averaging
Selectable: 0.50, 1.0, 2.5, 5.0 (default), 10.0 seconds.
Data Outputs
!
Isolated 4-20 mA output - fully configurable, invertible
(maximum load 1000 ohm resistance)
!
0-1000 Hz Open collector pulse output - fully configurable, invertible
(5-30 Vdc, 50% duty cycle)
Data Logging
Date/time stamped flow rate and total data in FAT32 file format, easily imported into Excel. Configurable to trigger on time interval (1-999,999 sec), rate and/or total set-point values. Over 500,000 log events possible with included 32MB SD Card.
Process Control
Three independently configurable 10 amp Form C, NO/NC relays.
!
Configure to flow rate for high/low/range rate alarm. Programmable
release values enable auto release or manual latching operation.
!
Configure to flow total for manual trigger batch operations or
automatically triggered, timed batch operations.
External Communications
Computer connection via RS-232, RS485, USB, Ethernet.
!
Includes user communication and configuration software
!
Permits remote internet access through local network set-up
!
Remotely access and upload data logging files.
Clamp-On Transducers_______________
Housing
NEMA 6P (IP67), Nickel plated aluminum, ss clamps & hardware. Dimensions: 3.12H x 2.95W x 1.60D in. (79H x 75W x 41D mm) Weight (excluding cable): 0.8 lb. (0.4 kg.) each
Cable
Shielded coaxial RG/U Type:59. PVC jacket, black. RoHS Compt. Standard length: 10 ft. (3m) Optional lengths available: 25 ft. (7m), 50 ft. (15m), 100 ft. (30m)
Nominal Pipe Sizes
A series transducer: 1.0 inch - 100 inch (63mm to 2500mm)
Pipe Surface Temperature
OOO O
-20 F to 250 F (-34 C to 121 C)
Ultrasonic Flowmeter
Page 68
10.4 Pipe dimensional data
Pipe Size
O.D. 5s 5 10s 10 20 30
Dn
.065
.083
.083
.083
.083
.109
.109
.109
.134
.165
.109
.120
.120
.120
.120
.134
.134
.148
.165
.180
.188
.188
.188
.219
.250
.312
2
2 ½
3
3 ½
4 5 6
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 42 48
2.375
2.875
3.500
4.000
4.500
5.563
6.625
8.625
10.750
12.750
14.000
16.000
18.000
20.000
22.000
24.000
26.000
28.000
30.000
32.000
34.000
36.000
42.000
48.000
.065
.083
.083
.083
.083
.109
.109
.109
.134
.156
.156
.165
.165
.188
.219
.250
.109
.120
.120
.120
.120
.134
.134
.148
.165
.180
.250
.250
.250
.250
.250
.250
.312
.312
.312
.312
.312
.312
ASTM D 1785
I.P.S. Pipe Size Schedules
Wall (inches)
40s &
Std.
.154
.203
.216
.226
.237
.277
.307
.330
.375
.375
.438
.500
.500
.562
.625
.625
.625
.625
.625
.375
.375
.258
.280
.322
.365
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.375
.203
.203
.250
.250
.250
.312
.312
.312
.375
.375
.375
.500
.500
.500
.500
.500
.500
40 60
.154
.203
.216
.226
.237
.258
.280
.322
.365
.406
.438
.500
.562
.594
.688
.688
.688
.750
.281
.406
.500
.562
.594
.656
.750
.812
.875
.969
.500
.500
80s &
80 100 120 140 160 XXH
XH
.218
.218
.276
.276
.300
.300
.318
.318
.594
.719
.844
.938
1.031
1.156
1.281
1.375
1.531
.438
.500
.562
.719
.844
1.000
1.094
1.219
1.375
1.500
1.625
1.812
.337
.375
.432
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.337
.375
.432
.500
.594
.688
.750
.844
.938
1.031
1.125
1.219
.812
1.000
1.125
1.250
1.438
1.562
1.750
1.875
2.062
.344
.375
.438
.531
.625
.719
.906
1.125
1.312
1.406
1.594
1.781
1.969
2.125
2.344
ASTM D 2241
Pressure rated pipe
Wall (inches)
SDR41SDR26SDR21ClassBClassCClassDClass
.436
.522
.600
.636
.674
.750
.864
.875
1.000
1.000
.439
.488
.585
.091
.110
.135
.154
.173
.214
.255
.332
.413
.490
.538
.615
.692
.769
.923
PVC-U Pressure Pipe
.113
.137
.167
.122
.190
.214
.141
.265
.157
.189
.316
.220
.410
.275
.322
.354
.401
.468
.519
.618
Wall (inches)
.118
.141
.161
.204
.248
.295
.346
.429
.507
.555
.637
.716
.795
.948
BS 3505
.145
.208
.267
.326
.389
.456
.563
.669
.732
.830
.937
E
.177
.220
.255
.326
.397
.480
.555
.688
.818
.897
1.023
ANSI/AWWA C151/A21.51
Ductile Iron Pipe Thickness Class
Pipe Size
O.D. 50 51 52 53 54 55 150 200 250 300 350
Dn
4.80
4
6.90
9.05
11.10
13.20
15.30
17.40
19.50
21.60
25.80
32.00
38.30
44.50
50.80
57.56
61.61
65.67
.25
.27
.29
.31
.33
.34
.35
.36
.38
.39
.43
.47
.51
.57
6
8 10 12 14 16 18 20 24 30 36 42 48 54 60 64
.26
.28
.30
.32
.34
.36
.37
.38
.39
.41
.43
.48
.53
.58
.65
Wall (inches)
.32
.29
.34
.31
.36
.33
.38
.35
.40
.37
.42
.39
.43
.40
.44
.41
.45
.42
.47
.44
.51
.47
.58
.53
.65
.59
.72
.65
.81
.73
.35
.37
.39
.41
.43
.45
.46
.47
.48
.50
.55
.63
.71
.79
.89
.38
.40
.42
.44
.46
.48
.49
.50
.51
.53
.59
.68
.77
.86
.97
56
.41
.43
.45
.47
.49
.51
.52
.53
.54
.56
.63
.73
.83
.93
1.05
ANSI/AWWA C151/A21.51
Ductile Iron Pipe Pressure Class
Wall (inches)
.28
.30
.31
.33
.37
.33
.34
.38
.41
.46
.51
.54
.56
.38
.42
.47
.52
.58
.61
.64
.42
.47
.52
.58
.65
.68
.72
.30
.32
.34
.36
.40
.45
.51
.57
.64
.72
.76
.80
AWWA C900 / C905
PVC Water pipe
DR25DR18DR
.192
.25
.276
.25
.362
.25
.444
.26
.528
.28
.612
.31
.696
.34
.780
.36
.864
.38
1.032
.43
.49
.56
.63
.70
.79
.83
.87
Wall (inches)
.267
.383
.503
.617
.733
.850
.967
1.083
1.200
14
.343
.493
.646
.793
.943
Ultrasonic Flowmeter
Pipe Dimensional Data
Page 69
Pipe Size
Dn
63 75
90 110 125 140 160 180 200 225 250 280 315 355 400 450 500 560 630
O.D. PN 4
63
75
1.8
90
1.8
110
2.2
125
2.5
140
2.8
160
3.2
180
3.6
200
4.0
225
4.5
250
4.9
280
315
6.2
355
400
450
500
560
630
DIN 8062
PVC-U Pipe
Wall (millimeters)
PN 6 PN 10 PN 16 PN 20
3.0
4.7
5.6
6.7
8.2
9.3
10.4
11.9
13.4
14.9
16.7
18.0
20.8
23.4
29.7
7.0
8.4
10.0
12.3
1.9
2.2
2.7
3.2
3.7
4.1
4.7
5.3
5.9
6.6
7.3
8.2
9.2
11.7
14.6
18.4
3.6
4.3
5.3
6.0
6.7
7.7
8.6
9.6
10.8
11.9
13.4
15.0
19.1
23.9
Tube Size
Dn
2.125
2
2.625
2.5
3.125
3
3.625
3.5
4.125
4
5.125
5
6.125
6
8.125
8
10.125
10
12.125
12
ASTM B 88
Copper Tube Type Sizes
Wall (inches)
O.D.
KLM
.083
.095
.109
.120
.134
.160
.192
.271
.338
.405
.070
.080
.090
.100
.110
.125
.140
.200
.250
.280
.058
.065
.072
.083
.095
.109
.122
.170
.212
.254
Tube Size
Dn
2.000
2
2.500
2.5
3.000
3
4.000
4
6.000
6
ASTM A269/A270
SS Tube Gauge Sizes
Wall (inches)
O.D.
16 14 12
.065
.065
.065
.065
.065
.083
.083
.083
.083
.083
.109
.109
.109
.109
.109
Ultrasonic Flowmeter
Page 70
10.5 Sound speed data
Fluid Sound Speeds Pipe Sound Speeds
Fluid Temp. (°C) Sound Speed (m/s) Pipe Material Sound Speed (m/s)
1, 1, 1-trichloroethane 25 985
1-propanol 20 1222 Aluminum 3080
Acetone (Dimethyl ketone; 2-propanone) 20 1190
Alcohol (Ethyl alcohol; Ethanol) 25 1207 Copper 2260
Benzene 25 1306 Copper (annealed) 2325
Bromine 25 889 CuNi (70%Cu 30%Ni) 2540
Butyl acetate 20 1270 CuNi (90%Cu 10%Ni) 2060
Carbon dioxide -37 839 FRP (fiberglass reinforced plastic) 2505
Carbon tetrachloride 20 938 Glass, Pyrex 3280
Chlorobenezene 20 1289
Chloroform 20 931 Iron (cast) 2460
Diethyl ether 25 985 Iron (ductile) 3000
Diethyl Ketone 20 1310 Monel 2720
Diethylene glycol 25 1586 Nickel 2960
Ether 20 1006 Nylon 2400
Ethyl acetate 25 1164 Polyethylene (HDPE) 2310
Ethyl ether 25 985 Polyethylene(LDPE) 1940
Ethylene glycol 25 1658 Polypropylene 2400
Ethylene glycol / water (50%) 25 1578 PVC/CPVC 2400
Gasoline 25 1250 PVDF 2299
Glycerol 25 1904 Stainless Steel 302/303 3120
Iso-butane 25 1220 Stainless Steel 304 3206
Isobutanol 25 1212 Stainless Steel 304L 3070
Isopropyl alcohol 20 1170 Stainless Steel 316 3175
Kerosene 25 1324 Stainless Steel 347 3100
Linalool 20 1400 Stainless Steel 410 2990
Linseed Oil 20 1770 Stainless Steel 430 3360
Methyl acetate 25 1181 Steel (1% Carbon) 3220
Methyl alcohol (Methanol) 25 1076 Steel (1% Carbon, hardened) 3150
Methyl ethyl Ketone 20 1210 Steel (carbon) 3206
Methylene chloride 25 1070 Steel (mild) 3235
Milk, homogenized 25 1548 Tin, rolled 1670
m-xylene 20 1343 Titanium 3125
n-butane -5 1085 Tungsten, annealed 2890 n-propyl acetate 2 1280 Zinc, rolled 2440
Octane 25 1172
Oil, (Lubricating X200) 25 1530
Oil, castor 25 1477
Oil, diesel 25 1250
Oil, motor (SAE 20/30) 20 1487
Oil, olive 25 1431
Oil, Paraffin 20 1420
Oil, peanut 25 1458
Oil, Transformer 20 1390
o-xylene 25 1332
Pentane 25 1020
Petroleum 20 1290
Refrigerant 11 0 828
Refrigerant 113 0 784
Refrigerant 114 -10 665
Refrigerant 115 -50 656
Refrigerant 12 -40 774
Refrigerant 14 20 875
Refrigerant 21 0 891
Refrigerant 22 50 894
Refrigerant C318 -10 574
Silicone (30cp) 25 990
Solvesso #3 25 1370
Tetrachloroethane 20 1170
Toluene 20 1328
Trichloroethylene 20 1050
Turpentine 25 1255
Water (distilled; waste) 20 1481
Water, heavy 20 1388
Water, sea 20 1520 Wood alcohol 25 1076
Acrylic 2730
Brass (Naval) 2050
Inconel 3020
Liner Sound Speeds
Material
Concrete (Mortar) 2500
Sound Speed (meters/sec)
Water Sound Speeds
O
Tem p COTem p F
0 32 1403
5 41 1427
10 50 1447
20 68 1481
30 86 1507
40 104 1526
50 122 1541
60 140 1552
70 158 1555
80 176 1555
90 194 1550
100 212 1543
Sound Speed (meters/sec)
Ultrasonic Flowmeter
10.6 Troubleshooting guide
Page 71
Ultrasonic Flowmeter
Page 72
10.6 Troubleshooting guide
Ultrasonic Flowmeter
10.6 Troubleshooting guide
Page 73
Ultrasonic Flowmeter
Users of electrical and electronic equipment (EEE) with the WEEE marking per Annex IV of the WEEE Directive must not dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return, recycle, recovery of WEEE and minimize any potential effects of EEE on the environment and human health due to the presence of hazardous substances. The WEEE marking applies only to countries within the European Union (EU) and Norway. Appliances are labeled in accordance with European Directive 2002/96/EC. Contact your local waste recovery agency for a Designated Collection Facility in your area.
P.N. 80000-430 Rev. 04132009
Loading...
