ENGLISH

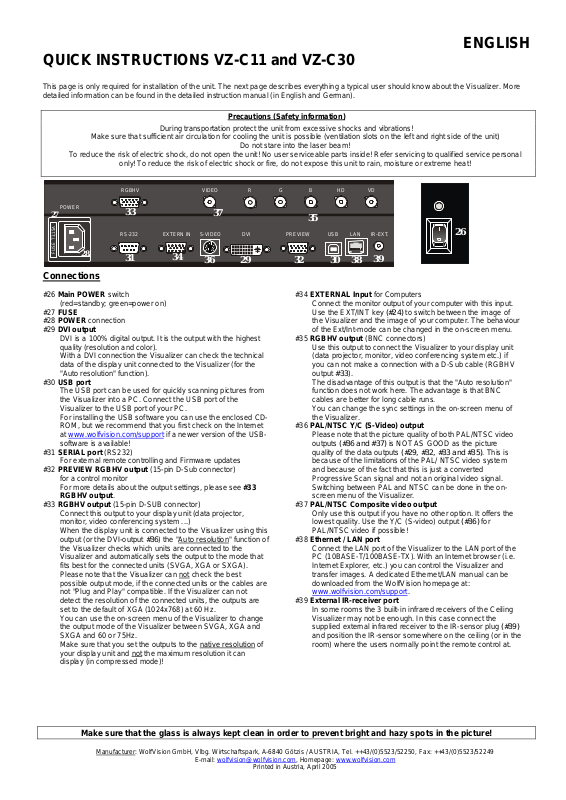

QUICK INSTRUCTIONS VZ-C11 and VZ-C30

This page is only required for installation of the unit. The next page describes everything a typical user should know about the Visualizer. More detailed information can be found in the detailed instruction manual (in English and German).

Precautions (Safety information)

Make sure that sufficient air circulation for cooling the unit is possible (ventilation slots on the left and right side of the unit)

To reduce the risk of electric shock, do not open the unit! No user serviceable parts inside! Refer servicing to qualified service personal

POWER

only! To reduce the risk of electric shock or fire, do not expose this unit to rain, moisture or extreme heat!

RGBHV

FUSE T3,15A

During transportation protect the unit from excessive shocks and vibrations!

Do not stare into the laser beam!

VIDEO

RGB

EXTERN IN

DVI USBS-VIDEO

Connections

#26 Main POWER switch

(red=standby; green=power on) #27 FUSE #28 POWER connection #29 DVI output

DVI is a 100% digital output. It is the output with the highest

quality (resolution and color).

With a DVI connection the Visualizer can check the technical

data of the display unit connected to the Visualizer (for the

"Auto resolution" function). #30 USB port

The USB port can be used for quickly scanning pictures from

the Visualizer into a PC. Connect the USB port of the

Visualizer to the USB port of your PC.

For installing the USB software you can use the enclosed CD-

ROM, but we recommend that you first check on the Internet

at www.wolfvision.com/support

software is available! #31 SERIAL port (RS232)

For external remote controlling and Firmware updates #32 PREVIEW RGBHV output (15-pin D-Sub connector)

for a control monitor

For more details about the output settings, please see #33

RGBHV output. #33 RGBHV output (15-pin D-SUB connector)

Connect this output to your display unit (data projector,

monitor, video conferencing system ...)

When the display unit is connected to the Visualizer using this

output (or the DVI-output #36) the "Auto resolution

the Visualizer checks which units are connected to the

Visualizer and automatically sets the output to the mode that

fits best for the connected units (SVGA, XGA or SXGA).

Please note that the Visualizer can not

possible output mode, if the connected units or the cables are

not "Plug and Play" compatible. If the Visualizer can not

detect the resolution of the connected units, the outputs are

set to the default of XGA (1024x768) at 60 Hz.

You can use the on-screen menu of the Visualizer to change

the output mode of the Visualizer between SVGA, XGA and

SXGA and 60 or 75Hz.

Make sure that you set the outputs to the native resolution

your display unit and not

display (in compressed mode)!

if a newer version of the USB-

" function of

check the best

the maximum resolution it can

PREVIEW

#34 EXTERNAL Input for Computers

Connect the monitor output of your computer with this input. Use the EXT/INT key (#24) to switch between the image of the Visualizer and the image of your computer. The behaviour of the Ext/Int-mode can be changed in the on-screen menu.

#35 RGBHV output (BNC connectors)

Use this output to connect the Visualizer to your display unit (data projector, monitor, video conferencing system etc.) if you can not make a connection with a D-Sub cable (RGBHV output #33). The disadvantage of this output is that the "Auto resolution" function does not work here. The advantage is that BNC cables are better for long cable runs. You can change the sync settings in the on-screen menu of the Visualizer.

#36 PAL/NTSC Y/C (S-Video) output

Please note that the picture quality of both PAL/NTSC video outputs (#36 and #37) is NOT AS GOOD as the picture quality of the data outputs (#29, #32, #33 and #35). This is because of the limitations of the PAL/ NTSC video system and because of the fact that this is just a converted Progressive Scan signal and not an original video signal. Switching between PAL and NTSC can be done in the onscreen menu of the Visualizer.

#37 PAL/NTSC Composite video output

Only use this output if you have no other option. It offers the lowest quality. Use the Y/C (S-video) output (#36) for PAL/NTSC video if possible!

#38 Ethernet / LAN port

Connect the LAN port of the Visualizer to the LAN port of the PC (10BASE-T/100BASE-TX). With an Internet browser (i.e. Internet Explorer, etc.) you can control the Visualizer and transfer images. A dedicated Ethernet/LAN manual can be downloaded from the WolfVision homepage at:

www.wolfvision.com/support

#39 External IR-receiver port

In some rooms the 3 built-in infrared receivers of the Ceiling Visualizer may not be enough. In this case connect the supplied external infrared receiver to the IR-sensor plug (#39) and position the IR-sensor somewhere on the ceiling (or in the room) where the users normally point the remote control at.

LANRS-232

IR-EXT.

Make sure that the glass is always kept clean in order to prevent bright and hazy spots in the picture!

Manufacturer: WolfVision GmbH, Vlbg. Wirtschaftspark, A-6840 Götzis / AUSTRIA, Tel. ++43/(0)5523/52250, Fax: ++43/(0)5523/52249

E-mail: wolfvision@wolfvision.com, Homepage: www.wolfvision.com

Printed in Austria, April 2005

Control panel and infrared remote control:

#12 LASER POINTER-key

Important: Do not stare directly into the beam.

This would be bad for your eyes! #13 ZOOM keys

When using the Zoom keys the size of the Synchronized

Lightfiled also changes. So the lightfield always indicates

the pickup area of the built-in camera. This can be used

for easy positioning of objects. #14 User programmable PRESETS

You can use Presets to store certain positions of zoom,

focus, mirror, light etc.

Press one of the Preset keys quickly

Press one of the Preset keys for 4 seconds

Preset

In the on-screen menu it is also possible to assign a

specific function to a Preset (like Image on/off, IRIS,

Negative, Negative/Blue, Black/White etc.) #15 IMAGE TURN key

For picking up a complete vertical (Portrait) page in A4 or

US-letter/legal size in better quality, place your document

on the working surface in horizontal (Landscape) direction

and zoom in on it completely. Then press the Image Turn

key. Now the picture is turned 90 degree and output the

right way up with much higher resolution

in the Image Turn mode all pixels of the camera are used

to pick up the letter. #16 TEXT Enhancement key

Press this key to improve the contrast and the readability

of text or x-rays. Please note that the colors are slightly

darker in this mode. #17 Manual FOCUS key

Because of the high depth of focus of the professional

Visualizers focusing is seldom necessary.

Pressing both focus keys simultaneously activates a One-

Push-Autofocus. #18 LIGHT key

Switches light off and on.

to recall a preset.

to store a

. This is because

Each time the lighting condition changes (sun light, neon light, halogen light...), the user should adjust the white balance of the Visualizer, in order to optimize the color reproduction. For adjusting the white, zoom in on a white object until there is only white on the screen. Then press the Light key for 2 seconds to perform a "One-Push" white balance.

#19 MENU key

Press this key for one second screen menu on your screen. The on-screen menu can be used for detailed settings of the Visualizer. It should only be used by technically skilled

#20 Manual IRIS

Using the Iris keys switches the Iris to manual. Using the Zoom keys switches the iris to automatic again. Special iris settings can also be made in the on-screen menu.

#21 HELP key

Press the help key when you are in the on-screen menu in order to receive a help text (in English) about the selected function.

#22 MEMORY keys 1-9

Press one of the Memory keys for 2 seconds for storing an image. Press one of the Memory keys quickly for recalling an image. When the on-screen menu is activated, the Memory keys works as Select keys to navigate in the onscreen menu.

#23 (Standby) POWER key

Please note that the main power switch is on the underneath of the unit (#26)

#24 EXT/INT key

Switches between the image of the Visualizer and the image from the external computer input (#34).

#25 ALL-key

Press this key for displaying all 9 pictures of the memory as split image.

in order to activate the on-

persons.
