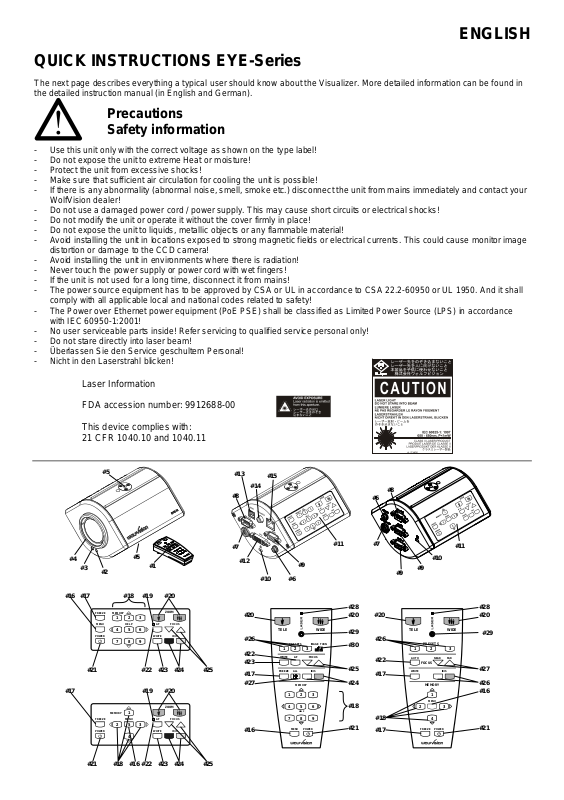

QUICK INSTRUCTIONS EYE-Series
The next page describes everything a typical user should know about the Visualizer. More detailed information can be found in
the detailed instruction manual (in English and German).
Precautions
Safety information
- Use this unit only with the correct voltage as shown on the type label!
- Do not expose the unit to extreme Heat or moisture!
- Protect the unit from excessive shocks!
- Make sure that sufficient air circulation for cooling the unit is possible!
- If there is any abnormality (abnormal noise, smell, smoke etc.) disconnect the unit from mains immediately and contact your
WolfVision dealer!
- Do not use a damaged power cord / power supply. This may cause short circuits or electrical shocks!
- Do not modify the unit or operate it without the cover firmly in place!
- Do not expose the unit to liquids, metallic objects or any flammable material!
- Avoid installing the unit in locations exposed to strong magnetic fields or electrical currents. This could cause monitor image
distortion or damage to the CCD camera!
- Avoid installing the unit in environments where there is radiation!
- Never touch the power supply or power cord with wet fingers!
- If the unit is not used for a long time, disconnect it from mains!
- The power source equipment has to be approved by CSA or UL in accordance to CSA 22.2-60950 or UL 1950. And it shall
comply with all applicable local and national codes related to safety!
- The Power over Ethernet power equipment (PoE PSE) shall be classified as Limited Power Source (LPS) in accordance
with IEC 60950-1:2001!
- No user serviceable parts inside! Refer servicing to qualified service personal only!
- Do not stare directly into laser beam!
- Überlassen Sie den Service geschultem Personal!
- Nicht in den Laserstrahl blicken!
Laser Information
FDA accession number: 9912688-00
This device complies with:
21 CFR 1040.10 and 1040.11
#5
#2
FREEZE
MENU
POWER
FREEZE
POWER
#5
#18#17 #19 #20
MEMORY
123
HELP
456
89
7
MEMORY
1
MENU
253
4
#1
ZOOM
FOCUSAF
IRIS
WHITE
#22 #25#24
#23
#19 #20
ZOOM
FOCUSAF
IRIS
WHITE
#4
#3
#16
#21
#17
#13
#15
#14
#8
#7
#12
#6
#10
#20
TELE
#26
#22
#23
#17
#27
#16
PRESETS IMAGE TURN
1 23
WHITE AF
FREEZE
FREEZE
1 23
4 5 6
7
MENU POWER
#11
#9
WIDE
AFWHITE
FOCUS
FOCUS
IRIS
ALL
MEMORY
HELP
8 9
#8
#6
#7
#9
#9
#28
#20
#20 #20
#26
#22
#17
#18
#17
TELE
PRESETS
1 23
AUTO
FOCUS
WHITE
MEMORY
FREEZE POWER
#29
#30
#25
#24
#18
#21
#11
#10
#28
WIDE
#2
FAR
NEAR
1
MENU
4
#27
IRIS
#26
#16
32
#21
#21
#16#18 #22 #25#24
#23
Description of components
#1 IR-remote control
#2 Power LED
red=Standby; green=powered on
#3 IR-receiver (built-in)
#4 Close up lens attachment (M46x0,75)
#5 Tripod thread (1/4” UNC-20) (on top and bottom)
#6 Power connection 12V DC
#7 External IR-sensor
In some rooms the built-in infrared receiver may not be
enough. In this case connect the supplied external
infrared sensor to the IR-EXTERN plug and position the
IR-sensor somewhere in the room where the users
normally point the remote control at.
#8 Serial control input RS232
For external control and firmware updates
#9 RGB output (15-Pol D-SUB)
Connect the display device to this output (DataProjector, Monitor, Videoconferencing system).
#10 T-Lock Kensington®
The EYE can be fixed with a security cable T-bar lock
(Kensington® Lock), so that it can not be stolen. Follow
the instructions from the cable lock manual.
#11 Key panel
#12 DVI-I output (digital and analog)
DVI is a 100% digital output. It is the output with the
highest quality (resolution and color). With a DVI
connection the EYE-12 can check the technical data of
the connected display device (for the "Auto resolution"
function)
#13 USB connection
The USB port can be used for quickly scanning pictures
from the EYE into a PC.
The necessary WolfVision Connectivity software can be
found on the supplied CD-ROM or can be downloaded
at
www.wolfvision.com/support.
#14 TRIGGER input EYE-12
For synchronized image output.
#15 Ethernet / LAN connection
Connect the LAN port of the EYE to the LAN port of the
computer (10BASE-T/100BASE-TX). With an Internet
browser (i.e. Internet Explorer, etc.) or WolfVision
Connectivity Software you can control the EYE and
transfer images.
#16 MENU key
Press this key for
screen menu on your screen. The on-screen menu can
be used for detailed settings of the Visualizer. It should
only be used by technically skilled persons.
#17 FREEZE key
To freeze (capture) the current image.
one second in order to activate the on-
EYE-12
EYE-12
EYE-12
#18 MEMORY keys / Menu-Navigations keys
Press one of the Memory keys for 2 seconds for storing
an image. Press one of the Memory keys quickly for
recalling an image.
When the on-screen menu is activated, the Memory
keys works as Select keys to navigate in the on-screen
menu.
#19 AF-LED
The AF LED indicates the state of Auto Focus.
(green=activated, dark=de-activated).
#20 ZOOM keys
#21 (Standby) POWER key
#22 Auto FOKUS key
Switches the Auto Focus on and off. The AF-LED
indicates the state.
#23 WHITE key
Each time the lighting condition changes (sun light, neon
light, halogen light...), the user should adjust the white
balance, in order to optimize the color reproduction. For
adjusting the white, zoom in on a white object until there
is only white on the screen. Then press the W HITE key
to perform a "One-Push" white balance.
#24 Manual IRIS keys
Using the Iris keys switches the Iris to manual. Using the
Zoom keys switches the iris to automatic again.
Special iris settings can also be made in the on-scr een
menu.
#25 Manual FOKUS keys
Adjusts the image focus manually.
#26 Programmable PRESETS
You can use Presets to store certain positions of zoom,
focus, etc.. Press one of the Preset keys
a preset. Press one of the Preset keys for
store a Preset.
#27 ALL key EYE-12
Press this key for displaying all 9 pictures of the memory
as split image.
#28 Laser Status LED
#29 LASER Pointer-key
Important: Do not stare into the beam.
This would be bad for your eyes!
#30 IMAGE TURN key EYE-12
For picking up a complete vertical (Portrait) page in
better quality, place your document on the working
surface in horizontal (Landscape) direction and zoom in
on it completely. Then press the Image Turn key. Now
the picture is turned 90 degree and output the right way
up with
much higher resolution. This is because in the
Image Turn mode all pixels of the camera are used to
pick up the letter.
quickly to recall
4 seconds to
Manufacturer: WolfVision GmbH, Oberes Ried 14, A-6833 Klaus / ÖSTERREICH
Tel. ++43/(0)5523/52250, Fax: ++43/(0)5523/52249
E-mail: wolfvision@wolfvision.com
Printed
, Homepage: www.wolfvision.com
in Austria, July 2008
