Welltech WG5290 User Manual

Download

Welltech Computer Co., Ltd.

WellGate 5290

Universal VoIP Gateway

User Guide

Version 6.1

WellGate 5290 User Guide – V6.1 - 1 -

Welltech Computer Co., Ltd.

CONTENTS

CHAPTER 1 WELLGATE 5290 INTRODUCTION ..........................................................................4

SYSTEM DESCRIPTION .......................................................................................................................... 4

TECHNICAL SPECIFICATION ..................................................................................................................5

AUDIO FEATURE ...................................................................................................................................5

WELLGATE 5290 V6.1 DETAIL SPEC....................................................................................................7

WELLGATE 5290 APPEARANCE DESCRIPTION....................................................................................13

CHAPTER 2 LOGON WELLGATE 5290 ......................................................................................... 15

LOGON WELLGATE 5290....................................................................................................................15

NETWORK CONFIGURATION................................................................................................................16

SYSTEM TIME CONFIGURATION ..........................................................................................................18

ACCOUNT MANAGER..........................................................................................................................19

RELOGIN.............................................................................................................................................21

CHAPTER 3 H.323 GATEKEEPER AND SIP PROXY MODE CONFIGURATION .................. 22

ENVIRONMENT USED IN THIS CHAPTER ...............................................................................................22

INTERFACE CONFIGURATION ..............................................................................................................22

T1/E1 TRUNK CONFIGURATION ..........................................................................................................24

SS7 CONFIGURATION..........................................................................................................................26

H.323 CONFIGURATION ......................................................................................................................27

SIP CONFIGURATION ..........................................................................................................................28

DIGIT MANIPULATION ........................................................................................................................30

CHAPTER 4 CALL FLOW EDITOR................................................................................................34

CONFIG MANAGER.............................................................................................................................46

APPLY CHANGE ..................................................................................................................................48

CHAPTER 5 PEER TO PEER MODE CONFIGURATION ........................................................... 49

ENVIRONMENT USED IN THIS CHAPTER ...............................................................................................49

NETWORK CONFIGURATION................................................................................................................49

ACCOUNT MANAGER..........................................................................................................................49

INTERFACE CONFIGURATION ..............................................................................................................49

H.323 CONFIGURATION ......................................................................................................................49

VOIP HUNTING..................................................................................................................................50

DIGIT MANIPULATION ........................................................................................................................52

CALL FLOW EDITOR ...........................................................................................................................52

CONFIGURATION MANAGER ...............................................................................................................53

APPLY CHANGE ..................................................................................................................................53

CHAPTER 6 SIP TO H.323 MODE CONFIGURATION ................................................................54

ENVIRONMENT USED IN THIS CHAPTER ...............................................................................................54

NETWORK CONFIGURATION................................................................................................................54

ACCOUNT MANAGER..........................................................................................................................54

INTERFACE CONFIGURATION ..............................................................................................................54

H.323 CONFIGURATION ......................................................................................................................54

SIP CONFIGURATION ..........................................................................................................................54

ADDRESS BOOK..................................................................................................................................54

DIGIT MANIPULATION ........................................................................................................................55

CALL FLOW EDITOR ...........................................................................................................................55

CONFIGURATION MANAGER ...............................................................................................................55

APPLY CHANGE ..................................................................................................................................55

CHAPTER 7 ADVANCE CONFIGURATION REFERENCE.........................................................56

CONFIGURATION.................................................................................................................................56

System Configuration....................................................................................................................56

Interface Configuration ................................................................................................................57

Reset Configuration......................................................................................................................67

WellGate 5290 User Guide – V6.1 - 2 -

Welltech Computer Co., Ltd.

H.323 Configuration.....................................................................................................................68

SIP Configuration.........................................................................................................................71

SS7 Configuration.........................................................................................................................75

Access Control..............................................................................................................................76

Number Replace............................................................................................................................81

Data Base Number........................................................................................................................82

Routing Plan.................................................................................................................................83

Radius Setting...............................................................................................................................84

Apply Change................................................................................................................................85

CHAPTER 8 SYSTEM CONTROL...................................................................................................87

SYSTEM ..............................................................................................................................................87

SYSTEM TIME .....................................................................................................................................87

NETWORK...........................................................................................................................................89

SNMP................................................................................................................................................89

PROMPT MANAGER ............................................................................................................................90

CALL FLOW EDITOR ...........................................................................................................................96

ACCOUNT MANAGER..........................................................................................................................96

UPGRADE ...........................................................................................................................................96

RELOGIN.............................................................................................................................................96

CHAPTER 9 SYSTEM MONITOR ...................................................................................................97

LINE SUMMARY STATUS .....................................................................................................................97

LINE DETAIL .......................................................................................................................................97

SYSTEM STATUS .................................................................................................................................98

EVENT LOG ........................................................................................................................................99

DEBUG INFO .....................................................................................................................................102

PING .................................................................................................................................................102

CHAPTER 10 TELNET & RS-232 CONFIGURATION................................................................ 103

LOGON WELLGATE 5290 BY TELNET ...............................................................................................103

CHAPTER 11 LCD DISPLAY CONFIGURATION ....................................................................... 110

APPENDIX 1 CALL FLOW EXAMPLE......................................................................................... 113

ONE STAGE DIALING (GATEKEEPER MODE).....................................................................................113

ONE STAGE DIALING (SIP PROXY MODE) ........................................................................................115

ONE STAGE DIALING (PEER TO PEER MODE)....................................................................................117

TWO STAGE DIALING (VOIP, PSTN MIXED CALL) ............................................................................119

TWO STAGE DIALING WITH AAA (IP SIDE AAA).............................................................................122

APPENDIX 2 JAVA PLUG-IN INSTALLATION ...........................................................................126

APPENDIX 3 RETRIEVE CDR INFORMATION.........................................................................127

APPENDIX 4 INTERFACE LED DESCRIPTION.........................................................................129

APPENDIX 5 BUILD-IN VOICE PROMPT INDEX .....................................................................130

APPENDIX 6 TIME ZONE TO COUNTRY MAPPING LIST .....................................................131

APPENDIX 7 IP BANDWIDTH REQUIREMENT........................................................................ 133

APPENDIX 8 RELEASE COMPLETE CAUSE CODE ................................................................134

APPENDIX 9 RADIUS FORMAT ATTRIBUTES..........................................................................137

APPENDIX 10 QUICK START CHECK LIST...............................................................................141

APPENDIX 11 SS7 REFERENCE DOCUMENTS......................................................................... 145

WELLGATE 5290 FAQ..................................................................................................................... 145

WellGate 5290 User Guide – V6.1 - 3 -

Welltech Computer Co., Ltd.

Chapter 1 WellGate 5290 Introduction

System Description

A Universal VOIP/SS7 Gateway – Enabling SS7 to VoIP Network

Wellgate 5290 is a universal VOIP/SS7 GATEWAY which navigates the calls in between H.323, SIP and PSTN freely, not simple PSTN to VOIP calls or vice verse.

It can be easily used to implement SIP and PSTN, H.323 and PSTN, SIP and H.323, SIP and SIP, H.323 and H.323 calls simultaneously. With built-in SS7/ISUP interface, Wellgate 5290 bridges traditional PSTN/SS7 to VOIP network. Also it provides PSTN/VOIP IVR helps service provider to create their own voice service very quick.

Wellgate 5290 provides an easy to use web-based managing interface. Administrator can use the web based drag and drop call-flow editor to design their VOIP service very quick and without losing any flexibilities. A web-based voice prompt management GUI is also provided to simplify the deployment of IVR related service.

Key Features

Navigate Call Freely in SIP, H.323 and PSTN Support SIP RFC 3261 and ITU-T H.323 V5 Simultaneously Up to 4 Programmable E1/T1 Trunks PSTN Signaling: ISDN/PRI, CAS, MFC R2, QSIG, SS7/ISUP Support with Voice or Signal only SS7 Link Support Audio Codec G.711, G.723.1, G.729A, GSM SIP to PSTN Call and vice versa H.323 to PSTN Call and vice versa H.323 to SIP Call and vice versa SIP to SIP Call H.323 to H.323 Call Built-in Universal VOIP Address Book Support up-to 16 Multiple SIP Proxy Servers Support SIP Proxy, Gatekeeper and P2P Calls Simultaneously Support Early Media and SIP Delay Media Support RADIUS Authentication, Authorization and Accounting Intelligent PSTN Call Routing and in-Trunk Hunting Support Flexible VOIP Routing and Account Code Flexible Digit Manipulation Plan Support Calling/Called Number Replacement

WellGate 5290 User Guide – V6.1 - 4 -

Welltech Computer Co., Ltd.

Technical Specification

Interface

- Two 10/100MB Ethernet Ports (Host & VoIP stream)

- E1 SS7 Interface

- Up to 4 T1/E1 (120 Ohm-RJ48C connectors)

75 Ohm needs external 3rd party BNC/RJ-48C adapter cables

Protocol and Standard

- ITUT H.323 v5 compliance

- SIP RFC 2543/3261 compliance

Audio Feature

- Codec -- G.711 A/μ-Law, G.723.1 (5.3K/6.3K), G.729A, GSM

- Support G.168 echo cancellation (128 ms)

- Configurable audio payload size & adaptive jitter buffer

- Support silent suppression for G.729A, G.723

- VAD (Voice Activity Detection)

- CNG (Comfort Noise Generation)

DTMF Transmission

- Transparent

- H.245 signal/alphanumeric

- H.323 Q.931

- RFC 2833 (SIP only)

- SIP INFO

FAX Support

- Automatic voice/fax detection

- T.38 fax relay based on H.323 Annex D

- SIP T.38 fax relay

- Up to G3 fax

- ECM support

- Redundant T.38 packet (0-2)

- CISCO compatible

Built-in IVR & call-flow controller

- Web-based GUI Drag and Drop interface

- Full control of call behavior (one-stage or two-stage dialing)

- IVR functions

- Support time duration play back (Chinese & English)

- Power call information branch

- Collected information validation

- Active disconnect & reconnect without hang up

- Selected disconnect cause code & behavior

Management Feature

- OS and program upgradeable

WellGate 5290 User Guide – V6.1 - 5 -

Welltech Computer Co., Ltd.

- Console port: RS-232 port

- TELNET

- Full Web management interface & real time monitor

- Front panel LCD

- SNMP v2 (H.341) and SNTP v4 support

- User account management

- Time zone and day light saving support

- Support fixed IP and DHCP

- Support DNS and dynamic DNS

LED indicators for system status

- Power/Storage access indicators

- Front panel LCD (2

lines

X 16) status display

Power

- 90~240V auto switch

Environmental

- Operation temp: 0° C to 60° C

- Relative humidity: 5% to 95%

Dimension

- 483mm(L) x 450 mm(W) x 44mm(H)

Certification

- CE

WellGate 5290 User Guide – V6.1 - 6 -

Welltech Computer Co., Ltd.

Wellgate 5290 V6.1 Detail Spec.

Feature Wellgate 5290 V6.1

Physical Dimension

1 Width 2 Height 3 Depth 4 Industrial rack mount 5 Color 6 Weight

Power / Environmental

1 Power 2 Operating temperature 3 Relative humidity

Processors & Storage

1 DSP vendor

2 Operation System 3 RAM 4 Program/Data Storage 5 OS Upgradeable 7 Program Upgradeable

Front Panel Display

1 LED status 2 LCD status

LAN Interface

1 10/100 Base Ethernet

2 IP Address Required

PSTN Interface

Customizable E1/T1 CAS

E1 CAS DTMF

E1 CAS R2 MF

E1 ISDN PRI Support

4 5 E1/T1 Interface Selectable

PCM law Support

483mm 88mm 450mm Yes (2U) Black 10Kg

90-240V auto switch

0~60 C 5%~95%

Intel Pentium, Audio Codes DSP Dialogic SS7 Interface

XP Embedded 1024 MB 512 MB DOM Yes Yes

Power/DOM/System Yes

10/100MB Ethernet ports *2 (host & RTP)

Yes Loop Start FXO Hot-Line

Argentina, Bolivia, Brazil, Chile, China, Czech-Republic, Egypt, India, Indonesia, Israel, ITU, Korea, Malaysia, Mexico, Philippines, Thailand, Uruguay, Venezuela, RomTelcom

Euro, Australia, Hong Kong, Korea, New Zealand, QSIC

Alaw/Mulaw selectable

WellGate 5290 User Guide – V6.1 - 7 -

Welltech Computer Co., Ltd.

E&M Bell Core Feature Group D, Wink Start, E&M Delay Start, E&M Feature Group A Immediate Start, E&M Feature Group B Wink Start, E&M Feature Group D Wink

T1 CAS DTMF/R1MF

T1 ISDN PRI Support

9 E1 SS7 Support ISUP with voice/without voice

Trunk Spans

Default Trunk Channel Mask

PSTN Line Hunting

PSTN Line Hunting Channel Selection

14 15 Overlapping Sending for ISDN incoming call Yes

On the Fly Reset Channel/Trunk

Audio Codec Support

1 G.711 A-law 2 G.711 u-law 3 G.723.1 4 G.729A

5. GSM 5 Selectable Payload Size – G.711 6 Selectable Payload Size – G.723 7 Selectable Payload Size – G.729

Fax Transmission

1 T.38 Fax Relay 2 CISCO Compatible 3 ECM Support 4 FAX auto-detection 5 H.323 Annex D Support 6 SIP- T.38 Re-invite 7 T.38 During fast connect 8 T.38 Redundant Packet 9 Transparent mode

10 Up to G3 FAX

DTMF Transmission

1 RFC 2833 2 H.245 Alphanumeric mode 3 H.245 Signal mode

4 Q.931 UUI Yes 5 SIP INFO Yes

Start(ANI B4 ADDR), E&M Feature Group D Wink Start, E&M Immediate Start, E&M Wink Start, Ground Start FXO, Ground Start FXS, Loop Start FXO, Loop Start FXS, Loop Start FXO Hot-Line NI2 ISDN,5ESS 10 ISDN,DMS100 ISDN, NTT ISDN (INS-1500), Hong Kong, QSIC

1,2,4 (T1/E1s) per chassis Yes Yes Yes

Yes

Yes Yes Yes (5.3/6.3K) Yes Yes 20, 40, 60 ms 30, 60, 90 ms 20, 40, 60 ms

Yes Yes Yes Yes Yes Yes Yes 0-2 Yes Yes (up to 14400 bps)

Yes Yes Yes

WellGate 5290 User Guide – V6.1 - 8 -

Welltech Computer Co., Ltd.

6 Transparent mode Yes

Voice Quality & Echo Cancellation

1 Adaptive Jitter Buffer 2 CNG 3 G.168 (Echo Cancellation) 4

Gain Control Yes 5 Improved Echo Tail Suppression 6 Silence Suppression

VAD

Maintenance

1 Administrative Log 2 Auto Daylight Saving 3 Customizable Time Zone 4 Front Panel LCD Setup 5 FTP Server 6 HTTP server 7 HTTP SSL support 8 Multiple configuration 9 NTP time synchronization

10 Password Security 11 RS232 12 System Event Log 13 Telnet 14 Time Zone Support 15 User Account Manager 16 Web-based GUI 17 Web-based Real Time Monitor 18 Web-based Voice File Management

Network Management

1 DHCP 2 Fixed IP 3 DNS 4 Dynamic DNS 5 Ping 6 TOS field setting 7 SNMP V2 MIB I & II 8 SNMP get command 9 SNMP set command

10 SNMP Trap 12 SysLog Support 13 System Status

H.323 Protocol Support

1 H.323 V5 2 H.323 ID 3 E.164 ID

4 Fast Connect

Yes Yes Yes (128ms)

Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes Yes Yes Yes (RTP only) Yes Yes Yes Yes Yes Yes

Yes Yes Yes

Yes (selectable for incoming/outgoing)

WellGate 5290 User Guide – V6.1 - 9 -

Welltech Computer Co., Ltd.

6 H.245 Tunneling 7 Early H.245 8 Cause Code Mapping

SIP Protocol Support

1 Cause Code Mapping 2 HTTP Digest Authentication 3 SIP Call on Hold 4 SIP Early Media/Delay Media 5 SIP Overload Redirect 6 SIP Transfer (unattend) 7 SIP Transfer (attend) 8 SIP/TCP 9 SIP/UDP

10 SIP-180/SDP 11 SIP-183/SDP 12 SIP-PRACK 13 SIP-RFC 3261 14 SIP-RFC 3264 (Offer/Answer)

H.323 Gatekeeper Support

1 Gatekeeper Register 2 Direct call 3 Routed call 4 Light weight RRQ 6 Gatekeeper Call only

SIP Proxy Sever Support

1 SIP Outbound Proxy Support 2 SIP Redirect Server Support 3 SIP Register Server Support 4 Redundant SIP Proxy Server 5 Auto Fail Over

Dial Plan

1 P2P H.323/SIP Call 2 GK Call 3 SIP Call 4 PSTN Call 5 Mixed SIP, P2P, GK call 6 Build-in Phone Book 7 P2P Prefix Routing 8 Digits Manipulation 9 ISDN Dial Plan by Prefix

10 Overlap Sending Dial Plan

Call Type Support

1 Call Decision 2 H.323 to H.323 Call 3 H.323 to H.323 Fax Relay

Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes (Source & Destination) Yes

Dynamic Decided by Call Flow Yes Yes

WellGate 5290 User Guide – V6.1 - 10 -

Welltech Computer Co., Ltd.

4 H.323 to PSTN Call 5 H.323 to SIP Call 6 H.323 to SIP FAX Relay 7 H.323 to SIP FAX Relay 7 PSTN to H.323 Call 8 PSTN to PSTN Call 9 PSTN to SIP Call

10 SIP to H.323 Call 11 SIP to PSTN Call 12 SIP to SIP Call 13 SIP to SIP Fax Relay 14 VoIP to VoIP RTP unRouted 15 VoIP to VoIP RTP Routed

Enhance Service

1 ANI Access List 2 DNIS Access List 3 DID/DOD 4 PSTN Two Stage Dialing 5 VoIP Two Stage Dialing

6 Intelligent PSTN Call Routing

7 In-trunk hunting method

8 Ring Back Tone Generation 9 Call Progress Tone Support

10 Web-based Call Flow GUI

11 Play Credit Time Duration 12 Play Credit Balance 13 Almost-time-expired notify tone 14 IVR for PSTN 15 IVR for SIP 16 IVR for H.323 17 IP Access List 18 ANI Replacement 19 DNSI Replacement

AAA

1 Call detail record (CDR) 2 RADIUS Authentication 2 RADIUS Authorization

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes Yes Yes

Yes (Random, Round Robin, Priority)

cyclic, random, rotary, reverse cyclic, reverse rotary

Yes (per trunk enable/disable) Yes

Drag and Drop interface, Full control of call behavior (one-stage or two-stage dialing), IVR functions, Support time duration play back (Chinese & English), Power call information branch, Collected information validation, Active disconnect & reconnect without hang up, Selected disconnect cause code & behavior

Yes (Chinese & English) Yes (Chinese & English) Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes

WellGate 5290 User Guide – V6.1 - 11 -

Welltech Computer Co., Ltd.

3 RADIUS Accounting 4 Redundant RADIUS Server Support 5 PSTN Prepaid Support 6 VoIP Prepaid Support

Embedded AAA

1 Embedded Prepaid Service 2 Embedded Postpaid Service 3 Point/second Calculation 4 Second/point calculation 5 Auto Disable/Clean User 6 PSTN Prepaid Support 7 VoIP Prepaid Support

System Limitation

1 Max DM 2 Max IP ACL 3 Max DNIS ACL 4 Max ANI ACL 5 Max Phone Book Entries 6 Max Call Flow Component 7 Max CDR Keep Days

8 Max Voice File Storage

Manual

1 English User Guide

Yes Yes, Active/Standby/Auto Failover Yes Yes

Yes Yes Yes Yes Yes Yes Yes

4096 2048 4096 4096 10000 256 5

10 hours

Yes

WellGate 5290 User Guide – V6.1 - 12 -

Welltech Computer Co., Ltd.

WellGate 5290 Appearance Description

WellGate 5290 Front Panel:

Functions:

1: Power LED 2: H/D LCD 3: System Status LED

4: LAN or Management Interface

5: WG5290 Service Interface 6: Power Switch 7: LCD Panel 8: LCD Touch Panel 9: USB

WellGate 5290 Rear Panel:

Figure 1.1-1

WellGate 5290 User Guide – V6.1 - 13 -

Figure 1.1-2

Welltech Computer Co., Ltd.

Functions:

1: Electric Fan 2: AC Power outlet 3: AC Power switch 4: Keyboard/Mouse 5: Management Ethernet port 6: Service Ethernet port 7: VOIP Ethernet port 8: External Monitor Connector

9: Console port

10: USB (not used) 11: E1 Trunk port 12: SS7 E1 (if you are using SS7 with voice E1, you need to configure the corresponding

SS7 settings according to Dialogic document and connect 2 order to separate voice from SS7 E1 to voice E1)

E1 SS7 E1 to Voice E1 port in

13: Voice E1 derived from SS7 E1. It is used only for SS7 with voice E1 and

will be connect to E1 Trunk Port (10).

WellGate 5290 User Guide – V6.1 - 14 -

Welltech Computer Co., Ltd.

Chapter 2 Logon WellGate 5290

After connected E1/T1 & Ethernet cables into the WellGate 5290,

turned on the power. The first step is to logon the system and set up the IP address.

Before you can use the Browser to config WellGate 5290, you need to

have Java Standard Runtime (1_4_1_02) to make it work. Please refer to

Appendix 2 Java plug-in Install for detail.

Logon WellGate 5290

Setp1: Start IE5.0 (or later version) to navigate WellGate 5290 Management

System by typing the default IP addresses (the default URL is http://192.168.111.111:10087). The screen will display User ID and Password as figure 2.1-1.

Figure 2.1-1

☻Note: The default network IP address is 192.168.111.111 and subnet mask is 255.255.255.0

Step 2: Enter log user name and password (the default user id is root and

user password is root). You can manage your user account via web (refer to Section “Account Manager”) later.

Figure 2.1-2

Step 3: The screen shows the Home Page of WellGate 5290 as figure 2.1-3.

WellGate 5290 User Guide – V6.1 - 15 -

Welltech Computer Co., Ltd.

Figure 2.1-3

Figure 2.1-4(SS7)

Network Configuration

Step 1: After successfully logon to the system, we need to change the

network configuration. Click Control > Network -> SIP Service Interface to setup the network parameters as figure 2.2-1.

WellGate 5290 User Guide – V6.1 - 16 -

Welltech Computer Co., Ltd.

Figure 2.2-1

Step 2: Enter the deserved IP address, Submask and default gateway. Apply

the change by clicking apply button as figure 2.2-2.

Figure 2.2-2

Step 3: When screen shows “Setup network configuration successfully!”

It means the IP Network setting is successfully changed as figure 2.2-

Figure 2.2-3

WellGate 5290 User Guide – V6.1 - 17 -

Welltech Computer Co., Ltd.

☻Note: “Network Control” takes around 5-second to apply the new

network configuration. Please logon again with new IP address after 5 seconds.

System Time Configuration

Step 1: When re-logon to the new IP address; the next is to setup the system

time zone. Click Control > System Time Zone to setup the system time zone as figure 2.3-1.

Figure 2.3-1

Step 2: After apply the new time zone, click Back to adjust the date and time

as figure 2.3-2.

Figure 2.3-2

Step 3: Enter current date and time. Apply the change by clicking Apply

button as figure 2.3-3.

Figure 2.3-3

Step 4: The screen will shows “Setup system time successfully!” It means

the System Time setting is successfully changed as figure 2.3-4.

WellGate 5290 User Guide – V6.1 - 18 -

Welltech Computer Co., Ltd.

Figure 2.3-4

Step 5: If you would like to use SNTP to sync time with a SNTP V4 Server,

click Time Sync button to setup it as figure 2.3-5.

Figure 2.3-5

Account Manager

Step 1: You can manage your user account by click Control>Account

Manager. Add a new user account, Click New button as figure 2.4-1.

Figure 2.4-1

Step 2: Enter the new user ID, password as you need. Apply the change as

figure 2.4-2.

WellGate 5290 User Guide – V6.1 - 19 -

Welltech Computer Co., Ltd.

Figure 2.4-2

Field Description:

• User ID: Login User ID

• Password: Login Password

• Confirm Password: Confirm new password again

Step 3: When screen shows “Create user account successfully!” It means

user account setting is successfully created as figure 2.4-3

Figure 2.4-3

☻Note: The system provides 2 USER ID by default:

User 1: “root” Password: “root”

User 2: “admin” Password: “admin”

WellGate 5290 User Guide – V6.1 - 20 -

Welltech Computer Co., Ltd.

Relogin

Step 1: Click Control>Relogin to relogon by another user account as figure

2.5-1.

Figure 2.5-1

Step 2: Enter new User ID and Password to relogon the WellGate 5290 as

figure 2.5-2.

Figure 2.5-2

Step 3: The screen shows the Home Page of WellGate 5290 as figure 2-5-3.

Figure 2.5-3

WellGate 5290 User Guide – V6.1 - 21 -

Welltech Computer Co., Ltd.

Chapter 3 H.323 Gatekeeper and SIP Proxy Mode

Configuration

Environment used in this chapter

Process:

PSTN → H.323 Call: DNIS (1001) → Make H.323 - Gatekeeper Call (1001) → SIP Call: DNIS (8888) → Make SIP – SIP Proxy Call (8888)

H.323 → DNIS (5932111222) → DM (H.323_in_drop) → Make Call

SIP → DNIS (11382265699) → DM (SIP _in _drop) → Make Call (82265699)

H.323 GK and SIP Proxy Mode

Gatekeeper

H.323 Gateway

Phone 1001

H323 VoIP Network

H323 Phone

(0932111222)

SIP Phone

SIP VoIP Network

Proxy Server

SIP USB Phone

Interface Configuration

This section is going to setup the VoIP interface.

Step 1: Now we are going to setup the VoIP interface, click

Configuration>Interface to setup VoIP T1/E1 interface as figure 3.1-

WellGate 5290 User Guide – V6.1 - 22 -

Welltech Computer Co., Ltd.

Figure 3.1-1

Step 2: Double-click the installed interface (i.e Interface ID: 0) to config it as

figure 3.1-2.

Figure 3.1-2

Step 3: Modify the VoIP Interface parameters (i.e. IP Address, Protocol Tag,

Subnet Mask and Default gateway) and apply the change by clicking Apply as figure 3.1-3.

Figure 3.1-3

WellGate 5290 User Guide – V6.1 - 23 -

Welltech Computer Co., Ltd.

Frequency changed parameters: (Refer to section “Interface

Configuration” for more detail)

• IP Address: 192.168.19.174

• Subnet Mask: 255.255.255.0

• Default Gateway: 192.168.19.254

• PCM Type: A-law or U-law

☻Caution: Subnet Mask does not support Super net.

Step 4: After successfully change the Interface configuration, the screen

come back the page of Interface Configuration as figure 3.1-4.

Figure 3.1-4

T1/E1 Trunk Configuration

This section is going to setup the PSTN trunk parameters.

Step 1: Select the installed interface to modify the trunk parameter by click

Detail button as figure 3.2-1.

Figure 3.2-1

WellGate 5290 User Guide – V6.1 - 24 -

Welltech Computer Co., Ltd.

Step 2: Select the trunk to be modified, and click Modify button as figure 3.2-

Figure 3.2-2

Step 3: Modify the trunk parameters (i.e. Trunk Type, Termin Side, Trunk

Mode, Protocol Tag, and Line Code) and apply the change by clicking Apply as figure 3.2-3.

Figure 3.2-3

Frequency Changed Parameters:

• Line Code: HDB3

WellGate 5290 User Guide – V6.1 - 25 -

Welltech Computer Co., Ltd.

• Clock Master: external

• Framing Method: Automatic framing

• SS7 Group ID: Circuit Group ID in SS7 config.txt (refer to

ISUP_CFG_CCTGRP gid)

• SS7 Circuit Identifier 1: First CID in SS7 config.txt (refer to ISUP_CFG_CCTGRP base_cid)

• SS7 Circuit Identifier Count 1: set to 15 (internal user only)

• SS7 Circuit Identifier 2: Start CID for time slot 17 (refer to

ISUP_CFG_CCTGRP based_cid + offset)

• SS7 Circuit Identifier Count 2: set to 15 (internal use only)

Step 4: After succeeded to change the Trunk Configuration, the screen comes

back the page of Trunk Configuration as figure 3.2-4.

Figure 3.2-4

SS7 Configuration

WellGate 5290 is using Dialogic SS7 board with ISUP module. The user manual can be downloaded from

http://resource.intel.com/telecom/support/ss7/downloads/index.htm. WellGate 5290

provides the Dialogic SS7 configuration utility to edit the Dialogic SS7 board configuration file (config.txt). After you complete the editing of config.txt, you can upload to the system and soft-reset to take effective. However, some advance configuration (e.g. SS7 with voice) is not supported by the Dialogic utility. User need to use the normal editor to edit it.

WellGate 5290 User Guide – V6.1 - 26 -

Welltech Computer Co., Ltd.

Frequency used parameters:

• SS7: Enable

H.323 Configuration

This section is going setup the H.323 parameter. If you only need SIP

calls, you can skip it.

Step 1: Click Configuration>H.323 to setup the H.323 parameters for

Gatekeeper related information as figure 3.3-1.

Figure 3.3-1

Frequency used parameters:

• Register to Gatekeeper: Yes

• Gatekeeper IP: 222.173.67.138

• E.164 Tel: 177

• Register H.323 ID: Welltech

Step 3: You can see the screen display the new configuration of the H.323

Configuration as figure 3.3-3.

WellGate 5290 User Guide – V6.1 - 27 -

Welltech Computer Co., Ltd.

Figure 3.3-3

SIP Configuration

This section is going setup the SIP parameter. If you only need H.323

calls, you can skip it.

Step 1: Click Configuration>SIP to setup the SIP parameters for SIP Proxy

Server related information as figure.3.4-1.

WellGate 5290 User Guide – V6.1 - 28 -

Welltech Computer Co., Ltd.

Figure 3.4-1

Select SIP Proxy ID 0 and click modify as follows

Frequency used parameters:

• Active Mode: Active

• Register Server: SIP Proxy Server Register Server

• Register Port: SIP Proxy Server Register Port

• Register User: SIP User to register

• Register Password: SIP User Password to register

• Register TTL: 300 (time to live)

Step 2: You can see the screen display the new configuration of the SIP

Configuration as figure 3.4-2.

WellGate 5290 User Guide – V6.1 - 29 -

Welltech Computer Co., Ltd.

Figure 3.4-2

Digit Manipulation

The purpose of “Digit Manipulation” is to add or drop dialed digits for

PSTN or IP side (Interface configuration for PSTN side & H.323 Configuration for IP side) at the selected interface in order to meet local PSTN dialing requirement. It can also be used in Call Flow Edit for flexible usage.

Step 1: We introduced the group and interface dependent digital manipulation

to meet the customer’s requires. Click Digit Manipulation to add a new Digit Manipulation Group, add as figure 3.5-1.

Figure 3.5-1

Step 2: Enter the related parameters and click Apply button as figure 3.5-2.

WellGate 5290 User Guide – V6.1 - 30 -

Welltech Computer Co., Ltd.

Figure 3.5-2

Field Description:

• Group ID: 0 (DM Group identify)

• Description: H.323: H.323 In Drop

SIP: SIP In Drop

Step 3: Click the New created DM and Detail button to add digits setting as

figure 3.5-3.

Figure 3.5-3

Step 4: Click New button to add a new DM rule as figure 3.5-4.

Figure 3.5-4

WellGate 5290 User Guide – V6.1 - 31 -

Welltech Computer Co., Ltd.

Step 5: Create a new H.323 DM Group “1” and DM detail is show as follows:

Figure 3.5-5

H.323 Incoming Call DM Setting:

• Matched Pattern: 5(pattern to be matched)

• Group ID: 1-add002 (belong to this DM group)

• Insert: The Insert digits

H.323 incoming call

↓

Dialed number: 582265699

↓

Match the pattern 5

↓

Add 002 (Insert)

↓

New dialed number becomes 002582265699

Step 5: Also create a new SIP DM Group ‘2” and DM detail is show as follows:

Figure 3.5-6

SIP Incoming Call DM Setting:

• Matched Pattern: 113 (pattern to be matched)

• Group ID: 2-sophie (belong to this DM group)

• Drop: 113 (drop digits)

WellGate 5290 User Guide – V6.1 - 32 -

Welltech Computer Co., Ltd.

SIP incoming call

↓

Dialed number: 11307688222

↓

Match the pattern 113

↓

Delete 113 (Drop)

↓

New dialed number becomes 07688222

Step 6: Create a PSTN incoming call DM Group “3” and DM detail is show as

follows:

Figure 3.5-7

PSTN DM Setting:

• Matched Pattern: 02822656 (pattern to be matched)

• Group ID: 3-PSTN (belong to this group id)

• Drop: 02822656 (drop digits)

PSTN incoming call (DNIS mode)

↓

Dialed number: 028226561001

↓

Match the pattern 02822656

↓

Delete 02822656 (Drop)

↓

New dialed number becomes 1001

☻Note: Digit Manipulation have to tapped for PSTN Side

(Trunk>Outbound/Inbound DM Group), VoIP Side (VoIP>Outbound/Inbound DM Group) or Call Flow (refer to section “Call Flow Editor”) to take effect.

WellGate 5290 User Guide – V6.1 - 33 -

Welltech Computer Co., Ltd.

Chapter 4 Call Flow Editor

Call Flow Editor is used to control the call behavior including voice

prompt, AAA, DM…etc. It requires Java run time to run.

Step 1: Click Control>Call Flow Editor to create a Call Flow, click button

to activate IVR Tool as figure 4.1

Figure 4.1

Component Description:

• New: Create a new call flow

•

• Paste: Paste a component

• Delete: Delete a component

• Line: Connecting 2 components together

• Select: Select the component at call flow workspace

• Scroll: Scroll the call flow workspace

• Zoom: Zoom in or zoom out the workspace

• View Grid: View or not

Load Call Flow: Load call flow from WellGate 5290

Save: Save a call flow in WellGate 5290

Cut: Cut a component

Copy: Copy a component

WellGate 5290 User Guide – V6.1 - 34 -

Welltech Computer Co., Ltd.

• Show Component Table: Show all component table

Step 2: Drag and prop the required component icon into the workspace as

figure 4.2-1

Figure 4.2-1

Right click the component to bring up the component propriety to setup parameter:

• AAA: Send Authorization or Authentication for validation

Figure 4.2-2

o Type: AAA type selection

- Authorization: Send RADIUS Authorization packet out

- Authentication: Send RADIUS Authentication packet out

WellGate 5290 User Guide – V6.1 - 35 -

Welltech Computer Co., Ltd.

Success To: Success to component Failed other to: Failed to component

o Failed Reason: Return code from RADIUS server

o Line Propriety:

- Invalid Account

- Account In Use

- Zero Balance

- Account Expired

- Over Credit Limit

- Number of Retries Exceeded

- Insufficient Balance

☺

Note: Detail response attributes, please refer RADIUS Format

Attributes

•

Answer: Answer incoming call (PSTN only)

• Branch: Play an announcement and branch into different route

Figure 4.2-3

o Voice File: Voice prompt file (“. raw” format) to be playing

o DTMF Length: Number of DTMF to be receiving

o Others: Default flow if not match

o DTMF: DTMF match pattern

o Goto: The next component if matched

o Line Propriety:

-Branch Line: DTMF branch line setting

WellGate 5290 User Guide – V6.1 - 36 -

Welltech Computer Co., Ltd.

Figure 4.2-4

• CDV: Collected Digit Validation

Figure 4.2-5

o Check Parameter: Check parameter type (DNIS, ANI….)

o Digit From: Start digit from

o Digit To: End digit to

o Valid To: If the checked variable is success to validate

o Invalid To: If the checked variable is not success to validate

•

CIB: Call Information Branch

Figure 4.2-6

o Info Type: Information type selection

- ANI: Calling Number

- DNIS: Called Number

- IP: IP Address or network (e.g. 192.168.0.0)

WellGate 5290 User Guide – V6.1 - 37 -

Welltech Computer Co., Ltd.

- PSTN: E1/T1 trunk and channel filter, format: interface id-

trunk id- trunk start- trunk stop

- Prefix: The prefix to be match

0-1-17-31:

0: Interface ID (Always 0) 1: Trunk ID: 1 17: Start from B Channel 17 31: Stop from B Channel 31

o Goto: The component to run next

o Call Info Branch Line: ANI, DNIS, IP or PSTN goto setting

• CIV: Call Information Validation, the user need setup the ACL for DNIS and IP TO take effect

o Info Type: The info type to be validation

-DNIS: Called number

-ANI: Calling number

-IP: In coming IP address

-User: User ID

o Allow To: If it is met the ACL defined o Disallow To: If it is not met the ACL defined

• CTB: Call Type Branch

o PSTN To: Route for PSTN call o H.323 To: Route for H.323 call o SIP To: Route for SIP call

Figure 4.2-7

Figure 4.2-8

•

WellGate 5290 User Guide – V6.1 - 38 -

Cut Rule: Cut a system variable into different parts

Welltech Computer Co., Ltd.

Figure 4.2-9

o Cut From: Cut start digit from (start from 1) o Cut To: Cut end digit to o Assign To: Store the cut result into

• Disconnect: Disconnect the call

• DM: Digit Manipulation

Figure 4.2-10

o DM Parameter: Manipulation ANI or DNIS o DM Group ID: Apply to DM group

• Make Call: Make Call to PSTN or H.323/SIP site

WellGate 5290 User Guide – V6.1 - 39 -

Welltech Computer Co., Ltd.

Figure 4.2-11

o Route Mode: Gatekeeper Call or P2P Call or PSTN…etc. (for PSTN

incoming call, please select the Gatekeeper, P2P Call, or SIP Proxy call TA; for H.323/SIP incoming call, please select the PSTN call)

o Transport Address: When used for “H.323 TA” routing mode, the

format used is “Ipaddr: port” (e.g. 192.168.111.50:1720)

o Active Disconnect: Enable PSTN user can actively disconnect the

call or not

o Active Disconnect Digit: The DTMF digit to be tread as the

disconnect trigger. Only can be used “Active Disconnect” enable

o Active Disconnect To: The next component when active disconnect

is occurred

o Inter Digit Timeout: The max time to in seconds to wait between two

digits.

o RTP Route: Voice RTP routing over WG5290 or not, for VoIP to

VoIP call

o Finish To: Successfully connect to remote site o Failed Other to: The next component when default failed call o Failed Reason: Failed reason selection o Failed To: When the failed reason occurred go to o Line Propriety:

-PSTN: PSTN disconnect reason code:

-Normal Call Clear

-User Busy

-No User Response

-No Answer

-Call Reject

- VoIP: VoIP disconnect reason code:

-User Busy

-No Answer

WellGate 5290 User Guide – V6.1 - 40 -

-Unreachable

-Other

• PA: Play Announcement

o Dynamic Play: Dynamic play voice file by combine prefix and

variable as the file name

o Enable: Combine prefix to variable as the voice file to play

-Prefix: Voice file prefix (e.g. prefix: WT, variable: user1 (contact 201, played voice file is “WT201.raw”)

-Variable: Variable to be appending as the voice file name

o Disable: Use filter voice prompt file

-Voice File: Voice prompt file

o Interrupted: Voice can be interrupted or not

Welltech Computer Co., Ltd.

Figure 4.2-12

• PB: Play Balance for prepaid purpose

Figure 4.2-13

o Voice File: Voice prompt file o Language: Play balance language section

-English

-Chinese.

o Interrupted: Voice can be interrupted or not

• PCUI: Prompt and Connect User Information

WellGate 5290 User Guide – V6.1 - 41 -

Welltech Computer Co., Ltd.

Figure 4.2-14

o Play Type: Dial tone or voice prompt selection o Voice File: Voice prompt file o Max DTMF: Maxtor of DTMF to be received. o Assign To: Result (received DTMF) will be assign to o End of DTMF: The digit to indicate dial end. o Interrupted: Voice can be interrupted or not

• PD: Play Duration for prepaid purpose

Figure 4.2-15

o Voice File: Leading voice prompt file o Language: Play duration language section

-English

-Chinese

o Interrupted: Voice can be interrupted or not

☻Note: The RADIUS servers need to be setup to send H.323/SIP

credit time or internal RADIUS must be used.

• PSTN L.H: PSTN Line Hunting

Figure 4.2-16

o Success To: If fine an available channel by system setup (call

hunting)

WellGate 5290 User Guide – V6.1 - 42 -

Welltech Computer Co., Ltd.

o Failed To: If not fine an available channel by system setup (call

hunting)

• Set Data: Assign value to a variable

Figure 4.2-17

o Assign To: Assigned variable o Use SysParam: Use system parameter to replace or not o Value: ANI, DNIS, User ID or other digits. You can also use

database number to generate the required random number.

o Support random ANI (use ? to indicate random digit)

• Start: Call flow start

Figure 4.2-18

o Next Component

• Quit: Disconnect calls

Example Call Flow as figure 4.3.

WellGate 5290 User Guide – V6.1 - 43 -

Welltech Computer Co., Ltd.

Figure 4.3

Example Description:

Components Contents

Start

Next Component: 1001

Component ID: 1000

PSTN To: 1011

CTB

Component ID: 1001

H.323 To: 1009 SIP To: 1008 Info Type: ANI

CIB

Component ID: 1011

Prefix: 1 goto: 1010 (H.323 GK call) Prefix: 8 goto: 1004 (SIP Proxy call)

1011 Route for PSTN call

Route Mode: Gatekeeper

Make Call

Component ID: 1010

Finish To: 1005 Failed Other To: 1005 Route Mode: SIP Proxy Call

Make Call

Component ID: 1004

Finish To: 1005 Failed Other To: 1005 Next Component: 1006

Disc

Component ID: 1005

QUIT

Component: 1006

1001 Route for H.323Gatekeeper call

DM Parameter: DNIS

DM Group ID: H.323 In Drop Next Component: 1007

Component ID: 1009

WellGate 5290 User Guide – V6.1 - 44 -

Welltech Computer Co., Ltd.

Route Mode: PSTN

Make Call

Finish To: 1005 Failed Other To: 1005

Component ID: 1007

Next Component: 1006

Disc

Component ID: 1005

Quit

Component: 1006

1001 Route for SIP Proxy call

DM Parameter: DNIS

DM Group ID: SIP In Drop Next Component: 1007

Component: 1008

Route Mode: PSTN

Make Call

Finish To: 1005 Failed Other To: 1005

Component ID: 1007

Next Component: 1006

Disc

Component ID: 1005

Quit

Component: 1006

Example Used Call Flow:

WellGate 5290 User Guide – V6.1 - 45 -

to 1009 H.323 in

Welltech Computer Co., Ltd.

Start:1000

CTB:1001 PSTN to:1011 H323 to: 1009

SIP to: 1008

to 1008

SIP in

1011

PSTN in

DM: 1009

Call to PSTN

Make Call: 1007

Call to PSTN

Finish to

Failed other to

DM: 1008

Call to PSTN

Disc: 1005 Disconnect

Make Call: 1010

Mak e

Gat ekeeper

call to H. 323

Success /Failed to

CIB: 1011

Info Type: DNIS Prefix: 1 goto: 1010 Prefix: 8 goto: 1004

Success /Failed to

Make Call: 1004

Mak e

SIP Proxy

call to SIP

Quit: 1006 Disconnect

Config Manager

Configuration Management provides a way to save and reload the

system configuration for future use.

WellGate 5290 User Guide – V6.1 - 46 -

Welltech Computer Co., Ltd.

Figure 4.4-1

Backup the working configurations: Step 1: To backup the running configuration, click on Backup button, to back

up local hard disk. The whole running configuration will be compress into a zip file (file name: export.zip) and transfer back to local as figure

4.4-2.

Figure 4.4-2

Restore configuration: Step 2: To restore the backup configuration file, click on Restore button,

when screen shows “Import Configuration file”, select backup file (i.e. c:\export.zip) click on Import button to restore the configuration to the working configuration as figure 4.4-3.

Figure 4.4-3

Compact the database file: Step 3: In order to optimize the system performance, you can optional

compact the database by click Compact button as figure 4.4-4.

Figure 4.4-4

☺

Note: Please make sure that there is no others person to use database

concurrently.

WellGate 5290 User Guide – V6.1 - 47 -

Welltech Computer Co., Ltd.

Apply Change

When you load a new working configuration, the system must be

restarted to take effect.

Step 1: Click Configuration>Apply Change, the screen show “The change

you mode need to restart the system for apply please confirm to restart or do it later.” Click on OK/Cancel to restart the system or

not as figure 4.3-1.

Figure 4.5

WellGate 5290 User Guide – V6.1 - 48 -

Welltech Computer Co., Ltd.

Chapter 5 Peer to Peer Mode Configuration

Environment used in this chapter

Peer to Peer

H.323 Gateway

Phone 1001

H323 VoIP Network

H323 Phone

SIP Phone

SIP VoIP Network

SIP USB Phone 8888

Process: PSTN> H.323 Call: DNIS (822656991001) >DM (PSTN In Drop) >Make

H.323 - Peer to Peer Call (1001)

> SIP Call: DNIS (822656998888) >DM (PSTN In Drop) >Make SIP -

Peer to Peer Call (8888)

H.323>DNIS (50932123321)>DM (H.323_in_drop)>Make Call (0932123321)

SIP>DNIS (1130028610825123)>DM (SIP_in_drop)>Make Call (0028610825123)

☺Digit Manipulation: Please refer to section “Digit Manipulation”

Network Configuration

Please refer to section “Network Configuration”

Account Manager

Please refer to section “Account Manager”

Interface Configuration

Please refer to section “Interface Configuration”

H.323 Configuration

Step 1: Change Register to Gatekeeper to “No” to enable peer to peer mode

as figure 5.1-1.

WellGate 5290 User Guide – V6.1 - 49 -

Welltech Computer Co., Ltd.

Frequency used parameters:

• Register to Gatekeeper: No

Figure 5.1-1

VOIP Hunting

For making a Peer-to-Peer call, the IP device must has an address

record in the phone book for routing.

Step 1: To add a new VOIP routing group for the peer to peer calls, click

VOIP Hunting -> New to add as figure 5.2-1.

Figure 5.2-1

WellGate 5290 User Guide – V6.1 - 50 -

Welltech Computer Co., Ltd.

Field Description:

• Group ID: The Group ID

• Description: The description of this VOIP hunting group ID

Step 2: To add a routing point into the VOIP hunting group, click the hunting

group ID and Detail button as figure 5.2-2.

Figure 5.2-2

Field Description:

• Name: The used name

• Tel/Prefix: The matched prefix

• Trans Address: transport address

- H.323 Call: 192.168.5.102 or 192.168.5.102:1720

- SIP Call: sip:1001@192.168.5.61 or sip:8001@192.168.5.61:5060 or

sip:8001@ctivnet.net

• Use SIP Proxy: use the selected SIP proxy instead of Transport address

• Priority: It is used for priority hunting. Higher number is indicating the high priority to be used. Same priority routing item will be round-robin hunted.

WellGate 5290 User Guide – V6.1 - 51 -

Welltech Computer Co., Ltd.

• Remove Prefix: Remove the TEL/Prefix from the final destination number (DNIS) or not

• Add Prefix: After removed the prefix (if remove prefix is checked), add the “Add Prefix” in the front of final destination number (DNIS)

• DNIS DM Group: To execute the DNIS DM Group or not. It will be executed after “Add Prefix”.

• Working Time: The effective time for this route. It needs to be used with the working day together.

• Working Day: The effective week day for this route. It needs to be used together with working time.

• Allow no ANI: Does this route is allowed for a call without ANI or not.

Step 3: The hunting can be stopped based on the following reason code. It

can be used as a load balancing purpose.

Figure 5.2-3

Digit Manipulation

Please refer to section “Digit Manipulation”

Call Flow Editor

Please refer to section “Call Flow Editor”

WellGate 5290 User Guide – V6.1 - 52 -

Call Flow (P2P Mode):

to 1009

H.323 in

Welltech Computer Co., Ltd.

Start:1000

CTB:1001 PST N to:1011 H323 to: 1009

SIP to: 1008

to 1008

SIP in

1011

PSTN in

DM: 1013

Call to PSTN

DM: 1009

Call to PSTN

Make Call: 1007

Call to PSTN

Finish to

Failed other to

DM: 1008

Call to PSTN

Disc: 1005 Disconnect

Make Call: 1004

Make

Peer to Peer

call to SIP

Success /Failed to

Quit: 1006 Disconnect

Configuration Manager

Please refer to section “Configuration Manger”

Apply Change

Please refer to section “Apply Change”

WellGate 5290 User Guide – V6.1 - 53 -

Welltech Computer Co., Ltd.

SIP Phone

Chapter 6 SIP to H.323 Mode Configuration

Environment used in this chapter

Process: SIP>H.323 Call: DNIS (8861001)>DM (SIP In Drop)>Make H.323 (1001)

H.323>SIP (8868888)>DM (H.323_in_drop)>Make Call (8888)

☺Digit Manipulation: Please refer section “Digit Manipulation”

IP to H.323 Mode

H323 VoIP Network

H.323 Gateway

Phone 1001

H323 Phone

SIP VoIP Network

SIP USB Phone 8888

Network Configuration

Please refer to section “Network Configuration”

Account Manager

Please refer to section “Account Manager”

Interface Configuration

Please refer to section “Interface Configuration”

H.323 Configuration

Please refer to section “H323 Configuration”

SIP Configuration

Please refer to section “SIP Configuration”

Address Book

Please refer to section “Address Book”

WellGate 5290 User Guide – V6.1 - 54 -

Welltech Computer Co., Ltd.

Digit Manipulation

Please refer to section “Digit Manipulation”

Call Flow Editor

Please refer to section “Call Flow Editor”

Call Flow (P2P Mode):

Configuration Manager

Please refer to section “Configuration Manger”

Apply Change

Please refer to section “Apply Change”

WellGate 5290 User Guide – V6.1 - 55 -

Welltech Computer Co., Ltd.

Chapter 7 Advance Configuration Reference

Configuration

System Configuration

Start Path: Configuration>System

Figure 7.1-1

Parameter Description:

• CDR Mode: Call detail record generating mode (Refer to “Appendix 3

Retrieve CDR Information” for detail file description)

o File Only: Log CDR into the file only. It can be retrieved by ftp

(directory c:\cd cdr).

o Radius Start/Stop: Log CDR into the file and send RADIUS start/stop

billing message out.

- VoIP: enable VoIP site RADIUS billing message or not.

- PSTN: enable PSTN site RADIUS billing message or not.

o Radius Stop: Log CDR into the file and send RADIUS stop billing

message out.

- VoIP: enable VoIP site RADIUS billing message or not.

- PSTN: enable PSTN site RADIUS billing message or not.

• CDR Keep days: CDR system keeping days

• Hot Swappable: Hot swappable support (reserved)

• First Digit Timeout: The max time (in second) waits for receiving the first

digit entered (5~20 sec).

• Inter Digit Timeout: The max time (in second) waits for the between two digits (5~20 sec).

• Debug Level: o Critical: Show critical error messages only

WellGate 5290 User Guide – V6.1 - 56 -

Welltech Computer Co., Ltd.

o Warring: Show warring and critical error message only o Information: Show information, warring and critical message only o Debug: Show all debug messages o Full Trace: Show all status and debug messages

• SS7 Debug Level: SS7 related debug info or not.

o Critical: Show critical error messages only o Warring: Show warring and critical error message only o Information: Show information, warring and critical message only o Debug: Show all debug messages o Full Trace: Show all status and debug messages

☻Note: Please set to “Critical” only, or the whole system performance

will be hit.

• First Response Timeout: The default maximum time to wait for response. It’s depended on the network speed.

• No Answer Timeout: The default maximum time (in second) to wait the remote party Answer (pick up phone).

• Ext. AAA Failure Opt: Bypass or disconnect incoming calls when external RADIUS cannot be reached.

• Version: 6.0

• Data Base Number Select Mode: The Number Select Mode In Data Base

• Enable System Log: Enable to send system information to syslogD

Server or not

• SyslogD Server IP 1, 2: syslogd server IP address

• Event Email Notice :The Email Notice For Event

• Email Event Filter Level :The Filter Level for Email Event

• SMTP Server : SMTP server host for email notice

• Email From : Email sender account

• Email To : Email receiver (semicolon is used for multiple receiver)

• Subject: Email subject to be send to receiver. The following variable

Interface Configuration

Start Path: Configuration>Interface

Figure 7.2-1

WellGate 5290 User Guide – V6.1 - 57 -

Welltech Computer Co., Ltd.

Basic Parameter Description:

• Interface ID: The Interface ID

• Card Slot: The slot that the card is plug in

• Interface Type: The type of interface, E1 or T1

• Description: Description

• IP Address: IP address used for voice RTP stream

• Subnet Mask: Sub-mask (doesn’t support super class)

• Default Gateway: Default gateway for routing

• PCM Type: PCM type encoding, E1 A-law; T1 u-law

Advance Interface Configuration: Start Path: Configuration>Interface >Advance

Figure 7.2-2

Advance Parameter Description:

• Interface ID: System parameter

• UDP Port Base: UDP port used for RTP stream, each channel needs 3

RTP ports and must be started by a multiple of 10

• IP Precedence: Voice package priority setting

o Routine Precedence o Priority Precedence o Immediate Precedence o Flash Precedence o Flash Override Precedence o Critical Precedence o Internet work Precedence o Network Precedence

• IP TOS: Top of Service with the following priority selection

o Normal Service o Minimize Monetary o Maximize Reliability o Maximize Thought o Minimize Delay

WellGate 5290 User Guide – V6.1 - 58 -

Welltech Computer Co., Ltd.

• PCM Idle Pattern: This pattern will be sending on each B channel PCM time slot when the channel is idling (not connected). The default value for A-Law is 0xff and for Mu-Law is 0x55. You only change it when SWITCH need.

• CAS Idle Pattern: When channel is idle, ABCD (CAS) pattern to be applied CAS signaling bus

• Jitter Min Delay: The minimum delay time of Jitter buffer. The range is 0 to 150ms. Default value is 150ms. Which has better voice quality but the delay time will be long.

• Jitter Opt Factor: Jitter buffer optimization factor from 0 to 12. The default value is 7. Set to 0 will have lowest voice delay but have bad voice quality. Set to 12 will have long voice delay but with better voice quality

• EC Tail Length: Echo Cancellation Length, default value is 32ms

• Silence Compress: Enable silence compress or not

• TDM Bus Clock: TDM Bus clock source

o Internal: derived from internal oscillator o External: derived from external PSTN E1/T1 clock

• Detect Fax Mode: T.38 fax detecting method

o Answering Fax only: Detect answer tone to initiate T.38 o Fast Fax Detect: Detect calling and answer tone for T.38. Use

Answering fax only when fast fax detect miss detect a fax call.

• Auto Clock: Automatic detect trunk clock source. It is recommended to specify clock source instead of use auto clock.

• Local Reference: TDM bus reference clock. Please set to a connected trunk.

• Overlap Digit: Enable to receive ISDN/PRI Q.931 overlapping sending or not.

• DTMF Interval: Wait overlapping digits time out

• CAS Send Restart: When channel is blocked, send restart or not.

• DTMF Volume: DTMF relay volume (default 16: 0 db)

• Active T38 when Open Channel: Re-open DSP channel when T.38 is

started.

• PSTN Show Display Name: Send ISDN display name IE or not (network side only)

• SIP Show Display Name: Relay ISN display name to SIP or not

• Reset Trunk When Link Up: When trunk is started, restart channels or

not.

Dial Plan Configuration

Dial Plan can be used to assign the ISDN number plan based on prefix

setting.

Start Path: Configuration>Interface>Dial Plan

WellGate 5290 User Guide – V6.1 - 59 -

Welltech Computer Co., Ltd.

Figure 7.3-1

Basic Parameter Description:

• Prefix: Called party number prefix

• Src Num Plan: ISDN Source number plan

• Src Num Type: ISDN Source number type

• Dest Num Plan: ISDN destination number plan

• Dest Num Type: ISDN destination number type

• Apply To: Trunks apply to

Overlap Configuration

It is used for incoming ISDN dialing plan.

Start Path: Configuration>Interface> Overlap

Figure 7.4-1

Click New to create a overlap dialing plan as follows:

WellGate 5290 User Guide – V6.1 - 60 -

Welltech Computer Co., Ltd.

Figure 7.4-2

• Prefix: Matching prefix (longest match first)

• Max Length: Max length for this prefix dial plan. The dial plan will be fulfill

if max length is met.

• Apply To: Apply Target to which trunk or all trunk

T1/E1 Trunk Configuration

Start Path: Configuration>Interface>Trunk

WellGate 5290 User Guide – V6.1 - 61 -

Welltech Computer Co., Ltd.

Figure 7.5-1

Basic Parameter Description:

• Interface ID: System parameter

• Trunk ID: System parameter

• Trunk Type: T1or E1 selection (SS7 support E1 only)

• Description: Description for this trunk ID

• Termin Side: Network site or User Site (normally, you set to “user side”

when connect to switch)

o User Side o Network Side

• Trunk Mode: Trunk operation mode

o Disable: Disable the trunk o Normal: Accept PSTN and VoIP calls o PSTN incoming only: Allow the PSTN incoming calls only o VOIP incoming only: Allow the VOIP incoming calls only

• Hunting Method: PSTN trunk hunting method for available channel

o Random: Hunt randomly o Cyclic: Initial hunt (after power-up/reboot) begins with B channel 1;

subsequent hunts begin with position following last successfully allocated resource

o Rotary: Hunt always begins with B channel 1 o Reverser Rotary: Hunt always begins with B channel 31

WellGate 5290 User Guide – V6.1 - 62 -

Welltech Computer Co., Ltd.

o Reverser Cyclic: Initial hunt (after power-up/reboot) begins with B

channel 31, follows next available channel in reverser order

• CAS Variance: CAS counting variance

• Framing Method:

o For T1

- Super frame

- 4-frame multi-frame

- 12 frame multi-frame (D4)

- extend super frame without CRC6

- extend super frame with CRC6

- 72-Frame Multi-Frame

o For E1:

- Automatic CRC4 or Double Frame selection

- Double Frame Format

- CRC4 multi-frame

- CRC4 extend multi-frame

• Protocol Tag: supported protocol on T1/E1 interface with PSTN switch

o For T1:

- T1 CAS

- T1 RAW CAS

- T1 NI2 ISDN

- T1 4ESS ISDN

- T1 5ESS 9 ISDN

- T1 5ESS 10 ISDN

- T1 DMS100 ISDN

- T1 NTT ISDN: used to connect NTT INS-1500 ISDN standard (Japan

Only)

- T1 HKT ISDN

- T1 QSIG

- T1 EURO ISDN

- T1 DMS100 MERIDIAL ISDN

- T1 NI1 ISDN

o For E1:

- E1 EURO ISDN: used for most of European ISDN standard

- E1 MFCR2

- E1 CAS

- E1 RAW CAS

- E1 AUSTEL ISDN: Australia E1 ISDN Variance

- E1 HKT ISDN: Hong E1 ISDN Kong Variance

- E1 KOR ISDN: Korea E1 ISDN Variance

- QSIO

- E1 TNZ ISDN

• Line Code: T1: you can choose AMI, B8ZS; E1: you can choose AMI, HDB3

• PSTN Trace: PSTN layer debug trace. It will generate a debug trace file for tracing purpose. Only enables it under Welltech technical supports instruction and disable it when complete the debug

• Inbound DM Group: Digit Manipulation group used for incoming calls associated to this trunk

WellGate 5290 User Guide – V6.1 - 63 -

Welltech Computer Co., Ltd.

• Outbound DM Group: Digit Manipulation group used for outgoing calls

• Local Ring Back: Provide ring back tone for PSTN or not. It only works

when VoIP outgoing Fast Start is disabled.

• Channel Mask: Channel mask for incoming or outgoing calls (default: 0xffffffff) Start from MSB each bit, indicate a time, slot a trunk (e.g. 0x0000ffff: 0~15 B channel mask, 17~31 B channel free)

• Clock Master: PSTN trunk clock source

• Framing Method: Automatic framing

• SS7 Circuit Group Mode: Enable the this SS7 Circuit group (IN Service)

or not (Out Service)

• SS7 Group ID: Circuit Group ID in SS7 config.txt (refer to ISUP_CFG_CCTGRP gid)

• SS7 Circuit Identifier 1: First CID in SS7 config.txt (refer to ISUP_CFG_CCTGRP base_cid)

• SS7 Circuit Identifier Count 1: set to 15 (internal user only)

• SS7 Circuit Identifier 2: Start CID for time slot 17 (refer to

ISUP_CFG_CCTGRP based_cid + offset)

• SS7 Circuit Identifier Count 2: set to 15 (internal use only)

Advance Trunk Configuration: Start Path: Configuration>Interface>Trunk>Advance

Figure 7.5-2

Advance Parameter Description:

• Interface ID: System parameter

• Trunk ID: System parameter

• Src Num Plan: ISDN source number plan

• Dest Num Plan: ISDN destination number plan

WellGate 5290 User Guide – V6.1 - 64 -

Welltech Computer Co., Ltd.

• Src Num Type: ISDN source number type

• Dest Num Type: ISDN destination number type

• Src Num Presen: ISDN source number presentation

• Src Num Screen: ISDN source number display

• Input Gain: Voice Gain from PSTN to IP side (default: 0 db)

• Output Gain: Voice Gain from IP to PSTN side (default: 0 db)

• Q.931 General Opt.: used for Q.931 general behavior.

o 0x00000001: No sending of STATUS message on receipt of an

unknown IE. If this bit is set, then ISDN Stack does not generate a STATUS message after having received a message containing 1 or more unknown/unrecognized IE(s). This bit applies only for network variants for which the sending of STATUS in this case is optional (where recommendation says “ a SATUS MAY be returned”)

0x00000002: No sending of STATUS message on receipt of an

optional IE with invalid content. If this bit is set, then ISDN Stack does not generate a STATUS message after having received a message containing 1 or more optional IE(s) with invalid content. This bit applies only for network variants for which the sending of STATUS in this case is optional (where recommendation says “a STATUS MAY be returned”).

0x00000004: Unknown/unrecognized Facility IE accepted. If this bit

is set, then NS does not reject a received message containing a Facility IE that it does not recognize and acts as if the IE was correct. It applies in network variants where a complete ASN1 decoding is made on Facility IE

o 0x00000080: Only applicable when configuration is Euro ISDN,

User-side, outgoing call . If this bit is set, then the board sends a CONNECT_ACK message when receives a CONNECT.

o 0x00000100: Only applicable when configuration is ETSI. If this bit

is set, BC and HLC IE’s in Alert, CALL_PROC, CONNECT and PROGRESS message are rejected.

0x00000200: Only applicable when configuration is 4ESS, DMS,

5ESS, N12 or HKT, NFAS-both incoming and outgoing calls. If this bit is set, then ISDN calls on NFAS have an interface ID different to the default one (refer to NFAS Appendix). The interface ID value is taken from the Board param of the NFAS Member Trunk config. (i.e.,board_params. Trunk Config[i]. Protocol Specific. ISDN Trunk. ISDN_NFAS_Interface ID).

0x00000800: Only applicable when configuration is 4ESS, DMS,

5ESS or N12. If this bit is set, the channel ID is always set to EXPLICIT interface ID, even if the B-channel is on the link bearing the D-channel.

o 0x00008000: Only applicable when configuration is ETSI. If this bit

is set, Mu-law (μ-Law) is also accepted. Otherwise, only A-law is accepted.

o 0x00010000: Only applicable when configuration is ETSI. If this bit

is set, calling party number octet 3a is always present, even if presentation and screening have default values. Otherwise, usual rule is used.

WellGate 5290 User Guide – V6.1 - 65 -

Welltech Computer Co., Ltd.

o 0x00020000: Only applicable when configuration is N12, QSIG or

ETSI. If this bit is set, the call is cleared on reception of STATUS with incompatible state. Otherwise, no action is taken

• Q.931 Incoming Opt.: used for Q.931 incoming call behavior o 0x00000010: Automatic answering on TELEPHONY incoming

calls︰ When this bit is set, Board sends a CONNECT (answer) message on TELEPHONY incoming calls.

o 0x00000020: Automatic answering on NOT TELEPHONY incoming

calls: When this bit is set, Board sends a CONNECT (answer) message on NOT TELEPHONY incoming calls.

o 0x00000800: When this bit is set, the ISDN Stack forces the

sending of the Channel-id Information Element in the first response to an incoming call indication. When this bit is not set, The ISDN Stack forces it only if it is mandatory for the running operator, or if on NT-side. This have been identified as solving a problem with Coral PBX that requests a Channel in the first respond to an incoming call from it .

o 0x00001000: When this bit is set, the ISDN Stack does NOT

automatically generate a Setup Ack. When this bit is not set, the ISDN Stack sends a Setup Ack when it detects overlap receiving in progress.

o 0x00002000: When this bit is set, the ISDN Stack forces the

sending of Channel-id Information Element(IE) in the CallProceeding message. When this bit is not set, the ISDN Stack forces it only if it is mandatory for the running operator, or if on NTside.

o 0x00010000: When this bit is set, the board automatically sends a

Progress-Indicator #8 (“in-band tones/announcements available”) in the Setup-Ack message that is sent back automatically by the board when it receives and accepts a Setup message in overlap-receiving mode (e.g no digit in the Setup), for Voice calls only (BC encoded as Speech or 3.1-Audio). This enables tone generation to the Terminals after handset off-hook.

• Q.931 Outgoing Opt.: used for Q.931 outgoing behavior o 0x00000002: Automatic generation of ‘Sending-complete’

information element in SETUP (as result of Place Call)．When this bit is set, Board does not generate automatically the 'Sending-

complete' information element in the SETUP. The User application must request it in the Place Call function. Otherwise (if this bit is not set), the Board generates it automatically in the SETUP message only.

o 0x00000010: use Mu-law if this bit is set, or A-law will be used.

Apply only for Korea variance, you can OR the required option together

o 0x00000080: When this bit is set, ISDN stack uses the KEYPAD IE

to store the called number digits instead of the CALLED_NB IE. Only applicable for KOR variant (Korean network). Useful for Korean switches that do not accept the Called_nb IE.

o 0x00000100: When this bit is set, ISDN Stack forces the sending of

a Channel-id IE in an outgoing SETUP message even if it is not

WellGate 5290 User Guide – V6.1 - 66 -

Welltech Computer Co., Ltd.

required by the standard(i.e., it is optional only ), and no Channel-id was specified in the establishment request. This is useful to increase compatibility with switches that require it. On PRI lines it indicates a not yet used channel id, preferred only.

o 0x00000200: When this bit is set, ISDN Stack sends G..711 A-Law

in outgoing voice calls. When this bit is cleared, ISDN Stack sends default G.711-Mu-Law in outgoing voice calls. Applicable for 5ESS variant(T1).

• Trans Cap: Transfer Capability

o Voice Service o Data Service o Modem Service

• Call ID Transfer Type: Call ID transfer type

o Disable Caller ID: default parameter o Transparent Caller ID o Relay Caller ID o Bypass Caller ID

Reset Configuration

Reset a specified channel or full trunk.

Start Path: Configuration>Interface>Detail>Reset

Figure 7.6-1

Start Path: Configuration>Interface>Detail>Reset

Figure 7.6-2

Basic Parameter Description:

• Trunk: Reset trunk ID

• Channel: Rest channel selection

WellGate 5290 User Guide – V6.1 - 67 -

Welltech Computer Co., Ltd.

- All Channel: Reset all channel

- 0~31: Reset 0~30 logical channel to reset

H.323 Configuration

Start Path: Configuration>H.323

Figure 7.7-1

Basic Parameter Description:

• Register To Gatekeeper: Register to Gatekeeper or not

o Yes: Register to GK o No: Not register to GK

• Gatekeeper IP: Gatekeeper IP Address

• Gatekeeper RAS: UDP Port number listened on Gatekeeper (default:

1719)

• E.164 Tel: Telephone number to be registered to Gatekeeper

• Register H.323 ID: H.323 alias name to be registered to Gatekeeper

• Register Time To Live (sec): The registration maximum time to live

setting when registered to the Gatekeeper

• Response Timeout (Q.931)(sec): The maximum time to wait for response from sending call setup signal out

• Connect Timeout (Q.931)(sec): The maximum time to wait for connection (answer) from dialing out the destination number

• DTMF Relay: DTMF transfer type selection o RTP relay (RFC 2833): DTMF relay via RTP packet (RFC2833

standard)

o DTMF transparent: transmitter DTMF over voice channel o H.245 Signal input: DTMF relay via H.245 user signal input o H.245 Alphanumeric: DTMF relay via H.245 Alphanumeric signal o Q.931 User Information: DTMF relay via Q.931 User to user

information

• Fax Transport: Fax transport type selection

o Transparent mode: Transparent mode (by voice packet) o T.38 Fax Relay (H.245 mode): T.38 Fax relay (H.323 Annex D) o T.38 Fax Relay (Propriety mode): T.38 Fax Relay (propriety mode)

WellGate 5290 User Guide – V6.1 - 68 -

Welltech Computer Co., Ltd.

o FRF11 Fax Relay (Propriety mode): FRF11 Fax Relay (propriety

mode)

• Fast Connect Mode: Connection of H.323 call fast mode

o Disable: Don’t use Fast Start. o Enable Fast Start Both Site: Use Fast Start for incoming call and

outgoing H.323 calls

o Fast Start-H.323 incoming only: Enable Fast Start for H.323

incoming calls only

o Fast Start-H.323 outgoing only: Enable Fast Start for H.323

outgoing calls only.

o Early H.245: Use Early H.245

• H.245 Tunneling: Transfer the H.245 message over the Q.931 channel

• FS Enable 1-6 (Codec Priority 1-6): Enable Fast Start codec selection

for each codec

• Inbound DM Group: Digit Manipulation Group for H.323 incoming calls

• Outbound DM Group: Digit Manipulation Group for H.323 outgoing

calls

Advance H.323 Configuration: Start Path: Configuration>H.323 >Advance

Figure 7.7-2

Advance Parameter Description:

• RAS Multicast IP: RAS multicast IP for Gatekeeper searching

• RAS Multicast Port: RAS multicast Port for Gatekeeper searching

• Max Call: The maximum H.323 calls

• Max Channel: The maximum channel of each H.323 call

• RAS Port: Local RAS port (default: 1719)

• Q.931 Port: Local TCP port number of Q.931

WellGate 5290 User Guide – V6.1 - 69 -

Welltech Computer Co., Ltd.

• T.38 ECM Mode: T.38 Error Correction Mode

o T.38 ECM Interoperable mode o T.38 ECM Backward Compatible Mode

• FAX RDepth: T.38 relay redundancy packet depth for high-speed mode.

• H.245 Option: Separate the H.245 channel in the call of the Fast Start

mode or not.

• G.723 Psize: G.723 transmission packet size in ms (default: 30ms)

• G.729 Psize: G.729 transmission packet size in ms (default: 20ms)

• G.711 Psize: G.711 transmission packet size in ms (default: 20ms)

• Wait H323 Idle Timeout (sec): Max time to wait H.323 idle when call is

in disconnected state. After time out, the call will be terminated.

• H.323 Delay Drop Timeout (msec): Delay to drop a H.323 call (internal use only)

WellGate 5290 User Guide – V6.1 - 70 -

Welltech Computer Co., Ltd.

SIP Configuration

Start Path: Configuration>SIP

Figure 7.8-1

Basic Parameter Description:

• Codec Selection Policy: Selection order to match the remote SDP for codec selection.

o Local SDP Order: Use local SDP order to match codec o Remote SDP Order: Use Remote SDP order to match codec

• Local Codec 1~4: Codec selection priority (1 to 4) (1: highest, 4: lowest)

• G.723 Bit Rate Used: G.723.1 high bits rate (6.3k) or low bit rate (5.3k)

is used

• 180 SDP: Set SDP for 180 ring message

• 183 SDP: Set SDP for 183 call progress indication.

• DTMF Relay Method: DTMF transport type selection

o Transparent: transmit DTMF over audio channel o SIP INFO: Use SIP INFO Message to relay DTMF o RFC2833: Use RFC2833 for DTMF over RTP packet

- RFC2800 Payload Type: RTP payload type used for RFC2833

DTMF relay

• Fax Transmission: Fax transparent type selection

WellGate 5290 User Guide – V6.1 - 71 -

Welltech Computer Co., Ltd.

o T.38 Fax Relay: T.38 fax relay o Transparent: Transparent mode (by voice packet)

• Accept Proxy Call Only:

o Yes: Only call from outbound proxy server is allowed o NO: Accept any SIP calls

• Inbound DM Group: Digit Manipulation Group for SIP incoming calls

• Outbound DM Group: Digit Manipulation Group for SIP outgoing calls

Advance SIP Configuration: Start Path: Configuration>SIP >Advance

Figure 7.8-2

Advance Parameter Description:

• TCP Enable: Receive SIP TCP call or not.

• Max TCP Connection: Max Call: The maximum SIP TCP calls.

• Outbound Use TCP: Use SIP TCP for outbound call or not. If it set to

no, UDP is used.

• Register Use TCP: Use SIP/TCP to register to SIP register.

• TCP Port: The local TCP port on which the SIP Stack listens.

• UDP Port: The local UDP port on which the SIP Stack listens.

• Reliable Provision: Support PRACK or not (100rel)

• Max Call Leg: The maximum number of call-legs the SIP Stack

allocates. You should set this value to the maximum number of call you expect the SIP Stack to handle simultaneously.

• Max Transaction: The maximum number of transactions the SIP Stack allocates. You should set this value to the maximum number of call you expect the SIP Stack to handle simultaneously.

• Max Register Client: The maximum number of Register-Clients the SIP Stack allocates. You should set this value to the maximum number of call you expect the SIP Stack to handle simultaneously.

WellGate 5290 User Guide – V6.1 - 72 -

Welltech Computer Co., Ltd.

• Send Receive Buffer Size: The buffer size used by SIP Stack for receiving and sending SIP messages.

• Reject Unsupported Extension: Yes or No

• Message Pool Page Size: Used to hold and process all incoming and

outgoing message in the form of encoded messages or message objects. It is recommended that you configure the page size to the average message size your system is expected to message.

• General Pool Page Size: Used by SIP Stack objects, such as call-legs and transaction, to store the internal fields. For example, the call-legs object will store the To, From and Call-ID headers and the local and the remote contact addresses on the general pool pages. The general pool is also used from other activities that demand memory allocation.

• Application Pool Page Size: The size of page in the application pool

• Retransmission T1: T1 determines several timers as defined in

RFC3261. For example, when an unreliable transport protocol is used, a Client Invite transaction retransmits requests at an interval that start at T1 seconds and doubles after every retransmission. A Client General transaction retransmits requests at an interval that starts at T1 and doubles until it reaches T2. (Default Value: 500)

• Retransmission T2: Determines the maximum retransmission interval as defined in RFC3261. For example, when an unreliable transport protocol is used, general requests are retransmitted at an interval which starts at T1 and doubles until reaches T2. If a provisional response is received, retransmission continue but at an interval of T2. (Default Value: 4000)

• Retransmission T4: T4 represents the amount of time the network takes to clear message between client and server transactions as defined in RFC3261. For example, when working with an unreliable transport protocol, T4 determines the time that UAS waits after receiving an ACK message and before terminating the transaction. (Default Value: 5000)

• Invite Linger Timer: After sending an ACK for an INVITE final response, a client cannot be sure that the server has received the ACK message; the client should be able to retransmit the ACK upon receiving retransmissions of the final response for invite Linger Timer milliseconds.

• General Linger Timer: After a server sends a final response, the server cannot be sure that the client has received the response message. The server should be able to retransmit the response upon receiving retransmissions of the request for general Linger Timer milliseconds. (Default Value: 32000)

• Provisional Timer: When a client receives a provisional response, it continues to retransmit the request, but with an interval of provisional Timer milliseconds.

• Cancel General No Response Timer: When sending a CANCEL request on a General transaction, the User Agent waits cancel General No Response Timer milliseconds before timeout termination if there is no response for the cancelled transaction.

WellGate 5290 User Guide – V6.1 - 73 -

Welltech Computer Co., Ltd.

• Cancel Invite No Response Timer: When sending a CANCEL request on an Invite transaction, the User Agent waits cancel Invite No Response Timer milliseconds before timeout termination if there is no response for the cancelled transaction.

• General Request Timeout Timer: After sending a General request, the User Agent waits for a final response general Request Timeout Timer milliseconds before timeout termination (in this time the User Agent retransmits the request every T1, 2*T1,…T2,…milliseconds)

• 183 to Alerting: When receive a SIP 183 message from remote site, send Alerting in stead of Call Progress Indicator

• Auto Send 183: WellGate5290 always send Call Progress Indicator (SIP 183) to VoIP party. It can be used for CAS protocol to enable early media.

• Overload Redirect: SIP overload redirect when WellGate5290 is not able for service the call

• Redirect Host: Redirect host URI (format: user@sip host, sip host)

• Redirect Port: Redirect port number

• Send 487 When Recv CANCEL: When receive CANCEL form remote

site, send “487 Request canceled” or not

• Caller ID Mode:

o Local: use WellGate 5290 proxy user id o Caller: use SIP calling party ANI

• Receive Hold music source:

o Auto: Auto determinate to play hold tone based on SIP signaling. o Local: Play holds tone locally.

• On Hold music: Hold tone music file name

• SIP UnRegist When Trunk Down: Enable or disable un-register when

all trunks are down. It can be used for load balancing.

• SIP Over Load Reason: When all trunk are busy, the reason to send to caller. Default is 438. When work with WS6500, 438 is required for load balancing hunting.

• Refer Call Use Refer By User: When a call is been transferred, new call will use REFER-BY ID instead of original caller ID.

SIP Proxy Server Setting:

WellGate 5290 can support up-to 16 SIP proxy server. You can select the SIP

proxy in call flow editor or VOIP Routing list.

WellGate 5290 User Guide – V6.1 - 74 -

Welltech Computer Co., Ltd.

Figure 7.8-3

• ID: SIP Proxy Identification

• Active Mode: Active or inactive

• Register Server: SIP register proxy server IP Address

• Register Port: SIP register proxy server port number

• Register User: SIP register proxy server User ID

• Register Password: SIP register proxy server User Password

• Register TTL: The registration maximum time to live setting when

registered to the SIP proxy server

• Register Doman Name: SIP register proxy domain

• Outbound Proxy Server: The IP address of the outbound Proxy

• Outbound Proxy Port: The port of the outbound Proxy

• Outbound Proxy User: The User ID of the outbound Proxy

• Outbound Proxy Password: The password of the outbound Proxy

SS7 Configuration

WellGate 5290 is using Dialogic SS7 board with ISUP module. The user

manual can be downloaded from

http://resource.intel.com/telecom/support/ss7/downloads/index.htm. WellGate 5290

provides the Dialogic SS7 configuration utility to edit the Dialogic SS7 board configuration file (config.txt). After you complete the editing of config.txt, you can

WellGate 5290 User Guide – V6.1 - 75 -

Welltech Computer Co., Ltd.

upload to the system and soft-reset to take effective. However, some advance configuration (e.g. SS7 with voice) is not supported by the Dialogic utility. User need to use the normal editor to edit it.

Start Path: Configuration→SS7

Figure 7.9-1

• SS7: Enable SS7 or not

• Total Channel: read only parameters

• ISUP Module ID (HEX): ISUP message module ID used for Dialogic

SS7 card and configuration (advance user only).

• Tool: Get Dialogic SS7 configuration tool

• Get Config: Download SS7 configuration files from 5290 for Dialogic

SS7 board

• Upload: Upload the modified SS7 configuration files to 5290 for Dialogic SS7 board

Access Control

Access Control list can be used to filter the calls forms the IP Network, DNIS, and ANI. It must be used in call flow edit to take effect.

IP ACL (IP Access Control List)

Start Path: Configuration>Access Control>IP ACL

Create a new IP ACL group used for call flow editor by click the New

button.

WellGate 5290 User Guide – V6.1 - 76 -

Welltech Computer Co., Ltd.

Figure 7.10-1

Group ID: IP ACL grouping ID Description: Description of IP ACL

IP ACL Detail

After create an IP ACL group, you can click the Detail button to add the corresponding IP list.

WellGate 5290 User Guide – V6.1 - 77 -

Welltech Computer Co., Ltd.

Figure 7.10-2

• IP Network: IP Address or prefix used to be filtered

• Access Mode:

o Allow: the inputs IP Network are allowed for calls. o Disallow: The inputs IP Network are disallowed for calls.

• Account Code: Account Code is part of called number prefix. It can be used for billing purpose. Account Code can be retrieved by call flow editor and make it for RADIUS billing user.

• Customer Name: Name of this item

• Default: If there is no Account prefix code can match, this default item

(account code) will be used

• Remove Account Code: Remove Account Code from the DNIS (called number)

• ANI ACL: If it is enabled, only ANI is matched the ANI ACL group can be allowed to use.

• Add Prefix: Add the prefix to the DNIS (called number)

• Max concurrent call: The maximum concurrent calls can be allowed for

this IP item.

☻Note: If in the system has both allowance and disallowance setup, the

system will check allowance first and disallowance later. If only disallowance inputted, all IP will allow to work except disallowed network. If only allowance inputted, only those IP from allowance list will work.

ANI ACL

Calling Number Screening

Start Path: Configuration>Access Control>ANI ACL

Click New to create an ANI ACL list group

WellGate 5290 User Guide – V6.1 - 78 -

Welltech Computer Co., Ltd.

Figure 7.10-3

• Group ID: ANI ACL Group

• Description: Description of this ANI ACL

Click Detail to add the ANI item into the ANI ACL group.

Figure 7.10-4

Parameters:

WellGate 5290 User Guide – V6.1 - 79 -

Welltech Computer Co., Ltd.

• ANI: Calling party number used to filter

• Access Mode:

o Allow: the calling numbers are allowed for calls o Disallow: The calling numbers are disallowed for calls

☻Note: If in the system has both allowance and disallowance setup, the

system will check allowance first and disallowance later. If only disallowance inputted all ANI will allow to work except disallowed ANI. If only allowance inputted, only those ANI from allowance list will work.

DNIS ACL

Start Path: Configuration>Access Control>DNIS ACL

Click New to add a DNIS Access Control List Group.

Figure 7.10-5

• Group ID: DNIS ACL Group ID

• Description: Description

Click Detail to add DNIS prefix into the IP ACL Group.

WellGate 5290 User Guide – V6.1 - 80 -

Welltech Computer Co., Ltd.

Figure 7.10-6

Parameters:

• DNIS: Called party number used for filter

• Access Mode:

o Allow: The called numbers are allowed for calls o Disallow: The called numbers are disallowed for calls

☻Note: If in the system has both allowance and disallowance setup, the

system will check allowance first and disallowance later. If only disallowance inputted all DNIS will allow to work except disallowed DNIS. If only allowance inputted, only those DNIS from allowance list will work.

Number Replace

The purpose of “Number Replace” is to replace called number or calling number for PSTN or IP. It must be used in call flow to take effect.

Step 1: It is useful for real PSTN number to virtual VoIP number replacement.

Click Number Replace to add a new Number Replace Group, add as figure 7.8-1.

WellGate 5290 User Guide – V6.1 - 81 -

Welltech Computer Co., Ltd.

Figure 7.11-1

Field Description:

• Group ID: 1 (Number Replace Group identify)

• Description: Description

Step 2: Click the New created NR and Detail button to add digits setting as

figure 7.8-2.

Figure 7.11-2

Field Description:

• Original Number: Original number filter

• Target Type: ANI or DNIS

• Target Number: The ANI or DNIS are change to target number

Data Base Number

The purpose of Data Base Number is to change called number for PSTN or IP. It must be used in call flow to take effect.

Start Path: Configuration>Data Base Number

WellGate 5290 User Guide – V6.1 - 82 -

Welltech Computer Co., Ltd.

Figure 7.12-1

Routing Plan

The purpose of Routing Plan is to select T1/E1 trunk and channels by your preference when there is a call from IP side to PSTN side. The PSTN

must be used in call flow edit or line hunting component to take effect.

Hunting Group

Start Path: Configuration>Routing Plan>Hunting Group

Figure 7.13-1

Parameters:

• Group ID: Hunting Group ID

• Description: Description of Hunting Group

• Hunting Method: Route selection

o Random: Random select a trunk within this hunting group o Priority: Select a trunk by priority. (Priority 1 has lowest priority; 9

has highest priority)

o Round Robin: Call is hunting rotationally

Start Path: Configuration>Routing Plan>Hunting Group>Detail

Figure 7.13-2

WellGate 5290 User Guide – V6.1 - 83 -

Welltech Computer Co., Ltd.

Parameters: Group: 1 Description: 0932

• Interface ID: Interface ID

• Trunk ID: trunk id for group 1

• Priority: Trunk priority

• Channel Mask: Channel mask for incoming or outgoing calls (refer

T1/E1 Trunk Configuration)

☺

Note: When a Route Plan channels mask is cooperated to trunk

channel mask to decide the channel availity 17~31 channels are available:

Example 1: Trunk ID: 0 channel mask: 0xffffffff Route Plan channel mask: 0x0000ffff Available channel: 0x0000ffff (17~31) channels.

Example 2: Trunk ID: 0 channel mask: 0xffff0000 Route Plan channel mask: 0xffc00000 Available channel: 0xffc00000 (1~9) channels.

Call Routing The call routing can be used for hunting a PSTN trunk by prefix.

Start Path: Configuration>Routing Plan>Call Routing

Figure 7.13-3

Parameters:

• Group ID: Select the T1/E1 according to the selection of Hunting Group ID when dialed number is matched

• Number To Route: The dialed telephone number to be matched

• Matched ANI Prefix: Calling party number used to filter

• Allow Use Others: To select other T1/E1 trunk when all trunk are busy

at your desired Hunting Group. o Allowed: The call will use other T1/E1 trunks which is not belong to

the selected hunting group

o Forbad: The call will be disconnected immediately

Radius Setting

When you have an external RADIUS server to do the AAA

(Authorization, Authentication and Accounting), enter the correct parameter to the Radius setting. It must be used in call flow to take effect.

Start Path: Configuration>Radius Setting

WellGate 5290 User Guide – V6.1 - 84 -

Welltech Computer Co., Ltd.

Figure 7.14-1

Parameters:

• Auth IP: Radius Authentication Server IP address (default)

• Auth Port: Radius Authentication Server Port

• Acct IP: Radius Account Server IP address

• Acct Port: Radius Account Server Port

• Backup Auth IP: Backup Radius Authentication Server IP address

• Backup Auth Port: Back Radius Authentication Server Port

• Backup Acct IP: Back Radius Account Server IP address

• Backup Acct Port: Back Radius Account Server Port

• Secret Key: The shared secret key with RADIUS Server

• Max Retry: The maximum retry times

• Response Timer (sec): The maximum wait for response time from

RADIUS Server

• Auth Retry Interval (sec): The internal to resend the Authentication packet to RADIUS Server.

• Acct Retry Interval (sec): The internal to resend the Account packet to RADIUS Server.

• Switch Threshold: Switch to alternate RADIUS Server when failures are occurred more than switch threshold.

Apply Change

1. Some of modification needs to restart system before it is effective to system operation. “Apply the change” shows “The change you mode need to

restart the system for apply please confirm to restart or do it later?”

Click on OK button to reboot the system.

Figure 7.15-1

WellGate 5290 User Guide – V6.1 - 85 -

Welltech Computer Co., Ltd.

2. For the modification can be changed to fly, “Apply the Change” shows “Are

you sure to apply the running system?” Click on OK button to take

effecting.

Figure 7.15-2

WellGate 5290 User Guide – V6.1 - 86 -

Welltech Computer Co., Ltd.

Chapter 8 System Control

System

Start path: Click Control>System

Figure 8.1-1

Parameter:

• Soft Reset: Soft Reset at WellGate 5290

• Restart: Restart the WellGate 5290

• Shutdown: Shutdown the WellGate 5290

System Time Time zone Setting

Step 1: If you would like to use time zone, click Time zone button to setup the

system time zone as figure 8.2-1.

Figure 8.2-1

Standard: Step 2: Select the Standard option to setup the system predefined time zone

as figure 8.2-2

Figure 8.2-2

Parameter:

WellGate 5290 User Guide – V6.1 - 87 -

Welltech Computer Co., Ltd.

• Time Zone:

o Standard: Use a predefined standard time zone (Refer Timezone

to Country Mapping List)

o Customize: Use a user defined time zone

• Auto Daylight Saving: Auto adjust daylight saving time or not

User defined time zone: Step 3: Select the Customized option and enter the time zone bias to set a

user defined time zone as figure 8.2-3

Figure 8.2-3

Parameter:

• Daylight Bias: The offset added to the Bias when the time zone is in

daylight saving time

• Daylight Start: The date that a time zone enters daylight time

o Month: 01 to 12 o Week Day: Sunday to Saturday o Apply Week (Day:01 to 05, Specifies the occurrence of day in the

month; 01 = First occurrence of day, 02 = Second occurrence of day, ...and 05 = Last occurrence of day)

o Hour: 00 to 23

• Standard Start: The date that a time zone enters daylight time

o Month: 01 to 12 o Week Day: Sunday to Saturday o Apply Week (Day:01 to 05, Specifies the occurrence of day in the

month; 01 = First occurrence of day, 02 = Second occurrence of day, ...and 05 = Last occurrence of day)

o Hour: 00 to 23

WellGate 5290 User Guide – V6.1 - 88 -

Welltech Computer Co., Ltd.

Network

DNS Server Setting: Step 1: After successfully logon to the system, we need to change the

network configuration. Click Control>Network to setup the network parameters as figure 8.3-1.

Figure 8.3-1

Parameter:

• Primary DNS Server: Primary DNS Server IP network

• Secondary DNS Server: Secondary DNS Server IP network

• Host Name: Host name used to register to DNS Server

• Domain Name: Domain name used to

• Dynamic DNS Registration: Enable Dynamic DNS registration or not

SNMP

Start path: Click Control>SNMP>Community

Figure 8.4-1

Parameter:

• Community Name: Community name for network manager system

accessing

• Access Rights: Giving access right to the community

WellGate 5290 User Guide – V6.1 - 89 -

Welltech Computer Co., Ltd.

Start path: Click Control>SNMP>Trap

Figure 8.4-2

Parameter:

• Trap Community: Trap community name for NMS

• Trap Host: Trap host IP address

☺Note: It takes around 1-minute to update SNMP configuration and

display successful message.

Prompt Manager

Start path: Click Control>Prompt Manager

Figure 8.5-1

☻Note:

1. You mast has a sound card in your PC to record the voice. You

need to set Network security in order to execute this recording.

Click Tool>Internet Option>Security>Custom Level.

WellGate 5290 User Guide – V6.1 - 90 -

Welltech Computer Co., Ltd.

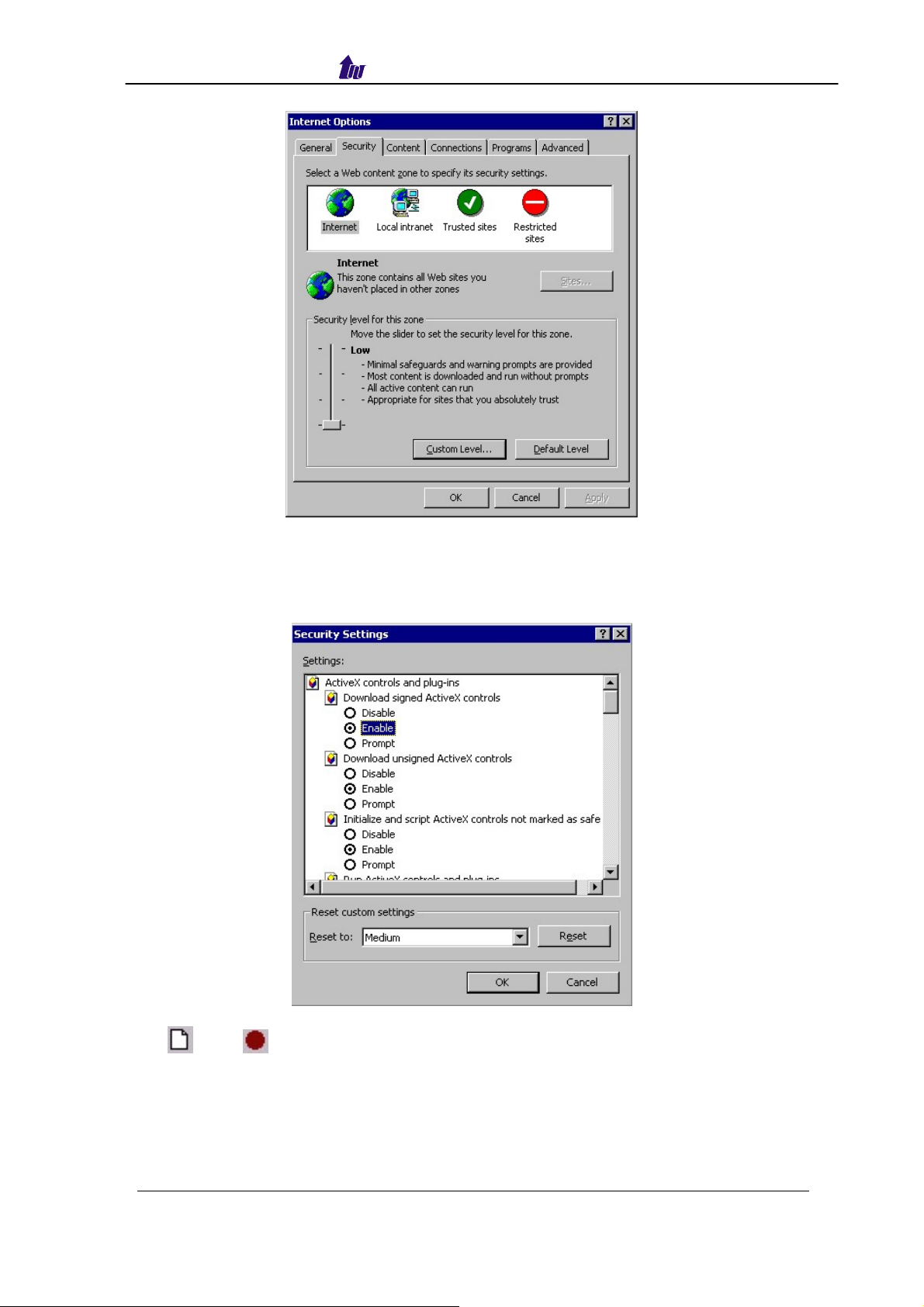

2. Enable the following security to active setting:

Voice prompt editor:

- Download unsigned ActiveX control: Enable

- Initialize and script ActiveX control not marked as safe: Enable

New, Record:

Step 1: Make sure you have installed microphone or other device when you

want to record, Click New and Record buttons to record as figure

8.5-2.

WellGate 5290 User Guide – V6.1 - 91 -

Welltech Computer Co., Ltd.

Figure 8.5-2

Stop, Pause, Play:

Step 2: Click Stop or Pause button to stop record, and click Play button to

listen the voice prompt as figure 8.5-3.

Figure 8.5-3

Save:

Step 3: Click Save button to saving the voice file at local path, and the screen

shows please input the file path and file name!! (i.e. c:\irene_test.raw) as figure 8.5-4.

Figure 8.5-4

Save Remote File:

Step 4: Click Save Remote File to saving the voice file at WellGate 5290,

and the screen shows “please input the file path and file name!!” (i.e. 9999.raw) as figure 8.5-5

Figure 8.5-5

☻Note: The file name must be “.raw” file format.

WellGate 5290 User Guide – V6.1 - 92 -

Welltech Computer Co., Ltd.

Open Remote File:

Step 5: Click Open Remote File button to open voice file at WellGate 5290

and screen shows Voice File List as figure 8.5-6.

Figure 8.5-6

Open:

Step 6: Click Open button to open local host voice file and screen shows

Choose File as figure 8.5-7.

Figure 8.5-7

Close:

Step 7: Click Close button to close the voice file as figure 8.5-8.

Figure 8.5-8

WellGate 5290 User Guide – V6.1 - 93 -

Welltech Computer Co., Ltd.

Copy:

Step 8: Select the desired voice range and click Copy button as figure 8.5-9

Figure 8.5-9

Paste:

Step 9: Click Paste button to paste the voice range as figure 8.5-10.

Figure 8.5-10

Cut:

Step 10: Select the desired voice range and click Cut button as figure 8.5-11.

Figure 8.5-11

WellGate 5290 User Guide – V6.1 - 94 -

Welltech Computer Co., Ltd.

Save As: Refer the Section “Save”

Save Remote As: Refer the Section “Save Remote File”

Undo:

Step 13: Click Undo button to return modification, you can see the

configuration that hasn’t be changed as figure 8.5-12.

Figure 8.5-12

Redo: Refer Section “Undo”

Zoom Zoom In Zoom Out:

Step 14: Select the desired voice range click Zoom button as figure 8.5-13.

Figure 8.5-13

Step 15: The screen shows the zoom out voice file range as figure 8.5-14.

Figure 8.5-14

WellGate 5290 User Guide – V6.1 - 95 -

Welltech Computer Co., Ltd.

Delete Remote file:

Step 16: Click Delete Remote file button to delete remote voice file as figure

8.5-15.

Figure 8.5-15

Call Flow Editor

Please refer section “Call Flow Editor”

Account Manager

Please refer section “Account Manager”

Upgrade

Step 1: Click “Control>Upgrade” to upgrade the software as figure 8.6-1.

Figure 8.6-1

Field Description:

• File Name: Upload the software file name

• Upload: Remote Upload the software at WellGate 5290

• Apply: Remote apply the upload at WellGate 5290

Relogin

Please refer section “Relogin”

WellGate 5290 User Guide – V6.1 - 96 -

Welltech Computer Co., Ltd.

Chapter 9 System Monitor

It provides a way to monitor the system status.

Line Summary Status

Show channel summary status.

Start Path: Monitor>Line Summary Status

Figure 9.1-1

Field Description:

• Refresh Interval (second): Refresh interval time (1, 5, 10 seconds)

• Line ID: Line ID (format: Interface: trunk: channel)

• Talk Time: Total conversation time

• Successfully calls: Total successfully calls (connected calls)

• Unsuccessfully calls: Total unsuccessfully calls (unconnected calls)

See the line detail:

Selection the line and click Detail button as figure 9.1-2.

Figure 9.1-2

Refer to line detail for field description

Line Detail

Show detail channel status.

Start Path: Monitor>Line Detail

WellGate 5290 User Guide – V6.1 - 97 -

Welltech Computer Co., Ltd.

Figure 9.2-1

Field Description:

• Refresh Interval (second): Refresh interval time (1, 5, 10 seconds)

• Line ID: Line ID

• Line Status: Current time status

• Call Originate: Call originate site

• ANI String: Calling party number

• DNIS String: Called party number

• PSTN Status: PSTN site status

• VoIP Status: IP site status

• Escape Time: Talk time

System Status

Show current VoIP and Trunk status

Start Path: Monitor>System Status

WellGate 5290 User Guide – V6.1 - 98 -

Welltech Computer Co., Ltd.

Figure 9.3-1

Field Description:

• Green light indicates OK.

• Yellow light indicates unused or D channel down

• Red light indicates failure

Event Log

Show system log status.

Start Path: Monitor>Event Log

WellGate 5290 User Guide – V6.1 - 99 -

Welltech Computer Co., Ltd.

Figure 9.4-1

Field Description:

• Date: Event created date

• Time: Event created time

• Event ID: Event Log

• Type: Event Log type

o Information o Warring o Error

• Source: Executable program

• Description: Description

☻Note: You can click Clear button to clear all event log.

See the detail event log:

Double click the log or select the log and click detail to see the log

detail.

Figure 9.4-2

Event Description:

Event ID Event Description Description

8003

[GK]: [xxx.xxx.xxx.xxx:xxxx] not found or registered failure [SIP Register]: [xxx.xxx.xxx.xxx:xxxx] not found or registered failure

Failed to register to H323 Gatekeeper

Failed to registered to SIP Registrater Server

TRUNK ALARM: TrunkId=x,

8700

Comment='', LOS=1, LOF=0, RAI=0,

Disconnect to PSTN

AIS=0, RAI_CRC=0

8702 BOARD x TRUNK(S) FOUND Board x Trunk(s) found

[0]: evt: D CHANNEL STATUS:

8703

runkId=3, Status=1, Comment='', LOS=14, LOF=0, RAI=108,

D Channel and Trunk ID (ID: 0) not available

AIS=145, RAI_CRC=-1

WellGate 5290 User Guide – V6.1 - 100 -

Welltech WG5290 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

System Description

Technical Specification

Protocol and Standard

Audio Feature

Certification

Wellgate 5290 V6.1 Detail Spec.

WellGate 5290 Appearance Description

Chapter 2 Logon WellGate 5290

Logon WellGate 5290

Network Configuration

System Time Configuration

Account Manager

Relogin

Environment used in this chapter

Interface Configuration

T1/E1 Trunk Configuration

SS7 Configuration

H.323 Configuration

SIP Configuration

Digit Manipulation

New dialed number becomes 002582265699

Chapter 4 Call Flow Editor

Config Manager

Apply Change

Chapter 5 Peer to Peer Mode Configuration

Environment used in this chapter

Network Configuration

Account Manager

Interface Configuration

H.323 Configuration

VOIP Hunting

Digit Manipulation

Call Flow Editor

Configuration Manager

Apply Change

Chapter 6 SIP to H.323 Mode Configuration

Environment used in this chapter

Network Configuration

Account Manager

Interface Configuration

H.323 Configuration

SIP Configuration

Address Book

Digit Manipulation

Call Flow Editor

Configuration Manager

Apply Change

Chapter 7 Advance Configuration Reference

Configuration

System Configuration

Interface Configuration

Dial Plan Configuration

Overlap Configuration

T1/E1 Trunk Configuration

Reset Configuration

H.323 Configuration

SIP Configuration

SS7 Configuration

Access Control

Number Replace

Data Base Number

Routing Plan

Radius Setting

Apply Change

Chapter 8 System Control

System

Network

SNMP

Prompt Manager

Call Flow Editor

Account Manager

Upgrade

Relogin

Chapter 9 System Monitor

Line Summary Status

Refer to line detail for field description
