Page 1
VOLVO XC60
OWNERS MANUAL
WEB EDITION
Page 2
DEAR VOLVO OWNER
THANK YOU FOR CHOOSING VOLVO
We hope you will enjoy many years of driving pleasure in your
Volvo. The car has been designed for the safety and comfort of
you and your passengers. Volvo is one of the safest cars in the
world. Your Volvo has also been designed to satisfy all current
safety and environmental requirements.
In order to increase your enjoyment of the car, we recommend
that you familiarise yourself with the equipment, instructions
and maintenance information contained in this owner's manual.
Page 3
Table of contents
00 Introduction
Important information................................. 6
Volvo and the environment....................... 10
00
01 Safety
Seatbelts .................................................. 16
Airbag system (SRS - Airbag)................... 19
Activating/deactivating the airbag*........... 22
Side airbags (SIPS bags) ......................... 24
Inflatable Curtain (IC) ............................... 26
WHIPS ...................................................... 27
Roll-Over Protection System - ROPS....... 29
When the systems deploy ........................ 30
Safety mode.............................................. 31
Child safety............................................... 32
01
02 Locks and alarm
Remote control key/key blade.................. 44
Battery replacement, remote control key/
PCC*......................................................... 49
Keyless drive*............................................ 51
Locking/unlocking..................................... 53
Child safety locks...................................... 58
Alarm*....................................................... 59
02
2
* Option/accessory, for more information, see Introduction.
Page 4
Table of contents
03 Your driving environment
Instruments and controls.......................... 64
Key positions............................................ 73
Seats......................................................... 75
Steering wheel.......................................... 79
Lighting..................................................... 80
Wipers and washing.................................. 89
Windows, rearview and door mirrors........ 92
Compass*................................................. 97
Power panorama roof* ............................. 98
Starting the engine.................................. 100
Starting the engine – external battery..... 102
Gearboxes............................................... 103
All-wheel drive – AWD*........................... 107
Foot brake............................................... 108
Hill Descent Control (HDC)..................... 110
03
Parking brake.......................................... 112
HomeLink
*............................................ 115
04 Comfort and driving pleasure
Menus and messages............................. 120
Climate control........................................ 126
Fuel-driven engine block heater and pas-
senger compartment heater*.................. 133
Fuel-driven additional heater*................. 136
Audio system.......................................... 137
Trip computer......................................... 150
DSTC – Stability and traction control sys-
tem.......................................................... 152
Adapting driving characteristics............. 154
Cruise control*........................................ 155
Adaptive cruise control*.......................... 156
Distance Alert.......................................... 162
City Safety™........................................... 165
Collision Warning with Auto Brake*........ 170
04
Driver Alert System – DAC*..................... 175
Driver Alert System - LDW*..................... 178
Park assist syst*...................................... 181
Park assist camera*................................ 184
BLIS* – Blind Spot Information System. . 187
Comfort inside the passenger compart-
ment........................................................ 191
Bluetooth handsfree*.............................. 194
Built-in phone*........................................ 199
05 During your journey
Recommendations during driving........... 206
Refuelling................................................ 208
Fuel......................................................... 209
Loading................................................... 212
Cargo area.............................................. 213
Warning triangle*..................................... 217
Driving with a trailer................................ 218
Towing and recovery.............................. 224
05
* Option/accessory, for more information, see Introduction.
3
Page 5
Table of contents
06 Maintenance and service
Engine compartment............................... 228
Lamps..................................................... 234
Wiper blades and washer fluid................ 241
Battery..................................................... 243
Fuses...................................................... 246
Wheels and tyres.................................... 254
Car care.................................................. 265
06
07 Specifications
Type designations................................... 272
Dimensions and weights......................... 274
Engine specifications.............................. 277
Engine oil................................................ 278
Fluids and lubricants............................... 280
Fuel......................................................... 282
Electrical system..................................... 283
Type approval......................................... 284
07
08 Alphabetical Index
Alphabetical Index.................................. 286
08
4
Page 6
Table of contents
5
Page 7
Introduction
Important information
Reading the Owner's Manual
Introduction
A good way of getting to know your new car is
to read the owner's manual, ideally before your
first journey. This will give you the opportunity
to familiarise yourself with new functions, to
see how best to handle the car in different situations, and to make the best use of all the
car's features. Please pay attention to the
safety instructions contained in the manual.
The equipment described in the owner's manual is not present in all cars. In addition to
standard equipment, this manual also
describes options (factory fitted equipment)
and certain accessories (retrofitted extra
equipment). If you are uncertain over what is
standard or option/accessory then we recommend that you contact your Volvo dealer.
Volvo cars are adapted for the varying requirements of different markets, as well as for
national or local legal requirements and regulations.
The specifications, design features and illustrations in this owner's manual are not binding.
We reserve the right to make modifications
without prior notice.
© Volvo Car Corporation
Option
All types of option/accessory are marked with
an asterisk
The range of options/accessories for the different car models varies depending on the market. The majority of options are factory fitted
and cannot be retrofitted, accessories are retrofitted.
We recommend that you contact your authorised Volvo dealer for more information.
.
Special texts
WARNING
Warning texts advise of a risk of personal
injury.
IMPORTANT
Important texts advise of a risk of material
damage.
NOTE
NOTE texts give advice or tips that facilitate
the use of features and functions for example.
Footnote
There is footnote information in the owner's
manual that is located at the bottom of the
page. This information is an addition to the text
that it refers to via a number. If the footnote
refers to text in a table then letters are used
instead of numbers for referral.
Message texts
There are displays in the car that show text
messages. These text messages are highlighted in the owner's manual by means of the
text being slightly larger and printed in grey.
Examples of this are in menu texts and message texts on the information display (e.g.
Audio settings).
Decals
The car contains different types of decal which
are designed to convey important information
in a simple and clear manner. The decals in the
car have the following descending degree of
importance for the warning/information.
6
Page 8
Introduction
Important information
Warning for personal injury
Black ISO symbols on yellow warning field,
white text/image on black message field. Used
to indicate the presence of danger which, if the
warning is ignored, may result in serious personal injury or fatality.
Risk of property damage
White ISO symbols and white text/image on
black or blue warning field and message field.
Used to indicate the presence of danger which,
if the warning is ignored, may result in damage
to property.
Information
White ISO symbols and white text/image on
black message field.
NOTE
The labels shown in the owner's manual are
not provided as exact reproductions of
those in the car. The purpose is to show
their approximate appearance and location
in the car. The information that applies to
your car in particular is available on the label
in question in your car.
Procedure lists
Procedures where action must be taken in a
certain sequence are numbered in the owner's
manual.
7
Page 9
Introduction
Important information
When there is a series of illustrations for
step-by-step instructions each step is
numbered in the same way as the corresponding illustration.
There are numbered lists with letters adjacent to the series of illustrations where the
order of the instructions is not significant.
Arrows appear numbered and unnumbered and are used to illustrate a movement.
If there is no series of illustrations for step-bystep instructions then the different steps are
numbered with normal numbers.
Position lists
Red circles containing a number are used
in overview images where different components are pointed out. The number
recurs in the position list featured in connection with the illustration that describes
the item.
Bulleted lists
A bulleted list is used when there is a list of
points in the owner's manual.
Example:
Coolant
•
Engine oil
•
To be continued
`` This symbol is located furthest down to the
right when a section continues on the following
page.
Recording data
The driving and safety systems in the car use
computers which check and share information
with each other on the car's function. One or
more of these computers may store information on the systems they check during normal
driving, during the course of a collision or nearcollision. Stored information may be used by:
Volvo Car Corporation
•
Service or repair workshops
•
Police or other authorities
•
Other parties who claim legal entitlement
•
for access to the information or someone
who has permission from the owner to
access the information.
Accessories and extra equipment
The incorrect connection and installation of
accessories can negatively affect the car's
electrical system. Certain accessories only
function when their associated software is
installed in the car's computer system. We
therefore recommend that you always contact
an authorised Volvo workshop before installing
accessories which are connected to or affect
the electrical system.
Laser sensor
This vehicle is equipped with a sensor which
transmits laser light. It is absolutely essential to
follow the prescribed instructions when handling the laser sensor.
The following two decals relate to the laser
sensor:
G033853
8
Page 10
Introduction
Important information
The upper decal describes the laser light's
•
classification, Invisible Laser radiation – Do
not view directly with optical instruments
(magnifiers) – Class 1M laser product.
This text is printed in the next warning box.
The lower decal describes the laser light's
•
physical data:
IEC 60825-1:1993 + A2:2001. Complies
with FDA performance standards for laser
products except for deviations pursuant to
Laser Notice No. 50, dated
July 26th, 2001.
The physical data is specified in the following
table and other text is printed in the next warning box.
Radiation data for the laser sensor
Maximum pulse energy 2.64 μJ
Maximum average output 45 mW
Pulse duration 33 ns
Divergence (horizontal × vertical)
28° × 12°
WARNING
If any of these instructions are not followed
then there is a risk of eye injury!
Never look into the laser sensor (which
•
emits spreading invisible laser radiation)
at a distance of 100 mm or closer with
magnifying optics such as a magnifying
glass, microscope, lens or similar optical instruments.
Testing, repair, removal, adjustment
•
and/or replacement of the laser sensor's spare parts must only be carried
out by a qualified workshop - we recommend an authorised Volvo workshop.
To avoid exposure to harmful radiation,
•
do not carry out any readjustments or
maintenance other than those specified
here.
The repairer must follow specially
•
drawn up workshop information for the
laser sensor.
Do not remove the laser sensor (this
•
includes removing the lenses). A
removed laser sensor does not fulfil
laser class 3B as per standard IEC
60825-1. Laser class 3B is not eye-safe
and therefore entails a risk of injury.
The laser sensor's connector must be
•
unplugged before removal from the
windscreen.
The laser sensor must be fitted onto the
•
windscreen before the sensor's connector is plugged in.
The laser sensor transmits laser light
•
when the remote control key is in position II and also with the engine switched
off (see page 73 on key positions).
For more information on the laser sensor, see
page 165.
Information on the Internet
At www.volvocars.com there is further information concerning your car.
9
Page 11
Introduction
Volvo and the environment
Volvo Cars' environmental philosophy
G000000
Environmental care is one of Volvo Car Corporation's core values which influence all operations. We also believe that our customers share
our consideration for the environment.
Your Volvo complies with strict international
environmental standards and is also manufactured in one of the cleanest and most resourceefficient plants in the world. Volvo Car Corporation has global ISO certification, which
includes the environmental standard ISO
14001 covering all factories and several of our
other units. We also set requirements for our
partners so that they work systematically with
environmental issues.
10
* Option/accessory, for more information, see Introduction.
Fuel consumption
Volvo cars have competitive fuel consumption
in each of their respective classes. Lower fuel
consumption generally results in lower emission of the greenhouse gas, carbon dioxide.
It is possible for the driver to influence fuel consumption. For more information read under the
heading, Reducing environmental impact.
Efficient emission control
Your Volvo is manufactured following the concept "Clean inside and out" – a concept that
encompasses a clean interior environment as
well as highly efficient emission control. In
many cases the exhaust emissions are well
below the applicable standards.
Clean air in the passenger compartment
A passenger compartment filter prevents dust
and pollen from entering the passenger compartment via the air intake.
A sophisticated air quality system, IAQS* (Interior Air Quality System) ensures that the incoming air is cleaner than the air in the traffic outside.
The system consists of an electronic sensor
and a carbon filter. The incoming air is monitored continuously and if there is an increase in
Page 12
Introduction
Volvo and the environment
the level of certain unhealthy gases such as
carbon monoxide then the air intake is closed.
Such a situation may arise in heavy traffic,
queues and tunnels for example.
The entry of nitrous oxides, ground-level ozone
and hydrocarbons is prevented by the carbon
filter.
Textile standard
The interior of a Volvo is designed to be pleasant and comfortable, even for people with
contact allergies and for asthma sufferers.
Extreme attention has been given to choosing
environmentally-compatible materials. This
means that they also fulfil the requirements in
the Oeko-Tex 100 standard
towards a healthier passenger compartment
environment.
Oeko-Tex certification covers seatbelts, carpets and fabrics for example. The leather in the
upholstery undergoes chromium-free tanning
with plant substances and fulfils the certification requirements.
1
, a major advance
Volvo workshops and the environment
Regular maintenance creates the conditions
for a long service life and low fuel consumption
for your car. In this way you contribute to a
cleaner environment. When Volvo's workshops
are entrusted with the service and mainte-
nance of your car it becomes part of our system. We make clear demands regarding the
way in which our workshops are designed in
order to prevent spills and discharges into the
environment. Our workshop staff have the
knowledge and the tools required to guarantee
good environmental care.
Reducing environmental impact
You can easily help reduce environmental
impact, for example, by driving economically
and by servicing and maintaining the car
according to the instructions in the owner's
manual.
The following advice will help you to do your bit
for the environment: (for further advice on how
you can reduce environmental impact and
drive economically, see pages 264, 206).
Decrease fuel consumption by choosing
•
ECO tyre pressure, see page 264.
A roof load and ski box increase air resis-
•
tance, leading to higher fuel consumption.
Remove them directly after use.
Remove unnecessary items from the car.
•
The greater the load the higher the fuel
consumption.
If the car is equipped with an engine block
•
heater, always use it before starting from
cold. This reduces fuel consumption and
exhaust emissions.
Drive gently and avoid braking too hard.
•
Drive in the highest gear possible. Low
•
engine speeds result in lower fuel consumption.
Use engine braking to slow down.
•
Avoid letting the engine idle. Pay attention
•
to local regulations. Switch off the engine
when stationary for longer periods.
Always dispose of environmentally hazar-
•
dous waste, such as batteries and oils, in
an environmentally safe manner. We recommend that you consult an authorised
Volvo workshop for advice if you are uncertain about the disposal of this type of
waste.
Service your car regularly.
•
High speed increases consumption con-
•
siderably due to increased wind resistance. A doubling of speed increases wind
resistance 4 times.
These hints will help reduce fuel consumption
without increasing travel time or lessening the
enjoyment of driving. Apart from being kind to
your car, you'll be saving money - and the
Earth's resources.
1
More information on www.oekotex.com
11
Page 13
Introduction
Volvo and the environment
The owner's manual and the
environment
The FSC symbol shows that the paper pulp in
this publication comes from FSC certified forests or other controlled sources.
12
Page 14
Introduction
13
Page 15
Seatbelts ................................................................................................ 16
Airbag system (SRS - Airbag)................................................................. 19
Activating/deactivating the airbag*......................................................... 22
Side airbags (SIPS bags) ....................................................................... 24
Inflatable Curtain (IC) ............................................................................. 26
WHIPS .................................................................................................... 27
Roll-Over Protection System - ROPS..................................................... 29
When the systems deploy ...................................................................... 30
Safety mode............................................................................................ 31
Child safety............................................................................................. 32
14
* Option/accessory, for more information, see Introduction.
G020871
Page 16
SAFETY
01
Page 17
01 Safety
01
Seatbelts
General information
Heavy braking can have serious consequences
if the seatbelts are not used. Ensure that all
passengers use their seatbelts.
It is important that the seatbelt lies against the
body so it can provide maximum protection.
Do not lean the backrest too far back. The
seatbelt is designed to protect in a normal
seating position.
Putting on a seatbelt
Pull the seatbelt out slowly and secure it by
pressing the buckle into the lock. A loud "click"
indicates that the seatbelt has locked.
The buckles only fit the intended lock in the rear
seat*.
Releasing the seatbelt
Press the red lock button and then let the seatbelt retract. If the seatbelt does not retract fully,
feed the seatbelt in by hand so that it does not
hang loose.
The seatbelt locks and cannot be withdrawn:
if it is pulled out too quickly
•
during braking and acceleration
•
if the car leans heavily.
•
Keep in mind the following
do not use clips or anything else that can
•
prevent the seatbelt from fitting properly
ensure that the seatbelt is not twisted or
•
caught on anything
the hip strap must be positioned low down
•
(not over the abdomen)
tension the hip strap over the lap by pulling
•
the diagonal shoulder belt as in the preceding illustration.
WARNING
The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this
may diminish the protection provided by the
airbag in the event of a collision.
WARNING
Each seatbelt is designed for only one person.
WARNING
Never modify or repair the seatbelts yourself. Volvo recommends that you contact an
authorised Volvo workshop.
If a seatbelt has been subjected to a major
load, such as in conjunction with a collision,
the entire seatbelt must be replaced. Some
of the protective characteristics of the seatbelt may have been lost, even if it appears
to be undamaged. In addition, replace the
seatbelt if the belt is worn or damaged. The
new seatbelt must be type-approved and
intended for installation in the same position
as the replaced seatbelt.
16
* Option/accessory, for more information, see Introduction.
Page 18
01 Safety
Seatbelts and pregnancy
The seatbelt should always be worn during
pregnancy. But it is then crucial that it be worn
in the correct way. The diagonal section should
wrap over the shoulder then be routed between
the breasts and to the side of the abdomen.
The lap section should lay flat over the thighs
and as low as possible under the abdomen. –
It must never be allowed to ride upward.
Remove all slack from the seatbelt and ensure
that it fits close to the body. In addition, check
that there are no twists in the seatbelt.
As the pregnancy progresses, pregnant drivers
should adjust their seats and steering wheel
such that they can easily maintain control of the
vehicle as they drive (which means that they
must be able to easily operate the foot pedals
and steering wheel). The aim should be to posi-
tion the seat with as large a distance as possible between abdomen and steering wheel.
Seatbelt reminder
G020998
Unbelted occupants will be reminded to fasten
their seatbelts by means of an audio and visual
reminder. The audio reminder is speed
dependent, and in some cases time dependent. The visual reminder is located in the roof
console and the combined instrument panel.
Child seats are not covered by the seatbelt
reminder system.
Rear seat
The seatbelt reminder in the rear seat has two
subfunctions:
Provides information on which seatbelts
•
are being used in the rear seat. The message is shown in the information display
when the seatbelts are being used or when
a rear door is opened. The message is
automatically cleared after approx. 30 seconds or can be acknowledged manually by
pressing the direction indicator lever's
READ button.
Provides a warning if one of the rear seat-
•
belts is unfastened during travel. This
G017726
warning takes the form of a message on
the information display along with the
audio/visual signal. The warning stops
when the seatbelt is re-fastened, or it can
also be acknowledged manually by pressing the READ button.
The message on the information display showing which seatbelts are in use is always available. Press the READ button to see stored
messages.
Seatbelts
01
``
17
Page 19
01 Safety
01
Seatbelts
Certain markets
An acoustic signal and indicator lamp remind
the driver and front seat passenger to use a
seatbelt if either of them is not wearing one. At
low speed, the audio reminder will sound for
the first 6 seconds.
Seatbelt tensioner
All the seatbelts are equipped with belt tensioners. A mechanism in the seatbelt tensioner
tightens the seatbelt in the event of a sufficiently violent collision. The seatbelt then provides more effective restraint for the occupants.
18
Page 20
01 Safety
Warning symbol on the combined
instrument panel
0
1
The airbag system is continuously monitored
by the system's control module. The warning
symbol in the combined instrument panel illuminates when the remote control key is in position II or III. The symbol clears after
approx. 6 seconds provided the airbag system
is fault-free.
o
WARNING
If the warning symbol for the airbag system
remains illuminated or illuminates while driving, it means that the airbag system does
not have full functionality. The symbol indicates a fault in the seatbelt tensioner system, SIPS, the IC system or another fault in
the SRS system. Volvo recommends that
you contact an authorised Volvo workshop
immediately.
As well as the warning symbol, a message may
appear on the information display in appropri-
G021010
ate cases. If the warning symbol malfunctions,
the warning triangle illuminates and SRS
Airbag Service required
Service urgent
appears in the display. Volvo
recommends that you contact an authorised
Volvo workshop immediately.
or SRS Airbag
Airbag system (SRS - Airbag)
Overview, airbag system
SRS system, left-hand drive.
SRS system, right-hand drive.
The SRS system consists of airbags and sensors. A sufficiently violent collision trips the
sensors and the airbag(s) are inflated with hot
01
G018665
G018666
``
19
Page 21
01 Safety
01
Airbag system (SRS - Airbag)
gas. To cushion the impact, the airbag deflates
when compressed. When this occurs, smoke
escapes into the car. This is completely normal. The entire process, including inflation and
deflation of the airbag, occurs within tenths of
a second.
WARNING
Volvo recommends that you contact an
authorised Volvo workshop for repair.
Defective work in the airbag system could
cause malfunction and result in serious personal injury.
NOTE
The sensors react differently depending on
the course of the collision and whether or
not the seatbelts on the driver and passenger side are used.
It is therefore possible that only one (or
none) of the airbags may inflate in a collision. The airbag system senses the force of
the collision on the car and adapts accordingly so that one or more airbags are
deployed.
The capacity of the airbags is also adapted
to the collision force to which the vehicle is
subjected.
Location of the front passenger airbag in a lefthand drive car.
Location of the front passenger airbag in a righthand drive car.
Airbag on the driver's side
G021011
The car has an SRS airbag (Supplemental
Restraint System) to supplement the protection afforded by the seatbelt on the driver's
side. This airbag is fitted into the centre of the
steering wheel. The steering wheel is marked
SRS AIRBAG.
WARNING
The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this
may diminish the protection provided by the
airbag in the event of a collision.
20
Page 22
01 Safety

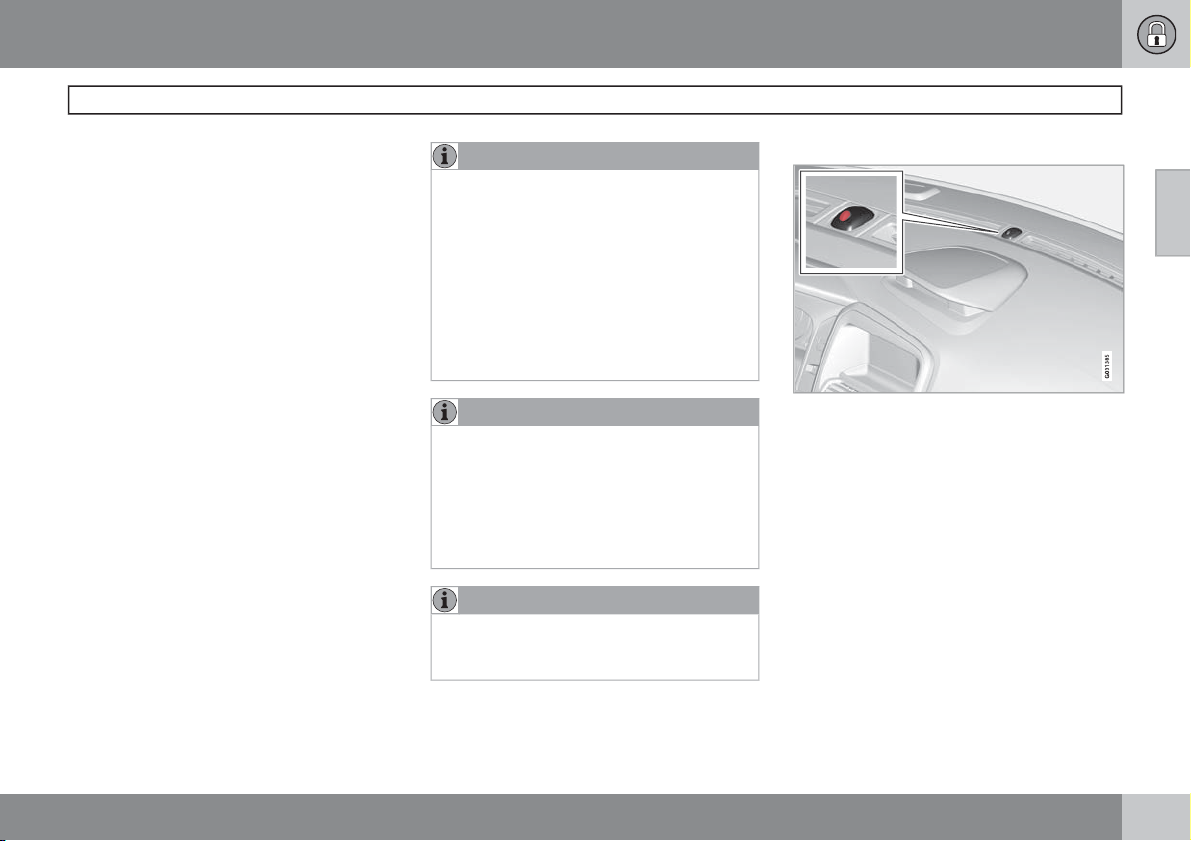

Passenger airbag
The car has an airbag to supplement the protection afforded by the seatbelt on the passenger side. This airbag is folded up into a compartment above the glovebox. Its cover panel
is marked SRS AIRBAG.
WARNING
To minimise the risk of injury if the airbag
deploys, passengers must sit as upright as
possible with their feet on the floor and
backs against the backrest. Seatbelts must
be secured.
WARNING
Do not put objects in front of or above the
dashboard where the passenger airbag is
located.
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
is activated
Never allow a child to stand or sit in front of
the front passenger seat. No one shorter
than 140 cm should ever sit in the front passenger seat if the airbag is activated.
Failure to follow the advice given above
could endanger the life of the child.
1
.
Airbag system (SRS - Airbag)
Label Airbag
Label for airbag located on door pillar.
01
G032244
1
For information on how to activate/deactivate the airbag, see page 22.
21
Page 23
01 Safety
01
Activating/deactivating the airbag*
Key switch off - PACOS
General information
The airbag for the front passenger seat can be
deactivated if the car is equipped with a switch,
PACOS (Passenger Airbag Cut Off Switch). For
information on how to activate/deactivate, see
under the heading Activating/deactivating.
Key switch off/switch
The switch for the passenger airbag (PACOS)
is located on the passenger end of the instrument panel and is accessible when the passenger door is open, (see under the following
heading, "Switch – PACOS"). Check that the
switch is in the required position. Volvo recommends that the remote control key's key
blade be used to change position.
For information on the key blade, see
page 47.
WARNING
Failure to follow the advice given above
could endanger the life of passengers in the
car.
WARNING
If the car is equipped with a front passenger
airbag, but has no switch (PACOS, Passenger Airbag Cut Off Switch), then the airbag
is always activated.
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
is activated and the symbol
console is illuminated. Failure to follow this
advice could endanger the life of the child.
in the roof
WARNING
Do not allow anyone to sit in the front passenger seat if the message in the roof panel
(see page 23) indicates that the airbag is
deactivated and if the warning symbol for
the airbag system is also displayed in the
combined instrument panel. This indicates
that there has been a severe malfunction.
Visit a workshop as soon as possible. Volvo
recommends that you contact an authorised Volvo workshop.
Activating/deactivating
G032072
Switch location.
The airbag is activated. With the switch in
this position, persons taller than 140 cm
can sit in the front passenger seat, but
never children in a child seat or on a
booster cushion.
The airbag is deactivated. With the switch
in this position, children in a child seat or
on a booster cushion can sit in the front
passenger seat, but never persons taller
than 140 cm.
22
* Option/accessory, for more information, see Introduction.
Page 24
01 Safety
WARNING
Activated airbag (passenger seat):
Never place a child in a child seat or on a
booster cushion on the front passenger seat
when the airbag is activated. This applies to
everyone shorter than 140 cm.
Deactivated airbag (passenger seat):
No one taller than 140 cm should ever sit in
the front passenger seat when the airbag is
deactivated.
Failure to follow the advice given above
could endanger life.
Messages
2
2
Indicator in the roof console showing that the passenger airbag is deactivated.
A text message and a symbol in the roof panel
indicate that the airbag for the front passenger
seat is deactivated (see preceding illustration).
Indicator in the roof console showing that the passenger airbag is activated.
A warning symbol in the roof panel indicates
that the airbag for the front passenger seat is
activated (see preceding illustration).
G017724
Activating/deactivating the airbag*
NOTE
When the remote control key is turned to
ignition position II or III the warning symbol
for the airbag is shown in the combined
instrument panel for approx. 6 seconds (see
page 19).
Following which, the indicator in the roof
console is illuminated showing the correct
status for the front passenger seat airbag.
For more information on the remote control
key's different ignition positions, see
page 73.
G017800
01
* Option/accessory, for more information, see Introduction.
23
Page 25
01 Safety
01
Side airbags (SIPS bags)
Side airbag
In a side impact collision a large proportion of
the collision force is transferred by the SIPS
(Side Impact Protection System) to beams, pillars, the floor, the roof and other structural
parts of the body. The side airbags at the driver's and front passenger seats protect the
chest area and the hip and are an important
part of the SIPS.
The SIPS bag system consists of two main
components, side airbag and sensors. The
side airbags are located in the front seat backrests.
WARNING
Volvo recommends that repairs are only
•
carried out by an authorised Volvo
workshop. Defective work in the SIPSbag system could cause malfunction
and result in serious personal injury.
Do not put objects in the area between
•
the outside of the seat and the door
panel, since this area is required by the
side airbag.
Volvo recommends the use only of car
•
G032949
seat covers approved by Volvo. Other
seat covers may impede the operation
of the side airbags.
The side airbag is a supplement to the
•
seatbelts. Always use a seatbelt.
Child seats and side airbags
The protection provided by the car to children
seated in a child seat or on a booster cushion
is not diminished by the side airbag.
A child seat or booster cushion can be placed
on the front passenger seat provided that the
car does not have an activated
1
bag.
passenger air-
Location
G024377
Driver's seat, left-hand drive.
G024378
Front passenger seat, left-hand drive.
The SIPS bag system consists of side airbags
and sensors. A sufficiently violent collision trips
1
For information on activating/deactivating the airbag, see page 22.
24
Page 26
01 Safety
the sensors and the side airbags are inflated.
The airbag inflates between the occupant and
the door panel and thereby cushions the initial
impact. The airbag deflates when compressed
by the collision. The side airbag is normally only
deployed on the side of the collision.
Label, side airbag
Label for side airbag located on door pillar.
G032254
Side airbags (SIPS bags)
01
25
Page 27
01 Safety
01
Inflatable Curtain (IC)
Properties
The inflatable curtain (IC) is a supplement to the
SIPS and SRS airbags. It is fitted in the headlining along both sides of the roof and protects
the car occupants sitting in the outer seats. A
sufficiently violent collision trips the sensors
and the inflatable curtain is inflated. The inflatable curtain helps to prevent the driver and
passengers from striking their heads on the
inside of the car during a collision.
WARNING
Never hang or attach heavy items onto the
handles in the roof. The hook is only
designed for light clothing (not for solid
objects such as umbrellas for example).
Do not screw or install anything onto the
car's headlining, door pillars or side panels.
This could compromise the intended protection. Volvo recommends that you only
ever use Volvo genuine parts that are
approved for placement in these areas.
WARNING
Do not load the car higher than 50 mm under
the top edge of the door windows. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.
WARNING
The inflatable curtain is a supplement to the
seatbelts.
Always use a seatbelt.
26
Page 28
01 Safety
Protection against whiplash injury –
WHIPS
The whiplash protection system (WHIPS) consists of energy absorbing backrests and specially designed head restraints in the front
seats. The system is actuated by a rear-end
collision, where the angle and speed of the collision, and the nature of the colliding vehicle all
have an influence.
WARNING
The WHIPS system is a supplement to the
seatbelts. Always use a seatbelt.
Properties of the seat
When the WHIPS system is deployed, the front
seat backrests are lowered backward to alter
the seating position of the driver and front seat
passenger. This reduces the risk of whiplash
injury.
WARNING
Never modify or repair the seat or WHIPS
system yourself. Volvo recommends that
you contact an authorised Volvo workshop.
WHIPS system and child seats/booster
cushions
The protection provided by the car to children
seated in a child seat or on a booster cushion
is not diminished by the WHIPS system.
WHIPS
Correct seating position
For the best possible protection, the driver and
front seat passenger should sit in the centre of
the seat with as little space as possible
between the head and the head restraint.
Do not obstruct the WHIPS system
Do not leave any objects on the floor behind the
driver's seat or the passenger seat.
WARNING
Do not squeeze rigid objects between the
rear seat cushion and the front seat backrest. Make sure you do not to obstruct the
function of the WHIPS system.
01
``
27
Page 29
01 Safety
01
WHIPS
Do not leave any objects on the rear seat.
WARNING
If a rear seat backrest is folded down, the
corresponding front seat must be moved
forward so that it does not touch the folded
backrest.
WARNING
If a seat has been subjected to extreme
forces, such as due to a rear-end collision,
the WHIPS system must be checked. Volvo
recommends that it is checked by an
authorised Volvo workshop.
Part of the WHIPS system's protective
capacity may have been lost even if the
seats appear to be undamaged.
Volvo recommends that you contact an
authorised Volvo workshop to have the system checked even after a minor rear-end
collision.
28
Page 30
01 Safety
Function
Volvo's Roll-Over Protection System (ROPS)
has been designed to reduce the risk of the car
overturning and to provide the best possible
protection in the event of such an accident.
The system consists of a stabiliser system,
Roll Stability Control (RSC) that minimises the
risk of overturning, for example, during sudden
evasive manoeuvres or if the car skids.
The RSC system uses a sensor which registers
changes in the car's lateral inclination angle.
This information is used to calculate the risk of
the car overturning. If a risk exists, the DSTC
system engages, engine torque is lowered and
one or more wheels are braked until the car has
regained its stability.
Read more about the DSTC system on page
152.
WARNING
Under normal driving conditions, the RSC
system improves the car's road safety, but
this must not be taken as a reason to
increase speed. Always follow the usual
precautions for safe driving.
Roll-Over Protection System - ROPS
01
29
Page 31
01 Safety
01
When the systems deploy
When the systems deploy
System Triggered
Seatbelt tensioner,
front seat
Seatbelt tensioner,
rear seat
Airbags (SRS)
Side airbags (SIPS) In a side-impact
Inflatable Curtain IC In the event of a
Whiplash protection
WHIPS
A
The bodywork of the car could be greatly deformed in a collision without airbag deployment. A number of factors such
as the rigidity and weight of the object hit, the speed of the
car, the angle of the collision etc. affects how the different
safety systems of the car are activated.
In the event of a
frontal collision,
and/or side-impact
collision, and/or
rear-end collision
and/or overturning
In the event of a
frontal collision and/
or overturning
In a frontal collision
accident
side-impact collision and/or overturning
In a rear-end collision
Recovering the car. Volvo recommends
•
that you have it conveyed to an authorised
Volvo workshop. Do not drive with
deployed airbags.
Volvo recommends that you engage an
•
authorised Volvo workshop to handle the
replacement of components in the car's
safety systems.
Always contact a doctor.
•
WARNING
Never drive with deployed airbags. They
can make steering difficult. Other safety
systems may also be damaged. The smoke
and dust created when the airbags are
deployed can cause skin and eye irritation/
injury after intensive exposure. In case of
irritation, wash with cold water. The rapid
deployment sequence and airbag fabric
may cause friction and skin burns.
NOTE
The SRS, SIPS, IC and belt tensioner sys-
A
tems are deployed only once during a collision.
WARNING
The airbag control module is located in the
centre console. If the centre console is
drenched with water or other liquid, disconnect the battery cables. Do not attempt to
start the car since the airbags may deploy.
Recovering the car. Volvo recommends that
you have it conveyed to an authorised Volvo
workshop.
If the airbags have deployed, the following is
recommended:
30
Page 32
01 Safety
Reduced functionality
If the car is involved in a collision, the text
Safety mode See manual may appear on the
information display. This means that the car
has reduced functionality. Safety mode is a
protective state that is enforced when the collision may have damaged any of the car's vital
functions, such as the fuel lines, sensors for
one of the safety systems, or the brake system.
Attempting to start the car
First, check that no fuel is leaking from the car.
There must be no smell of fuel either.
If everything seems normal and you have
checked for indications of fuel leakage, you
may attempt to start the car.
Firstly, remove the remote control key and then
reinsert it. The car's electronics will then try to
reset themselves to normal mode. Then try to
start the car. If the message
manual
is still shown on the display then the
car must not be driven or towed, but a vehicle
recovery service used instead. Even if the car
appears to be driveable, hidden damage may
make the car impossible to control once moving.
Safety mode See
Moving the car
If Normal mode is shown after Safety mode
See manual
G021062
moved carefully out of a dangerous position.
Do not move the car further than necessary.
has been reset, the car can be
WARNING
Never attempt to repair your car or reset the
electronics yourself if the car has been in
safety mode. This could result in personal
injury or the car not functioning as normal.
Volvo recommends that you engage an
authorised Volvo workshop to check and
restore the car to normal status after
mode See manual
has been displayed.
WARNING
Never, under any circumstances, attempt to
restart the car if it smells of fuel when the
Safety mode message is displayed. Leave
the car at once.
Safety
Safety mode
WARNING
If the car is in safety mode it must not be
towed. It must be transported from its location. Volvo recommends that it is transported to an authorised Volvo workshop.
01
31
Page 33
01 Safety
01
Child safety
Children should sit comfortably and
safely
The position of a child in the car and the choice
of equipment are dictated by the child's weight
and size, for more information, see page 33.
NOTE
Regulations regarding the placement of
children in cars vary from country to country. Check what does apply.
Children of all ages and sizes must always sit
correctly secured in the car. Never allow a child
to sit on the knee of a passenger.
Volvo's own child safety equipment is
designed for your car. Volvo recommends that
you use Volvo genuine equipment to best
ensure that the mounting points and attachments are correctly positioned and are sufficiently strong.
NOTE
In the event of questions when fitting child
safety products, contact the manufacturer
for clearer instructions.
Child seats
Child seats and airbags are not compatible.
Volvo has child safety products that are
designed for and tested by Volvo.
NOTE
When using child safety products it is
important to read the installation instructions included.
Do not attach the straps for the child seat to
the horizontal adjustment bar, springs, rails or
beams under the seat. Sharp edges can damage the straps.
Look in the installation instructions for the child
seat for the correct fitting.
Location of child seats
You may place:
a child seat/booster cushion on the pas-
•
senger seat, provided the passenger airbag is not activated
a rear-facing child seat in the rear seat.
•
Always place a child in the rear seat if the passenger airbag is activated. A child sitting on the
front passenger seat could suffer serious injury
if the airbag deploys.
G020739
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
(SRS) is activated.
No one shorter than 140 cm should ever sit
in the front passenger seat if the airbag
(SRS) is activated.
Failure to follow the advice given above
could endanger the life of the child.
1
.
1
For information on activated/deactivated airbag (SRS), see page 22.
32
Page 34
01 Safety
WARNING
Booster cushions/child seats with steel
braces or some other design that could rest
on the seatbelt buckle's opening button
must not be used, as they could cause the
seatbelt buckle to open accidentally.
Do not allow the upper section of the child
seat to rest against the windscreen.
Recommended child seats
2
Label Airbag
Label located on instrument panel end face on the
passenger side.
Weight/Age Front seat Outer rear seat Centre rear seat
Group 0
max 10 kg
(0 – 9 months)
and
Group 0+
max 13 kg
Volvo Child seat – rear-facing child
seat, secured with the car's seatbelt
and straps.
Type approval: E5 03135
Volvo infant seat - rear-facing child
seat, secured with the ISOFIX fixture
system.
Type approval: E1 03301146
Volvo infant seat – rear-facing child
seat, secured with the car's seatbelt.
Type approval: E1 03301146
Volvo Child seat – rear-facing child
seat, secured with the car's seatbelt,
straps and support legs.
Type approval: E5 03135
Volvo infant seat - rear-facing child
seat, secured with the ISOFIX fixture
system.
Type approval: E1 03301146
Volvo infant seat – rear-facing child
seat, secured with the car's seatbelt.
Type approval: E1 03301146
Volvo infant seat – rear-facing child
seat, secured with the car's seatbelt.
Type approval: E1 03301146
Child safety
01
2
With regard to other child seats your car should be included in the manufacturer's enclosed list of vehicles or be universally approved in accordance with the ECE R44 legal requirement.
``
33
Page 35
01 Safety
01
Child safety
Weight/Age Front seat Outer rear seat Centre rear seat
Group 1
9-18 kg
(9-36 months)
Group 2, 15-25 kg, 3-6yrVolvo turnable child seat - front-facing
Volvo Child seat – rear-facing child
seat, secured with the car's seatbelt
and straps.
Type approval: E5 03135
Volvo turnable child seat – rear-facing
child seat, secured with the car's seatbelt and straps.
Type approval: E5 04192
Britax Fixway – rear-facing child seat,
secured with the ISOFIX fixture system
and straps.
Type approval: E5 03171
child seat, secured with the car's seatbelt.
Type approval: E5 04191
Volvo turnable child seat – rear-facing
child seat, secured with the car's seatbelt and straps.
Type approval: E5 04192
Volvo Child seat – rear-facing child
seat, secured with the car's seatbelt,
straps and support legs.
Type approval: E5 03135
Volvo turnable child seat – rear-facing
child seat, secured with the car's seatbelt and straps.
Type approval: E5 04192
Britax Fixway – rear-facing child seat,
secured with the ISOFIX fixture system
and straps.
Type approval: E5 03171
Volvo turnable child seat - front-facing
child seat, secured with the car's seatbelt.
Type approval: E5 04191
Volvo turnable child seat – rear-facing
child seat, secured with the car's seatbelt and straps.
Type approval: E5 04192
Volvo turnable child seat - front-facing
child seat, secured with the car's seatbelt.
Type approval: E5 04191
34
Page 36
01 Safety
Weight/Age Front seat Outer rear seat Centre rear seat
Group 2/3
15-36 kg
(3-12 yr)
Integrated two-stage booster
cushions*
Correct position, the seatbelt is positioned above
the shoulder.
Volvo Booster cushion – with or without backrest.
Type approval: E5 03139
Volvo booster cushion with backrest.
Type approval: E1 04301198
Incorrect position, the head must not be posi-
G017875
tioned above the head restraint and the seatbelt
must not be below the shoulder.
Volvo Booster cushion – with or without backrest.
Type approval: E5 03139
Volvo booster cushion with backrest.
Type approval: E1 04301198
Volvo 2-stage Integrated booster
cushion – available as a factory fitted
option.
Type approval: E5 04189
The booster cushions are specially designed to
provide optimum safety. In combination with
the seatbelt they are approved for children who
weigh between 15 and 36 kg and who are 95
to 140 cm in height.
Check before driving that:
•
•
G017719
Volvo Booster cushion – with or without backrest.
Type approval: E5 03139
Volvo booster cushion with backrest.
Type approval: E1 04301198
the 2-stage integrated booster cushion is
correctly set (see table below) and in
locked position
the seatbelt is in contact with the child's
body and is not slack or twisted
Child safety
01
* Option/accessory, for more information, see Introduction.
``
35
Page 37
01 Safety
01
Child safety
the seatbelt does not lie across the child's
•
throat or below the shoulder (see preceding illustrations)
the lap section of the seatbelt is positioned
•
low over the pelvis to provide optimal protection.
Stage 1 Stage 2
Weight 22-36 kg 15-25 kg
Length 115-140 cm 95-120 cm
For instructions on adjusting the booster cushion's two levels, see pages 35–37.
Raising the two-stage booster cushion
Stage 1
Pull the handle forward and up in order to
release the booster cushion.
Press the booster cushion backwards to
lock.
Stage 2
Start from the lower stage. Press the but-
ton.
G017697
Lift the booster cushion up at the front edge
and press it back against the backrest to lock.
WARNING
Volvo recommends that repair or replacement is only carried out by an authorised
Volvo workshop. Do not make any modifications or additions to the booster cushion.
If an integrated booster cushion has been
subjected to a major load, such as in conjunction with a collision, the entire booster
cushion must be replaced. Even if the
booster cushion appears to be undamaged,
it may not afford the same level of protection. The booster cushion must also be
replaced if it is heavily worn.
G017784
36
Page 38
01 Safety
NOTE
It is not possible to adjust the booster cushion from stage 2 to stage 1. It must first be
reset by being fully folded into the seat
cushion. Refer to the heading below, Lowering the two-stage booster cushion.
Lowering the two-stage booster cushion
Lowering can take place from both the upper
and lower stage to fully lowered position in the
cushion. However, it is not possible to adjust
the booster cushion from the upper stage to
the lower stage.
Pull the handle forwards to release the
cushion.
Press down with your hand in the centre of
the cushion in order to lock it.
WARNING
If the instructions regarding the two-stage
booster cushion are not followed then this
could cause serious injury to a child in the
event of an accident.
IMPORTANT
Check that there are no loose objects (e.g.
toys) left behind in the space under the
cushion before lowering.
NOTE
The booster cushion must be lowered first
when lowering the backrest.
Child safety
Child safety locks, rear doors
The controls for operating the rear door power
windows and the rear door opening handles
can be blocked from opening from the inside.
For more information, see page 58.
ISOFIX fixture system for child seats
Mounting points for the ISOFIX fixture system
are concealed behind the lower section of the
rear seat backrest, in the outer seats.
The location of the mounting points is indicated
by symbols in the backrest upholstery (see preceding illustration).
Press the seat cushion down to access the
mounting points.
01
G021064
``
37
Page 39
01 Safety
01
Child safety
NOTE
The ISOFIX fixture system is an accessory
for the passenger seat.
Always follow the manufacturer's installation
instructions when connecting a child seat to
the ISOFIX mounting points.
Size classes
Child seats are in different sizes – cars are in
different sizes. This means that not all child
seats are suitable for all seats in all car models.
Consequently, a size classification has been
introduced for child seats using the ISOFIX fixture system in order to assist users in choosing
the correct child seat (see the following table).
Size
Description
class
A Full size, front-facing child
B Reduced size (alt. 1), front-
seat
facing child seat
Size
Description
class
B1 Reduced size (alt.2), front-
C Full size, rear-facing child
D Reduced size, rear-facing
E Rear-facing infant seat
F Transverse infant seat, left-
G Transverse infant seat, right-
facing child seat
seat
child seat
hand
hand
WARNING
Never place a child in the passenger seat if
the car is equipped with an activated airbag.
NOTE
If an ISOFIX child seat has no size classification then the car model must be included
on the child seat's vehicle list.
NOTE
Volvo recommends that you contact an
authorised Volvo dealer for recommendations about which ISOFIX child seats Volvo
recommends.
38
Page 40
01 Safety
Child safety
Types of ISOFIX child seat
Type of child seat Weight (Age) Size class Passenger seats for ISOFIX installation of child seats
Front seat Outer rear seat
Infant seat transverse max. 10 kg (0-9 months) F - -
G - -
Infant seat, rear-facing max. 10 kg (0-9 months) E OK OK
Infant seat, rear-facing max. 13 kg (0 – 12 months) E OK OK
D OK OK
C OK OK
Child seat, rear-facing 9 – 18 kg (9 – 36 months) D OK OK
C OK OK
Front-facing child seat 9 – 18 kg (9 – 36 months) B
A
Volvo recommends rear-facing child seats for this group.
B1
A
OK
A
OK
A
OK
A
OK
OK
OK
A
A
A
01
``
39
Page 41
01 Safety
01
Child safety
Upper mounting points for child seats
The car is equipped with upper mounting
points for certain front-facing child seats.
These mounting points are located on the rear
of the seat.
The upper mounting points are primarily
intended for use with front-facing child seats.
Volvo recommends that small children should
sit in rear-facing child seats to as late an age
as possible.
NOTE
For cars with folding head restraints on the
outside seats the head restraints should be
folded to facilitate the installation of this
type of child seat.
NOTE
For cars equipped with a cargo area cover
over the cargo area, this must be removed
before a child seat can be fitted in the
mounting points.
For detailed information on how the child seat
should be tensioned in the upper mounting
points, see the seat manufacturer's instructions.
G017676
WARNING
The child seat's straps must always be
routed under the rear head restraints before
being tensioned at the mounting point.
40
Page 42
01 Safety
01
41
Page 43
Remote control key/key blade................................................................ 44
Battery replacement, remote control key/PCC*...................................... 49
Keyless drive*.......................................................................................... 51
Locking/unlocking................................................................................... 53
Child safety locks.................................................................................... 58
Alarm*...................................................................................................... 59
42
* Option/accessory, for more information, see Introduction.
Page 44
LOCKS AND ALARM
02
Page 45
02 Locks and alarm
Remote control key/key blade
General
The car is supplied with two remote control
02
keys or two PCCs (Personal Car
Communicator). They are used to start the car
and for locking and unlocking.
More remote control keys can be ordered – up
to six can be programmed and used for the
same car.
The PCC has increased functionality compared with the remote control key. The continuation of this chapter describes the functions
available in both the PCC and the remote control key.
WARNING
If there are children in the car:
Always remember to switch off the power
supply to power windows and sunroof by
removing the remote control key if the driver
leaves the car.
Detachable key blade
A remote control key includes a detachable
metal key blade for mechanical locking/
unlocking of the driver's door and glovebox.
The key blade is also used to deactivate/activate PACOS*, see page 22.
For key blade functions, see page 47.
The key blade's unique code is provided by
authorised Volvo workshops, which are recommended when ordering new key blades.
Loss of a remote control key
If you lose a remote control key then new ones
can be ordered at a workshop - an authorised
Volvo workshop is recommended. The remaining remote control keys must then be taken to
the workshop. The code of the missing remote
control key must be erased from the system as
a theft prevention measure.
The current number of keys registered to the
car can be checked under Car settings
Key memory Number of keys. For a
description of the menu system, see
page 120.
Car
Key memory – door mirrors and driver's
seat
The settings are automatically connected to
each respective remote control key, see pages
76 and 94.
The function can be activated/deactivated
under Car settings
Seat & mirror positions. For a description of
the menu system, see page 120.
For cars with Keyless drive function, see
page 51.
Car Key memory
Indicator for locking/unlocking
When the car is locked or unlocked using the
remote control key, the direction indicators
confirm that locking/unlocking was correctly
performed:
Locking - one flash
•
Unlocking - two flashes.
•
After locking the indication is only given if all
locks are activated once the doors have been
closed.
The function can be activated/deactivated
under Car settings
confirmation light and Car settings
settings Unlock confirmation light.
For a description of the menu system, see
page 120.
Light settings Lock
Light
Immobiliser
Each remote control key has a unique code.
The car can only be started with the correct
remote control key with the correct code.
The following error messages in the combined
instrument panel's information display are related to the electronic immobiliser:
44
* Option/accessory, for more information, see Introduction.
Page 46
02 Locks and alarm
Remote control key/key blade
Message Specification
Key error Try again
Car key not found
Immobiliser Try
start again
For starting the car, see page 100.
Error reading remote
control key during
start. Try to start the
car again.
Applies only to the
PCC's Keyless drive
function. Errors
reading the PCC
during starting. Try
to start the car
again.
Remote control key
function error during
start. If the fault persists the recommendation is to contact
an authorised Volvo
workshop.
Functions
Remote control key.
Locking
Unlocking
Approach light duration
Tailgate
Panic function
G021078
PCC* (Personal Car Communicator).
Information
Function buttons
Locking – Locks the doors and tailgate
and then activates the alarm.
Press and hold (at least 4 seconds) to close all
the windows and sunroof* simultaneously.
WARNING
If the sunroof and windows are closed using
the remote control key, check that no one is
in danger of getting hands caught.
Unlocking – Unlocks the doors and tail-
gate while the alarm is deactivated.
02
G021079
* Option/accessory, for more information, see Introduction.
``
45
Page 47
02 Locks and alarm
Remote control key/key blade
The function can be changed from unlocking
all doors simultaneously, to opening the driv-
02
er's door after one press of the button and,
after a further press of the button - within
10 seconds - opening the remaining doors.
The function is changed under Car settings
Lock settings Doors unlock. For a
description of the menu system, see
page 120.
Approach lighting – Used to switch on the
car's lighting at a distance. For more information, see page 85.
Tailgate - Unlocks and disarms the alarm
for the tailgate only. On cars with power tailgate* the tailgate is opened after the button is
kept depressed. For more information, see
page 55.
Panic function – Used to attract attention
in an emergency.
Press and hold the red button for at least 3 seconds or press it twice within 3 seconds to activate the direction indicators and the horn.
The function can be turned off with the same
button once it has been active for at least
5 seconds. Otherwise the function switches off
automatically after 2 minutes and 45 seconds.
Range
The remote control key has a range of up to
20 m from the car.
NOTE
The remote control key functions can be
disrupted by surrounding radio waves,
buildings, topographical conditions etc. The
car can always be locked/unlocked using
the key blade, see page 48.
Unique functions PCC*
Information button
Indicator lamps
Using the information button enables access to
certain information from the car via the indicator lamps.
Using the information button
±
Press the information button
> All indicator lamps flash for approxi-
mately 7 seconds and the light travels
around on the PCC. This indicates that
information from the car has been read.
If any of the other buttons are pressed
during this time then the reading is interrupted.
NOTE
If none of the indicator lamps illuminates
with repeated use of the information button
and in different locations (as well as after 7
seconds and after the light has travelled
around on the PCC), contact a workshop an authorised Volvo workshop is recommended.
Indicator lamps display information in accordance with the following illustration:
G021080
.
46
* Option/accessory, for more information, see Introduction.
Page 48
02 Locks and alarm
Remote control key/key blade
Green continuous light – the car is locked.
Yellow continuous light – the car is
unlocked.
Red light flashing alternately in the two
indicator lamps – indicates, using the HBS
(Heart Beat Sensor) that someone may be
in the car. This indication is only displayed
if the alarm was triggered.
Red continuous light – the alarm has been
triggered.
Range
The PCC lock functions have a range of up to
20 m from the car.
The approach lighting, panic function and the
functions controlled by the information button
have a range of up to a maximum of 100 m from
the car.
NOTE
The information button functions can be
disrupted by surrounding radio waves,
buildings, topographical conditions etc.
Out of PCC range
If the PCC is too far away from the car for the
G030262
information to be read then the status the car
was last left in is shown, without the light travelling around on the PCC.
If several PCCs are used for the car then it is
only the PCC last used for locking/unlocking
that shows correct status.
NOTE
If no indicator lamps illuminate when the
information button is used then this can be
because the last communication between
the PCC and the car was disrupted by surrounding radio waves, buildings, topographical conditions etc.
Heart Beat Sensor
The function operates using an HBS (Heart
Beat Sensor). HBS is a supplement to the car's
alarm system and can indicate at a distance
whether anybody is in the car. This indication
is only displayed if the alarm was triggered.
The HBS detects an individual's heartbeat that
is transmitted to the car's bodywork. For this
reason the function of the HBS can be disturbed in an environment subject to noise and
vibration.
Detachable key blade
Using the remote control key's detachable key
blade:
the driver's door can be opened manually
•
if central locking cannot be activated with
the remote control key
access to the glovebox is blocked
•
PACOS* activated/deactivated, see
•
page 22.
02
* Option/accessory, for more information, see Introduction.
``
47
Page 49
02 Locks and alarm
Remote control key/key blade
Removing the key blade
02
Slide the spring-loaded catch to the side.
At the same time pull the key blade straight
out backwards.
Inserting the key blade
Carefully refit the key blade in place in the
remote control key, to avoid damaging it.
1. Hold the remote control key with the slot
pointed up and lower the key blade into its
slot.
2. Lightly press the key blade. You should
hear a "click" when the key blade is locked
in.
Unlocking doors with the key blade
If central locking cannot be activated with the
remote control key, e.g. if the batteries are discharged, then the driver's door can be opened
as follows:
NOTE
When the driver's door is unlocked using the
key blade and is opened, the alarm is triggered.
G021082
1. Unlock the driver's door using the key
blade in the door handle's keyhole.
2. Deactivate the alarm by inserting the
remote control key in the ignition switch.
48
Page 50
02 Locks and alarm
Battery replacement, remote control key/PCC*
Replacing the battery
The batteries should be replaced if:
the information symbol is illuminated and
•
the display shows
battery
and/or
the locks repeatedly do not react to signals
•
from the remote control key within
20 metres from the car.
Replace car key
Opening
Slide the spring-loaded catch to the
side.
At the same time pull the key blade
straight out backwards.
Insert a 3 mm slot screwdriver in the
hole behind the spring-loaded catch and
gently prize the remote control key up.
NOTE
Turn the remote control key over with the
buttons facing up, this is to avoid the batteries falling out when it is opened.
IMPORTANT
Avoid touching the battery and its terminals
with your fingers, as this could damage their
functionality.
Battery replacement
Closely study how the battery/batteries are
secured on the inside of the cover, with
regard to their (+) and (–) sides.
Remove control key (1 battery)
1. Carefully prize out the battery.
2.
Install a new one with the (+) side down.
PCC* (2 batteries)
1. Carefully prize out the batteries.
2.
First install one new one with the (+) side
up.
3. Position the white plastic tab in between
and finally install a second new battery with
the (+) side down.
Battery type
Use batteries with the designation CR2430, 3V
- one in the remote control key and two in the
PCC.
Assembly
1. Press the remote control key together.
2. Hold the remote control key with the slot
pointed up and lower the key blade into its
slot.
3. Lightly press the key blade. You should
hear a "click" when the key blade is locked
in.
02
* Option/accessory, for more information, see Introduction.
``
49
Page 51
02
02 Locks and alarm
Battery replacement, remote control key/PCC*
IMPORTANT
Make sure that you dispose of old batteries
in an environmentally-friendly way.
50
* Option/accessory, for more information, see Introduction.
Page 52
02 Locks and alarm
Keyless drive*
Keyless drive (only PCC)
Keyless lock and ignition system
The keyless drive function in the PCC allows
the car to be unlocked, driven and locked without the need for a key. You simply have to have
the PCC with you. The system makes it easier
and more convenient to open the car, e.g.
when your hands are full.
The car's two PCCs incorporate the Keyless
function. Additional PCCs can be ordered.
PCC range
In order to open a door or the tailgate, a PCC
must be no more than approx. 1.5 metres from
the car door handle or tailgate. This means that
the person who wishes to lock or unlock a door
must have the PCC with him or her. It is not
possible to lock or unlock a door if the PCC is
on the opposite side of the car.
The red rings in the preceding illustration indicate the range covered by the system's antennas.
If all PCCs are removed from the car when the
engine is running or key position II is active
(see page 73) and if all doors are closed, then
a warning message is shown in the information
display and an audio reminder signal sounds at
the same time.
The warning message clears and the audio
reminder signal stops when the PCC is brought
back to the car after:
a door has been opened and closed
•
the PCC is inserted into the ignition switch
•
the READ button has been pressed.
•
Handling the PCC safely
If a PCC with keyless drive function is left in the
car, it is deactivated temporarily when the car
is locked. This prevents unauthorised entry.
However, if someone breaks into the car,
opens the door and finds the PCC, it can be
reactivated. It is therefore important to handle
all PCCs with great care.
IMPORTANT
Never leave a PCC behind in the car.
Interference to PCC function
Electromagnetic fields and screening can interfere with the keyless drive system. For this reason, do not place the PCC near mobile phones
or metallic objects.
If interference is experienced nonetheless, use
the PCC and key blade in the normal way, see
page 45.
Unlocking
Open the doors with the door handles or open
the tailgate with the tailgate's handle.
Unlocking with the key blade
If the keyless drive function in the PCC is not
operating, then the driver's door can be
unlocked with the key blade. In this case central locking is not activated.
NOTE
Unlocking with the key blade triggers the
alarm. For deactivation, see page 60.
Key memory – driver's seat and door
mirrors
PCC memory function
If several people each with a PCC approach the
car, then the settings for seat and mirrors are
implemented for the person who opens the
driver's door.
02
* Option/accessory, for more information, see Introduction.
``
51
Page 53
02 Locks and alarm
Keyless drive*
After the driver's door has been opened by
person A with PCC A, but person B with PCC
02
B shall drive, the settings can be changed in
three ways:
Standing by the driver's door, or sitting
•
behind the steering wheel, person B
presses their PCC's unlock button, see
page 45.
Select one of three possible memories for
•
seat adjustment with seat button 1-3, see
page 76.
Adjust seat and mirrors manually, see
•
page 75 and 94.
Locking
Lock the doors and the tailgate by pressing the
lock button on one of the door handles on the
outside.
All doors and the tailgate must be closed
before the car can be locked. Otherwise the car
will not be locked.
NOTE
On cars with automatic transmission, the
gear selector must be set in the P position
– otherwise the car cannot be locked or the
alarm armed.
Lock settings
The keyless function can be adapted to specify
which of the car doors are to be unlocked,
under Car settings
Keyless entry. For a description of the menu
system, see page 120.
Lock settings
Antenna location
The keyless system has a number of integrated
antennae located around the car:
Tailgate, by wiper motor
Door handle, left rear
Roof, above centre rear seat
Cargo area, central and furthest in under
the floor
Door handle, right rear
Centre console, under the rear section
Centre console, under the front section.
WARNING
People with pacemaker operations should
not come closer than 22 cm to the keyless
system's antennae with their pacemaker.
This is to prevent interference between the
pacemaker and the keyless system.
G021179
52
* Option/accessory, for more information, see Introduction.
Page 54
02 Locks and alarm
Locking/unlocking
From the outside
The remote control key can lock/unlock all
doors and the tailgate simultaneously. Different
sequences can be selected for locking/unlocking; see page 120.
The lock buttons and door handles are disengaged during locking which also prevents
opening from the inside, so-called deadlocks
function*, see page 56.
If it is not possible to lock/unlock with the
remote control key, the battery may be discharged - lock or unlock the door with the
detachable key blade; see page 48.
WARNING
Be aware that there is a risk that you can be
locked in the car if it is locked from the outside.
Automatic relocking
If none of the doors or the tailgate is opened
within 2 minutes of unlocking, all are locked
again automatically. This function reduces the
risk that the car is left unlocked unintentionally.
(For cars with alarm, see page 59.)
From the inside
All of the doors and the tailgate can be locked
or unlocked simultaneously using the central
locking button on either front door. Press one
side
of the button to lock - the other side
to unlock.
Unlocking
A door can be unlocked from the inside in two
different ways:
•
Press the central locking button .
Press and hold (at least 4 seconds) to also
open all the side windows* simultaneously.
Pull the door handle once and release - the
•
door is unlocked. Pull the door handle
again to open the door.
Locking
Press the central locking button after the
front doors have been closed. Press and hold
(at least 4 seconds) to also close all the side
windows and the sunroof* simultaneously.
All the doors can be locked manually with their
respective lock buttons after the door has been
closed.
Global opening
Press and hold the central locking button
(at least 4 seconds) to also open all the windows simultaneously - for example, to quickly
ventilate the passenger compartment during
hot weather.
Automatic locking
The doors and tailgate are locked automatically when the car starts to move.
The function can be activated/deactivated
under Car settings
Doors automatic lock. (For a description of
the menu system, see page 120.)
Lock settings
02
* Option/accessory, for more information, see Introduction.
``
53
Page 55
02 Locks and alarm
Locking/unlocking
Glovebox
02
The glovebox can only be locked/unlocked
using the remote control key's detachable key
blade. (For information on the key blade, see
page 48).
Locking the glovebox:
Insert the key blade in the glovebox lock.
Turn the key blade 90 degrees clockwise.
The keyhole is horizontal in the locked
position.
Pull out the key blade.
Unlock by carrying this out in reverse order.
Tailgate
Unlocking with the remote control key
The alarm for the tailgate can be disarmed*,
and the tailgate unlocked and opened on its
own* by using the remote control key.
NOTE
On cars with the power operated tailgate
option, the tailgate is opened – otherwise it
is only unlocked.
If the car is equipped with an alarm* the alarm
indicator on the instrument panel stops to
show that alarm for the whole of the car is not
armed. The alarm's level and movement sensors and the sensors for opening the tailgate
are automatically disconnected.
The doors remain locked and armed.
NOTE
When the tailgate is closed it remains
unlocked until the car is relocked with the
remote control key's lock button.
Unlocking the car from inside
To unlock and open* the tailgate.
±
Press the lighting panel button (1).
Locking with the remote control key
Press the remote control key button for locking, see page 45.
If the car is equipped with an alarm* the alarm
indicator on the instrument panel starts to
flash, which means that the alarm is armed.
54
* Option/accessory, for more information, see Introduction.
Page 56
02 Locks and alarm
Locking/unlocking
Power operated tailgate*
IMPORTANT
Pay attention to the height of the roof when
using power operation. Do not use power
tailgate operation with low roof heights, see
under the heading "Interrupt opening/closing the tailgate".
NOTE
If the system has been operating con-
•
tinuously for more than 60 seconds then
it is switched off to avoid overloading. It
can be used again after about 10
minutes.
If the battery has been discharged or
•
disconnected then the cover must be
opened and closed manually once in
order to reset the system.
G031965
Snow and wind
If the tailgate is forced down by something just
when it is being opened, e.g. snow, ice or
strong wind, and this causes the tailgate to
lower, then it is closed automatically.
Pinch protection
If something with sufficient resistance prevents
the tailgate from opening/closing then the
pinch protection is activated.
During opening - power tailgate operation
•
is deactivated and the tailgate is disengaged.
During closing - the tailgate returns to the
•
fully open position.
WARNING
Pay attention to the risk of crushing when
opening/closing. Before starting to open/
close; make sure that there is nobody close
to the tailgate as a crushing injury could
have serious consequences.
Always operate the tailgate with caution.
Manual tailgate operation
The system is disengaged if the rubberised
pressure plate beneath the outside handle is
actuated a second time. The tailgate can then
be operated manually.
Opening the tailgate
The tailgate can be opened three
ton):
•
•
•
ways (two of which involve this but-
Long press on the tailgate button in the
lighting panel - hold the button depressed
until the tailgate starts to open.
Long press on the remote control button
for the tailgate - hold the button depressed
until the tailgate starts to open.
Lightly press the rubberised pressure plate
beneath the outside handle and raise the
tailgate.
02
* Option/accessory, for more information, see Introduction.
``
55
Page 57
02 Locks and alarm
Locking/unlocking
Closing the tailgate
02
•
Close using this button on the tailgate
or manually.
Press the tailgate's button – the tailgate
closes automatically.
Stop the opening/closing of the tailgate
This can be done four ways (of which
three involve this button):
Press the tailgate button in the lighting
•
panel
Press the tailgate button on the remote
•
control
Press the tailgate button on the tailgate
•
Press the rubberised pressure plate
•
beneath the outside handle.
Tailgate movement is stopped following the
same pattern as when pinch protection is triggered. Refer to this chapter's section with the
heading "Pinch protection".
Deadlocks*
When deadlocked, the doors cannot be
opened from the inside if they are locked.
The deadlocks are activated with the remote
control key and are set after a 10 second delay
after the doors are locked.
The car can only be unlocked from a deadlock
state with the remote control key. The driver's
door can also be unlocked with the detachable
key blade.
Temporary deactivation
Active menu options are indicated with a cross.
Navigation
ENTER
MENU
EXIT
If someone is going to stay in the car but the
doors must be locked from the outside, then
the deadlocks function can be temporarily
switched off. This is carried out as follows:
1.
Access the menu system under
settings
menu system, see page 120).
2.
Select
3.
Select
> The instrument panel display shows the
or
±
Select
> Each time the engine is switched off the
G031384
If the deadlocks function shall be switched
off
±
Press ENTER and lock the car. (If the car
is equipped with an alarm with movement
and tilt detectors* then these are switched
off at the same time, see page 60.)
(for a detailed description of the
Reduced guard.
Activate once.
message
manual
switched off when the car is locked.
audio system's display shows the message
the engine is started again. Press
EXIT to cancel
alternatives.
Reduced guard See
and the deadlocks function is
Ask on exit.
ENTER reduces protection until
- then select one of the
Car
56
* Option/accessory, for more information, see Introduction.
Page 58
> The next time the engine is started, the
system is reset to zero and the instrument panel display shows the message
Full guard at which the deadlocks func-
tion and the alarm's movement and tilt
detectors are re-engaged.
If the locking system shall not be changed
±
Select no options at all and lock the car.
or
±
Press EXIT and lock the car.
NOTE
If the car is equipped with an alarm:
Remember that the car's alarm is armed
•
when the car is locked.
If any of the doors are opened from the
•
inside then the alarm will be triggered.
WARNING
Do not allow anyone to remain in the car
without first deactivating the deadlocks to
avoid the risk of anyone being locked in.
02 Locks and alarm
Locking/unlocking
02
57
Page 59
02 Locks and alarm
Child safety locks
Manual blocking of the rear doors
02
The child safety locks are located on the trailing
edge of the rear doors and are only accessible
when the doors are open.
±
Use the key blade to turn the lock and thus
activate or deactivate the child safety lock.
The door cannot be opened from inside.
The doors can be opened from inside.
NOTE
Cars with electric child safety locks do not
have manual child locks.
Electrical locking of the rear doors and
power windows*
G021077
When the electric child safety lock is active:
the rear windows can only be opened with
•
the driver's door control panel
the rear doors cannot be opened from the
•
inside.
1. Child safety locks are activated/deactivated in ignition position I or II see
page 73.
2. Press the button in the driver's door control
panel.
> The information display shows a mes-
sage.
The lamp on the switch illuminates when
the locks are activated.
G019300
58
* Option/accessory, for more information, see Introduction.
Page 60
02 Locks and alarm
Alarm*
General
The alarm is triggered if:
a door, the bonnet or the tailgate is opened
•
a non-approved remote control key is used
•
or if an attempt is made to force the ignition
switch
a movement is detected in the passenger
•
compartment (if fitted with a movement
detector*)
the car is raised or towed away (if fitted
•
with a tilt detector*)
the battery's cable is disconnected
•
anyone tries to disconnect the siren.
•
If there is a fault in the alarm system, the information display shows a message. In which
case, contact a workshop - an authorised
Volvo workshop is recommended.
NOTE
The movement detectors trigger the alarm
in the event of movements in the passenger
compartment. For this reason the alarm
could be triggered if the car is left with a
window open or if an electric passenger
compartment heater is used.
To avoid this: Close the windows when leaving the car and aim the air from the passenger compartment heater so that it is not
directed up into the passenger compartment.
NOTE
One of the detectors for the alarm is located
under the cup holder in the centre console.
This detector is sensitive for metals.
Avoid storing coins, keys or similar metal
objects in the centre console's cup holder
as such objects could accidentally trigger
the alarm.
NOTE
Do not attempt to repair or modify alarm
system components. All such attempts
could affect the terms of insurance.
Alarm indicator
A red LED on the instrument panel indicates
the alarm system's status:
LED not lit – Alarm not armed
•
The LED flashes once every other second
•
– Alarm is armed
The LED flashes rapidly after disarming the
•
alarm (and until the remote control key is
inserted in the ignition switch and key position I is selected) – Alarm has been triggered.
Arming the alarm
±
Press the remote control key lock button.
Disarming the alarm
±
Press the remote control key unlock button.
02
* Option/accessory, for more information, see Introduction.
``
59
Page 61
02 Locks and alarm
Alarm*
Deactivating a triggered alarm
±
02
Press the remote control key unlock button
or insert the remote control key in the ignition switch.
Other alarm functions
Automatic re-arming of the alarm
This function prevents the car being left with
alarm disarmed unintentionally.
If the car is unlocked with the remote control
key (and the alarm is disarmed) but none of the
doors or the tailgate is opened within
2 minutes, then the alarm is automatically rearmed. The car is relocked at the same time.
Alarm signals
When the alarm is triggered, the following happens:
A siren sounds for less than 30 seconds.
•
The siren has its own battery which works
independently of the car battery.
The direction indicators flash for 5 minutes
•
or until the alarm has been deactivated.
Remote control key not working
If the remote control key is not working, the
alarm can still be switched off and the car
started as follows:
1. Open the driver's door with the key blade.
> The alarm is triggered and the siren
sounds.
2. Insert the remote control key in the ignition
switch.
> The alarm is deactivated. The alarm
indicator flashes quickly until the remote
control key is inserted.
Reduced alarm level
Active menu options are indicated with a cross.
Navigation
ENTER
MENU
EXIT
To avoid inadvertently triggering of the alarm for example when leaving a dog in the car or
during a ferry crossing - the movement and tilt
detectors can be temporarily switched off. This
is carried out as follows:
1.
Access the menu system under
settings
menu system, see page 120).
2.
Select
3.
Select
> The instrument panel display shows the
or
±
Select
> Each time the engine is switched off the
G031384
If the movement and tilt detectors shall be
switched off:
±
Press ENTER and lock the car. (If the car
is equipped with the deadlocks function*
then it is switched off at the same time, see
page 56.)
(for a detailed description of the
Reduced guard.
Activate once:
message
manual
detectors are switched off when the car
is locked.
Reduced guard See
and the movement and tilt
Ask on exit.
audio system's display shows the mes-
ENTER to reduce guard until
sage
the car has been started. Press EXIT
to cancel.
natives.
- then select one of the alter-
Car
60
* Option/accessory, for more information, see Introduction.
Page 62
> The next time the engine is started, the
system is reset to zero and the instrument panel display shows the message
Full guard at which the movement and
tilt detectors and the deadlocks function
are re-engaged.
If the detectors shall not be switched off:
±
Select no options at all and lock the car.
or
±
Press EXIT and lock the car.
02 Locks and alarm
Alarm*
02
* Option/accessory, for more information, see Introduction.
61
Page 63
Instruments and controls........................................................................ 64
Key positions.......................................................................................... 73
Seats....................................................................................................... 75
Steering wheel........................................................................................ 79
Lighting................................................................................................... 80
Wipers and washing................................................................................ 89
Windows, rearview and door mirrors...................................................... 92
Compass*................................................................................................ 97
Power panorama roof* ........................................................................... 98
Starting the engine................................................................................ 100
Starting the engine – external battery................................................... 102
Gearboxes............................................................................................. 103
All-wheel drive – AWD*......................................................................... 107
Foot brake............................................................................................. 108
Hill Descent Control (HDC)................................................................... 110
Parking brake........................................................................................ 112
HomeLink
62
* Option/accessory, for more information, see Introduction.
*.......................................................................................... 115
G020912
Page 64
YOUR DRIVING ENVIRONMENT
03
Page 65
03 Your driving environment
Instruments and controls
Instrument overview
03
Left-hand drive.
64
Page 66
03 Your driving environment
Instruments and controls
Function Page
Menus and messages,
direction indicators,
main/dipped beam, trip
computer
Cruise control 155, 156
Horn, airbags 20, 79
Combined instrument
panel
Menu, audio and phone
control
Start/stop button 100
Ignition switch 73
Information display for
menu navigation
Door handle -
Control panel 53, 58,
Hazard warning flashers 83
Menu control and audio
system
80,
83, 123,
150
67, 71
120,
137, 194
120
92, 94
120, 138
Function Page
Climate control, ECC 128
Gear selector 103
Controls for active chassis (Four-C)*
Wipers and washing 89, 90
Steering wheel adjustment
Bonnet opener 228
Parking brake* 112
Seat adjustment* 75
Headlamp control,
opener for fuel filler flap
and tailgate
154
79
54, 80,
208
03
* Option/accessory, for more information, see Introduction.
``
65
Page 67
03
03 Your driving environment
Instruments and controls
Right-hand drive.
66
Page 68
03 Your driving environment
Instruments and controls
Function Page
Information display for
menu navigation
Ignition switch 73
Start/stop button 100
Cruise control 155, 156
Combined instrument
panel
Horn, airbags 20, 79
Menu, audio and phone
control
Wipers and washing 89, 90
Headlamp control,
opener for fuel filler flap
and tailgate
Door handle -
Control panel 53, 58,
Seat adjustment* 75
Parking brake 112
120
67, 71
120,
137, 194
54, 80,
208
92, 94
Function Page
Bonnet opener 228
Steering wheel adjustment
Menus and messages,
direction indicators,
main/dipped beam, trip
computer
Controls for active chassis (Four-C)*
Gear selector 103
Climate control, ECC 128
Menu control and audio
system
Hazard warning flashers 83
79
80,
83, 123,
150
154
120, 138
Information displays
03
Information displays.
The information displays show information on
some of the car's functions, e.g. cruise control,
trip computer and messages. The information
is shown with text and symbols.
There are further descriptions under the functions that use the information displays.
* Option/accessory, for more information, see Introduction.
``
67
Page 69
03 Your driving environment
Instruments and controls
Meters
03
Meters in the combined instrument panel.
Speedometer
Fuel gauge. See also Trip computer, page
150, and Refuelling, page 208.
Tachometer. The meter indicates engine
speed in thousands of revolutions per
minute (rpm).
Indicator, information and warning
symbols
Indicator and warning symbols.
Main beam and direction indicator symbol
Indicator and information symbols
Indicator and warning symbols
1
Functionality check
All indicator and warning symbols illuminate in
key position II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake symbol, which only goes out when the brake is disengaged.
If the engine does not start or if the functionality
check is carried out in key position II then all
symbols go out after 5 seconds except the
symbol for faults in the car's emissions system
and the symbol for low oil pressure.
Indicator and information symbols
Symbol Specification
ABL fault
Emissions system
ABS fault
Rear fog lamp on
Stability system
Engine preheater (diesel)
Low level in fuel tank
Information, read display text
Main beam On
1
For certain engine variants, the symbol for low oil pressure is not used. Warnings are made via display text. For information on checking the oil level, see page 229.
68
Page 70
03 Your driving environment
Instruments and controls
Symbol Specification
Left-hand direction indicators
Right-hand direction indicators
ABL fault
The symbol illuminates if a fault has arisen in
the ABL function (Active Bending Lights).
Emissions system
If the symbol illuminates then it may be due to
a fault in the car's emissions system. Drive to
a workshop for checking. Volvo recommends
that you seek assistance from an authorised
Volvo workshop.
ABS fault
If this symbol illuminates then the system is not
working. The car's regular brake system continues to work, but without the ABS function.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
3. If the symbol remains illuminated, drive to
a workshop to have the ABS system
checked. Volvo recommends that you
seek assistance from an authorised Volvo
workshop.
Rear fog lamp
This symbol illuminates when the rear fog lamp
is on. There is only one fog lamp. It is located
on the driver's side.
Stability system
A flashing symbol indicates that the stability
system is operating. If the symbol illuminates
with constant glow then there is a fault in the
system.
Engine preheater (diesel)*
This symbol illuminates during engine preheating. Preheating occurs when the temperature
is below 2 °C. The car can be started once the
symbol goes out.
Low level in fuel tank
When the symbol illuminates the level in the
fuel tank is low, refuel as soon as possible.
Information, read display text
When one of the car's systems does not
behave as intended, this information symbol
illuminates and a text appears on the information display. The message text is cleared with
the READ button, see page 123, or it disappears automatically after a time (time depending on which function is indicated). The information symbol can also illuminate in conjunction with other symbols.
NOTE
When a service message is shown, the symbol and message are cleared using the
READ button, or clear automatically after a
while.
Main beam On
The symbol illuminates when main beam is on
and with main beam flash
Left/right-hand direction indicators
Both direction indicator symbols flash when
the hazard warning flashers are used.
Indicator and warning symbols
Symbol Specification
Low oil pressure
Parking brake applied
Airbags – SRS
Seatbelt reminder
Alternator not charging
A
03
* Option/accessory, for more information, see Introduction.
``
69
Page 71
03 Your driving environment
Instruments and controls
Symbol Specification
Fault in brake system
Warning
03
A
For certain engine variants, the symbol for low oil pressure
is not used. Warnings are made via display text, see pages
229 and 230.
Low oil pressure
If this symbol illuminates during driving then
the engine's oil pressure is too low. Stop the
engine immediately and check the engine oil
level, top up if necessary. If the symbol illuminates and the oil level is normal, contact a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo workshop.
Parking brake applied
This symbol illuminates with a constant glow
when the parking brake is applied. With the
electric parking brake, this symbol flashes
while it is being applied and then illuminates
with a constant glow.
A flashing symbol means that a fault has arisen.
Read the message on the information display.
NOTE
This symbol also illuminates when the
mechanical parking brake is only lightly
applied.
Airbags – SRS
If this symbol remains illuminated or illuminates
while driving, it means a fault has been
detected in the seatbelt buckle, SRS, SIPS, or
IC systems. Drive immediately to a workshop
to have the system checked. Volvo recommends that you seek assistance from an
authorised Volvo workshop.
Seatbelt reminder
This symbol illuminates if someone in a front
seat has not put on their seatbelt or if someone
in a rear seat has taken off their seatbelt.
Alternator not charging
This symbol illuminates during driving if a fault
has occurred in the electrical system. Visit a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo workshop.
Fault in brake system
If this symbol illuminates, the brake fluid level
may be too low. Stop the car in a safe place
and check the level in the brake fluid reservoir,
see page 232.
If the brake and ABS symbols illuminate at the
same time, there may be a fault in the brake
force distribution system.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
If both symbols extinguish, continue
•
driving.
If the symbols remain illuminated, check
•
the level in the brake fluid reservoir, see
page 232. If the brake fluid level is normal but the symbols are still illuminated,
the car can be driven, with great care, to
a workshop to have the brake system
checked. Volvo recommends that you
seek assistance from an authorised
Volvo workshop.
WARNING
If the brake fluid is under the MIN level in the
brake fluid reservoir, do not drive further
before topping up the brake fluid.
The loss of brake fluid must be investigated
by a workshop. Volvo recommends that you
contact an authorised Volvo workshop.
70
Page 72
03 Your driving environment
Instruments and controls
WARNING
If the brake and ABS symbols are illuminated at the same time, there is a risk that
the rear end will skid during heavy braking.
Warning
The red warning symbol illuminates when a
fault has been indicated which could affect the
safety and/or driveability of the car. An explanatory text is shown on the information display
at the same time. The symbol remains visible
until the fault has been rectified but the text
message can be cleared with the READ button, see page 123. The warning symbol can
also illuminate in conjunction with other symbols.
Action:
1. Stop in a safe place. Do not drive the car
further.
2. Read the information on the information
display. Implement the action in accordance with the message in the display. Clear
the message using the READ button.
Reminder – doors not closed
If one of the doors, the bonnet2 or tailgate is not
closed properly then the information or warning symbol illuminates together with an explan-
atory text message in the combined instrument
panel. Stop the car in a safe place as soon as
possible and close the door, bonnet or boot lid,
whichever is open.
If the car is driven at a speed lower than
approx. 7 km/h then the information
symbol illuminates.
If the car is driven at a speed higher
than approx. 7 km/h then the warning
symbol illuminates.
Trip meter
Trip meter and controls.
Display for trip meter
Controls for switching between trip meters
T1 and T2, as well as resetting the trip
meters.
The meters are used to measure short distances.
One short press on the control switches
between the two trip meters T1 and T2. A long
press (more than 2 seconds) resets an active
trip meter to zero. The distance is shown in the
display.
03
2
Only cars with alarm*.
* Option/accessory, for more information, see Introduction.
``
71
Page 73
03 Your driving environment
Instruments and controls
Clock
03
Clock and setting knob.
Controls for setting the clock.
Information display for showing the time.
Turn the knob clockwise/anticlockwise to set
the time. The set time is shown in the information display.
The clock can be temporarily replaced by a
symbol in conjunction with a message, see
page 123.
72
Page 74
03 Your driving environment
Key positions
Insert and remove the remote control
key
Ignition switch with inserted remote control key.
NOTE
For cars with keyless function*, see
page 51.
Insert the key
The remote control key, with its symbols correctly turned, is fitted in the ignition switch.
After a gentle press on the key it is drawn into
the lock.
IMPORTANT
Foreign objects in the ignition switch may
jeopardise the function or destroy the lock.
Do not press the remote control key incorrectly turned - Hold the end with the detachable key blade, see page 48.
Withdraw the key
The remote control key is ejected after a gentle
press on it. (Automatic gearbox* must be in
position P.)
Functions
The remote control key's 3 different key positions can be reached without the need to start
the engine. The table shows the functions
available in each key position.
NOTE
To reach key position I or II without starting
the engine - do not depress the brake/
clutch pedal when the following operations
are carried out.
Key position 0
Insert the remote control key in the ignition
switch and gently press it - The key is drawn
into the lock.
Key position I
With the remote control key inserted into the
ignition switch - Briefly press on START/STOP
ENGINE.
Key position II
With the remote control key inserted into the
ignition switch - Press on START/STOP
ENGINE for about 2 seconds.
Back to key position 0
To return to key position 0 from position I or II
- Briefly press on START/STOP ENGINE.
03
* Option/accessory, for more information, see Introduction.
``
73
Page 75
03 Your driving environment
Key positions
Posi-
Function
tion
Odometer, clock and tempera-
0
ture gauge are illuminated. The
steering lock is deactivated. The
03
For information on the audio system's functions with remote control key removed, see
page 137.
audio system can be used.
Panorama roof*, power windows,
I
12 V socket in the passenger
compartment, RTI*, phone*, ventilation fan, ECC and windscreen
wipers can be used.
The headlamps come on. Warn-
II
ing/indicator lamps illuminate for
5 seconds. All equipment operates apart from heated seats and
rear window defroster, which only
work when the engine is running.
Starting and stopping the engine
For information about starting/switching off the
engine, see page 100.
Towing
For important information about the remote
control key during towing, see page 224.
74
* Option/accessory, for more information, see Introduction.
Page 76
03 Your driving environment
Seats
Front seats
Lumbar support adjustment, turn the
1
wheel
.
Forward/backward: lift the handle to adjust
the distance to the steering wheel and pedals. Check that the seat is locked after
changing position.
Raise/lower* front edge of seat cushion,
pump up/down.
Adjust backrest rake, turn the wheel.
Raise/lower the seat, pump up/down.
Control panel for power seat*.
1
Also applies to power seat.
WARNING
Adjust the position of the driver's seat
before setting off, never while driving.
Check that the seat is locked in position.
Lowering the front seat backrest*
The passenger seat backrest can be folded
forward to make room for long loads.
Move the seat as far back/down as possible.
Adjust the backrest to an upright position.
Lift the catches on the rear of the backrest
and fold it forward.
Raising takes place in reverse order.
WARNING
Check that the front seat backrest is properly engaged after it is raised.
Power seat*
03
Front edge of seat cushion up/down
Seat forward/backward and up/down
Backrest rake
The power front seats have overload protection
which is tripped if a seat is blocked by an
object. If this happens, go to key position I or
0 and wait a short time before adjusting the
seat again.
Only one movement (forward/back/up/down)
can be made at a time.
``
* Option/accessory, for more information, see Introduction.
75
Page 77
03 Your driving environment
Seats
Preparations
The seats can be adjusted for a certain time
after unlocking the door with the remote control key without the key in the ignition switch.
Seat adjustment is normally made in key position I and can always be made when the engine
is running.
03
Seat with memory function*
Store setting
Memory button
Memory button
Memory button
Button for storing settings
1. Adjust the seat and the door mirrors.
2. Hold the button depressed to store settings while depressing one of the memory
buttons.
Using a stored setting
Hold one of the memory buttons depressed
until the seat and the door mirrors stop. If you
release the button then the movement of the
seat will stop.
Key memory* in remote control key
The positions of the driver's seat and the door
mirrors are stored in the key memory when the
car is locked with the remote control key.
When the car is unlocked with the same remote
control key and the driver's door is opened the
driver's seat and also the door mirrors auto-
2
matically adopt the positions stored in the key
memory.
NOTE
The seat and the door mirrors do not move
if they are already set the relevant position.
It is also possible to use the key memory by
pressing the unlock button on the remote control key when the driver's door is open.
The key memory can be activated/deactivated
under Car Key memory
positions. For a description of the menu sys-
tem, see page 120.
Seat & mirror
NOTE
The key memory in the two remote control
keys and the seat's three memories are
completely independent of each other.
Emergency stop
If the seat accidentally begins to move, press
one of the buttons to stop the seat.
Restarting to reach the seat position stored in
the key memory is performed by pressing the
unlock button on the remote control key. The
driver's door must then be open.
2
For key memory for keyless drive, see page 51.
76
* Option/accessory, for more information, see Introduction.
Page 78
03 Your driving environment
Seats
WARNING
Risk of crushing! Make sure that children do
not play with the controls. Check that there
are no objects in front of, behind or under
the seat during adjustment. Ensure that
none of the backseat passengers will be
trapped.
Heated seats
For heated seats, see page 129.
Rear seats
Head restraint, centre seat, rear
Adjust the head restraint according to passenger height so that the whole of the back of the
head is covered if possible. Slide it up as
required.
To lower the head restraint again, the button
(located in the centre between the backrest
and head restraint, see illustration) must be
pressed in while the head restraint is pressed
down.
Manual lowering of the outer head
restraints, rear seat
Pull the locking handle closest to the head
restraint to fold the head restraint forward.
The head restraint is moved back manually
until a "click" can be heard.
Lowering the rear seat backrest
The triple-section rear seat backrest can be
folded in different ways in order to facilitate
loading long objects.
NOTE
The front seats may need to be pushed forwards, and/or the backrests adjusted
upwards, in order that the rear backrests
can be folded forward fully.
The left-hand backrest can be folded sep-
•
arately.
The centre backrest can be folded sepa-
•
rately.
The right-hand backrest can be folded
•
together with the centre backrest.
All backrests can be folded together.
•
03
``
77
Page 79
03 Your driving environment
Seats
03
If the centre backrest is being lowered fold and adjust the centre backrest's head
restraint downwards, see page 77.
The outer head restraints are lowered automatically when the outer backrests are
lowered. Pull up the backrest's locking
handle
ward at the same time. A red indicator on
the lock catch
is no longer locked in place.
Raising takes place in reverse order.
When the backrest has been raised, the red
indicator should no longer be showing. If it
is still showing then the backrest is not
locked in place.
while folding the backrest for-
NOTE
WARNING
Check that the backrests and head
restraints in the rear seats are firmly locked
after raising.
shows that the backrest
78
Page 80
03 Your driving environment
Steering wheel
Adjusting
Adjusting the steering wheel.
Lever - releasing the steering wheel
Possible steering wheel positions
The steering wheel can be adjusted for both
height and depth:
1. Pull the lever towards you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to fix the steering
wheel in place. If the lever is stiff, press the
steering wheel lightly at the same time as
you push the lever back.
WARNING
Adjust and secure the steering wheel before
driving.
With speed related power steering* the level of
steering force can be adjusted, see
page 154.
Keypads*
G021138
Keypads in the steering wheel.
Cruise control, see page 155
Adaptive cruise control, see page 156
Audio and phone control, see page 137
Horn
03
Horn.
Press the centre of the steering wheel to signal.
* Option/accessory, for more information, see Introduction.
79
Page 81
03 Your driving environment
Lighting
Light switches
03
Overview, light switches.
Thumbwheel for adjusting display and
instrument lighting
Rear fog lamp
Front fog lamps*
Light switches
Thumbwheel1 for headlamp levelling
Instrument lighting
Different display and instrument lighting is
switched on depending on key position, see
page 73.
The display lighting is automatically subdued
in darkness - the sensitivity is set with the
thumbwheel.
The intensity of the instrument lighting is
adjusted with the thumbwheel.
Headlamp levelling
The load in the car changes the vertical alignment of the headlamp beam, which could dazzle oncoming motorists. Avoid this by adjusting
the height of the beam. Lower the beam if the
car is heavily laden.
G031407
1. Allow the engine to run or have the remote
control key in position I.
2. Roll the thumbwheel up/down to raise/
lower beam alignment.
Cars with Dual Xenon headlamps* have automatic headlamp levelling and therefore do not
have the thumbwheel.
Main/dipped beam
Headlamp control and stalk switch.
Position for main beam flash
Position for main beam
Posi-
Specification
tion
Automatic*/deactivated dipped
beam. Only main beam flash.
Position/parking lamps
Automatic dipped beam. Main
beam and main beam flash
work in this position.
1
Not available for cars equipped with Dual Xenon headlamps*.
80
* Option/accessory, for more information, see Introduction.
Page 82
03 Your driving environment
Lighting
NOTE
Main beam can only be activated in position
.
Main beam flash
Move the stalk switch gently towards the steering wheel to the position for main beam flash.
Main beam comes on until the stalk switch is
released.
Dipped beam
When the engine is started, dipped beam is
activated automatically* if the headlamp con-
trol is in position
matic dipped beam for this position can be
deactivated by a workshop. Volvo recommends that you contact an authorised Volvo
workshop.
In position
vated automatically when the engine is running
or when the remote control key is in position
II.
2
. If necessary, auto-
dipped beam is always acti-
Main beam
Main beam can only be activated when the
headlamp control is in position
vate/deactivate main beam by moving the stalk
. Acti-
switch towards the steering wheel to the end
position and release.
When main beam has been activated the symbol
ment panel.
illuminates in the combined instru-
Active Bending Lights (ABL)*
Headlamp pattern with function deactivated (left)
and activated (right) respectively.
If the car is equipped with active headlamps
Active Bending Lights the light from the headlamps follows the steering wheel movement in
order to provide maximum lighting in bends
and junctions and so provide increased safety.
The function is activated automatically when
the car is started. In the event of a fault in the
function the
combined instrument panel at the same time
as the information display shows an explanatory text and a further illuminated symbol.
symbol illuminates in the
Symbol Display Specifica-
tion
Headlamp
failure
Service
required
The function is only active in twilight or darkness and only when the car is moving.
The system
is disengaged. Visit
a workshop
if the message
remains.
Volvo recommends
that you
contact an
authorised
Volvo workshop.
03
2
For certain markets dipped beam is deactivated in this position.
* Option/accessory, for more information, see Introduction.
``
81
Page 83
03 Your driving environment
Lighting
The function3 can be activated/deactivated
under Car settings
Light settings
Active bending lights. For a description of the
menu system, see page 120.
For headlamp pattern adjustment, see
page 86.
03
Position/parking lamps
Headlamp control in position for position/parking
lamps.
Turn the headlamp control to the centre position (number plate lighting comes on at the
same time).
Rear position lamps also come on when the
tailgate is opened in order to alert anybody
behind.
Brake lights
The brake light automatically comes on during
braking.
Emergency brake lights and automatic
hazard warning flashers
Emergency brake lights (Adaptive Brake
Lights) are activated in the event of heavy braking or if the ABS brakes are activated. This
function means that the brake light flashes to
immediately alert cars travelling behind.
The system is activated if ABS is used for more
than 0.5 seconds or in the event of heavy braking, however, only when braking from speeds
above 50 km/h. When the speed of the car is
lower than 30 km/h the brake lights shine normally again and the hazard warning flashers
are switched on automatically. The hazard
warning flashers remain on until the car accelerates again but can be deactivated with the
G031408
button for hazard warning flashers.
Front fog lamps*
G031409
Button for front fog lamps.
The front fog lamps can be switched on along
with main/dipped beam or
position/parking lamps.
Press the button for on/off. The light in the button illuminates when the fog lamps are on.
NOTE
Regulations for using front fog lamps vary
between different countries.
3
Activated on delivery from the factory.
82
* Option/accessory, for more information, see Introduction.
Page 84
03 Your driving environment
Lighting
Rear fog lamp
Button for rear fog lamp.
The rear fog lamp consists of one rear lamp and
can only be switched on in combination with
main/dipped beam or the front fog lamps.
Press the button for On/Off. The rear fog lamp
indicator symbol
instrument panel and the light in the button illuminate when the rear fog lamp is switched on.
The rear fog lamps are switched off automatically when the engine is switched off.
on the combined
NOTE
Regulations for using rear fog lamps vary
between different countries.
Hazard warning flashers
G031410
Button for hazard warning flashers.
Press the button to activate the hazard warning
flashers. Both direction indicator symbols in
the combined instrument panel flash when the
hazard warning flashers are in use.
The hazard warning flashers are activated
automatically when the car brakes so suddenly
that the emergency brake lights are activated
and speed is below 30 km/h. They remain on
when the car has stopped and are deactivated
automatically when the car is driven off again
or the button is depressed.
Direction indicators/flashers
Direction indicators/flashers.
Short flash sequence
Move the stalk switch up or down to the
first position and release. The direction
indicators flash three times. The function
can be activated/deactivated under Car
settings
indicators, 3-flash.
For a description of the menu sys-
tem, see page 120.
Light settings Turn
Continuous flash sequence
Move the stalk switch up or down to the
outer position.
The stalk switch remains in its position and is
moved back manually, or automatically by the
steering wheel movement.
03
``
83
Page 85
03 Your driving environment
Lighting
Direction indicator symbols
For direction indicator symbols, see page 68.
Interior lighting
03
Controls in roof console for the front reading
lamps and passenger compartment lighting.
Reading lamp, left-hand side
Reading lamp, right-hand side
Interior lighting
All lighting in the passenger compartment can
be switched on and off manually within
30 minutes from when:
the engine has been switched off and the
•
remote control key is in position 0
the car has been unlocked but the engine
•
has not been started.
Front roof lighting
The front reading lamps are switched on or off
by pressing the relevant button in the roof console.
Rear roof lighting
G021149
Rear roof lighting in cars without panorama roof.
Rear roof lighting in cars with panorama roof.
The lamps are switched on or off by pressing
each respective button.
Courtesy lighting
G021150
Courtesy lighting (and passenger compartment lighting) is switched on and off respectively when a side door is opened or closed.
Glovebox lighting
Glovebox lighting is switched on and off
respectively when the lid is opened or closed.
Vanity mirror
The lighting for the vanity mirror, see
page 193, is switched on and off respectively
when the cover is opened or closed.
84
Page 86
03 Your driving environment
Lighting
Lighting, cargo area
The lighting in the cargo area is switched on
and off respectively when the tailgate is
opened or closed.
Automatic lighting
The switch for passenger compartment lighting has three positions for the lighting in the
passenger compartment:
Off – right-hand side depressed, automatic
•
lighting deactivated.
Neutral position – automatic lighting acti-
•
vated.
On – left-hand side depressed, passenger
•
compartment lighting on.
Neutral position
When the button is in neutral position the passenger compartment lighting is switched on
and off automatically in accordance with the
following.
The passenger compartment lighting is
switched on and remains on for 30 seconds if:
the car is unlocked with the remote control
•
key or key blade, see pages 45 or 48
the engine is switched off and the remote
•
control key is in position 0.
Passenger compartment lighting is switched
off when:
the engine is started
•
the car is locked.
•
The passenger compartment lighting comes
on and remains on for two minutes if one of the
doors is open.
If any lighting is switched on manually and the
car is locked then it will be switched off automatically after two minutes.
Home safe light duration
Some of the exterior lighting can be kept
switched on to work as home safe lighting after
the car has been locked.
1. Remove the remote control key from the
ignition switch.
2. Move the left-hand stalk switch toward the
steering wheel to the end position and
release it. The function can be activated in
the same way as with main beam flash, see
page 80.
3. Get out of the car and lock the door.
When the function is activated, dipped beam,
parking lamps, door mirror lamps, number
plate lighting, interior roof lamps and courtesy
lighting are switched on.
The length of time for which the home safe
lighting should be kept on can be set under Car
settings
Light settings Home safe light
duration. For a description of the menu sys-
tem, see page 120.
Approach light duration*
Approach lighting is switched on with the
remote control key, see page 45, and is used
to switch on the car's lighting at a distance.
When the function is activated with the remote
control, parking lamps, door mirror lamps,
number plate lighting, interior roof lamps and
courtesy lighting are switched on.
The length of time for which the approach lighting should be kept on can be set under Car
settings
duration. For a description of the menu sys-
tem, see page 120.
Light settings Approach light
03
* Option/accessory, for more information, see Introduction.
``
85
Page 87
03 Your driving environment
Lighting
Adjusting headlamp pattern
03
Headlamp pattern, left-hand traffic.
Headlamp pattern, right-hand traffic.
The headlamp pattern must be adjusted to
avoid dazzling oncoming motorists and can be
set for right or left-hand traffic. The correct pattern will also better illuminate the verge.
Active Dual Xenon headlamps*
The car must be stationary with the engine running when the headlamp pattern is shifted
between right and left-hand traffic.
1.
Access the menu system under Car
settings
2.
Select between
Temporary LH lights.
For a description of the menu system, see
page 120.
G021151
Halogen headlamps
The headlamp pattern for halogen headlamps
is readjusted by masking the headlamp lens.
The headlamp pattern may not be as good.
Light settings.
Temporary RH lights and
Masking the headlamps
1. Copy the A and B templates for left-hand
drive cars or the C and D templates for
right-hand drive cars with a scale of 1:1,
see page 88:
A = LHD Right (left-hand drive, right
•
lens)
B = LHD Left (left-hand drive, left lens)
G021152
•
C = RHD Right (right-hand drive, right
•
lens)
D = RHD Left (right-hand drive, left lens)
•
2. Transfer the template to a self-adhesive
waterproof material and cut it out.
3. Position the self-adhesive templates at the
right distance from the edge of the headlamp lens using the illustration, see
page 87, and the dimensions in the following list:
Templates A and D: horizontal line
•
approx. 104 mm, vertical line approx.
20 mm
Templates B and C: horizontal line
•
approx. 167 mm, vertical line approx.
14 mm
86
* Option/accessory, for more information, see Introduction.
Page 88
Aligning the templates
03 Your driving environment
Lighting
03
Upper row: masking left-hand drive cars, templates A and B. Lower row: masking right-hand drive cars, templates C and D.
``
87
Page 89
03 Your driving environment
Lighting
Templates for halogen headlamps
03
88
Page 90
03 Your driving environment
Wipers and washing
Windscreen wipers
Windscreen wipers and windscreen washers.
Rain sensor, on/off
Thumbwheel sensitivity/frequency
1
Windscreen wipers off
Move the stalk switch to position 0 to
switch off the windscreen wipers.
Single sweep
Raise the stalk switch and release to
make one sweep.
Intermittent wiping
Set the number of sweeps per time
mittent wiping is selected.
unit with the thumbwheel when inter-
Continuous wiping
The wipers sweep at normal speed.
The wipers sweep at high speed.
IMPORTANT
Before activating the wipers during winter ensure that the wiper blades are not frozen
in and that any snow or ice on the windscreen (and rear window) is scraped away.
IMPORTANT
Use plenty of washer fluid when the wipers
are cleaning the windscreen. The windscreen must be wet when the windscreen
wipers are operating.
Rain sensor*
The rain sensor automatically starts the windscreen wipers based on how much water it
detects on the windscreen. The sensitivity of
the rain sensor can be adjusted using the
thumbwheel.
When the rain sensor is activated a light in the
button the rain sensor symbol
is shown
in the right-hand display in the combined
instrument panel.
Activating and setting the sensitivity
When activating the rain sensor, the car must
be running or the remote control key in position
I or II while the windscreen wiper stalk switch
must be in position 0 or in the position for a
single sweep.
Activate the rain sensor by pressing the button
. The windscreen wipers make one
sweep.
Press the stalk switch up for the wipers to make
an extra sweep.
Turn the thumbwheel upward for higher sensi-
tivity and downward for lower sensitivity. (An
extra sweep is made when the thumbwheel is
turned upward.)
Deactivating
Deactivate the rain sensor by pressing the button
another wiper program.
The rain sensor is automatically deactivated
when the key is removed from the ignition
switch or five minutes after the ignition has
been switched off.
or move the stalk switch down to
03
1
Replacing the wiper blades (see page241) and filling the washer fluid (see page242).
* Option/accessory, for more information, see Introduction.
``
89
Page 91
03 Your driving environment
Wipers and washing
IMPORTANT
The windscreen wipers could start and be
damaged in an automatic car wash. Deactivate the rain sensor while the car is running
or the remote control key is in position I or
II. The symbol in the combined instrument
03
panel and the lamp in the button go out.
Washing the headlamps and windows
Washing function.
Washing the windscreen
Move the stalk switch toward the steering
wheel to start the windscreen and headlamp
washers.
The windscreen wipers will make several more
sweeps once the stalk switch has been
released. The headlamps are washed alternately to prevent light intensity being reduced.
NOTE
One headlamp is washed at a time.
Heated washer nozzles*
The washer nozzles are heated automatically
in cold weather to prevent the washer fluid
freezing solid.
High-pressure headlamp washing*
High-pressure headlamp washing consumes a
large quantity of washer fluid. To save fluid, the
headlamps are washed automatically at every
fifth windscreen wash cycle.
Wiper and washer, rear window
Rear window wiper – intermittent wiping
Rear window wiper – continuous speed
Press the stalk switch forward (see the arrow
in the illustration above) to initiate rear window
washing and wiping.
Wiper – reversing
Engaging reverse gear while the windscreen
wipers are on initiates intermittent rear window
2
wiping
. The function stops when reverse gear
is disengaged.
If the rear window wiper is already on at con-
tinuous speed, no change is made.
2
This function (intermittent wiping when reversing) can be deactivated. Visit a workshop. Volvo recommends that you contact an authorised Volvo workshop.
90
* Option/accessory, for more information, see Introduction.
Page 92
NOTE
On cars with rain sensor, the rear window
wiper is activated with reversing, if the sensor is activated and it is raining.
03 Your driving environment
Wipers and washing
03
91
Page 93
03 Your driving environment
Windows, rearview and door mirrors
General
Laminated glass
The windscreen and panorama roof
have laminated glass. It is reinforced
which provides better protection
03
sound insulation in the passenger compartment. Other glass surfaces*.
against break-ins and improved
Water and dirt-repellent coating*
Windows are treated with a coating
weather conditions. Maintenance, see
page 266.
that improves the view in difficult
IMPORTANT
Do not use a metal ice scraper to remove ice
from the windows. Use the heating to
remove ice from the door mirrors.
Heat-reflecting windscreen*
Areas where IR film is not applied.
The windscreen is equipped with a heatreflecting film (IR) that reduces the solar heat
radiation into the passenger compartment.
The positioning of electronic equipment, such
as a transponder, behind a glass surface with
heat-reflecting film may affect its function and
performance.
For the optimal function of electronic equipment, it should be positioned on the part of the
windscreen with no heat-reflecting film (see the
highlighted area in the previous illustration).
Power windows
Driver's door control panel.
Switch for electric child safety locks* and
disengaging rear power window buttons,
see page 58.
Rear window controls
Front window controls
WARNING
Check that none of the rear seat passengers
is in danger of becoming trapped in any way
when closing the windows from the driver's
door.
92
* Option/accessory, for more information, see Introduction.
Page 94
03 Your driving environment
Windows, rearview and door mirrors
WARNING
Make sure that children or other passengers
are not in danger of becoming trapped in
any way when closing the windows, in particular when the remote control key is used.
WARNING
If there are children in the car, remember to
always switch off the power supply to the
power windows by removing the remote
control key if the driver leaves the car.
Operating
Operating the power windows.
Operating without auto
Operating with auto
All power windows can be operated using the
control panel in the driver's door. Each control
panel in the other doors can only control its
own respective power window. The power windows can only be controlled with one control
panel at a time.
In order that the power windows can be used
the remote control key must be in position I or
II. After the car has been running the power
windows can be operated for several minutes
even when the remote control key has been
removed, but not however after the door has
been opened.
Closing of the windows is stopped and the
window is opened if anything prevents its
movement. It is possible to force the pinch protection when closing has been interrupted, e.g.
with ice, by continuously holding the button up
until the window is closed. The pinch protection is reactivated after a brief pause.
NOTE
One way to reduce the pulsating wind noise
when the rear windows are open is to also
open the front windows slightly.
Operating without auto
Move one of the controls up/down gently. The
power windows move up/down as long as the
control is held in position.
Operating with auto
Move one of the controls up/down to the end
position and release it. The window runs automatically to its end position.
Remote control and central locking
buttons
All side windows can be opened/closed automatically with the remote control key or the
central locking buttons:
±
Press and hold the lock button until the
windows start to open/close. To interrupt
opening/closing, press the lock button
again.
Resetting
If the battery is disconnected then the function
for automatic opening must be reset so that it
can work correctly.
1. Gently raise the front section of the button
to raise the window to its end position and
hold it there for one second.
2. Release the button briefly.
3. Raise the front section of the button again
for one second.
WARNING
Resetting must be carried out to ensure that
pinch protection works.
03
``
93
Page 95
03 Your driving environment
Windows, rearview and door mirrors
Door mirrors
03
Door mirror controls.
Door mirror controls.
Adjusting
1.
Press the L button for the left-hand door
mirror or the R button for the right-hand
door mirror. The light in the button illuminates.
2. Adjust the position with the joystick in the
centre.
3.
Press the L or R button again. The light
should no longer be illuminated.
G018518
WARNING
The mirrors are the wide angle type for optimum surveillance. Objects may appear further away than they actually are.
Retractable power door mirrors*
The mirrors can be retracted for parking/driving
in narrow spaces:
1.
Press down the L and R buttons at the
same time.
2. Release them after
approximately 1 second. The mirrors automatically stop in the fully retracted position.
Fold out the mirrors by pressing down the L
and R buttons at the same time. The mirrors
automatically stop in the fully extended position.
Storing the position*
The mirror positions are stored in the key memory when the car has been locked with the
remote control key. When the car is unlocked
with the same remote control key the mirrors
and the driver's seat adopt the stored positions
when the driver's door is opened.
The function can be activated/deactivated
under Car Key memory
positions. For a description of the menu sys-
tem, see page 120.
Angling the door mirror when parking
The door mirror can be angled down for the
driver to view the side of the road when parking
for example.
±
Engage reverse gear and press the L or R
button.
When reverse gear is disengaged the mirror
automatically returns to its original position
after about 10 seconds, or earlier by pressing
the button labelled L or R respectively
Seat & mirror
1
Automatic retraction when locking
When the car is locked/unlocked with the
remote control key the door mirrors are automatically retracted/extended.
1
Only in combination with power seat with memory, see page 75.
94
* Option/accessory, for more information, see Introduction.
Page 96
03 Your driving environment
Windows, rearview and door mirrors
The function can be activated/deactivated
under Car settings
Fold mirr. when locking. For a description
of the menu system, see page 120.
Side mirror settings
Resetting to neutral
Mirrors that have been moved out of position
by an external force must be reset electrically
to the neutral position for electric retracting/
extending to work correctly:
1.
Retract the mirrors with the L and R buttons.
2.
Fold them out again with the L and R buttons.
3. Repeat the above procedure as necessary.
The mirrors are now reset in neutral position.
Home safe and approach lighting
The light on the door mirrors illuminates when
approach lighting or home safe lighting is
selected, see page 85.
Rear window and door mirror
defrosters
Use the defroster to quickly remove misting
and ice from the rear window and the door mirrors.
Press the button once to start simultaneous
rear window and door mirror defrosting. The
light in the button indicates that the function is
active. Defrosting is deactivated automatically
and its duration is controlled by the outside
temperature.
The rear window is demisted/defrosted automatically if the car is started in an outside temperature lower than +9 °C.
Automatic defrosting can be selected under
Climate settings
Select between On or Off. For a description of
the menu system, see page 120.
Auto. rear defroster.
Interior rearview mirror
03
Control for dimming
Manual dimming
Bright light from behind could be reflected in
the rearview mirror and dazzle the driver. Use
dimming with the dimming control when lights
from behind are distracting:
1. Use dimming by moving the control in
towards the passenger compartment.
2. Return to normal position by moving the
control towards the windscreen.
Automatic dimming*
Bright light from behind is automatically
dimmed by the rearview mirror. The control is
not available in mirrors with automatic dimming.
``
* Option/accessory, for more information, see Introduction.
95
Page 97
03 Your driving environment
Windows, rearview and door mirrors
The compass* can only be specified for rearview mirrors with automatic dimming, see
page 97.
03
96
* Option/accessory, for more information, see Introduction.
Page 98
03 Your driving environment
Compass*
Operation
Rearview mirror with compass.
The upper right-hand corner of the rearview
mirror has an integrated display that shows the
compass direction in which the front of the car
is pointing. Eight different directions are shown
with English abbreviations: N (north), NE (north
east), E (east), SE (south east), S (south), SW
(south west), W (west) and NW (north west).
The compass is activated automatically when
the car is started or in ignition position IIsee
page 73. To deactivate/activate the compass press in the button on the underside of the mirror using a paper clip for example.
Calibration
The earth is divided into 15 magnetic zones.
The compass is set for the geographic area to
which the car was delivered. The compass
should be calibrated if the car is moved across
several magnetic zones.
1. Stop the car in a large open area free from
steel structures and high-voltage power
lines.
2. Start the car.
NOTE
For optimum calibration - switch off all electrical equipment (climate control system,
wipers etc.) and make sure that all doors are
closed.
3. Hold the button on the underside of the
rearview mirror depressed
approx. 6 seconds (using a paper clip for
example) until the character
Magnetic zones.
C is shown.
4. Hold the button on the underside of the
rearview mirror depressed
approx. 3 seconds. The number of the current magnetic zone is shown.
5. Press the button repeatedly until the
required magnetic zone (
See the map of magnetic zones for the
compass.
6. Wait until the display resumes showing the
character
7. Drive slowly in a circle at a speed of no
more than 10 km/h until a compass direction is shown in the display, indicating that
calibration is complete. Then drive a further
2 circles to fine-tune calibration.
8. Repeat the above procedure as necessary.
G030295
C.
1–15) is shown.
03
* Option/accessory, for more information, see Introduction.
97
Page 99
03 Your driving environment
Power panorama roof*
General
The panorama roof is divided into two sections.
Only the front section can be opened - horizontally or vertically at the rear edge (ventilation
position).
The panorama roof has a sun blind made of
03
perforated fabric and located under the glass
roof to provide extra protection from factors
such as strong sunlight.
The panorama roof and curtain are operated
with a control located in the roof. The control
is activated when the key is in position I or II,
see page 73.
WARNING
Children, other passengers or objects can
be trapped by the panorama roof's moving
parts.
Always operate the panorama roof with
•
caution.
Do not allow children to play with the
•
controls.
If leaving the car, always take the
•
remote control key/PCC with you*, and
so prevent the panorama roof from
being operated.
Operating
Opening, automatic
Opening, manual
Closing, manual
Closing, automatic
The panorama roof and curtain can be operated in key position I or II.
Automatic operation
1. To open the curtain all the way - press the
control rearward to the automatic opening
position and release.
2. To then open the panorama roof all the way
- press the control rearward again to the
automatic opening position and release.
Close the roof/curtain by repeating the preceding procedure in reverse order - press the control forward to the automatic closing position
instead.
Rapid opening/closing
The panorama roof and curtain can be opened/
closed simultaneously:
To open - press the control rearward to the
•
automatic operation position twice and
release.
To close - press the control forward to the
•
automatic operation position twice and
release.
98
* Option/accessory, for more information, see Introduction.
Page 100
03 Your driving environment
Power panorama roof*
Manual operation
1. To open the curtain - press the control
rearward to the point of resistance for manual opening. The curtain moves towards
maximum opening as long as the button is
depressed.
2. To angle the panorama roof - press the
control rearward again to the point of resistance for manual opening
3. To open the panorama roof - press the
control rearward to the point of resistance
for manual opening a third time. The panorama roof moves towards maximum
opening as long as the button is kept
depressed.
Close the roof/curtain by repeating the preceding procedure in reverse order - press the control forward to the manual closing position
instead.
NOTE
For manual opening, the curtain must be
fully open before the panorama roof can be
opened. For the reverse procedure, the
panorama roof must be fully closed before
the curtain can be closed.
Ventilation position
Ventilation position, vertically at the rear edge.
Open by pressing the rear edge of the control upward.
Close by pulling the rear edge of the control down.
When the ventilation position is selected the
front section is raised at its rear edge. If the
curtain is fully closed when ventilation position
is selected - then it opens automatically
approx. 50 mm.
Closing using the remote control key or
central locking button
03
One long press on the lock button, see pages
45 (remote control key) and 53 (central locking
button), closes the panorama roof and all the
windows. The door mirrors are retracted* and
the doors and tailgate are locked. To interrupt
closing, press the lock button again.
WARNING
If closing the panorama roof with the remote
control key, make sure nothing could
become trapped.
* Option/accessory, for more information, see Introduction.
99
