Volvo XC40 2018 Owner's Manual

Download

Page 1

XC40

OWNER'S MANUAL

Page 2

Page 3

VÄLKOMMEN!

We hope you will enjoy many years of driving pleasure in your Volvo. The car has been designed for the safety and comfort of you and your passengers. Volvo strives to be one of the safest cars in the world. Your Volvo is also designed to meet applicable safety and environmental requirements.

To increase your enjoyment of your Volvo, we recommend that you read the instructions and maintenance information in this owner's manual.

The owner's manual is also available as a mobile app (Volvo Manual) and on the Volvo Cars support site (support.volvocars.com).

We encourage everyone to always wear their seatbelt in this and other cars. Please do not drive if you are under the influence of alcohol or medication – or have an impaired ability to drive in some other way.

Page 4

OWNER INFORMATION

Owner information Owner's manual in centre display Navigate in the owner's manual in

the centre display Owner's Manual in mobile devices Volvo Cars support site Reading the owner's manual The owner's manual and the environment

YOUR VOLVO

Volvo ID

Creating and registering a Volvo ID

Drive-E - cleaner driving pleasure

IntelliSafe-driver support

Sensus - online connectivity and entertainment

Software updates

Recording data

Terms & Conditions for Services Customer Privacy Policy Important information on accessories

and auxiliary equipment Installation of accessories Connection of equipment to the car's

diagnostic socket Showing the car's identification number Driver distraction

SAFETY

Safety

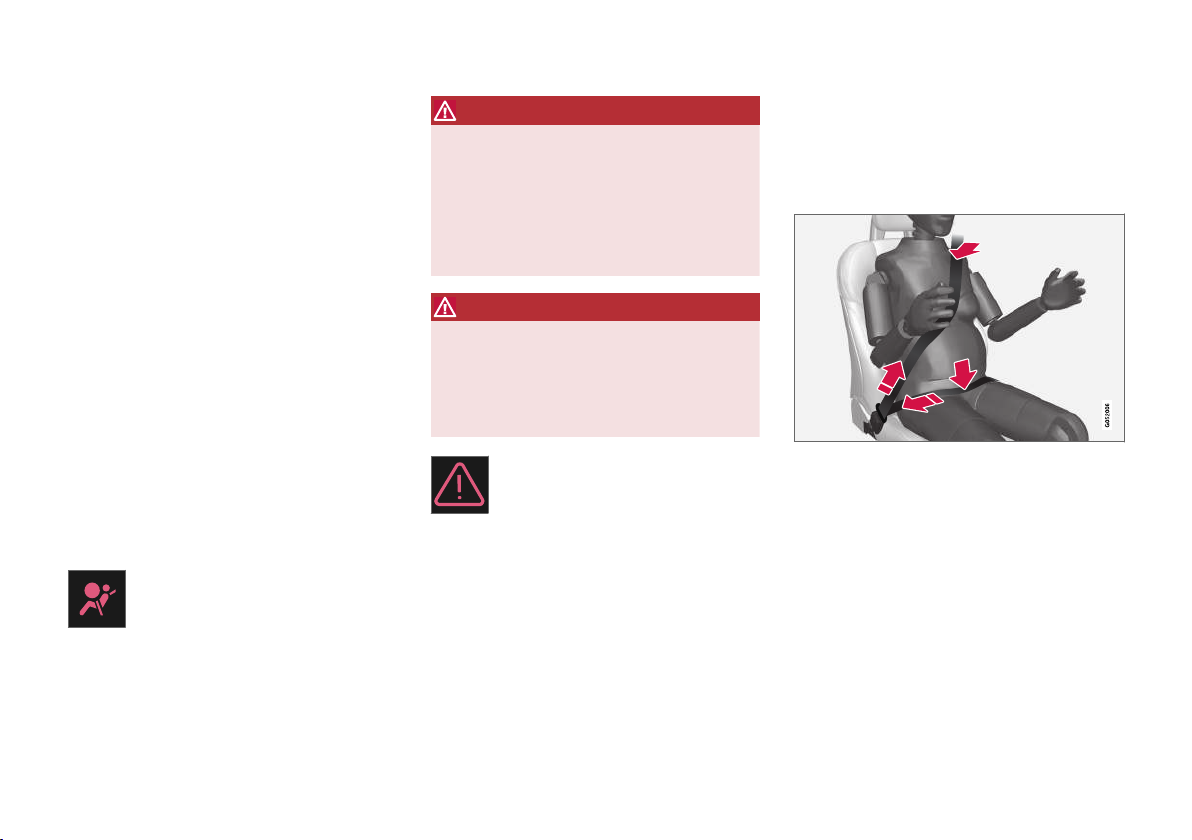

Safety during pregnancy

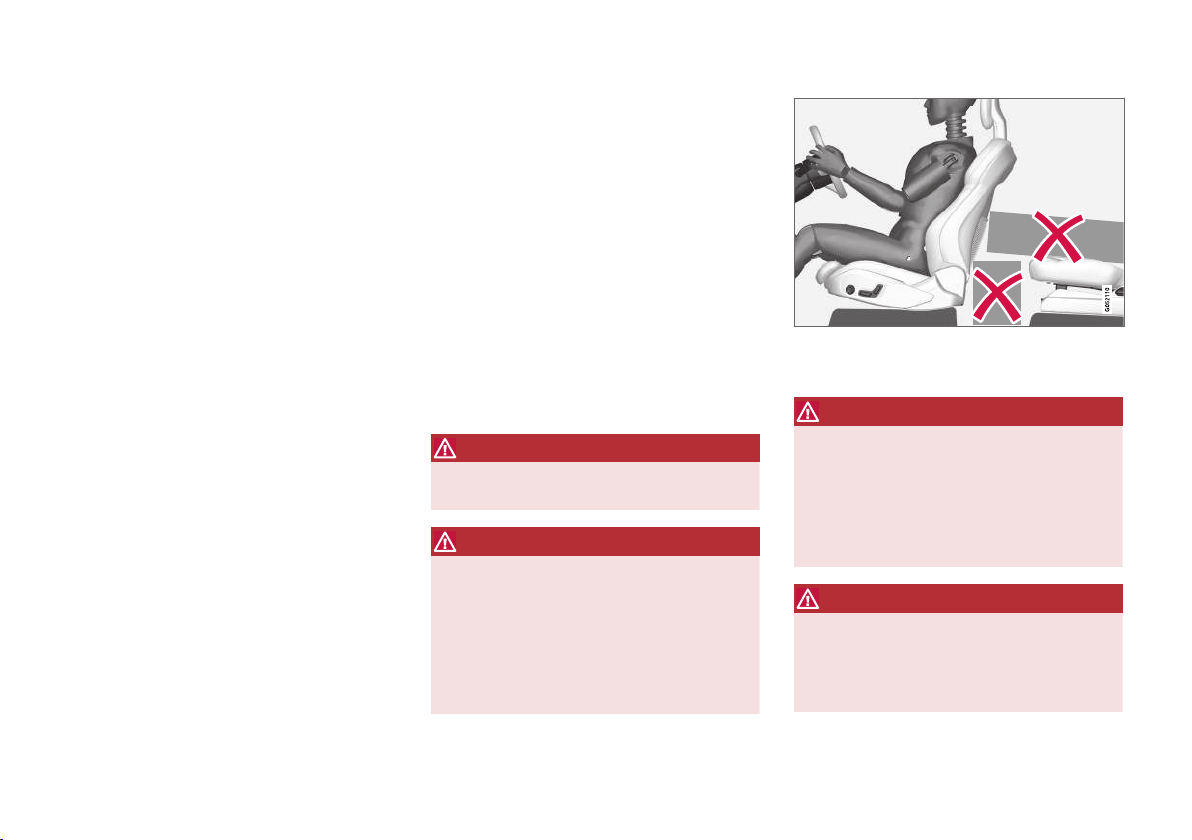

Whiplash Protection System

Seatbelts

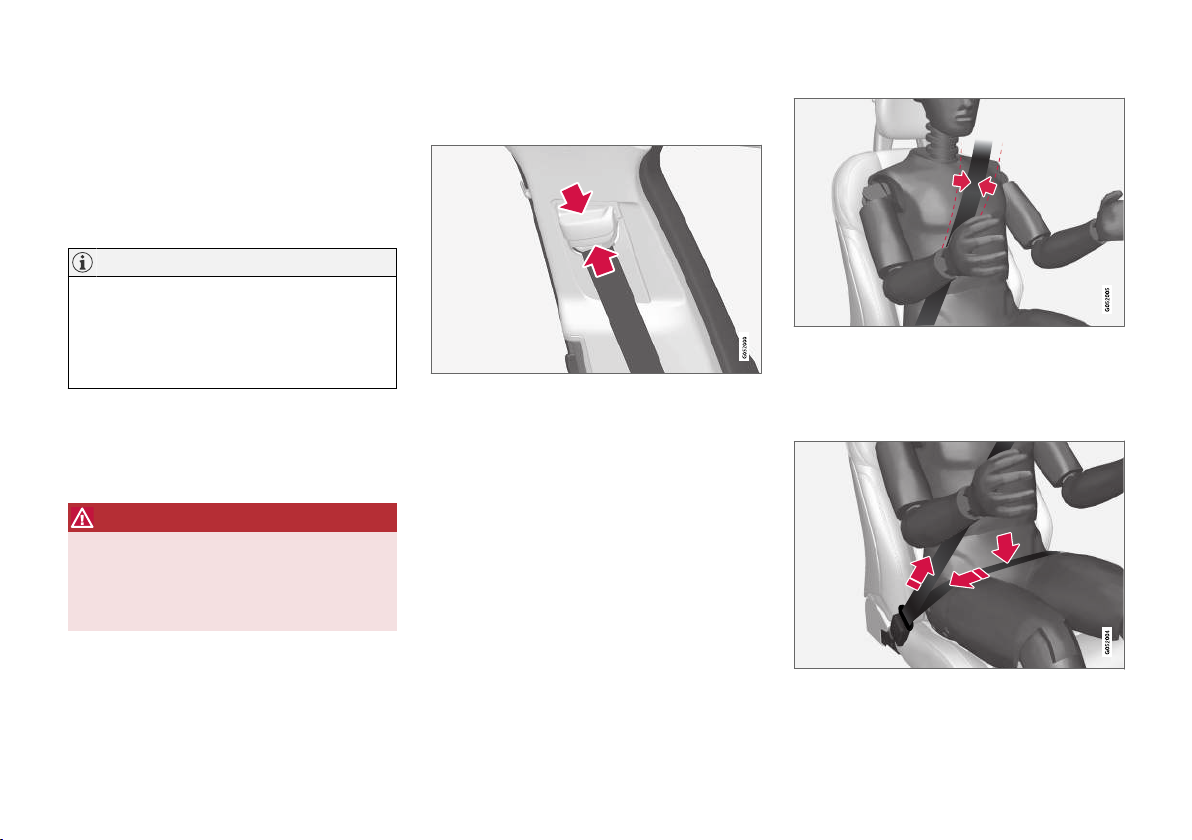

Putting on and taking off seatbelts

Seatbelt tensioner

Resetting the electric seatbelt tensioner*

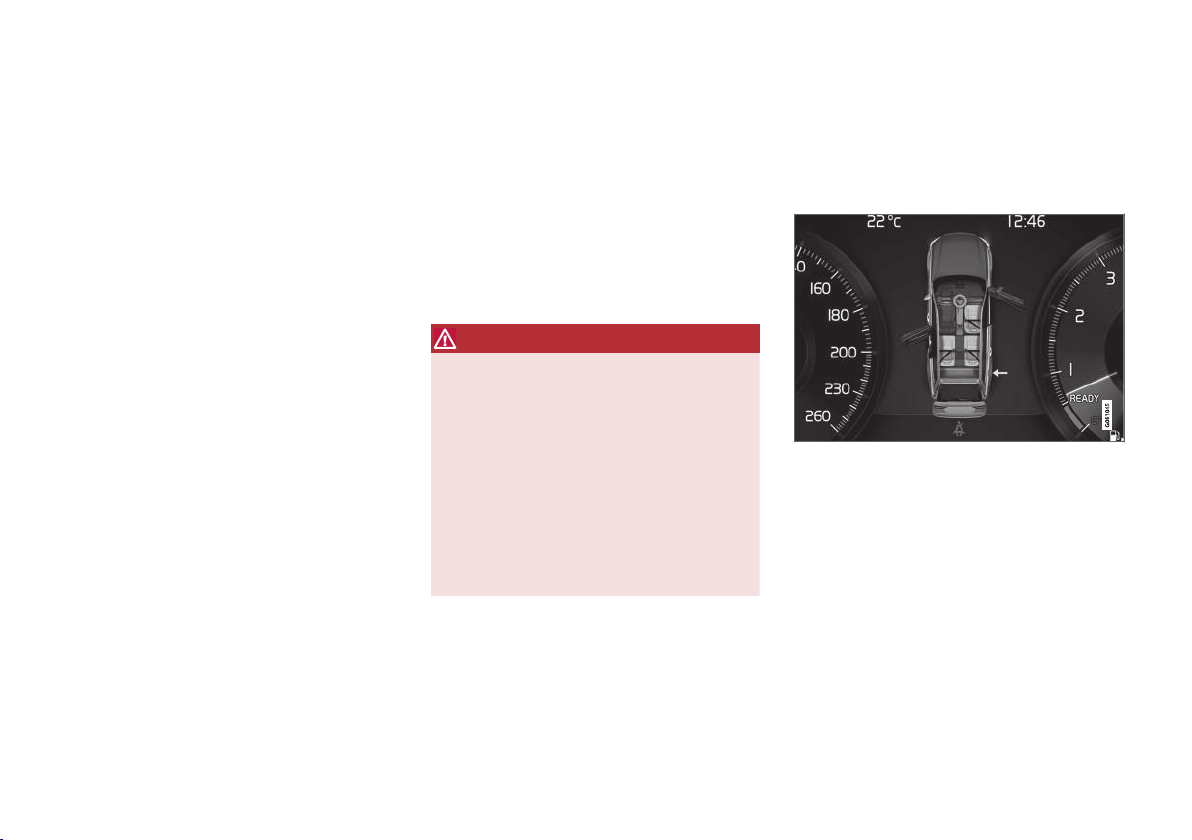

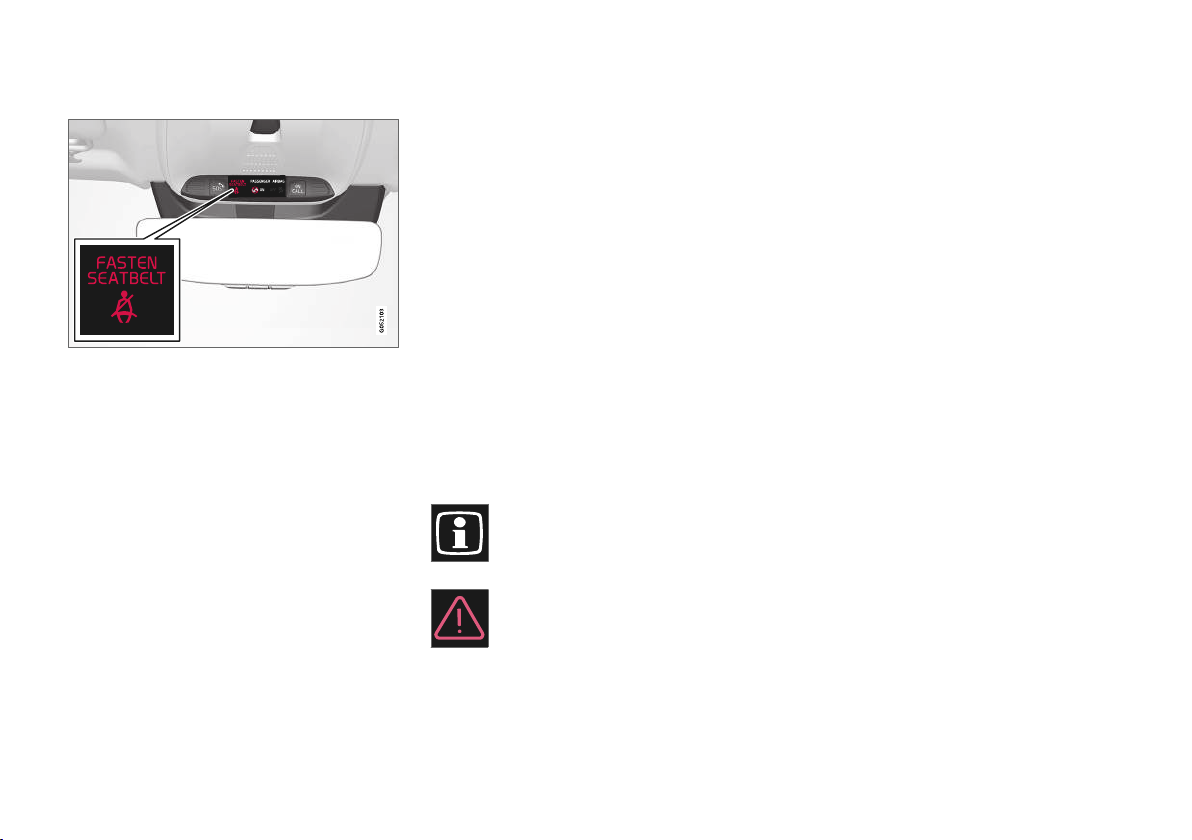

Door and seatbelt reminder

Airbags

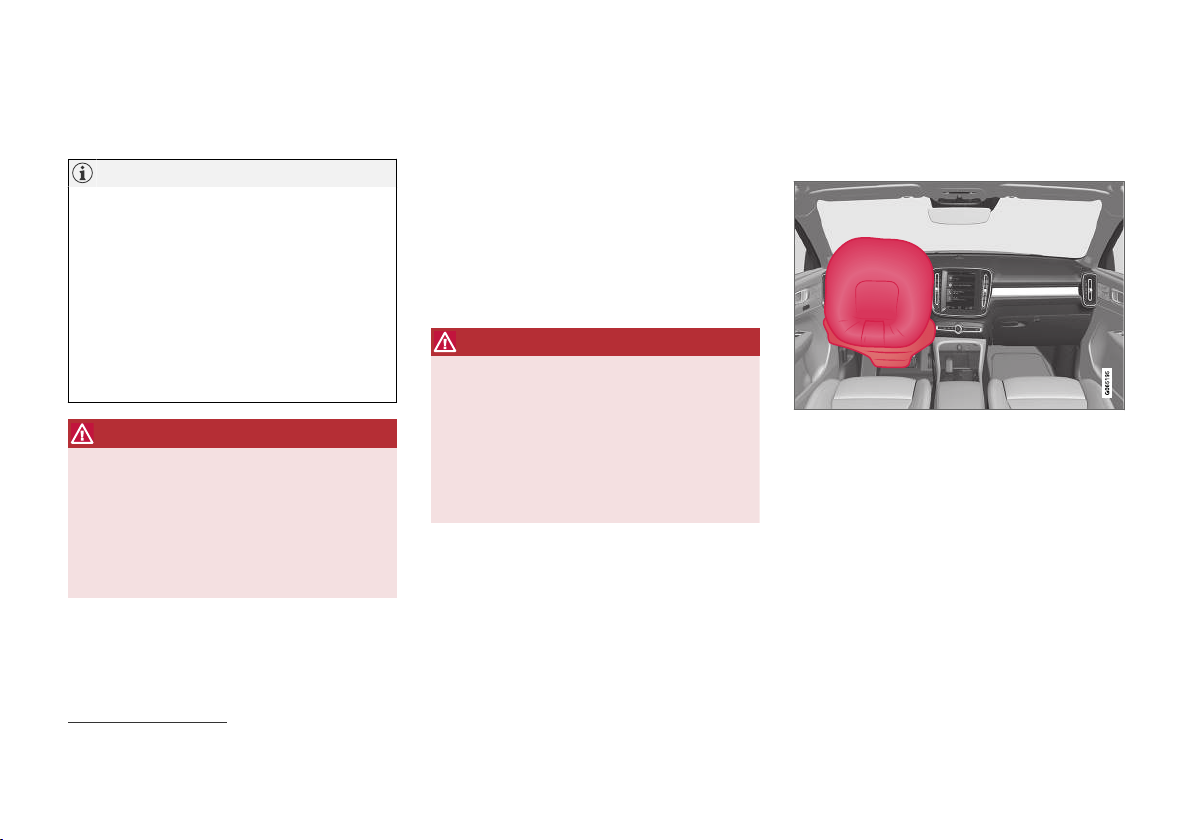

Driver airbags

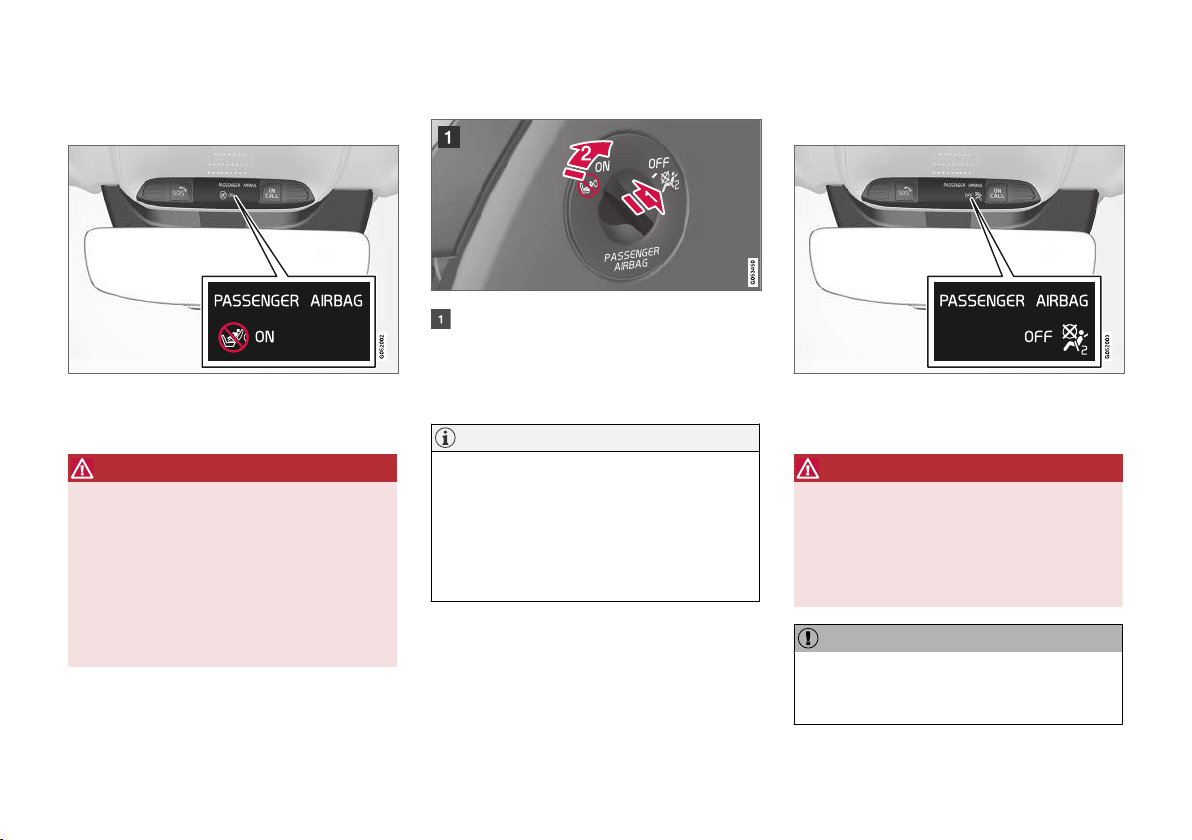

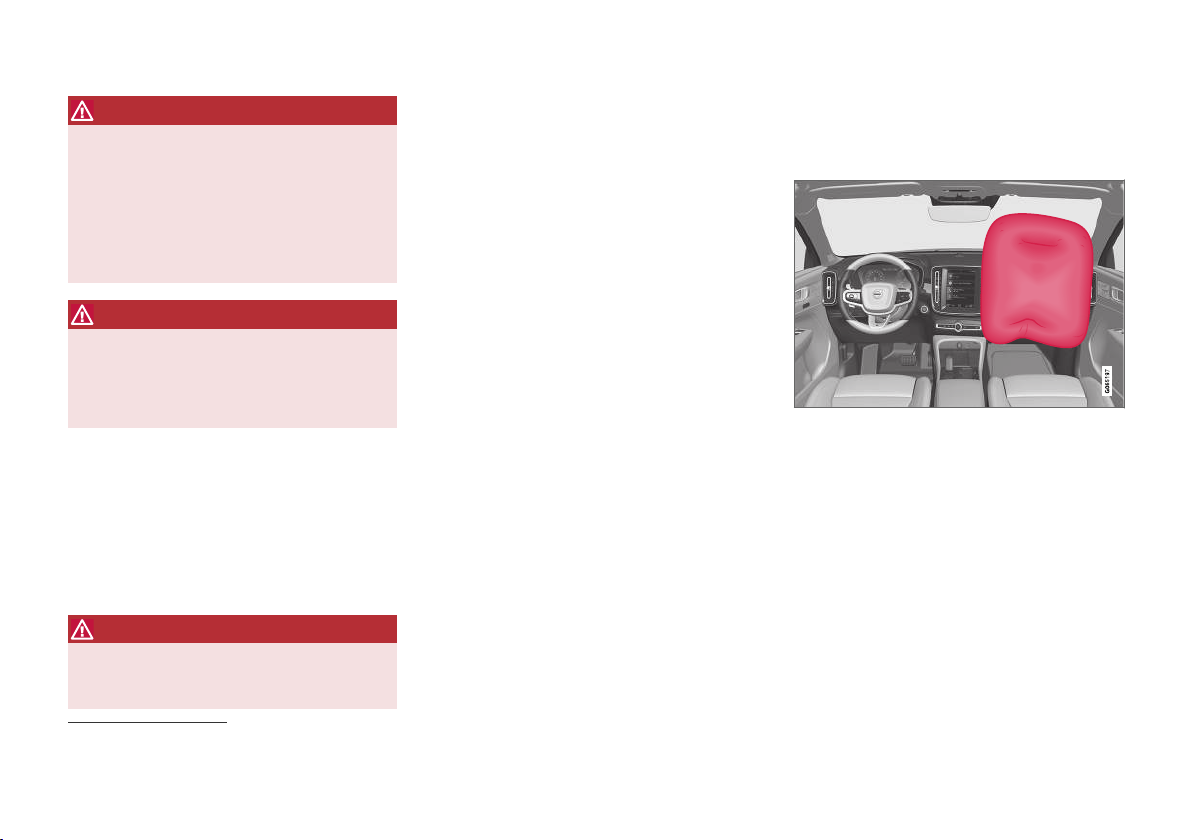

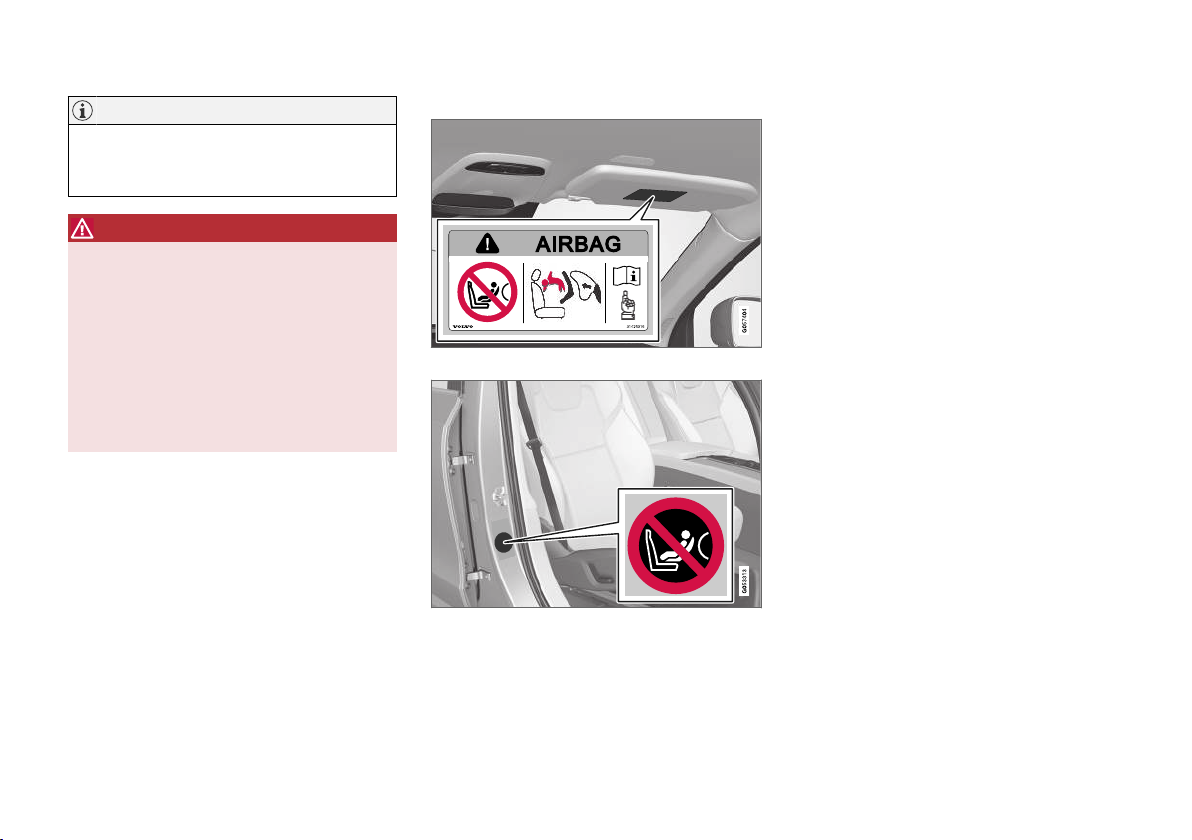

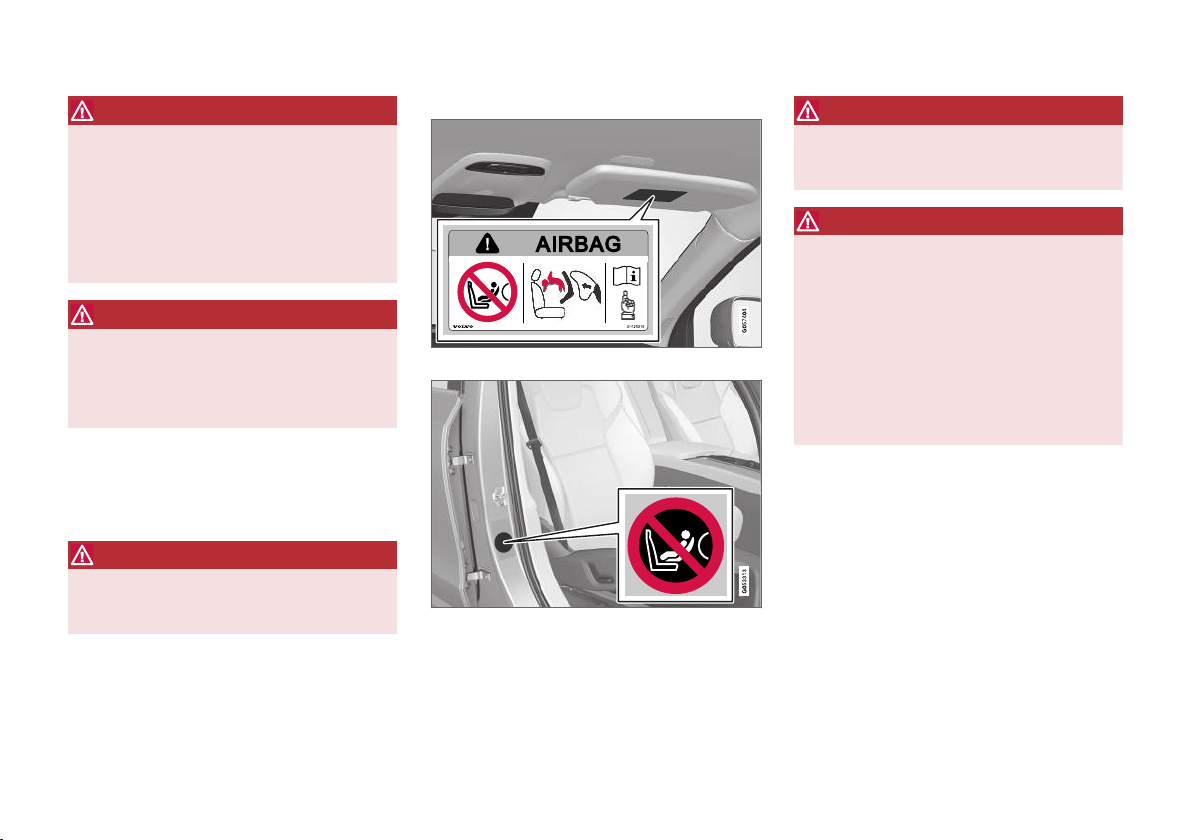

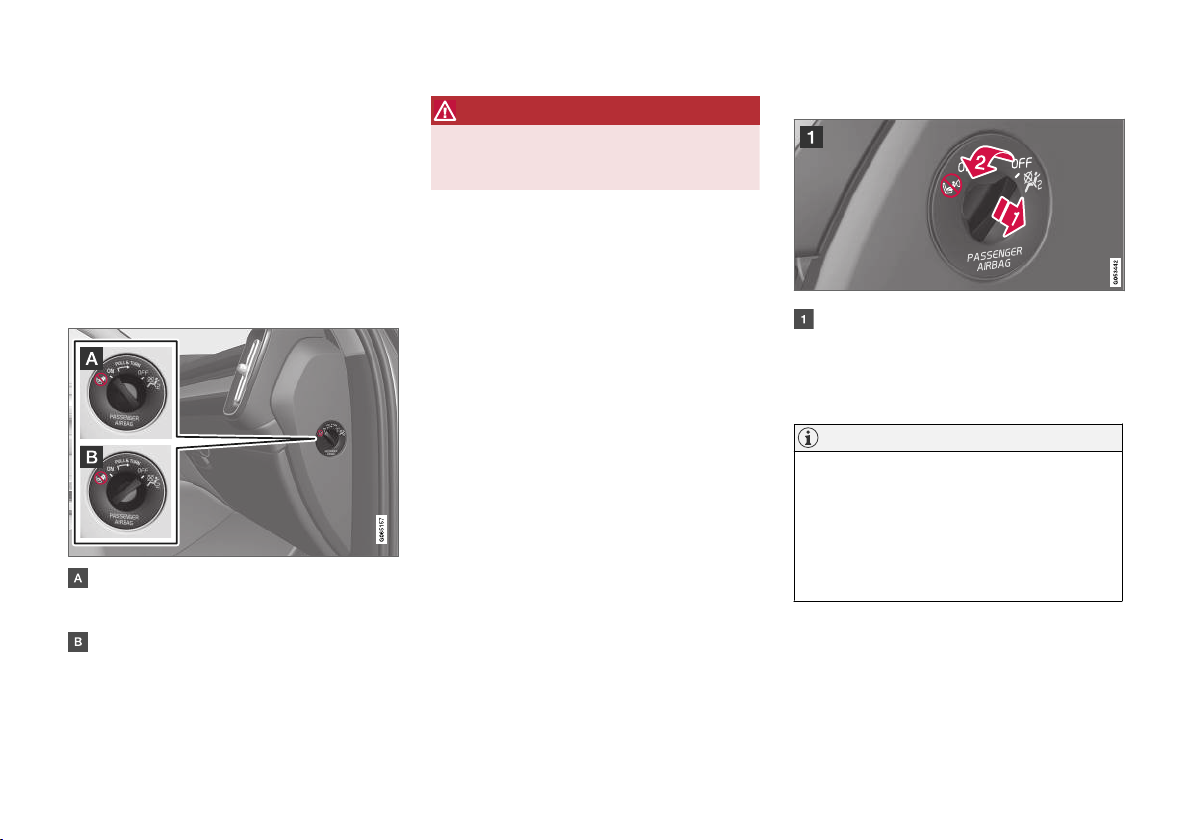

Passenger airbag Activating and deactivating passen-

ger airbag*

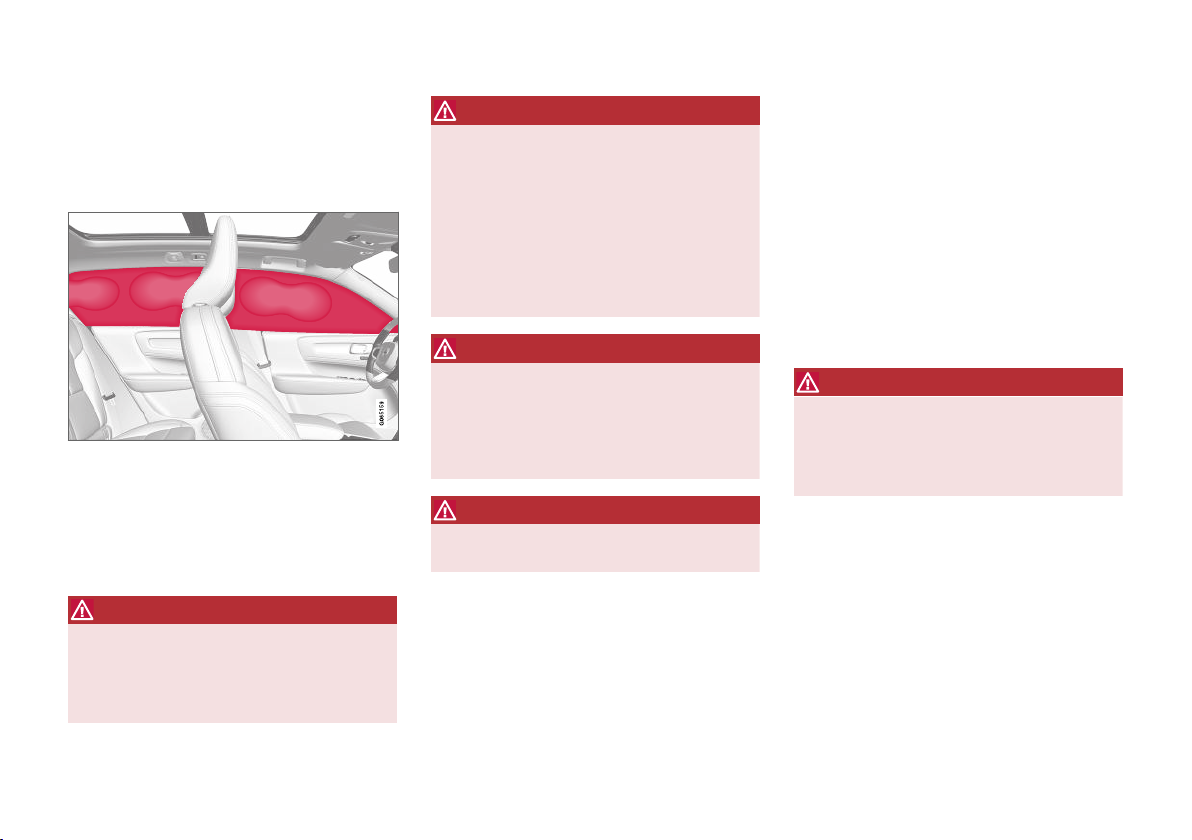

Side airbags Airbags

Safety mode

Starting and moving the car after safety mode

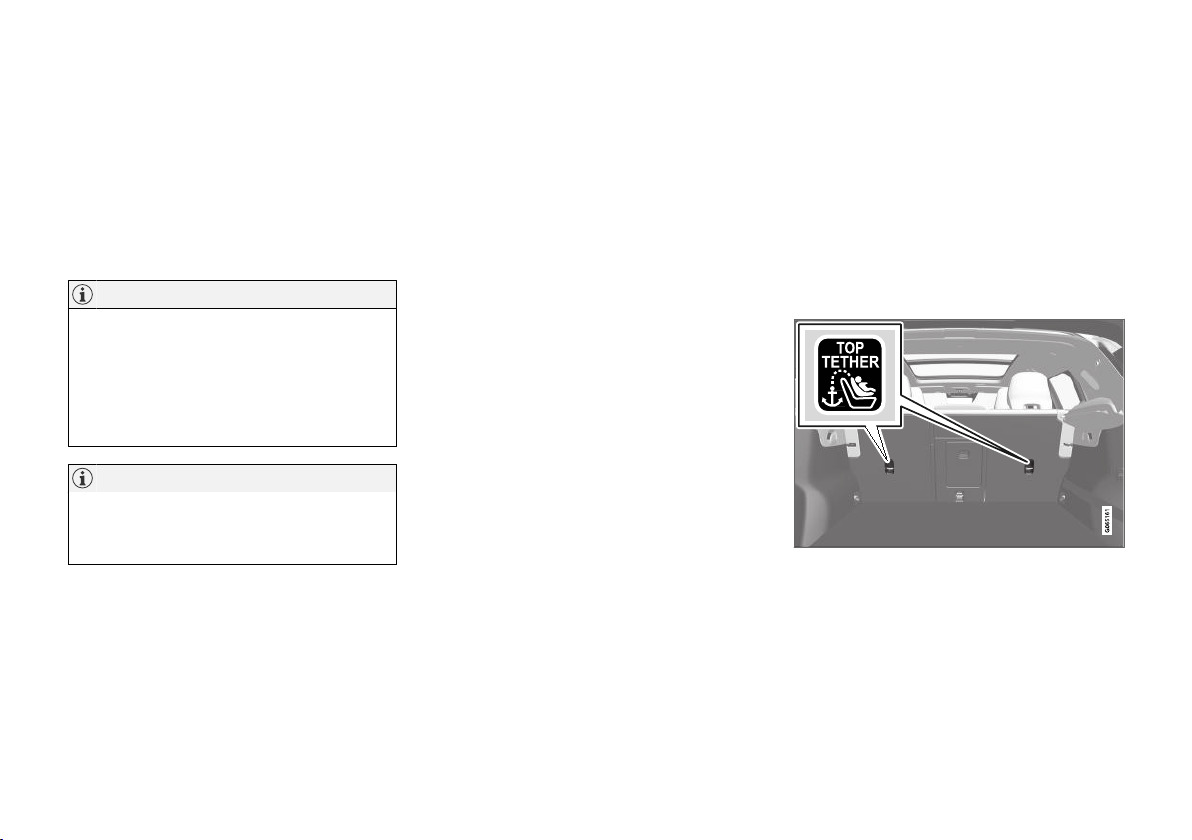

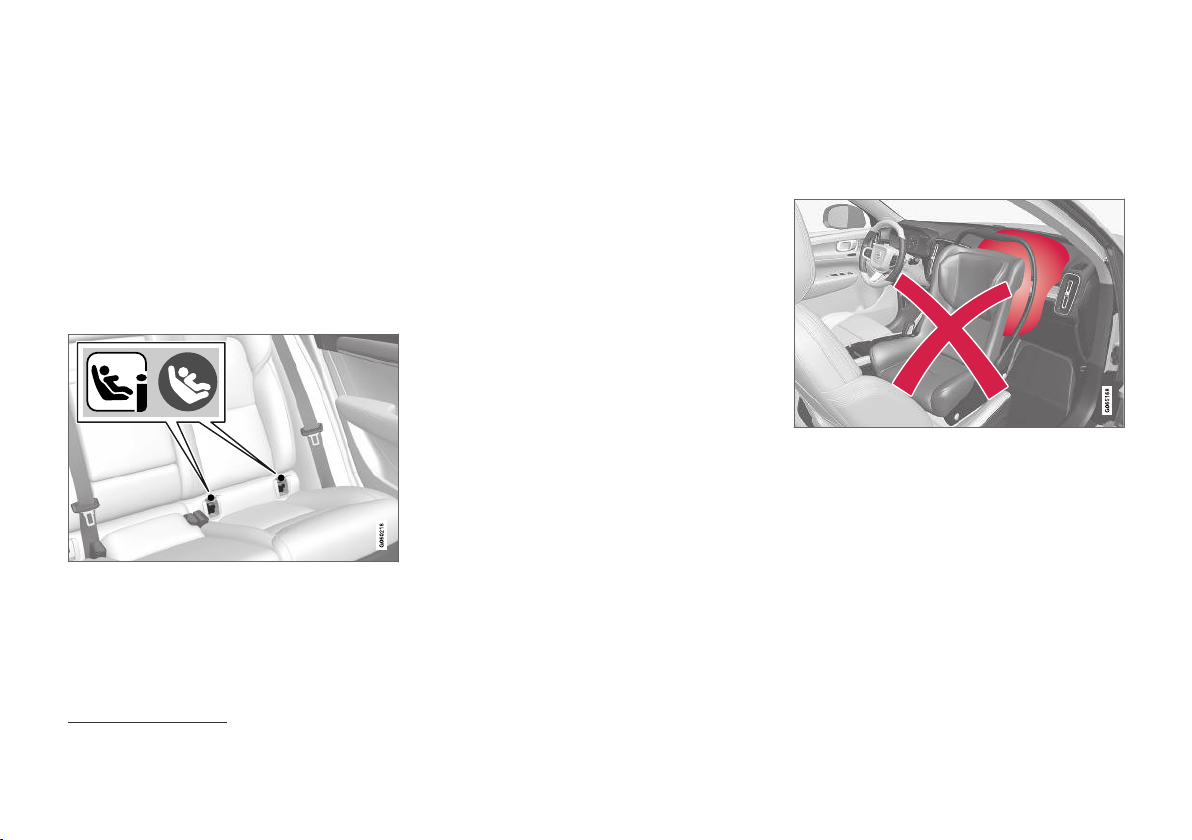

Child safety Child seats Upper mounting points for child seats Lower mounting points for child seats i-Size/ISOFIX mounting points for

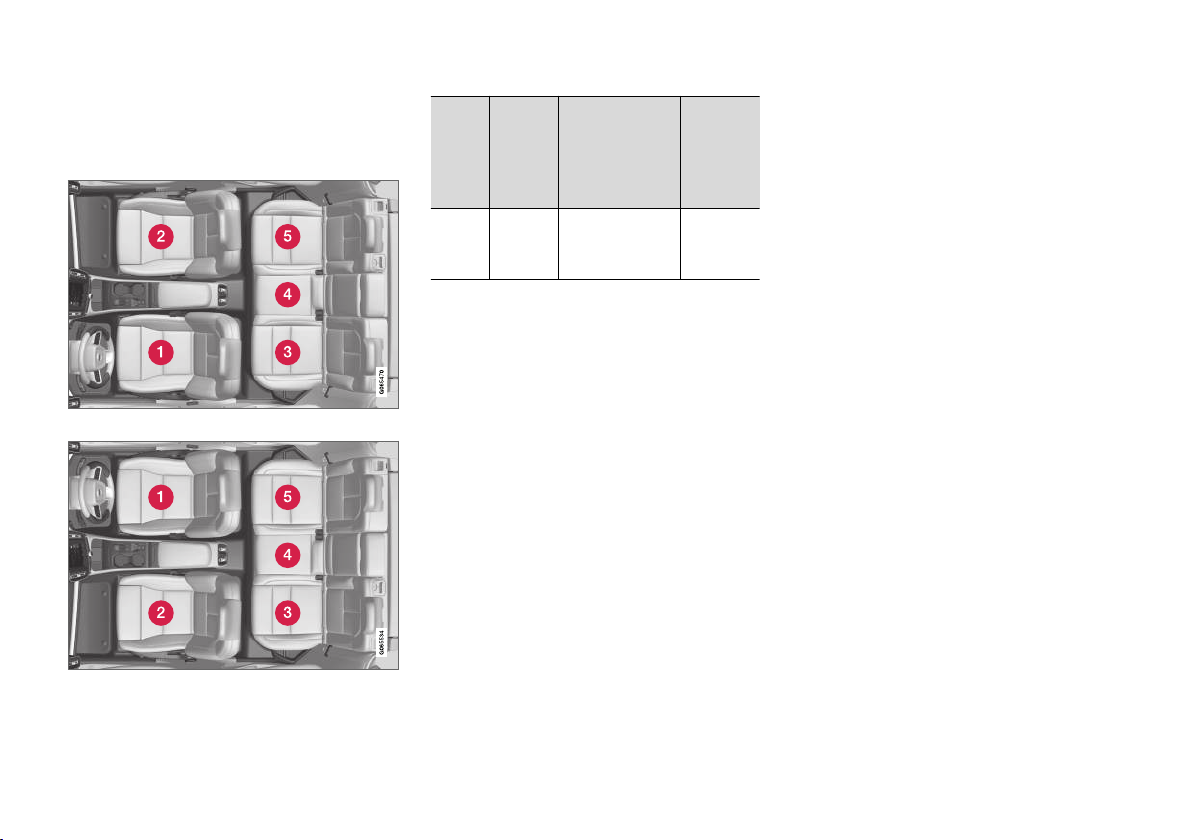

child seats Child seat positioning

42 42 43 44 45 46 47 47 49 49 50 52

54 55 55 56

57 58 58 59 60

Page 5

Child seat mounting Overview table for location of child seats Table for location of child seats

using the car's seatbelts Table for location of i-Size child seats Table for location of ISOFIX child seats

DISPLAYS AND VOICE CONTROL

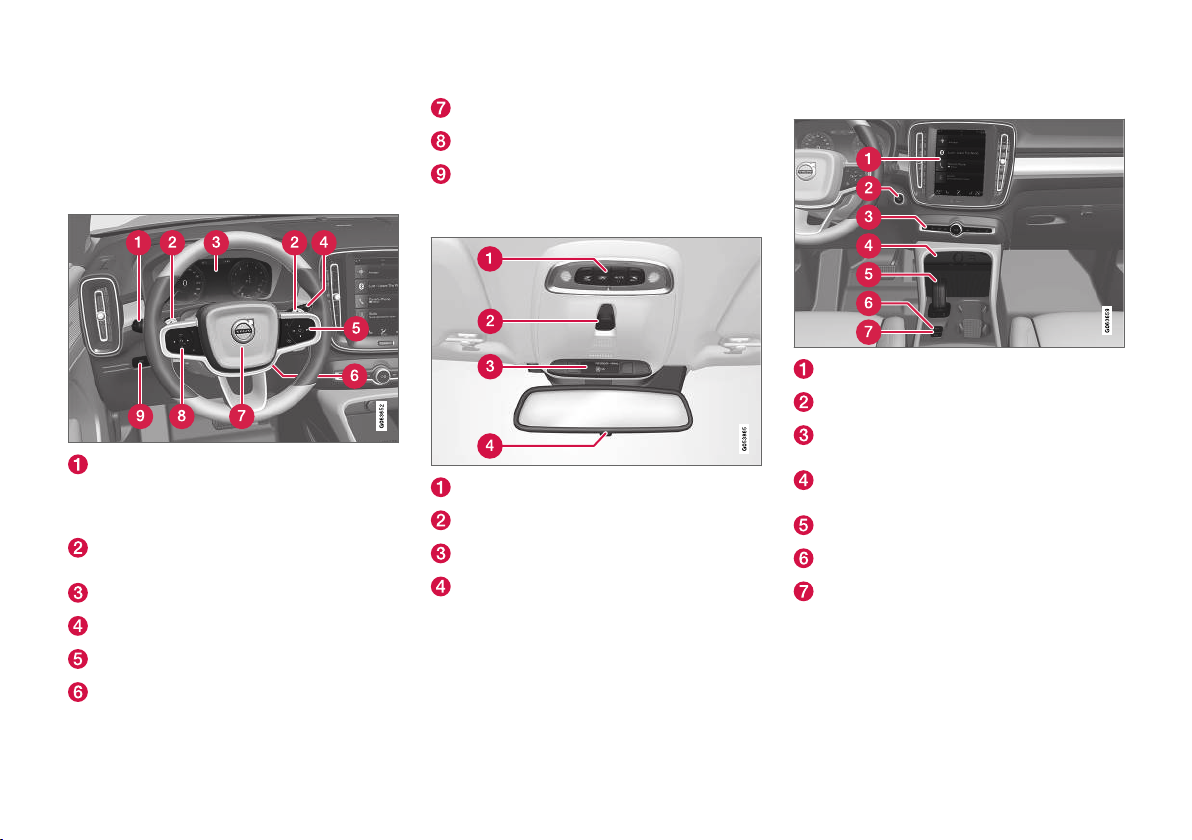

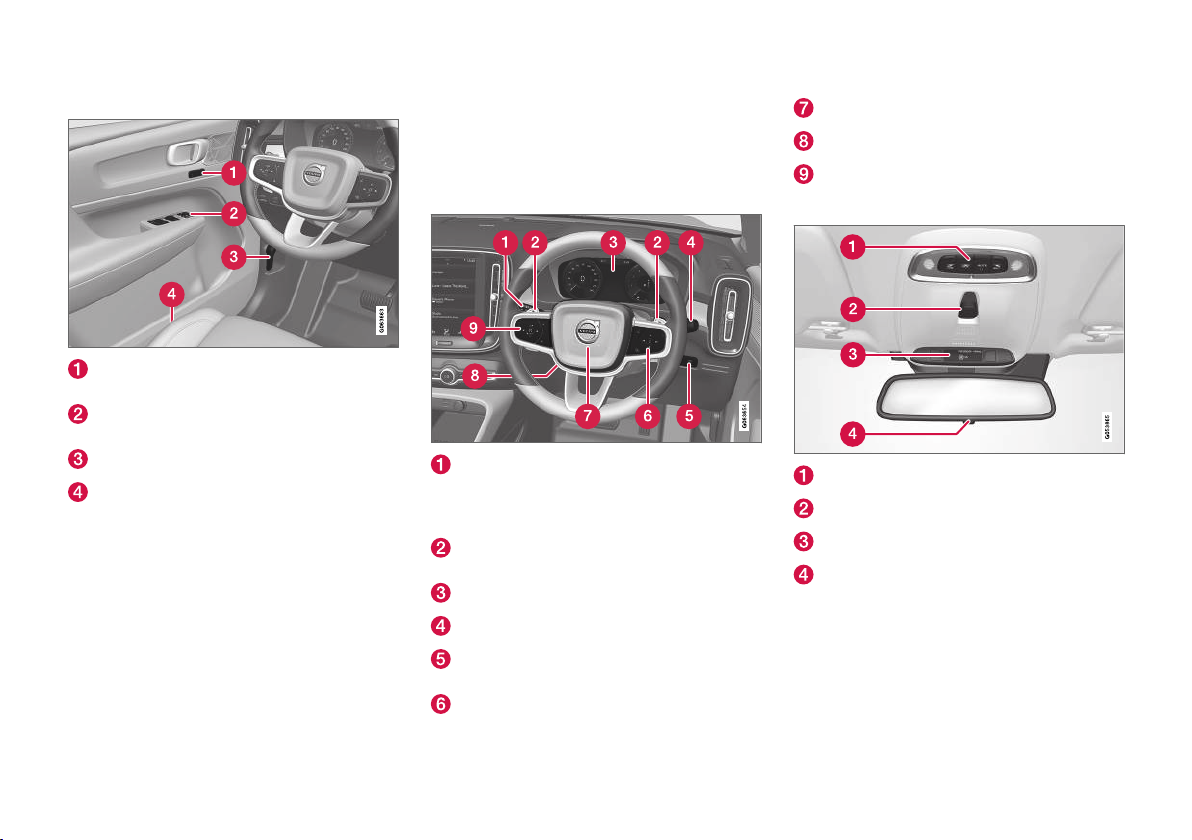

Instruments and controls in left-hand

drive car

Instruments and controls in right-

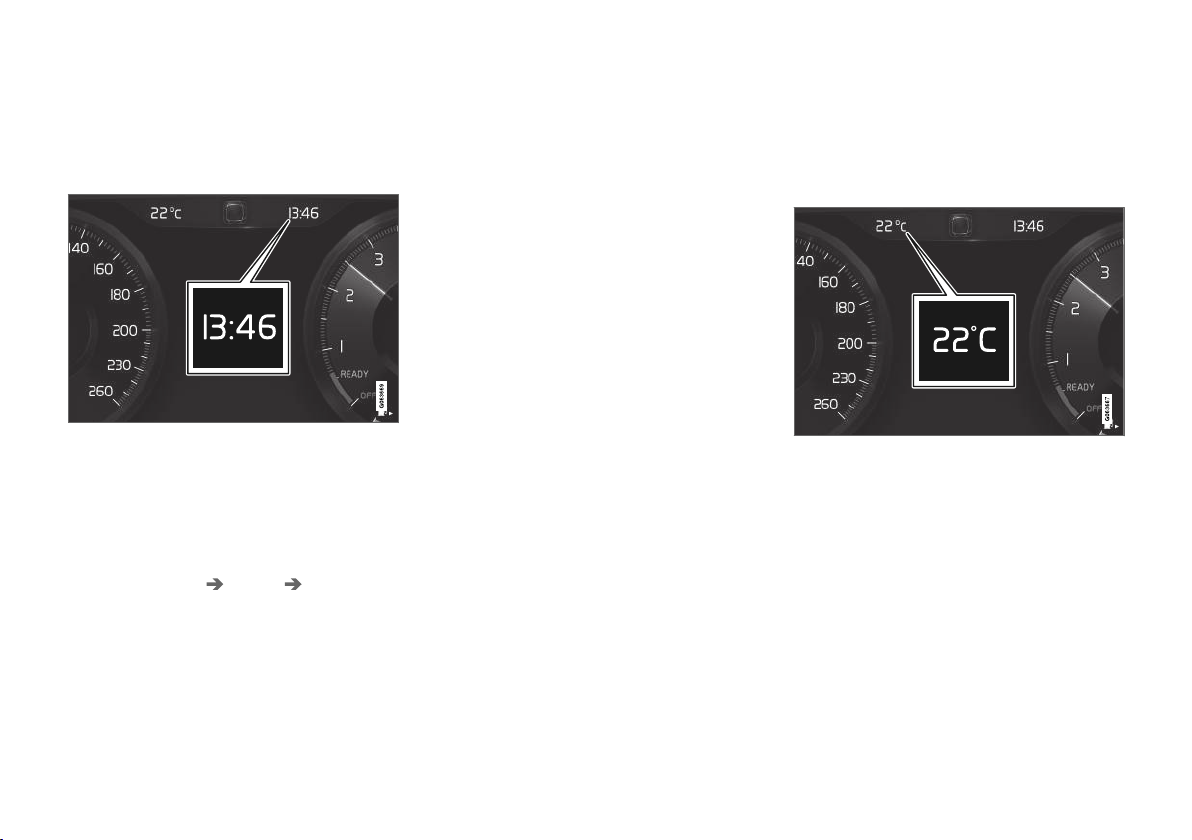

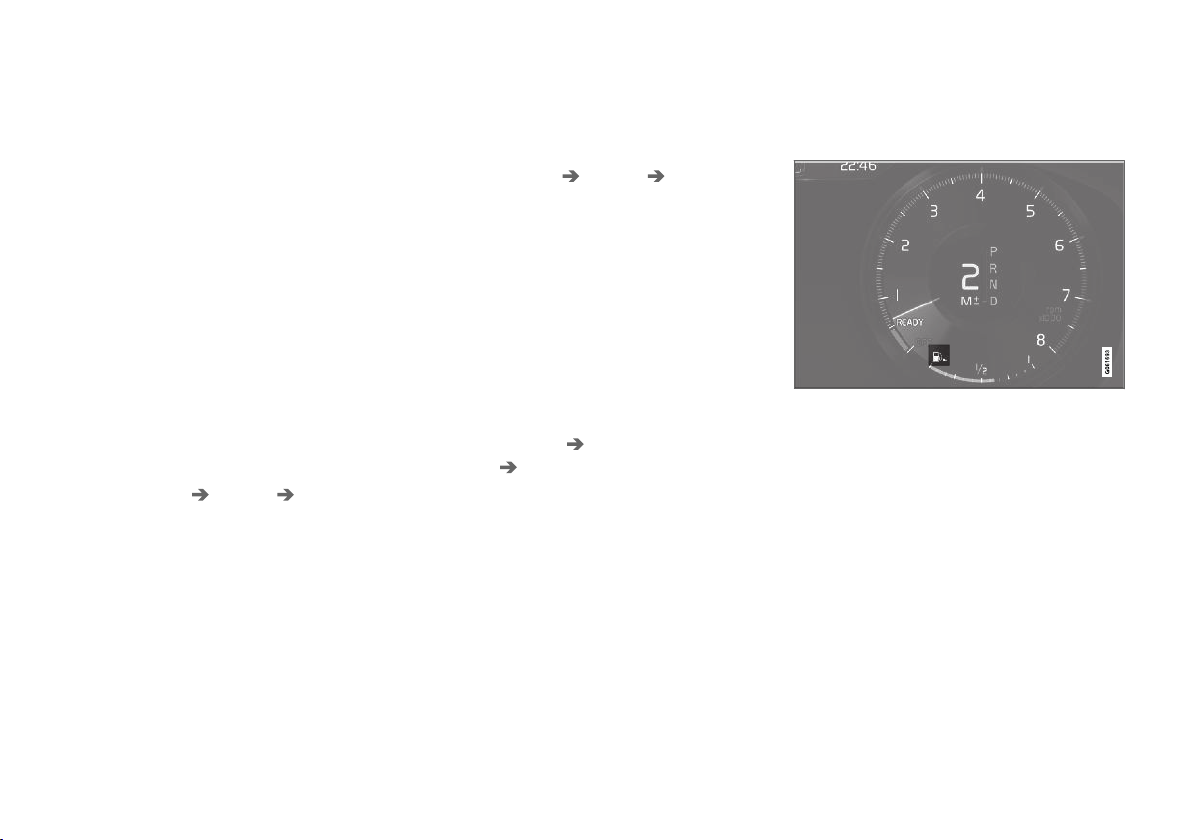

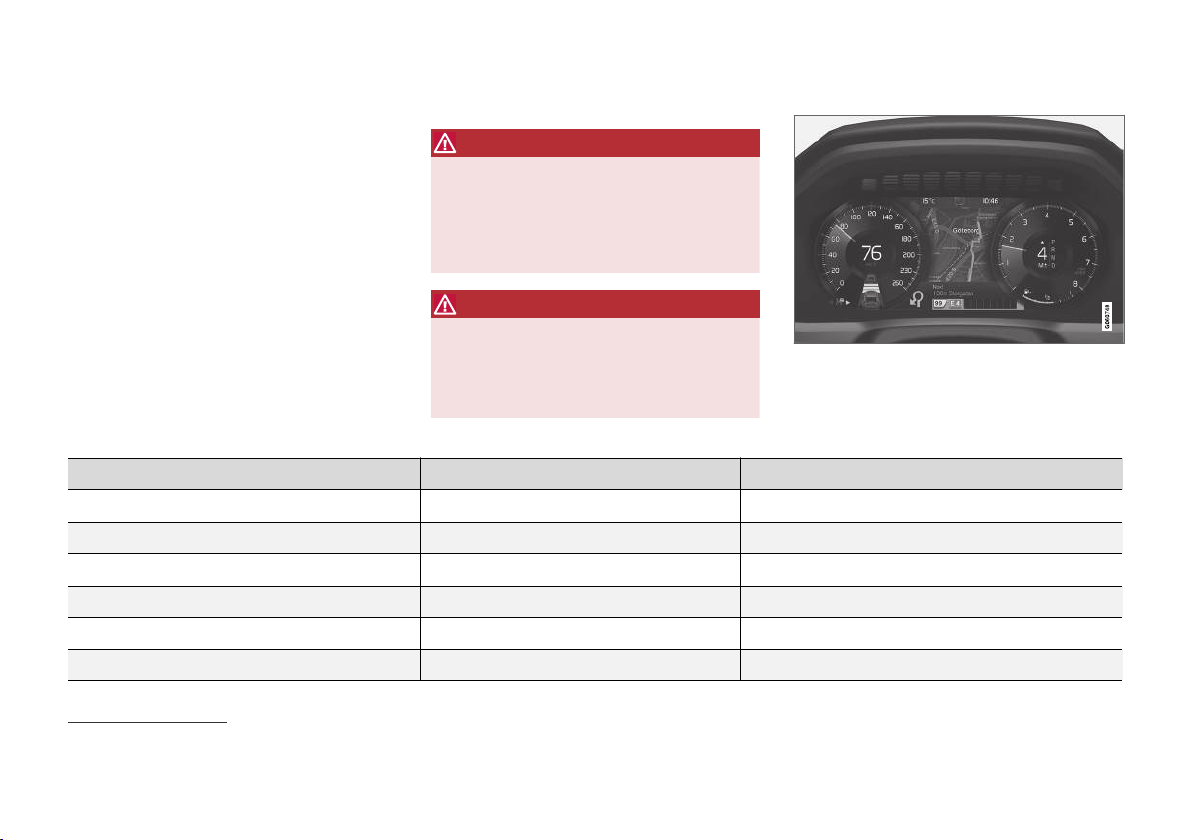

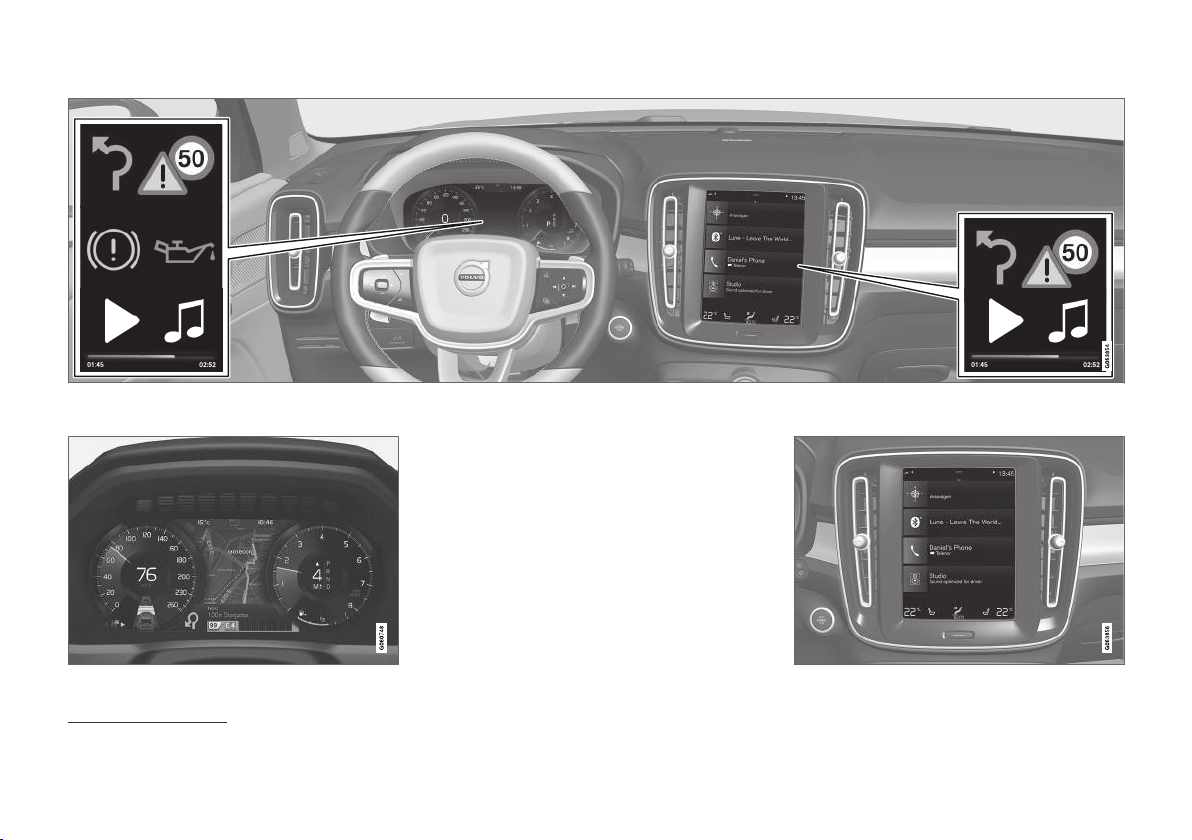

hand drive car Driver display

Driver display settings

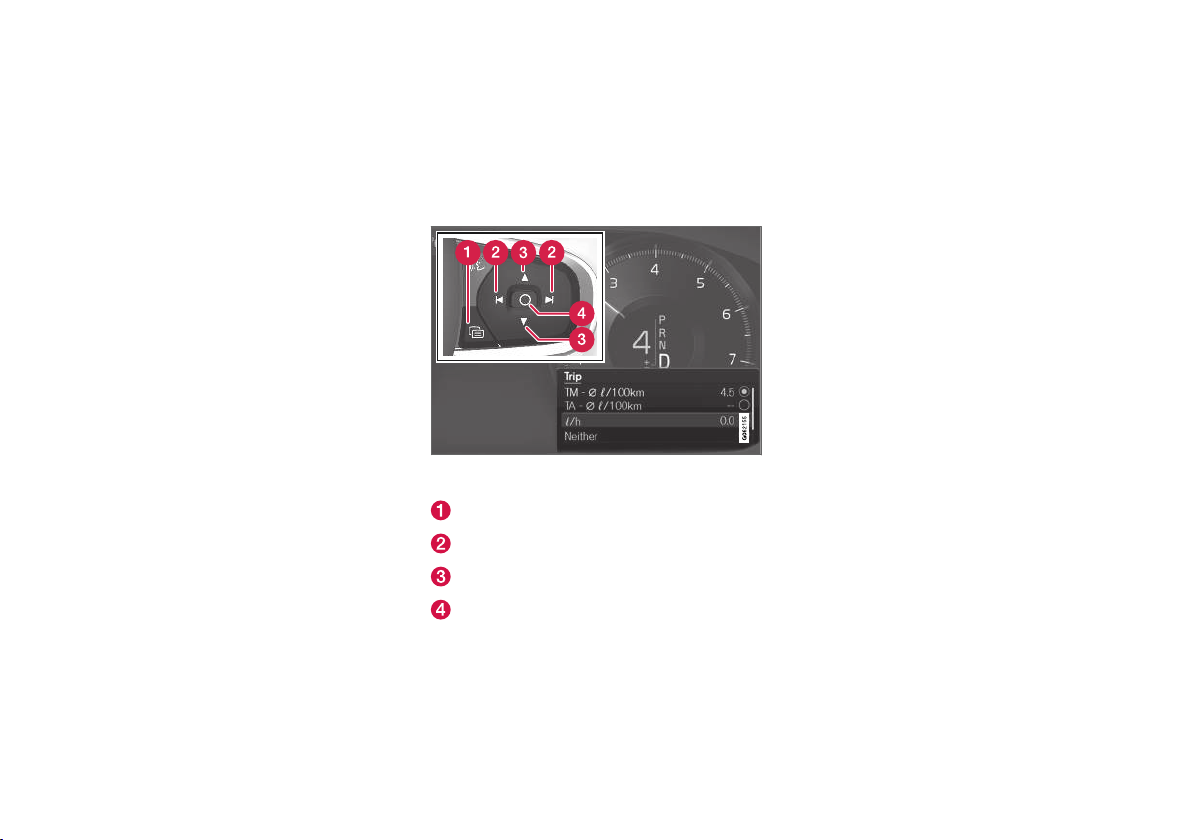

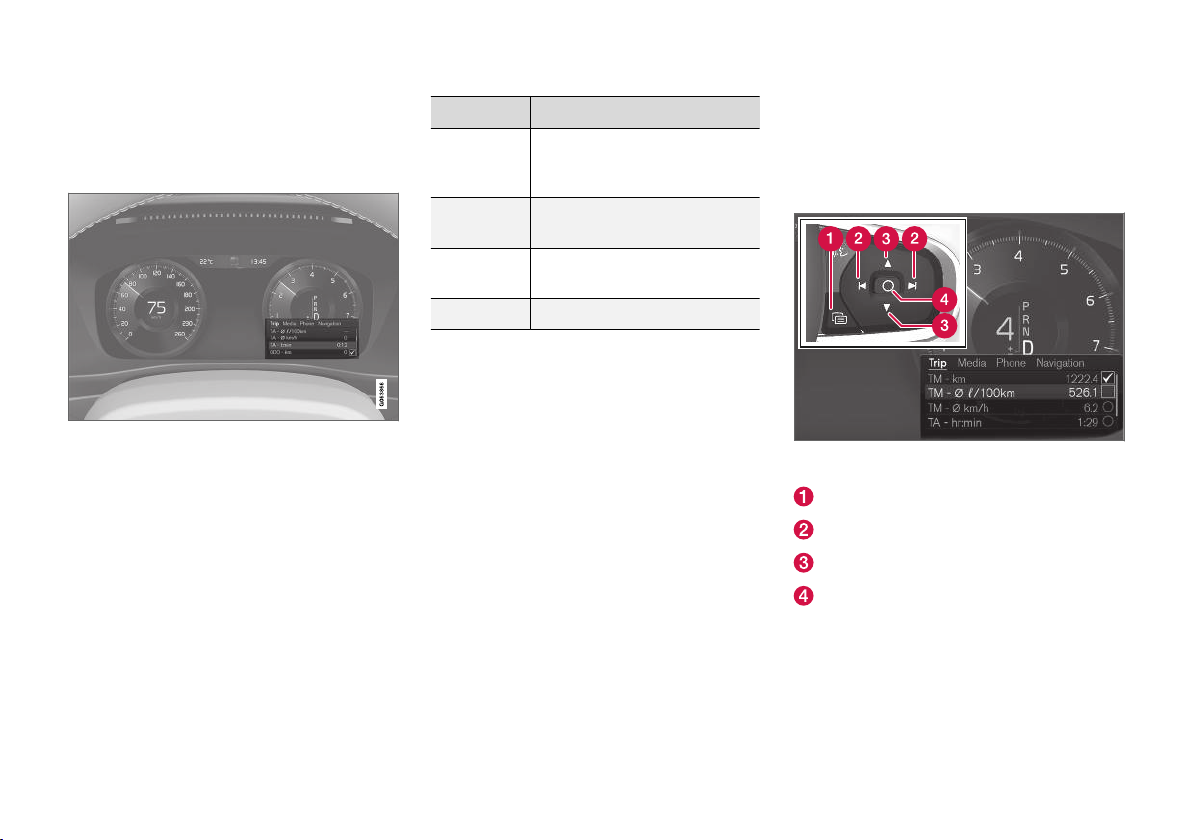

Fuel gauge Trip computer Show trip data in the driver display Resetting the trip meter Show trip statistics in the centre display Settings for trip statistics Time and date Outside temperature gauge Indicator symbols in the driver display Warning symbols in the driver display License agreement for the driver display Application menu in driver display Handling the application menu in the

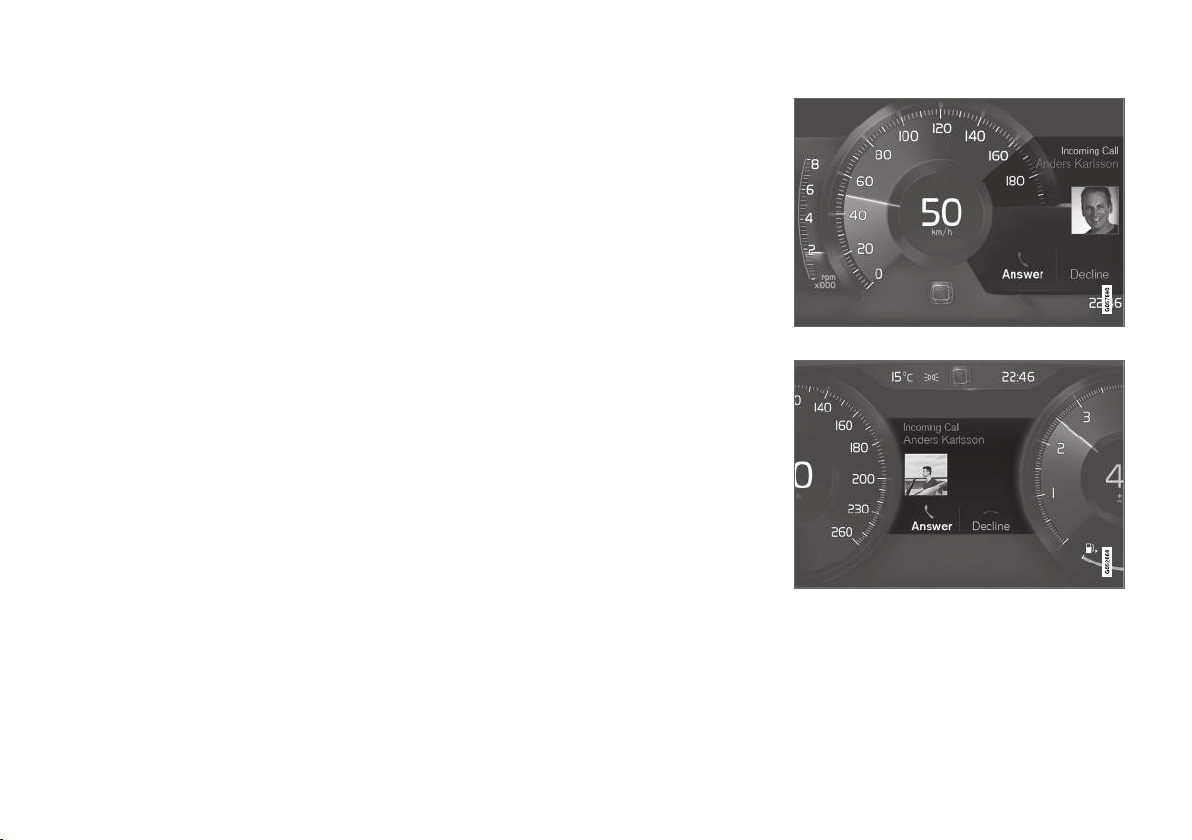

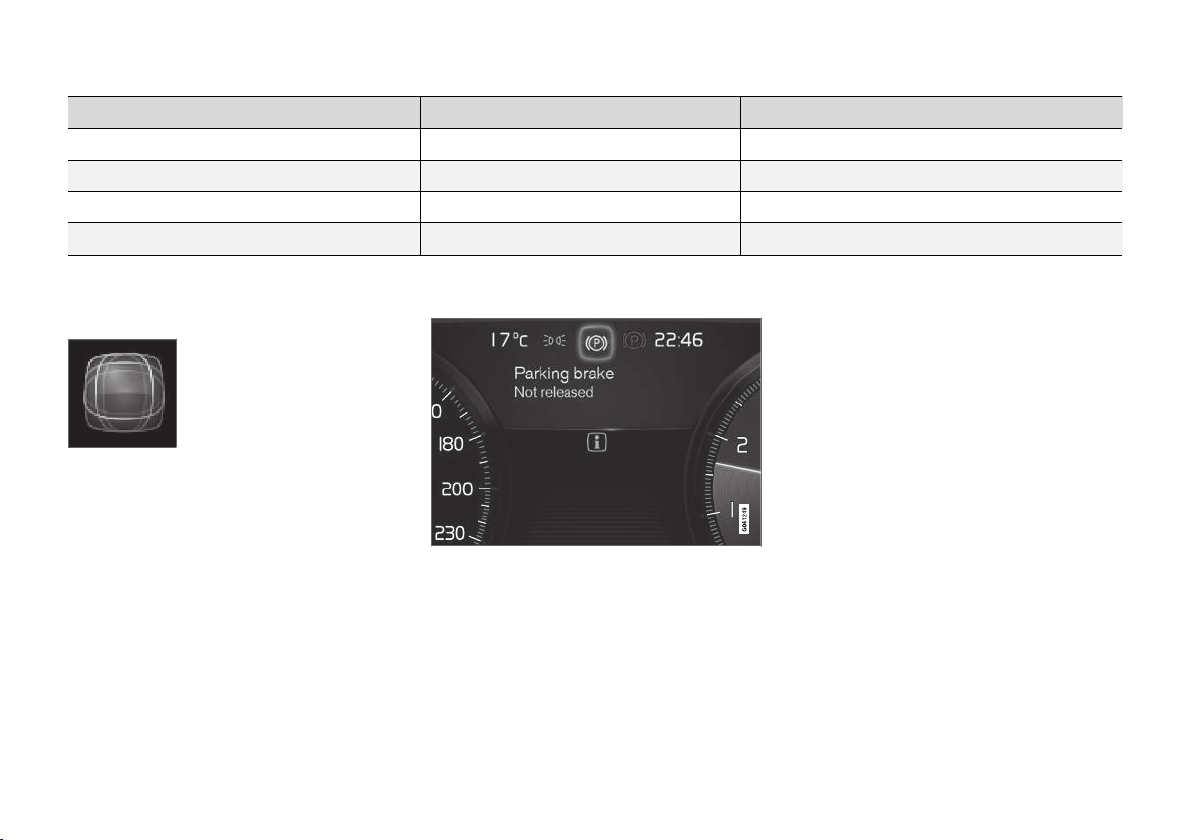

driver display Messages in the driver display Managing messages in the driver display Handling a message saved from the

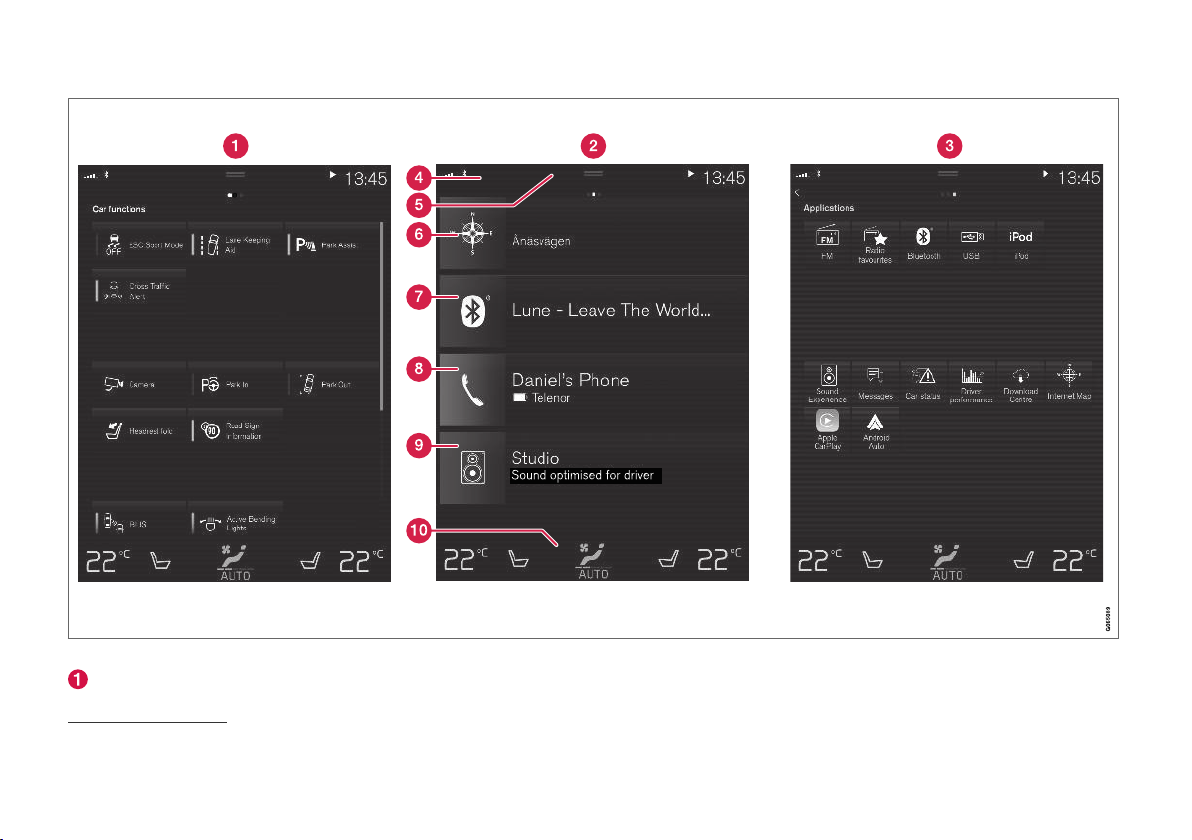

driver display Overview of centre display Managing the centre display

Activating and deactivating centre display

Navigating in the centre display's views

Managing tiles in centre display Function view in centre display

Moving apps and buttons in centre

display

Symbols in the centre display's status bar

Keyboard in centre display

Changing keyboard language in centre display

Enter the characters, letters and

words manually in the centre display

Changing the appearance in the

centre display

Switching off and changing the volume of the system sound in the cen-

tre display

Changing system units

Changing system language

Opening settings in the centre display

Open contextual setup in the centre display

Changing settings in the centre display

Resetting user data for change of

ownership Resetting settings in the centre display

Setting types in the centre display

101 101 105 108 110

110 112 115

115

117

118 118 118 119

120 120

121 121

Page 6

Table showing centre display settings Driver profiles Selecting driver profile Renaming a driver profile Resetting settings in the driver profiles Linking remote control key to driver

profile Message in centre display Managing messages in the centre display Handling a message saved from the

centre display Voice recognition Using voice recognition Controlling a telephone with voice

recognition Voice control of radio and media Settings for voice recognition

122 123 124 125 125 125

126 127 128

128 129 130

131 131

LIGHTING

Lighting control Adjusting light functions via the cen-

tre display Position lamps Daytime running lights Dipped beam Using main beam Active main beam Using direction indicators Active bending lights* Front fog lamps/cornering lights* Rear fog lamp Brake lights Emergency brake lights Hazard warning flashers Using home safe lighting Approach light duration Interior lighting Adjusting interior lighting

134 135

135 136 137 137 138 139 140 141 141 142 142 143 143 144 144 146

WINDOWS, GLASS AND MIRRORS

Windows, glass and mirrors Pinch protection for windows and

sun blinds Reset sequence for pinch protection Power windows Operating power windows Rearview and door mirrors Adjusting rearview mirror dimming Angling the door mirrors Panorama roof* Operating the panorama roof* Automatic closing of the panoramic

roof's* sun blind Using windscreen wipers Heated windscreen wiper nozzles* Using the rain sensor Using the rain sensor's memory function Using windscreen and headlamp washers Using the rear window wiper and washer Using automatic rear windscreen

wiping when reversing

148 148

149 149 150 151 152 153 154 156 158

159 160 160 161 162 163 164

Page 7

SEATS AND STEERING WHEEL

Manual front seat Power front seat* Adjusting the power front seat* Storing memory function in power

operated front seat* Using stored memory in a powered

front seat Adjusting the length of the seat

cushion in the front seat* Adjusting the lumbar support* in the

front seat Lowering the backrests in the rear seat Adjusting the head restraints in the

rear seat Steering wheel controls and horn Steering lock Adjusting the steering wheel

166 167 167 168

169

170

171 173

174 175 175

CLIMATE

Climate Climate zones Climate control - sensors Perceived temperature Controlling climate control with voice

recognition Air quality Clean Zone* Clean Zone Interior Package* Interior Air Quality System* Activating and deactivating the air

quality sensor* Passenger compartment filter Air distribution Changing air distribution Opening, closing and aiming the air vents Table of air distribution options Climate controls Activating and deactivating heated

front seat* Activating and deactivating automatic

start of heated front seat* Activating and deactivating heated

rear seat* Activating and deactivating ventilated

front seat*

178 178 179 179 180

181 181 182 182 183

183 184 185 185 187 190 191

192

193

Activating and deactivating the heated steering wheel*

Activating and deactivating automatic start of heated steering wheel*

Activating auto climate control Activating and deactivating air recir-

culation Activating and deactivating time set-

ting for air recirculation Activating and deactivating max defroster Activating and deactivating the

heated windscreen* Activating and deactivating automatic

start of heated windscreen* Activating and deactivating the

heated rear window and door mirrors Activating and deactivating automatic

starting of the heated rear window and door mirrors

Regulating fan level for front seat Regulating temperature for front seat Synchronising temperature Activating and deactivating air condi-

tioning Parking climate* Preconditioning* Starting/stopping preconditioning* Preconditioning time setting*

194

195 195

196

196 198

199

200

200 201 202 202

203 204 204 205

Page 8

Adding and editing time setting for preconditioning*

Activating and deactivating time setting for preconditioning*

Removing time setting for preconditioning*

Climate comfort when parking* Starting and switching off climate

comfort when parking* Symbols and messages for parking

climate control* Heater* Parking heater* Additional heater* Activating and deactivating automatic

start of auxiliary heater

205

207

208 208

210

211 212 213 213

KEY, LOCKS AND ALARM

Lock confirmation Lock indication setting Remote control key Locking and unlocking with the

remote control key Settings for remotely controlled and

inside unlocking Unlocking the tailgate with the

remote control key Remote control key range Replacing the battery in the remote

control key Ordering more remote control keys Red Key - restricted remote control key* Red Key settings* Detachable key blade Locking and unlocking with the

detachable key blade Immobiliser Type approval for the remote control

key system Keyless and touch-sensitive surfaces* Keyless locking and unlocking* Settings for Keyless entry* Keyless unlocking of the tailgate* Antenna locations for the start and

lock systems

216 217 217 219

220

221

222 222

226 226 227 227 229

230 232

241 242 243 243 244

Locking and unlocking from inside the car

Unlocking the tailgate from the inside of the car

Activating and deactivating child safety locks

Automatic locking when driving Opening and closing the power*-

operated tailgate Programming maximum opening for

power operated tailgate* Opening and closing the tailgate with

foot movement* Private locking Activating and deactivating private

locking Alarm* Activating and deactivating alarms* Reduced alarm level* Double lock* Temporarily deactivating double locks* Detection of unknown car component*

245

246

247

248 248

251

252

253 253

255 256 258 258 259 259

Page 9

DRIVER SUPPORT

Driving support systems Speed-dependent steering force Stability system Roll Stability Control Electronic stability control Sport mode for electronic stability control Activating/deactivating Sport mode

in Electronic Stability Control Limitation for sport mode in Elec-

tronic Stability Control Symbols and messages for elec-

tronic stability control Speed Limiter Activating and starting the Speed Limiter Managing speed for the Speed Limiter Deactivate the Speed Limiter and set

it in standby mode Reactivating the Speed Limiter from

standby mode Deactivating the Speed Limiter Limitations for Speed Limiter Automatic Speed Limiter Activate/deactivate Automatic Speed

Limiter Changing the tolerance for the Auto-

matic Speed Limiter Limitations for Automatic Speed Limiter Cruise Control

262 262 263 264 265 265

266

267

268 269 269 270

271

271 272 272 274

275

275 276

Activating and starting Cruise Control Managing speed for the Cruise Control Deactivate Cruise Control and set it

in standby mode Reactivating Cruise Control from

standby mode Deactivating Cruise Control Adaptive Cruise Control* Adaptive Cruise Control and Collision

risk warning Activating and starting Adaptive

Cruise Control Managing speed with Adaptive

Cruise Control Setting time interval for Adaptive

Cruise Control Deactivating/reactivating Adaptive

Cruise Control Overtaking assistance with Adaptive

Cruise Control Starting overtaking assistance with

Adaptive Cruise Control Limitations for overtaking assistance

with Adaptive Cruise Control Changing target with Adaptive

Cruise Control Automatic braking with Adaptive

Cruise Control Limitations for Adaptive Cruise Control

277 278 279

279

280 281 283

284

285

286

287

289

290

291

292

Change between Cruise Control and Adaptive Cruise Control

Symbols and messages for Adaptive Cruise Control

Pilot Assist Pilot Assist and Collision risk warning Activating and starting Pilot Assist Managing speed for Pilot Assist Setting the time interval for Pilot Assist Deactivating/activating Pilot Assist Overtaking assistance with Pilot Assist Start overtaking assistance with Pilot

Assist Limitations for overtaking assistance

with Pilot Assist Change the target with Pilot Assist Automatic braking with Pilot Assist Limitations of Pilot Assist Symbols and messages for Pilot Assist* Radar unit Limitations for radar device Recommended radar device mainte-

nance Type approval for radar device Camera unit Limitations for camera unit

292

294

296 299 300 301 302 304 306 306

306

307 307 308 309 311 312 315

316 321 322

Page 10

Recommended camera device maintenance

City Safety™ Parameters and subfunctions for City

Safety Setting the warning distance for City

Safety Detection of obstacles with City Safety City Safety in cross traffic Limitations for City Safety in cross traffic City Safety when evasive manoeu-

vres are prevented Limitations of City Safety Messages for City Safety Rear Collision Warning Limitations of Rear Collision Warning BLIS* Activate/deactivate BLIS Limitations of BLIS Recommended maintenance for BLIS Messages for BLIS Cross Traffic Alert* Activate/deactivate Cross Traffic Alert Limitations of Cross Traffic Alert Recommended maintenance for

Cross Traffic Alert

325

325 326

328

329 331 332 332

333 336 337 337 338 339 340 340 342 343 344 344 345

Messages for Cross Traffic Alert Road Sign Information* Activating/deactivating Road Sign

Information Road Sign Information and sign display Road Sign Information and Sensus

Navigation Road Sign Information with Speed

Warning and Settings Activating/deactivating Speed warn-

ing in Road Sign Information Road Sign Information with Speed

Camera Information Limitations of Road Sign Information Driver Alert Control Activate/deactivate Driver Alert Control Select rest stop guidance in the

event of a warning with Driver Alert Control

Limitations of Driver Alert Control Lane assistance Steering assistance with lane assistance Activate/deactivate Lane Keeping Aid Select assistance option for lane

assistance Limitations of Lane assistance Symbols and messages for lane

assistance

347 348 349

349 351

351

352

353

353 354 355 356

356 356 358 359 359

359 361

Lane assistance symbols in the driver display

Steering assistance at risk of collision Activating/deactivating Steering

assistance in the event of a collision risk Steering assistance upon risk of run-off Steering assistance level in the event

of a run-off risk Activating/deactivating Steering

assistance in the event of run-off risk Limitations for steering assistance

upon risk of running off the road Steering assistance upon risk of

head-on collision Activating/deactivating Steering

assistance in the event of a risk of a head-on collision

Limitations for steering assistance upon risk of head-on collision

Symbols and messages for steering assistance upon risk of collision

Park Assist* Park Assist Pilot front, rear and

along the sides Activating/deactivating Park Assist Pilot Limitations of Parking assistance Recommended Park Assist Pilot

maintenance

363

364 364

365 366

366

367

368

369

371

372 373

374 374 375

Page 11

Symbols and messages for Park Assist Pilot

Park assist camera* Parking cameras' camera views Park assist lines for parking camera Sensor fields from Park Assist Pilot

for parking camera Starting the park assist camera Limitations for park assist camera Recommended parking camera

maintenance Symbols and messages for Park

assist camera Park Assist Pilot* Parking variants with Park Assist Pilot Parking with Park Assist Pilot Leaving a car park with Park Assist Pilot Limitations of Park Assist Pilot* Recommended Park Assist Pilot

maintenance Messages for Park Assist Pilot*

376

377 378 380 382

382 383 384

385

386 386 387 390 391 392

393

STARTING AND DRIVING

Starting the car Switching off the car Ignition positions Selecting ignition mode Alcohol lock* Bypass of the alcohol lock* Before starting the engine with the

alcohol lock Brake functions Foot brake Brake assistance Braking on wet roads Braking on gritted roads Brake system maintenance Parking brake Activating and deactivating the park-

ing brake Automatic parking brake activation

setting Parking on a hill In the event of a fault in the parking

brake Automatic braking when stationary Activating and deactivating the auto-

matic brake at a standstill Help when starting on a hill

396 397 398 399 399 400 400

401 401 402 402 403 403 403 404

405

406 406

407 407

408

Auto braking after a collision Gearbox Gear positions for automatic gearbox Changing gear with steering wheel

paddles* Gear selector inhibitor Kick-down function Gear shift indicator* All-wheel drive Drive modes* Changing drive mode* Drive mode ECO Activating and deactivating drive

mode ECO with the function button Start/Stop function Driving with start/stop function Deactivating the Start/Stop function

temporarily Conditions for the Start/Stop function Level control* and shock absorption Low speed control* Activating and deactivating low-

speed driving* using a function button Hill descent control* Activating and deactivating hill

descent control* with the function button

408 409 410 411

412 413 413 413 414 416 416 418

419 419 420

421 423 425 425

426 427

Page 12

Economical driving Preparations for a long trip Winter driving Driving in water Opening and closing the fuel filler flap Filling fuel Handling of fuel Petrol Petrol particle filter Diesel Empty tank and diesel engine Diesel particulate filter Emission control with AdBlue® Handling AdBlue® Checking and filling with AdBlue® Symbols and messages for AdBlue® Overheating in the engine and drive

system Overloading the starter battery Using jump starting with another battery Towbar* Specifications for towbar* Extendable and retractable towbar* Removable towbar*

428 428 429 430 430 431 432 432 433 434 435 435 436 437 437 440 442

443 443 444 445 446 448

Driving with a trailer Trailer stability assist* Checking trailer lamps Towbar-mounted bicycle rack* Towing Fitting and removing the towing eye Recovery HomeLink®* Programming HomeLink®* Using HomeLink Type approval for HomeLink®* Compass* Activating and deactivating the compass* Calibrating the compass*

449 450 451 452 453 454 456 457 457 459 460 460 461 461

SOUND, MEDIA AND INTERNET

Sound, media and Internet Audio settings Apps Downloading apps Updating apps Deleting apps Radio Start radio Changing radio band and radio station Searching for radio stations Setting radio favourites Settings for radio RDS radio Digital radio* Link between FM and digital radio* Media player Media playback Controlling and changing media Searching media Gracenote Video Playing a video Playing back DivX® Settings for video

464 464 465 466 467 467 468 468 469 470 470 471 472 473 474 474 475 476 477 478 478 479 479 479

Page 13

Media via Bluetooth Connecting a device via Bluetooth Media via USB port Connecting a device via USB port TV* Using the TV* Settings for TV* Apple® CarPlay®* Using Apple® CarPlay®* Settings for Apple® CarPlay®* Tips for using Apple® CarPlay®* Android Auto* Using Android Auto* Settings for Android Auto* Tips for using Android Auto* Phone Connecting a phone to the car via

Bluetooth for the first time Connecting a phone to the car via

Bluetooth automatically Connecting a phone to the car via

Bluetooth manually Disconnecting a Bluetooth-con-

nected phone

480

480 480 481 481 482 482 483 483 485 485 486 487 487 488 488 489

491

492

Switch between Bluetooth-connected phones

Removing a Bluetooth-connected phone Managing phone calls Managing text messages Settings for text messages Managing the phone book Settings for phone Settings for Bluetooth devices Wireless phone charger* Using the wireless telephone charger* Internet-connected car* Connecting the car to the Internet

via a mobile device (Bluetooth) Connecting the car to the Internet

via a mobile device (Wi-Fi) Connect the car to the Internet via

car modem (SIM card) Settings for car modem Sharing Internet access from the car

via a Wi-Fi hotspot No or poor Internet connection Remove Wi-Fi network Wi-Fi technologies and security User terms and conditions and data

sharing

493

493 493 494 495 496 496 497 497 497 498 499

500

501 502

503 503 504 504

Activating and deactivating data sharing Compatible media formats Technical specifications for USB devices Storage space on hard disk License agreement for audio and media

504 505 506 506 507

Page 14

WHEELS AND TYRES

Tyres Dimension designation for tyre Dimension designation for wheel rim Tyres' rotation direction Tread wear indicators on the tyres Checking tyre pressure Adjusting tyre pressure Recommended tyre pressure Tyre pressure monitoring system* Calibrate the system for tyre pres-

sure monitoring* See tyre pressure statue in the cen-

tre display* Action in the event of warning for

low tyre pressure When changing wheels Tool kit Jack* Wheel bolts Removing a wheel Fitting the wheels Spare wheel* Taking out the spare wheel Winter wheels Snow chains

518 519 520 521 521 522 522 523 524 525

527

528

529 529 529 530 531 533 534 535 536 536

Emergency puncture repair kit Using a puncture repair kit Inflating tyres with the compressor

from the puncture repair kit

537 538 542

LOADING, STORAGE AND PASSENGER COMPARTMENT

Passenger compartment interior Tunnel console Using the cigarette lighter* Emptying the ashtray* Electrical sockets Using electrical sockets Using the glovebox Sun visors Cargo area Recommendations for loading Roof load and loading on load carriers Bag hooks Load retaining eyelets Through-load hatch in the rear seat* Folding up the cargo area floor Fitting and removing the safety net* Removing and storing the parcel

shelf in the car First aid kit Warning triangle

544 545 545 546 546 547 548 549 550 550 551 551 552 552 553 553 555

556 556

Page 15

MAINTENANCE AND SERVICE

Volvo service programme Data transfer between car and work-

shop via Wi-Fi Download Center Managing system updates via the

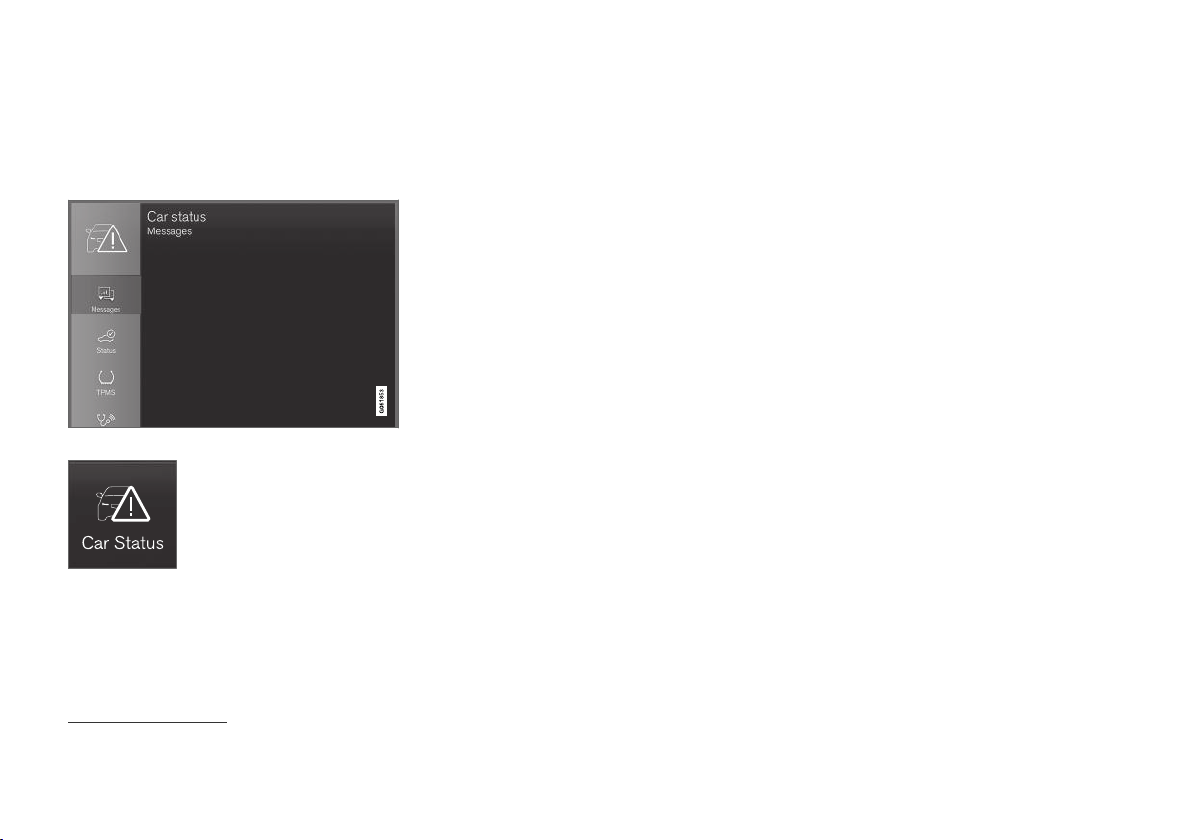

Download Centre Car status Book service and repair Sending car information to a workshop Raise the car Opening and closing the bonnet Servicing the climate control system Engine compartment overview Engine oil Checking and filling with engine oil Topping up coolant Bulb replacement Exterior lamp positions Replacing the rear direction indicator

bulb Changing brake light bulb Replacing the rear fog lamp bulb Bulb specifications Starter battery Support battery

560 560

561 561

562 562 564 565 567 568 569 570 571 572 573 574 575

576 577 578 579 582

Symbols on the batteries Fuses and central electrical units Replacing a fuse Fuses in engine compartment Fuses under the left-hand front seat Cleaning the interior Cleaning the centre display Cleaning fabric upholstery and headlining Cleaning the seatbelts Cleaning floor mats and inlay mats Cleaning leather upholstery Cleaning the leather steering wheel Cleaning interior plastic, metal and

wood parts Cleaning the exterior Polishing and waxing Handwashing Automatic car wash High-pressure washing Cleaning the wiper blades Cleaning exterior plastic, rubber and

trim components Cleaning wheel rims Rustproofing Car paintwork

583 584 585 586 590 593 593 594 595 595 596 596 597

597 598 598 600 601 601 602

603 603 604

Touching up minor paintwork damage Colour codes Replacing the wiper blade, rear window Replacing windscreen wiper blades Wiper blades in service position Filling washer fluid

604 605 606 607 608 609

Page 16

SPECIFICATIONS

Type designations Dimensions Weights Towing capacity and towball load Engine specifications Engine oil — specifications Adverse driving conditions for engine oil Coolant — specifications Transmission fluid — specifications Brake fluid — specifications Fuel tank - volume Tank capacity for AdBlue Air conditioning — specifications Fuel consumption and CO2 emissions Approved tyre pressures Performance

612 615 617 618 620 621 622 623 623 623 624 624 624 626 627 628

ALPHABETICAL INDEX

Alphabetical Index 629

Page 17

OWNER INFORMATION

Page 18

OWNER INFORMATION

Owner information

Owner's information is available in several different product formats, both digital and printed. The owner's manual is available in the car's centre display, as a mobile app and on the Volvo Cars support site. There is a Quick Guide and a supplement to the owner's manual available in the glovebox, with specifications and fuse information, amongst other things. A printed owner's manual can be ordered.

The car's centre display

In the centre display, drag down the top view and tap on

Owner's manual. Available

here are options for visual navigation with exterior and interior images of the car. The information is searchable and is also

divided into categories.

Mobile app

In App Store or Google Play, search for "Volvo Manual", download the app to your smartphone or tablet and select the car. Available in the app are video tutorials and options for

visual navigation with exterior and interior images of the car. It is easy to navigate between the different sections in the owner's manual and the content is searchable.

Volvo Cars support site

Go to support.volvocars.com

and select your country. Here

you can find owner's manuals,

both online and in PDF format.

On the Volvo Cars support site

there are also video tutorials

help regarding your Volvo and your car ownership. The page is available for most markets.

and further information and

Printed information

There is a supplement to the owner's manual1 in the glovebox that contains information on fuses and specifications, as well as a summary of important and practical information.

There is also a Quick Guide available in printed format that helps you to get started with the most commonly used functions in the car.

Depending on equipment level selected, market, etc. additional owner's information may also be available in printed format in the car.

A printed owner's manual and associated supplement can be ordered. Contact a Volvo retailer to order.

IMPORTANT

The driver is always responsible that the vehicle is driven safely in traffic and that applicable laws and regulations are followed. It is also important that the car is maintained and handled in accordance with Volvo's recommendations in the owner's information.

If there should be a difference between the information in the centre display and the printed information then it is always the printed information that applies.

A complete printed manual is included with the car for markets without owner's manual in the centre display.

Page 19

OWNER INFORMATION

NOTE

Changing the language in the centre display may mean that some owner information is not compliant with national or local laws and regulations. Do not switch to a language that is difficult to understand as this may make it difficult to find your way back in the structure on screen.

Related information

Owner's manual in centre display (p. 17)

•

Owner's Manual in mobile devices (p. 20)

•

Volvo Cars support site (p. 20)

•

Reading the owner's manual (p. 21)

•

Owner's manual in centre display

A digital2 version of the owner's manual is available in the car's centre display.

The digital owner's manual can be accessed from the top view, and in some cases the contextual owner's manual can also be accessed from the top view.

NOTE

The digital owner's manual is not available while driving.

Owner's manual

The owner's manual is accessed from the top view.

To open the owner's manual - drag down the top view in the centre display and tap on

manual.

Owner's

The information in the owner's manual can be accessed directly via the owner's manual homepage or its top menu.

Contextual owner's manual

The contextual owner's manual is accessed from the top view.

When the contextual owner's manual is available, it is shown to the right of the top view.

Pressing the contextual owner's manual opens an article in the owner's manual that is related to the content that is shown on the screen. E.g. press Navigation Manual - an article that is related to navigation opens.

This only applies to some of the apps in the car. For third party apps that are downloaded, it is not possible, for example, to access app-specific articles.

Owner's manual in

Applies for most markets.

}}

Page 20

OWNER INFORMATION

Related information

Navigate in the owner's manual in the centre

•

display (p. 18) Navigating in the centre display's views

•

(p. 101) Downloading apps (p. 466)

•

Navigate in the owner's manual in the centre display

The digital owner's manual can be accessed from the centre display top view in the car. The content is searchable and it is easy to navigate between different sections.

The owner's manual is accessed from the top view.

To open the owner's manual - drag down the

–

top view in the centre display and tap on

Owner's manual.

There is a range of different options for finding information in the owner's manual. The options can be accessed from the owner's manual homepage and from the top menu.

Opening the menu in the top menu

–

Press in the upper list in the owner's manual.

> A menu containing various options for

finding information opens:

Homepage

Tap on the symbol to go back to the start page in the owner's manual.

Quick Guide

Press the symbol to access a page with links to a selection of articles that can be particularly useful to read in order to get to know the most common functions of the car. The articles

gories, but are collected here for quick access. Tap on an article in order to read it in its entirety.

Hotspots for exterior and interior

Press > Exterior or interior images are shown with

so-called hotspots in place. The hotspot leads to articles about the corresponding part of the car. Swipe horizontally over the screen to browse among the images.

can also be accessed via cate-

Exterior and interior overview images of the car. Different parts are designated with hotspots that lead to articles about those parts of the car.

Exterior or Interior.

2. Tap on a hotspot.

> The title of the article about the area is

shown.

3. Tap on the title to open the article. To go back, press the back arrow.

Favourites

Press the symbol to access the

articles saved as favourites. Tap

on an article in order to read it

in its entirety.

Saving or deleting articles as favourites

Save an article as favourite by pressing at the top right when an article is open. When an article has been saved as a favourite the star is filled in:

To remove an article as a favourite, press the star again in the current article.

Video

Press the symbol to view brief

instruction videos for various

functions in the car.

Information

Tap on the symbol to obtain information about which version of the owner's manual is available in the car as well as other useful information.

Using the search function in the top menu

Tap on in the top menu of the owner's

1. manual. A keyboard appears in the lower part

of the screen.

2. Type in a keyword, such as "seatbelt". > Suggestions for articles and categories

are shown while letters are being entered.

3. Tap on the article or category to access it.

Related information

Owner's manual in centre display (p. 17)

•

Keyboard in centre display (p. 112)

•

Reading the owner's manual (p. 21)

•

Page 22

OWNER INFORMATION

Owner's Manual in mobile devices

The owner's manual is available as a mobile app3 from both the App Store and Google Play. The app is adapted for smartphones and tablets.

The owner's manual can be downloaded as a mobile app from the App Store or Google Play. The QR code provided here takes you directly to the app. Alternatively, you can search for "Volvo manual" in

the App Store or Google Play. The app contains a video along with exterior and

interior images where different parts of the car are highlighted with so-called hotspots, which lead to articles about the area in question. It is easy to navigate between the different sections

in the owner's manual and the content is searchable.

The mobile app is available from both the App Store and Google Play.

Related information

Reading the owner's manual (p. 21)

•

Volvo Cars support site

More information on your car is available on the Volvo Cars website and support site.

Support on the Internet

Go to support.volvocars.com to visit the site. The support site is available for most markets.

It contains support for functions such as webbased services and functions, Volvo On Call*, the navigation system* and apps. Videos and stepby-step instructions explain different procedures, e.g. how to connect the car to the Internet via a mobile phone.

Downloadable information

Maps

For cars equipped with Sensus Navigation, there is the facility to download maps from the support page.

Owner's manuals as PDF

Owner's manuals are available for download in PDF format. Select car model and model year to download the manual as required.

Contact

The support site contains contact details to customer support and your nearest Volvo retailer.

For certain mobile devices.

* Option/accessory.

Page 23

OWNER INFORMATION

Log in to Volvo Cars website

Create a personal Volvo ID and log in to www.volvocars.com. When you have logged in it is possible to get an overview of service, agreements and warranties, amongst other things. Here there is also information about accessories and software adapted for your car model.

Related information

Volvo ID (p. 26)

•

Reading the owner's manual

A good way of getting to know your new car is to read the owner's manual, ideally before your first journey.

Reading the owner's manual is a good way to become familiar with new functions, get advice on how best to handle the car in different situations and learn how to make the best use of all the car's features. Please pay attention to the safety instructions contained in the owner's manual.

The intention of this owner's information is to explain all of the possible features, functions and options included in a Volvo vehicle. It is not intended as an indication or guarantee that all of these features, functions and options are included in every vehicle. Some terminology used may not exactly match terminology used in sales, marketing and advertising materials.

Development work is constantly underway in order to improve our product. Modifications may mean that information, descriptions and illustrations in the owner's manual differ from the equipment in the car. We reserve the right to make modifications without prior notice.

Do not remove this manual from the car - if problems should arise then the necessary information about where and how to seek professional help will be missing.

Options/accessories

In addition to standard equipment, the owner's manual also describes options (factory fitted equipment) and certain accessories (retrofitted extra equipment).

All types of option/accessory are marked with an asterisk: *.

The equipment described in the owner's manual is not available in all cars - they have different equipment depending on adaptations for the needs of different markets and national or local laws and regulations.

In the event of uncertainty over what is standard or an option/accessory, contact a Volvo retailer.

Special texts

WARNING

Warning texts appear if there is a risk of injury.

IMPORTANT

"Important" texts appear if there is a risk of damage.

NOTE

NOTE texts give advice or tips that facilitate the use of e.g. features and functions.

* Option/accessory.

}}

Page 24

OWNER INFORMATION

Footnote

The owner's manual contains information in certain locations in the form of a footnote at the bottom of the page or at the end of a table. This information is an addition to the text that it refers to via a number. If the footnote refers to text in a table then letters are used instead of numbers for referral.

Message texts

There are displays in the car that show menu and message texts. In the owner's manual the appearance of these texts differs from the normal text. Examples of menu texts and message texts:

Phone, New message.

Decals

The car contains different types of decal which are designed to convey important information in a simple and clear manner. The decals in the car have the following descending degree of importance for the warning/information.

Warning of personal injury

Black ISO symbols on yellow warning field, white text/image on black message field. Used to indicate the presence of danger which, if the warning is ignored, may result in serious personal injury or fatality.

Risk of property damage

White ISO symbols and white text/image on black or blue warning field and message field. Used to indicate the presence of danger which, if the warning is ignored, may result in damage to property.

Information

White ISO symbols and white text/image on black message field.

NOTE

It is not intended that the decals illustrated in the owner's manual should be exact replicas of those in the car. They are included to show their approximate appearance and location in the car. The information that applies to your particular car is available on the respective decals for your car.

Page 25

OWNER INFORMATION

Procedure lists

Procedures where action must be taken in a certain sequence are numbered in the owner's manual:

When there is a series of illustrations for step-by-step instructions each step is numbered in the same way as the corresponding illustration.

Lists of letters appear adjacent to the series of illustrations where the order of the instructions is not significant.

Arrows appear numbered and unnumbered and are used to illustrate a movement.

Arrows with letters are used to clarify a movement when the relative order is of no relevance.

If there is no series of illustrations for step-bystep instructions then the different steps are numbered with normal numbers.

Position lists

Red circles containing a number are used in overview images where different components are pointed out. The number recurs in the position list featured in connection with the illustration that describes the item.

Bulleted lists

A bulleted list is used when there is a list of points in the owner's manual.

Example:

Coolant

•

Engine oil

•

Related information

Related information refers to other articles containing closely associated information.

Images

Illustrations used in the owner's manual are sometimes schematic and are intended to provide an overall picture or example of a certain function. Illustrations may deviate from the car's appearance depending on equipment level and market.

To be continued

}}

This symbol is located furthest down to the right when an article continues on the following page.

Continued from previous page

This symbol is located furthest up to the left when an article continues from the previous page.

Related information

Owner's manual in centre display (p. 17)

•

Owner's Manual in mobile devices (p. 20)

•

Volvo Cars support site (p. 20)

•

The owner's manual and the environment

The Owner's Manual is printed on paper originating from controlled forests.

The Forest Stewardship Council (FSC)® symbol shows that the paper pulp in a printed owner's manual comes from FSC®-certified forests or other controlled sources.

Related information

Drive-E - cleaner driving pleasure (p. 28)

•

Page 26

Page 27

YOUR VOLVO

Page 28

YOUR VOLVO

Volvo ID

Volvo ID provides access to a wide range of personalized Volvo services1 online.

It is possible to create a Volvo ID from the car, volvocars.com or Volvo On Call app2. Certain functions and services require that the car is registered to a personal Volvo ID. Registering the Volvo ID to the car makes a wide range of Volvo services available directly from the car.

Examples of services:

Volvo On Call* - Volvo ID is used when log-

•

ging in to the Volvo On Call app. Send to Car - Makes it possible to send an

•

address from an Internet map service directly to the car.

Book Service and Repair - Register your pre-

•

ferred workshop/retailer at volvocars.com to be able to book service directly from the car.

Advantages of Volvo ID

One user name and one password to access

•

online services, i.e. only one username and one password to remember.

If the username/password for a service (e.g.

•

Volvo On Call) is changed, then it is also changed automatically for other services.

Related information

Creating and registering a Volvo ID (p. 26)

•

Book service and repair (p. 562)

•

Creating and registering a Volvo ID

It is possible to create a Volvo ID in different ways. If the Volvo ID is created at volvocars.com or with Volvo On Call app, the Volvo ID must also be registered to the car to enable use of the various Volvo ID services.

Create a Volvo ID with the app

Download the Volvo ID app from

Centre in the centre display's app view.

2. Start the app and register a personal email address.

3. Follow the instructions that are automatically sent to the specified email address.

> A Volvo ID has now been created and

automatically registered to the car. Volvo ID services can now be used.

Create a Volvo ID on the Volvo Cars website

1. Go into www.volvocars.com and log in3 using the icon at the top right. Select Create Volvo ID.

2. Enter a personal email address.

3. Follow the instructions that are automatically sent to the specified email address.

> A Volvo ID has now been created. Read

below to learn how to register the ID to the car.

Download

The services available may vary over time and vary depending on equipment level and market.

If you have Volvo On Call*.

Available in certain markets.

* Option/accessory.

Page 29

YOUR VOLVO

Create a Volvo ID with the Volvo On Call

app

1. Download the latest version of the Volvo On Call app from a smartphone, via e.g. App Store, Windows Phone or Google Play.

2. Choose to create a Volvo ID from the app's start page and enter a personal email address.

3. Follow the instructions that are automatically sent to the specified email address.

> A Volvo ID has now been created. Read

below to learn how to register the ID to the car.

Registering your Volvo ID to the car

If you created your Volvo ID via the web or the Volvo On Call app, register it to your car as follows:

1. If not done already, download the Volvo ID app from

Download Centre in the app view.

NOTE

To download apps, the car must be connected to the Internet.

2. Start the app and enter your Volvo ID/your email address.

3. Follow the instructions that are automatically sent to the email address linked to your Volvo ID.

> Your Volvo ID is now registered to the car.

Volvo ID services can now be used.

Related information

Volvo ID (p. 26)

•

Downloading apps (p. 466)

•

Managing system updates via the Download

•

Centre (p. 561) Internet-connected car* (p. 498)

•

Cars with Volvo On Call*.

* Option/accessory.

Page 30

YOUR VOLVO

Drive-E - cleaner driving pleasure

Volvo Car Corporation is constantly working on the development of safer and more efficient

Environmental care is one of Volvo Cars’ core values and influences all operations. The environmental work is based on the whole life cycle of the car and takes into account the environmental impact it has, from design to scrapping and recycling. Volvo Cars' basic principle is that every new product developed must have less impact on the environment than the product it replaces.

Volvo's environmental management work has resulted in the development of more effective and less polluting drivelines Drive-E. Personal environment is also important to Volvo - the air

products and solutions in order to reduce the negative impact on the environment.

inside a Volvo is, for example, cleaner than the air outside thanks to the climate control system.

Your Volvo complies with stringent international environmental standards. All Volvo's manufacturing units must be ISO 14001 certified, and this supports a systematic approach to the operation's environmental issues, which leads to continuous improvement with reduced environmental impact. Holding the ISO certificate also means that environmental laws and regulations in force are complied with. Volvo also requires that its partners must also meet these requirements.

Fuel consumption

Since a large part of a car's total environmental impact stems from its use, the emphasis of Volvo Cars' environmental work is on reducing fuel consumption, carbon dioxide emissions and other air pollutants. Volvo cars have competitive fuel consumption in each of their respective classes. Lower fuel consumption generally results in lower emission of the greenhouse gas, carbon dioxide.

Page 31

YOUR VOLVO

Contributing to a better environment

An energy-efficient and fuel-efficient car not only contributes to a reduced impact on the environment, but also means reduced costs for the owner of the car. As the driver, it is easy to reduce fuel consumption and thereby save money and contribute to a better environment here is some advice:

Plan for an effective average speed. Speeds

•

above approx. 80 km/h (approx. 50 mph) and below 50 km/h (approx. 30 mph) lead to increased energy consumption.

Follow the Service and Warranty Booklet's

•

recommended intervals for service and maintenance of the car.

Avoid letting the engine idle - switch off the

•

engine when stationary for longer periods. Pay attention to local regulations.

Plan the journey - a lot of unnecessary stops

•

and uneven speed contribute to increased fuel consumption.

Use preconditioning* before starting in cold

•

conditions - it improves starting capacity and reduces wear in cold weather. The engine reaches normal operating temperature more quickly, which decreases consumption and reduces emissions.

Also remember to always dispose of environmentally hazardous waste, such as batteries and oil, in an environmentally safe manner. Consult a workshop in the event of uncertainty about how this

type of waste should be discarded - an authorised Volvo workshop is recommended.

Efficient emission control

Your Volvo is manufactured following the concept "Clean inside and out" – a concept that encompasses a clean interior environment as well as highly efficient emission control. In many cases the exhaust emissions are well below the applicable standards.

Clean air in the passenger compartment

An air filter helps prevent dust and pollen entering the passenger compartment via the air intake.

The Interior Air Quality System (IAQS)* ensures that the incoming air is cleaner than the air in the traffic outside.

The system cleans the air in the passenger compartment from contaminants such as particles, hydrocarbons, nitrous oxides and ground-level ozone. If the outside air is contaminated then the air intake is closed and the air is recirculated. Such a situation may arise in heavy traffic, queues and tunnels for example.

IAQS is a part of the Clean Zone Interior Package (CZIP)*, which also includes a function that allows the fan to start when the car is unlocked with the remote control key.

Interior

The material used in the interior of a Volvo is carefully selected and has been tested in order to be pleasant and comfortable. Some of the details are hand-made, such as the seams of the steering wheel that are sewn by hand. The interior is monitored in order not to emit strong odours or substances that cause discomfort in the event of e.g. high heat and bright light.

Volvo workshops and the environment

Regular maintenance creates the conditions for a long service life and low fuel consumption for your car. In this way you also contribute to a cleaner environment. When Volvo's workshops are entrusted with the service and maintenance of your car it becomes part of Volvo's system. Volvo makes clear demands regarding the way in which workshop premises shall be designed in order to prevent spills and discharges into the environment. The workshop staff have the knowledge and the tools required to guarantee good environmental care.

Recycling

Since Volvo works from a life cycle perspective, it is also important that the car is recycled in an environmentally sound manner. Almost all of the car can be recycled. The last owner of the car is therefore requested to contact a retailer for referral to a certified/approved recycling facility.

}}

* Option/accessory.

Page 32

YOUR VOLVO

Related information

Fuel consumption and CO2 emissions

•

(p. 626) Economical driving (p. 428)

•

Starting/stopping preconditioning* (p. 204)

•

The owner's manual and the environment

•

(p. 23) Air quality (p. 181)

•

* Option/accessory.

Page 33

YOUR VOLVO

IntelliSafe-driver support

IntelliSafe is the Volvo Cars concept for car safety. IntelliSafe comprises a number of systems, both standard and optional, whose purpose is to make a car journey safe, to prevent injuries and to protect passengers and other road users.

Support

IntelliSafe includes driver support functions such as Adaptive cruise control* which helps the driver to maintain an even speed combined with a preselected time interval to the vehicle ahead.

Pilot Assist5 helps the driver to drive the car between the lane's edge markings using steering assistance as well as to maintain an even speed, combined with a preselected time interval to the vehicle ahead.

Park Assist Pilot* helps the driver to park in or leave a parking space.

Other examples of systems that can help the driver are the Active main beam, Cross Traffic Alert (CTA)* and Blind Spot Information (BLIS)* systems.

Prevention

City Safety is a function that can contribute to preventing accidents. The function can prevent or mitigate a collision with pedestrians, cyclists, larger animals or vehicles. Visual, acoustic and

brake pulse warnings are given in the event of a risk of collision to help the driver act in time. If the driver does not react to the warning and the risk of collision is assessed as imminent then City Safety can automatically brake the car.

Lane assistance (LKA) is another example of a function that can help prevent accidents by helping the driver - on motorways and similar larger roads - to reduce the risk of the car accidentally leaving its own lane.

The function Steering aid during increased

collision risk can help the driver reduce the risk

of the car leaving its lane unintentionally and/or colliding with another vehicle or obstacle by actively steering the car back into its lane and/or swerving.

Protection

With the aim of protecting the driver and passengers, the car is equipped with seatbelt tensioners which can tension the seatbelts in critical situations and in collisions. The car also has airbags and inflatable curtains, as well as Whiplash Protection System (WHIPS), which protects against whiplash injuries.

Related information

Driving support systems (p. 262)

•

Active main beam (p. 138)

•

Safety (p. 42)

•

Seatbelts (p. 44)

•

Airbags (p. 49)

•

Whiplash Protection System (p. 43)

•

This function can be either standard or optional, depending on market.

* Option/accessory.

Page 34

YOUR VOLVO

Sensus - online connectivity and entertainment

Sensus makes it possible to surf the Internet, use different types of apps and make the car a Wi-Fi hotspot.

This is Sensus

Sensus offers an intelligent interface and online connectivity with the digital world. An intuitive navigation structure makes it possible to receive relevant support, information and entertainment when it is necessary, without distracting the driver.

Sensus covers all solutions in the car that are connected with entertainment, online connectivity, navigation* and the user interface between driver and car. It is Sensus that makes communication possible between you, the car and the outside world.

Information when it is needed, where it is needed

The different displays in the car provide information at the right time. The information is shown in different locations based on how it should be prioritised by the driver.

* Option/accessory.

Page 35

Different types of information are shown in different displays depending on how the information should be prioritised.

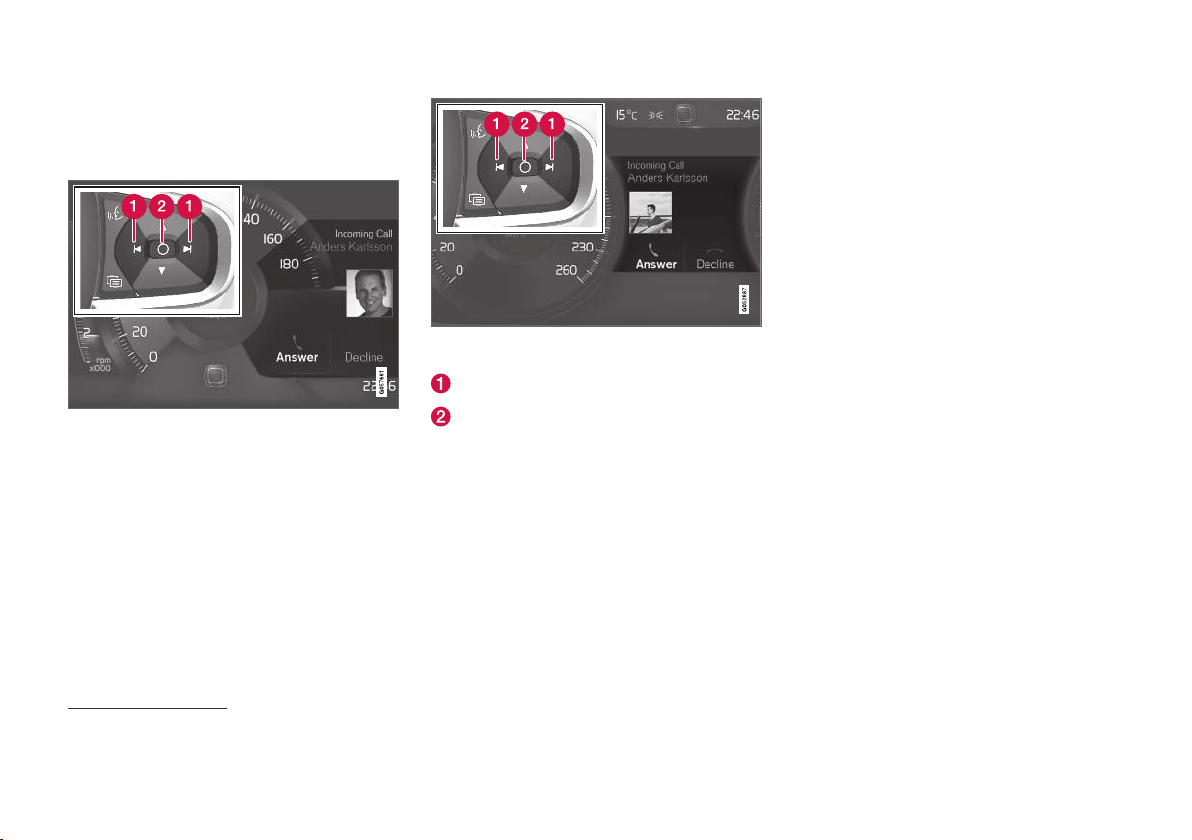

Driver display

The driver display shows information on speed and e.g. incoming calls or song tracks being played. The display is operated via the two steering wheel keypads.

YOUR VOLVO

Centre display

Driver display6.

The figure is schematic - parts may vary depending on car model.

}}

Page 36

YOUR VOLVO

Many of the main functions of the car are con-

trolled from the centre display, a touch screen which reacts to touch. The number of physical buttons and controls in the car is therefore minimal. The screen can even be operated while wearing gloves.

From here, for example, you can control the climate control system, the entertainment system and seat position*. The information that is shown in the centre display can be acted on by the driver or someone else in the car when the opportunity arises.

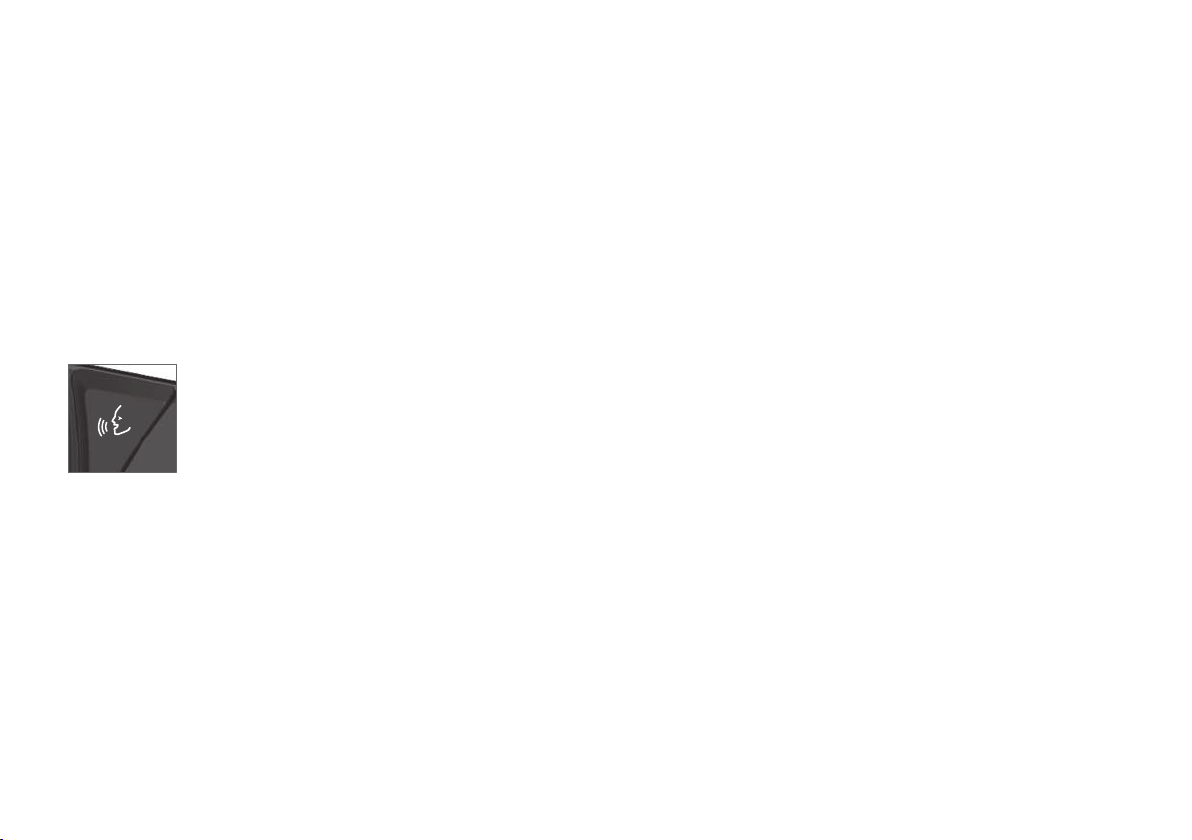

Voice recognition system

The voice recognition system can be used without the driver needing to take his/her hands off the steering wheel. The system can understand natural speech. Use voice recognition

song, call someone, increase the temperature or read out a text message.

to, for example, play back a

Related information

Driver display (p. 75)

•

Overview of centre display (p. 95)

•

Voice recognition (p. 128)

•

Internet-connected car* (p. 498)

•

Sharing Internet access from the car via a

•

Wi-Fi hotspot (p. 502)

* Option/accessory.

Page 37

YOUR VOLVO

Software updates

So that you as a Volvo customer get the best experience of your car, Volvo continuously develops the systems in the cars and the services that you are offered.

You can update the software in your Volvo to the latest version when your car is serviced at an authorised Volvo dealer. The latest software update gives you access to new functions and improvements, as well as previous improvements included with previous software updates.

For more information about released updates and answers to frequently asked questions, please go to support.volvocars.com.

NOTE

Functionality after updating may vary depending on market, model, model year and options.

Related information

Sensus - online connectivity and entertain-

•

ment (p. 32) Managing system updates via the Download

•

Centre (p. 561)

Recording data

As part of Volvo's safety and quality assurance, certain information about the vehicle's operation, functionality and incidents are recorded in the car.

This vehicle is equipped with an "Event Data Recorder" (EDR). Its primary purpose is to register and record data related to traffic accidents or collision-like situations, such as times when the airbag deploys or the vehicle strikes an obstacle in the road. The data is recorded in order to increase understanding of how vehicle systems work in these types of situations. The EDR is designed to record data related to vehicle dynamics and safety systems for a short time, usually 30 seconds or less.

The EDR in this vehicle is designed to record data related to the following in the event of traffic accidents or collision-like situations:

How the various systems in the car worked

•

Whether the driver and passenger seatbelts

•

were fastened/tensioned The driver's use of the accelerator or brake

•

pedal The travel speed of the vehicle

•

This information can help us better understand the circumstances in which traffic accidents, injuries and damage occur. The EDR only records data when a non-trivial collision situation occurs. The EDR does not record any data during normal

driving conditions. Similarly, the system never registers who is driving the vehicle or the geographic location of the accident or near-miss situation. However, other parties, such as the police, could use the recorded data in combination with the type of personally identifiable information routinely collected after a traffic accident. Special equipment and access to either the vehicle or the EDR is required to be able to interpret the registered data.

In addition to the EDR, the car is equipped with a number of computers designed to continually check and monitor the function of the car. They can record data during normal driving conditions, but in particular register faults affecting the vehicle's operation and functionality, or upon activation of the vehicle's driver support function (e.g. City Safety and the auto brake function).

Some of the recorded data is required to enable service and maintenance technicians to diagnose and remedy any faults that occurred in the vehicle. The registered information is also needed to enable Volvo to satisfy legal requirements laid out in laws and by government authorities. Information registered in the vehicle is stored in its computer until the vehicle is serviced or repaired.

In addition to the above, the registered information can be used in aggregate form for research and product development with the aim of continuously improving the safety and quality of Volvo cars.

}}

Page 38

YOUR VOLVO

Volvo will not contribute to the above-described information being disclosed to third parties without the vehicle owner's consent. To comply with national legislation and regulations, Volvo may be forced to disclose information of this nature to the police or other authorities who may assert a legal right to access such. Special technical equipment which Volvo and workshops that have entered into agreements with Volvo have access to is required to be able to read and interpret the recorded data. Volvo is responsible that the information, which is transferred to Volvo during servicing and maintenance, is securely stored and managed and that its management complies with relevant legal requirements. For further information - contact a Volvo retailer.

Terms & Conditions for Services

Volvo offers services so that you can drive your Volvo as safely and as comfortably as possible.

These services include everything from assistance in emergencies to navigation and various maintenance services.

Before using the services, it is important for you to read the Terms & Conditions for Services at support.volvocars.com.

Related information

Customer Privacy Policy (p. 36)

•

Customer Privacy Policy

Volvo respects and safeguards the personal integrity of everyone visiting our website.

This policy regards to the handling of customer data and personal information. The purpose is to give current, past and potential customers a general understanding of:

The circumstances in which we gather and

•

process your personal data. The types of personal data we gather.

•

The reason we gather your personal data.

•

How we handle your personal data.

•

This policy can be read in its entirety at support.volvocars.com.

Related information

User terms and conditions and data sharing

•

(p. 504) Terms & Conditions for Services (p. 36)

•

Recording data (p. 35)

•

Page 39

YOUR VOLVO

Important information on accessories and auxiliary equipment

The incorrect connection and installation of accessories and extra equipment can negatively affect the car's electronic system.

We strongly recommend that Volvo owners only install Volvo approved original accessories, and that installation of accessories is only carried out by trained and qualified Volvo service technicians. Certain accessories only function when associated software is installed in the car's computer system.

Options or accessories described in this manual are marked with an asterisk. In the event of uncertainty over what is standard or an option/ accessory, contact a Volvo retailer.

WARNING

The driver always bears the ultimate responsibility that the car is used safely and that laws and regulations in force are followed.

It is also important that the car has maintenance and service according to Volvo's recommendations, the owner's information and the service and warranty booklet.

If the on-board information differs from the printed owner's manual then the printed information always has precedence.

Related information

Installation of accessories (p. 37)

•

Connection of equipment to the car's diag-

•

nostic socket (p. 38) Reading the owner's manual (p. 21)

•

Installation of accessories

Volvo original accessories are tested to

•

ensure that they function with the car systems for performance, safety and emissions control. In addition, a trained and qualified Volvo service technician knows where accessories may or may not be safely installed in your Volvo. Always seek the advice of a trained and qualified Volvo service technician before installing any accessories in or on your car.

Accessories that are not approved by Volvo

•

may not have been specifically tested for use with your car.

Some of the car's performance or safety sys-

•

tems can be negatively affected if you install accessories that have not been tested by Volvo, or if you permit someone without experience of the car to install accessories.

Damage that is caused by accessories instal-

•

led in a non-approved or incorrect way is not covered by any new car warranty. More warranty information can be found in the service and warranty booklet. Volvo does not accept

}}

Page 40

YOUR VOLVO

any liability for deaths, personal injury or costs arising as a result of the installation of non-original accessories.

Related information

Important information on accessories and

•

auxiliary equipment (p. 37)

Connection of equipment to the car's diagnostic socket

Incorrect connection and installation of software or diagnostic tools may have a negative effect on the car's electronic system.

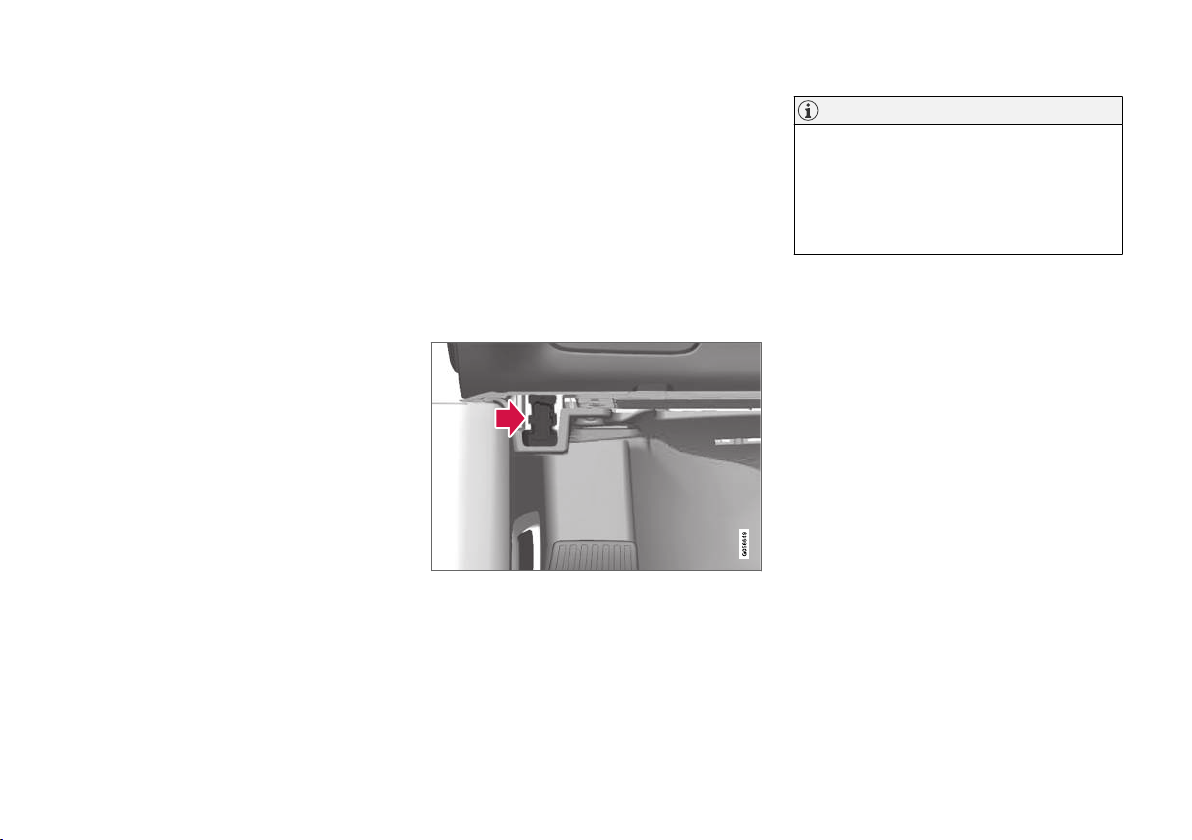

Data link connector (On-board Diagnostic, OBDII) is under the instrument panel on the driver's side.

NOTE

Volvo Cars accepts no liability for the consequences if unauthorised equipment is connected to the On-board Diagnostic socket (OBDII). This socket should only be used by trained and qualified Volvo service technicians.

Related information

Important information on accessories and

•

auxiliary equipment (p. 37)

Page 41

YOUR VOLVO

Showing the car's identification number

When contacting a Volvo retailer concerning your Volvo On Call subscription, for example, you will need the car's identification number (VIN7).

2. Continue to

Settings in the top view in the centre

Press display.

System System

Information Number

> The car's identification number is shown.

Vehicle Identification

Driver distraction

The driver is responsible for doing everything possible to ensure the safety of themselves, their passengers and other road users. Part of this responsibility is avoiding distractions such as carrying out an activity that is not related to operating the car in a driving environment.

Your new Volvo is, or can be, equipped with content-rich entertainment and communications systems. This could be mobile phones with handsfree, navigation systems and audio systems with lots of functions. You may also have other portable electronic devices for your own convenience. Used correctly, in a safe way they can enrich the driving experience. If they are used in the wrong way they could distract you.

We wish to give the following warnings regarding such systems, to indicate Volvo's concern for your safety. Never use a device or function in the car in such a way that it will distract you from the task of driving safely. Distractions can lead to serious accidents. Apart from these general warnings, we offer the following advice regarding the new functions that may be in the car:

WARNING

Never use a hand-held mobile phone

•

while driving. In some areas it is forbidden for the driver to use a mobile phone while the car is moving.

If the car is equipped with a navigation

•

system you must only set and change the itinerary when the car is parked.

Never program the audio system while

•

the car is moving. Program the radio's presets when the car is parked and then use the programmed presets for faster and simpler use of the radio.

Never use laptops or hand-held comput-

•

ers while the car is moving.

Related information

Sound, media and Internet (p. 464)

•

Vehicle Identification Number

Page 42

Page 43

SAFETY

Page 44

SAFETY

Safety

The vehicle is equipped with several safety systems that work together to protect the vehicle's driver and passengers in the event of an accident.

The car is equipped with a number of sensors that react in the event of an accident and activate different safety systems, such as different types of airbags and seatbelt tensioners. Depending on the specific accident situation, such as collisions at different angles, roll-over or driving off the road, the systems react in different ways to provide the best protection.

There are also mechanical safety systems such as Whiplash Protection System. The car is also constructed so that a large part of the force of a collision is distributed to beams, pillars, floor, roof and other parts of the body.

The car's safety mode may be activated after a collision if an important function in the car has been damaged.

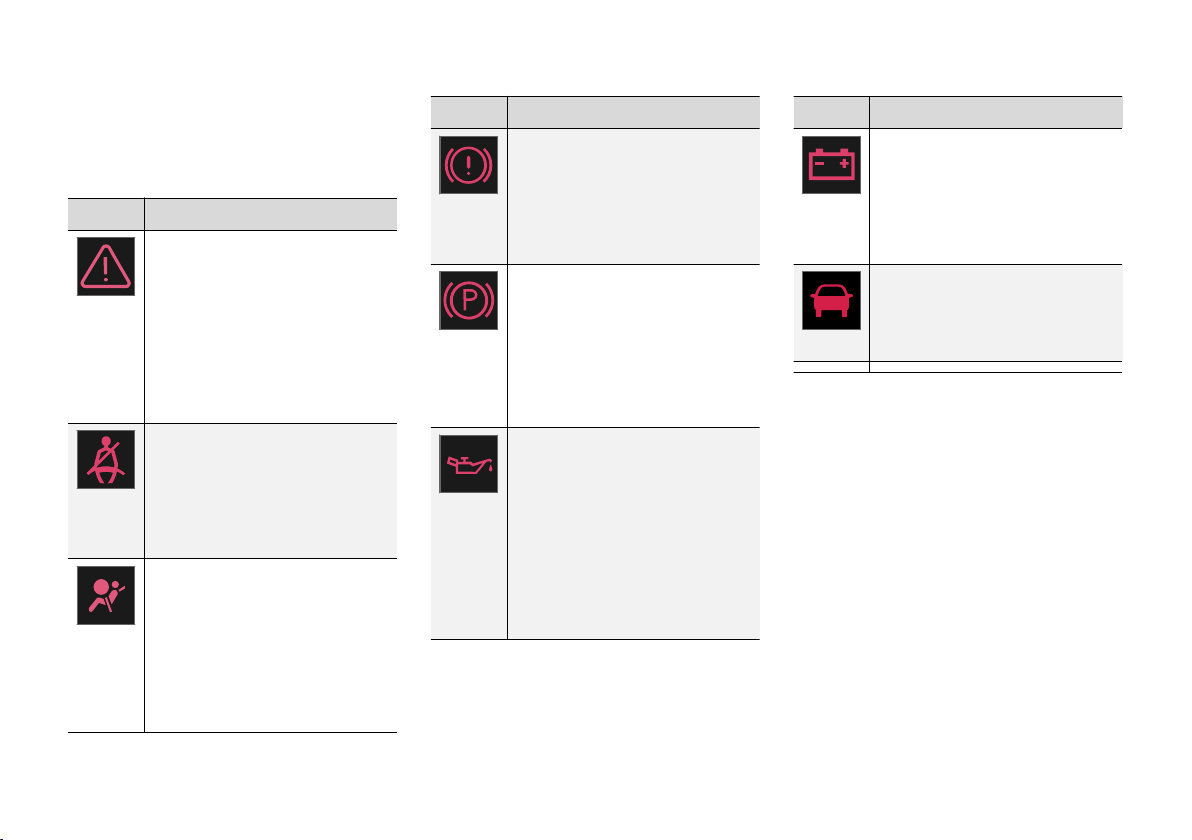

Warning symbol in driver display

The warning symbol is illuminated in the driver display when the car's electrical system is set in ignition position

II. The symbol is extinguished after approx. 6 seconds if the car's safety system is fault-free.

WARNING

If the warning symbol remains illuminated or is switched on during driving and the mes-

SRS airbag Service urgent Drive to

sage

workshop is shown in the driver display, it

means that part of one of the safety systems does not have full functionality. Volvo recommends that an authorised Volvo workshop should be contacted as soon as possible.

WARNING

Never modify or repair the car's various safety systems yourself. Defective work in one of the systems can cause malfunction and result in serious personal injury. Volvo recommends that an authorised Volvo workshop should be contacted.

If the specific warning symbol is broken then the general warning symbol is illuminated instead and the driver display shows the same message.

Related information

Safety during pregnancy (p. 42)

•

Seatbelts (p. 44)

•

Airbags (p. 49)

•

Whiplash Protection System (p. 43)

•

Safety mode (p. 55)

•

Child safety (p. 57)

•

Safety during pregnancy

It is important that the seatbelt is used correctly during pregnancy, and that pregnant drivers adjust their seating position.

Seatbelt

The diagonal section should wrap over the shoulder then be routed between the breasts and to the side of the abdomen.

The lap section should lay flat over the thighs and as low as possible under the abdomen. – It must never be allowed to ride upward. Remove the slack from the seatbelt and ensure that it fits as close to the body as possible. In addition, check that there are no twists in the seatbelt.

Seating position

As the pregnancy progresses, pregnant drivers must adjust the seat and steering wheel such that they can easily maintain control of the vehi-

Page 45

SAFETY

cle as they drive (which means that they must be able to easily operate the foot pedals and steering wheel). The aim should be to position the seat with as large a distance as possible between abdomen and steering wheel.

Related information

Safety (p. 42)

•

Seatbelts (p. 44)

•

Manual front seat (p. 166)

•

Power front seat* (p. 167)

•

Whiplash Protection System

Whiplash Protection System (WHIPS) reduces the risk of whiplash injuries. The system consists of energy absorbing backrests and seat cushion, as well as a specially designed head restraint in the front seats.

WHIPS is deployed in the event of a rear-end collision, where the angle and speed of the collision and the nature of the colliding vehicle all have an influence.

When WHIPS is deployed, the front seat backrests are lowered backward and the seat cushions move downward to change the seating position of the driver and front seat passenger. Its movement helps to absorb some of the forces that can arise and cause whiplash.

WARNING

WHIPS is a supplement to the seatbelts. Always use a seatbelt.

WARNING

Never modify or repair the seat or WHIPS yourself. Volvo recommends that an authorised Volvo workshop should be contacted.

If the front seats have been subjected to a major load, such as in conjunction with a collision, the seats must be replaced. Some of the seats' protective properties may have been lost even if they do not appear damaged.

Do not leave any objects on the floor behind or under the front seats or in the rear seat that may prevent WHIPS from functioning.

WARNING

Do not squeeze rigid objects between the rear seat cushion and the front seat's backrest.

If a backrest in the rear seat is lowered then any load must be secured to prevent it from sliding up to the front seat backrest in the event of a collision.

WARNING

If a backrest in the rear seat is lowered or a rear-facing child seat is used in the rear seat, the corresponding front seat must be moved forward so that it does not make contact with the lowered backrest or child seat.

* Option/accessory.

}}

Page 46

SAFETY

Seating position

For optimum protection from WHIPS the driver and passenger must have the correct seating position and make sure that the system's function is not obstructed.

Set the correct seating position in the front seat before driving starts.

Driver and front seat passenger should sit in the centre of the seat with as little space as possible between the head and the head restraint.

WHIPS and child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by WHIPS.

Related information

Safety (p. 42)

•

Manual front seat (p. 166)

•

Power front seat* (p. 167)

•

Rear Collision Warning (p. 337)

•

Seatbelts

Heavy braking can have serious consequences if the seatbelts are not used.

It is important that the seatbelt lies against the body so it can provide maximum protection. Do not lean the backrest too far back. The seatbelt is designed to protect in a normal seating position.

WARNING

Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this prevents the belt from tightening properly.

WARNING

The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.

WARNING

Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvo workshop should be contacted.

If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

Safety (p. 42)

•

Seatbelt tensioner (p. 46)

•

Putting on and taking off seatbelts (p. 45)

•

Door and seatbelt reminder (p. 47)

•

* Option/accessory.

Page 47

SAFETY

Putting on and taking off seatbelts

Make sure that all passengers have fastened their seatbelts before starting to drive.

Putting on seatbelts

1. Pull out the seatbelt slowly and make sure it

is not twisted or damaged.

NOTE

The seatbelt locks and cannot be withdrawn:

if it is pulled out too quickly

•

during braking and acceleration

•

if the car leans heavily.

•

2. Lock the belt by inserting the locking tab in

the intended buckle. > A loud "click" indicates that the belt has

locked.

WARNING

Always insert the tongue of the seatbelt into the buckle on the correct side. The seatbelts and buckles would otherwise possibly not function as intended in the event of a collision. There is a risk of serous injury.

3. In the front seats the seatbelt can be adjusted for height.

Press together the seat mounting and move the seatbelt up or down.

Position the belt as high as possible without it chafing against your throat.

The seatbelt must pass over the shoulder (not down over the arm).

4. Tension the hip strap over the lap by pulling the diagonal shoulder belt up towards the shoulder.

The hip strap must be positioned low down (not over the abdomen).

}}

Page 48

SAFETY

WARNING

Each seatbelt is designed for only one person.

WARNING

Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this prevents the belt from tightening properly.

WARNING

Do not make any damages on seatbelts nor insert any foreign objects into a buckle. The seatbelts and buckles would then possibly not function as intended in the event of a collision. There is a risk of serous injury.

Taking off seatbelts

1. Press the red button on the seatbelt buckle and then let the belt retract.

2. If the seatbelt does not retract fully, feed it in by hand so that it does not hang loose.

Related information

Seatbelts (p. 44)

•

Seatbelt tensioner (p. 46)

•

Door and seatbelt reminder (p. 47)

•

Seatbelt tensioner

The car is fitted with standard seatbelt tensioners and electric* seatbelt tensioners that can tension the seatbelts in critical situations and collisions.

Standard seatbelt tensioner

All the seatbelts are equipped with a standard seatbelt tensioner.

The seatbelt tensioner tensions the seatbelt in the event of a collision with sufficient force in order to more effectively restrain the occupant.

Electric seatbelt tensioner*

The driver and front passenger seatbelts are equipped with an electric seatbelt tensioner.

The seatbelt tensioners work together and can be activated together with the driver support systems City Safety and Rear Collision Warning. In critical situations, such as panic braking, driving off the road (e.g. the car rolls into a ditch, lifts off the ground or hits something in the terrain), skidding, or risk of collision, the seatbelt can be tensioned by the seatbelt tensioner's electric motor.

The electric seatbelt tensioner helps to adjust the occupant to a better position, reducing the risk of striking the car's interior and improving the effect of safety systems, such as the car's airbags.

When the critical situation has come to an end, the seatbelt and the electric seatbelt preten-

sioner are restored automatically, but they can also be restored manually.

IMPORTANT

If the passenger airbag is deactivated, the electric seatbelt tensioner on the passenger side will also be deactivated.

WARNING

Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvo workshop should be contacted.

Related information

Seatbelts (p. 44)

•

Putting on and taking off seatbelts (p. 45)

•

Resetting the electric seatbelt tensioner*

•

(p. 47) Activating and deactivating passenger air-

•

bag* (p. 52)

* Option/accessory.

Page 49

SAFETY

City Safety™ (p. 325)

•

Rear Collision Warning (p. 337)

•

Resetting the electric seatbelt tensioner*

The electric seatbelt tensioner is designed to be reset automatically, but the seatbelt tensioner can be reset manually if the belt remains extended.

1. Stop the car at a safe place.

2. Unfasten the seatbelt and then refasten it. > The seatbelt and electric seatbelt ten-

sioner are reset.

WARNING

Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvo workshop should be contacted.

Related information

Seatbelt tensioner (p. 46)

•

Seatbelts (p. 44)

•

Door and seatbelt reminder

The system reminds unbelted occupants to wear a seatbelt, and also warns about an open door, bonnet, tailgate or fuel filler flap.

Driver display graphics

Graphics in the driver display with different types of warnings. The warning colour on the door and tailgate is dependent on the vehicle's speed.

The driver display's graphics show which seats in the car are occupied by belted and unbelted passengers.

The same graphic also shows if the bonnet, tailgate, fuel filler flap or any door is open.

The graphic can be acknowledged by pressing the O button on the right-hand steering wheel keypad.

* Option/accessory.

}}

Page 50

SAFETY

Seatbelt reminder

Visual reminder in the roof console.

A visual reminder is given in the roof console and by means of the warning symbol in the driver display.

The acoustic reminder is dependent on speed, driving time and distance.

The belt status of the driver and passengers is shown in the driver display graphics when a belt is buckled or unbuckled.

Child seats are not covered by the seatbelt reminder system.

Front seat

A visual and acoustic reminder remind the driver and front seat passenger to use a seatbelt if either of them is not wearing one.

Rear seat

The seatbelt reminder in the rear seat has two subfunctions:

Provides information on which seatbelts are

•

being used in the rear seat. The driver display's graphics are shown when the seatbelts are in use.

Reminding that a seatbelt in the rear seat is

•

unfastened during a journey by means of a visual and acoustic reminder. The reminder will cease once the seatbelt has been put on again.

Reminder for doors, bonnet, tailgate and fuel filler flap

If the bonnet, tailgate, fuel filler flap or a door is not closed properly, the driver display's graphics show what is open. Stop the car in a safe place as soon as possible and close the source of the warning.

If the car is driven at a speed lower than approx. 10 km/h (6 mph) then the driver display's information symbol illuminates.

If the car is driven at a speed higher than approx. 10 km/h (6 mph) then the driver display's warning symbol illuminates.

Related information

Seatbelts (p. 44)

•

Putting on and taking off seatbelts (p. 45)

•

Page 51

SAFETY

Airbags

The car is equipped with airbags and inflatable curtains for driver and passengers.

NOTE

The detectors react differently depending on the nature of the collision and whether or not the seatbelts are fastened. Applies to all belt positions.

It is therefore possible that only one (or none) of the airbags may inflate in a collision. The detectors sense the force of the collision on the vehicle and the action is adapted accordingly so that none, one or more airbags are deployed.

WARNING

The airbag system's control module is located in the centre console. If the centre console is drenched with water or other liquid, disconnect the cables to the starter battery. Do not attempt to start the car since the airbags may deploy. Recovering the car. Volvo recommends that it is transported to an authorised Volvo workshop.

Deployed airbags

If any of the airbags have deployed, the following is recommended:

Recovering the car. Volvo recommends that it

•

is transported to an authorised Volvo workshop. Do not drive with deployed airbags.

Volvo recommends engaging an authorised

•

Volvo workshop to handle the replacement of components in the car's safety systems.

Always contact a doctor.

•

WARNING

Never drive with deployed airbags. They can make steering difficult. Other safety systems may also be damaged. The smoke and dust created when the airbags are deployed can cause skin and eye irritation/injury after intensive exposure. In case of irritation, wash with cold water. The rapid deployment sequence and airbag fabric may cause friction and skin burns.

Related information

Safety (p. 42)

•

Driver airbags (p. 49)

•

Passenger airbag (p. 50)

•

Side airbags (p. 54)

•

Airbags (p. 55)

•

Driver airbags

As a supplement to the seatbelts, the car is equipped with steering wheel airbag and knee airbag1 on the driver's side.

Steering wheel airbag and knee airbag1 on the driver's side in the front seat.

In the event of a frontal collision, the airbags help to protect the head, neck, face and chest of the driver as well as the knees and legs.

A sufficiently violent collision trips the sensors and the airbag/airbags is inflated. The airbag cushions the initial collision impact for the occupant. The airbag deflates when compressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, occurs within tenths of a second.

The car is only equipped with knee airbag in certain markets.

}}

Page 52

SAFETY

WARNING

The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.

To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest.

WARNING

Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the airbag system could cause malfunction and result in serious personal injury.

Steering wheel airbag location

This airbag is fitted into the centre of the steering wheel. The steering wheel is marked AIRBAG.

Knee airbag1 location

The airbag is folded up in the lower part of the instrument panel on the driver's side. Its cover panel is marked AIRBAG.

WARNING

Do not place or attach any object on the top or front of the panel where the knee airbag is stowed.

Related information

Airbags (p. 49)

•

Passenger airbag (p. 50)

•

Passenger airbag

As a supplement to the seatbelts, the vehicle is equipped with an airbag on the passenger side in the front seat.

Front passenger airbag in front seat.

In the event of a frontal collision, the airbag helps to protect the head, neck, face and chest of the passenger as well as the knees and legs.

A sufficiently violent collision trips the sensors and the airbag is inflated. The airbag cushions the initial collision impact for the occupant. The airbag deflates when compressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, occurs within tenths of a second.

The car is only equipped with knee airbag in certain markets.

Page 53

SAFETY

WARNING

The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.

To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest.

WARNING

Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the airbag system could cause malfunction and result in serious personal injury.

Passenger airbag location

The airbag is folded up into a compartment above the glovebox. Its cover panel is marked

AIRBAG.

WARNING

Do not put objects in front of or above the dashboard where the passenger airbag is located.

Label for passenger airbag

Label on the passenger side's sun visor.

Label on the passenger side's door pillar. The label becomes visible when the passenger door is opened.

The warning label for the passenger airbag is positioned as shown above.

WARNING

If the car is not equipped with a switch to activate/deactivate the passenger airbag, the airbag will always be activated.

WARNING

Never allow anybody to stand or sit in front of the front passenger seat.

Never use a rear-facing child seat on the front passenger seat if the airbag is activated.

Front-facing passengers (children and adults) must never sit on the front passenger seat if the passenger airbag is deactivated.

Failure to follow the advice given above can endanger life or lead to serious personal injury.

Related information

Airbags (p. 49)

•

Driver airbags (p. 49)

•

Activating and deactivating passenger air-

•

bag* (p. 52)

* Option/accessory.

Page 54

SAFETY

Activating and deactivating passenger airbag*

The passenger airbag can be deactivated if the car is equipped with a switch, Passenger Airbag Cut Off Switch (PACOS).

Switch

The switch for the passenger airbag is located on the passenger end of the instrument panel and is accessible when the passenger door is open.

Check that the switch is in the required position.

ON - the airbag is activated and all front-facing passengers (children and adults) can sit safely on the passenger seat.

OFF - The airbag is deactivated and children in rear-facing child seats can sit safely on the passenger seat.

WARNING

If the car is not equipped with a switch to activate/deactivate the passenger airbag, the airbag will always be activated.

Activating passenger airbag

Pull the switch outward and turn from OFF (B) to ON (A).

> The driver display shows the message

Passenger airbag on Please acknowledge.

NOTE

If the passenger airbag has been activated/ deactivated with the car in ignition position I or lower, a message is shown in the driver display and the following indicator in the roof console approx. 6 seconds after the car's electrical system has been set in ignition position II.

* Option/accessory.

Page 55

SAFETY

2. Confirm the message by pressing the righthand steering wheel keypad's O button.

> A text message and a warning symbol in

the roof console indicate that the airbag for the front passenger seat is activated.

WARNING

Never use a rear-facing child seat on the front passenger seat when the airbag is activated.

The passenger airbag must always be activated when front-facing passengers (children and adults) are sitting in the front passenger seat.

Failure to follow the advice given above can endanger life or lead to serious personal injury.

Deactivating passenger airbag

Pull the switch outward and turn from ON (A) to OFF (B).

> The driver display shows the message

Passenger airbag off Please acknowledge.

NOTE

2. Confirm the message by pressing the righthand steering wheel keypad's O button.

> A text message and a symbol in the roof

console indicate that the airbag for the front passenger seat is deactivated.

WARNING

Front-facing passengers (children and adults) must never sit on the passenger seat when the airbag is deactivated.

Failure to follow the advice given above can endanger life or lead to serious personal injury.

IMPORTANT

If the passenger airbag is deactivated, the electric seatbelt tensioner on the passenger side will also be deactivated.

}}

Page 56

SAFETY

Related information

Seatbelt tensioner (p. 46)

•

Child seats (p. 58)

•

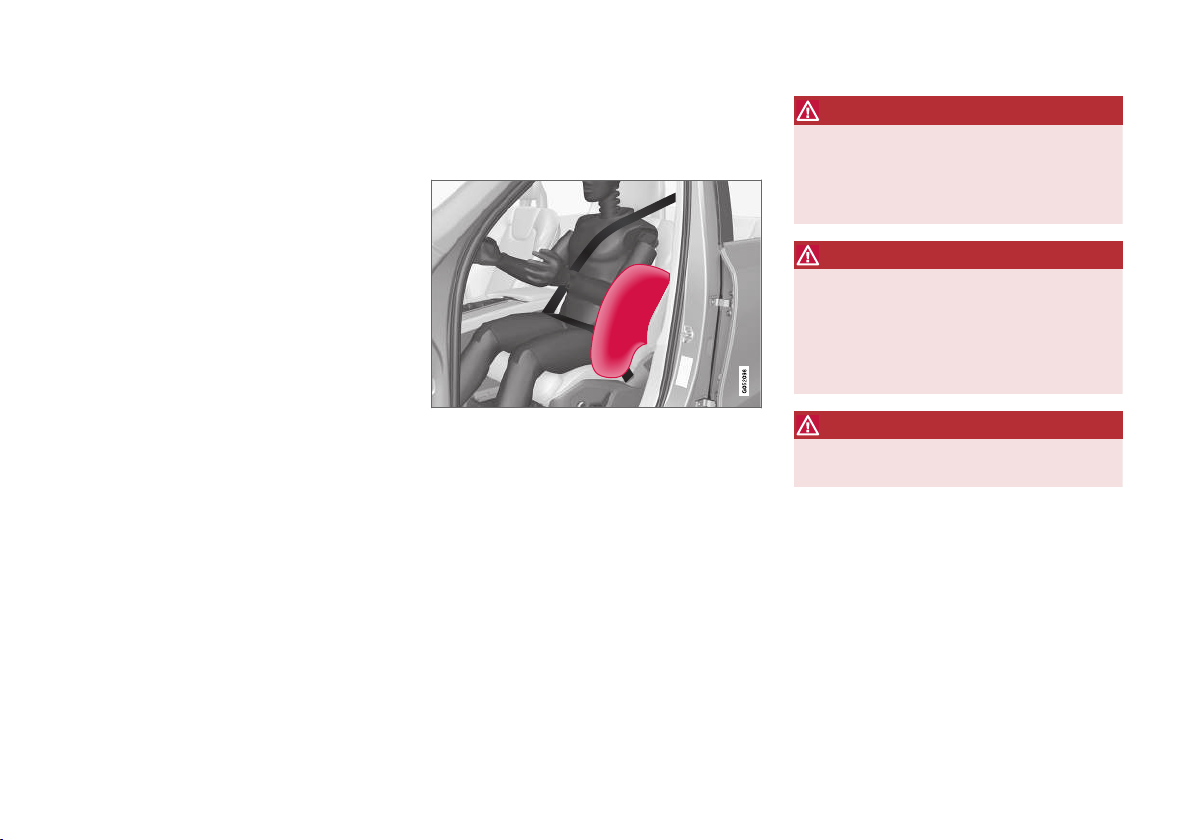

Side airbags

The side airbags on the driver's and passenger seats act to protect the chest and hips in the event of a collision.

WARNING

Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the side airbag system could cause malfunction and result in serious personal injury.

WARNING

Do not put objects in the area between the outside of the seat and the door panel, since this area is required by the side airbag.

Volvo recommends the use only of car seat covers approved by Volvo. Other seat covers may impede the operation of the side airbags.

The side airbags are fitted in the outer backrest frames of the front seats and help to protect the driver and passengers in the front seat.

A sufficiently violent collision trips the sensors and the side airbags are inflated. The airbag inflates between the occupant and the door panel and thereby cushions the initial impact. The airbag deflates when compressed by the collision. The side airbag is normally only deployed on the side of the collision.

WARNING

Side airbags are a supplement the seatbelts. Always use a seatbelt.

Side airbags and child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by the side airbag.

Related information

Airbags (p. 49)

•

Page 57

SAFETY

Airbags

The inflatable curtain, Inflatable Curtain (IC), helps to prevent the driver and passengers from striking their heads on the inside of the car during a collision.

The inflatable curtain is mounted along both sides of the headlining and helps protect the driver and outer seat passengers of the car. The panels are labelled with IC AIRBAG.

A sufficiently violent collision trips the sensors and the inflatable curtain is inflated.

WARNING

Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the inflatable curtain system can cause malfunction and result in serious personal injury.

WARNING

Never hang or attach heavy items onto the handles in the roof. The hooks are only designed for light coats and jackets (not for solid objects such as umbrellas).

Do not screw or install anything onto the car's headlining, door pillars or side panels. This could compromise the intended protection. Volvo recommends only using Volvo genuine parts that are approved for fitting within these areas.

WARNING

Leave 10 cm (4 inches) space between the load and the side windows if the car is loaded to above the top edge of the door windows. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.

WARNING

The inflatable curtain is a supplement to the seatbelts. Always use a seatbelt.

Related information

Airbags (p. 49)

•

Safety mode

Safety mode is a protective state that is triggered when a collision may have damaged any of the car's vital functions, such as the fuel lines, sensors for any of the safety systems, or the brake system.

If the car has been in a collision, the message

Safety mode See Owner's manual may be

shown on the driver display with a warning symbol as long as the display is not damaged and the car's electrical system is still in working order. This message means that the car has reduced functionality.

WARNING

Never, under any circumstances, attempt to restart the car if it smells of fuel when the

Safety mode See Owner's manual mes-

sage is shown in the driver display. Leave the car at once.

If the car is in safety mode, it is possible to attempt to reset the system in order to start and move the car for a short distance, if in a dangerous traffic situation for example.

}}

Page 58

SAFETY

WARNING

Never attempt to repair your car or reset the electronics yourself if the car has been in safety mode. This could result in personal injury or the car not functioning as normal. Volvo recommends that engaging an authorised Volvo workshop to check and restore the car to normal status after

Owner's manual has been shown.

Safety mode See

WARNING

If the car is in safety mode it must not be towed. It must be transported from its location. Volvo recommends that it is transported to an authorised Volvo workshop.

Related information

Safety (p. 42)

•

Starting and moving the car after safety

•

mode (p. 56) Recovery (p. 456)

•

Starting and moving the car after safety mode

If the car is in safety mode, it is possible to attempt to reset the system in order to start and move the car for a short distance, if in a dangerous traffic situation for example.

Starting the car after safety mode

1. Check the general damage situation of the car and whether any fuel has been leaking. There must be no smell of fuel either.

If there is only minor damage and a check has revealed no fuel leaks, starting can be attempted.

WARNING

Never, under any circumstances, attempt to restart the car if it smells of fuel when the

Safety mode See Owner's manual mes-

sage is shown in the driver display. Leave the car at once.

2. Switch off the car.

3. Then try to start the car. > The car's electronics carry out a systems

check and then try to resume normal status.

IMPORTANT

If the message Safety mode See Owner's

manual is still shown on the display the car

must not be driven or towed but a vehicle recovery service must then be used instead. Even if the car appears to be driveable, hidden damage may make the car impossible to control once moving.

Moving the car after safety mode

1. If the driver display shows the message

Normal mode The car is now in normal mode after a start attempt, the car can be

carefully moved if standing in a dangerous position.

2. Do not move the car further than necessary.

WARNING

If the car is in safety mode it must not be towed. It must be transported from its location. Volvo recommends that it is transported to an authorised Volvo workshop.

Page 59

SAFETY

Related information

Safety mode (p. 55)

•

Starting the car (p. 396)

•

Recovery (p. 456)

•

Child safety

Children must always sit secure while travelling in the car.

Volvo has child safety equipment (child seats and attachment devices) which is designed for fitting in this particular car. Using Volvo's child safety equipment, you obtain the optimum conditions for a child to travel safely in the car. In addition, the child safety equipment fits in well and is simple to use.

The equipment that should be used is selected taking account of the weight and size of the child.

Volvo recommends that children travel in a rearfacing child seat until as late an age as possible, at least until 3-4 years of age, and then in a front-facing child seat until the child is 140 cm (4 feet 7 inches) tall.

NOTE

Legal provisions about the type of child seat that must be used for children of different ages and heights vary from country to country. Check what does apply.

NOTE

When using child safety equipment, it is important to read the installation instructions included.

In the event of questions when fitting child safety equipment, contact the manufacturer for clearer instructions.

Children of all ages and sizes must always sit correctly secured in the car. Never allow a child to sit on the knee of a passenger.

Related information

Safety (p. 42)

•

Child seats (p. 58)

•

Activating and deactivating child safety locks

•

(p. 247)

Page 60

SAFETY

Child seats

Suitable child seats should always be used when children are travelling in the car.

Children should sit comfortably and safely. Make sure that the child seat is positioned, mounted and used correctly.

Look in the installation instructions for the child seat for the correct fitting.

NOTE

When using child safety equipment, it is important to read the installation instructions included.

In the event of questions when fitting child safety equipment, contact the manufacturer for clearer instructions.

NOTE

Never leave a child seat loose in the car. Always secure it according to the instructions for the child seat, even when it is not in use.

Related information

Child safety (p. 57)

•

Upper mounting points for child seats

•

(p. 58) Lower mounting points for child seats

•

(p. 59)

i-Size/ISOFIX mounting points for child seats

•

(p. 60) Child seat positioning (p. 60)

•

Activating and deactivating passenger air-

•

bag* (p. 52)

Upper mounting points for child seats

The car is equipped with upper mounting points for child seats on the rear seat's outer seats.

The upper mounting points are primarily intended for use with front-facing child seats.

Always follow the manufacturer's installation instructions when connecting a child seat to the upper mounting points.

The location of the mounting points

Mounting point locations are indicated by symbols on the rear of the backrest.

The mounting points are located on the rear of the rear seat's outer seats.

* Option/accessory.

Page 61

SAFETY

WARNING

The child seat's upper straps must be routed through the hole in the head restraint leg before they are tensioned at the mounting point. If this is not possible, follow the recommendations from the child seat manufacturer.

NOTE

Fold the head restraints in order to facilitate fitting this type of child seat in cars with folding head restraints on the outer seats.

Related information

Child seats (p. 58)

•

Lower mounting points for child seats

•

(p. 59) i-Size/ISOFIX mounting points for child seats

•

(p. 60) Overview table for location of child seats

•

(p. 63) Table for location of child seats using the

•

car's seatbelts (p. 64)

Lower mounting points for child seats

The car is equipped with lower mounting points for child seats in the front seat* and the rear seat.

The lower mounting points are designed to be used in conjunction with certain rear-facing child seats.

Always follow the manufacturer's installation instructions when connecting a child seat to the lower mounting points.

The location of the mounting points

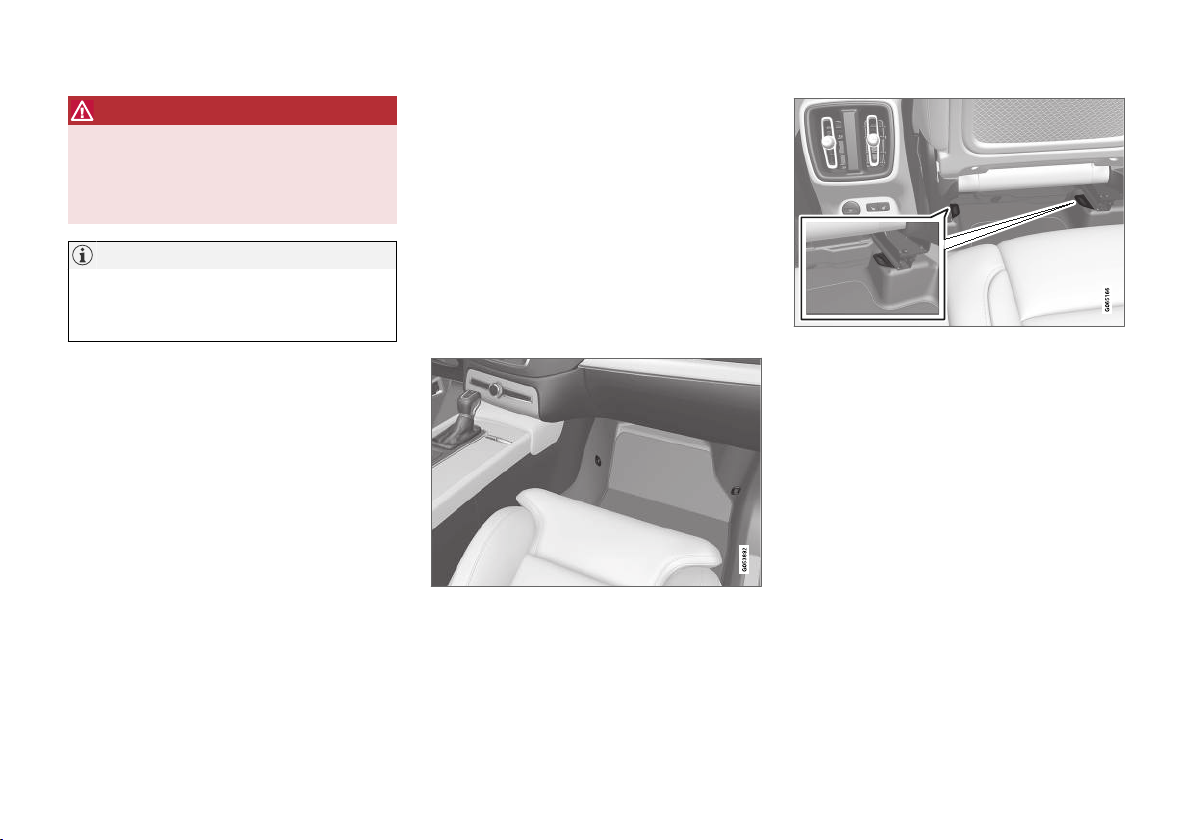

Mounting point locations in the front seat.

The mounting points in the front seat are located on the sides of the passenger seat's legroom.

The mounting points in the front seat are only mounted if the vehicle is equipped with a switch to activate/deactivate the passenger airbag*.

Mounting point locations in the rear seat.

The mounting points in the rear seat are located on the rear section of the front seat's floor rails.

Related information

Child seats (p. 58)

•

Upper mounting points for child seats (p. 58)

•

i-Size/ISOFIX mounting points for child seats

•

(p. 60) Overview table for location of child seats

•

(p. 63) Table for location of child seats using the

•

car's seatbelts (p. 64)

* Option/accessory.

Page 62

SAFETY

i-Size/ISOFIX mounting points for child seats

The car is equipped with i-Size/ISOFIX2 mounting points for child seats in the rear seat.

i-Size/ISOFIX is a fixture system for car child seats that is based on an international standard.

Always follow the manufacturer's installation instructions when connecting a child seat to the i-Size/ISOFIX mounting points.

The location of the mounting points

Mounting point locations are indicated by symbols2 on the upholstery of the backrest.

The mounting points for i-Size/ISOFIX are located behind covers in the lower section of the rear seat's backrest, in the outer seats.

Lift the covers in order to access the mounting points.

Related information

Child seats (p. 58)

•

Upper mounting points for child seats (p. 58)

•

Lower mounting points for child seats (p. 59)

•

Overview table for location of child seats

•

(p. 63) Table for location of i-Size child seats

•

(p. 66) Table for location of ISOFIX child seats

•

(p. 67)

Child seat positioning

It is important to position the child seat in the right place in the car and this depends, amongst other things, on the type of child seat and whether the passenger airbag is activated.

Rear-facing child seat and airbag are not compatible.

Always fit rear-facing child seats in the rear seat if the passenger airbag is activated. If a child is sitting on the front passenger seat then he/she could suffer serious injury if the airbag deploys.

If the passenger airbag is deactivated then rearfacing child seats can be fitted on the front passenger seat.

Names and symbols change depending on market.

Page 63

SAFETY

NOTE

Regulations regarding the placement of children in cars vary from country to country. Check what does apply.

WARNING

Never allow anybody to stand or sit in front of the front passenger seat.

Never use a rear-facing child seat on the front passenger seat if the airbag is activated.

Front-facing passengers (children and adults) must never sit on the front passenger seat if the passenger airbag is deactivated.

Failure to follow the advice given above can endanger life or lead to serious personal injury.

Label for passenger airbag

Label on the passenger side's sun visor.

Label on the passenger side's door pillar. The label becomes visible when the passenger door is opened.

The warning label for the passenger airbag is positioned as shown above.

Related information

Child seats (p. 58)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats

•

(p. 63) Table for location of child seats using the

•

car's seatbelts (p. 64) Table for location of i-Size child seats

•

(p. 66) Table for location of ISOFIX child seats

•

(p. 67)

Page 64

SAFETY

Child seat mounting

It is important to remember a number of things when a child seat is mounted and used, which depend on where the child seat is positioned.

WARNING

Booster cushions/child seats with steel braces or some other design that could rest on the seatbelt buckle's opening button must not be used, as they could cause the seatbelt buckle to open accidentally.

Do not secure the straps for the child seat into the seat's horizontal adjustment bar or in springs, rails or beams under the seat. Sharp edges may damage the straps.

Do not allow the upper section of the child seat to rest against the windscreen.

NOTE

When using child safety equipment, it is important to read the installation instructions included.

In the event of questions when fitting child safety equipment, contact the manufacturer for clearer instructions.

NOTE

Never leave a child seat loose in the car. Always secure it according to the instructions for the child seat, even when it is not in use.

Installation in the front seat

When fitting rear-facing child seats, check

•

that the passenger airbag is deactivated. When fitting front-facing child seats, check

•

that the passenger airbag is activated. Only use child seats that are recommended

•

by Volvo, are universally approved or are semi-universal, and where the car is included on the manufacturer's vehicle list.

ISOFIX child seats can only be fitted when

•

the car is equipped with the ISOFIX console accessory.

If the child seat is equipped with lower

•

straps, Volvo recommends that the lower mounting points are used with these3.

Installation in the rear seat

Only use child seats that are recommended

•

by Volvo, are universally approved or are semi-universal, and where the car is included on the manufacturer's vehicle list.

A child seat with support legs must not be

•

fitted in the centre seat.

The outer seats are equipped with the

•

ISOFIX fixture system and are approved for iSize4.

The outer seats are equipped with upper

•

mounting points. Volvo recommends that child seat's upper straps should be pulled through the hole in the head restraint before being tensioned at the mounting point. If this is not possible, follow the recommendations from the child seat manufacturer.

If the child seat is equipped with lower

•

straps, never adjust the position of the seat in front after the straps have been fitted in the lower mounting points. Always remember to remove the lower straps when the child seat is not installed.

Related information

Child seat positioning (p. 60)

•

Overview table for location of child seats

•

(p. 63) Table for location of child seats using the

•

car's seatbelts (p. 64) Table for location of i-Size child seats

•

(p. 66) Table for location of ISOFIX child seats

•

(p. 67)

The accessory range varies depending on market.

Varies depending on market.

Page 65

SAFETY

Overview table for location of child seats

The table gives an overview of the types of child seats suitable for the car's seats.

Seat positions in left-hand drive cars.

Seat positions in right-hand drive cars.

i-Size child seats

Universally approved child seats secured using the car's

Other child seat categories

seatbelt

3.5 2, 3, 4, 5 2, 3, 5

Seat posi-

tion

For more information, contact the child seat manufacturer.

According to the numbering above.

Related information

Child seat positioning (p. 60)

•

Child seat mounting (p. 62)

•

Table for location of child seats using the

•

car's seatbelts (p. 64) Table for location of i-Size child seats

•

(p. 66) Table for location of ISOFIX child seats

•

(p. 67)

Page 66

SAFETY

Table for location of child seats using the car's seatbelts

The table gives a recommendation for which child seats suit which locations, and for what size of child.

NOTE

Always read the owner's manual section on installing a child seat before installing one in the car.

Weight Front seat (with deactivated airbag, only rear-facing

child seats)

Group 0 max 10 kg

Group 0+ max 13 kg

Group 1 9-18 kg

Group 2 15-25 kg

A, B

Front seat (with activated airbag, only front-facing child seats)

A, D

A, E

Outer rear seat Centre rear seat

UD, L

UE, L

Page 67

SAFETY

Weight Front seat (with deactivated airbag, only rear-facing

child seats)

Group 3 22-36 kg

Front seat (with activated airbag, only front-facing child seats)

A, E

U: Suitable for universal category restraints approved for use in this mass group. UF: Suitable for front-facing universally approved child seats. L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories. X: The seat is not suitable for children in this mass group.

Adjust the seat to a more elevated position.

Volvo recommends: Volvo infant seat (type approval E1 04301146).

Volvo recommends: Volvo rear-facing seat (type approval E5 04212).

Volvo recommends rear-facing child seat for children in this mass group.

Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster seat (type approval E1 04301312).

Seatbelts (p. 44)

WARNING

•

Never use a rear-facing child seat on the front passenger seat if the passenger airbag is activated.

Related information

Child seat positioning (p. 60)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats

•

(p. 63) Table for location of i-Size child seats

•

(p. 66) Table for location of ISOFIX child seats

•

(p. 67)

Outer rear seat Centre rear seat

Page 68

SAFETY

Table for location of i-Size child seats

The table gives a recommendation for which iSize child seats suit which locations, and for what size of child.

Type of child seat Front seat (with deactivated airbag, only rear-

facing child seats)

i-Size child seats X X

i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing. X: Not suitable for universally approved child seats.

Volvo recommends rear-facing child seats for this group.

Volvo recommends: BeSafe iZi Kid X2 i-Size (type approval E4-129R-000002).

The child seat must be approved in accordance with UN Reg R129.

Front seat (with activated airbag, only front-fac-

ing child seats)

Related information

Child seat positioning (p. 60)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats

•

(p. 63) Table for location of child seats using the

•

car's seatbelts (p. 64) Table for location of ISOFIX child seats

•

(p. 67) i-Size/ISOFIX mounting points for child seats

•

(p. 60)

NOTE

Always read the owner's manual section on installing a child seat before installing one in the car.

Outer rear seat Centre rear seat

i-U

A, B

Page 69

SAFETY

Table for location of ISOFIX child seats

The table gives a recommendation for which ISOFIX child seats suit which locations, and for what size of child.

Weight

Group 0 max 10 kg

Group 0+ max 13 kg

Size class

Type of child seat Front seat (with deactivated air-

E Rear-facing infant seat

D Rear-facing child seat

The child seat must be approved in accordance with UN Reg R44 and the car model must be included in the manufacturer's vehicle list.

Front seat (with activated air-

bag, only rear-facing child

seats)

B, C

, X

B, C, E

, X

bag, only front-facing child

seats)

NOTE

Always read the owner's manual section on installing a child seat before installing one in the car.

Outer rear seat Centre rear seat

XC Rear-facing child seat

}}

Page 70

SAFETY

Weight

Size class

Type of child seat Front seat (with deactivated air-

bag, only rear-facing child

seats)

Front seat (with activated air-

bag, only front-facing child

seats)

Outer rear seat Centre rear seat

A Front-facing child seat

B, E, F

Group 1 9-18 kg

B1 Front-facing child seat

C Rear-facing child seat

D Rear-facing child seat

B, E

, X

X IL X

ILF, IUF

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group. X: Not suitable for ISOFIX child restraint systems.

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market). There are no upper mounting points for child seats here.

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

Applicable if the car is not fitted with an ISOFIX bracket.

Adjust the backrest so that the head restraint does not interfere with the child seat.

Volvo recommends rear-facing child seat for children in this mass group.

WARNING

Never use a rear-facing child seat on the front passenger seat if the passenger airbag is activated.

NOTE

If an i-Size/ISOFIX child seat has no size classification, the car model must be included on the vehicle list for the child seat.

NOTE

Volvo recommends contacting an authorised Volvo dealer for information about which iSize/ISOFIX child seats Volvo recommends.

Related information

Child seat positioning (p. 60)

•

Child seat mounting (p. 62)

•

XB Front-facing child seat

Page 71

Overview table for location of child seats

•

(p. 63) Table for location of child seats using the

•

car's seatbelts (p. 64) Table for location of i-Size child seats (p. 66)

•

i-Size/ISOFIX mounting points for child seats

•

(p. 60)

SAFETY

Page 72

Page 73

DISPLAYS AND VOICE CONTROL

Page 74

DISPLAYS AND VOICE CONTROL

Instruments and controls in lefthand drive car

The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights, dipped beam, main beam, direction indicators, front fog lamps/cornering lights*, rear fog lamp, resetting the trip meter

Steering wheel paddles* for manual gear changing in an automatic gearbox

Driver display

Wipers and washing, rain sensor*

Right-hand steering wheel keypad

Steering wheel adjustment

Horn

Left-hand steering wheel keypad

Display lighting, unlocking/opening*/closing* of tailgate

Roof console

Front reading lamps and interior lighting

Panorama roof*

Display in roof console

Manual dimming of interior rearview mirror

Centre and tunnel console

Centre display

Start button

Hazard warning flashers, defrosting, media, drive mode button*

Electrical socket, USB port, wireless phone charger*

Gear selector

Parking brake

Automatic braking when stationary

* Option/accessory.

Page 75

DISPLAYS AND VOICE CONTROL

Driver's door

Memory for settings for power front seat*, door mirrors

Central locking, power windows, door mirrors, electric child safety locks*

Bonnet opening

Adjusting front seat

Related information

Manual front seat (p. 166)

•

Adjusting the power front seat* (p. 167)

•

Adjusting the steering wheel (p. 175)

•

Lighting control (p. 134)

•

Starting the car (p. 396)

•

Driver display (p. 75)

•

Overview of centre display (p. 95)

•

Gearbox (p. 409)

•

Instruments and controls in righthand drive car

The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights, dipped beam, main beam, direction indicators, front fog lamps/cornering lights*, rear fog lamp, resetting the trip meter

Steering wheel paddles* for manual gear changing in an automatic gearbox

Driver display

Wipers and washing, rain sensor*

Display lighting, unlocking/opening*/closing* of tailgate

Right-hand steering wheel keypad

Horn

Steering wheel adjustment

Left-hand steering wheel keypad

Roof console

Front reading lamps and interior lighting

Panorama roof*

Display in roof console

Manual dimming of interior rearview mirror

}}

* Option/accessory.

Page 76

DISPLAYS AND VOICE CONTROL

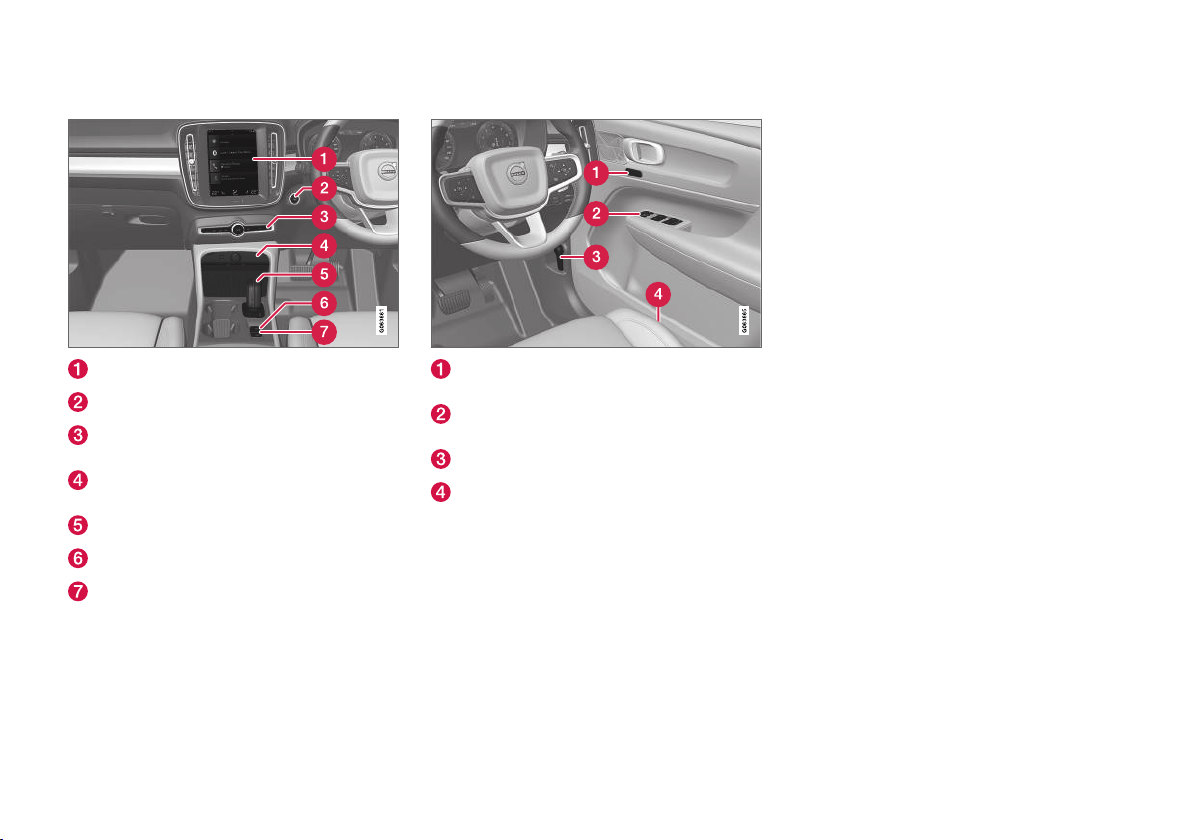

Centre and tunnel console

Driver's door

Centre display

Start button

Hazard warning flashers, defrosting, media, drive mode button*

Electrical socket, USB port, wireless phone charger*

Gear selector

Parking brake

Automatic braking when stationary

Memory for settings for power front seat*, door mirrors

Central locking, power windows, door mirrors, electric child safety locks*

Bonnet opening

Adjusting front seat

Related information

Manual front seat (p. 166)

•

Adjusting the power front seat* (p. 167)

•

Adjusting the steering wheel (p. 175)

•

Lighting control (p. 134)

•

Starting the car (p. 396)

•

Driver display (p. 75)

•

Overview of centre display (p. 95)

•

Gearbox (p. 409)

•

* Option/accessory.

Page 77

DISPLAYS AND VOICE CONTROL

Driver display

The driver display shows information about the car and driving.

The driver display contains gauges, indicators and indicator and warning symbols. The content of the driver display depends on the car's equipment, settings and which functions are active at that time.

Open one of the doors.

•

WARNING

In the event of a fault in the driver display the information on e.g. brakes, airbags or other safety systems may not be shown. In which case, the driver cannot check the status of the car's systems or receive current warnings

and information. The driver display is activated as soon as a door is opened, i.e. in ignition position 0. The driver

display extinguishes after a while if it is not used. To reactivate it, proceed with one of the following:

Depress the brake pedal.

•

Activate ignition position I.

•

WARNING

If the driver display should extinguish, not illu-

minate on activation/start or be fully or parti-

ally illegible, the car must not be used. You

should visit a workshop immediately. Volvo

recommends an authorised Volvo workshop.

Driver display1.

Location in the driver display:

On the left In the middle On the right

Speedometer Indicator and warning symbols

Tachometer/ECO gauge

Trip meter Outside temperature gauge Gear shift indicator

Odometer

Clock Drive mode

Cruise control and speed limiter information Messages, in some cases with graphics Fuel gauge

Road Sign Information*

Door and seatbelt information Status of the Start/Stop function

– Media player Distance to empty tank

The figure is schematic - parts may vary depending on car model.

* Option/accessory.

}}

Page 78

DISPLAYS AND VOICE CONTROL

On the left In the middle On the right

–

Navigation map*

Instantaneous fuel consumption

– Phone App menu (activated via steering wheel keypad)

– Voice recognition –

–

Depends on drive mode selected.

Accumulated mileage.

Compass

–

Dynamic symbol

The dynamic symbol in its basic form.

The centre of the driver display contains a dynamic symbol that changes appearance for different types of message. An amber or red marker around the symbol indicates the degree of severity of a control or warning message. With an animation, the basic shape can be turned into a larger image in order to graphically indicate where a problem is situated or to clarify information.

Examples of indicator symbol.

Related information

Driver display settings (p. 77)

•

Warning symbols in the driver display

•

(p. 85) Indicator symbols in the driver display

•

(p. 83) Trip computer (p. 78)

•

Messages in the driver display (p. 91)

•

Handling the application menu in the driver

•

display (p. 90)

* Option/accessory.

Page 79

DISPLAYS AND VOICE CONTROL

Driver display settings

Settings for the driver display's display options can be made in the driver display's application menu and in the centre display's settings menu.

Settings in the driver display's app menu

In the app menu, you can choose which information is shown on the driver display from:

Trip computer

•

media player

•

phone

•

navigation system*.

•

Settings in the centre display

Selecting information type

2. Press

3. Select what should be shown in the back-

Settings in the centre display's top

Tap on view.

My Car Displays Driver

Display Information

ground:

Show no information in background

•

Show information for current playing

•

media Show navigation even if no route is

•

set.

Selecting theme

2. Tap on

3. Select a theme (appearance) for the driver

Selecting language

2. Tap on

These settings are personal and are saved automatically to the active driver profile.

Settings in the centre display's top

Tap on view.

My Car Displays Display

Themes

display:

Glass

•

Minimalistic

•

Performance

•

Chrome Rings.

•

Settings in the centre display's top

Tap on view.

System System Languages and

Units

guage. > A change will affect the language in all

System Language to select lan-

displays.

Related information

Driver display (p. 75)

•

Handling the application menu in the driver

•

display (p. 90) Changing settings in the centre display

•

(p. 120)

Fuel gauge

The fuel gauge in the driver display shows the fuel level in the tank.

The beige zone in the fuel gauge indicates the quantity of fuel in the tank.

When the fuel level is low and it is soon time to refuel, the fuel pump symbol illuminates and changes to amber colour. The trip computer also indicates the distance to empty tank.

Related information

Driver display (p. 75)

•

Filling fuel (p. 431)

•

Fuel tank - volume (p. 624)

•

* Option/accessory.

Page 80

DISPLAYS AND VOICE CONTROL

Trip computer

The car's trip computer records and calculates vales such as e.g. distance, fuel consumption and average speed whilst driving.

In order to facilitate fuel-efficient driving, information is recorded about both instantaneous and average fuel consumption. The information from the trip computer can be shown in the driver display.

Examples of trip computer information in the driver display.

The following meters are included in the trip computer:

•

Trip meter Odometer Instantaneous fuel consumption

Distance to empty tank

•

Tourist - alternative speedometer

•

Units for distance, speed, etc. can be changed via system settings in the centre display.

Trip meter

There are two trip meters, TM and TA. TM can be reset manually and TA is reset auto-

matically if the car is not used for at least four hours.

The following information is registered while driving:

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption.

•

The values apply from the trip meter's latest reset.

Odometer

The odometer records the car's total mileage. This value cannot be reset to zero.

Instantaneous fuel consumption

This gauge shows the fuel consumption that the car has at the moment. The value is updated approximately every second.

Distance to empty tank

The trip computer calculates the remaining mileage with the fuel available in the tank.

The calculation is based on the average fuel consumption over the last 30 km (20 miles) and the remaining drivable fuel quantity.

When the gauge shows "----", there is not enough fuel left to be able to calculate the remaining mileage. Refuel as soon as possible.

NOTE

There may be a slight deviation if the driving style has been changed.

An economic driving style generally results in a longer driving distance.

Tourist - alternative speedometer

The alternative digital speedometer makes it easier to drive in countries where speed limit signs are in a different unit than that shown in the car's instruments.

The digital speed is then shown in the opposite unit to that shown in the analogue speedometer. If the analogue speedometer is graduated in mph, the digital speedometer shows the corresponding speed in km/h and vice versa.

The figure is schematic - parts may vary depending on car model.

Page 81

DISPLAYS AND VOICE CONTROL

Related information

Show trip data in the driver display (p. 79)

•

Resetting the trip meter (p. 80)

•

Show trip statistics in the centre display

•

(p. 80) Driver display (p. 75)

•

Show trip data in the driver display

The trip computer's recorded and calculated values can be shown in the driver display.

The values are saved in a trip computer app. Via the app menu, you can choose which information is shown on the driver display.

Open and navigate in the app menu using the righthand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the driver display by pressing (1).

(It is not possible to open the app menu while there is an unacknowledged message in the driver display. The message must first be acknowledged before the app menu can be opened.)

2. Navigate to the trip computer app to left or right with (2).

> The top four menu rows show measured

values for trip meter TM. The next four menu rows show measured values for trip meter TA. Scroll up or down in the list with (3).

3. Scroll down to the option buttons to select which information to show in the driver display:

Distance to empty tank

•

Odometer

•

Mileage for trip meter TM, TA, or no dis-

•

play of mileage Instantaneous fuel consumption, average

•

consumption for TM or TA, alternatively, no display of fuel consumption

Tourist (alternative speedometer).

•

Select or deselect an option with the O button (4). The change is made immediately.

}}

Page 82

DISPLAYS AND VOICE CONTROL

Related information

Trip computer (p. 78)

•

Resetting the trip meter (p. 80)

•

Resetting the trip meter

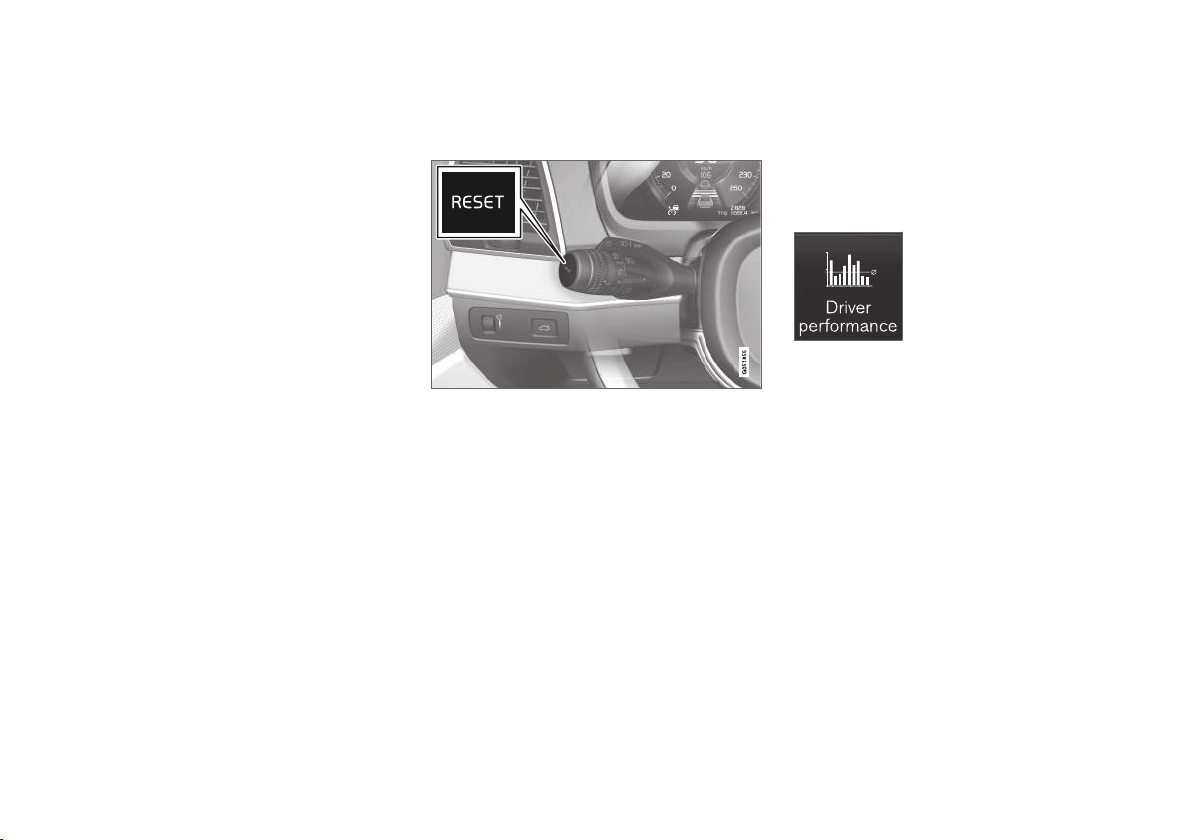

Reset the trip meter using the left-hand stalk switch.

Reset all information in trip meter TM (i.e.

–

mileage, average consumption, average speed and driving time) with a long press on the RESET button on the left-hand stalk switch.

A short press on the RESET button resets only the mileage.

The trip meter TA can only be reset automatically when the car has not been used for four or more hours.

Related information

Trip computer (p. 78)

•

Show trip statistics in the centre display

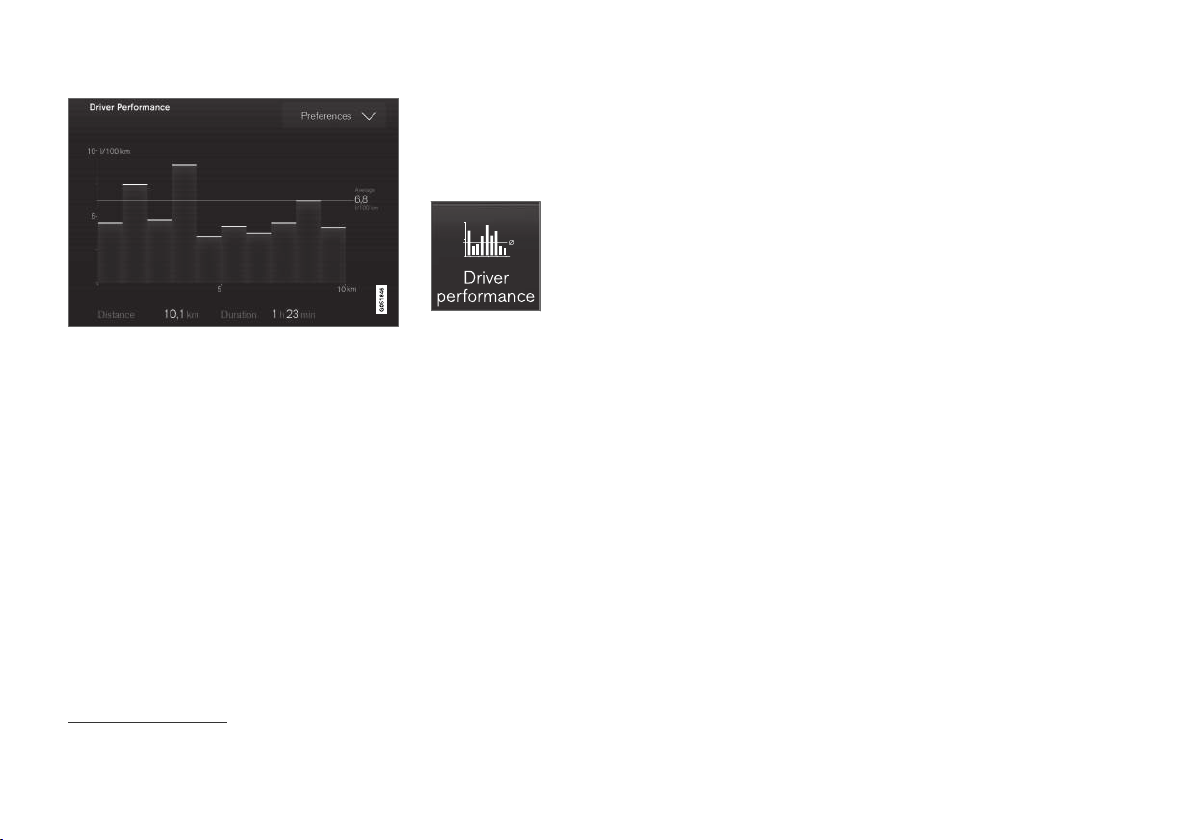

Trip statistics from the trip computer are displayed graphically in the centre display and provide an overview that facilitates more fuel-efficient driving.

Open the Driver performance app in app view in order to show the trip statistics.

Each bar in the diagram symbolises a distance of 1, 10 or

100 km, alternatively miles. The bars are filled in from the right as driving progresses. The bar on the far right shows the value for the current distance.

The average fuel consumption and total driving time are calculated since the last time the trip statistics were reset.

Page 83

DISPLAYS AND VOICE CONTROL

Trip statistics from the trip computer3.

Related information

Settings for trip statistics (p. 81)

•

Trip computer (p. 78)

•

Settings for trip statistics

Reset or adjust settings for trip statistics.

Open the view in order to show the trip statistics.

Press

•

Trip statistics, calculated average consumption and total driving time are always reset simultaneously.

Units for distance, speed, etc. can be changed via system settings in the centre display.

Related information

Show trip statistics in the centre display

•

(p. 80) Trip computer (p. 78)

•

Driver performance app in app

Preferences to

change graph scale. Select resolution 1, 10 or 100 km/miles for the bar.

reset data after every trip. Performed when the car has been stationary for more than 4 hours.

reset data for the current trip.

Resetting the trip meter (p. 80)

•

The figure is schematic - parts may vary depending on car model.

Page 84

DISPLAYS AND VOICE CONTROL

Time and date

The clock is shown in both the driver display and the centre display.

Clock location

Clock location in driver display.

In the centre display, the clock is located at the top right of the status bar.

In certain situations, messages and information may cover the clock in the driver display.

Settings for time and date

–

Select Settings System Date and

Time

in the centre display's top view to

change settings for time and date format. Adjust time and date by pressing the up or

down arrow on the touch screen.

Automatic time for cars with GPS

When the car is equipped with a navigation sys-

Auto Time can be selected. The time zone

tem, is then adjusted automatically based on the location of the car. For certain types of navigation systems, the current location (country) must also be set to obtain the right time zone. If Auto Time is not selected, time and data are adjusted with arrow up or arrow down on the touch screen.

Summer time

In certain countries, it is possible to select automatic setting of summer time with other countries, summer time can be set with On or Off.

Auto. For

Related information

Driver display (p. 75)

•

Changing settings in the centre display

•

(p. 120)

Outside temperature gauge

The outside temperature is shown in the driver display.

A sensor detects the temperature outside of the car.

If the car has been stationary, the gauge may display a temperature reading that is too high.

When the outside temperature is within the range

-5 °C to +2 °C (23 till 36 °F) a snowflake symbol is also shown in the driver display as a warning for potentially slippery conditions.

Change the unit for the temperature gauge via system settings in the centre display top view.

Related information

Driver display (p. 75)

•

Changing system units (p. 118)

•

Page 85

DISPLAYS AND VOICE CONTROL

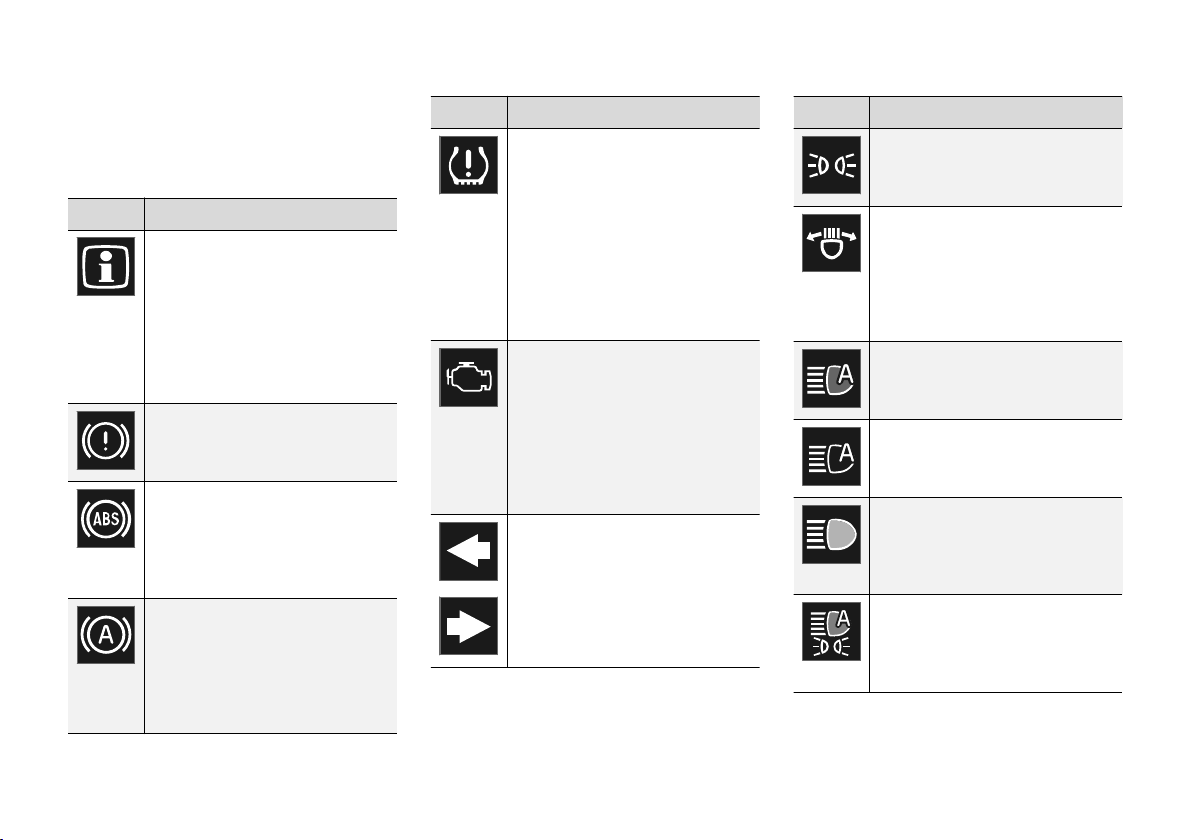

Indicator symbols in the driver display

The indicator symbols alert the driver that a function is activated, that a system is operating, or that a fault or abnormal condition exists.

Symbol Specification

Information, read display text

When one of the car's systems does not behave as intended, this information symbol illuminates and a text appears on the driver display. The information symbol can also illuminate in conjunction with other symbols.

Fault in brake system

The symbol lights up when there is a fault in the parking brake.

ABS fault

If this symbol illuminates then the system is not working. The car's regular brake system continues to work, but without the ABS function.

Automatic brake on

The symbol illuminates when the function is activated and the foot brake or parking brake is acting. The brake holds the car stationary when it has stopped.

Symbol Specification

Tyre pressure system

The symbol illuminates when tyre pressure is too low. If there is a fault in the tyre pressure system, the symbol will flash for approx. 1 minute and then illuminate with a constant glow. This may be because the system cannot detect or warn of low tyre pressure as intended.

Emissions system

If the symbol illuminates after the engine has been started then it may be due to a fault in the car's emissions system. Drive to a workshop for checking. Volvo recommends that an authorised Volvo workshop is contacted.

Left and right-hand direction indicator

The symbols flash when the direction indicators are used.

Symbol Specification

Position lamps

The symbol lights up when the position lamps are switched on.

Fault in the headlamp system

The symbol illuminates if a fault has occurred in the ABL function (Active Bending Lights) or if another fault has occurred in the headlamp system.

Active main beam on

The symbol lights up blue when the automatic main beam is on.

Active main beam off

The symbol lights up white when the automatic main beam is off.

Main beam On

The symbol illuminates when main beam is on and with main beam flash.

Active main beam on

The symbol lights up blue when active main beam is on. Position lamps are switched on.

}}

Page 86

DISPLAYS AND VOICE CONTROL

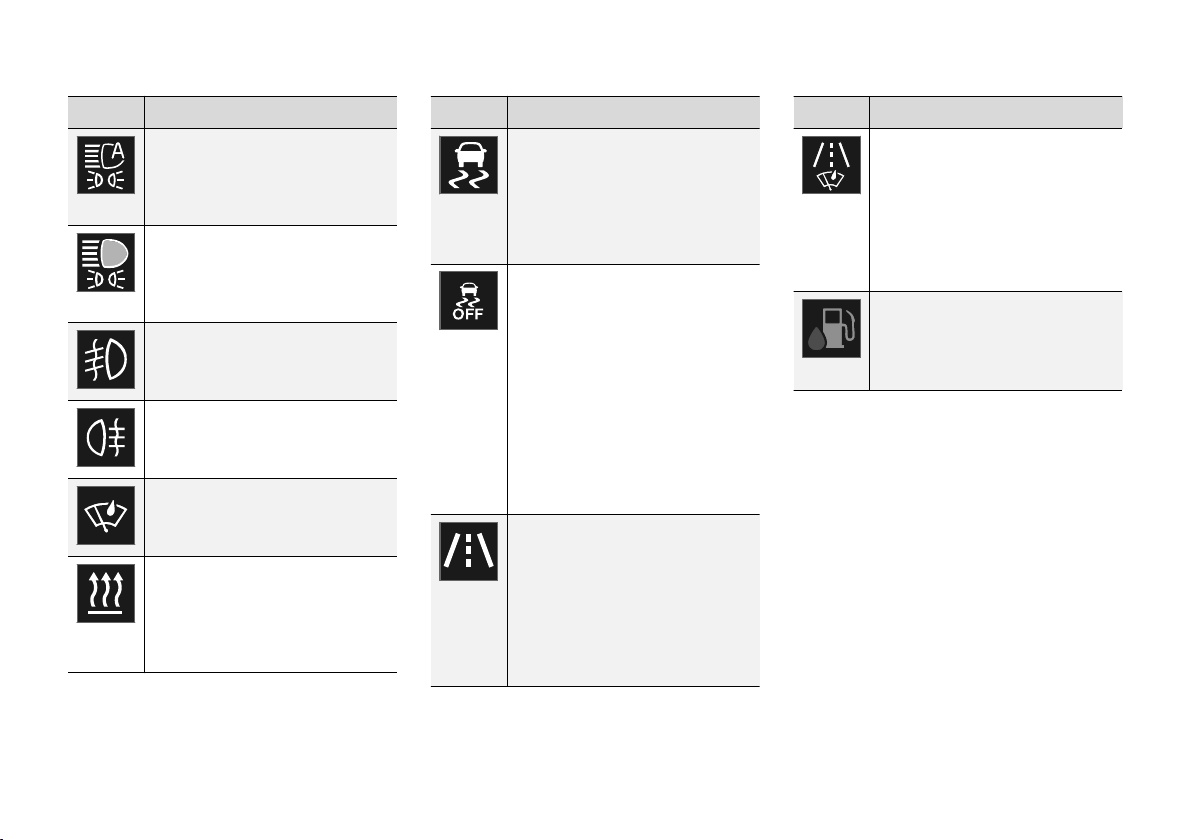

Symbol Specification

Active main beam off

The symbol lights up white when active main beam is off. Position lamps are switched on.

Main beam On

The symbol lights up when main beam and the position lamps are switched on.

Front fog lamps on

This symbol illuminates when the front fog lamp is switched on.

Rear fog lamp on

This symbol illuminates when the rear fog lamp is switched on.

Rain sensor on

This symbol illuminates when the rain sensor is on.

Preconditioning on

The symbol illuminates when the engine block and passenger compartment heater/air conditioning are preconditioning the car.

Symbol Specification

Stability system

A flashing symbol indicates that the stability system is operating. If the symbol illuminates with constant glow then there is a fault in the system.

Stability system, sport mode

The symbol illuminates when the sport mode is activated. Sport mode allows for a more active driving experience. The system then detects whether the accelerator pedal, steering wheel movements and cornering are more active than in normal driving and then allows controlled skidding of the rear section up to a certain level before it intervenes and stabilises the car.

Lane assistance

White symbol: Lane assistance is on and road lines are detected.

Grey symbol: Lane assistance is on but road lines are not detected.

Amber symbol: Lane assistance warns/intervenes.

Symbol Specification

Lane assistance and rain sensor

White symbol: Lane assistance is on and road lines are detected. Rain sensor is on.

Grey symbol: Lane assistance is on but road lines are not detected. Rain sensor is on.

AdBlue system

The symbol illuminates when the AdBlue level is low or in the event of a fault in the AdBlue system.

Applies to cars with diesel engines.

Related information

Driver display (p. 75)

•

Warning symbols in the driver display

•

(p. 85)

Page 87

DISPLAYS AND VOICE CONTROL

Warning symbols in the driver display

The warning symbols alert the driver that an important function is activated or that a serious fault or condition exists.

Symbol Specification

Warning

The red warning symbol illuminates when a fault has been indicated which could affect the safety and/or drivability of the car. An explanatory text is shown on the driver display at the same time. The warning symbol can also illuminate in conjunction with other symbols.

Seatbelt reminder

This symbol illuminates or flashes if someone in a front seat has not put on their seatbelt or if someone in a rear seat has taken off their seatbelt.

Airbags

If the symbol remains illuminated or illuminates while driving, a fault has been detected in one of the car's safety systems. Read the message in the driver display. Volvo recommends that an authorised Volvo workshop is contacted.

Symbol Specification

Fault in brake system

If this symbol illuminates, the brake fluid level may be too low. Visit the nearest authorised workshop to have the brake fluid level checked and rectified.

Parking brake applied

This symbol illuminates with a constant glow when the parking brake is applied.

A flashing symbol means that a fault has arisen. Read the message in the driver display.

Low oil pressure

If this symbol illuminates during driving then the engine's oil pressure is too low. Stop the engine immediately and check the engine oil level, top up if necessary. If the symbol illuminates and the oil level is normal, contact a workshop. Volvo recommends that an authorised Volvo workshop is contacted.

Symbol Specification

Alternator not charging

This symbol illuminates during driving if a fault has occurred in the electrical system. Visit a workshop. Volvo recommends that an authorised Volvo workshop is contacted.

Collision risk

City Safety warns of a risk of collision with other vehicles, pedestrians, cyclists or large animals.

Related information

Indicator symbols in the driver display (p. 83)

•

Driver display (p. 75)

•

Page 88

DISPLAYS AND VOICE CONTROL

License agreement for the driver display

A license is an agreement for the right to operate a certain activity or the right to use someone else's entitlement according to the terms and conditions in the agreement. The following text is Volvo's agreement with the manufacturer or developer.

Freetype Project License

3rd Party Software Disclaimers and License Agreements Confidential ID 06-00004-004 39 / 75 Revision 06.00A, 2015-06-09 2006-Jan-27 Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg.

Introduction

The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that: o We don't promise that this software works. However, we will be interested in any kind

of bug reports. (`as is' distribution) o You can use this software for whatever you want, in parts or full form, without having to pay us. (`royalty-free' usage) o You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you have used the FreeType code. (`credits') We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project. Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We thus encourage you to use the following text:

Please replace <year> with the value from the FreeType version you actually use.

Legal Terms

0. Definitions – Throughout this license, the terms `package', `FreeType Project', and `FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's

source code as well as linking it to form a `program' or `executable'. This program is referred to as `a program using the FreeType engine'. This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this. The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below.

1. No Warranty – THE FREETYPE PROJECT IS PROVIDED `AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT. '

2. Redistribution – This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, compile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object code forms) and derivative works thereof for any purpose; and to

Page 89

DISPLAYS AND VOICE CONTROL

authorize others to exercise some or all of the rights granted herein, subject to the following conditions: o Redistribution of source code must retain this license file (`FTL.TXT') unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files. o Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory. These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.

3. Advertising – Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'. As you have not signed this license, you are not required to accept it. However, as the FreeType Project is

copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all the terms of this license.

4. Contacts – There are two mailing lists related to FreeType: o [email protected]. Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven't found anything to help you in the documentation. o freetype[email protected]. Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc. Our home page can be found at http://www.freetype.org

HarfBuzz / UCDN License

•

Werner Lemberg

For full copyright notices consult the individual files in the package. Permission is hereby granted, without written agreement and without license or royalty fees, to use, copy, modify, and distribute this software and its documentation for any purpose, provided that the above copyright notice and the following two paragraphs appear in all copies of this software. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE TO ANY PARTY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS SOFTWARE AND ITS DOCUMENTATION, EVEN IF THE COPYRIGHT HOLDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. THE COPYRIGHT HOLDER SPECIFICALLY DISCLAIMS ANY WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE SOFTWARE PROVIDED HEREUNDER IS ON AN "AS IS" BASIS, AND THE COPYRIGHT HOLDER HAS NO OBLIGATION TO PROVIDE MAINTENANCE, SUPPORT, UPDATES, ENHANCEMENTS, OR MODIFICATIONS.

}}

Page 90

DISPLAYS AND VOICE CONTROL

Libunibreak License

This library is released under an open-source licence, the zlib/libpng licence. Please check the file LICENCE for details. Apart from using the algorithm, part of the code is derived from the data provided under http://www.unicode.org/ Public. And the Unicode Terms of Use may apply: URL:http://www.unicode.org/copyright.html

LICENSE:

•

hacohen at samsung dot com>

This software is provided 'as-is', without any express or implied warranty. In no event will the author be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgement in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be

misrepresented as being the original software.

3. This notice may not be removed or altered from any source distribution.

Unicode Inc. License Agreement

EXHIBIT 1 UNICODE, INC. LICENSE AGREEMENT - DATA FILES AND SOFTWARE Unicode Data Files include all data files under the directories http://www.unicode.org/Public/, http://www.unicode.org/reports/, and http:// www.unicode.org/cldr/data/ . Unicode Software includes any source code published in the Unicode Standard or under the directories http:// www.unicode.org/Public/, http:// www.unicode.org/reports/, and http:// www.unicode.org/cldr/data/. NOTICE TO USER: Carefully read the following legal agreement. BY DOWNLOADING, INSTALLING, COPYING OR OTHERWISE USING UNICODE INC.'S DATA FILES ("DATA FILES"), AND/OR SOFTWARE ("SOFTWARE"), YOU UNEQUIVOCALLY ACCEPT, AND AGREE TO BE BOUND BY, ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE, DO NOT DOWNLOAD, INSTALL, COPY, DISTRIBUTE OR USE THE DATA FILES OR SOFTWARE. COPYRIGHT AND PERMISSION NOTICE Copyright © 1991-2010 Unicode, Inc. All rights reserved. Distributed under the Terms of Use in http://www.unicode.org/copyright.html. Permission is hereby granted, free of charge, to any person obtaining a copy of the Unicode data

files and any associated documentation (the "Data Files") or Unicode software and any associated documentation (the "Software") to deal in the Data Files or Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Data Files or Software, and to permit persons to whom the Data Files or Software are furnished to do so, provided that (a) the above copyright notice(s) and this permission notice appear with all copies of the Data Files or Software, (b) both the above copyright notice(s) and this permission notice appear in associated documentation, and (c) there is clear notice in each modified Data File or in the Software as well as in the documentation associated with the Data File(s) or Software that the data or software has been modified. THE DATA FILES AND SOFTWARE ARE PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT

Page 91

DISPLAYS AND VOICE CONTROL

OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA FILES OR SOFTWARE. Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in these Data Files or Software without prior written authorization of the copyright holder.

ZLIB Data Compression Library License Agreement

(C) 1995-2010 Jean-loup Gailly and Mark Adler This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly Mark Adler [email protected] [email protected] If you use the zlib library in a product, we would appreciate *not* receiving lengthy legal documents to sign. The sources are provided for free but without warranty of any kind. The library has been entirely written by Jean-loup Gailly and Mark Adler; it does not include third-party code. If you redistribute modified sources, we would appreciate that you include in the file ChangeLog history information documenting your changes. Please read the FAQ for more information on the distribution of modified source versions.

GLEW Licence (Modified BSD Licence)

The OpenGL Extension Wrangler Library

•

forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. * The

name of the author may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Related information

Driver display (p. 75)

•

Page 92

DISPLAYS AND VOICE CONTROL

Application menu in driver display

Application menu (app menu) in the driver display provides quick access to commonly used functions for certain apps.

The app menu in the driver display can be used instead of using the centre display. The figure is schematic - the layout may vary.

The app menu is shown in the driver display and is controlled using the steering wheel's righthand keypad. The app menu makes it easier to switch between different apps or functions within the apps without having to let go of the steering wheel.

App menu functions

Different apps give access to different types of functions. The following apps and their associated functions can be controlled from the app menu:

App Functions

Trip computer

Media player

Phone Calling a contact from the call

Navigation Guide to destination, etc.

Selection of trip meter, selection of what to show in the driver display, etc.

Selection of active source for the media player.

list.

Related information

Driver display (p. 75)

•

Overview of centre display (p. 95)

•

Handling the application menu in the driver

•

display (p. 90)

Handling the application menu in the driver display

The application menu (the app menu) in the driver display is operated with the steering wheel's right-hand keypad.

The app menu and the steering wheel's right-hand keypad.

Open/close

Left/right

Up/down

Confirm

Page 93

DISPLAYS AND VOICE CONTROL

Opening/closing the app menu

Press on open/close (1).

–

(It is not possible to open the app menu while there is an unacknowledged message in the driver display. The message must first be acknowledged before the app menu can be opened.)

> The app menu opens/closes.

The app menu closes automatically after a period of inactivity or after certain options have been selected.

Navigating and selecting in the app menu

1. Navigate between the different apps that are available by tapping on left or right (2).

> Functions for previous/next app are

shown in the app menu.

2. Browse through the functions for the selected app by tapping on up or down (3).

3. Confirm or highlight an option for the function by pressing on confirm (4).

> The function is activated and for some

options the app menu then closes.

If the app menu is opened again, the functions of the most recently selected app are shown first.

Related information

Application menu in driver display (p. 90)

•

Messages in the driver display (p. 91)

•

Messages in the driver display

The driver display can show messages to inform or assist the driver in the event of different events.

Message in the driver display4.

Message in the driver display5.

The driver display shows messages that are of high priority for the driver.

The messages can be shown in different parts of the driver display depending on what other information is currently being displayed. After a while,

}}

Page 94

DISPLAYS AND VOICE CONTROL

or when the message has been acknowledged/

action taken if required, the message disappears from the driver display. If a message needs to be saved, it is placed in the

Car status app, which is

opened from the app view in the centre display. Message composition may vary and they can be

shown together with graphics, symbols or buttons for acknowledging the message or accepting a request, for example.

Service messages

Shown below is a selection of important service messages and their meanings.

Message Specification

Stop safely

Stop and switch off the engine. Serious risk of damage - consult a workshopB.

Turn off engine

Stop and switch off the engine. Serious risk of damage - consult a workshopB.

Service urgent Drive to work-

shop

Contact a workshopB to check the car immediately.

Message Specification

Service required

Contact a workshopB to check the car as soon as possible.

Regular maintenance

Book time for maintenance

Regular maintenance

Time for maintenance

Regular maintenance

Maintenance overdue

Temporarily

off

Time for regular service contact a workshopB. Shown before the next service date.

Time for regular service contact a workshopB. Shown at the next service date.

Time for regular service contact a workshopB. Shown when the service date has passed.

A function has been temporarily switched off and is reset automatically while driving or after starting again.

Part of message, shown together with information on where the problem has arisen.

An authorised Volvo workshop is recommended.

Related information

Managing messages in the driver display

•

(p. 93) Handling a message saved from the driver

•

display (p. 94) Message in centre display (p. 126)

•

With 8-inch driver display.

With 12-inch driver display.

Page 95

DISPLAYS AND VOICE CONTROL

Managing messages in the driver display

Messages in the driver display are handled using the steering wheel's right-hand keypad.

Message in the driver display6 and the steering wheel's right-hand keypad.

Message in the driver display7 and the steering wheel's right-hand keypad.

Left/right

Confirm

Some messages in the driver display contain one or more buttons for acknowledging the message or accepting a request, for example.

Managing a new message

For messages with buttons:

1. Navigate between the different buttons that are available by tapping on left or right (1).

2. Confirm the selection by pressing on confirm (2).

> The message disappears from the driver

display.

For messages without buttons:

Close the message by pressing on confirm

–

(2), or allow the message to close automatically after a while.

> The message disappears from the driver

display.

If a message needs to be saved, it is placed in

Car status app, which is opened from the

the app view in the centre display. The message Car

message stored in Car Status application is

shown in the centre display in conjunction with this.

Related information

Messages in the driver display (p. 91)

•

Handling a message saved from the driver

•

display (p. 94) Message in centre display (p. 126)

•

With 8-inch driver display.

With 12-inch driver display.

Page 96

DISPLAYS AND VOICE CONTROL

Handling a message saved from the driver display

Whether saved from the driver display or the centre display, messages are managed in the centre display.

Saved messages can be seen in the Car Status app.

Messages that are shown in the driver display and that need to be saved are added in the

Car status app in the centre

display. The message Car

message stored in Car Status application is shown

in the centre display in conjunction with this.

Reading a saved message

To read a saved message immediately:

Press the button to the right of the Car

–

message stored in Car Status application message in the centre display.

The saved message is shown in the

Car

status app.

To read a saved message later:

Open the in the centre display.

> The app is opened in the bottom tile of

Select the > A list of saved messages is shown.

3. Tap on a message to expand/minimise. > More information on the message is

Managing a saved message

In maximised mode, some messages have two buttons available to book service or read the owner's manual.

Car status app from the app view

the home view.

Messages tab in the app.

shown in the list and the image to the left in the app shows information about the message graphically.

To book service for a saved message:

In maximised mode for the message, press

–

Request appoint.Call to make Appointment

With

for help in booking service.

Request appoint.: The

Appointments tab opens in the app and

creates a request to book service and repair work.

With

Call to make Appointment: The

phone app is initiated and calls a service centre to book service and repair work.

To read the owner's manual for a saved message:

In maximised mode for the message, press

–

Owner's manual to read about the mes-

sage in the owner's manual. > The owner's manual opens in the centre

display and shows information linked to the message.

Saved messages in the app are deleted automatically each time the engine is started.

Related information

Messages in the driver display (p. 91)

•

Managing messages in the driver display

•

(p. 93) Message in centre display (p. 126)

•

Market dependent. Volvo ID and selected workshop also need to be registered.

Page 97

Overview of centre display

Many of the car's functions are controlled from the centre display. Presented here is the centre display and its options.

DISPLAYS AND VOICE CONTROL

}}

Page 98

DISPLAYS AND VOICE CONTROL

Three of the centre display's basic views. Swipe right or left to access the function or app view respectively9.

Function view - car functions that are activated or deactivated with a press. Certain

The views are reversed for right-hand drive cars.

functions are also so-called trigger functions, which means they open a window with set-

Page 99

DISPLAYS AND VOICE CONTROL

ting options. Examples of these include

Camera.

Home view - the first view that is shown when the screen is started.

Application view (app view) - apps that have been downloaded (third-party apps) and apps for embedded functions, such as

. Tap on an app icon to open the app.

radio

Status bar - the activities in the car are shown right at the top of the screen. Network and connection information is shown on the left-hand side of the status bar, while mediarelated information, the clock and indication about on-going background activity are shown on the right.

Top view - drag the tab down in order to access the top view.

, Profile and the car's saved mes-

manual

sages are accessed from here. In some cases contextual settings (e.g.

) and the contextual owner's manual

Settings

Navigation Manual) can also be

(e.g. accessed in the top view.

Navigation - leads to map navigation, with e.g. Sensus Navigation*. Tap on the tile to expand it.

Media - recently used apps associated with media. Tap on the tile to expand it.

Phone - the phone function can be reached from here. Tap on the tile to expand it.

Settings, Owner's

Navigation

Extra tile - recently used apps or car functions that do not belong in any of the other tiles. Tap on the tile to expand it.

Climate row - information and direct interaction to set temperature and seat heating for example*. Tap on the symbol in the centre of the climate row in order to open the climate view with more setting options.

Related information

Managing the centre display (p. 98)

•

Navigating in the centre display's views

•

(p. 101) Function view in centre display (p. 108)

•

Apps (p. 465)

•

Symbols in the centre display's status bar

•

(p. 110) Opening settings in the centre display

•

(p. 118) Open contextual setup in the centre display

•

(p. 119) Owner's manual in centre display (p. 17)

•

Media player (p. 474)

•

Phone (p. 488)

•

Climate controls (p. 190)

•

Switching off and changing the volume of

•

the system sound in the centre display (p. 117)

Changing the appearance in the centre dis-

•

play (p. 117) Changing system language (p. 118)

•

Changing system units (p. 118)

•

Cleaning the centre display (p. 593)

•

Message in centre display (p. 126)

•

* Option/accessory.

Page 100

DISPLAYS AND VOICE CONTROL

Managing the centre display

Many of the car's functions are controlled and regulated from the centre display. The centre display is a touch screen that reacts to touch.

Using the touch screen functionality in the centre display

The screen reacts differently depending on whether you press, drag or swipe across it. Actions such as browsing between different views, marking objects, scrolling in a list and mov-

Procedure Execution Result

Press once. Highlights an object, confirms a selection or activates a function.

Press twice in quick succession.

Press and hold.

Tap once with two fingers.

Zooms in on a digital object, such as the map*.

Grabs an object. Can be used to move apps or map points on the map*. Press and hold your finger against the screen and at the same time drag the object to the desired location.

Zooms out from a digital object, such as the map*.

ing apps can be performed by touching the screen in different ways.

An infrared light curtain just above the surface of the screen enables the screen to detect a finger that is just in front of the screen. This technology makes it possible to use the screen even with gloves on.

Two people can interact with the screen at the same time, e.g. to adjust the climate for the driver and passenger side respectively.

IMPORTANT

Do not use sharp objects on the screen as they may scratch it.

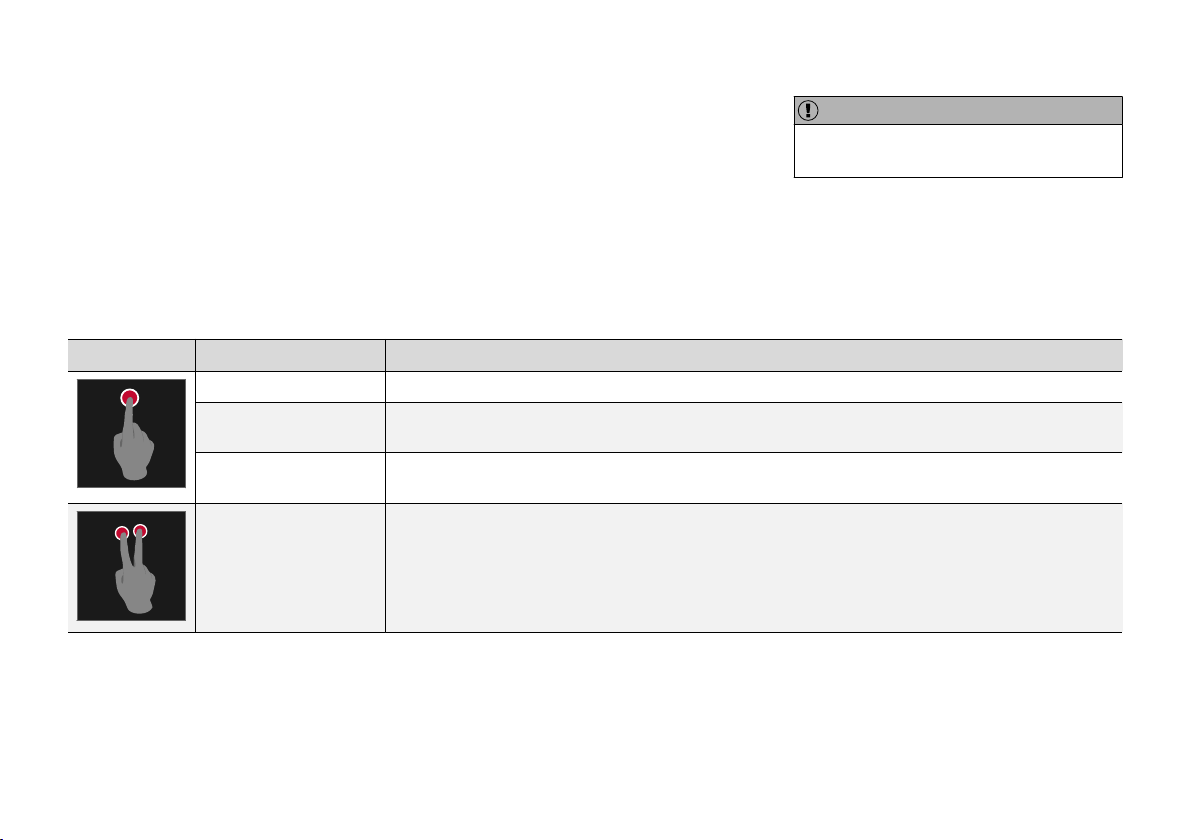

The table below presents the different procedures for operating the screen:

* Option/accessory.
