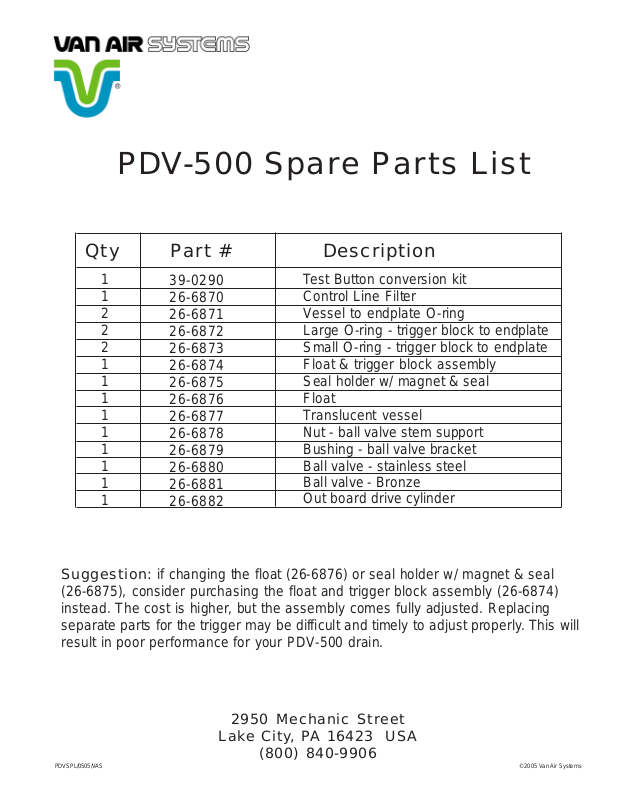

PDV-500 Spare Parts List
Qty Part # Description
1
1
2
2
2
1
1
1
1
1
1
1
1
1
39-0290
26-6870
26-6871
26-6872
26-6873
26-6874
26-6875
26-6876
26-6877
26-6878
26-6879
26-6880
26-6881
26-6882
Test Button conversion kit
Control Line Filter
Vessel to endplate O-ring
Large O-ring - trigger block to endplate
Small O-ring - trigger block to endplate
Float & trigger block assembly
Seal holder w/ magnet & seal
Float
Translucent vessel
Nut - ball valve stem support
Bushing - ball valve bracket
Ball valve - stainless steel
Ball valve - Bronze
Out board drive cylinder
Suggestion: if changing the float (26-6876) or seal holder w/ magnet & seal
(26-6875), consider purchasing the float and trigger block assembly (26-6874)
instead. The cost is higher, but the assembly comes fully adjusted. Replacing
separate parts for the trigger may be difficult and timely to adjust properly. This will
result in poor performance for your PDV-500 drain.
2950 Mechanic Street
Lake City, PA 16423 USA
(800) 840-9906
PDVSPL/0505/VAS ©2005 Van Air Systems
