APRIL 2000
P/N: 432-10019

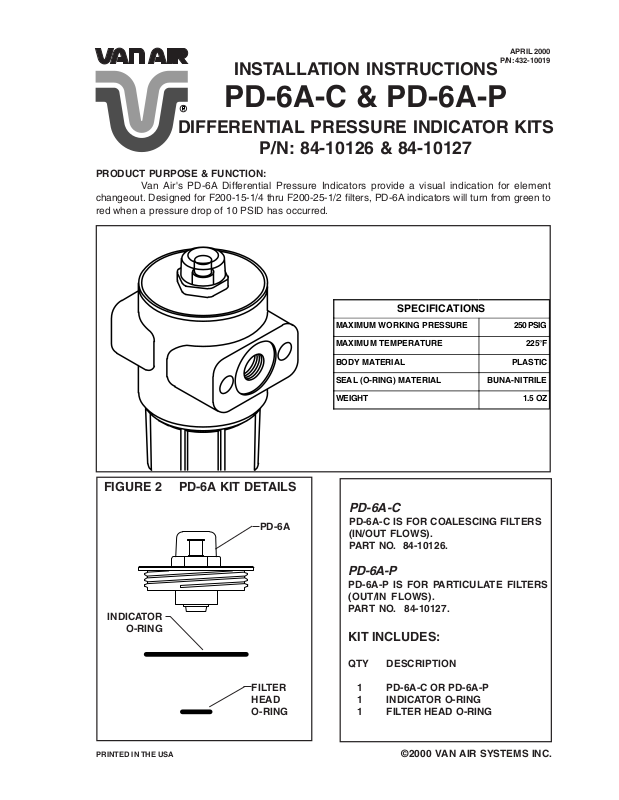

INSTALLATION INSTRUCTIONS
PD-6A-C & PD-6A-P
DIFFERENTIAL PRESSURE INDICATOR KITS
P/N: 84-10126 & 84-10127
PRODUCT PURPOSE & FUNCTION:
Van Air's PD-6A Differential Pressure Indicators provide a visual indication for element
changeout. Designed for F200-15-1/4 thru F200-25-1/2 filters, PD-6A indicators will turn from green to
red when a pressure drop of 10 PSID has occurred.
SPECIFICATIONS
MAXIMUM WORKING PRESSURE 250 PSIG
MAXIMUM TEMPERATURE 225°F
FIGURE 2 PD-6A KIT DETAILS
PD-6A
INDICATOR
O-RING
BODY MATERIAL PLASTIC
SEAL (O-RING) MATERIAL BUNA-NITRILE
WEIGHT 1.5 OZ
PD-6A-C
PD-6A-C IS FOR COALESCING FILTERS
(IN/OUT FLOWS).
PART NO. 84-10126.
PD-6A-P
PD-6A-P IS FOR PARTICULATE FILTERS
(OUT/IN FLOWS).
PART NO. 84-10127.
KIT INCLUDES:
QTY DESCRIPTION
FILTER
HEAD
O-RING
PRINTED IN THE USA ©2000 VAN AIR SYSTEMS INC.
1 PD-6A-C OR PD-6A-P
1 INDICATOR O-RING
1 FILTER HEAD O-RING
WARNINGS
DO NOT INSTALL PD-6A TO EQUIPMENT WHILE UNDER PRESSURE.
FOLLOW INSTRUCTIONS FOR PD-6A WHEN INSTALLING INTO AIR SYSTEM.
DO NOT OPERATE UNIT ABOVE 250 PSIG.
DO NOT REMOVE THE PD-6A WITHOUT FULLY DEPRESSURIZING THE
FILTER HOUSING AND ADJACENT PIPING.
INSTALLATION (Reference Figure 1)
1.
Remove the blanking plate from the filter head by unscrewing it counter-clockwise.
2.
Place the small o-ring in the inner ring.
3.
Place the larger o-ring in the outer ring.
4.
Fit the PD-6A into the filter head and tighten clockwise with a 15/16" wrench.
FIGURE 3 DRILL HOLE LOCATION
3/32" HOLE
OUTER RING
INNER RING
FIGURE 1 INSTALLATION DETAILS
FILTER HEAD
INNER FILTER
HEAD O-RING
INLET FOR
PD-6A-C
OUTLET FOR
PD-6A-P
3/32" HOLE
POP-UP INDICATOR
PD-6A
OUTER
INDICATOR
O-RING
INLET FOR
PD-6A-P
OUTLET FOR
PD-6A-C
