TP-Link TL-SG1016DE, TL-SG1024DE User Guide

Easy Smart Configuration Utility User Guide
Easy Smart Configuration Utility
REV1.0.0
1910010939
Easy Smart Configuration Utility User Guide
CONTENTS
1.1 Intended Readers ...................................................................................................... 3
1.2 Conventions............................................................................................................... 3
1.3 Overview of This Guide ............................................................................................. 3
2.1 Introduction................................................................................................................ 6
2.2 Install the Easy Smart Configuration Utility ...............................................................6
2.3 Switch Upgrade ......................................................................................................... 9
2.4 Switch Discovery ..................................................................................................... 13
2.5 Switch Settings ........................................................................................................ 13
2.6 Refresh .................................................................................................................... 14
2.7 Utility Features Overview......................................................................................... 15

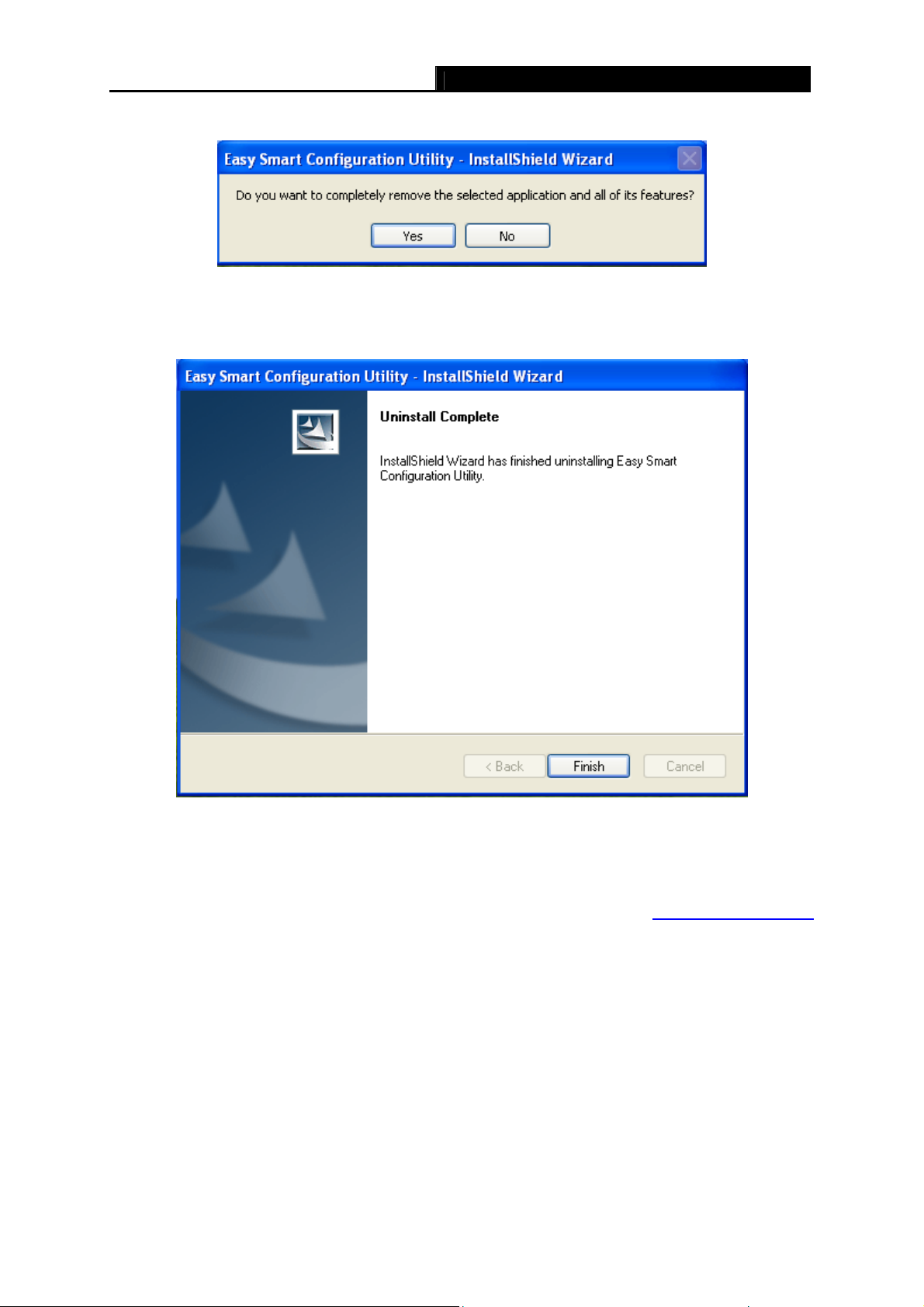

2.8 Uninstall the Utility ................................................................................................... 16
3.1 System Info.............................................................................................................. 19
3.2 IP Setting ................................................................................................................. 20
3.3 User Account ........................................................................................................... 20
3.4 Backup and Restore ................................................................................................ 21
3.5 System Reboot ........................................................................................................ 22
3.6 System Reset .......................................................................................................... 22
3.7 Firmware Upgrade................................................................................................... 23
4.1 Port Setting.............................................................................................................. 24
4.2 IGMP Snooping ....................................................................................................... 25
4.3 Port Trunk................................................................................................................ 26
5.1 Port Statistics........................................................................................................... 29
5.2 Port Mirror................................................................................................................ 30
5.3 Cable Test ............................................................................................................... 31
5.4 Loop Prevention ...................................................................................................... 32
6.1 MTU VLAN .............................................................................................................. 35
1
Easy Smart Configuration Utility User Guide
6.2 Port Based VLAN .................................................................................................... 35
6.3 802.1Q VLAN ..........................................................................................................37
6.4 802.1Q PVID Setting ............................................................................................... 38
7.1 QoS Basic................................................................................................................ 42
7.2 Bandwidth Control ................................................................................................... 43
7.3 Storm Control .......................................................................................................... 45
8.1 Help ......................................................................................................................... 47
8.2 About ....................................................................................................................... 47
2
Easy Smart Configuration Utility User Guide

Chapter 1 About this Guide

This User Guide contains information for setup and guidance of the Easy Smart Configuration
Utility. Please read this guide carefully before operation.

1.1 Intended Readers

This Guide is intended for network managers familiar with IT concepts and network terminologies.

1.2 Conventions

In this Guide the following conventions are used:
Menu Name→Submenu Name indicates the menu structure. System→System
Info→System Summary means the System Summary page under the System Info menu
option located under the System menu.
Bold font indicates a button, a toolbar icon, menu or menu item.
Symbols in this guide：
Symbol Description
Note:
Tips:
Ignoring this type of note might result in a malfunction or damage to the device.
This format indicates important information that helps you make better use of your device.

1.3 Overview of This Guide

Chapter Introduction
Chapter 1 About This Guide Introduces the guide structure and conventions.
Chapter 2 Getting Started Introduces the installation and uninstallation of the utility, and
the overview of its interface.
3
Easy Smart Configuration Utility User Guide
Chapter Introduction
Chapter 3 System This module is used to configure system properties of the
switch. Here mainly introduces:

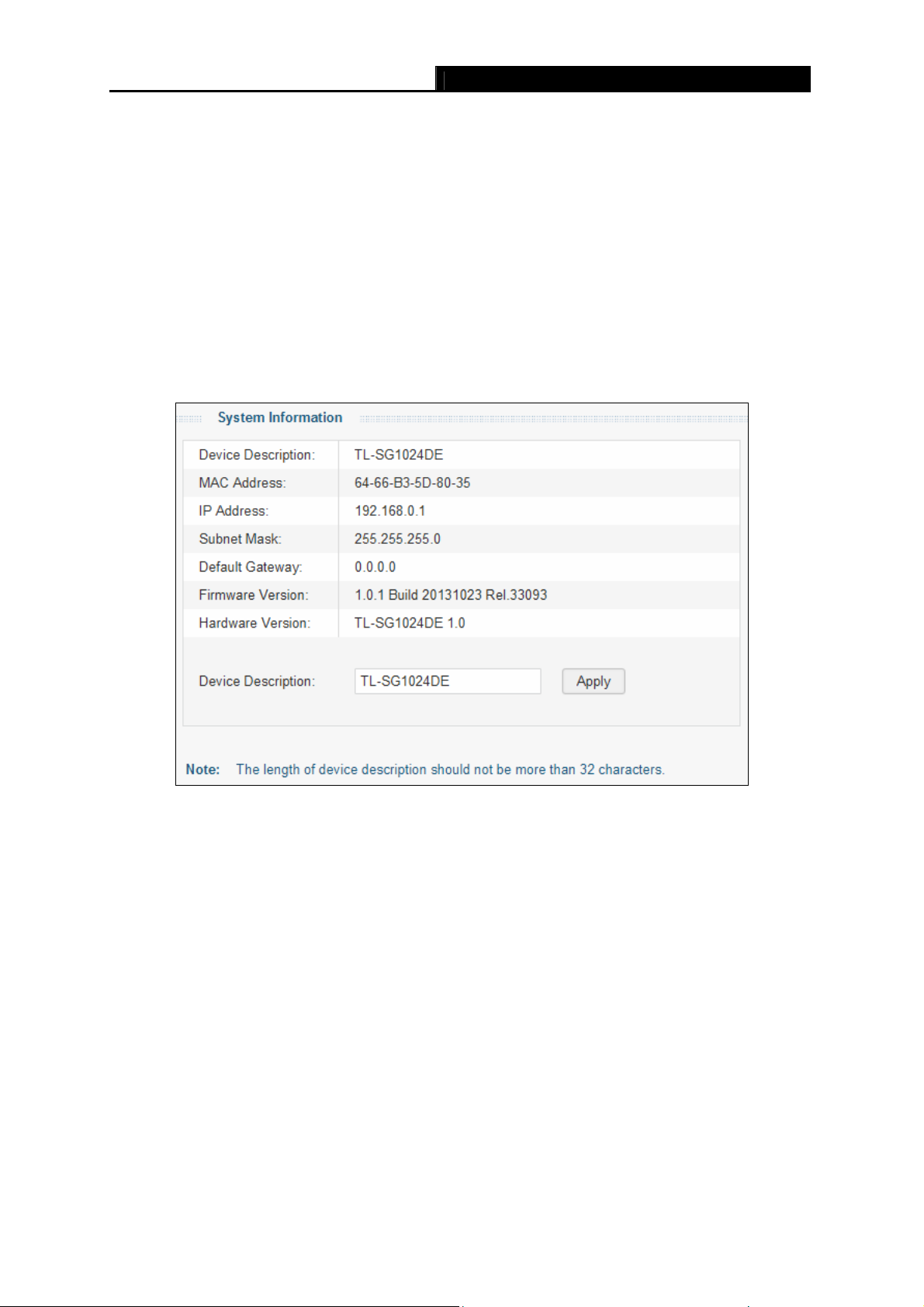

System Info: View device information and define the device
description.
IP Setting: Get and modify the network parameters of the
switch.
User Account: Modify the username and password for
users to log on to the Web management page.
Backup and Restore: Save the current configuration file to
your computer or download a backup configuration file to your switch.

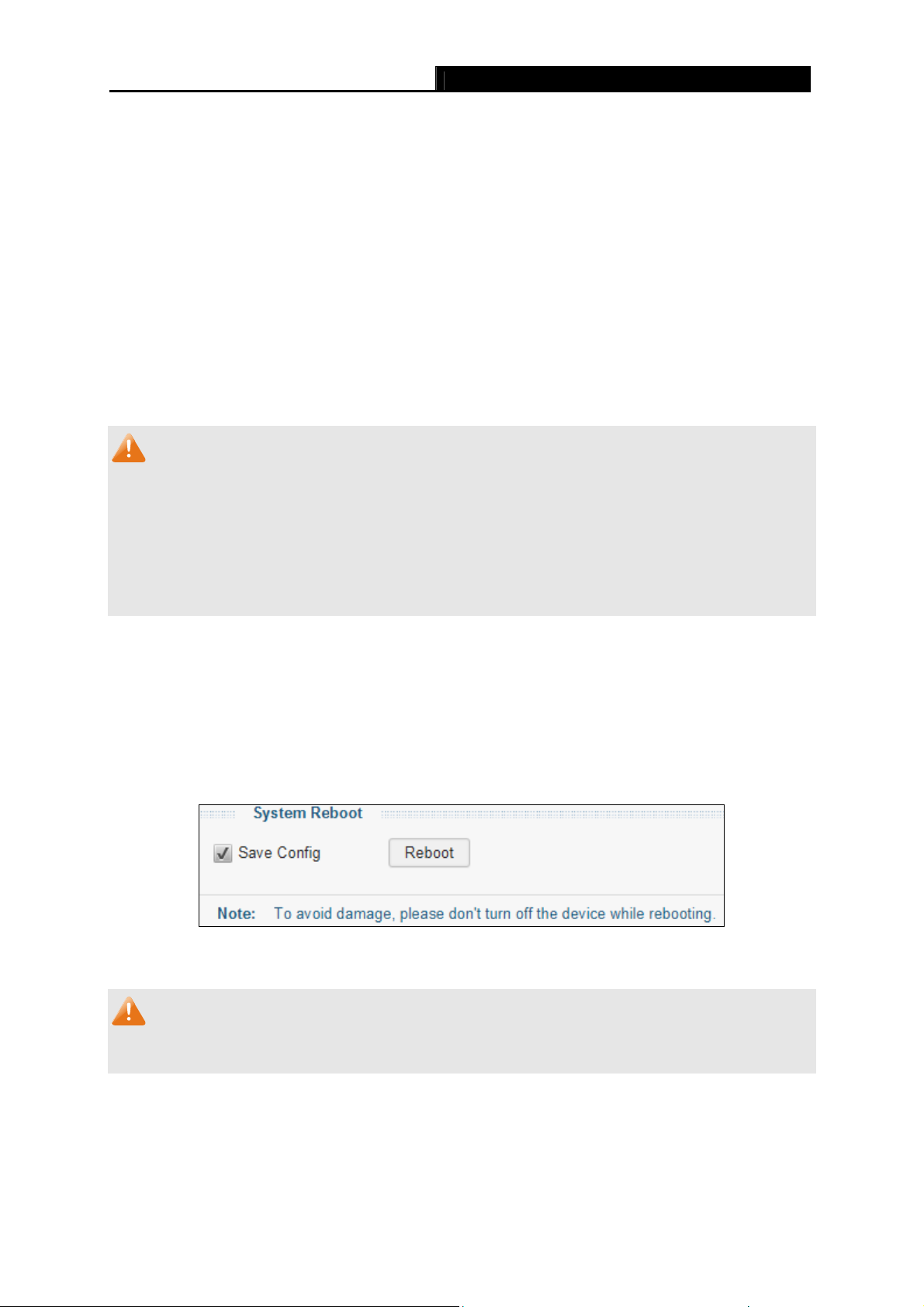

System Reboot: Reboot your switch.
System Reset: Reset the switch to the default.
Firmware Upgrade: Update the firmware of the switch.
Chapter 4 Switching
This module is used to configure the basic functions of the switch.
Port Setting: Configure and view the basic parameters of
each port, including the port status, speed, duplex mode and flow control.
IGMP Snooping: Enable IGMP snooping feature and view
the current IGMP Group information.
Port Trunk: Configure and view the information of the trunk
group of the switch.
Chapter 5 Monitoring This module is used to monitor the traffic information of the
switch, and provide the convenient method to locate and solve
the network problem.
Port Statistics: View the statistic information of each port.
Port Mirror: Monitor and mirror network traffic by forwarding
copies of incoming and outgoing packets from one/multiple ports (mirrored port) to a specific port (mirroring port).
Cable Test: Diagnose the connection status of the cable
connected to the switch and the distance to the problem location
4
Easy Smart Configuration Utility User Guide
Chapter Introduction

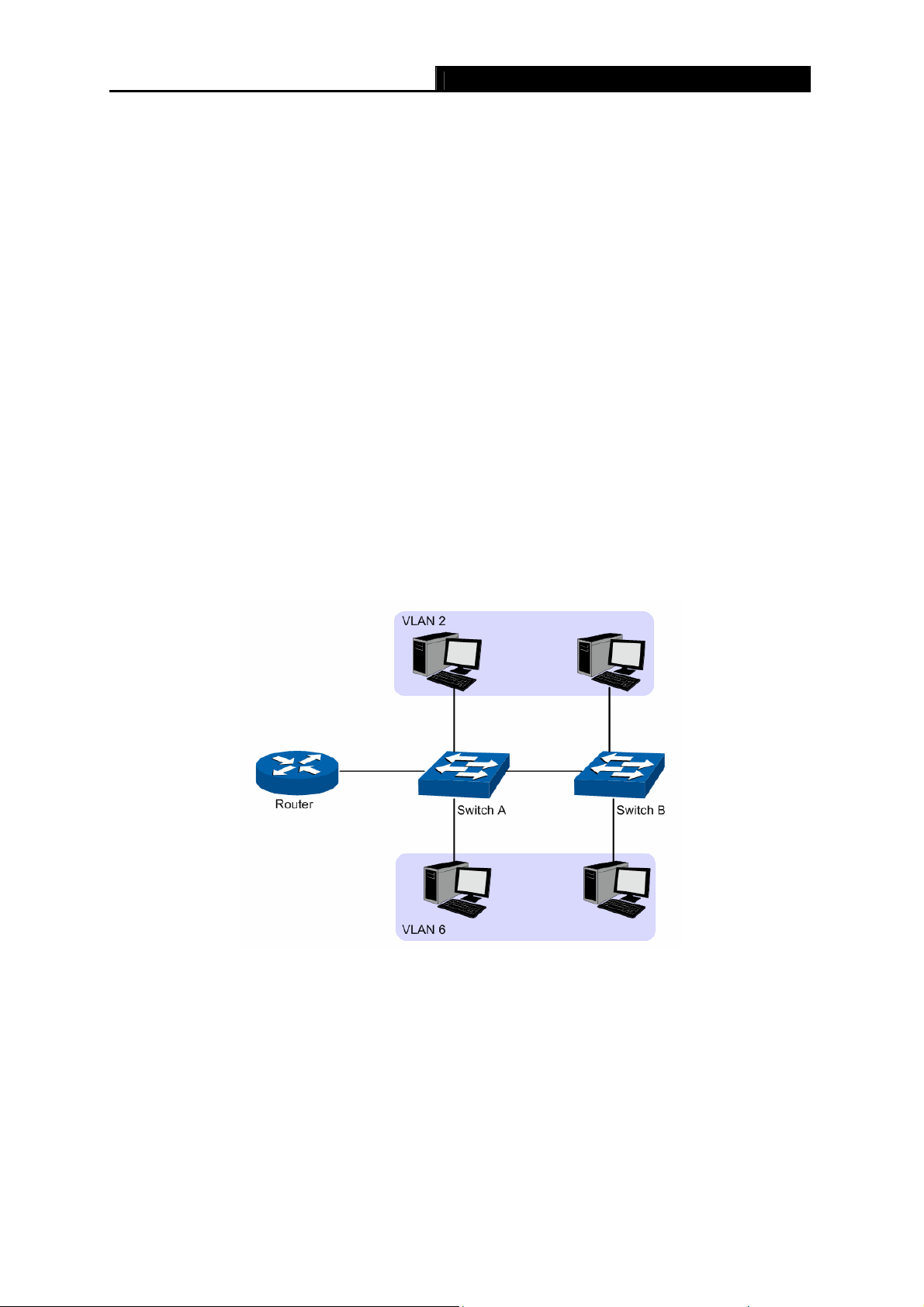

Chapter 6 VLAN This module is used to configure VLANs to control broadcast
in LANs. Here mainly introduces:
MTU VLAN: Set the MTU VLAN mode. Port Based VLAN: Set the Port-Based VLAN mode 802.1Q VLAN: Set the 802.1Q Tag VLAN mode. 802.1Q PVID Setting: Configure 802.1Q PVID value.
Chapter 7 QoS This module is used to configure QoS function to provide
different quality of service for various network applications and
requirements. Here mainly introduces:
QoS Basic: Configure and view the basic parameters of
QoS.

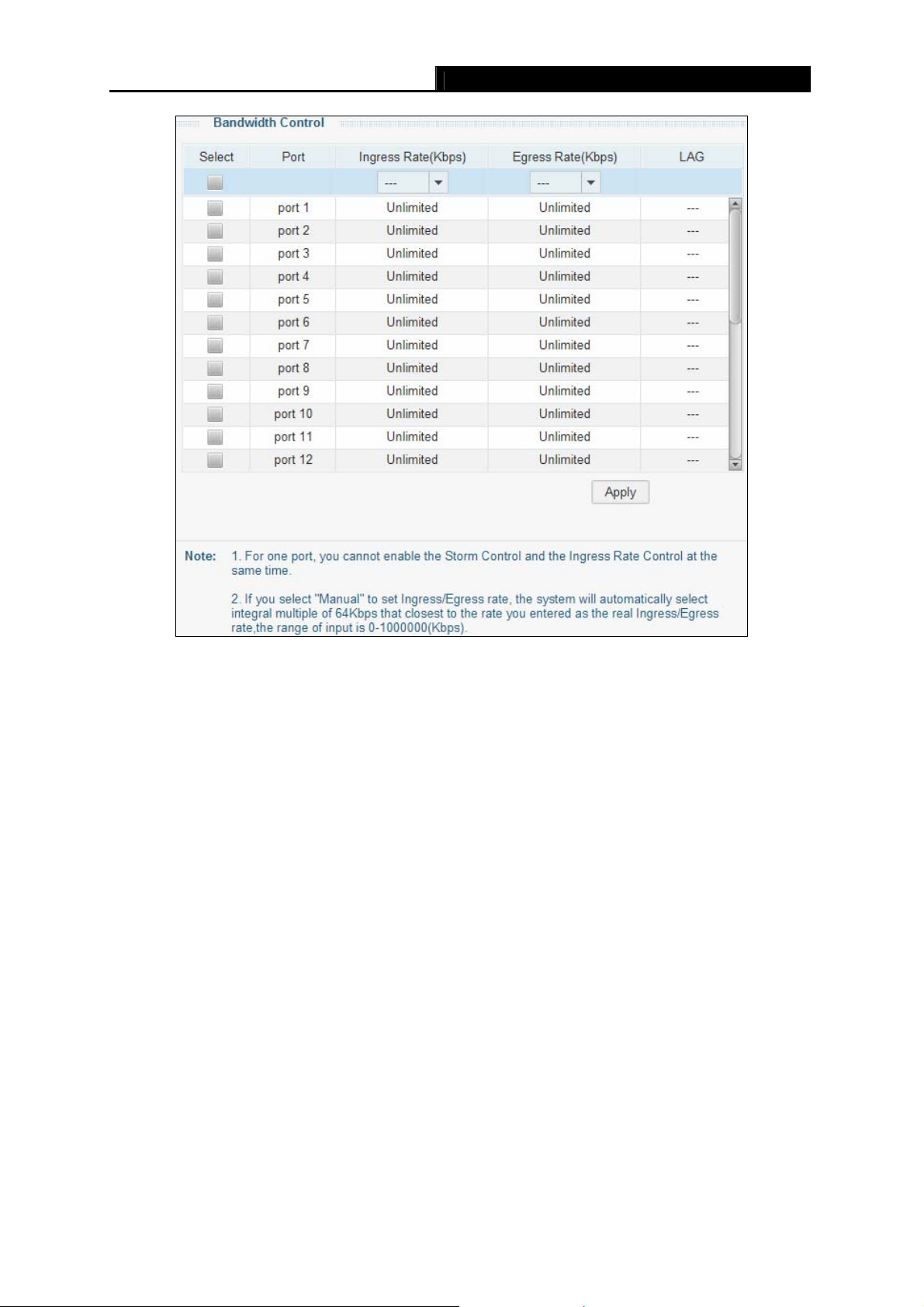

Bandwidth Control: Configure and view the bandwidth
control function information.
Storm Control: Configure and view the storm control
function information.
Chapter 8 Help Lists the help and version information of the utility.
Return to CONTENTS
5
Easy Smart Configuration Utility User Guide

Chapter 2 Getting Started

2.1 Introduction

Easy Smart Configuration Utility is the management software for the TP-LINK Easy Smart
Switches. The utility allows operators to centrally manage entire networks of the Easy Smart
Switches, such as TL-SG1016DE/TL-SG1024DE. We will take TL-SG1024DE for example
throughout this Guide.

2.2 Install the Easy Smart Configuration Utility

If an earlier version of the utility is present on your computer, please install this version to replace
the older version.

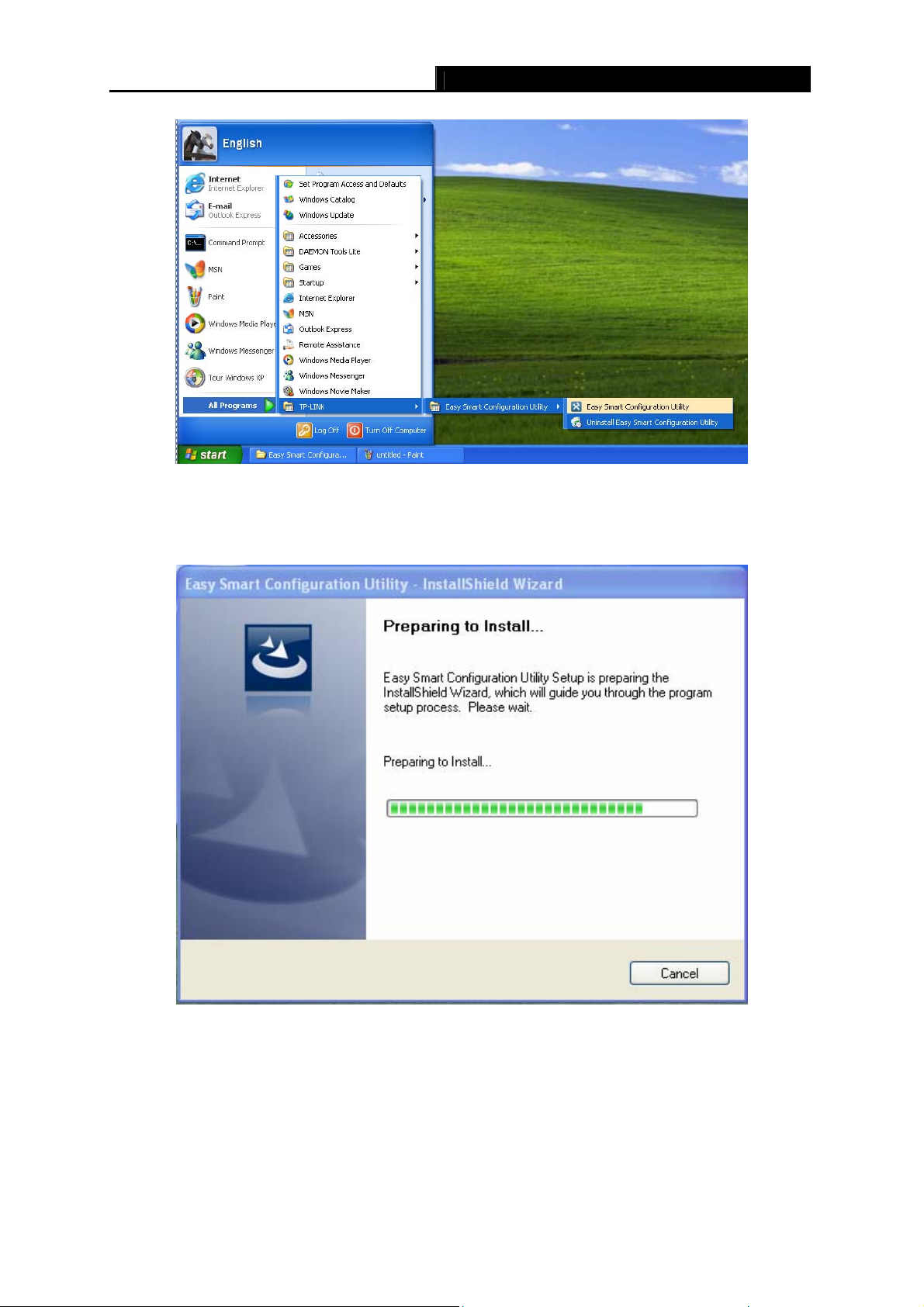

1. Insert the provided Resource CD that came with your switch into your CD-ROM drive. Open
the file folder and double click the icon . Please wait for the
InstallShield Wizard preparing the setup shown as the following screen.
Figure 2-1 Preparing to Install
6
Easy Smart Configuration Utility User Guide
Then the following screen will appear. Click Next to continue. If you want to stop the
2.
installation, click Cancel.
Figure 2-2 Welcome to the InstallShield Wizard
3. Choose the destination location for the installation files and click Next to continue.
Figure 2-3 Choose Destination Location
By default, the installation files are saved on the Program Files folder of system disk. Click the
Change button to modify the destination location proper to your need.
4. Till now, The Wizard is ready to begin the installation. Click Install to start the installation on
the following screen.
7
Easy Smart Configuration Utility User Guide
Figure 2-4 Install the Utility
5. The InstallShield Wizard is installing Easy Smart Configuration Utility shown as the following screen. Please wait.
Figure 2-5 Setup Status
6. On the following screen, click Finish to complete the installation.
8
Easy Smart Configuration Utility User Guide
Figure 2-6 InstallShield Wizard Complete
7. The installation process creates a TP-LINK subdirectory under the \Program Files directory on your computer, copies the utility program into the \Program Files\TP-LINK\Easy Smart
Configuration Utility directory, and places a utility icon
on the computer desktop.

2.3 Switch Upgrade

For easy smart switches with their firmware versions earlier than Build 20131023, please upgrade
their firmware to the latest version, to ensure these switches can be managed by the utility. Go to
http://www.tp-link.com
1. Make sure the switch and the PC are in the same LAN.
2. Type the default management address http://192.168.0.1 access the GUI of the switch.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
to download the updated firmware and take the following steps:
in the address field of the browser to
Figure 2-7
9
Easy Smart Configuration Utility User Guide
Figure 2-8 Login
4. After a successful login, the main page will appear.
Figure 2-9 Main Page
5. Click System→System Tools→Firmware Upgrade to load the following page.
10
Easy Smart Configuration Utility User Guide
Figure 2-10 Firmware Upgrade
6. Click Ready and click OK in the pop-up window to restart the switch.
Figure 2-11 Reboot Device
7. After the switch restarts, click the Browse button to choose the latest firmware for the switch in your computer and click Upgrade to start the upgrade process. The switch will restart after the upgrade.
11
Easy Smart Configuration Utility User Guide
Figure 2-12 Choose the File to Upgrade
8. The following steps to upgrade the loader are optional. If you upgrade the loader here, the switch’s configurations will remain the same after the next firmware upgrade.
After the switch restarts successfully, type the address http://192.168.0.1/Loader
UpgradeRpm.htm
in the address field of the browser to access the loader upgrade interface
of the switch.
Figure 2-13 Loader Upgrade
9. Choose the loader upgrade file in your computer and upgrade the loader.
Figure 2-14 Choose the Loader File to Upgrade
10. The switch will restart again after the Loader Upgrade completes.
12
Easy Smart Configuration Utility User Guide
Figure 2-15 Device Restart

2.4 Switch Discovery

When the utility is launched, it immediately searches the network for TP-LINK Easy Smart
Switches.
The discovered switches are listed as below.
Figure 2-16 Main Page
Click Help in the left bottom to access to the TP-LINK support website for more help.
Note:
The maximum number of the discovered switches is 30.

2.5 Switch Settings

You can select a switch and click to configure or display its status.
13
Easy Smart Configuration Utility User Guide
Figure 2-17 Discovered Switch
The setting figure will shown as below:
Figure 2-18 Switch Setting
You can configure the switch’s Device Description, DHCP Setting, IP Address, Subnet Mask and
Default Gateway on this page. The login User Name and Password are required to complete the
configuration. By default, they are both admin. Clicking Apply can only make the new
configurations effective before the switch is rebooted. If you want to keep the configurations
effective even the switch is rebooted, please select the checkbox behind Save Config.

2.6 Refresh

Click Refresh in Figure 2-16 to restart the switch discovering process.
14
