Contents

Chapter 1 Introduction

1.1 Product Overview

The Gigabit Unmanaged Switch provides you with a high-performance, low-cost, easyto-use, seamless and standard upgrade to boost your old network to 1000Mbps. By increasing the speed of your network server and backbone connections, the Gigabit

Unmanaged Switch makes Gigabit a reality. Power users in the home, ofﬁce, workgroup, or creative production environment can now move large, bandwidth-intensive ﬁles faster. Graphics, CGI, CAD, multimedia ﬁles and other large files moved by some

applications can be transferred across the network almost instantly.

The Gigabit Unmanaged Switch features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. The switch supports MAC address auto-learning and auto-aging. It is compatible with all 10Mbps, 100Mbps and 1000Mbps Ethernet devices because it is standard-based. It protects your existing network investments while providing you with a straightfor ward migration path to faster Gigabit speed.

The Gigabit Unmanaged Switch is plug-and-play and no configuration is required. Auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cable or Uplink port. Each port can be used as general port or Uplink port, and any port can be simply plugged into a server, a hub, a router or a switch, using the straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allow you to quickly detect and correct problems on the network.

TL-SG1008PE is a Power Sourcing Equipment (PSE*). The 8 Auto-Negotiation RJ45 ports support Power over Ethernet (PoE*) function, which can automatically detect and supply power with those IEEE802.3af/IEEE802.3at-compliant powered devices (PDs*).

Gigabit Unmanaged Switch

Note:

■

*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.

■

*PoE is a technology that describes a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.

■

*PD is a device powered by a PSE and thus consumes energy. Examples include powering IP telephones, wireless LAN access points, network cameras, network hubs, embedded computers etc.

1.2 Features

For TL-SG1048/TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TL-SG1008:

■

Complies with IEEE802.3i, IEEE802.3u, IEEE802.3ab standards

■

8/16/24/48 10/100/1000Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX

■

All ports support Full/Half Duplex transfer mode for 10/100Mbps and Full Duplex transfer mode for 1000Mbps

01Introduction

Gigabit Unmanaged Switch

■

TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TL-SG1008 supports IEEE802.3x

ﬂow control for full-duplex mode and backpressure for half-duplex transfer mode

■

TL-SG1008 supports IEEE802.1p standard

■

Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

■

Supports MAC address auto-learning and auto-aging

■

Desktop and rack-mountable steel case

■

Internal power supply

For TL-SG1008PE:

■

Complies with IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.1p and IEEE802.3at standards

■

8 10/100/1000Mbps Auto-Negotiation RJ45 ports all supporting PoE function and Auto-MDI/MDIX

■

Supports PoE power up to 126W for all PoE ports

■

Supports PoE IEEE802.3af/IEEE802.3at-compliant PDs

■

Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Halfduplex Mode

■

4K MAC address table of the TL-SG1008PE with auto-learning and auto-aging

■

Internal power supply

1.3 Appearance

■

The front panel of TL-SG1048 is shown as the following figure.

Figu re 1-1 Front Panel of TL-SG1048

02 Introduction

Front Panel

LEDs

10/100/1000Mbps

RJ45 Port

Gigabit Unmanaged Switch

LEDs

LED Status Indication

Power

Link/Act

On The switch is powered on.

Off The switch is powered off or power supply is abnormal.

Green The corresponding port is running at 1000Mbps.

Flashing

Yellow

The corresponding port is

running

10/10 0Mbps .

The corresponding port is transmitting or receiving data.

Off There is no device linked to the corresponding port.

10/100/10 00Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each has a corresponding Link /Act LED.

The front panel of TL-SG1024 is shown as the following figure.

Figu re 1-2 Front Panel of TL-SG1024

LEDs

10/100/1000Mbps

RJ45 Port

The front panel of TL-SG1016 is shown as the following figure.

Figu re 1-3 Front Panel of TL-SG1016

LEDs

10/100/1000Mbps

RJ45 Port

The front panel of TL-SG1024D is shown as the following figure.

Figu re 1-4 Front Panel of TL-SG1024D

LEDs

10/100/1000Mbps

RJ45 Port

03Introduction

Gigabit Unmanaged Switch

The front panel of TL-SG1016D is shown as the following figure.

Figu re 1-5 Front Panel of TL-SG1016D

LEDs

10/100/1000Mbps

RJ45 Port

The front panel of TL-SG1008 is shown as the following figure.

Figu re 1-6 Front Panel of TL-SG1008

TL-SG1008 8-Port Gigabit Switch

Link

Act

123456 7 8

1000Mbps

LEDs

Power

123456 7 8

10/100/1000Mbps

RJ45 Port

LEDs

LED Status Indication

Power

Link/Act

1000Mbps

On The switch is powered on.

Off The switch is powered off or power supply is abnormal.

There is a device linked to the corresponding port but no activi ty.

Flashing The corresponding port is transmitting or receiving data.

Off There is no device linked to the corresponding port.

On The corresponding port is running at 1000Mbps.

Off

The corresponding por t is not running at 1000Mbps or has no link.

04 Introduction

10/100/10 00Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each has a corresponding Link /Act LED and a 1000Mbps LED.

The front panel of TL-SG1008PE is shown as the following figure.

Figu re 1-7 Front Panel of TL-SG1008PE

Gigabit Unmanaged Switch

LEDs

LED Status Indication

On (green) The switch is powered on.

Power

Link/Act

PoE MAX

1000Mbps

PoE Status

Flashing (green) Power supply is abnormal.

Off The switch is powered off.

On (green) A valid link is established on the port.

Flashing (green)

Off There is no device linked to the corresponding port.

On (red)

Flashing (red) The power of all the connected PoE ports is ≥126W.

Off

On (green) The corresponding port is running at 1000Mbps.

Off

On (green) The port is connecting and supplying power to a PD.

Flashing (green)

Off

The corresponding port is transmitting or receiving data.

The power of all the connected PoE ports is between 120W and 126W. No power may be supplied if additional PDs are connected.

The power of all the connected PoE ports is <120W, or there is no PD connected to the corresponding port.

The corresponding por t is not running at 1000Mbps or has no link.

The PoE power circuit may be in short or the power current may be overloaded.

No PD is connected to the corresponding port, or no power is supplied according to the power limits of the port.

10/100/1000Mbps

RJ45 Port and PoE Port

10/100/1000Mbps RJ45 Port and PoE Port

TL-SG1008PE switch is equipped with 8 10/100/1000Mbps Auto-Negotiation RJ45 ports and all of them support PoE function.

The 8 10/100/1000Mbps RJ45 ports are designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Once the network devices are connected to these 8 ports through the network cable, the switch will make them plug and play according to the Auto-MDI/MDIX detection. The working status can be indicated by the Link/Act LEDs and 1000Mbps LEDs on the front panel.

05Introduction

Gigabit Unmanaged Switch

The 8 por ts also support PoE function which integrates power and data onto one Ethernet cable. Once the device you connect to the switch is identified, the switch will supply power through the PoE port, and then you can use it as a 10/100/1000Mbps Auto-Negotiation RJ45 Ethernet port. The working status can be indicated by the PoE MAX LED and PoE Status LEDs on the front panel.

Note:

■

Rear Panel

The rear panel of TL-SG1048 is shown as the following figure.

Figu re 1-8 Rear Panel of TL-SG1048

Make sure the PDs you connected to the switch are compliant with IEEE802.3af/IEEE802.3at standard.

If all PoE PDs power consumption is ≥126W, a priority* will be arranged among

the PoE ports like port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8, then the system will cut off the power of the lowest-priority port. *Priority is to protect the system when the system power is overloaded. For

example, Port 1, 2, 4 and 7 is using 30; the system power is 120W in total. If there is an additional PD inserted to Port 3 with 25W, and then the system will

cut off the power of Port 7 because of the overloaded power, this means Port 1,

2 and 4 will use 30W, and Port 3 will use 25W, no power will be supplied to Port 7.

The rear panel of TL-SG1024 is shown as the following figure.

Figu re 1-9 Rear Panel of TL-SG1024

06 Introduction

Grounding

Terminal

Power

Socket

Grounding

Terminal

Power

Socket

The rear panel of TL-SG1016 is shown as the following figure.

Figu re 1-10 Rear Pan el of TL-SG1016

Power

Socket

The rear panel of TL-SG1024D is shown as the following figure.

Figu re 1-11 Rear Pan el of TL-SG1024D

Gigabit Unmanaged Switch

Grounding

Terminal

Grounding

Terminal

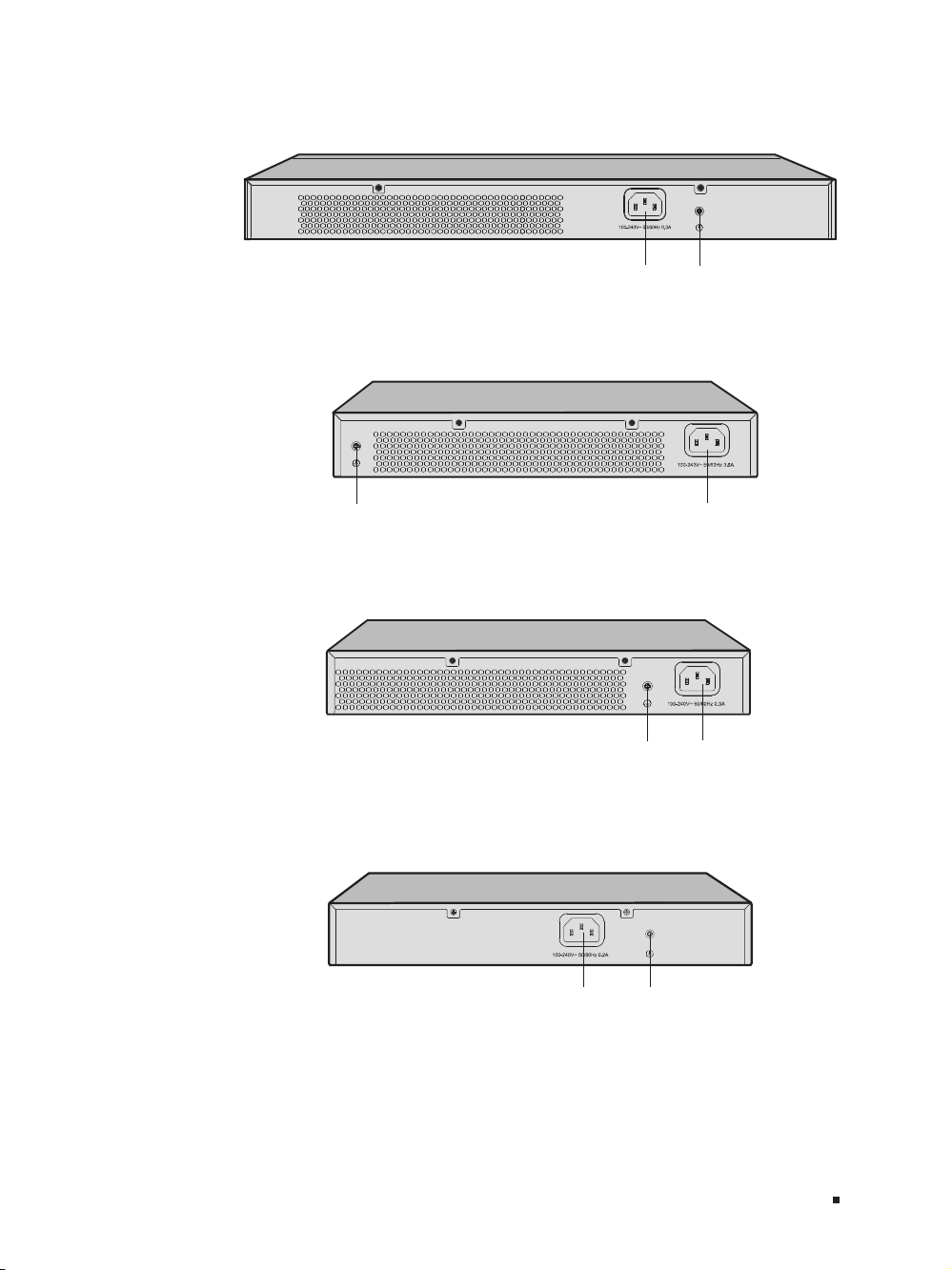

The rear panel of TL-SG1016D is shown as the following figure.

Figu re 1-12 Rear Pan el of TL-SG1016D

Grounding

Terminal

The rear panel of TL-SG1008 is shown as the following figure.

Figu re 1-13 Rear Pan el of TL-SG100 8

Grounding

Power

Socket

Terminal

Power

Socket

Power

Socket

07Introduction

Gigabit Unmanaged Switch

The rear panel of TL-SG1008PE is shown as the following figure.

Figu re 1-14 Rear Pan el of TL-SG100 8PE

Power Socket

Connect the female connector of the power cord here, and the male connector to the AC (Alternating Current) power outlet. Please make sure the voltage of the power supply meets the requirement of the input voltage.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed information, please refer to Chapter 3 Lightning Protection.

Caution: Please use the provided power cord.

Power

Socket

Grounding

Terminal

08 Introduction

Chapter 2 Installation

2.1 Package Contents

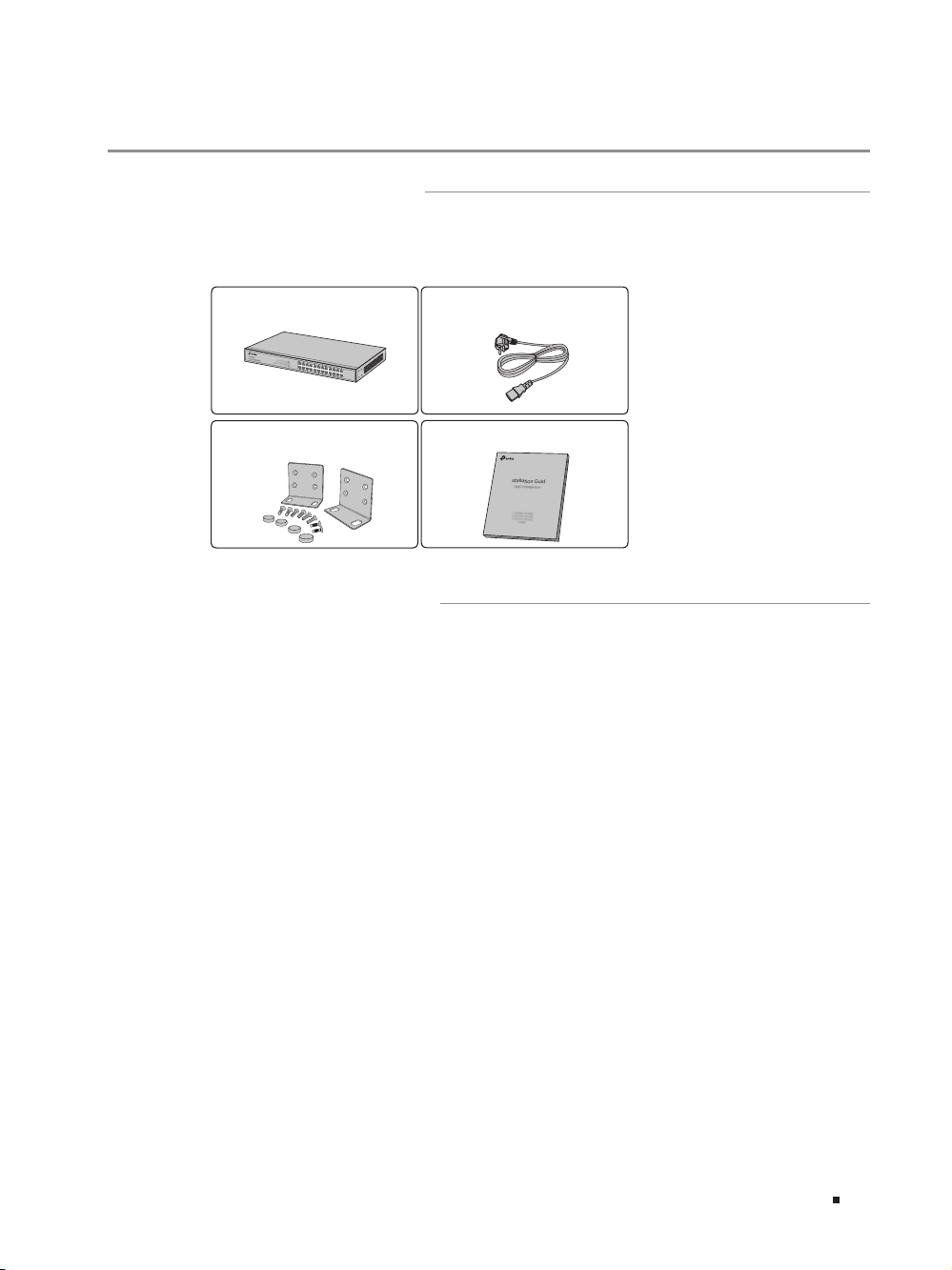

Make sure that the package contains the following items. If any of the listed items is damaged or missing, please contact your distributor.

Gigabit Unmanaged Switch

One Switch

Two mounting brackets and

the ttings

One Power Cord

This Installation Guide

Business Networking Solution

Installation Guide

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, please observe the following rules.

■

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is well grounded.

■

Use only the power cord provided with the switch.

■

Make sure that the supply voltage matches the specifications indicated on the rear panel of the switch.

■

Ensure the vent hole is well ventilated and unblocked.

■

Do not open or remove the cover of the switch.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never use any other liquid cleaning method.

09Installation

Gigabit Unmanaged Switch

■

Site Requirements

Temperature/Humidity

Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may lead to bad insulation, electricity leakage, mechanical proper ty changes and corrosions. Too high temperature may accelerate aging of the insulation materials and can thus significantly shorten the service life of the device. For normal temperature and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0 to 40

Storage -40 to 70

Clearness

40℃

0℃

℃

10% to 90%RH Non-condensing

5% to 90%RH Non-condensing

The dust accumulated on the switch can be absorbed by static electricity and result in poor contact of metal contact points. Some measures have been taken for the device to prevent static electricity, but too strong static electricity can cause deadly damage to the electronic elements on the internal circuit board. To avoid the effect of static electricity on the operation of the Switch, please attach much importance to the following items:

■

Dust the device regularly, and keep the indoor air clean.

■

Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected by external interferences, such as conducted emission by capacitance coupling, inductance coupling, and impedance coupling. To decrease the interferences, please make sure to take the following measures:

■

Use the power supply that can effectively filter interference from the power grid.

■

Keep the device far from high-frequency, strong-current devices, such as radio transmitting station.

10 Installation

Gigabit Unmanaged Switch

■

Use electromagnetic shielding when necessary.

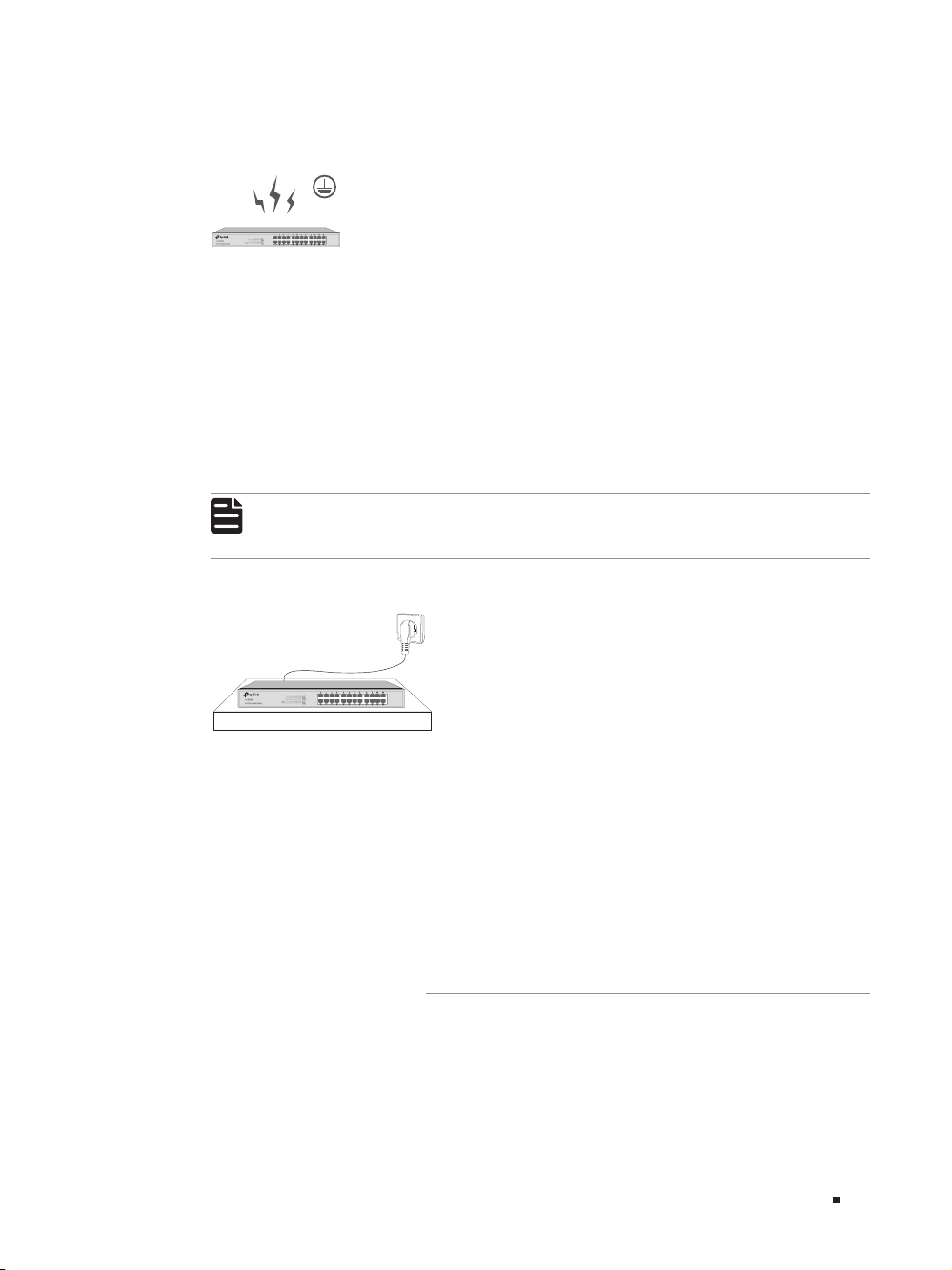

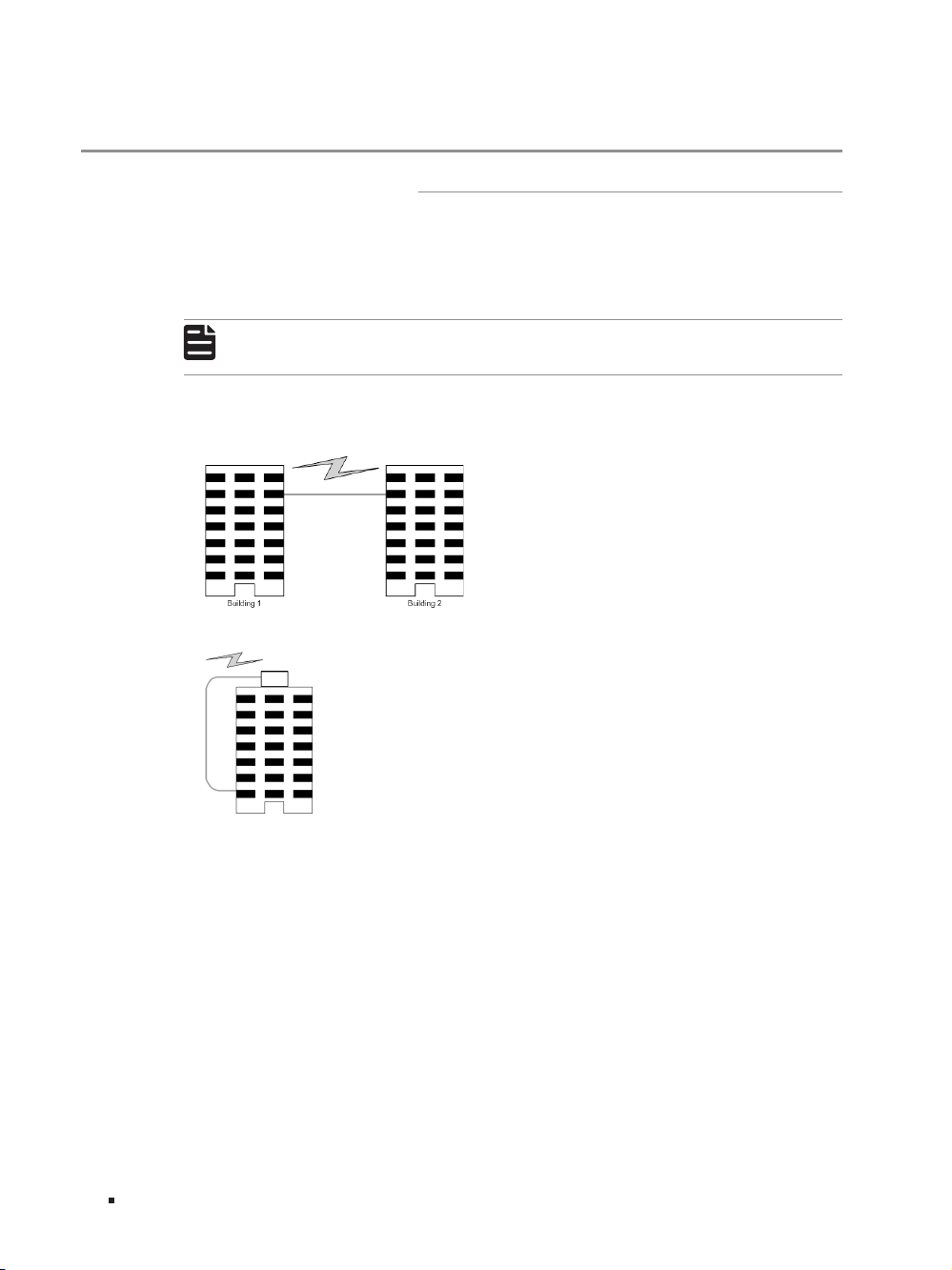

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air in the electric discharge path can be instantly heated up to 20,000℃. As this instant current is strong enough to damage electronic devices, more effective lightning protection measures should be taken.

■

Ensure the rack and device are well earthed.

■

Make sure the power socket has a good contact with the ground.

■

Keep a reasonable cabling system and avoid induced lightning.

■

Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: For detailed lightning protection measures, please refer to Chapter 3 Lightning Protection.

Installation Site

When installing the device on a rack or a flat workbench, please note the following items:

■

The rack or workbench is flat and stable, and sturdy enough to support the weight of

5.5kg at least.

■

The rack or workbench has a good ventilation system. The equipment room is well ventilated.

■

The rack is well grounded. Keep the power socket less than 1.5 meters away from the device.

2.3 Installation Tools

■

Phillips screwdriver

■

ESD-preventive wrist wrap

■

Cables

11Installation

Gigabit Unmanaged Switch

Note:

These tools are not provided with our product. If needed, please self purchase them.

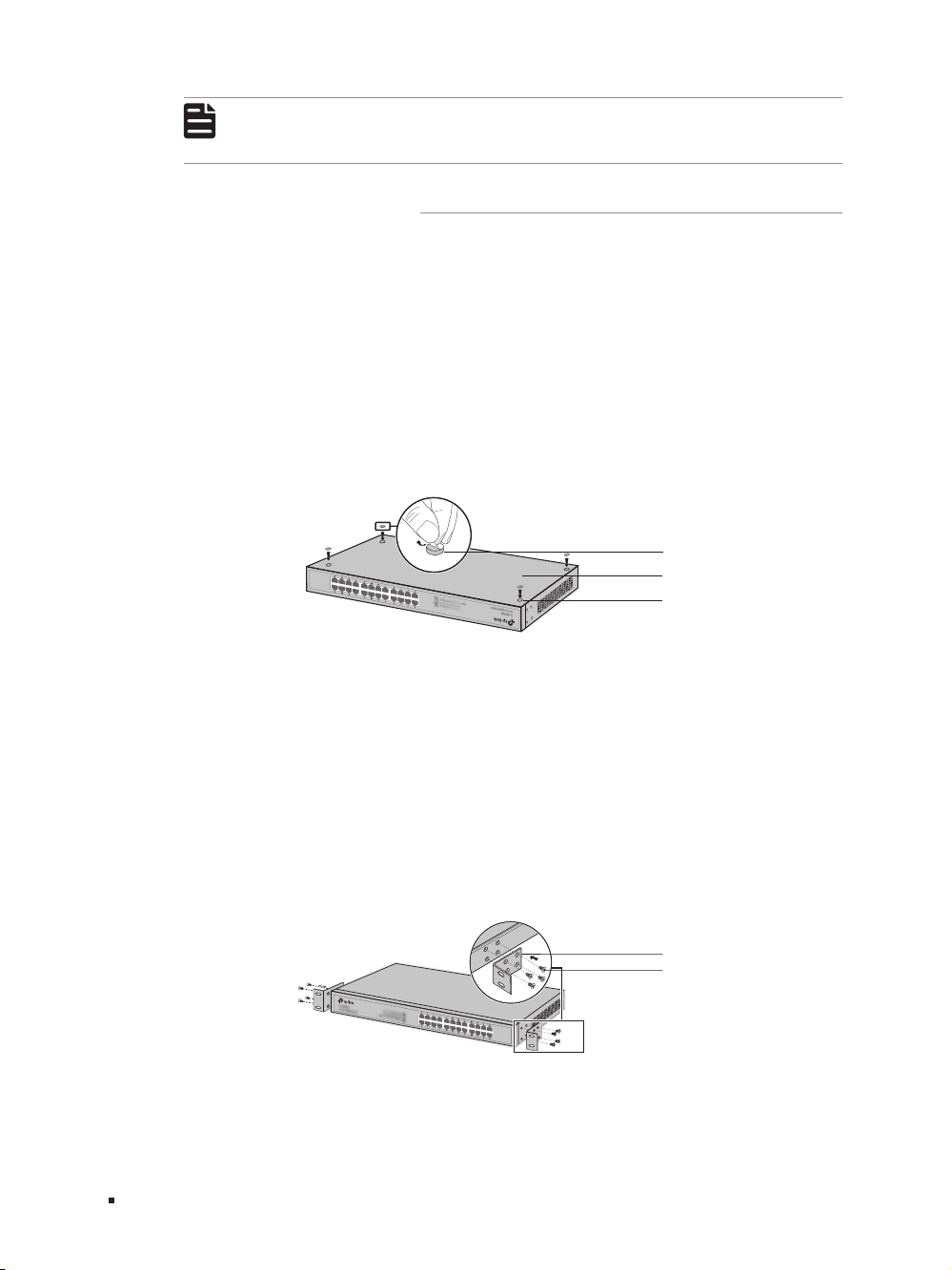

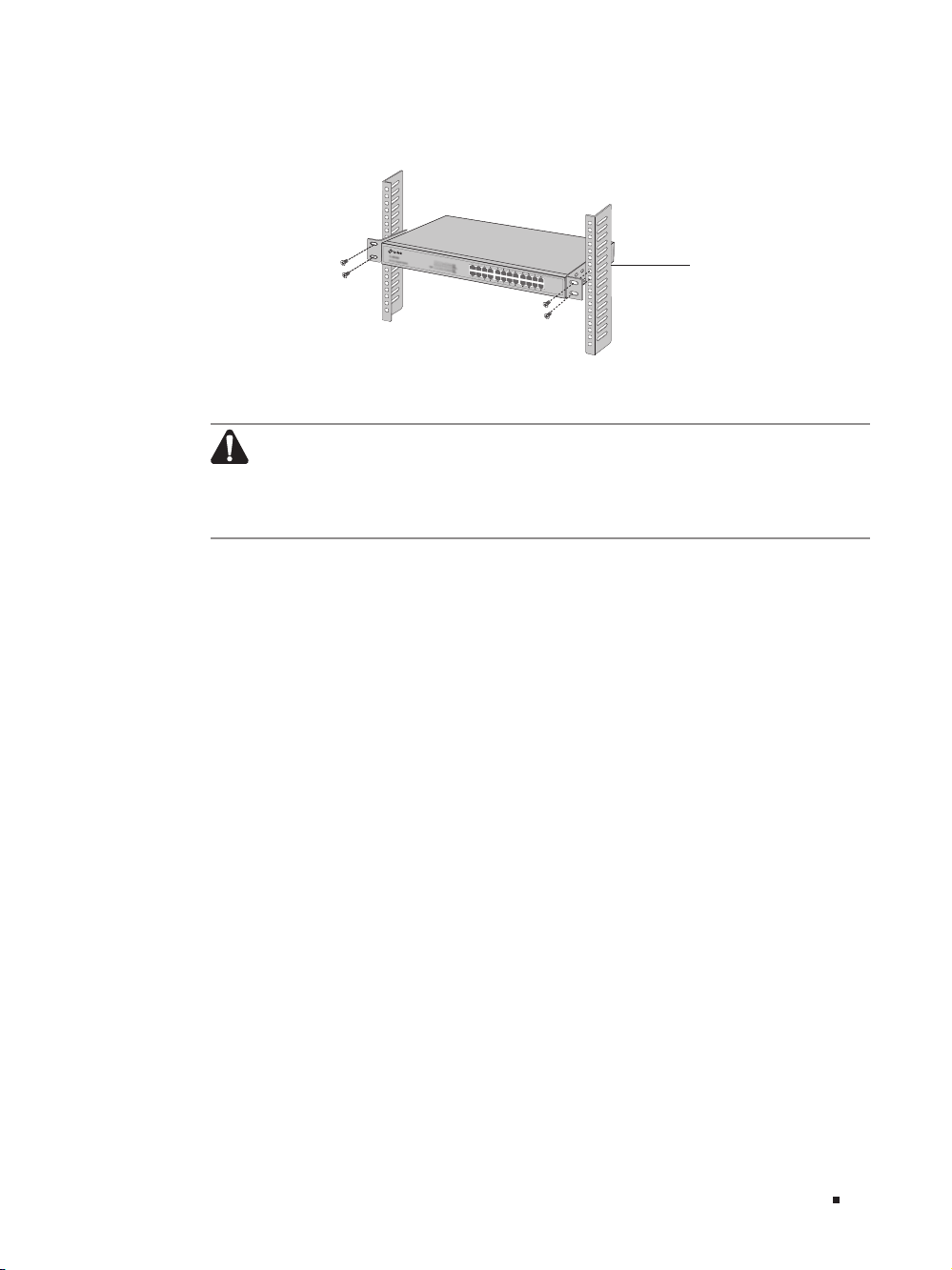

2.4 Product Installation

■

Desktop Installation

To install the device on the desktop, please follow the steps:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.

2. Remove the adhesive backing papers from the rubber feet.

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

Feet

Bottom of the Device

Notch

■

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

2. Secure the supplied rack-mounting brackets to each side of the device with supplied

12 Installation

Figure 2-1 Desktop Installation

Rack Installation

screws, as illustrated in the following figure.

Figure 2-2 Bracket Installation

Rack-mounting Bracket Screw

Gigabit Unmanaged Switch

3. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure.

Rack

Figure 2-3 Rack Installation

Caution:

■

Please set 5 to 10cm gaps around the device for air circulation.

■

Please avoid any heavy thing placed on the device.

■

Please mount devices in sequence from the bottom to top of the rack and ensure a certain clearance between devices for the purpose of heat dissipation.

13Installation

Gigabit Unmanaged Switch

Chapter 3 Lightning Protection

3.1 Cabling Reasonably

In the actual network environment, you may need cable outdoors and indoors, and the requirements for cabling outdoors and indoors are different. A reasonable cabling system can decrease the damage of induced lightning to devices.

Note: It's not recommended using Ethernet cables outdoors. When cabling

outdoors, please use a signal lightning arrester.

■

Requirements for Cabling Outdoors

■

Aerial cabling without safeguard is not allowed.

■

It’s not allowed cabling down the building to connect network devices in different floors.

■

Outdoor cables should be buried and paved to the indoor through basement. A piece of steel wire should be paved underground along the pipe and connected to the lightning protection terminal of the building for shielding. Before connecting the cable to the device, install a signal lightning arrester on the corresponding port.

■

When an aerial cable is set up, the cable should be through a metal pipe (15m long at least) before coming into the building. The two ends of this metal pipe should be grounded. Before connecting the cable to the device, install a signal lightning arrester on the corresponding port.

■

It’s not necessary to pave STP cables through pipes. The shielded layer of STP cable should be well grounded. Before connecting the cable to the device, install a signal lightning arrester on the corresponding port.

14 Lightning Protection

Gigabit Unmanaged Switch

■

Requirements for Cabling Indoors

When cabling indoors, keep a cer tain distance away from the devices that may cause high-frequency interferences, such as down-conductor cable, powerline, power transformer and electromotor.

■

The main cable should be paved in the metal raceway of the access shaft. When cabling, keep the loop area formed by the cable itself as small as possible.

■

Requirements for the distance between Ethernet cable and other pipelines are shown in the table.

Ethernet Cable

Other Pipelines

Min Parallel Net Length L (mm)

Min Parallel-overlapping Net Height H (mm)

Down-conductor 1000 300

PE 50 20

Service pipe 150 20

Compressed air pipe 150 20

Thermal pipe (not wrapped) 500 500

Thermal pipe (wrapped) 300 300

Gas pipe 300 20

The two diagrams below demonstrate parallel net length and parallel-overlapping net height.

Note: The above minimum net length/height is required when metal raceway is not used. If any requirements cannot be met, you can add a steel tube or metal raceway for shielding.

■

Requirements for the distance between Ethernet cable and high-power electric devices are in following tables.

Cable Pave Way

Min Parallel Length (mm)

Parallel cabling 130

<2kVA powerline

One is in the grounded metal raceway or metal pipe 70

The both are in the grounded metal raceway or metal pipe

15Lightning Protection

Gigabit Unmanaged Switch

Cable Pave Way

Parallel cabling 300

2 to 5kVA powerline

>5kVA powerline

Device Min Distance (m)

Switch case 1.00

Transformer room 2.00

Elevator tower 2.00

Air-conditioner room 2.00

One is in the grounded metal raceway or metal pipe 150

The both are in the grounded metal raceway or metal pipe

Parallel cabling 600

One is in the grounded metal raceway or metal pipe 300

The both are in the grounded metal raceway or metal pipe

Min Parallel Length (mm)

150

3.2 Connect to Ground

Connecting the device to ground is to quickly release the lightning over-voltage and over-current of the device, which is also a necessary measure to protect the body from electric shock.

In different environments, the device may be grounded differently. The following will instruct you to connect the device to the ground in two ways, connecting to the ground via the power supply or connecting to the ground via the grounding terminal. Please connect the device to ground in the optimum way according to your specific operation environment.

Note:

For the device without grounding terminal, please refer to the first way Connecting to the Ground via the Power Supply only.

■

Connecting to the Ground via the Power Supply

If the device is installed in the normal environment, the device can be grounded via the PE (Protecting Earth) cable of the AC power supply as shown in the following figure.

16 Lightning Protection

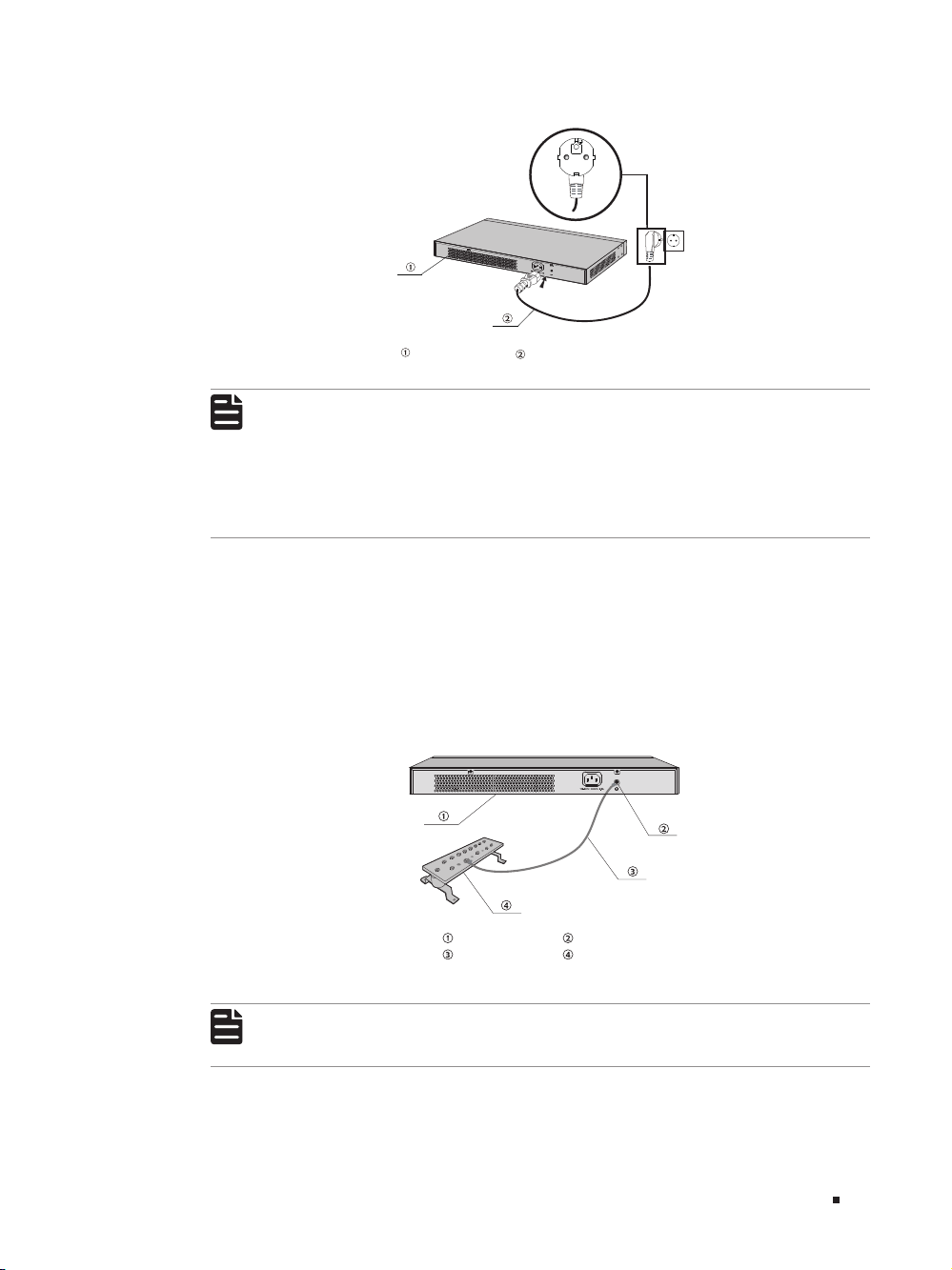

Figu re 3-1 Conn ecting to the Ground via Powe r Supply

Gigabit Unmanaged Switch

Switch (Rear Panel)

AC Power Cord (with PE cable)

Note:

■

The figure is to illustrate the application and principle. The power plug you get from the package and the socket in your situation will comply with the regulation in your country, so they may differ from the figure above.

■

If you intend to connect the device to the ground via the PE (Protecting Earth) cable of AC power cord, please make sure the PE (Protecting Earth) cable in the electrical outlet is well grounded in advance.

■

Connecting to the Ground via the Grounding Terminal

Use the grounding bar

If the device is installed in the Equipment Room, where a grounding bar is available, you are recommended to connect the device to the grounding bar as shown in the following figure.

Figu re 3-2 Connecting to the Grounding Bar

Switch (Rear Panel)

Ground Cable

Grounding Terminal

Grounding Bar

Note:

The grounding bar and the ground cable are not provided with our product. If needed, please self purchase them.

17Lightning Protection

Gigabit Unmanaged Switch

Grounding Bar

Ground Cable

Equipotential Bonding

Equipotential Bonding is the practice of intentionally electrically connecting all earthed systems to the same grounding grid or connecting the grounding grids of all the earthed systems together through the ground or overground metal so as to create an earthed equipotential zone. When lightning occurs, the high voltage produced by lightning current in all systems will meanwhile exist in their ground cables, and thus all ground cables have the same electrical potential and basically eliminate the electric strikes between the systems.

The figure below illustrates how to practice equipotential bonding in a network.

Figu re 3-3 Equipotential Bonding

When equipotential bonding, please note that the cable should be copper wrapped Kelly with its area being 6mm2 at least. The shorter cable the better, and use a grounding bar to establish an equipotential bonding point.

Use Lightning Arrester

Power lightning arrester and signal lightning arrester are used for lighting protection.

Power lightning arrester is used for limiting the voltage surge due to a lightning. If an outdoor AC power cord should be directly connected to the device, please use a power lightning arrester.

18 Lightning Protection

Grounding Terminal Equipotential Bonding Cable

Note:

The equipotential bonding cable and ground cable are not provided with our product. If needed, please self purchase it.

Note:

Power lightning arrester is not provided with our product. If needed, please self purchase it.

Gigabit Unmanaged Switch

Signal lightning arrester is used to protect RJ45 ports of the device from lightning. When cabling outdoors, please install a signal lightning arrester before connecting the cable to the device.

When purchasing or using a signal lightning arrester, please observe the following rules:

■

The port rate of the signal lightning arrester should match the rate of the desired port on the device. If it is not matched, this signal lighting arrester will not work. Purchase a standard lightning arrester.

■

Install signal lightning arrester near the protected device and connect it to the ground via a shorter ground cable.

Figu re 3-4 U se Lightn ing Arrester

Ethernet CableEquipotential Bonding CableGrounding Terminal

Signal Lightning Arrester Device

Note:

Signal lightning arrester is not provided with our product. If needed, please self purchase it.

19Lightning Protection

Gigabit Unmanaged Switch

Chapter 4 Connection

4.1 Ethernet Port

Connect a Ethernet port of the switch to the computer by RJ45 cable as the following figure shows.

RJ45 Port

RJ45 Cable

Figure 4-1 Connecting the RJ45 Port

4.2 Verify Installation

After completing the installation, please verify the following items:

■

There are 5 to 10cm of clearance around the sides of the device for ventilation and the air flow is adequate.

■

The voltage of the power supply meets the requirement of the input voltage of the device.

■

The power socket, device and rack are well grounded.

■

The device is correctly connected to other network devices.

4.3 Power On

Plug in the negative connector of the provided power cord into the power socket of the device, and the positive connector into a power outlet as the following figure shows.

20 Connection

Figure 4-2 Connecting to Power Supply

Gigabit Unmanaged Switch

Note:

The gure is to illustrate the application and principle. The power plug you get

from the package and the socket in your situation will comply with the regulation

in your country, so they may dier from the gure above.

4.4 Initialization

For TL-SG1048/TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TL-SG1008:

After the device is powered on, it begins the Power-On Self-Test. A series of tests run automatically to ensure the device functions properly. During this time, its LED indicators will respond as follows:

■

All of the LED indicators will flash momentarily for one second, which represents a resetting of the system.

■

The Power LED indicator will light up.

For TL-SG1008PE:

The LED indicators for TL-SG1008PE are classified into two parts:

the LEDs indicating switch status including Power LED, Link/Act LEDs and 1000Mbps LEDs; the LEDs indicating PSE status, including PoE MA X LED and PoE Status LEDs.

■

All of the LEDs indicating swith status will flash momentarily for one second, which represents a resetting of the switch system. The PoE MAX LED will keep on for approximately ten seconds, representing a resetting of the PSE system. Take note that the PoE Status LEDs won't light up during this period.

■

The Power LED indicator will light up.

21Connection

Gigabit Unmanaged Switch

Appendix A Troubleshooting

Why is the Power LED not lit?

Q1.

The Power LED should be lit up when the power system works normally. If the Power LED worked abnormally, please

1. Make sure that the power cable is connected properly, and the power contact is normal.

2. Make sure the voltage of the power supply meets the requirement of the input voltage of the switch.

Why is the Link/Act LED not lit while a device is connected to the corresponding

Q2.

port?

Please try the following:

1. Make sure that the cable connectors are ﬁrmly plugged into the switch and the device.

2. Make sure the connected device is turned on and working normally.

3. The cable must be less than 100 meters long (328 feet).

try the following:

■

For more troubleshooting help, go to: http://www.tp-link.com/en/support/faq

■

To download the latest Firmware, Driver, Utility and User Guide, go to: http://www.tp-link.com/en/support/download

22 Appendix A Troubleshooting

Appendix B Specifications

Item Content

IEEE802.3i, IEEE802.3u, IEEE802.3ab

Standards

Transmission Medium

Safety & Emissions FCC, CE

Protocol CSMA/CD

PoE Power on RJ45 (Only for TL-SG1008PE)

Transfer Method Store-and-Forward

MAC Address Learning Automatically learning, automatically aging

Frame Forward Rate

LEDs

Operating Temperature 0 to 40℃ (32 to 104℉)

Storage Temperature -40 to 70℃ (-40 to 158℉)

Operating Humidity 10% to 90%RH Non-condensing

Storage Humidity 5% to 90%RH Non-condensing

IEEE802.3x (except TL-SG1048)

IEEE802.1p (for TL-SG1008PE/TL-SG1008)

IEEE802.3af (for TL-SG1008PE), IEEE802.3at (for TL-SG1008PE)

10Base-T UTP/STP of Cat. 3 or above(maximum 100m)

100Base-TX 2-pair UTP/STP of Cat. 5 or above (maximum 100m)

1000Base-T 4-pair UTP/STP of Cat. 5e or above (maximum 100m)

Power+: pin 3 & pin 6

Power -: pin 1 & pin 2

10Base-T: 14881pps/Port

100Base-Tx: 148810pps/Port

1000Base-T: 1488095pps/Port

Power, Link/Act (TL-SG1048) Power, Link/Act, 1000Mbps (TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TLSG1008) Power, PoE MAX, 1000Mbps, Link/Act, PoE Status (TL-SG1008PE)

Gigabit Unmanaged Switch

23Appendix B Specications

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with par t 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими ак тами України.

Safety Information

• When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.

• Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.

• Avoid water and wet locations.

FCC STATEMENT

BSMI Notice

安全諮詢及注意事項

• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

• 注意防潮，請勿將水或其他液體潑灑到本產品上。

• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。

• 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。

• 此為甲類資訊技術設備，于居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某

些適當的對策。

Industry Canada Statement

CAN ICES-3 (A)/NMB-3(A)

Explanation of the symbols on the product label

Symbol Explanation

AC voltage

Indoor use only

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要求されることがあります。 

VCCI-A

BSMI Notice

For technical support and other information, please visit

http://www.tp-link.com/support, or simply scan the QR code.

7106507234 REV12.0.1

TP-Link TL-SG1016D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
