COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered
trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are
trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to
make any derivative such as translation, transformation, or adaptation without
permission from TP-LINK Technologies Co., Ltd. Copyright © 2005 TP-LINK
Technologies Co., Ltd. All rights reserved.
SAFETY NOTICES
Caution:
Do not use this product near water, for example, in a wet basement or near a swimming
pool.
Avoid using this product during an electrical storm. There may be a remote risk of electric
shock from lightning.
Package Contents............................................................................................................. 1
Chapter 1: Introduction of the Product .............................................................................. 2
1.1 Virtual Local Area Network (VLAN) ...................................................................... 2
1.2 Port TRUNK ......................................................................................................... 2
1.3 AUTO MDI/MDIX.................................................................................................. 2
1.4 Features............................................................................................................... 2
Chapter 2: Installation ....................................................................................................... 4
2.1 Mounting the Switch on a Desk............................................................................ 4
2.2 Mounting the Switch in a Rack............................................................................. 4
2.3 Power on.............................................................................................................. 5
Chapter 3: Identifying External Components..................................................................... 6
3.1 Front Panel .......................................................................................................... 6
3.2 Rear Panel ........................................................................................................... 6
3.3 LED indicators...................................................................................................... 7
3.4 Optional Slot Module............................................................................................ 7
Chapter 4: Installation and Usage of the Configuration Software...................................... 8
4.1 Installation of the SSC.......................................................................................... 8
4.2 Usage of the SSC ...............................................................................................11
4.3 Port Status Setting ............................................................................................. 13
4.4 TRUNK............................................................................................................... 16
4.5 VLAN.................................................................................................................. 17
4.6 Priority................................................................................................................ 20
4.7 MAC Address Age Time ..................................................................................... 21
4.8 Config effect....................................................................................................... 22

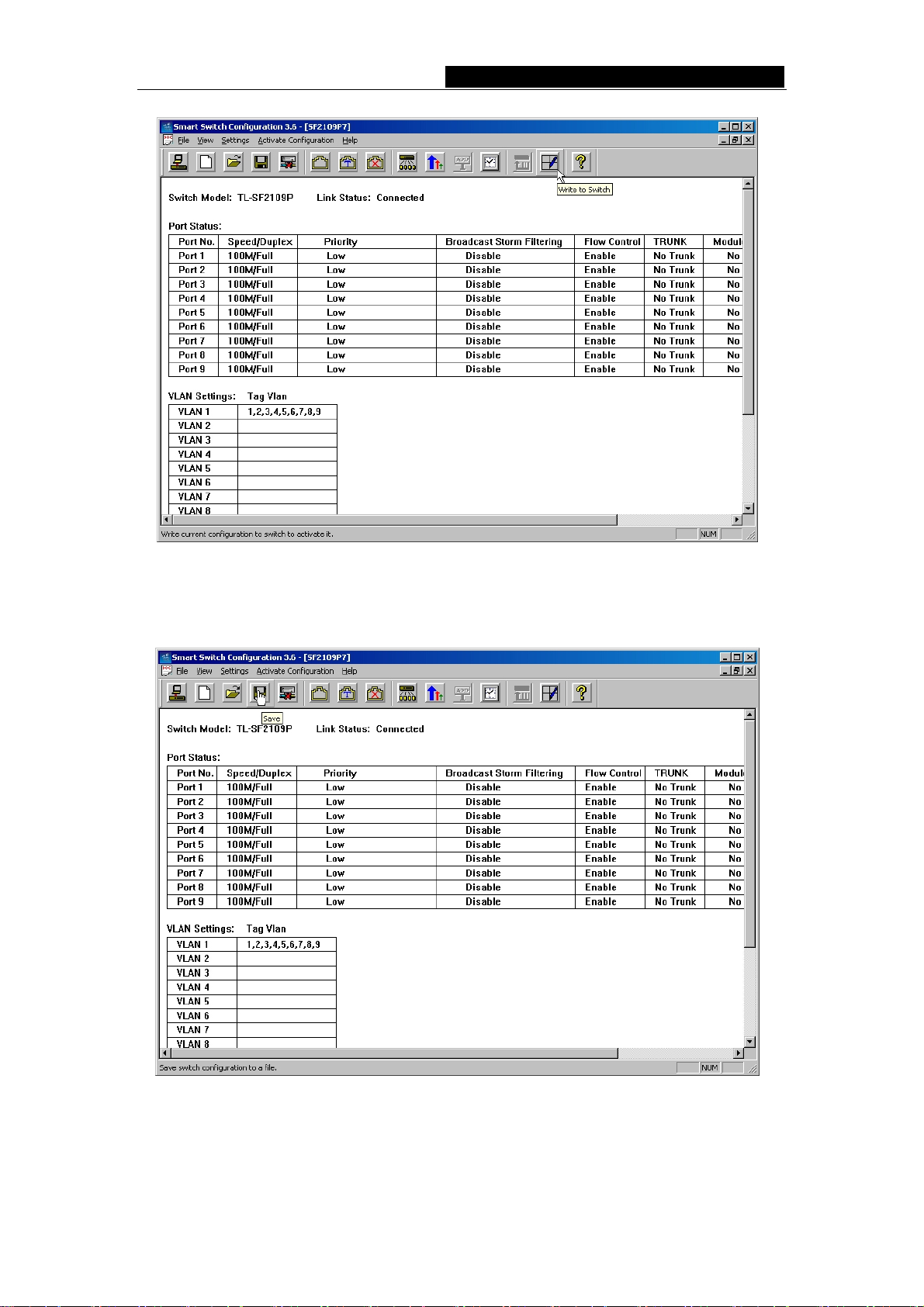

4.9 “Save”, “Open” Configuration file ....................................................................... 23
Appendix A: TL-SF2109P Technical Specification........................................................... 25
General .................................................................................................................... 25
Environmental and Physical..................................................................................... 25
Appendix B: TL-SF2117P Technical Specification........................................................... 26
General .................................................................................................................... 26
Environmental and Physical..................................................................................... 26
Appendix C: TL-SL2226P Technical Specification........................................................... 27
General .................................................................................................................... 27
Environmental and Physical..................................................................................... 28
Appendix D: Contact Information .................................................................................... 29
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
Package Contents
The following contents should be found in your box:
One TL-SF2109P/TL-SF2117P/TL-SL2226P Smart Switch
One power cord
One serial cord
This User’s Guide
One Resource CD
Rubber footpads for Desk-mount
Rack-mount kit for installing the switch in a 19-inch rack
Note: If any of the above contents is damaged or missing, please contact the retailer
from whom you purchased the TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart
Switch for assistance.
- 1 -
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
Chapter 1: Introduction of the Product
This chapter simply describes the features of the model of the TL-SF2109/TL-SF2117P
/TL-SL2226P smart Switch and back-knowledge of Fast Ethernet Switch.
1.1 Virtual Local Area Network (VLAN)
Virtual Local Area Network breaks down the constraint of environment, you can move the
workstation freely in the group without change the connection. The technology improves
the performance or subnet of the system, equalizes data flow in the net, utilizes the
resource reasonably, the work of management and maintenance.
Virtual group: The communication will be improved among the group. And there needs
no routers in the group when transferring data to other groups.
Safety: Only the legal users can forward data in the VLAN. So the safety of the net
improves.
Low cost: You can move the workstations freely in the VLAN, and there need no routers
and replacing the cable.
1.2 Port TRUNK
Generally, TRUNK means that two switches can be connected two or more than two (but
less than five) ports side-by-side to supply more band width and more throughput and
self-resume technic. This is to say, TRUNK is to treat several physical connections as
one logic connection. TRUNK is very useful to several lower speed device to a high
speed device.
The current device can simply add more NIC connecting to the server to resolve the
traffic between the switches and the servers.
1.3 AUTO MDI/MDIX
The switch supports MDI/MDIX function, every port of the Switch can be used as normal
port and uplink port. It becomes easy to use, plug and play, when connecting to the other
switches and hubs, whether the direct cable and the crossover cable or not.
The switch, a smart auto-negotiated Ethernet switch, supplies the method of promotion
of the workstation resource.
1.4 Features
Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3z (only for
TL-SL2226P) standards
8/16/24 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
- 2 -
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
1/1/2 extension slots supporting 100M fiber module card (TL-SM201 series) and
TL-SL2226P supports 1000M fiber/UTP module (TL-SM301 series)
Supports IEEE802.3x flow control for Full Duplex mode and backpressure for
half-duplex mode
Supports Port Enable/Disable
Supports 9 Port VLAN and 9 IEEE802.1Q Tag VLAN (for TL-SF2109P), 17 Port
VLAN ( for TL-SF2117P) and 26 Port VLAN ( for TL-SL2226P)
Supports Port Mirror (only for TL-SF2117P)
Supports Port Trunk, up to 1 Trunk group (for TL-SF2109P) and 8 Trunk group (for
TL-SL2226P)
Supports Static Priority, TOS and 802.1p Class of Service with 2-level priority
queues (for TL-SF2109P and TL-SF2117P)
Easy read LED indicators for installation and operation
Support a RS232 interface for smart configuration (example :VLAN, Trunk, Priority )
Desktop Steel case (for TL-SF2109P) and standard 19-inch rack-mountable steel
case (for TL-SF2117P and TL-SL2226P), internal power supply
- 3 -
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
Chapter 2: Installation
2.1 Mounting the Switch on a Desk
Before place the Switch on a desk, attach four rubber footpads to the flutes on the Switch
bottom, then lay the Switch on the desktop, where can be have as much as 5kg placed
on top.
Note: Make sure there is a grounded AC outlet within 1.5 meters, and working well.
Make sure there is free space for radiating heat and air.
Make sure not to place anything to heavy on top of the switch.
2.2 Mounting the Switch in a Rack
The dimension of the Switch is designed according to the standard 19” rack-mountable
steel case of Electronic Industries Association.
Turn off all the equipment connected to the Switch before mounting it in the rack, then
rivet the two “L” brackets onto each side of the Switch, fasten it with screwes in the rack.
Figure 2-1 Rivet the “L” brackets onto the Switch
- 4 -
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
Figure 2-2 Fasten the Switch in the rack
2.3 Power on
The Switch is powered by AC power supply. Powering on the Switch, it will automatically
initialize and its LED indicators should respond as follows:
1) All of the LED indicators will flash momentarily for one second, which represent a
resetting of the system.
2) The power LED indicator will remain ON.
- 5 -
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
Chapter 3: Identifying External Components
This Chapter describes the front panel, rear panel and LED indicators of the Switch.
Cautions:
All the pictures are based on the TL-SF2109P in the manual. The others are similar with
the TL-SF2109P.
3.1 Front Panel
The front panel of the TL- SF2109P consists of switch LED indicators, 8 10/100Mbps
RJ-45 ports, and 1 serial port Connect the female of the power cord head here.
Console
10/100M bps Fast Ethernet Smart Switch
Figure 3-1 TL- SF2109P Switch Front Panel sketch
Serial port: Config the system by the serial cable (more details in chapter 4)
3.2 Rear Panel
The rear panel of the TL-SF2109P only features a power receptacle, which is an AC
power receptacle , and 1 extension slots. Connect the female of the power cord head
here, and the male head to the AC power outlet.
Extension slot: This is a optional module slot which can connect to a 100M
UTP/fiber (Tl-Sf2109P and TL-SF2117P) or a 1000M fiber module or 10/100/1000M
UTP module card(TL-Sl2226P).
Slot
Figure 3-2 TL- SF2109P Switch Rear Panel sketch
Power connector: This is a 3-Phase power socket, Plug the connector with a
100~240VAC/50-60Hz power supply.
- 6 -
TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch User Guide
3.3 LED indicators
The LED indicators include Power, 100Mbps, Link/ACT and slot can display the working
status of the switch, more details as follows:
10/100Mbps Fast Ethernet Smart Switch
Figure 3-3 TL- SF2109P Switch LEDs sketch
Power LED: After power on, the LED will be light always. If it is turned off, check the
connection of the power source.
100Mbps LED: When a port is connected to a device with the 100Mbps, the
corresponding green LED is light, or else it is turned off.
Link/ACT: when transferring the data between two devices, the corresponding
LEDs will be flicker with green.
Slot: When inserted a UTP/fiber module card, LED is green. If it is turned off, check
the connection of the card. (The LED is only in TL-SF2109P)
3.4 Optional Slot Module
TL-SL2226P supports the TL-SM201/TL-SM301 serials module cards. TL-SF2109P and
TL-SF2117P supply the TL-SM201 serial module cards. Every type of modules contains
two category, fiber and UTP.
1） Fiber Modules
The switch supports many optional fiber module card, include the SMF and MMF their
interface is SC. Every module’s transporting distance is not the same, more details in
fiber module User’s Guide.
2） UTP Modules
TL-SF2109P and TL-Sf2117P’s module work only in 100M full-duplex, TL-SL2226P can
support 100/1000M module.
Caution:Before inserting the module, please turn off the power, take off the baffle, and
then insert the module along the rails, fasten the serwes finally.
- 7 -
