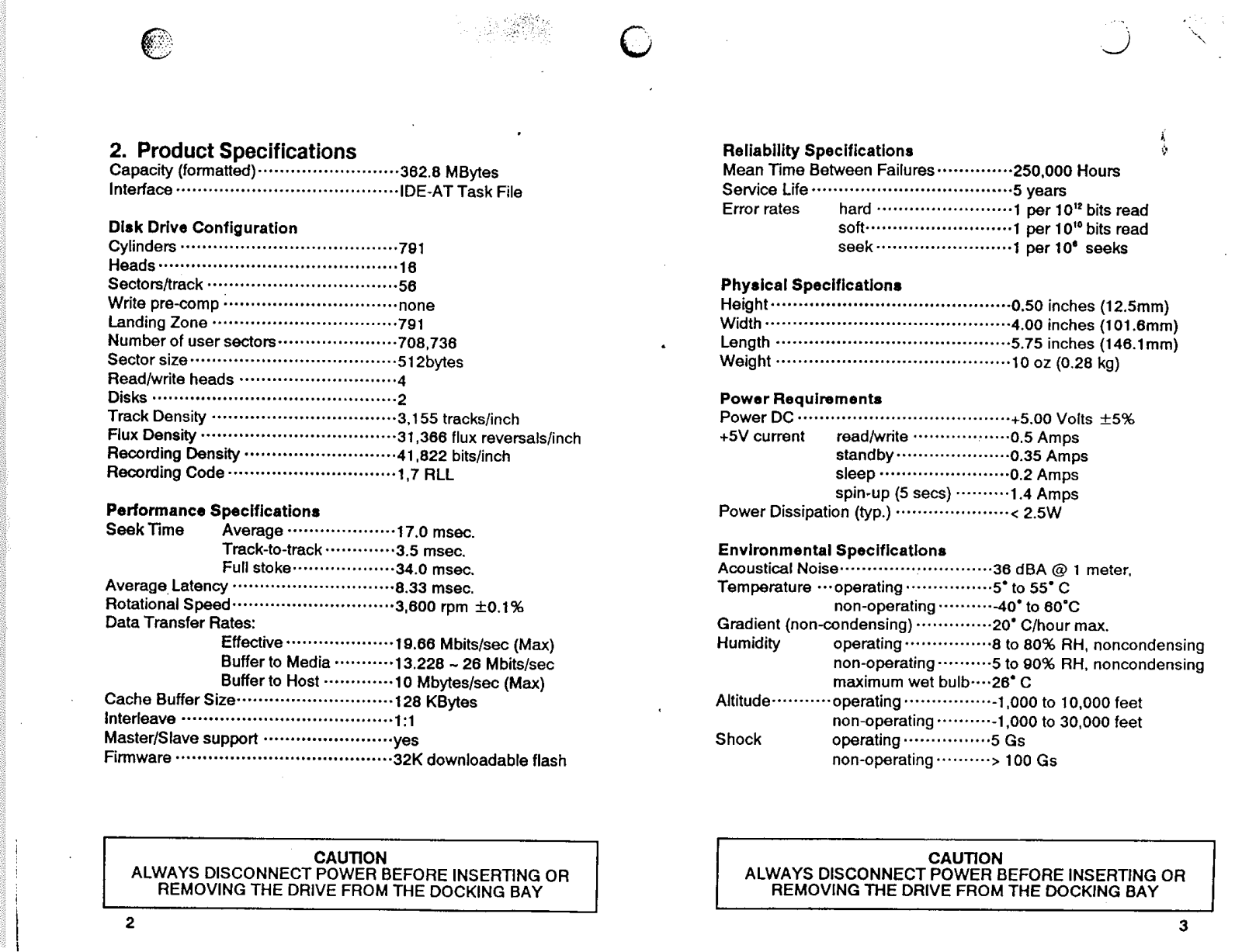

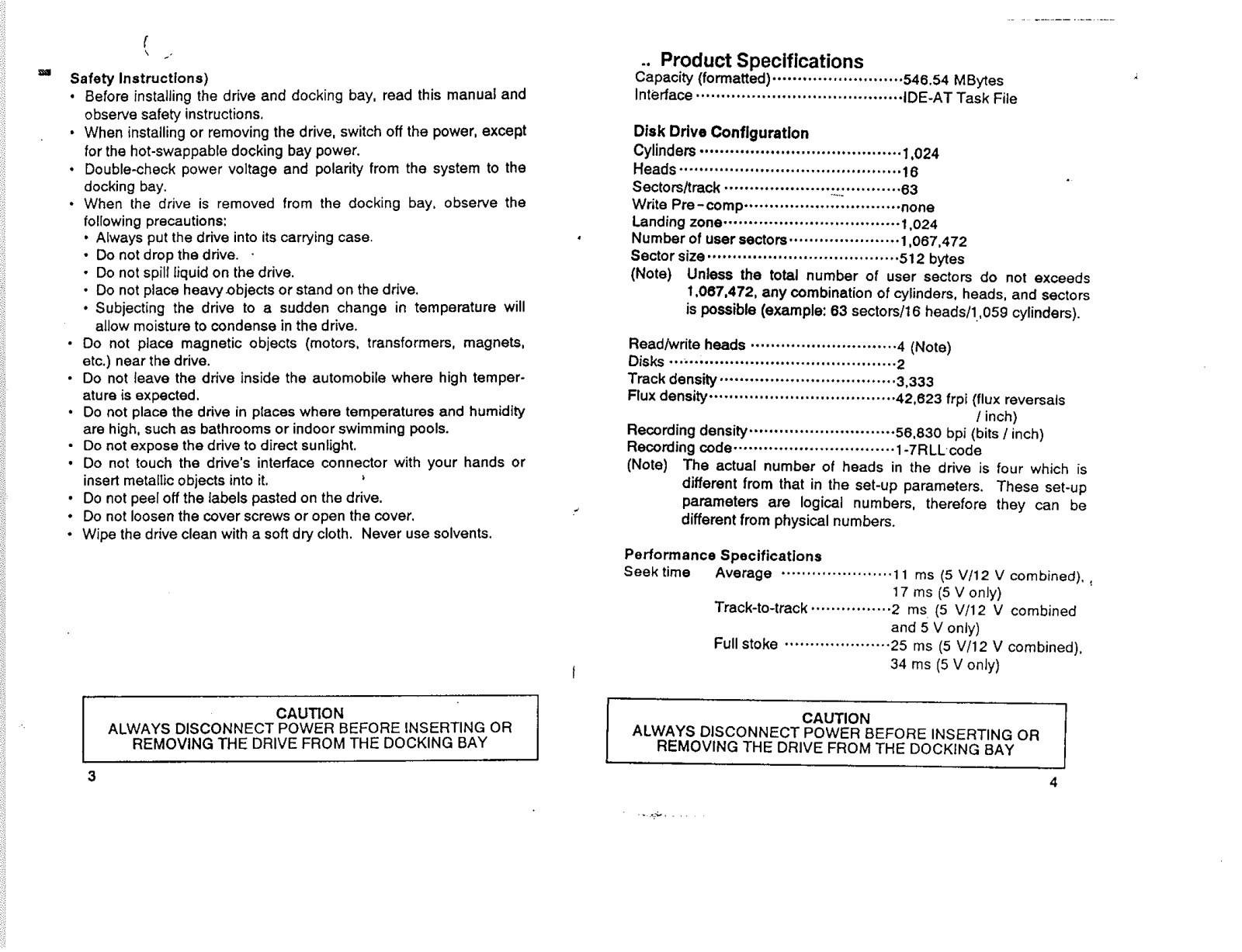

Specifications and Main Features
- Designation: TEAC SD-3360N Removable HDD
- Size, after formatting: 362.8 MBytes
- I/O protocol: Integrated Device Electronics
- Configured Architecture of Disk Drive:
- Total Cylinders: 791
- Number of Heads: 18
- Sectors per Track: 56
- Pre Written Compensation: none
- Zone for Landing: 791
- Total Amount of User Sectors: 708,736
- Size per Sector: 512 bytes
- Quantity of Read/Write Heads: 4
- Number of Disks: 2
- Track Density of the Disk Drive: 3155 tracks per inch
- Flux Density: 31,368 flux inversions per inch
- Linear Bit Density: 41,822 bits per inch
- Recording Mode: 1,7 RLL
- Performance KPIs:
- Average Seeking Time Measurement: 17.0 msec
- Time From One Track To Another: 3.5 msec
- Full Stroke Timing: 34.0 msec
- Mean Latency: 8.33 msec
- RPM Range: 3,600 (+0.1%)
- Data Transfer Rates And Other Ratios:
- Throughput: 19.66 (Max)
- 0-Host Transmission: 10 Mbytes/sec (Max)
- Matrix Transmission: Approximately middle of 13.228 and 26 Mbits/sec
- Cache Size: 128 KBytes
- Interleave factor: 1:1
- Support Type: Master/Slave Yes/No: yes
- ROM: 32K flash (downloadable)
- Forms of Reliability:
- Average Accumulated Operating Time Judge: 250,000 Hours
- Product Operating Life: up to 5 years
- Exceedance Percentages:
- Hard: 1 in 1010 bits that are to be read
- Soft: 1 in 109 reading bits
- Seek: – 1 in 108 seeks
- Specifications Detailing Physical Characteristics:
- Specifications:
- Height: 0.50 inches (12.5mm)
- Width: 4.00 inches (101.6mm)
- Length: 5.75 inches (146.1mm)
- Weight: 10 oz (0.28 kg)
- Power Requirements:
- Power DC: +5.00 Volts +/- 5%
- +5V Current total Peak Load: (Read/Write) 0.5 Amps
- Standby: 0.35 Amps
- Sleep: 0.2 Amps
- Spin-up: 1.4 Amps (for 5 seconds)
- Power Dissipation: < 2.5W

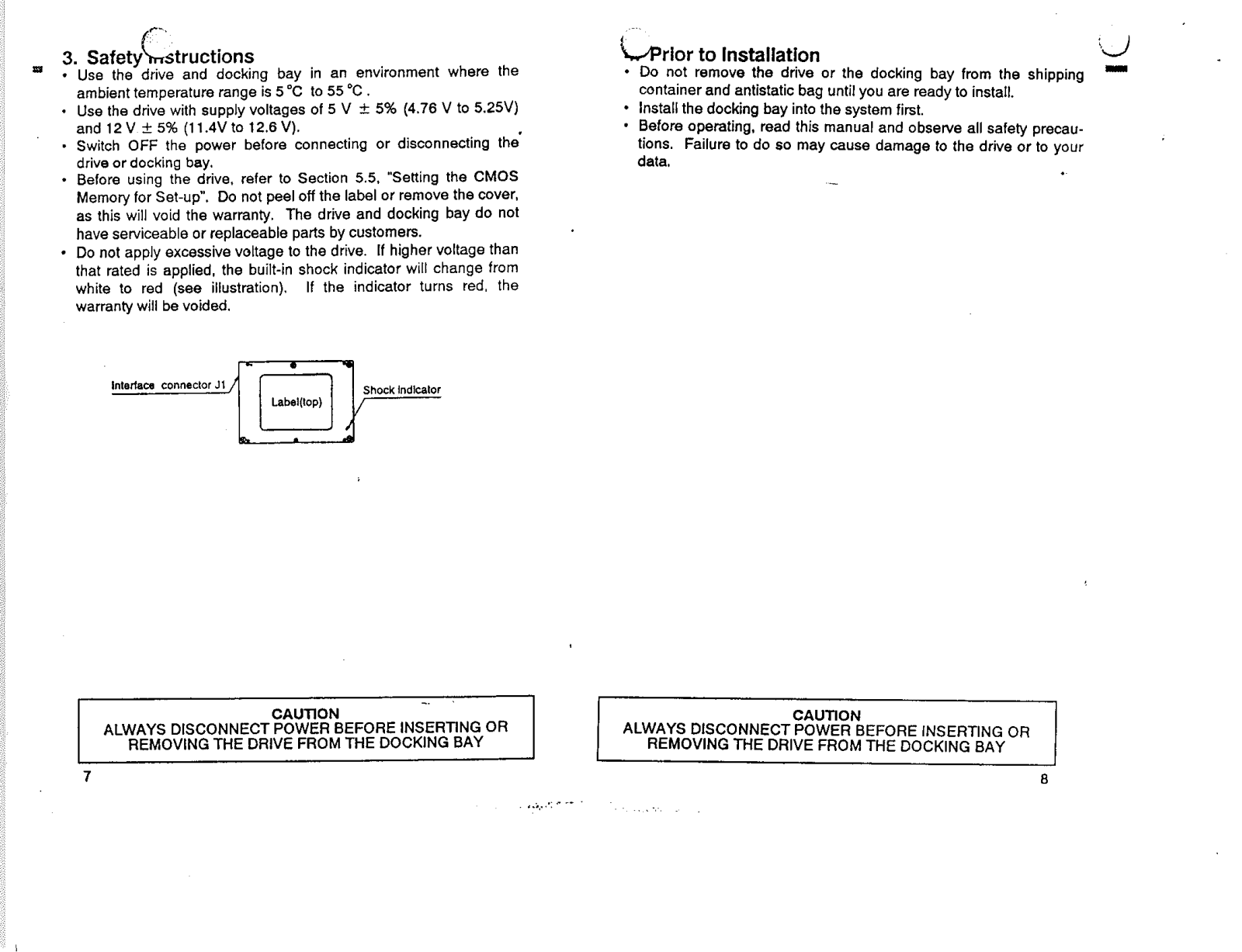

- Environmental Specifications:
- Acoustical Noise (in decibel): 36 dBA @ 1 meter
- Operating Temperature : 5° to 55°C
- Non-Operating Ambient Temperature : -40° to 60°C
- Maximum change of temperature rate (non-condensing): 20°C per hour
- Relative Humidity in operating condition: 8 to 80% RH, non-condensing
- Relative Humidity in non-operating condition: 5 to 90% RH, non-condensing
- Maximum Wet Bulb Temperature: 26°C
- Operating Altitude range: 1,000 to 10,000 feet
- Non-Operating Altitude Range: 1,000 to 30,000 feet
- Operating Shock tolerance: 5 Gs:
- Non-Operating Shock tolerance: > 100 Gs
Frequently Asked Questions
- Q: What is the formatted capacity of the TEAC SD-3360N?
A: The formatted capacity of the TEAC SD-3360N is 362.8 MBytes.
- Q: Let us Know The Interface of teac SD 3360n?
A: The TEAC SD-3360N uses IDE-AT Task File interface.
- Q: What is the average seek time for the drive?
A: The average seek time is 17.0 msec.
- Q: How much does the TEAC SD-3360N weigh?
A: The weight of the drive is 10 ounces (0.28 kg).
- Q: What is the power consumption of the drive?
A: Its typical power consumption is under 2.5 watts.
- Q: What is the operating temperature range for the TEAC SD-3360N?
A: The temperature range is operational and varies between 5° to 55°c.

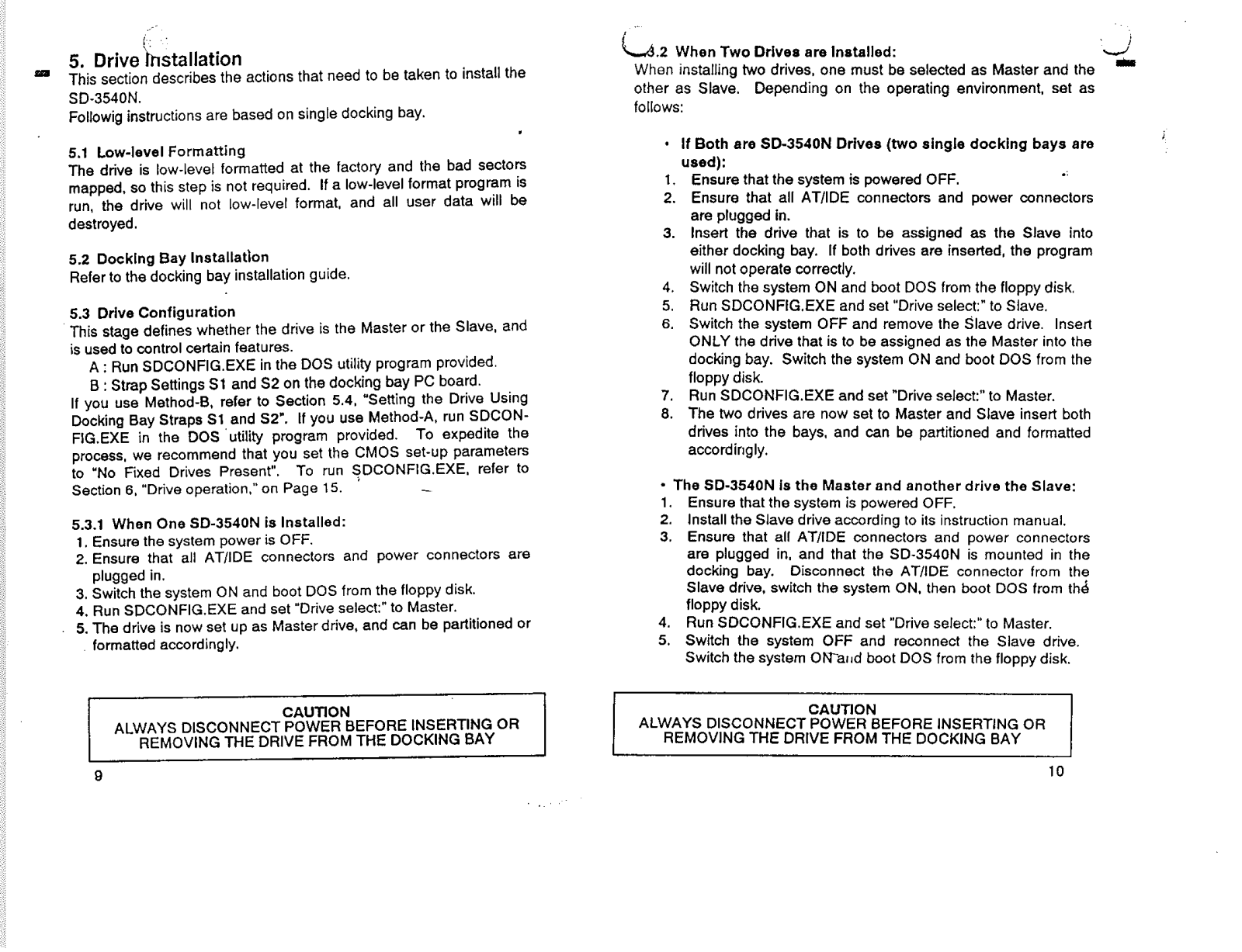

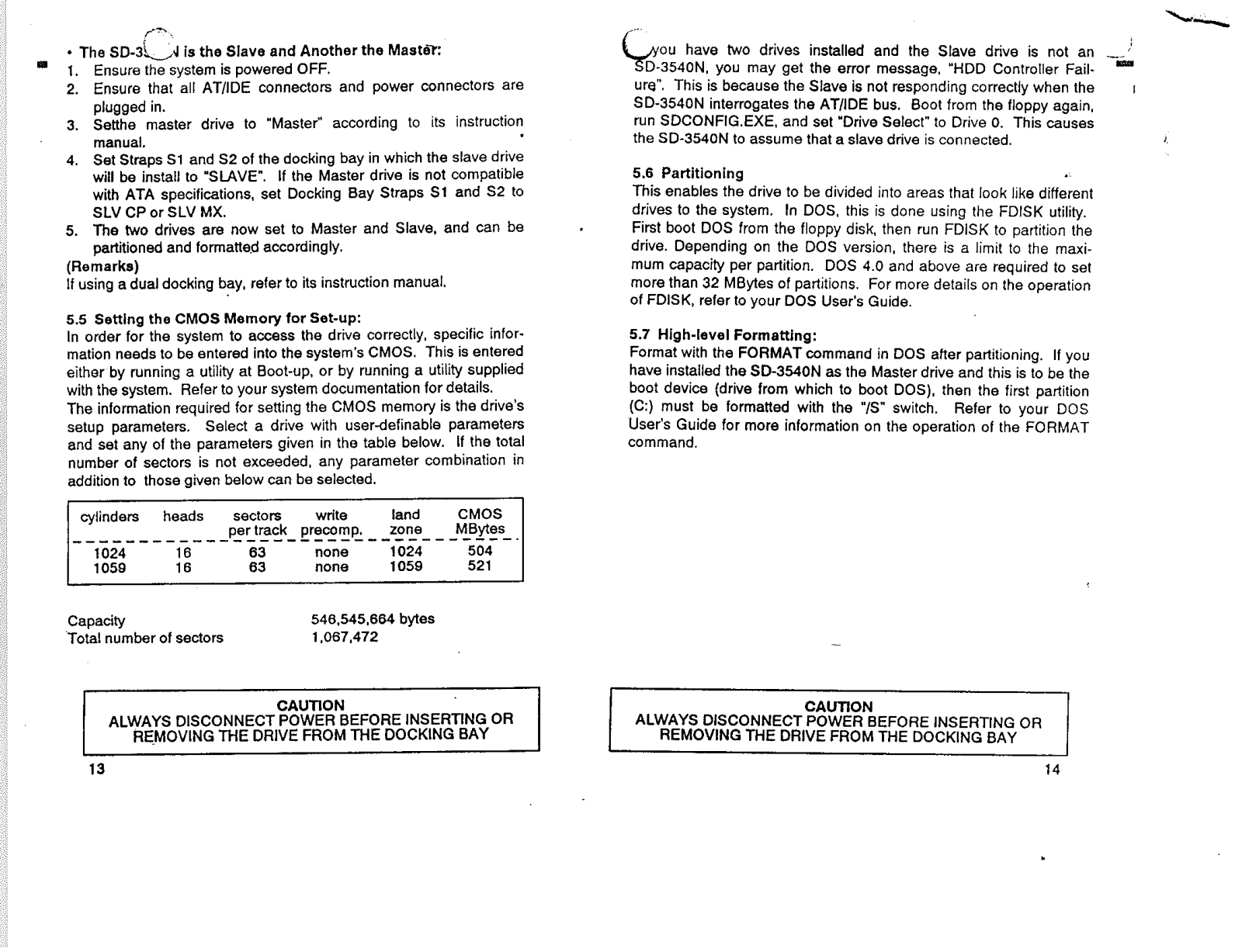

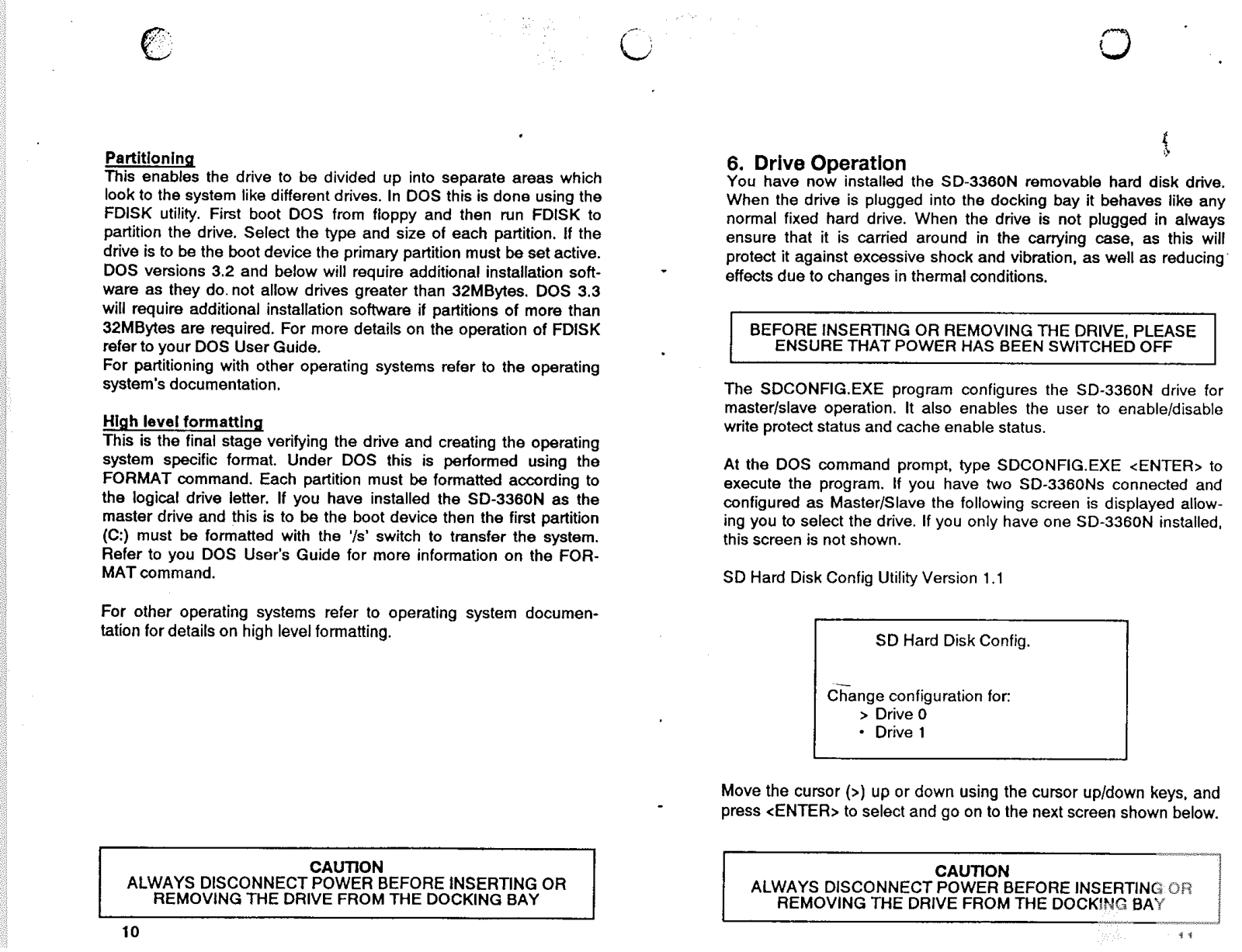

- Q: How can I configure the drive as master or slave?
A: There are two ways this can be accomplished: via the SDCONFIG.EXE program or by configuring the short strap to pins on the docking bay PCB.
- Q: What is the mean time between failures (MTBF) for the drive?
A: It's MEAN TIME between failures (MTBF) is around 250,000 hours.
- Q: What environmental factors can affect the TEAC SD-3360N?
A: The drive is most susceptible to temperature, humidity, altitude and shock
- Q: What is the rotational speed of the drive?
A: The drive has a rotational speed of about 3600 rpm (+-0.1%).
