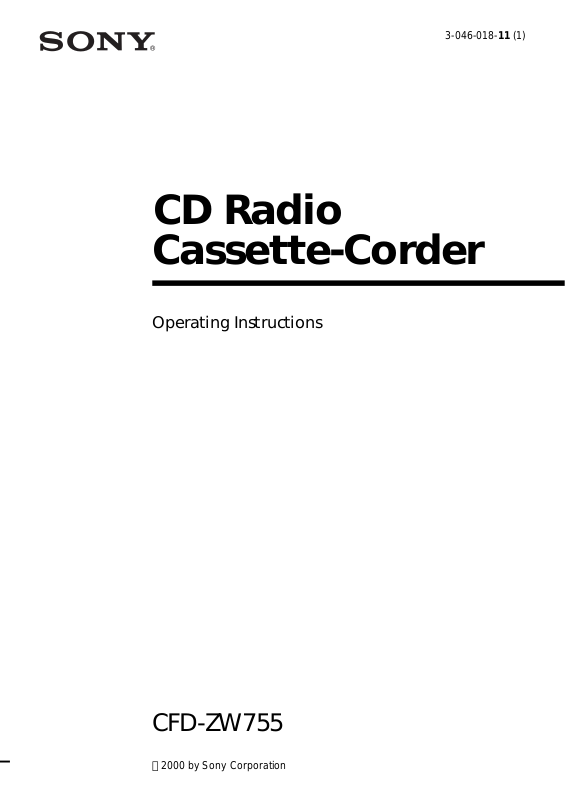

3-046-018-11 (1)
CD Radio
Cassette-Corder
Operating Instructions
CFD-ZW755
2000 by Sony Corporation
Warning
To prevent fire or shock hazard, do not expose the player to rain or moisture.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
The use of optical instruments with this product will increase eye hazard.
Warning
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Information
For customers in the United States
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Owner's Record
The model number is located at the rear of the CD radio cassette-corder and the serial number is located in the battery compartment.
Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. CFD-ZW755
Serial No. ________________________
2 Introduction
Table of contents
Basic Operations
4 Playing a CD
6 Listening to the radio
8 Playing a tape
10 Recording on a tape
The CD Player
12Using the display
13Locating a specific track
14Playing tracks repeatedly (Repeat Play)
15Playing tracks in random order (Shuffle Play)
16Creating your own program (Program Play)
18Enjoying sound effects (LOOP/ FLASH)
The Radio
19Presetting radio stations
20Playing preset radio stations
The Timer
21Setting the clock
22Waking up to music
24 Falling asleep to music
|
Setting Up |
26 |
Hooking up the system |
|
Additional Information |
29 |
Precautions |
31 |
Troubleshooting |
33Maintenance
34Specifications
35Index
The Audio Emphasis
25Selecting the audio emphasis (Sound Mode/MEGA BASS)
Operations Basic
Introduction 3
Basic Operations
Playing a CD
1,2 3
1
2
3
For hookup instructions, see pages 26 – 28.
Push 6PUSH OPEN/CLOSE down to open the CD compartment and place the CD on the CD compartment.
With the label side up
Close the lid of the CD compartment.
Press ^.
Display
The player turns on (direct power-on) and plays all the tracks once.
Track number Playing time
4 Basic Operations
Tip
Next time you want to listen to a CD, just press ^. The player turns on automatically and starts playing the CD.
Use these buttons for additional operations
POWER ^ 6 PUSH OPEN/CLOSE
|
|
|
|
|
|
|
|
|
|
|
|
|
Basic |
|
|
|
|
|
|
|
|
|
|
|
p |
Operations |
|
|
|
|
|
|||
|
|
|
|
|
||
|
|
|
|
VOLUME |
|
|
|
|
|
|
PRESET |
|
|
|
|
|
|
TIME SET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To |
Do this |
|
|
adjust the volume |
Turn VOLUME (Press |
|
VOL +, – on the remote). |
|
|
stop playback |
Press p. |
|
|
pause playback |
Press ^( Pon the |
|
remote). |
|
Press the button again to |
|
resume play after pause. |
|
|
go to the next track |
Turn PRESET•TIME SET |
|
clockwise (Press +on |
|
the remote). |
|
|
go back to the previous track |
Turn PRESET•TIME SET |
|
counterclockwise (Press |
|
=on the remote). |
|
|
remove the CD |
Press 6PUSH OPEN/ |
|
CLOSE. |
|
|
turn on/off the player |
Press POWER. |
|
|
Basic Operations |
5 |
|
|
Listening to the radio
1 2
1
2
For hookup instructions, see pages 26 – 28.
|
Press RADIO BAND until the |
Display |
|
band you want appears in the |
|
|
|
|
|
display (direct power-on). |
|
|
|
|
|
Each time you press the button, |
|
|
the indication changes as follows: |
|
|
"FM1" n"FM2" n"AM". |
|
Hold down TUNE + or – until the frequency digits begin to change in the display.
The player automatically scans the radio frequencies and stops when it finds a clear station.
If you cannot tune in to a station, press the button repeatedly to change the frequency step by step.
Indicates an FM stereo broadcast
6 Basic Operations
Tips
•The "FM1" and "FM2" bands have the same functions. You can store the stations you want separately in "FM1" and "FM2".
•If the FM broadcast is noisy, press MODE until “Mono” appears in the display and radio will play in monaural.
•Next time you want to listen to the radio, just press RADIO BAND.
The player turns on automatically and starts playing the previous station.
Use these buttons for additional operations
POWER |
MODE |
VOLUME
To |
Do this |
|
|
adjust the volume |
Turn VOLUME (Press |
|
VOL +, – on the remote). |
|
|
turn on/off the radio |
Press POWER. |
|
|
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself for AM.
for FM |
for AM |
Operations Basic
Basic Operations |
7 |
|
|
Playing a tape
2 1 2 1
1
2
For hookup instructions, see pages 26 – 28.
Press p6to open the tape compartment and insert a recorded tape. Use TYPE I (normal) tape only. Close the compartment.
With the side you want to play facing you
Press (. |
Display |
The player turns on ( direct power-on) and starts playing.
8 Basic Operations
Note
During playback, do not press buttons on the other deck. Otherwise the playback speed may change.
Tip
Next time you want to listen to a tape, just press (. The player turns on automatically and starts playing the tape.
Use these buttons for additional operations
POWER
|
0, ) |
|
p6 |
|
P |
|
VOLUME |
|
0, ) |
|
p6 |
|
P |
To |
Do this |
adjust the volume |
Turn VOLUME (Press |
|
VOL +, – on the remote). |
stop playback |
Press p6. |
fast-forward or rewind the tape |
Press )or 0. |
pause playback |
Press P. |
|
Press the button again to |
|
resume play after pause. |
eject the cassette |
Press p6. |
turn on/off the player |
Press POWER. |
Operations Basic
Basic Operations |
9 |
|
|
Recording on a tape
2 3 1
1
2
For hookup instructions, see pages 26 – 28.
Press p6to open the tape compartment on deck B and insert a blank tape. Use TYPE I (normal) tape only.
With the side you want to record on facing you
Select the program source you want to record.
Display
To record from the CD player: insert a CD (see page 4) and press
CD.
To record from the radio:
tune in the station you want (see page 6).
To record from the tape (dubbing): insert a recorded tape into deck A and press TAPE until “dUb” appears in the display.
10 Basic Operations
3 Deck B |
Start recording. |
|
To record from the CD player and |
|
the radio, press ron deck B (( |
|
is depressed automatically). |
Deck A |
To record from the tape, press r |
|
on deck B ((is depressed |
|
automatically). Then press (on |
|
deck A. |
Tips
•Adjusting the volume or the audio emphasis (see page 25) will not affect the recording level.
•For the best results, use the AC power as a power source.
•If the AM program makes a whistling sound after you've pressed rin step 3, press MODE repeatedly until the noise at a minimum.
Use these buttons for additional operations
POWER MODE
|
p6 |
|
P |
To |
Press |
stop recording |
p6on deck B |
pause recording |
Pon deck B |
|
Press the button again to |
|
resume recording. |
turn on/off the player |
POWER |
To erase a recording, proceed as follows:
1Insert a tape whose recording you want to erase into deck B.
2Press TAPE untill “TAPE” appears in the display.
3Press ron deck B.
Operations Basic
Basic Operations 11
