3-864-534-11(1)
CD Radio
Cassette-Corder
Operating Instructions |
page 2EN |
EN |
|
|
|
Manual de instrucciones |
página 2ES |
ES |
CFD-S45L
CFD-S47
CFD-S47L
ã1998 by Sony Corporation
Warning
To prevent fire or shock hazard, do not expose the player to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Information
For customers in Europe
This Compact Disc player is classified as a CLASS 1 LASER product.

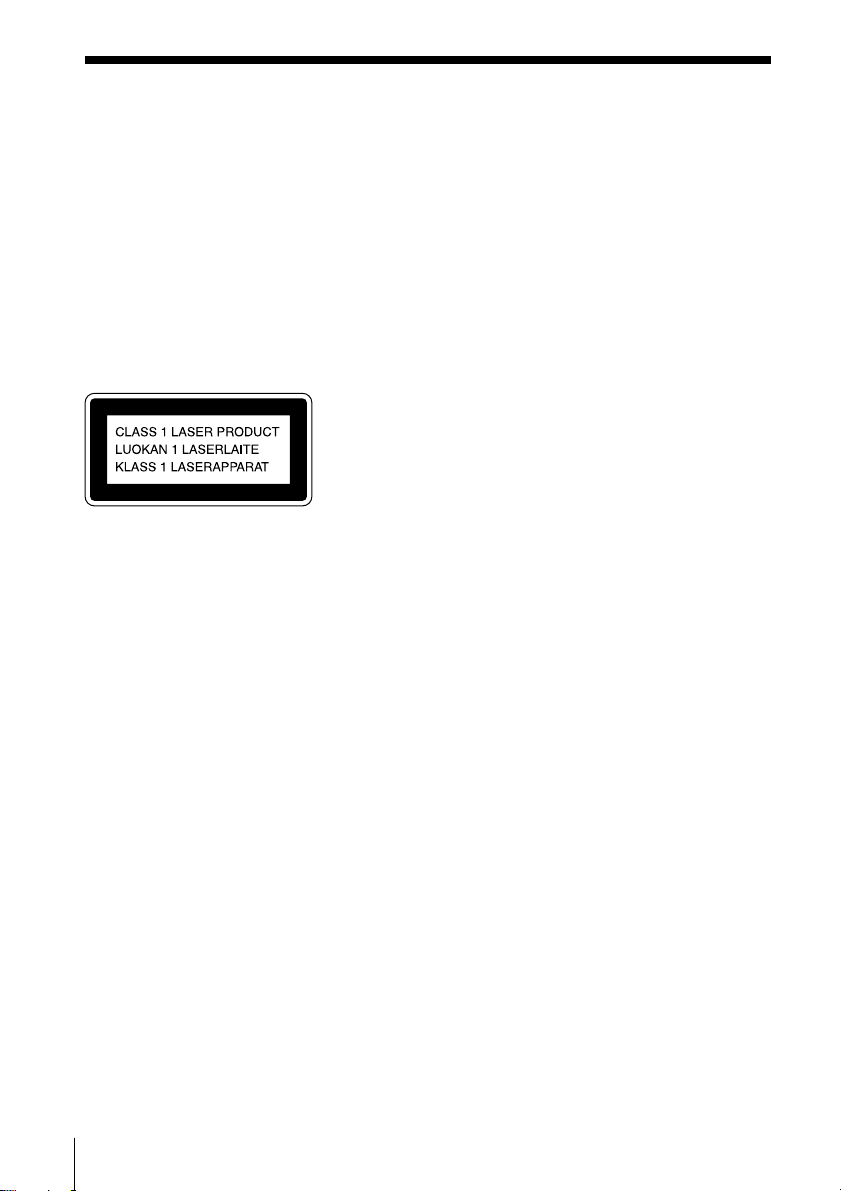

The CLASS 1 LASER PRODUCT label is located on the bottom exterior.
Warning
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, same rating fuse approved by ASTA or BSI to BS 1362, (i.e. marked with or mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
About this manual
The instructions in this manual are for the CFD-S45L, CFD-S47 and CFD-S47L. Before you start reading, check your model number. The CFD-S47L is the model used for illustration purpose.
Note
The name of the switch to turn on/off this player is indicated as below:
“OPERATE”: European countries (excluding central and eastern Europe)
“POWER”: Other countries
2EN Introduction
Table of contents
Basic Operations
4 Playing a CD
6 Listening to the radio
8 Playing a tape
10 Recording on a tape
Operations Basic
|
The CD Player |
|
The Timer |
|
|
12 |
Using the display |
21 |
Setting the clock |
|
|
EN |
|||||
13 |
Locating a specific point in a |
22 |

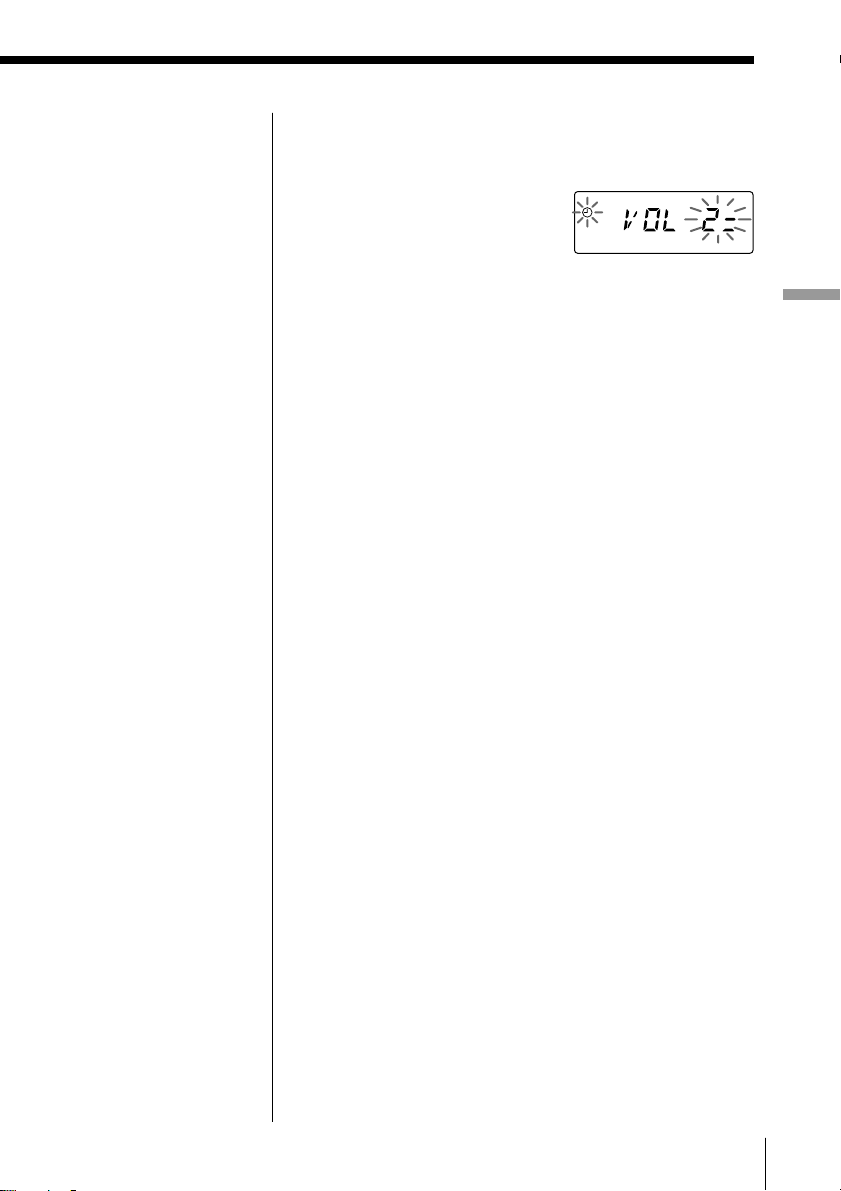

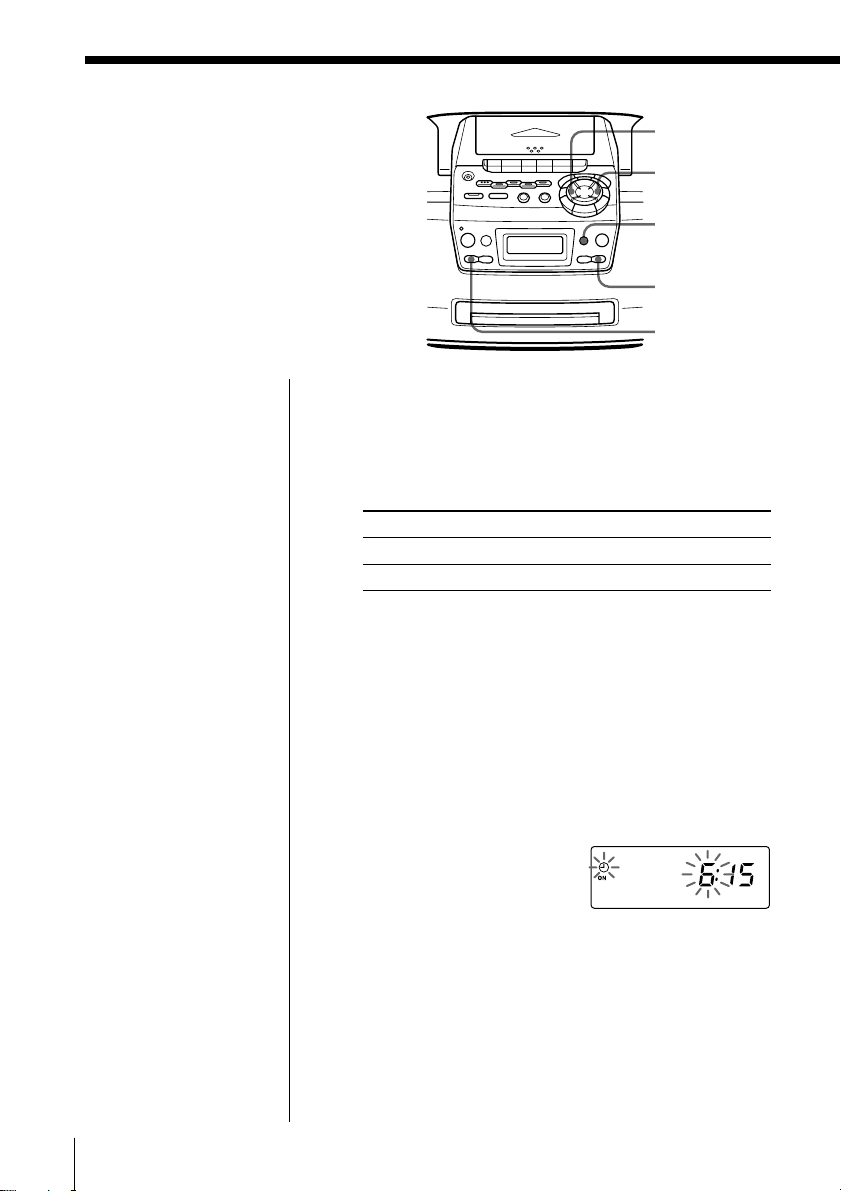

Waking up to music |
||
|
|||||
14 |
track |
24 |
Falling asleep to music |
|
|
Playing tracks repeatedly |
|
|
|
||
|
(Repeat Play) |
|
Setting Up |
|
|
15 |
Playing tracks in random order |
|
|
||
25 |

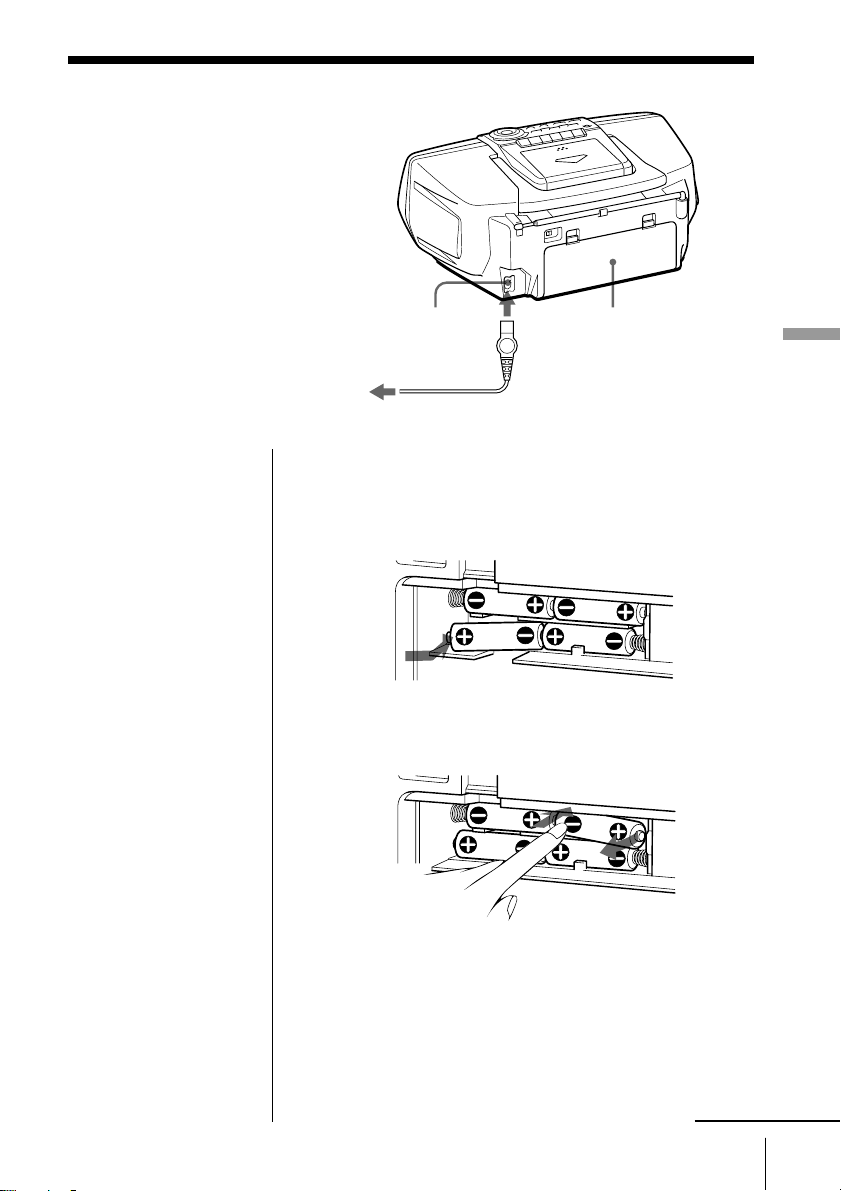

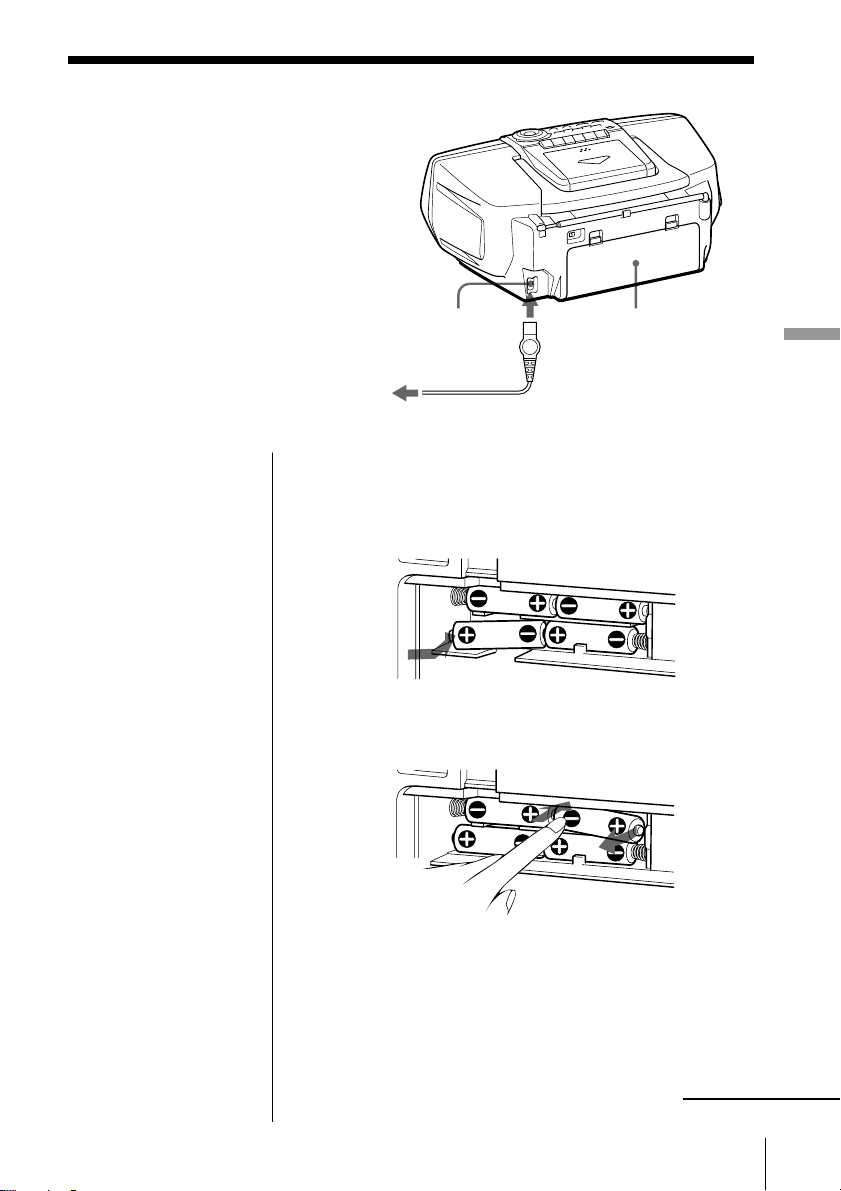

Choosing the power sources |
|
|||
|
(Shuffle Play) |
|
|||
16 |
Creating your own program |
27 |
Selecting the audio emphasis |
|
|
|
(Program Play) |
|
(Sound Mode/MEGA BASS) |
|
|
18 |
Enjoying sound effects |
|
|
|
|
|
(LOOP/FLASH) |
|
Additional Information |
|
|
|
The Radio |
28 |
Precautions |
|
|
|
30 |
Troubleshooting |
|
||
19 |
Presetting radio stations |
32 |
Maintenance |
|
|
20 |
Playing preset radio stations |
33 |
Specifications |
|
|
|
|
34 |
Index |
|
Introduction 3EN
Basic Operations
Playing a CD
2 1
|
|
Connect the supplied AC power cord (see page 25). |
1 |
CD OPEN/ |
Press 6CD OPEN/CLOSE |
|
CLOSE |
(direct power-on) and place the |
CD on the CD tray.
With the label side up
2
|
|
|
– |
|
|
|
T |
|
|
|
E |
|
R |
E |
S |
P |
|
||
|
|
||
|
|
|
|
TUNE |
|
|
|
– |
|
|
|
V |
|
|
|
O |
|
||
L |
|||
|
|
– |
BAND
P |
|
|
R |
|
|
E |
|
|
S |
|
|
E |
|
|
T |
||
+ |
||
|
|
TUNE |
|
|
+ |
O |
L |
+ |
|
||
|
|
|
V |
|
|
Press ^. |
Display |
The CD tray closes and the player plays all the tracks once.
Track number Playing time
4EN BasicOperations
Tip
Next time you want to listen to a CD, just press ^. The player turns on automatically and starts playing the CD.
Use these buttons for additional operations
|
= |
|
^ |
|
+ |
|
p |
|
6CD OPEN/CLOSE |
|
OPERATE |
|
(or POWER) |
To |
Press |
adjustthevolume |
VOL +, – |
stopplayback |
p |
pauseplayback |
^(Pon the remote, |
|
CFD-S47/S47Lonly) |
|
Pressthebuttonagainto |
|
resumeplayafterpause. |
gotothenexttrack |
+ |
gobacktotheprevioustrack |
= |
remove the CD |
6 CD OPEN/CLOSE |
turnon/offtheplayer |
OPERATE (or POWER, see |
|
page 2) |
Operations Basic
BasicOperations 5EN
Listening to the radio
2 1 2
1
|
|
|
– |
|
|
|
T |
|
|
|
E |
|
R |
E |
S |
P |
|
||
|
|
||
|
|
|
|
TUNE |
|
|
|
– |
|
|
|
V |
|
|
|
O |
|
||
L |
|||
|
|
– |
BAND
P |
|
|
R |
|
|
E |
|
|
S |
|
|
E |
|
|
T |
||
+ |
||
|
|
TUNE |
|
|
+ |
O |
L |
+ |
|
||
|
|
|
V |
|
|
Connect the supplied AC power cord (see page 25).
Press BAND until the band you |
Display |
want appears in the display |
|
(direct power-on). |
|
2
|
|
– |
|
|
T |
|
|
E |
|
E |
S |
|
|
|
P |
R |
|
|
|
TUNE
–
V
O
L –
BAND
P |
|
|
R |
|
|
E |
|
|
S |
|
|
E |
|
|
T |
||
+ |
||
|
|
TUNE |
|
|
+ |
O |
L |
+ |
|
||
|
|
|
V |
|
|
Hold down TUNE +/+or TUNE –/=(TUNE + or – on the remote, CFD-S47/S47L only) until the frequency digits begin to change in the display.
The player automatically scans the radio frequencies and stops when it finds a clear station.
If you can't tune in a station, press the button repeatedly to change the frequency step by step.
Indicates an FM stereo broadcast
6EN BasicOperations
Tips
•If the FM broadcast is noisy, press MONO/ST ISS•PLAY MODE until “Mono” appears in the display and the radio will play in monaural.
•Next time you want to listen to the radio, just press BAND. The player turns on automatically and starts playing the previous station.
•CFD-S47 only:
If a very strong station signal causes noise while listening to FM programs, set FM SENS at the rear to LOCAL. Normally, set it to DX.
Use these buttons for additional operations
|
MONO/ST ISS |
Basic |
|
PLAY MODE |
|
|
|
|
|
VOL + |
Operations |
|
VOL – |
|
|
|
|
|
OPERATE |
|
|
(or POWER) |
|
To |
Press |
|
adjustthevolume |
VOL +, – |
|
turnon/offtheradio |
OPERATE (or POWER, |
|
|
see page 2) |
|
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself for AM or MW/LW.
for FM |
for AM/MW/LW |
BasicOperations 7EN
Playing a tape
2 1
Connect the supplied AC power cord (see page 25).
1 |
|
|
STOP/EJECT |
Press p6to open the tape |
|||||
|
|
||||||||
|
|
|
|
|
|
|
|
|
compartment and insert a |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
recorded tape. Use TYPE I |
|
|
|
|
|
|
|
|
|
(normal) tape only. Close the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
compartment. |
With the side you want to play facing upward
2
PLAY
Press (. |
Display |
The player turns on (direct power-on) and starts playing.
8EN BasicOperations
Tip
Next time you want to listen to a tape, just press (. The player turns on automatically and starts playing the tape.

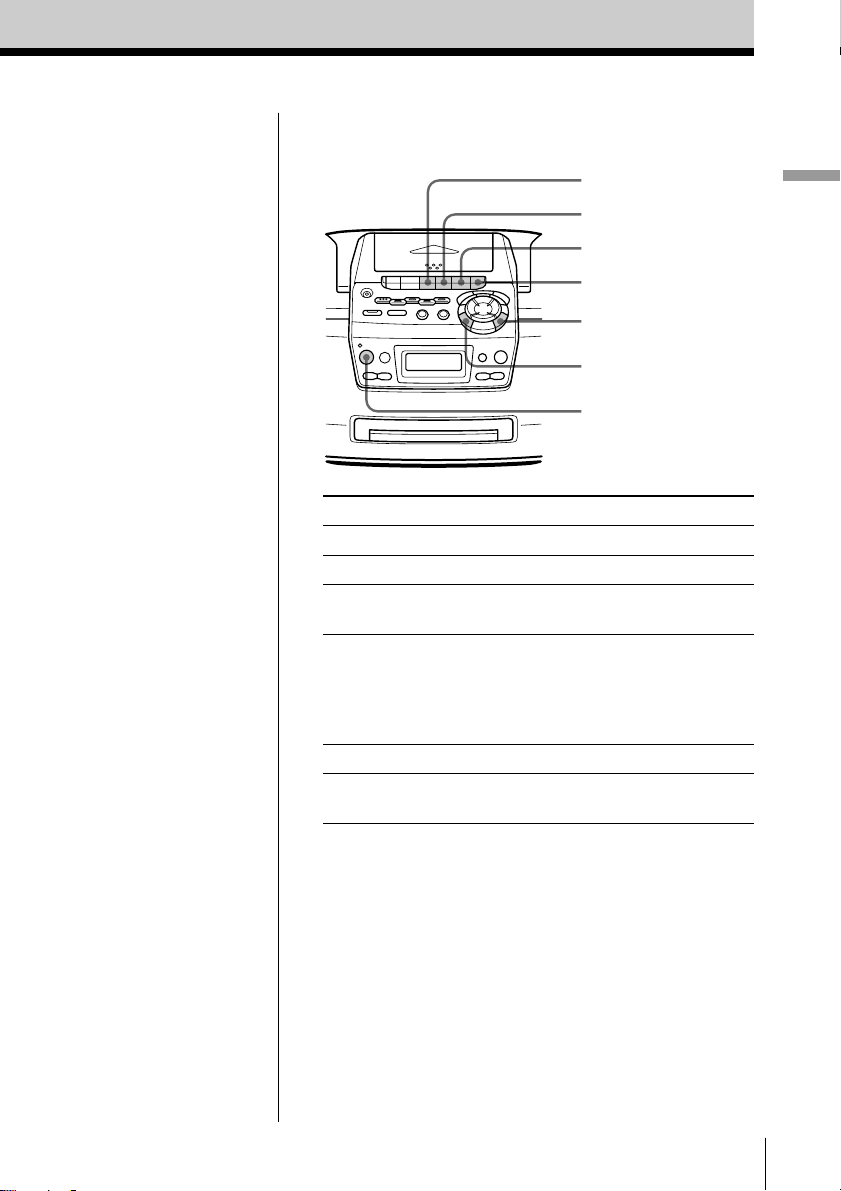

Use these buttons for additional operations
|
0 |
|
) |
|
p6 |
|
P |
|
VOL + |
|
VOL – |
|
OPERATE |
|
(or POWER) |
To |
Press |
adjustthevolume |
VOL +, – |
stopplayback |
p6 |
f ast-forwardorrewindthetape |
)or 0 |
pauseplayback |
P |
|
Pressthebuttonagainto |
|
resumeplayafterpause. |
ejectthecassette |
p6 |
turnon/offtheplayer |
OPERATE (or POWER, |
|
see page 2) |
Operations Basic
BasicOperations 9EN
Recording on a tape
3 1
Connect the supplied AC power cord (see page 25).
1 |
|
|
STOP/EJECT |
Press p6to open the tape |
||||||
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
compartment and insert a blank |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
tape. Use TYPE I (normal) tape |
|
|
|
|
|
|
|
|
|
|
only. |
|
|
|
|
|
|
|
|
|
|
|
With the side you want to record on facing upward
2 |
|
|
|
– |
BAND |
P |
|
|
|
|
|
|
|
|
R |
|
|
|
|
|
|
|
|
T |
|
E |
|
|
|
|
|
|
|
E |
|
E |
|
||
|
|
|
E |
S |
|
S |
|
|
|
|
|
R |
|
T |
|||||
|
P |
|
|
|
+ |
||||
|
|
|
|
|
|
|
|
|
|
TUNE |
|
|
|
|
|
|
|
TUNE |
|
– |
|
|
|
|
|
|
|
|
+ |
V |
|
|
|
|
|
|
+ |
||
|
|
|
|
|
|
|
|||
O |
|
|
|
|
L |
|
|||
|
L |
|
O |
|
|||||
|
|
|
– |
|
|
|
|||
|
|
|
|
|
|
V |
|
|
|
|
|
|
|
|
B ND |
|
|
|
|
|
|
|
|
– |
A |
P |
|
|
|
|
|
|
|
|
R |
|
|
|
|
|
|
|
|
T |
|
E |
|
|
|
|
|
|
|
E |
|
E |
|
|
|
|
|
E |
S |
|
S |
|
|
|
|
|
R |
|
T |
|
|||||
P |
|
|
|
+ |
|||||
|
|
|
|
|
|
|
|
|
|
TUNE |
|
|
|
|
|
|
|
|
TUNE |
– |
|
|
|
|
|
|
|
|
+ |
V |
|
|
|
|
|
|
+ |
|
|
O |
|
|
|
|
L |
|
|
||
L |
|
|
O |
|
|
||||
|
|
– |
|
|
|
|
|||
|
|
|
|
|
|
V |
|
|
|
Select the program source you |
|
want to record. |
Display |
To record from the CD player, |
|
insert a CD (see page 4) and press |
|
pon the CD section. |
|
To record from the radio, tune in |
|
the station you want (see page 6). |
|
10EN BasicOperations
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

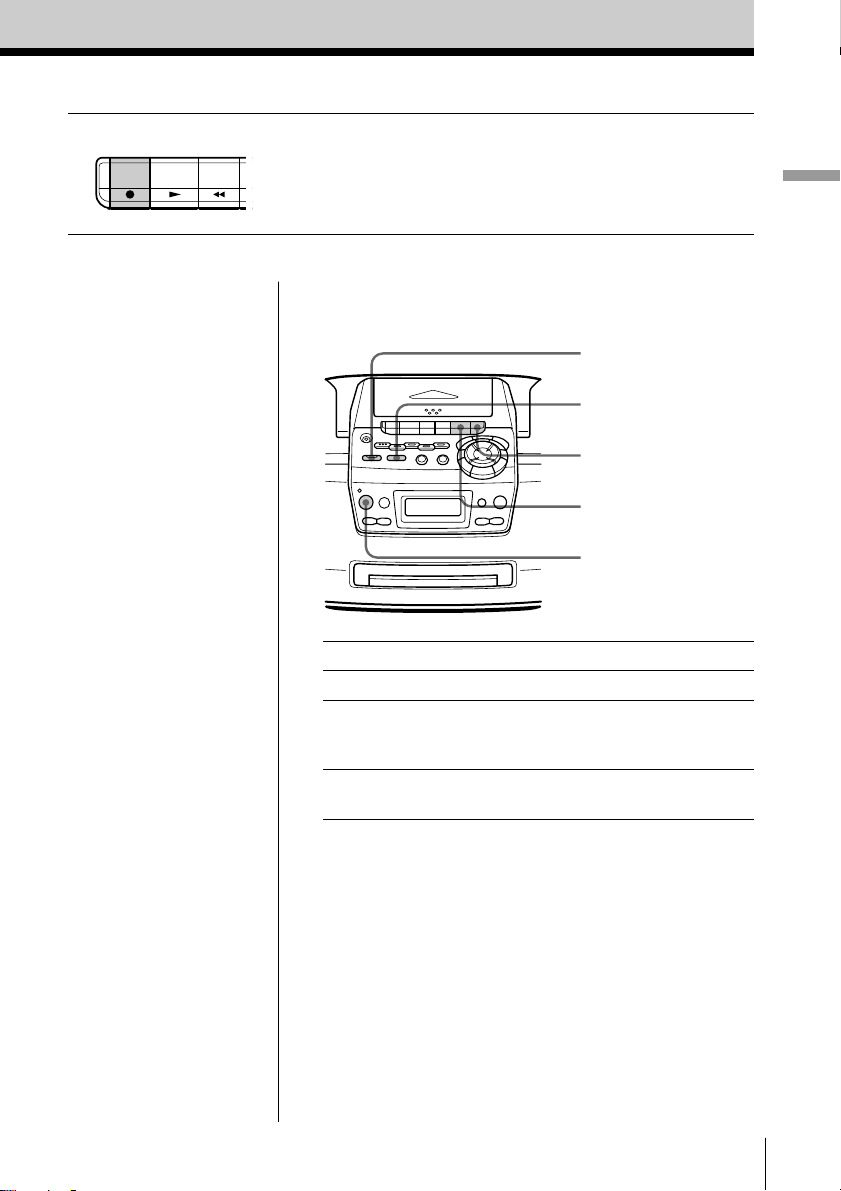

3 |
|
REC |
|
|
|
|
|
|
Press rto start recording |
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
((is depressed automatically). |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tips
•Adjusting the volume or the audio emphasis (see page 27) will not affect the recording level.
•If the AM or MW/LW program makes a whistling sound after you've pressed rin step 3, press MONO/ST ISS•PLAY MODE (Interference Suppress switch) repeatedly until the noise is at a minimum.
•For the best results, use the AC power as a power source.
•To erase a recording, proceed as follows:
1Insert the tape whose recording you want to erase.
2Press FUNCTION to select “TAPE”.
3Press r.
Use these buttons for additional operations
|
FUNCTION |
|
MONO/ST ISS |
|
PLAY MODE |
|
P |
|
p6 |
|
OPERATE |
|
(or POWER) |
To |
Press |
stoprecording |
p6 |
pauserecording |
P |
|
Pressthebuttonagainto |
|
resume recording. |
turnon/offtheplayer |
OPERATE (or POWER, see |
|
page 2) |
BasicOperations
Operations Basic
11EN
The CD Player
Using the display
You can check information about the CD using the display.
DISPLAY
ENTER MEM
Checking the total track number and playing time
Check the display in stop mode.
If the CD has more than 12 tracks, “OVER 12” appears in the display.
Total playing time
Total track number
Music calendar
Checking the remaining time
Press DISPLAY•ENTER MEM while playing a CD.
The track numbers in the music calendar disappear after they are played.
To display |
Press DISPLAY•ENTER |
|
MEM |
|
|
thecurrenttracknumber |
once |
and the remaining time |
|
onthecurrenttrack* |
|
|
|
thenumberoftracksleft |
twice |
and remaining time on the CD |
|
|
|
thecurrenttracknumber |
threetimes |
and playing time |
|
|
|
*For a track whose number is more than 20, the remaining time appears as “– –:– –”.
12EN TheCDPlayer

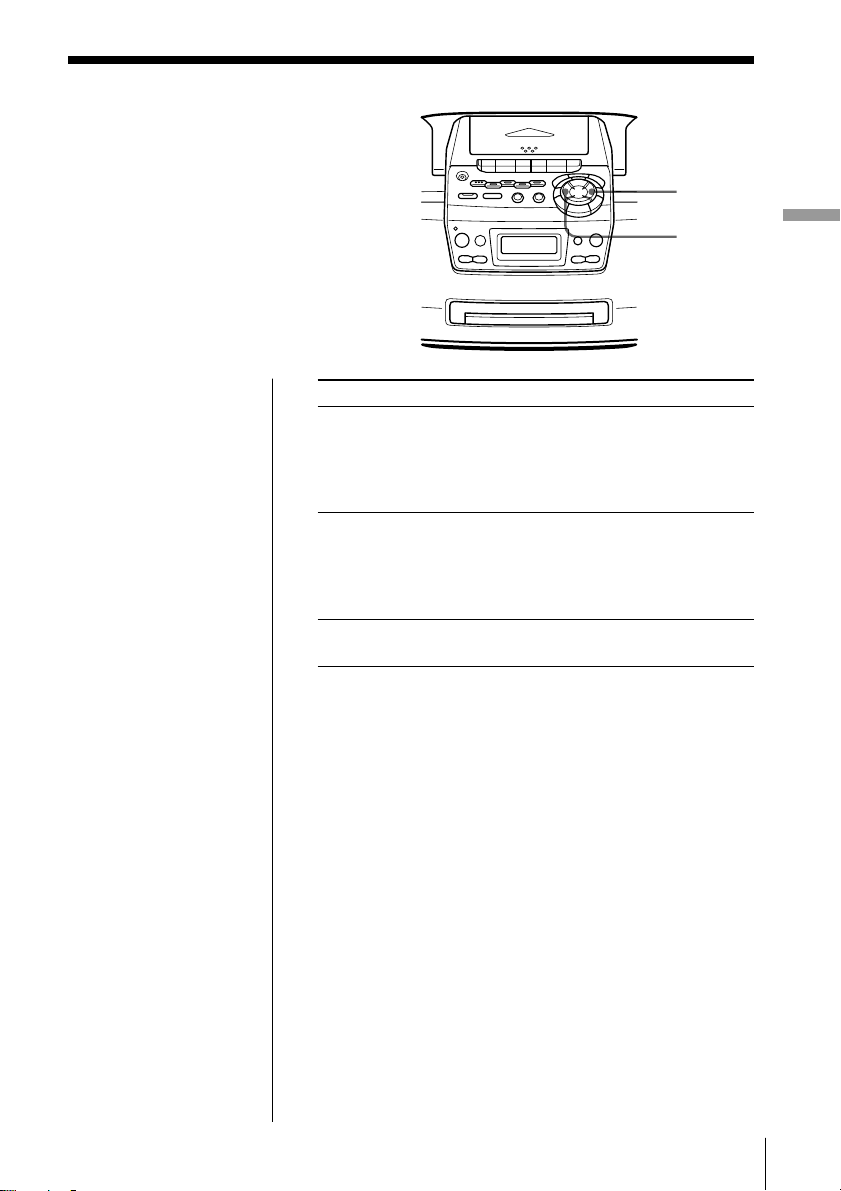

Locating a specific point in a track
You can quickly find a specific point in a |
+ |
|
|
track while playing a CD. |
= |
You can also locate any track using the |
|
number buttons on the remote |
|
(CFD-S47/S47L only). |
|
Note
CFD-S47/S47L only:
You cannot locate a specific track if “SHUF” or “PGM” is lit in the display. Turn off the indication by pressing p.
Tip
CFD-S47/S47L only:
When you locate a track numbered over 10, press >10 first, then the corresponding number buttons. Example:
To play track number 23, press >10 first, then 2 and 3.
To locate |
Press |
apointwhilelisteningto |
+(forward)or = |
the sound |
(backward)whileplaying |
|
and hold down until you |
|
find the point |
|
|
apointwhileobserving |
+(forward)or = |
thedisplay |
(backward) in pause and |
|
hold down until you find |
|
the point |
|
|
aspecifictrackdirectly |
the number button of the |
(CFD-S47/S47Lonly) |
track onthe remote |
|
|
Player CD The
TheCDPlayer 13EN

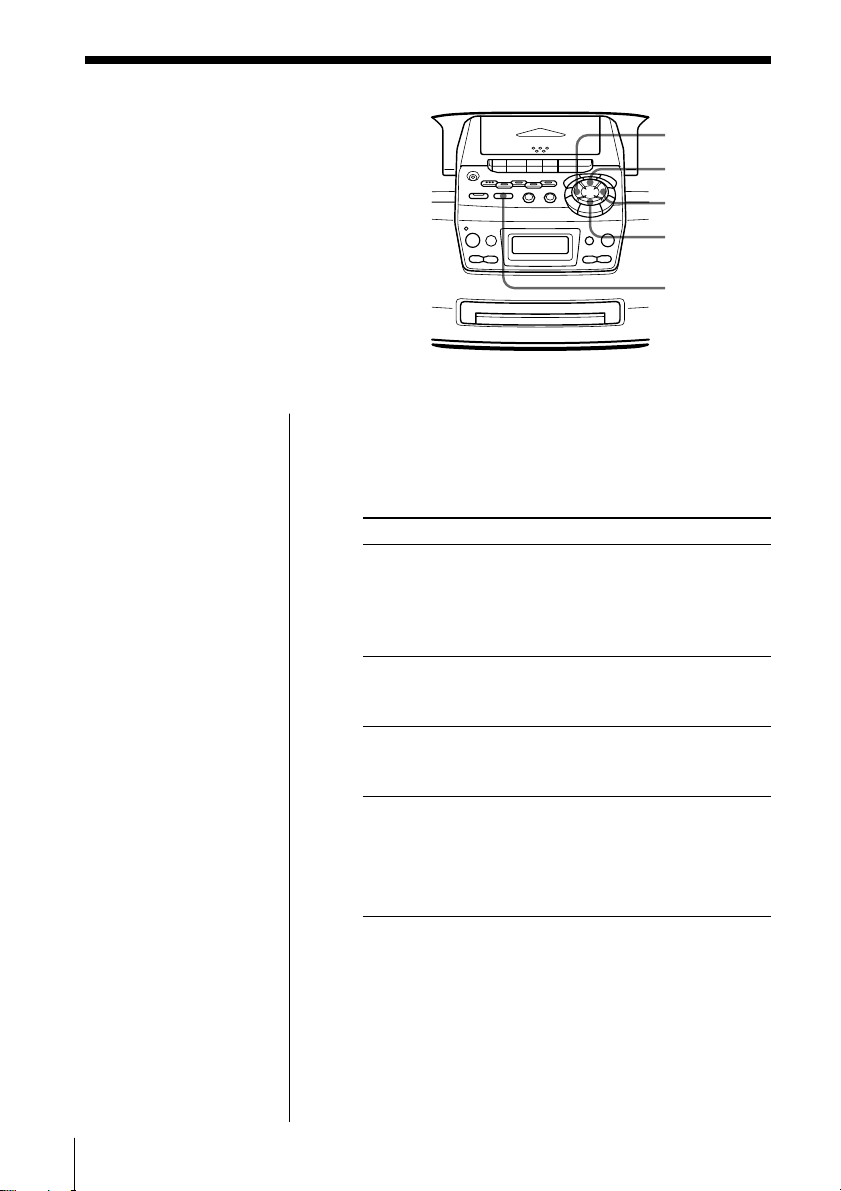

Playing tracks repeatedly
(Repeat Play)
You can play tracks repeatedly in normal, shuffle or program play modes (see page 16).
=
^
+
p
MONO/ST ISS PLAY MODE
On the remote (CFD-S47/S47L only)
1Press p.
2Press MODE until the repeat mode you want appears in the display.
3Do either of the following to start repeat play: •When you’ve
selected “REP 1”, select the track by pressing the number button.
•When you’ve selected “REP ALL” or “SHUF REP”, press (.
•When you’ve selected “PGM REP”, program tracks (see step 3 on page 16), then press (.
1 Press p.
“Cd” appears in the display.
2 Proceed as follows.
To repeat |
Do this |
|
|
|
|
asingletrack |
1 PressMONO/STISS• |
|
|
|
PLAYMODEuntil“REP |
|
|
1”appears. |
|
2 |
Press =or +toselect |
|
|
thetrackthatyouwantto |
|
|
repeat. |
|
3 |
Press ^. |
|
|
|
allthetracks |
1 PressMONO/STISS• |
|
|
|
PLAYMODEuntil“REP |
|
|
ALL”appears. |
|
2 |
Press ^. |
|
|
|
tracksinrandomorder |
1 PressMONO/STISS• |
|
|
|
PLAYMODEuntil“SHUF |
|
|
REP”appears. |
|
2 |
Press ^. |
|
|
|
programmedtracks |
1 PressMONO/STISS• |
|
|
|
PLAYMODEuntil“PGM |
|
|
REP”appears. |
|
2 Programtracks(seestep3 |
|
|
|
on page 16). |
|
3 |
Press ^. |
|
|
|
To cancel Repeat Play
Press MONO/ST ISS•PLAY MODE until “REP” disappears from the display.
14EN TheCDPlayer
Playing tracks in random order
(Shuffle Play) |
^ |
p
You can play tracks in random order.
On the remote (CFD-S47/S47L only)
1Press p.
2Press MODE repeatedly until “SHUF” appears in the display.
3Press (.
MONO/ST ISS
PLAY MODE
1 Press p.
“Cd” appears in the display.
2 Press MONO/ST ISS•PLAY MODE until “SHUF” appears in the display.
3 Press ^to start shuffle play.
To cancel Shuffle Play
Press MONO/ST ISS•PLAY MODE until “SHUF” disappears from the display.
Player CD The
TheCDPlayer 15EN
Creating your own program
(Program Play)
You can arrange the playing order of up to 20 tracks on a CD.
=
^
+
p
DISPLAY ENTER MEM
MONO/ST ISS PLAY MODE
On the remote (CFD-S47/S47L only)
1Press p.
2Press MODE until “PGM” appears in the display.
3Press the number buttons for the tracks you want to program in the order you want.
4Press (.
1 Press p.
2 Press MONO/ST ISS•PLAY MODE until “PGM” appears in the display.
3 Press the =or +then press DISPLAY• ENTER MEM for the tracks you want to program in the order you want.
Programed track
Playing order
The programed tracks appear in the music calender.
4 Press ^to start program play.
16EN TheCDPlayer
Tips
•You can play the same program again, since the program is saved until you open the CD tray.
•You can record your own program. After you’ve created the program, insert a blank tape and press rto start recording.
To cancel Program Play
Press MONO/ST ISS•PLAY MODE until “PGM” disappears from the display.
To check the order of tracks before play
Press DISPLAY•ENTER MEM.
Every time you press the button, the track number appears in the programed order.
To change the current program
Press ponce if the CD is stopped and twice if the CD is playing. The current program will be erased. Then create a new program following the programing procedure.
Player CD The
TheCDPlayer 17EN
Enjoying sound
effects (LOOP/FLASH) LOOP
FLASH
You can repeat part of a CD (LOOP) and can “flash” the CD sound (FLASH) during playback.
1
2
Play a CD.
Press and hold LOOP or FLASH at the point you want to start the function.
To |
Press and hold |
|
|
repeataselectedpartofaCD |
LOOP |
|
|
“flash”theCDsound |
FLASH |
|
|
To cancel the LOOP or FLASH function
Release the button.
The player returns to normal play.
18EN TheCDPlayer
The Radio

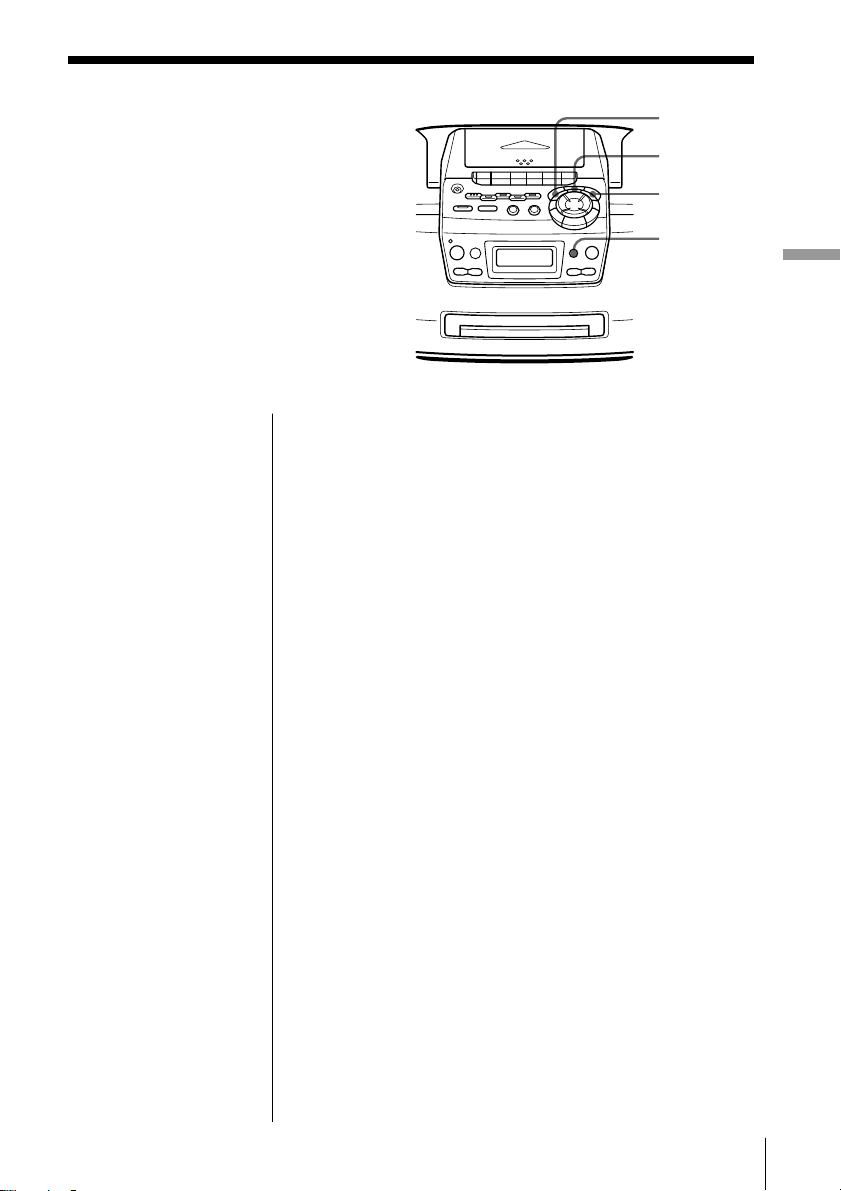

Presetting radio stations
You can store radio stations into the player’s memory. You can preset up to 30 radio stations (CFD-S45L/S47L) or 20 radio stations (CFD-S47), 10 for each band in any order.
PRESET –
BAND
PRESET +
DISPLAY
ENTER MEM
On the remote (CFD-S47/S47L only)
1Press BAND to select the band.
2Set the frequency to the station you want.
3Hold down the number buttons that you want to preset the new station on for 2 seconds.
The frequency digits flash in the display and the station is stored into the player’s memory.
1 Press BAND until the band you want appears in the display.
2 Set the frequency to the station you want.
3 Hold down DISPLAY•ENTER MEM for 2 seconds.
4 Press PRESET + or – until the preset number (1 to 10) you want for the station flashes in the music calender.
5 Press DISPLAY• ENTER MEM again.
The new station replaces the old one.
Radio The
TheRadio 19EN
Playing preset radio stations
Once you've preset the stations, use the number buttons on the remote or PRESET +/– on the player to tune in to your favorite stations.
PRESET –
BAND
PRESET +
On the remote (CFD-S47/S47L only)
1Press BAND to select the band.
2Press the number buttons to tune in the stored station.
1 Press BAND to select the band.
2 Press PRESET + or – to tune in the stored station.
20EN TheRadio
The Timer
Setting the clock
“--:--” indication appears in the display until you set the clock.
TUNE –/=
TUNE +/+
DISPLAY ENTER MEM
CLOCK
Tip
The time display system:
24-hour system

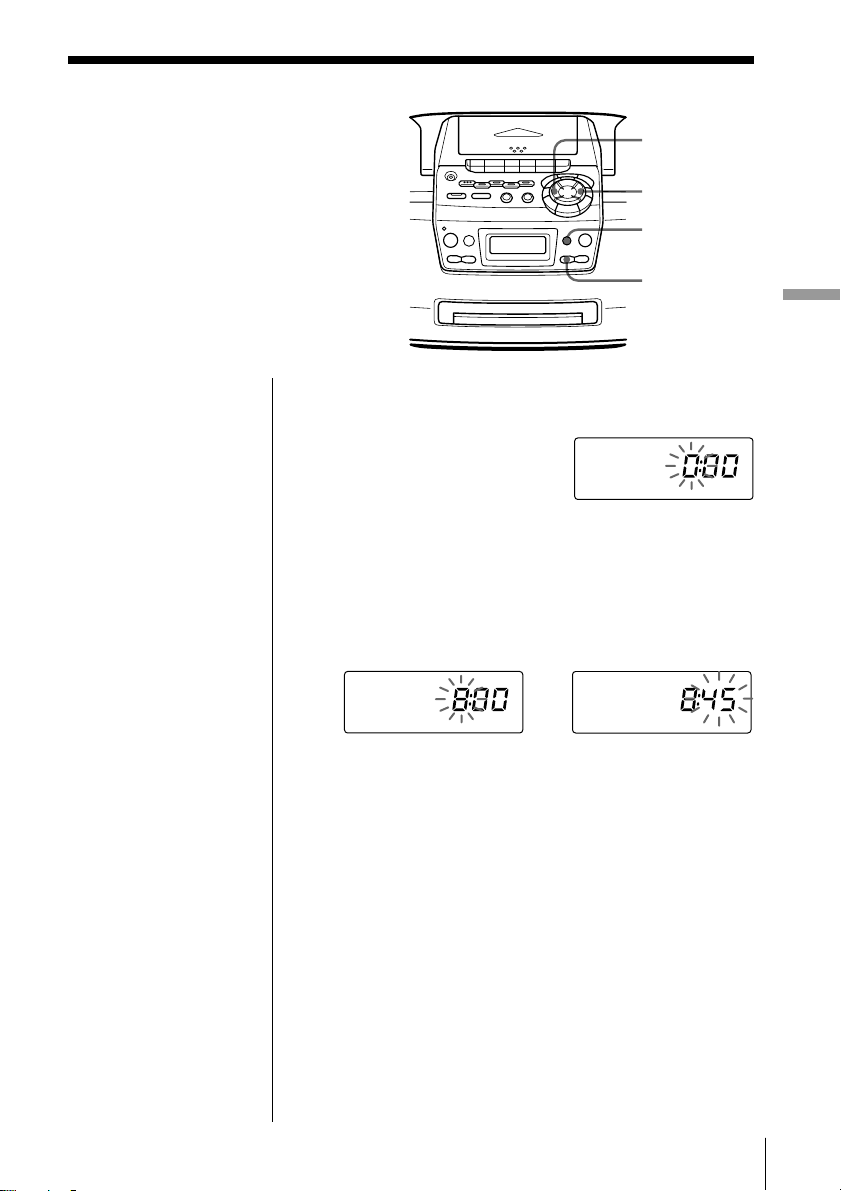

1 Press CLOCK for 2 seconds until the hour digit flashes.
2 Press TUNE +/+or TUNE –/=until you set the current hour. Then press DISPLAY•ENTER MEM.
The minute digits flash. Set the minutes by pressing TUNE +/+or TUNE –/=until the correct minute is displayed.
/
3 Press DISPLAY•ENTER MEM.
The clock starts from 00 seconds.
Timer The
TheTimer 21EN
