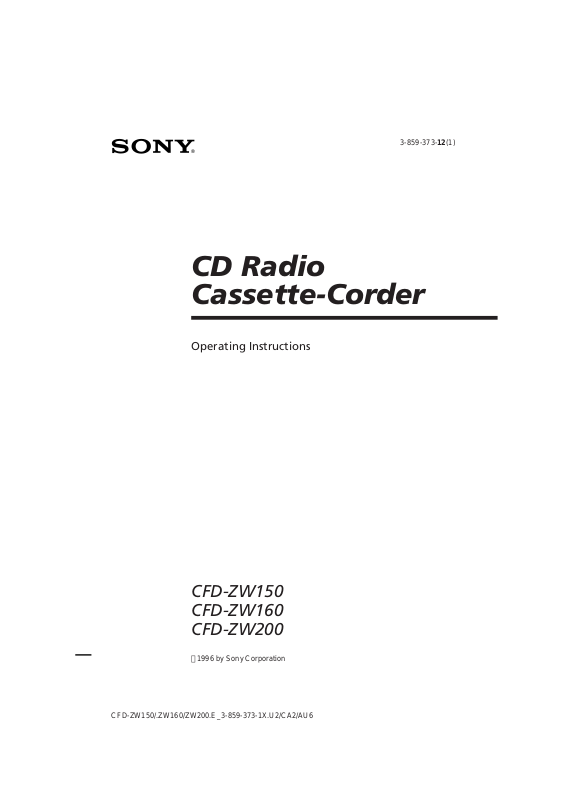

3-859-373-12(1)
CD Radio
Cassette-Corder
Operating Instructions
CFD-ZW150
CFD-ZW160
CFD-ZW200
ã1996 by Sony Corporation
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Warning
To prevent fire or shock hazard, do not expose the player to rain or moisture.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
The use of optical instruments with this product will increase eye hazard.
Warning
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
For customers in Canada
To prevent electric shock, match wide blade of plug to wide slot, fully insert.
2 Introduction
Information
For customers in the United States
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Owner's Record
The model and serial numbers are located at the rear of the CD radio cassette-corder. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. _______________________
Serial No. ________________________
About This Manual
The instructions in this manual are for the CFD-ZW150, CFD-ZW160 and CFDZW200. Before you start reading, check your model number. The CFD-ZW160 is the model used for illustration purposes.
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Table of contents
Basic Operations
4 Playing a CD
6 Listening to the radio
8 Playing a tape
10 Recording on a tape
The CD Player
12Using the display
13Locating a specific track
14Playing tracks repeatedly (Repeat Play)
15Creating your own program (Program Play)
The Timer
16Setting the clock
17Waking up to music
19 Falling asleep to music
Setting Up
20 Hooking up the system
23Adjusting the audio emphasis (MEGA BASS/4 BAND GRAPHIC EQUALIZER/ SURROUND)
|
Additional Information |
25 |
Precautions |
27 |
Troubleshooting |
29Maintenance
30Specifications
31Index
Operations Basic
Introduction 3
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Basic Operations
Playing a CD
3 1,2
For hookup instructions, see pages 20 – 22.
1 |
Push PUSH OPEN down to open |
|
the CD compartment and place |
|
the CD on the CD compartment. |
With the label side up
2 |
Close the lid of the CD |
|
|
compartment. |
|
3 |
Press ^ (direct power-on). |
Display |
The player plays all the tracks once.
Track number Playing time
4 Basic Operations
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Tip
Next time you want to listen to a CD, just press ^. The player turns on automatically and starts playing the CD.
Use these buttons for additional operations
POWER |
PUSH OPEN |
|
VOLUME +/– |
Basic |
|
p |
Operations |
|
^ |
|
|
AMS/SEARCH |
|
|
=/+ |
|
To |
Press |
|
Adjust the volume |
VOLUME +/– |
|
Stop playback |
p |
|
Pause playback |
^ |
|
|
Press again to resume play |
|
|
after pause. |
|
Go to the next track |
AMS/SEARCH+ |
|
Go back to the previous track |
AMS/SEARCH= |
|
Remove the CD |
PUSH OPEN |
|
Turn on/off the player |
POWER |
|
Basic Operations |
|
5 |
|
||
|
|
|
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Listening to the radio
1 2 3
1
2
For hookup instructions, see pages 20 – 22.
Display
Press RADIO (direct power-on).
Turn BAND to select the band you want.
3 |
Turn TUNING to tune in the |
|
station you want. |
6 Basic Operations
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Tips
•If the FM broadcast is noisy, set FM MODE/ ISS at the rear to “MONO”. Radio will play in monaural.
•Next time you want to listen to the radio, just press the RADIO button. The player turns on automatically and starts playing the previous station.
Use these buttons for additional operations
POWER |
VOLUME +/– |
|
|
Operations Basic
To |
Press |
|
|
Adjust the volume |
VOLUME +/– |
|
|
Turn on/off the radio |
POWER |
|
|
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself for AM.
for FM |
for AM |
Basic Operations |
|
7 |
|
||
|
|
|
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Playing a tape
3 |
1 |
2 |
3 |
2 |
For hookup instructions, see pages 20 – 22.
1 |
Press TAPE (direct power-on). |
2 |
Press p6to open tape |
|
compartment and insert a |
|
recorded tape. Close the |
|
compartment. |
With the side you want to play facing forward
3 |
Press (. |
|
The player starts playing. |
8 Basic Operations
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Note
During playback, do not press buttons on the other deck. Otherwise the playback speed may change.
Tip
For the best results, use TYPE I (normal) tape.
Use these buttons for additional operations
POWER VOLUME +/–
|
|
Basic |
|
0/) |
Operations |
|
|
|
|
p6 |
|
|
P |
|
|
0/) |
|
|
p6 |
|
|
P |
|
To |
Press or slide |
|
Adjust the volume |
VOLUME +/– |
|
Stop playback |
p6 |
|
Fast-forward or rewind the tape |
)or 0 |
|
Pause playback |
P |
|
|
Press the button again to |
|
|
resume play after pause. |
|
Play the opposite side of the |
DIR in the direction of |
|
tape |
the arrow. The Ó or Òin |
|
(CFD-ZW200 deck A only) |
the display indicates the |
|
|
tape direction of deck A. |
|
Eject the cassette |
p6 |
|
Turn on/off the player |
POWER |
|
To select the direction of the tape (CFD-ZW200 |
|
|
deck A only) |
|
|
To play |
Switch DIRECTION |
|
|
MODE to |
|
Both sides of the tape repeatedly |
§ |
|
Both sides of the tape |
ê |
|
from the front side to reverse |
|
|
side only* |
|
|
*If play begins from the reverse side, the tape stops at the end of that side.
Basic Operations |
|
9 |
|
||
|
|
|
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
Recording on a tape
3 |
1 |
For hookup instructions, see pages 20 – 22.
1 |
Press p6to open the tape |
|
|
compartment on deck B and |
|
|
insert a blank tape. |
|
|
With the side you want to |
|
|
record on facing forward |
|
2 |
Select the program source you |
|
|
want to record. |
Display |
|
|
|
To record from the CD player, insert a CD (see page 4) and press CD.
To record from the radio, press RADIO and tune in the station you want using TUNING (see page 6.)
To record from a tape, press TAPE, insert a recorded tape into deck A and press Pand (on deck A.
10 Basic Operations
CFD-ZW150/.ZW160/ZW200.E_3-859-373-1X.U2/CA2/AU6
