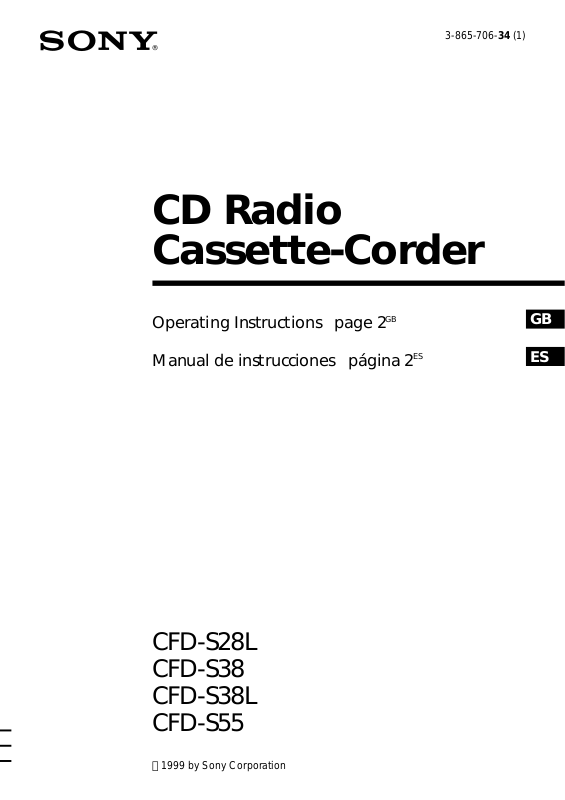

3-865-706-34 (1)
CD Radio
Cassette-Corder
Operating Instructions |
page 2GB |
GB |
|
|
|
Manual de instrucciones |
página 2ES |
ES |
CFD-S28L
CFD-S38
CFD-S38L
CFD-S55
1999 by Sony Corporation
Warning
To prevent fire or shock hazard, do not expose the player to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Information
For customers in Europe
This Compact Disc player is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT label is located on the bottom exterior.
Warning
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the appliance.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, same rating fuse approved by ASTA or BSI to BS 1362, (i.e. marked with or mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
2GB Introduction
About this manual
The instructions in this manual are for the CFD-S28L, CFD-S38, CFD-S38L and CFD-S55. Before you start reading, check your model number. The CFD-S38L is the model used for illustration purpose.
Note
The name of the switch to turn on/off this player is indicated as below: “OPERATE”: CFD-S28L/S38L “POWER”: CFD-S38/S55
|
|
|
|
|
|
|
|
Basic Operations |
|
|
|
Basic |
|
|
|
|
|
|
||
4 |
Playing a CD |
|
|
|
Operations |
|
10 Recording on a tape |
|
|
|
|||
6 |
Listening to the radio |
|
|
|
|
|
8 |
Playing a tape |
|
|
|
|
|
|
|
|
|
|
||
|
The CD Player |
|
The Timer |
|||
12 |
Using the display |
21 |
Setting the clock |
|
||
GB |
||||||
13 |
Locating a specific point in a |
22 |
Waking up to music |
|||
|
||||||
|
track |
24 Falling asleep to music |
||||
14 |
Playing tracks repeatedly |
|||||
|
|
|
|
|||
|
(Repeat Play) |
|
Setting Up |
|||
15 |
Playing tracks in random order |
|
||||
25 |
Choosing the power sources |
|||||
|
(Shuffle Play) |
|||||
16 |
Creating your own program |
27 |
Selecting the audio emphasis |
|||
|
(Program Play) |
|
(SOUND/MEGA BASS) |
|||
18 |
Enjoying sound effects (LOOP/ |
|
|
|
|
|
|
FLASH) |
|
Additional Information |
|||
|
The Radio |
28 |
Precautions |
|||
|
30 |
Troubleshooting |
||||
19 |
Presetting radio stations |
32 |
Maintenance |
|||
20 |
Playing preset radio stations |
33 |
Specifications |
|||
|
|
34 |
Index |
Introduction 3GB
Basic Operations
3 |
1, 2 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Connect the supplied AC power cord (see page 25). |
1 |
Press 6PUSH OPEN/CLOSE |
|
down to open the CD |
PUSH |
compartment and place the CD |
OPEN/CLOSE |
on the CD compartment. |
|
With the label side up
2 |
Close the lid of the CD |
|
compartment. |
PUSH
OPEN/CLOSE
3
CD
Press |
^ |
. |
Display |
|
|
The player turns on (direct power-on) and plays all the tracks once.
Track number Playing time
4GB |
|
Basic Operations |
|
||
|
|
|
Tip
Next time you want to listen to a CD, just press ^. The player turns on automatically and starts playing the CD.
Use these buttons for additional operations
|
OPERATE |
|
(or POWER) |
|
6PUSH OPEN/CLOSE |
|
^ |
|
VOLUME +, – |
|
p |
|
=, + |
To |
Press |
adjust the volume |
VOLUME +, – (VOL +, – |
|
on the remote, CFD-S38/ |
|
S38L/S55 only) |
stop playback |
p |
pause playback |
^(Pon the remote, |
|
CFD-S38/S38L/S55 only) |
|
Press the button again to |
|
resume play after pause. |
go to the next track |
+ |
go back to the previous track |
= |
remove the CD |
6PUSH OPEN/CLOSE |
turn on/off the player |
OPERATE (or POWER, see |
|
page 2) |
Operations Basic
Basic Operations |
|
5GB |
|
||
|
|
|
1 2
Connect the supplied AC power cord (see page 25).
1
PRESET
RADIO BAND
Press RADIO BAND until the |
Display |
band you want appears in the |
|
display (direct power-on). |
|
2
TIME
SET
TUNE
Hold down TIME SET•TUNE + or – (TUNE + or – on the
remote, CFD-S38/S38L/S55 only) until the frequency digits begin to change in the display.
The player automatically scans the radio frequencies and stops when it finds a clear station.
If you can't tune in a station, press the button repeatedly to change the frequency step by step.
Indicates an FM stereo broadcast
6GB |
|
Basic Operations |
|
||
|
|
|
Tips
•If the FM broadcast is noisy, press PLAY MODE •MONO/ST ISS until “Mono” appears in the display and the radio will play in monaural.
•Next time you want to listen to the radio, just press RADIO BAND.
The player turns on automatically and starts playing the previous station.
Use these buttons for additional operations
|
OPERATE |
Basic |
|
|
|
|
(or POWER) |
Operations |
|
VOLUME +, – |
|
|
|
|
|
PLAY MODE |
|
|
MONO/ST ISS |
|
To |
Press |
|
adjust the volume |
VOLUME +, – (VOL +, – |
|
|
on the remote, CFD-S38/ |
|
|
S38L/S55 only) |
|
turn on/off the radio |
OPERATE (or POWER, |
|
|
see page 2) |
|
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself for AM or MW/LW.
for FM |
for AM/MW/LW |
Basic Operations |
|
7GB |
|
||
|
|
|
2 1
Connect the supplied AC power cord (see page 25).
1 |
|
|
STOP/EJECT |
|
|
|
Press p6to open the tape |
|||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
compartment and insert a |
|
|
|
|
|
|
|
|
|
|
recorded tape. Use TYPE I |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(normal) tape only. Close the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
compartment. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
With the side you want to play facing upward
2 PLAY
Press (. |
Display |
The player turns on (direct power-on) and starts playing.
8GB |
|
Basic Operations |
|
||
|
|
|
Tip
Next time you want to listen to a tape, just press (. The player turns on automatically and starts playing the tape.
Use these buttons for additional operations
0
)
p6
P
VOLUME +, –
OPERATE
(or POWER)
To |
Press |
|
|
adjust the volume |
VOLUME +, – (VOL +, – |
|
on the remote, CFD-S38/ |
|
S38L/S55 only) |
|
|
stop playback |
p6 |
|
|
fast-forward or rewind the tape |
)or 0 |
|
|
pause playback |
P |
|
Press the button again to |
|
resume play after pause. |
|
|
eject the cassette |
p6 |
|
|
turn on/off the player |
OPERATE (or POWER, |
|
see page 2) |
|
|
Operations Basic
Basic Operations |
|
9GB |
|
||
|
|
|
3 1
Connect the supplied AC power cord (see page 25).
1 |
|
|
STOP/EJECT |
|
|
|
|
|
Press p6to open the tape |
||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
compartment and insert a blank |
|
|
|
|
|
|
|
|
|
|
|
|
|
tape. Use TYPE I (normal) tape |
|
|
|
|
|
|
|
|
|
|
|
|
|
only. |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
With the side you want to record on facing upward
2
CD
|
|
|
Select the program source you |
|
|
|
|
want to record. |
Display |
|
|
|
To record from the CD player, |
|
|
|
|
|
|
|
|
|
insert a CD (see page 4) and press |
|
|
|
|
pon the CD section. |
|
PRESET
RADIO BAND
To record from the radio, tune in the station you want (see page 6).
10GB Basic Operations
|
|
|
|
|
|
|
|
|
|
3 REC |
Press rto start recording |
|
|
((is depressed automatically). |
Tips
•Adjusting the volume or the audio emphasis (see page 27) will not affect the recording level.
•CFD-S28L/S38L only: If the MW/LW program makes a whistling sound after you've pressed rin step 3, press PLAY MODE• MONO/ST ISS (Interference Suppress switch) repeatedly until the noise is at a minimum.
•For the best results, use the AC power as a power source.
•To erase a recording, proceed as follows:
1Insert the tape whose recording you want to erase.
2Press FUNCTION to select “TAPE”.
3Press r.
Use these buttons for additional operations
|
p6 |
|
P |
|
OPERATE |
|
(or POWER) |
|
FUNCTION |
|
PLAY MODE |
|
MONO/ST ISS |
To |
Press |
stop recording |
p6 |
pause recording |
P |
|
Press the button again to |
|
resume recording. |
turn on/off the player |
OPERATE (or POWER, see |
|
page 2) |
Basic Operations
Operations Basic
11GB
The CD Player
You can check information about the
CD using the display.
DISPLAY ENT
MEMORY
Checking the total track number and playing time
Press DISPLAY ENT•MEMORY in stop mode.
If the CD has more than 12 tracks, “OVER 12” appears in the display.
Total playing time
Total track number
Music calendar
Checking the remaining time
Press DISPLAY•ENT MEMORY while playing a CD.
The track numbers in the music calendar disappear after they are played.
To display |
Press DISPLAY ENT• |
|
MEMORY |
|
|
the current track number |
once |
and the remaining time |
|
on the current track* |
|
|
|
the number of tracks left |
twice |
and remaining time on the CD |
|
|
|
the current track number |
three times |
and playing time |
|
|
|
*For a track whose number is more than 20, the remaining time appears as “- -:- -”.
12GB The CD Player
Locating a specific |
|
|
point in a track |
|
|
You can quickly find a specific point in |
|
|
a track while playing a CD. |
|
|
You can also locate any track using the |
|
|
number buttons on the remote |
=, + |
|
(CFD-S38/S38L/S55 only). |
||
|
Note
CFD-S38/S38L/S55 only:
You cannot locate a specific track if “SHUF” or “PGM” is lit in the display. Turn off the indication by pressing p.
Tip
CFD-S38/S38L/S55 only:
When you locate a track numbered over 10, press >10 first, then the corresponding number buttons. Example:
To play track number 23, press >10 first, then 2 and 3.
To locate |
Press |
|
|
a point while listening to |
+(forward) or = |
the sound |
(backward) while playing |
|
and hold down until you |
|
find the point |
|
|
a point while observing |
+(forward) or = |
the display |
(backward) in pause and |
|
hold down until you find |
|
the point |
|
|
a specific track directly |
the number button of the |
(CFD-S38/S38L/S55 only) |
track on the remote |
|
|
Player CD The
The CD Player 13GB
Playing tracks repeatedly
(Repeat Play)
PLAY MODE MONO/ST ISS
^
You can play tracks repeatedly in |
p |
||||
normal, shuffle or program play modes |
|||||
|
|||||
(see page 16). |
|
|
=, + |
||
|
|
|
|
||
On the remote |
1 Press p. |
|
|||
(CFD-S38/S38L/S55 only) |
|
||||
|
“Cd” appears in the display. |
||||
1 |
Press p. |
|
|||
2 Press MODE until |
2 Proceed as follows. |
|
|||
|
the repeat mode you |
|
|
|
|
|
want appears in the |
|
To repeat |
Do this |
|
|
display. |
|
|
|
|
|
|
a single track |
1 Press PLAY MODE• |
||
3 |
Do either of the |
|
|||
|
|
MONO/ST ISS until “REP |
|||
|
following to start |
|
|
||
|
|
|
1” appears. |
||
|
repeat play: |
|
|
||
|
•When you’ve |
|
|
2 Press =or +to select |
|
|
selected “REP 1”, |
|
|
the track that you want to |
|
|
select the track by |
|
|
repeat. |
|
|
pressing the |
|
|
3 Press ^. |
|
|
number button. |
|
|
||
|
|
|
|
||
|
|
all the tracks |
1 Press PLAY MODE• |
||
|
•When you’ve |
|
|||
|
|
|
MONO/ST ISS until “REP |
||
|
selected “REP |
|
|
||
|
ALL” or “SHUF |
|
|
ALL” appears. |
|
|
REP”, press (. |
|
|
2 Press ^. |
|
|
•When you’ve |
|
|
|
|
|
|
tracks in random order |
1 Press PLAY MODE• |
||
|
selected “PGM |
|
|||
|
|
|
MONO/ST ISS until |
||
|
REP”, program |
|
|
||
|
|
|
“SHUF REP” appears. |
||
|
tracks (see step 3 |
|
|
||
|
on page 16), then |
|
|
2 Press ^. |
|
|
press (. |
|
|
|
|
|
|
programmed tracks |
1 Press PLAY MODE• |
||
|
|
|
|||
|
|
|
|
MONO/ST ISS until |
|
|
|
|
|
“PGM REP” appears. |
|
|
|
|
|
2 Program tracks (see step 3 |
|
|
|
|
|
on page 16). |
|
|
|
|
|
3 Press ^. |
|
|
|
|
|
|
To cancel Repeat Play
Press PLAY MODE•MONO/ST ISS until “REP” disappears from the display.
14GB The CD Player
Playing tracks in |
|
random order |
|
(Shuffle Play) |
PLAY MODE |
|
MONO/ST ISS |
You can play tracks in random order. |
^ |
|
p |
On the remote (CFD-S38/S38L/S55 only)
1Press p.
2Press MODE until “SHUF” appears in the display.
3Press (.
1 Press p.
“Cd” appears in the display.
2 Press PLAY MODE•MONO/ST ISS until “SHUF” appears in the display.
3 Press ^to start shuffle play.
To cancel Shuffle Play
Press PLAY MODE•MONO/ST ISS until “SHUF” disappears from the display.
Player CD The
The CD Player 15GB
Creating your |
|
|
own program |
PLAY MODE |
|
(Program Play) |
MONO/ST ISS |
|
|
||
|
DISPLAY ENT |
|
|
MEMORY |
|
You can arrange the playing order of |
||
up to 20 tracks on a CD. |
=, + |
|
|
||
|
p |
|
|
^ |
|
On the remote |
1 Press p. |
|
(CFD-S38/S38L/S55 only) |
||
“Cd” appears in the display. |
||
1 Press p. |
||
2 Press MODE until |
2 Press PLAY MODE•MONO/ST ISS until “PGM” |
|
“PGM” appears in |
appears in the display. |
|
the display. |
||
3 Press the =or +then press DISPLAY ENT• |
||
3 Press the number |
||
buttons for the tracks |
MEMORY for the tracks you want to program in |
|
you want to program |
the order you want. |
|
in the order you |
||
|
||
want. |
|
|
4 Press (. |
|
|
|
Programed track |
|
|
Playing order |
|
|
The programed tracks appear in the music |
|
|
calender. |
4 Press ^to start program play.
16GB The CD Player
Tips
•You can play the same program again, since the program is saved until you open the CD compartment.
•You can record your own program. After you’ve created the program, insert a blank tape and press rto start recording.
To cancel Program Play
Press PLAY MODE•MONO/ST ISS until “PGM” disappears from the display.
To check the order of tracks before play
Press DISPLAY ENT• MEMORY.
Every time you press the button, the track number appears in the programed order.
To change the current program
Press ponce if the CD is stopped and twice if the CD is playing. The current program will be erased. Then create a new program following the programing procedure.
Player CD The
The CD Player 17GB
Enjoying sound
effects (LOOP/FLASH)
You can repeat part of a CD (LOOP) |
LOOP |
and can “flash” the CD sound (FLASH) |
AUTO PRESET |
during playback. |
|
1
2
FLASH
Play a CD.
Press and hold LOOP•AUTO PRESET or FLASH at the point you want to start the function.
To |
Press and hold |
|
|
repeat a selected part of a CD |
LOOP• |
|
AUTO PRESET |
|
|
“flash” the CD sound |
FLASH |
|
|
To cancel the LOOP or FLASH function
Release the button.
The player returns to normal play.
18GB The CD Player
The Radio
You can store radio stations into the player’s memory. You can preset up to 30 radio stations (CFD-S28L/S38L) or 20 radio stations (CFD-S38/S55), 10 for each band in any order.
RADIO BAND
DISPLAY ENT MEMORY
LOOP
AUTO PRESET
PRESET +, –
On the remote (CFD-S38/S38L/S55 only)
1Press BAND until the band you want appears in the display.
2Tune in a station you want.
3Hold down the number buttons that you want to preset the new station on for 2 seconds.
1 Press RADIO BAND until the band you want appears in the display.
2 Hold down LOOP•AUTO PRESET for 2 seconds until “AUTO” appears in the display.
The stations are stored in memory from the lower frequencies to the higher ones.
If a station cannot be preset automatically
You need to preset a station with a weak signal manually.
1Press RADIO BAND to select the band.
2Tune in a station you want.
3Hold down DISPLAY ENT•MEMORY for 2 seconds.
4Press PRESET + or – until the preset number (1 to 10) you want for the station flashes in the music calender.
5Press DISPLAY ENT•MEMORY. The new station replaces the old one.
Radio The
TheRadio 19GB
Once you've preset the stations, use the |
RADIO BAND |
number buttons on the remote or |
|
PRESET +/– on the player to tune in to |
|
your favorite stations. |
|
|
PRESET +, – |
On the remote (CFD-S38/S38L/S55 only)
1Press BAND to select the band.
2Press the number buttons to tune in the stored station.
1 Press RADIO BAND to select the band.
2 Press PRESET + or – to tune in the stored station.
20GB TheRadio
The Timer
“- -:- -” indication appears in the display until you set the clock.
CLOCK
DISPLAY ENT MEMORY
TIME SET
TUNE +, –
Tip
The time display system:
24-hour system
Before you set the clock, connect the power source (see page 24).
1 Press CLOCK for 2 seconds until the hour digit flashes.
2 Press TIME SET•TUNE + or – until you set the current hour. Then press DISPLAY ENT• MEMORY.
The minute digits flash. Set the minutes by pressing TIME SET•TUNE + or – until the correct minute is displayed.
/
3 Press DISPLAY ENT•MEMORY.
The clock starts from 00 seconds.
Timer The
TheTimer 21GB
