Operating Instructi on s
Bedienungsanleitung
Mode d’emploi
Istruzioni per l’uso
Gebruiksaanwijzing
Wichtig!
Bitte nehmen Sie sich etwas Zeit, um den Geräte-Pass vollständig
auszufüllen. Dieser befindet sich auf der hinteren Umschlagseite dieser
Bedienungsanleitung.
Si dichiara che l’apparecchio è stato fabbricato in conformità all’art. 2, Comma l del D.M. 28.08.
1995 n. 548.
For installation and connections, see the supplied installation/connections manual.
Zur Installation und zum Anschluss siehe die mitgelieferte Installations-/Anschlussanleitung.
En ce qui concerne l’installation et les connexions, consulter le manuel d’installation/
raccordement fourni.
Per l’installazione e i collegamenti, fare riferimento al manuale di istruzioni per
l’installazione e i collegamenti in dotazione.
Zie voor het monteren en aansluiten van het apparaat de bijgeleverde handleiding "Installatie
en aansluitingen".
Thank you for purchas in g t hi s Sony Compact
Disc Player. You can enjoy your drive with the
following functions .
• CD playback
You can play CD-DA (also containing CD
TEXT*), CD-R/CD-RW (MP3 files also
containing Multi Session (
ATRAC CD (ATRAC3 and ATRAC3plus
format (
page 15)).

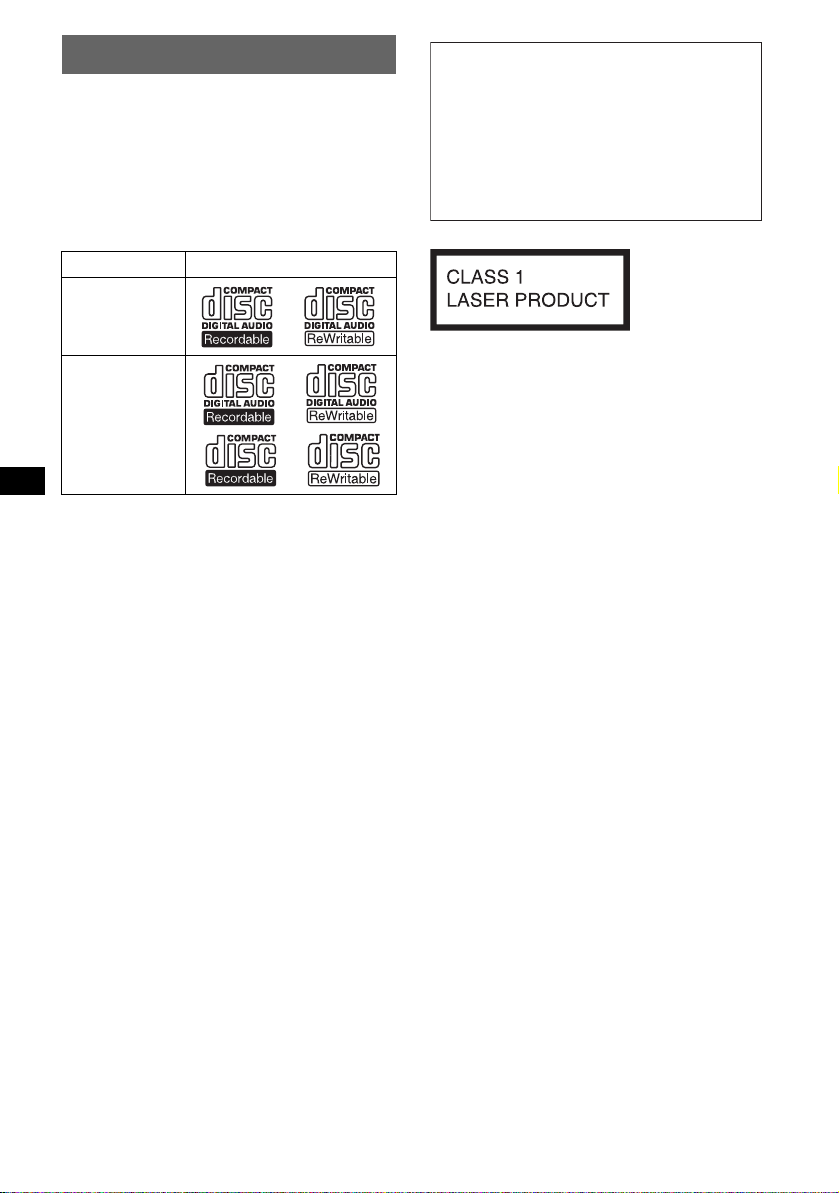

Type of dis c sLabel on the disc
page 14)) and
Warning if your car’s ignition has no
ACC position
After turning the ignition off, be sure to press
and hold (OFF) on the unit until the display
disappears.
Otherwise, the display does not turn off and
this causes battery drain.
CD-DA
MP3
AT RAC CD
• Radio reception
–You can store up to 6 stations per band (FM1,
FM2, FM3, MW and LW).
–BTM (Best Tuning Memory) function: the
unit selects strong sig nal stations and stores
them.
• RDS services
You can use FM station with Radio Data
System (RDS).
• Sound adjustment
–EQ3: You can select an equalizer curve for 7
music types.
–DSO (Dynamic Soundstage Organizer):
creates a more ambient sound field, usin g
virtual speaker s ynthesis, to enhance the
sound of speakers , even if they ar e installed
low in the door .
• Optional unit operation
You can also cont rol optional CD/M D
changers, in addition to playing with this unit.
* A CD TEXT disc is a CD-DA that includes
information such as disc, artist and track name.
This label is located on the bottom of the
chassis.
SonicStage and its l o go are trademarks of Sony
Corporation.
ATRAC, ATRAC3, ATRAC3plus and their logos
are trademarks of Sony Corporation.

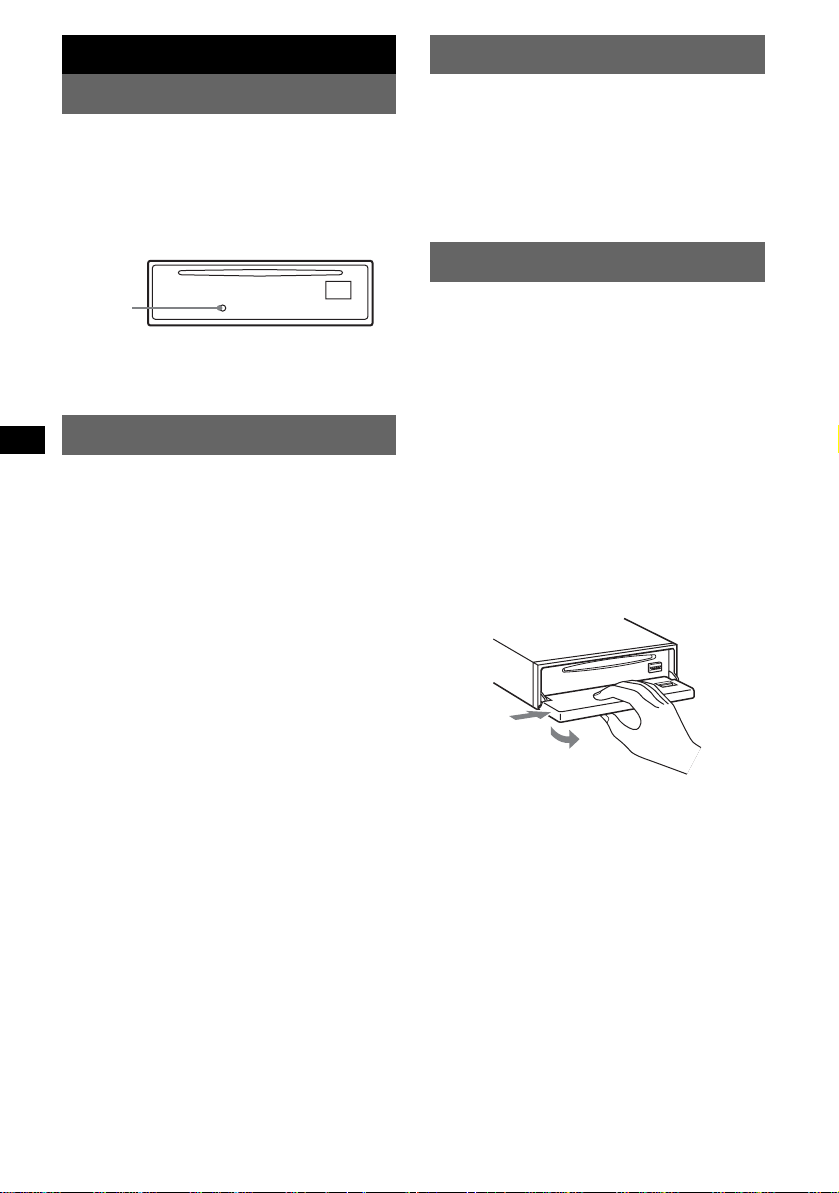

Before operating the unit for the first time, or
after replacing the car battery or chan ging the
connections, you must reset the unit.
Detach the front panel and press the RESET
button with a pointed o bject, such as a ballpoint
pen.
RESET
button
Note
Pressing the RESET button will er ase the clock setting
and some stored contents.
Setting the clock
The clock uses a 24-hour digital indication.
1 Press and hold (SEL).
The setup display appears.
2 Press (SEL) repeatedly until “CLOCK-
ADJ” appears.
3 Press (DSPL).
The hour indication flashes.
4 Press the volume +/– button to set the
hour and minute.
To move the digital indication, p re ss (DSPL).
5 Press (SEL).
The clock starts and the next setup display
appears.
6 Press and hold (SEL).
The setup is complete.
To display th e cl ock, press (DSPL). Press
(DSPL) again to return to the previous display.
Tip
You can set the clock automatically with the RDS
page 10).
feature (
With the card remote commander
In step 4, to set the hour and minute, press M or m.
You can detach the front panel of this unit to
prevent theft.
Caution alarm
If you turn the ignition switch to the OFF
position without detaching the front panel, the
caution alarm will sound for a few seconds.
The alarm will only sound if the built-in
amplifier is used.
1 Press (OFF).
The unit is turned off.
2 Press (OPEN).
The front panel is flipp ed down.
3 Slide the front panel to the right, then
gently pull out the left end of the front
panel.
1
2
Notes
• Do not drop or put excessive pressure on the front
panel and display window.
• Do not subject the front panel to heat/high
temperature or moisture. Avoid leaving it in a parked
car or on a dashboard/rear tray.
Tip
When carrying the front panel, use the supplied front
panel case
.
DEMO mode
When the unit is turned off, the clock is
displayed first, then demonstration (DEMO)
mode starts the demonstration display.
To cancel the DEMO mode, set “D E MO-OFF”
in setup (
page 11) while the unit is turned off.
4

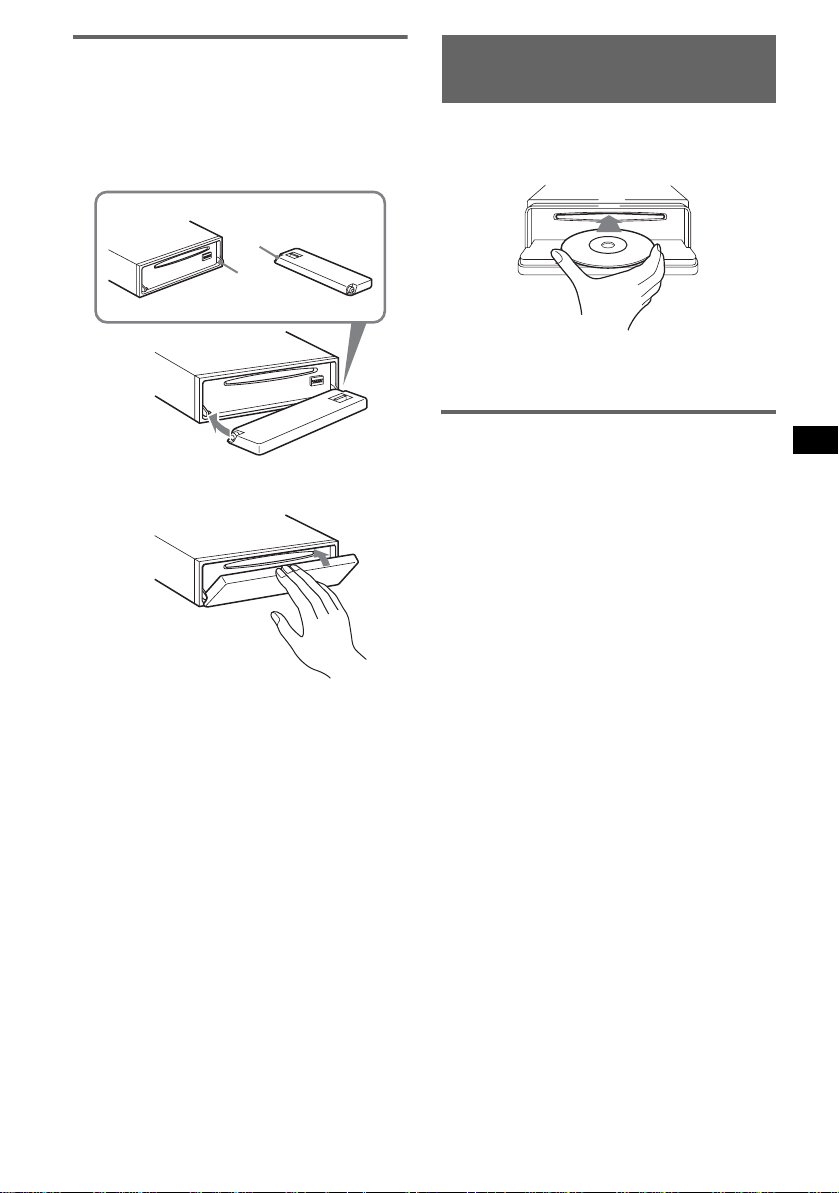

Attaching the front panel
Place the hole A of th e front panel onto the
spindle B on the unit, then lightly push the left
side in.
Press (SOURCE) on the unit (or insert a disc) to
operate the unit.
A
B
x
Inserting the disc in the
unit
1 Press (OPEN).
2 Insert the disc (la bel si de u p).
3 Close the front panel.
Playback starts automatically.
Ejecting the disc
1 Press (OPEN).
2 Press Z.
The disc is ejected.
3 Close the front panel.
Note
Do not put anything on the inner surface of the front
panel.
5

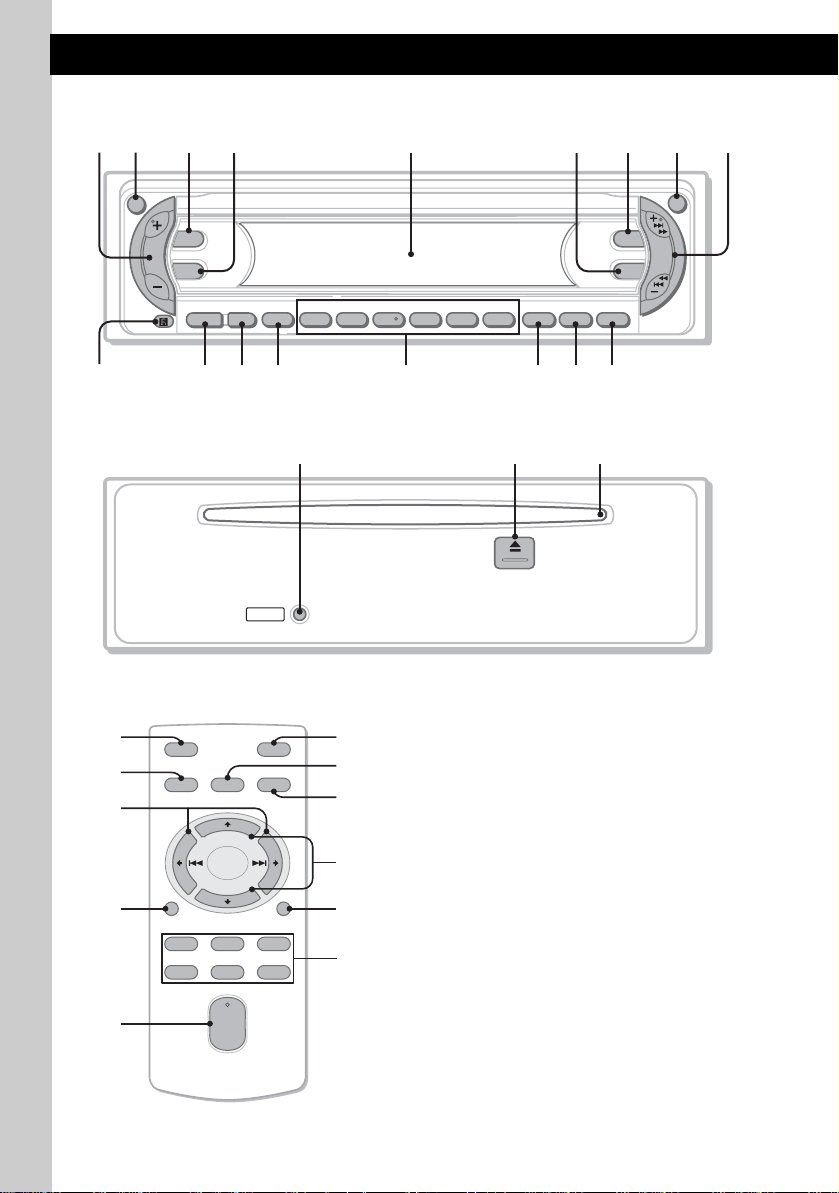

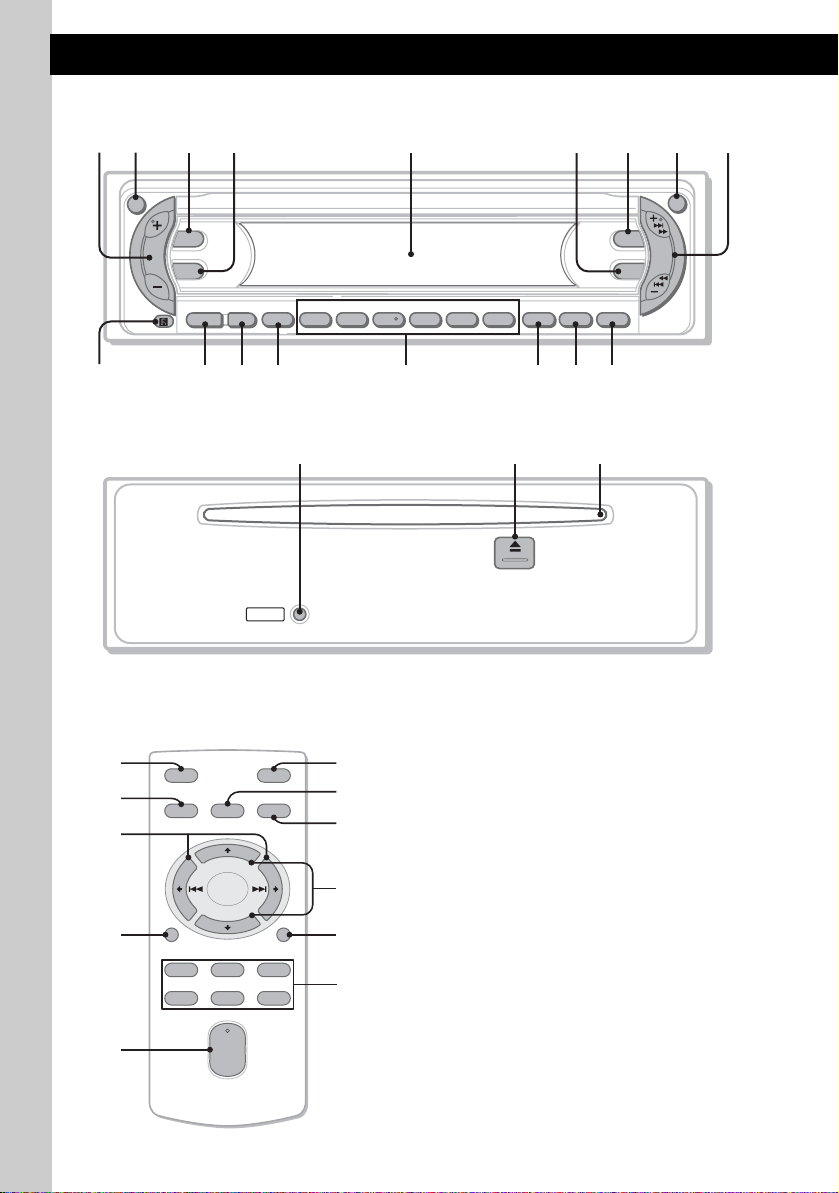

Location of controls and basic operations
q
q
q
q
q
q
q
0
Main unit
12 3 46 7 8 95
ATT
DSPL
SEL
–+GP/DISCREP SHUFBTM LIST
SOURCE MODE
a
Front panel removed
OFF
d
s
qkqlw;
RESET
Card remote commander
RM-X151
qd
qa
OFF
SOURCE
SEL
ATT
MODE
wa
+
–
VOL
SCRL
+
–
3
ws
DSPL
132
465
123456
f
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
2
4
qs
wd
wf
wg
on the un it.
A Volume +/– button
To adjust volume.
B ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
C DSPL (display) button 4, 8, 12
To change display items.
D SEL (select) button 4, 11, 12
To select items.
E Display window
F EQ3 (equalizer) button 2, 11
To select an equalizer type (XPLOD,
VOCAL, CLUB, JAZZ, NEW
CUSTOM or OFF).
AF/TA SENSPTY
h
g
DSO
EQ3
j
OPEN
SEEK
CDX-F5550
AGE, ROCK,
6
G DSO button 2
To select the DSO mode (1, 2, 3 or OFF).
The larger the number, the more enhanced
the effect .
H OPEN button 4, 5
To open the front panel.
I SEEK +/– button
Radio:
To tune in stati ons automatical ly (press); f ind
a station manuall y (press and hold).
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hol d) ; fast-forward/
reverse a track (press and hold).
J Receptor f or the card remote
commander
K SOURCE button
To power on/chan ge the source (Radi o/ C D /
1
MD*
).
L MODE button 8, 12
To select the radio band (FM/MW / LW)/
select the unit*
2
.
M OFF button
To power off/stop the source.
N Number buttons
Radio:
To receive stored stations (press); store
stations (press and hold).
CD/MD*1:
(1)/(2): GP*3/DISC*2 –/+
To skip groups (press); skip groups
continuously (press and hold).
(3): REP 8
(4): SHUF 8
O AF (Alternative Frequencies)/TA
(Traffic Announcement) button
9
To set AF and TA/TP in RDS.
P SENS/BTM button 8
To improve weak reception: LOCAL/MONO
(press); start the BTM function (press and
hold).
Q PTY (Programme Type)/LIST button
10
To select PTY in RDS; list up.
R RESET button 4
S Z (eject) button5
T Disc slot 5
The following buttons on the card remote
commander have also different buttons/functions
from the unit.
wa < (.)/, (>) buttons
To control radio/CD, the same as (SEEK)
+/– on the unit. (For det ai l s of other
operations, see “With the card remote
commander” on each pages.)
ws VOL +/– button
To adjust volume.
wd M (+)/m (–) buttons
To control CD, the same as (1)/(2) –/+ on
the unit. (For details of other operations, see
“With the card remote commander” on each
pages.)
wf SCRL button 8
To scroll the display item.
wg Number buttons
To receive stored stations (press); store
stations (press and hold).
*1 When an MD changer is connected.
*2 When a CD/MD changer is connected.
*3 When an MP3/ATRAC CD is pla yed and a chang er
is not connected. If the changer is connected, the
operation is different, see page 12.
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless (SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
Tip

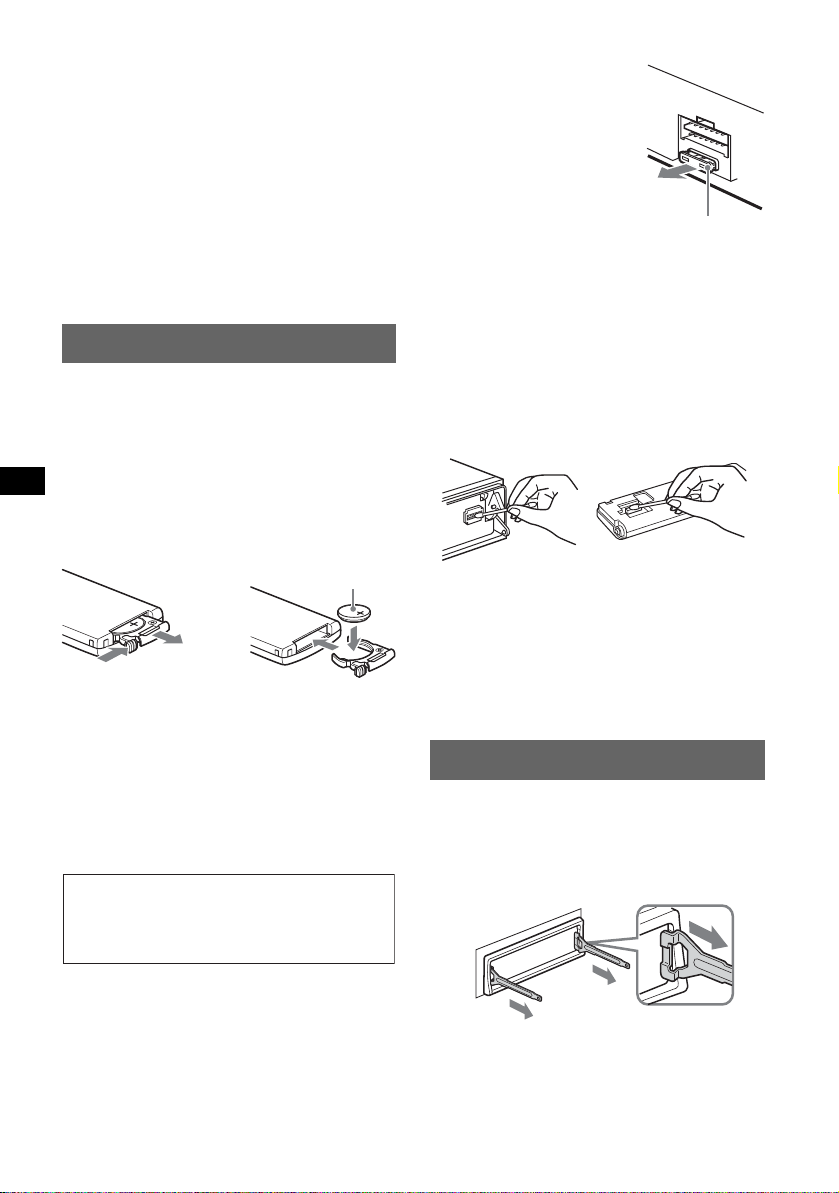

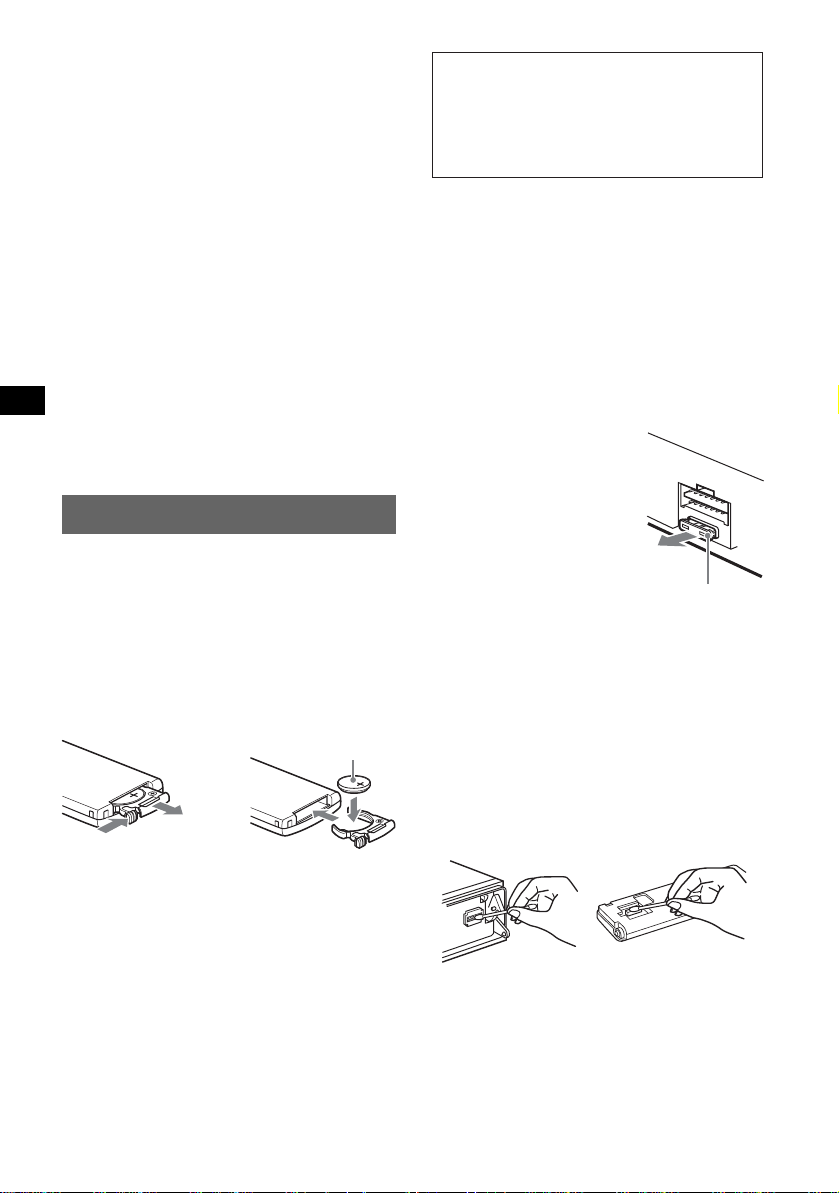

For details on how to replace the battery, see
“Replacing the lithium battery of the card remote
commander” on page 15.
7
CD
For details on connecti ng to a CD/MD change r,
see
page 12.

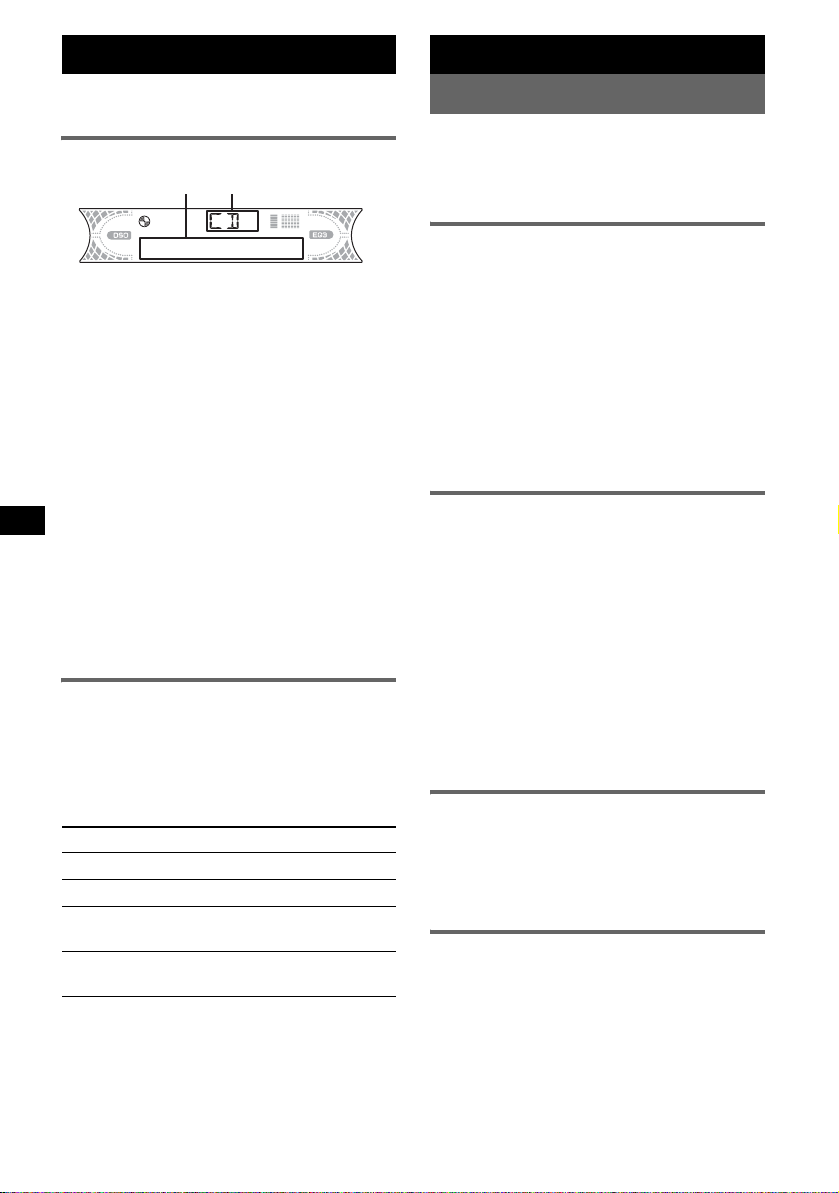

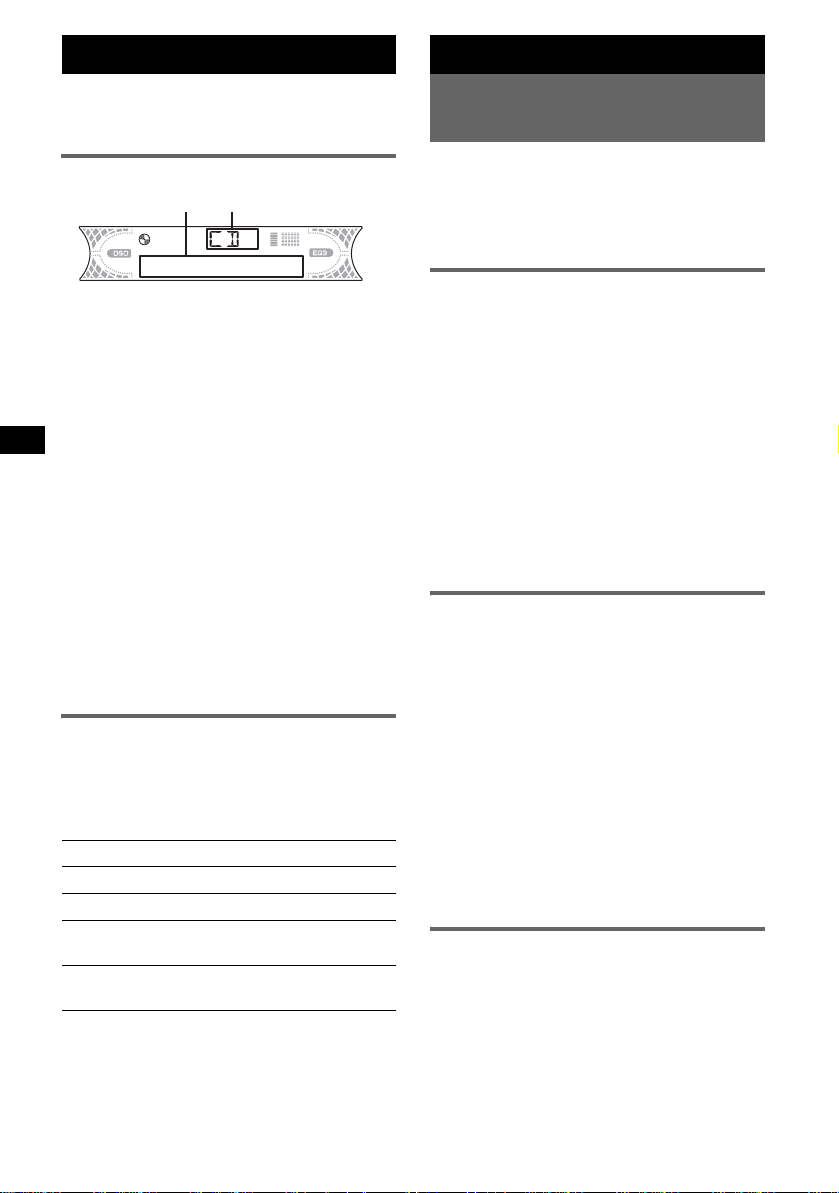

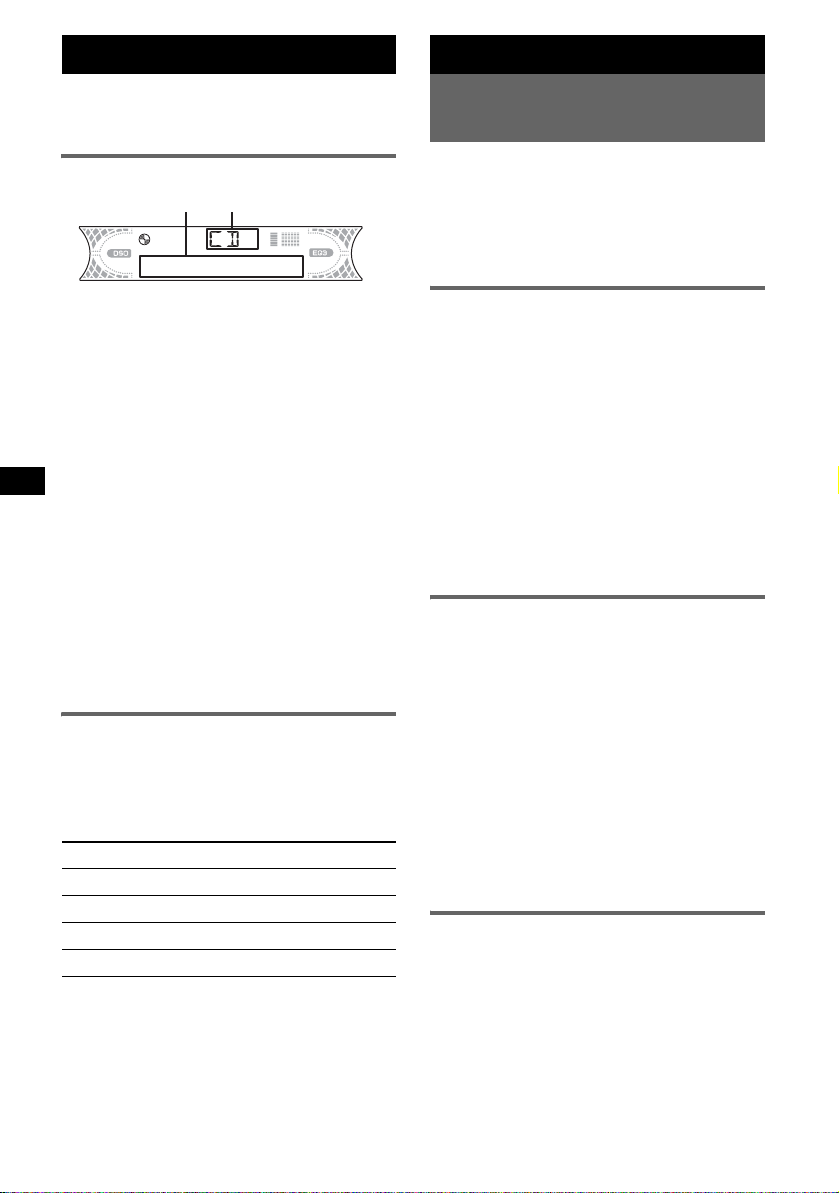

Display items
AB
A Track number/Elapsed playing time,
Disc/artist name, Group number*
Group name, Track name, Text
information*
2
, Clock
B Source
*1 Group number is displayed only when the group is
changed.
*2 When playing an MP3, ID3 tag is displayed and
when playing a ATRAC CD , te xt inf ormation written
by SonicStage, etc. is displayed.
To change di splay items A, press (DSPL);
scroll display items A, press (SCRL) on the
card remote comm ander or set “A.SCRL-ON”
(
page 11).
Tip
Displayed item will differ, depending on the disc type
and recorded format. For details on MP3, see
page 14; ATRAC CD, see page 15.
Repeat and shuffle play
1 During playback, press (3) (REP) or
(4) (SHUF) repeatedly until the
desired setting app ears.
SelectTo play
REP-TRACK track repeatedly.
REP-GP*group repeatedly.
SHUF-GP*group in random order.
SHUF-DISC dis c i n random order.
* When an MP3/ATRAC CD is played.
To return to normal play mode, select “REPOFF” or “SHUF-OFF.”
8
Radio

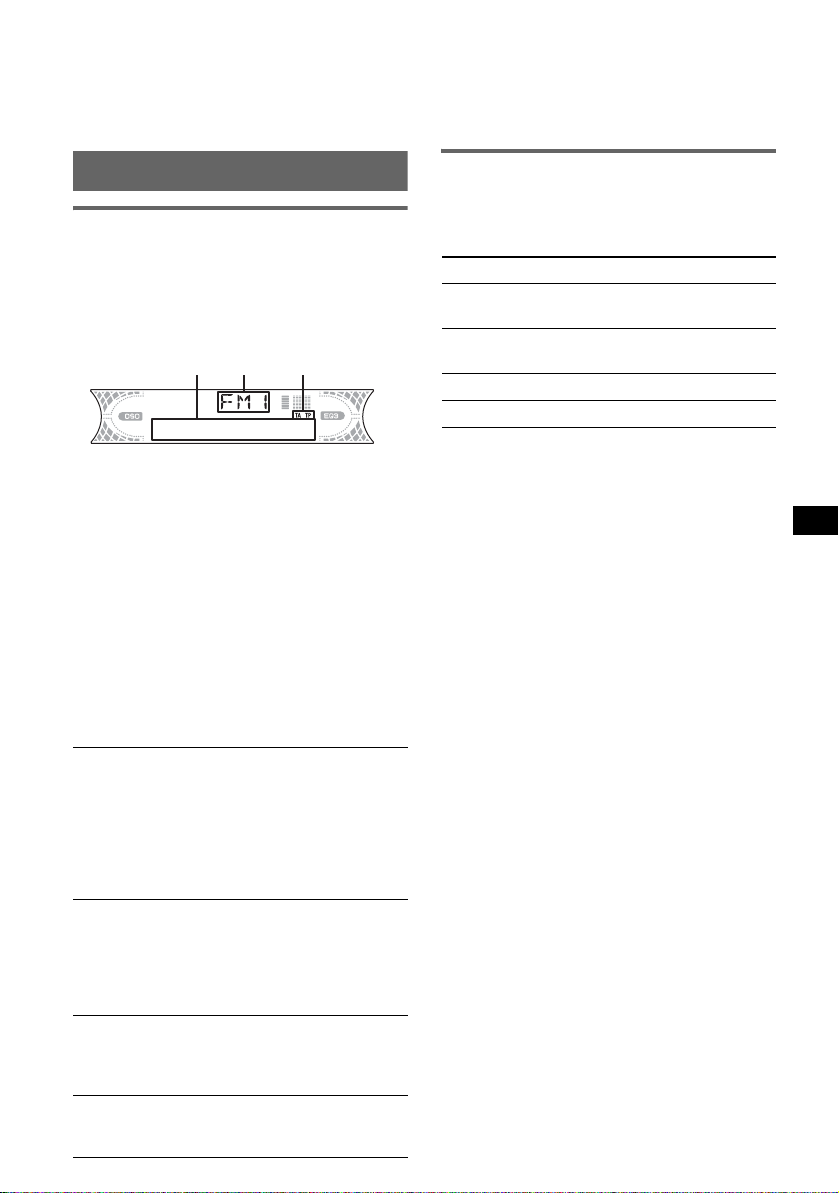

Storing and receiving stations
Caution
When tuning in stat i ons while driving, use Best
Tuning Memory (BTM) to prevent an accident.
Storing automatically — BTM
1 Press (SOURCE) repeatedly until
“TUNER” appears.
1
,
To change the band, press (MODE)
repeatedl y. You can sel ect from FM1, FM2,
FM3, MW or LW.
2 Press and hold (BTM) until “BTM”
flashes.
The unit stores stations in order of frequency
on the number buttons.
A beep sounds when the setting is stored.
Storing manually
1 While receiving the st at io n th at you
want to store, press and hold a
number button ((1) to (6)) until
“MEM” appears.
The number button indication appears in the
display.
Note
If you try to st or e a no t her s t at io n o n t he same n um be r
button, the previous stored station will be replaced.
Tip
When a RDS station is stored, the AF/TA setting is
also stored (
page 9).
Receiving the stored stations
1 Select the band, then press a number
button ((1) to (6)).
With the card remote commander
To select preset stations, press M or m.
Tuning automatically
1 Select the band, then press (SEEK) +/–
to search for the station.
Scanning stops when the unit receives a
station. Repeat this procedure until the
desired station is received.
Tip
If you know the frequency of the station you want to
listen to, press and hold (SEEK)
approximate frequency, then press (SEEK)
repeatedly to fine adjust to the desired frequency
(manual tuning).
+/– to locate the
+/–
RDS
Overview
FM stations with Radio Data System (RDS)
service send in audible digital information along
with the regular radio programme signal.
Display items
AB C
A Frequency*1 (Station name), Clock,
RDS data
B Radio band, Function
C TA/TP*
*1 While receiving the RDS station, “ *” is displayed
*2 “TA” flashes during traffic information. “TP” lights
To change display items A, press (DSPL).
RDS services
This unit automatically provides RDS services as
follows:
AF (Alternative Frequencies)
Selects and re t unes the station with the
strongest sign al i n a network. By using this
function, you can continuously liste n to th e
same programme during a long-distance drive
without having to retune the same station
manually.
TA (Traffic Announcement)/TP (Traffic
Programme)
Provides curren t tr affic infor m at ion/
programmes. Any information/programme
received, will interru pt th e currently selecte d
source.
PTY (Programme Types)
Displays the currently received programme
type. Also searches your selected programme
type.
CT (Clock Time)
The CT data from the RDS transmission sets
the clock.
Notes
• Depending on the country/region, not all RDS
functions may be available.
• RDS will not work if the signal strength is too weak,
or if the station you are tuned to is not transmitting
RDS data.
2
on the left of the frequency indication.
up while such a station is received.
Setting AF and TA/TP
1 Press (AF/TA) repeatedly until the
desired setting appears.
SelectTo
AF-ONactivate AF and deactivate TA.
TA-ONactivate TA and deactivate AF.
AF, TA-ONactivate both AF and TA.
AF, TA-OFFdeactivate both AF and TA.
Storing RDS stations with the AF and
TA setting
You can preset RDS st at i ons along with the AF/
TA setting. If you use the BTM function, only
RDS stations ar e stored with the sa m e A F/TA
setting.
If you preset manually, you can preset both RDS
and non-RDS stations with the AF/TA setti ng for
each.
1 Set AF/TA, then store the stati on with BTM or
manually.
Presetting the volume of traffic
announcements
You can preset the volume level of the traffic
announcemen ts so as to not miss hearin g t hem .
1 Press the volume +/– button repeate d ly to
adjust the volume level.
2 Press and hold (AF/TA) until “TA” appears.
Receiving emergency
announcements
With AF or TA on, the emergency
announcements will automatically interrupt the
currently sele cted source.
Staying with one regional
programme — REG
When the AF functi o n is on: this unit’s factory
setting restricts reception to a specific region, so
you will not be switched to another regional
station with a stronger frequency.
If you leave this re gi on al pro gr amme’s reception
area, set “REG-OFF” in setup (
Note
This function does not work in the UK and in some
other areas.
continue to next page t
page 11).
9
Local Link function (UK only)
This function enables you to select other local
stations in the area, even if they are not stored on
your number button s.
1 During FM reception, press a numb er button
((1) to (6)) on which a local station is stored.
2 Within 5 seconds, press again a number button
of the local station.
Repeat this proc edure until the local sta ti on is
received.

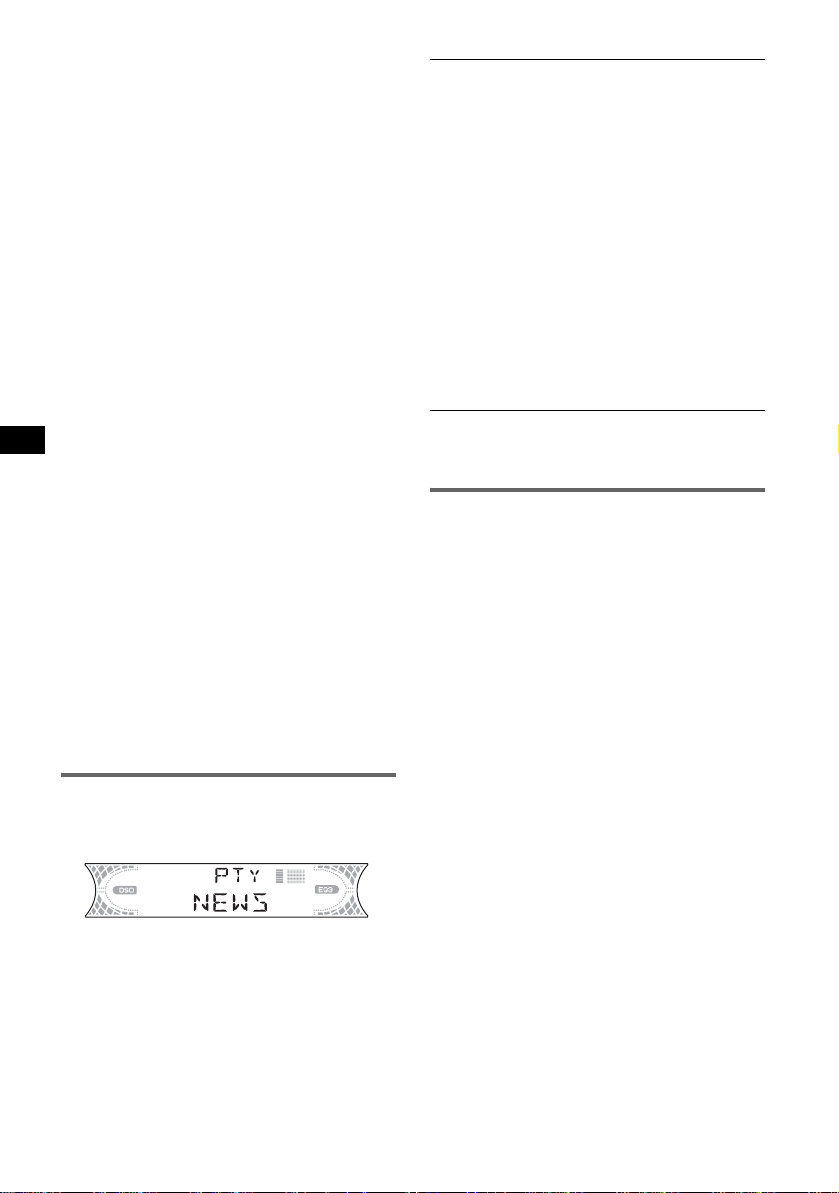

Selecting PTY
1 Press (PTY) dur ing FM reception.
The current programme type name appears if
the station is transmitting PTY data.
2 Press (PTY) repeatedly until the
desired programme type appears.
3 Press (SEEK) +/–.
The unit starts to search for a statio n
broadcasting the selected programme type.
With the card remote commander
In step 2, to select the programme type, press M or m.
Type of programmes
NEWS (News), AFFAIRS (Current Affairs),
INFO (Infor m ation), SPORT (Sports),
EDUCATE (Education), DRAMA (Drama),
CULTURE (Culture), SCIENCE (Science),
VARIED (Varied), POP
ROCK
M (Rock Music), EASY M (Easy Listening), LIGHT
CLASSICS (Classical), OTHER
Music Type), WEATHER (Weather),
FINANCE (Finance), CHILDREN (Children’s Programmes), SOCIAL
RELIGION (Religion), PHONE
TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNT RY (Country Music),
NATION
Music), FOLK
(Documentary)
Note
You cannot use this function in countries/regions
where no PTY data is available.
M (National Music), OLDIES (Oldies
M (Folk Music), DOCUMENT
M (Popular Music),
M (Light Classical),
M (Other
A (Social Affairs),
IN (Phone In),
Setting CT
1 Set “CT-ON” in setup (page 11).
Notes
• The CT function may not work even though an RDS
station is being received.
• There might be a difference between the time set by
the CT function and the actual time.
10
Other functions
Changing the sound settings
Adjusting the sound
characteristics — BAL/FAD/SUB
You can adjust the balance, fader, and subwoofer
volume.
1 Press (SEL) repeatedly until “BAL,”
“FAD” or “SUB” appears.
The item changes as follows:
LOW*1 t MID*1 t HI*1 t
BAL (left-right) t FAD (front-rear) t
SUB (subwoofer volume )*
*1 When EQ3 is activated (page 11).
*2 When the audio output is set to “SUB”
(page 11).
“A TT ” is d ispla y ed at th e lo west setti ng, and c an
be adjusted up to 20 steps.
2 Press the volume +/– button
repeatedly to adjust the sele ct ed i te m .
After 3 seconds, the setting is complete and
the display retur ns to normal play/reception
mode.
Note
Adjust within 3 seconds of selecting the item.
With the card remote commander
In step 2, to adjust the selected item, press <, M, ,
or m.

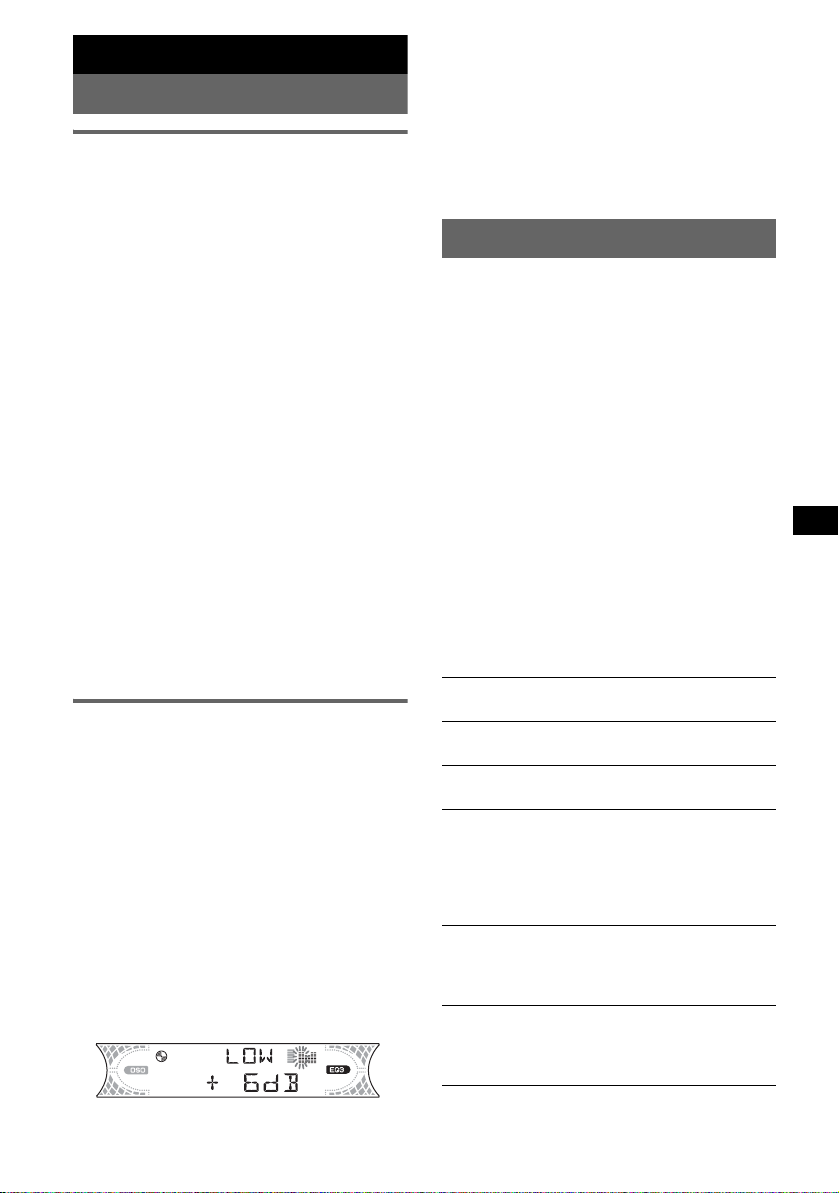

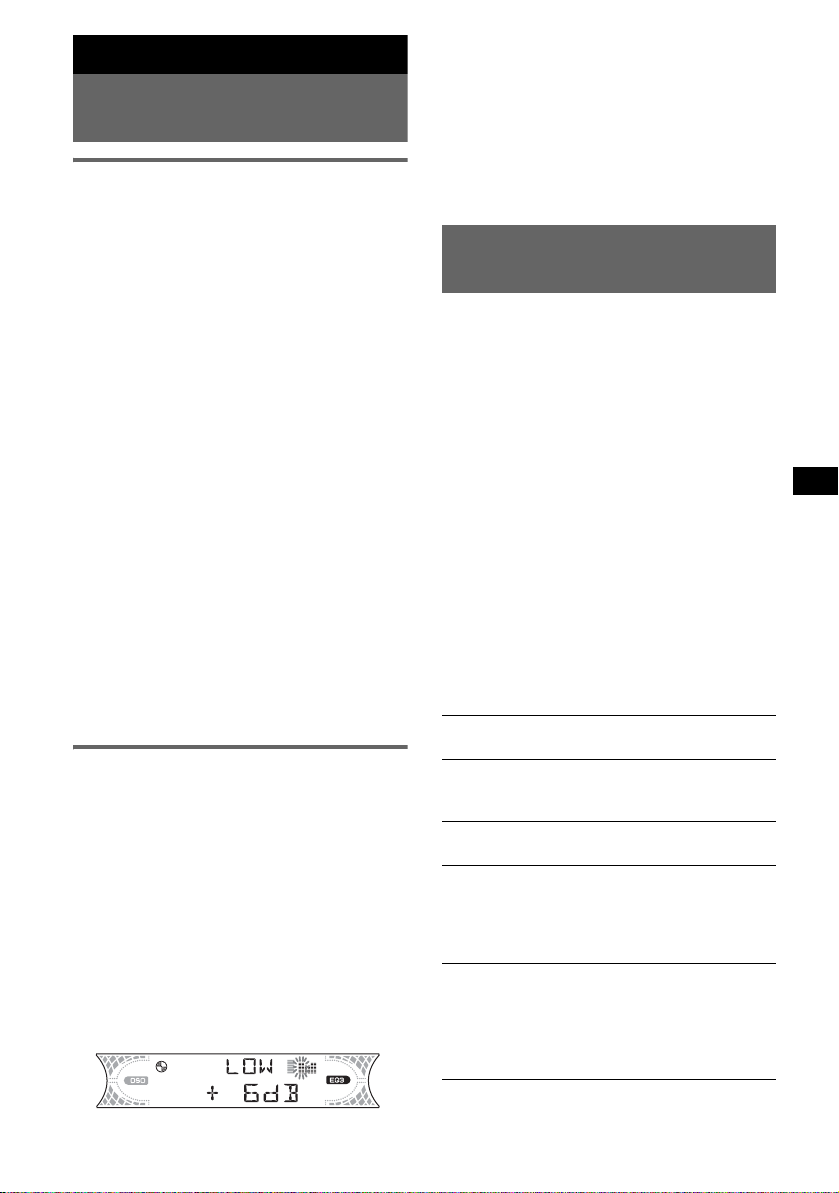

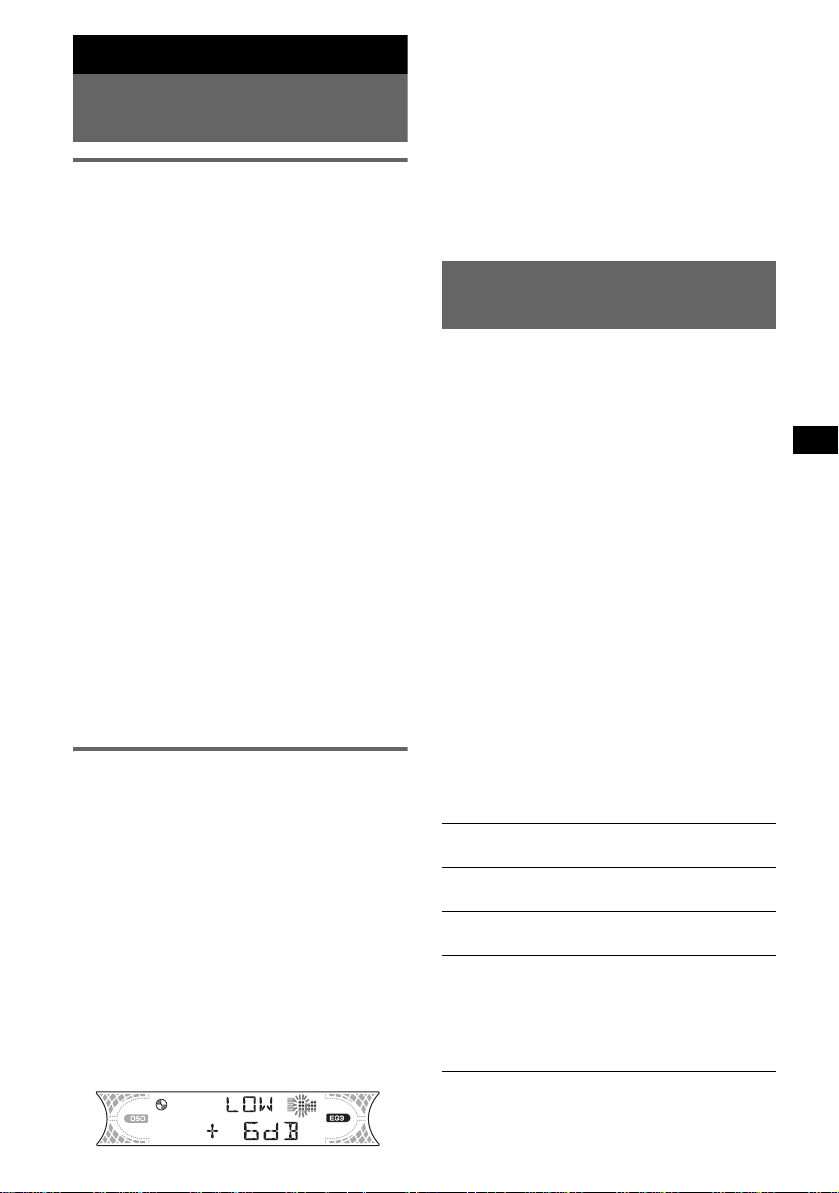

Adjusting the equalizer curve
— EQ3
You can adjust an d st ore the equalizer settings
for different tone ranges.
1 Select a source, then press (EQ3)
repeatedly to select the EQ3 type.
2 Press (SEL) repeatedly until “LOW,”
“MID” o r “HI” appears.
3 Press the volume +/– button
repeatedly to adjust the sele ct ed i te m .
The volume level is adjusta bl e in 1 dB steps,
from –10 dB to +10 dB.
Repeat steps 2 and 3 to adjust the equalizer
curve.
To restore the factory-set equalizer curve,
press and hold (SEL) before the setting is
complete.
After 3 seconds, the setting is complete and
the display retur ns to normal play/reception
mode.
2
With the card remote commander
In step 3, to adjust the selected item, press <, M, ,
or m.
Adjusting setup items — SET
1 Press and hold (SEL).
The setup display appears.
2 Press (SEL) repeatedly until the
desired item appears.
3 Press the volume +/– button to select
the setting (example “ON” or “O FF”).
4 Press and hold (SEL).
The setup is complete and the display returns
to normal play/reception mode.
Note
Displayed items will differ, depending on the source
and setting.
With the card remote commander
In step 3, to select the setting, press < or ,.
The following items can be set (follow the page
reference for details):
“z” indicates the default settings.
CLOCK-ADJ (Clock Adjust)
(page 4)
CT (Clock Time)
To set “ON” or “OFF” (
BEEP
To set “ON” (
SUB/REAR*
z) or “OFF.”
1
To switch the audio output.
–“SUB” (
z): to output to a subwoofer.
–“REAR”: to output to a power amplifier.
DIM (Dimmer)
To change the brightness of the display.
–“ON”: to dim the display.
–“OFF” (
z): to deactivate the dimmer.
CONTRAST
To adjust the contrast of the disp l ay.
The contrast level is adjustable in 7 steps.
M.DSPL*
–“ON” (
2
(Motion Display)
z): to show moving patterns.
–“OFF”: to deactivate the Motion Display.
1
DEMO*
To set “ON” (
(Demonstration)
z) or “OFF” (page 4) .
A.SCRL (Auto Scroll)
To scroll long displayed item s a utomatically
when the group/track is changed.
–“ON”: to scroll.
–“OFF” (
REG*
To set “ON” (
z): to not scroll.
3
(Regional)
z) or “OFF” (page 9) .
z) (page 9, 10).
continue to next page t
11
4
LPF*
(Low Pass Filter)
To select the cut-off frequency “78HZ,”
“125HZ” or “OFF” (
*1 When the unit is turned off.
*2 When the unit is turned on.
*3 When FM is received.
*4 When the audio output is set to “SUB.”
z).
Using optional equipment
CD/MD changer
Selecting the changer
1 Press (SOURCE) repeatedly until “CD” or
“MD” appears.
2 Press (MODE) repeatedly until the desired
changer appear s.
Disc numberUnit number
Playback starts.
Skipping groups and discs
1 During playback, press (1)/(2) (GP/DISC)
–/+.
T o skipPress (1)/(2)
groupand release (hold for a
group
continuously
discsrepeatedly.
discs
continuously
Repeat and shuffle play
1 During playback, press (3) (REP) or (4)
(SHUF) repeatedly until the desired setting
appears.
SelectTo play
REP-DISC*1disc repeatedly.
SHUF-
CHGR*
SHUF-ALL*
*1 When one or more CD/MD changers are
connected.
*2 When one or more CD changers, or two or more
MD changers are connected.
12
moment).
within 2 second s of first
releasing.
then, press ag ain within 2
seconds and hold .
tracks in the changer in random
1
order.
2
tracks in all units in random
order.
To return to normal play mode, select “REPOFF” or “SHUF-OFF.”
Tip
“SHUF-ALL” will not shuf fle tracks between CD uni ts
and MD changers.
Labelling a disc
When you play a disc in a CD changer with the
CUSTOM FILE f unction, you can la bel each
disc with a cust om na me u p to 8 cha ra ct ers (D is c
Memo).
If you label a disc, the name appears on the list.
1 While playing a disc that you want to
label, press and hold (LIST).
2 Press the volume +/– button
repeatedly until the desired character
appears.
The character changes as follows.
A y B y C ... y 0 y 1 y 2 ... y+
y – y
... y (blank space) y A
To move the digital indication, press (SEL).
Repeat this operation until the entire name is
entered.
3 Press and hold (LIST).
The labelling is complete and the display
returns to normal play mo de.
To display the name, press (DSPL) during
playback.
Tips
• To correct or erase a character, overwrite or enter
“
.”
• The Disc Memo always takes priority over any
prerecorded title.
• You c an lab el a dis c on the un i t if a c ha ng e r wi t h the
CUSTOM FILE function is connected.
• “REP-TRACK” and all shuffle play are suspended
until the labelling is complete.
With the card remote commander
In step 2, to select the character, press M or m.
Deleting the custom name
1 Select the unit that has sto red the cus tom name
you want to delete, the n press and hold
(LIST).
2 Press and hold (DSPL).
The stored name w i ll fl ash.
3 Press the volume +/– button repeat edly to
select the nam e you want to delete.
4 Press and hold (SEL).
The name is deleted. Repeat steps 3 and 4 to
delete other names.
5 Press and hold (LIST).
The unit returns to normal play mode.
With the card remote commander
In step 3, to select the name, press M or m.
Locating a disc by name — list-up
You can select a disc from the list whe n
connecting a CD changer with the CUSTOM
FILE function or an MD ch anger.
If you assign a name to a disc, the name appears
on the list.
1 During playback, pre ss (LIST).
The disc number or d is c name appears.
2 Press (LIST) repeatedly until the desired dis c
appears.
After 5 seconds, the unit returns to normal
play mode.
3 Press (SEEK) +/– to play the di sc.
With the card remote commander
In step 2, to select the disc, press M or m.

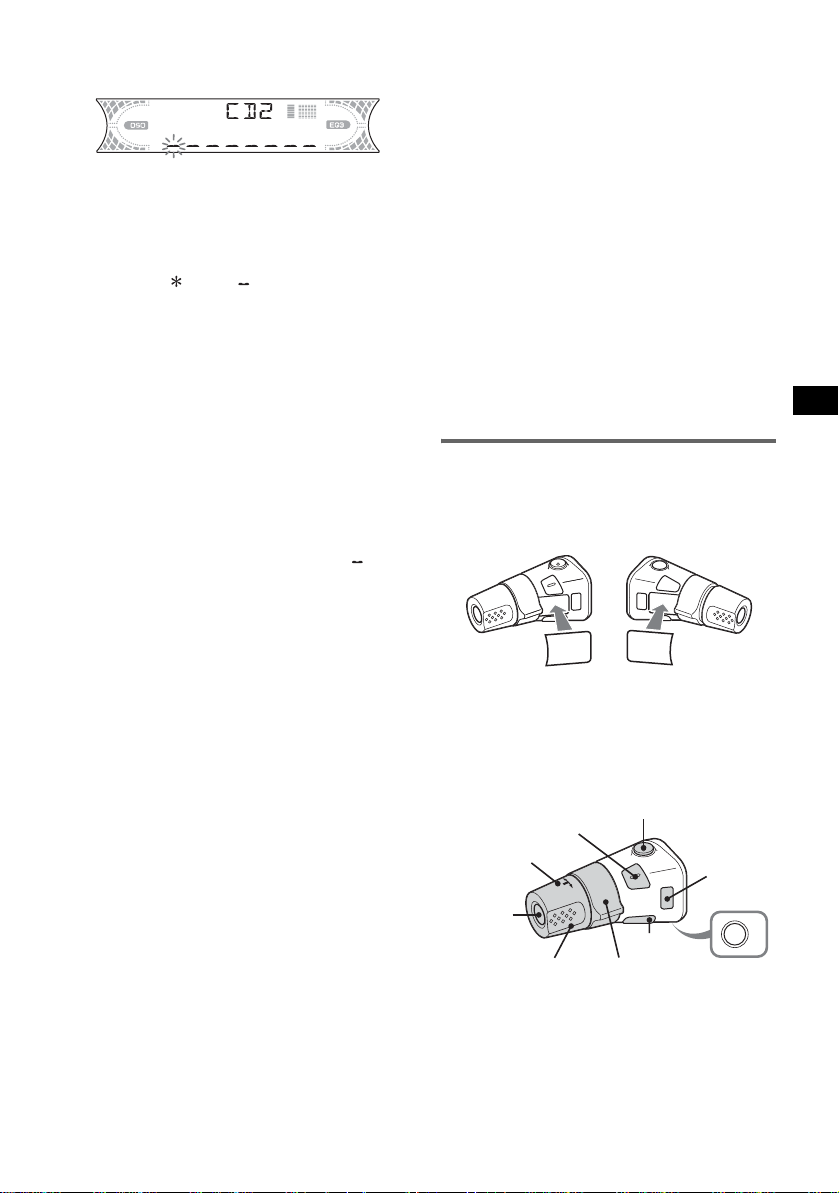

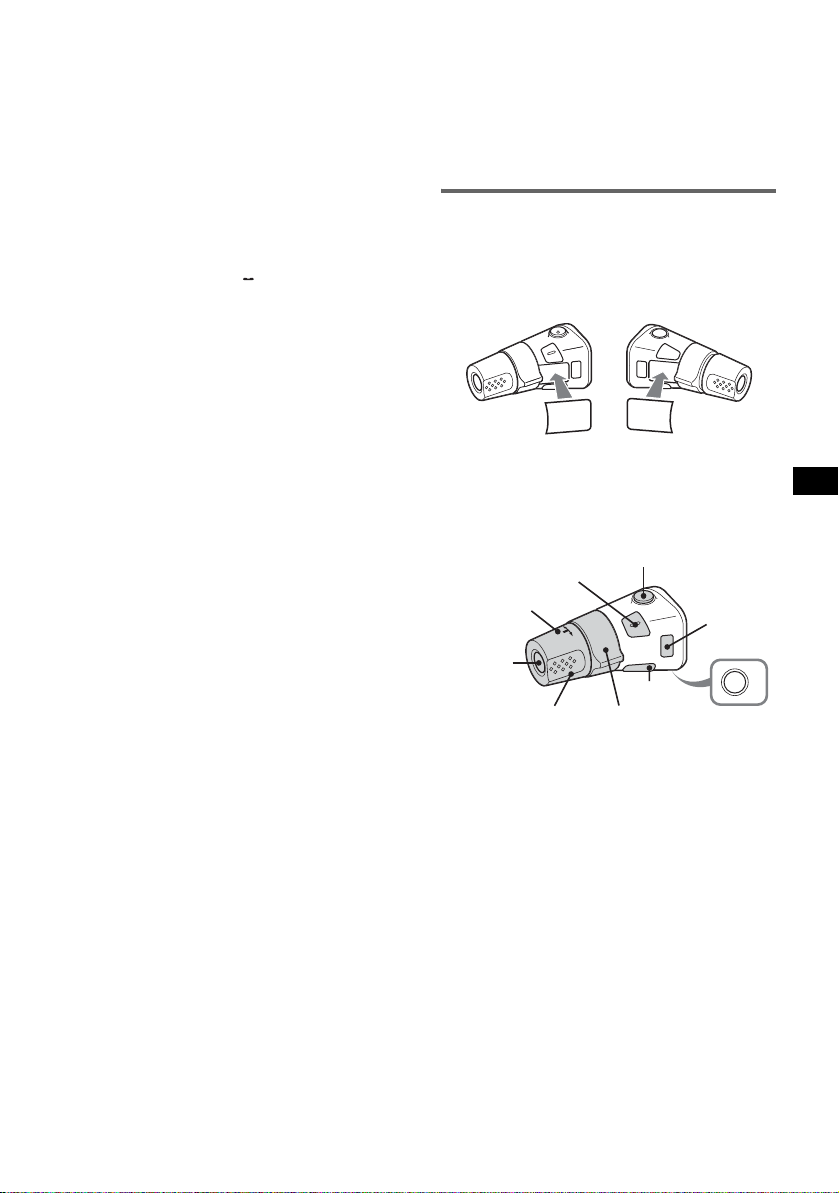

Rotary commander RM-X4S
Attaching the label
Attach the indication label depending on how
you mount the rotary commander.
D
S
P
S
DSPL
E
MODE
L
L
M
O
D
E
S
E
L

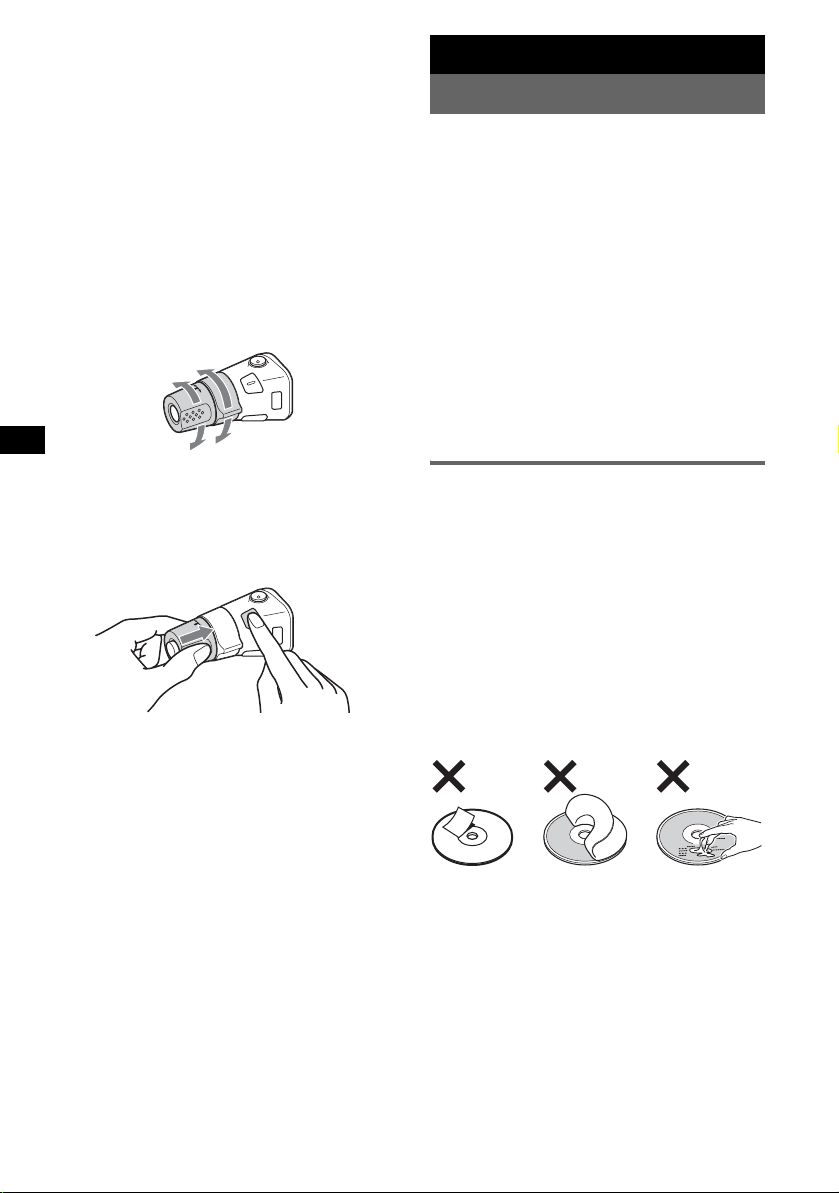

Changing the operative direction
The operative direction of the controls is fac to ryset as shown below.
To increase
To decrease
If you need to mount the rotary commander on
the right hand side of the steering column, you
can reverse the operative direct io n.
1 While pushing the VOL control, press and
hold (SEL).
Location of controls
The corresponding buttons on the rotary
commander control the same functions as those
on this unit.
SEL
PRESET/DISC
SOURCE
VOL
The following controls on the rotary commander
require a different operation from the un i t.
• PRESET/DISC control
To select preset stations; control CD, the same
as (1)/(2) –/+ on the unit (push in and rotate).
• VOL control
The same as the volume +/ – butt on on the unit
(rotate).
• SEEK/AMS control
The same as (SEEK) +/– on the unit (rotate, or
rotate and hold).
ATT
DSPL
SEEK/AMS
MODE
OFF
OFF
13
Additional Information
Precautions
• If your car has been parked in direc t sunl ig ht ,
allow the unit to cool off before operati ng i t.
• Power aerial will extend automatically while the
unit is operating.
Moisture condensation
On a rainy day or in a very damp area , moi s ture
condensation may occur insid e the le nse s and
display of the unit. Should this occur, the unit will
not operate properly. In such a case, remove the disc
and wait for about an hour until the moisture has
evaporated.
To maintain high sound quality
Be careful not to splash juice or other soft drinks
onto the unit or discs.
Notes on discs
• To keep a disc clean, do not touc h its surface.
Handle the disc by its edge.
• Keep your discs in their cases or disc magazi ne s
when not in use.
• Do not subject discs to hea t /hi gh temperature.
Avoid leaving them in a parked car or on a
dashboard/rear tray.
• Do not attach labels, or us e di scs w it h sticky ink/
residue. Such discs may stop spinning when used,
causing a malfunction, or may ruin the disc.
• Do not use any discs with labels or stickers
attached.
The followin g ma lfu ncti ons ma y r esult fro m usi ng
such discs:
– Inability to eject a d isc (due to a la b el or sticker
peeling off and jamming the eject mechanism).
– Inability to re ad audio data correctly (e.g.,
playback skipping, or no playback) due to heat
shrinking of a sticker or label causing a disc to
warp.
• Discs with non-standard shapes (e.g., heart,
square, star) cannot be played on this unit.
Attempting to do so may damage the unit. Do not
use such discs.
• You cannot play 8 cm CDs.
• Before playi ng, clean the discs
with a commercially available
cleaning cloth. Wipe each disc
from the centre out. D o not us e
solvents suc h as benzine,
thinner, commercially available
cleaners, or antistatic spray
intended for analogue discs.
Notes on CD-R/CD-RW discs
• Some CD-Rs/C D-RWs (depending on the
equipment used for its recording or the condition
of the disc) may not play on this unit.
• You cannot play a CD-R/a CD-RW that is not
finalized.
Music discs encoded with copyright
protection technologies
This product is designed to pla y ba ck discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection tec hnologies are marketed by
some record co mpanie s. Plea se be aw are th at a mong
those discs, there are some that do not conform to
the CD standard and may no t be pla ya ble by this
product.
About MP3 files
MP3, which stands for MPEG-1 Audio Layer-3, is a
music file compression format standard. It
compresses audio CD data to approximately 1/10 of
its original size.
• The unit is compati ble with the ISO 9660 level 1/
level 2 format, Joliet/Romeo in the expansion
format, ID3 tag version 1.0, 1.1, 2.2, 2.3 and 2. 4,
and Multi Session.
• The maximum num be r of:
– folders (groups): 150 (including root and empty
folders).
– MP3 files (tracks) and folders contained in a
disc: 300 (if a folder/file names contain many
characters, this number may become less than
300).
– displayable characters for a folder/file name is
32 (Joliet), or 32/64 (Romeo); ID3 tag i s 15 /3 0
characters (1.0, 1.1, 2.2 and 2. 3), or 63/ 126
characters (2.4).
14

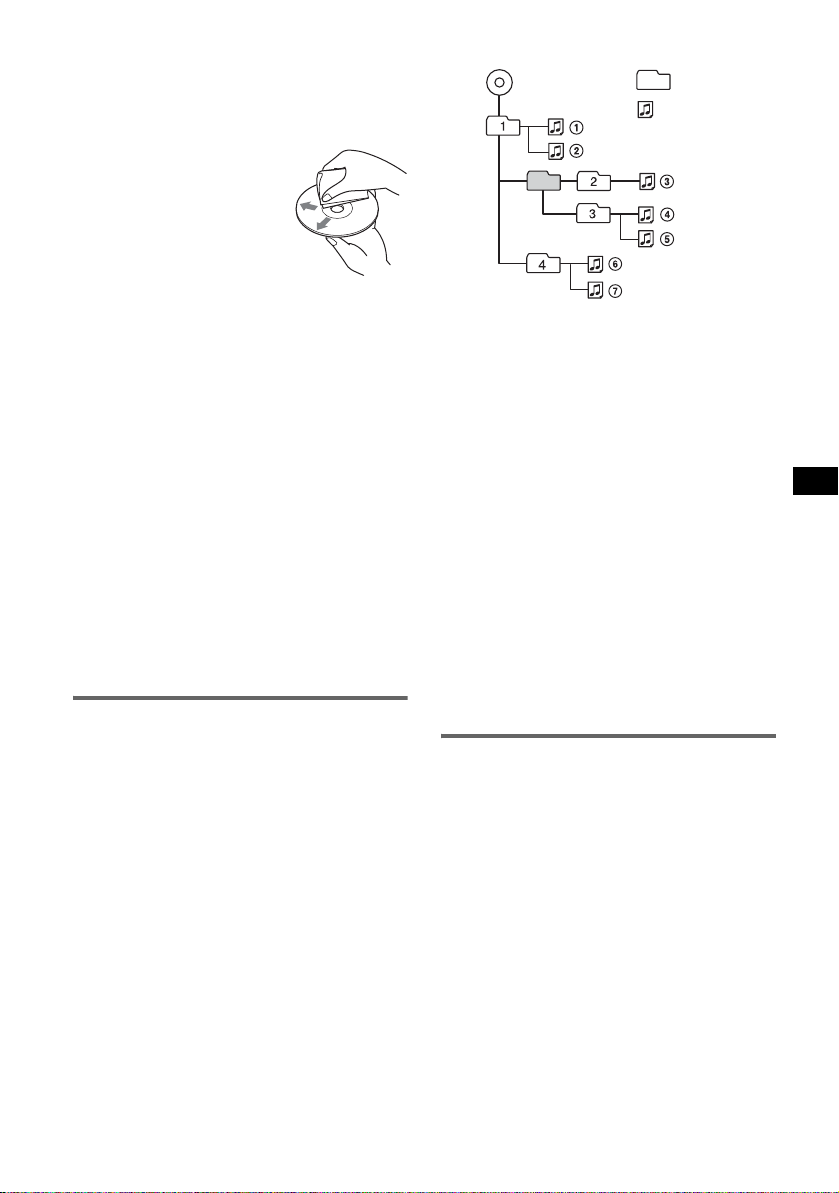

Playback order of MP3 files
MP3
Notes
• Be sure to finalize the disc before using on the unit.
• When naming an MP3 file, be sure to add the file
expansion “.mp3” to the file name.
• If you play a high-bit-rate MP3, such as 320 kbps,
sound may be intermittent.
• During playback of a VBR (variable bit rate) MP3 file
or fast-forward/reverse, elapsed playing time may
not display accurately.
• When the disc is recorded in Multi Session, only the
first track of the first session format is recognized
and played (any other format is skipped). The
priority of the format is CD-DA, ATRAC CD and
MP3.
– When the first track is a CD-DA, only CD-DA of the
first session is played.
– When the first track is not a CD-DA, an ATRAC CD
or MP3 session is played. If the disc has no data in
any of these formats, “NO MUSIC” is displayed.
Folder
(group)
MP3 file
(track)
About ATRAC CD
ATRAC3plus format
ATRAC3, which stands for Adaptive Transform
Acoustic Coding3, is audio compression
technology. It compresses audio CD data to
approximately 1/10 of its original size.
ATRAC3plus, which is an extended format of
ATRAC3, compresses the audio CD data to
approximately 1/20 of its ori ginal size. The unit
accepts both ATRAC3 and ATRAC3plus format.
ATRAC CD
ATRAC CD is recor de d au di o CD data whic h is
compressed to ATRAC3 or ATRA C3plus format
using authorized software, such as SonicStage 2.0 or
later, or SonicStage Simple B u r n er.
• The maximum number of:
– folders (groups): 255
– files (tracks): 999
• The characters for a fo lder/file name and text
informat io n written by SonicStage is d isplayed.
For details on ATRAC CD, see the SonicStage or
SonicStage Simple Burner manual.
Note
Be sure to create the ATRAC CD using authorized
software, such as SonicStage 2.0 or later, or
SonicStage Simple Burner 1.0 or 1.1, which are
supplied with Sony Network products.
If you have any questions or problems concerning
your unit that are not covered in this manual, consult
your nearest Sony dealer.
Maintenance
Replacing the lithium battery of the
card remote commander
Under normal conditions, the ba tt e ry w ill l ast
approximately 1 year. (The service life ma y be
shorter, depending on the conditions of use.)
When the battery becomes weak, the range of the
card remote commander be com es shorter. Replace
the battery with a new CR2025 li thium battery . Use
of any other battery may present a risk of fire or
explosion.
+ side up
2
c
1
Notes on the lithium battery
• Keep the lithium battery out of the reach of children.
Should the battery be swallowed, immediately
consult a doctor.
• Wipe the battery with a dry cloth to assure a good
contact.
• Be sure to observe the correct polarity when
install ing the battery.
• Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of
in fire.
Fuse replacement
When replacing the fuse, be
sure to use one matching the
amperage rating stat ed on the
original fuse. If the fuse blows,
check the power connection and
replace the fuse. If the fuse
blows again after replacement,
there may be an internal
malfunction. In such a case,
consult your nearest Sony
dealer.
continue to next page t
Fuse (10A)
15

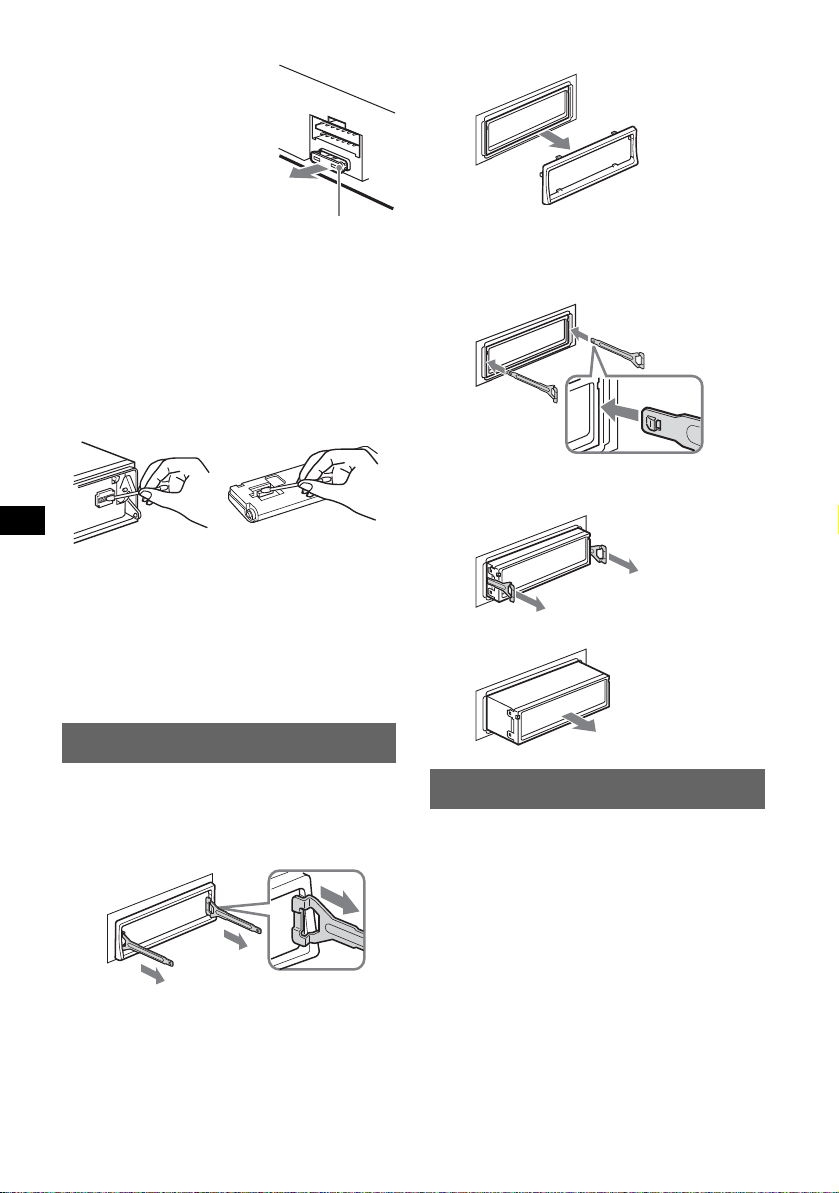

Cleaning the connectors
The unit may not function properly if the connectors
between the unit and the front panel are not clean. In
order to prevent this, detach the front panel (page 4)
and clean the connec tors with a cotton swab dipped
in alcohol. Do not apply too much force. Otherwise,
the connectors may be damaged.
2 Remove the unit.
1Insert both release keys simultaneously
until they click.
Hook facing
inwards.
Main unit
Notes
• For safety, turn off the ignition before cleaning the
connectors, and remove the key from the ignition
switch.
• Never touch the connectors directly with your fingers
or with any metal device.
Back of the front panel
Removing the unit
1 Remove the protection collar.
1 Detach the front panel (page 4).
2 Engage th e release keys together with the
protection collar.
Orient the re lease
keys as shown.
3 Pull out the release keys to remove the
protection collar.
2Pull the release keys to unseat the unit.
3Slide the unit o ut of the mo unting.
Specifications
CD Player section
Signal-to-noise ratio: 120 dB
Frequency response: 10 – 20,000 Hz
Wo w and flu tter : Below measurable limit
Tuner section
FM
T uning range: 87.5 – 108.0 MHz
Aerial terminal: External aerial connector
Intermediate frequency : 10.7 MHz/450 kHz
Usable sensitivity: 9 dB f
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz: 0.5 % (stere o),
0.3 % (mono)
Separation: 35 dB at 1 kHz
Frequency response: 30 – 15,000 Hz
Outputs: Speaker outputs (sure seal connectors)
Speaker impedance: 4 – 8 ohms
Maximum power output: 50 W × 4 (at 4 ohms)
16
General
Outputs:
Audio outputs terminal (front, sub/re a r swi tc ha ble )
Power aerial relay control terminal
Power amplifier control terminal
Inputs:
Telephone ATT control terminal
BUS control input ter minal
BUS audio input terminal
Remote controller input terminal
Aerial input terminal
Tone controls:
Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
Power requirements: 12 V DC car battery
(negative earth)
Dimensions: Approx . 178 × 50 × 181 mm (w/h/d)
Mounting dimensions: Approx. 182 × 53 × 161 mm
(w/h/d)
Mass: Approx. 1.2 kg
Supplied accessorie s:
Card remote commander: RM-X151
Parts for installation and connectio ns (1 set )
Front panel case (1)
Optional accessories/equipment:
Rotary commander: RM-X4S
BUS cable (supplied with an RCA pin cord):
RC-61 (1 m), RC-62 (2 m)
CD changer (10 discs): CDX-757MX
CD changer (6 discs): CDX-T70MX, CDX-T69
MD changer (6 discs): MDX-66XLP
Source selector: XA-C30
AUX-IN selector: XA-300
US and foreign patents licensed from Dolby
Laboratories.
Note
This unit cannot be connected to a digital preamplifier
or an equalizer which is Sony BUS system compatible.
Design and specifications are subject to change
without notice.
• Lead-free solder is used for soldering certain parts.
(more than 80 %)
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Halogenated flame retardants are not used in
cabinets.
• VOC (Volatile Organic Compound)-free vegetable
oil based ink is used for printing the carton.
• Packaging cushions do not use polystyrene foam.
Troubleshooting
The following checklist will help you remedy
problems you may encounte r w i th your unit.
Before going through the checklist below, check the
connection and operati ng procedures.
General
No power is being supplied to the unit.
• Check the connection. I f e v ery thin g i s in or der , chec k
the fuse.
• If the unit is turned off and the display d isap p ears, it
cannot be operated with the remote commander.
t Turn on the unit.
The power aerial does not extend.
The power aerial does not have a relay box.
No sound.
• The volume is to o low.
• The ATT function is activated, or the Telephone ATT
function (when the interface cable of a car telep hone
is connected to the ATT lead) is activated.
• The position of the fader co ntrol (FAD) is not set for
a 2-speaker system.
• The CD changer is incompatible with the disc format
(MP3/ATRAC CD).
t Play back with a Sony MP3 compatible CD
changer, or this unit.
No beep sound.
• The beep sound is cance lle d ( pa ge 11).
• An optional power amplifier is connected and you are
not using the built-in amplifier.
The contents of the memory have be en erased.
• The RESET button has been pre sse d.
t Store again into the memory.
• The power connecting lead or batt ery ha s be en
disconnected.
• The power connecting lead is not connected properly.
Stored stations and correct time are erased.
The fuse has blown.
Makes noise when the position of the ignition
key is switched.
The leads are not ma tc hed correctly with th e car’s
accessory power conne cto r.
The display disappears from/does not appear
in the display window.
• The dimmer is set “DIM-ON” (p ag e 11).
• The display disappe a rs if you press and hold (OFF).
t Press and hold (OFF) again until the display
appears.
• The connectors are dirty (p ag e 16).
DSO does not function.
Depending on the type of car interior or type of music,
DSO may not have a desirable effect.
CD/MD playback
The disc cannot be loaded.
• Another disc is already loaded.
• The disc has b een fo rci b ly in se rt ed up si de down or in
the wrong way.
The disc does not playback.
• Defective or dirty disc.
• The CD-Rs/CD-RWs are not for audio use (page 14).
MP3 files cannot be played back.
The disc is incompatible with the MP3 format and
version (page 14).
continue to next page t
17
MP3 files take longer to play back than others.
The following discs take a longer time to star t
playback.
– a disc recorded with a complicated tree structure.
– a disc recorded in Mult i Se ssion.
– a disc to which data can be added.
The A TRAC CD cannot play.
• The disc is not created by authorized software, such
as SonicStage or SonicStage Simple Burner.
• Tracks that are not included in the group cannot be
played.
The display items do not scroll.
• For discs with very many character s, those may not
scroll.
• “A.SCRL” is set to off.
tSet “A.SCRL-ON” (page 11) or press (SCRL) on
the card remote comm an d e r.
The sound skips.
• Installation is not correct.
tInstall the unit at an angle of less than 45° in a
sturdy part of the car.
• Defective or dirty disc.
The operation buttons do not function.
The disc will not eject.
Press the RESET button (page 4).
“MS” or “MD” does not appear on the source
display when both the optional MGS-X1 and
MD changer are connected.
This unit recognizes MGS-X1 as an MD unit .
t Press (SOURCE) until “MS” or “MD” appears,
then press (MODE) repeatedly.
Radio reception
The stations cannot be received.
The sound is hampered by noises.
• Connect a power aerial control lead (bl ue) or
accessory power supply lead (red) to the power
supply lead of a car’s aerial booster (only when your
car has built-in FM/MW/LW aerial in the rear/side
glass).
• Check the connection of the car aerial.
• The auto aerial will not go up.
tCheck the connection of the power aeri al control
lead.
• Check the frequency.
• When the DSO mode is on, the sound is some times
hampered by noises.
tSet the DSO mode to “OFF” (page 7).
Preset tuning is not possible.
• Store the correct frequency in the memory.
• The broadcast signal is too weak.
Automatic tuning is not possible.
• Setting of the local seek mode is not correct.
tTuning stops too frequently:
Press (SENS) until “LOCAL-ON” appears.
tTuning do es not stop at a st a tion:
Press (SENS) repeatedly until “MONO-ON” or
“MONO-OFF” (FM), or “LOCAL-OFF” (MW/
LW) appears.
• The broadcast signal is too weak.
tPerform manual tuning.
18
During FM reception, the “ST” indication
flashes.
• Tune in the frequency accurately.
• The broadcast signa l is too weak.
t Press (SENS) to set the monaural reception
mode to “MONO-ON .”
An FM programme broadcast in stereo is heard
in monaural.
The unit is in monaural reception mode.
t Press (SENS) until “MONO-OFF” appears.
RDS
The SEEK starts after a few seco nds of
listening.
The station is non-TP or has weak signal.
t Deactivate TA (page 9).
No traffic announcements.
• Activate TA (page 9).
• The station does not broadcast any traffic
announcements despite be ing TP.
t Tune in another station.
PTY displays “- - - - - - - -.”
• The current station is not an RDS station.
• RDS data has not been received.
• The station does not specif y the prog r amme type.
Error displays/Messages
1
BLANK*
Tracks have not been recorded on the MD.*t Play an MD with recorded tracks.
ERROR*
FAILURE
LOAD
L.SEEK +/–
NO AF
NO DATA
NO DISC
NO ID3
1
• The disc is dirty or inserted upsi de down.*t Clean or insert the disc correctly.
• The disc cannot play because of some pr oblem.
t Insert another disc.
The speaker/amplifier connection is incorrect.
t See the supplied installation/connections manual to
check the connection.
The changer is loading the disc.
t Wait until loading is complete.
The local seek mode is on during automatic tuning.
There is no alternativ e frequency for the current
station.
t Press (SEEK) +/– while the station name is
flashing. The unit starts searc hing for another
frequency with the same PI (Programme
Identification) data (“PI SEEK” appears).
All custom names have been deleted, or none are
stored.
The disc is not inserted in the CD/MD changer.
t Insert discs in the changer.
ID3 tag information is not written in th e M P3 file.
2
2
NO INFO
Text information is not written in the ATRAC3/
ATRAC3plus file.
NO MAG
The disc magazine is no t inse r te d in the CD changer.
tInsert the ma gazine in the changer.
NO MUSIC
The disc is not a music fil e.
tInsert a music CD in this unit or MP3 playable
changer.
NO TP
The unit will continue searc hing for available TP
stations.
NO NAME
A track/group/disc name is not written in the trac k.
NOT READ
The disc information has not been read by the unit .
tLoading the dis c, the n se lect it on the list.
NOTREADY
The lid of the MD changer is open or the MDs are not
inserted properly.
tClose the lid or inse rt the MDs pr ope r ly.
OFFSET
There may be an internal malf unc tion.
tCheck the connection. If the error indication
remains on in the display, consult your nearest
Sony dealer.
READ
The unit is reading all trac k and group information on
the disc.
tWait until reading is complete and playback starts
automatically. Depending on the disc structure, it
may take more than a minute.
RESET
The CD unit and CD/MD changer canno t be opera ted
because of some problem.
tPress the RESET button (page 4).
“” or “”
During fast-forward or reverse, you have reached the
beginning or the end of the disc and you cannot go any
further.
“ ”
The character cannot be displayed with the unit.
*1 If an error occurs during playback of a CD or MD,
the disc number of the CD or MD does not appear
in the display.
*2 The disc number of the disc causing the error
appears in the display.
If these solutions do not help improve the situation,
consult your nearest Sony deal er.
If you take the unit to be repaired because of CD
playback trouble, bring the disc tha t was used at the
time the problem began .
19
Willkommen!
Danke, dass Sie sich für diesen CD-Player von
Sony entschieden habe n. Mit diesem Gerät
stehen Ihnen i m Au to die folgenden Funkt ionen
zur Verfügung.
• CD-Wiedergabe
Wiedergabe von CD-DAs (auch solche mit CD
TEXT*), CD-Rs/CD-R Ws ( MP3-Dateien , auch
auf Multisession-CDs (
ATRAC-CDs (ATRAC3- und ATRAC3plusForma t (
Seite 15)).
CD-TypBeschriftung auf der CD
Seite 15)) sowie
Warnhinweis, wenn die Zündung Ihres
Fahrzeugs nicht über eine
Zubehörposition (ACC oder I) verfügt
Nachdem Sie die Zündung ausgeschaltet
haben, halten Sie am Gerät unbedingt (OFF)
gedrückt, bis die Anzeige ausgeblendet wird.
Andernfalls wird die Anzeige nicht
ausgeschaltet und der Autobatterie wird
Strom entzogen.
CD-DA
MP3
ATRAC-CD
• Radioempfang
–Für jeden Frequenzbereich (FM1 (UKW1),
FM2 (UKW2), FM3 (UKW3), MW und LW)
können Sie bis zu 6 Sender speichern.
–BTM-Funktion (Best Tuning Memory -
Speicherbelegungsautomatik): Das Gerät
wählt die Sender mit de n stärksten Signalen
aus und speichert diese.
• RDS-Funktionen
Sie können die RDS- D i enste von UKWSendern nutzen, die RDS-Signale (Radio Data
System) ausstrahlen.
• Klangeinstellungen
–EQ3: Sie können fü r 7 Musiktypen ein e
spezielle Equalizer-Kurve auswählen.
–DSO (Dynamic Soundstage Organizer):
Mithilfe virtueller Lautsprecher wird auch bei
niedrig in der Tür montierten Lautsprechern
eine bessere Raumklangwirkung erzeugt.
• Bedienung eines gesondert erhältlichen
Geräts
Sie können nicht nur die Wiedergabe mit
diesem Gerät, so ndern auch geson dert
erhältliche CD/MD-Wechsler steuern.
* Eine CD mit CD TEXT ist eine CD-DA, die
Informationen wie den Namen der CD, den Namen
des Interpreten und die Namen der Titel enthält.
Dieses Etikett befindet sich an der Unterseite
des Gehäuses.
SonicStage und das entsprechende Logo sind
Markenzeichen der Sony Corporation.
ATRAC, ATRAC3, ATRAC3plus und die
entsprechenden Logos sind Markenz ei chen der
Sony Corporation.
Bevor Sie das Gerät zum ersten Mal benutzen
oder wenn Sie die Autobatterie ausge t auscht
oder die Verbindungen gewech selt haben,
müssen Sie das Ge rät zurücksetzen.
Nehmen Sie die Fron tp la tte ab und drücken Sie
die Taste RESET mit einem spitzen Gegenstand,
wie z. B. einem Kugelschreiber.
Taste
RESET
Hinweis
Wenn Sie die Taste RESET drücken, werden die
eingestellte Uhrzeit und einige weitere gespeicherte
Einstellungen gelöscht.
Einstellen der Uhr
Die Uhr zeigt die Uhrzeit im 24-Stunden-Format
digital an.
1 Halten Sie (SEL) gedrückt.
Die Einstellanzeige erscheint.
2 Drücken Sie (SEL) so oft, bis „CLOCK-
ADJ“ angezeigt wird.
3 Drücken Sie (DSPL).
Die Stundenanzei ge blinkt.
4 Stellen Sie mit der Lautstärk et ast e +/–
die Stunden und Minuten ein.
Drücken Sie (DSPL), um zur jeweils
nächsten Ziffer in der Di gi ta la nzeige zu
wechseln.
5 Drücken Sie (SEL).
Die Uhr beginnt zu la uf en und die nächste
Einstellanzeige erscheint.
6 Halten Sie (SEL) gedrückt.
Der Einstellvorgang ist dam it abgeschlossen.
Zum Einblenden der Uhr zeit drücken Sie
(DSPL). Drücken Sie (DSPL) erneut, um zur
vorherigen Anzeige zurückzuschalten.
Tipp
Mithilfe der RDS-Funktion können Sie die Uhr auch
automatisch einstellen lassen (
Mit der Kartenfernbedienung
Stellen Sie in Schritt 4 die Stunden und Minuten mit M
oder m ein.
Seite 10).
W enn das Gerä t au sg eschaltet wird, erscheint
zunächst die Uhrzeit und danach beginnt di e
Demo (DEMO-Modus).
Zum Deakti vi eren de s DEMO -Modu s st el len Si e
bei ausgeschaltetem Gerät bei der Kon figuration
„DEMO-OFF“ (
Seite 12) ein.
Abnehmen der Frontplatte
Um zu verhindern, da ss das Gerät gestoh le n
wird, können Sie die Frontplatte abnehmen.
Warnton
Wenn Sie den Zündschlüssel in die Position OFF
stellen, ohne die Frontplatte abzunehmen, ertönt
einige Sekunden l ang ein Warnton.
Der Warnton wird nur ausgegeben, wenn der
integrierte Verstärker verwendet wird.
1 Drücken Sie (OFF).
Das Gerät schaltet sich aus.
2 Drücken Sie (OPEN).
Die Frontplatte klappt nach unten auf.
3 Schieben Sie die Frontplatte nach
rechts und ziehen Sie sie an der linken
Seite vorsichtig heraus.
1
2
Hinweise
• Lasse n Sie die Frontplatte nicht fallen und drü cken
Sie nicht zu stark auf die Frontplatte und das
Display.
• Schützen Sie die Frontplatte vor Hitze bzw. hohen
Temperaturen und vor Feuchtigkeit. Lassen Sie sie
nicht in geparkten Autos, auf dem Armaturenbrett
oder auf der Hutablage liegen.
Tipp
Bewahren Sie die Frontplatte im mitgelieferten
Behälter auf, wenn Sie sie bei sich tragen
.
4
Anbringen der Frontplatte
Setzen Sie die Auss par ung A an der Frontplatte
am Stift B am Gerät an und drücken Sie dann
die linke Seite behutsam hinein.
Drücken Sie (SOURCE) am Gerät bzw. legen
Sie eine CD ein, um das Gerät einzuschalten.
A
B
Einlegen einer CD in das
Gerät
1 Drücken Sie (OPEN).
2 Legen Sie eine CD mit der
beschrifteten Seite nach oben ein.
3 Schließen Sie die Frontplatte.
Die Wiederg abe beginnt automatisch.
Auswerfen der CD
x
Hinweis
Legen Sie auf der Innenseite der Frontplatte nichts ab.
1 Drücken Sie (OPEN).
2 Drücken Sie Z.
Die CD wird ausgeworfen.
3 Schließen Sie die Frontplatte.
5
Lage und Grundfunktionen der Teile und Bedienelemente
q
q
q
q
q
q
q
0
Hauptgerät
12 3 46 7 8 95
ATT
DSPL
SEL
–+GP/DISCREP SHUFBTM LIST
SOURCE MODE
a
Mit abgenommener Frontplatte
OFF
123456
d
s
qkqlw;
RESET
Kartenfernbedienung RM-X151
qd
qa
wa
OFF
SOURCE
SEL
ATT
MODE
+
2
4
qs
wd
–
VOL
SCRL
wf
wg
+
–
3
ws
DSPL
132
465
OPEN
DSO
SEEK
EQ3
AF/TA SENSPTY
CDX-F5550
j
h
f
Näheres finden Sie auf den angegebenen Seiten.
Die entsprechenden Tasten auf der
Kartenfernbedienung haben dieselbe Funktion
wie die Tasten am Gerät.
A Lautstärketaste +/–
Einstelle n der Lautstärke.
B T aste ATT (Dämpfen des Tons)
Dämpfen des Tons. Zum Beenden der
Funktion drücken Sie die Taste erneut.
C Taste DSPL (Anzeige) 4, 8, 13
Wechseln der Informa t ionen im Disp l a y.
D T aste SEL (Auswählen) 4, 11, 13
Auswählen von Opti onen.
E Display
F Taste EQ3 (Equalizer) 2, 11
Auswählen ei nes Equalizer-Typs (XPLOD,
VOCAL, CLUB, JAZZ, NEW
CUSTOM oder OFF).
g
AGE, ROCK,
6
G Taste DSO 2
Auswählen des DSO-Modus (1, 2, 3 oder
OFF). Je höher die Zahl, desto stärker ist die
Wirkung.
H Taste OPEN 4, 5
Dient zum Öffnen der Frontplatte.
I Taste SEEK +/–
Radio:
Automatisches E instelle n von Sendern
(drücken) bzw. manuelle Sendersuche
(gedrückt halten).
CD:
Überspringen von Titeln (drücken),
Überspringen m ehrerer Titel hintereinander
(drücken, dann inne rhalb von 1 Sekunde
erneut drücken und ge dr ückt halten) bzw.
Vorwärts-/Rückwärtssuchen in einem Titel
(gedrückt halten).
J Empfänger f ür die
Kartenfernbedienung
K Taste SOURCE
Einschalten/Wechseln der Tonquelle (Radio/
CD/MD*
1
).
L Taste MODE 8, 12
Auswählen des Radiofrequenzbe r eichs (FM
(UKW)/MW/LW)/Auswählen des Geräts*
M Taste OFF
Ausschalten/St oppen der Tonquelle.
N Zahlentasten (Stationstasten)
Radio:
Einstellen gesp ei cherter Sender (drücken)
bzw. Speichern von Sendern (gedrück t
halten).
CD/MD*1:
(1)/(2): GP*3/DISC*2 –/+
Überspringen von G ruppen (drücken) bzw.
Überspringen m ehrerer Gruppen
hintereinander (gedrückt halte n).
(3): REP 8
(4): SHUF 8
O Taste AF (Alternativfrequenzen)/TA
(Verkehrsdurchsagen)
9, 10
Einstellen von AF und TA/TP bei einem
RDS-Sender.
P Taste SENS/BTM 8
Verbessern des Empfangs: LOCAL/MONO
(drücken) bzw. Starte n der BTM-Funktion
(gedrückt halten).
Q Taste PTY (Programmtypauswahl)/
LIST
10
Auswählen v on P TY bei ei nem RDS- Sender ,
Auflisten.
R Taste RESET 4
S Taste Z (Auswerfen) 5
T CD-Einschub 5
Die folgenden Tasten auf der
Kartenfernbedi enung unterschei den sich
außerdem hinsichtlich ihres Namens bzw. ihrer
Funktion v on denen am Gerät.
wa Tasten < (.)/, (>)
Beim Steuern von Radio- und CDFunktionen ents pr echen diese Tasten den
Tasten (SEEK)
+/– am Gerät. Einzelheiten
zu weiteren Funkt i onen finden Sie unter
„Mit der Kart enfernbedienung“ auf den
entsprechenden Seiten.
ws Taste VOL +/–
Einstelle n der Lautstärke.
wd Tasten M (+)/m (–)
Beim Steuern von CD -Funktionen
entsprechen di ese Tasten den Tasten (1)/(2) –/+ am Gerät. Einzelheiten zu weiteren
Funktionen finden Sie unter „Mit der
Kartenfernbedienung“ auf den
entsprechenden Seiten.
wf Taste SCRL 8
2
.
Hiermit lassen Sie die Informationen im
Display durchla uf en.
wg Zahlentasten (Stationstast en)
Einstellen gespeicherter Sender (drücken)
bzw. Speichern von Sen dern (gedrückt
halten).
*1 Wenn ein MD-Wechsler angeschlosse n ist.
*2 Wenn ein CD/MD-Wechsler angeschlossen ist.
*3 Wenn eine MP3-/ATRAC-CD wiedergegeben wird
und kein Wechsler angeschlossen ist. Wenn ein
Wechsler angeschlossen ist, sind andere Schritte
auszuführen (siehe Seite 12).
Hinweis
Wenn Sie das Gerät ausschalten und die Anzeige
ausgeblendet ist, können Sie es nicht mit der
Kartenfernbedienung bedienen. Drücken Sie zunächst
(SOURCE) am Gerät oder legen Sie eine CD ein, um
das Gerät zu aktivieren.
Tipp
Einzelheiten zum Austauschen der Batterie finden Sie
„Austauschen der Lithiumbatterie der
unter
Kartenfernbedienung“ auf Seite 16.
7
CD
Einzelheiten zum An schließen eines CD/M D Wechslers finden Sie auf
Informationen im Display
Seite 12.
AB
Radio
Speichern und Empfangen von
Sendern
Achtung
Wenn Sie während der Fahrt Sender einstellen,
sollten Sie die BTM-Funktion (Best Tuning
Memory - Speich erbelegungsautoma ti k)
verwenden. Andernfalls best eht Unfallgefahr.
*2 Bei der Wiedergabe einer MP3-Datei wird das ID3-
Tag angezeigt. Bei der Wiedergabe einer ATRA CCD werden mit SonicStage usw. eingegebene
Textinformationen angezeigt.
Zum Wechseln der Informationen im Display A
drücken Sie (DSPL). Damit die I nformationen
im Display A durchlaufen, drücken Sie (SCRL)
auf der Kartenfernbedienung od er stellen
„A.SCRL-ON“ ein (
Tipp
Je nach CD-Typ und Aufnahmeformat werden
unterschiedliche Informa ti on en ang ezei gt.
Erläuterungen zu MP3 finden Sie auf
Erläuterungen zu ATRAC-CDs auf Seite 15.
Seite 12).
Seite 15,
Repeat und Shuffle Play
1 Drücken Sie während der Wiedergabe
(3) (REP) oder (4) (SHUF) so oft, bis
die gewünschte Einstellung im Display
erscheint.
EinstellungFunktion
REP-TRACK Wiederholtes Wiedergeben
eines Titels.
REP-GP*Wiederholtes Wiedergeben
einer Gruppe.
SHUF-GP*Wiedergeben einer Gruppe in
willkürlicher Reihenfolge.
SHUF-DISC Wiedergeben einer CD in
willkürlicher Reihenfolge.
* Bei Wiedergabe einer MP3-Datei/ATRAC-CD.
Wenn Sie wieder in den normalen
Wiedergabemodus s ch al ten mö cht en, w ähl en Si e
„REP-OFF“ bzw. „SHUF-OFF“.
8
Automatisches Speichern von
Sendern — BTM
2
,
1 Drücken Sie (SOURCE) so oft, bis
„TUNER“ erscheint.
Zum W echse ln des F reque nzberei chs drüc ken
Sie mehrmals (MODE). Sie können zwischen
FM1 (UKW1), FM 2 (U KW2), FM3
(UKW3), MW und LW wählen.
2 Halten Sie (BTM) gedrückt, bis „BTM“
blinkt.
Das Gerät speichert di e Sender in der
Reihenfolge der Frequenzen auf den
Zahlentasten (Stationstasten).
Ein Signalton ist zu hören und die Einstellung
wird gespeichert.
Manuelles Speichern von Sendern
1 Während der zu spe iche rnd e Sender
empfangen wird, halten Sie eine
Stationstaste ((1) bis (6)) gedrückt,
bis „MEM“ erscheint.
Die Stationstastenanzeige erscheint im
Display.
Hinweis
Wenn Sie auf der gleichen Stationstaste eine n
anderen Sender speichern, wird der zuvor
gespeicherte Sender ersetzt.
Tipp
Wenn ein RDS-Sender gespeichert wird, wird auch
die AF/TA-Einstellung gespeichert (
Seite 9).
Einstellen gespeicherter Sender
1 Wählen Sie den Frequenzbereich aus
und drücken Sie eine Stationstaste
((1) bis (6)).
Mit der Kartenfernbedienung
Zum Auswählen gespeicherter S end er drü cken Sie M
oder m.
Automatisches Einstellen von
Sendern
1 Wählen Sie den Frequenzbereich aus
und starten Sie mit (SEEK)
Suche nach dem Sender.
Der Suchlauf stoppt, wenn ein Sender
empfangen wird . Wiederho le n Si e diesen
Vorgang, bis das Gerät den gewünschten
Sender empfängt.
Tipp
Wenn Sie die Frequenz des gewünschten Senders
kennen, halten Sie (SEEK)
Frequenz in etwa erreicht ist, und drücken dann
(SEEK)
+/– so oft, bis die gewünschte Frequenz
genau eingestellt ist (manuelle Sendersuche).
+/– gedrückt, bis die
+/– die
RDS
Übersicht
UKW-Sender, die RDS (Radio Data System)
unterstützen, strahlen zusammen mit den
normalen Radioprogrammsignalen nicht hörbare,
digitale Informat i onen aus.
Informationen im Display
AB C
A Frequenz*1 (Sendername) , Uhrzeit,
RDS-Daten
B Radiofrequenzbereich, Funktion
C TA/TP*
*1 Beim Empfang eines RDS-Senders wird „ *“ links
*2 „TA“ blinkt während einer Verkehrsdurchsage. „TP“
Zum Wechseln der angezeigten Informatione n
A drücken Sie (DSPL).
RDS-Funktionen
Mit diesem Gerät stehen folgende RD SFunktionen au t omatisch zur Verfügung:
AF (Alternativfrequenz en)
In einem Netzwerk wird der Sender mit den
stärksten Signalen ausgewählt und neu
eingestellt. So können Sie auch bei einer langen
Fahrt über eine große Entfernung hinweg
ununterbroche n de nselben Sender empfangen,
ohne ihn manuell ne u ei nstellen zu müssen.
2
neben der Frequenz angezeigt.
leuchtet, wenn ein Sender mit Verkehrsdurchsagen
empfangen wird.
TA (Verkehrsdurchsagen)/
TP (Verkehrsfunksend er )
Aktuelle Verkehrs informat ionen bzw.
Verkehrsfunksender werden empfangen. Wenn
solche Informationen bzw. Sendungen
empfangen werde n, w ir d di e gerade
ausgewählte Tonquelle unterbrochen.
PTY (Programmtypen)
Der gerade empfangene Programmtyp wird
angezeigt. Außerdem kann nach dem
ausgewählten Programmtyp gesucht werden.
CT (Uhrzeit)
Mit den CT-Daten (Uhrzeitdaten), die von
RDS-Sendern ausgestrahlt werden, lässt sich
die Uhr einstellen.
Hinweise
• Je nach Land bzw. Region stehen möglicherweise
nicht alle RDS-Funktionen zur Verfügung.
• Die RDS-Funktion arbeitet möglicherweise nicht,
wenn die Sendesignale zu schwach sind oder wenn
der eingestellte Sender keine RDS-Daten ausstrahlt.
Einstellen von AF und TA/TP
1 Drücken Sie (AF/TA) so oft, bis die
gewünschte Einstellung angezeigt
wird.
EinstellungFunktion
AF-ONAF wird aktiviert und TA wird
TA-ONTA wird aktiviert und AF wird
AF, TA-ONAF und TA werden aktiviert.
AF, TA-OFFAF und TA werden deakt iviert.
Speichern von RDS-Sendern
zusammen mit der AF- und TAEinstellung
Sie können zusa mm en mi t de n RDS- Se nd ern di e
AF/TA-Einstellung speichern. Mit der BTMFunktion werden nur RDS-Sender mit derselben
AF/TA-Einstellung gespeichert.
Beim manuellen Speichern von Sendern können
Sie RDS- und Nicht-RDS-Sender mit
unterschiedlicher AF/TA-Einstellung speichern.
1 Stellen Sie AF/TA ein und speichern Sie die
Sender dann mit BTM oder manuell ab.
Speichern der Lautstärke von
Verkehrsdurc hsagen
Sie können die Laut st ä rke f ür die
V erk ehrsdurc hsagen v orein stellen, so dass Sie sie
nicht überhören .
deaktiviert.
deaktiviert.
Fortsetzung auf der nächsten Seite t
9
1 Drücken Sie mehrmals die Lautstärketaste +/–,
um den Lautstärkepegel einzustellen.
2 Halten Sie (AF/TA) gedrückt, bis „TA“
erscheint.
Empfangen von
Katastrophenwarnungen
Wenn AF oder TA aktiviert ist, unterbrechen
Katastrophenwar nungen automatisc h di e
ausgewählte Tonquelle.
Unveränderter Empfang eines
Regionalsenders — REG
Wenn die AF-Funktion aktiviert ist: Der
Empfang wird bei diesem Gerät werkseitig au f
die Regionalsender einer bestimmten Region
beschränkt, so dass nicht zu einem anderen
Regionalsender mit einer stärkeren Frequenz
gewechselt wird.
Wenn Sie den Empfangsbereich eines
Regional progra mms ver lassen , stel len Sie be i der
Konfiguration „REG-OFF“ ein (
Hinweis
Diese Funktion steht in Großbritannien und in einigen
anderen Regionen nicht zur Verfügung.
Seite 12).
Lokalsenderfunktion (nur
Großbritannien)
Mithilfe dieser Funktion können Sie andere
Lokalsende r auswählen, auch wenn di ese zuvor
nicht unter einer Stationstaste gespeichert
wurden.
1 Drücken Sie währe nd des UKW-Empfangs
eine Stationstaste ((1) bis (6)), unter der ein
Lokalsender gespeichert ist .
2 Drücken Si e i nnerhalb von 5 Se kunden erneut
die Stationstaste des Lokalsenders.
Wiederho len Sie diesen Vorgang, bis das G erät
den Lokalsen der empfängt.
Auswählen des Programmtyps
(PTY)
1 Drücken Sie während des UKW-
Empfangs (PTY).
3 Drücken Sie (SEEK) +/–.
Das Gerät beginnt, nach einem Sender zu
suchen, der den ausgewählten Programmtyp
ausstrahlt.
Mit der Kartenfernbedienung
Drücken Sie in Schritt 2 die Taste M bzw. m, um den
Programmtyp auszuwählen .
Programmtypen
NEWS (Nachrichten), AFFAIRS (Aktuelles Zeitgeschehen), INFO (Informationen),
SPORT (Sport), EDUCATE (Erziehung und
Bildung), DRAMA (Hörspiele), CULTURE
(Kultur), SCIENCE (Wissenschaft), VARIED
(Verschiedenes), POP
ROCK
M (Rock-Musik), EASY M
(Unterhaltungsmusik), LIGHT
Klassik), CLASSICS (Klassik), OTHER
(Sonstige Musik), WEATHER (Wetter), FINANCE (Finanzberichte), CHILDREN
(Kinderprogramme), SOCIAL
(Magazinsendungen), RELIGION (Religion),
PHONE
IN (Hörertelefon), TRAVEL
(Reiseinformationen), LEISURE
(Freizeitprogramm), JAZZ (Jazz), COUNTRY
(Country-Musik), NATION
OLDIES (Oldies), FOLK
DOCUMENT (Dokumentarbeiträge)
Hinweis
Sie können diese Funktion in Ländern/Regionen, in
denen keine PTY-Daten zur Verfügung stehen, nicht
verwenden.
M (Pop-Musi k),
M (Leichte
M
A
M (Volksmusik),
M (Folk-Musik) ,
Einstellen der Uhrzeit (CT)
1 Stellen Sie bei der Konfiguration „CT-
ON“ ein (
Hinweise
• Die CT-Funktion steht möglicherweise nicht zur
Verfügung, auch wenn ein RDS-Sender empfangen
wird.
• Die mit der CT-Funktion eingestellte Uhrzeit ist nicht
immer korrekt.
Seite 11).
Der Name des aktuellen Programmtyps
erscheint, wenn der Sender PTY-Daten
ausstrahlt.
2 Drücken Sie (PTY) so oft, bis der
gewünschte Programmtyp angezeigt
wird.
10
Weitere Funktionen
Ändern der Klangeinstellungen
Einstellen der Klangeigenschaften
— BAL/FAD/SUB
Sie können die Balan ce, den Fader und die
Lautstärke des Tiefsttonlautsprechers eins te l le n.
1 Drücken Sie (SEL) so oft, bis „BAL“,
„FAD“ oder „SUB“ angezeigt wird.
Die Anzeige wechselt folgendermaßen:
LOW*1 t MID*1 t HI*1 t
BAL (links-rechts) t FAD (vorne-hinten)
tSUB (Lautstärke des
Tiefsttonlautsprechers)*
*1 Wenn EQ3 eingeschaltet ist (Se ite 1 1) .
*2 Wenn als Audioausgang „SUB“ eingestellt ist
(Seite 11).
„ATT“ wird bei der niedrigsten Einstellung
angezeigt. Die Lautstärke lässt sich in 20
Stufen einstellen.
2 Stellen Sie mit der Lautstärketaste +/–
die ausgewählte Optio n ei n.
Nach 3 Sekunden ist die Einstellung
abgeschlossen und im Display erscheint
wieder die Anzeige für den normalen
Wiedergabemodus bzw. Empfangsmodus.
Hinweis
Nachdem Sie eine Klangoption ausgewählt haben,
müssen Sie innerhalb von 3 Sekunden den
Einstellvorgang beginnen.
Mit der Kartenfernbedienung
Drücken Sie in Schritt 2 die Taste <, M, , oder m,
um die ausgewählte Option einzustellen.
Einstellen der Equalizer-Kurve
— EQ3
Sie können die Equal iz er-Ei nstellungen für
verschiedene Frequenzbereiche vornehmen und
speichern.
1 Wählen Sie eine Tonquelle aus und
drücken Sie mehrmals (EQ3), um den
EQ3-Typ auszuwählen.
2 Drücken Sie (SEL) so oft, bis „LOW“,
„MID“ od er „HI“ angezeigt wird.
3 Stellen Sie mit der Lautstärketaste +/–
die ausgewählte Optio n ei n.
Die Lautstärke lässt sich in Schritten von
1
dB auf einen Wert zwischen –1 0 dB und
+10 dB einstellen.
2
Gehen Sie wie in Schritt 2 und 3 vor, wenn
Sie weitere Frequenzbereiche der EqualizerKurve einstellen wollen.
Wenn Sie die werkseitig eingestellte
Equalizer-Kurve wiederherstellen wollen,
halten Sie (SEL) gedrückt , bevor die
Einstellung abgeschlossen ist.
Nach 3 Sekunden ist die Ei nstellung
abgeschlossen und im Display erscheint
wieder die Anzeige für den normalen
Wiedergabemodus bzw. Empfangsmodus.
Mit der Karten fer nb ed ienung
Drücken Sie in Schritt 3 die Taste <, M, , oder m,
um die ausgewählte Option einzustellen.
Einstellen von
Konfigurationsoptionen — SET
1 Halten Sie (SEL) gedrückt.
Die Einstellanzeige erscheint.
2 Drücken Sie (SEL) so oft, bis die
gewünschte Option angezeigt wird.
3 Wählen Sie mit der Lautstärketaste +/–
die Einstellung aus (beispielsweise
„ON“ oder „OFF“) .
4 Halten Sie (SEL) gedrückt.
Die Einstellung ist da mit abgeschlosse n und
im Display erscheint wieder die Anzeige für
den normalen Wiedergabemodus bzw.
Empfangsmodus.
Hinweis
Die angezeigten Optionen unterscheiden sich je nach
Tonquelle und Einstellung.
Mit der Karten fer nb ed ienung
Drücken Sie in Schritt 3 die Taste < oder ,, um die
Einstellung auszuwählen.
Folgende Optionen können eingestellt w erden
(Einzelheiten finden Sie jeweils auf den
angegebenen Seiten ):
„z“ gibt die Standa rdeinstellung an.
CLOCK-ADJ (Uhr einstellen)
(Seite 4)
CT (Uhrzeit)
Zum Einstellen von „ON“ oder „OFF“ (
(Seite 9, 10).
BEEP
Zum Einstellen von „ON“ (
SUB/REAR*
1
z) oder „OFF“.
Zum Wechseln des Audioausgangs.
–„SUB“ (
z): Ausgabe an einen
Tiefsttonlautsprecher.
–„REAR“: Ausgabe an einen Endverstärker.
z)
Fortsetzung auf der nächsten Seite t
11
DIM (Dimmer)
Zum Wechseln der Helligkeit im Display.
–„ON“: Das Display wird dunkler.
–„OFF“ (
z): Der Dimmer wird deaktiviert.
CONTRAST
Zum Einstellen de s Kontras ts im D i splay.
Der Kontrast lässt sich in 7 Stufen einstellen.
M.DSPL*
–„ON“ (
2
(Bewegte Anzeige)
z): Bewegte Muster werden angezeig t.
–„OFF“: Die bewegte Anzeige wird
deaktiviert.
1
DEMO*
Zum Einstellen von „ON“ (
(Demo-Modus)
z) oder „OFF“
(Seite 4).
A.SCRL (Automatischer Bildlauf)
Zum Einstellen des automatischen Bild laufs für
Informationen mit vielen Zeichen beim
Wechseln der Gruppe bzw. des Titels.
–„ON“: Die Informationen laufen im Display
durch.
–„OFF“ (
z): Die Informationen lauf en im
Display nicht du rch.
3
(Regional)
REG*
Zum Einstellen von „ON“ (
z) oder „OFF“
(Seite 10).
4
(Niedrigpass filter )
LPF*
Zum Einstellen der Grenzfrequenz auf „78HZ“,
„125HZ“ oder „OFF“ (
*1 Bei ausgeschalte tem Gerä t.
*2 Bei eingeschalte tem Gerät .
*3 Wenn ein UKW-Sender empfangen wird.
*4 Wenn als Audioausgang „SUB“ eingestellt ist.
z).
Verwenden gesondert
erhältlicher Geräte
CD/MD-Wechsler
Auswählen des Wechslers
1 Drücken Si e (SOURCE) so oft, bis „CD“ oder
„MD“ erscheint.
2 Drücken Si e (MODE) so oft, bis der
gewünscht e Wechsl er angezeigt wird.
CD/MD-Nummer Gerätenummer
Die Wiedergabe beginnt.
Überspringen von Gruppen und CDs/
MDs
1 Drücken Sie während der Wiedergabe (1)/
(2) (GP/DISC) –/+.
Zum
Überspringen
Drücken Sie (1)/(2)
einer Gruppeund lassen Sie die Taste nach
einem Moment los.
weiterer
Gruppen
innerhalb von 2 Sekunden nach
dem Loslassen erneut.
von CDs/MDs wiederholt.
mehrerer CDs/
MDs
hintereinander
und drücken Sie die Taste
innerhalb von 2 Sekunden
erneut und ha lten Sie sie dann
gedrückt.
Repeat und Shuffle Play
1 Drücken Sie während der Wiedergabe (3)
(REP) oder (4) (SHUF) so oft, bis die
gewünschte Einstellung im Display erscheint.
EinstellungFunktion
REP-DISC*1Wiederholte Wiedergabe einer
CD/MD.
SHUFCHGR*
Wiedergabe der Titel im
1
Wechsler in willkürlicher
Reihenfolge.
SHUF-ALL*
2
Wiedergabe der Titel in allen
Geräten in willkürlicher
Reihenfolge.
*1 Wenn mindestens ein CD/MD-Wechsler
angeschlossen ist.
*2 Wenn mindestens ein CD-Wechsler bzw.
mindestens zwei MD-Wechsler angeschlossen
sind.
Wenn Sie wieder in den normalen
Wiedergabemodus schalten möchten, wählen Sie
„REP-OFF“ bzw. „SHUF-OFF“.
Tipp
Mit „SHUF-ALL“ werden nicht Titel von CD-Geräten
und MD-Wechslern gemischt wiedergegeben.
Benennen einer CD
Wenn Sie CDs in einem CD-Wechsler mit
CUSTOM FILE-Funktion wiedergeben, können
Sie die CDs mit einem individuellen Namen aus
bis zu 8 Zeichen (Disc Memo) versehen.
Wenn Sie eine CD benennen, erscheint der Name
in der Liste.
12
Loading...
+ 70 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
