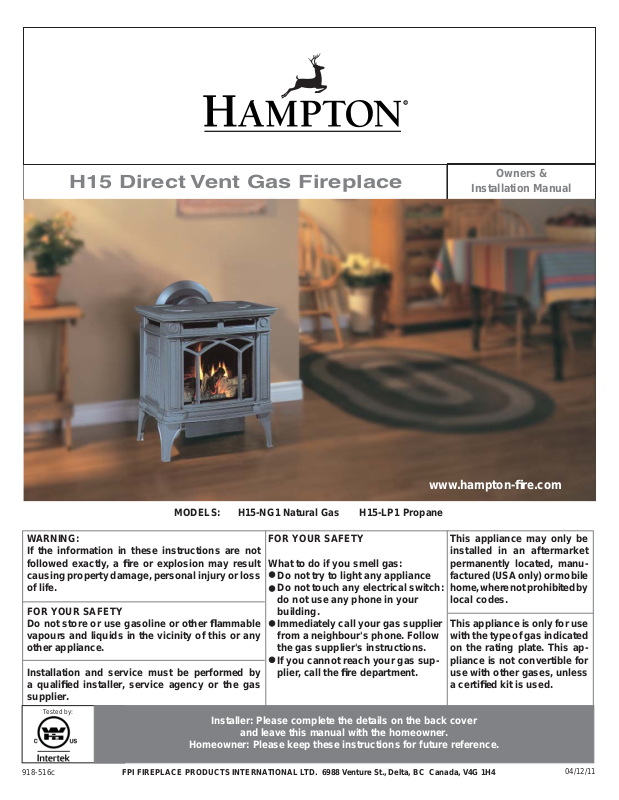

H15 Direct Vent Gas Fireplace |
Owners & |
Installation Manual |
www.hampton-fire.com
MODELS: H15-NG1 Natural Gas H15-LP1 Propane
WARNING:
If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch: do not use any phone in your building.
Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
This appliance may only be installed in an aftermarket permanently located, manufactured (USA only) or mobile home,wherenotprohibitedby local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
Tested by:
Installer: Please complete the details on the back cover and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
918-516c |
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 |
04/12/11 |
HAMPTON®
Direct Vent Freestanding Gas Stove
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Hampton® Gas Stove by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The H15-1 is a hand crafted appliance and has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The model H15-1 has been approved by Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your Hampton® Stove.
2
Hampton® H15-1 Direct Vent Freestanding Gas Stove
SAFETYDIMENSIONSLABEL
UNIT DIMENSIONS
3
Hampton® H15-1 Direct Vent Freestanding Gas Stove
DIMENSIONS |
|
DIMENSIONS |
|
Unit Dimensions ............................................................ |
3 |
SAFETY LABEL |
|
Copy of Safety Decal..................................................... |
5 |
REQUIREMENTS |
|
MA Code - CO Detector................................................. |
5 |
INSTALLATION |
|
Important Message ...................................................... |
7 |
Specifications ................................................................ |
7 |
Manufactured Homes After First Sale............................ |
7 |
Before You Start ............................................................ |
7 |
General Safety Information............................................ |
8 |
Installation Checklist...................................................... |
8 |
Clearances to Combustibles.......................................... |
9 |
Locating Your Gas Stove............................................... |
9 |
Manufactured Mobile Home Additional Requirements .. |
9 |
Combustion and Ventilation Air...................................... |
9 |
Optional Fan Installation.............................................. |
10 |
Venting Introduction..................................................... |
12 |
Installation Precautions ............................................... |
12 |
Safety Precautions for the Installer.............................. |
12 |
Vent Restrictor Position ............................................... |
12 |
Rotating Elbow ............................................................ |
12 |
Exterior Vent Terminal Locations ................................. |
13 |
4” x 6-5/8” Rigid Pipe .................................................. |
14 |
Cross Reference Chart................................................ |
14 |
Rigid Pipe Venting Systems ........................................ |
16 |
Venting Arrangements ................................................. |
19 |
Vertical Termination with Co-linear Flex System ......... |
20 |
DV Stove Horizontal Vent Kit....................................... |
21 |
Residential and Manufactured Homes ...................... |
23 |
Minimum Horizontal Termination Installations ............. |
23 |
Dura-Vent Termination Kit............................................ |
24 |
Horizontal terminations................................................ |
25 |
Vertical Terminations ................................................... |
26 |
Converting Class-A Metal Chimney or |
|
Masonry Chimney to Direct Vent System................... |
28 |
Cathedral Ceilings ....................................................... |
29 |
High Elevation ............................................................. |
29 |
Gas Connection........................................................... |
29 |
Aeration Adjustment .................................................... |
30 |
Gas Pipe Pressure Testing .......................................... |
30 |
Conversion from NG to LP .......................................... |
31 |
Log Set Installation...................................................... |
34 |
Optional Wall Thermostat ........................................... |
36 |
Optional Remote Control ............................................ |
36 |
Final Check.................................................................. |
36 |
Wiring Diagrams.......................................................... |
37 |
OPERATING INSTRUCTIONS |
|
Operating Instructions ................................................. |
39 |
Lighting Procedure ...................................................... |
39 |
Shutdown Procedure................................................... |
39 |
First Fire ...................................................................... |
39 |
Adjusting Flame Height ............................................... |
39 |
Automatic Convection Fan Operation.......................... |
39 |
Copy of the Lighting Plate Instructions ....................... |
40 |
Normal Operating Sounds of Gas Appliances............. |
41 |
MAINTENANCE |
|
Maintenance Instructions............................................. |
41 |
Pilot Adjustment........................................................... |
41 |
Fan Maintenance......................................................... |
42 |
General Vent Maintenance.......................................... |
42 |
Log Replacement ........................................................ |
42 |
Glass Replacement ..................................................... |
42 |
Removing Valve........................................................... |
43 |
Installing Valve Assembly ............................................ |
43 |
PARTS LIST |
|
Main Assembly ............................................................ |
44 |
Burner & Log Assembly............................................... |
45 |
WARRANTY |
|
Warranty ...................................................................... |
47 |
4
Hampton® H15-1 Direct Vent Freestanding Gas Stove
SAFETY LABEL
This is a copy of the label that accompanies each Direct Vent Freestanding Gas Stove.
We have printed a copy of the contents here for your review.
NOTE: Hampton® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
|
|
|
|
|
|
DUPLICATE SERIAL NO. |
301 |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Listed: VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION |
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE |
|||
Certified for/Certifiée pour: CANADA and U.S.A. |
||||
|
Serial No./ No de serie |
|||
Tested to: CGA-2-17-M91, ANSI Z21.88a-2007 / CSA 2.33a-2007 |
|
|||
|
|
|
||
WN# 16443 |
|
301 |
|
|
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE |
|
|
|
|
|
|
NATURAL GAS STOVE: Model H15-NG1 |
APPAREIL FONCTIONNANT AU NATURAL GAS |
||||
|
|
L |
5" |
WC/C.E. (1.25 kPa) |
CONCU POUR ETRE POELE: Modéle H15-NG1 |
||
|
|
Pression d’allimentation minimum |
|||||
|
|
Minimum supply pressure |
|||||
H15-NG1 |
Model/Modele: |
Manifold pressure High |
3.8" WC/C.E. (0.94 kPa) |
Pression à la tubulure d'échappement élevée |
|||
Manifold pressure Low |
1.1" WC/C.E. (0.27 kPa) |
Pression à la tubulure d'échappement basse |
|||||
Maximum Input |
18,000 Btu/h (5.28 Kw/h) |
Débit Calorifique maximum |
|||||
Minimum Input |
|||||||
10,500 Btu/h (3.08 Kw/h) |
Débit Calorifique minimum |
||||||
Orifice size |
|||||||
#47 DMS |
|
Dimensions de l'orifice |
|||||
Altitude |
|
||||||
0-4500 ft/pi |
(0-1372m) |
L'altitude |
|||||
|
|
PROPANE GAS STOVE: Model H15-LP1 |
APPAREIL FONCTIONNANT AU PROPANE |
||||
|
|
Minimum supply pressure |
12" |
WC/C.E. |
(3.00 kPa) |
CONCU POUR ETRE POELE: Modéle H15-LP1 |
|
|
|
L |
Pression d'allimentation minimum |
||||
|
|
Manifold pressure High |
11" WC/C.E. |
(2.74 kPa) |
|||
|
|
Pression à la tubulure d'échappement élevée |
|||||
|
|
Manifold pressure Low |
2.9" WC/C.E. |
(0.72 kPa) |
|||
|
|
Pression à la tubulure d'échappement basse |
|||||
H15-LP1 |
Model/Modele: |
Maximum Input |
18,000 Btu/h |
(5.28 Kw/h) |
|||
Débit Calorifique maximum |
|||||||
Minimum Input |
10,600 Btu/h |
(3.10 Kw/h) |
|||||
Débit Calorifique minimum |
|||||||
Orifice size |
#55 DMS |
|
|||||
|
Dimensions de l'orifice |
||||||
Altitude |
0-2000 ft/pi |
(0-610m) |
|||||
L'altitude |
|||||||
Maximum Input |
15,500 Btu/h |
(4.54 Kw/h) |
|||||
Débit Calorifique maximum |
|||||||
Minimum Input |
8,200 Btu/h |
(2.40 Kw/h) |
|||||
Débit Calorifique minimum |
|||||||
Orifice size |
#56 DMS |
|
|||||
|
Dimensions de l'orifice |
||||||
|
|
Altitude |
2000-4500 ft/pi (610-1372m) |
L'altitude |
|||
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See owner's manual for details.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec
d'autres gaz sauf si une trousse de conversion certifiée est fournie. |
|
This vented gas fireplace heater is not for use with air filters. |
Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation. |
For use with glass doors certified with the appliance only. |
Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil. |
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
FOYER AU GAZ À ÉVACUATION - NE PAS UTILISER AVEC DUCOMBUSTIBLE SOLIDE.
Minimum Clearances to Combustibles / Degagement Minimum
De Materiaux Combustibles
Left Side Wall |
|
Left Side Wall |
A |
|
A |
B |
|
C |
Horizontal |
Vertical |
|
Pipe |
|
Pipe |
|
|
|
A 36” max |
A |
36” max |
Right Side Wall |
Right Side Wall |
|
|
E |
|
E
Minimum ceiling height from top of unit:24"/610mm Minimum plafond hauteur en haut de
l'appareil: 24"/610mm
A |
6" / 150mm |
C 2" / 50mm |
B |
0" / 0mm |
E 2" / 50mm |
See Manual for details
Minimum clearance of Vent Terminal to Outside Corner & Inside Corner: with AstroCap 6"/150mm
with Dura-Vent Cap 12"/300mm
Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.
FPI Fireplace Products International Ltd.
Delta, BC, Canada
Made in Canada/ |
|
Fabrique au Canada |
918-494b |
|
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.
5
Hampton® H15-1 Direct Vent Freestanding Gas Stove
REQUIREMENTS
MA Code - CO Detector
(for the State of Massachusetts only)
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a.In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b.In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.
2.APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3.SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1.The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and
2.Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1.Detailed instructions for the installation of the venting system design or the venting system components; and
2.A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:
1.The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2.The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
6
Hampton® H15-1 Direct Vent Freestanding Gas Stove
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Direct Vent Freestanding Gas Stove must be installed in accordance with these instructions. Carefully read all the instructions in this manual first. Consult the building authority having jurisdiction to determine the need for a permit prior to starting the installation.
Note: Failuretofollowtheinstructionscould cause a malfunction of the heater which could result in death, serious bodilyinjury,and/orpropertydamage. Failure to follow these instructions may also void your fire insurance and/ or warranty.
Note: These instructions take precedence over Simpson Dura-Vent instructions.
SPECIFICATIONS
Fuels: H15-NG1 is approved for use with natural gas.
H15-LP1 is approved for use with liquefied petroleum gases (propane).
Electrical: 120V A.C. system.
Optional Circulation Fan:
Variable speed, 125/75.
Log Sets: Ceramic fibre, 4 per set.
Vent System: Coaxial (6-5/8" outer / 4" inner liner) rigid flue and termination cap.
MOBILE /
MANUFACTURED
HOMES AFTER
FIRST SALE
This Hampton® product has been tested and listed by ITS Testing Services as a Direct Vent
Room Heater to the following standards:
CGA-2.17-M91, and ANSI Z21.88a-2007/CSA
2.33a-2007.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA
501A, and with CAN/CSAZ240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical CodeANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149
Gas Installation Code and the current Canadian
Electrical Code CSA C22.1 in Canada.
This Hampton® Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.
This Hampton® Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 18 gauge copper wire from the steel chassis ground must be attached.
INSTALLATION
WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAYTO AVOID BURNS OR CLOTHING IGNITION.
Thisappliancemayonlybeinstalledinan aftermarket permanently located, manufactured (USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
BEFORE YOU START
Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards andANSI Standards to make you aware of the following:
INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROMCARPETING,BEDDINGMATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS,YOUNG CHILDREN AND OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL CONTACT BURNS. A PHYSICALBARRIERSISRECOMMENDED IFTHERE ARE AT RISK INDIVIDUAL INTHE HOUSE. TO RESTRICT ACCESS TO A FIREPLACE OR STOVE, INSTALL AN ADJUSTABLE SAFETY GATE TO KEEP TODDLERS, YOUNG CHILDREN AND OTHER AT RISK INDIVIDUALS OUT OF THE ROOM AND AWAY FROM HOT SURFACES.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.
7
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION
1)Provide adequate clearances for servicing, proper operation and around the air openings into the combustion chamber.
2)The appliance must be installed on a flat, solid, continuous surface (e.g. wood, metal, concrete). This may be the floor, or it can be raised up on a platform to enhance its visual impact. The appliance may be installed on carpeting, tile, wood flooring or other combustible material, because the appliance's base extends the full width and depth of the appliance. The Direct
Vent Freestanding Gas Stove can be installed in a wide variety of ways and will fit nearly any room layout. It may be installed in a recessed position, framed out into the room, or across a corner.
3)The Direct Vent Freestanding Gas Stove is approved for alcove installations, which meet the clearances listed in the "Clearance to
Combustibles" section. This unit is approved for manufactured home installations, see the "Manufactured Mobile Home Additional Requirements" and "Rigid Pipe Venting Systems" sections for the required vent arrangements. If installed into a manufactured home the unit must be bolted down to the floor.
4)This appliance is Listed for bedroom installations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.
5)This appliance is Listed forAlcove installations, maintain minimum Alcove clearances as follows, minimum width of 32-1/2" (825mm), a maximum depth of 36" (914mm), and minimum height of 24" (610mm) from top of unit to ceiling.
6)We recommend that you plan your installation on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have a qualified building inspector review your plans before installation.
GENERAL SAFETY
INFORMATION
1)The appliance installation must conform with local Canadian Electrical Code.
2)The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code,ANSI/NFPA70 or CSA
C22.1 Canadian Electrical Code.
Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
3)The appliance should be inspected for shipping damage before use and serviced annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, and circulating air passageways of the appliance be kept clean and free from excessive lint from carpeting.
4)See general construction and assembly instructions. The appliance and vent should be enclosed when installed in or passing through a living area, where children may come in contact with it.
5)This appliance must be connected to the speci-
fied vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is fitted as per the instructions startinginthe"ExteriorVentTerminalLocations" section.
6)Inspect the venting system annually for blockage and any signs of deterioration.
7)Venting terminals shall not be recessed into a wall or siding.
8)Any safety glass removed for servicing must be replaced prior to operating the appliance.
9)To prevent injury, do not allow anyone who is unfamiliarwiththeoperationtousethefireplace.
INSTALLATION
CHECKLIST
1)Locate your gas appliance. Refer to the following sections:
a.Locating Your Gas Stove
b.Clearances to Combustibles
c."Venting Introduction" to "Exterior Vent Terminal Locations" sections.
2)Install Optional Fan. Refer to the "Optional Fan
Installation" section.
3)Set vent restrictor. Refer to the "Vent Restrictor
Position" section.
4)Install venting: Check all venting requirements.
See "Venting Introduction" to "Dura-Vent Vertical Termination" sections.
5)Make gas connections. Refer to the "Gas Connection" section.
Test the pilot. Must be as per diagram in the
"Pilot Adjustment" section.
If converting to Propane, make changes prior as instructed in the "Conversion from Natural Gas to Propane" section.
6)Test Gas Pressure. Refer to the "Gas Pipe
Pressure Testing" section.
7)Install standard and optional features. Refer to the following sections where applicable:
a.Log Set Installation
b.Wall Thermostat
c.Remote Control
8)Final check. Refer to the "Final Check" section.
Before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and operation fully explained to customer.
This includes:
1)Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning appliance for 15 minutes.
2)If required, adjusting the primary air to ensure that the flame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that causessootingorcarboningthatresultsindamage is not the responsibility of the manufacturer.
8
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION
CLEARANCES TO |
LOCATING YOUR |
COMBUSTIBLES |
GAS STOVE |
The clearances listed are MINIMUM distances.
Measure the clearance to both the appliance and the chimney connector. The farthest distance is correct if the two clearances do not coincide.
For example, if the appliance is set as indicated in one of the figures but the connector is too close, move the stove until the correct clearance to the connector is obtained.
This appliance may be installed only with the clearances as shown in the situations pictured.
Do not combine clearances from one type of installation with another in order to achieve closer clearances.
This unit can be installed on a solid combustible surface like a wood floor. This unit can also be installed directly on carpeting or vinyl.
Use the minimum clearances shown in the diagrams below:
H15-NG1 & H15-LP1 Clearances
A Left Side Wall to Unit* |
6" |
/ 150 mm |
*BBack Wall to Unit |
0" |
/ 0 mm |
C Vertical Vent Pipe to Back Wall |
|
|
|
2" / 50 mm |
|
E Unit Corner to Wall |
2" |
/50 mm |
Unit Top to Alcove Ceiling |
24" |
/ 610 mm |
Minimum ceiling height is 24" /610 mm from top of unit.
*IMPORTANT
It is recommended that unit is moved away from the wall, if installing the blower option, so the fan can be easily installed and/or serviced.
When selecting a location for your stove, ensure that the clearances listed above are met as well as ensuring that there is adequate accessibility for servicing and proper operation.
*12' max. only if vertical height is achieved.
A)Cross Corner
B)Room Divider
C)Island
D)Flat on Wall
E)Flat on Wall Corner
F)Flush with Wall/Alcove
For VentTerminationrequirements,seethe "Exterior
Vent Terminal Locations" section.
MANUFACTURED MOBILE
HOME ADDITIONAL
REQUIREMENTS
1)Ensure that structural members are not cut or weakened during installation.
2)Ensure proper grounding using the #8 ground lug provided.
3)Appliance must be anchored to the floor with the supplied anchoring methods.
COMBUSTION AND
VENTILATION AIR
The combustion air from this appliance is drawn from outside the building through the outer flue.
Extra provision for combustion air inside the room is not required.
9
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION

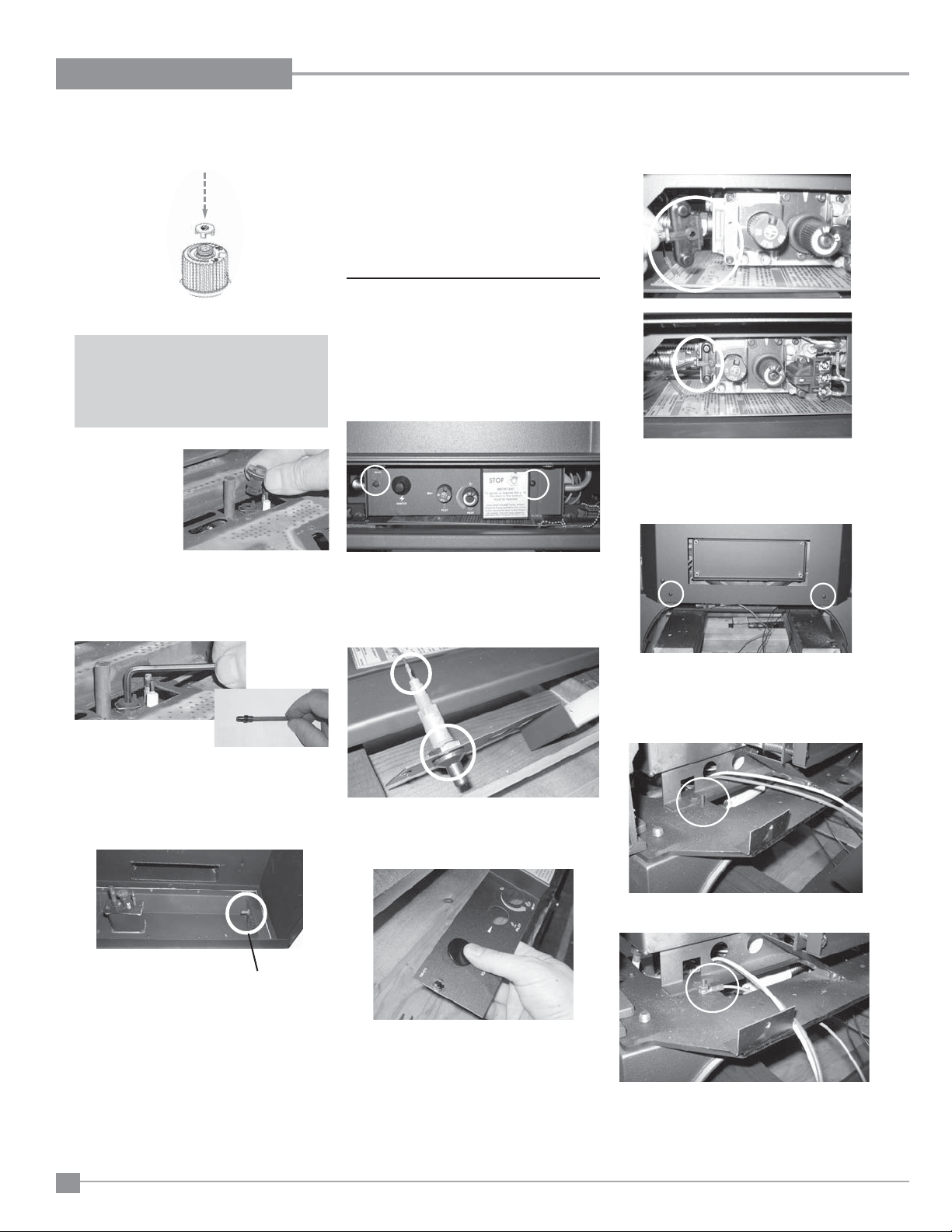

OPTIONAL FAN
INSTALLATION
Fan Kit Contains:
Qty. Description
1 |
Fan Assembly c/w green wire attached |
1 |
Thermodisc |
1 |
Fan Speed Control |
1 |
Grommet |
1)Remove the rear access panel on the back of the stove by removing the 2 screws under the rear panel, then lift rear panel off of 2 bolts at the top. Take care not to cut wires when lowering the panel.
4)Remove the nylon hole plug from the control panel.
5)Install the fan speed controller onto the control panel and secure with nut and washer. Connect the red and black wires from the wire harness to speed controller. NOTE: Speed control wires must be in the down position when control panel is in place.
6)Push black knob onto speed control.
7)Re-attach control panel with 3 screws, reversing step 3.
Fan Speed
Controller
screw screw
8) Slide Thermodisc into the bracket on the left side of the rear firebox.
bolt
Lift Rear Panel off of the 2 top bolts.
2) Disconnect the red and grey wires.
3)Remove the Top Control Panel Assembly by removing the three screws.
Thermodisc |
Thermodisc |
Bracket |
|
Top Control Panel Assembly
9) Remove 2 screws from unit.
10)Place grommet in rear plate through the bottom of the opening as shown below.
Rear Plate |
Grommet |
11)Place the blower close to the base of the unit and feed the wires through the grommet in the rear plate.
Wires
10
Hampton® H15-1 Direct Vent Freestanding Gas Stove
12)Slide fan into place and secure with the two screws removed in step 9.
13)Connect long black & red wires to thermodisc and secure wires.
14)Connect fan ground wire to lug nut at base of unit.
INSTALLATION
15)Before re-attaching the rear access panel, the valve wires and the fan wires need to be connected.
Lug Nut
Re-connect the red and grey valve wires removed in step 2.

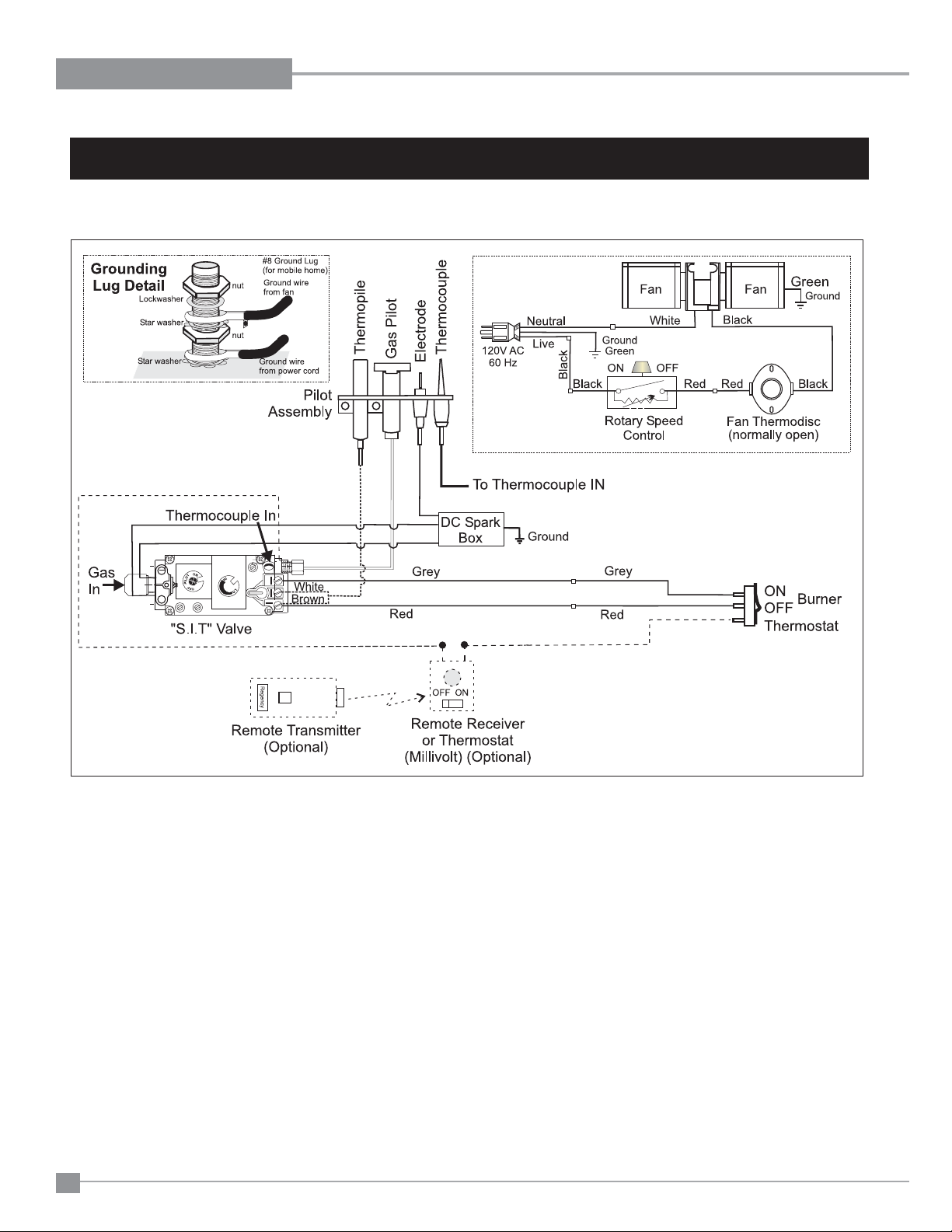

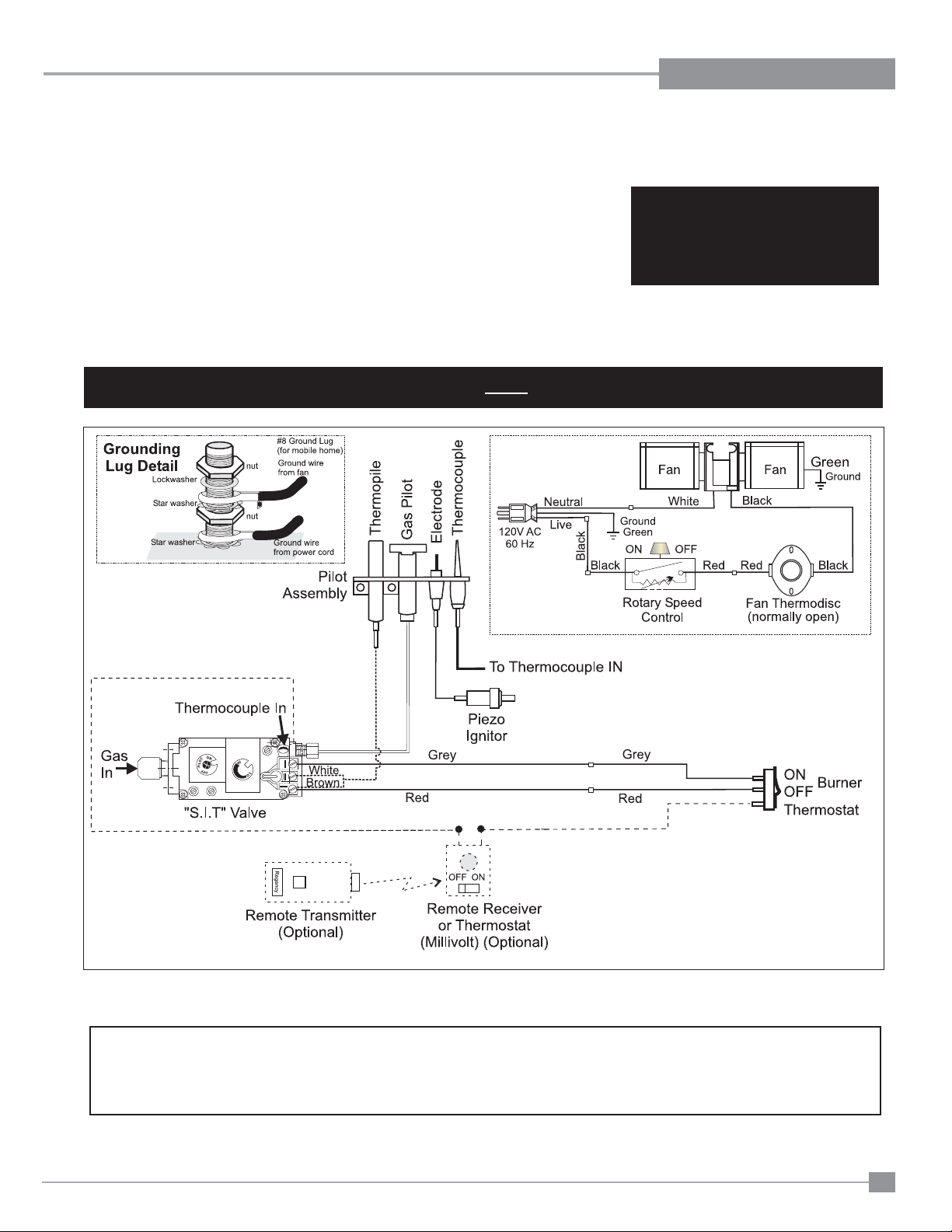

Connect the black and white fan wires as per the wiring diagram below.
16) Slide the Rear Access Panel back into position and secure with 2 screws.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
11
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION
VENTING INTRODUCTION

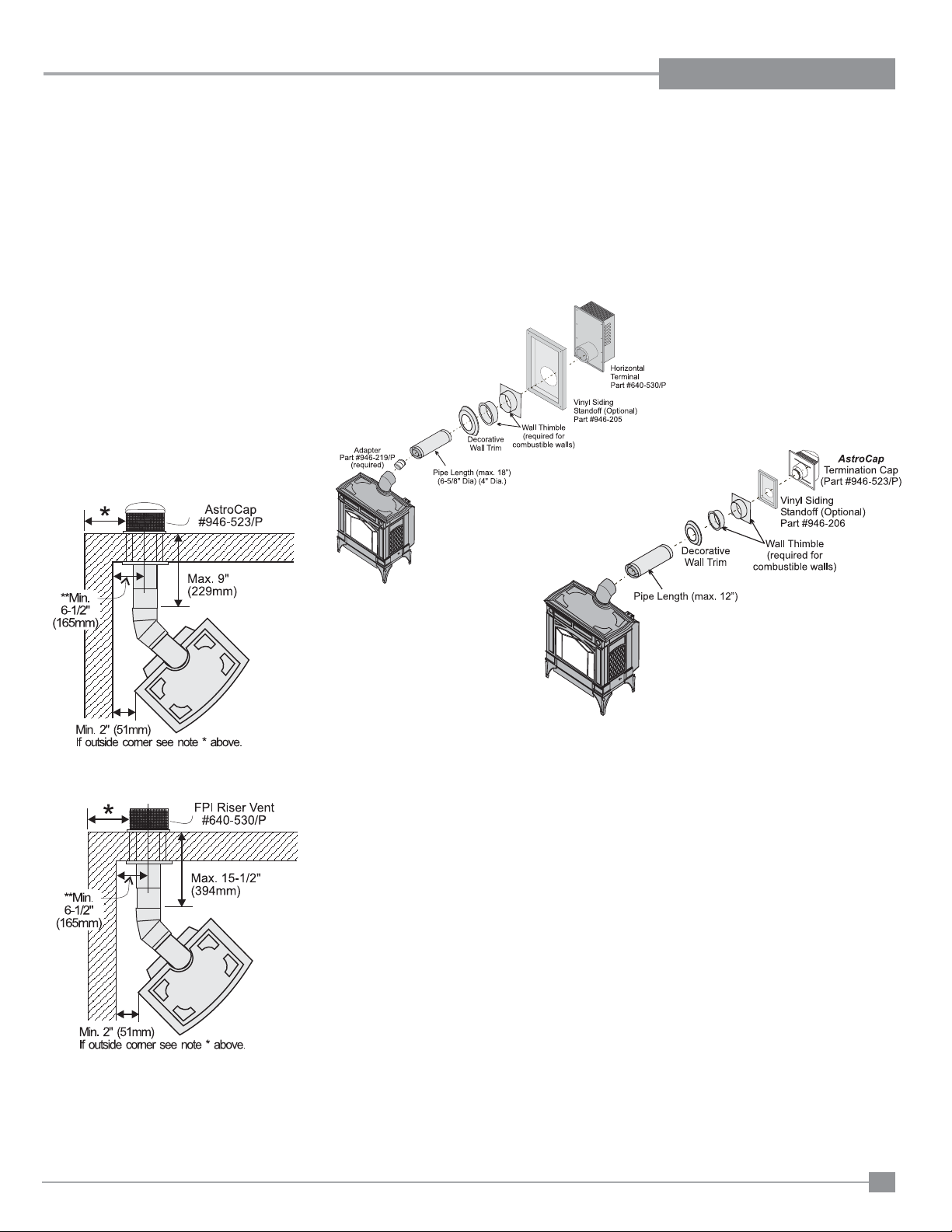

The Horizontal Termination Kit and the Simpson Dura-Vent Direct Vent venting systems, in combination with the Direct Vent Freestanding Gas Stoves,
H15-NG1,andH15-LP1,havebeentestedandlisted as direct vent heater systems by Warnock Hersey.
These units use the "balanced flue" technology
Co-Axial system. The inner liner vents products of combustion to the outside while the outer pipe draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system.
Common vent systems are prohibited.
IMPORTANT
Read all instructions carefully before starting the installation. Failure to follow these instructions may create a fire or other safety hazard, and will void the warranty. Be sure to check the venting and clearance to combustible requirements. Consult your local building codes before beginning installation.
The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" section.
INSTALLATION
PRECAUTIONS
These venting systems are engineered products that have been designed and tested for use with the H15-NG1, and H15-LP1. The warranty will be voided and serious fire, health or other safety hazards may result from any of the following actions:
1)Installation of any damaged Rigid Pipe component.
2)Unauthorized modification of any Rigid Pipe
System.
3)Installation other than as instructed by Simpson
Dura-Vent and FPI Fireplace Products International Ltd.
Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a fire hazard. Do not fill air spaces with insulation.
Be sure to check the vent termination clearance requirements from decks, windows, soffits, gas regulators, air supply inlets and public walkways as specified in the "Exterior Vent Terminal Locations" section and in your local building codes.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance.
Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.
SAFETY PRECAUTIONS FOR THE INSTALLER
1)Wear gloves and safety glasses for protection.
2)Exercise extreme caution when using ladders or on roof tops.
3)Be aware of electrical wiring locations in walls and ceilings.
VENT RESTRICTOR
POSITION

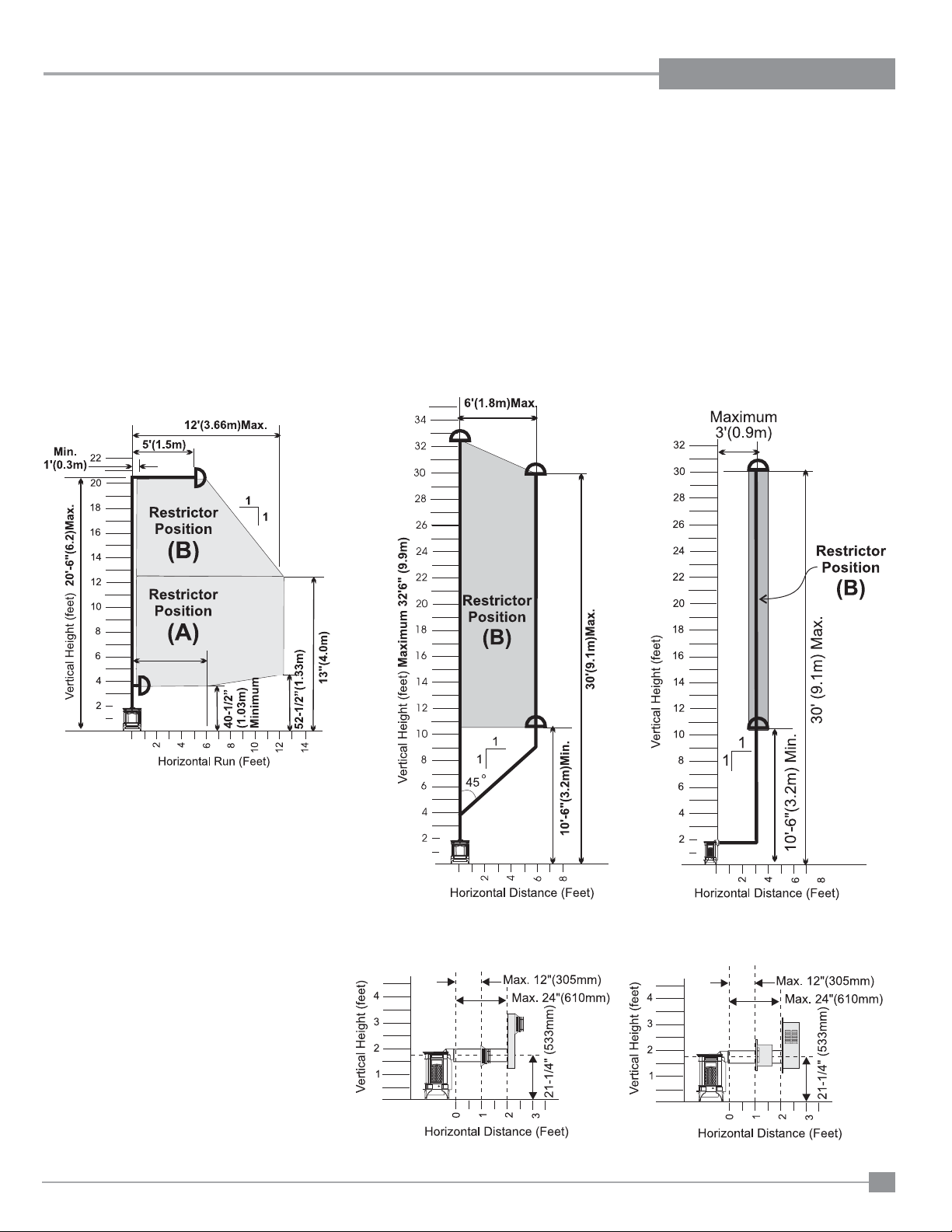

To set the Vent restriction as indicated in the Venting Arrangement diagrams in the "Rigid
Pipe Venting System" section, simply loosen the screws and push the vent restrictor plate to the correct position. Tighten the screws. This will be located inside the firebox.
1)Remove top casting.
2)Remove all 4 screws that secure the elbow to the unit using a 1/4" magnetic nut driver.
Remove all 4 screws and washers
ROTATING ELBOW
3) Rotate the elbow 180o
4) Secure the elbow by securing it with the 4 screws.
12
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION

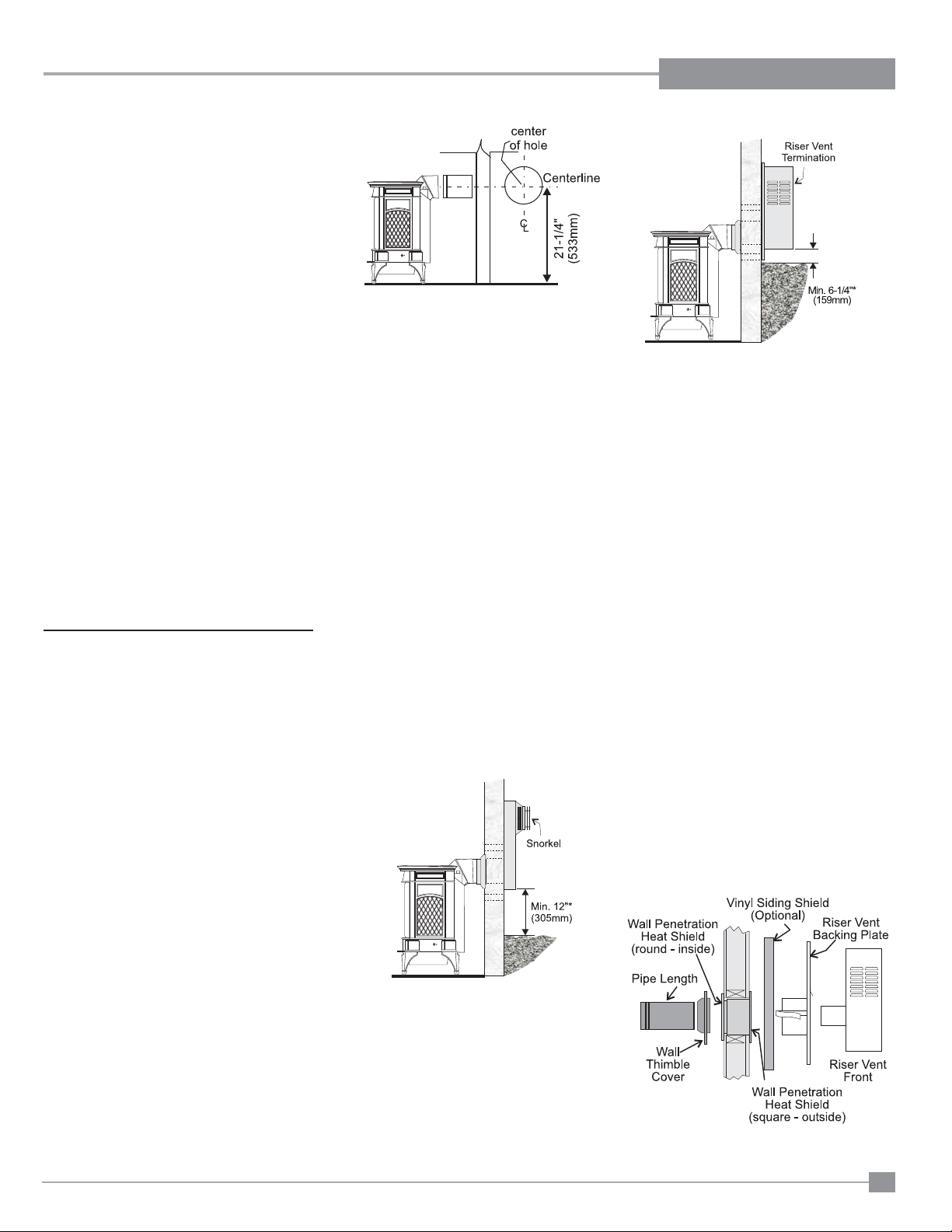

EXTERIOR VENT TERMINAL LOCATIONS
|
|
Minimum Clearance Requirements |
Canada1 |
USA2 |
|
|
|
|
|
|
A |
Clearance above grade, veranda, porch, deck, or balcony |
12"(30cm) |
12"(30cm) |
|
|
|
|
|
|
B |
Clearance to window or door that may be opened |
12"(30cm) |
9" (23cm) |
|
|
|
|
|
|
C |
Clearance to permanently closed window |
* |
* |
|
|
|
|
|
|
D |
Vertical clearance to ventilated soffi t located above the terminal within a horizontal distance of 2 feet (61cm) |
22"(56cm) |
22"(56cm) |
|
|
from the center line of the terminal (check with the local code) |
|
|
|
|
|
|
|
|
E |
Clearance to unventilated soffi t |
12"(30cm) |
12"(30cm) |
|
|
|
|
|
|
F |
Clearance to outside corner: with AstroCap and Vent Riser Termination Cap |
6"(15cm) |
6"(15cm) |
|
|
|
|
|
|
|
Clearance to outside corner: with all other approved Termination Caps. |
12"(30cm) |
12"(30cm) |
|
|
|
|
|
|
G |
Clearance to inside corner: with AstroCap and Vent Riser Termination Cap |
6"(15cm) |
6"(15cm) |
|
|
|
|
|
|
|
Clearance to inside corner: with all other approved Termination Caps |
12"(30cm) |
12"(30cm) |
|
|
|
|
|
|
H |
Clearance to each side of center line extended above meter/regulator assembly |
36"(90cm)a |
* |
|
|
|
|
|
|
J |
Clearance to service regulator vent outlet |
36"(90cm) |
* |
|
|
|
|
|
|
K |
Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance |
12"(30cm) |
9" (23cm) |
|
|
|
|
|
|
L |
Clearance to a mechanical air supply inlet |
72"(1.8m) |
36"(90cm)b |
|
|
#3' (91cm) above if within 10' (3m) horizontally. |
|
|
|
|
|
|
|
|
M |
Clearance above paved sidewalk or a paved driveway located on public property |
84"(2.1m)┼ |
* |
|
N |
Clearance under veranda, porch, deck, or balcony |
12"(30cm)‡ |
* |
1 |
In accordance with current CSA B149.1, Natural Gas and Propane Installation Code |
|
|
|
2 |
In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code |
|
|
|
┼ A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the fl oor. * Clearance in accordance with local installation codes and the requirements of the gas supplier
a 3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly b 3 feet (91cm) above - if within 10 feet (3m) horizontally
13
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION
4” X 6-5/8” RIGID PIPE
CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
|
|
|
|
|
|
|
Description |
Simpson |
Selkirk |
American Metal |
Metal-Fab™ |
Security |
ICC Excel |
|
Direct Vent Pro® |
Direct Temp™ |
Products® |
Sure Seal |
SecureVent® |
Direct |
|
|
|
Amerivent Direct |
|
|
|
|
|
|
|
|
|
|
6” Pipe Length-Galvanized |
46DVA-06 |
4DT-6 |
N/A |
4D6 |
SV4L6 |
TC-4DL6 |
|
|
|
|
|
|
|
6” Pipe Length-Black |
46DVA-06B |
4DT-6B |
N/A |
4D6B |
SV4LB6 |
TC-4DL6B |
|
|
|
|
|
|
|
7” Pipe Length-Galvanized |
N/A |
N/A |
4D7 |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
7” Pipe Length-Black |
N/A |
N/A |
4D7B |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
9” Pipe Length-Galvanized |
46DVA-09 |
4DT-9 |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
9” Pipe Length-Black |
46DVA-09B |
4DT-9B |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
12” Pipe Length-Galvanized |
46DVA-12 |
4DT-12 |
4D12 |
4D12 |
SV4L12 |
TC-4DL1 |
|
|
|
|
|
|
|
12” Pipe Length-Black |
46DVA-12B |
4DT-12B |
4D12B |
4D12B |
SV4LB12 |
TC-4DL1B |
|
|
|
|
|
|
|
18” Pipe Length-Galvanized |
46DVA-18 |
4DT-18 |
4D18 |
4D18 |
SV4LA |
TC-4DL18 |
|
|
|
|
|
|
|
18” Pipe Length-Black |
46DVA-18B |
4DT-18B |
4D18B |
4D18B |
SV4LA |
TC-4DL18B |
|
|
|
|
|
|
|
24” Pipe Length-Galvanized |
46DVA-24 |
4DT-24 |
4D24 |
4D24 |
SV4L24 |
TC-4DL2 |
|
|
|
|
|
|
|
24” Pipe Length-Black |
46DVA-24B |
4DT-24B |
4D24B |
4D24B |
SV4LB24 |
TC-4DL2B |
|
|
|
|
|
|
|
36” Pipe Length-Galvanized |
46DVA-36 |
4DT-36 |
4D36 |
4D36 |
SV4L36 |
TC-4DL3 |
|
|
|
|
|
|
|
36” Pipe Length-Black |
46DVA-36B |
4DT-36B |
4D36B |
4D36B |
SV4LB36 |
TC-4DL3B |
|
|
|
|
|
|
|
48” Pipe Length-Galvanized |
46DVA-48 |
4DT-48 |
4D48 |
4D48 |
SV4L48 |
TC-4DL4 |
|
|
|
|
|
|
|
48” Pipe Length-Black |
46DVA-48B |
4DT-48B |
4D48B |
4D48B |
SV4LB48 |
TC-4DL4B |
|
|
|
|
|
|
|
60” Pipe Length-Galvanized |
46DVA-60 |
4DT-60 |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
60” Pipe Length-Black |
46DVA-60B |
4DT-60B |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Adjustable Length 3”-10”-Galvanized |
N/A |
N/A |
N/A |
4DAL |
N/A |
TC-4DLT |
|
|
|
|
|
|
|
Adjustable Length 3”-10”-Black |
N/A |
N/A |
N/A |
4DALB |
N/A |
TC-4DLTB |
|
|
|
|
|
|
|
Adjustable Length 7”-Galvanized |
N/A |
N/A |
4D7A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
Adjustable Length 7”-Black |
N/A |
N/A |
4D7AB |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
Extension Pipe 8-1/2”-Galvanized |
46DVA-08A |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
Extension Pipe 8-1/2”-Black |
46DVA-08AB |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
Adjustable Length 12”-Galvanized |
N/A |
N/A |
4D12A |
N/A |
SV4LA12 |
N/A |
|
|
|
|
|
|
|
Adjustable Length 12”-Black |
N/A |
N/A |
4D12A |
N/A |
SV4LBA12 |
N/A |
|
|
|
|
|
|
|
Extension Pipe 16”-Galvanized |
46DVA-16A |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
Extension Pipe 16”-Black |
46DVA-16AB |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45º Elbow-Galvanized |
46DVA-E45 |
4DT-EL45 |
4D45L |
N/A |
N/A |
TE-4DE45 |
|
|
|
|
|
|
|
45º Elbow-Black |
46DVA-E45B |
4DT-EL45B |
4DT-EL45B |
N/A |
N/A |
TE-4DE45B |
45º Elbow Swivel-Galvanized |
See 46DVA-E45 |
N/A |
N/A |
4D45L |
SV4E45 |
N/A |
|
|
|
|
|
|
|
45º Elbow Swivel-Black |
See 46DVA-E45B |
N/A |
N/A |
4D45LB |
SV4EB45 |
N/A |
90º Elbow-Galvanized |
46DVA-E90 |
4DT-EL90S |
4DT-EL90S |
N/A |
N/A |
TE-4DE90 |
|
|
|
|
|
|
|
90º Elbow-Black |
46DVA-E90B |
4DT-EL90SB |
4DT-EL90SB |
N/A |
SV4EBR90-1 |
TE-4DE90B |
90º Elbow, Swivel-Galvanized |
See 46DVA-E90 |
N/A |
N/A |
4D90L |
SV4E90-1 |
N/A |
|
|
|
|
|
|
|
90º Elbow, Swivel-Black |
See 46DVA-E90B |
N/A |
N/A |
4D90LB |
SV4EB90-1 |
N/A |
90º Starter Elbow, Swivel-Galvanized |
N/A |
N/A |
N/A |
4D90A |
N/A |
N/A |
|
|
|
|
|
|
|
Adaptor* |
N/A |
N/A |
N/A |
4D90L |
N/A |
N/A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ceiling Support |
N/A |
4DT-CS |
4DFSP |
4DSP |
SV4SD |
TE-4DE45 |
|
|
|
|
|
|
|
Cathedral Support Box |
46DVA-CS |
4DT-CSS |
4DRSB |
4DRS |
SV4CSB |
TE-4DE45B |
|
|
|
|
|
|
|
Wall Support/Band |
46DVA-WS |
4DT-WS/B |
4DWS |
4DWS |
SV4BM |
N/A |
|
|
|
|
|
|
|
Offset Support |
46DVA-ES (N/A - FPI) |
4DT-OS |
N/A |
N/A |
SV4SU |
N/A |
|
|
|
|
|
|
|
Wall Thimble-Black |
46DVA-WT |
4DT-WT |
4DWT |
4DWT |
SV4RSM |
TE-4DE90 |
|
|
|
|
|
|
|
Wall Thimble Support/Ceiling Support |
46DVA-DC |
N/A |
N/A |
N/A |
SV4PF |
TE-4DE90B |
|
|
|
|
|
|
|
Firestop Spacer |
46DVA-FS |
4DT-FS |
4DFSP |
4DFS |
SV4BF |
N/A |
|
|
|
|
|
|
|
Trim Plate-Black |
N/A |
4DT-TP |
4DFPB |
4DCP |
SV4LA |
N/A |
|
|
|
|
|
|
|
14
Hampton® H15-1 Direct Vent Freestanding Gas Stove
INSTALLATION
|
Description |
|
Simpson |
|
Selkirk |
|
American Metal |
Metal-Fab™ |
Security |
ICC Excel |
||||||||||
|
|
|
|
|
Direct Vent Pro® |
Direct Temp™ |
|
|
Products® |
Sure Seal |
SecureVent® |
Direct |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Amerivent Direct |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Attic Insulation Shield 12” |
|
46DVA-IS N/A@ FPI |
N/A |
|
|
|
|
4DAIS12 |
N/A |
SV4RSA |
N/A |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Attic Insulation Shield - Cold Climates 36” |
|
N/A |
N/A |
|
|
|
|
4DAIS12 |
N/A |
N/A |
TM-4AS |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Basic Horizontal Termination Kit (A) |
|
Disc. |
4DT-HKA |
|
|
|
|
4DHTK2 |
4DHTKA |
SV-SHK |
N/A |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Horizontal Termination Kit (B) |
|
46DVA-KHA |
4DT-HKB |
|
|
|
|
4DHTK1 |
4DHTKB |
SV-HK |
N/A |
|||||||||
|
|
|
|
|
(Changed Components) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vertical Termination Kit |
|
Disc. |
4DT-VKC |
|
|
|
|
4DHTK |
4DHTK |
SV-FK |
N/A |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
High Wind Vertical Cap |
|
46DVA-VCH |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4VT |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
High Wind Horizontal Cap |
|
46DVA-HC |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4DHT |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Horizontal Square Termination Cap |
|
See 46DVA-HC |
4DT-HHC |
|
|
|
|
4DHC |
4DHT |
SV4CHC-1 |
TM-4HT |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vertical Termination Cap |
|
46DVA-VC |
4DT-HVC |
|
|
|
|
4DVC |
4DVT |
SV4CGV-1 |
TM-4VT |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Storm Collar |
|
|
|
|
46DVA-08A |
4DT-SC |
|
|
|
|
4DSC |
4DSC |
SV4FC |
TM-SC |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Adjustable Flashing 0/12-6/12 |
|
46DVA-F6 |
4DT-ST14 |
|
|
|
|
4D12S |
4DST14 |
SV4STC14 |
TF-4FA |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Adjustable Flashing 6/12-12/12 |
|
46DVA-FLA |
4DT-ST36 |
|
|
|
|
4D36S |
4DST36 |
SV4STC36 |
TF-4FB |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vinyl Siding Standoff |
|
46DVA-VSS |
4DT-VS |
|
|
|
|
N/A |
4DVS |
SV4VS |
TM-VSS |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vinyl Siding Shield Plate |
|
N/A |
4DT-VSP |
|
|
|
|
N/A |
N/A |
SV4VS |
N/A |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Snorkel Termination 14” |
|
46DVA-SNKL |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4ST14 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Snorkel Termination 36” |
|
N/A |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4ST36 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Restrictor Disk |
|
|
|
|
N/A |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4DS |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Extended Vertical Termination Cap |
|
N/A |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
N/A |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chimney Conversion Kit A (USA only) |
|
46DVA-KCA |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4CA6 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chimney Conversion Kit B (USA only) |
|
46DVA-KCB |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4CA7 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chimney Conversion Kit C (USA only) |
|
46DVA-KCC |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4CA8 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chimney Conversion Kit Masonry |
|
46DVA-KMC |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
N/A |
|||||||||
(USA only) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wall Firestop |
|
|
|
|
46DVA-WFS |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
TM-4TR |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Colinear Flex Connectors |
|
46DVA-ADF |
N/A |
|
|
|
|
N/A |
N/A |
N/A |
N/A |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FPI |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
946-506/P |
|
|
Vent Guard (Optional) for AstroCap |
|
|
|
946-205 |
|
|
|
|
|
Vinyl Siding Shield for Riser Vent Terminal |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
510-994 |
|
|
Rigid Pipe Adaptor (Must use with all rigid piping) |
946-208/P |
Vent Guard (Optional) for Riser Vent Terminal |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
640-530/P |
|
|
Riser Vent Terminal |
|
|
|
|
946-523/P |
AstroCap Horizontal Cap |
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
946-605 |
|
|
Starter Collar Increaser 4” x 6-5/8” to 5” x 8” |
946-206 |
|
|
|
|
|
Vinyl Siding Standoff for AstroCap |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994). |
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||

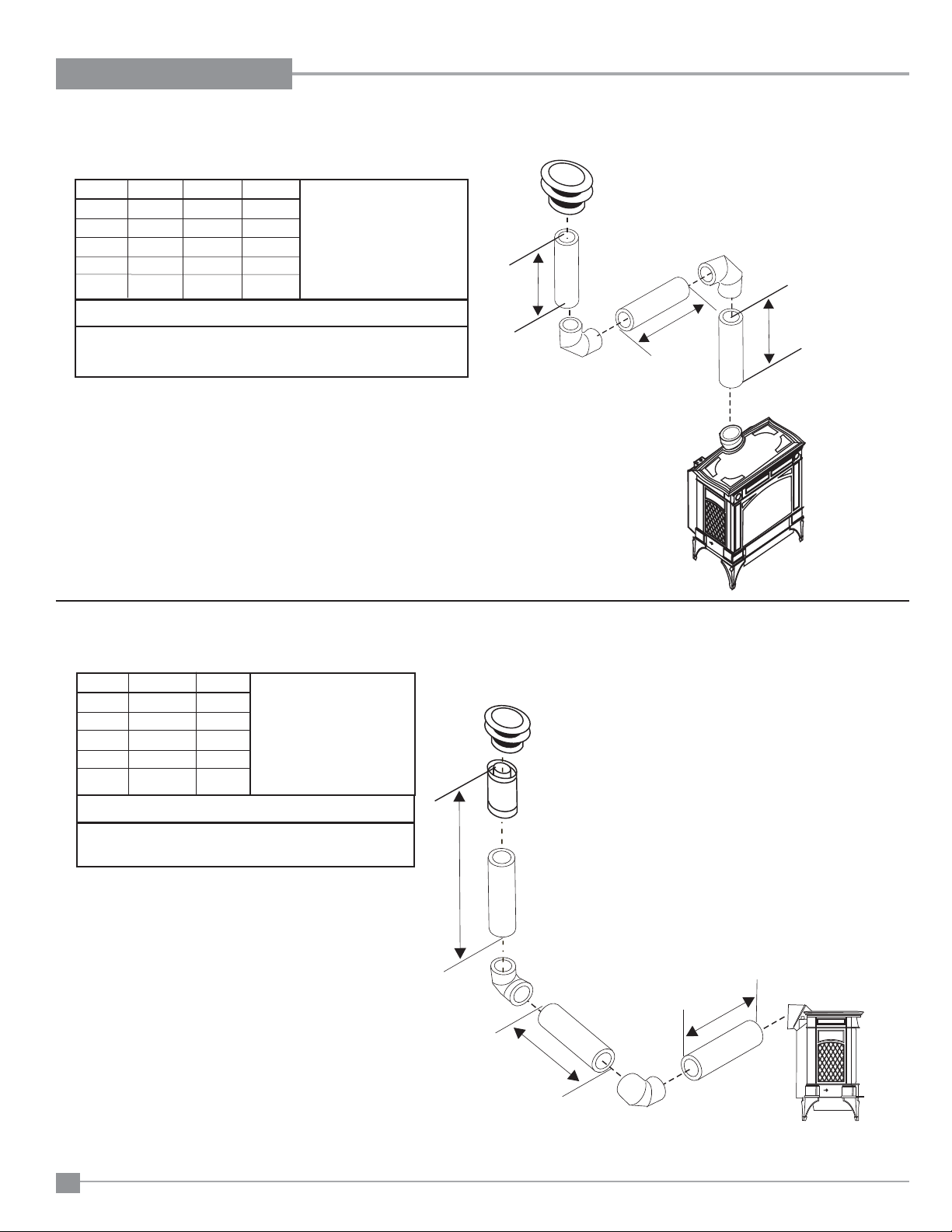

Offset Pipe Selection: Use this table to determine offset pipe lengths. |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Pipe Length |
|
|
4” x 6-5/8” Venting |
|
|
|
|
|
|
|
|
|
|
|
|
For specifi c instructions on venting components - visit the |
||||
(L) |
|
|
Run (X) |
|
Rise (Y) |
|
|
|
|
|
|
|
|
|
|
|
|
manufacturers website listed below. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
0” (0mm) |
|
4-7/8” (124mm) |
|
13-7/8” (340mm) |
|
|
|
|
|
|
|
|
|
|
|
|
Simpson Direct Vent Pro: www.duravent.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6” (152mm) |
|
|
8” (203mm) |
|
16-1/2” (419mm) |
|
|
|
|
|
|
|
|
|
|
|
|
Selkirk Direct-Temp: www.selkirkcorp.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
9” (229mm) |
|
10-1/8” (257mm) |
|
18-5/8” (473mm) |
|
|
|
|
|
|
|
|
|
|
|
|
American Metal Products: www.americanmetalproducts.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
12” (305mm) |
|
12-1/4” (311mm) |
|
20-3/4” (527mm) |
|
|
|
|
|
|
|
|
|
|
|
|
Metal-Fab Sure Seal: www.mtlfab.com |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
24” (610mm) |
|
20-5/8” (524mm) |
|
29-1/8” (740mm) |
|
|
|
|
|
|
|
|
|
|
|
|
Security Secure Vent: www.securitychimneys.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
36” (914mm) |
|
|
29” (737mm) |
|
37-1/2” (953mm) |
|
|
|
|
|
|
|
|
|
|
|
|
Industrial Chimney Company: www.icc-rsf.com |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
48” (1219mm) |
|
37-7/16” (951mm) |
|
45-15/16” (1167mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high temperatures and may present a possible fi re hazard.
Regency Fireplace Products . 6988 Venture St. . Delta, BC . Canada . V4G 1H4 . 604-946-5155 . www.regency-fi re.com
15
Hampton® H15-1 Direct Vent Freestanding Gas Stove
Loading...
