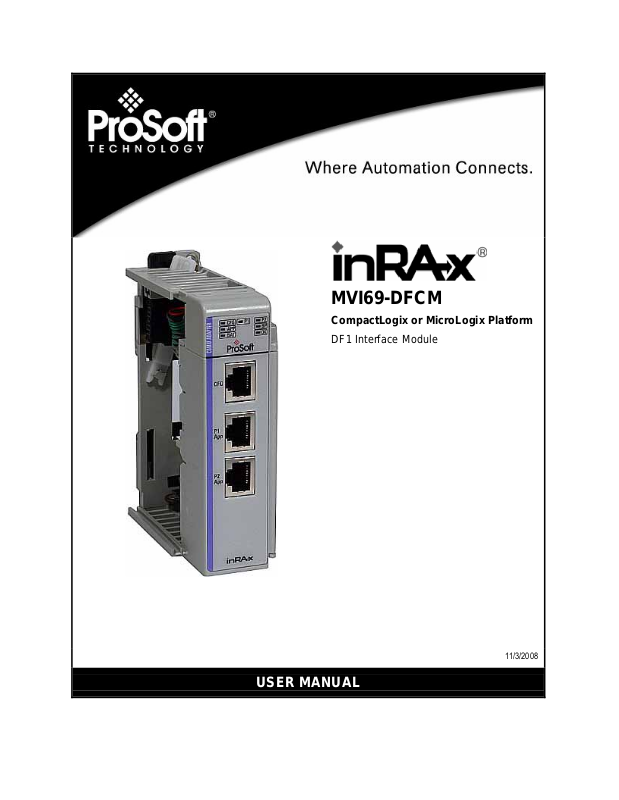

ProSoft Technology MVI69-DFCM User Manual

Download

MVI69-DFCM

CompactLogix or MicroLogix Platform

DF1 Interface Module

11/3/2008

USER MANUAL

Please Read This Notice

Successful application of this module requires a reasonable working knowledge of the Rockwell Automation CompactLogix or MicroLogix hardware, the MVI69-DFCM Module and the applicati on in which the combination is to be used. For this reason, it is important that those responsible for implementation satisfy themselves that the combination will meet the needs of the application without exposing personnel or equipment to unsafe or inappropriate working conditions.

This manual is provided to assist the user. Every attempt has been made to ensure that the information provided is accurate and a true reflection of the product's installation requirements. In order to ensure a complete understanding of the operation of the product, the user should read all applicable Rockwell Automation documentation on the operation of the Rockwell Automation hardware.

Under no conditions will ProSoft Technology be responsible or liable for indirect or consequential damages resulting from the use or application of the product.

Reproduction of the contents of this manual, in whole or in part, without written permission from ProSoft Technology is prohibited.

Information in this manual is subject to change without notice and does not represent a commitment on the part of ProSoft Technology Improvements and/or changes in this manual or the product may be made at any time. These changes will be made periodically to correct technical inaccuracies or typograp hica l errors.

Battery Life Advisory

All modules in the MVI series use a rechargeable Lithium Vanadium Pentoxide battery to backup the 51 2K SRAM memory, real-time clock, and CMOS. The battery should last for the life of the module. The module must be powered for approximately twenty hours before it becomes fully charged. After it is fully charged, the battery provides backup power for the CMOS setup and configuration data, the real-time clock, and the 512K SRAM memory for approximately 21 days. Before you remove a module from its power source, ensure that the battery within the module is fully charged. A fully charged battery will hold the BIOS settings (after being removed from its power source) for a limited number of days. When the battery is fully discharged, the module will revert to the default BIOS settings.

Note: The battery is not user replaceable.

Your Feedback Please

We always want you to feel that you made the right decision to use our products. If you have suggestions, comments, compliments or complaints about the product, documentation or support, please write or call us.

ProSoft Technology 1675 Chester Avenue, Fourth Floor Bakersfield, CA 93301 +1 (661) 716-5100 +1 (661) 716-5101 (Fax) http://www.prosoft-technology.com

11/3/2008 ProSoft Technology ®, ProLinx ®, inRAx ®, ProTalk® and RadioLinx ® are Registered Trademarks of ProSoft

Technology, Inc.

ProSoft® Product Documentation

In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments. User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provide d on the enclosed CD and are available at no charge from our web site: http://www.prosoft-technology.com Printed documentation is available for purchase. Contact ProSoft Technology for pricing and availability. Asia Pacific: +603.7724.2080 Europe, Middle East, Africa: +33.5.34.36.87.20 Latin America: +1.281.298.9109 North America: +1.661.716.5100

Contents MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Contents

Please Read This Notice 2

Battery Life Advisory...........................................................................................................................2

Your Feedback Please........................................................................................................................2

ProSoft® Product Documentation.......................................................................................................3

Guide to the MVI69-DFCM User Manual 7

1 Start Here 9

1.1 System Requirements...............................................................................................9

1.2 Package Contents...................................................................................................10

1.3 Install ProSoft Configuration Builder Software........................................................11

1.4 Setting Jumpers ......................................................................................................12

1.5 Install the Module in the Rack.................................................................................13

1.6 Connect your PC to the Processor..........................................................................16

1.7 Download the Sample Program to the Processor...................................................17

1.8 Connect your PC to the Module..............................................................................20

2 Configuring the MVI69-DFCM Module 21

2.1 ProSoft Configuration Builder..................................................................................21

2.2 [Module]...................................................................................................................26

2.3 [DF1 Port x].............................................................................................................27

2.4 [DFCM Port x Commands]......................................................................................31

2.5 [DF1 Port x Override Data File Maps].....................................................................33

2.6 Changing parameters during operation...................................................................33

2.7 Download the Project to the Module.......................................................................34

3 Ladder Logic 35

3.1 Module Data Object (DFCMModuleDef).................................................................35

3.2 Adding the Module to an Existing CompactLogix Project.......................................38

3.3 Adding the Module to an Existing MicroLogix Project.............................................42

4 Diagnostics and Troubleshooting 45

4.1 Reading Status Data from the Module....................................................................45

4.2 LED Status Indicators..............................................................................................60

5 Reference 63

5.1 Product Specifications.............................................................................................63

5.2 Functional Overview................................................................................................65

5.3 Cable Connections..................................................................................................83

5.4 DFCM Database Definition......................................................................................88

ProSoft Technology, Inc. Page 5 of 117 November 3, 2008

Contents MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5.5 Status Data Definition............................................................................................. 89

5.6 DFCM Command Control....................................................................................... 90

5.7 Error Codes............................................................................................................. 91

5.8 DF1 Command Set For ProSoft Technology Communication Modules................. 93

5.9 DF1 Command List Form ..................................................................................... 105

6 Support, Service & Warranty 107

6.1 How to Contact Us: Technical Support................................................................. 107

6.2 Return Material Authorization (RMA) Policies and Conditions............................. 108

6.3 LIMITED WARRANTY.......................................................................................... 110

Index 115

Page 6 of 117 ProSoft Technology, Inc. November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Guide to the MVI69-DFCM User Manual

Function Section to Read Details

Introduction (Must Do)

Verify Communication, Diagnostic and Troubleshooting

Reference Product Specifications Functional Overview Glossary

Support, Service, and Warranty

Index

→

Start Here (page 9)

Verifying Communication (page 60)

Diagnostics and Troubleshooting (page 45)

Reference (page 63) Functional Overview

(page 65) Product

Specifications (page

63)

Support, Service and Warranty (page

107)

This Section introduces the customer to the module. Included are: package contents, system requirements, hardware installation, and basic configuration.

This section describes how to verify communications with the network. Diagnostic and Troubleshooting procedures.

These sections contain general references associated with this product, Specifications, and the Functional Overview.

This section contains Support, Service and Warranty information.

Index of chapters.

ProSoft Technology, Inc. Page 7 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

Page 8 of 117 ProSoft Technology, Inc.

November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

1 Start Here

In This Chapter

 System Requirements.............................................................................9

 Package Contents.................................................................................10

 Install ProSoft Configuration Builder Software.......................................11

 Setting Jumpers ....................................................................................12

 Install the Module in the Rack ...............................................................13

 Connect your PC to the Processor........................................................16

 Download the Sample Program to the Processor..................................17

 Connect your PC to the Module ............................................................20

Installing the MVI69-DFCM module requires a reasonable working knowledge of the Rockwell Automation hardware, the MVI69-DFCM Module and the application in which they will be used.

Caution: It is important that those responsible for implementation can complete the

application without exposing personnel, or equipment, to unsafe or inappropriate working conditions. Safety, quality and experience are key factors in a successful installation.

1.1 System Requirements

The MVI69-DFCM module requires the following minimum hardware and software components:

 Rockwell Automation CompactLogix or MicroLogix processor, with

compatible power supply and one free slot in the rack, for the MVI69-DFCM module. The module requires 800mA of available power.

Important: The MVI69-DFCM module has a power supply distance rating of 2 (L43 and L45

installations on first 2 slots of 1769 bus).

Important: For 1769-L23x processors, please make note of the following limitations.  1769-L23-QBFC1B = 800mA at 5Vdc (1 MVI69-DFCM will use all 800mA of available power.

No other modules can be used with an MVI69 module connected to this processor).

 1769-L23E-QB1B = 1000mA at 5Vdc (1 MVI69-DFCM will use 800mA of available power. One

other module can be used on this rack provided it consumes less than 200mA at 5Vdc.

 1769-L23E-QBFC1B = 450mA at 5Vdc (no MVI69 module can be used with this processor)  Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500

(MicroLogix) programming software

 Rockwell Automation RSLinx communication software

ProSoft Technology, Inc. Page 9 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

 Pentium® II 450 MHz minimum. Pentium III 733 MHz (or better)

recommended

 Supported operating systems:

o Microsoft Windows XP Professional with Service Pack 1 or 2 o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3 o Microsoft Windows Server 2003

 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended  100 Mbytes of free hard disk space (or more based on application

requirements)

 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color

1024 × 768 recommended)

 CD-ROM drive  HyperTerminal or other terminal emulator program capable of file transfers

using Ymodem protocol.

1.2 Package Contents

The following components are included with your MVI69-DFCM module, and are all required for installation and configuration.

Important: Before beginning the installation, please verify that all of the following items are

present.

Qty. Part Name Part Number Part Description

1 Cable

3 Cable

2 Adapter 1454-9F

MVI69-DFCM Module

ProSoft Solutions CD

MVI69-DFCM DF1 Interface Module

Cable #15, RS232 Null Modem

Cable #14, RJ45 to DB9 Male Adapter cable

For RS232 Connection to the CFG Port

For DB9 Connection to Module's Port

Two Adapters, DB9 Female to Screw Terminal. For RS422 or RS485 Connections to Port 1 and 2 of the Module

Contains sample programs, utilities and documentation for the MVI69-DFCM module.

If any of these components are missing, please contact ProSoft Technology Support for replacement parts.

Page 10 of 117 ProSoft Technology, Inc.

November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

1.3 Install ProSoft Configuration Builder Software

You must install the ProSoft Configuration Builder (PCB) software in order to configure the MVI69-DFCM module. You can always get the newest version of ProSoft Configuration Builder from the ProSoft Technology web site.

To install ProSoft Configuration Builder from the ProSoft Web Site

1 Open your web browser and navigate to http://www.prosoft-

technology.com/pcb

2 Click the Download Here link to download the latest version of ProSoft

Configuration Builder.

3 Choose "Save" or "Save File" when prompted. The following illustrations

show the file download prompt for two of the most common web browsers.

4 Make a note of the location where you saved the file, for example "Desktop",

or "My Documents", so you can start the installation program.

5 When the download is complete, locate and open the file, and then follow the

instructions on your screen to install the program.

If you do not have access to the Internet, you can install ProSoft Configuration Builder from the ProSoft Solutions CD-ROM, included in the package with your MVI69-DFCM module.

To install ProSoft Configuration Builder from the CD-ROM

1 Insert the ProSoft Solutions CD-ROM into the CD drive of your PC. Wait for

the startup screen to appear.

2 On the startup screen, click Product Documentation. This action opens an

explorer window.

ProSoft Technology, Inc. Page 11 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

3 Click to open the Utilities folder. This folder contains all of the applications

and files you will need to set up and configure your module.

4 Double-click the ProSoft Configuration Builder Setup program and follow the

instructions on your screen to install the software on your PC.

Note: Many of the configuration and maintenance procedures use files and other utilities on the

CD-ROM. You may wish to copy the files from the Utilities folder on the CD-ROM to a convenient location on your hard drive.

1.4 Setting Jumpers

When the module is manufactured, the port selection jumpers are set to RS-232. To use RS-422 or RS-485, you must set the jumpers to the correct position. The following diagram describes the jumper settings.

The Setup Jumper acts as "write protection" for the module's flash memory. In "write protected" mode, the Setup pins are not connected, and the module's firmware cannot be overwritten. Do not jumper the Setup pins together unless you are directed to do so by ProSoft Technical Support.

Page 12 of 117 ProSoft Technology, Inc.

November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

1.5 Install the Module in the Rack

This section describes how to install the module into a CompactLogix or MicroLogix rack

Before you attempt to install the module, make sure that the bus lever of the adjacent module is in the unlocked (fully right) position.

Warning: This module is not hot-swappable! Always remove power from the rack before

inserting or removing this module, or damage may result to the module, the processor, or other connected devices.

1 Align the module using the upper and lower tongue-and-groove slots with the

adjacent module and slide forward in the direction of the arrow.

2 Move the module back along the tongue-and-groove slots until the bus

connectors on the MVI69 module and the adjacent module line up with each other.

ProSoft Technology, Inc. Page 13 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

3 Push the module's bus lever back slightly to clear the positioning tab and

move it firmly to the left until it clicks. Ensure that it is locked firmly in place.

4 Close all DIN rail latches.

Page 14 of 117 ProSoft Technology, Inc.

November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5 Press the DIN rail mounting area of the controller against the DIN rail. The

latches will momentarily open and lock into place.

ProSoft Technology, Inc. Page 15 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

1.6 Connect your PC to the Processor

1 Connect the right-angle connector end of the cable to your controller at the

communications port.

2 Connect the straight connector end of the cable to the serial port on your

computer.

Page 16 of 117 ProSoft Technology, Inc.

November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

1.7 Download the Sample Program to the Processor

Important: For most applications, the sample program will work without modification. Note: The key switch on the front of the CompactLogix processor must be in the REM position.

1 If you are not already online to the processor, open the Communications

menu, and then choose Download. RSLogix will establish communication with the processor.

2 When communication is established, RSLogix will open a confirmation dialog

box. Click the Download button to transfer the sample program to the processor.

3 RSLogix will compile the program and transfer it to the processor. This

process may take a few minutes.

4 When the download is complete, RSLogix will open another confirmation

dialog box. Click OK to switch the processor from Program mode to Run mode.

Note: If you receive an error message during these steps, refer to your RSLogix documentation to

interpret and correct the error.

ProSoft Technology, Inc. Page 17 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

1.7.1 Configuring RSLinx

If RSLogix is unable to establish communication with the processor, follow these steps:

1 Open RSLinx. 2 Open the Communications menu, and choose Configure Drivers.

This action opens the Configure Drivers dialog box.

Note: If the list of configured drivers is blank, you must first choose and configure a driver from the

Available Driver Types list. The recommended driver type to choose for serial communication with the processor is "RS-232 DF1 Devices".

Page 18 of 117 ProSoft Technology, Inc.

November 3, 2008

Start Here MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

3 Click to select the driver, and then click Configure. This action opens the

Configure Allen-Bradley DF1 Communications Device dialog box.

4 Click the Auto-Configure button. RSLinx will attempt to configure your serial

port to work with the selected driver.

5 When you see the message "Auto Configuration Successful", click the OK

button to dismiss the dialog box.

Note: If the auto-configuration procedure fails, verify that the cables are connected correctly

between the processor and the serial port on your computer, and then try again. If you are still unable to auto-configure the port, refer to your RSLinx documentation for further troubleshooting steps.

ProSoft Technology, Inc. Page 19 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Start Here DF1 Interface Module

1.8 Connect your PC to the Module

With the module securely mounted, connect your PC to the Configuration/Debug port using an RJ45-DB-9 Serial Adapter Cable and a Null Modem Cable.

1 Attach both cables as shown. 2 Insert the RJ45 cable connector into the Configuration/Debug port of the

module.

3 Attach the other end to the serial port on your PC or laptop.

Page 20 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

2 Configuring the MVI69-DFCM Module

In This Chapter

 ProSoft Configuration Builder................................................................21

 [Module].................................................................................................26

 [DF1 Port x]...........................................................................................27

 [DFCM Port x Commands] ....................................................................31

 [DF1 Port x Override Data File Maps] ...................................................33

 Changing parameters during operation.................................................33

 Download the Project to the Module......................................................34

2.1 ProSoft Configuration Builder

ProSoft Configuration Builder (PCB) provides a quick and easy way to manage module configuration files customized to meet your application needs. PCB is not only a powerful solution for new configuration files, but also allows you to import information from previously installed (known working) configurations to new projects.

ProSoft Technology, Inc. Page 21 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

2.1.1 Set Up the Project

To begin, start ProSoft Configuration Builder. If you have used other Windows configuration tools before, you will find the screen layout familiar. ProSoft Configuration Builder's window consists of a tree view on the left, an information pane and a configuration pane on the right side of the window. When you first start ProSoft Configuration Builder, the tree view consists of folders for Default Project and Default Location, with a Default Module in the Default Location folder. The following illustration shows the ProSoft Configuration Builder window with a new project.

Your first task is to add the MVI69-DFCM module to the project. 1 Use the mouse to select "Default Module" in the tree view, and then click the

right mouse button to open a shortcut menu.

Page 22 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

2 On the shortcut menu, choose "Choose Module Type". This action opens the

Choose Module Type dialog box.

3 In the Product Line Filter area of the dialog box, select MVI69. In the Select

Module Type dropdown list, select MVI69-DFCM, and then click OK to save your settings and return to the ProSoft Configuration Builder window.

Adding a Project

To add a project to an existing project file:

1 Select the Default Project icon. 2 Choose Project from the Project menu, then choose Add Project. A new

project folder appears.

Adding a Module

To add a module to your project:

1 Double-click the Default Module icon to open the Choose Module Type dialog

box.

2 On the Choose Module Type dialog box, select the module type. Or

1 Open the Project menu and choose Location. 2 On the Location menu, choose Add Module.

ProSoft Technology, Inc. Page 23 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

To add a module to a different location:

1 Right-click the Location folder and choose Add Module. A new module icon

appears.

1 Select the Location icon. 2 From the Project menu, select Location, then select Add Module.

2.1.2 Set Module Parameters

Notice that the contents of the information pane and the configuration pane changed when you added the MVI69-DFCM module to the project.

At this time, you may wish to rename the "Default Project" and "Default Location" folders in the tree view.

To rename an object:

1 Select the object, and then click the right mouse button to open a shortcut

menu. From the shortcut menu, choose Rename.

2 Type the name to assign to the object. 3 Click away from the object to save the new name.

Page 24 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Module Entries

To configure module parameters

1 Click on the plus sign next to the icon

to expand module

information.

2 Double-click the

icon to open the Edit dialog box.

3 To edit a parameter, select the parameter in the left pane and make your

changes in the right pane.

4 Click OK to save your changes.

Comment Entries

To add comments to your configuration file:

1 Click the plus sign to the left of the

icon to expand the Module

Comments.

2 Double-click the

icon. The Edit - Module Comment dialog

appears.

3 Enter your comment and click OK to save your changes.

Printing a Configuration File

To print a configuration file:

1 Select the Module icon, and then click the right mouse button to open a

shortcut menu.

2 On the shortcut menu, choose View Configuration. This action opens the

View Configuration window.

3 On the View Configuration window, open the File menu, and choose Print.

This action opens the Print dialog box.

4 On the Print dialog box, choose the printer to use from the dropdown list,

select printing options, and then click OK.

ProSoft Technology, Inc. Page 25 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

2.2 [Module]

This section provides the module with a unique name, identifies the method of failure for the communications for the module if the CompactLogix or MicroLogix is not in run, and describes how to initialize the module upon startup.

The following example shows a sample [Module] section:

[Module] Module Name: Test Example of DFCM Communication Module

Modify each of the parameters based on the needs of your application.

2.2.1 Module Name

0 to 80 characters This parameter assigns a name to the module that can be viewed using the

configuration/debug port. Use this parameter to identify the module and the configuration file.

2.2.2 Backplane Fail Count

0 to 65535 This parameter specifies the number of consecutive backplane transfer failures

that can occur before communications should be halted.

2.2.3 Error / Status Pointer

-1 to 3999 Starting register location in virtual database for the error/status table. If a value of

-1 is entered, the error/status data will not be placed in the database. All other valid values determine the starting location of the data. This data area includes the module version information.

2.2.4 Block Transfer Size

60, 120 or 240 This read-only parameter specifies the number of words in each block transferred

between the module and processor. Valid values for this parameter are 60, 120 and 240.

2.2.5 Read Register Start

0 to 4999 This parameter specifies the starting register in the module where data will be

transferred from the module to the processor. Valid range for this parameter is 0 to 4999.

Page 26 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

2.2.6 Read Register Count

0 to 5000 This parameter specifies the number of registers to be transferred from the

module to the processor. Valid entry for this parameter is 0 to 5000.

2.2.7 Write Register Start

0 to 4999 This parameter specifies the starting register in the module where the data will be

transferred from the processor to the module. Valid range for this parameter is 0 to 4999.

2.2.8 Read Register Count

0 to 5000 This parameter specifies the number of registers to be transferred from the

module to the processor. Valid entry for this parameter is 0 to 5000.

2.3 [DF1 Port x]

The following shows a sample DF1 Port x section of the configuration file.

[DF1 Port x] Enabled : Yes # Y=Use port, N=Do not use port RS Interface : 0 # 0=RS-232, 1=RS-485, 2=RS-422 Type : Master # M=Master, S=Slave Local Station ID : 0 # DF1 node address Protocol : F # F=Full-Duplex, H=Half-Duplex Termination Type : CRC # B=BCC, C=CRC Baud Rate : 19200 # Baud rate for Port 110-38400 Parity : None # N=None,O=Odd,E=Even,M=Mark,S=Space Data Bits : 8 # 5, 6, 7 or 8 Stop Bits : 1 # 1 or 2 Min Response Delay : 0 # 0-65535 mSec before sending response msg RTS On : 0 # 0-65536 mSec before message RTS Off : 1 # 0-65536 mSec after message Use CTS Line : No # Use CTS modem control line (Y/N) Response Timeout : 1000 # Response message timeout (0-65535 mSec) Retry Count : 3 # Response failure retry count ENQ Delay : 10 # 0-65535 mSec before DLE-ENQ sent Minimum Command Delay : 10 # Minimum number of msec's between commands Error Delay Counter : 100 # 0-65535 Command cycle count if error Command Control Reg : -1 # Cmd control start DB Reg (-1=ignore) First File : 7 # First file number for SLC simulation File Size : 200 # Number of elements in each file File Offset : 0 # Database offset for first file element

Modify each of the parameters as follows based on the needs of your application:

ProSoft Technology, Inc. Page 27 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

2.3.1 Enabled

This parameter specifies if the port will be used. If the parameter is set to No, the port is disabled. If the parameter is set to Yes, the port is enabled.

2.3.2 Type

Type : Master #M=Master, S=Slave

This parameter defines if the port will emulate a master or a slave device. Enter Master if the port is to emulate a master device or Slave if the port is to emulate a slave device.

2.3.3 Local Station ID

This parameter specifies the local station ID for all DF1 messages sent from this master port. A value of 255 is not permitted as this is the broadcast address. Enter a value in the range of 0 to 254.

2.3.4 Protocol

Protocol : Full #F=Full-Duplex, H=Half-Duplex

This parameter specifies the DF1 protocol to be used on the port. Enter Full for full-duplex communications or Half for half-duplex communications.

2.3.5 Termination Type

Termination Type : CRC #B=BCC, C=CRC

This parameter specifies error checking for all DF1 messages. Enter CRC or BCC.

2.3.6 Baud Rate

This is the baud rate to be used on the port. Enter the baud rate as a value. For example, to select 19K baud, enter 19200.

2.3.7 Parity

None, Odd, Even Parity is a simple error checking algorithm used in serial communication. This

parameter specifies the type of parity checking to use. All devices communicating through this port must use the same parity setting.

2.3.8 Data Bits

7 or 8 This parameter sets the number of data bits for each word used by the protocol.

All devices communicating through this port must use the same number of data bits.

Page 28 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

2.3.9 Stop Bits

1 or 2 Stop bits signal the end of a character in the data stream. For most applications,

use one stop bit. For slower devices that require more time to resynchronize, use two stop bits.

All devices communicating through this port must use the same number of stop bits.

2.3.10 Minimum Response Delay

0 to 65535 This parameter sets the number of milliseconds to wait to respond to a request

on the port. This is required for slow reacting devices.

2.3.11 RTS On

0 to 65535 milliseconds This parameter sets the number of milliseconds to delay after RTS is asserted

before the data will be transmitted.

2.3.12 RTS Off

0 to 65535 milliseconds This parameter sets the number of milliseconds to delay after the last byte of

data is sent before the RTS modem signal will be set low.

2.3.13 Use CTS Line

Yes or No This parameter specifies if the CTS modem control line is to be used. If the

parameter is set to No, the CTS line will not be monitored. If the parameter is set to Yes, the CTS line will be monitored and must be high before the module will send data. Normally, this parameter is required when half-duplex modems are used for communication (2-wire).

2.3.14 Response Timeout

Number of milliseconds to wait for response to command. The value is set depending upon the communication network used and the expected response time of the slowest device on the network. Valid values are 0 to 5000 milliseconds.

2.3.15 Retry Count

0 to 10 This parameter specifies the number of times a command will be retried if it fails.

ProSoft Technology, Inc. Page 29 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

2.3.16 ENQ Delay

ENQ Delay : 0 #0-65535 milliseconds before DLE-ENQ sent

This parameter specifies the number of milliseconds to wait after a DLE-ACK is received from a slave using half-duplex mode before the DLE-ENQ request is made for data. Enter a value in the range of 0 to 65535 milliseconds.

2.3.17 Minimum Command Delay

This parameter specifies the number of milliseconds to wait between issuing each command. This delay value is not applied to retries.

2.3.18 Error Delay Count

Error Delay Count : 100 #0-65535 Command cycle count if error

This parameter specifies the number of polls to be skipped on the slave before trying to re-establish communications. After the slave fails to respond, the master will skip commands to be sent to the slave the number of times entered in this parameter. Enter a value in the range of 0 to 65535.

2.3.19 Command Error Pointer

Command Error Pointer : 3000 #Cmd Error list data (-1=ignore)

This parameter sets the address in the internal database where the command error data will be placed. If the value is set to -1, the data will not be transferred to the database. Enter a value from 0 to 4999.

2.3.20 Slave List Pointer

Slave List Pointer : 3100 #Slave status list data (-1=ignore)

This parameter specifies the starting address in the virtual database where the 256 slave status values will be written. If the parameter is set to -1, the slave data will not be placed in the database. Enter a value in the range of -1 to 4743.

2.3.21 First File

First File : 7 #First file number for SLC simulation

This parameter is used when a request for a file is received on the communication port. This field is required when responding to PLC5 and SLC DF1 commands. Use this parameter to define the virtual file(s) to be simulated on the module. Enter a value in the range of 0 to 100.

2.3.22 File Size

Range 1 to 1000 This parameter specifies the size of each file to be simulated on the module. All

files simulated are defined to have the same assigned size.

Page 30 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

2.3.23 File Offset

This parameter sets the database register location of the first element in the first file simulated in the module. All offsets in the first file and subsequent files will be computed using the address specified. Enter a value in the range of 0 to 4999.

2.4 [DFCM Port x Commands]

This section defines the commands to be issued from the module to server devices on the network. These commands can be used for data collection and/or control of devices on the network.

[DF1 Port 1 Commands] # The file contains examples for a SLC 5/03 processor. # # LOCATION : # DATE : 06/24/99 # CONFIGURED BY: RAR # MODIFIED : # 07/23/99 -- Set to read more data file types. # START # 1 2 3 4 5 6 7 8 9 10 11 # Internal Poll Swap Node Func File File Elm Sub # Enable Address Interval Count Code Address Code Type # # Elm 1 10 0 10 0 10 501 N 7 0 1 1500 0 10 0 10 502 N 7 0 0 1 10 0 10 0 10 509 N 7 10 END

2.4.1 Command List Overview

In order to interface the module with other nodes, you must construct a command list of up to 100 user-defined commands. The commands in the list specify the device to be addressed, the function to be performed (read or write), the data area in the device to interface with, and the registers in the internal database to be associated with the device data. The command list is processed from top (command #0) to bottom. A poll interval parameter is associated with each command to specify a minimum delay time in tenths of a second between the issuance of a command. If the user specifies a value of 10 for the parameter, the command is executed no more frequently than every (1) second.

Write commands have a special feature, as they can be set to execute only if the data in the write command changes. If the register data values in the command have not changed since the command was last issued, the command will not be executed. If the data in the command has changed since the command was last issued, the command is executed. Use of this feature can lighten the load on the network. In order to implement this feature; set the enable code for the command to a value of 2.

The module supports numerous commands. This permits the module to interface with a wide variety of devices.

ProSoft Technology, Inc. Page 31 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

The commands take the following parameters: Enable: This field defines whether or not the command is to be executed and

under what conditions. A 0 indicates that the command is disabled and will not be executed in the normal polling sequence. A 1 indicates that the command is executed each scan of the command list if the Poll Interval Time is set to zero. If the Poll Interval Time is set, the command is executed when the internal timer expires. A 2 indicates that the command only executes if the internal data associated with the command changes. This value is valid for write commands only.

Internal Address: This field specifies the database address in the module's internal database to be associated with the command. If the command is not a read function, the data received in the response message is placed at the specified location. If the command is a write function, data used in the command is sourced from the specified data area. Valid values are 0 to 3999.

Poll Interval: This parameter specifies the minimum interval to execute continuous commands (Enable code of 1). The parameter is entered in 1/10

of a second. Therefore, if a value of .50 is entered for a command, the command executes no more frequently that every 5 seconds. Valid values are 0 to 65535.

Count: This parameter specifies the number of registers or digital points to be associated with the command.

Swap Code: This parameter defines if the data received from the server is to be ordered differently than that received from the server device. This parameter is helpful when dealing with floating point or other multi-register values, as there is no standard method of storage of these data types in server devices. This parameter can be set to order the register data received in an order useful by other applications. The following defines the values and operations:

Swap Code Description

0 None - No Change is made in the byte ordering (1234 = 1234) 1 Words - The words are swapped (1234=3412) 2

3 Bytes - The bytes in each word are swapped (1234=2143)

Words & Bytes - The words are swapped then the bytes in each word are swapped (1234=4321)

The words should be swapped only when using an even number of words.

Node Address: The address of the device being addressed by the command. Function Code: These parameters specify the function to be executed by the

command. Refer to DF1 Command Set For ProSoft Technology Communication Modules (page 93) for more information on constructing commands for the module.

Page 32 of 117 ProSoft Technology, Inc.

November 3, 2008

Configuring the MVI69-DFCM Module MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

2.5 [DF1 Port x Override Data File Maps]

[DF1 Port 1 OVERRIDE DATA FILE MAPS] # DB File First Word # Address Number Element Length START END

Group File Register Content Description

Port 1 Override File Maps

8000 to 8003

8004 to 8007

8196 to 8199

File Map #1

File Map #2

Command # 50

2.5.1 P1 and P2 Override File Mappings

This feature allows a write command to be re-directed to the module's ReadData area. If the DF1 master has a fixed address to write to, the module's WriteData area with the delivered data would be overwritten on the next scan. This feature requires that the port be configured as a slave.

This set of registers contains the first override file map for the slave port.

This set of registers contains the second override file map for the slave port.

This set of registers contains the last override file map for the slave port.

Note: A Slave ID setting of 255 will respond to all commands sent on the network. If this setting is

used in a multipoint network, only writes should be used on the network from the DF1 master.

2.6 Changing parameters during operation

A copy of the module's configuration data is mapped in the module's database as displayed in the following table. These values are initialized when the module first receives its configuration from the configuration file.

Module Register Address

5000 to 5009 Data Transfer

5010 to 5039 and 5040 to 5069

5200 to 6399 and 6400 to 7599

Functional Modes Affected

Master and Slave Port Config uration

Master

Name Description

General Module Configuration

Master Command List

This section of the configuration data contains the module configuration data that defines the data transfer between the module and the CompactLogix or MicroLogix processor.

These sections define the characteristics of each of the DFCM serial communication ports on the module. These parameters must be set correctly for proper module operation.

If the module's Master Mode functionality is to be supported on a port, the Master Command List must be set up.

ProSoft Technology, Inc. Page 33 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Configuring the MVI69-DFCM Module DF1 Interface Module

The configuration file is located in the module as well as on the CD and web site. With a new module, ProSoft recommends that you download the configuration file from the module for editing.

2.7 Download the Project to the Module

In order for the module to use the settings you configured, you must download (copy) the updated Project file from your PC to the module.

To Download the Project File

1 In the tree view in ProSoft Configuration Builder, click once to select the

MVI69-DFCM module.

2 Open the Project menu, and then choose Module / Download. The program

will scan your PC for a valid com port (this may take a few seconds). When PCB has found a valid com port, the following dialog box will open.

3 Choose the com port to use from the dropdown list, and then click the

Download button. The module will perform a platform check to read and load its new settings.

When the platform check is complete, the status bar in ProSoft Configuration Builder will be updated with the message "Module Running".

Page 34 of 117 ProSoft Technology, Inc.

November 3, 2008

Ladder Logic MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

3 Ladder Logic

In This Chapter

 Module Data Object (DFCMModuleDef)................................................35

 Adding the Module to an Existing CompactLogix Project......................38

 Adding the Module to an Existing MicroLogix Project............................42

Ladder logic is required for application of the MVI69-DFCM module. Tasks that must be handled by the ladder logic are module data transfer, special block handling and status data receipt. Additionally, a power-up handler may be needed to handle the initialization of the module's data and to clear any processor fault conditions.

The sample ladder logic, on the ProSoft Solutions CD-ROM, is extensively commented, to provide information on the purpose and function of each rung. For most applications, the sample ladder will work without modification.

3.1 Module Data Object (DFCMModuleDef)

All data related to the MVI69-DFCM is stored in a user defined data type. An instance of the data type is required before the module can be used. This is done by declaring a variable of the data type in the Controller Tags Edit Tags dialog box. The structure of the object is displayed in the following table.

Name Data Type Description

BlockTransferSize INT 60, 120 or 240 ReadData INT[720] Data read from MVI69-DFCM WriteData INT[720] Data written to MVI69-DFCM BP DFCMBackplane Variables for BP logic ModuleStatus DFCM_STATUS Module Status BlockRequest DFCMBlockRequest Bits to request special blocks ReadClock DFCMClock Time read from MVI69-DFCM WriteClock DFCMClock Time written to MVI69-DFCM CommandControl DFCMCommandControlPorts Used for Command Control operation EventCommand DFCMEventCommandPorts Used for Event Command operation SlavePollingControl DFCMSlavePollingControlPorts Slave polling control SlaveStatus DF CMSlaveStatusPorts Status codes for each slave

This object contains objects that define the configuration, user data, status and command control data related to the module. Each of these object types is discussed in the following topics of the document.

ProSoft Technology, Inc. Page 35 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Ladder Logic DF1 Interface Module

3.1.1 Status Object (DFCM_STATUS)

This object views the status of the module. The DFCM_STATUS object shown below is updated each time a read block is received by the processor. Use this data to monitor the state of the module at a "real-time rate".

Name Data Type Description

Pass_Cnt INT Program cycle counter Prod SINT[4] Product Name Rev SINT[4] Revision Level Number Op SINT[4] Operating Level Number Run SINT[4] Run Number PortErr DFCM_PORT_ERROR[2] Port error statistics BlkStats DFCM_BLK_STATS Port1_CurErr INT Port 1 current error Port1_LastErr INT Port 1 current error Port2_CurErr INT Port 2 current error Port2_LastErr INT Port 2 current error

Refer to the Reference chapter for a complete listing of the data stored in this object.

3.1.2 User Data Objects

These objects hold data to be transferred between the processor and the MVI69DFCM module. The user data is the read and write data transferred between the processor and the module as "pages" of data up to 60, 120, or 240 words long depending on the Block Transfer Size parameter.

The read data array should be dimensioned according to the Read Data Count parameter in the configuration file. The ReadData task is responsible for placing the data received into the proper position in the read data array. Use this data for status and control in the ladder logic of the processor.

The write data array should be dimensioned according to the Read Data Count parameter in the configuration file. . The WriteData task is responsible for placing the write data into the output image for transfer to the module.

Page 36 of 117 ProSoft Technology, Inc.

November 3, 2008

Ladder Logic MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

3.1.3 Slave Polling Control and Status

Two arrays are allocated in the processor to hold the polling status of each slave on the master ports. This status data can be used to determine which slaves are currently active on the port, are in communication error or have their polling suspended and disabled. Ladder logic in the processor can be written to monitor and control the status of each slave on a master port. The objects used are displayed below:

3.1.4 DFCM Slave Polling Control (DFCMSlavePollingControl)

This user-defined data type sends the Enable/Disable blocks to control the slave polling with blocks 3000, 3001, 3100 or 3101.

Name Data Type Description

NumberOfSlaves INT SlaveID INT[60]

3.1.5 Event Command (DFCMEventCommand)

This data type issues event commands to the modules using blocks 1000 and

2000.

Name Data Type Description

InternalAddress INT Count INT Swap INT NodeAddress INT FunctionCode INT Parameter INT[4]

3.1.6 Command Control (DFCMCommandControl)

This data type issues command control commands to the module using blocks 5000 to 5006 or 5100 to 5106.

Name Data Type Description

CommandIndex INT[6] CommandsAdded INT

3.1.7 Clock (DFCMClock)

Reading or writing date and time is performed by filling in the date and time and passing between the processor and module. See data type below.

Name Data Type Description

Year INT Month INT Day INT

ProSoft Technology, Inc. Page 37 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Ladder Logic DF1 Interface Module

Name Data Type Description

Hour INT Minute INT Second INT Reserved1 INT Reserved2 INT Reserved3 INT

3.2 Adding the Module to an Existing CompactLogix Project

Important: The MVI69-DFCM module has a power supply distance rating of 2 (L43 and L45

installations on first 2 slots of 1769 bus)

If you are installing and configuring the module with a CompactLogix processor, follow these steps. If you are using a MicroLogix processor, refer to the next section.

1 Add the MVI69-DFCM module to the project. Right-click the mouse button

on the I/O Configuration option in the Controller Organization window to display a pop-up menu. Select the New Module option from the I/O Configuration menu.

Page 38 of 117 ProSoft Technology, Inc.

November 3, 2008

Ladder Logic MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

This action opens the following dialog box:

2 Select the 1769-Module (Generic 1769 Module) from the list and click OK.

3 Enter the Name, Description and Slot options for your application, using the

values in the illustration above. You must select the Comm Format as Data INT in the dialog box, otherwise the module will not communicate over the

backplane of the CompactLogix rack.

4 Configure the Connection Parameters to match to the Block Transfer Size

parameter in the configuration file. Use the values in the table corresponding with the block transfer size you configured.

Block Transfer Size = 60 Field Recommended Value

Type 1769-MODULE Generic 1769 Module Parent Local Name MVI69 Description MVI69 Application Module Comm Format Data - INT

ProSoft Technology, Inc. Page 39 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Ladder Logic DF1 Interface Module

Block Transfer Size = 60 Field Recommended Value

Slot The slot number in the rack where the module is installed Input Assembly Instance 101 Input Size 62 Output Assembly Instance 100 Output Size 61 Configuration Assembly Instance 102 Configuration Size 0

Block Transfer Size = 120 Field Recommended Value

Type 1769-MODULE Generic 1769 Module Parent Local Name MVI69 Description MVI69 Application Module Comm Format Data - INT Slot The slot number in the rack where the module is installed Input Assembly Instance 101 Input Size 122 Output Assembly Instance 100 Output Size 121 Configuration Assembly Instance 102 Configuration Size 0

Block Transfer Size = 240 Field Recommended Value

Type 1769-MODULE Generic 1769 Module Parent Local Name MVI69 Description MVI69 Application Module Comm Format Data - INT Slot The slot number in the rack where the module is installed Input Assembly Instance 101 Input Size 242 Output Assembly Instance 100 Output Size 241 Configuration Assembly Instance 102 Configuration Size 0

Page 40 of 117 ProSoft Technology, Inc.

November 3, 2008

Ladder Logic MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5 Click Next to continue.

6 Select the Request Packet Interval value for scanning the I/O on the module.

This value represents the minimum frequency the module will handle scheduled events. This value should not be set to less than 1 millisecond. Values between 1 and 10 milliseconds should work with most applications.

7 Save the module. Click OK to dismiss the dialog box. The Controller

Organization window now displays the module's presence. The following illustration shows the Controller Organization window:

8 Copy the Controller Tags from the sample program. 9 Copy the User Defined Data Types from the sample program. 10 Copy the Ladder Rungs from the sample program. 11 Save and Download the new application to the controller and place the

processor in run mode.

ProSoft Technology, Inc. Page 41 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Ladder Logic DF1 Interface Module

3.3 Adding the Module to an Existing MicroLogix Project

If you are installing and configuring the module with a MicroLogix processor, follow these steps. If you are using a CompactLogix processor, refer to the previous section.

The first step in setting up the processor ladder file is to define the I/O type module to the system. Start RSLogix 500, and follow these steps:

1 In RSLogix, open your existing application, or start a new application,

depending on your requirements.

2 Double-click the I/O Configuration icon located in the Controller folder in the

project tree. This action opens the I/O Configuration dialog box.

3 On the I/O Configuration dialog box, select "Other - Requires I/O Card Type

ID" at the bottom of the list in the right pane, and then double-click to open the Module dialog box.

Page 42 of 117 ProSoft Technology, Inc.

November 3, 2008

Ladder Logic MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

4 Enter the values shown in the following illustration to define the module

correctly for the MicroLogix processor, and then click OK to save your configuration.

The input words and output words parameter will depend on the Block Transfer Size parameter you specify in the configuration file. Use the values from the following table.

Block Transfer Size Input Words Output Words

60 62 61 120 122 121 240 242 241

5 Click Next to continue. 6 After completing the module setup, the I/O configuration dialog box will

display the module's presence.

The last step is to add the ladder logic. If you are using the example ladder logic, adjust the ladder to fit your application. Refer to the example Ladder Logic section in this manual.

Download the new application to the controller and place the processor in run mode. If you encounter errors, refer to Diagnostics and Troubleshooting (page

45) for information on how to connect to the module's Config/Debug port to use its troubleshooting features.

ProSoft Technology, Inc. Page 43 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Ladder Logic DF1 Interface Module

Page 44 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

4 Diagnostics and Troubleshooting

In This Chapter

 Reading Status Data from the Module ..................................................45

 LED Status Indicators............................................................................60

The module provides information on diagnostics and troubleshooting in the following forms:

 Status data values are transferred from the module to the processor.  Data contained in the module can be viewed through the

Configuration/Debug port attached to a terminal emulator.

 LED status indicators on the front of the module provide information on the

module's status.

4.1 Reading Status Data from the Module

The MVI69-DFCM module returns a 29-word Status Data block that can be used to determine the module's operating status. This data is located in the module's database at registers 7600 to 7628 and at the location specified in the configuration. This data is transferred to the CompactLogix or MicroLogix processor continuously with each read block.

4.1.1 Required Hardware

You can connect directly from your computer's serial port to the serial port on the module to view configuration information, perform maintenance, and send (upload) or receive (download) configuration files.

ProSoft Technology recommends the following minimum hardware to connect your computer to the module:

 80486 based processor (Pentium preferred)  1 megabyte of memory  At least one UART hardware-based serial communications port available.

USB-based virtual UART systems (USB to serial port adapters) often do not function reliably, especially during binary file transfers, such as when uploading/downloading configuration files or module firmware upgrades.

 A null modem serial cable.

4.1.2 The Configuration/Debug Menu

The Configuration and Debug menu for this module is arranged as a tree structure, with the Main Menu at the top of the tree, and one or more sub-menus for each menu command. The first menu you see when you connect to the module is the Main menu.

ProSoft Technology, Inc. Page 45 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

Because this is a text-based menu system, you enter commands by typing the command letter from your computer keyboard in the diagnostic window in ProSoft Configuration Builder (PCB). The module does not respond to mouse movements or clicks. The command executes as soon as you press the command letter — you do not need to press [Enter]. When you type a command letter, a new screen will be displayed in your terminal application.

Using the Diagnostic Window in ProSoft Configuration Builder

To connect to the module's Configuration/Debug serial port: 1 Start PCB program with the application file to be tested. Right click over the

module icon.

2 On the shortcut menu, choose Diagnostics.

Page 46 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

3 This action opens the Diagnostics dialog box. Press "?" to display the Main

Menu.

Important: The illustrations of configuration/debug menus in this section are intended as a general

guide, and may not exactly match the configuration/debug menus in your own module.

If there is no response from the module, follow these steps: 1 Verify that the null modem cable is connected properly between your

computer's serial port and the module. A regular serial cable will not work.

2 On computers with more than one serial port, verify that your communication

program is connected to the same port that is connected to the module.

If you are still not able to establish a connection, contact ProSoft Technology for assistance.

Navigation

All of the sub-menus for this module contain commands to redisplay the menu or return to the previous menu. You can always return from a sub-menu to the next higher menu by pressing [M] on your keyboard.

The organization of the menu structure is represented in simplified form in the following illustration:

ProSoft Technology, Inc. Page 47 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

The remainder of this section shows you the menus available for this module, and briefly discusses the commands available to you.

Keystrokes

The keyboard commands on these menus are almost always non-case sensitive. You can enter most commands in lower case or capital letters.

The menus use a few special characters ([?], [-], [+], [@]) that must be entered exactly as shown. Some of these characters will require you to use the [Shift], [Ctrl] or [Alt] keys to enter them correctly. For example, on US English keyboards, enter the [?] command as [Shift][/].

Also, take care to distinguish capital letter [I] from lower case letter [l] (L) and number [1]; likewise for capital letter [O] and number [0]. Although these characters look nearly the same on the screen, they perform different actions on the module.

4.1.3 Main Menu

When you first connect to the module from your computer, your terminal screen will be blank. To activate the main menu, press the [?] key on your computer's keyboard. If the module is connected properly, the following menu will appear on your terminal screen:

Caution: Some of the commands available to you from this menu are designed for advanced

debugging and system testing only, and can cause the module to stop communicating with the processor or with other devices, resulting in potential data loss or other failures. Only use these commands if you are specifically directed to do so by ProSoft Technology Technical Support staff. Some of these command keys are not listed on the menu, but are active nevertheless. Please be careful when pressing keys so that you do not accidentally execute an unwanted command.

Opening the Data Analyzer Menu

Press [A] to open the Data Analyzer Menu. Use this command to view all bytes of data transferred on each port. Both the transmitted and received data bytes are displayed. Refer to Data Analyzer for more information about this menu.

Page 48 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Important: When in analyzer mode, program execution will slow down. Only use this tool during a troubleshooting session. Before disconnecting from the Config/Debug port, please press [S] to stop the data analyzer, and then press [M] to return to the main menu. This action will allow the module

to resume its normal high speed operating mode.

Viewing Block Transfer Statistics

Press [B] from the Main Menu to view the Block Transfer Statistics screen. Use this command to display the configuration and statistics of the backplane

data transfer operations between the module and the processor. The information on this screen can help determine if there are communication problems between the processor and the module.

Tip: To determine the number of blocks transferred each second, mark the numbers displayed at a

specific time. Then some seconds later activate the command again. Subtract the previous numbers from the current numbers and divide by the quantity of seconds passed between the two readings.

Viewing Module Configuration

Press [C] to view the Module Configuration screen. Use this command to display the current configuration and statistics for the

module.

Opening the Database Menu

Press [D] to open the Database View menu. Use this menu command to view the current contents of the module's database.

Opening the Command Error List Menu

Press [I] to open the Command Error List. This list consists of multiple pages of command list error/status data. Press [?] to view a list of commands available on this menu.

Opening the Command List Menu

Press [L] to open the Command List menu. Use this command to view the configured command list for the module.

Viewing the Slave Status List (Port 1 and 2)

Press [O] (port 1) or [P] (port 2) to view the 256 slave status values associated with the ports. The slave status values are defined as follows:

0 = slave is not used, 1 = slave being actively polled, 2 = slave suspended and 3 = slave disabled.

ProSoft Technology, Inc. Page 49 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

Viewing Version Information

Press [V] to view Version information for the module. Use this command to view the current version of the software for the module, as

well as other important values. You may be asked to provide this information when calling for technical support on the product.

Values at the bottom of the display are important in determining module operation. The Program Scan Counter value is incremented each time a module's program cycle is complete.

Tip: Repeat this command at one-second intervals to determine the frequency of program

execution.

Warm Booting the Module

Caution: Some of the commands available to you from this menu are designed for advanced

Press [W] from the Main Menu to warm boot (restart) the module. This command will cause the program to exit and reload, refreshing configuration parameters that must be set on program initialization. Only use this command if you must force the module to re-boot.

Transferring Module Configuration to the Processor

Press [Y] to transfer the module's configuration data to the processor. Ladder logic is required in the processor to receive and implement the updated configuration. You will be prompted to confirm the transfer.

If the operation is not successful, an error code will be returned.

Code Description

0 Transfer successful

-1 Error transferring module configuration data (block -9000)

-2 Error transferring device definition data (blocks -9100 to -9103)

-3 Error transferring master command list data (blocks -6000 to -6007)

After successful data transfer, the module will perform a warm-boot operation to read in the new data.

Viewing Communication Status

Press [1] to view the communication status and statistics of the DFCM Network for the module's node address. This command is useful for troubleshooting purposes.

Page 50 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Viewing Port Configuration

Press [6] or [7] from the Main Menu to view configuration information for ports 1 and 2.

Use this command to display detailed configuration information for the selected port.

Exiting the Program

Caution: Some of the commands available to you from this menu are designed for advanced

Press [Esc] to restart the module and force all drivers to be loaded. The module will use the configuration stored in the module's Flash ROM to configure the module.

4.1.4 Data Analyzer

The data analyzer mode allows you to view all bytes of data transferred on each port. Both the transmitted and received data bytes are displayed. Use of this feature is limited without a thorough understanding of the protocol.

Note: The Port selection commands on the Data Analyzer menu differs very slightly in different

modules, but the functionality is basically the same. Use the illustration above as a general guide only. Refer to the actual data analyzer menu on your module for the specific port commands to use.

to resume its normal high speed operating mode.

Analyzing Data for the first application port

Press [1] to display I/O data for the first application port in the Data Analyzer. The following illustration shows an example of the Data Analyzer output.

Analyzing Data for the second application port

Press [2] to display I/O data for the second application port in the Data Analyzer.

ProSoft Technology, Inc. Page 51 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

Displaying Timing Marks in the Data Analyzer

You can display timing marks for a variety of intervals in the data analyzer screen. These timing marks can help you determine communication-timing characteristics.

Key Interval

[5] 1 milliseconds ticks [6] 5 milliseconds ticks [7] 10 milliseconds ticks [8] 50 milliseconds ticks [9] 100 milliseconds ticks [0] Turn off timing marks

Removing Timing Marks in the Data Analyzer

Press [0] to turn off timing marks in the Data Analyzer screen.

Viewing Data in Hexadecimal Format

Press [H] to display the data on the current page in hexadecimal format.

Viewing Data in ASCII (Text) Format

Press [A] to display the data on the current page in ASCII format. This is useful for regions of the database that contain ASCII data.

Starting the Data Analyzer

Press [B] to start the data analyzer. After the key is pressed, all data transmitted and received on the currently selected port will be displayed. The following illustration shows an example.

Page 52 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

The Data Analyzer displays the following special characters:

Character Definition

[ ] Data enclosed in these characters represent data received on the port. < > Data enclosed in these characters represent data transmitted on the port. <R+> These characters are inserted when the RTS line is driven high on the port. <R-> These characters are inserted when the RTS line is dropped low on the port. <CS> These characters are displayed when the CTS line is recognized high. _TT_

These characters are displayed when the timing mark interval has been reached. This parameter is user defined.

Stopping the Data Analyzer

Press [S] to stop the data analyzer. Use this option to freeze the display so the data can be analyzed. To restart the analyzer, press [B].

to resume its normal high speed operating mode.

Returning to the Main Menu

Press [M] to return to the Main Menu.

4.1.5 Data Analyzer Tips

From the main menu, press [A] for the "Data Analyzer". You should see the following text appear on the screen:

After the "Data Analyzer" mode has been selected, press [?] to view the Data Analyzer menu. You will see the following menu:

ProSoft Technology, Inc. Page 53 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

From this menu, you can select the "Port", the "format", and the "ticks" that you can display the data in.

For most applications, HEX is the best format to view the data, and this does include ASCII based messages (because some characters will not display on HyperTerminal and by capturing the data in HEX, we can figure out what the corresponding ASCII characters are supposed to be).

The Tick value is a timing mark. The module will print a _TT for every xx milliseconds of no data on the line. Usually 10milliseconds is the best value to start with.

After you have selected the Port, Format, and Tick, we are now ready to start a capture of this data. The easiest way to do so is to go up to the top of you HyperTerminal window, and do a Transfer / Capture Text as shown below:

After selecting the above option, the following window will appear:

Next name the file, and select a directory to store the file in. In this example, we are creating a file ProSoft.txt and storing this file on our root C: drive. After you have done this, press the

Now you have everything that shows up on the HyperTerminal screen being logged to a file called ProSoft.txt. This is the file that you will then be able to email to ProSoft Technical Support to assist with issues on the communications network.

button.

Page 54 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

To begin the display of the communications data, you will then want to press 'B' to tell the module to start printing the communications traffic out on the debug port of the module. After you have pressed 'B', you should see something like the following:

The <R+> means that the module is transitioning the communications line to a transmit state.

All characters shown in <> brackets are characters being sent out by the module. The <R-> shows when the module is done transmitting data, and is now ready to

receive information back. And finally, all characters shown in the [ ] brackets is information being received

from another device by the module. After taking a minute or two of traffic capture, you will now want to stop the "Data

Analyzer". To do so, press the 'S' key, and you will then see the scrolling of the data stop.

When you have captured the data you want to save, open the Transfer menu and choose Capture Text. On the secondary menu, choose Stop.

You have now captured, and saved the file to your PC. This file can now be used in analyzing the communications traffic on the line, and assist in determining communication errors.

ProSoft Technology, Inc. Page 55 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

4.1.6 Database View Menu

Press [D] from the Main Menu to open the Database View menu. Use this menu command to view the current contents of the module's database. Press [?] to view a list of commands available on this menu.

Viewing Register Pages

To view sets of register pages, use the keys described below:

Command Description [0] [1] [2]

Display registers 0 to 99 Display registers 1000 to 1099 Display registers 2000 to 2099

And so on. The total number of register pages available to view depends on your module's configuration.

Displaying the Current Page of Registers Again

This screen displays the current page of 100 registers in the database.

Page 56 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Moving Back Through 5 Pages of Registers

Press [-] from the Database View menu to skip back to the previous 500 registers of data.

Viewing the Previous 100 Registers of Data

Press [P] from the Database View menu to display the previous 100 registers of data.

Skipping 500 Registers of Data

Hold down [Shift] and press [=] to skip forward to the next 500 registers of data.

Viewing the Next 100 Registers of Data

Press [N] from the Database View menu to select and display the next 100 registers of data.

Viewing Data in Decimal Format

Press [D] to display the data on the current page in decimal format.

Viewing Data in Hexadecimal Format

Press [H] to display the data on the current page in hexadecimal format.

Viewing Data in Floating Point Format

Press [F] from the Database View menu. Use this command to display the data on the current page in floating point format. The program assumes that the values are aligned on even register boundaries. If floating-point values are not aligned as such, they are not displayed properly.

Viewing Data in ASCII (Text) Format

Press [A] to display the data on the current page in ASCII format. This is useful for regions of the database that contain ASCII data.

Returning to the Main Menu

Press [M] to return to the Main Menu.

ProSoft Technology, Inc. Page 57 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

4.1.7 Master Command Error List Menu

Use this menu to view the command error list for the module. Press [?] to view a list of commands available on this menu.

Redisplaying the Current Page

Press [S] to display the current page of data.

Viewing the Previous 20 Commands

Press [-] to display data for the previous 20 commands.

Viewing the Previous Page of Commands

Press [P] to display the previous page of commands.

Viewing the Next 20 Commands

Press [+] to display data for the next 20 commands.

Viewing the Next Page of Commands

Press [N] to display the next page of commands.

Returning to the Main Menu

Press [M] to return to the Main Menu.

Page 58 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

4.1.8 Master Command List Menu

Use this menu to view the command list for the module. Press [?] to view a list of commands available on this menu.

Redisplaying the Current Page

Press [S] to display the current page of data.

Viewing the Previous 50 Commands

Press [-] to view the previous 50 commands.

Viewing the Previous Page of Commands

Press [P] to display the previous page of commands.

Viewing the Next 50 Commands

Press [+] to view the next 50 commands from the master command list.

Viewing the Next Page of Commands

Press [N] to display the next page of commands.

Returning to the Main Menu

Press [M] to return to the Main Menu.

ProSoft Technology, Inc. Page 59 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

4.2 LED Status Indicators

The LEDs indicate the module's operating status as follows:

Module Color Status Indication

CFG Green

P1 Green

P2 Green

APP Amber

BP ACT Amber

OK Red/ Green

Off

Off No data is being transferred on the port. On

Off The MVI69-DFCM is functioning normally. On

Off

Green The module is operating normally. Red

Off The battery voltage is OK and functioning. BAT Red On

Data is being transferred between the module and a remote terminal using the Configuration/Debug port.

No data is being transferred on the Configuration/Debug port.

Data is being transferred between the module and the DFCM network on Port 1.

Data is being transferred between the module and the DFCM network on Port 2.

The MVI69-DFCM module program has recognized a communication error on one of its ports.

The LED is on when the module is performing a write operation on the backplane.

The LED is off when the module is performing a read operation on the backplane. Under normal operation, the LED should blink rapidly on and off.

The card is not receiving any power and is not securely plugged into the rack.

The program has detected an error or is being configured. If the LED remains red for over 10 seconds, the program has probably halted. Remove the card from the rack and reinsert the card to restart the module's program.

The battery voltage is low or battery is not present. Allow battery to charge by keeping module plugged into rack for 24 hours. If BAT LED still does not go off, contact ProSoft Technology, as this is not a user serviceable item.

During module configuration, the OK LED will be red and the APP and BP ACT LEDs will be on.

If the APP, BP ACT and OK LEDs blink at a rate of every one-second, this indicates a serious problem with the module. Call ProSoft Technology support to arrange for repairs.

Page 60 of 117 ProSoft Technology, Inc.

November 3, 2008

Diagnostics and Troubleshooting MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

4.2.1 Clearing a Fault Condition

Typically, if the OK LED on the front of the module turns red for more than ten seconds, a hardware problem has been detected in the module, or the program has exited.

To clear the condition, follow these steps:

1 Turn off power to the rack 2 Remove the card from the rack 3 Verify that all jumpers are set correctly 4 If the module requires a Compact Flash card, verify that the card is installed

correctly

5 Re-insert the card in the rack and turn the power back on 6 Verify the configuration data being transferred to the module from the

CompactLogix or MicroLogix processor.

If the module's OK LED does not turn green, verify that the module is inserted completely into the rack. If this does not cure the problem, contact ProSoft Technology Support.

4.2.2 Troubleshooting

Use the following troubleshooting steps if you encounter problems when the module is powered up. If these steps do not resolve your problem, please contact ProSoft Technology Technical Support.

Processor Errors

Problem Description Steps to take

Processor Fault

Processor I/O LED flashes

Verify that the module is plugged into the slot that has been configured for the module.

Verify that the slot in the rack configuration has been set up correctly in the ladder logic.

This indicates a problem with backplane communications. Verify that all modules in the rack are configured in the ladder logic.

Module has a power supply distance rating of 2 on Compact Logix. The module must be within 2 slots of the power supply on Compact Logix, or that the MicroLogix backplane can supply the 800ma required for the modul e.

Module Errors

Problem Description Steps to take

BP ACT LED remains off or blinks slowly

OK LED remains red

This indicates that backplane transfer operations are failing. Connect to the module's Configuration/Debug port to check this.

To establish backplane communications, verify the following items:

 The processor is in Run mode.  The backplane driver is loaded in the module.  The module is configured for read and write block data transfer.  The ladder logic handles all read and write block situations.  The module is configured in the processor.

The program has halted or a critical error has occurred. Connect to the Configuration/Debug port to see if the module is running. If the program has halted, turn off power to the rack, remove the card from the rack and reinsert the card in the rack, and then restore power to the rack.

ProSoft Technology, Inc. Page 61 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Diagnostics and Troubleshooting DF1 Interface Module

Page 62 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5 Reference

In This Chapter

 Product Specifications...........................................................................63

 Functional Overview..............................................................................65

 Cable Connections................................................................................83

 DFCM Database Definition....................................................................88

 Status Data Definition............................................................................89

 DFCM Command Control......................................................................90

 Error Codes...........................................................................................91

 DF1 Command Set For ProSoft Technology Communication Modules.93

 DF1 Command List Form....................................................................105

5.1 Product Specifications

The MVI69 DF1 Master/Slave Communication Module is a CompactLogix I/O compatible module that allows CompactLogix I/O compatible processors to interface easily with DF1 protocol compatible devices and hosts.

Many host SCADA applications support the DF1 protocol, while devices commonly supporting the protocol include Rockwell Automation PLCs, power monitoring equipment, as well as several other third-party devices in the marketplace.

The module has two serial ports supporting the DF1 protocol, with each port user-configurable to act as a master or as a slave. Data transfer between the module and the CompactLogix processor is asynchronous to the DF1 network, with the module's internal database being used to exchange data between the processor and the DF1 network.

The MVI69 DF1 Master/Slave Communications module allows CompactLogix processors to interface easily with DF1 protocol-compatible devices and hosts. Many host SCADA applications support the DF1 protocol, while devices commonly supporting the protocol include Rockwell Automation PLCs, power monitoring equipment, as well as several other third-party devices in the marketplace.

ProSoft Technology, Inc. Page 63 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

5.1.1 General Specifications

 Single Slot - 1769 backplane compatible  The module is recognized as an Input/Output module and has access to

processor memory for data transfer between processor and module

 Ladder Logic is used for data transfer between module and processor.

Sample ladder file included.

 Configuration data obtained from configuration text file downloaded to

module. Sample configuration file included.

 Supports all CompactLogix processors: L20/L23/L30/L31/L32/L35, L43 and

L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)

 Also supports MicroLogix 1500 LRP

5.1.2 Hardware Specifications

Specification Description

Dimensions Standard 1769 Single-slot module Current Load 800 mA max@ 5 VDC

Power supply distance rating of 2 (L43 and L45

installations on first 2 slots of 1769 bus) Operating Temp. 0 to 60°C (32 to 140°F) Storage Temp. -40 to 85°C (-40 to 185°F) Relative Humidity 5% to 95% (non-condensing) LED Indicators Battery and Module Status

Application Status

Serial Port Activity

CFG Port Activity CFG Port (CFG) RJ45 (DB-9F with supplied cable)

RS-232 only

No hardware handshaking App Ports (P1,P2) (Serial modules) RS-232, RS-485 or RS-422 (jumper selectable)

RJ45 (DB-9F with supplied cable)

RS-232 handshaking configurable

500V Optical isolation from backplane Shipped with Unit RJ45 to DB-9M cables for each port

6-foot RS-232 configuration Cable

5.1.3 Functional Specifications

DF1 ports

 Full and half duplex modes supported  CRC and BCC error checking  Full hardware handshaking control provides radio, modem and multi-drop

support

 User-definable module memory usage, supporting the storage and transfer of

up to 4000 registers to/from the control processor

 125 word read and write command lengths supported  Floating point data movement supported

Page 64 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

DF1 Master Protocol Specifications

The ports on the DF1 module can be individually configured as Master ports. When configured in master mode, the DFCM module is capable of reading and writing data to remote DF1 devices, enabling the CompactLogix platform to act as a SCADA sub-master.

 Command List: Up to 100 commands per Master port, each fully-configurable

for function, slave address, register to/from addressing and word/byte count

 Status Data: Error codes available on an individual command basis. In

addition, a slave status list is maintained per active master port

 Polling of Command List: User-configurable polling of commands, including

disabled, continuous, and on change of data (write only)

DF1 Slave Protocol Specifications

The module accepts DF1 commands from an attached DF1 master unit. When in slave mode, the module can accept DF1 commands from a master to read/write data stored in the module's internal registers. This data can be derived from other DF1 slave devices on the network through a master port or from the processor and is easily transferred to the processor's data registers.

Tested Hardware Connections

Several hardware connections have been tested by ProSoft or have been customer field tested. The following physical connections have been tested successfully:

 RA Panel view (Full Duplex point-point, DFCM as slave)  RA Processors (Full/Half duplex, DFCM as either master or slave)  RA Power Monitors (485 Half-Duplex, DFCM as Master)

5.2 Functional Overview

This section provides an overview of how the MVI69-DFCM module transfers data using the DFCM protocol. You should understand the important concepts in this chapter before you begin installing and configuring the module.

5.2.1 General Concepts

The following discussion explains several concepts that are important for understanding the operation of the MVI69-DFCM module.

Module Power Up

On power up the module begins performing the following logical functions:

1 Initialize hardware components 2 Initialize CompactLogix or MicroLogix backplane driver

o Test and Clear all RAM o Initialize the serial communication ports o Read module configuration from the Compact Flash

ProSoft Technology, Inc. Page 65 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

3 Initialize Module Register space 4 Enable Slave Driver on selected ports 5 Enable Master Driver on selected ports

After this initialization procedure is complete, the module will begin communicating with other nodes on the network, depending on the configuration.

Main Logic Loop

Upon completing the power up configuration process, the module enters an infinite loop that performs the following functions:

Backplane Data Transfer

The MVI69-DFCM module communicates directly over the CompactLogix or MicroLogix backplane. Data is paged between the module and the CompactLogix or MicroLogix processor across the backplane using the module's input and output images. The update frequency of the images is determined by the scheduled scan rate defined by the user for the module and the communication load on the module. Typical updates are in the range of 2 to 10 milliseconds.

The data is paged between the processor and the module using input and output image blocks. You can configure the size of the blocks using the Block Transfer Size parameter in the configuration file. You can configure blocks of 60, 120, or 240 words of data depending on the number of words allowed for your own application.

This bi-directional transference of data is accomplished by the module filling in data in the module's input image to send to the processor. Data in the input image is placed in the Controller Tags in the processor by the ladder logic. The input image for the module may be set to 62, 122, or 242 words depending on the block transfer size parameter set in the configuration file.

Page 66 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

The processor inserts data to the module's output image to transfer to the module. The module's program extracts the data and places it in the module's internal database. The output image for the module may be set to 61, 121, or 241 words depending on the block transfer size parameter set in the configuration file.

The following illustration shows the data transfer method used to move data between the CompactLogix or MicroLogix processor, the MVI69-DFCM module and the DFCM network.

All data transferred between the module and the processor over the backplane is through the input and output images. Ladder logic must be written in the CompactLogix or MicroLogix processor to interface the input and output image data with data defined in the Controller Tags. All data used by the module is stored in its internal database. The following illustration shows the layout of the database:

Module's Internal Database Structure

5000 registers for user data

3000 words of configuration and status data

Status and Config

4999 5000

ProSoft Technology, Inc. Page 67 of 117 November 3, 2008

7999

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Data contained in this database is paged through the input and output images by coordination of the CompactLogix or MicroLogix ladder logic and the MVI69DFCM module's program. Up to 242 words of data can be transferred from the module to the processor at a time. Up to 241 words of data can be transferred from the processor to the module. The read and write block identification codes in each data block determine the function to be performed or the content of the data block. The block identification codes used by the module are listed below.

Block Range Descriptions

-1 Status Block 0 Status Block 1 to 999 Read or write data 1000 Event Port 1 2000 Event Port 2 3000 to 3001 Port 1 slave polling control 3002 to 3006 Port 1 slave status 3100 to 3101 Port 2 slave polling control 3102 to 3106 Port 2 slave status 5000 to 5006 Port 1 command control 5100 to 5106 Port 2 command control 9972 Set module time using received time 9973 Pass module time to processor 9998 Warm-boot control block 9999 Cold-boot control block

Each image has a defined structure depending on the data content and the function of the data transfer.

5.2.2 Normal Data Transfer

Normal data transfer includes the paging of the user data found in the module's internal database in registers 0 to 4999 and the status data. These data are transferred through read (input image) and write (output image) blocks. The structure and function of each block is discussed in the following topics:

Read Block

These blocks of data transfer information from the module to the CompactLogix or MicroLogix processor. The structure of the input image used to transfer this data is shown below:

Offset Description Length

0 Read Block ID 1 1 Write Block ID 1 2 to (n+1) Read Data n

where n = 60, 120, or 240 depending on the Block Transfer Size parameter (refer to the

configuration file).

Page 68 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

The Read Block ID is an index value used to determine the location of where the data will be placed in the CompactLogix or MicroLogix processor controller tag array of module read data. The number of data words per transfer depends on the configured Block Transfer Size parameter in the configuration file (possible values are 60, 120, or 240).

The Write Block ID associated with the block requests data from the CompactLogix or MicroLogix processor. Under normal, program operation, the module sequentially sends read blocks and requests write blocks. For example, if three read and two write blocks are used with the application, the sequence will be as follows:

R1W1

R2W2 R3W1 R1W2 R2W1 R3W2 R1W1

This sequence will continue until interrupted by other write block numbers sent by the controller or by a command request from a node on the DFCM network or operator control through the module's Configuration/Debug port.

The following example shows a typical backplane communication application. Assume that the backplane parameters are configured as follows:

Read Register Start: 0 Read Register Count: 480 Write Register Start: 480 Write Register Count: 480

The backplane communication would be configured as follows:

Database address 0 to 479 will be continuously transferred from the module to the processor. Database address 480 to 959 will continuously be transferred from the processor to the module.

The Block Transfer Size parameter basically configures how the Read Data and Write Data areas are broken down into data blocks (60, 120, or 240).

ProSoft Technology, Inc. Page 69 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

If Block Transfer Size = 60:

If Block Transfer Size = 120:

Page 70 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

If Block Transfer Size = 240:

Write Block

These blocks of data transfer information from the CompactLogix or MicroLogix processor to the module and source the input (monitored) data to be used by the remote client. The structure of the output image used to transfer this data is shown in the following table.

Offset Description Length

0 Write Block ID 1 1 to n Write Data n

where n = 60, 120, or 240 depending on the Block Transfer Size parameter (refer to the configuration file).

The Write Block ID is an index value used to determine the location in the module's database where the data will be placed. Each transfer can move up to 200 words (block offsets 1 to 200) of data.

5.2.3 Special Blocks

Slave Status Blocks

Slave status blocks send status information of each slave device on a master port. Slaves attached to the master port can have one of the following states:

ProSoft Technology, Inc. Page 71 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

State Description

0 The slave is inactive and not defined in the command list for the master port. 1

The slave is actively being polled or controlled by the master port and communications is successful.

The master port has failed to communicate with the slave device. Communications with the slave is suspended for a user defined period based on the scanning of the command list.

Communications with the slave has been disabled by the ladder logic. No communication will occur with the slave until this state is cleared by the ladder logic.

Slaves are defined to the system when the module initializes the master command list. Each slave defined will be set to a state of one in this initial step. If the master port fails to communicate with a slave device (retry count expired on a command), the master will set the state of the slave to a value of 2 in the status table. This suspends communication with the slave device for a user specified scan count (Error Delay Count parameter in the configuration file). Each time a command in the list is scanned that has the address of a suspended slave, the delay counter value will be decremented. When the value reaches zero, the slave state will be set to one.

In order to read the slave status table, you should refer to the sample ladder logic. The ladder logic must send a special block to the module to request the data. Each port has a specific set of blocks to request the data as follows:

Block ID Description

3002 Request status for slaves 0 to 59 for Port 1 3003 Request status for slaves 60 to 119 for Port 1 3004 Request status for slaves 120 to 179 for Port 1 3005 Request status for slaves 180 to 239 for Port 1 3006 Request status for slaves 240 to 255 for Port 1 3102 Request status for slaves 0 to 59 for Port 2 3103 Request status for slaves 60 to 119 for Port 2 3104 Request status for slaves 120 to 179 for Port 2 3105 Request status for slaves 180 to 239 for Port 2 3106 Request status for slaves 240 to 255 for Port 2

The format of these blocks is as shown below:

Write Block: Request Slave Status

Offset Description Length

0 3002 to 3006 or 3102 to 3106 1 1 to n Spare n

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

The module will recognize the request by receiving the special write block code and respond with a read block with the following format:

Page 72 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Read Block: Read Slave Status

Offset Description Length

0 3002 to 3006 or 3102 to 3106 1 1 Write Block ID 1 2 to 61 Slave Poll Status Data 60 62 to n Spare (if present)

The sample ladder logic shows how to override the value in the slave status table to disable slaves (state value of 3) by sending a special block of data from the processor to the slave. Port 1 slaves are disabled using block 3000, and Port 2 slaves are disabled using block 3100. Each block contains the slave node addresses to disable. The structure of the block is displayed below:

Write Block: Disable Slaves

Offset Description Length

0 3000 or 3100 1 1 Number of slaves in block 1 2 to 61 Slave indexes 60 62 to (n+1) Spare n=120, or 240 (if configured)

The module will respond with a block with the same identification code received and indicate the number of slaves acted on with the block. The format of this response block is displayed below:

Read Block: Disable Slaves

Offset Description Length

0 3000 or 3100 1 1 Write Block ID 1 2 Number of slaves processed 1 3 to (n+1) Spare n=60, 120, or 240 (if configured)

The sample ladder logic explains how to override the value in the slave status table to enable the slave (state value of 1) by sending a special block. Port 1 slaves are enabled using block 3001, and Port 2 slaves are enabled using block

3101. Each block contains the slave node addresses to enable. The format of the block is displayed below:

Write Block: Enable Slaves

Offset Description Length

0 3001 or 3101 1 1 Number of slaves in block 1 2 Slave indexes 1 3 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

ProSoft Technology, Inc. Page 73 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

The module will respond with a block with the same identification code received and indicate the number of slaves acted on with the block. The format of this response block is displayed below:

Read Block: Enable Slaves

Offset Description Length

0 3001 or 3101 1 1 Write Block ID 1 2 Number of slaves processed 1 3 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Important: The slaves are enabled by default. Therefore, this block should only be used after

Block 3000 or 3001 to re-enable the slaves.

5.2.4 Command Control Blocks

Command control blocks are special blocks used to control the module or request special data from the module. The current version of the software supports five command control blocks: event command control, command control, transfer time, warm boot and cold boot.

Event Command

Event command control blocks send DFCM commands directly from the ladder logic to one of the master ports. The format for these blocks is displayed below:

Write Block - Event Command

Offset Description Length

0 1000 or 2000 1 1 Internal DB Address 1 2 Point Count 1 3 Swap Code 1 4 Node Address 1 5 Function Code 1 6 Parameter #1 1 7 Parameter #2 1 8 Parameter #3 1 9 Parameter #4 1 10 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Page 74 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

The block number defines the DFCM port to be considered. Block 1000 commands are directed to Port 1, and block 2000 commands are directed to Port

2. The parameters passed with the block construct the command. The Internal DB Address parameter specifies the module's database location to associate with the command. The Point Count parameter defines the number of registers for the command. The Swap Code changes the word or byte order. The Node

Address parameter defines the device on the DFCM network to consider. The Function Code parameter is one of those defined in the ProSoft DFCM

Command Set documentation. The parameter fields in the block should be completed as required by the selected function code. Each command has its own set of parameters. When the block is received, the module will process it and place the command in the command queue. The module will respond to each event command block with a read block with the following format:

Read Block - Event Command

Offset Description Length

0 1000 or 2000 1 1 Write Block ID 1 2 0=Fail, 1=Success 1 3 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Word two of the block can be used by the ladder logic to determine if the command was added to the command queue of the module. The command will only fail if the command queue for the port is full (100 commands for each queue) or the command requested is invalid.

Command Control

Command control blocks place commands in the command list into the command queue. Each port has a command queue of up to 100 commands. The module services commands in the queue before the master command list. This gives high priority to commands in the queue. Commands placed in the queue through this mechanism must be defined in the master command list. Under normal command list execution, the module will only execute commands with the Enable parameter set to one or two. If the value is set to zero, the command is skipped. Commands may be placed in the command list with an Enable parameter set to zero. These commands can then be executed using the command control blocks.

One to six commands can be placed in the command queue with a single request. The following table describes the format for this block.

Write Block - Command Control

Offset Description Length

0 5001 to 5006 or 5101-5106 1 1 Command index 1 2 Command index 1

ProSoft Technology, Inc. Page 75 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Offset Description Length

3 Command index 1 4 Command index 1 5 Command index 1 6 Command index 1 7 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Blocks in the range of 5001 to 5006 are used for Port 1, and blocks in the range of 5101 to 5106 are used for Port 2. The last digit in the block code defines the number of commands to process in the block. For example, a block code of 5003 contains 3 command indexes that are to be used with Port 1. The Command index parameters in the block have a range of 0 to 99 and correspond to the master command list entries.

The module responds to a command control block with a block containing the number of commands added to the command queue for the port. The following table describes the format for this block.

Read Block - Command Control

Offset Description Length

0 5000 to 5006 or 5100 to 5106 1 1 Write Block ID 1 2 Number of commands added to command queue 1 3 to (n+1) Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Set Module Time Using Processor Time

This block can be used to update the module's internal clock (date and time).

Write Block: Set Module Time

Offset Description Length

0 9972 1 1 Year (0 to 9999) 1 2 Month (1 to 12) 1 3 Day (1 to 31) 1 4 Hour (0 to 23) 1 5 Minutes (0 to 59) 1 6 Seconds (0 to 59) 1 7 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Page 76 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Set Module Time Response

Read Block: Set Module Time

Offset Description Length

0 9972 1 1 Write Block ID 1 2 to (n+1) Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Get Module Time for Processor Time

Write Block: Get Module Time

Offset Description Length

0 9973 1 1 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Read Block: Write Module Time

Offset Description Length

0 9973 1 1 Write Block ID 1 2 Year (0 to 9999) 1 3 Month (1 to 12) 1 4 Day (1 to 31) 1 5 Hour (0 to 23) 1 6 Minutes (0 to 59) 1 7 Seconds (0 to 59) 1 8 to n Spare

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

Warm Boot

This block is sent from the CompactLogix or MicroLogix processor to the module (output image) when the module is required to perform a warm-boot (software reset) operation. The structure of the control block is shown below:

Offset Description Length

0 9998 1 1 to n Spare 247

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

ProSoft Technology, Inc. Page 77 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Cold Boot

This block is sent from the CompactLogix or MicroLogix processor to the module (output image) when the module is required to perform the cold boot (hardware reset) operation. This block is sent to the module when a hardware problem is detected by the ladder logic that requires a hardware reset. The structure of the control block is shown below:

Offset Description Length

0 9999 1 1 to n Spare 247

n=60, 120, or 240 depending on what is entered in the Block Transfer Size parameter (refer to the configuration file).

5.2.5 Data Flow between MVI69-DFCM Module and CompactLogix or

MicroLogix Processor

The following topics describe the flow of data between the two pieces of hardware (CompactLogix or MicroLogix processor and MVI69-DFCM module) and other nodes on the DFCM network under the module's different operating modes. Each port on the module is configured to emulate a DFCM master device or a DFCM slave device. The operation of each port is dependent on this configuration. The sections below discuss the operation of each mode.

Slave Driver Mode

The Slave Driver Mode allows the MVI69-DFCM module to respond to data read and write commands issued by a master on the DFCM network. The following flow chart and associated table describe the flow of data into and out of the module.

Step Description

The DFCM slave port driver receives the configuration information from the internal Compact Flash disk. This information configures the serial port and define the slave node characteristics. The module simulates N-files to permit remote access of the database. Each file has a configurable length of 60, 120, or 240-word registers.

Page 78 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Step Description

A Host device, such as the Rockwell Automation PLC or an HMI application issues a read or write command to the module's node address. The port driver qualifies the message before accepting it into the module.

After the module accepts the command, the data is immediately transferred to or from the internal database in the module. If the command is a read command, the data is read out of the database and a response message is built. If the command is a write command, the data is written directly into the database and a response message is built.

After the data processing has been completed in Step 3, the response is issued to the originating master node.

Counters are available in the Status Block that permit the ladder logic program to determine the level of activity of the Slave Driver.

Review the Module Set Up section for a complete list of the parameters that must be defined for a slave port. The slave driver supports the following DFCM command set:

Basic Command Set Functions

Function Code

1 0x00 N/A Protected Write X X 2 0x01 N/A Unprotected Read X X X 3 0x02 N/A Protected Bit Write X X 4 0x05 N/A Unprotected Bit Write X X 5 0x08 N/A Unprotected Write X X X

PLC-5 Command Set Functions

Function Code

100 0x0F 0x00 Word Range Write

101 0x0F 0x01 Word Range Read

102 0x0F 0x26 Read-Modify-Write

150 0x0F 0x00 Word Range Write

151 0x0F 0x01 Word Range Read

152 0x0F 0x26 Read-Modify-Write

SLC-500 Command Set Functions

Function Code

501 0x0F 0xA1 Protected Typed

502 0x0F 0XA2 Protected Typed

509 0x0F 0XA9 Protected Typed

Command Function Definition PLC5 SLC500 &

MicroLogix

Command Function Definition PLC5 SLC500 &

MicroLogix

X X

(Binary Address)

X X

(Binary Address)

X X

(Binary Address)

X X

(ASCII Address)

X X

(ASCII Address)

X X

(ASCII Address)

Command Function Definition PLC5 SLC500 &

MicroLogix

X X Logical Read With Two Address Fields

X X X Logical Read With Three Address Fields

X X Logical Write With Two Address Fields

Powermonitor II

ControlLogix

ProSoft Technology, Inc. Page 79 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Function Code

510 0x0F 0XAA Protected Typed

511 0x0F 0XAB Protected Typed

Command Function Definition PLC5 SLC500 &

MicroLogix

X X X Logical Write With Three Address Fields

X X Logical Write With Mask (Three Address Fields)

Powermonitor II

ControlLogix

Each command list record has the same general format. The first part of the record contains the information relating to the communication module and the second part contains information required to interface to the DF1 slave device.

The PLC-5 and SLC-500 command set require the use of files. These files are emulated in the module. The module defines these files each as containing 200word registers that overlay the internal database. The following table shows the relationship of the files to the user data area of the internal database:

File

N7:0 N8:0 N9:0 N10:0 N11:0 N12:0 N13:0 N14:0 N15:0 N16:0 N17:0 N18:0 N18:0 N20:0 N21:0 N22:0 N23:0 N24:0 N25:0 N26:0 N27:0 N28:0 N29:0 N30:0 N31:0 N32:0

Database Register

0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 4200 4400 4600 4800 5000

Note: The way these files are emulated depends of the First File and File Size parameters. The previous example shows using the First File parameter set to 7 and the File Size parameter set to

200.

Page 80 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

In order to retrieve data from the modules database register 200, the remote master would issue a command using the address N8:0. In order to interface with database base register 405, the remote master would use the address N9:5. The following table outlines the complete file emulation for the module:

0 to 4999 N7:0 N31:199 User Data 5000

5000 to 5009 N32:0 N32:9 Backplane Configuration 10

5010 to 5039 N32:10 N32:39 Port 1 Setup 30

5040 to 5069 N32:40 N32:69 Port 2 Setup 30

5070 to 5199 N32:70 N32:199 Reserved 130

5200 to 6399 N33:0 N38:199 Port 1 Commands 1200

6400 to 7599 N39:0 N44:199 Port 2 Commands 1200

7600 to 7700 N45:0 N45:199 Misc. Status Data 200

7800 to 7999 N46:0 N46:199 Command Control 200

8000 to 9999 N47:0 N56:199 Reserved 2000

All the data in the module is available to a remote host. This permits the host device to remotely configure the module and view the status data.

Master Driver Mode

In the Master mode, the MVI69-DFCM module is responsible for issuing read or write commands to slave devices on the DFCM network. These commands are user configured in the module via the Master Command List received from the CompactLogix or MicroLogix processor or issued directly from the CompactLogix or MicroLogix processor (event command control). Command status is returned to the processor for each individual command in the command list status block. The location of this status block in the module's internal database is user defined. The following flow chart and associated table describe the flow of data into and out of the module.

ProSoft Technology, Inc. Page 81 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Step Description

The Master driver obtains configuration data from the internal Compact Flash disk. The configuration data obtained includes the number of commands and the Master Command List. These values are used by the Master driver to determine the type of commands to be issued to the other nodes on the DFCM network.

After configuration, the Master driver begins transmitting read and/or write commands to the other nodes on the network. If writing data to another node, the data for the write command is obtained from the module's internal database to build the command.

Presuming successful processing by the node specified in the command, a response message is received into the Master driver for processing.

Data received from the node on the network is passed into the module's internal database, assuming a read command.

Status is returned to the CompactLogix or MicroLogix processor for each command in the Master Command List.

The Reference chapter describes the structure and content of each command. Care must be taken in constructing each command in the list for predictable operation of the module. If two commands write to the same internal database address of the module, the results will not be as desired. All commands containing invalid data will be ignored by the module. The following table describes the functions supported by the module and the format of each command:

Module Information Data

Col # 1 2 3 4 5 6 7 8 9 10 11

Enable Code

Internal Address

Function Code

FC 1 Code Register Seconds Count Code Node 1 Word

FC 2 Code Register Seconds Count Code Node 2 Word

FC 3 Code Register Seconds Count 0 Node 3 Word

FC 4 Code Register Seconds Count 0 Node 4 Word

FC 5 Code Register Seconds Count Code Node 5 Word

FC 100 Code Register Seconds Count Code Node 100 File

FC 101 Code Register Seconds Count Code Node 101 File

FC 102 Code Register Seconds Count 0 Node 102 File

FC 501 Code Register Seconds Count Code Node 501 File

FC 502 Code Register Seconds Count Code Node 502 File

FC 509 Code Register Seconds Count Code Node 509 File

FC 510 Code Register Seconds Count Code Node 510 File

FC 511 Code Register Seconds Count 0 Node 511 File

Node Address = Destination Address for Message

Poll Interval Time

Count Swap

Code

Node Address

Device Information Data

Function Code

Function Parameters

Address

Element Sub-

Number

Element Sub-

Number

Element Sub-

Number

File

Type

Number File

Number

Element

Element Element

Element Sub-

Element

Element Sub-

Element

Element Sub-

Element

Page 82 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5.3 Cable Connections

The application ports on the MVI69-DFCM module support RS-232, RS-422, and RS-485 interfaces. Please inspect the module to ensure that the jumpers are set correctly to correspond with the type of interface you are using.

Note: When using RS-232 with radio modem applications, some radios or modems require

hardware handshaking (control and monitoring of modem signal lines). Enable this in the configuration of the module by setting the UseCTS parameter to 1.

5.3.1 RS-232 Configuration/Debug Port

This port is physically an RJ45 connection. An RJ45 to DB-9 adapter cable is included with the module. This port permits a PC based terminal emulation program to view configuration and status data in the module and to control the module. The cable for communications on this port is shown in the following diagram:

Disabling the RSLinx Driver for the Com Port on the PC

The communication port driver in RSLinx can occasionally prevent other applications from using the PC's COM port. If you are not able to connect to the module's configuration/debug port using ProSoft Configuration Builder (PCB), HyperTerminal or another terminal emulator, follow these steps to disable the RSLinx Driver.

1 Open RSLinx and go to Communications>RSWho 2 Make sure that you are not actively browsing using the driver that you wish to

stop. The following shows an actively browsed network:

ProSoft Technology, Inc. Page 83 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

3 Notice how the DF1 driver is opened, and the driver is looking for a processor

on node 1. If the network is being browsed, then you will not be able to stop this driver. To stop the driver your RSWho screen should look like this:

Branches are displayed or hidden by clicking on the

4 When you have verified that the driver is not being browsed, go to

Communications>Configure Drivers

You may see something like this:

If you see the status as running, you will not be able to use this com port for anything other than communication to the processor. To stop the driver press the "Stop" on the side of the window:

or the icons.

5 After you have stopped the driver you will see the following:

Page 84 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

6 Upon seeing this, you may now use that com port to connect to the debug

port of the module.

Note: You may need to shut down and restart your PC before it will allow you to stop the driver

(usually only on Windows NT machines). If you have followed all of the above steps, and it will not stop the driver, then make sure you do not have RSLogix open. If RSLogix is not open, and you still cannot stop the driver, then reboot your PC.

5.3.2 RS-232

When the RS-232 interface is selected, the use of hardware handshaking (control and monitoring of modem signal lines) is user definable. If no hardware handshaking will be used, the cable to connect to the port is as shown below:

RS-232: Modem Connection

This type of connection is required between the module and a modem or other communication device.

The "Use CTS Line" parameter for the port configuration should be set to 'Y' for most modem applications.

ProSoft Technology, Inc. Page 85 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

RS-232: Null Modem Connection (Hardware Handshaking)

This type of connection is used when the device connected to the module requires hardware handshaking (control and monitoring of modem signal lines).

RS-232: Null Modem Connection (No Hardware Handshaking)

This type of connection can be used to connect the module to a computer or field device communication port.

Note: If the port is configured with the "Use CTS Line" set to 'Y', then a jumper is required between

the RTS and the CTS line on the module connection.

Page 86 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5.3.3 RS-422

5.3.4 RS-485

The RS-485 interface requires a single two or three wire cable. The Common connection is optional and dependent on the RS-485 network. The cable required for this interface is shown below:

Note: Terminating resistors are generally not required on the RS-485 network, unless you are

experiencing communication problems that can be attributed to signal echoes or reflections. In this case, install a 120 ohm terminating resistor on the RS-485 line.

RS-485 and RS-422 Tip

If communication in the RS-422/RS-485 mode does not work at first, despite all attempts, try switching termination polarities. Some manufacturers interpret +/and A/B polarities differently.

ProSoft Technology, Inc. Page 87 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

5.3.5 DB9 to RJ45 Adaptor (Cable 14)

5.4 DFCM Database Definition

This section contains a listing of the internal database of the MVI69-DFCM module. This information can be used to interface other devices to the data contained in the module.

0 to 4999 User Data 5000 5000 to 5009 Backplane Con figuration 10 5010 to 5039 Port 1 Setup 30 5040 to 5069 Port 2 Setup 30 5070 to 5199 Reserved 130 5200 to 6399 Port 1 Commands 1200 6400 to 7599 Port 2 Commands 1200 7600 to 7700 Misc. Status Data 200 7800 to 7999 Command Control 200 8000 to 9999 Reserved 2000

The User Data area holds data collected from other nodes on the network (master read commands) or data received from the processor (write blocks). Additionally, this data area is used as a data source for the processor (read blocks) or other nodes on the network (write commands).

Refer to Status Data for descriptions of:

 miscellaneous status data  configuration data areas  command control

Page 88 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5.5 Status Data Definition

This section contains a description of the members present in the DFCMStatus object. This data is transferred from the module to the processor as part of each read block.

5.5.1 Status Data Block Structure

Offset Content Description

7600

7601 to 7602

7603 to 7604

7605 to 7606

7607 to 7608

7609

7610

7611

7612 Port 1 Requ ests

7613

7614

7615

7616

7617

7618

7619 Port 2 Requests This field contains the total number of messages sent out the port. 7620

7621

Program Scan Count

Product Code These two registers contain the product code of "DFCM"

Product Version

Operating System

Run Number

Port 1 Command List Requests

Port 1 Command List Response

Port 1 Command List Errors

Port 1 Responses

Port 1 Errors Sent

Port 1 Errors Received

Port 2 Command List Requests

Port 2 Command List Response

Port 2 Command List Errors

Port 2 Responses

Port 2 Errors Sent

This value is incremented each time a complete program cycle occurs in the module.

These two registers contain the product version for the current running software.

These two registers contain the month and year values for the program operating system.

These two registers contain the run number value for the currently running software.

This field contains the number of requests made from this port to slave devices on the network.

This field contains the number of slave response messages received on the port.

This field contains the number of command errors processed on the port. These errors could be due to a bad response or command.

This field contains the total number of messages sent out of the port.

This field contains the total number of messages received on the port.

This field contains the total number of message errors sent out of the port.

This field contains the total number of message errors received on the port.

This field contains the number of requests made from this port to slave devices on the network.

This field contains the number of slave response messages received on the port.

This field contains the number of command errors processed on the port. These errors could be due to a bad response or command.

This field contains the total number of messages received on the port.

This field contains the total number of message errors sent out of the port.

ProSoft Technology, Inc. Page 89 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Offset Content Description

7622

7623

7624

7625

7626

7627

7628

7629

7630 Port 1 Last Error

7631

7632 Port 2 Last Error

Port 2 Errors Received

Read Block Count

Write Block Count

Parse Block Count

Command Event Block Count

Command Block Count

Error Block Count

Port 1 Current Error

Port 2 Current Error

This field contains the total number of message errors received on the port.

This field contains the total number of read blocks transferred from the module to the processor.

This field contains the total number of write blocks transferred from the processor to the module.

This field contains the total number of blocks successfully parsed that were received from the processor.

This field contains the total number of command event blocks received from the processor.

This field contains the total number of command blocks received from the processor.

This field contains the total number of block errors recognized by the module.

For a slave port, this field contains the value of the current error code returned. For a master port, this field contains the index of the currently executing command.

For a slave port, this field contains the value of the last error code returned. For a master port, this field contains the index of the command with an error.

For a slave port, this field contains the value of the current error code returned. For a master port, this field contains the index of the currently executing command.

For a slave port, this field contains the value of the last error code returned. For a master port, this field contains the index of the command with an error.

5.6 DFCM Command Control

Command Control data is received from other nodes on the network that can control the MVI69-DFCM module. Specific values are written to regions of this block to control the module. Currently, the module is programmed to handle the receipt of the following requests: warm boot and cold boot.

The remote node controls the module by writing one of the following values to register 7800:

Value Description

9998 Warm boot the module 9999 Cold boot the module

Page 90 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5.7 Error Codes

The module error codes are listed in this section. Error codes returned from the command list process are stored in the command list error memory region. A word is allocated for each command in the memory area. The error codes are formatted in the word as follows: The least-significant byte of the word contains the extended status code and the most-significant byte contains the status code.

Use the error codes returned for each command in the list to determine the success or failure of the command. If the command fails, use the error code to determine the cause of failure.

Note: The Module Specific error codes (not DF1 compliant) are returned from within the module

and never returned from an attached DF1 slave device. These are error codes that are part of the DF1 protocol or are extended codes unique to this module. The standard DF1 error codes can be found in the DF1 Protocol and Command Set Reference Manual (Publication 1770-6.5.16) from Rockwell Automation. The most common errors for the DF1 protocol are shown in the following tables:

5.7.1 Local STS Error Codes

Code (Int) Code (Hex) Description

0 0x0000 Success, no error 256 0x0100 DST node is out of buffer space 512 0x0200 Cannot guarantee delivery (Link Layer) 768 0x0300 Duplicate token holder detected 1024 0x0400 Local port is disconnected 1280 0x0500 Application layer timed out waiting for response 1536 0x0600 Duplicate node detected 1792 0x0700 Station is offline 2048 0x0800 Hardware fault

5.7.2 Remote STS Error Codes

Code (Int) Code (Hex) Description

0 0x0000 Success, no error 4096 0x1000 Illegal command or format 8192 0x2000 Host has a problem and will not communicate 12288 0x3000 Remote node host is missing, disconnected or shut down 16384 0x4000 Host could not complete function due to hardware fault 20480 0x5000 Addressing problem or memory protect rungs 24576 0x6000 Function not allowed due to command protection selection 26872 0x7000 Processor is in Program mode

-32768 0x8000 Compatibility mode file missi ng or communication zone problem

-28672 0x9000 Remote node cannot buffer command

-24576 0xA000 Wait ACK (1775-KA buffer full)

-20480 0xB000 Remote node problem due to download

ProSoft Technology, Inc. Page 91 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Code (Int) Code (Hex) Description

-16384 0xC000 Wait ACK (1775-KA buffer full)

-12288 0xD000 Not used

-8192 0xE000 Not used 0xF0nn Error code in the EXT STS byte (nn contai ns EXT error code)

5.7.3 Errors When EXT STS Is Present

Code (Int) Code (Hex) Description

-4096 0xF000 Not used

-4095 0xF001 A field has an illegal value

-4094 0xF002 Less levels specified in address than minimum for any address

-4093 0xF003 More levels specified in address than system supports

-4092 0xF004 Symbol not found

-4091 0xF005 Symbol is of improper format

-4090 0xF006 Address does not point to something usable

-4089 0xF007 File is wrong size

-4088 0xF008 Cannot complete request

-4087 0xF009 Data or file is too large

-4086 0xF00A Transaction size plus word address is too large

-4085 0xF00B Access denied, improper privilege

-4084 0xF00C Condition cannot be generated - resource is not available

-4083 0xF00D Condition already exists - resource is already available

-4082 0xF00E Command cannot be executed

-4081 0xF00F Histogram overflow

-4080 0xF010 No access

-4079 0xF011 Illegal data type

-4078 0xF012 Invalid parameter or invalid data

-4077 0xF013 Address reference exists to deleted area

-4076 0xF014 Command execution failure for unknown reason

-4075 0xF015 Data conversion error

-4074 0xF016 Scanner not able to communicate with 1771 rack adapter

-4073 0xF017 Type mismatch

-4072 0xF018 1171 module response was not valid

-4071 0xF019 Duplicate label

-4070 0xF01A File is open; another node owns it

-4069 0xF01B Another node is the program owner

-4068 0xF01C Reserved

-4067 0xF01D Reserved

-4066 0xF01E Data table element protection violation

-4065 0xF01F Temporary internal problem

Page 92 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

5.7.4 Module Specific Error (not DFCM Compliant)

Code (Int) Code (Hex) Description

-1 0xFFFF CTS modem control line not set before transmit

-2 0xFFFE Timeout while transmitting message

-10 0xFFF6 Timeout waiting for DLE-ACK after request

-11 0xFFF5 Timeout waiting for response after request

-12 0xFFF4 Reply data does not match requested byte count

-20 0xFFEC DLE-NAK received after request

-21 0xFFEB DLE-NAK sent after response

5.8 DF1 Command Set For ProSoft Technology Communication Modules

5.8.1 Introduction

This document contains a complete description of the command set required to communicate with DF1 protocol devices using a ProSoft communication module. ProSoft communication modules that contain a virtual DF1 master device use this command set to control and monitor data in DF1 protocol devices. These include Rockwell Automation PLC, SLC, MicroLogix and ControlLogix controllers and field devices supporting the DF1 protocol. ProSoft supports the DF1 protocol on both the serial and network interface. The network interface requires the use of the port service address 0xAF12 as specified in the ControlNet Specification. Rockwell Automation supports this feature in the ControlLogix 5550, PLC5 xx/E and SLC 5/05 processors.

The ProSoft modules contain a virtual database that is defined by the user. This database is used as the source for write commands and the destination for read commands issued on the virtual DF1 master devices. The module interfaces data contained in remote DF1 slave devices to the virtual database using the DF1 master. User commands are issued out of the DF1 master from a command list. These commands gather or control data in the DF1 slave devices. The following illustration shows the relationships discussed above:

ProSoft Technology, Inc. Page 93 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Each command issued from the DF1 master contains a field that indicates the location in the virtual database to be associated with the command. Care must be taken when designing a system to be sure the read and write data regions for the database do not overlap for a single device. The read area of one device can overlap the write section of another device to transfer the data from one slave device to another.

5.8.2 Command Function Codes

This section describes DFCM commands to be configured by the user.

1 2 3 4 5 6 7 8 9 10 11 Enable

Code

Function Code #1 - Protected Write (Basic Command Set)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address of the first

3 Poll Interval Minimum time in tenths of a second to wait before polling

4 Count Number of data word values to be considered by the

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 1 Protected Write Function

8 Word Address Word address where to start the write operation. P1

9 to 11 Not Used These fields are not used by the command. Values

Module Information Data

Internal Address

Poll Interval Time

Count Swap

Code

data point to be associated with the command.

with this command.

function.

2=Swap words & bytes and 3=swap bytes in each word.

entered in these columns will be ignored.

Node Address

Device Information Data

Function Code

Function Parameters

P2 to P4

This function writes one or more words of data into a limited area of the slave device. This function should work on the following devices: 1774-PLC, PLC-2, PLC-3, PLC-5 and PLC-5/250.

Function Code #2 - Unprotected Read (Basic Command Set)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled and 1=Continuous.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

Page 94 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Column Parameter Description Parameter

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 2 Unprotected Read Function

8 Word Address Word address where to start the read operation. P1

9 to 11 Not Used These fields are not used by the command. Values

entered in these columns will be ignored.

P2 to P4

This function reads one or more words of data from the PLC memory. This function should work on the following devices: 1774-PLC, PLC-2, PLC-3, PLC-5, SLC 500, SLC 5/03, SLC 5/04 and MicroLogix 1000.

Function Code #3 - Protected Bit Write (Basic Command Set)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

3 Poll Interval Minimum time in tenths of a second to wait before

4 Count Number of data word values to be considered by the

5 Swap Type Code Swap type code for command: Always zero (0).

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 3 Protected Bit Write Function

8 Word Address Word address where to start the write operation. P1

9 to 11 Not Used These fields are not used by the command. Values

Virtual Database Address This parameter defines the database address for the

data to be associated with the command. The address defined represents a register address and not a bit address. This function will update one or more words of data as defined by the count parameter.

polling with this command.

function.

entered in these columns will be ignored.

P2 to P4

This function sets or resets individual bits within a limited area of the PLC data table. This function should work on the following devices: 1774-PLC, PLC-2, PLC-3, PLC-5 and PLC-5/250.

Function Code #4 - Unprotected Bit Write (Basic Command Set)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address for the

data to be associated with the command. The address defined represents a register address and not a bit address. This function will update one or more words of data as defined by the count parameter.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: Always zero (0).

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 4 Unprotected Bit Write Function

ProSoft Technology, Inc. Page 95 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Column Parameter Description Parameter

8 Word Address Word address where to start the write operation. P1

9 to 11 Not Used These fields are not used by the command. Values

entered in these columns will be ignored.

P2 to P4

This function sets or resets individual bits within a limited area of the PLC data table. This function should work on the following devices: 1774-PLC, PLC-2, PLC-3 and PLC-5.

Function Code #5 - Unprotected Write (Basic Command Set)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 5 Unprotected Write Function

8 Word Address Word address where to start the write operation. P1

9 to 11 Not Used These fields are not used by the command. Values

entered in these columns will be ignored.

P2 to P4

This function writes one or more words of data to the PLC memory. This function should work on the following devices: 1774-PLC, PLC-2, PLC-3, PLC-5, SLC 500, SLC 5/03, SLC 5/04 and MicroLogix 1000.

Function Code #100 - Word Range Write (PLC-5 Command) (Binary Address)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 100 Word Range Write Command.

8 File Number PLC-5 file number to be associated with the command.

If a value of -1 is entered for the parameter, the field will not be used in the command, and the default file will be used.

Page 96 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Column Parameter Description Parameter

9 Element Number The parameter defines the element in the file where

write operation will start. If a value of -1 is entered for the parameter, the field will not be used in the command, and the default element will be used.

10 Sub-Element Number This parameter defines the sub-element to be used with

the command. Refer to the AB documentation for a list of valid sub- element codes. If the value is set to -1, the default sub-element number will be used.

11 Not Used This field is not used by the command. Values entered

in this column will be ignored.

This function writes one or more words of data to a PLC data table. This function should work on the following devices: PLC-5.

Function Code #101 - Word Range Read (PLC-5 Command) (Binary Address)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled and 1=Continuous.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 101 Word Range Write Command.

8 File Number PLC-5 file number to be associated with the command.

If a value of -1 is entered for the parameter, the field will not be used in the command, and the default file will be used.

9 Element Number The parameter defines the element in the file where

write operation will start. If a value of -1 is entered for the parameter, the field will not be used in the command, and the default element will be used.

10 Sub-Element Number This parameter defines the sub-element to be used with

the command. Refer to the AB documentation for a list of valid sub- element codes. If the value is set to -1, the default sub-element number will be used.

11 Not Used This field is not used by the command. Values entered

in this column will be ignored.

This function reads one or more words of data from a PLC data table. This function should work on the following devices: PLC-5.

Function Code #102 - Read-Modify-Write (PLC-5 Command) (Binary Address)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address for the

data to be associated with the command.

ProSoft Technology, Inc. Page 97 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Column Parameter Description Parameter

3 Poll Interval Minimum number of seconds to wait before polling with

this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: Always zero (0).

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 102 Read-Modify-Write Command.

8 File Number PLC-5 file number to be associated with the command.

If a value of -1 is entered for the parameter, the field will not be used in the command, and the default file will be used.

9 Element Number The parameter defines the element in the file where

write operation will start. If a value of -1 is entered for the parameter, the field will not be used in the command, and the default element will be used.

10 Sub-Element Number This parameter defines the sub-element to be used with

the command. Refer to the AB documentation for a list of valid sub-element codes. If the value is set to -1, the default sub-element number will be used.

11 Not Used This field is not used by the command. Values entered

in this column will be ignored.

This function writes one or more words of data to a PLC data table. This function should work on the following devices: PLC-5. The command constructed contains an AND mask and an OR mask. Values in the AND mask have the following definitions: 0=Reset and 1=Leave the Same. Values in the OR mask have the following definitions: 0=Leave the Same and 1=Set. The module is responsible for setting the mask values to correctly construct the message from the virtual database values.

Function Code #150 - Word Range Write (PLC-5 Command) (ASCII Address)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 150 Word Range Write Command.

8 File String PLC-5 address as specified as an ASCII string. For

example, N10:300.

9 to 11 Not Used These fields are not used by the command. Values

entered in these columns will be ignored.

P2 to P4

This function writes one or more words of data to a PLC data table. This function should work on the following devices: PLC-5.

Page 98 of 117 ProSoft Technology, Inc.

November 3, 2008

Reference MVI69-DFCM ♦ CompactLogix or MicroLogix Platform DF1 Interface Module

Function Code #151 - Word Range Read (PLC-5 Command) (ASCII Address)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled and 1=Continuous. 2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word. 6 Node Address Address of unit to reach on the data highway. 7 Function Code = 151 Word Range Read Command. 8 File String PLC-5 address as specified as an ASCII string. For

example, N10:300. 9 to 11 Not Used These fields are not used by the command. Values

entered in these columns will be ignored.

P2 to P4

This function reads one or more words of data from a PLC data table. This function should work on the following devices: PLC-5.

Function Code #152 - Read-Modify-Write (PLC-5 Command) (ASCII Address)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled, 1=Continuous and 2=Conditional.

2 Virtual Database Address This parameter defines the database address for the

data to be associated with the command. The first

database register is used as the AND mask for the

command, and the second is used for the OR mask.

Values in the AND mask have the following definitions:

0=Reset and 1=Leave the Same. Values in the OR

mask have the following definitions: 0=Leave the Same

and 1=Set.

3 Poll Interval Minimum time in tenths of a second to wait before

polling with this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: Always zero (0).

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 152 Read-Modify-Write Command.

8 File String PLC-5 address as specified as an ASCII string. For

example, N10:300.

9 to 11 Not Used These fields are not used by the command. Values

entered in these columns will be ignored.

P2 to P4

ProSoft Technology, Inc. Page 99 of 117 November 3, 2008

MVI69-DFCM ♦ CompactLogix or MicroLogix Platform Reference DF1 Interface Module

Function Code #501 - Protected Typed Logical Read (Two Address Fields)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled and 1=Continuous.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum number of seconds to wait before polling with

this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 501 Logical Read Command

8 File Type SLC file type letter as used in file name string. Valid

values for the system are N, S, F, A, ….

9 File Number SLC file number to be associated with the command. P2

10 Element Number The parameter defines the element in the file where

write operation will start.

11 Not Used This field is not used by the command. Values entered

in this column will be ignored.

This function reads one or more words of data from a PLC data table.

Function Code #502 - Protected Typed Logical Read (Three Address Fields)

Column Parameter Description Parameter

1 Enable/Type Word 0=Disabled and 1=Continuous.

2 Virtual Database Address This parameter defines the database address of the first

data point to be associated with the command.

3 Poll Interval Minimum number of seconds to wait before polling with

this command.

4 Count Number of data word values to be considered by the

function.

5 Swap Type Code Swap type code for command: 0=None, 1=Swap words,

2=Swap words & bytes and 3=swap bytes in each word.

6 Node Address Address of unit to reach on the data highway.

7 Function Code = 502 Logical Read Command

8 File Type SLC file type letter as used in file name string. Valid

values for the system are N, S, F, A, ….

9 File Number SLC file number to be associated with the command. P2

10 Element Number The parameter defines the element in the file where

write operation will start.

11 Sub-Element Number This parameter defines the sub-element to be used with

the command. Refer to the AB documentation for a list of valid sub-element codes.

This function reads one or more words of data from a PLC data table. This function should work on the following devices: SLC 500, SLC 5/03 and SLC 5/04.

Page 100 of 117 ProSoft Technology, Inc.

November 3, 2008

ProSoft Technology MVI69-DFCM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
