MVI56E-DNPNET

ControlLogix Platform

DNPNET Ethernet Client/Server Communication Module

February 13, 2015

USER MANUAL

Your Feedback Please

We always want you to feel that you made the right decision to use our products. If you have suggestions, comments, compliments or complaints about our products, documentation, or support, please write or call us.

ProSoft Technology

5201 Truxtun Ave., 3rd Floor Bakersfield, CA 93309 +1 (661) 716-5100 +1 (661) 716-5101 (Fax) www.prosoft-technology.com support@prosoft-technology.com

MVI56E-DNPNET User Manual

February 13, 2015

ProSoft Technology ®, is a registered Copyright of ProSoft Technology, Inc. All other brand or product names are or may be trademarks of, and are used to identify products and services of, their respective owners.

In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments. User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provided on the enclosed DVD and are available at no charge from our web site: http://www.prosoft-technology.com

Content Disclaimer

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither ProSoft Technology nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. Information in this document including illustrations, specifications and dimensions may contain technical inaccuracies or typographical errors. ProSoft Technology makes no warranty or representation as to its accuracy and assumes no liability for and reserves the right to correct such inaccuracies or errors at any time without notice. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.

No part of this document may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission of ProSoft Technology. All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components. When devices are used for applications with technical safety requirements, the relevant instructions must be followed. Failure to use ProSoft Technology software or approved software with our hardware products may result in injury, harm, or improper operating results. Failure to observe this information can result in injury or equipment damage.

Printed documentation is available for purchase. Contact ProSoft Technology for pricing and availability.

North America: +1 (661) 716-5100 Asia Pacific: +603.7724.2080 Europe, Middle East, Africa: +33 (0) 5.3436.87.20 Latin America: +1.281.298.9109

Agency

RoHS

ATEX

CSA

CSA CB Safety

cULus

GOST-R

Important Safety Information

North America Warnings

A Warning - Explosion Hazard - Substitution of components may impair suitability for Class I, Division 2. B Warning - Explosion Hazard - When in Hazardous Locations, turn off power before replacing or rewiring

modules.

C Warning - Explosion Hazard - Do not disconnect equipment unless power has been switched off or the area is

known to be nonhazardous.

D Suitable for use in Class I, Division 2 Groups A, B, C, and D, Hazardous Locations or Non-Hazardous Locations.

/IECEx

ATEX

Power, Input, and Output (I/O) wiring must be in accordance with the authority having jurisdiction

A Warning - Explosion Hazard - When in hazardous locations, turn off power before replacing or wiring modules.

Warning - Explosion Hazard - Do not disconnect equipment unless power has been switched off or the area is

known to be non-hazardous.

C These products are intended to be mounted in an ATEX/IECEx Certified, tool-secured, IP54 enclosure. The devices

shall provide external means to prevent the rated voltage being exceeded by transient disturbances of more than 40%. This device must be used only with ATEX certified backplanes.

D Before operating the

Agency Approvals and Certifications

Warnings and Conditions of Safe Usage:

reset switch, be sure the area is known to be non-hazardous.

<Ex> II 3 G

A IIC T4 Gc

Ex n 0°C <= Ta <= 60°C

-25°C <= Ta <= 70°C (XT models only) II – Equipment intended for above ground use (not for use in mines). 3 – Category 3 equipment, investigated for normal operation only. G – Equipment protected against explosive gasses. <cULus> E183151 Class I, DIV 2, groups A,B,C,D T5 for all models 0°C to +60°C

-25°C to +70°C (XT models only)

Battery Life Advisory

Note: Modules manufactured after April 1st, 2011 do not contain a battery. For modules manufactured before that date the following applies:

The module uses a rechargeable Lithium Vanadium Pentoxide battery to back up the real-time clock and CMOS settings. The battery itself should last for the life of the module. However, if left in an unpowered state for 14 to 21 days, the battery may become fully discharged and require recharging by being placed in a powered-up ControlLogix chassis. The time required to fully recharge the battery may be as long as 24 hours.

Once it is fully charged, the battery provides backup power for the CMOS setup and the real-time clock for approximately 21 days. Before you remove a module from its power source, ensure that the battery within the module is fully charged (the BATT LED on the front of the module goes OFF when the battery is fully charged). If the battery is allowed to become fully discharged, the module will revert to the default BIOS and clock settings.

Note: The battery is not user-replaceable or serviceable.

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

Contents

Your Feedback Please ........................................................................................................................ 2

Content Disclaimer .............................................................................................................................. 2

Important Safety Information - MVI56E-DNPNET .............................................................................. 3

Battery Life Advisory ........................................................................................................................... 4

1 Start Here 9

1.1 System Requirements ............................................................................................... 9

1.2 Deployment Checklist .............................................................................................. 10

1.3 Package Contents ................................................................................................... 10

1.4 Setting Jumpers ...................................................................................................... 11

1.5 Installing the Module in the Rack ............................................................................ 12

1.6 Creating a New RSLogix 5000 Project .................................................................... 13

1.6.1 Before You Import the Add-On Instruction .............................................................. 14

1.6.2 Creating the Module ................................................................................................ 14

1.6.3 Importing the Add-On Instruction ............................................................................ 17

1.6.4 Adding Multiple Modules (Optional) ........................................................................ 20

1.7 Connecting Your PC to the ControlLogix Processor ............................................... 25

1.8 Downloading the Sample Program to the Processor .............................................. 25

1.8.1 Configuring the RSLinx Driver for the PC COM Port .............................................. 26

2 MVI56E-DNPNET Configuration 29

2.1 Assigning a Permanent IP Address ........................................................................ 29

2.2 DNPNET Module User-Defined Data Types ........................................................... 29

2.3 DNPNET Controller Tags Definitions ...................................................................... 30

2.3.1 DNPNET Controller Tag Overview .......................................................................... 30

2.3.2 DNPNET.CONFIG.DNP_Module_Name ................................................................ 31

2.3.3 DNPNET.CONFIG.DNP3_Server ........................................................................... 31

2.3.4 DNPNET.CONFIG.DNP3_WhiteList[x] ................................................................... 34

2.3.5 DNPNET.CONFIG.DNP3_Client ............................................................................. 35

2.3.6 DNPNET.CONFIG.DNP_Server_Override ............................................................. 36

2.3.7 DNPNET.CONFIG.DNP_Server_List[x] .................................................................. 39

2.3.8 DNPNET.CONFIG.DNP_Client_Commands[x] ...................................................... 41

2.3.9 DNPNET.CONFIG.IP_Settings[x] ........................................................................... 43

3 Diagnostics and Troubleshooting 45

3.1 Ethernet LED Indicators .......................................................................................... 45

3.1.1 Scrolling LED Status Indicators ............................................................................... 45

3.1.2 Non-Scrolling LED Status Indicators ....................................................................... 46

3.2 Clearing a Fault Condition ....................................................................................... 47

3.3 Troubleshooting ....................................................................................................... 47

3.4 Setting Up ProSoft Configuration Builder ................................................................ 48

3.4.1 Installing ProSoft Configuration Builder .................................................................. 48

3.4.2 Setting Up the Project ............................................................................................. 49

3.5 Connecting Your PC to the Module ......................................................................... 51

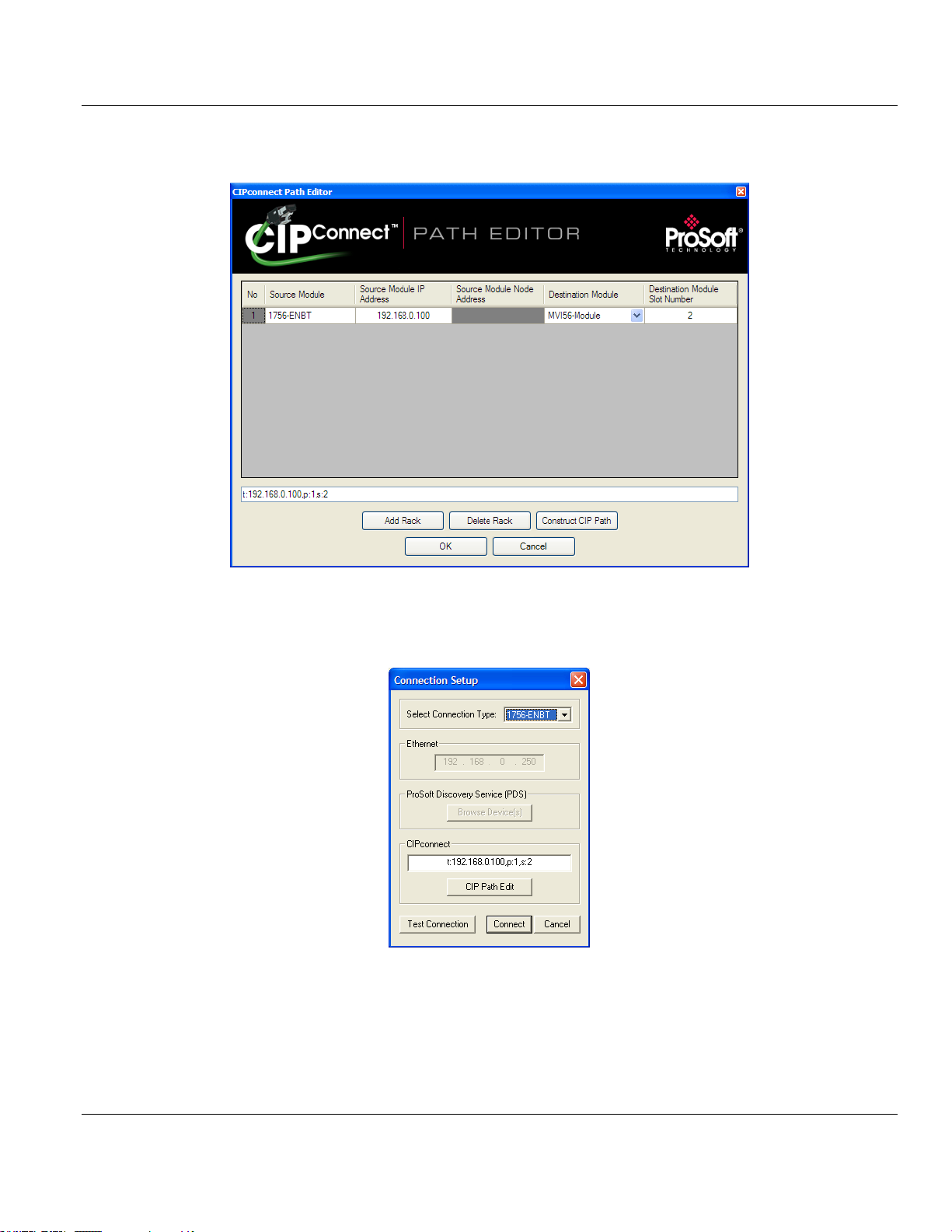

3.5.1 Using CIPconnect® to Connect to the Module ........................................................ 51

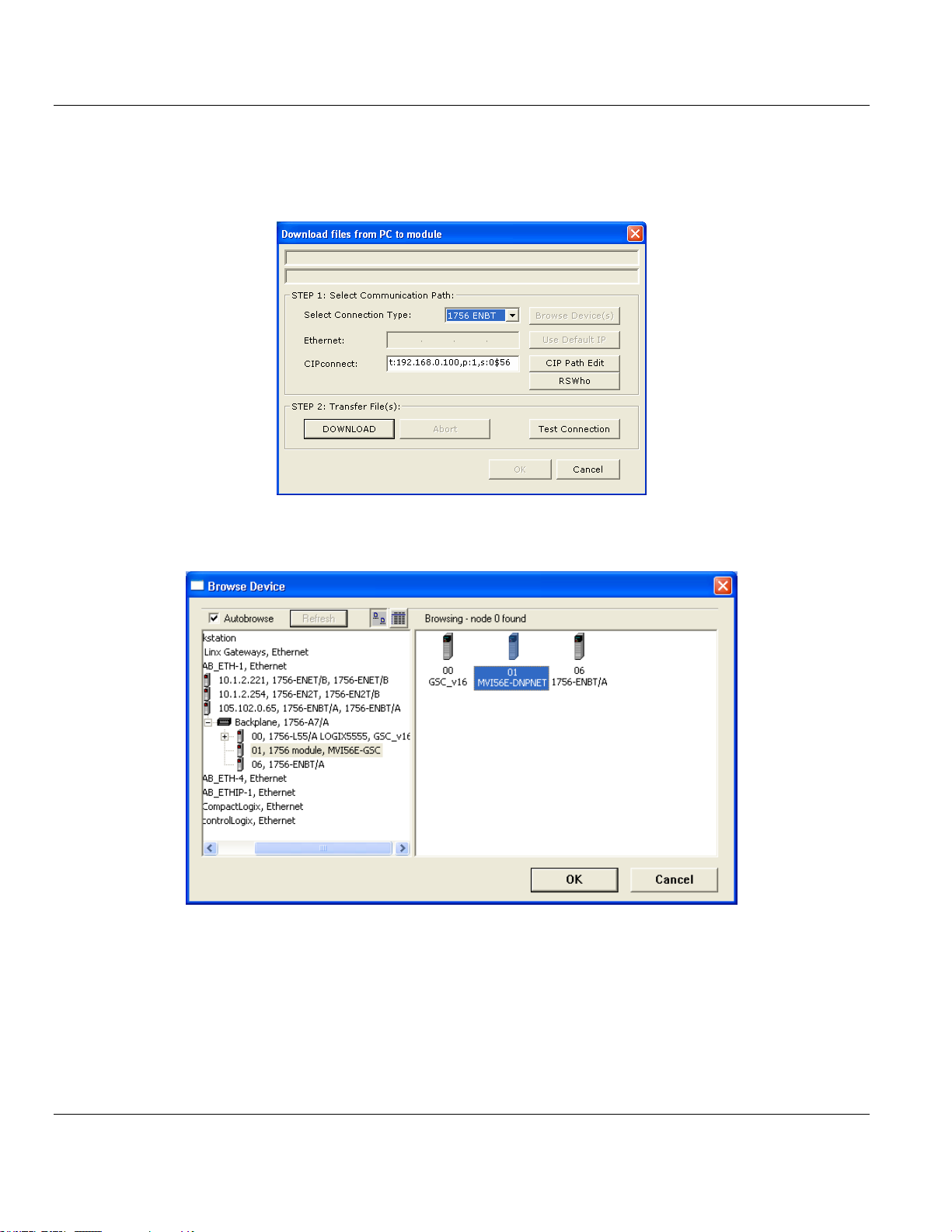

3.5.2 Using RSWho to Connect to the Module ................................................................ 60

ProSoft Technology, Inc. Page 5 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

3.5.3 Connecting Your PC to the Module's Ethernet Port ............................................... 62

3.6 Using the Diagnostics Menu in ProSoft Configuration Builder ............................... 62

3.6.1 The Diagnostics Menu ............................................................................................ 65

3.6.2 Monitoring General Information .............................................................................. 65

3.6.3 Monitoring Backplane Information .......................................................................... 66

3.6.4 DNP3 Ethernet Point Count Module Information .................................................... 67

3.6.5 Monitoring MVI56E-DNPNET Information .............................................................. 67

3.6.6 Monitoring MVI56E-DNPNET Client Information .................................................... 68

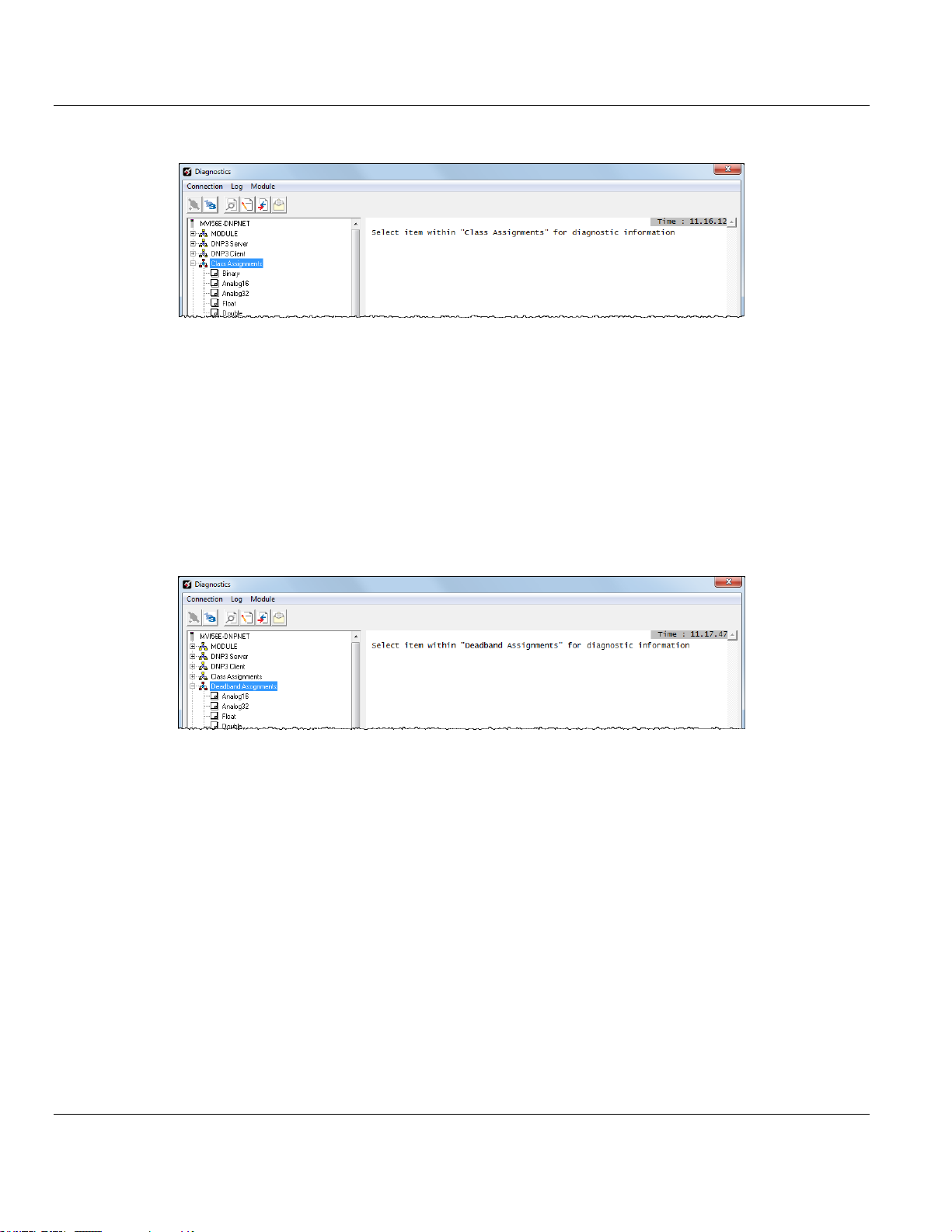

3.6.7 Monitoring MVI56E-DNPNET Class Assignments Information ............................. 68

3.6.8 Monitoring MVI56E-DNPNET Deadband Assignments Information...................... 69

3.6.9 Monitoring DNP3 Ethernet Data Values ................................................................. 69

3.7 Communication Error Codes .................................................................................. 70

3.7.1 General Command Errors ....................................................................................... 70

3.7.2 Slave Port Communication Errors .......................................................................... 71

3.7.3 System Configuration Errors ................................................................................... 71

3.7.4 Port Configuration Errors ........................................................................................ 72

3.7.5 Application Layer Errors ......................................................................................... 73

3.8 Connect to the Module’s Web Page ....................................................................... 74

4 Reference 77

4.1 Product Specifications ............................................................................................ 77

4.1.1 General Specifications ............................................................................................ 77

4.1.2 Functional Specifications ........................................................................................ 78

4.1.3 Hardware Specifications ......................................................................................... 79

4.2 Functional Overview ............................................................................................... 80

4.2.1 MVI56E-DNPNET Backplane Data Exchange ....................................................... 80

4.2.2 Function Blocks....................................................................................................... 85

4.2.3 Module Function Blocks .......................................................................................... 86

4.2.4 Special Function Blocks .......................................................................................... 89

4.3 MVI56E-DNPNET Database Overview ................................................................ 105

4.3.1 Normal Data Transfer ........................................................................................... 106

4.3.2 DNPNETModuleDef Object .................................................................................. 112

4.3.3 DNPNETCONFIG Object ...................................................................................... 112

4.3.4 DNPNETCONTROL Object .................................................................................. 112

4.3.5 DNPNETDATA Object .......................................................................................... 113

4.3.6 DNPNETSTATUS Object ..................................................................................... 114

4.3.7 DNPNETUTIL Object ............................................................................................ 114

4.4 MVI56E-DNPNET User Defined Data Types ....................................................... 114

4.4.1 DNPNET.CONFIG controller tags ........................................................................ 115

4.4.2 DNPNET.DATA. controller tags ............................................................................ 116

4.4.3 DNPNET.STATUS. controller tags ....................................................................... 118

4.4.4 DNPNET.CONTROL. controller tags .................................................................... 118

4.4.5 DNPNET.UTIL. controller tags .............................................................................. 119

4.5 Cable Connections ............................................................................................... 120

4.5.1 Ethernet Cable Specifications ............................................................................... 120

4.5.2 Ethernet Cable Configuration ............................................................................... 120

4.5.3 Ethernet Performance ........................................................................................... 120

5 Support, Service & Warranty 137

5.1 Contacting Technical Support ............................................................................... 137

5.2 Warranty Information ............................................................................................ 138

Page 6 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

Index 139

ProSoft Technology, Inc. Page 7 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

Page 8 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

In This Chapter

 System Requirements............................................................................. 9

 Deployment Checklist ............................................................................10

 Package Contents .................................................................................10

 Setting Jumpers .....................................................................................11

 Installing the Module in the Rack ...........................................................12

 Creating a New RSLogix 5000 Project...................................................13

 Connecting Your PC to the ControlLogix Processor ..............................25

 Downloading the Sample Program to the Processor .............................25

DNPNET Ethernet Client/Server Communication Module User Manual

1 Start Here

To get the most benefit from this User Manual, you should have the following skills:

 Rockwell Automation® RSLogix™ software: launch the program, configure ladder

logic, and transfer the ladder logic to the processor

 Microsoft Windows: install and launch programs, execute menu commands, navigate

dialog boxes, and enter data

 Hardware installation and wiring: install the module, and safely connect DNP3

Ethernet and ControlLogix devices to a power source and to the MVI56E-DNPNET module’s application port(s)

1.1 System Requirements

The MVI56E-DNPNET module requires the following minimum hardware and software components:

 Rockwell Automation ControlLogix® processor (firmware version 10 or higher) with

compatible limited voltage power supply and one free slot in the rack for the MVI56EDNPNET module. The module requires 800mA of available 5 VDC and 3 mA of available 24 VDC power.

 Rockwell Automation RSLogix 5000 programming software

o Version 16 or higher required for Add-On Instruction

 Rockwell Automation RSLinx® communication software version 2.51 or higher  ProSoft Configuration Builder (PCB) (included)

ProSoft Technology, Inc. Page 9 of 140 February 13, 2015

 ProSoft Discovery Service (PDS) (included in PCB)  Pentium® II 450 MHz minimum. Pentium III 733 MHz (or better) recommended  Supported operating systems:

o Microsoft Windows o Microsoft Windows XP Professional with Service Pack 1 or 2

Vista

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

o Microsoft Windows 7 Professional (32-or 64-bit) o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3 o Microsoft Windows Server 2003

 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended  100 Mbytes of free hard disk space (or more based on application requirements)  256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024  768

recommended)

 DVD drive

Note: The Hardware and Operating System requirements in this list are the minimum recommended to install and run software provided by ProSoft Technology®. Other third party applications may have different minimum requirements. Refer to the documentation for any third party applications for system requirements. Note: You can install the module in a local or remote rack. For remote rack installation, the module requires EtherNet/IP or ControlNet communication with the processor.

1.2 Deployment Checklist

Before you begin configuring the module, consider the following questions. Your answers will help you determine the scope of your project, and the configuration requirements for a successful deployment.

1 ____________ Are you creating a new application or integrating the module into an

existing application? Most applications use the Sample Add-On Instruction without any edits.

2 ____________ Which slot number in the chassis will the MVI56E-DNPNET module

occupy?

3 ____________ Are RSLogix 5000 and RSLinx installed?

RSLogix and RSLinx are required to communicate to the ControlLogix processor (1756L1, L55, L61 & L63).

4 ____________ How many words of data do you need to transfer in your application

(from ControlLogix to Module / to ControlLogix from Module)? The MVI56E-DNPNET module can transfer a specified maximum of data points

depending on the data point type.

5 ____________ As a DNP3 Ethernet Client, what Server Device Addresses and Data

Addresses are needed to exchange data with on the network? You must know the Server Device Address number of each Server device to poll, as well

as the address of the data to read from or write to each Server device.

1.3 Package Contents

The following components are included with your MVI56E-DNPNET module, and are all required for installation and configuration.

Page 10 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Qty.

Part Name

Part Number

Part Description

MVI56E-DNPNET Module

MVI56E-DNPNET

DNPNET Ethernet Client/Server Communication Module

Ethernet Cable

RL-CBL025

Ethernet Straight-Through Cable

ProSoft Solutions DVD

DVD-001

Contains the ProSoft Configuration Builder (PCB) software.

Files can also be found at http://www.prosoft-technology.com

DNPNET Ethernet Client/Server Communication Module User Manual

Important: Before beginning the installation, please verify that all of the following items are present.

If any of these components are missing, please contact ProSoft Technology Technical Support for replacement parts. If the DVD is not present, please visit http://www.prosoft-technology.com for the latest files.

1.4 Setting Jumpers

The Setup Jumper acts as "write protection" for the module’s flash memory. In "write protected" mode, the Setup pins are not connected, and the module’s firmware cannot be

overwritten. The module is shipped with the Setup jumper OFF. Do not jumper the Setup pins together unless you are directed to do so by ProSoft Technical Support (or to update the module firmware).

The following illustration shows the MVI56E-DNPNET jumper configuration with the Setup Jumper OFF.

ProSoft Technology, Inc. Page 11 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

Note: If you are installing the module in a remote rack, you may prefer to leave the Setup pins jumpered. That way, you can update the module’s firmware without requiring physical access to the module.

1.5 Installing the Module in the Rack

Make sure your ControlLogix processor and power supply are installed and configured, before installing the MVI56E-DNPNET module. Refer to your Rockwell Automation product documentation for installation instructions.

Warning: You must follow all safety instructions when installing this or any other electronic devices. Failure to follow safety procedures could result in damage to hardware or data, or even serious injury or death to personnel. Refer to the documentation for each device you plan to connect to verify that suitable safety procedures are in place before installing or servicing the device.

After you have checked the placement of the jumpers, insert the MVI56E-DNPNET into the ControlLogix chassis. Use the same technique recommended by Rockwell Automation to remove and install ControlLogix modules.

You can install or remove ControlLogix system components while chassis power is applied and the system is operating. However, please note the following warning.

Warning: When you insert or remove the module while backplane power is on, an electrical arc can occur. An

electrical arc can cause personal injury or property damage by sending an erroneous signal to the system’s

actuators. This can cause unintended machine motion or loss of process control. Electrical arcs may also cause an explosion when they happen in a hazardous environment. Verify that power is removed or the area is nonhazardous before proceeding. Repeated electrical arcing causes excessive wear to contacts on both the module and its mating connector. Worn contacts may create electrical resistance that can affect module operation.

1 Align the module with the top and bottom guides, and then slide it into the rack until the

module is firmly against the backplane connector.

Page 12 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

2 With a firm, steady push, snap the module into place. 3 Check that the holding clips on the top and bottom of the module are securely in the

locking holes of the rack.

4 Make a note of the slot location. You must identify the slot in which the module is

installed in order for the sample program to work correctly. Slot numbers are identified on the green circuit board (backplane) of the ControlLogix rack.

5 Turn power ON.

Note: If you insert the module improperly, the system may stop working or may behave unpredictably.

1.6 Creating a New RSLogix 5000 Project

1 Open the FILE menu, and then choose NEW.

2 Select your ControlLogix controller model. 3 Select REVISION 20. You can select an earlier revision number if necessary, but there

may be some small differences in the appearance of dialog boxes from the ones shown in this Guide.

4 Enter a name for your controller, such as My_Controller. 5 Select your ControlLogix chassis type.

ProSoft Technology, Inc. Page 13 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

File Name

Description

MVI56(E)DNPNET_AddOn_Rung_v1_0.L5X

L5X file containing Add-On Instruction, user defined data types, controller tags and ladder logic required to configure the MVI56E-DNPNET module

User Manual DNPNET Ethernet Client/Server Communication Module

6 Select SLOT 0 for the controller.

1.6.1 Before You Import the Add-On Instruction

One Add-On Instruction is provided for the MVI56E-DNPNET module. It is required for setting up the module.

Copy the files from the ProSoft Solutions DVD, or download them from

www.prosoft-technology.com. Save them to a convenient location in your PC, such as

Desktop or My Documents.

1.6.2 Creating the Module

1 Add the MVI56E-DNPNET module to the project.

In the CONTROLLER ORGANIZATION window, select I/O CONFIGURATION and click the right mouse button to open a shortcut menu. On the shortcut menu, choose NEW MODULE...

Page 14 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Parameter

Value

NAME

DNPNET

DESCRIPTION

Enter a description for the module. Example: DNPNET Ethernet Client/Server Communication Module

COMM FORMAT

Select DATA-INT

DNPNET Ethernet Client/Server Communication Module User Manual

This action opens the SELECT MODULE dialog box. Enter generic in the text box and select the GENERIC 1756 MODULE. If you're using a controller revision of 16 or less, expand OTHER in the SELECT MODULE dialog box, and then select the GENERIC 1756

MODULE.

2 Click CREATE. This action opens the NEW MODULE dialog box.

3 In the NEW MODULE dialog box, enter the following values.

ProSoft Technology, Inc. Page 15 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Parameter

Value

SLOT

Enter the slot number in the rack where the MVI56E-DNPNET module is located

INPUT ASSEMBLY INSTANCE

INPUT SIZE

250

OUTPUT ASSEMBLY INSTANCE

OUTPUT SIZE

248

CONFIGURATION ASSEMBLY INSTANCE

CONFIGURATION SIZE

User Manual DNPNET Ethernet Client/Server Communication Module

Important: You must select the COMM FORMAT as DATA - INT in the dialog box, otherwise the module will not communicate over the backplane of the ControlLogix rack.

4 Click OK to continue. 5 Edit the Module Properties.

Select the REQUESTED PACKET INTERVAl value for scanning the I/O on the module. This

value represents the minimum frequency at which the module will handle scheduled events. This value should not be set to less than 1 millisecond. The default value is 5 milliseconds. Values between 1 and 10 milliseconds should work with most applications.

Page 16 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

6 Click OK to save the module and close the dialog box. Notice that the module now

appears in the CONTROLLER ORGANIZATION window.

1.6.3 Importing the Add-On Instruction

1 In the CONTROLLER ORGANIZATION window, expand the TASKS folder and subfolders until

you reach the MAINPROGRAM folder.

2 In the MAINPROGRAM folder, double-click to open the MAINROUTINE ladder. 3 Select an empty rung in the routine, and then click the right mouse button to open a

shortcut menu. On the shortcut menu, choose IMPORT RUNGS…

ProSoft Technology, Inc. Page 17 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

4 Navigate to the location on your PC where you saved the Add-On Instruction (for

example, My Documents or Desktop). Select the MVI56(E)DNPNET_ADDON_RUNG_V2.8.L5X file.

This action opens the IMPORT CONFIGURATION dialog box. Click TAGS under MAINROUTINE to show the controller tags that will be created. Note that if you are using a controller revision number of 16 or less, the IMPORT CONFIGURATION dialog box does not show the IMPORT CONTENT tree.

Page 18 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

5 If you are using the module in a different slot (or remote rack), edit the connection input

and output variables that define the path to the module. Edit the text in the FINAL NAME column (NAME column for controller revision 16 or less). For example, if your module is

located in slot 3, change Local:1:I in the above picture to Local:3:I. Do the same for Local:1:O. If your module is located in Slot 1 of the local rack, this step is not required.

6 Click OK to confirm the import. RSLogix 5000 indicates that the import is in progress:

When the import is completed, the new rung with the Add-On Instruction will be visible as shown in the following illustration.

The procedure also imports new User Defined Data Types, Controller Tags, and the Add-On instruction for your project.

7 Save the application and then download the sample ladder logic into the processor.

ProSoft Technology, Inc. Page 19 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

1.6.4 Adding Multiple Modules (Optional)

Important: If your application requires more than one MVI56E-DNPNET module in the same project, follow the steps below.

1 In the I/O CONFIGURATION folder, click the right mouse button to open a shortcut menu,

and then choose NEW MODULE.

Page 20 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Parameter

Value

NAME

Enter a module identification string. Example: DNPNET_2.

DESCRIPTION

Enter a description for the module. Example: DNPNET Ethernet Client/Server Communication Module.

COMM FORMAT

Select DATA-INT.

SLOT

Enter the slot number in the rack where the MVI56E-DNPNET module is located.

INPUT ASSEMBLY INSTANCE

INPUT SIZE

250

OUTPUT ASSEMBLY INSTANCE

OUTPUT SIZE

248

CONFIGURATION ASSEMBLY INSTANCE

CONFIGURATION SIZE

DNPNET Ethernet Client/Server Communication Module User Manual

2 Select 1756-MODULE. If you're using a controller revision of 16 or less, expand OTHER

in the SELECT MODULE dialog box, and then select the 1756-MODULE.

3 Fill the module properties as follows:

4 Click OK to confirm. The new module is now visible:

5 Expand the TASKS folder, and then expand the MAINTASK folder. 6 In the MAINPROGRAM folder, double-click to open the MAINROUTINE ladder.

ProSoft Technology, Inc. Page 21 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

7 Select an empty rung in the routine, and then click the right mouse button to open a

shortcut menu. On the shortcut menu, choose IMPORT RUNGS…

Page 22 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

8 Select the MVI56(E)DNPNET_ADDON_RUNG_V1_0.L5X file, and then click IMPORT.

9 This action opens the IMPORT CONFIGURATION window. Click TAGS under MAINROUTINE

to show the tags that will be imported.

10 Associate the I/O connection variables to the correct module in the corresponding slot

number. The default values are Local:1:I and Local:1:O and must be edited if the card is placed in a slot location other than slot 1 (Local:1:x means the card is located in slot 1).

Since the second card is placed in slot 2, edit the FINAL NAME to Local:2:I and Local:2:O.

ProSoft Technology, Inc. Page 23 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

11 Also, append ‘2’ at the end of the default tags DNPNET, AOI56DNPNET,

READETHERNETMSG, and WRITEETHERNETMSG to avoid conflict with existing tags as

shown below..

12 Click OK to confirm.

The setup procedure is now complete. Save the project and download the application to your ControlLogix processor.

Page 24 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

1.7 Connecting Your PC to the ControlLogix Processor

There are several ways to establish communication between your PC and the ControlLogix processor. The following steps show how to establish communication through the serial interface. It is not mandatory that you use the processor's serial interface. You may access the processor through whatever network interface is available on your system. Refer to your Rockwell Automation documentation for information on other connection methods.

1 Connect the right-angle connector end of the cable to your controller at the

communications port.

2 Connect the straight connector end of the cable to the serial port on your computer.

1.8 Downloading the Sample Program to the Processor

Note: The key switch on the front of the ControlLogix processor must be in the REM or PROG position.

ProSoft Technology, Inc. Page 25 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

1 If you are not already online with the processor, open the Communications menu, and

then choose DOWNLOAD. RSLogix 5000 will establish communication with the processor.

You do not have to download through the processor's serial port, as shown here. You may download through any available network connection.

2 When communication is established, RSLogix 5000 will open a confirmation dialog box.

Click the DOWNLOAD button to transfer the sample program to the processor.

3 RSLogix 5000 will compile the program and transfer it to the processor. This process

may take a few minutes.

4 When the download is complete, RSLogix 5000 will open another confirmation dialog

box. If the key switch is in the REM position, click OK to switch the processor from PROGRAM mode to RUN mode.

Note: If you receive an error message during these steps, refer to your RSLogix documentation to interpret and correct the error.

1.8.1 Configuring the RSLinx Driver for the PC COM Port

If RSLogix is unable to establish communication with the processor, follow these steps.

1 Open RSLinx. 2 Open the COMMUNICATIONS menu, and choose CONFIGURE DRIVERS.

Page 26 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

This action opens the Configure Drivers dialog box.

Note: If the list of configured drivers is blank, you must first choose and configure a driver from the Available Driver Types list. The recommended driver type to choose for serial communication with the processor is RS-232 DF1 Devices.

3 Click to select the driver, and then click CONFIGURE. This action opens the Configure

RS-232 DF1 Devices dialog box.

4 Click the AUTO-CONFIGURE button. RSLinx will attempt to configure your serial port to

work with the selected driver.

5 When you see the message Auto Configuration Successful, click the OK button to

dismiss the dialog box.

ProSoft Technology, Inc. Page 27 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

Note: If the auto-configuration procedure fails, verify that the cables are connected correctly between the processor and the serial port on your computer, and then try again. If you are still unable to auto-configure the port, refer to your RSLinx documentation for further troubleshooting steps.

Page 28 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

In This Chapter

 Assigning a Permanent IP Address .......................................................29

 DNPNET Module User-Defined Data Types ..........................................29

 DNPNET Controller Tags Definitions .....................................................30

DNPNET Ethernet Client/Server Communication Module User Manual

2 MVI56E-DNPNET Configuration

The DNP3 Ethernet configuration resides in the DNPNET controller tags. This section covers the tag structure and descriptions of the DNPNET Client and Server parameters.

2.1 Assigning a Permanent IP Address

The module’s IP address, subnet mask, and gateway parameters are configured in the

DNPNET.CONFIG.IP_Settings controller tags only.

Any changes to the DNPNET.CONFIG.IP_Settings.IP, Netmask, or Gateway tags require the trigger of the DNPNET.CONFIG.IP_Settings.Write tag. This sends the parameters to the module.

The user can also read the current IP settings from the module by triggering the DNPNET.CONFIG.IP_Settings.Read tag. They will populate in the DNPNET.CONFIG.IP_Settings.IP, Netmask, and Gateway tags.

2.2 DNPNET Module User-Defined Data Types

The sample ladder logic relies heavily on the use of User-Defined Data Types (UDTs) to help group and structure the wide variety and volume of data and control features the module offers. Lower-order UDT structures are often embedded in higher-order structures to help further organize data into more easily understood data collections.

ProSoft Technology, Inc. Page 29 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Name

Description

DNPNET.CONFIG

Configuration information

DNPNET.DATA

DNPNET input and output data transferred between the processor and the module

DNPNET.STATUS

Status information

DNPNET.CONTROL

Governs the data movement between the PLC rack and the module

DNPNET.UTIL

Generic tags used for internal ladder processing (DO NOT MODIFY)

User Manual DNPNET Ethernet Client/Server Communication Module

All data and control parameters related to the MVI56E-DNPNET are contained in User-

defined Data Types (UDTs). The DNPNETMODULEDEF UDT is the primary, top level data

structure in which all other lower-order data types are grouped and organized. All groups branch down from this UDT.

To utilize all the features and functions of the module, an instance of each data type is required. This is accomplished by declaring controller tag variables using these data types in the Controller Tags Edit Tags dialog box.

Some UDTs hold process or status data (Module Data Objects). This data can be monitored

and manipulated by the application-specific ladder logic program. Other UDTs are used to store and organize the parameters needed for special functions and control features

(Special Data Objects). These data types will be discussed in more detail in succeeding

topics.

2.3 DNPNET Controller Tags Definitions

2.3.1 DNPNET Controller Tag Overview

Page 30 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

DNPNET.Config.DNP _Module_Name[0] – [79]

0 or 32 - 126

String of ASCII characters (up to 80) that gives the module a unique name. Terminate the string with a byte = 0. Module is named "MVI56E-DNPNET" by default.

Tag Name

Range

Description

DNPNET.Config.DNP3_Server . Internal_Server_ID

0 to 32767

This is the DNP address for the module. All messages with this address from the client will be processed by the module.

DNPNET.CONFIG.DNP3_Ser ver.Use_WhiteList

0 or 1

This parameter specifies if the IP address of the host connected to the system will be validated. If the parameter is set to 0, any host may connect to the unit. If the parameter is set to 1, only hosts in the IP list will be permitted to connect to the module. All other IP addresses will be ignored by the module and the module will issue a RST to the TCP/IP connection. The IP_List is contained in DNP.Config.DNP_ENET_IP_Addresses.

DNPNET.CONFIG.DNP3_Ser ver.Binary_Input_Class

0 to 3

This parameter specifies the default class to be utilized for all the binary input points in the DNP database that are not defined in the override list section.

DNPNET Ethernet Client/Server Communication Module User Manual

2.3.2 DNPNET.CONFIG.DNP_Module_Name

Configures the name of the MVI56E-DNPNET.

2.3.3 DNPNET.CONFIG.DNP3_Server

Configures the MVI56E-DNPNET server.

ProSoft Technology, Inc. Page 31 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Tag Name

Range

Description

DNPNET.CONFIG.DNP3_Ser ver.Analog16_Input_Class

0 to 3

This parameter specifies the default class to be utilized for all the 16-bit analog input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3_Ser ver.Analog32_Input_Class

0 to 3

This parameter specifies the default class to be utilized for all the 32-bit analog input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3_Ser ver.Float_Class

0 to 3

This parameter specifies the default class to be utilized for all the float input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3_Ser ver.Double_Class

0 to 3

This parameter specifies the default class to be utilized for all the double input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3_Ser ver.Analog16_Input_Deadban d

0 to 32767

This parameter specifies the default deadband value assigned to all points not defined in the override list for the 16-bit analog input point type in the DNP database.

DNPNET.CONFIG.DNP3_Ser ver.Analog32_Input_Deadban d

0 to 2,147,483,647

This parameter specifies the default deadband value assigned to all points not defined in the override list for the 32-bit analog input point type in the DNP database.

DNPNET.CONFIG.DNP3_Ser ver.Float_Deadband

0 to maximum float value

This parameter specifies the default deadband value assigned to all points not defined in the override list for the float input point type in the DNP database.

DNPNET.CONFIG.DNP3_Ser ver.Double_Deadband

0 to maximum double value

This parameter specifies the default deadband value assigned to all points not defined in the override list for the double input point type in the DNP database.

DNPNET.CONFIG.DNP3_Ser ver.SelectOperate_Arm_Time

1 to 32767

Time period after select command received in which operate command will be performed. After the select command is received, the operate command will only be honored if it arrives within this period of time.

DNPNET.CONFIG.DNP3_Ser ver.Write_Time_Interval

0 to 1440 minutes

Time interval to set the need time IIN bit (0=never), which will cause the client to write the time. Stored in milliseconds in the module memory.

DNPNET.CONFIG.DNP3_Ser ver.Spare1_Always_0

0,1, or 2 (Coded Value)

IED can request acknowledgement from client station when sending data. The codes are as follows: 0=Never, 1=Sometimes, 2=Always

DNPNET.CONFIG.DNP3_Ser ver. Spare1_Always_1

1 to 32767 milliseconds

Time period to wait for client Data Link confirmation of last frame sent. This time is in milliseconds. This parameter is only used if the frame is sent with confirmation requested.

User Manual DNPNET Ethernet Client/Server Communication Module

Page 32 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

DNPNET.CONFIG.DNP3_Ser ver. Spare1_Always_2

0 to 255 retries

Maximum number of retries at the Data Link level to obtain a confirmation. If this value is set to 0, retries are disabled at the data link level of the protocol. This parameter is only used if the frame is sent with confirmation requested.

DNPNET.CONFIG.DNP3_Ser ver.App_Layer_Confirm_Tout

1 to 32767 milliseconds

Event data contained in the last response may be sent again if not confirmed within the millisecond time period set. If application layer confirms are used with data link confirms, ensure that the application layer confirm timeout is set long enough.

DNPNET.CONFIG.DNP3_Ser ver.Unsolicited_Response

0 or 1

If set to 0, the server will not send unsolicited responses. If set to 1, the server will send unsolicited responses.

DNPNET.CONFIG.DNP3_Ser ver.Class_1_Unsol_Resp_Min

1 to 255 events

Minimum number of events in Class 1 required before an unsolicited response will be generated.

DNPNET.CONFIG.DNP3_Ser ver.Class_2_Unsol_Resp_Min

1 to 255 events

Minimum number of events in Class 2 required before an unsolicited response will be generated.

DNPNET.CONFIG.DNP3_Ser ver.Class_3_Unsol_Resp_Min

1 to 255 events

Minimum number of events in Class 3 required before an unsolicited response will be generated.

DNPNET.CONFIG.DNP3_Ser ver.Unsol_Resp_Delay

1 to 32767 milliseconds

Maximum number of 1 millisecond intervals to wait after an event occurs before sending an unsolicited response message. If set to 0, only use minimum number of events.

DNPNET.CONFIG.DNP3_Ser ver.UResp_Client_Address

0 to 255 retries

DNP destination address where unsolicited response messages are sent.

DNPNET.CONFIG.DNP3_Ser ver.AnalogInput_Events_with_t ime

0 or 1

This parameter sets if the analog input events generated by the module will include the date and time of the event. If the parameter is set to 0, the default is set to no time data. If the parameter is set to 1, the default object will include the time of the event.

DNPNET.CONFIG.DNP3_Ser ver.Events_Require_Time_Sy nc

0 or 1

This parameter is used to determine if events will be generated by the server module when its time is not synchronized from a client. If the parameter is set to 1, no events will be generated until the module's time has been synchronized. If the parameter is set to 0, events will always be generated.

DNPNET.CONFIG.DNP3_Ser ver.Initialize_DNP_Output_Dat abase

0 or 1

This parameter determines if the module will request data from the processor to initialize the DNP database output data areas. If this option is utilized, ladder logic is required to send the requested blocks from the processor to the module.

DNPNET Ethernet Client/Server Communication Module User Manual

ProSoft Technology, Inc. Page 33 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Tag Name

Range

Description

DNPNET.CONFIG.DNP3_Ser ver.PassThrough_CROB

0 or 1

This parameter determines if the module will pass all received CROB messages received through to the processor. If it is set to 0 (default), then the messages will not be sent to the processor. If the parameter is set to 1, then block 9910 will be sent to the processor with the CROB information. The database will still be controlled by the CROB message, but the ladder can control other virtual BO data in the processor using this data. This feature is useful if the controlling station sends CROB data to the server driver with very short on or off times.

DNPNET.CONFIG.DNP3_Ser ver.Use_TripClose_Single_Poi nt

0 or 1

This parameter determines if data associated with CROB commands operate on a single or dual point. If the value of 0 is supplied (default value), then all points will be dual-point unless neither the trip or close bit is set in the control code of the command. If either bit is set, then the CROB block will interact with the bit database as a dual-point database. If the parameter is set to 1, then all CROB blocks received will operate on the database as single bits.

DNPNET.CONFIG.DNP3_Ser ver.Config_unsol_retry_limit

7 to 32768

Configurable unsolicited retry limit. The module sends an unsolicited message and waits for a confirmation with the Application Layer Confirm Timeout up to the limit specified until the unsolicited message is confirmed. If the amount of unsolicited messages are exceeded, the Ethernet connection will be lost. Another DNP message could wake up the connection. The allowable limits are 7 to

32768.

DNPNET.CONFIG.DNP3_Ser ver.reserved_3

DNPNET.CONFIG.DNP3_Ser ver.reserved_2

DNPNET.CONFIG.DNP3_Ser ver.reserved_1

DNPNET.CONFIG.DNP3_Ser ver.reserved_0

User Manual DNPNET Ethernet Client/Server Communication Module

2.3.4 DNPNET.CONFIG.DNP3_WhiteList[x]

To avoid unknown or outside devices from trying to connect to the MVI56E-DNPNET, you can create an exclusive list of IP addresses allowed to access the device. There are a maximum of 10 IP addresses that can be configured. This tag array is used if the

Page 34 of 140 ProSoft Technology, Inc. February 13, 2015

DNPNET.CONFIG.DNP3_Server.Use_WhiteList tag is set to 1.

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

DNPNET.CONFIG.DNP3_Whit eList[0].a

1 to 254

IP Address Octet A

DNPNET.CONFIG.DNP3_Whit eList[0].b

0 to 254

IP Address Octet B

DNPNET.CONFIG.DNP3_Whit eList[0].c

0 to 254

IP Address Octet C

DNPNET.CONFIG.DNP3_Whit eList[0].d

1 to 254

IP Address Octet D

DNPNET.CONFIG.DNP3_Whit eList[1].a

DNPNET.CONFIG.DNP3_Whit eList[1].b

DNPNET.CONFIG.DNP3_Whit eList[1].c

DNPNET.CONFIG.DNP3_Whit eList[1].d

… … …

DNPNET.CONFIG.DNP3_Whit eList[9].a

DNPNET.CONFIG.DNP3_Whit eList[9].b

DNPNET.CONFIG.DNP3_Whit eList[9].c

DNPNET.CONFIG.DNP3_Whit eList[9].d

Tag Name

Range

Description

DNPNET.CONFIG.DNP3_Clie nt.Internal_ID

0 to 32767

This is the DNP address for the module. All messages with this address from the client will be processed by the module.

DNPNET.CONFIG.DNP3_Clie nt.Event_Messages_to_PLC

0 or 1

This parameter determines if event messages received on the client port will be sent to the processor. If this option is utilized, ladder logic must be written to handle the 9903 blocks generated by the module.

DNPNET.CONFIG.DNP3_Clie nt.Initialize_IED_Input_Databa se

0 or 1

This parameter determines if the module will request data from the processor to initialize the IED database input data areas. If this option is utilized, ladder logic is required to send the requested blocks from the processor to the module.

DNPNET Ethernet Client/Server Communication Module User Manual

2.3.5 DNPNET.CONFIG.DNP3_Client

Configures the MVI56E-DNPNET client.

ProSoft Technology, Inc. Page 35 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Tag Name

Range

Description

DNPNET.CONFIG.DNP3_Clie nt.Only_Time_Sync_Servers_I f_Synced

0 or 1

This parameter determines if the client will send a time sync message to servers when its own time has not yet been synced via PLC or a connected client. If set to 0, the client will send a time sync to connected servers even if its own clock has not been synced by the PLC or another connected client. If set to 1, the client will not send time syncs to servers until it has been synced by the PLC or a connected client.

DNPNET.CONFIG.DNP3_Clie nt.Use_Binary_Output_status_ Data

0 or 1

Enable database and functions for reading the status of Binary Outputs (object 10).

DNPNET.CONFIG.DNP3_Clie nt.Use_Analog_Output_status _Data

0 or 1

Enable database and functions for reading the status of Analog Outputs (object 40).

DNPNET.CONFIG.DNP3_Clie nt.Dont_Process_IIN

0 or 1

By default (0), the Client module will automatically make requests to servers that have IIN bits set for class data, need time, restart, or buffer overflow until these IIN bits have been cleared. If this parameter is set to 1, the Client will NOT automatically make these requests as a result of these IIN bits being set.

DNPNET.CONFIG.DNP3_Clie nt.reserved_0

Tag Name

Range

Description

DNPNET.CONFIG.DNP_Serv er_Override.Binary_Inputs.

n/a

Number of binary input words contained in the IED database to be transferred to the PLC and obtained from the attached IED units. This array size ranges from 0 to 1000.

Point_Number

0 to Number of points configured Point number index to be overridden

Point number index to be overridden

Class

1 to 3

Class number assigned to point number specified above

DNPNET.CONFIG.DNP_Serv er_Override.Analog16_Inputs.

n/a

Number of 16-bit analog input points contained in the IED database to be transferred to the PLC and obtained from the attached IED units. This array size ranges from 0 to 1000.

Point_Number

0 to Number of points configured

Point number index to be overridden

User Manual DNPNET Ethernet Client/Server Communication Module

2.3.6 DNPNET.CONFIG.DNP_Server_Override

Assigns Class and Deadband overrides to individual point types. You can adjust the size of each of the 5 point type arrays.

Page 36 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

Class

1 to 3

Class number assigned to point number specified

Deadband

0 to 32767

Deadband assigned to point number specified

DNPNET.CONFIG.DNP_Serv er_Override.Analog32_Inputs.

n/a

Number of 32-bit analog input points contained in the IED database to be transferred to the PLC and obtained from the attached IED units. This array size ranges from 0 to 500.

Point_Number

0 to Number of points configured

Point number index to be overridden

Class

1 to 3

Class number assigned to point number specified

Deadband

0 to 32767

Deadband assigned to point number specified

DNPNET.CONFIG.DNP_Serv er_Override.Float_Inputs.

n/a

Number of float input points contained in the IED database to be transferred to the PLC and obtained from the attached IED units This array size ranges from 0 to 500.

Point_Number

0 to Number of points configured

Point number index to be overridden

Class

1 to 3

Class number assigned to point number specified

Deadband

0 to 32767

Deadband assigned to point number specified

DNPNET.CONFIG.DNP_Serv er_Override.Double_Inputs.

n/a

Number of counter points contained in the IED database to be transferred to the PLC and obtained from the attached IED units. This array size ranges from 0 to 250.

Point_Number

0 to Number of points configured

Point number index to be overridden

Class

1 to 3

Class number assigned to point number specified

Deadband

0 to 32767

Deadband assigned to point number specified

DNPNET Ethernet Client/Server Communication Module User Manual

ProSoft Technology, Inc. Page 37 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

The default lengths of each point type array are 10 each. Each of the tag array sizes can be

adjusted (when the PLC is offline) by editing the DNPNET_Override User Defined Datatype

(UDT). This UDT can be found in RSLogix 5000 at:

Page 38 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

DNPNET.CONFIG.DNP_Serv er_List[x].Address

0 to 32767

The address assigned to this server

DNPNET.CONFIG.DNP_Serv er_List[x].Spare1_always_0

0=Never, 1=Sometimes, 2=Always

This value should always be set to zero. DNPNET.CONFIG.DNP_Serv er_List[x].Spare2_always_0

1 to 32767 milliseconds

This value should always be set to zero

DNPNET Ethernet Client/Server Communication Module User Manual

Double click the DNPNET_Override UDT. A window opens and displays the Members of this

UDT. Notice the Members have similar names to the DNPNET tags to be edited. In the DataType column, the size of the specific tag array is determined by the value within the [ ].

1 Manually edit these values as desired. 2 When finished, click APPLY and then YES to accept changes to the Data Type. 3 Click OK to close this window. 4 Save and download the RSLogix 5000 program to the processor and reboot the module

to download settings to the unit.

2.3.7 DNPNET.CONFIG.DNP_Server_List[x]

Assigns a list of server(s) the MVI56E-DNPNET client connects to. The default length of this array is five, and can by increased up to 40.

ProSoft Technology, Inc. Page 39 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Tag Name

Range

Description

DNPNET.CONFIG.DNP_Serv er_List[x].Spare3_always_0

0 to 255

This value should always be set to zero

DNPNET.CONFIG.DNP_Serv er_List[x].Application_Layer_R esponse_Timeout

1 to 32767 milliseconds

Time-out period the client will wait for each response message fragment. If data link confirms are enabled, make sure the time-out period is set long enough to permit all data confirm retries.

DNPNET.CONFIG.DNP_Serv er_List[x].Server_Mode

Bit 0=Enable Bit 1=Unsolved Message Bit 2=Use DM Bit 3=Auto Time Sync

This word contains bits that define the server mode. The server mode defines the functionality of the server device and can be combined in any combination. DNPNET.CONFIG.DNP_Serv er_List[x].IP_Address

IP Address of server

DNPNET.CONFIG.DNP_Serv er_List[x].Port

0 to 65535

Server port number

DNPNET.CONFIG.DNP_Serv er_List[x].IP_Type

0 or 1

0 = TCP, 1 = UDP

DNPNET.CONFIG.DNP_Serv er_List[x].Connection_Retry_In terval

0 to 10000 milliseconds

This is how long in milliseconds the Client will wait before retrying to connect to a server that refused the connection. If this field is zero then the default of 1000 milliseconds will be set. The max is 10000 milliseconds (10 seconds). The minimum time is 1 millisecond. If this field is less than zero this server setup list entry will be completely ignored by the module.

User Manual DNPNET Ethernet Client/Server Communication Module

The default Server List size is five. If there are more than five servers (up to a maximum of

40), you must increase the size of this list.

1 To edit the length of the Server List array, double-click the DNPNETCONFIG UDT

Page 40 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

DNPNET.CONFIG.DNP_Client _Commands[x].Port_Flags

Mapped bits [0:3]

Bits in the Port/Flags parameter are dependent on the data type. Clear 3rd bit to disable. Set 5th bit to select IED DB for write functions.

DNPNET.CONFIG.DNP_Client _Commands[x].Server_Addres s

0 to 32767

This parameter specifies the DNP server address on the DNP network to which the command will be sent. (This is not the IP address of the server). The parameter has a range of 0 to 65535. The value of 65535 is reserved for broadcast messages. Verify that the server configuration information is set up in the module for each server defined in the command list.

DNPNET Ethernet Client/Server Communication Module User Manual

2 Edit the length inside the [ ] of the DNPNET_Server_List[ ] Data Type.

3 When finished, click APPLY and then click YES to accept changes to the Data Type 4 Click OK to close this window. 5 Save and download the RSLogix 5000 program to the processor. 6 Reboot the MVI56E-DNPNET for changes to be downloaded to the module.

2.3.8 DNPNET.CONFIG.DNP_Client_Commands[x]

Configures a list of commands the MVI56E-DNPNET client sends to DNP3 Ethernet servers. The default array size is five, and the maximum is 300.

ProSoft Technology, Inc. Page 41 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Tag Name

Range

Description

DNPNET.CONFIG.DNP_Client _Commands[x].Object

This parameter specifies the DNP Object type in the command. Valid Objects for the module are 1, 2, 10, 12, 20, 21, 30, 32, 40, 41, 50, 60 and 80. A value of 0 is permitted in this field for a set of special commands.

DNPNET.CONFIG.DNP_Client _Commands[x].Variation

This parameter is specific to the object type selected.

DNPNET.CONFIG.DNP_Client _Commands[x].Function

This parameter specifies the DNP Function for the command list Object. The Object type determines the value of the Functions permitted. For example, the only Function permitted for Binary Input data points is the READ FUNCTION (FUNCTION CODE 1). For Counter and Output Objects, more functions are available.

DNPNET.CONFIG.DNP_Client _Commands[x].Point_Number _in_Server

This parameter specifies the starting point address in the remote server unit. This value must be greater than or equal to zero. If it is set to a value less than zero, the command will be ignored.

DNPNET.CONFIG.DNP_Client _Commands[x].Point_Count

This parameter defines the number of points in the IED unit that will be affected by the command. Refer to the discussion in the Command List topic, above, to interpret this

parameter’s meaning for the different Object

types.

DNPNET.CONFIG.DNP_Client _Commands[x].DNP_DB_Poin t_Number_in_Client

This parameter defines the starting point address in the local Client's DNP database for the command. If the parameter has a value of 1, the DNP database is not used with the point.

DNPNET.CONFIG.DNP_Client _Commands[x].IED_DB_Point _Number_in_Client

This parameter defines the starting point address in the local Client's IED database for the command. If the parameter has a value of 1, the IED database is not used with the point.

DNPNET.CONFIG.DNP_Client _Commands[x].Poll_Interval

This parameter specifies the minimum frequency at which the module should execute the command. The value is entered in units of seconds. For example, to execute a command every 10 seconds, enter a value of 10 in this field. A value of 0 for the parameter implies that the command should be executed every scan of the list, as often as possible.

User Manual DNPNET Ethernet Client/Server Communication Module

1 To edit the length of the Client Commands array, double-click the DNPNETCONFIG

UDT.

Page 42 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Tag Name

Range

Description

DNPNET.CONFIG.IP_Settings .Read

0 or 1

Triggers a request of the IP Address, Subnet Mask, and Gateway parameters from the module to the PLC. These parameters will display in the IP, Netmask, Gateway tags below.

DNPNET.CONFIG.IP_Settings .Write

0 or 1

Triggers a transfer of the IP Address, Subnet Mask, and Gateway parameters from the PLC to the module. These parameters will come from the IP, Netmask, Gateway tags below.

DNPNET.CONFIG.IP_Settings .Config.IP

0 to 255

IP Address of MVI56E-DNPNET

DNPNET Ethernet Client/Server Communication Module User Manual

2 Edit the length inside the [ ] of the DNPNET_Client_Commands[ ] Data Type.

3 When finished, click APPLY and then click YES to accept changes to the Data Type 4 Click OK to close this window. 5 Save and download the RSLogix program to the processor. Reboot the MVI56E-

DNPNET module to download changes to module.

2.3.9 DNPNET.CONFIG.IP_Settings[x]

Assigns the IP address configuration of the MVI56E-DNPNET.

ProSoft Technology, Inc. Page 43 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Tag Name

Range

Description

DNPNET.CONFIG.IP_Settings .Config.Netmask

0 to 255

Subnet Mask of MVI56E-DNPNET

DNPNET.CONFIG.IP_Settings .Config.Gateway

0 to 255

Gateway of MVI56E-DNPNET

User Manual DNPNET Ethernet Client/Server Communication Module

After setting these parameters they must be sent to the module by triggering a download of these parameters.

Page 44 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

In This Chapter

 Ethernet LED Indicators .........................................................................45

 Clearing a Fault Condition .....................................................................47

 Troubleshooting .....................................................................................47

 Setting Up ProSoft Configuration Builder ...............................................48

 Connecting Your PC to the Module .......................................................51

 Using the Diagnostics Menu in ProSoft Configuration Builder ...............62

 Communication Error Codes ..................................................................70

 Connect to the Module’s Web Page ......................................................74

LED

State

Description

Data

OFF

Ethernet connected at 10Mbps duplex speed

AMBER Solid

Ethernet connected at 100Mbps duplex speed

Link

OFF

No physical network connection is detected. No Ethernet communication is possible. Check wiring and cables.

GREEN Solid or Blinking

Physical network connection detected. This LED must be ON solid for Ethernet communication to be possible.

Code

Message

Boot / DDOK

Module is initializing

DNPNET Ethernet Client/Server Communication Module User Manual

3 Diagnostics and Troubleshooting

The module provides information on diagnostics and troubleshooting in the following forms:  LED status indicators on the front of the module provide information on the module’s

status.

 Status data contained in the module can be viewed in ProSoft Configuration Builder

through the Ethernet port.

 Status data values are transferred from the module to the processor.

3.1 Ethernet LED Indicators

The Ethernet LEDs indicate the module's Ethernet port status as follows:

3.1.1 Scrolling LED Status Indicators

The scrolling LED display indicates the module’s operating status as follows:

ProSoft Technology, Inc. Page 45 of 140 February 13, 2015

Initialization Messages

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Code

Message

Ladd

Module is waiting for required module configuration data from ladder logic to configure the Modbus ports

Waiting for Processor Connection

Module did not connect to processor during initialization

 Sample ladder logic or AOI is not loaded on processor  Module is located in a different slot than the one

configured in the ladder logic/AOI

 Processor is not in RUN or REM RUN mode

Last config: <date>

Indicates the last date when the module changed its IP address. You can update the module date and time through the Connect to the Module’s Web Page (page 74), or with the MVI56E Add-On Instruction.

Code

Message

OK: Module is communicating with processor ERR: Module is unable to communicate with processor. For

this scenario, the <Port Status> message above is replaced with "Processor faulted or is in program mode".

Module IP address

OK: Port is communicating without error Client/Server Communication Errors: port is having

communication errors. Refer to Diagnostics and Troubleshooting (page 45) for further information about the error.

LED Label

Color

Status

Indication

APP

Red or Green

OFF

The module is not receiving adequate power or is not securely plugged into the rack. May also be OFF during configuration download.

GREEN

The MVI56E-DNPNET is working normally.

RED

The most common cause is that the module has detected a communication error during operation of an application port.

The following conditions may also cause a RED LED:

 The firmware is initializing during startup  The firmware detects an on-board hardware problem

during startup

 Failure of application port hardware during startup  The module is shutting down  The module is rebooting due to a ColdBoot or WarmBoot

request from the ladder logic or Debug Menu

Red or Green

OFF

The module is not receiving adequate power or is not securely plugged into the rack.

User Manual DNPNET Ethernet Client/Server Communication Module

Operation Messages

After the initialization step, the following message pattern will be repeated.

3.1.2 Non-Scrolling LED Status Indicators

The non-scrolling LEDs indicate the module’s operating status as follows:

Page 46 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

LED Label

Color

Status

Indication

GREEN

The module is operating normally.

RED

The module has detected an internal error or is being initialized. If the LED remains RED for over 10 seconds, the module is not working. Remove it from the rack and re-insert it to restart its internal program.

ERR

Red Not used.

Problem Description

Steps to take

Processor Fault

Verify that the module is plugged into the slot that has been configured for the module in the I/O Configuration of RSLogix.

Verify that the slot location in the rack has been configured correctly in the ladder logic.

Processor I/O LED flashes

This indicates a problem with backplane communications. A problem could exist between the processor and any installed I/O module, not just the MVI56E-DNPNET. Verify that all modules in the rack are correctly configured in the ladder logic.

DNPNET Ethernet Client/Server Communication Module User Manual

3.2 Clearing a Fault Condition

Typically, if the OK LED on the front of the module turns RED for more than ten seconds, a hardware problem has been detected in the module or the program has exited.

To clear the condition, follow these steps:

1 Turn off power to the rack. 2 Remove the card from the rack. 3 Verify that all jumpers are set correctly. 4 If the module requires a Compact Flash card, verify that the card is installed correctly. 5 Re-insert the card in the rack and turn the power back on. 6 Verify correct configuration data is being transferred to the module from the ControlLogix

controller.

If the module's OK LED does not turn GREEN, verify that the module is inserted completely into the rack. If this does not cure the problem, contact ProSoft Technology Technical Support.

3.3 Troubleshooting

Use the following troubleshooting steps if you encounter problems when the module is powered up. If these steps do not resolve your problem, please contact ProSoft Technology Technical Support.

Processor Errors

ProSoft Technology, Inc. Page 47 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Problem Description

Steps to take

MVI56E modules with scrolling LED display:

condition reads ERR

This indicates that backplane transfer operations are failing. Connect to the module’s Configuration/Debug port to check this.

To establish backplane communications, verify the following items:

 The processor is in RUN or REM RUN mode.  The backplane driver is loaded in the module.  The module is configured for read and write data block transfer.  The ladder logic handles all read and write block situations.  The module is properly configured in the processor I/O configuration

and ladder logic.

OK LED remains RED

The program has halted or a critical error has occurred. Connect to the Configuration/Debug port to see if the module is running. If the program has halted, turn off power to the rack, remove the card from the rack and re-insert the card in the rack, and then restore power to the rack.

User Manual DNPNET Ethernet Client/Server Communication Module

Module Errors

3.4 Setting Up ProSoft Configuration Builder

ProSoft Configuration Builder (PCB) provides a convenient way to diagnose and

troubleshoot your MVI56E-DNPNET module by connecting to your module in either of two ways:

 Through the module's Ethernet port using an Ethernet cable.  Through the module backplane using CIPconnect. You can use CIPconnect to connect a

PC to the ProSoft Technology MVI56E-DNPNET module over Ethernet using Rockwell Automation’s 1756-ENBT EtherNet/IP module.

Note: The MVI56E-DNPNET module receives its Ethernet settings, protocol, and backplane configuration information from the Ladder Logic.

3.4.1 Installing ProSoft Configuration Builder

The ProSoft Configuration Builder (PCB) software is used to configure the module. You can find the latest version of the ProSoft Configuration Builder (PCB) on our web site: http://www.prosoft-technology.com, or you can install it from the ProSoft Solutions DVD. The installation filename contains the PCB version number. For example,

PCB_4.1.0.4.0206.EXE.

If you are installing PCB from the ProSoft website:

1 Open a browser window and navigate to http://www.prosoft-technology.com/pcb. 2 Click the download link for ProSoft Configuration Builder, and save the file to your

Windows desktop.

3 After the download completes, double-click on the PCB installation file, and follow the

instructions that appear on the screen.

Page 48 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

4 If you want to find additional software specific to your MVI56E-DNPNET, enter the model

number into the website search box and press the Enter key.

If you are installing PCB from the ProSoft Solutions DVD:

1 Insert the ProSoft Solutions DVD into your computer's DVD drive and wait for the

ProSoft Installation program to start.

2 If the ProSoft Installation program does not start, open the Windows file Explorer,

navigate to the DVD, and double-click on the ProSoft_DVD.exe file.

3 In the ProSoft Installation program window, click PROSOFT CONFIGURATION BUILDER. 4 Follow the instructions that appear on the screen. 5 If you want to find additional software specific to your MVI56E-DNPNET, select the

correct PLATFORM and PRODUCT before proceeding.

3.4.2 Setting Up the Project

To begin, start PROSOFT CONFIGURATION BUILDER (PCB).

ProSoft Technology, Inc. Page 49 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

If you have used other Windows configuration tools before, you will find the screen layout

familiar. PCB’s window consists of a tree view on the left, and an information pane and a configuration pane on the right side of the window. When you first start PCB, the tree view consists of folders for Default Project and Default Location, with a Default Module in the Default Location folder. The following illustration shows the PCB window with a new project.

Your first task is to add the MVI56E-DNPNET module to the project.

1 Use the mouse to select DEFAULT MODULE in the tree view, and then click the right

mouse button to open a shortcut menu.

Page 50 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

2 On the shortcut menu, select CHOOSE MODULE TYPE. This action opens the Choose

Module Type dialog box.

3 In the Product Line Filter area of the dialog box, select MVI56E. In the Select Module

Type dropdown list, select MVI56E-DNPNET, and then click OK to save your settings and return to the ProSoft Configuration Builder window.

3.5 Connecting Your PC to the Module

3.5.1 Using CIPconnect® to Connect to the Module

You can use CIPconnect® to connect a PC to the ProSoft Technology MVI56E-DNPNET module over Ethernet using Rockwell Automation’s 1756-ENBT EtherNet/IP® module. This allows you to configure the MVI56E-DNPNET network settings and view module diagnostics from a PC. RSLinx is not required when you use CIPconnect. All you need are:

 The IP addresses and slot numbers of any 1756-ENBT modules in the path  The slot number of the MVI56E-DNPNET in the destination ControlLogix chassis (the

last ENBTx and chassis in the path).

To use CIPconnect, follow these steps.

1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-DNPNET icon to

open a shortcut menu.

ProSoft Technology, Inc. Page 51 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

2 On the shortcut menu, choose DIAGNOSTICS.

3 In the Diagnostics window, click the SET UP CONNECTION button.

4 In the Select Connection Type dropdown list, choose 1756-ENBT. The default path

appears in the text box, as shown in the following illustration.

Page 52 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Parameter

Description

Source Module

Source module type. This field is automatically selected depending on the destination module of the last rack (1756CNB or 1756-ENBT).

Source Module IP Address

IP address of the source module (only applicable for 1756ENBT)

Source Module Node Address

Node address of the source module (only applicable for 1756CNB)

Destination Module

Select the destination module associated to the source module in the rack. The connection between the source and destination modules is performed through the backplane.

Destination Module Slot Number

The slot number where the destination MVI56E module is located.

DNPNET Ethernet Client/Server Communication Module User Manual

5 Click CIP PATH EDIT to open the CIPconnect Path Editor dialog box.

The CIPconnect Path Editor allows you to define the path between the PC and the MVI56E-

DNPNET module. The first connection from the PC is always a 1756-ENBT (Ethernet/IP) module.

Each row corresponds to a physical rack in the CIP path.  If the MVI56E-DNPNET module is located in the same rack as the first 1756-ENBT

module, select RACK NO. 1 and configure the associated parameters.

 If the MVI56E-DNPNET is available in a remote rack (accessible through ControlNet or

Ethernet/IP), include all racks (by using the ADD RACK button).

To use the CIPconnect Path Editor, follow these steps.

ProSoft Technology, Inc. Page 53 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Ethernet

Rack 1

MVI56E Module 1756-ENBT

0 1 2

Slot

Module

Network Address

ControlLogix Processor

- 1 Any - 2

MVI56E-DNPNET

1756-ENBT

IP=192.168.0.100

User Manual DNPNET Ethernet Client/Server Communication Module

1 Configure the path between the 1756-ENBT connected to your PC and the MVI56E-

DNPNET module.

o If the module is located in a remote rack, add more racks to configure the full path. o The path can only contain ControlNet or Ethernet/IP networks. o The maximum number of supported racks is six.

2 Click CONSTRUCT CIP PATH to build the path in text format 3 Click OK to confirm the configured path.

The following examples should provide a better understanding on how to set up the path for your network.

Example 1: Local Rack Application

For this example, the MVI56E-DNPNET module is located in the same rack as the 1756ENBT that is connected to the PC.

Rack 1

1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-DNPNET icon to

open a shortcut menu.

Page 54 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

2 On the shortcut menu, choose DIAGNOSTICS.

3 In the Diagnostics window, click the SET UP CONNECTION button.

4 In the Connection Setup dialog box, click CIP PATH EDIT.

ProSoft Technology, Inc. Page 55 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

5 Configure the path as shown in the following illustration, and click CONSTRUCT CIP PATH

to build the path in text format.

Click OK to close the CIPconnect Path Editor and return to the Connection Setup dialog

box.

6 Check the new path in the Connection Setup dialog box.

Page 56 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Ethernet

Rack 1

0 1 2 3

ControlNet

1 2 3 4 5

Rack 2

1756-ENBT

1756-CNB

MVI56E Module

DNPNET Ethernet Client/Server Communication Module User Manual

7 Click TEST CONNECTION to verify that the physical path is available. The following

message should be displayed upon success.

8 Click OK to close the Test Connection pop-up and then click CONNECT to close the

Connection Set up dialog box. The Diagnostics menu is now connected through

CIPconnect.

Example 2: Remote Rack Application

For this example, the MVI56E-DNPNET module is located in a remote rack accessible through ControlNet, as shown in the following illustration.

ProSoft Technology, Inc. Page 57 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Slot

Module

Network Address

ControlLogix Processor

- 1 1756-CNB

Node = 1

1756-ENBT

IP=192.168.0.100

Any

Slot

Module

Network Address

Any - 1

Any

Any - 3

Any

Any - 5

1756-CNB

Node = 2

MVI56E-DNPNET

User Manual DNPNET Ethernet Client/Server Communication Module

Rack 1

Rack 2

1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-DNPNET icon to

open a shortcut menu.

2 On the shortcut menu, choose DIAGNOSTICS.

3 In the Diagnostics window, click the SET UP CONNECTION button.

Page 58 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

4 In the Connection Setup dialog box, click CIP PATH EDIT.

5 Configure the path as shown in the following illustration and click CONSTRUCT CIP PATH

to build the path in text format.

Click OK to close the CIPconnect Path Editor and return to the Connection Setup dialog

box.

ProSoft Technology, Inc. Page 59 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

6 Check the new path in the Connection Setup dialog box.

7 Click TEST CONNECTION to verify that the physical path is available. The following

message should be displayed upon success.

8 Click OK to close the Test Connection pop-up and then click CONNECT to close the

Connection Set up dialog box. The Diagnostics menu is now connected through

CIPconnect.

3.5.2 Using RSWho to Connect to the Module

You need to have RSLinx installed on your PC to use this feature. You also need an ENBT module set up in the rack. For information on setting up the ENBT module, see Using CIPconnect® to Connect to the Module (page

51).

Page 60 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

1 In ProSoft Configuration Builder, click the PROJECT menu, then choose MODULE >

DOWNLOAD FROM PC TO DEVICE.

2 In the Download dialog box, choose 1756 ENBT from the Select Connection Type

dropdown box.

3 Click RSWHO to display modules on the network. The MVI56E-DNPNET module will

automatically be identified on the network.

4 Select the module, and then click OK. 5 In the Download dialog box, click DOWNLOAD.

ProSoft Technology, Inc. Page 61 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

3.5.3 Connecting Your PC to the Module's Ethernet Port

With the module securely mounted, connect one end of the Ethernet cable to the CONFIG (E1) Port, and the other end to an Ethernet hub or switch accessible from the same network as your PC. Or, you can connect directly from the Ethernet Port on your PC to the CONFIG (E1) Port on the module.

3.6 Using the Diagnostics Menu in ProSoft Configuration Builder

The Diagnostics menu, available through the Ethernet configuration port for this module, is arranged as a tree structure, with the Main menu at the top of the tree, and one or more

submenus for each menu command. The first menu you see when you connect to the

module is the Main menu.

Tip: You can have a ProSoft Configuration Builder Diagnostics window open for more than one module at a time.

To connect to the module, refer to Connecting Your PC to the Module (page 51).

1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-DNPNET icon to

open a shortcut menu.

2 On the shortcut menu, choose DIAGNOSTICS.

Page 62 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

3 In the Diagnostics window, click the SET UP CONNECTION button.

4 In the Ethernet field of the Connection Setup dialog box, enter the IP address that was

assigned the module in Assigning a Permanent IP Address (page 29). In the Connection Setup dialog box, click the TEST CONNECTION button to verify that the module is

accessible with the current settings.

You can also use CIPconnect® to connect to the module through a 1756-ENBT card by

choosing 1756-ENBT in the SELECT CONNECTION TYPE list. Refer to Using CIPconnect

to Connect to the Module (page 51) for information on how to construct a CIP path.

ProSoft Technology, Inc. Page 63 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

5 If the Test Connection is successful, click CONNECT to display the Diagnostics menu in

the Diagnostics Window.

If PCB is unable to connect to the module: 1 Click the BROWSE DEVICE(S) button to open the ProSoft Discovery Service. Select the

module, then right-click and choose SELECT FOR PCB.

2 Close ProSoft Discovery Service, and click the CONNECT button again. 3 If these troubleshooting steps fail, verify that the Ethernet cable is connected properly

between your computer and the module, either through a hub or switch (using the grey cable) or directly between your computer and the module (using the red cable).

If you are still not able to establish a connection, contact ProSoft Technology for assistance.

Page 64 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

3.6.1 The Diagnostics Menu

The Diagnostics menu, available through the Ethernet configuration port for this module, is arranged as a tree structure, with the Main menu at the top of the tree, and one or more

submenus for each menu command. The first menu you see when you connect to the

module is the Main menu.

3.6.2 Monitoring General Information

Use MODULE > Info to view module version information.

ProSoft Technology, Inc. Page 65 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

3.6.3 Monitoring Backplane Information

Use MODULE > Block Status menu to view the backplane status information for the

MVI56E-DNPNET module.

Page 66 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

3.6.4 DNP3 Ethernet Point Count Module Information

Use MODULE > PLC, DNP, and IED Point Counts to view point count information for the

MVI56E-DNPNET module.

3.6.5 Monitoring MVI56E-DNPNET Information

Use the DNP3 Server menu to view the following server information for the MVI56E-

DNPNET module:

 Configuration  Communication Status  Event Status

ProSoft Technology, Inc. Page 67 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

 White List  TCP Socket Status  UDP Socket Status

3.6.6 Monitoring MVI56E-DNPNET Client Information

Use the DNP3 Client menu to view the following client information for the MVI56E-DNPNET

module:

 Configuration and Events  Communication Status  Server Setup  Server Errors  Client Commands List

3.6.7 Monitoring MVI56E-DNPNET Class Assignments Information

Use the DNP3 Class Assignments menu to view the following class information for the

MVI56E-DNPNET module:

 Binary  16-bit Analog  32-bit Analog  Float  Double Float

Page 68 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

3.6.8 Monitoring MVI56E-DNPNET Deadband Assignments Information

Use the DNP3 Deadband Assignments menu to view the following deadband information for

the MVI56E-DNPNET module:

 16-bit Analog  32-bit Analog  Float  Double Float

3.6.9 Monitoring DNP3 Ethernet Data Values

Use the DNP and IED menus to view the contents of the MVI56E-DNPNET module’s

internal database. You can view Data values in Decimal or Hexadecimal format.

ProSoft Technology, Inc. Page 69 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Error Code

Name

Description

Device not defined

The IED slave address referenced in the command is not defined in the module. Check to make sure there is an entry in the slave table for each slave device referenced in the command list.

Invalid command

This command is not valid. Check to make sure the slave address parameter is greater than or equal to zero and that the point count is not set to zero.

Object not supported

The data object in the command is not supported by the module. Refer to the DNP subset for the Master Port.

Command function not supported

The function specified in the command is not supported for the object type selected. Refer to the DNP subset for the Master Port.

Command variation not supported

The variation specified in the command is not supported for the object type selected.

Object 10 not enabled

The command is not supported unless Binary Output Status is enabled

Object 40 not enabled

The command is not supported unless Analog Output Status is enabled

Invalid time/date poll command

This time/date object poll command is not valid.

Time/date poll command cannot execute

This time/date object poll command cannot execute because the module's clock has not been synced from a valid source (from PLC or connected Client)

User Manual DNPNET Ethernet Client/Server Communication Module

3.7 Communication Error Codes

3.7.1 General Command Errors

Page 70 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Error Code

Name

Description

The module is operating correctly and there are no errors.

DNP synchronization error (Physical Layer Error)

Extra bytes are received before the start bytes (0x05 and 0x64).

DNP overrun error (Physical Layer Error)

Mainline Data Link Layer routine could not read data received on DNP port before it was overwritten.

DNP length error (Physical Layer Error)

Length of message does not match length value in message.

DNP bad CRC error (Data Link Layer Error)

Computed CRC value for message does not match that received in message.

DNP user data overflow error (Transport Layer Error)

Application layer received a message fragment buffer which is too small.

DNP sequence error (Transport Layer Error)

Sequence numbers of multi-frame request fragments do not increment correctly.

DNP address error (Transport Layer Error)

Source addresses contained in multi- frame request fragments do not match.

DNP bad function code error (Application Layer Error)

Function code received from DNP Master is not supported for selected object/variation.

DNP object unknown error (Application Layer Error)

Slave does not have the specified objects or there are no objects assigned to the requested class.

DNP out of range error (Application Layer Error)

Qualifier, range or data fields are not valid or out of range for the selected object/variation.

DNP message overflow error (Application Layer Error)

Application response buffer overflow condition. The response message from the slave is too long to transmit.

DNP Master multi-frame message error (Application Layer Error)

Received a multi-frame message from the DNP Master. This application does not support multiframe messages from the Master.

Error Code

Name

Description

100

Too many binary input points

Too many binary input points are configured for the module. Maximum value is 15360.

101

Too many binary output points

Too many binary output points are configured for the module. Maximum value is 15360.

102

Too many counter points

Too many counter points are configured for the module. Maximum value is 480.

103

Too many analog input points

Too many analog input points are configured for the module. Maximum value is 960.

DNPNET Ethernet Client/Server Communication Module User Manual

3.7.2 Slave Port Communication Errors

3.7.3 System Configuration Errors

ProSoft Technology, Inc. Page 71 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Error Code

Name

Description

104

Too many analog output points

Too many analog output points are configured for the module. Maximum value is 960.

105

Too many binary input events

Too many binary input events are configured for the module. Maximum value is 400.

106

Too many analog input events

Too many analog input events are configured for the module. Maximum value is 400.

107

Invalid analog input deadband

Deadband value for analog input events is out of range. Value must be in the range of 0 to 32767.

108

Not enough memory

There is not enough memory in the module to configure the module as specified.

109

Invalid block transfer delay for error/status blocks

Block transfer delay value specified is too low. 110

File count invalid

The file count must be in the range of 0 to 6.

111

Invalid file record size

The file record size must be in the range of 1 to

120.

112

Invalid block identification code for file

The file block transfer code must be in the range of 100 to 120.

Error Code

Name

Description

212

Invalid DNP address

The DNP address specified in the configuration is not valid (0 to 65534).

213

Invalid DNP port baud rate

The baud rate code specified in the configuration is not valid.

219

Invalid DNP data link layer confirm mode

The data link confirmation mode code is not valid in the configuration.

220

Invalid DNP data link confirm time-out

The data link time-out period specified in the configuration is 0. It must be an integer in the range of 1 to 65535.

222

Invalid DNP select/operate arm time duration

The select/operate arm timer is set to 0. It must be an integer in the range of 1 to 65535.

223

Invalid DNP application layer confirm time-out

The application layer confirm time-out value is set to 0. It must be an integer in the range of 1 to 65535.

224

Invalid DNP write time interval

The write time interval is not in the data range in the configuration. The value must be in the range of 0 to 1440.

225

Invalid DNP unsolicited response mode

The unsolicited response mode code is not valid in the configuration.

226

Invalid DNP unsolicited response minimum quantity for Class 1

The unsolicited response minimum quantity for Class 1 is not valid in the configuration. Value must be an integer in the range of 1 to 255.

User Manual DNPNET Ethernet Client/Server Communication Module

3.7.4 Port Configuration Errors

Page 72 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Error Code

Name

Description

227

Invalid DNP unsolicited response minimum quantity for Class 2

The unsolicited response minimum quantity for Class 2 is not valid in the configuration. Value must be an integer in the range of 1 to 255.

228

Invalid DNP unsolicited response minimum quantity for Class 3

The unsolicited response minimum quantity for Class 3 is not valid in the configuration. Value must be an integer in the range of 1 to 255.

230

Invalid DNP unsolicited response destination address

The unsolicited response destination address is not valid in the configuration. Value must be in the range of 1 to 65534.

Error Code

Name

Description

1000

Device index invalid

The device index in the request or response message is not found in the slave list.

1001

Duplicate request in application layer queue

The newly submitted message to the application layer already exists in the queue. The message is ignored.

1002

COM port device removed from system

The communication port for the message has been uninstalled on the system. This error should never occur as the communication ports are only uninstalled when the module's program is terminated.

1003

Sequence number error

The application sequence number in the response message does not match that based on the last request message. This indicates application layer messages are received out of order.

1004

Response to select before operate does not match

The select response message received from the slave module is not that expected from the last select request. This indicates a synchronization problem between the Master and slave devices.

1005

Response does not contain date/time object

The response message from the slave device does not contain a date/time object. The Master expects this object for the response message.

1006

Time-out condition on response

The slave device did not respond to the last request message from the Master within the timeout set for the IED device. The application layer time-out value is specified for each IED unit in the slave configuration table in the module. This table is established each time the module performs the restart operation.

1007

Function code in application layer message not supported

The function code returned in the response message is not valid for the application layer or not supported by the module.

1008

Read operation not supported for object/variation

The application layer response message contains an object that does not support the read function.

DNPNET Ethernet Client/Server Communication Module User Manual

3.7.5 Application Layer Errors

ProSoft Technology, Inc. Page 73 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Error Code

Name

Description

1009

Operate function not supported for the object/variation

The application layer response message contains an object that does not support the operate function.

1010

Write operation not supported for the object/variation

The application layer response message contains an object that does not support the write function.

User Manual DNPNET Ethernet Client/Server Communication Module

3.8 Connect to the Module’s Web Page

The module's internal web server provides access to module status, diagnostics, and firmware updates.

1 In ProSoft Configuration Builder, click the PROJECT menu, then choose MODULE >

DOWNLOAD FROM PC TO DEVICE. This opens the Download dialog box.

2 In the Download dialog box, choose the connection type in the Select Connection Type

dropdown box:

o Choose ETHERNET if you are connecting to the module through the Ethernet cable. o Choose 1756 ENBT if you are connecting to the module through CIPconnect or

RSWho. Refer to Connecting Your PC to the Module (page 51) for more information.

3 In the Download files from PC to module dialog box, click BROWSE DEVICE(S). 4 In ProSoft Discovery Service, right-click the MVI56E-DNPNET icon and choose VIEW

MODULE’S WEBPAGE from the shortcut menu.

Page 74 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

This displays the module webpage.

ProSoft Technology, Inc. Page 75 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

Page 76 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

In This Chapter

 Product Specifications ...........................................................................77

 Functional Overview ..............................................................................80

 MVI56E-DNPNET Database Overview ................................................105

 MVI56E-DNPNET User Defined Data Types .......................................114

 Cable Connections ..............................................................................120

DNPNET Ethernet Client/Server Communication Module User Manual

4 Reference

4.1 Product Specifications

The MVI56E-DNPNET (DNP3 Ethernet Client/Server Communication Module) allows Rockwell Automation ControlLogix I/O compatible processors to interface easily with other DNP3 Ethernet protocol compatible devices. The module supports DNP3 Ethernet Subset Level 2 features and some of the Level 3 features.

The module acts as an input/output communications module between the DNP3 Ethernet network and the ControlLogix backplane. The data transfer from the ControlLogix processor is asynchronous from the actions on the DNP3 Ethernet network. Databases are userdefined and stored in the module to hold the data required by the protocol.

This product features:  ProSoft Configuration Builder (PCB): Microsoft Windows®-based utility software for

diagnostics. Connect through the module's Ethernet port or use CIPconnect® to access troubleshooting features and functions.

 ProSoft Discovery Service (PDS): New Windows-based utility software to find and

display a list of MVI56E modules on the network and to temporarily change a module's IP address to be able to connect with a module's web page.

 CIPconnect-enabled: Allows PC-to-module diagnostics from the Ethernet network

through a ControlLogix® 1756-ENxT EtherNet/IP™ module.

 Personality Card: An industrial-grade compact flash memory card storing the module’s

Ethernet settings, allowing quick and easy replacement.

 LED Scrolling Diagnostic Display: 4-character, alphanumeric display, providing

messages for status and alarm data, and for processor and network communication status.

4.1.1 General Specifications

 Single Slot - 1756 ControlLogix® backplane compatible  10/100 MB Ethernet port for network configuration and diagnostics with Auto Cable

Crossover Detection

 Add-On Instruction (AOI) used for data transfers between module and processor and for

ProSoft Technology, Inc. Page 77 of 140 February 13, 2015

module configuration

Contents MVI56E-DNPNET ♦ ControlLogix Platform

DNP 3.0 Ethernet Data

Point Type

Range

DNP_Outputs

Binary Outputs

0 to 8000 points (500 16-bit words)

16-bit Analog Outputs

0 to 5000 points (if all other DNP Outputs are 0)

32-bit Analog Outputs

0 to 2500 points (if all other DNP Outputs are 0)

Float Outputs

0 to 2500 points (if all other DNP Outputs are 0)

Double Float Outputs

0 to 1250 points (if all other DNP Outputs are 0)

DNP_Inputs

Binary Inputs

0 to 8000 points (‘500’ 16-bit words)

16-bit Analog Inputs

0 to 5000 points (if all other DNP Inputs are 0)

32-bit Analog Inputs

0 to 2500 points (if all other DNP Inputs are 0)

Float Inputs

0 to 2500 points (if all other DNP Inputs are 0)

Double Float Inputs

0 to 1250 points (if all other DNP Inputs are 0)

Counters

0 to 1000 points

IED_Outputs

Binary Outputs

0 to 8000 points (500 16-bit words)

16-bit Analog Outputs

0 to 20000 points (if all other IED Outputs are 0)

32-bit Analog Outputs

0 to 10000 points (if all other IED Outputs are 0)

Float Outputs

0 to 10000 points (if all other IED Outputs are 0)

IED_Inputs

Binary Inputs

0 to 8000 points (‘500’ 16-bit words)

16-bit Analog Inputs

0 to 20000 points (if all other IED Inputs are 0)

32-bit Analog Inputs

0 to 10000 points (if all other IED Inputs are 0)

Float Inputs

0 to 10000 points (if all other IED Inputs are 0)

Counters

0 to 1000 points

Binary Output Status

0 to 8000 points (‘500’ 16-bit words)

16-bit Analog Output Status

0 to 20000 points

32-bit Analog Output Status

0 to 10000 points

Float Output Status

0 to 10000 points

User Manual DNPNET Ethernet Client/Server Communication Module

 User-definable module data memory mapping of thousands of DNP3 Ethernet points

based on the various types of data.

4.1.2 Functional Specifications

TheMVI56E-DNPNET operates on a Local or Remote rack CIPconnect® enabled for module and network configuration using 1756-ENxT module with EtherNet/IP pass-through communications.

 4-digit LED Display for status and diagnostics information  Error codes, network error counters, and port status data available in user data memory

Server Specifications

The DNP3 Ethernet port can accept DNP3 Ethernet commands to control and monitor data

Page 78 of 140 ProSoft Technology, Inc. February 13, 2015

stored in the module’s DNP3 Ethernet server database. If a DNP3 Ethernet Client is also configured, a portion of the server database can be derived from or can control IED devices connected to the DNP3 Ethernet Client.

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Specification

Description

Backplane Current Load

800 mA @ 5 Vdc 3 mA @ 24 Vdc

Operating Temperature

0°C to 60°C (32°F to 140°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Shock

30 g operational 50 g non-operational Vibration: 5 g from 10 to 150 Hz

Relative Humidity

5% to 95% (without condensation)

LED Indicators

Battery Status (ERR) Application Status (APP) Module Status (OK)

4-Character, Scrolling, AlphaNumeric LED Display

Shows Module, Version, IP, Port Client/Server Setting, Port Status, and Error Information

DNPNET Ethernet Client/Server Communication Module User Manual

 Report-by-Exception data is logged to the module’s database  Supports unsolicited messaging  Each DNP3 Ethernet point type is user-configurable in the DNPNET Controller tags of

RSLogix 5000 software

 Class assignments are user-definable on a Type and point basis (BI, AI, FI, DI point

types)

 Supports clock synchronization from a remote Client or from the processor  Up to 20,000 events are stored for Binary Inputs, Analog Inputs, Floats and Double

Inputs. This varies based on point types in the table above.

Client Specifications

The DNP3 Ethernet port can be configured as a virtual DNP3 Ethernet Client device that actively issues user-defined DNP3 Ethernet commands to nodes on the network.

 The Module supports 300 user defined commands, each one containing its own set of

data link and application layer characteristics

 Client logically supports up to 40 server devices  Individual command configuration includes conditional or continuous polling and Poll

Delay Time

 Server status and Command status available for transfer to the processor  Event data received from the server devices updates the module database with the

latest data values. Optionally date and time stamped data can be passed to the processor through a special block 9903 that is enabled/disabled through the parameter Pass Event Messages to PLC within the configuration of the module. When this option is used, events from the attached servers are passed to an array in the ladder logic containing the event data (server device, point index, point value) as well as the time stamp of the event from the attached server device (value is presented as the 64 bit UCT time matching the ControlLogix processor date/time format).

 Special command handling for Digital Output CROB under processor control for pulse

output control

4.1.3 Hardware Specifications

ProSoft Technology, Inc. Page 79 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Specification

Description

Communication Ethernet Port

Ethernet Port

10/100 Base-T, RJ45 Connector, for CAT5 cable Link and Activity LED indicators Auto-crossover cable detection

Shipped with Unit

5 foot Ethernet Straight-Thru Cable (Gray)

In This Chapter

 General Concepts of MVI56E-DNPNET Data Transfer ......................... 80

 Main Logic Loop .................................................................................... 81

 Backplane Data Transfer ....................................................................... 81

 Data Flow Between the DNP3 Ethernet network, MVI56E-DNPNET

Module, and ControlLogix Processor .................................................... 82

User Manual DNPNET Ethernet Client/Server Communication Module

4.2 Functional Overview

4.2.1 MVI56E-DNPNET Backplane Data Exchange

General Concepts of MVI56E-DNPNET Data Transfer

Ladder logic is required for the MVI56E-DNPNET module to communicate along the backplane with the ControlLogix processor. The ladder logic handles the module data transfer, transfer of configuration data, special block handling, and status data receipt.

Additionally, a power-up handler may be needed to handle the initialization of the module’s data and to clear any processor fault conditions.

For most applications, the sample Add-On Instruction (which includes the ladder logic) will work without modification.

The following topics describe several concepts that are important for understanding the operation of the MVI56E-DNPNET module.

1 On power up the module begins the following logical functions:

o Initialize hardware components o Initialize ControlLogix backplane driver o Test and Clear all RAM

2 Reads configuration from the ControlLogix processor via ladder logic 3 Allocate and initialize Module Register space 4 Enable Client and Server Driver on Ethernet port 5 After the module has received the Module Configuration, the module will begin

communicating with other nodes on the DNP3 Ethernet network, depending on the configuration

Page 80 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents DNPNET Ethernet Client/Server Communication Module User Manual

Main Logic Loop

Upon completing the power up configuration process, the module enters an infinite loop performing the following functions:

Backplane Data Transfer

The MVI56E-DNPNET module communicates directly over the ControlLogix backplane. Data is paged between the module and the ControlLogix processor across the backplane using the module's input and output images. The update frequency of the images is determined by the scheduled scan rate defined by the user for the module and the communication load on the module. Typical updates are in the range of 1 to 10 milliseconds per block of information.

This bi-directional transference of data is accomplished by the module filling in data in the module's input image to send to the processor. Data in the input image is placed in the Controller Tags in the processor by the ladder logic. The input image for the module is set to 250 words. This large data area permits fast throughput of data between the module and the processor.

The processor inserts data to the module's output image to transfer to the module. The module's program extracts the data and places it in the module's internal database. The output image for the module is set to 248 words. This large data area permits fast throughput of data from the processor to the module.

ProSoft Technology, Inc. Page 81 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform User Manual DNPNET Ethernet Client/Server Communication Module

The following illustration shows the data transfer method used to move data between the ControlLogix processor, the MVI56E-DNPNET module and the DNP3 Ethernet Network.

All data transferred between the module and the processor over the backplane is through the input and output images. Ladder logic is needed in the ControlLogix processor to interface the input and output image data with data defined in the Controller Tags. All data used by the module is stored in its internal databases. These databases are defined as a virtual DNPNET data tables with addresses from 0 to the maximum number of points for each data type.

Data Flow Between the DNP3 Ethernet network, MVI56E-DNPNET Module, and ControlLogix Processor

The following topics describe the flow of data between the two pieces of hardware (ControlLogix processor, and the MVI56E-DNPNET module) and other nodes on the DNP3 Ethernet network under the module’s different operating modes.

The module is configured to emulate a DNP3 Ethernet Client device and/or a DNP3

Ethernet server device. The operation of each depends on the user’s configuration. The

following topics discuss the operation of each mode.

Page 82 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Step

Description

The DNPNET server driver configuration data is obtained from the DNPNET configuration tags via ladder logic. This configuration information contains data that can be used to offset data in the database to addresses requested in messages received from Client units.

A host device (DNP3 Ethernet Client unit) issues a read or write command to the module’s

node address. The MVI56E-DNPNET port driver qualifies the message before accepting it into the module.

After the module accepts the command, the data is immediately transferred to or from the appropriate internal database in the module. If the command is a read command, the data is read out of the database and a response message is built. If the command is a write command, the data is written directly into the database and a response message is built.

After the data processing has been completed in Step 3, the response is issued to the originating Client node.

Counters are available in the Status Block to permit the ladder logic program to determine the level of activity of the Server Driver.

Point Number

Description

Module Name as assigned in configuration file.

DNPNET Ethernet Client/Server Communication Module User Manual

DNP3 Ethernet Server Backplane Data Flow

The Server Driver Mode allows the MVI56E-DNPNET module to respond to data read and write commands issued by a Client on the DNPNET network. The following flow chart and associated table describe the flow of data into and out of the module.

The response messages from the server driver include an IIN (internal indication word) defined in the Reference section.

The server driver supports object 110 (octet string data). Four points are pre-assigned values as defined in the following table.

ProSoft Technology, Inc. Page 83 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Point Number

Description

Product Name

Version Information in format: wwww xxxx yyyy zzzz Where wwww is product code, xxxx is the revision, yyyy is the operating system number, and zzzz is the run number.

Manufacturer name for module.

User Manual DNPNET Ethernet Client/Server Communication Module

The variation used in the request message determines the length of the string returned for each point. The maximum string length used by the module is 100.

DNP3 Ethernet Client Backplane Data Flow

In Client mode, the MVI56E-DNPNET module issues read or write commands to server devices on the DNP3 Ethernet network. These commands are user configured in the module via the Client Command List received from the ControlLogix processor or issued directly from the ControlLogix processor (Special Function).

Command status for each individual command is returned to the processor in the command list status block.

The following flow chart and associated table describe the flow of data into and out of the module.

Page 84 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Step

Description

The Client driver configuration data is obtained from the DNPNET configuration tags via ladder logic. These values are used by the Client driver to determine the type of commands to be issued to the other nodes on the DNP3 Ethernet network.

After configuration, the Client driver begins transmitting read and/or write commands to the other nodes on the network. If writing data to another node, the data for the write command is obtained from one of the module’s internal databases to build the command.

Presuming successful processing by the node specified in the command, a response message is received into the Client driver for processing.

Data received from the node on the network is passed into the module’s appropriate

internal database, assuming a read command.

Status is returned to the ControlLogix processor for each command in the Client Command List.

Block Number

Function/Description

0 or -1

Dummy Blocks: Used by module when no data is to be transferred

1 to 203

DNP and IED Data blocks

300

Error/Status, Error List Block, and slave IIN bits

1000 to 1022

DNP Output initialization blocks

1100 to 1193

IED Input initialization blocks

9000 - 9099

Configuration Data

9901

CROB Control Block for Digital Outputs

9902

Command Control Block (Add command to Command List Queue)

9903

Event Messages from Client port

9904

Places up to 24 Auxiliary Commands in the command queue.

9910

CROB Data received on DNPNET Port

9949

Server IED unit errors on Client port

9950

Command List Error data

9958

Binary Input Event data with Calendar time

9959

Analog Input Event data with Calendar time

9968

Binary Input Event data with CLX time

9969

Analog Input Event data with CLX time

9970

Set PLC time using module's DNP time

9971

Set module's time using PLC time

DNPNET Ethernet Client/Server Communication Module User Manual

4.2.2 Function Blocks

Data contained in this database is paged through the input and output images by coordination of the ControlLogix ladder logic and the MVI56E-DNPNET module's program. Up to 248 words of data can be transferred from the module to the processor at a time. Up to 247 words of data can be transferred from the processor to the module.

Each block transferred from the module to the processor or from the processor to the module contains a block identification code that describes the content of the block.

ProSoft Technology, Inc. Page 85 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Block Number

Function/Description

9998

Warm Boot Request from PLC (Block contains no data)

9999

Cold Boot Request from PLC (Block contains no data)

Word Offset

Tag Name

Range

Description

1 to 20

DNPNET.Config.DNP3_ Server.DNP_Module_ Name[0] – [79]

0 or 32 - 126

String of ASCII character bytes (up to 80) that gives the module a unique name. Terminate the string with a byte = 0. Module is named "MVI56E-DNPNET" by default.

DNPNET.Config.DNP3_ Server.Internal_Server_I D

0 to 32767

This is the DNP address for the module. All messages with this address from the client will be processed by the module.

DNPNET.CONFIG.DNP3 _Server.Use_WhiteList

0 or 1

DNPNET.CONFIG.DNP3 _Server.BI_Class

0 to 3

This parameter specifies the default class to be utilized for all the binary input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3 _Server.AI_Class

0 to 3

This parameter specifies the default class to be utilized for all the 16-bit analog input points in the DNP database that are not defined in the override list section.

User Manual DNPNET Ethernet Client/Server Communication Module

Blocks 0 and -1 are empty blocks used during module startup, when there is no data to transfer.

Blocks 1 to 203 are used to transfer the various kinds of DNPNET and IED process data. Block 300 transfers error and status data. Blocks 9901 to 9999 are used for Special Functions.

4.2.3 Module Function Blocks

Blocks 9000-9099 Configuration Data

The DNPNET configuration is requested from the PLC's ladder logic. The PLC will return a block 9000 with the section of the configuration data containing a fixed length. Within this block are the counts for client commands and this will determine how many subsequent blocks will be requested. Subsequent blocks can have a variable length configuration with blocks numbered 9001 and up (to a maximum block number of 9099).

Page 86 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Word Offset

Tag Name

Range

Description

DNPNET.CONFIG.DNP3 _Server.A32I_Class

0 to 3

This parameter specifies the default class to be utilized for all the 32-bit analog input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3 _Server.Float_Class

0 to 3

This parameter specifies the default class to be utilized for all the float input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3 _Server.Double_Class

0 to 3

This parameter specifies the default class to be utilized for all the double input points in the DNP database that are not defined in the override list section.

DNPNET.CONFIG.DNP3 _Server.AI_Deadband

0 to 32767

This parameter specifies the default deadband value assigned to all points not defined in the override list for the 16-bit analog input point type in the DNP database.

DNPNET.CONFIG.DNP3 _Server.A32I_Deadband

0 to 2,147,483,64 7

This parameter specifies the default deadband value assigned to all points not defined in the override list for the 32-bit analog input point type in the DNP database.

DNPNET.CONFIG.DNP3 _Server.Float_Deadband

0 to maximum float value

This parameter specifies the default deadband value assigned to all points not defined in the override list for the float input point type in the DNP database.

DNPNET.CONFIG.DNP3 _Server.Double_Deadba nd

0 to maximum double value

This parameter specifies the default deadband value assigned to all points not defined in the override list for the double input point type in the DNP database.

DNPNET.CONFIG.DNP3 _Server.SelectOperate_ Arm_Time

1 to 32767

DNPNET.CONFIG.DNP3 _Server.Write_Time_ Interval

0 to 1440 minutes

Time interval to set the need time IIN bit (0=never), which will cause the client to write the time. Stored in milliseconds in the module memory.

DNPNET.CONFIG.DNP3 _Server.Spare1_always_ 0

Coded Value 0=Never 1=Sometimes 2=Always

IED can request acknowledgement from client station when sending data.

DNPNET.CONFIG.DNP3 _Server.Spare2_always_ 0

1 to 32767 milliseconds

Time period to wait for client Data Link confirmation of last frame sent. This time is in milliseconds. This parameter is only used if the frame is sent with confirmation requested.

DNPNET.CONFIG.DNP3 _Server.Spare3_always_ 0

0 to 255 retries

DNPNET Ethernet Client/Server Communication Module User Manual

ProSoft Technology, Inc. Page 87 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Word Offset

Tag Name

Range

Description

DNPNET.CONFIG.DNP3 _Server.App_Layer_ Confirm_Tout

1 to 32767 milliseconds

DNPNET.CONFIG.DNP3 _Server.Unsolicited_ Response

0 or 1

If set to 0, the server will not send unsolicited responses. If set to 1, the server will send unsolicited responses.

DNPNET.CONFIG.DNP3 _Server.Class_1_Unsol_ Resp_Min

1 to 255 events

Minimum number of events in Class 1 required before an unsolicited response will be generated.

DNPNET.CONFIG.DNP3 _Server.Class_2_Unsol_ Resp_Min

1 to 255 events

Minimum number of events in Class 2 required before an unsolicited response will be generated.

DNPNET.CONFIG.DNP3 _Server.Class_3_Unsol_ Resp_Min

1 to 255 events

Minimum number of events in Class 3 required before an unsolicited response will be generated.

DNPNET.CONFIG.DNP3 _Server.Unsol_Resp_Del ay

1 to 32767 milliseconds

Maximum number of 1 millisecond intervals to wait after an event occurs before sending an unsolicited response message. If set to 0, only use minimum number of events.

DNPNET.CONFIG.DNP3 _Server.UResp_Client_ Address

0 to 255 retries

DNP destination address where unsolicited response messages are sent.

DNPNET.CONFIG.DNP3 _Server.AI_Events_with_ time

0 or 1

DNPNET.CONFIG.DNP3 _Server.Events_Require _ Time_Sync

0 or 1

DNPNET.CONFIG.DNP3 _Server.Initialize_DNP_ Output_Database

0 or 1

User Manual DNPNET Ethernet Client/Server Communication Module

Page 88 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Word Offset

Tag Name

Range

Description

DNPNET.CONFIG.DNP3 _Server.PassThrough_ CROB

0 or 1

DNPNET.CONFIG.DNP3 _Server.Use_TripClose_ Single_Point

0 or 1

DNPNET.CONFIG.DNP3 _Server.reserved_4

DNPNET.CONFIG.DNP3 _Server.reserved_3

DNPNET.CONFIG.DNP3 _Server.reserved_2

DNPNET.CONFIG.DNP3 _Server.reserved_1

DNPNET.CONFIG.DNP3 _Server.reserved_0

DNPNET Ethernet Client/Server Communication Module User Manual

4.2.4 Special Function Blocks

Special Function blocks are special blocks used to control the module or request special data from the module. The current version of the software supports several Special Function blocks.

Block 9901: CROB Control Block for Digital Output

If the ControlLogix processor sends a block 9901, the module places the digital output control commands to be sent to the server into the command queue of the modules client driver. Commands placed in the queue with this method are not contained in the normal

ProSoft Technology, Inc. Page 89 of 140 February 13, 2015

command list. Data contained in the block completely defines the command to the system. The format for the block is as follows:

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the block identification code of 9901 for the block.

Command Count

This field defines the number of CROB blocks to generate. The valid range for the field is 1 to 6.

2 to 11

Command #1

Data for the command relay block (CROB) to be generated.

12 to 21

Command #2

Data for the command relay block (CROB) to be generated.

22 to 31

Command #3

Data for the command relay block (CROB) to be generated.

32 to 41

Command #4

Data for the command relay block (CROB) to be generated.

… … …

232 to 241

Command #24

Data for the command relay block (CROB) to be generated.

242 to 247

Spare

Not Used.

Word Offset

Definitions

Description

PortFlags

Clear 3rd bit to disable. Set 5th bit to select IED DB for write functions

Server Address

IED node address for the server to consider on the network.

Object

Object type always 12

Variation

Variation always 1

Function

Function codes 3 (select/operate), 5 (direct operate with ACK), and 6 (direct operate no ACK) supported. Function code 4 is automatically sent after a successful function 3.

Address in Server

Point in IED to consider with the CROB.

Control Code

This is a standard DNPNET protocol control code byte (see description below).

Pulse Count

This parameter specifies the number of pulses to generate for pulse output control. This parameter has a range of 0 to 255 as the value is a byte parameter in the CROB. If a value of zero is entered, the operation will not execute.

Pulse On Time

This parameter specifies the on-time interval for pulse control.

Pulse Off Time

This parameter specifies the off-time interval for pulse control.

Bits

Definitions

Description

0 to 3

Code

These bits determine the control operation to be performed by the command: 0=No operation, 1=Pulse on, 2=Pulse off, 3=Latch on and 4=Latch off. All other values are undefined in the DNPNET protocol.

Queue

0=Normal (execute once), 1=Re-queue (place at end of queue after operation).

User Manual DNPNET Ethernet Client/Server Communication Module

The 10-word data area for each command is defined in the following table.

The control code in the command is a bit-coded byte value with the following definition:

Page 90 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Clear

This parameter clears the queue. If the value is set to zero, the queue is not affected. If the value is set to 1, the queue will be cleared.

6 to 7

Trip/Close

These two bits select the trip or close relay. For close relay control, set the bits to 01. For trip relay control, set the bits to

10. A value of 00 for the bits is used for single point control of normal digital output points.

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the value of 9902 identifying the enable command to the module.

Command count

This field contains the number of commands to enable in the command list. Valid values for this field are 1 to 240.

2 to 241

Command Numbers to enable

These 240 words of data contain the command numbers in the command list to enable. The commands in the list will be placed in the command queue for immediate processing by the module. The first command in the list has an index of 0.

242 to 247

Spare

Not Used

DNPNET Ethernet Client/Server Communication Module User Manual

The commands placed in the normal command list for the Client port does not provide the means for all the possible CROB operations. It only supports the latch on and off operations based on the status of the associated database value specified in the command. With the use of this block, outputs can be pulsed on or off for user specified count and time intervals. Additionally, this command provides support for trip/close relay control.

Block 9902: Command Control

If the ControlLogix processor sends a block 9902, the module will place the commands referenced in the block in the command queue. Commands placed in the queue with this method need not have their enable bit set. Only valid commands will be placed in the queue.

Up to 240 commands can be enabled and placed in the command queue with one write request from the ControlLogix processor.

Note: There is no response to this block by the module. The module will place the selected commands into the command queue. If the command references an IED unit that is not in the slave list, the command will not be placed in the command queue. Normal processing of the command list will continue after the commands specified in this block are processed.

Block 9903: Event Message Block

When the DNPNET Client is configured to pass event messages from the port to the processor, block identification 9903 will be utilized. When the Client port receives an event message, it will place the data in the message into the event message queue. This queue has room for up to 1000 messages.

ProSoft Technology, Inc. Page 91 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Word Offset in Block

Data Field(s)

Description

Reserved

Block ID

This is the next block requested by the module.

Event Count

This field contains the number of events present in the block. Values of 1 to 15 are valid.

3 to 18

Event 1

Event message

19 to 34

Event 2

Event message

35 to 50

Event 3

Event message

51 to 66

Event 4

Event message

67 to 82

Event 5

Event message

83 to 98

Event 6

Event message

99 to 114

Event 7

Event message

115 to130

Event 8

Event message

131 to 146

Event 9

Event message

147 to 162

Event 10

Event message

163 to 178

Event 11

Event message

179 to 194

Event 12

Event message

195 to 210

Event 13

Event message

211 to 226

Event 14

Event message

227 to 242

Event 15

Event message

243

Event Overflow

1 if module's 1000 count event buffer was full when this block was packed

244

Events Queued

Number of events still queued in module.

245 to 248

Spare

Not used

249

Block ID

This field contains the block identification code of 9903 for the block.

Word Offset

Definitions

Description

Device Index

This field contains the module's device index for the IED the message was received from (0 to 39).

IED Address

This field contains the IED database index for the point. If set to -1, then not in database.

DNPNET Address

This field contains the DNPNET database index for the point. If set to -1, then not in database.

Server Address

This field contains the remote server address for the IED unit from which the message was received.

User Manual DNPNET Ethernet Client/Server Communication Module

When the backplane task in the modules recognizes data in this queue, it will form 9903 blocks to transfer the data to the processor. Ladder logic extracts the event data from the 9903 block and places it in controller tags.

Up to 15 events are passed to the processor in each block. The format of each event message in the block is shown in the following table.

Page 92 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Point Number

This field contains the point number in the remote IED unit for the event message.

Object

This field contains the object code for the point and event.

Variation

This field contains the variation code for the point and event.

Reserved

Reserved for future use

8 to 9

Low Time

This field contains the least-significant double word of the 64bit UTC time for the event.

10 to 11

High Time

This field contains the most- significant double word of the 64bit UTC time for the event.

12 to 13

DINT Value

This field contains the double integer value for the point associated with the event message.

14 to 15

REAL Value

This field contains the double float point value for the point associated with the event message.

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the block identification code of 9904 for the block.

Command Count

This field defines the number of commands contained in the block. The valid range for the field is 1 to 24.

2 to 11

Command #1

Data for command.

12 to 21

Command #2

Data for command.

... … …

232 to 241

Command #24

Data for command.

242 to 247

Reserved

Reserved for future use

Word Offset

Definitions

Description

Port_Flag

Clear 3rd bit to disable. Set 5th bit to select IED DB for write functions

Server_Address

Address of server command is sent to

Object

Object number

Variation

Variation number

Function

Function number

Point_Number_In _Server

Starting point in server 6

Point count

Number of points in server

DNPNET Ethernet Client/Server Communication Module User Manual

Block 9904: Auxiliary Client Commands Block

Block identification code 9904 is used to place up to 24 Auxiliary Commands in the command queue.

The format of each message in the block is shown in the following table.

ProSoft Technology, Inc. Page 93 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

DNP_Point_Numb er_In_Client

Starting point number in DNP database to store data

IED_Point_Numbe r_In_Client

Starting point number in IED database to store data 9

Reserved

Word Offset Start

Stop

Data Field(s)

Description

0 0 Reserved

1 1 Block ID

This is the next block requested by the module.

2 2 CROB count

This field contains the number of CROB records that are contained in this block. The range is between 1 and 40.

3 8 CROB 1

CROB block data as defined below

CROB 2

CROB block data as defined below

CROB 3

CROB block data as defined below

CROB 4

CROB block data as defined below

CROB 5

CROB block data as defined below

CROB 6

CROB block data as defined below

CROB 7

CROB block data as defined below

CROB 8

CROB block data as defined below

CROB 9

CROB block data as defined below

CROB 10

CROB block data as defined below

CROB 11

CROB block data as defined below

CROB 12

CROB block data as defined below

CROB 13

CROB block data as defined below

CROB 14

CROB block data as defined below

CROB 15

CROB block data as defined below

CROB 16

CROB block data as defined below

104

CROB 17

CROB block data as defined below

105

110

CROB 18

CROB block data as defined below

111

116

CROB 19

CROB block data as defined below

117

122

CROB 20

CROB block data as defined below

User Manual DNPNET Ethernet Client/Server Communication Module

Block 9910: CROB Data received on DNPNET Port

Block identification code 9910 is used to send CROB messages received on the DNPNET server port to the processor. For pulse or trip/close operations with a fast duration, this block can be used to pass the information into the ControlLogix processor. Additional ladder code can be written by the user to perform the operation in locally in ladder code, making sure that a CROB message from an attached client is not missed due to database paging being too slow for the control operation.

Block Format for Read

Page 94 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Word Offset Start

Stop

Data Field(s)

Description

123

128

CROB 21

CROB block data as defined below

129

134

CROB 22

CROB block data as defined below

135

140

CROB 23

CROB block data as defined below

141

146

CROB 24

CROB block data as defined below

147

152

CROB 25

CROB block data as defined below

153

158

CROB 26

CROB block data as defined below

159

164

CROB 27

CROB block data as defined below

165

170

CROB 28

CROB block data as defined below

171

176

CROB 29

CROB block data as defined below

177

182

CROB 30

CROB block data as defined below

183

188

CROB 31

CROB block data as defined below

189

194

CROB 32

CROB block data as defined below

195

200

CROB 33

CROB block data as defined below

201

206

CROB 34

CROB block data as defined below

207

212

CROB 35

CROB block data as defined below

213

218

CROB 36

CROB block data as defined below

219

224

CROB 37

CROB block data as defined below

225

230

CROB 38

CROB block data as defined below

231

236

CROB 39

CROB block data as defined below

237

242

CROB 40

CROB block data as defined below

243

248

Spare

Not Used

249

Block ID

This field contains the block identification code of 9910 for the block.

Word Offset

Definitions

Description

Point Number

This field contains the BO point number for the following CROB command.

Control Code

Byte value Control Code of the CROB message received. Control code 81 = trip, 41 = close, and 1 = pulse.

Count

Byte value of number of pulses

2 to 3

On Time

This double-word contains the ‘on’ time interval for the CROB block.

4 to 5

Off Time

This double-word contains the ‘off’ time interval for the CROB block.

DNPNET Ethernet Client/Server Communication Module User Manual

The format of each 6 word data region in the block is as follows:

Block 9949: Request Server Communication Error Table

If the ControlLogix processor sends a block 9949, the <Model Number> module responds with a server communication error listing.

ProSoft Technology, Inc. Page 95 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the value of 9949 identifying the block type to the module.

Number of servers

This field contains the number of servers to report in the response message. The value has a range of 1 to 30.

Start Server Index

This parameter sets the index in the server array where to start. The first server in the array has a value of 0. The last index in the array has a value of (MaxServers -1).

3 to 247

Reserved

Reserved for future use

Word Offset in Block

Data Field(s)

Description

Reserved

Reserved (0)

Block ID

This is the next block requested by the module.

Server Count

This field contains the number of server records contained in the block that must be processed by the PLC. This field will have a value of 1 to 30.

Server Start Index

This field contains the index in the server array for the first record in the file. This field will have a value of 0 to (MaxServers-1).

4 to 11

Server Data #1

This is the server data for the first server in the block. The server index for the data is the Server Start Index given in word 3.

12 to 19

Server Data #2

This is the server data for the second server in the block.

20 to 27

Server Data #3

This is the server data for the third server in the block.

… … …

236 to 243

Server Data #30

Last server requested.

244 to 248

Spare

Not Used

249

Block ID

This field contains the value of 9949 identifying the block type to the PLC.

Value

Description

Index

This value corresponds to the index in the device array for the server.

Server Address

This value corresponds to the DNP server address for the device.

User Manual DNPNET Ethernet Client/Server Communication Module

These data values are updated after each command processed by the module. The block 9949 request is structured to retrieve data for up to 30 server units each call. The format of the block sent from the ControlLogix processor to the module is shown in the following table.

Using the data in this block, the module responds to the ControlLogix processor with a read block 9949 containing the requested server information in the following format:

The user can sequentially read through the list of all IED units up to 30 at a time to retrieve all the error information. This data can be transferred to the module's controller tag in the processor’s ladder logic.

Below is the 8-word data area for each server.

Page 96 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Bad CRC

This value represents the number of bad CRC values received from the server device.

Buff Overflow

This value represents the number of buffer overflow messages received from the server device.

Transaction Sequence Number

This value represents the number of incorrect transport layer sequence number errors.

Confirm Retries

This value represents the number of data link layer confirm request retries.

Confirm Failures

This value represents the number of data link layer confirm request failures.

No Application Layer Responses

This value represents the number of application layer no responses to requests.

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the value of 9950 identifying the block type to the module.

Number of Commands to report

This field contains the number of commands to report in the response message. The value has a range of 1 to 200.

Start Index of First Command

This parameter sets the index in the command list where to start. The first command in the list has a value of 0. The last index in the list has a value of (MaxCommands -1).

3 to 247

Spare

Not Used

Word Offset in Block

Data Field(s)

Description

Reserved

Block ID

This is the next block requested by the module.

Number of Commands reported

This field contains the number of commands contained in the block that must be processed by the PLC. This field will have a value of 1 to 200.

DNPNET Ethernet Client/Server Communication Module User Manual

Block 9950: Read Command Error List

If the ControlLogix processor sends a block number of 9950 to the module, the application will respond with an MVI56E-DNPNET Client command error list. Each command in the system has a data word set aside for its last error code. This value is set by the DNPNET Client command list task and the values correspond to the errors listed in the error section of this documentation. This can be accessed 200 commands at a time.

Block format of Command Error List Request sent to the module from the ControlLogix processor.

Block format of Command Error List Response sent to the ControlLogix processor from module

ProSoft Technology, Inc. Page 97 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Start Index of First Command

This field contains the index in the command list for the first value in the file. This field will have a value of 0 to (MaxCommands-1).

4 to 203

Command List Errors

Each word of this area contains the last error value recorded for the command. The command index of the first value (offset

4) is specified in word 3 of the block. The number of valid command errors in the block is set in word 2 of the block. Refer to the command error list to interpret the error codes reported.

204 to 248

Spare

Not Used

249

Block ID

This field contains the value of 9950 identifying the block type to the PLC.

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the value of 9958 identifying the event block to the module.

Event Count

This field contains the number of events contained in the block. Valid values for this field are 1 to 24.

Sequence Counter

This field is used to hold the sequence counter for each 9958 block transfer. This is used to synchronize and confirm receipt of the block by the module.

(Begin Event #1)

Point_Number

Data point in the DNPNET binary input database represented by the event.

Class_ Override

Regardless of the Class defined for the given point number, this will be the Class of the event. (1, 2, or 3)

Value

Value of the point, 0 or 1, of bit 0 of this 16-bit word. All other bits are ignored.

Year

Year of the event timestamp

Month

Month of the event timestamp

Day

Day of the event timestamp

Hour

Hour of the event timestamp

Minute

Minute of the event timestamp

Seconds

Seconds of the event timestamp

Milliseconds

Milliseconds of the event timestamp

(Next 23 Events)

13 to 22

Ten words of data for Event #2.

…

User Manual DNPNET Ethernet Client/Server Communication Module

Block 9958: Binary Input Event With Calendar Time

Block identification code 9958 sends a set of binary input events with calendar time to the module. The following table lists the block format of Binary Input Event Request sent to the module from the ControlLogix processor.

Page 98 of 140 ProSoft Technology, Inc. February 13, 2015

MVI56E-DNPNET ♦ ControlLogix Platform Contents

Word Offset in Block

Data Field(s)

Description

233 to 242

Ten words of data for Event #24.

(End of Event Data)

243 to 247

Spare

Not used

Word Offset in Block

Data Field(s)

Description

Reserved

Block ID

Block identification code for request from PLC by the module.

Event Count Received

This field contains the number of events processed/received by the module. (1 to 24)

Sequence Counter Received

Sequence counter received for each block transfer. Used to synchronize and confirm receipt of the block by the module. This field contains the sequence counter of the last successful block 9958 received.

4 to 248

Spare

Not used

249

Block ID

Identification code for block set to 9958.

Word Offset in Block

Data Field(s)

Description

Block ID

This field contains the value of 9959 identifying the event block to the module.

Event Count

This field contains the number of events contained in the block. Valid values for this field are 1 to 20.

DNPNET Ethernet Client/Server Communication Module User Manual

Up to 24 events can be passed from the ControlLogix processor to the module in each block. To insure that the block reached the module and was processed, the module will send a response read block 9958 to the ControlLogix processor. The following table describes the format of the block.

The sequence counter field in the returned block is set to the last successfully processed block 9958 from the ControlLogix processor. Compare this value to that sent by the ControlLogix processor.

If the values match, the events can be removed from the ControlLogix processor. If the values do not match, or the ControlLogix processor does not receive a 9958 block, the

ControlLogix processor must re-send the block.

Block 9959: Analog Input Event With Calendar Time

Block identification code 9959 sends a set of analog input events with calendar time to the module. The following table lists the block format of Analog Input Events sent to the module from the ControlLogix processor.

ProSoft Technology, Inc. Page 99 of 140 February 13, 2015

Contents MVI56E-DNPNET ♦ ControlLogix Platform

Word Offset in Block

Data Field(s)

Description

Sequence Counter

This field is used to hold the sequence counter for each 9959 block transfer. This is used to synchronize and confirm receipt of the block by the module.

(Begin Event #1)

Point_Number

This is the data point in the DNPNET analog input database represented by the event.

Class_Override

Regardless of the Class defined for the given point number, this will be the Class of the event. (1, 2, or 3)

5 to 6

Value

Value of the point. 16-bit integer, 32-bit integer, or 32-bit float can be packed into this space

Year

Year of the event timestamp

Month

Month of the event timestamp

Day

Day of the event timestamp

Hour

Hour of the event timestamp

Minute

Minute of the event timestamp

Seconds

Seconds of the event timestamp

Milliseconds

Milliseconds of the event timestamp

Reserved

(Next 19 Events)

15 to 26

Ten words of data for Event #2

…

… … 231 to 242

Ten words of data for Event #20

(End of Event data)

243 to 247

Spare

Not Used

Word Offset in Block

Data Field(s)

Description

Reserved

Reserved(0)

Block ID

Block identification code for request from PLC by the module.

Event Count Received

This field contains the number of events processed/received by the module.

Sequence Counter Received

Sequence counter Received for each block transfer, used to synchronize and confirm receipt of the block by the module. This field contains the sequence counter of the last successful block 9959 received.

4 to 248

Spare

Not used

249

Block ID

Identification code for block set to 9959.

User Manual DNPNET Ethernet Client/Server Communication Module

Up to 20 events can be passed from the ControlLogix processor to the module in each block. To insure that the block reached the module and was processed, the module will send a response read block 9959 to the ControlLogix processor.

Page 100 of 140 ProSoft Technology, Inc. February 13, 2015

ProSoft Technology MVI56E-DNPNET User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
