Peerless-AV PLCM-4 User Manual

Installation and Assembly - Double Stack Box Accessory
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Model: PLCM-4
Parts List
Part #Description Qty
A mounting box 1 124-1841 B tilt bracket 1 200-1552 C M10 x 15mm penta-pin screw 8 520-9263 D penta-pin driver 1 520-9260 E u-bolt 2 560-1060
F nylock nut 4 530-9310 G at washer 4 540-9454
NOTE: SOME PARTS MAY APPEAR SLIGHTLY DIFFERENT THAN ILLUSTRATED
A
B
DC
GF
1 of 3
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112
ISSUED: 1-17-2014 SHEET #: 120-9189-1 1-17-2014
WARNING
• Installer must verify that the ceiling will safely support the combined weight of all attached equipment and
hardware.
Securely fasten mounting box (A) to support
1
pipe (not included) using two u-bolts (E), four at washers (G) and four nylock nuts (F).
F
E
G
A
SUPPORT PIPE (NOT INCLUDED)
fig 1.1
BY HAND, insert four M10 x 1.5 x 15 mm penta-pin screws (C) into threaded holes in the sides of ceiling arm
1-1
box (A). Leave approximately 1/4" of exposed thread as shown in detail 1.
C
DETAIL 1
fig 1.2
2 of 3
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112
ISSUED: 1-17-2014 SHEET #: 120-9189-1 1-17-2014
C
1/4"
Installation of Plasma Screens and 30" or Larger LCD Screens
NOTE: Refer to adapter plate instruction sheet for attachment of adapter plate to plasma before proceeding with
step 2.

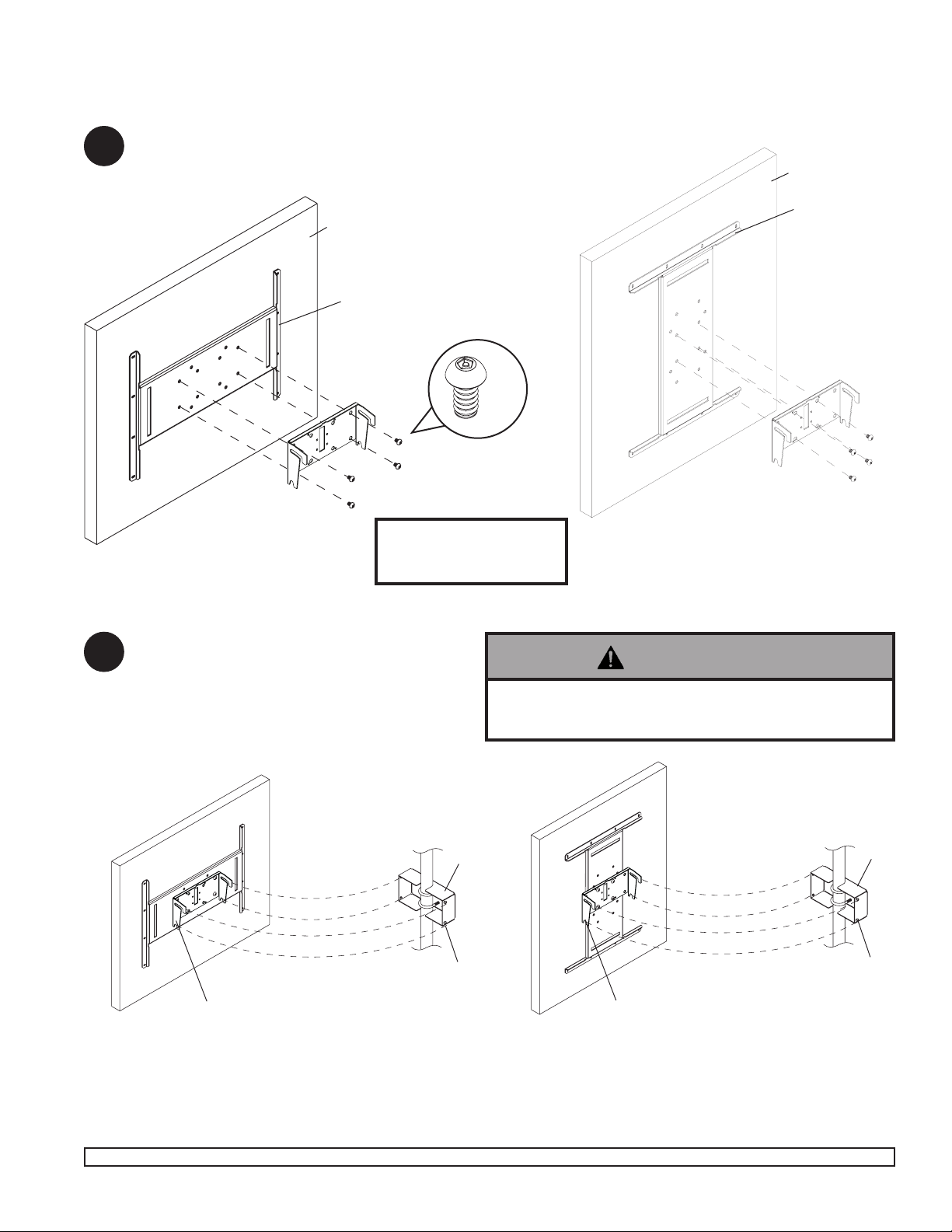

Attach tilt bracket (B) to adapter plate using four M10 x 15 mm penta-pin screws (C) in accordance with
appropriate drawing below. Tighten using M10 penta-pin tool (D).
PLASMA SCREEN
ADAPTER PLATE
PLASMA SCREEN
ADAPTER PLATE
B
NOTE: Screen and
LANDSCAPE PORTRAIT
Hang tilt bracket (B) onto mounting box (A). Adjust
tilt as desired and tighten four M10 x 1.5 x 15 mm penta-pin screws (C) securely using M10 penta-pin tool (D).
adapter plate may appear
different than illustrated.
C
B
C
LANDSCAPE
WARNING
• For a safe assembly be sure to fully tighten four
screws (C).
A
C
B
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112
LANDSCAPE PORTRAIT
3 of 3
All other brand and product names are trademarks or registered trademarks of their respective owners.
B
ISSUED: 1-17-2014 SHEET #: 120-9189-1 1-17-2014
© 2014, Peerless Industries, Inc. All rights reserved.
A
C
