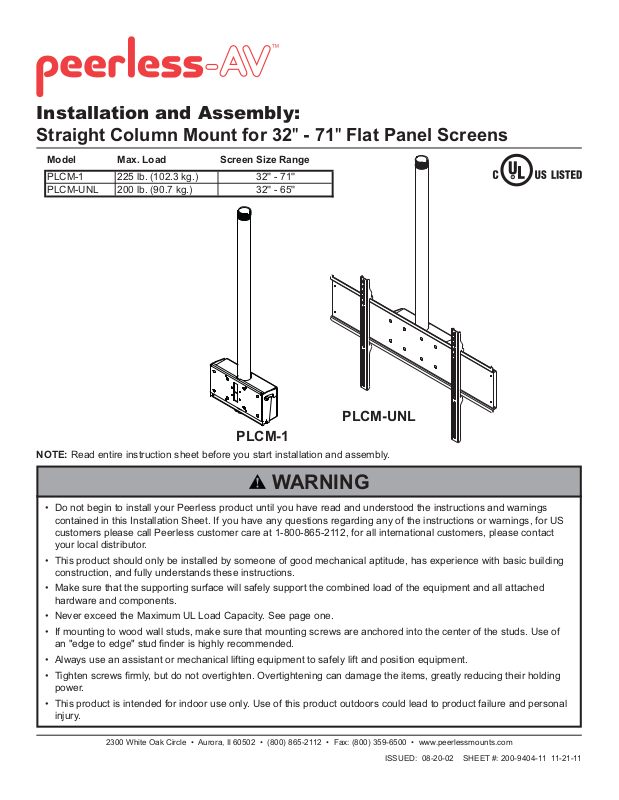

Installation and Assembly:
Straight Column Mount for 32" - 71" Flat Panel Screens
Model Max. Load Screen Size Range
PLCM-1 225 lb. (102.3 kg.) 32'' - 71''
PLCM-UNL 200 lb. (90.7 kg.) 32'' - 65''
PLCM-UNL
PLCM-1
NOTE: Read entire instruction sheet before you start installation and assembly.
WARNING
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum UL Load Capacity. See page one.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud fi nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
A
Before you begin, make sure all parts shown are included with your product.
Parts List
Description Qty Part #
ceiling arm box
tilt bracket 1
B
33" support pipe 1
C
retaining collar 1
D
M5 x 10 mm penta-pin™ screw 4
E
.062" fiber washer 1
F
M10 x 15 mm penta-pin screw
G
M10 penta-pin tool 1
H
M5 penta-pin tool 1
I
M5 x .8 x 8 mm phillips Type F screw 4
J
Parts may appear slightly different than illustrated.
1
8
A
PLCM-1 PLCM-UNL
Part #
201-1062 201-1062
200-1552
139-1088
1800-375
505-9010
540-9432
520-9263 520-9263
520-9260
520-9249
520-1167
200-1552
139-1088
1800-375
505-9010
540-9432
520-9260
520-9249
520-1167
D
F
B
C
E
H
G
J
I
2 of 9
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
A
Parts List
PLCM-1 PLCM-UNL
Description Qty Part # Part #
adapter plate
A
shallow vertical brackets 2
BB
M5 x 10 mm socket pin screw 4
CC
M10 x 15 mm socket screws 4
DD
6 mm allen wrench 1
EE
4mm allen wrench 1
FF
1
- 201-1110
-
-
-
-
-
201-1511
520-1063
520-9262
560-9716
560-9646
AA
M4 x 12 mm (6)
510-1079
BB
EE
Security Adapter Bracket Fasteners
M5 x 12 mm (4)
520-1064
M6 x 12 mm (4)
520-1050
M8 x 15 mm (6)
520-1068
M6 x 20 mm (4)
FF
520-9554
CC
DD
M5 x 25 mm (4)
520-1122
M4 x 25 mm (4)
510-1082
M6 x 30 mm (4)
520-1067
I.D. .22" (5.6 mm) (4)
540-1057
M6 x 25 mm (4)
520-1211
I.D. .34" (8.7 mm ) (4)
540-1059
M8 x 25 mm (4)
520-1101
3 of 9
multi-washer (6)
580-1036
M8 x 40 mm (4)
520-1152
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
Installing Adapter Brackets
WARNING
• Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
To prevent scratching the screen, set a cloth on a fl at, level surface that will support the weight of the screen. Place
1
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (BB) on back of screen, align to holes, and center on back of screen as shown below. Attach the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers and
spacers as shown in step 1-1 and step 1-2.
NOTE: Top and bottom holes on screen must always be used.
Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
NOTE: Tighten using security allen wrench (FF).
X
BB
Notes:
• The number of fasteners used will vary,
depending upon the type of screen.
• Multi-washers and spacers may not be
used, depending upon the type of screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as
shown.
CENTER BRACKETS
VERTICALLY ON BACK OF
SCREEN
X
Note: "X" dimensions should be equal.
MULTI-WASHER
MEDIUM HOLE FOR M5 SCREWS
SMALL HOLE FOR M4 SCREWS
LARGE HOLE FOR M6 SCREWS
NOTE: For fl at back screens proceed to step 1-1. For bump-out or recessed back screen skip to step 1-2.
4 of 9
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
For Flat Back Display
1-1
Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into display as
shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not
over tighten. If screw cannot make three full turns into the display, select a longer length screw from the baffl ed
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of display.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
DISPLAY
MULTI-WASHER
SCREW
ADAPTER
BRACKET
(BB)
For Bump-out or Recessed Back Display
1-2
Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into
display as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place.
Do not over tighten. If screw cannot make three full turns into the display, select a longer length screw from the
baffl ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
DISPLAY
SPACER
If you have any questions, please call Peerless customer care at 1-800-865-2112.
MULTI-WASHER
SCREW
ADAPTER
BRACKET
(BB)
5 of 9
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
Installing Adapter Bracket
Using the hole pattern shown below, attach adapter plate (AA) to tilt bracket (B) with four M10 x 15 mm screws (G).
2
Tighten screws using M10 penta-pin tool (H).
G
B
AA
6 of 9
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
Thread support pipe (C) into threaded fi tting in ceiling plate (UL Listed CMJ series, sold separately). Align with one
3
small hole in the side of the ceiling plate threaded fi tting. Insert and tighten one M5 x 10 mm penta-pin screw (E)
as shown. Tighten screw using M5 penta-pin tool (I). Insert four M10 x 15 mm penta-pin screws (G) into threaded
holes in the sides of ceiling arm box (A). Leave approximately 1/4" of exposed thread. Slide ceiling arm box (A) and
fi ber washer (F) onto end of support pipe. Thread retaining collar (D) onto support pipe. Allow ceiling arm box (A) to
rest on top of retaining collar (D). Insert and tighten one M5 x 10 mm penta-pin screw (E) into retaining collar (D)
as shown. Insert one M5 x 10 mm penta-pin screw (E) through the tab on the back of ceiling arm box (A). Use M5
penta-pin tool (I) to tighten screws. Do not over tighten.
Note: UL Listed AEC or EXT extension column series can be used in combination with, or in place of support pipe
(C) to achieve different lengths.
ceiling plate (UL Listed CMJ series,
sold separately)
D
C
F
A
E
E
BACK OF
CEILING
ARM BOX
G
G
1/4"
D
7 of 9
E
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
Hang tilt bracket (B) onto ceiling arm box (A). Adjust tilt as desired and tighten four M10 x 15 mm penta-pin screws
4
(G) using M10 penta-pin tool (H).
WARNING
• For a safe assembly be sure to fully tighten four
screws (G).
B
A
8 of 9
G
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
Mounting and Removing Flat Panel Screen
WARNING
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
Hook adapter brackets (BB) onto universal PLP plate (AA), then slowly swing screen in as shown. Turn safety/
5
security screws clockwise at least six times to prevent screen from being removed as shown in detail 1.
Tighten all fasteners using wrench (FF).
Screen can be adjusted horizontally if desired as shown in fi gure 5.1.
NOTE: To lock the screen down, tighten safety/security screws to adapter bracket as shown in detail 1.
To remove screen from mount, loosen safety/security screws, swing screen away from mount, and lift screen off of
mount.
Fig. 5.1
SAFETY/SECURITY
SCREWS
BB
AA
AA
BB
DETAIL 1
9 of 9
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 08-20-02 SHEET #: 200-9404-11 11-21-11
© 2011, Peerless Industries, Inc. All rights reserved.
