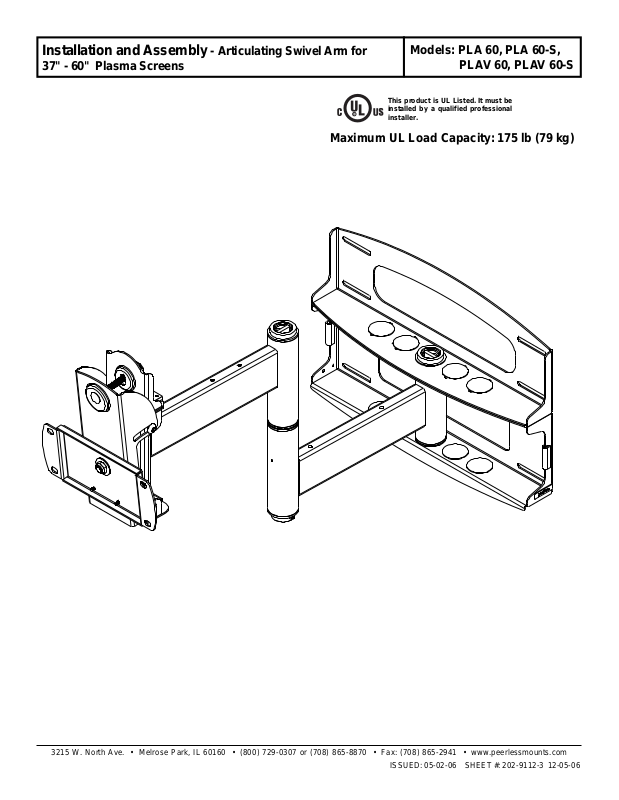

Installation and Assembly - Articulating Swivel Arm for

Models: PLA 60, PLA 60-S,

37" - 60" Plasma Screens

PLAV 60, PLAV 60-S





R

This product is UL Listed. It must be installed by a qualified professional installer.

Maximum UL Load Capacity: 175 lb (79 kg)

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmoun ts.com

ISSUED: 05-02-06 SHEET #: 202-9112-3 12-05-06

Read instruction sheet before you start installation and assembly.

WARNING

Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307.

This product should only be installed by a qualified professional.

Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

Never exceed the Maximum UL Load Capacity of 175 lb (79 kg).

Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal studs (contact customer care). Metal stud installation is not UL evaluated.

If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an "edge to edge" stud finder is highly recommended.

Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

Tighten screws and nuts firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding power.













IMPORTANT!

Certain types of walls require additional mounting hardware...















WALL CONSTRUCTION

ADDITIONAL HARDWARE REQUIRED





Wood Stud, Wood Beam

none





Concrete

none





Metal stud

WSP716, WSP716-S, WSP724, or WSP724-S





Other or unsure?

Contact Customer Care























IMPORTANT! Turn to the appropriate page for your wall installation.

Installations:



To Wood Stud Walls ......................................................................................................

page 4

To Concrete Walls ..........................................................................................................

page 5

Tools Needed for Assembly

stud finder ("edge to edge" stud finder is recommended)

drill

7/32" drill bit for wood studs

5/16" masonry drill bit for concrete

7/16" socket wrench with extension (recommended)

level

phillips screwdriver

Accessories

External Wall Plate (WSP716, WSP716-S, WSP724, WSP724-S) (Metal Stud not evaluated by UL)

2 of 9

ISSUED: 05-02-06 SHEET #: 202-9112-2 06-21-06

Peerless Industries PLA 60, PLA 60-S, PLAV 60, PLAV 60-S User Manual

Parts List

Before you start make sure all parts







listed are included with your product.















PLA 60

PLA 60-S

PLAV 60

PLAV 60-S

DESCRIPTION



QTY. PART #

PART #

PART #

PART #

A wall plate



1

201-1040

201-4040

201-1040

201-4040

B tilt-roll assembly



1

201-1093

201-4093

201-1048

201-4048

C arm assembly



1

201-1072

201-4072

201-1049

201-4049

D wall support arm axle

1

201-1041

201-1041

201-1041

201-1041

E vinyl trim



3

600-1012

600-1012

600-1012

600-1012

F

M10 x 1.5 x 15 mm screw bolt

8

520-9262

520-9262

520-9262

520-9262

G

.505 x .75 x .062" nylon washer

1

540-1074

540-1074

540-1074

540-1074

H tilt adjustment knob

1

560-0108

560-0108

560-0108

560-0108

I

carriage bolt 3/8"-16 x 3.25"

1

520-1315

520-1315

520-1315

520-1315

J

1.525 x 2 x .062" delrin washer

2

540-1070

540-1070

540-1070

540-1070

K

#8-32 x .375" socket head cap screw

1

520-1210

520-1210

520-1210

520-1210

L

plastic finishing cap

8

590-1123

590-1123

590-1123

590-1123

M holding pin



1

580-1166

580-1166

580-1166

580-1166

N retainer plug



1

590-1007

590-1007

590-1007

590-1007

O 5/16 x 3" wood screw

8

520-1243

520-1243

520-1243

520-1243

P

.250 x 1 x .068" washer

8

540-1063

540-1063

540-1063

540-1063

Q 9/64" allen wrench



1

560-9728

560-9728

560-9728

560-9728

R cable management clips

4

590-1166

590-1166

590-1166

590-1166

S cable tie



4

590-1168

590-1168

590-1168

590-1168

T

36" polyester mesh sleeve

1

600-1015

600-1015

600-1015

600-1015

U

6 mm allen wrench



1

560-9716

560-9716

560-9716

560-9716

V

10 mm allen wrench

1

n/a

n/a

560-9727

560-9727

W anchor



8

590-1025

590-1025

590-1025

590-1025

DM

E

F

G

H

K

N

L

A C J P R

B T

W I V U

O Q

S

Some parts may appear slightly different than illustrated.
